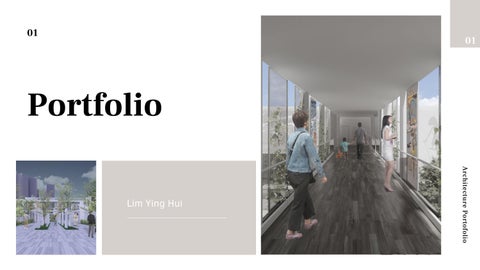

Lim Ying Hui Architecture Portfolio

01

01

Portfolio Architecture Portofolio

Lim Ying Hui

02

02

About me Hello, I am Lim Ying Hui.

I am still learning a lot about architecture & hope to improve my understanding & knowledge on it.

Architecture Portofolio

I am currently a student studying in Ngee Ann Polytechnic, in Sustainable Urban Design & Engineering. I am a passionate & diligent individual with several skills asset & knowledge on Architecture, Civil Engineering & others.

Education

Honors & Awards

2019 - 2022 Ngee Ann Polytechnic Diploma of Sustainable Urban Design & Engineering

2019 Pol-ite 1st Place Girls Category

2015 - 2018 Bendemeer Secondary School 'O' Level Certification

2018 Edusave Good Progress Award

Work Experience 30 Aug - 19 Nov 2021 Lian Architects Architecture Internship Rendering Architecture Visualisation

Workshops 2019 Design Thinking with Materials with Chris Lefteri Participant

2016 Edusave Eagles Award Mar 2018 National Inter-School Tchoukball B Division Girls Championship 2018 1st Place Girls Category Dec 2017 The Knight Tchoukball Cup 8.0 Participation RP -TBAS Youth Cup 2017 Nov 2017 Participation

Aug 2017 1st World Youth Beach Tchoukball Championship 2017 2nd Place Girls Category May 2017 Genesis Tchoukball Cup Participation Mar 2017 National Inter-School Tchoukball B Division Girls Championship 2018 1st Place Girls Category Mar 2017 Johor Tchoukball Tournament 1.0 Participation Aug 2016 4th Asia Youth Pacific Tchoukball Championship 2016 2nd Place Girls Category

Revit - 9/10 Autocad - 8/10 SketchUp - 8/10 Rhinoceros - 6/10 Grasshopper - 6/10 Enscape - 9/10 Vray - 7/10 Photoshop - 8/10 Illustrator - 7/10 Word Document - 9/10 Powerpoint Slides - 9/10 Excel - 7/10

03

Architecture Portofolio

1 Dec - 1 Jan 2019 Recruit Express Part-timer Packing

2017 Edusave Eagles Award

Skills

Projects

04

Kan Community A Year 2 Semester 1 Ngee Ann Poly Project

The Art of Colours A Year 2 Semester 2 Ngee Ann Poly Project

Connectere.

A Year 2 Semester 2 Ngee Ann Poly Project

A Year 3 Semester 1 Ngee Ann Poly Project

The Textile Hideout A Year 3 Semester 2 Ngee Ann Poly Project

Reliving Arts Centre A Year 3 Semester 2 Ngee Ann Poly Project

Architecture Portofolio

Inwards

KAN COMMUNITY

05

To create a communal space that is overlooked by the classrooms above so that users is able to see the activities that take place and to feel similar emotions that take place in the communal space.

Architecture Portofolio

06

06

About Kan Community

It is a project based in Sembulan Lombok, Indonesia

The target users Students, teachers & families of the village

Architecture Portofolio

It is a project which I worked with the Sembulan village so that we can help the village through architecture

THE ART OF COLOURS

07

To create a colourful common space, for residents to have an extended workspace that improves the mental health of people that are feeling the stress/anxiety from Covid-19 through colour therapy

Architecture Portofolio

08

08

About The Art of Colours

It is a project based in Bras Basah Complex, Singapore

The target users Residents & working adults in the vicinity

Architecture Portofolio

It is a project which I had chosen the designated site in my neighbourhood to help residents cope with Covid-19 through architecture

09

How might we create a public housing that place emphasis on social interactions & community spirit, to encourage young families, young adults and single parent to help one another. So that single parents will have a more well bonded community

Architecture Portofolio

CONNECTERE.

09

10

About Connectere.

It is a project based in Choa Chu Kang, Singapore

The target users Single parents, young families & young adult

Architecture Portofolio

It is a project which I had chosen the designated site provided by my lecturers to create a public housing that is atypical to the usual HDBs in Singapore

Each level has a different plus programmes between/beside the residential units.

11

Architecture Portofolio

12

Landscape Design Intent of Connectere.

The green courtyard uses vertical layering for the landscape and each plant is chosen specifically such that all the plants between the courtyard require semi-sun as the building is oriented such that it is not completely exposed to the sunlight at any time of the day. The landscape design creates a focal point between the units and the connecting corridor act as a focal point for connectivity.

Architecture Portofolio

My landscape design intent is to create a green courtyard between the units to provide a tranquil and green hub for connectivity, it creates a ‘private’ setting yet openness for users through the scale and positioning of the units & adds more natural colours/shapes to the modular building. The positioning & orientation of the units also result in a constant ventilation throughout the HDB and the units’ shorter end are facing north-south to reduce glaring & constant sunlight. Furthermore, the spaces between each unit on the 1st floor is used as a fitness corner and each fitness corner has a different utility & the green courtyard acts as a ‘rest stop’ and connection between spaces & people.

13

To create an experience where users can rejuvenate through the play of light and shadow with nature.

Creating a revitalising experience for users of all age groups.

Architecture Portofolio

Inwards

13

14

About Inwards

It is a project based on a land that is created

The target users Youths, working adults & elderly

Architecture Portofolio

This project I was given the keyword 'Rejuvenate' & created a building that has meditation studio, yoga room, cafe & a indoor swimming pool for rejuvenating

Each level has a different plus programmes & users are able to experience different ways of rejuvenating

15

Level 1 (Cafe)

Level 2 (Yoga Room)

Level 3 (Meditation Studio)

Architecture Portofolio

Basement (Indoor Pool)

16

Architecture Portofolio

A outdoor fitness corners located in between the gardens to create a calming & enclosed effect, so that users are able to have privacy while surrounded by nature

TEXTILE HIDEOUT @ KAMPONG GLAM

17

Textile hideout is a reimagined hideout that allows users to reinvigorate & safe space to relax.

Where each cube does not have a fixed function which allows users to freely use the space to their own imagination

Architecture Portofolio

18

About Textile Hideout @ Kampong Glam

18

O

It is a project based in Kampong Glam, Singapore Architecture Portofolio

This is a project that is meant for public spaces. The focus of this project is the design adaptability of of how my design can correspond to different sites. The isometric diagram shows a single module which can be varied throughout different sites. It creates a therapeutic corner in a public space

19

Design Adaptability of The Textile Hideout

Architecture Portofolio

The structure is made out of timber & fabric to create a lightweight appearance that is surrounded in a concrete jungle.

Each cube does not have a fixed function which allows users to freely use the space to their own imagination. Hence, each cube can either be used for reading, relaxing & exercising. This concept reinforces the idea of their own hideout by the flexibility of space; a free spirited space. The cubes also encourage social distancing while relaxing. The openings of the fabric can be adjusted by the users to create opportunities for mingling or a private space for users. The orientation of the modules connected & scale are such that it corresponds to the site, e.g more decking can be added. The flexibility of the fabric and volume allows users to a more private or open space for different sites.

20

The Textile Hideout @ SingPost Centre

Architecture Portofolio

We had to choose another site for this project to show the design adaptability of it & I had chosen SingPost Centre which had a contrast to the Kampong Glam site as SingPost centre is heavy in human traffic. The large amount of human traffic will cause an increase in noise & the experience of the user.

Hence, the flexibility of the fabric allows users to have a more enclosed space in a site that could cause discomfort & disrupt their moment.

Reliving Arts Centre

21

To create an art centre for the less privileged families & artist, to allow business opportunities, interactions & inspirations & creating a safe space for people. While retaining & increasing awareness of Malay Heritage through the use of Art.

Architecture Portofolio

22

22

About Reliving Arts Village It is a project based in Kampong Glam, Singapore Visual Connection

Interlocking Spaces

The target users Artists, Low Income Families, Single Parents

Courtyard Strategy

Architecture Portofolio

It is a project which we were assigned to the given site & were asked to choose 2 clients for our building. The clients I chose were ArtReach & National Arts Council.

Site Context & Diagrams of Reliving Arts Centre

23

Green Roof

Space Planning

Wind Direction

Sun Path

Architecture Portofolio

Understanding of Space

24

Design Strategies of Reliving Arts Centre There are 3 passive design strategies: Vertical Climbers Perforated Aluminium Facades Green Roof

The facade has expressions of Wayang Kulit which provides more sunshading in spaces that has more sun glare. Furthermore, Wayang Kulit performance can be projected onto the facade to create a unique experience.

The green roof provides an overall cooling in the building especially in a tropical place like Singapore.

Architecture Portofolio

The Vertical climbers mixed with art pieces creates a unique transitional art gallery. Allowing users to be surrounded by Malay art, which creates awareness & inspirations.

Art Gallery of Reliving Arts Centre

25

This shared living space is for the Artist Residency which allows intimate interactions to take place. Allowing the public to have greater understanding of the art scene in Singapore.

Architecture Portofolio

Shared Living Space of Reliving Arts Centre

26

This shared living space is for the Artist Residency which allows intimate interactions to take place. Allowing the public to have greater understanding of the art scene in Singapore.

Architecture Portofolio

Transitional Art Gallery of Reliving Arts Centre

27

Transitional Art Gallery that showcases Batik Painting, Wayang Kulit & Rattan Weaving art pieces of artists and public. Vertical creepers that provides sun shading and privacy.

Architecture Portofolio

28

Art Workshops of Reliving Arts Centre

Painting Workshop

There are 4 main art workshops: Wayang Kulit Workshop Rattan Weaving Workshop Batik Painting Workshop Painting Workshop

The Rattan Weaving Workshop has an bird eye view of the Design Studio and will be able to see the movement and interactions of other users, which creates inspirations for users.

Batik Painting Workshop

Architecture Portofolio

The Wayang Kulit Workshop has a translucent facade such that users can perform live Wayang Kulit performance to the public outside. Creating a hands on experience for users while learning how wayang kulit performances work.

29

Art Workshops of Reliving Arts Centre The Painting Workshop and Batik Painting Workshop are interconnected through the bi-folding door to allow interactions and inspire users in tnhe workshop.

Painting Workshop

Architecture Portofolio

The Painting Workshop has a full height wall that allows users to paint together while letting light inn through the glazing. Creating a holistic and interactive experience for users and the kids from the daycare centre.

The Batik Painting Workshop has a unique drying rack with vegetation as the background to create an outdoor experience that contrast with the painting workshop. This allows discussions between users and allowing the batik paintings to dry quicker.

Batik Painting Workshop

30

3D Model of Reliving Arts Centre The Painting Workshop and Batik Painting Workshop are interconnected through the bi-folding door to allow interactions and inspire users in tnhe workshop.

The Batik Painting Workshop has a unique drying rack with vegetation as the background to create an outdoor experience that contrast with the painting workshop. This allows discussions between users and allowing the batik paintings to dry quicker.

Architecture Portofolio

The Painting Workshop has a full height wall that allows users to paint together while letting light inn through the glazing. Creating a holistic and interactive experience for users and the kids from the daycare centre.

31

31
