The Portfolio from Yaqin Pan

from 2016 to now

ABOUT HOW TO SERVE "PEOPLE" BETTER

PORTFOLIO The architect’s role is to fight for a better world, where he can produce an architecure that serves everyone and not just a group of privileged people.

—Oscar Niemeyer

from 2016 to now

ABOUT HOW TO SERVE "PEOPLE" BETTER

DIRECTORY The architect’s role is to fight for a better world, where he can produce an architecure that serves everyone and not just a group of privileged people.

—Oscar Niemeyer

1

REPAIR A WINDOW , A WINDOW FOR REPAIR Thesis: rethink renovation

2

IGNISLINE

3

FLOW & GLOW

4

COURTYARD WE GROW

5

FRAGMENT

6

THE MOURNING PLACE

7

ABOVE THE RUINS

8

CITY WATER TANK

9

CO-EXIST BORDER

10

OTHER WORKS

Denver code housing

Integrated studio about dancing studio, and smooth transition between interior & exterior

Adaptive reuse of Chinatown area

Affordable housing project in Oakland downtown

After the epidemic situation calmed down in Wuhan, people are in need of a place to cry for their loved ones.

In the context of urban expansion, we discuss a new form of ruins

Flood regulation & quarry restoration & city public space

A vestigation towards stray cats in my community under covid-19

Know more about competitions and prizes

01 REPAIR A WINDOW , A WINDOW FOR REPAIR RETHINK RENOVATION INFORMATION: Thesis Seminar & Thesis Studio Duration: 09/2023-05/2024 Location: Salk Institute, San Diego, USA Type: Seminar & Studio/ Solo Work Instructor: Neyran Turan, Ashley August

DESCRIPTION: This is a project about maintaining, mending and repairing. Why we bother to talk about all this behind-thescenes work? Actually the discussion involves the contradiction between a consumer society and a repair society.

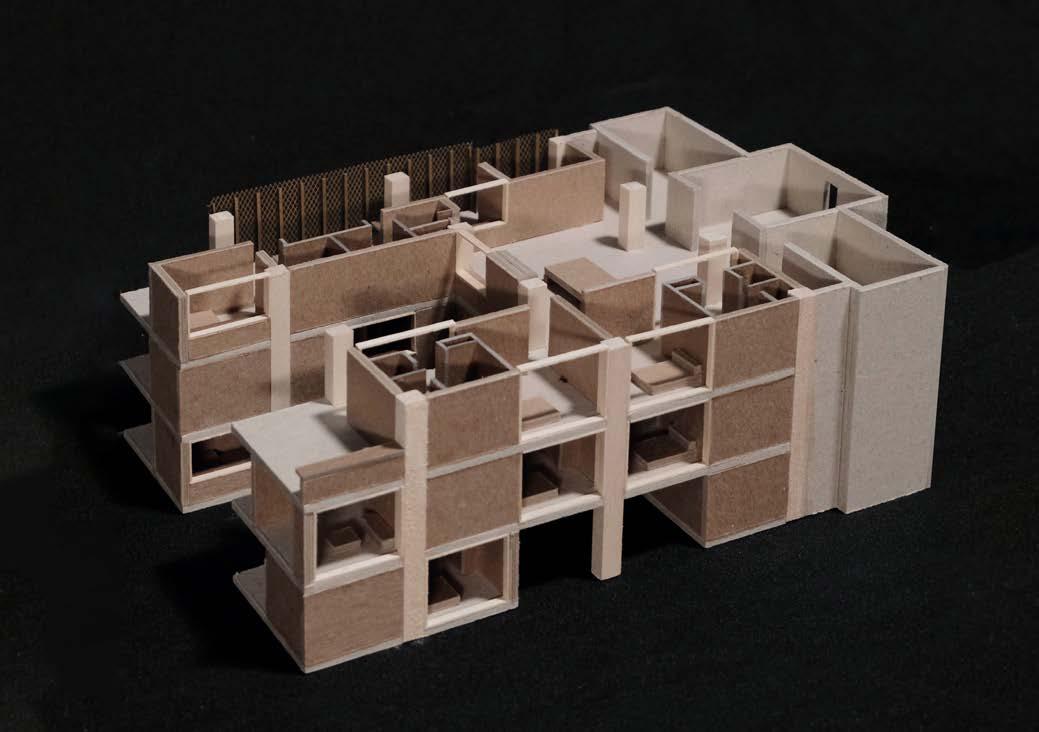

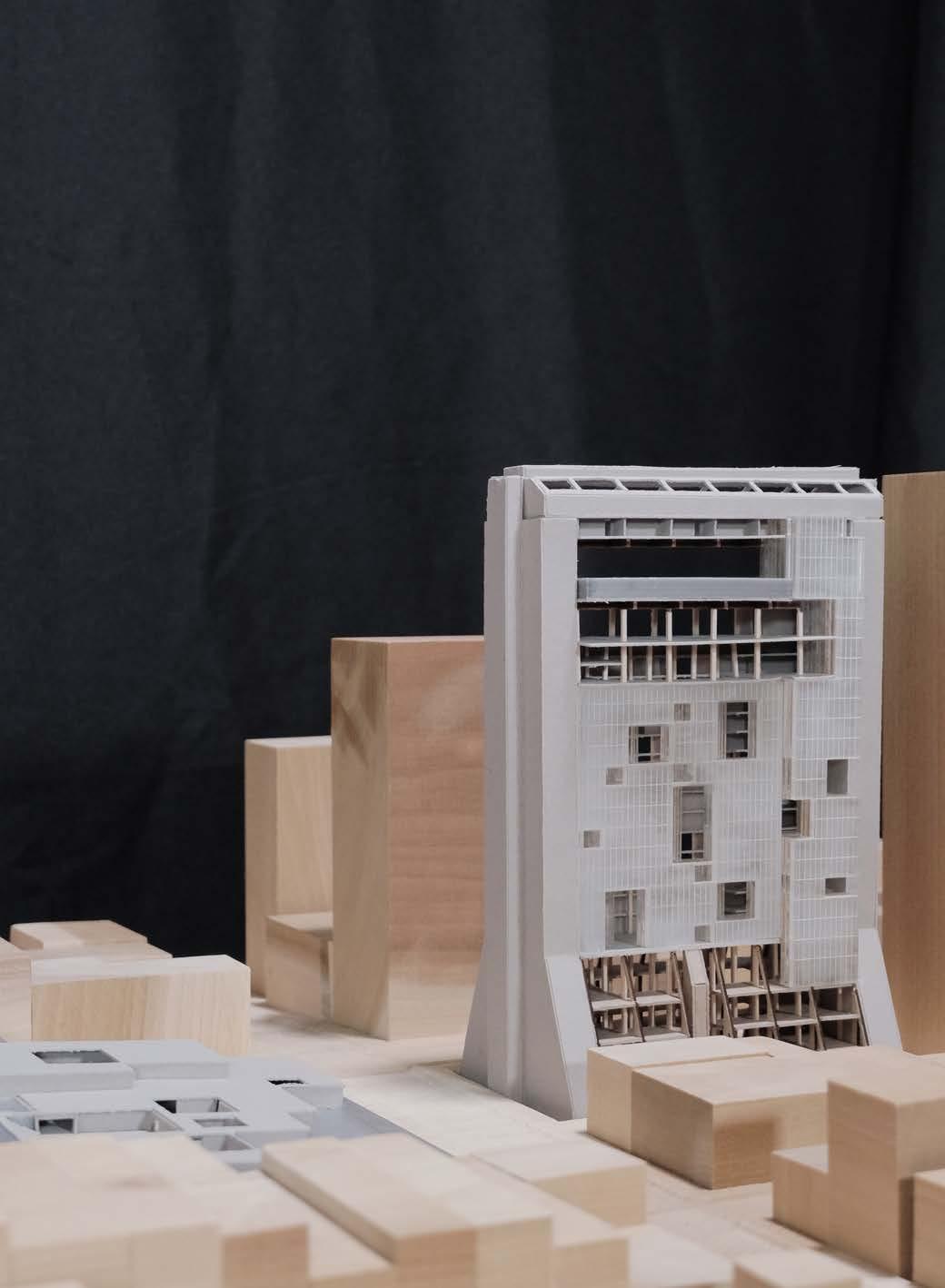

The project proposes a façade restoration of Louis Kahn’s Salk Institute, reimagining missing details from the original design with consideration for factors such as wood grain orientation, assembly techniques, and solar exposure. It emphasizes how natural weathering can be aesthetically integrated while preserving structural integrity and outlines methods for both interior and exterior maintenance. And it all starts with a statement of Álvaro Siza about maintenance:

"The idea I have of a house is the idea of a complicated machine, in which every day something breaks down.

The drawers jam, the carpets rip, as does the padding of the dining-room sofa.

The tiles are falling off, first one, then the whole wall."

4

5

HOW DOES REPAIR AFFECT ARCHIITECTURE AFTERWARDS

WHAT IS REPAIR SOCIETY

WHAT IS CONSUMER SOCIETY

A CORNER FOR MAINTENANCE/ REPAIR

HOW DOES REPAIR AFFECT ARCHIITECTURE IN ADVANCE

Before

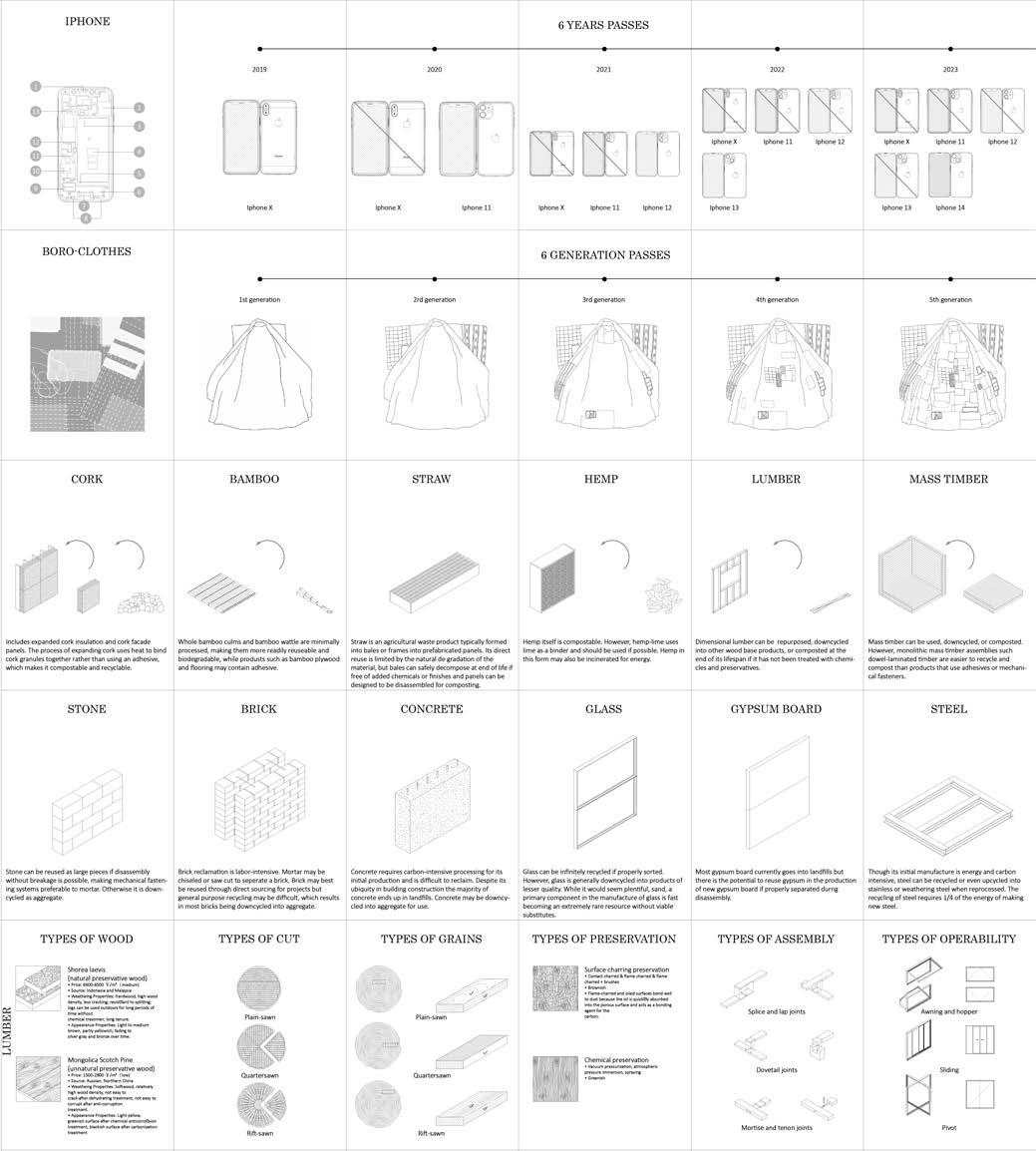

A FRAMEWORK DRAWING FOR REPAIR This is a project about maintaining, mending and repairing. Why we bother to talk about all thisbehind-the-scenes work? Actually the discussion involves the contradiction between a consumer society and a repair society.

A consumer society is where everything is replaceable, there is always a better product ready andwaiting, repair is neither worthwhile or encouraged. Take the iphone for example, even when an official service manual is available for reference, users are still confused by the complexity of the instruction.

6

And a repair society sits the opposite situation of abundance and waste, provide a way and toolsfor people to fix their daily life by themselves. Take the Japanese boro technique for example, you repair the same garment again and again and hand it down through generations.

after

7

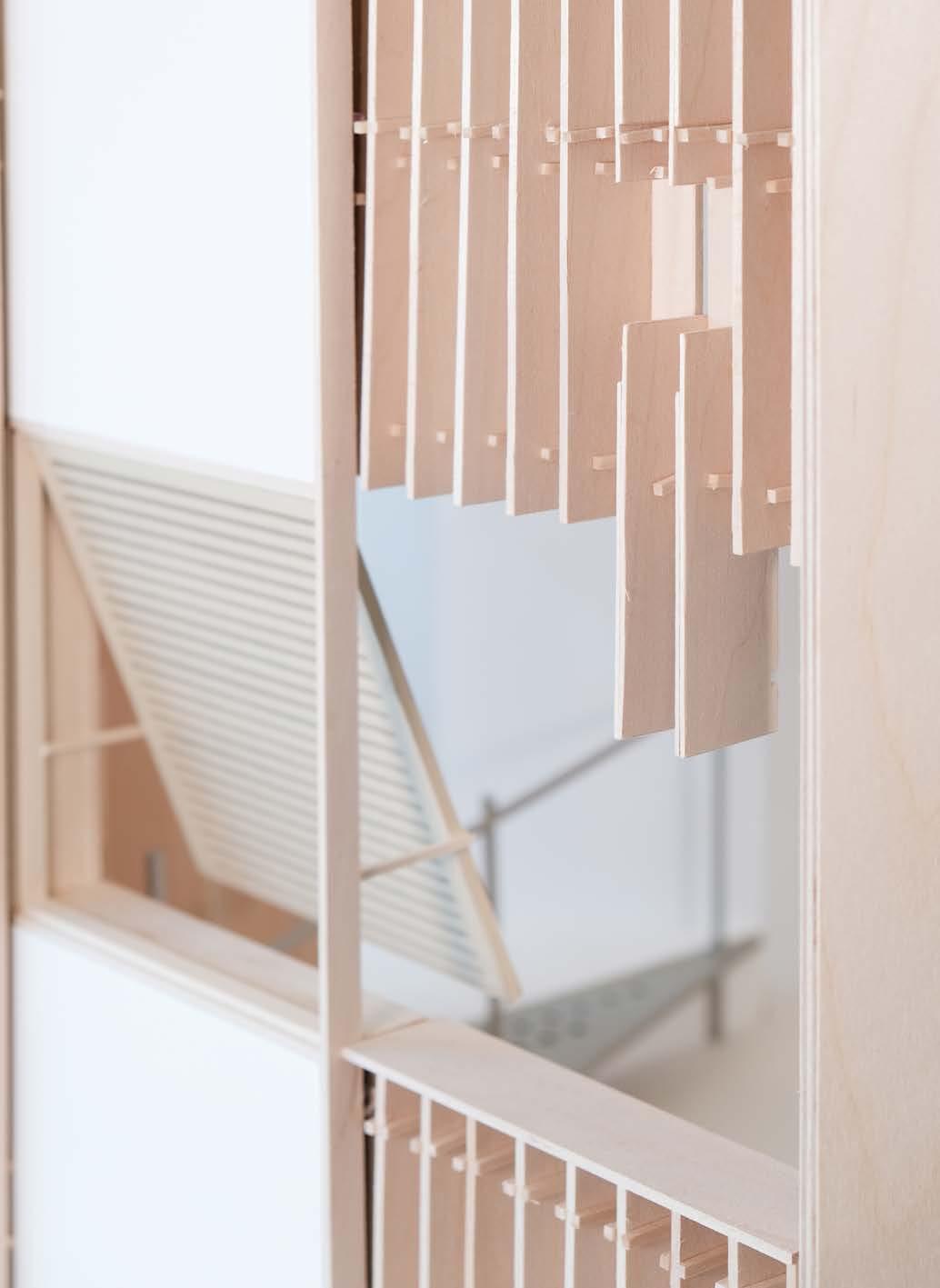

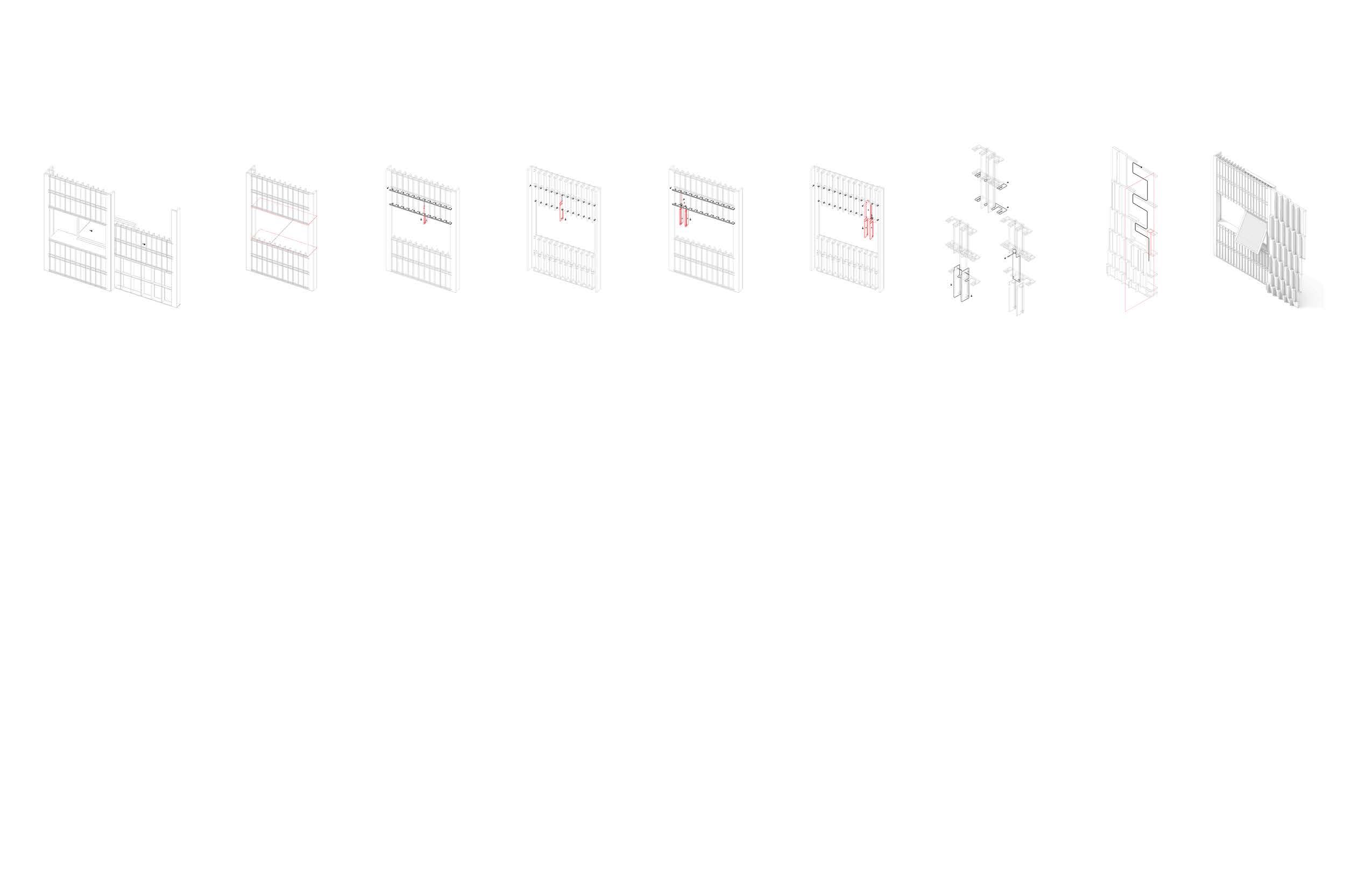

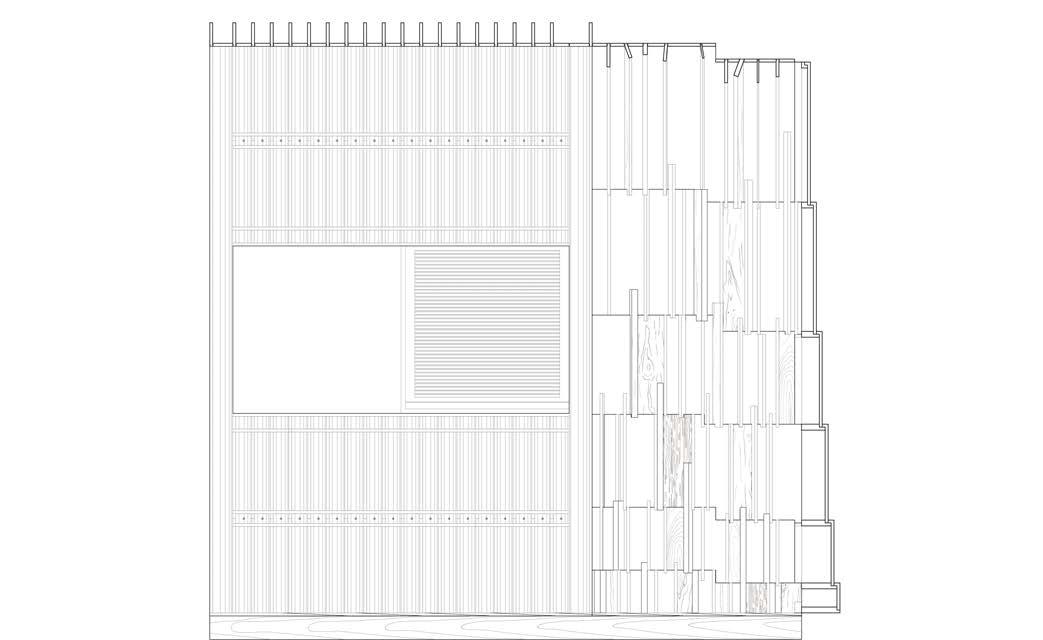

REPAIR THROUGH "MISSING" DETIALS

Step 1: clear the working space

Step 2: remove the top pad

Step 3: replace A type board

Step 3: replace A type board

Step 4: replace B type board

Step 4: replace B type board

Missing detail: replacement

Missing detail: ventilation

Missing detail: solar radiation

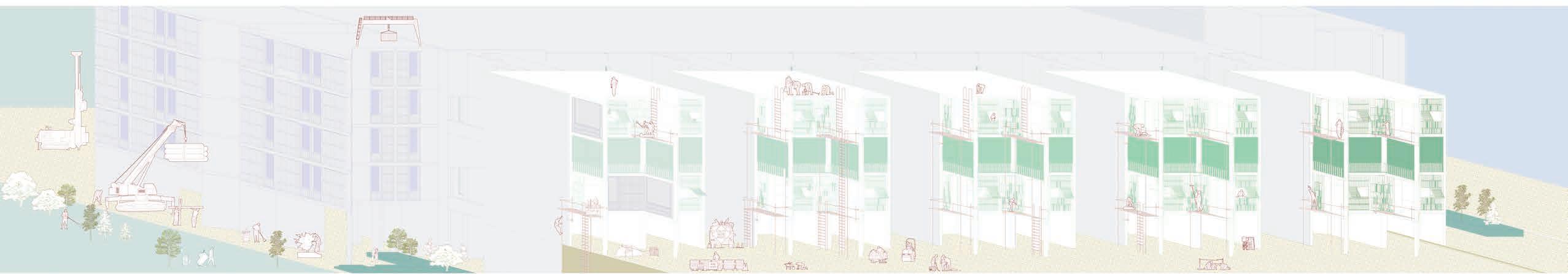

REPAIR THROUGH TIME

And if users are encouraged to fix their facade from exterior, a workable platform is provided. Exterior stairs reflect maintenance help from professional, and as time passes, users will gradually move towards maintenance and autonomy.

8

So to conclude, this is a project based on the rethink of the existed project, imagine what if all these happen in a repair society, and it starts with detailing the window.

9

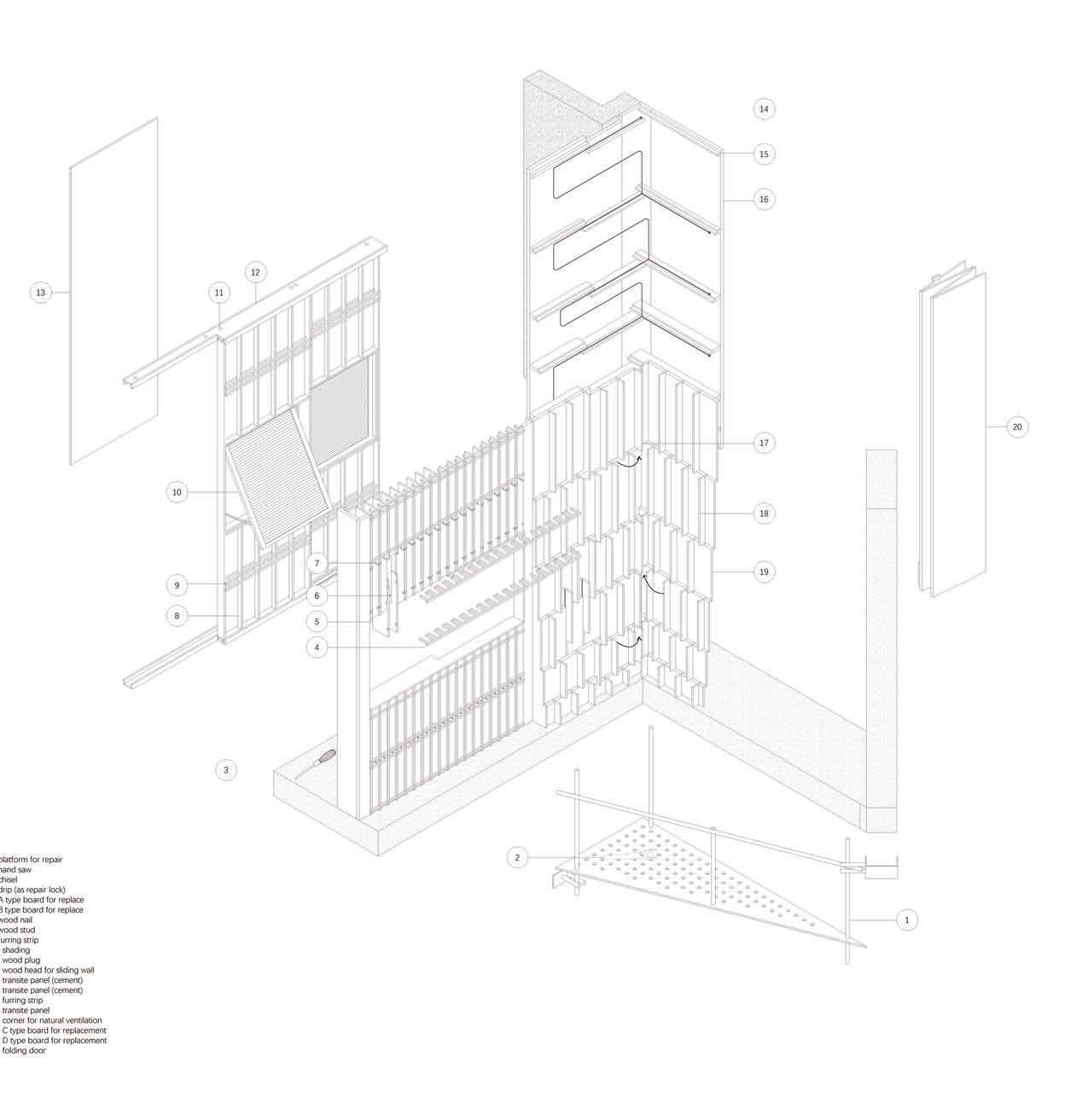

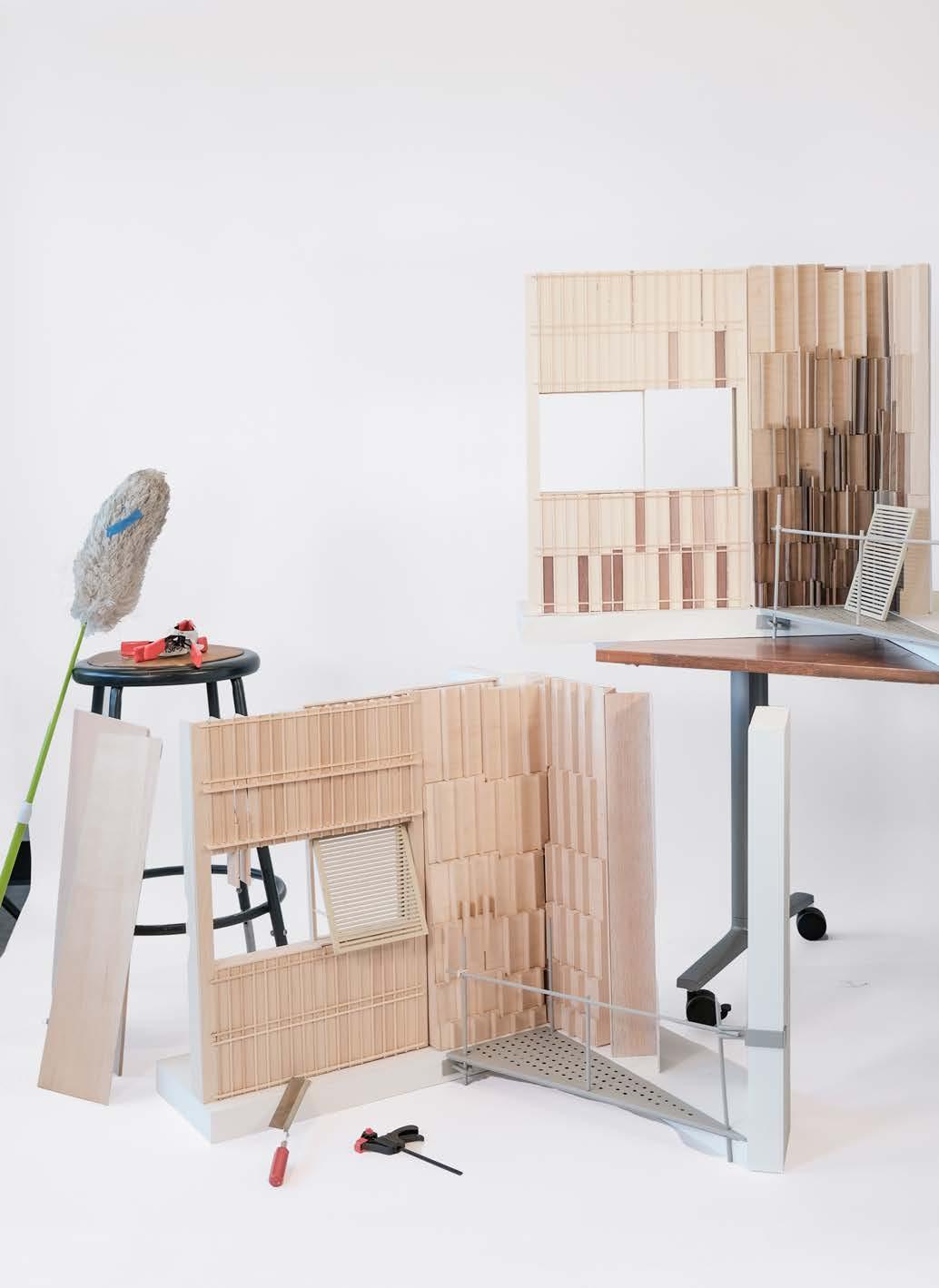

A CORNER FOR MAINTENANCE/ REPAIR

1 platform for repair 2 hand saw 3 chisel 4 drip (as repair lock) 5 A type board for replacement 6 B type board for replacement 7 wood nail 8 wood stud 9 furring strip 10 shading 11 wood plug 12 wood head for sliding wall 13&14&16 transite panel (cement) 15 furring strip 17 corner for natural ventilation 18 C type board for replacement 19 D type board for replacement 20 folding door

10

11

12

13

02 IGNISLINE DENVER CODE HOUSING INFORMATION: Buildner Competition Duration: 11/2024-01/2025 Location: Denver, USA Type: Competition/ Team Work Partner: Lucine Lu/ Xiaodi Chang

DESCRIPTION: This project explores a new typology of multi-family apartment buildings in Denver, utilizing a single stairwell configuration. A primary design challenge is reducing fire risks and ensuring safe evacuation. To address this, the design incorporates innovative strategies such as introducing diverse unit types to meet varying community needs and functioning as a fire buffer for the surrounding neighborhood by controlling fire sources and limiting fire expansion.

The design respects traditional wood-frame construction while integrating modern fire-resistant materials, such as loam, for floor plates. It also includes separated pressurization systems for the egress core and elevator lobby to isolate fire and smoke from common areas. These features work together to enhance safety and resilience within the building.

The project aims to achieve higher density and space efficiency in a high-intensity neighborhood while maintaining cost control through the use of prefabricated materials and efficient construction methods.

By balancing innovation, safety, and affordability, this project aspires to offer a better and safer living environment for its residents.

14

15

Setback Proposing relaxed sidewalk setbacks to avoid creating a narrower building footprint while incorporating architectural strategies to enhance fire separation and safety.

A-B-C Zones Two separated pressurization systems are incorporated—one within the egress core and another in the elevator lobby—to create pressure zones that push fire and smoke away from escape routes.

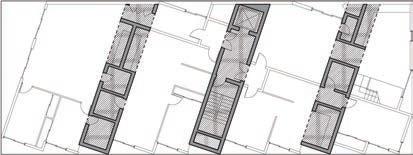

Concrete Bar Concrete Fire Barriers: Three concrete bars are strategically placed to prevent the horizontal spread of fire between units.

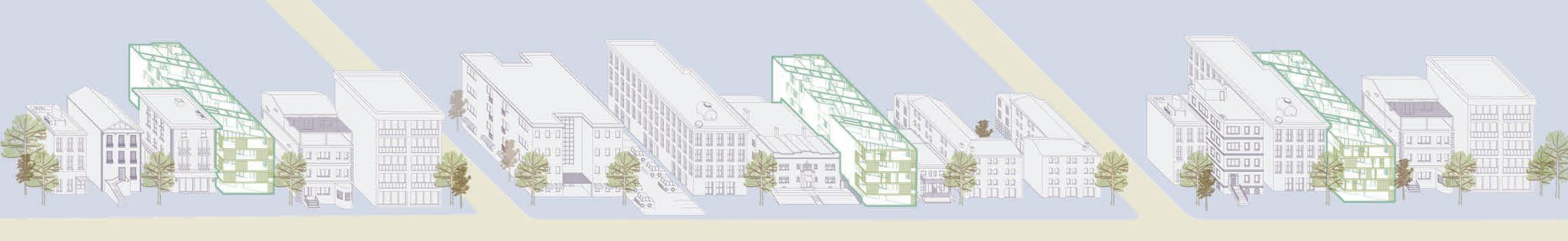

For multi-family buildings built on a former single-family lot, the side setback should be a minimum of 3 feet with no obstructions. Additional setbacks, such as patios or building setbacks, are required for 50% of another 4.5 feet inward, with exposed materials receiving 2-hour fire-retardant treatments, unless the façade is made of highly fire-resistant materials with less than 10% wall openings. Relaxing the side setback requirements allows for wider units, improving living layouts and space.

16

17

REPAIR THROUGH "MISSING" DETIALS

Missing detail: solar radiation

FIRE BUFFER ZONE IN LARGE SCALE To prevent small fires from becoming catastrophic, the design includes three concrete barriers—two wet zones and one egress core—helping to contain fire horizontally between units.

Additionally, loam is used between wood framing in the

18

prefabricated floor slabs, acting as a vertical fire obstruction.

Exterior wall openings are staggered to reduce air flow and limit the speed at which smoke and fire spread through rooms and units.

19

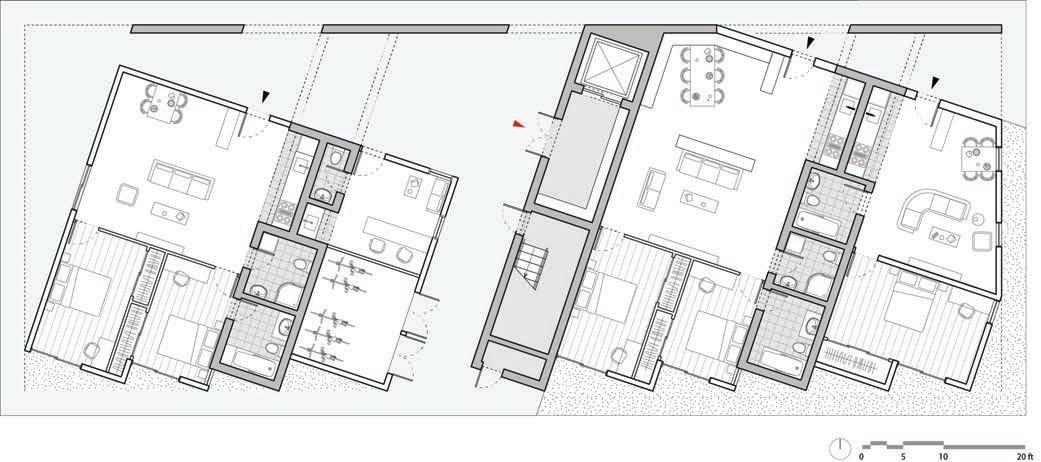

GROUND FLOOR PLAN We're 1 Bedroom Alex and Jordan, / 1 Bathroom a couple sharing Type a cozy B: 915two-bedroom sqft apartment Type C:with 1,020 oursqft lovable dog, Bailey.

TypeHome H: 675issqft our sanctuary, where we balance time together— cooking, 2 Bedroom gaming, / 2 Bathroom or relaxing— with Type spaceA:to1,630 pursue sqftour individual passions.

Type F:Bailey 930 sqft keeps us smiling, and Type every G: corner 1,100 sqft reflects love, respect, and a shared sense of joy.

THIRD FLOOR PLAN I'm Jasmine Carter, a recent college graduate stepping into the next chapter of my life. I live in a small one-bedroom apartment that's all mine. It's cozy and simple, with just enough space for my books, a comfy couch, and big dreams as I navigate this exciting new journey.

Hi, I’m Maya Bennett, a writer living in my cozy one-bedroom, one-bathroom apartment. My home is my sanctuary, where sunlight kisses my desk by the window, bookshelves tell countless stories, and vibrant plants breathe life into my space.

It’s here that my words find their rhythm and voice.

We are the Thompsons, a lively family of four making memories in our three-bedroom apartment. Our cozy home is filled with laughter, love, and the bustling energy of our two children, Aiden and Zoe. Each room tells a story—our shared adventures, cherished moments, and the dreams we're building together.

1 Bedroom / 1 Bathroom

3 Bedroom / 2 Bathroom

Type B: 915 sqft Type C: 1,020 sqft Type H: 675 sqft

Type E: 1,240 sqft

2 Bedroom / 2 Bathroom

3 Bedroom / 2.5 Bathroom

Type A: 1,630 sqft Type F: 930 sqft Type G: 1,100 sqft

Ground Floor

(LOFT) Type D: 1,925 sqft

3rd Floor

2nd Floor

A single egress building requires enhanced compartmentalization and pressurized stairwells, which separate the egress stairs, elevator area, and common corridors into three different pressure zones using a minimum 2-hour fire-rated insulated fire door with fire seals. Common areas should only use non-combustible materials or combustible materials with a minimum 2-hour fire-retardant coating. This design blocks smoke and fire within the units. Single egress buildings allow for diverse unit layouts and more comfortable living spaces.

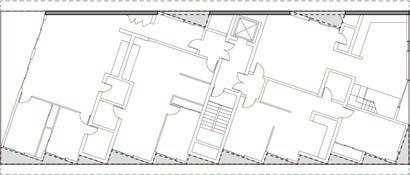

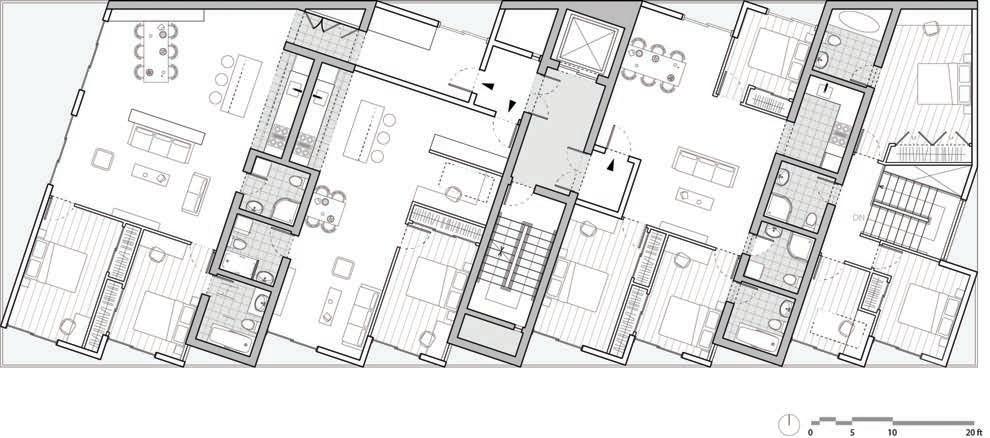

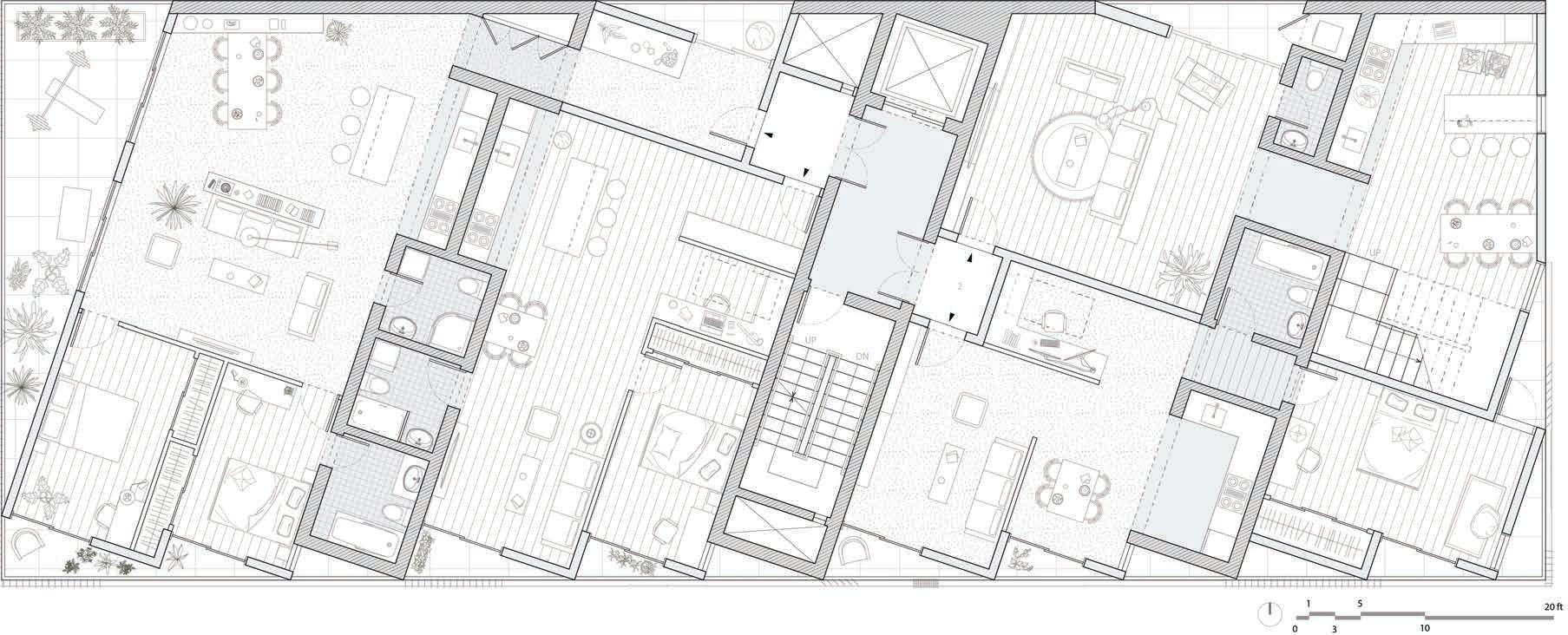

SECOND FLOOR - TYPICAL FLOOR PLAN

20

21

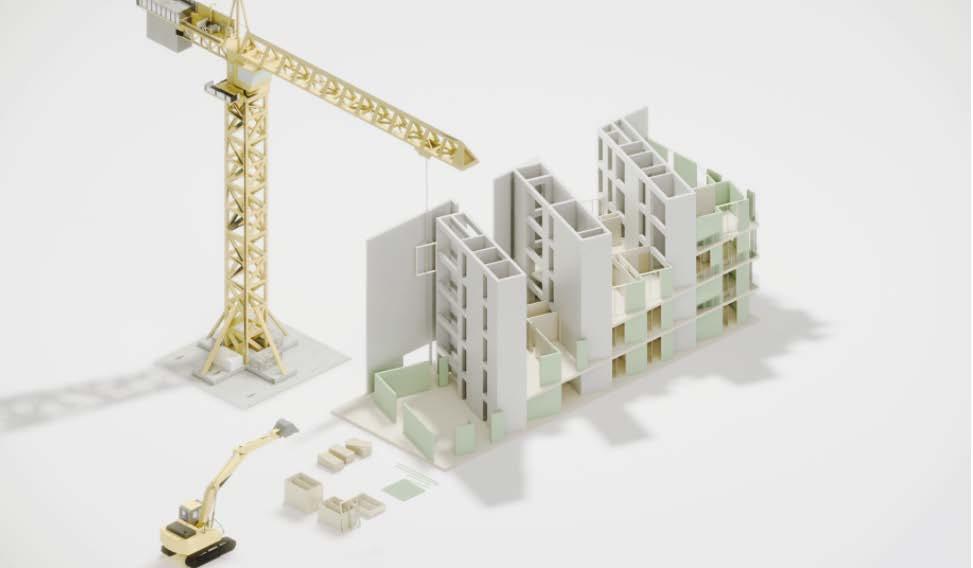

Construction Process

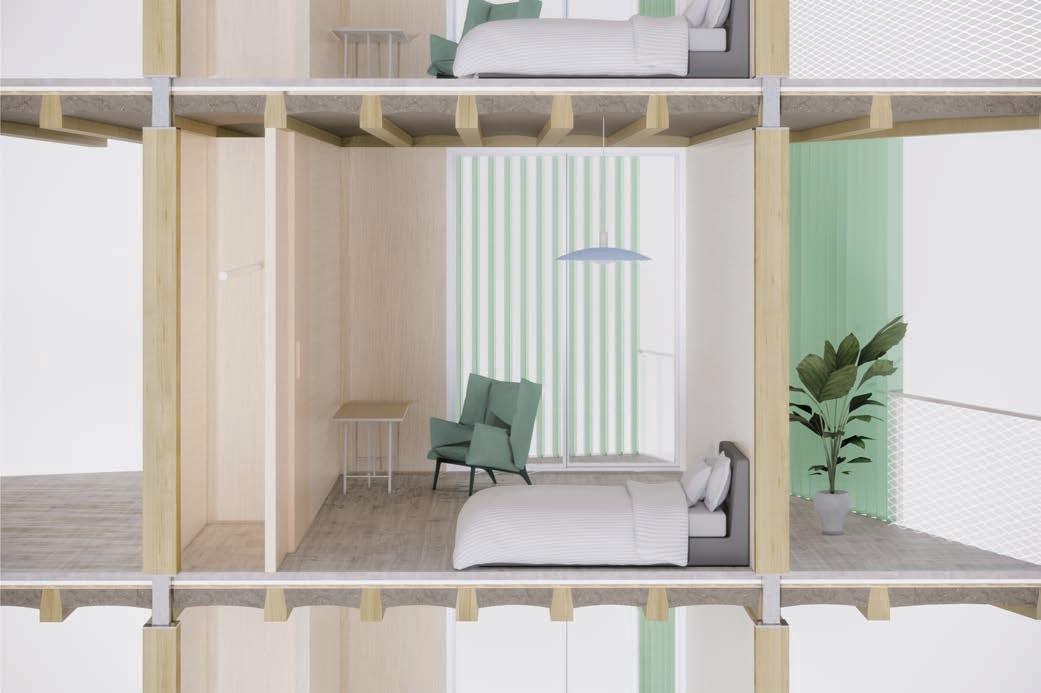

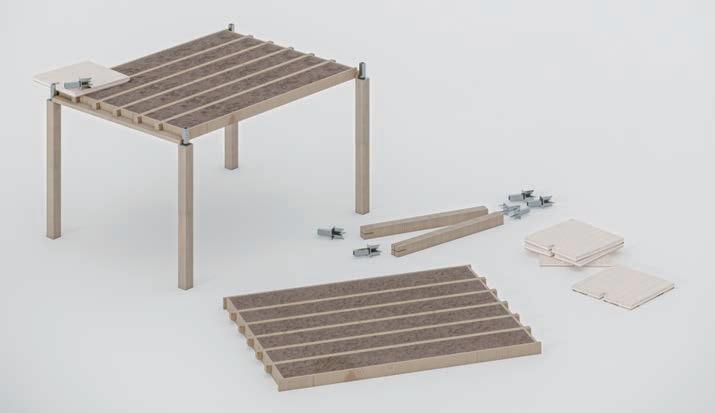

Prefabrication Process - Floor/Ceiling

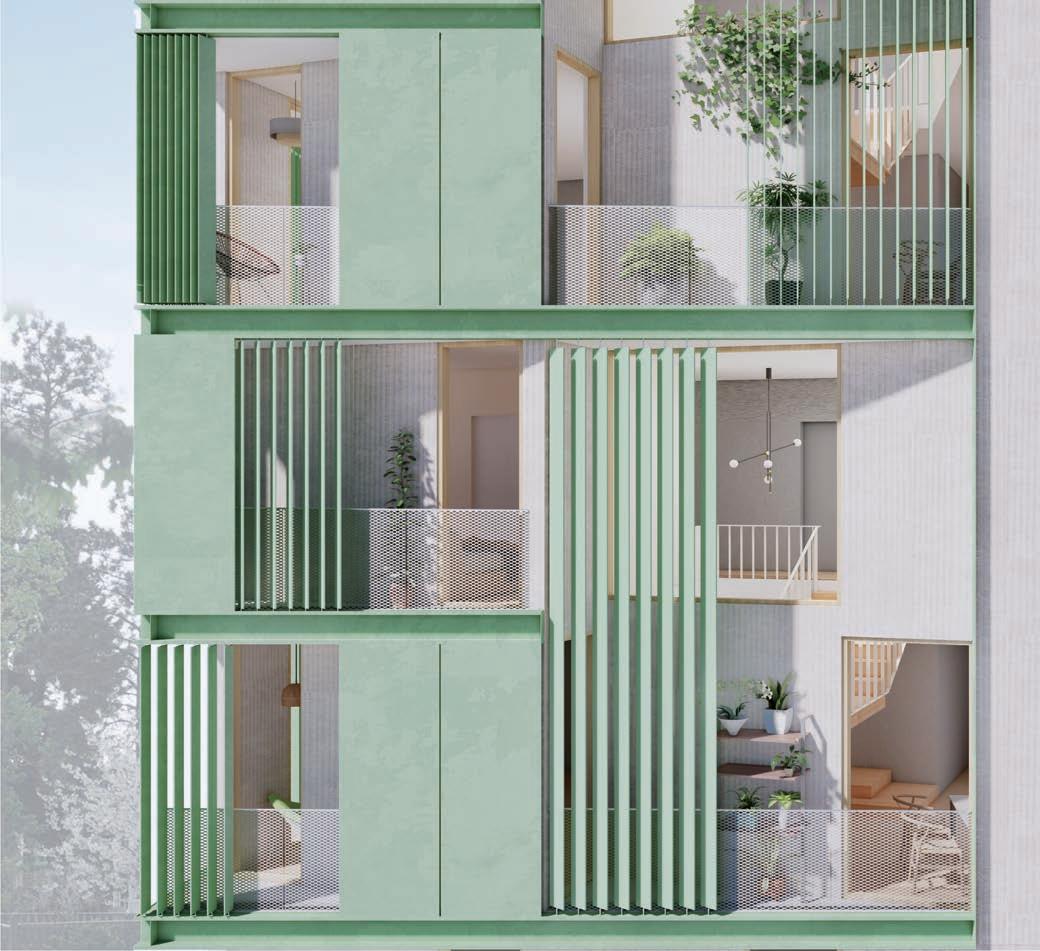

Prefabrication Process - Louvre Facade

As a typology for affordable housing in Denver, the building’s modular design allows plumbing walls and mechanical fixtures to stack efficiently within the five-story wood-frame structure.

Loam is used as filling between wood framing to create prefabrication floor slabs that act as vertical fire obstruction.

The repetitive façade and modular interior programs support cost-effective construction, while avoiding additional concrete podiums to maximize production in designated neighborhoods

22

23

Highway

03 FLOW & GLOW INTEGRATED STUDIO INFORMATION: Landscape Architecture Design Duration: 09/2023-12/2023 Location: Mission District, San Francisco, USA Type: Design Studio/ Teamwork Work Instructor: Elizabeth Bishop Partner: Xiaodi Chang

DESCRIPTION:

Mission Street

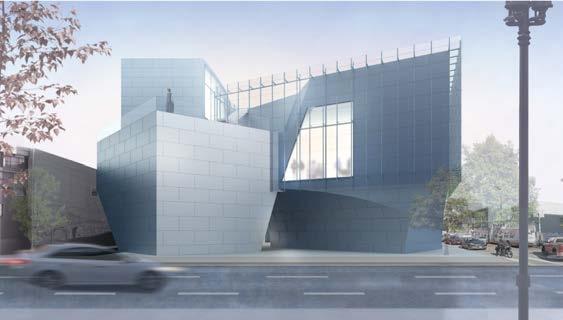

This project, as an dance auditorium and also as a community gathering space, is founded on the concept of 'flowing' and smooth transition. The flowing idea plays a pivotal role in enhancing connectivity within a building or urban environment. To realize this vision, the project incorporates the innovative practice of carving out 'in-between spaces' around the courtyard, ensuring a fluid and uninterrupted spatial experience.

Furthermore, the approach places a strong emphasis on the aesthetic qualities of in-between spaces. The design involved consideration of materiality to not only enrich the overall experience but also contribute to the ambiance of the location.

14th Street

SF Armory

24

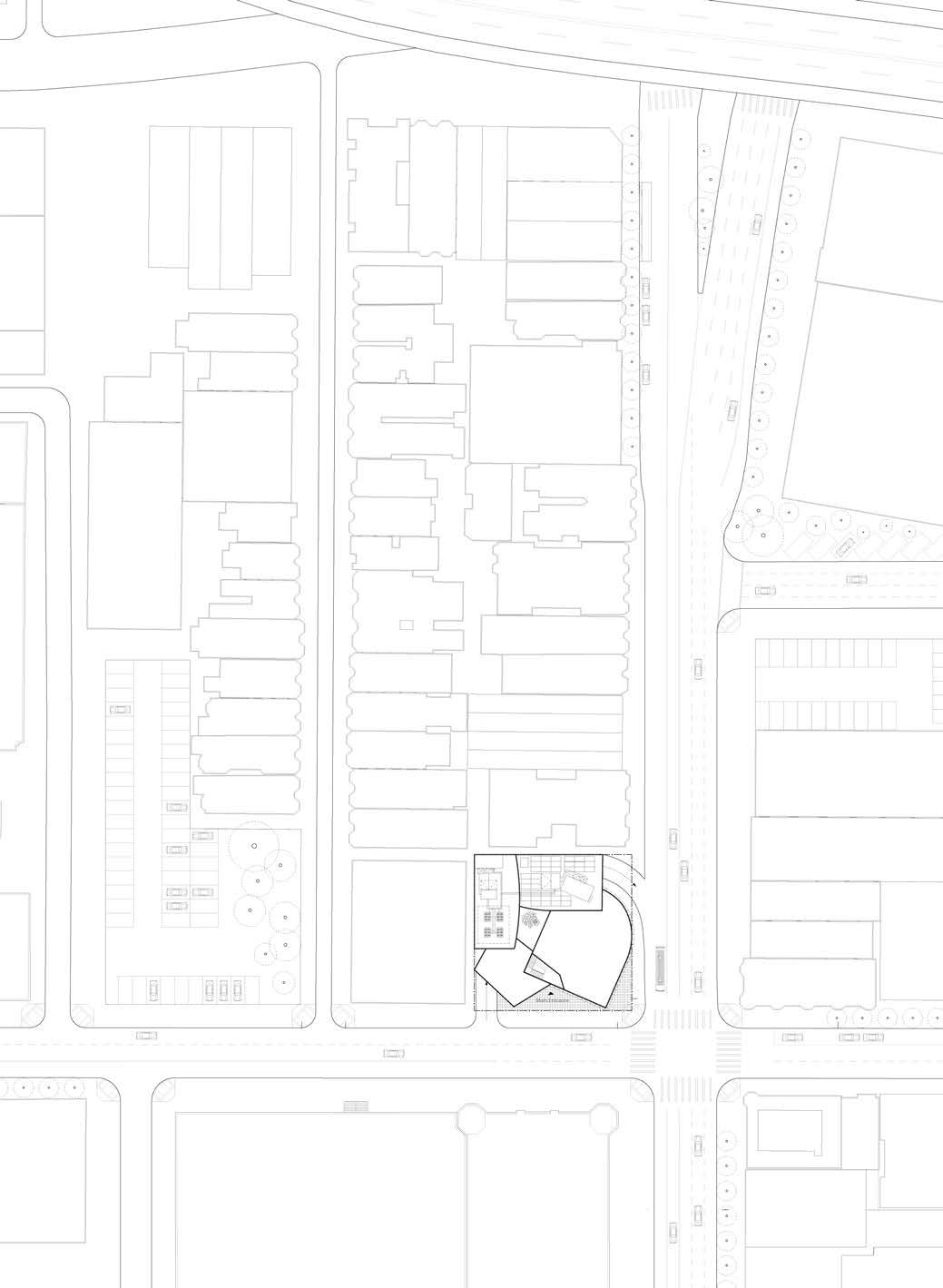

SITE PLAN

25

L shape L shape is founded first to correspond to the adjacent buildings which also serves as the driveway.

Rotation Rotation is created to create intersection part between different programs.

Periphery Periphery is rounded to blur the relationship between urban context and the project

The floor plan incorporates the building's lobby, commercial space, and a bike shop surrounding the courtyard, collectively celebrating a sense of inwardness.

The main entrance to the building is discreetly concealed within its depths.

A gracefully curved exterior staircase is strategically arranged to mirror the contours of the courtyard.

0

26

6

12

24ft

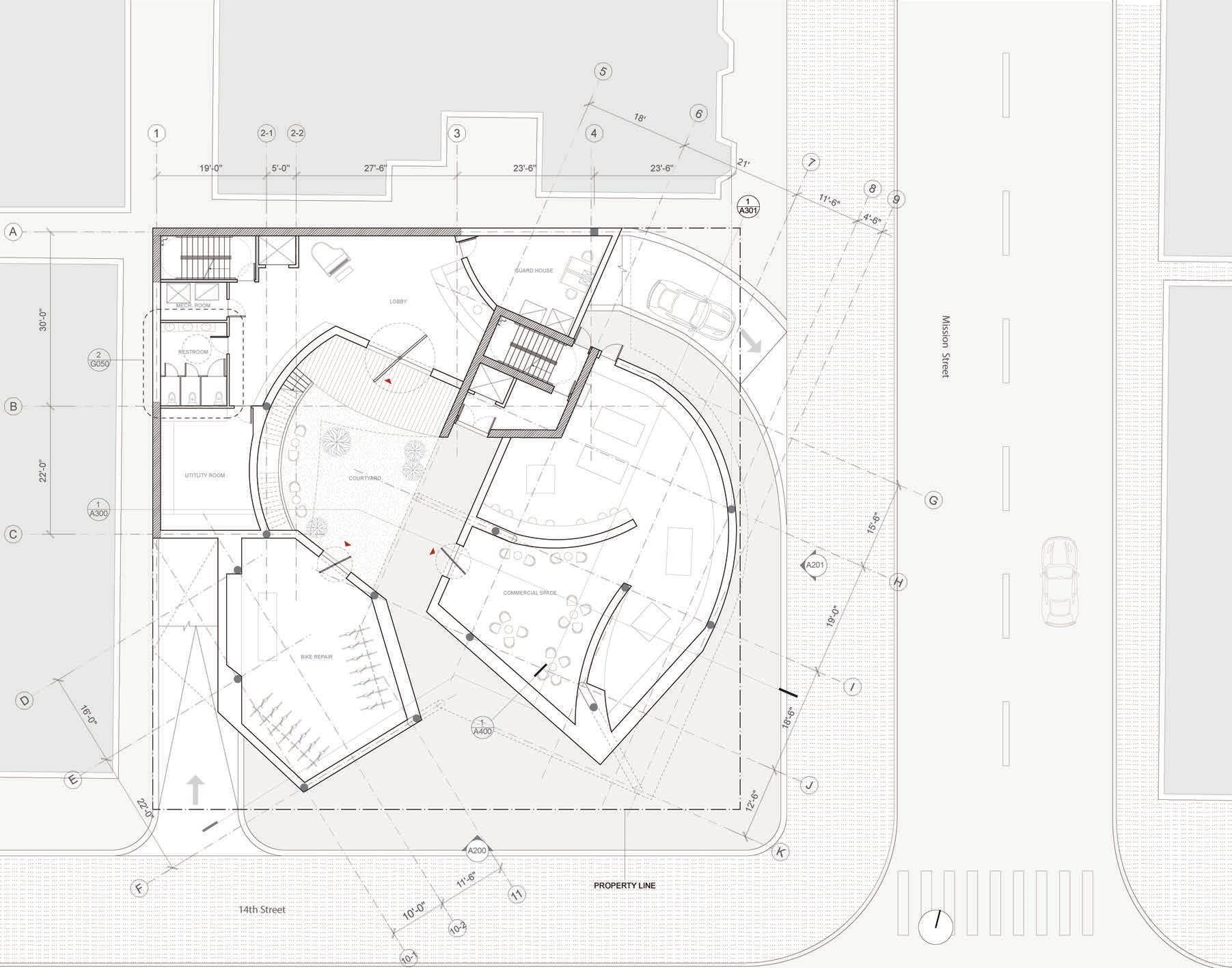

GROUND PLAN

Additionally, the underground parking is designed with an entrance accessible from 14th Street and an exit leading to Mission Street.

27

0

28

6

12

24ft

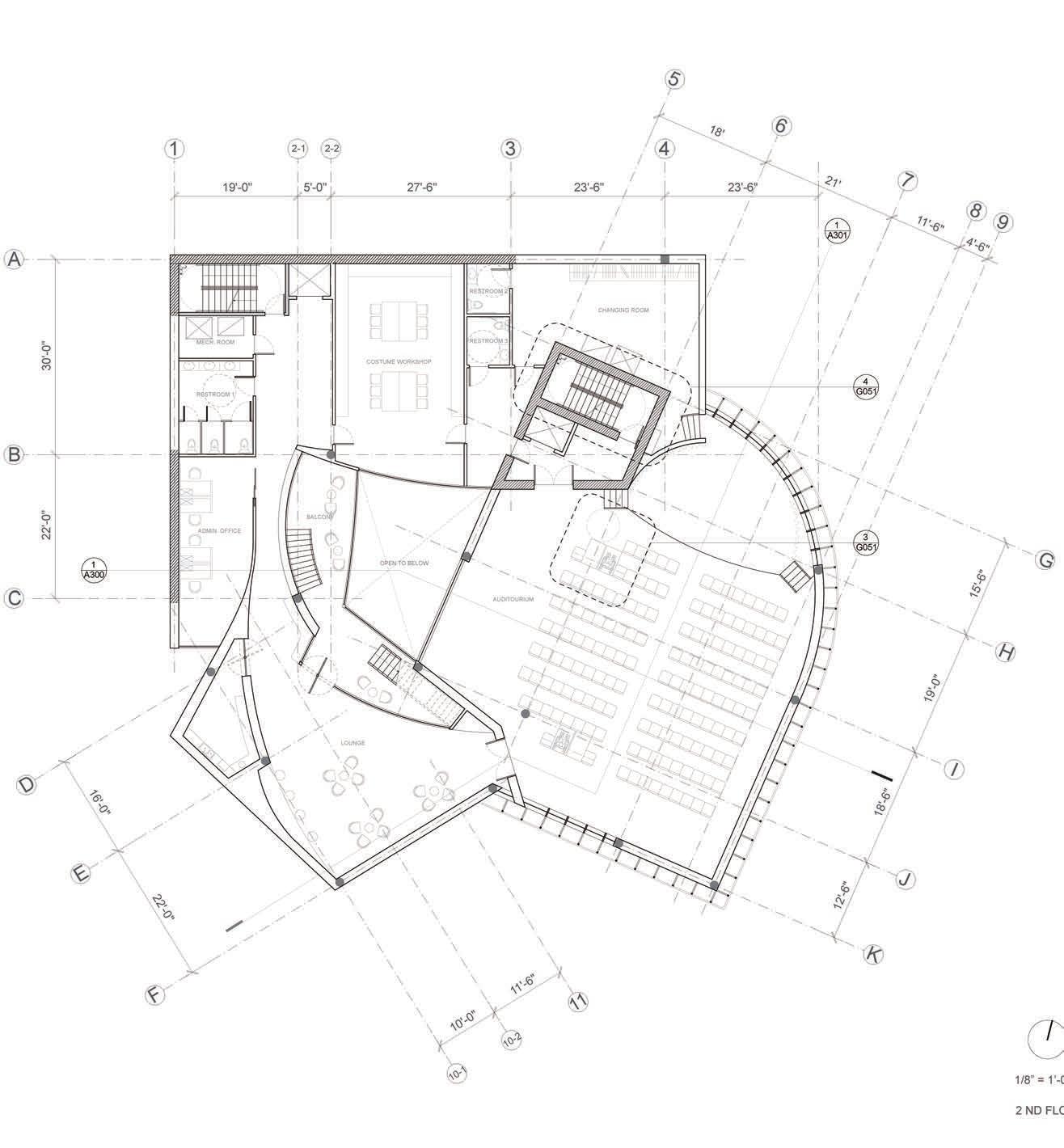

SECOND PLAN

29

30

31

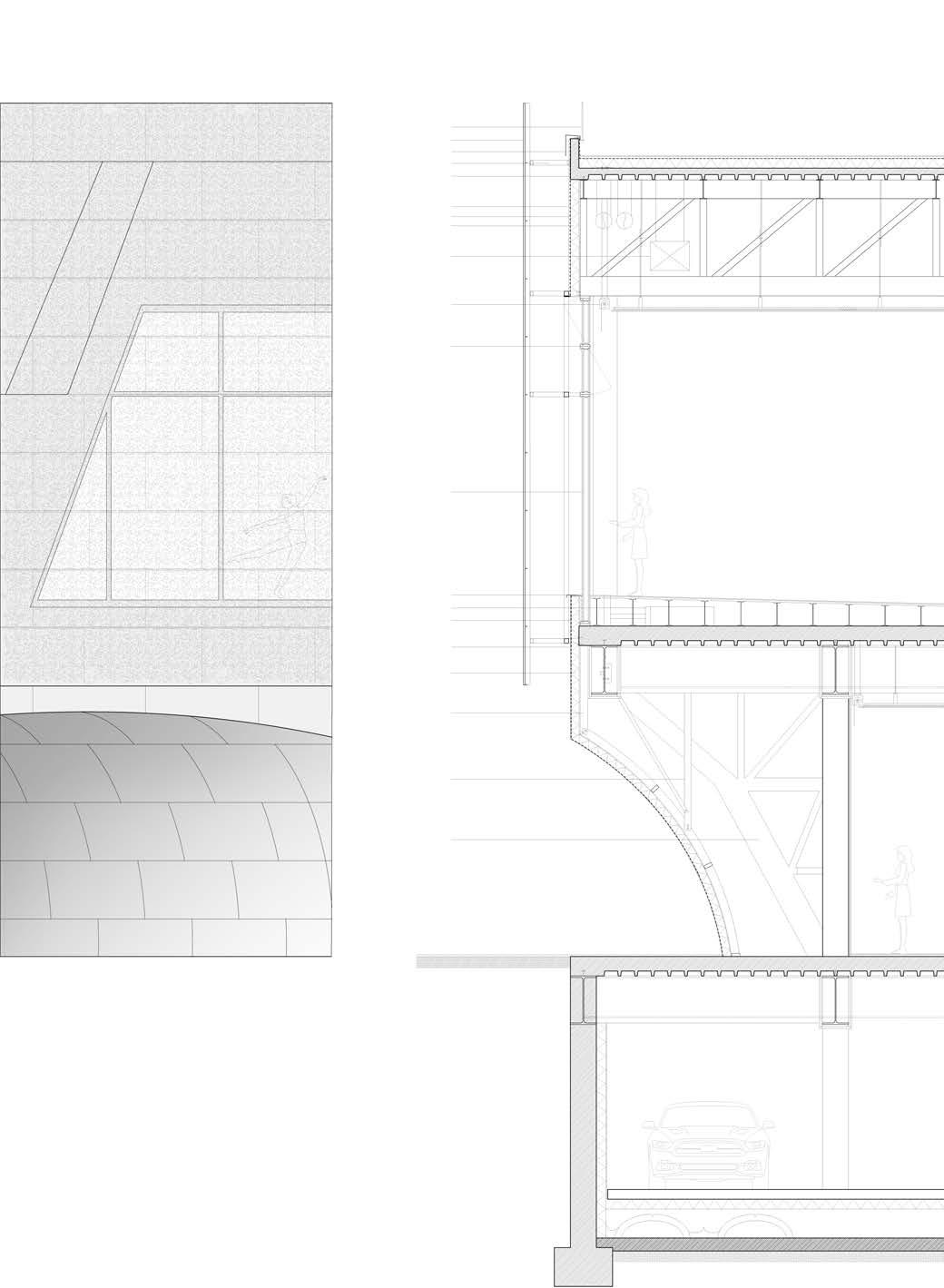

INTEGRATED SECTION & ELEVATION

1 2 3 4 5 6 7 8 9

10

11

12

3 13 6 7 8 14

15

16

1 steel railing 2 perforated steel wrap 3 flashing 4 double mullion steel framing 5 A roof deck 6 zinc panel 7 water barrier 8 insulation 9 return air grilles for UFAD system 10 roller shades 11 operable window 12 Kapilux light diffusing insulated glass, double glazing 13 supply air duct for UFAD system 14 steel framing 15 steel bracing 16 angle column

32

33

34

35

04 COURTYARD WE GROW ADAPTIVE REUSE OF CHINATOWN AREA INFORMATION: Landscape Architecture Design & Architecture Renovation Duration: 02/2023-05/2023 Location: Chinatown, San Francisco, USA Type: Design Studio/ Solo Work Instructor: Lyndon Neri & Rossana Hu

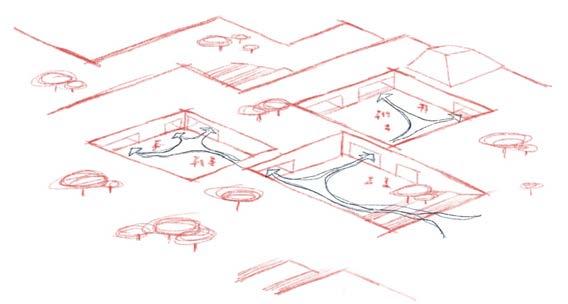

DESCRIPTION: The Chinese courtyard has always taken a more conservative and private stance compared to its Western counterparts. The courtyard space symbolizes the contrast between solid and void and the embodiment of both light and sky, relating to the Taoist philosophy of the yin and yang. My architectural proposal uses a network of Chinese courtyards to organize and bring a sense of reflection and focus to various activities happening in Chinatown. The cultural program features activities in this community rather than relics. The design proposal manipulates the ground, landscape, and creates a networked spatial sequence around interior courtyards and shared pathways.

The project sees this inwardness of courtyards as the essence of Chinatown and attempts to realize a shift from horizontal to vertical courtyards.

36

37

A

Washington St

8

8

8

8

9

7

7

2

8

8

3

8

8

4 A

5

1

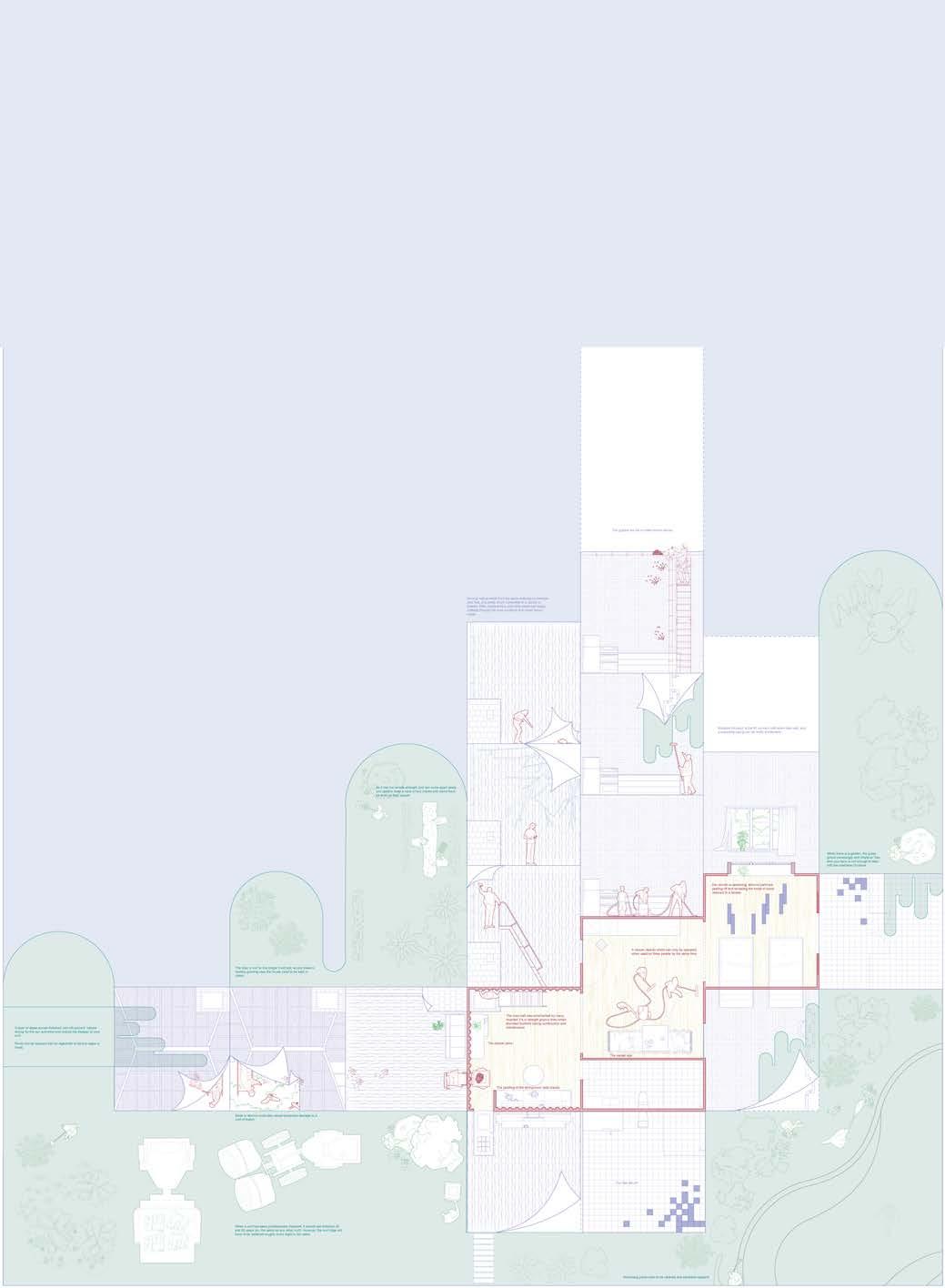

1 Central Courtyard 2 Permanent Exhibition 3 Lounge 4 Special Exhibition 5 Special Exhibition 6 Office 7 Hilton Central Wet Market 8 Retail 9 Utility Room

6

Kearny St

Walter U.Lum PL

6

The project encompasses the renovation of Portsmouth Square and the Chinatown Hilton Hotel. Prioritizing community activities over historical relic, innovative programs are introduced to breathe new life into these locations.

Clay St

0

38

5

10

15

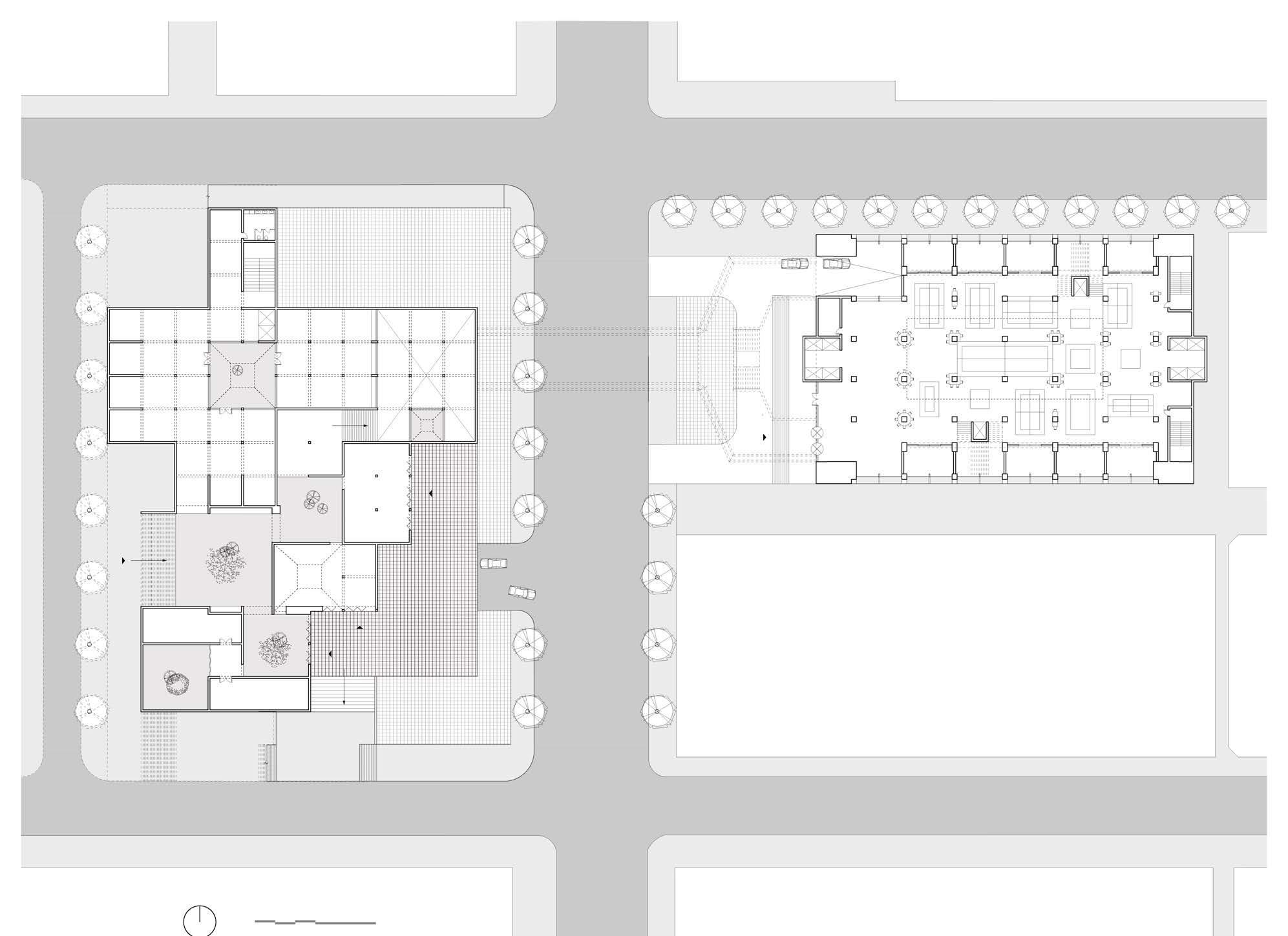

GROUND FLOOR

30ft

For Portsmouth Square, a proposal for an open-to-thepublic Chinatown museum is outlined. This museum not only showcases exhibits but also incorporates a network of courtyards designed for local residents' daily rituals, including activities such as playing mahjong and poker.

As for the Chinatown Hilton Hotel, a vibrant addition is suggested in the form of a Chinese-style wet market located at its base. This market aims to vividly portray the lively and bustling essence of Chinatown life, contributing to the cultural vibrancy of the area.

39

Courtyard 1: Hotel

Courtyard 2: Exterior Swimming Pool

Community Center

Courtyard 2: Hotel(north)+Housing(south)

Courtyard 3: Wet Market

Underground Parking

0

40

5

10

15

30

A-A SECTION

45ft

41

0

5

10

15

WET MARKET PLAN

42

30ft

0

5

10

15

30ft

HOUSING & HOTEL PLAN

43

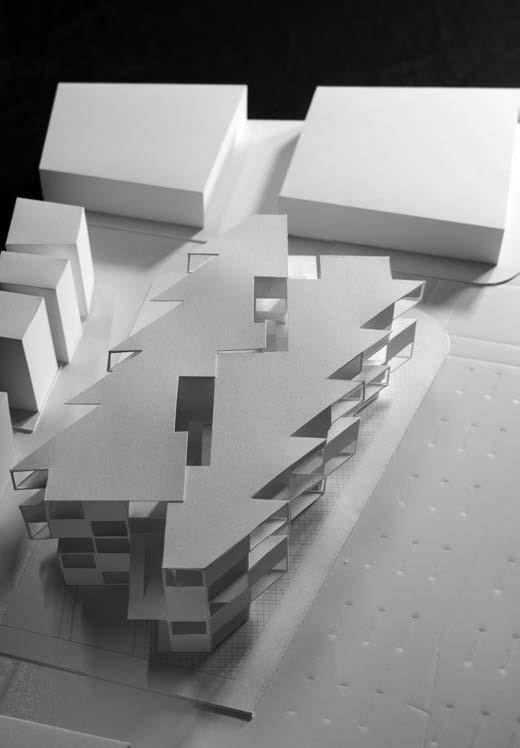

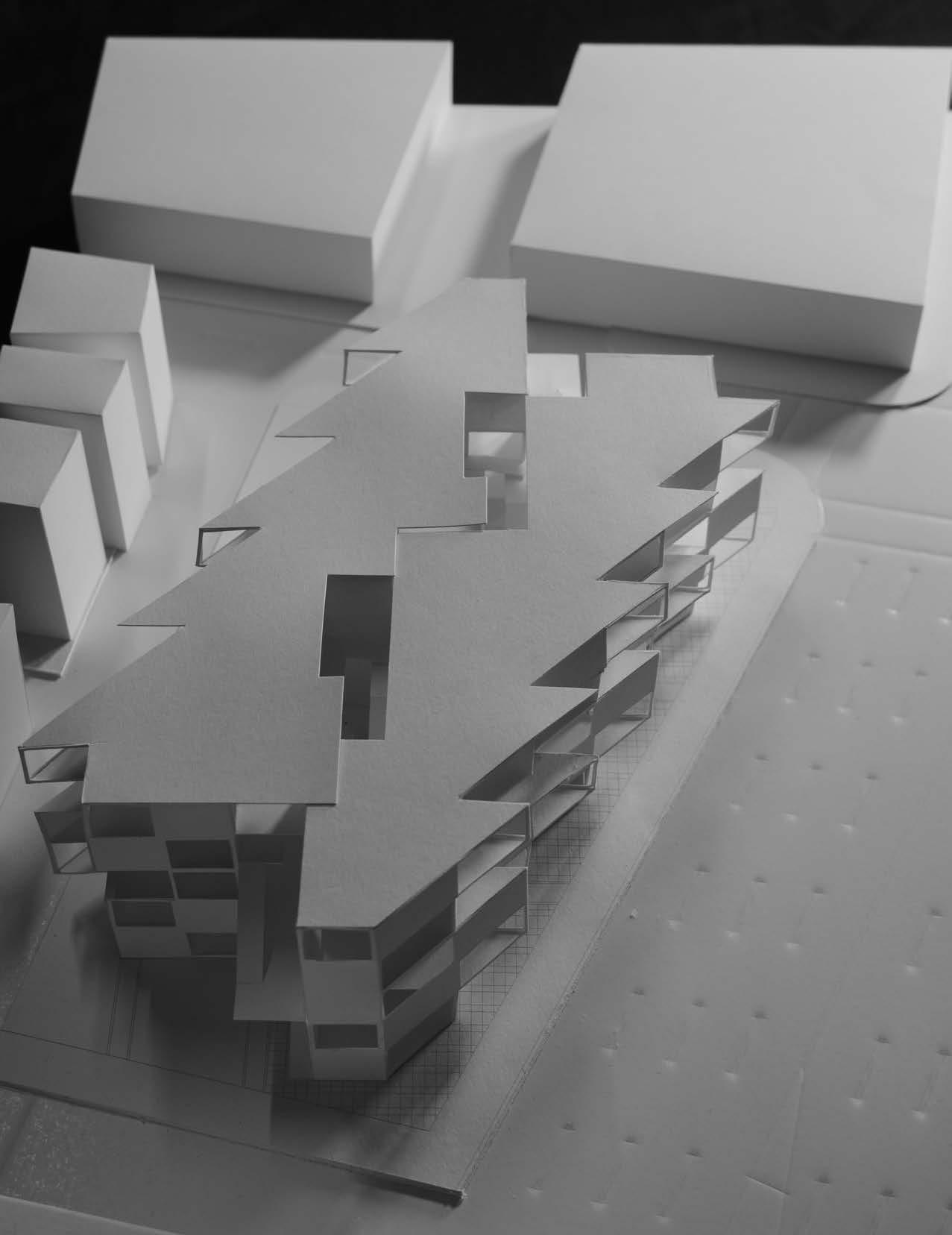

05 FRAGMENT HOUSING PROGRAM INFORMATION: Architecture Design Duration: 09/2022-12/2022 Location: Downtown, Oakland, USA Type: Design Studio Instructor: Rudabeh Pakravan

DESCRIPTION: Downtown Oakland embodies a fragmented landscape where historical buildings seamlessly intertwine with contemporary high-rises, casting reflections upon each other's glazing in an unconventional harmony. To comprehend this intriguing juxtaposition, the project engages in an experiment inspired by the Moriyama House case study. By intentionally misaligning sight interactions from one window to another through a shifting operation, a unique exploration unfolds.

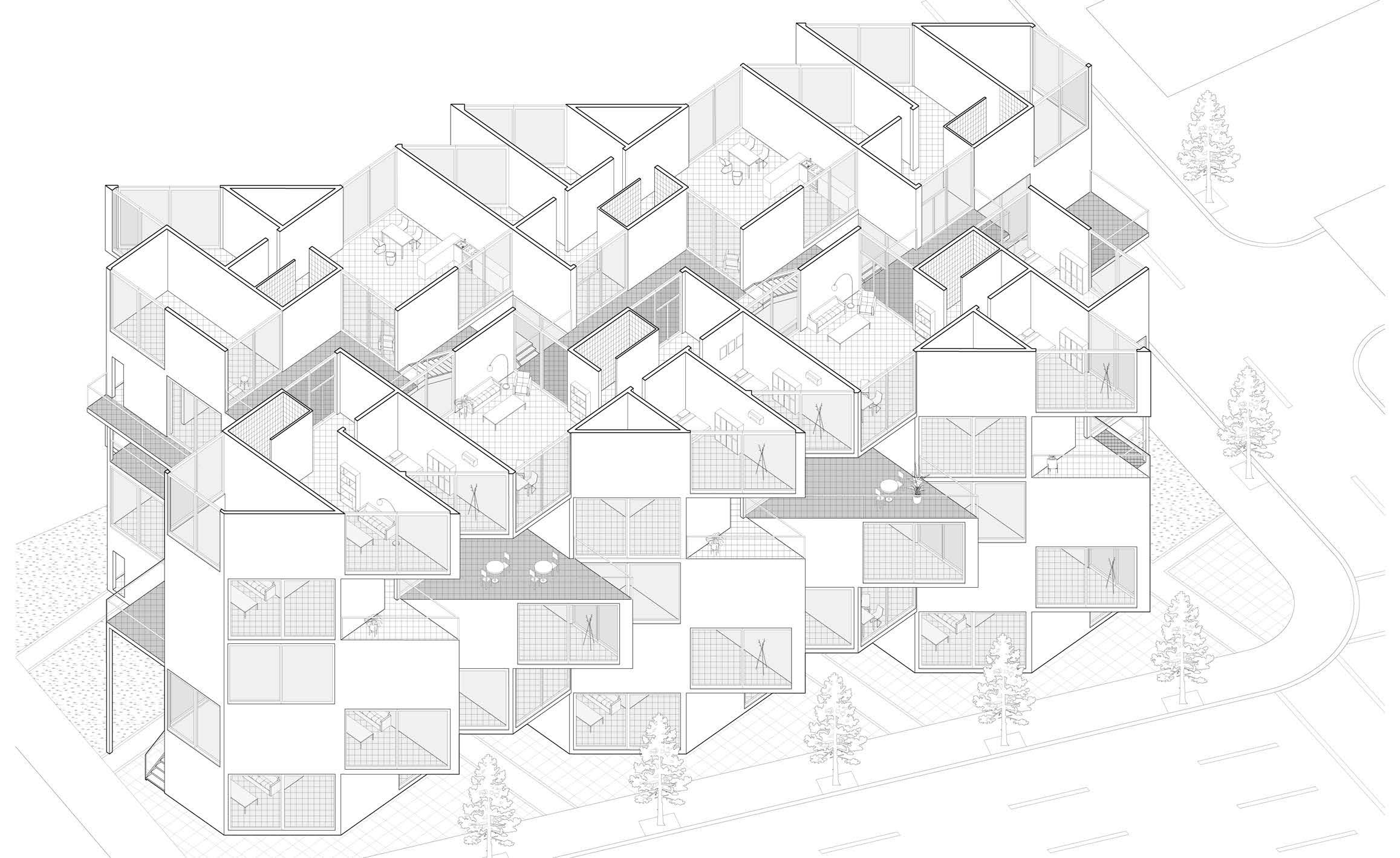

This housing project serves as a three-dimensional manifestation of the same fragmented language, wheresight interactions are never direct. This deliberate choice gives rise to a dynamic tension among different units, the building itself, and the surrounding context.

Experiment of Moriyama House

44

45

30th S

Bro adw

ay

treet

0

12

24

36

48

60ft

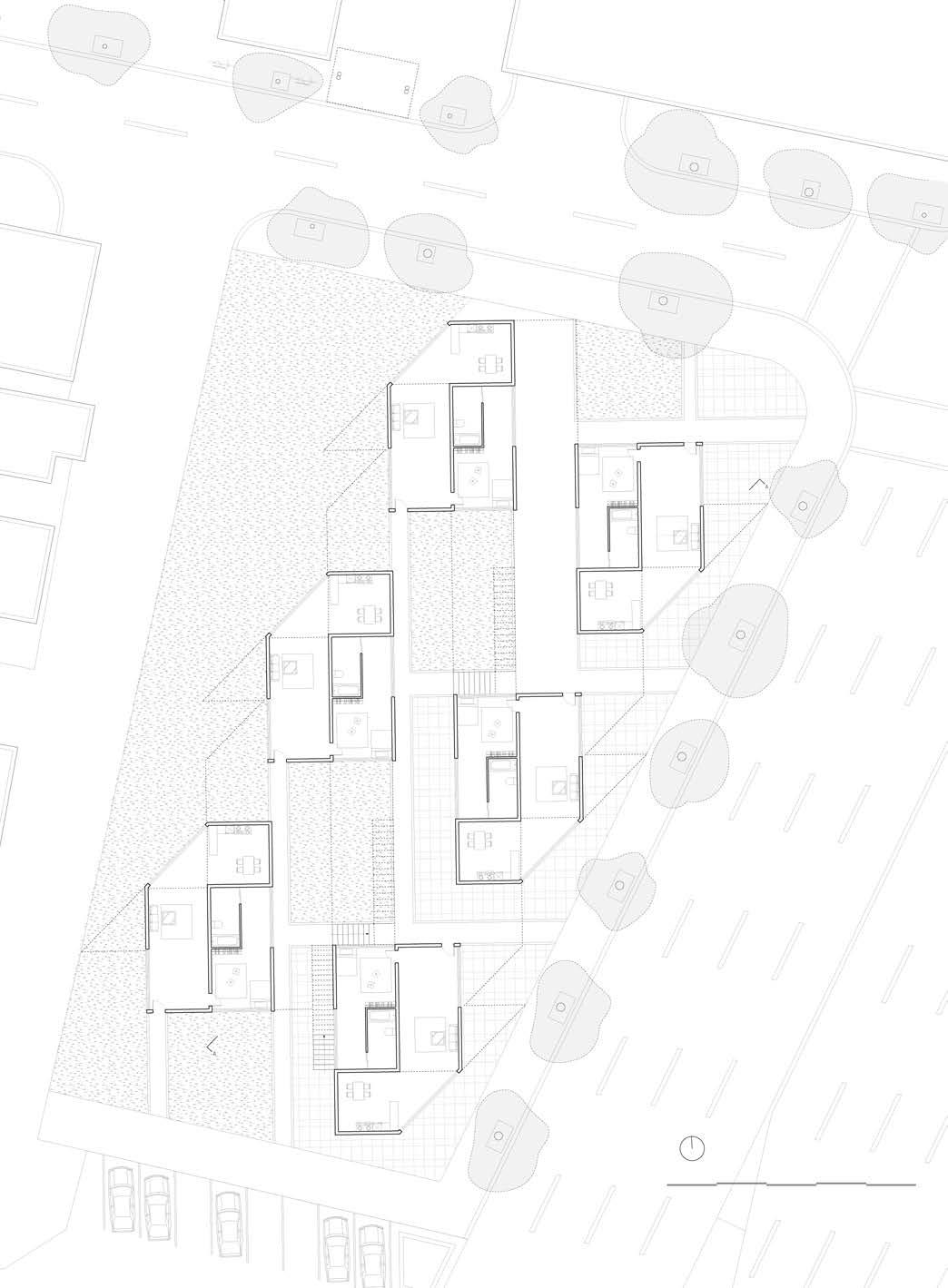

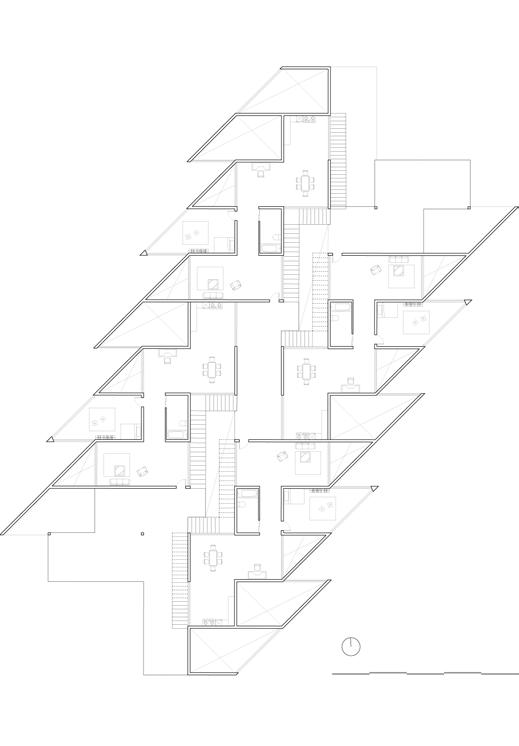

GROUND FLOOR

46

47

0

SECOND FLOOR

48

12

24

36

48

60ft

0

12

24

36

48

60ft

THIRD FLOOR

49

50

51

⑥ Depressed

⑤

Calm

① Worried

INFORMATION:

Shocked

MEMORIAL LANDSCAPE

⑦

③ Dizzy

A MOURNING PLACE

Terrified

06

②

Sorrow

④

Landscape Architecture Design Duration: 4/2020-5/2020 Location: Huoshenshan Hospital, Wuhan, China Type: Academic Work/ Design Studio/ Solo Work Instructor: Xu Tianyu

DESCRIPTION: At the time of planning this project, the epidemic situation in Wuhan has slowed down, but thousands of people died in more than two months, and those involved in it should be considered in multiples. Although people will understand that the epidemic situation is a special period, it is impossible to ask bereaved families not to vent their emotions.The pain of bereavement needs to be relieved by talking and crying, which is the best way to sort out the psychology. Therefore, this design decided to make a landscape for people to cry.

Besides, it will locate on the original site of Huoshenshan Hospital, where people can cry for their loved ones, friends and themselves. After crying, perhaps the shadow brought by the COVID-19 could really dissappear since crying is the first step of treatment.

52

53

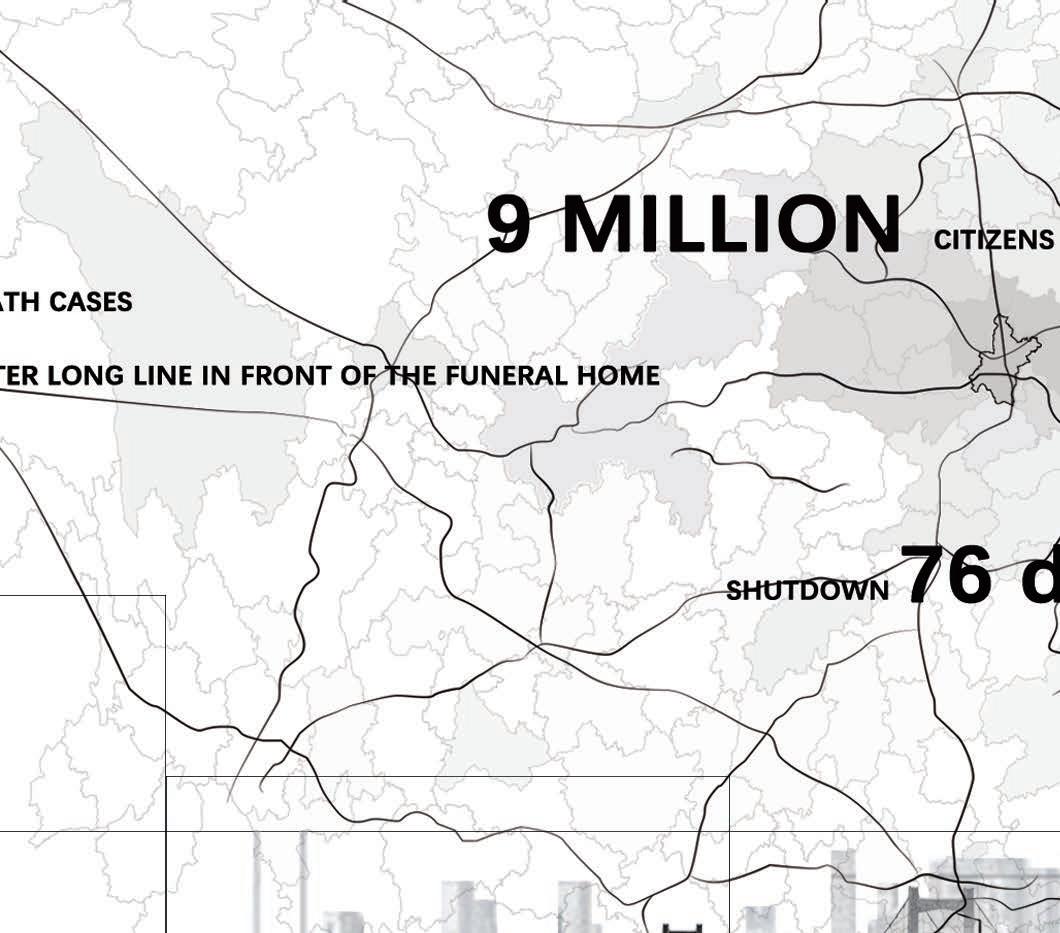

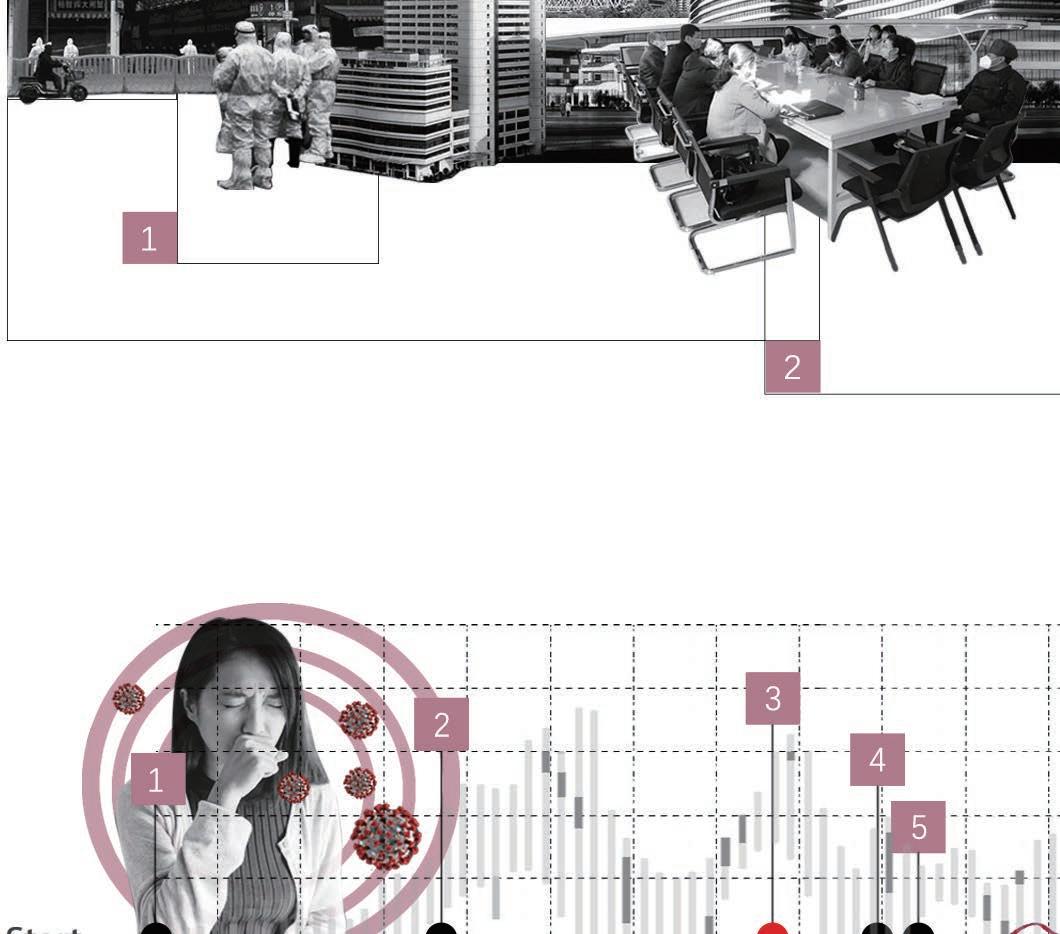

BACKGROUND ANALYSIS To create a space for people to cry, the project traced back the important time node and people’s emotion shift during the epidemic, and trying to design a spatial sequence for visitors to re-experience it so that they can recover.

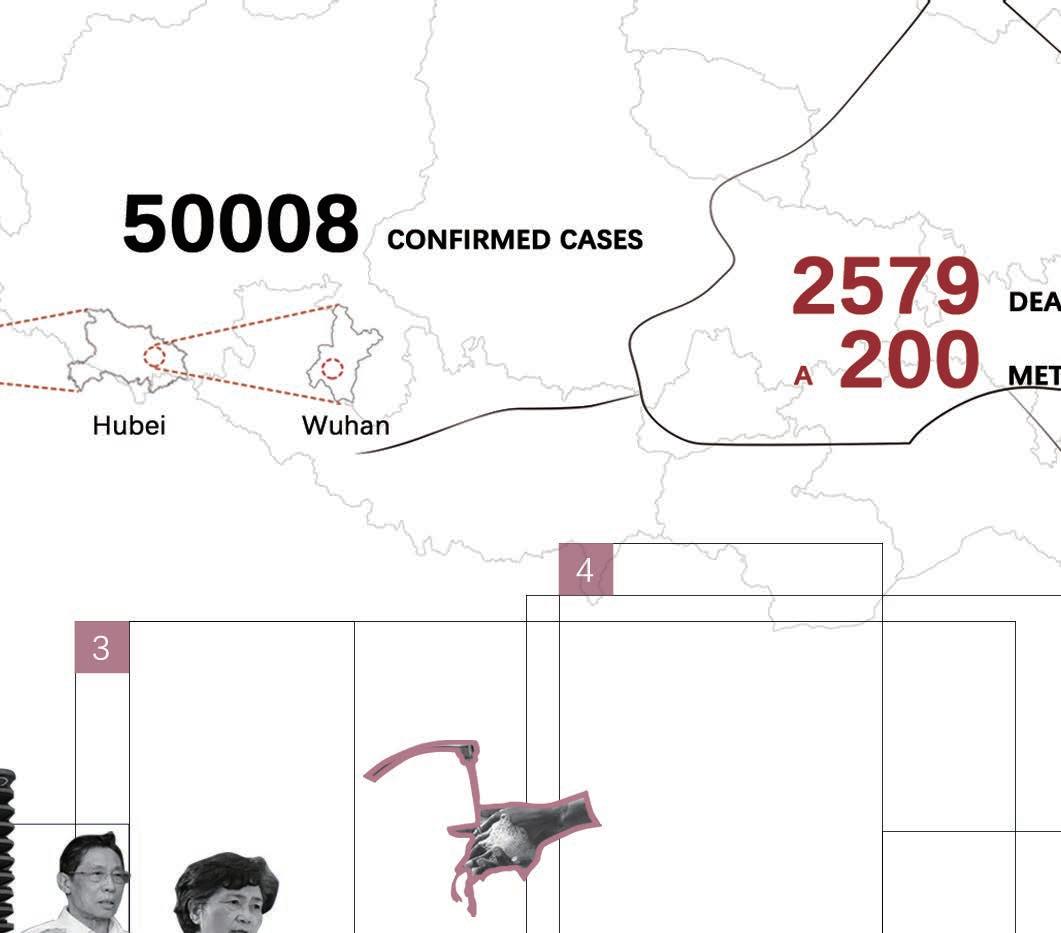

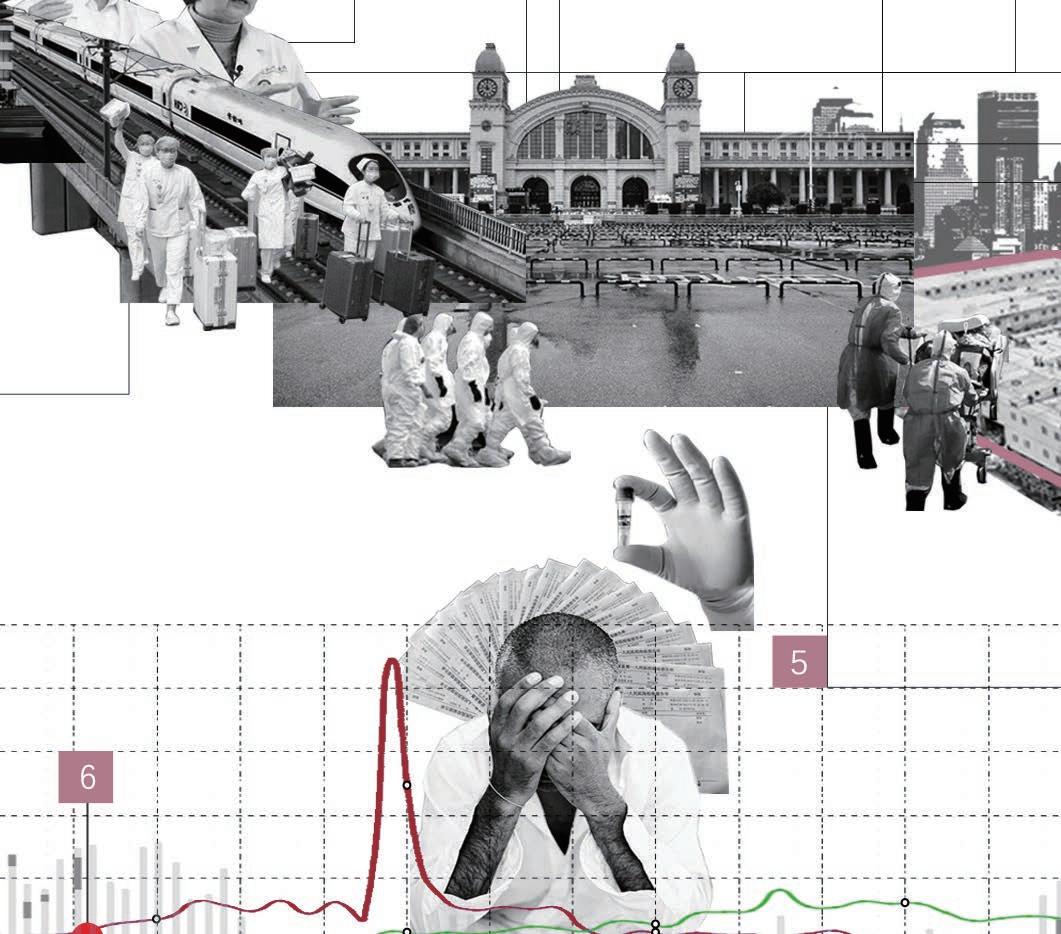

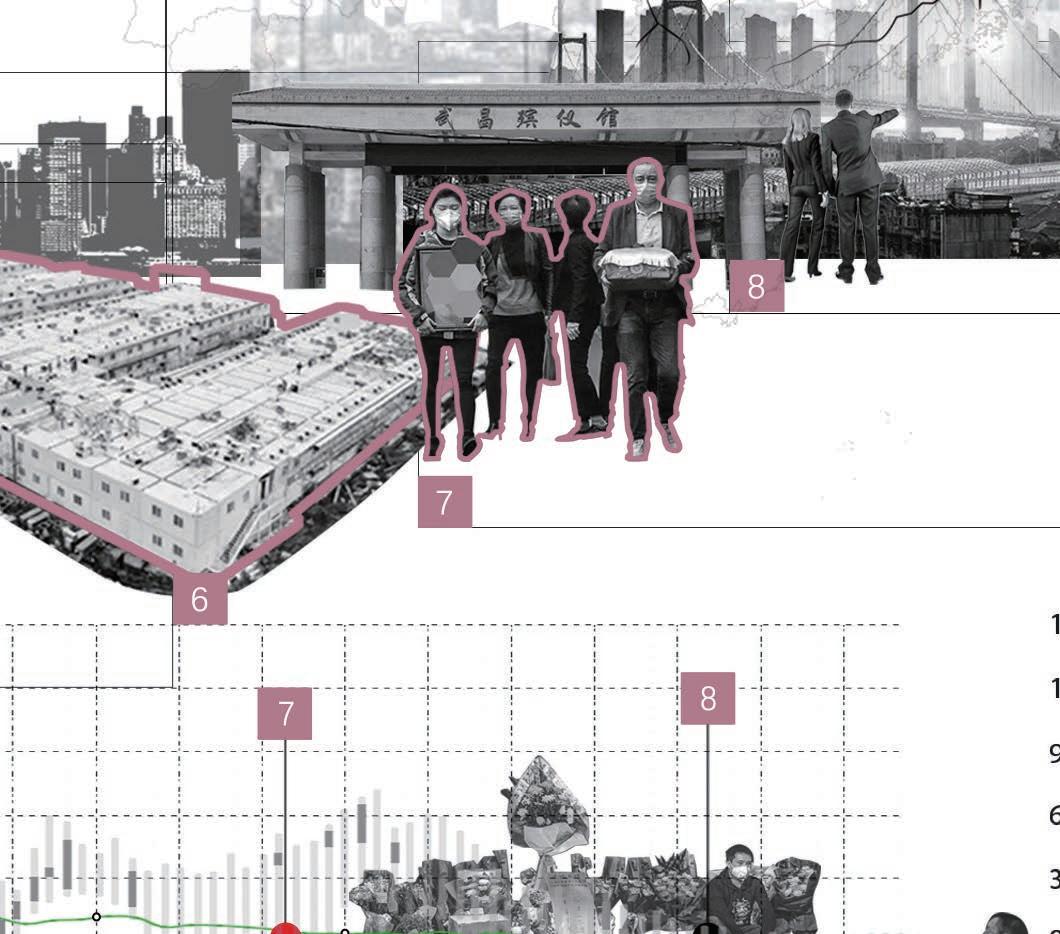

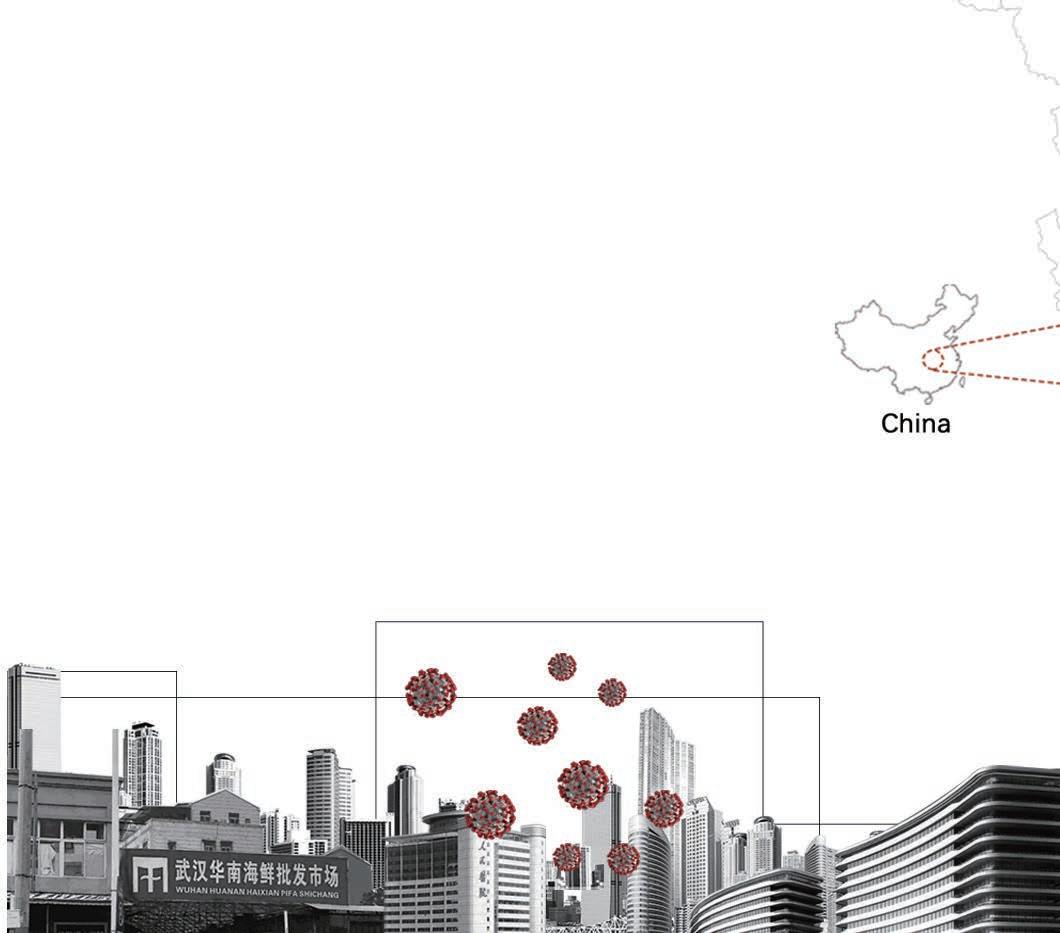

TIMELINE IN WUHAN Wuhan Shut Down Expert Team Rushed to Wuhan Emphasize the Importance of Scientific Hand Washing

Unknown Cases South China Wet Market Wuhan reopen to the world

Novel Coronavirus Identified China Centers for Disease Control

EMOTION LINE OF BEREAVED PEOPLE

Wuhan Funeral Parlours reopen to public

Huoshenshan Hospital was put into use Medical Resourses Ran out on China New Year’s Eve Positive Negtive Calm

Depressed

Sorrow

Shocked

Dizzy

Terrified

Worried

54

55

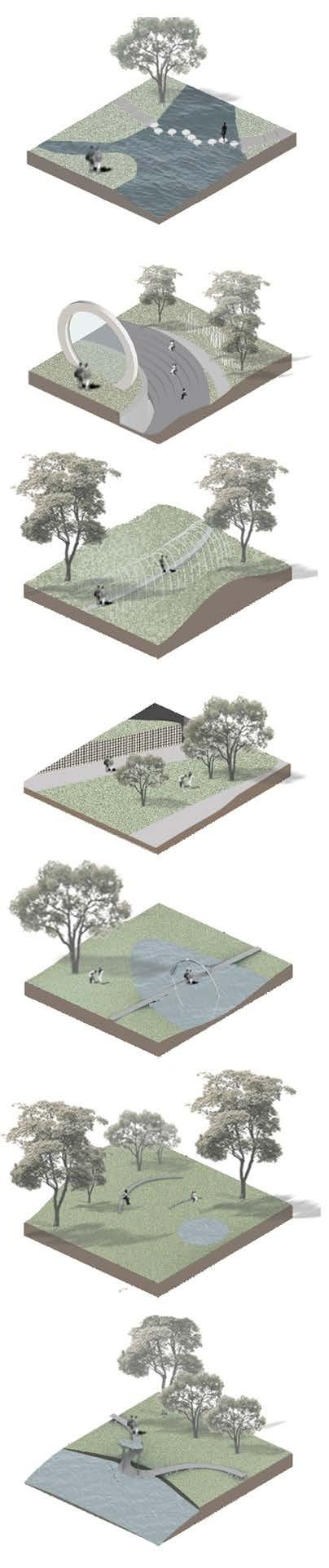

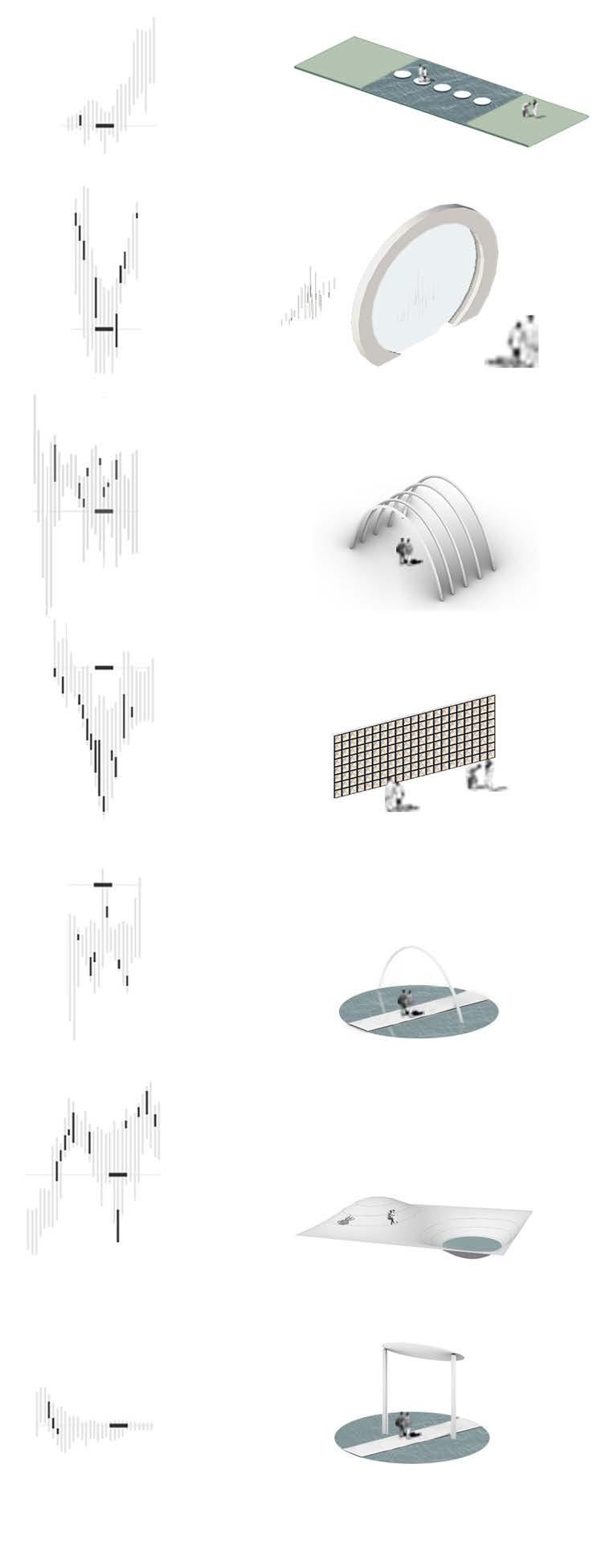

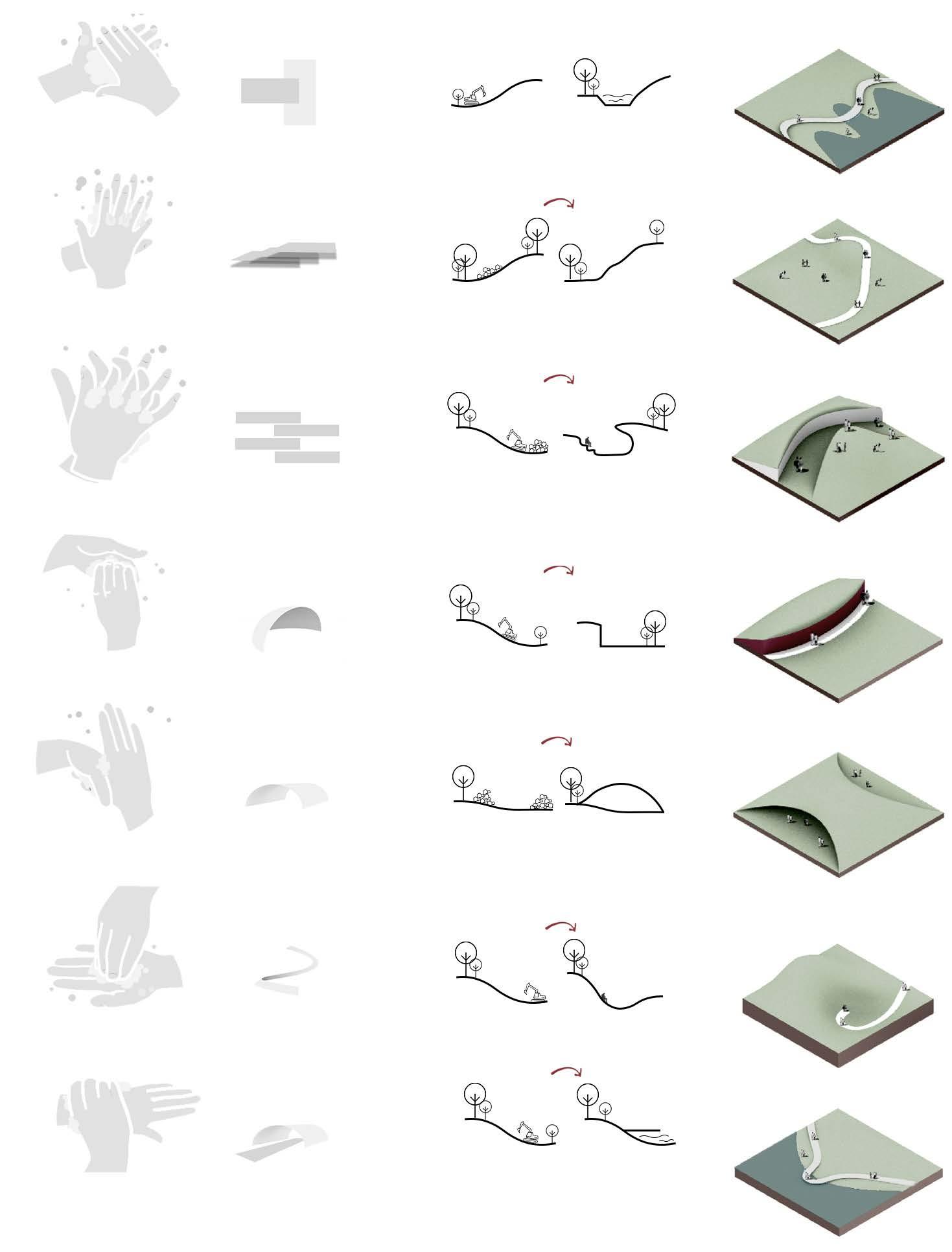

TERRAIN & LANDSCAPE INSTALLATION In this design, terrain and landscape installation together represent the emotion state the bereaved people went through during the epidemic period.

STEP I

56

A. Crossover

Crossing the elemants of green space and water

1. Worried

Elastic material creates tension when crossing a bridge

B. Overlay

The topography is superimposed to form a slope

2. Terrified

Looking at the groung from a high vantage point through an indistinct device is frightening

C. Insert

The topography is superimposed to form a slope

3. Dizzy

The array of devices makes you feel dizzy

D. Half Surround

Retaining walls create a sense of smi-enclosure

4. Shocked

The many names of the deceased are shocking

E. Pass Through

Lift up the terrain and let people pass through

5. Sorrow

The gate connected life & death

F. Rotate Down

Earthward sinking makes one spiral downward

6. Depressed

A sunken space for contemplation

G. Extend

Bridge over water

7.Calm

Seeing one's own shadows and scenery reflected makes one serene

STEP II

STEP III

57

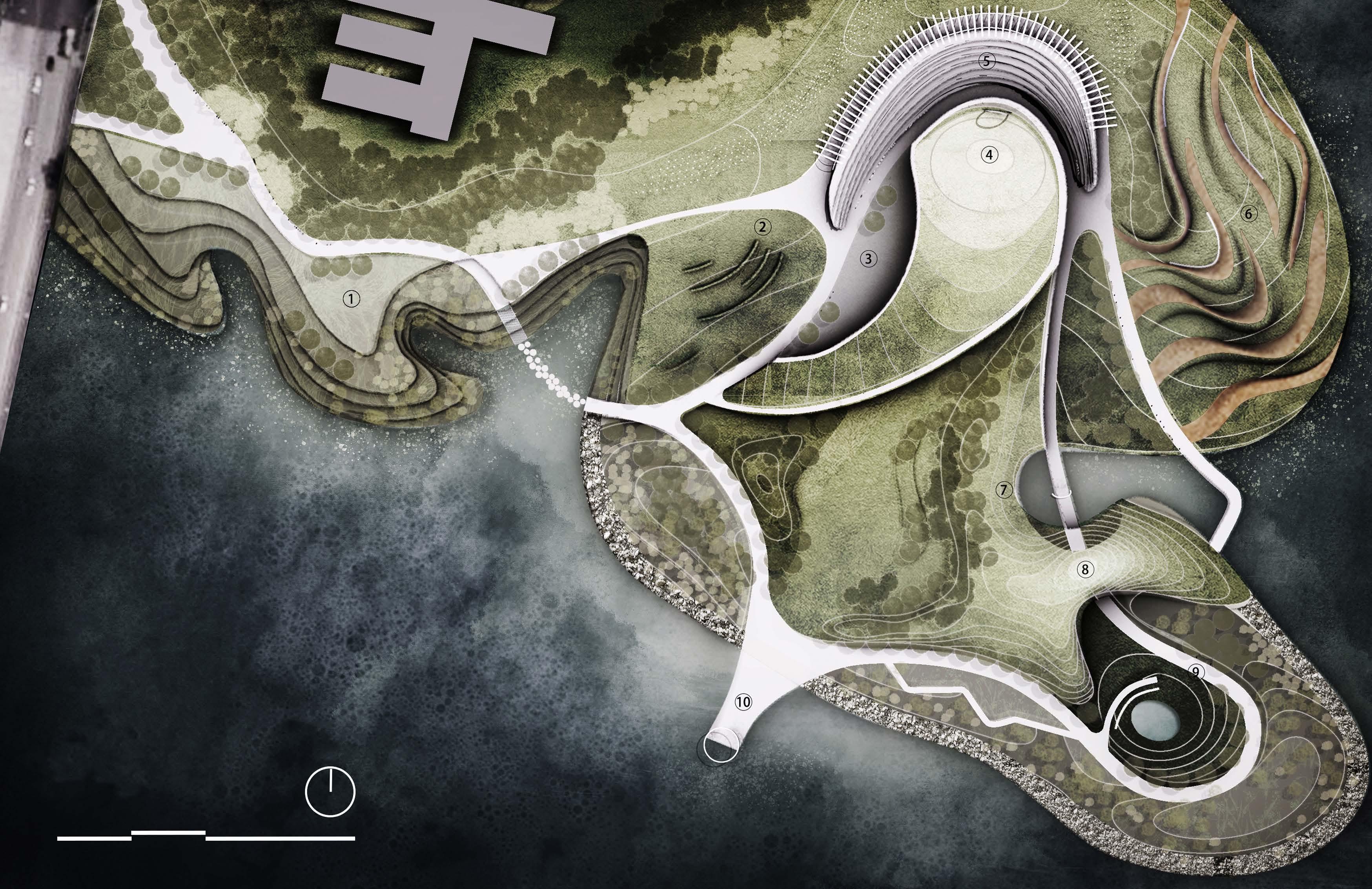

1. Flood Bank 2. Waterside Lawn 3. Central Plaza 4. High Slope 5. Stairs 6. Retaining Wall Lawn 7. Memorial Wall 8. Raised Hill 9. Meditation Lawn 10. Viewing Platform

N

59 0

25m

50m

100m

60

61

07 ABOVE THE RUINS URBAN DESIGN COMPETITION INFORMATION: Landscape Architecture Design Duration: 8/2020-9/2020 Location: Yangliuqing, Tianjing, China Type: Academic Work/ Design Studio/ Solo Work Instructor: Lin Lifeng, Feng Jiang

DESCRIPTION: With the expansion of modern cities, it has become a common phenomenon that the urbanization rate of land is higher than that of population which produced low utilization buildings, and we define them as the new ruins of modern cities. This interesting discovery makes us start to think about the meaning of ruins what is ruin and where does it come from and where it will eventually go?

Our design is divided into two parts, they are human being's fate and ruins' destiny in the which we consider highly related since both of them are not welcome by the modern city. The Peripheral Museum is inspired by the "Stray Dogs" film directed by Cai Mingliang, which tells the similar fateful development trajectory between the urban fringecrowd and the ruined space. The interior is a complex, which is the epitome of modern urban sprawl. It will continue to proliferate to the same fate as the ruins, but after it collapses into real ruins, it will give birth to new organic vitality and use value.

62

63

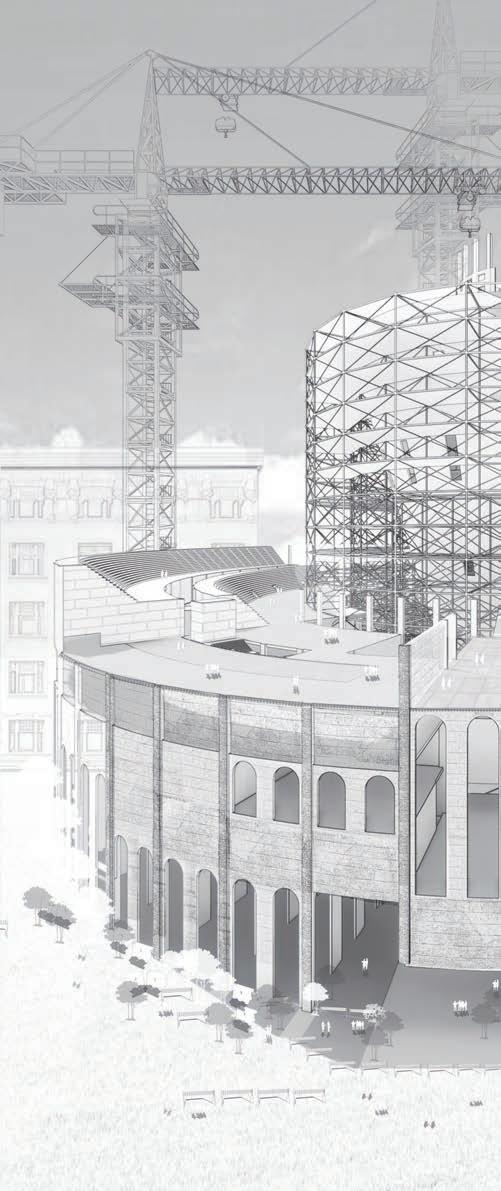

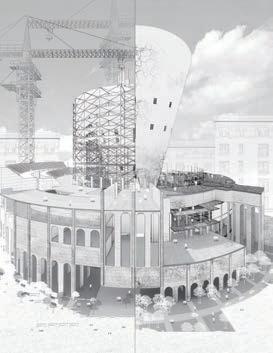

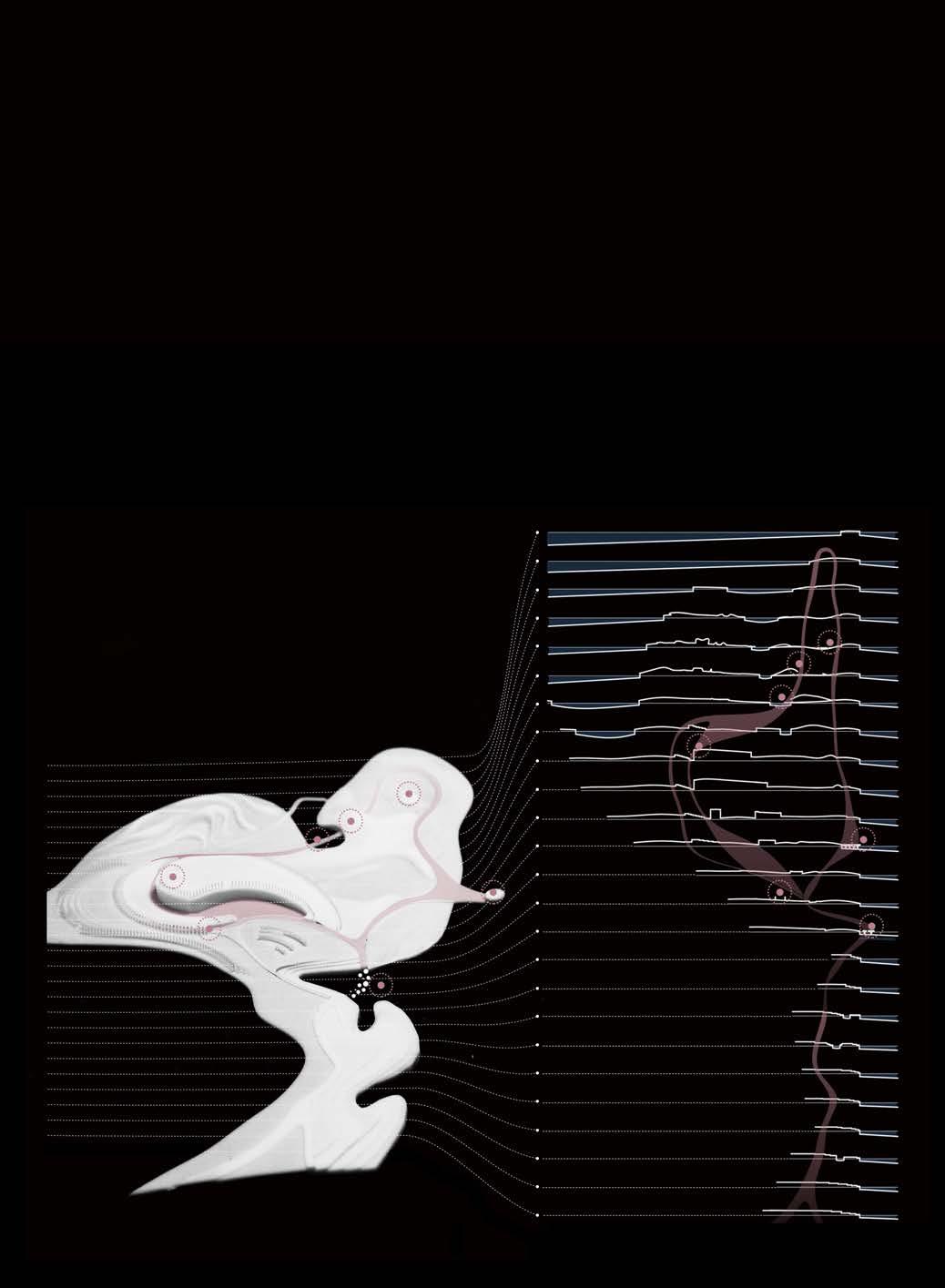

THE LIFE CIRCLE OF NEW URBAN RUINS Our design is divided into two parts, they are human being's fate and ruins' destiny in the which we consider highly related since both of them are not welcome by the modern city. The Peripheral Museum is inspired by the "Stray Dogs" film directed by Cai Mingliang, which tells the similar fateful development trajectory between the urban fringecrowd and the ruined space. The interior is a complex. It is the epitome of modern urban sprawl. It will continue to proliferate to the same fate as the ruins, but after it collapses into real ruins, it will give birth to new organic vitality and use value.

64

PHASE I

PHASE II

CONSTRUCTION

COMPLETMENT

PHASE III

COLLAPESE

PHASE IV

NIRVANA

65

66

67

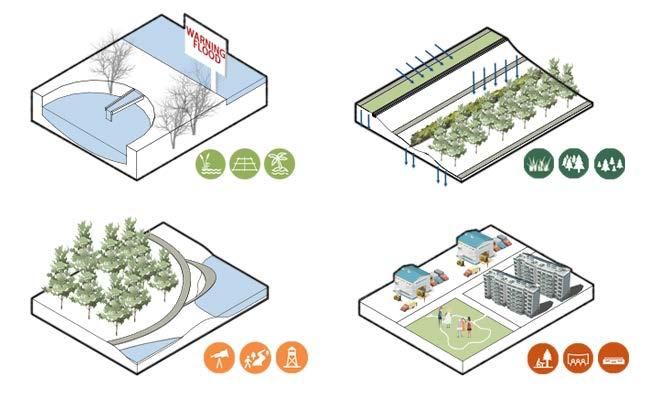

BACKGROUND ANALYSIS GENERAL STRATEGY

River Redistribution

Runoff Collection

Scientific Research

City Park

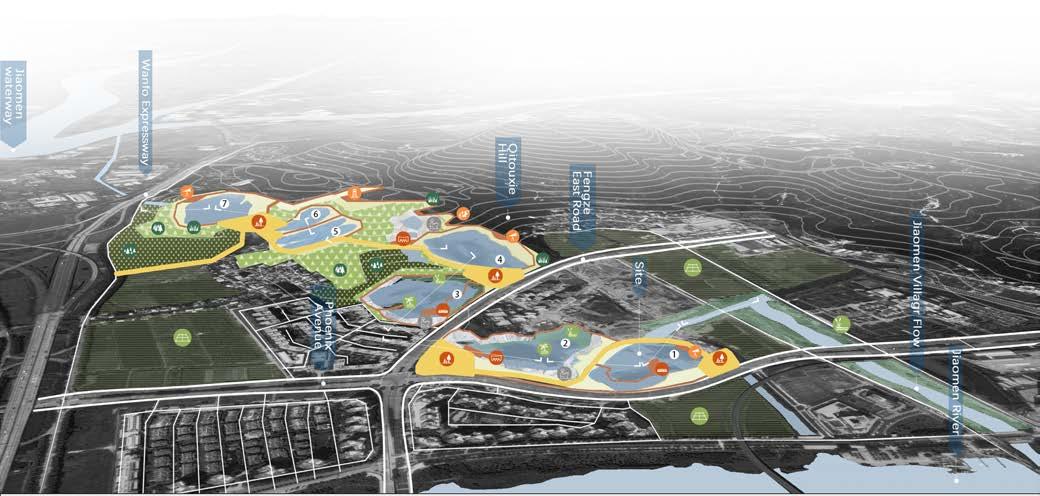

08 CITY WATER TANK FLOOD REGULATION & QUARRY RESTORATION & CITY PUBLIC SPACE

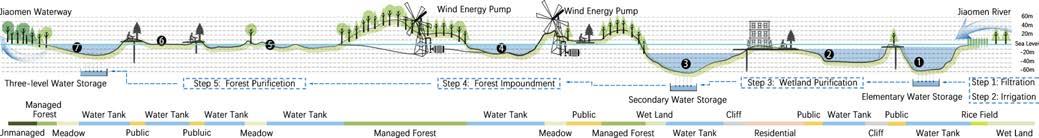

WATER MANAGEMENT PROCESS

INFORMATION: Landscape Architecture Design Duration:11/2020-12/2020 Location: Guangdong, Guangzhou, Nansha, China Type: Academic Work/ Solo Work Instructor: Wang Yihui

DESCRIPTION: When I began to dive into the Nansha region, I found that the urbanization brought negative leverage to the surrounding inhabitants. Urban construction required a lot of building materials. And Nansha was abundant in all kinds of stones, which gave rise to a bizarre scene - among the uniformity of the residential area appeared a large number of huge holes owing to digging and quarrying mines. The passive and absurd urban landscape makes me feel depressed. Therefore, in a landscape project, on the one hand, I stabilized the slope and restored the green, adapting it into a rest area like a block park. On the other hand, I employed it as a water storage tank for the whole coastal city, playing a role of flood control and disaster relief during the flood season.

68

Wet Land

Fish pond with Rice Field

Ecological Floating Island

Strip Filter

Managed Forest

Unmanaged Forest

Viewing Platform

Path of Scientific Research

Highpoint Lookout

Corner Park

Rock Theater

Floating Bridge

Cliff

Vechicle Path

69

HOW TO DETECT THE CHANGE OF WATER LEVEL Highest Water Level

Regular Water Level

Lowest Water Level

water outlet

water outlet

water outlet

water inlet

Watchiong Area

water inlet

Waterfront Area

Viewing Platform

water inlet

Resting Area

Wet Land

A platform attached to the rock face, also canget good perspective of both the intake waterfall and the floating bridge there.

Precast Concrete

Steel Frame

Bolts

Recycle Plastic Barrels

500mm 760mm

760mm

=60KG

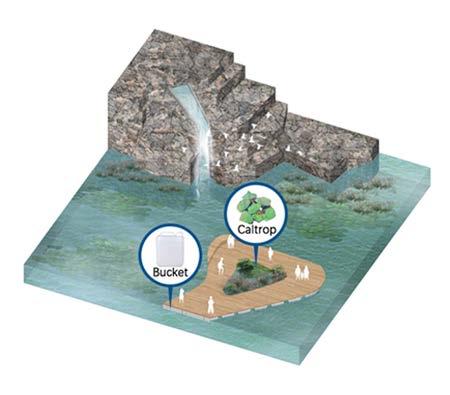

Ecological Floating Island Each barrrel can hold four people.

These environmental plastic containers can be vegetated with remediating plants, capable of remediating metals and other toxins in water.

Mooring System Also perform as artificial fish habitat

70

71

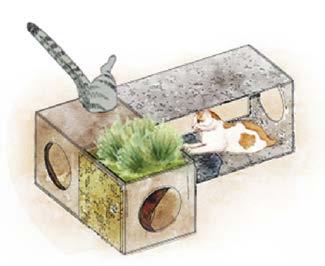

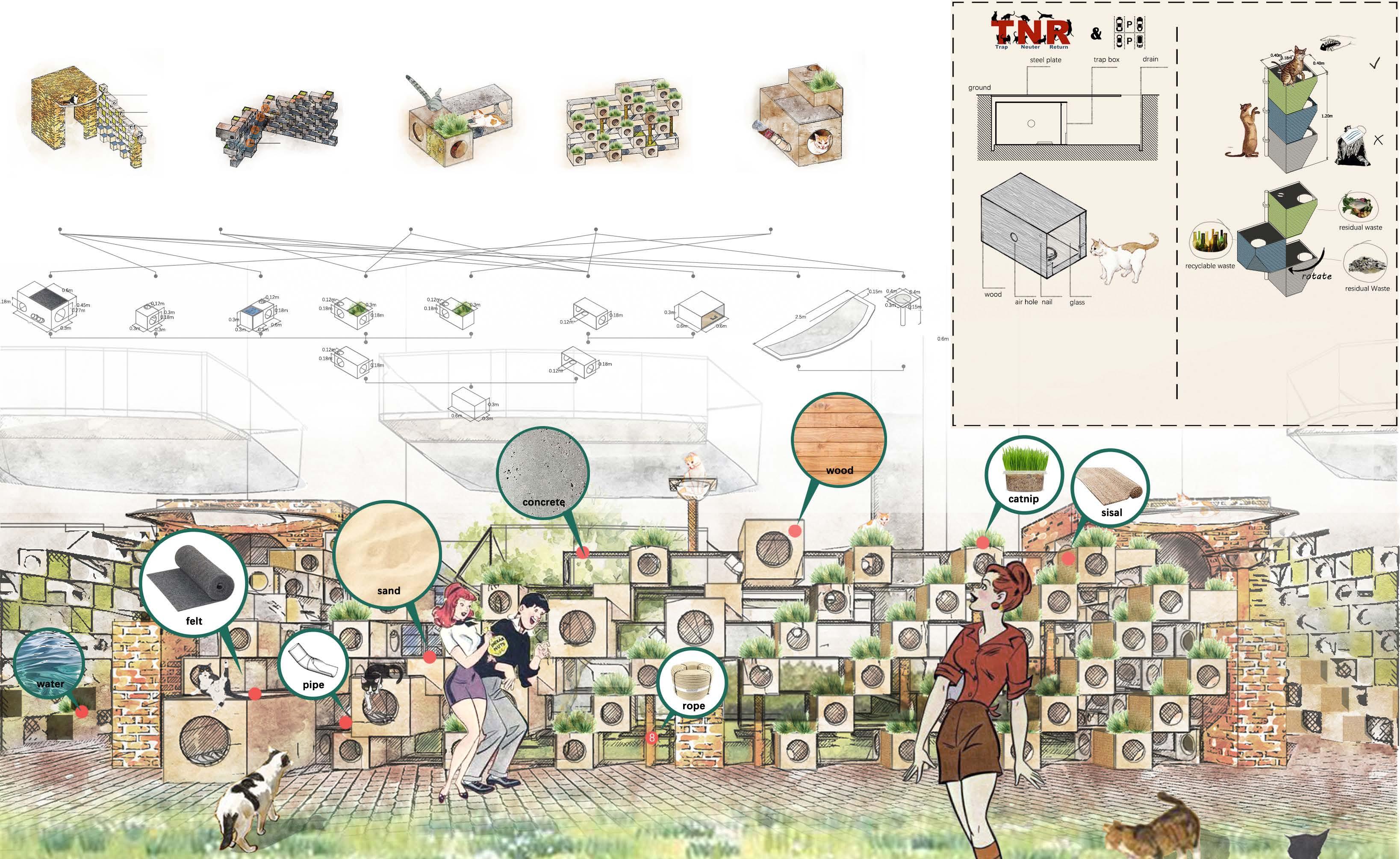

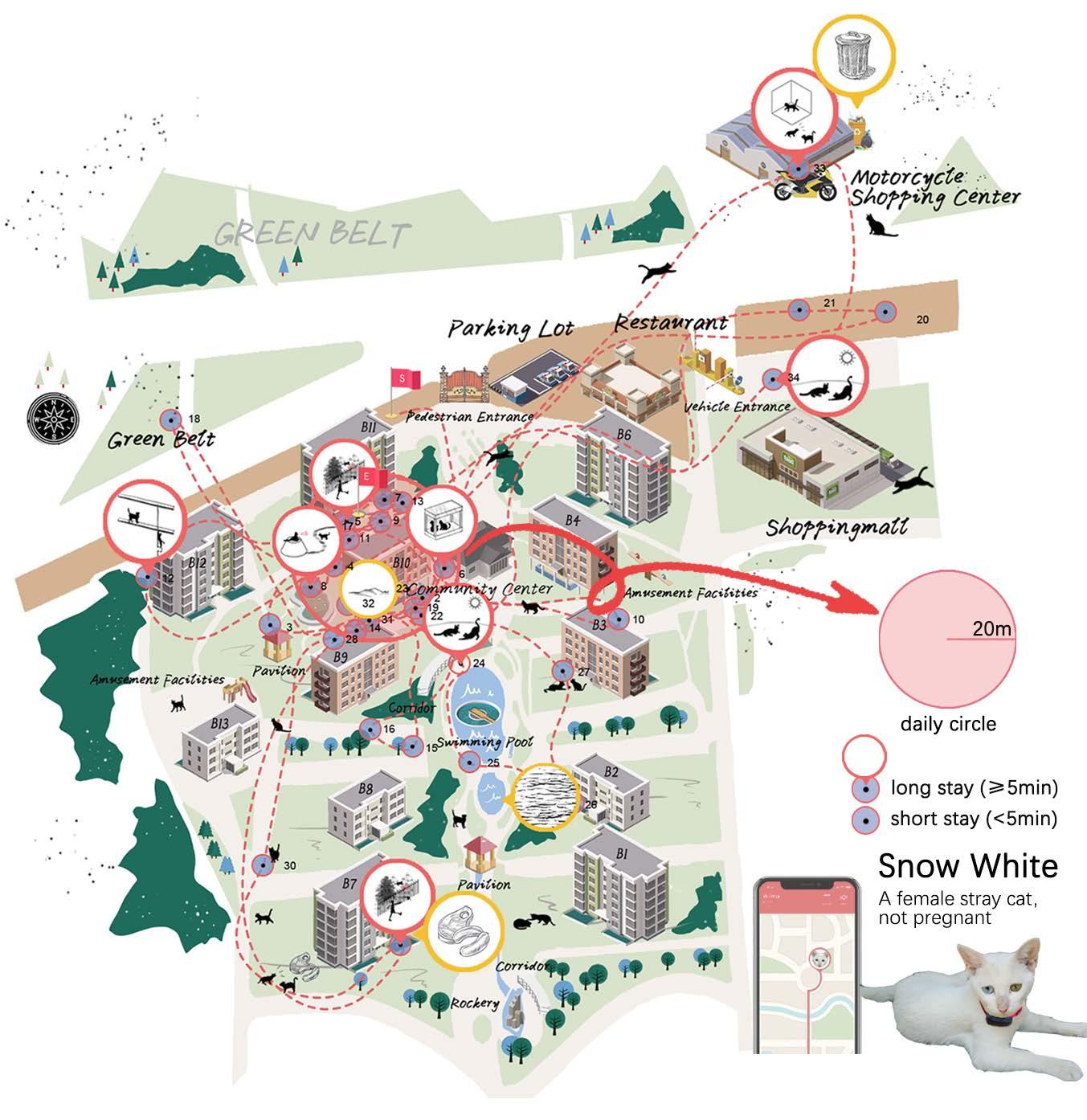

09 CO-EXIST BORDER A VESTIGATION TOWARDS STRAY CATS IN WUHAN UNDER COVID-19 INFORMATION: Landscape Architecture and Urban Design Duration:9/2020-11/2020 Location: Shijijiayuan Community, Wuhan, China Type: Academic Work/ School Work/ Solo Work Instructor: Jason Ho

DESCRIPTION: The conflict between stray cats and the people in the city became increasingly intense during the rise of the epidemic, especially following the emergence of rumors that cats might cause the spread of Covid-19. As a result, certain illegal “harmless treatments” were conducted on stray cats in the community. So I decided to provide a shelter for these cats.

I extracted their preferenced space type by recording their daily movements using GPS. The places identified by the GPS in which the cats were willing to stay for longer are emphaised. I revisited these places, tried to find out why they are so appealing to cats.I tried to probe further into the matter by comparing their ideal space types proportion to the current situation of their community and filling the gap. Eventually, a coexisting community will be created which barely causes any disruption to the present human community, while also providing the possibility for a positive human-cat interaction and public space activiation.

72

73

CO-EXIST BORDER Each extracted space types are transformed into a monomer design according to the cat scale.According to the actual situation and the difference between the ideal proportion and the actual situation of each space type in the area, the approximate proportion of each monomer in the area is determined.

Hideout Open Space

Drip Irrigation Vegatation Basin Corner

Sentry Post

Diner

In & out

Corner

Play Room

Play Room

Play Room

Bedroom

In Box

Short Cut

Corridor

Out Box

Shelter

Toilet

Balcony

REPRODUCTION ISSUE

HEALTH ISSUE

Considering cats often stay under the car in winter and rainy days, and even worse, they will get into the car engine when they are frightened, which will bring double risks to the safety of people and cats. I propose to transform the parking space in the community as shown in the figure. On the one hand, the captured cats will be sent to RNT; on the other hand, if cats find traps under the cars, they will be less likely to be around the unsafe place.

One of the major problems that stray cats bring to people in the city is the health problem. During the epidemic period, this contradiction has been intensified. They often come into contact with people's masks when they look for food in the garbage can, which is not conducive to epidemic prevention. Therefore, a garbage bin is designed to separate the garbage. When the cat eats, it will only touch the kitchen waste on it and redu ce the risk.

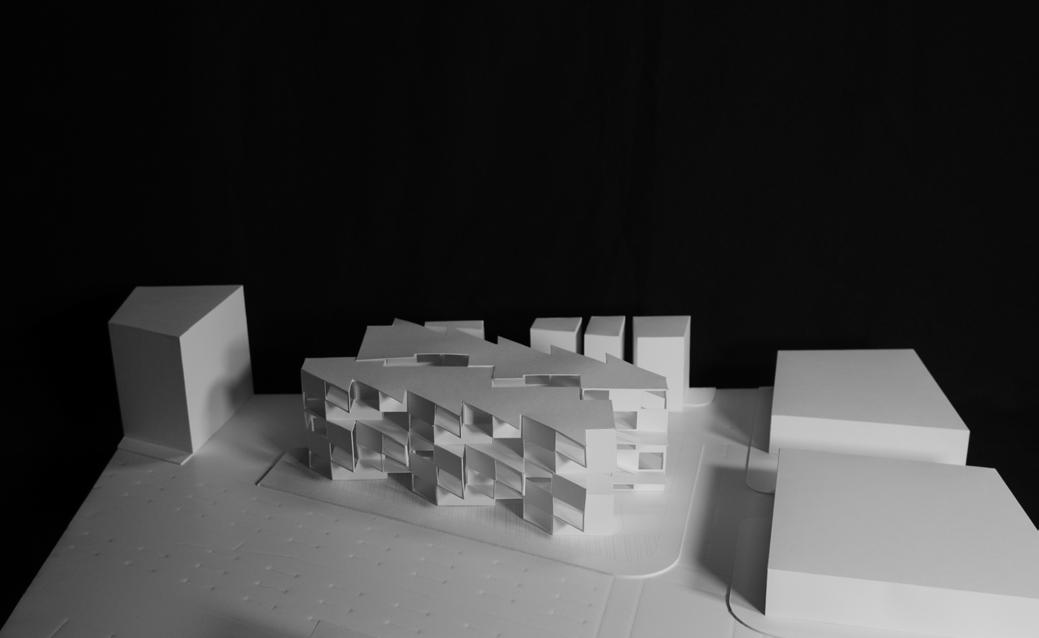

Massing

74

75

10 OTHER WORKS KNOW MORE ABOUT COMPETION & PRIZES

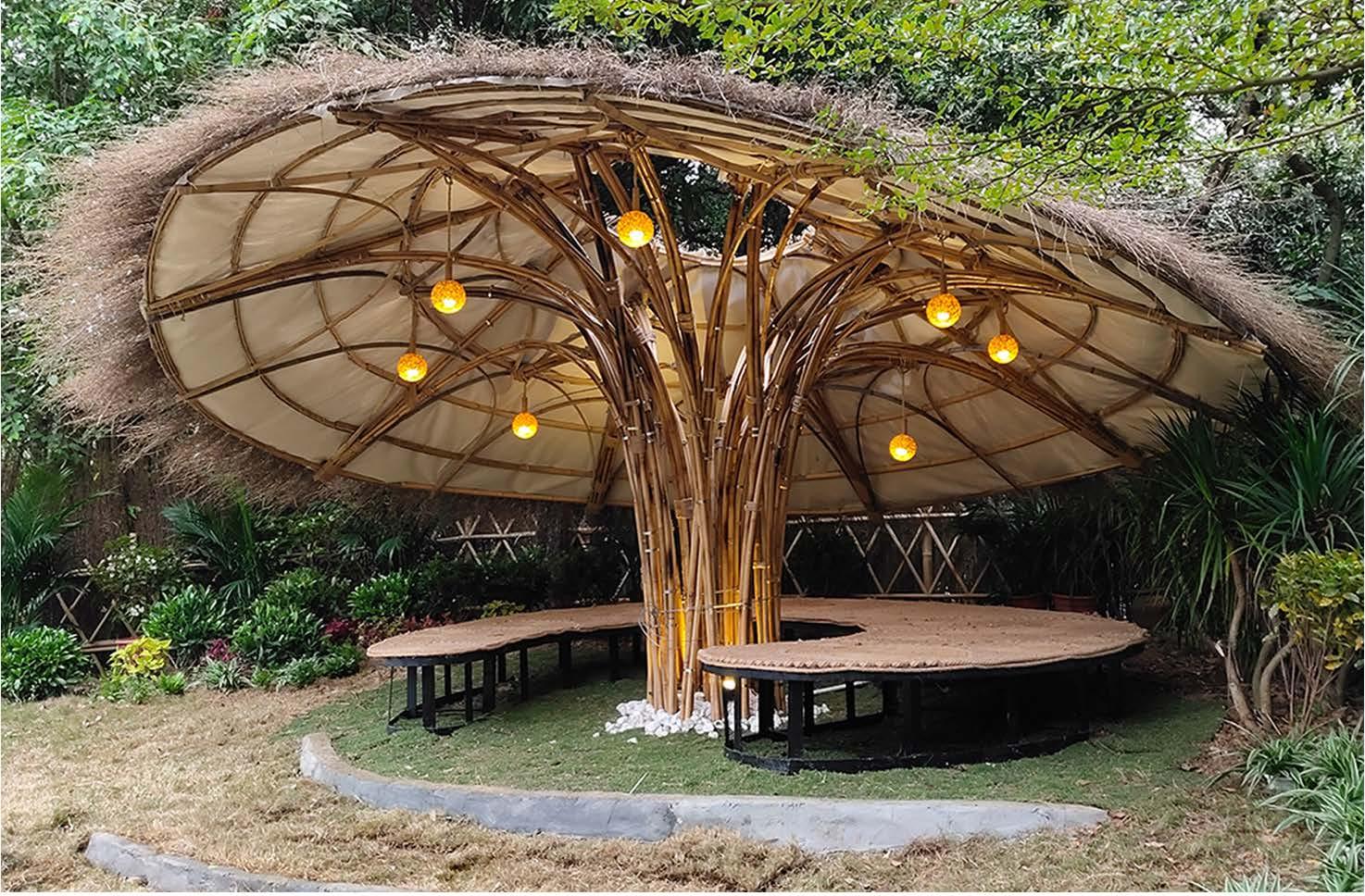

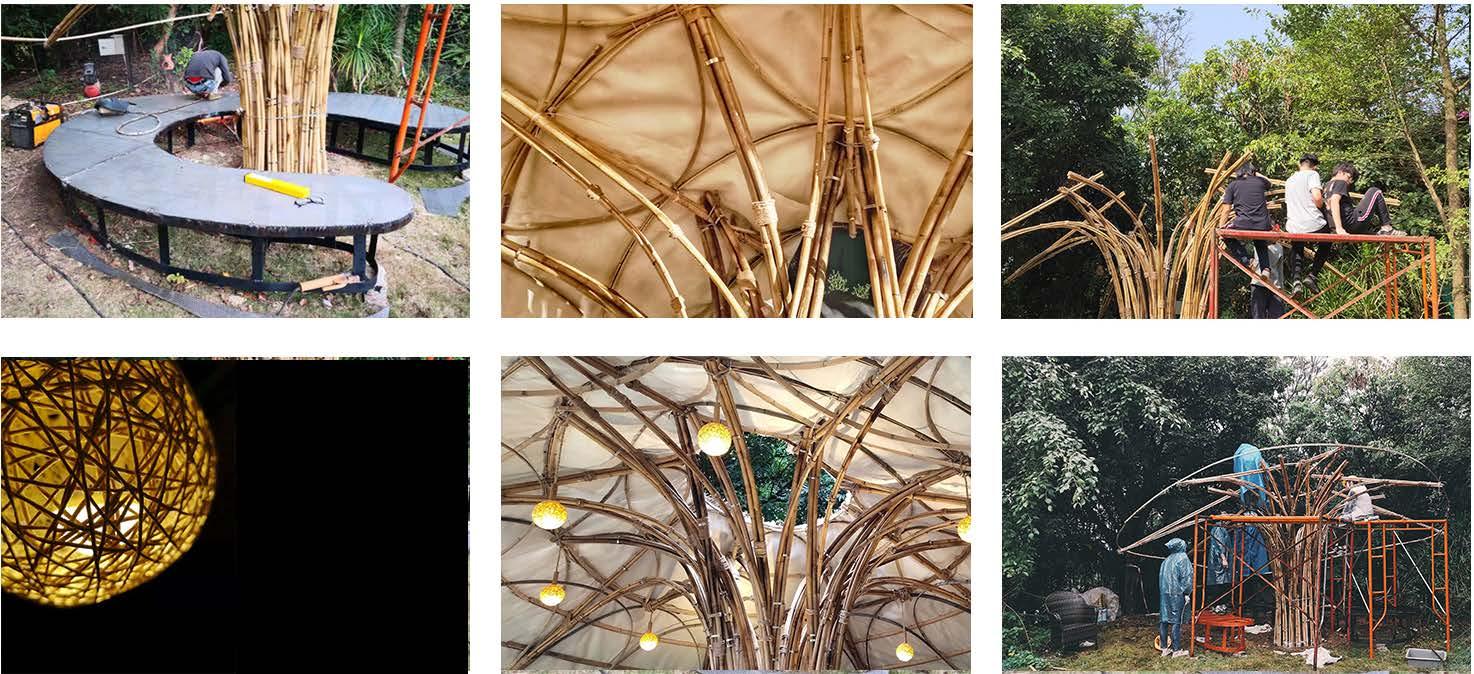

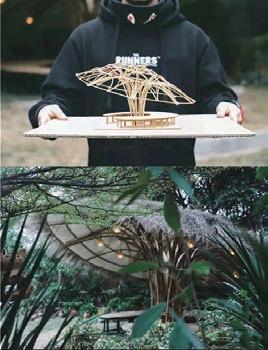

PAVILION CONSTRUCTION Pavilion Construction Duration: From September, 2018 to November,2018 Location: Guangdong,Guangzhou,Nansha,China Type: Teamwork Responsbility: structural design, construction work, furniture & lightning design.

Instructor: Zhong Guanqiu Award: 2nd Prize of South ChinaUniversity of TechnologyConstructionCompetition 2018

76

77
