FLO O D -RE S I L I E N T S O LU T I O N The Harbour Keeper

MU LT I -U S E RE S I D E N T I AL The Link

CO L L E CT I V E ST U D E N T L I V I N G: Smart Co-Live

CO MM U N I TY C E N T RE City Food Centre

C RE AT I V E S KI L L S , P RO FE S S I O N AL Model-Making

6

The Harbour Keeper

F LO O D -R ES I L I E N T SO LU T I O N :

Th e Ha r b o u r Keeper

MSc 2 Thesis Project Individual February 2024 - May 2024 PREFABRICATED TIMBER CONSTRUCTION An investigation of one of the flood-resilient methods to see how architecture can combat and adapt to climate change.

This project aims to propose a living concept of how we can co-live with water instead of avoiding it. With the help of the staged garden, we can pleasantly introduce water into the living area, with a slight change of the functions to minimise the impact on the residents.

Following the flood protection strategy proposed by the municipality of Malmö and a comparison of different methods, I decided to go for the ‘Elevated’ approach for this project, where all the living spaces and mechanical equipment will be stored above the ground floor. Leaving the ground floor flexible, where all the elements and objects can be easily removed during a flood event.

G GLAC TIN I

ME L

RIS I

The Harbour Keeper

RISING SEA LEVELS & FLOODING

’An investigation of flood resistant architecture that adapts to future environmental challenges’

The project locates in Malmö where a big part of the city will be underwater in 80 years due to the rising sea level. According to the protection strategy which is based on UN Climate Panel IPCC, RCP 8,5 median value (+1,9 m) and SMHI high tide event every 200 years, median value (+1,52 m) for the coming 100 years till 2125.

Which gives an average sea water level of + 2,71 m.

M

7

S

S

GL O

OUGHT DR

ER

SE A L E V NG

EL

NG

L WARM BA I

8

The Harbour Keeper

1 km

3 km

m 1k

m

3k

Site

Train Station

Malmö University

City Centre

Torso Turning

Harbour

Beach

Park

Malmö Castle

Hospital Malmö University

Malmö Opera

Malmö Entre (shopping)

PROJECT LOCATION Coastal protection area

Attension area for sea flooding

Municipal border

The Harbour Keeper

MASTERPLAN Chosen site

New productions

Existing buildings

9

10

The Harbour Keeper

OPTION 1: AMPHIBIOUS HOUSES +

Flexible Adaptive to the flood Stand on land/water

1:500 SITE MODEL

Limited building size Require a lot of concrete Complicated construction

OPTOIN 2: FLOATING HOUSES +

Flexible Adaptive to the flood Reduce heat affect

Expensive Require a lot of concrete Complicated construction

OPTION 3: ELEVATED HOUSES (chosen method) +

Adaptive to the flood Reduce structural damage & cost

Open ground floor No living spaces on ground floor

The Harbour Keeper

1. OPEN UP

2. INTERACTION

ELEVATED GARDEN

OPEN GROUND FLOOR

ADAPTABILITY

EASY TO CLEAN UP DURING FLOODING

DESIGN FOR DISASSEMBLY

MODULAR HOMES

3. HEIGHT ADJUSTMENT

REUSE, REPLACEMENT AND RECYCLE

4. VARIETY OF FLATS TO EMPHASISE THE SITE

4 KEY CONCEPTS

FLEXIBILTY

11

12

The Harbour Keeper

Plot area: 3110 m2 FSI: 3.9 No. of apartments: 69

9

B

C

D

E

(4,8m) +4m+4m (+4,8m)

F

+3m(+3,8m) (3,8m) +3m

G

H

E

J

+2m (+2,8m) +2m (+2,8m)

S-01

A

7 (+0m) +1,19m 7 (+0m) +1,19m

63,000 7,000

7,000

7,000

7,000

7,000

7,000

7,000

7,000

7,000

01

01

7,000

F

02

F

F

3 3

F

4 4 02 F 150

F

0

150

0

7,000

F F

F

F

03

1. Open market (public) 2. Elevated garden +3m 3. Restaurant 4. Cafe 5. Bike storage (private) 6. Bike storage (public) 7. Harbour 8. Floating deck 9. Open squre 10. Pedastrian & bike lane 11. Main road

03

Possible for flood barrier

7,000

04

+2,7m

(+2m) 11 +2m

05

49,000

2 2 (+3m) +3m

7,000

+4m +4m

S-02

Possible for flood barrier

04

S-02

05

7,000

Possible for flood barrier

06

06

7,000

5 5 07

07

7,000

(+2,4m) 6 6(+2,4m)

08

88 08

A

B

C

D

E

S-01

10 10

F

G

H

E

J

11 11

GROUND FLOOR (+2, +2,4, +3 & +4 M)

GROUND FLOOR (+2, +2,4, +3 & +4) 1:200 0

5

10

20

S-01

The Harbour Keeper

7,000

7,000

7,000

D WM

D

D

WM

WM

7,000

7,000

F

F

F

130

0

WM

150

0

0

150

F

F

130

0

0

130

F

130 0

0

0

130

7,000

D

WM

0

150

7,000

F

150

0

0

7,000

D

D WM

TM

150

0

150

7,000

130

S-02

S-02

130

0

F

150

0

0

0

0

130

F

150

130

0

0

130

F

150

130

0

0

F

130

F

150

0

0

0

150

TM

F

150

F

WM

WM

WM

WM

WM

D

D

D

D

D

D

S-01

WM

FLOOR 2

FLOOR 2 (+7) 1:200 0

5

10

20

13

14

The Harbour Keeper

EAST ELEVAT

BILDING FUNCTOIN

0

HEAT EXCHANGE SYSTEM Aqua thermal energy extracts heat or cold from water in the harbour to heat and cool the building. Ventilation and floor heating will adjust the indoor temperature.

The water will be pumped to the exchange machine in the mechanical service room on the 5th floor.

WATER TANK Rainwater collected from the green roof will be contained in the water tank underneath the building.

GREEN ROOF Green roof has many benefits. It can keep the roof area cool during hot summer, purifies the air, saves energy and encourages biodiversity in the city.

SOLAR PANEL The majority of the solar panels will be strategically placed on the roof of the north building. It generates power for the building demonstrating the resilience and effectiveness of this sustainable feature.

OVERHANG BALCONIES The 1.1m overhang balconies will be a sun shade to prevent overheating the flat during hot summer.

VENTILATION Natural ventilation through 2.3m large window and air and mechanical ventilation system on the roof.

FLOOR HEATING Underfloor heating pipes run in all apartment units.

5

The Harbour Keeper

EAST ELEVATION

TION 1:100 10

SOUTH 20ELEVATION

NORTH ELEVATION

SOUTH ELEVATION 1:100 0

5

10

20

NORTH ELEVATION 1:100 0

5

10

20

15

The Harbour Keeper

N

A

FLOOD SCENARIOS

ITY BIL

SUST AI

As the adaptability and flexibility of this design, it has an open concept toward the harbour.

It allows the water to extend into the staged courtyar during flood events. In this sense the ’function’ of the courtyard will change depends on the level of the water. The design is fully functional, up to +4 meters of water rises.

TIMBER Evironmental friendly building materials

DF

D AFTER-LIFE

+0m (+1,19m)

Replacement Resource Recycl e Reuse

+2m (+2,7m)

MATERIAL BANK

SE

Aluminum frames Stairs

RE

U

16

+3m (+3,7m)

REPETITIVE

I FU MAN

Standard window and door size

CT UR

ING +4m (+4,7m)

ADAPTABILITY & FLEXIBILITY

The Harbour Keeper

17

The Harbour Keeper

2700

The glulam v-shaped columns on the ground floor are bolted into a concrete box and hid under the ground.

2625

Suspended ceilling to hide all the pipes runs underneath the first floor.

V-SHAPE STRUCTURE

2700 367 2700

2700 600

3147

2348

655

2700

IVE

340

800

40

+4m

+ 2,4 m

Ground level + 2 m

645

PE

ECT P RS

SHAFT PIPE

340

The balconies has its own load-bearing system and are supported by timber posts and beams, as well as, an L-shape bracelet bolted into the internal CLT floor.

CT UR E

Timber skeleton, except post and beam system on groundfloor and the rest will be CLT load bearing wall.

CLT BALCONY

40

CLT FLOOR & WALL

512

734

2350

The Harbour Keeper

STRU

18

The Harbour Keeper

19

20

The Link

MULT I -U S E RESI D ET I AL :

Th e Li n k

MSc 2 Project Individual February 2024 - May 2024 SUSTAINABLE TIMBER CONSTRUCTION The project I did during my exchange at TU Delft was a collaboration together with the municipality of Amsterdam, an ongoing urban project in Sloterdijk. The project site locates about 3 km northwest of Amsterdam’s city centre and has a vision to turn the area into multifunctional residential, liveable and diverse spaces with partly commercial. With vital accessibility to public transport, my groupmate and I came up with the solution to split the project site into 5 smaller plots, and I decided to work on my project on the southern plot. The project has a total area of 4.223 m2, with 91 apartments and a FSI of 4.1.

The Link

PROPOSED MASTERPLAN

INCORPORATING EXISITNG CONDITIONS

REQUIRED SETBACKS

PROPOSED GREEN SPACES

BUILDING CONFIGURATION & CIRCULATION The building configuration comprises two towers linked by an elevated garden. The larger tower with 14 floors, initiates dwellings from the 4th floor onwards. Although each floor may initially appear distinct, they share a common base categorised into three floor plans as evident in the displacements of dwellings diagram. These floor plans, along with the ground floor layout are illustrated below. The smaller tower, consisting of 8 floors cascades from north to south. The circulation within the complex employs various systems. Both buildings primarily rely on stairwell cores as the main circulation system. The larger building features a centrally located core stairwell with a helix staircase to fulfil fire escape requirements.

In contrast the smaller building incorporates two interior stairwells and one exterior stairwell linking to the elevated garden. All these stairwells are connected to the gallery deck access system guiding residents to their respective dwellings.

1:500 SITE MODEL, 3D PRINT

PROJECT SITE BOUNDARIES

21

22

The Link

PERSPECTIVE SECTION

The Link

Step 1

Two main towers with a connecting plinth

Step 2

Eliminating masses with a variety of scale

Step 3

Dwellings and circulation form the buildings

C’

D’

C’

D’

Step 4

Outdoor spaces placed in symphony with the recessions

FLOOR 3 & ELEVATED GARDEN

SECTION C’

GROUND FLOOR & COMMERCIAL Dwellings

Commercial space

Circulation area

A’

B’

A’

B’

Bike parking & Storages

23

24

The Link

CHOSEN APARTMENT TYPOLOGIES The structure is designed on a 7.2 by 6 metre grid utilising primarily CLT (cross-laminated timber) loadbearing panels and glulam timber columns. To ensure adequate stability the larger tower incorporates a concrete core. The ground floor is also constructed from concrete to mitigate moisture-related issues.

This combination of elements aims to achieve a stable structure.

3600

3600

3600

3600

3000

6000

6000

MV

WM 1800 6000

Apartment B5

3000

3000

6000

1800

6000

1200

WM

3600

3600 7000

Apartment B3 7000

MV

The Link

25

WM 3000 1500 mm

6000

6000

MV

WM

9000 4400

WM 1500 mm

6000

2000

MV

1500 mm

3000

1600

2100 7000 3600

3600

3000

3600

4200 7200

2050

5150 7200

0 B7

0 A6

Apartment A5

1

2

3

1

2

3

5

1:50

0

5

A5

1:50

Apartment B7

Apartment A6

1 1:50

26

The Link

HIGHRISE WOODEN RESIDENTIAL BUILDING

SECTION PERSPECTIVE

GLT & CLT load-bearing structure with ERV & HRV, vegetation, and solar panels on the rooftop. As well as water storage on the basement to store rainwater for reuse. Concrete plinth and core for stability. CLT rib floor from floor 3 up to floor 13 and roof made from reinforce concrete to add extra weight to the building.

The building has a timber skeleton, with glulam and CLT post and beam system. The choice of building materials is manly based on to maximise the sustainable aspect and after-life of the building, which include the bio-based straw bale insulation. This type of insulation is considering a cheaper option for such a large building is highly sustainable and durable, since tightly packed straws can provide high u-value.

Together with a sick sack glulam truss to prevent notions and nausea caused by wind due to light weight building structure

For the façade materials it will be white bricks strips and western red cedar wooden cladding, to create a contrast boundary. The idea for using bricks in this project is to create a connected to the existing buildings in the neighbourhood. However, the white bricks and wooden cladding add an extra modern element for this new neighbourhood.

Wooden cladding installs on the façade bolt onto the timber flaming in the wall

The Link

D1

D1

D3

D4

D2

D3

APARTMENT B3

D2

D4

27

28

Smart Co-Live

COL L E CT I VE STU D E NT LI V I N G :

Sm a rt Co - Liv e

MSc 1 Project Individual Mars 2023 - May 2023 This project is a student-focused housing project located in the university city of Uppsala in Sweden, about 1 hour north of Stockholm. It is aimed to create an ultimate living for students who recently moved out from their home or new in town. Each space and function focuses on student’s mental and social needs, to enhance their social connection, ease homesickness, and make it easier for them to get used to the new life chapter with the help of various shared spaces. According to studies, living collectively can prevent depression for loneliness and lower the overall living cost.

However, this project was a collaboration with the municipality of Uppsala. I decided to follow the approved masterplan, to propose a realistic solution to solve the current urgent housing shortage, especially for students.

SHORTLISTED: Selected for exhibition in Upsala City.

Smart Co-Live

GROUND FLOOR

FIRST FLOOR

Commercial

Common Spaces

1. Office 2. Café 3. Restaurant Building A

4. Gym 5. Shared laundry room 6. Communal kitchen 7. Social space D N +3.30 N +3.30

N +3.30

N +3.30

A

N +3.30

N +3.30

N +3.30

N +3.30

C

12. Storage 13. Outdoor barbeque 14. Planting boxes 15. Tennis court

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

Typical floor plan - floor 1

8. Bike storages 9. Study room 10. Group room 11. Toilet

B

FLAT 1

Building B

Size Room Room size

N +3.30

Terrace Common spaces Average space per student

169 kvm 6 5 single rooms, 11-13 kvm 1 double room, 23 kvm 10 kvm 95 kvm 26 kvm

N +3.30 N +3.30 N +3.30 N +3.30 N +3.30

FLAT 2

N +3.30 N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30 N +3.30 N +3.30

1:100 0

TYPICAL FLOOR PLAN Flat 1

Size Room Room size

Terrass Common spaces

169 kvm (including 10 kvm terrass) 6 5 single rooms, 11-13 kvm 1 double room, 23 kvm 10 kvm 95 kvm

Flat 2 Size Room Room size Terrass Common spaces

225 kvm (including 45 kvm terrass) 6 5 single rooms, 11-13 kvm 1 double room, 17 kvm 45 kvm 135 kvm

1

2

5

10

Size Room Room size Terrace Common spaces Average space per student

225 kvm 6 5 single rooms, 11-13 kvm 1 double room, 17 kvm 45 kvm 135 kvm 33.5 kvm

29

30

Smart Co-Live

Solar panel to cut down the living cost

F7

129 m2 Size: Terrass: 10 m2 Room: 3 single rooms 11-13 m2

F6

Size: 239 m2 Terrass: 10 m2 Room: 7 single rooms 11-13 m2

F5

258 m2 Size: Terrass: 10 m2 Room: 8 single rooms 11-13 m2

F4

Size: 296 m2 Terrass: 10 m2 Room: 9 single rooms 11-13 m2 & 1 double room 23 m2

F3

Size: Terrass: Room: Size: Terrass: Room:

170 m2 10 m2 3 single rooms 11-13 m2 & 1 double room 23 m2 149 m2 10 m2 4 single rooms 11-13 m2 & 1 double room 17 m2

F2

Size: Terrass: Room: Size: Terrass: Room:

180 m2 10 m2 4 single rooms 11-13 m2 & 1 double room 23 m2 159 m2 10 m2 5 single rooms 11-13 m2 & 1 double room 17 m2

F1

Size: Terrass: Room: Size: Terrass: Room:

190 m2 10 m2 5 single rooms 11-13 m2 & 1 double room 23 m2

N +3.30 N +3.30 N +3.30 N +3.30

Stairway/ Core

N +3.30 N +3.30

Roof terrace N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30

Loadbearing wall, timber frame

N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30

Basement storage spaces and mechanical equipment

N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30 N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30

N +3.30 N +3.30

225 m2 45 m2 5 single rooms 11-13 m2 & 1 double room 17 m2

N +3.30 N +3.30

G

G

OOF DETA NR IL E E RE

Smart Co-Live

D

D

OOF DETA NR I LE E RE

Plants

Soil Filter layer, made of polypropylene and is capable of high vapour and water pemeability.

S1 1:25

A W

& LL

FLOOR DETA ILE

Green roof

Drainage Mechanical protection layer Waterproof membrane

Thermal insulation layer.

Floor 4

Vapour control layer

Steel

GREEN ROOF BUILD UP

Floor 3

W

OW DETAILE IND D

D

31

32

City Food Centre

COM M U N I TY CENT R E:

C i t y Fo o d Ce ntre MSc 1 Project Individual Octorber 2022 - December 2022 For this project, I am proposing a food community for the citizens of Stockholm. An all-in-one food learning and experiencing centre locate in Humlegården, which is one of the most accessible areas in the city. Restaurants, 24/7 open communal kitchen, and food learning which includes a cooking and baking lab all in the same building. To provide a space for people to explore the Swedish as well as international food culture.

Except for food-related programs, there is also an open gallery.

Passing by the food hall, people can either stop by to peek at the current famous artwork, get a coffee at the café, grab some food at the restaurant or rest a while in the garden area. But can also come back later with some friends to cook their food in the communal kitchen.

City Food Centre

T

T

HUMLEGÅRDEN Stockholm

SITE LOCATION Site

Greenery

C

Main roads

Small roads

Buildings

ING ANALYS ILD IS U B

TION ANAL YS ULA C IS IR

A

Site options Famous roads Average roads

B

Site Shops & Restaurants Hotels Residential Residential & Restaurants T Kungliga Biblioteket S:t Johannes Church Konsert Huset Stockholm

ANALYS UND IS SO

C

A

B

C

T

Site Kungsgatan Birger Jarlsgatan Sturegatan Sveagatan Biblioteketsgatan Noises

T

T

33

34

City Food Centre

C

Total building area: 1202 m2 Total garden area: 550 m2 Total site area: 1900 m2

it y

Pa

rk

City/

k Bibliote ngliga KuGallery/reception

Trees to integrate in the design

Total dining venue space: 494 m2 Total floor area: 595 m2

en

gård Humle

Trees to cut down

y

Total public program: 1043 m2 Total floor area: 1157 m2

it

Exisitng trees on site

C

Restaurant eating hall Kitchen Communal kitchen Cafe Storage Office Other

Cooking Lab Baking Lab Storage Toilet Outdoor area

SITE

+2.5

+2.5

+0

GROUND FLOOR +0 to +2,5m

+2.5

5 +1.

+1.5

+1

+1

+2.5

+2.5

+1.5

+1.5

+1

+1

+2.5

5 +1.

+2.5

5 +1.

+1

5 +1.

+1

+1

+0

+0

+0

+0

+0

ACCESSIBILITY

EXISITING TREES

FIRST FLOOR +3

SEMI-PRIVATE PROGRAM

SYMMETRICAL FACADE

+0

FINAL

Pa r k

City Food Centre

City Food Centre

GROUND FLOOR

C

B

MM O

UNAL

G AL

O

G & OFF RA I

CE

KING LAB BA

KI

EN

24/7

K IN G L A

H TC

O CO

35

GROUND FLOOR

ST

35

CAFE

LERY

T KITCHEN HO

EL 1

EL 1

36

City Food Centre

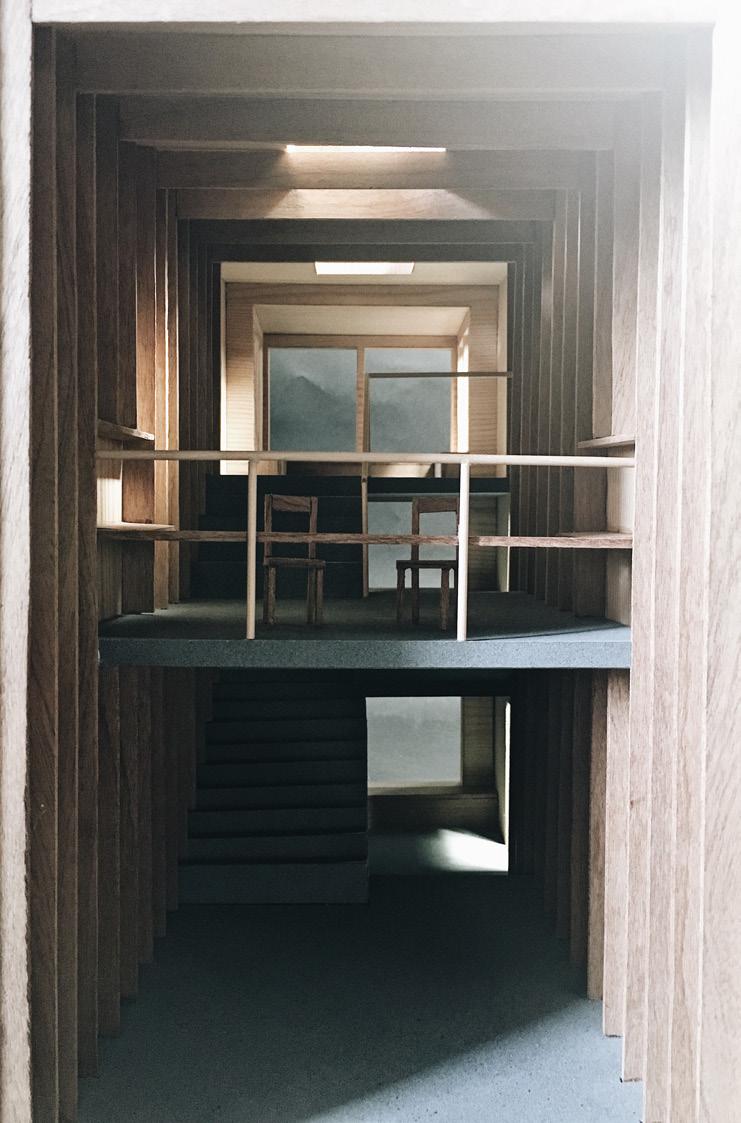

Model-Making

CR EAT I V E S KI L L S , PRO FESS I ON A L : Mo del- M ak ing

37

THANK YOU.

PHONE: +31624325046 EMAIL: yaalinhuu@hotmail.com
