The New Hamilton Gallery is a community-focused project that aims to bring together tourists and residents within the Hamilton precinct and bring more arts and cultural event potential.

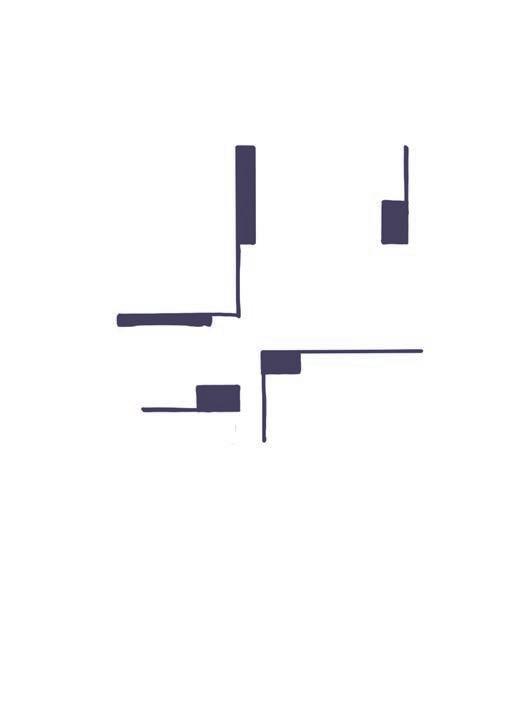

A set of walls are designed in response to the back of house condition, framing the primary hierarchy of the site while screening out the west buildings. The main gallery on the north is a new façade, and a series of secondary buildings to the west and east connects to the laneway entries. And the civic square performs as the intersection gathering space from all buildings and entries.

Paving patterns differentiate the main entry path from others.

The corridor not only reduces the volume but also soften the boundary of the gallery, allowing more participation for both residents and tourists.

The pavilion for aboriginal art exhibitions corresponds with the indigenous garden. The partition walls and the skillion roof structure shares a similar spatial quality with the main gallery.

Detailed Gallery Section

Detailed Pavilion Section

Detailed Entry Plan

Housing design under disability requirements is often considered regarding accessibility and inclusive environments, yet privacy is another important aspect that may be neglected. An adequate privacy boundary control in a house indicates not only separation but also interactions at the resident’s wish. This project explores how space arrangements can create different levels of privacy in each area for people with physical disabilities.

Irwin Altman elaborated privacy as “a dynamic process involving selective control over a self-boundary, whether by an individual or by a group.” This implies an active control of one’s space - territory. People

N D I S

National Disability Insurance Scheme

S D A

Specialist disability accommodation

S I L

Supported Independent Living Intrude Private Interact Isolate

The territory is a physical environment where people stay in, and can be identified into 3 types: Primary, Secondary and Public, based on “people within the territory” and “duration of occupying the territory”.

Though intrusion is commonly considered when designing for privacy, interaction and isolation can sometimes be neglected. Especially for people who require physical support, it can also be dangerous and harmful if the space is overly secluded.

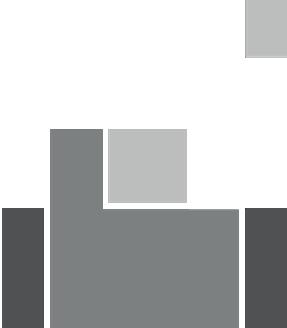

Within each dwelling, the concept of territory still applies. Instead of simply separating public and private space by corridors, a transitional middle space is created as a secondary territory.

With the double door closed, the public area is, in a way, detached from the rest. Bedrooms at the back are at a higher level of privacy within the house all the time.

Floor materials differentiate the transition of spaces, performing as a visual cue in the house.

For residents living in the SIL housings, support workers wouldn’t regularly access their bedrooms, so the individual sunroom for SDA housings is now combined with the secondary space as a small semi-private lounge. It is the buffer between the living room and the bedrooms. When the lounge door is closed, the rest of the house is still capable of one other guest living in.

Withdrawal corner

Typical SIL Housing Plan

SIL Housing Section

A selection of technical detail drawings in a high-rise design project.

Each group member is to individually produce a set of sectional details of an assigned location.

A selection of drawings during work practices. Including floor and ceiling plans, signage and joinery details in a retail design project.

NOTES

1 All dimension must be verified prior to the commencement of construction or manufacturing of item

2 Do not scale drawings it is solely the contractor s responsibility to confirm all site conditions and requirements

3 All works to be carried out in a workmanlike manner to comply with the BCA & relevant Australian standards and Health codes provision for final certificate upon completion will be required

4 All safety and Health and Regulations to be complied by the contractor

5 Contractor to provide fire equipment & signage to comply with relevent codes AS2444 All certificates to be forwarded to client

6 All exit sign and emergency light to comply with BCA

7 The contractor is responsible to liaison with the centre s nominated mechanical to review any alteration required for mechanical and fire servises to suite the new layout

8 Ensure all lightings meet BCA Part J regulation

9 All lighting electrical fittings and Air-conditioner outlets are indicative only and subject to consultants details and advice

10 The position of all wall mounted GPO to be confirmed on site

11 All electrical conduits to be concealed

12 Electrical contractor to allow for all certifcation as required by local authorities

13 All services must be co-ordinated and approved by the consultants and centre s operation manager prior to the commencement of works on site

14 Approval from the centre Management to be obtained for all core hole work or scanning of slab

15 Walls and ceilings must be designed and constructed in a way that is appropriate for the activities conducted on the food premises They must be sealed to prevent the entry of dirt, dust and pests and be able to be easily and effectively cleaned

16 Service pipes conduits and electrical wiring should be concealed in walls and ceilings or fixed on brackets which provide at least 25mm clearance between pipe and vertical surface

WP 3D WALL PANEL - ARC 120MM 2PK GLOSS WHITE FINISH

JOINERY FINISHES

AL ALUMINIUM - POWDERCOAT - DULUX RAKU

L1 LAMINATE - LAMINEX - BATTALION NATURAL

L2 LAMINATE - LAMINEX - NATURAL WHITE

MI FRAMELESS MIRROR

NT DOUBLE NAIL TABLE - NOM 1600(L x500(W)

NT1 SINGLE NAIL TABLE - NOM 1000(L)x500(W)

TC STAFF CHAIR - KENN VIENNA MESH BLACK

C1 PAINT - DULUX - SUEDE EFFECT - NEWTON S THEORY PAINT - DULUX VIVID WHITE

PATRON ARM CHAIR - VINYL LEATHER BLACK

SP SPA CHAIR - NOM 1900x1000MM

WB WAXING BED - NOM 1900x750MM

OT OTTOMAN - TEMPLE & WEBSTER - EMILY UPHOLSTERED

TV

SELECTED 55 LED DISPLAY MONITOR W WALL MOUNTING BRACKET-SHOPFITTER

WAXING ROOM VANITY - BUNNINGS - CIBO 600MM SLIMLINE FUNCTION

A selection of additional works including hand drawing and photography.
