Portfolio | Content

Selected Works | 2018 - 2024

01

02

03

04

Satellite Campus

Highrise Redevelopment

Small Housing Units

Museum of Contemporary Art

Bellingham, Washington

3

Manhattan, New York

Phoenix, Arizona

Tucson, Arizona

4

Portfolio | Satellite Campus

Introduction | 01

01 Satellite Campus

Bellingham, Washington Institutional Building Design Group Project It is designed to be the satellite campus for Western Washington University. Since the city is heavily based upon industrial factories, this new building will become a flexible research hub for biological discoveries and collaborative learning with new facilities, benefiting the university, the community, and the park and bringing everyone together.

5

6

Portfolio | Satellite Campus

7

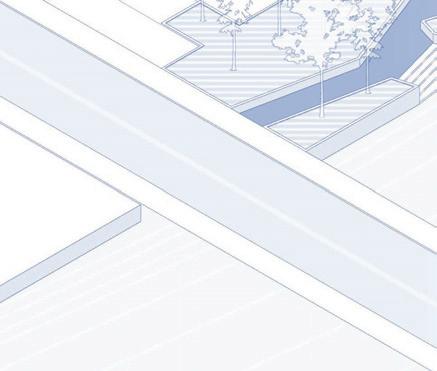

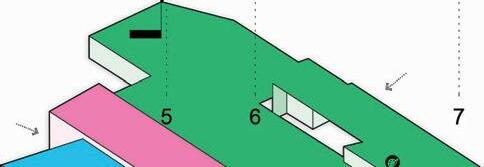

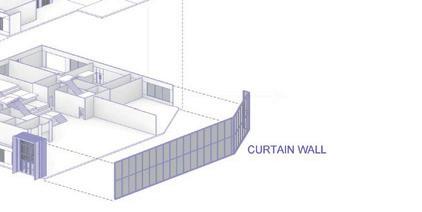

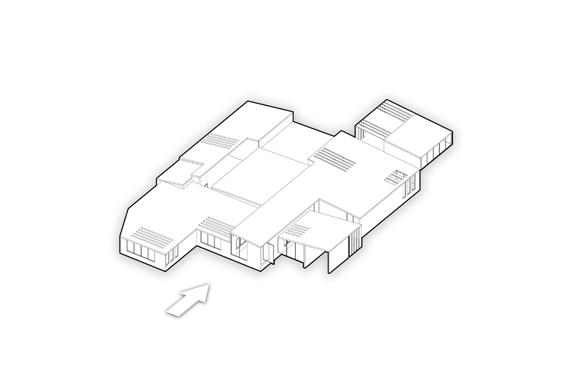

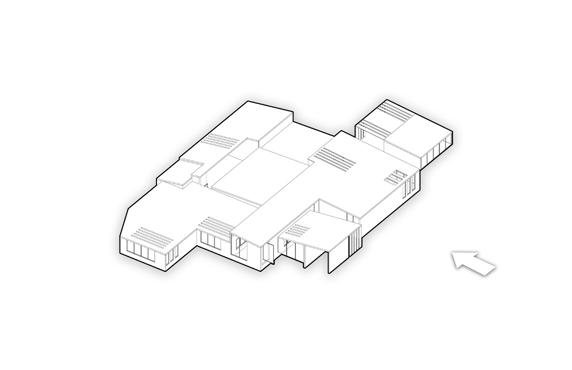

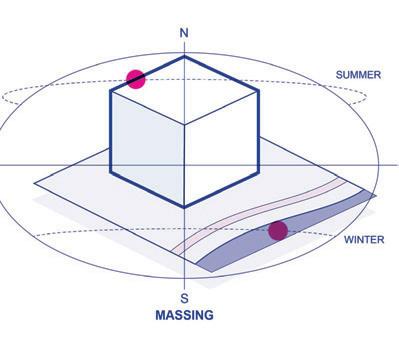

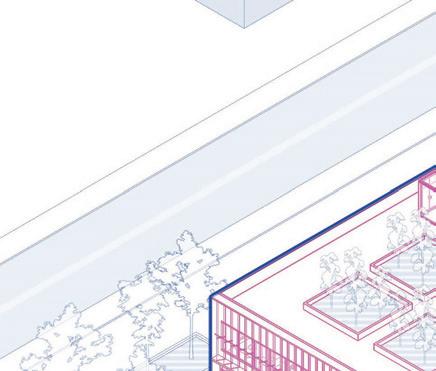

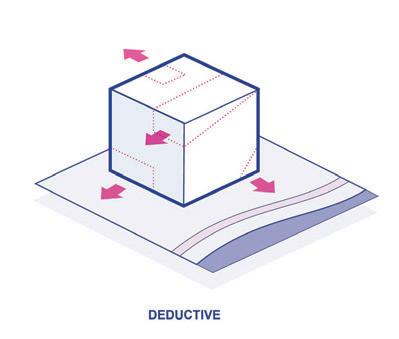

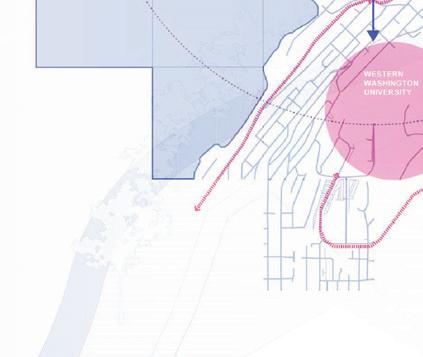

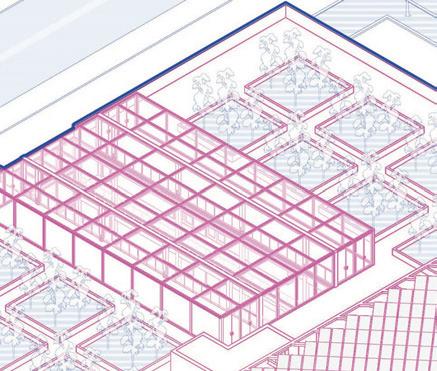

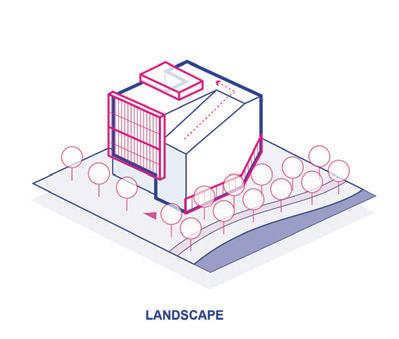

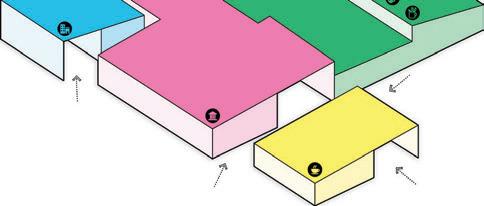

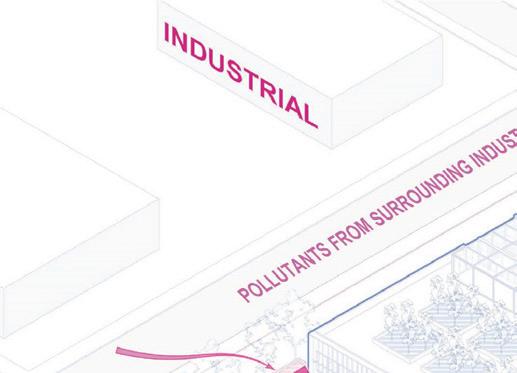

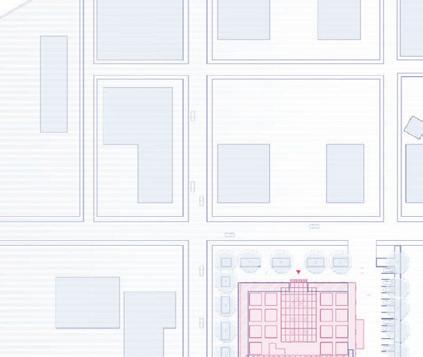

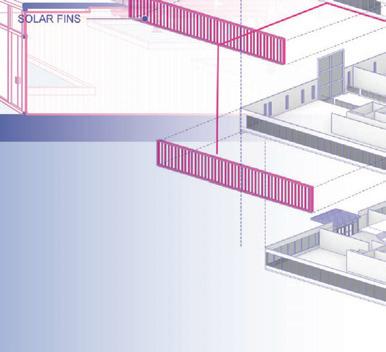

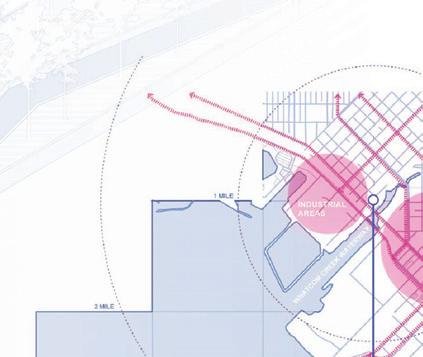

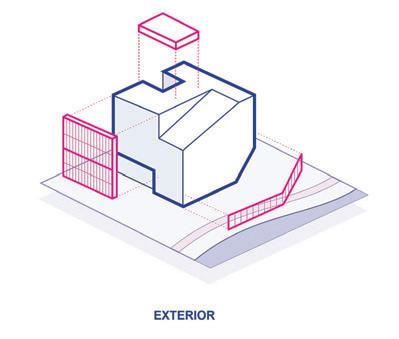

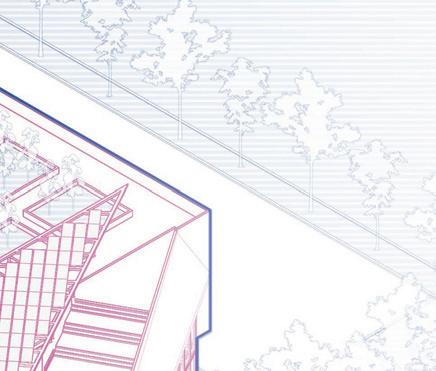

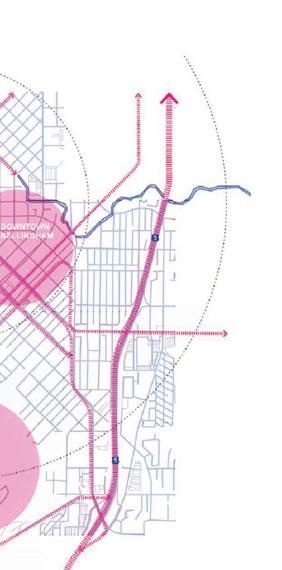

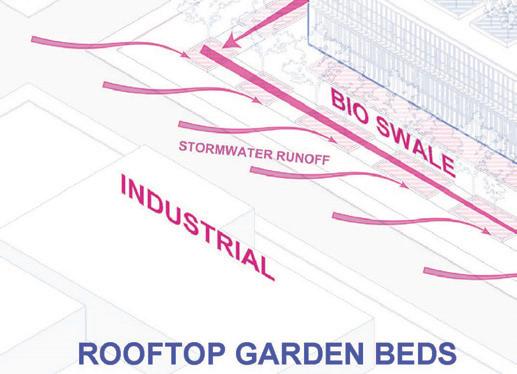

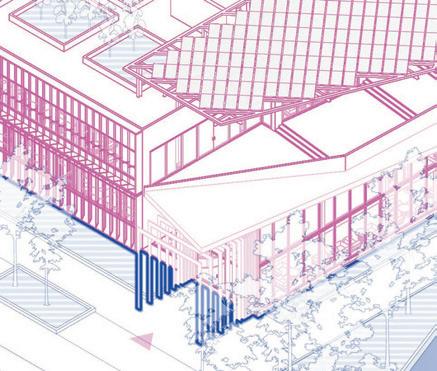

Concept Diagrams | 01

8

Portfolio | Satellite Campus

9

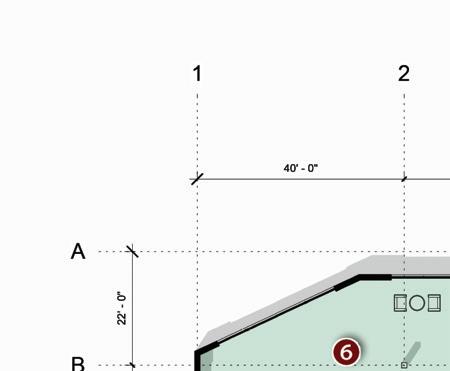

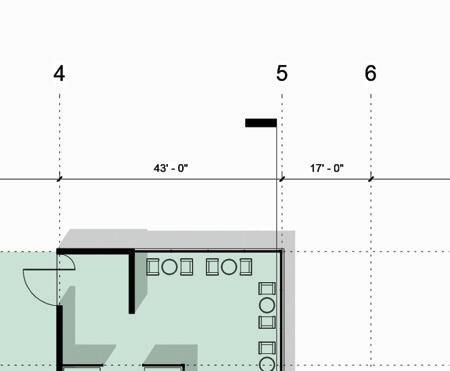

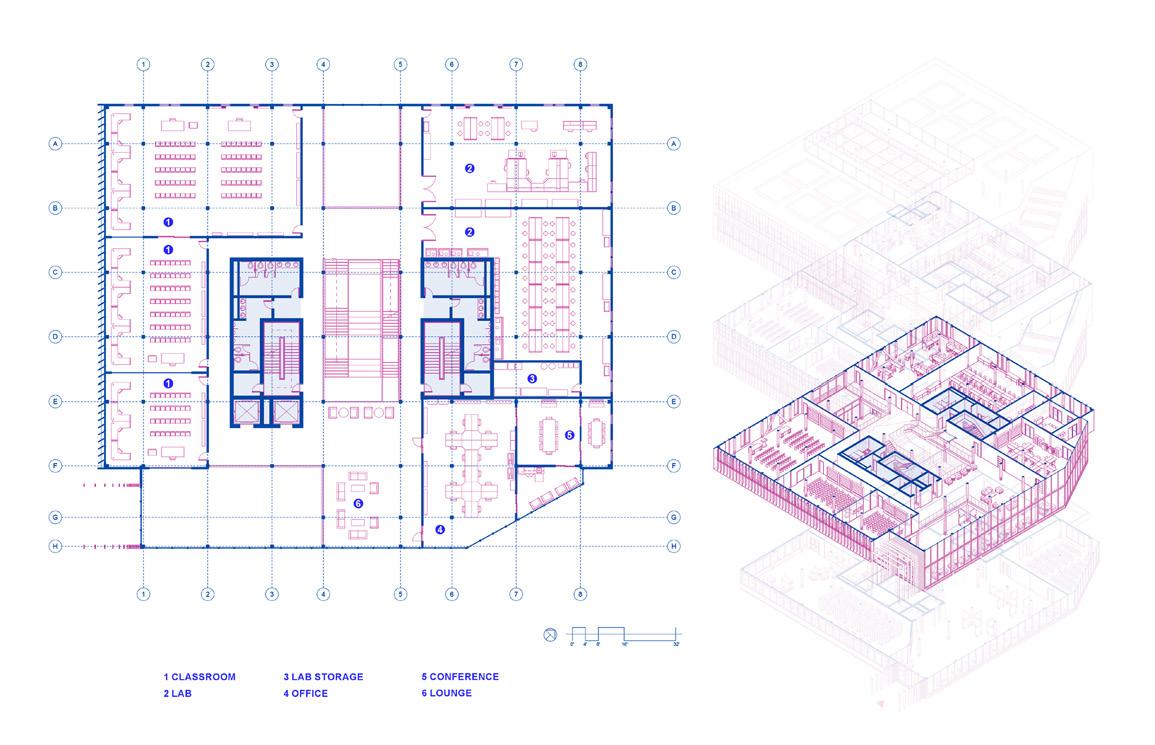

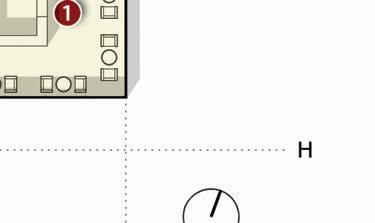

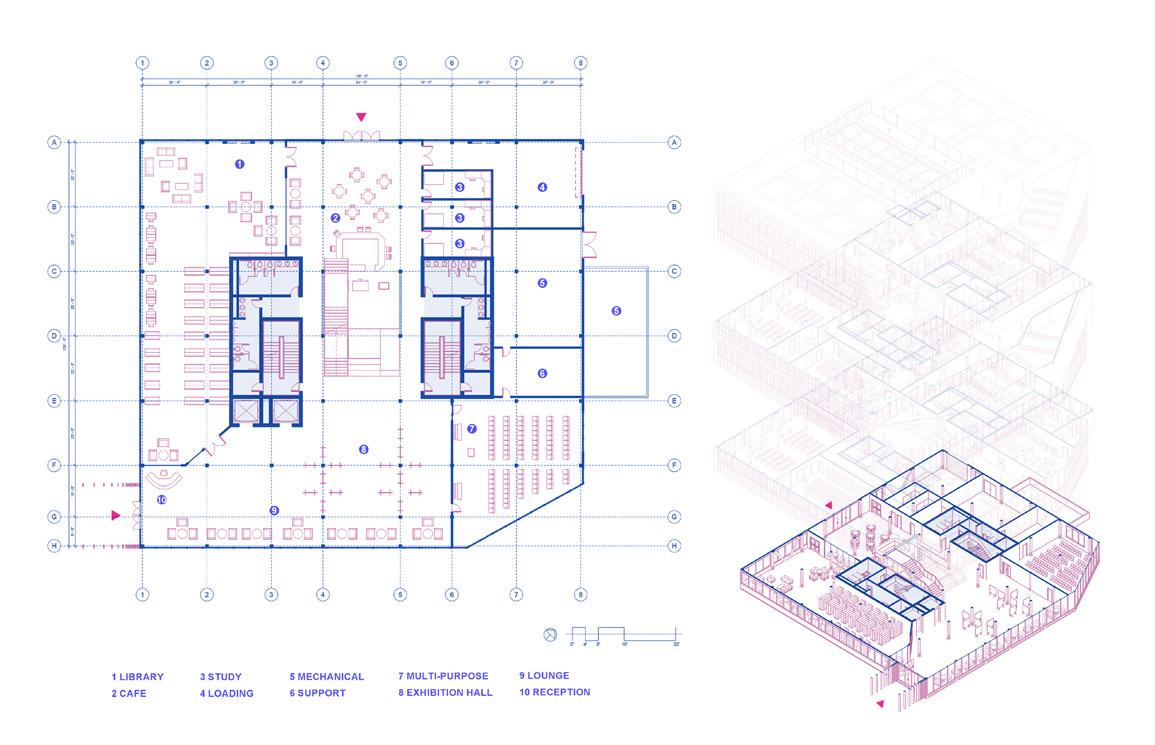

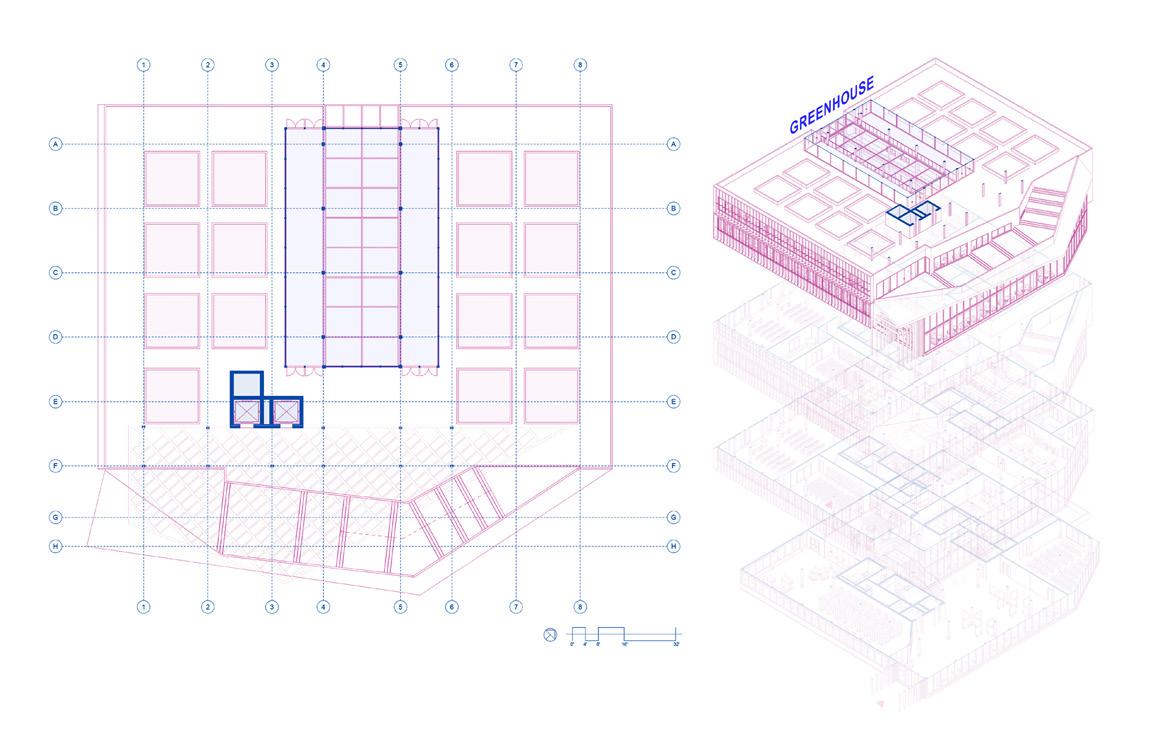

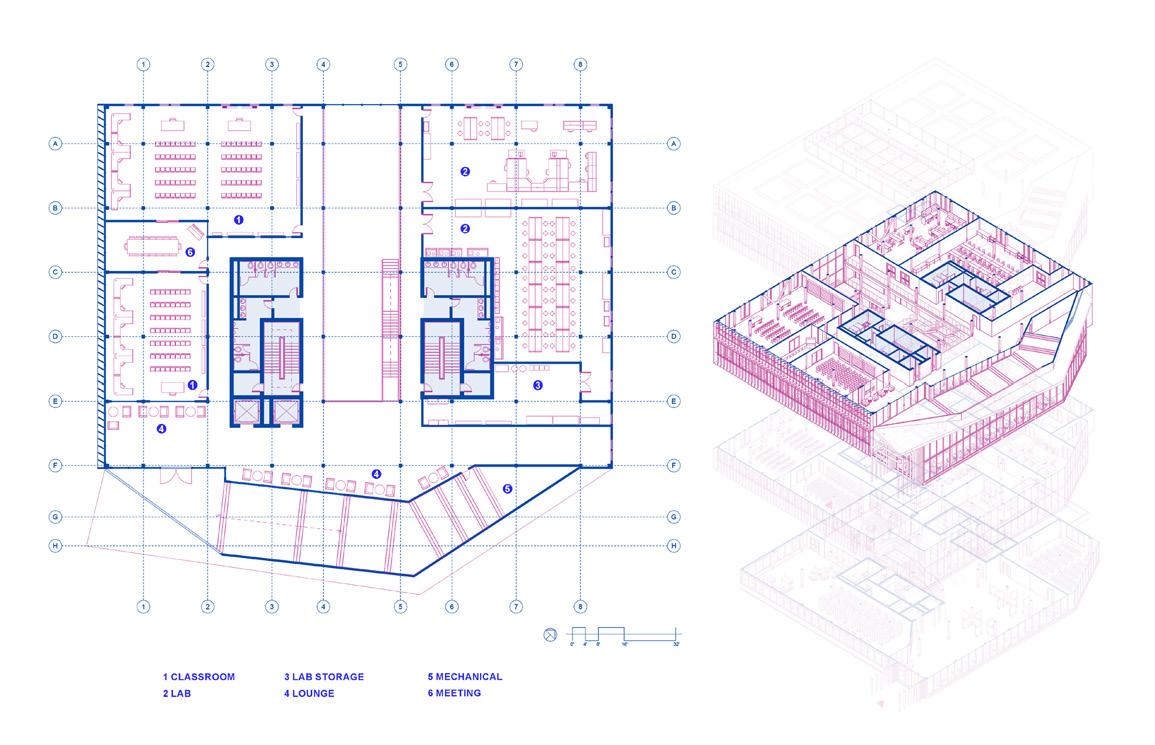

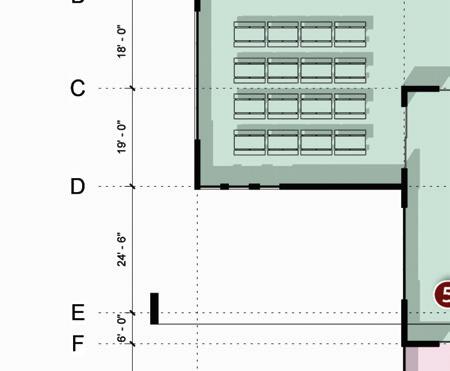

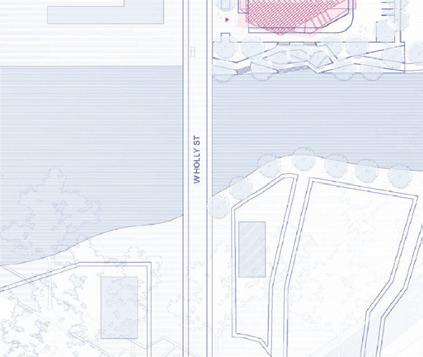

Floor Plans | 01

Level 2

Level 4

Level 1

Level 3

10

Portfolio | Satellite Campus

11

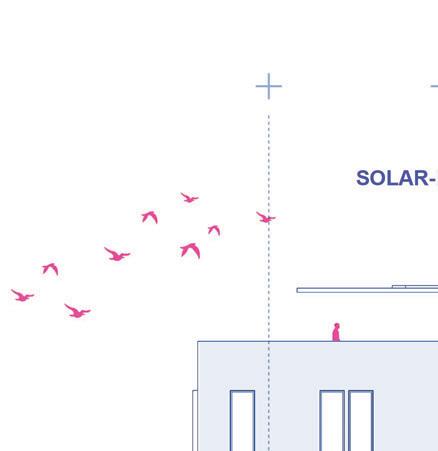

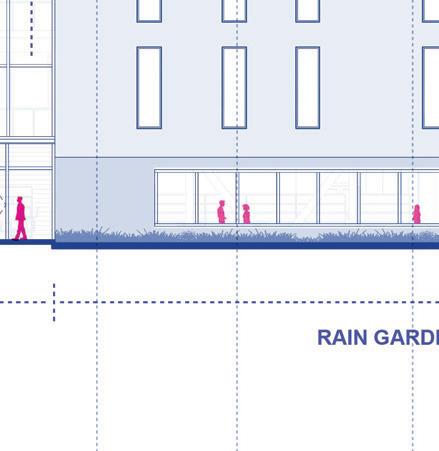

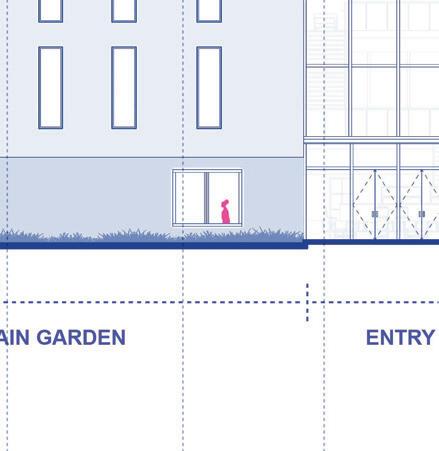

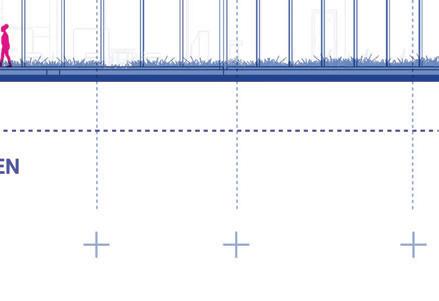

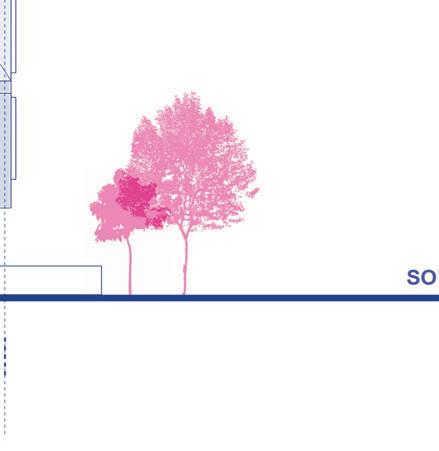

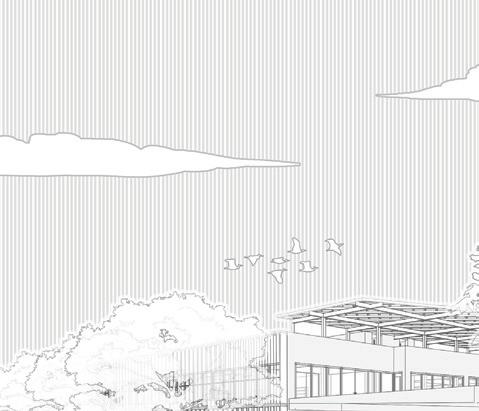

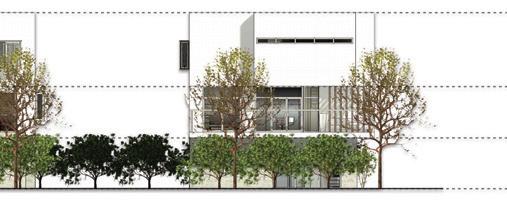

Elevations | 01

12

Portfolio | Satellite Campus

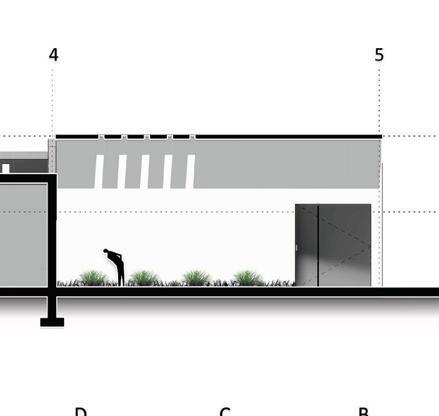

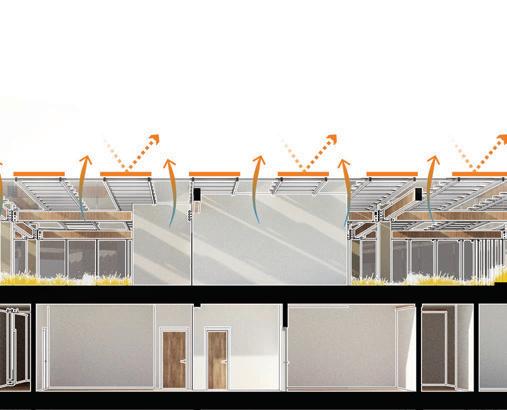

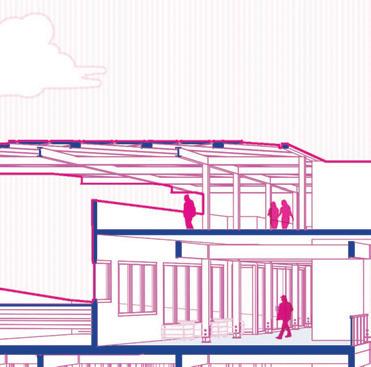

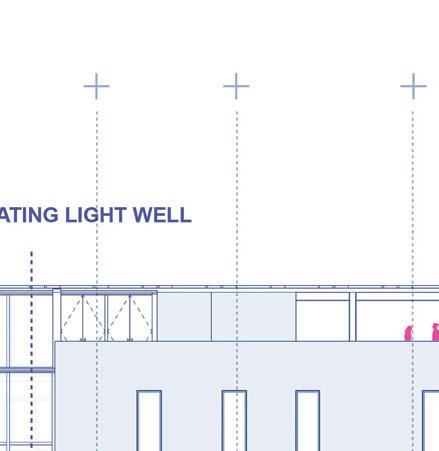

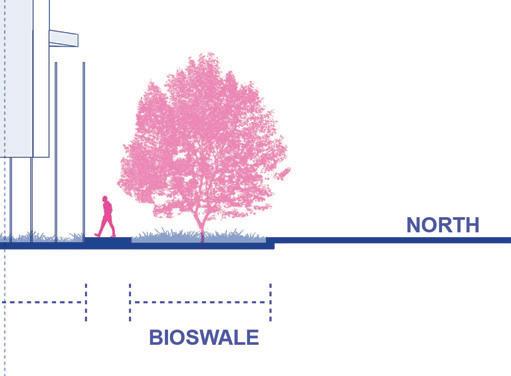

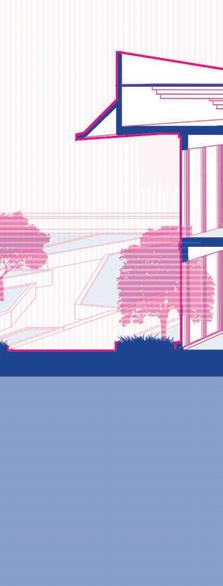

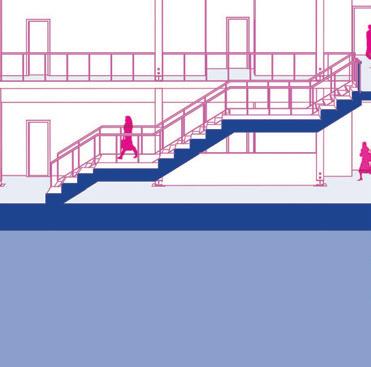

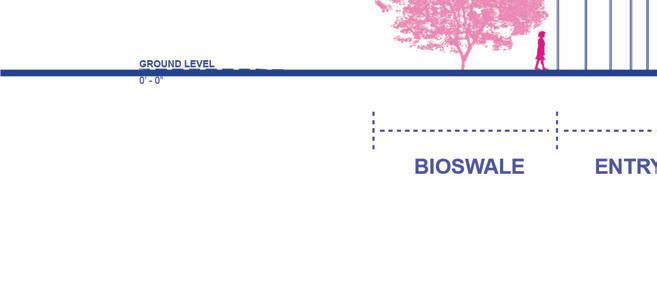

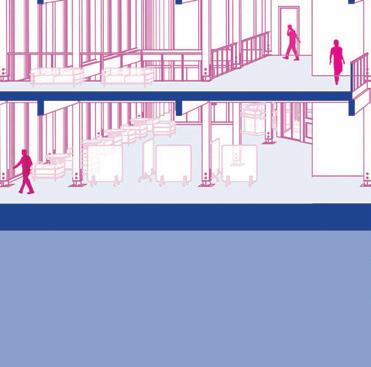

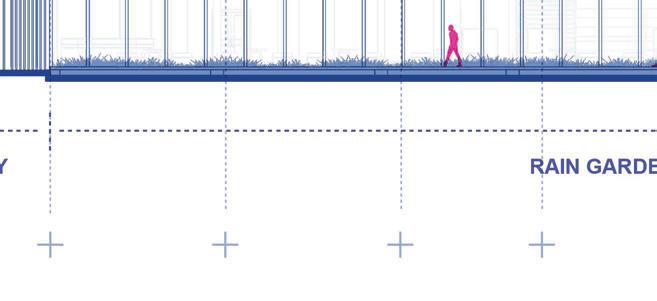

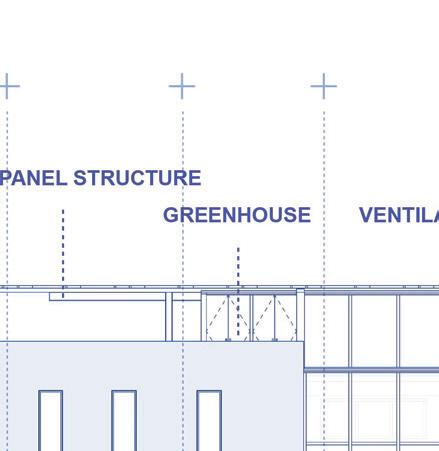

Longitudinal Section | 01

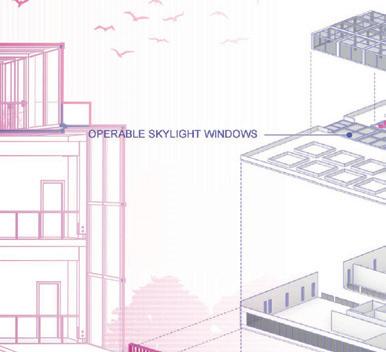

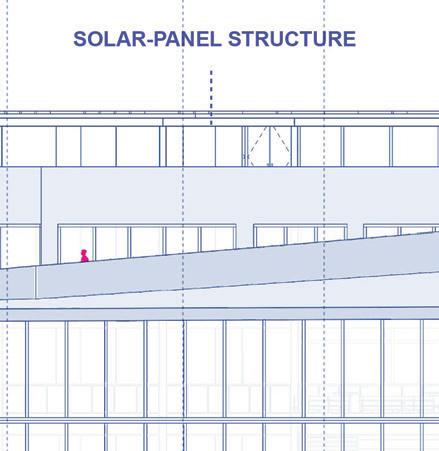

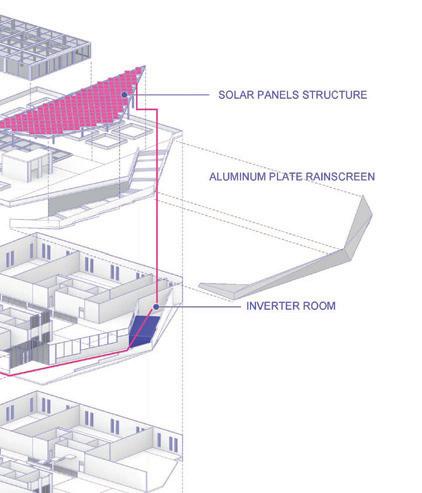

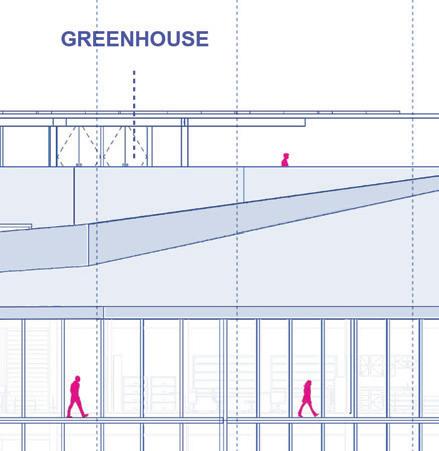

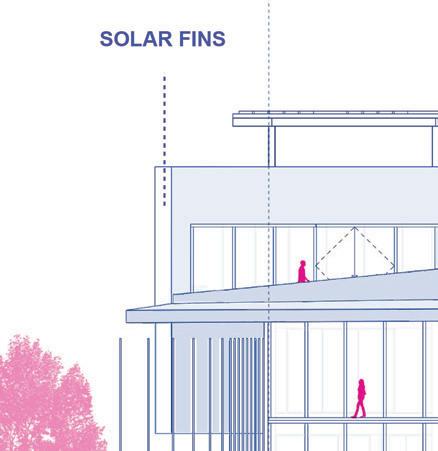

Solar Panel Structure

Atrium

Greenhouse

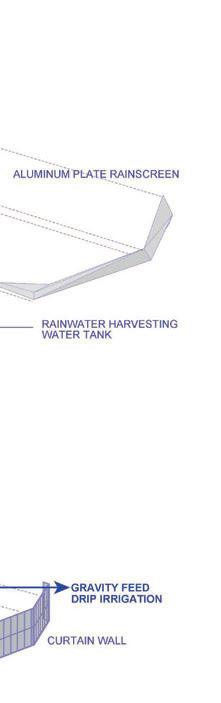

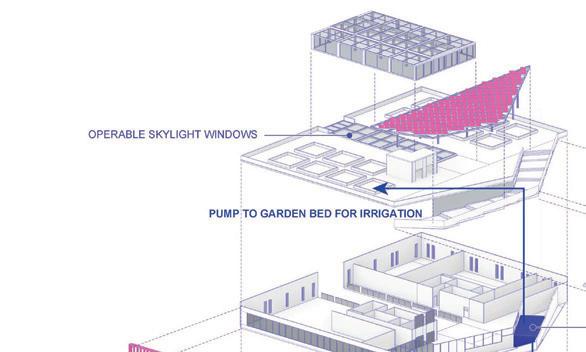

Rainwater & Solar Power Harvesting

13

14

Portfolio | Satellite Campus

15

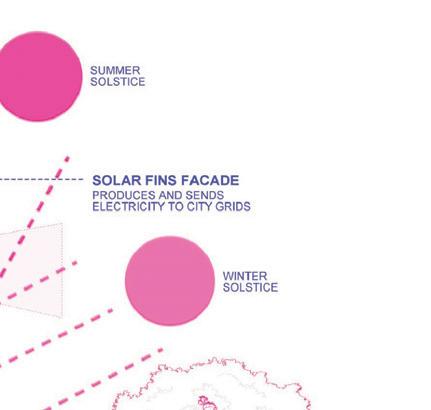

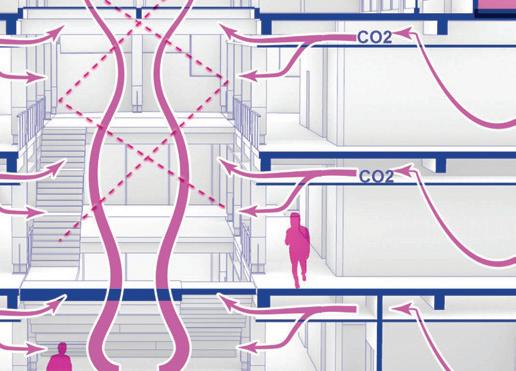

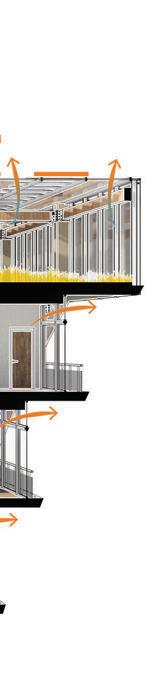

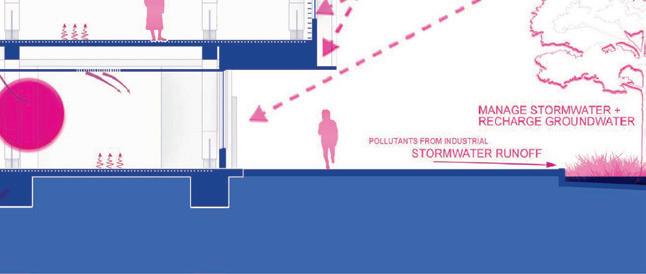

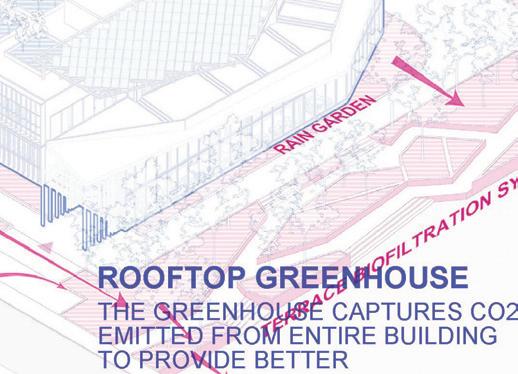

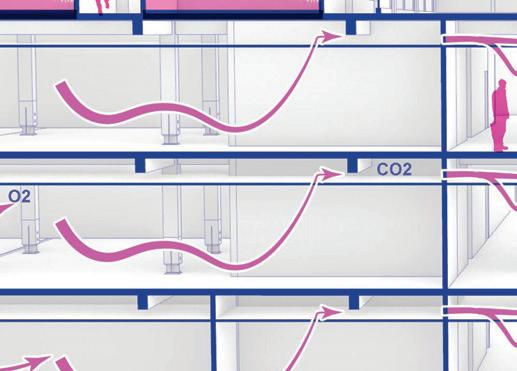

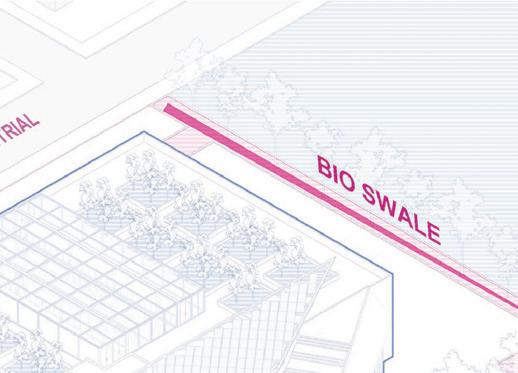

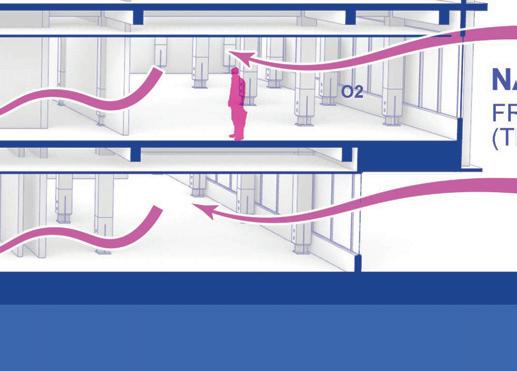

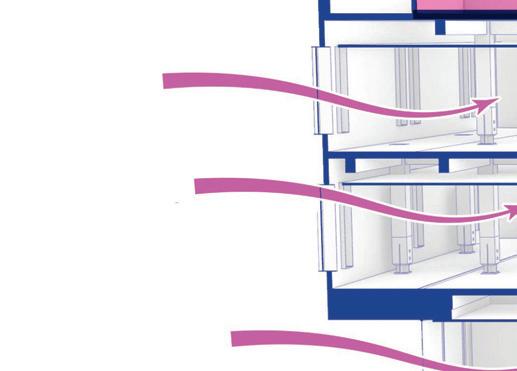

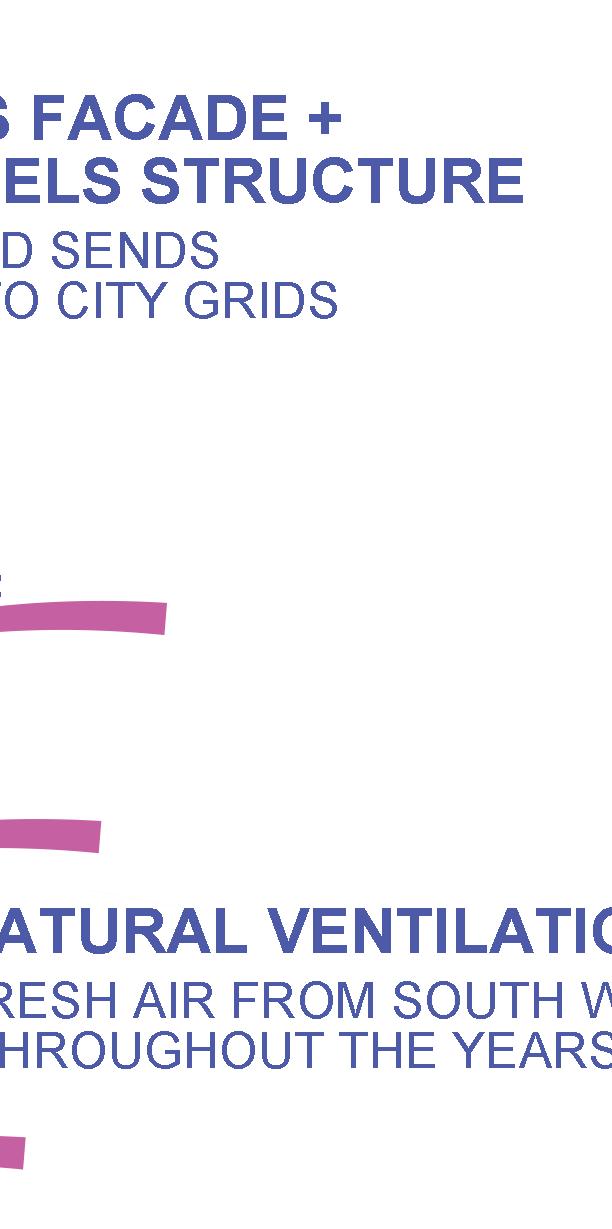

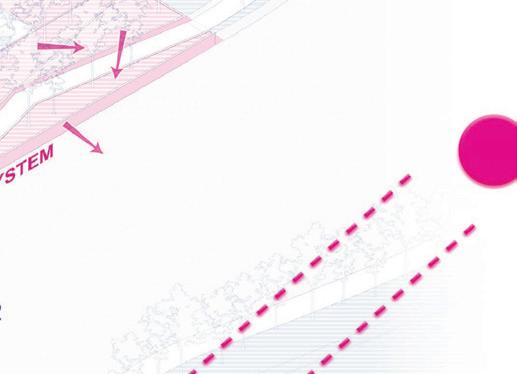

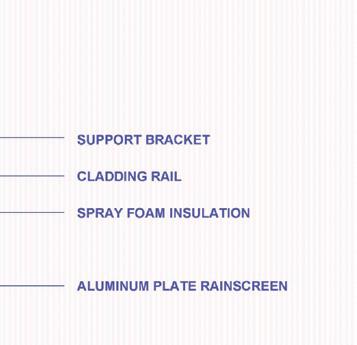

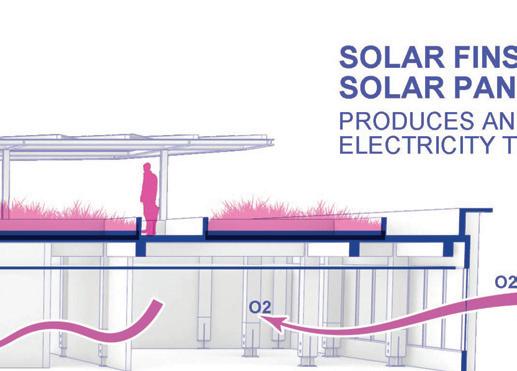

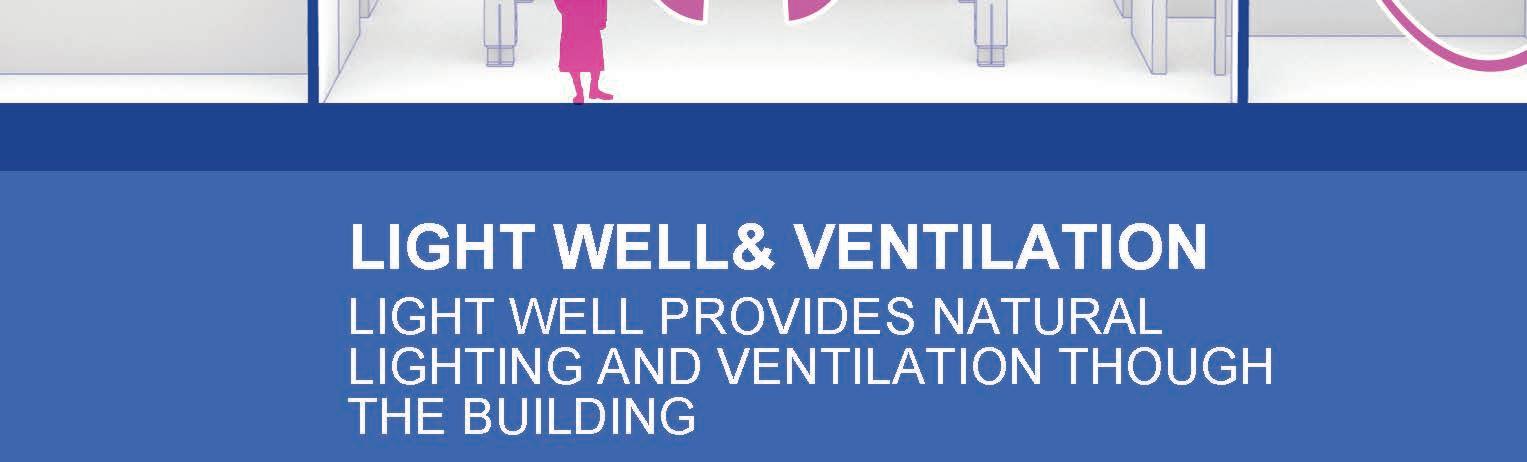

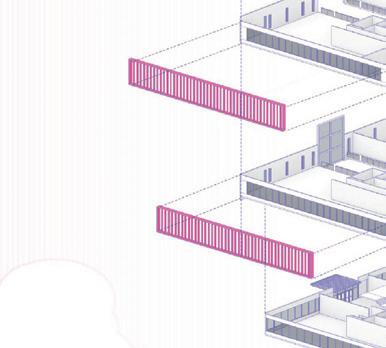

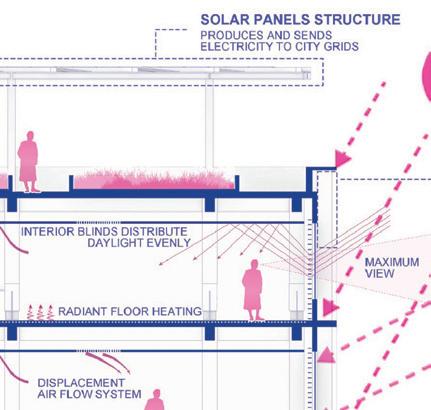

Ventilation + Sustainability Strategy | 01

16

Portfolio | Satellite Campus

17

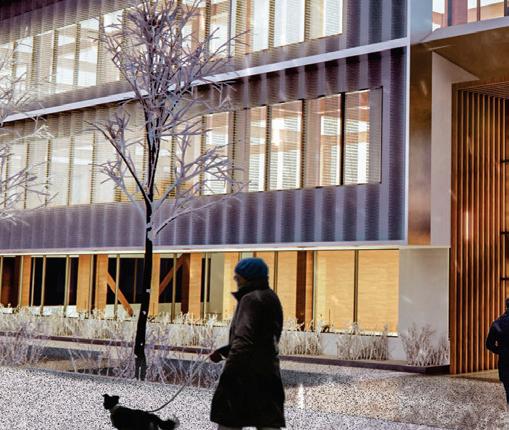

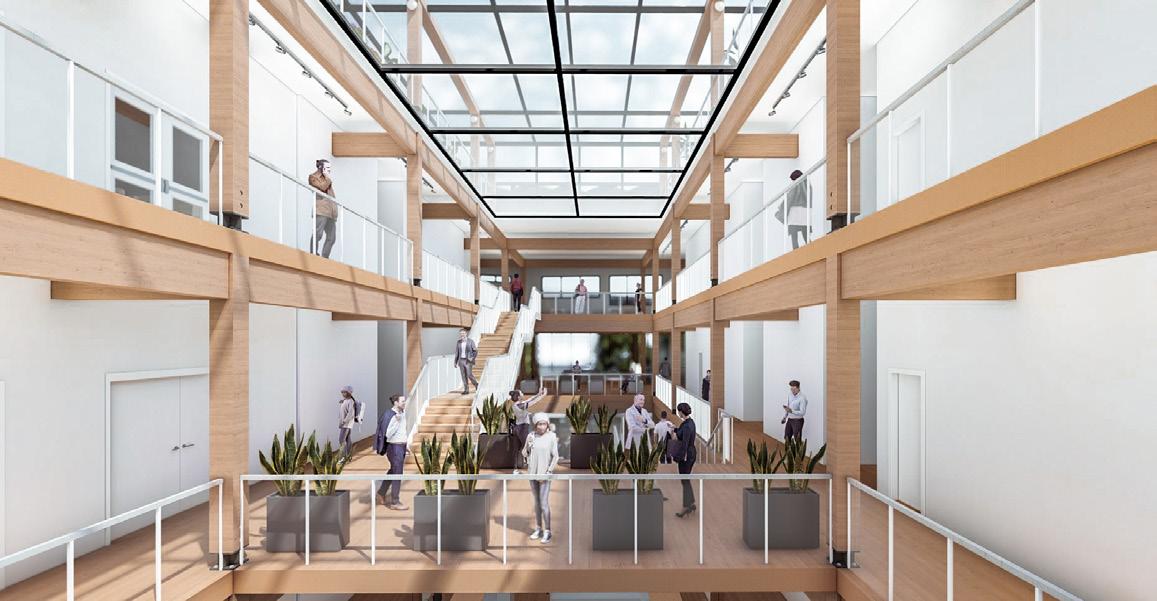

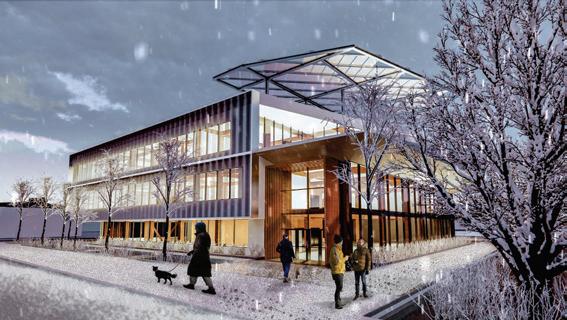

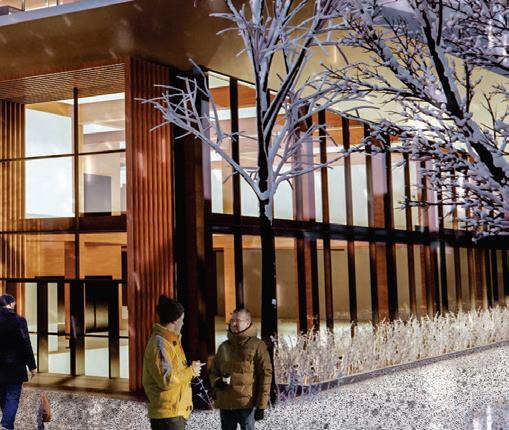

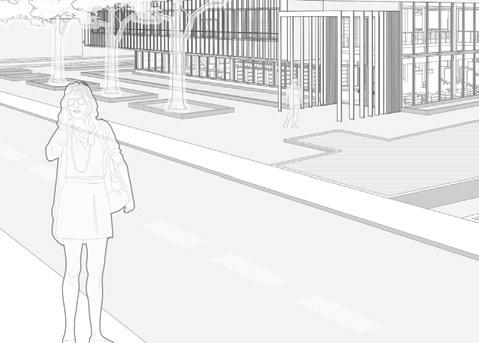

Renderings | 01

18

Portfolio | Highrise Redevelopment

Introduction | 02

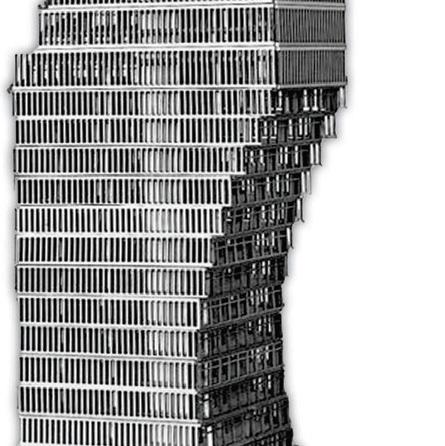

02 Highrise Redevelopment

Manhattan, New York Mixed-use Highrise Individual Project My goal is to provide more affordable housing to boost the community.

Introducing local shops and markets, complemented by vibrant green spaces throughout the building.

This approach will create a more integrated and sustainable living environment, fostering a sense of community while enhancing the quality of life for residents.

19

20

Portfolio | Highrise Redevelopment

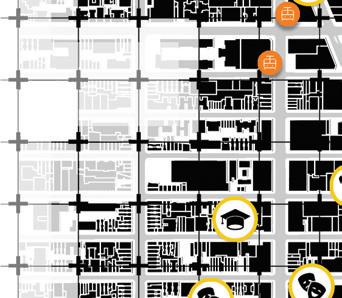

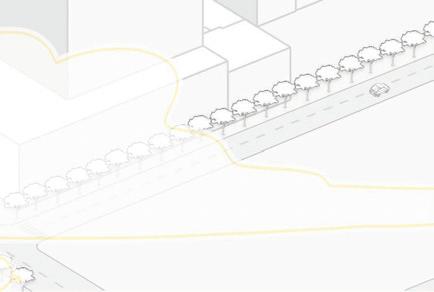

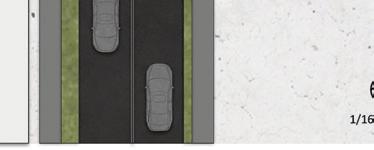

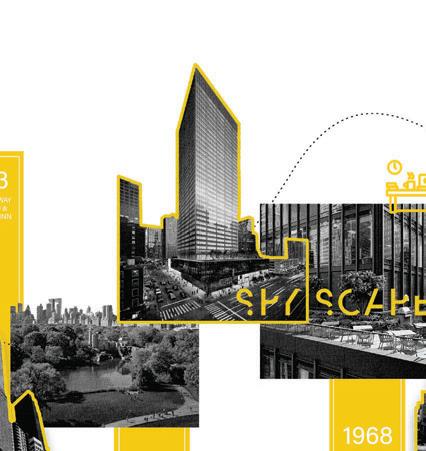

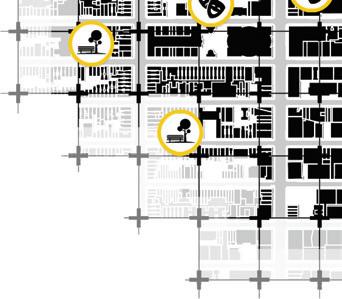

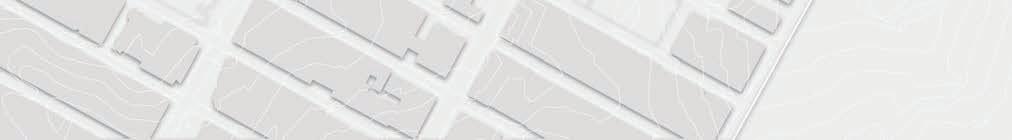

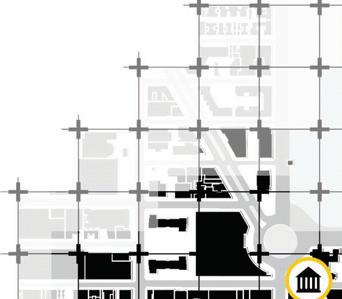

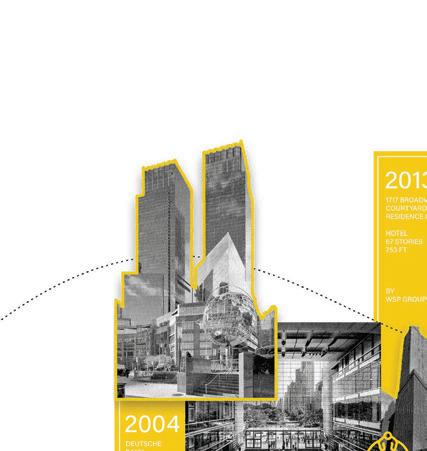

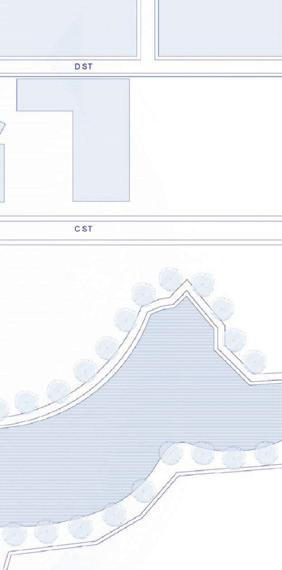

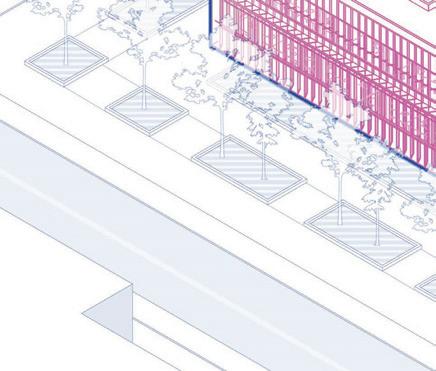

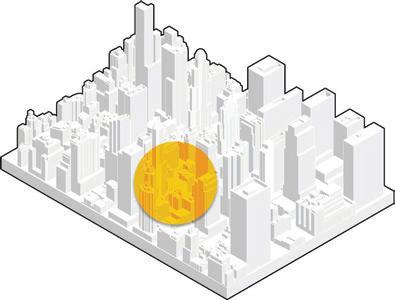

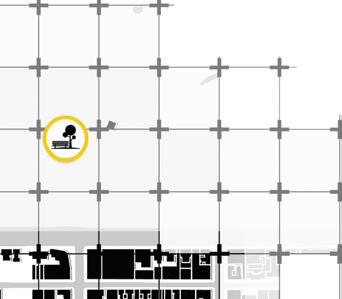

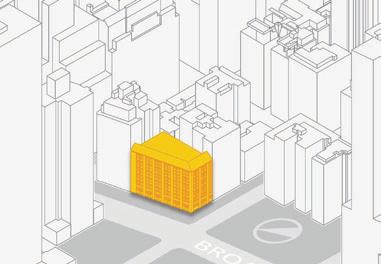

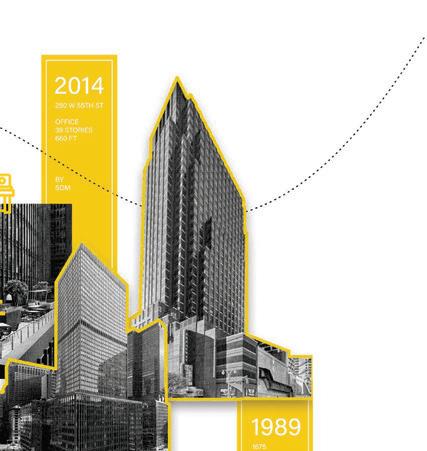

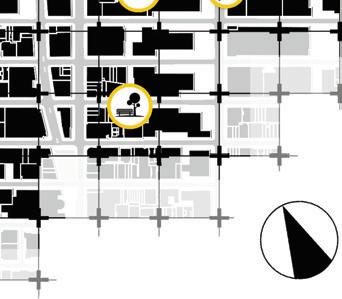

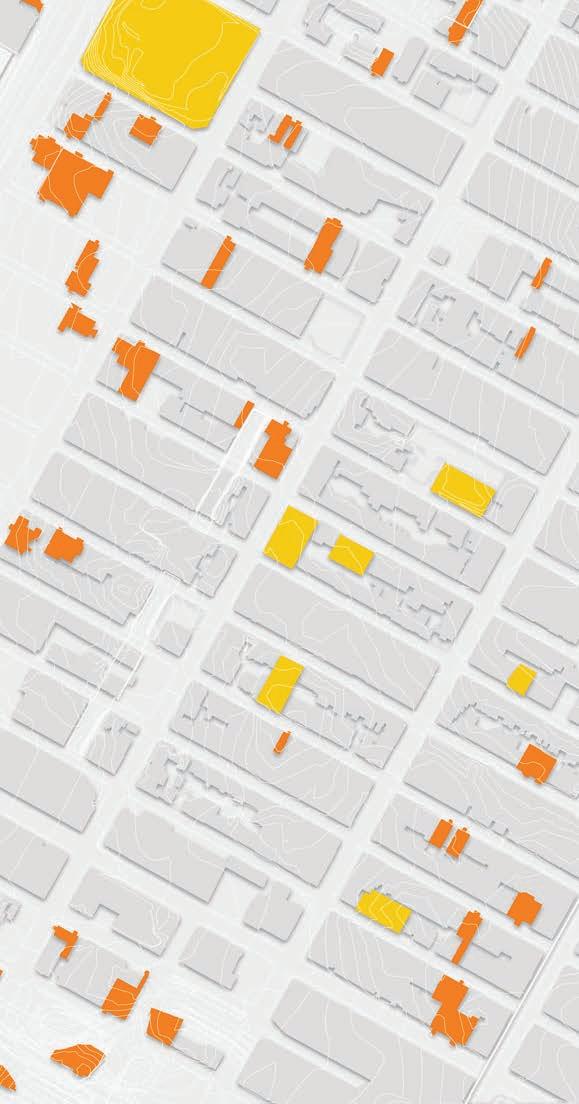

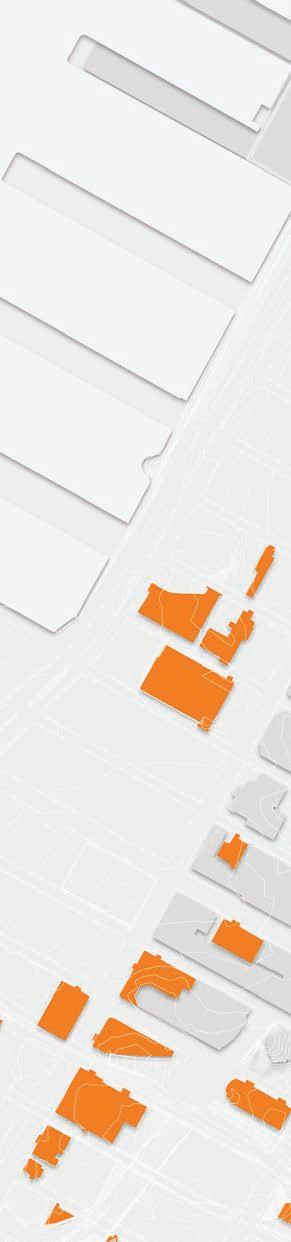

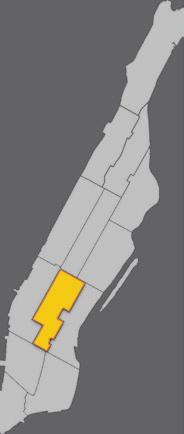

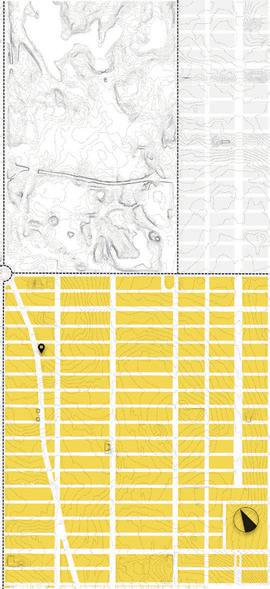

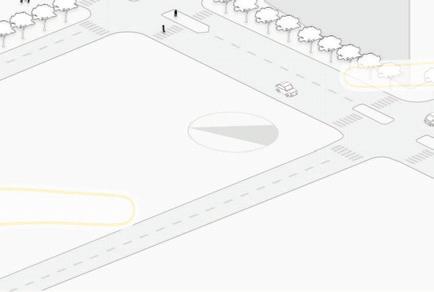

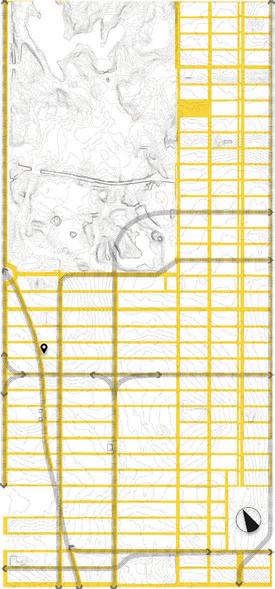

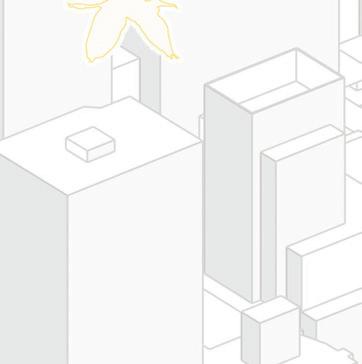

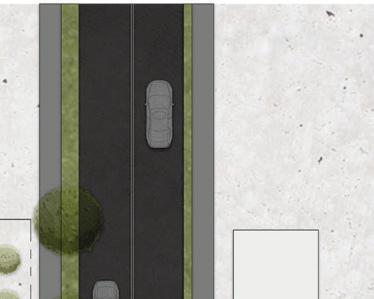

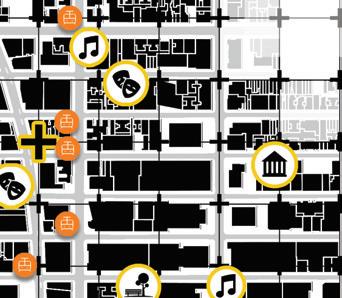

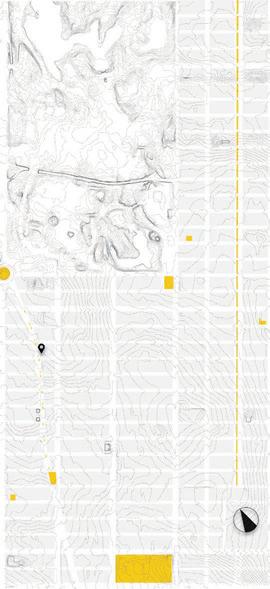

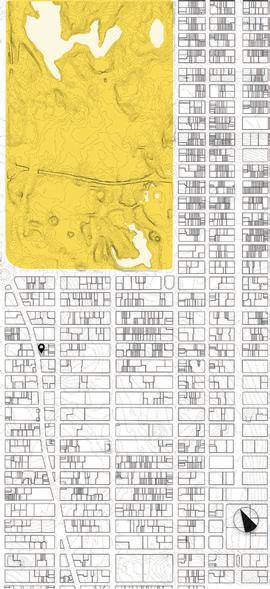

Vicinity | 02

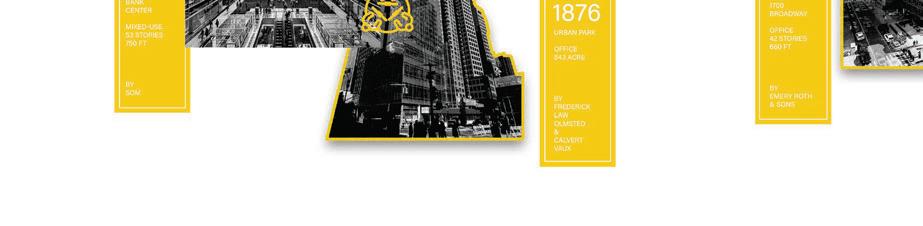

EXISTING BUILDING

SITE LOCATION 0.1 MILE SQUARE BUILDING FOOTPRINT ROAD PARK BUS STOP

21

OPEN/GREEN SPACE

CLOSE TO CENTRAL PARK

C6-7 COMMERICAL DISTRICT

SUBWAY/SIDEWALK

22

Portfolio | Highrise Redevelopment

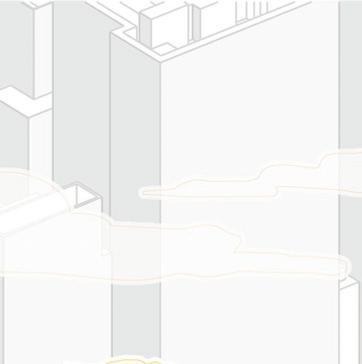

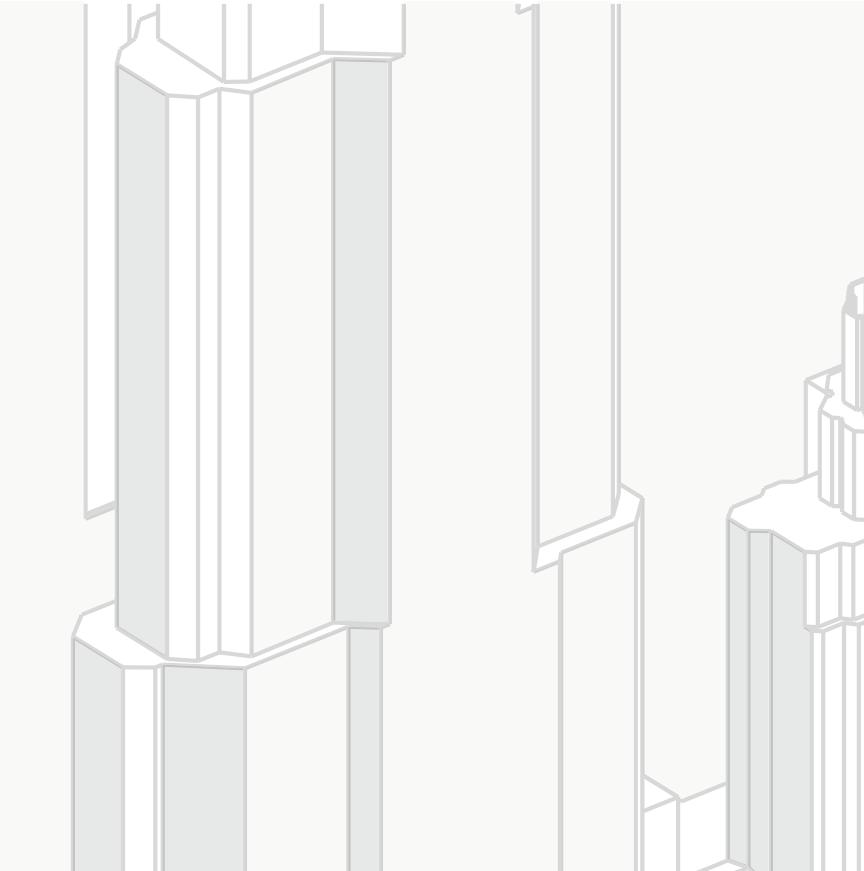

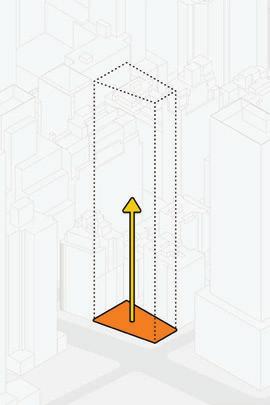

EXTRUDE

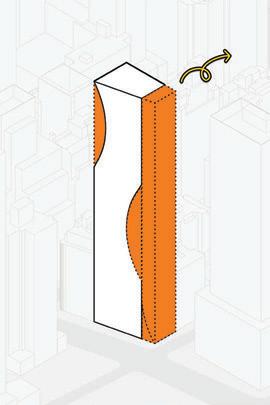

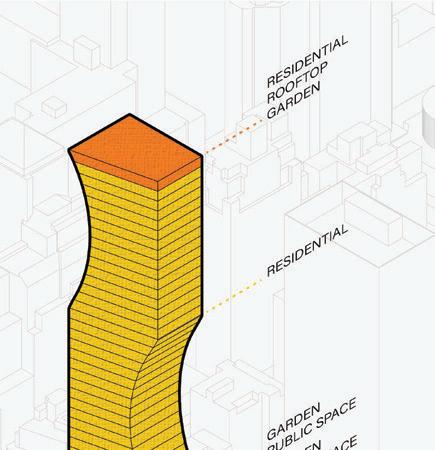

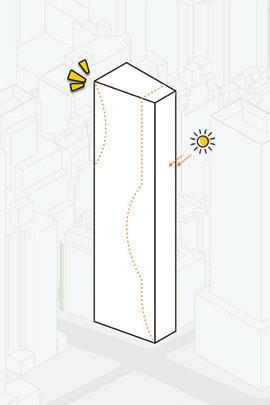

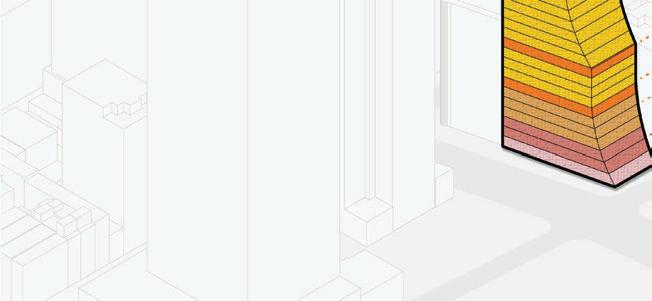

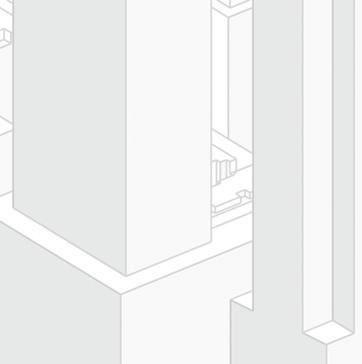

Concept Diagram | 02

SLICE

SUBTRACT

DIVIDE

THE MID DISTRICT OF MANHATTAN IS CONVICED BY COMMERCIAL AREA AND OFFICE SPACE. THE LACK OF HOUSING AVABILITY IS THE PRIMARY PROBLEM OF THE SITE LOCATION. THE GOAL OF THIS DESIGN SOLUTION IS TO PROVIDE MORE HOUSING UNITS TO STRENGTHEN THE COMMUNITY. WITH A MIXED-USED HIGH RISE, INTRODUCING LOCAL SHOPS, RESTAURANTS, AND PUBLIC GREEN SPACE INSIDE THE PODIUM, WHERE THE USERS’ DAILY NEEDS CAN BE SATISFIED AT ONCE. 23

24

Portfolio | Highrise Redevelopment

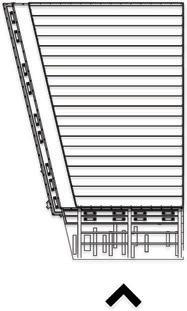

Floor Plans | 02

Level 1 0

4'

8'

0 1/8" = 1'-0"

Level 2

16'

0

2"

0 1/8" = 1'-0"

4'

8'

Level 7 4'

25

8'

16' 2"

16'

0

2"

0 1/8" = 1'-0"

4'

Level 8 0

0

0 1/8" = 1'-0"

Level 3

4'

0 1/8" = 1'-0"

8'

8'

Level 4

16'

0

2"

0 1/8" = 1'-0"

4'

Level 45

8'

16' 2"

Level 46

16' 2"

0

4'

0 1/8" = 1'-0"

8'

16'

0

2"

0 1/8" = 1'-0"

4'

8'

16' 2"

26

Portfolio | Highrise Redevelopment

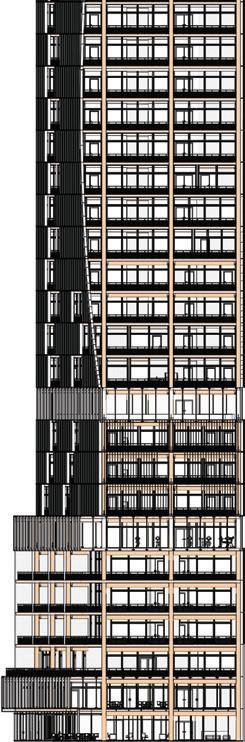

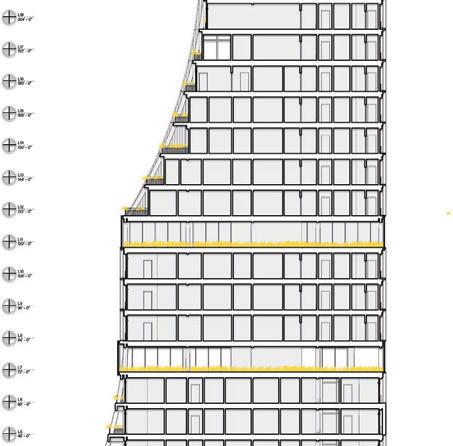

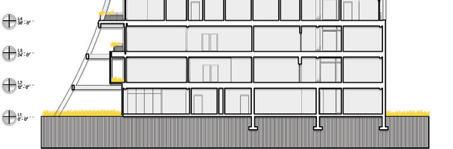

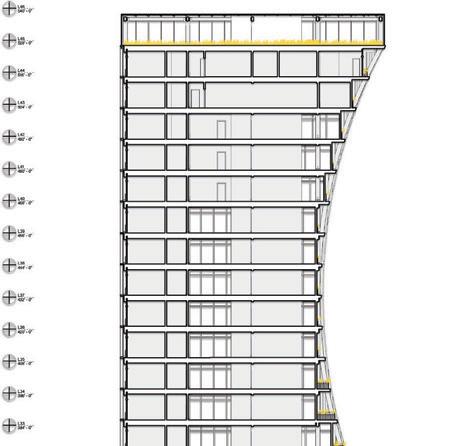

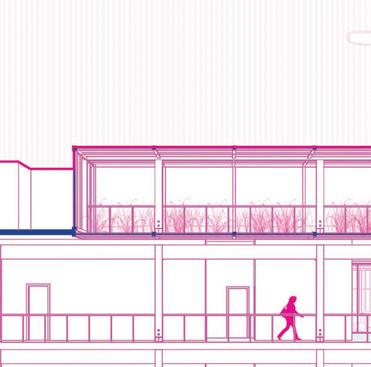

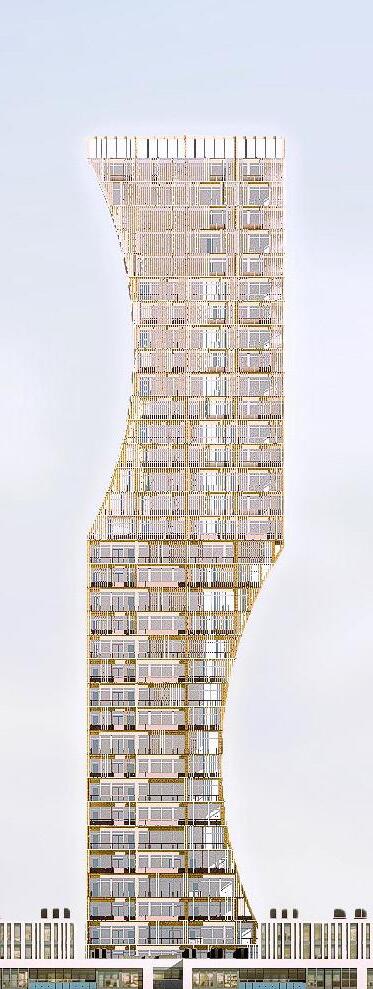

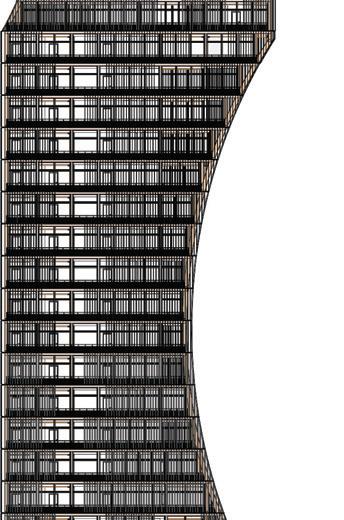

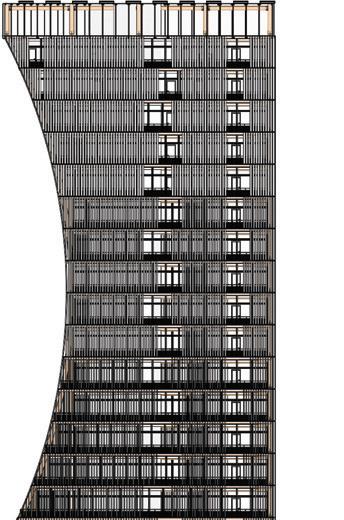

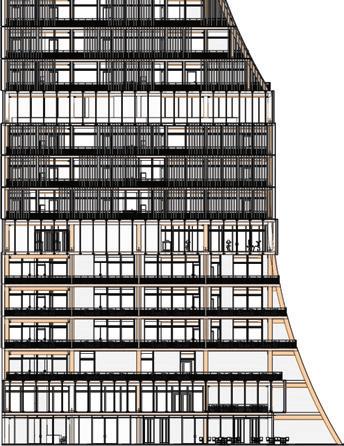

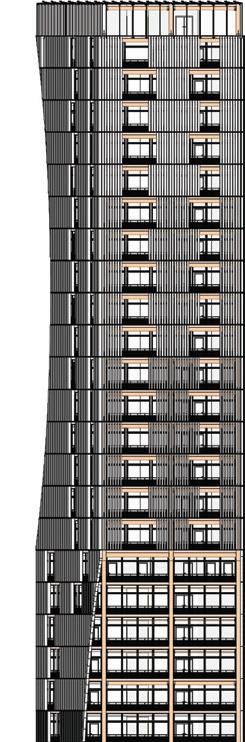

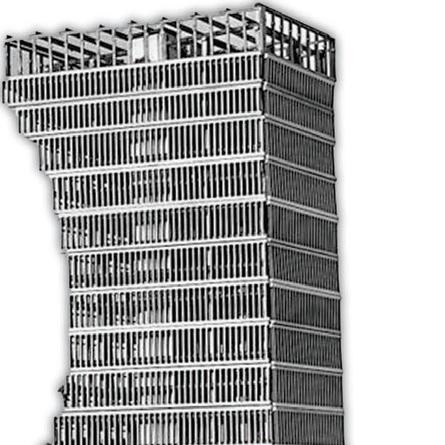

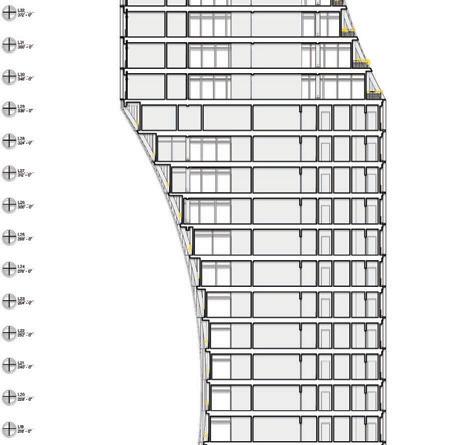

Sections + Elevations | 02

SW

NW

0

27

1'

0 1/2" = 1'-0"

2'

4' 2"

28

Portfolio | Highrise Redevelopment

29

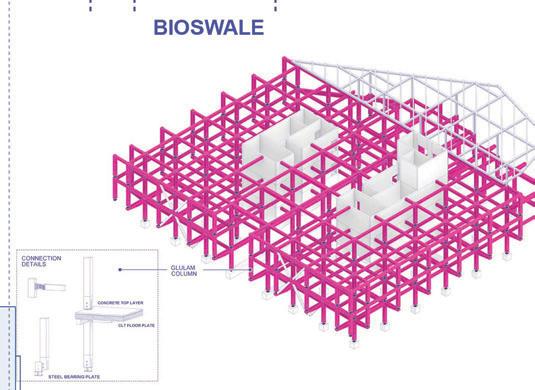

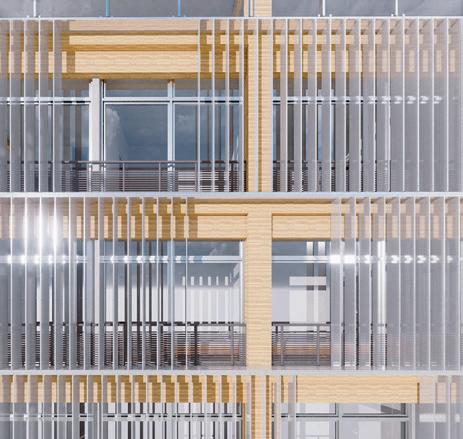

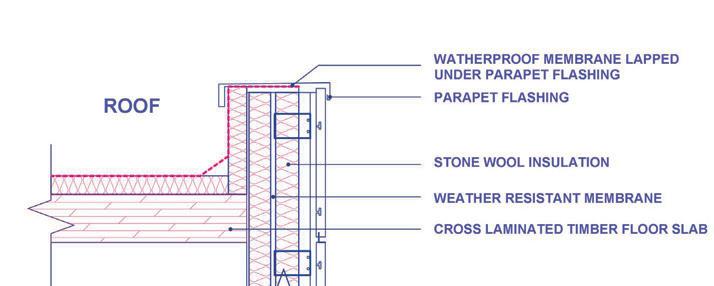

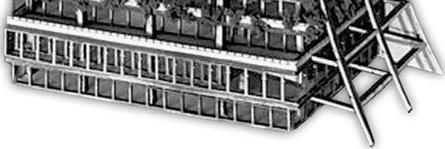

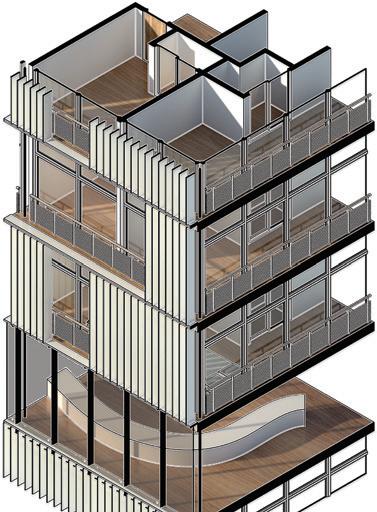

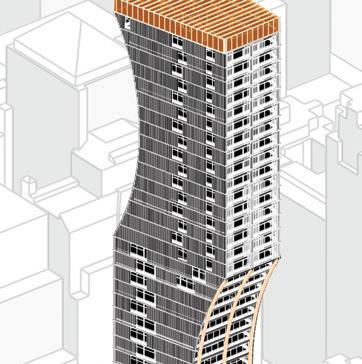

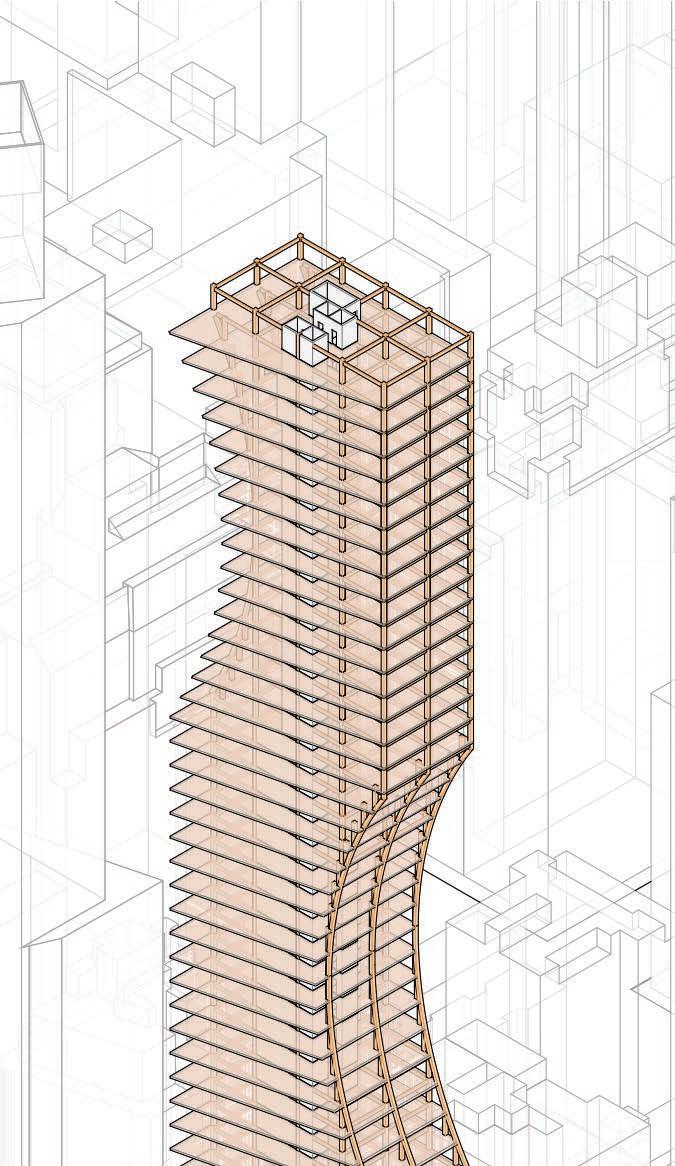

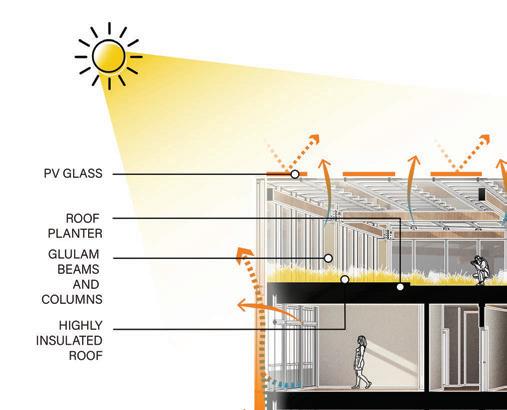

ROOF PLANTER GLASS PANEL ROOFTOP WITH PV GLASS HIGHLY INSULATED ROOF POLYCARBONATE FACADE FACADE OPERABILITY MASS TIMBER FRAMING

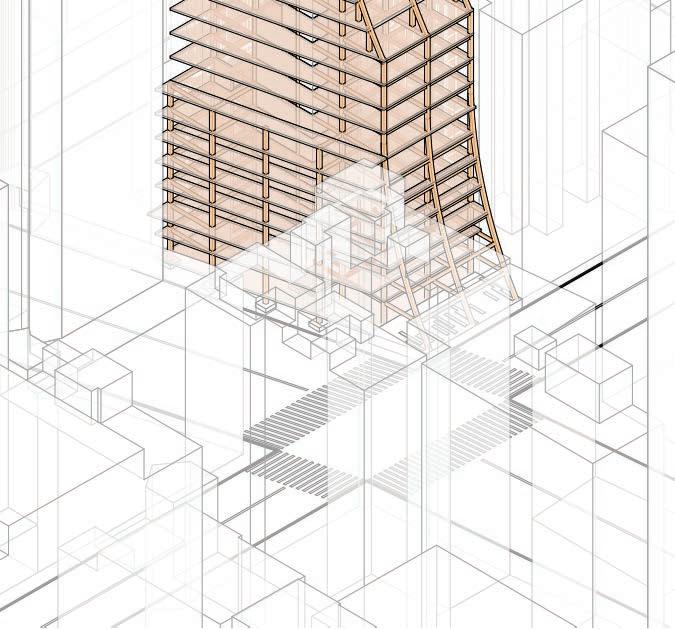

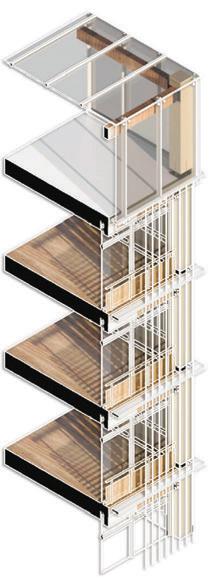

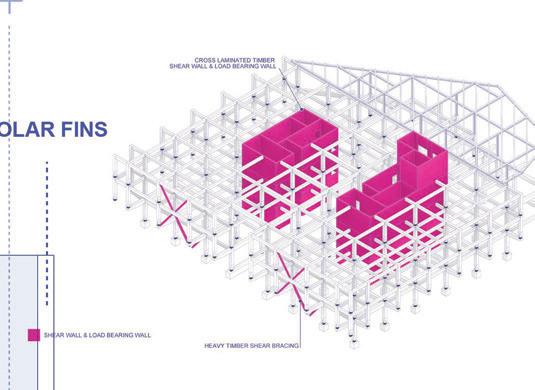

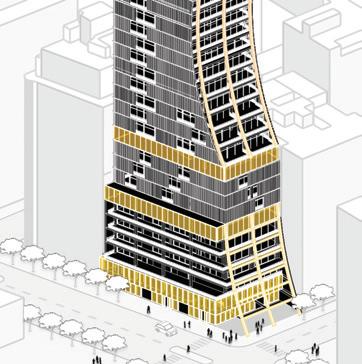

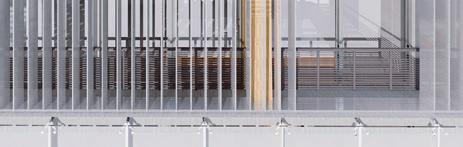

Structure + Facade | 02 THERMAL INSULATION HABITAT ENERGY GENERATION, SHADING CONTRAL THERMAL STABILITY, LOWER HVAC DEMANDS, LOWER ENERGY COST DOUBLE-SKIN THERMAL BREAK, SUNLIGHT MODULATION NATURAL VENTILATION, FRESH AIR/WELLNESS, REDUCED COOLING COST RENEWABLE RESOURCE, LOW EMBODIED ENERGY

30

Portfolio | Highrise Redevelopment

31

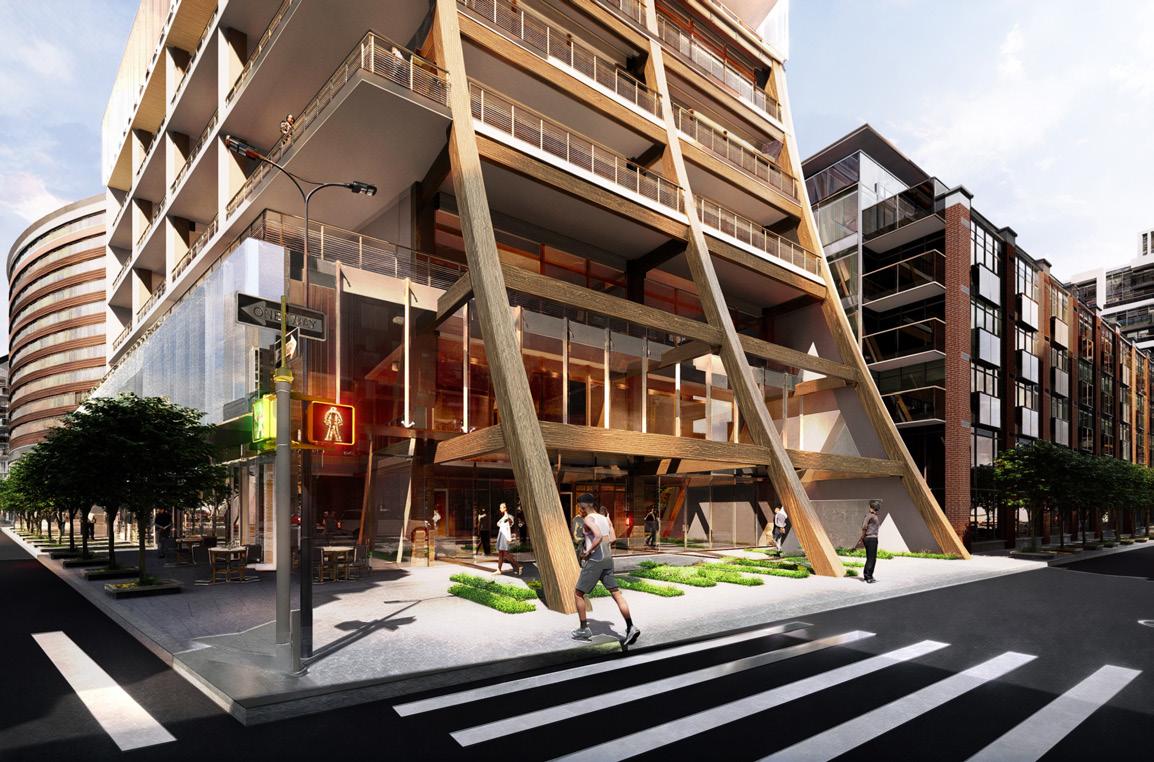

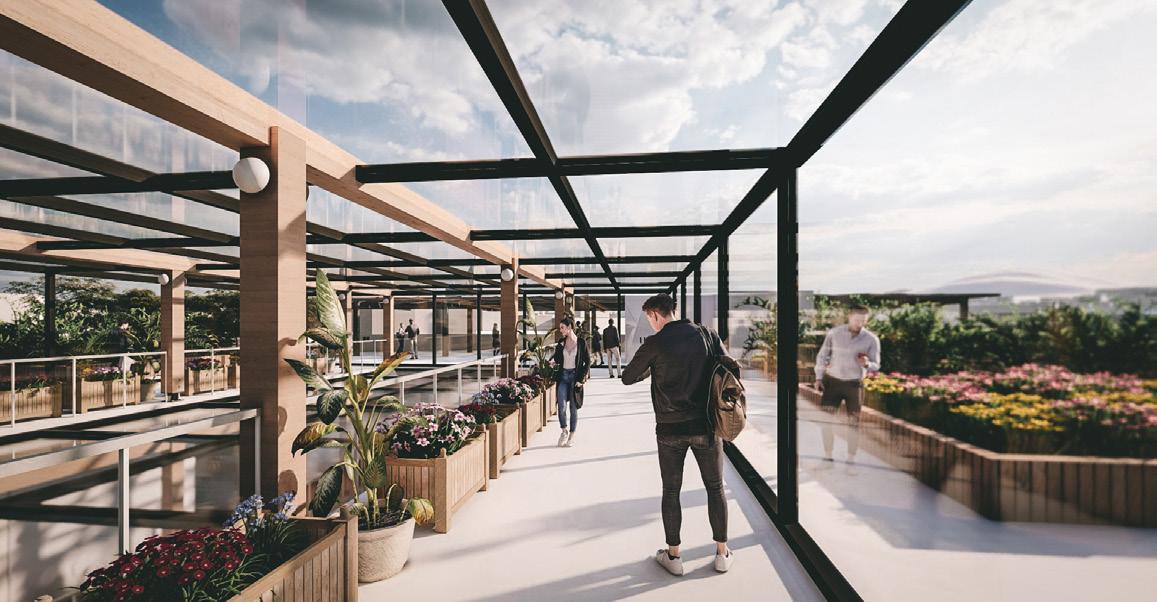

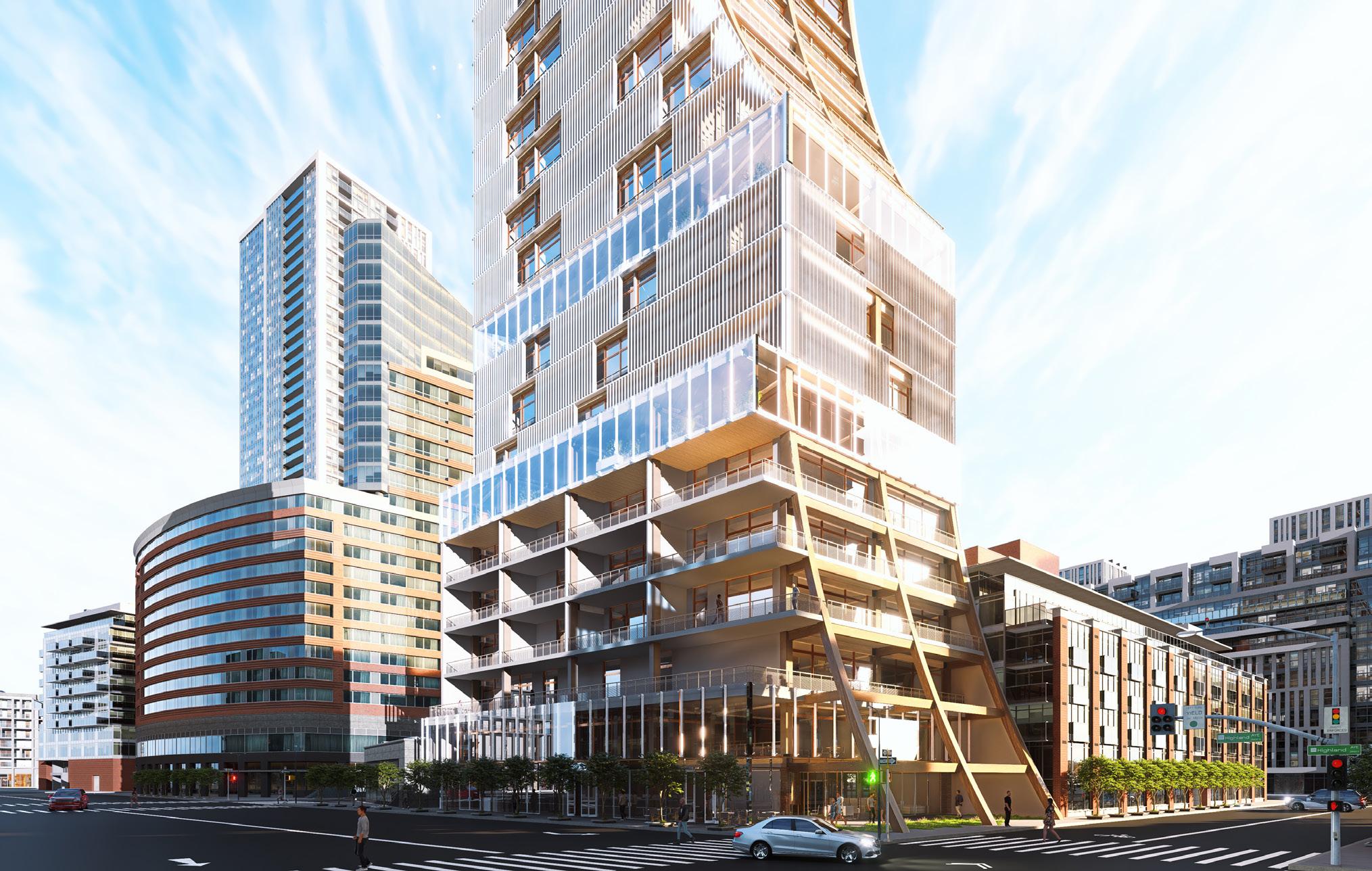

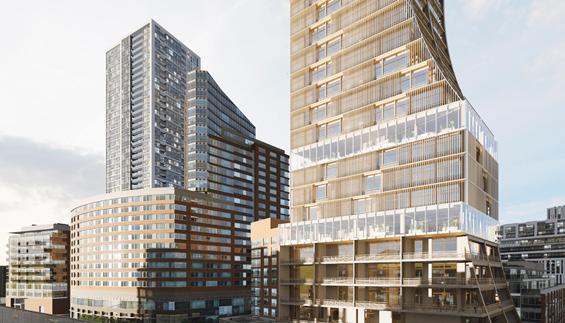

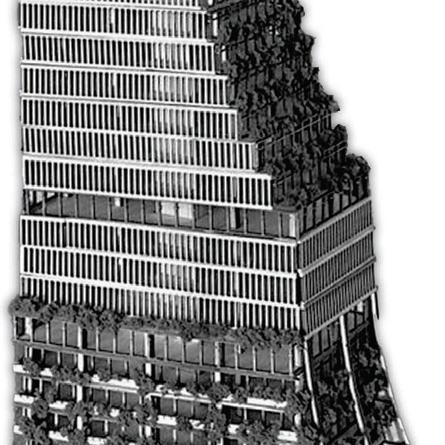

Renderings | 02

32

Portfolio | Highrise Redevelopment

33

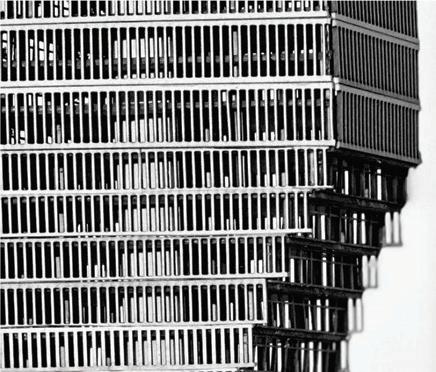

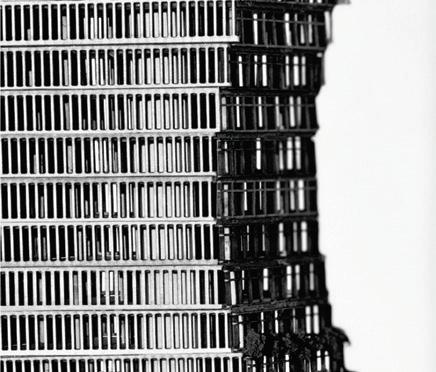

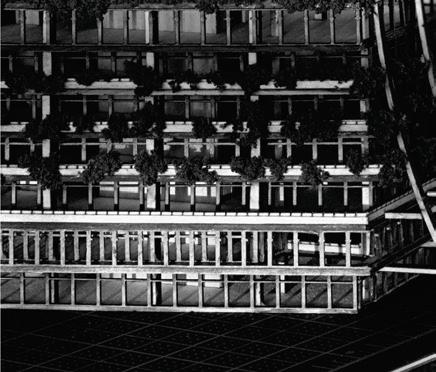

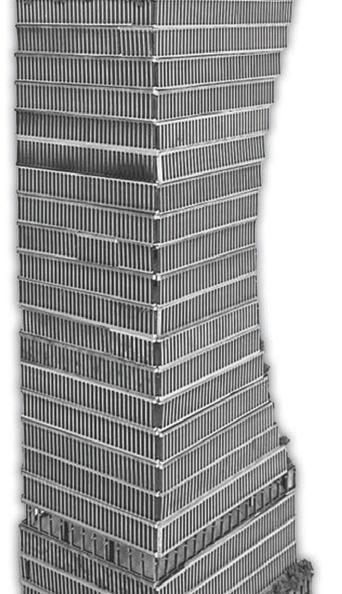

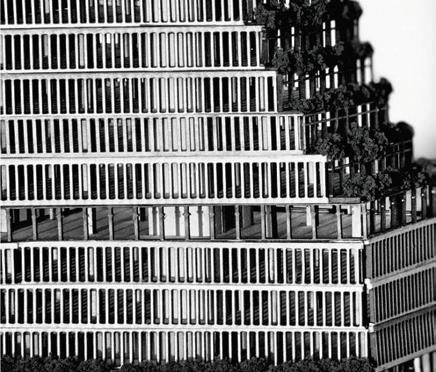

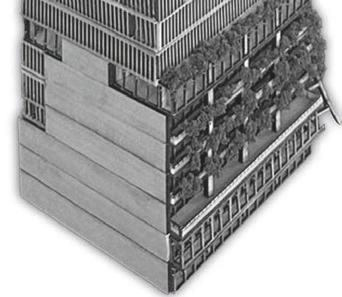

Physical Model | 02

34

Portfolio | Small Housing Units

Introduction | 03

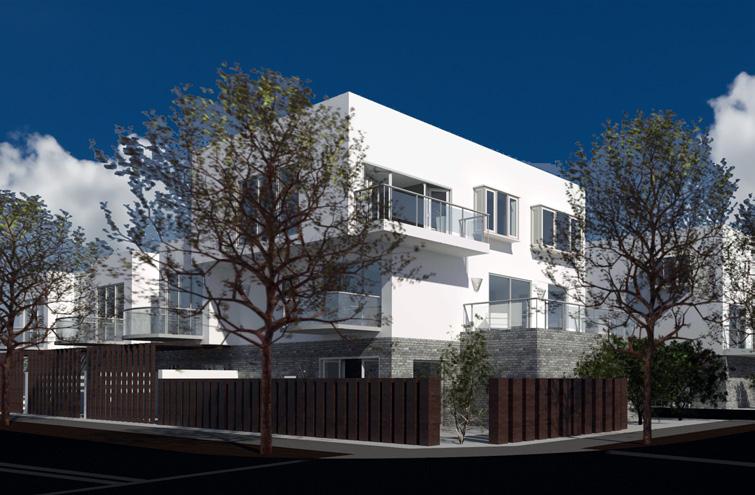

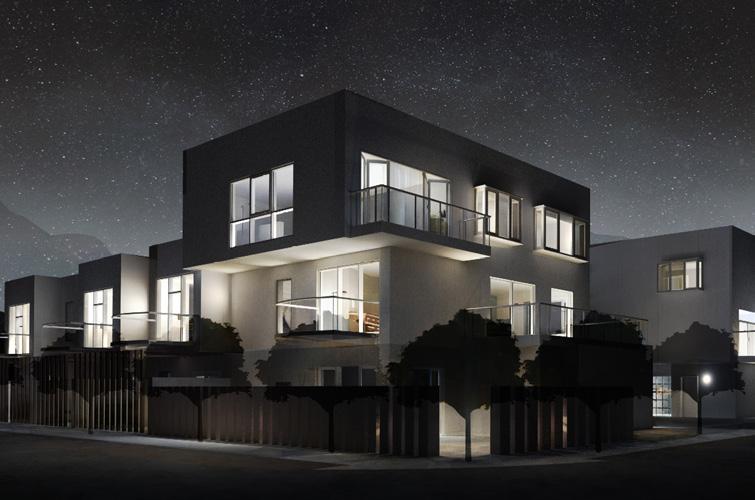

03 Small Housing Units

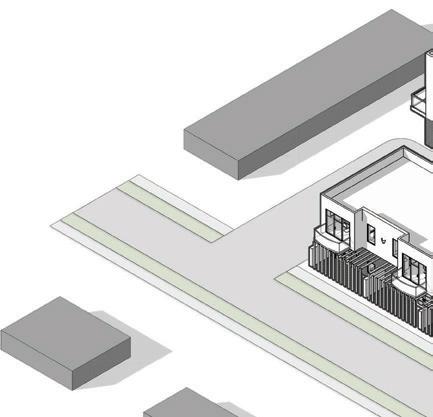

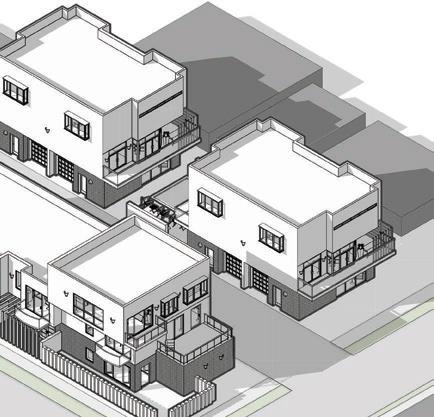

Phoenix, Arizona Condominium Design Individual Project In response to the need for affordable housing in Phoenix, the design is to seek small Condominiums that embrace a cozy, community-centric approach. The floorplan layouts aim to create small-scale space that not only addresses the housing challenges but also develops a sense of close community with resilience.

35

36

Portfolio | Small Housing Units

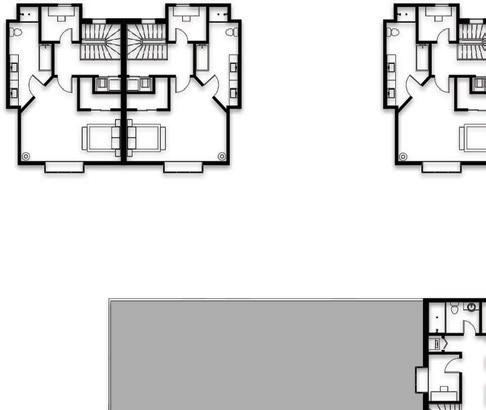

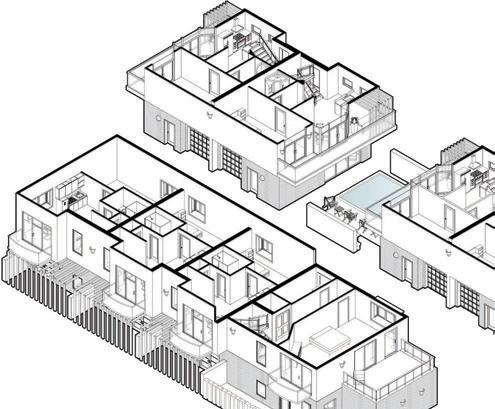

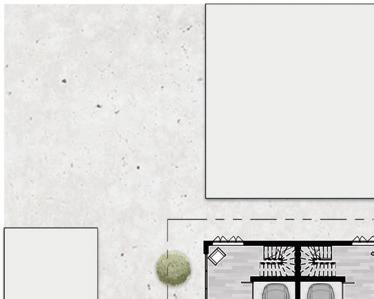

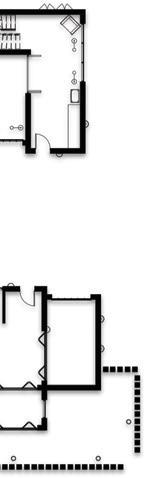

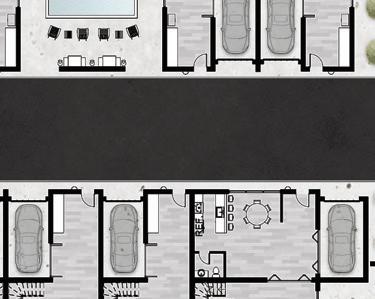

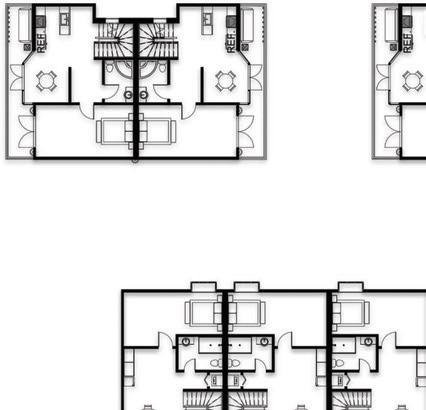

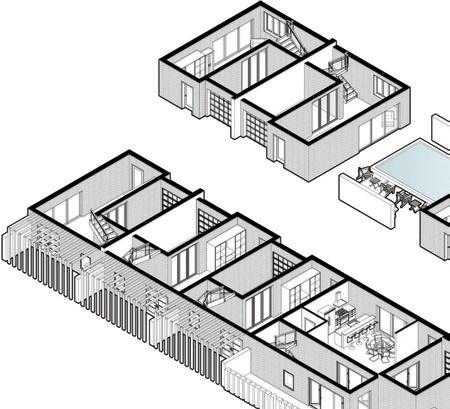

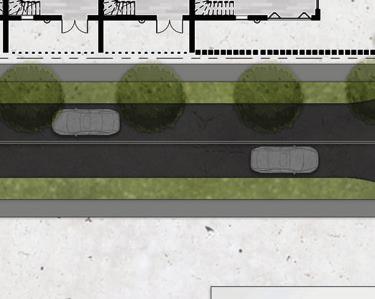

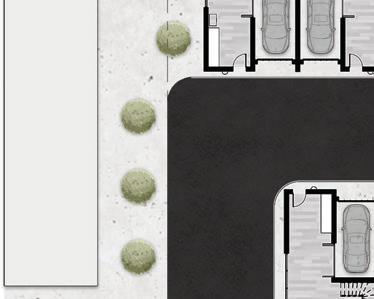

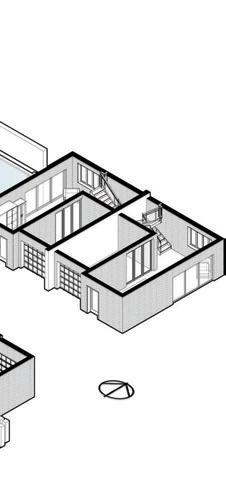

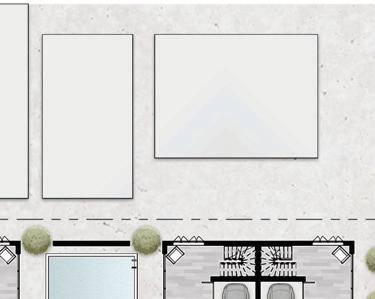

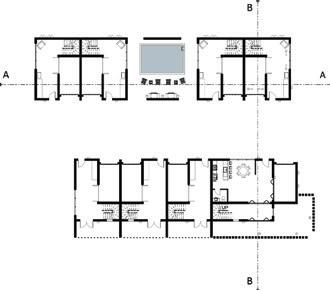

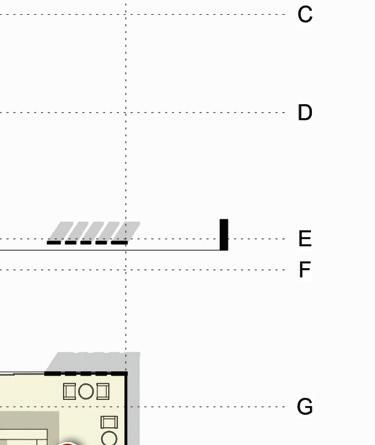

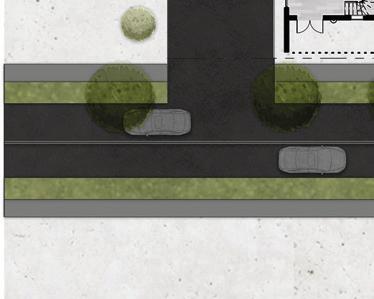

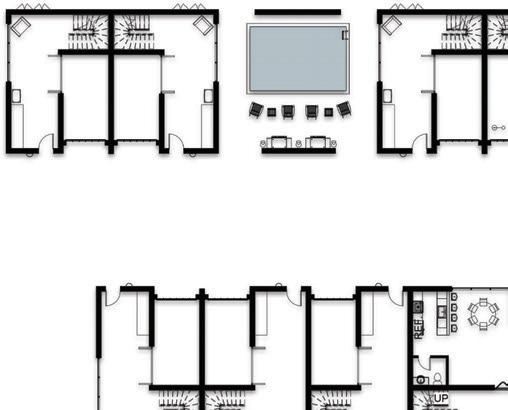

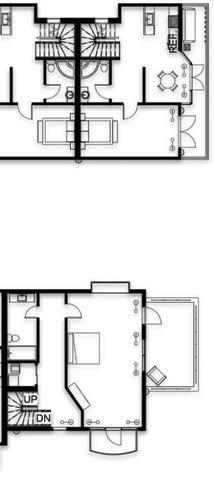

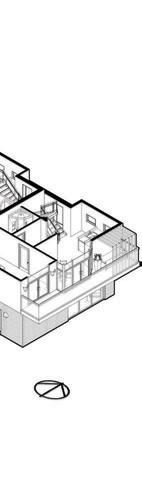

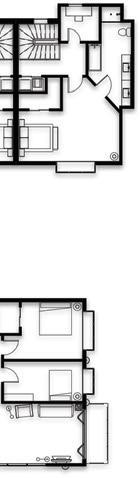

Floor Plans | 03

Level 3

Level 2

Level 1 37

38

Portfolio | Small Housing Units

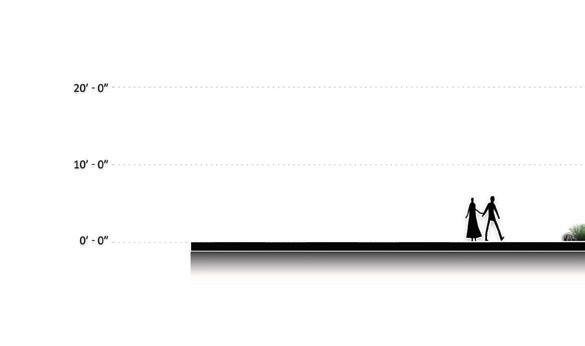

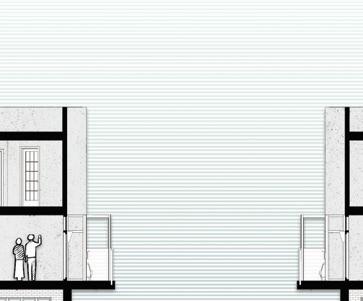

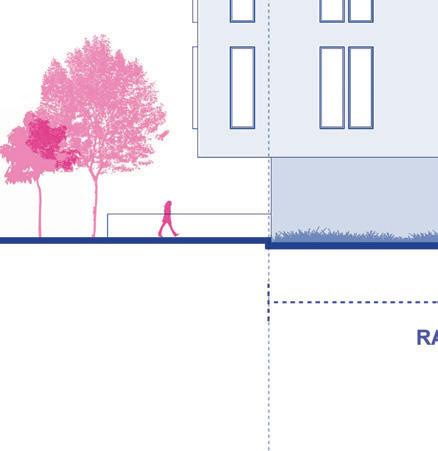

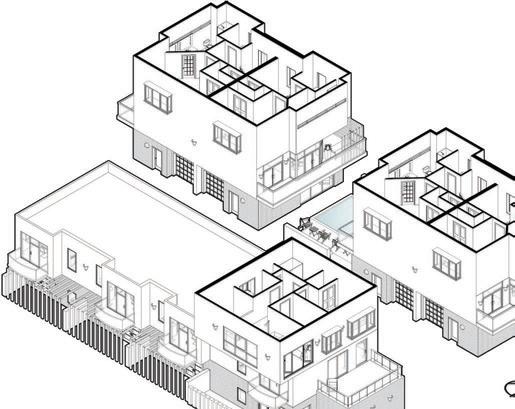

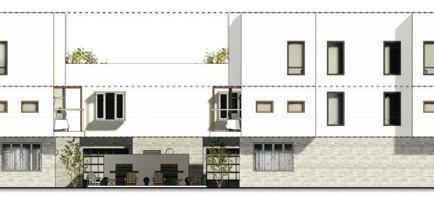

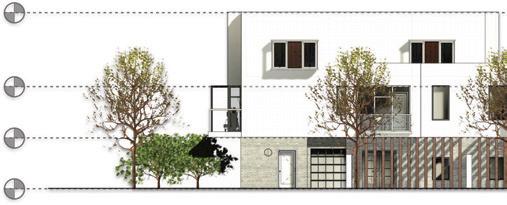

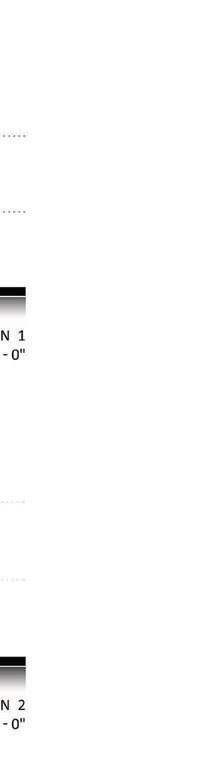

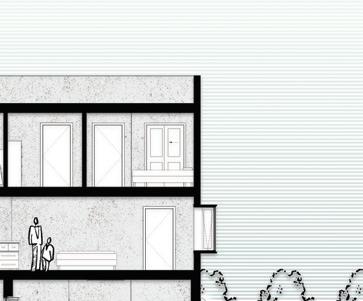

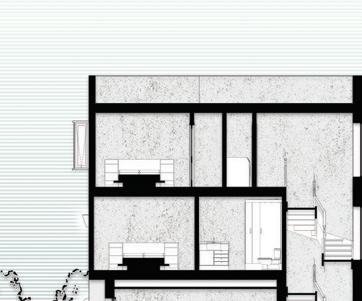

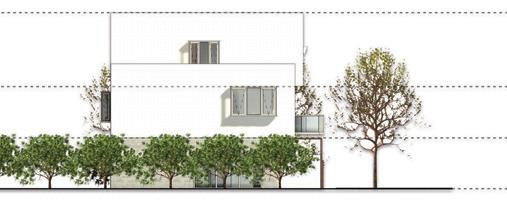

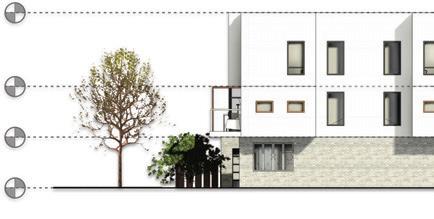

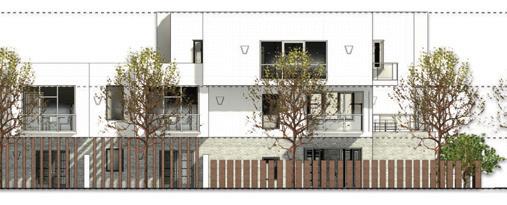

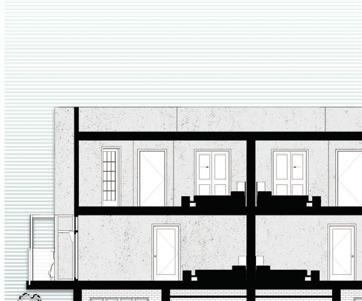

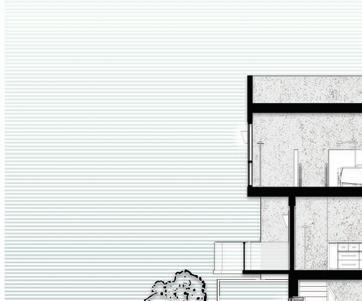

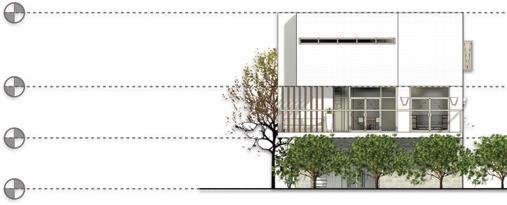

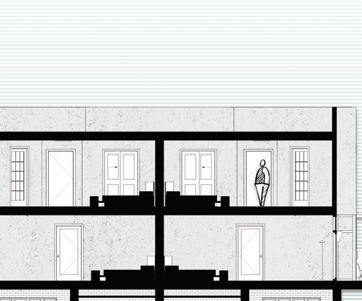

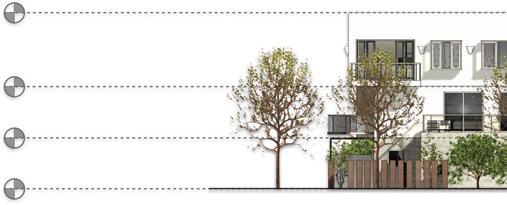

Sections + Elevations | 03 31' - 0" 18' - 0" 9' - 0" 0' - 0"

East NTS

31' - 0" 18' - 0" 9' - 0" 0' - 0"

North NTS

31' - 0" 18' - 0" 9' - 0"

Section A NTS

0' - 0"

South NTS

31' - 0" 18' - 0" 9' - 0" 0' - 0"

39

Section B NTS

West NTS 40

Portfolio | MOCA

Introduction | 04

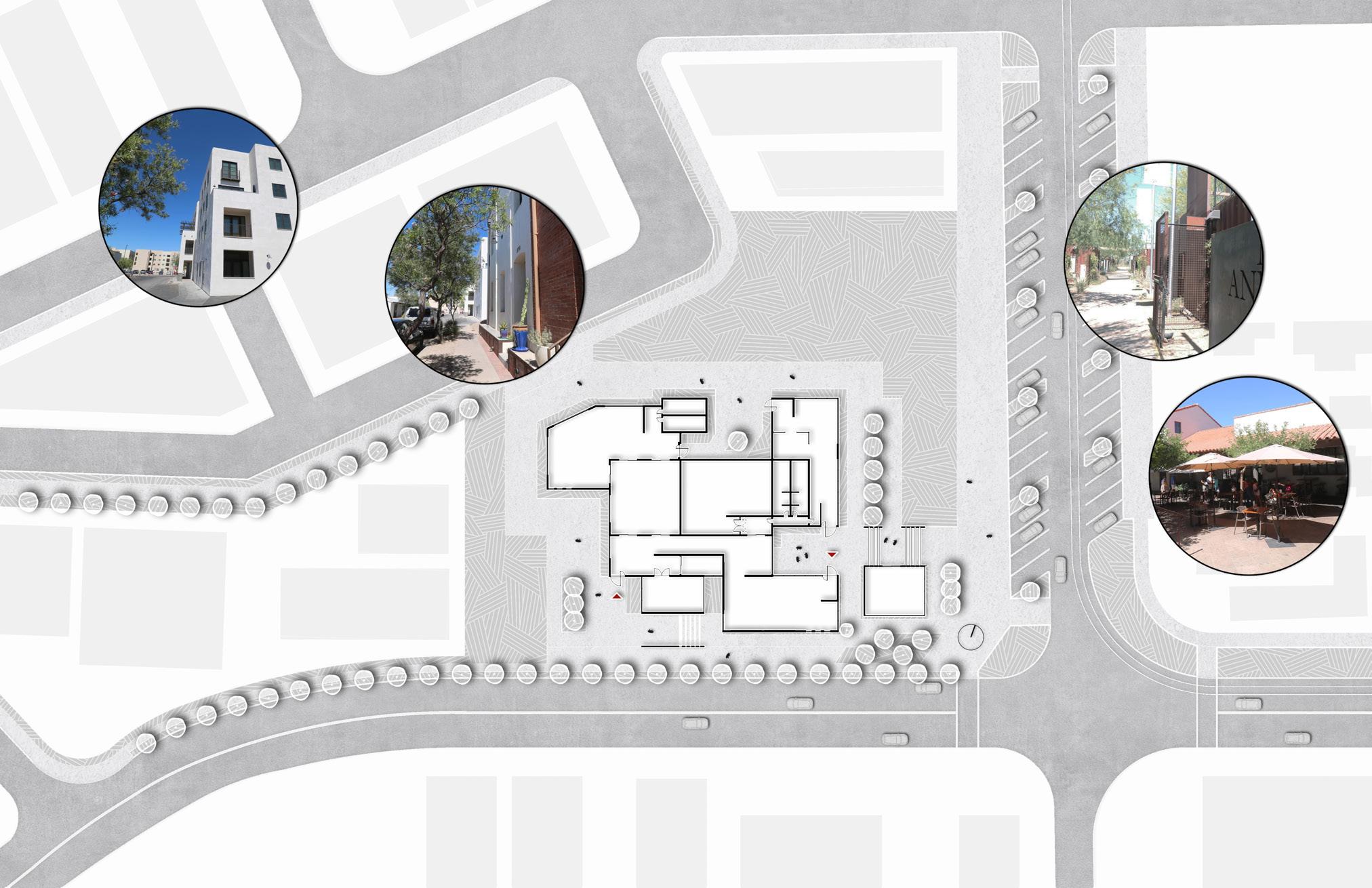

04 Museum of Contemporary Art

Tucson, Arizona Museum Design Individual Project MOCA Tucson will stand as the living room for the neighborhood that connects the public to the museum.

The roof overhang concept provides a shady environment that is suitable for the weather condition in Tucson.

During sunny days, people can walk or sit in a comfy place with more enjoyment and engagement.

41

42

Portfolio | MOCA

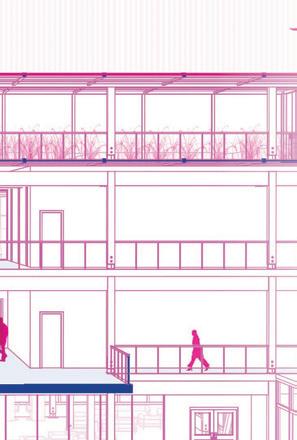

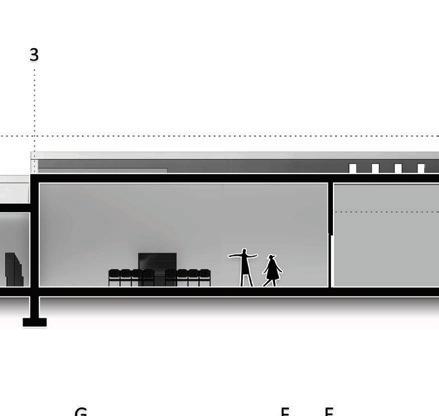

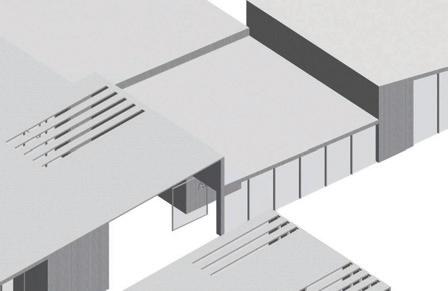

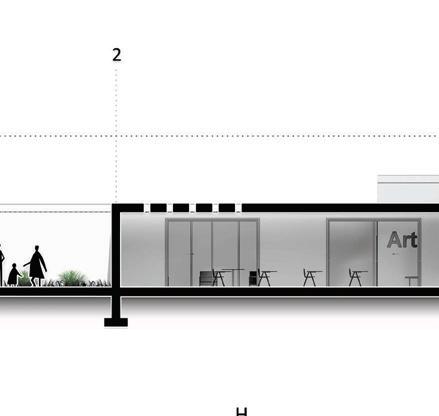

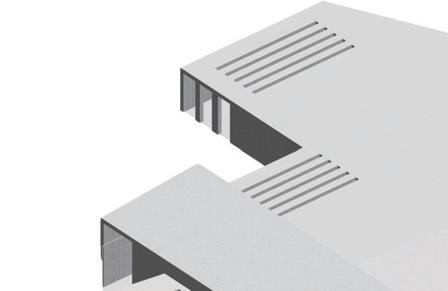

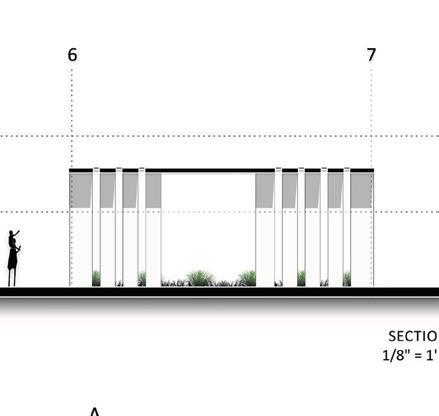

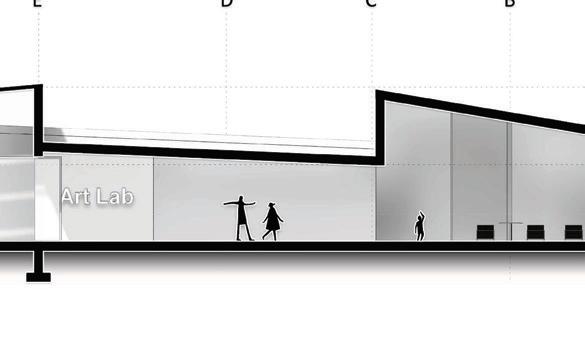

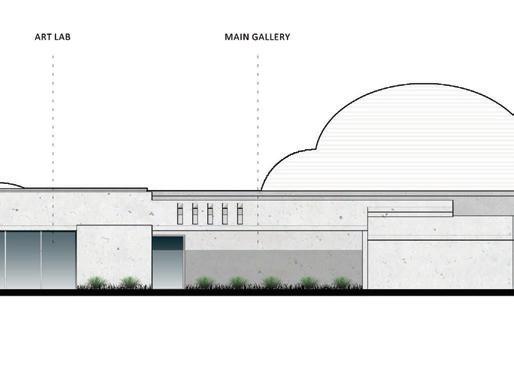

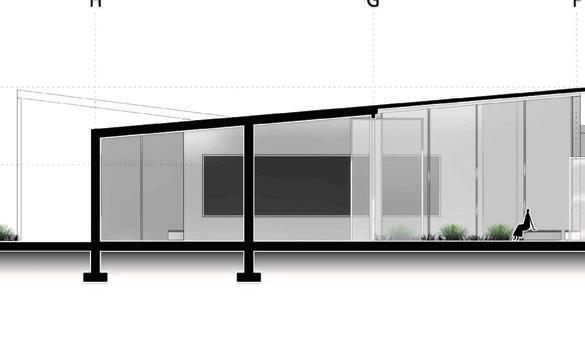

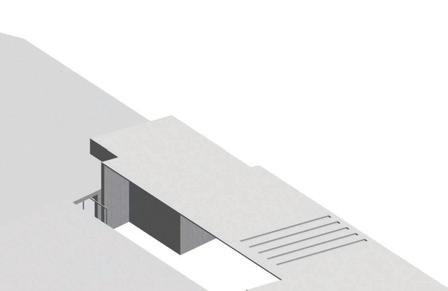

Concept + Sections | 04

Art Hall

Performance Space “Black Box” Gallery Office Art Lab Main Gallery

“Living” Rooms | Courtyards | High Resiliency

Cafe

43

44

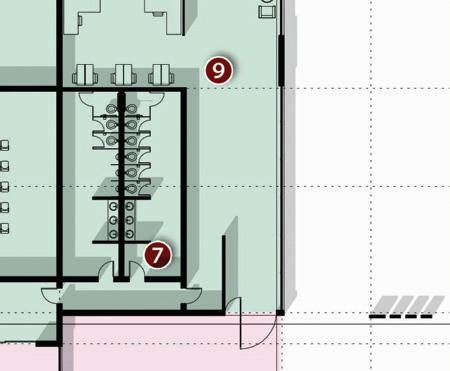

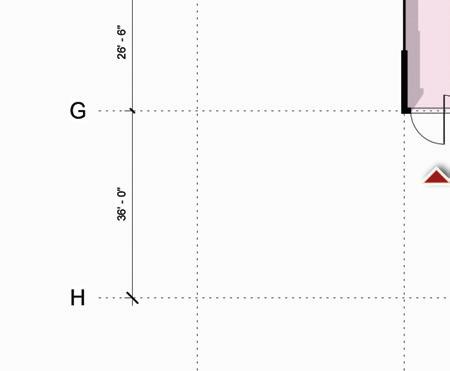

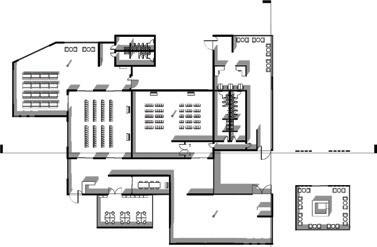

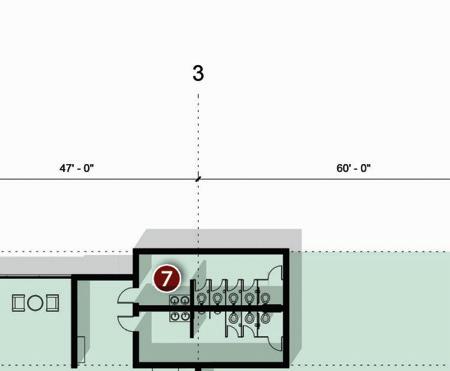

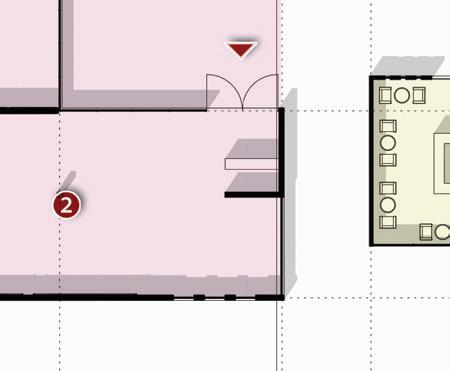

Floor Plan | 04

Art Lab

Performance Space

Main Gallery

Portfolio | MOCA

45

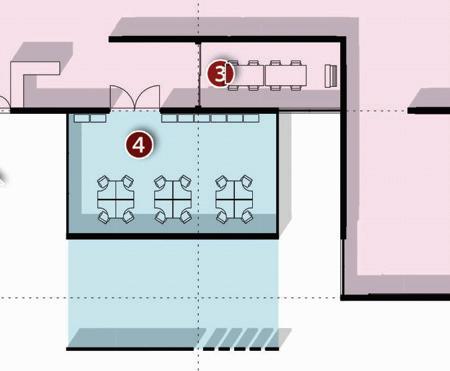

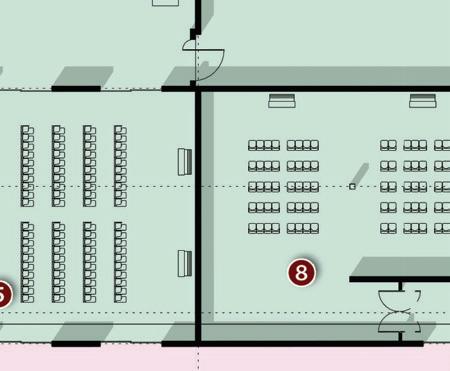

1 CAFE 2 MAIN GALLERY 3 MEETING

4 OFFICE 5 PERFORMANCE 6 ART HALL

7 RESTROOMS 8 MULTIPURPOSE 9 ART LAB

46

Portfolio | MOCA

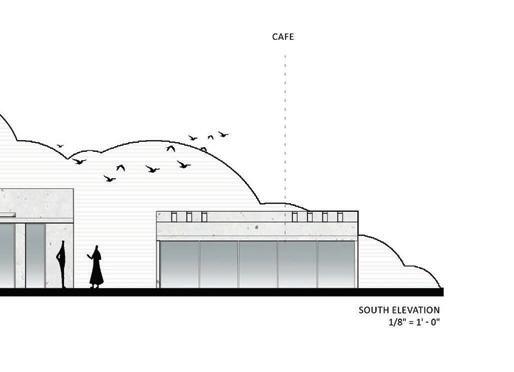

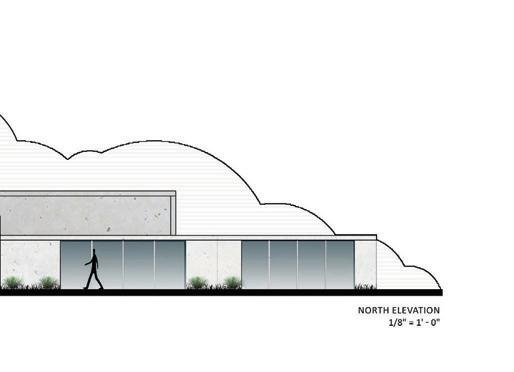

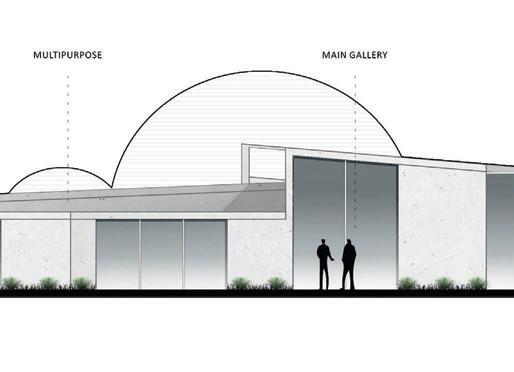

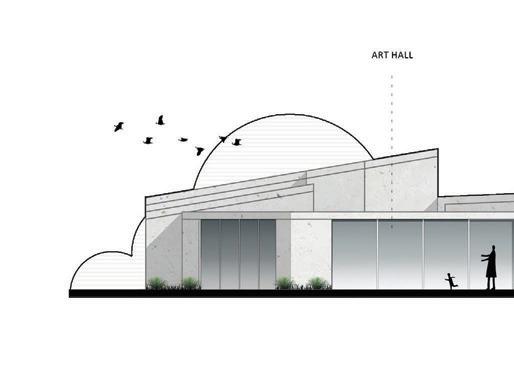

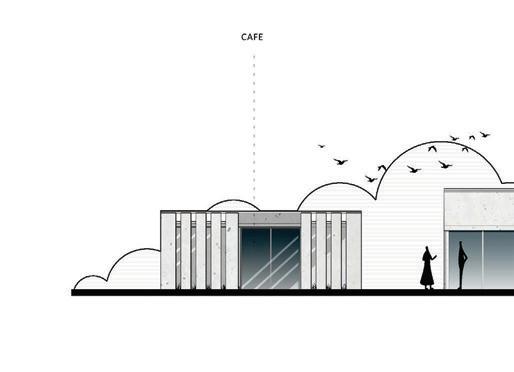

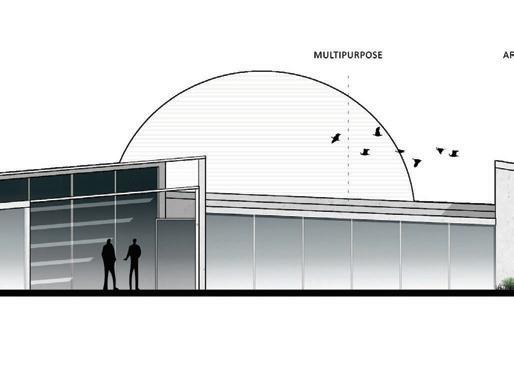

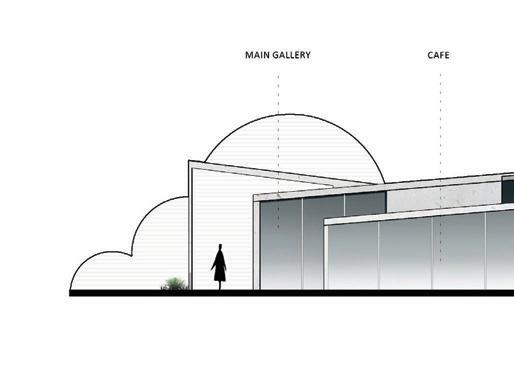

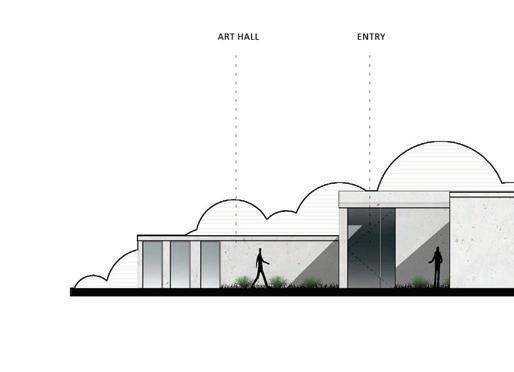

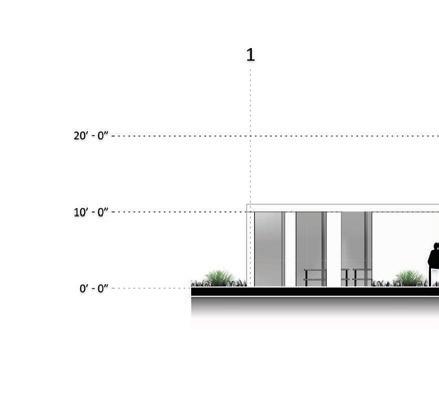

Elevations | 04

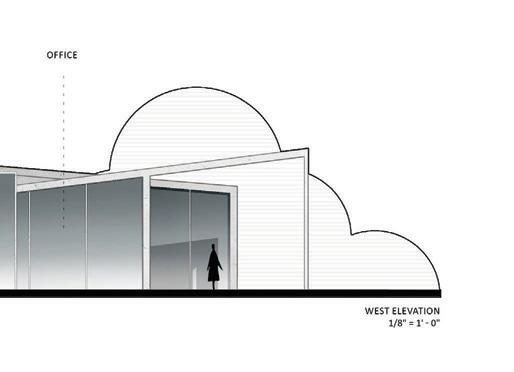

West

South

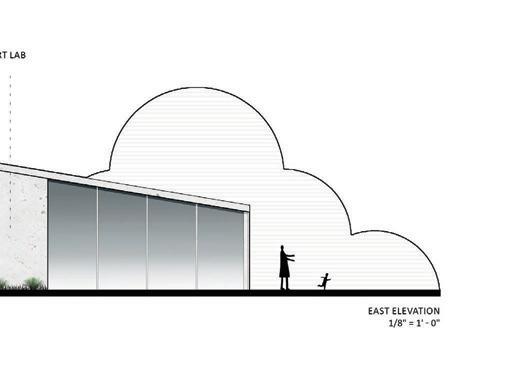

East

North

47

48

Portfolio | MOCA

49

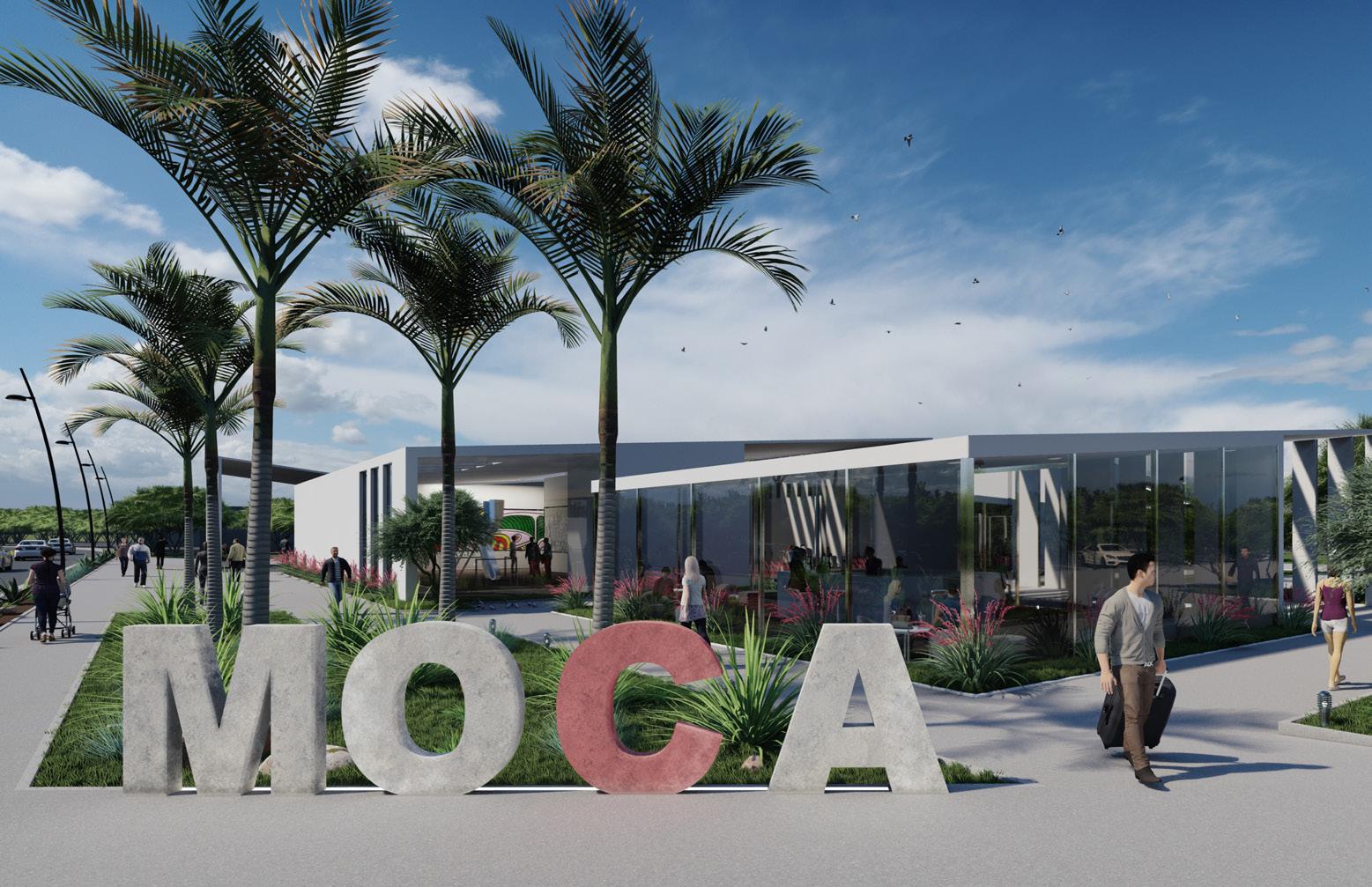

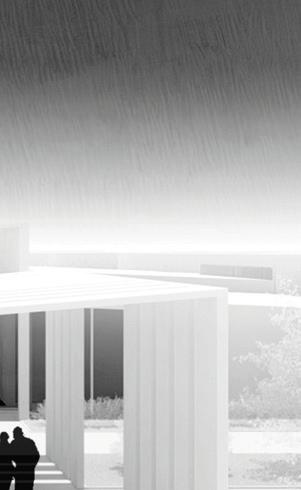

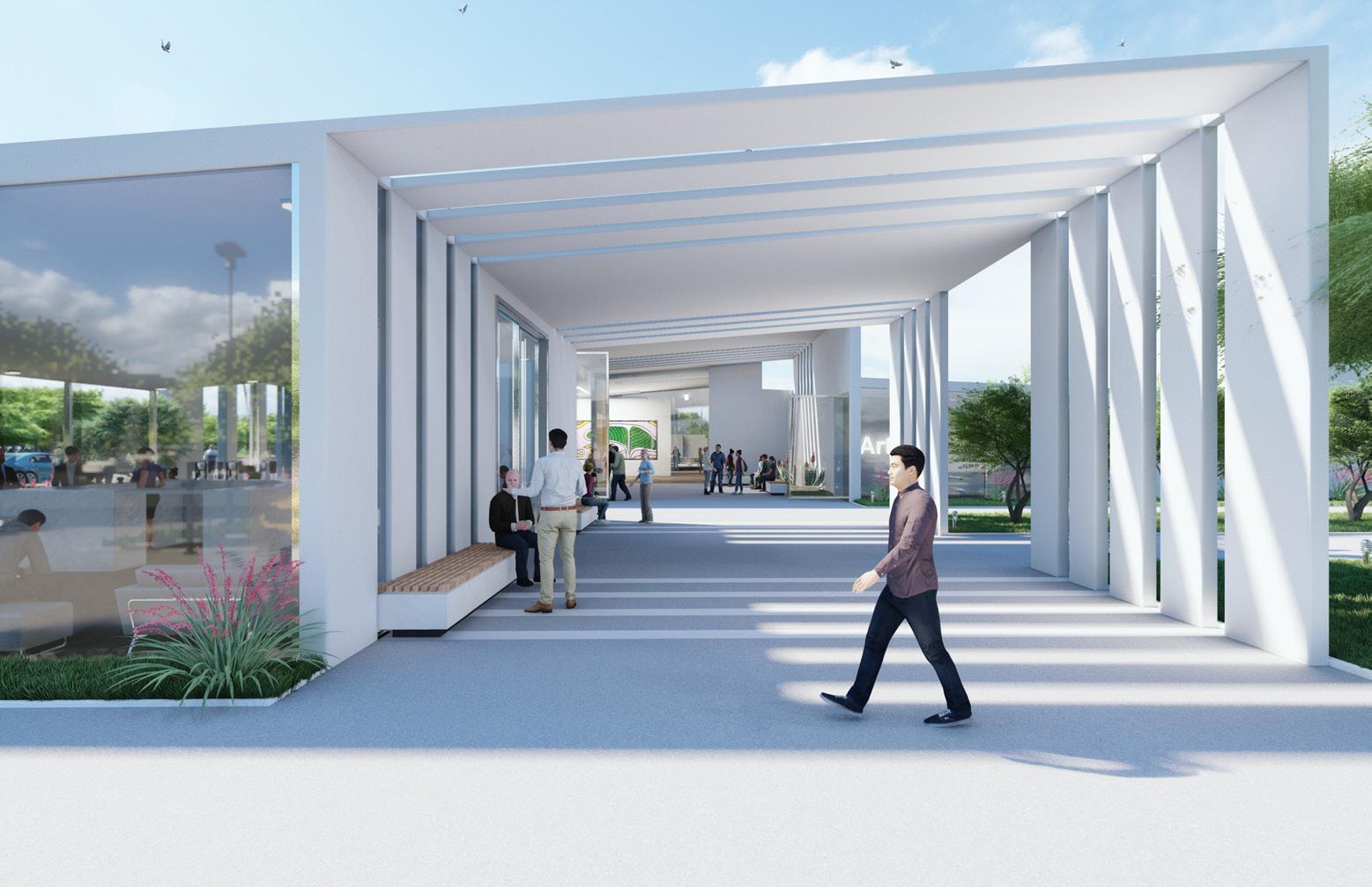

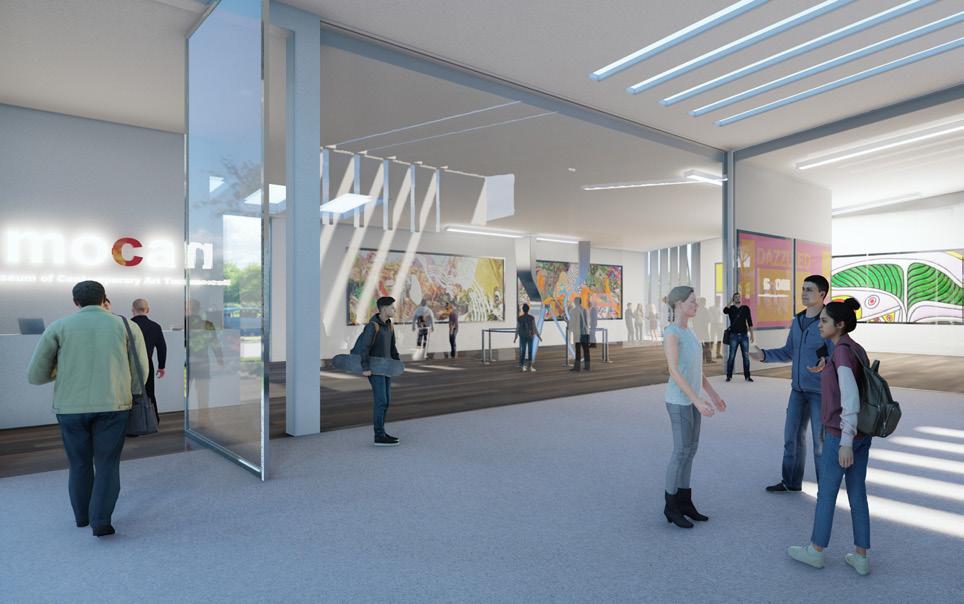

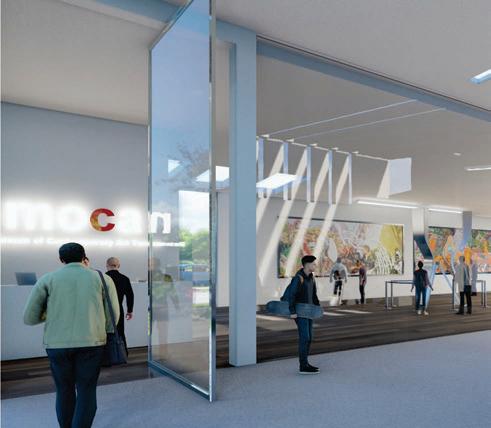

Renderings | 04

50

Portfolio | MOCA

51

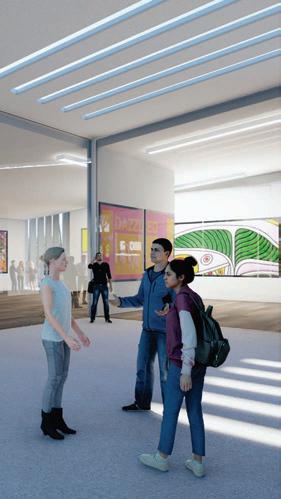

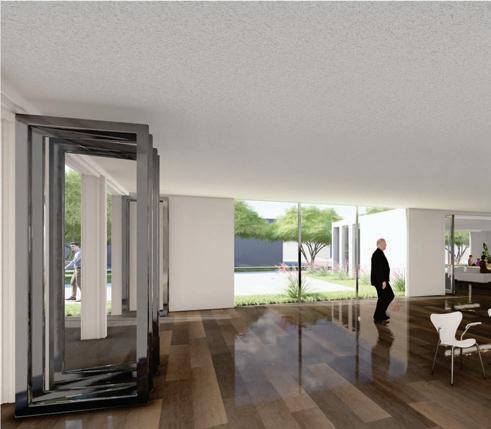

Renderings | 04

52
