Deconstruction
Regenerative Community Project
Maritime Horizon
Public Housing Project
2. PERSONAL PROJECT
Black Axis Monumental Architecture Competetion Project Collaboration with Chuanqi Liu and Muyun Xiao
3 .PRACTICE EXPERIENCE
Royal Manchester Children’s Hospital
Design
Royal Surrey Country Hospital Cancer and Surgical Innovation Centre
4. TECHNICAL STUDIES
Indoor Out Model Making Project
Deconstruction
Location: Sheffield, UK
Time: Jan. 2024
Category: End of Year Project (Yr3)
Instructor: Samuel Holden
‘Deconstruction’ explores the juncture between industrial history and sustainable futures. The Waste Art Centre transforms waste into a vibrant community hub, redefining perceptions of Attercliffe. This creative space not only showcases sustainable practices but also reinvests profits into urban green spaces, enhancing the cityscape. As an architectural prototype made from waste materials, it invites visitors to reflect on their relationship with waste and nature, illustrating the potential for regeneration in industrial zones and promoting a sustainable, inclusive approach to urban development.

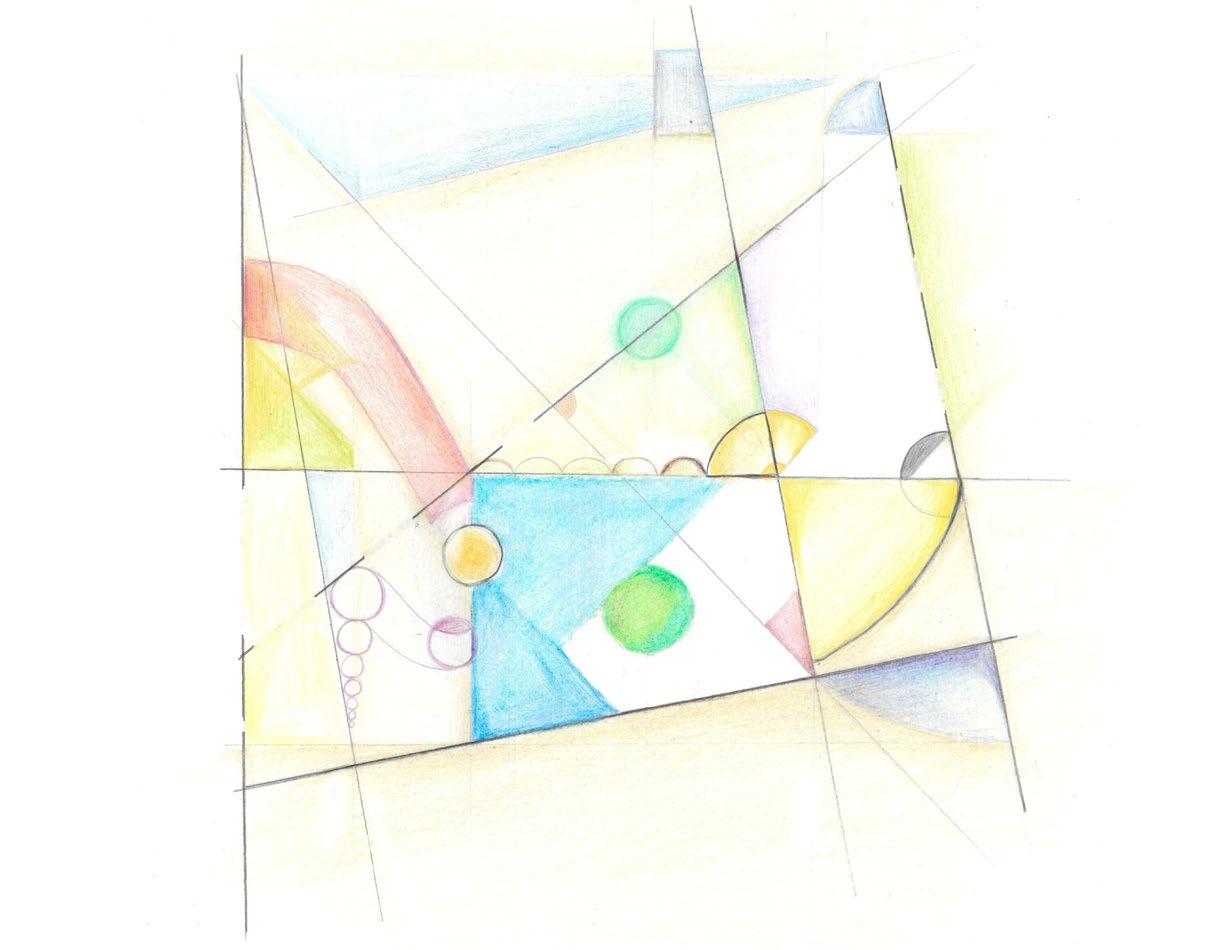

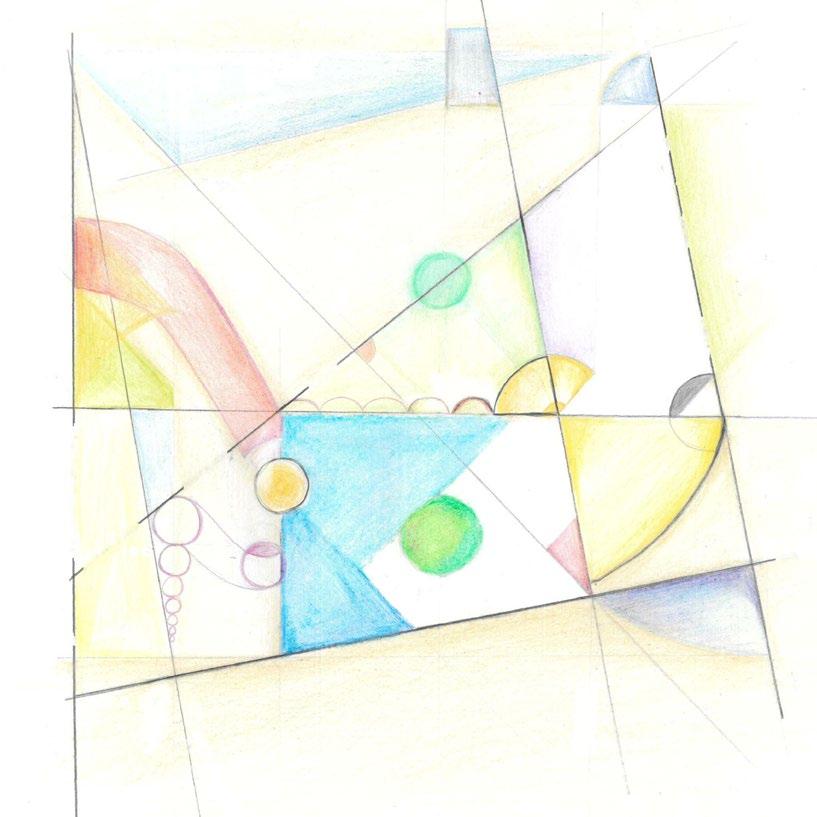

CONSTRUCTIVISM ART (building form inspiration) colour pencil drawing inspired by Wassily Kandinsky
Constructivism Architecture
Developing the architectural form based on the concept of constructivism.
Constructivism architecture, originating in early 20th-century Russia, sought to integrate industrial materials and forms into architectural design to reflect the ideals of modernity and societal progress. Similarly, the concept of repurposing industrial elements within architecture in this project echoes this ethos, aiming to redefine traditional perceptions of industrial spaces. By incorporating elements from industrial settings and reimagining their function within architectural design, both constructivism and this contemporary approach challenge conventional notions of space and material use, advocating for innovation and sustainability in the built environment.

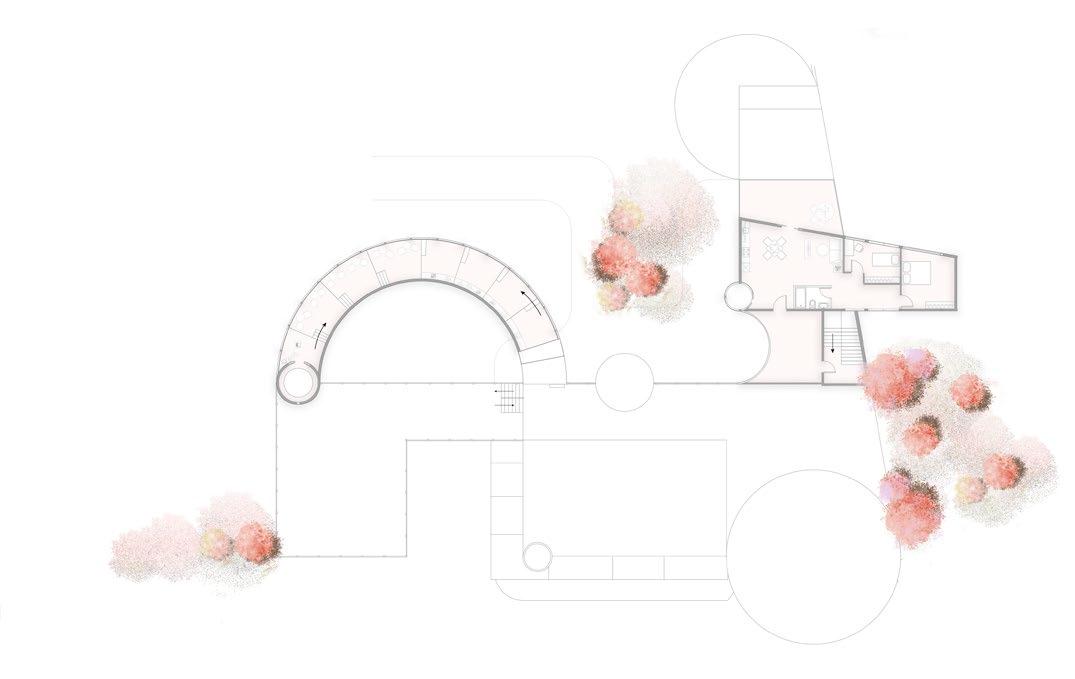

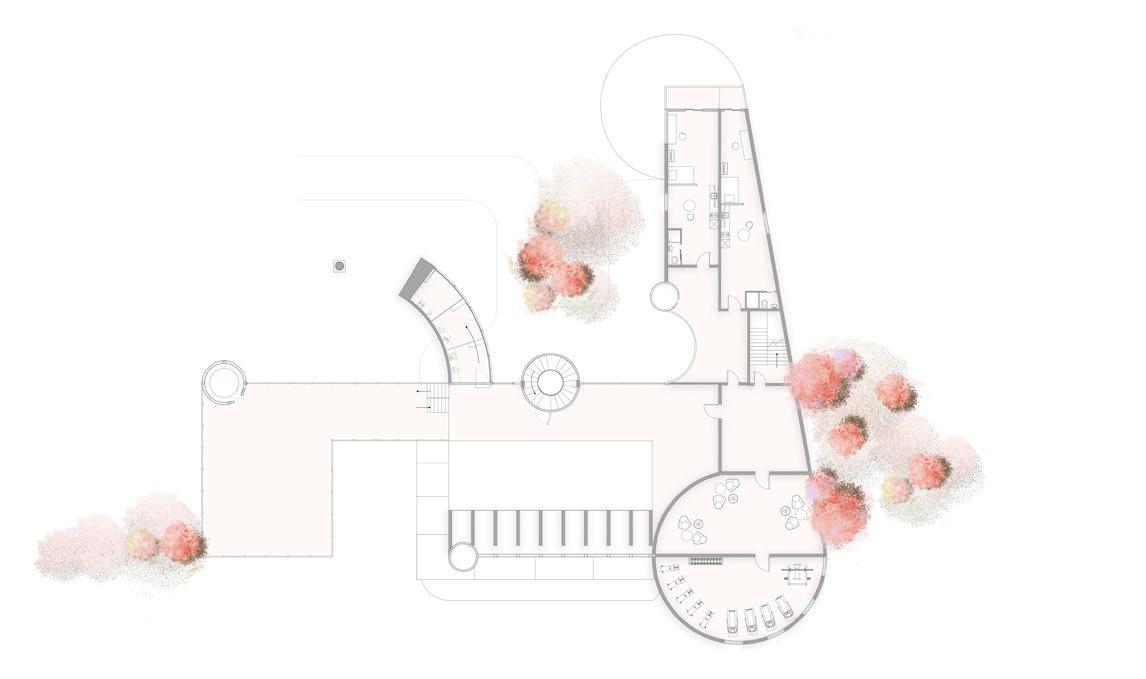

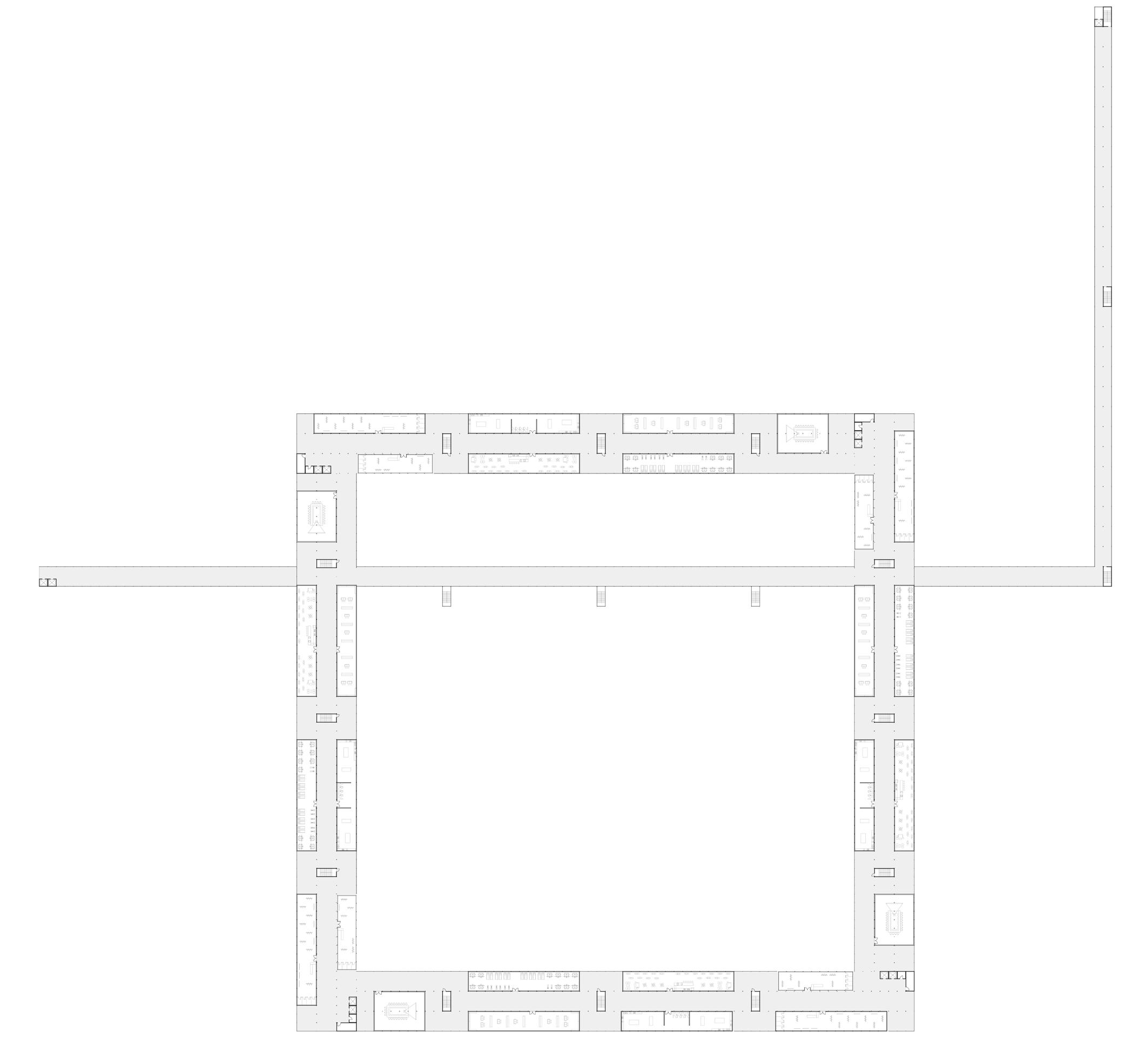

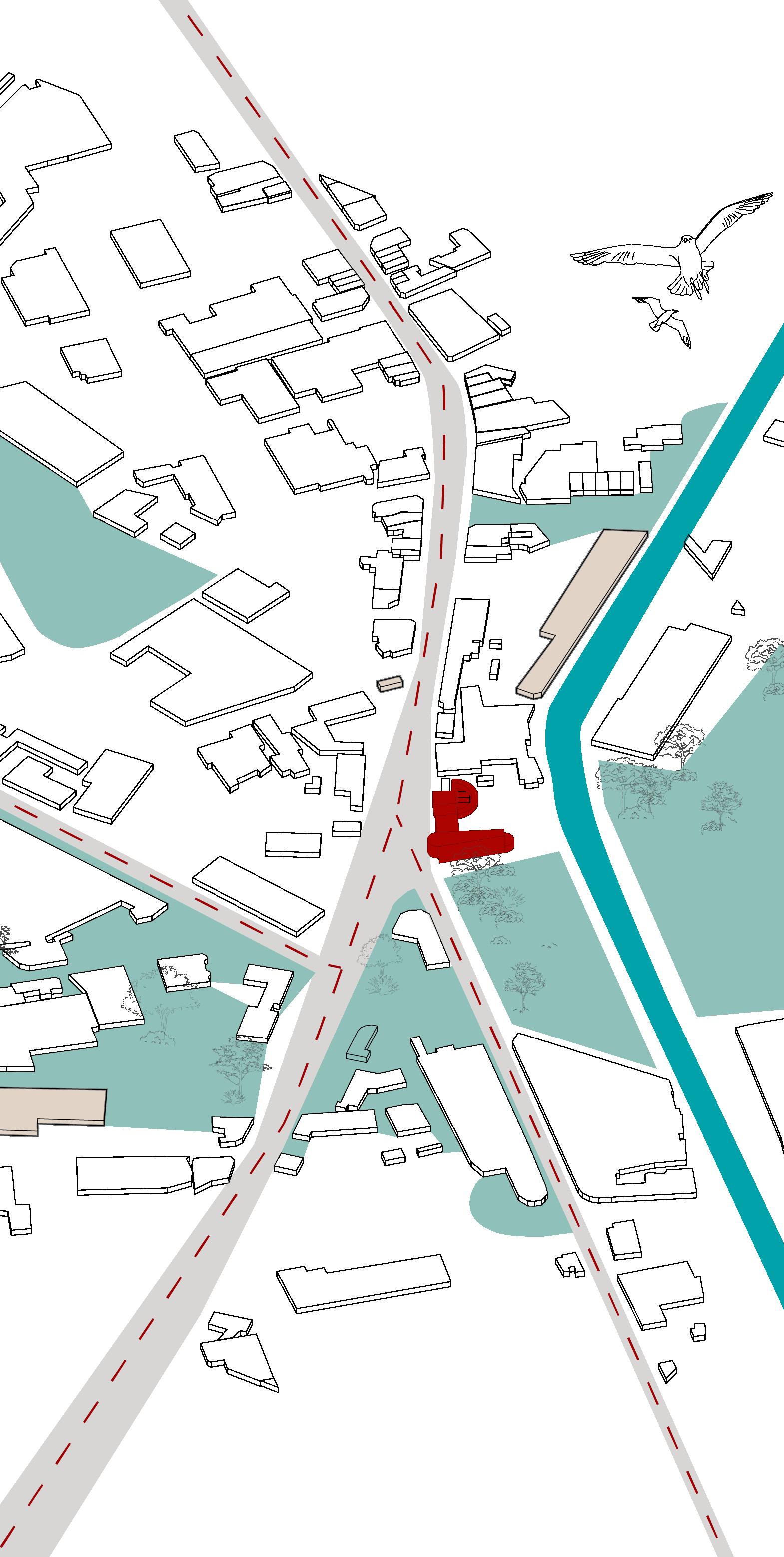

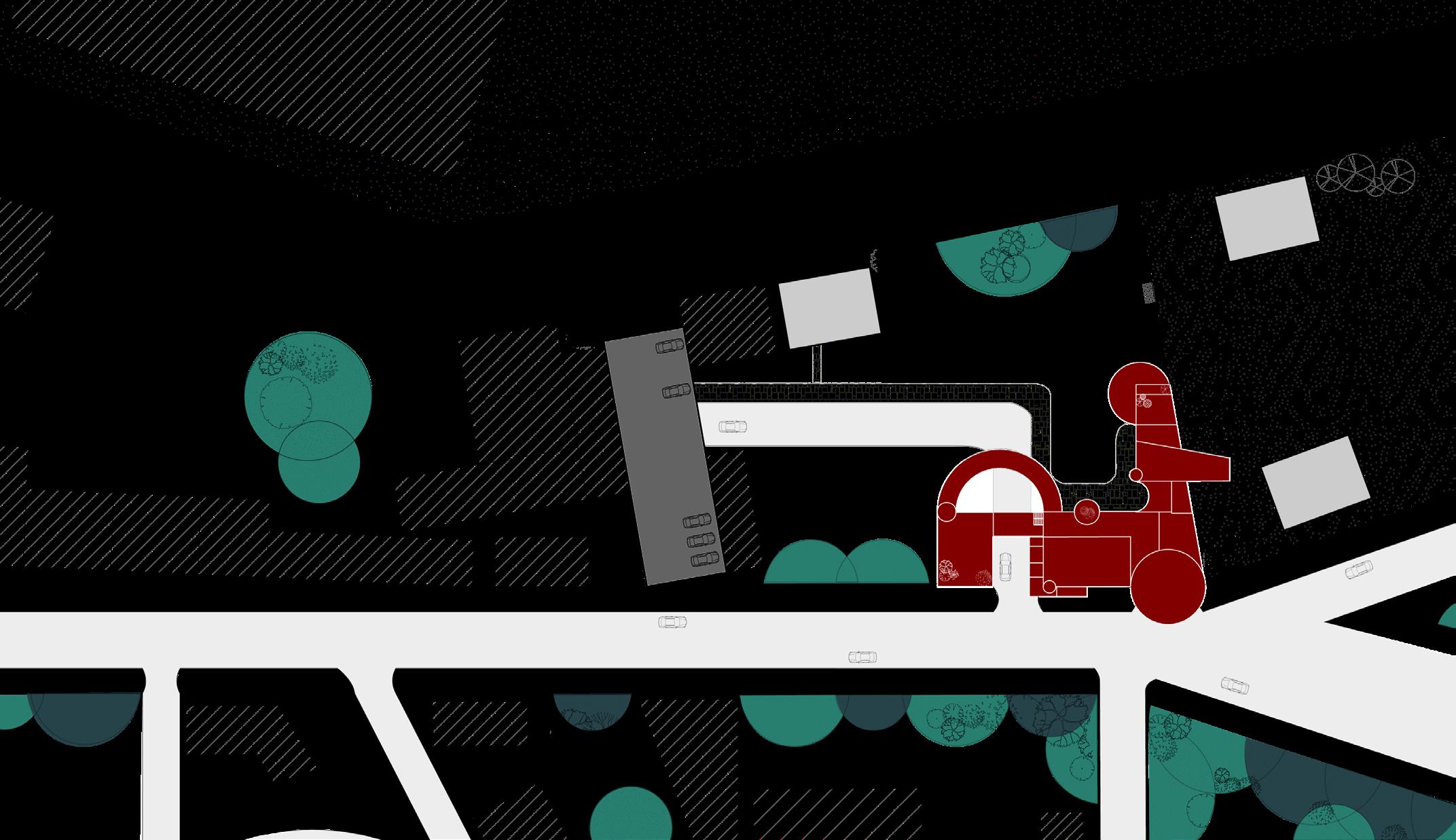

Masterplan 1:1500 zoomed in Attercliffe area
Art

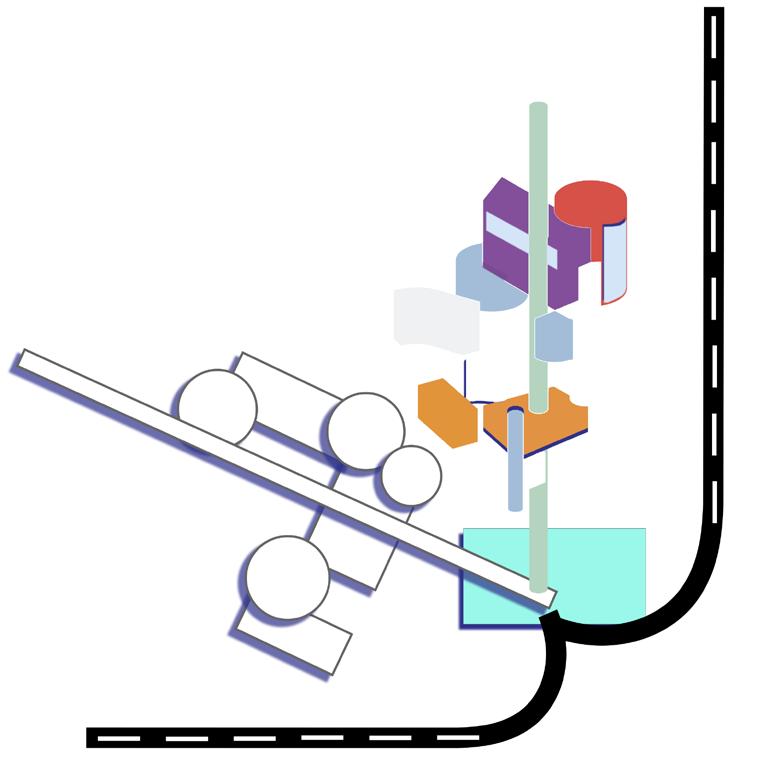

3D Form: abstracted shapes translated from drawings into three dimensions conceptual form model
Deconstruction & Reconstruction
The Process of Form Generation
Constructivism
colour pencil drawing inspired by Wassily Kandinsky
Basic Geometries extract from the drawing
SITE
Ripon Street Open Space
Newly established greenery
Newly established greenery
Metal Recycling Company
Spartan Works (steel factory)
SITE

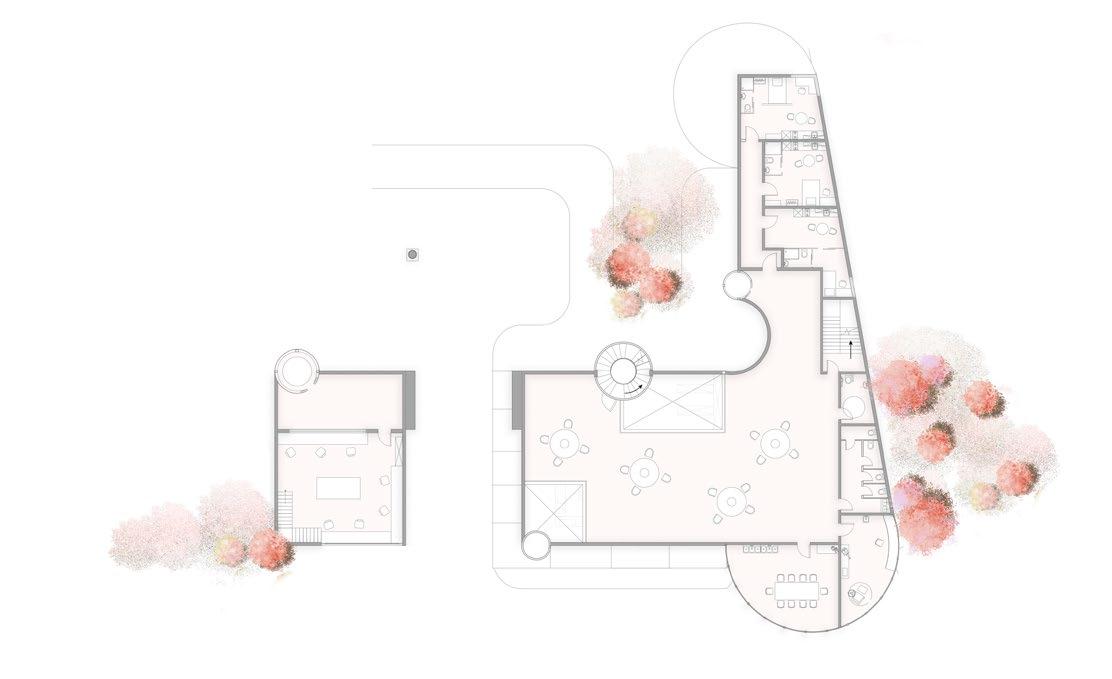

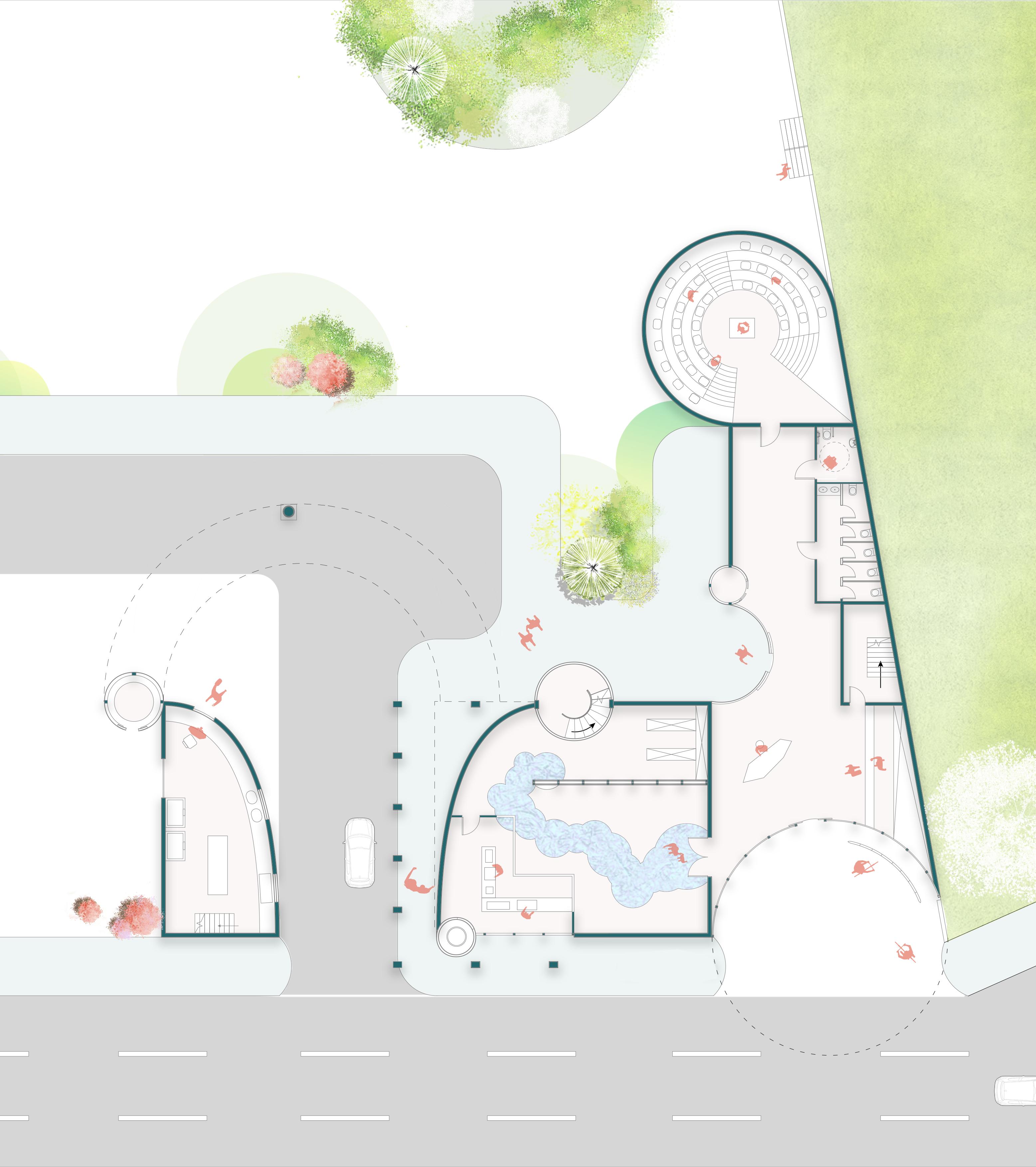

WASTE ART CENTRE

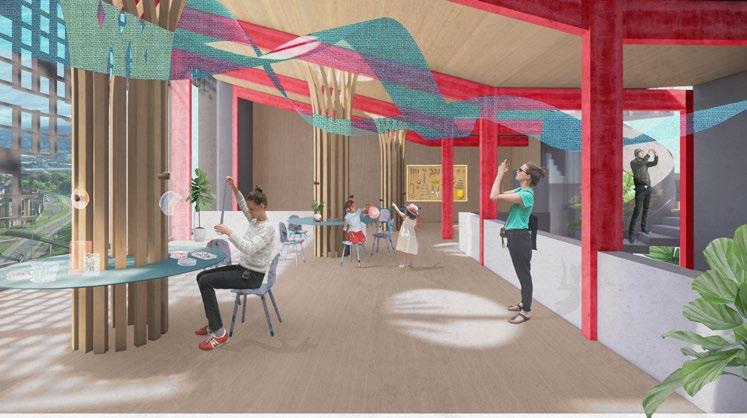

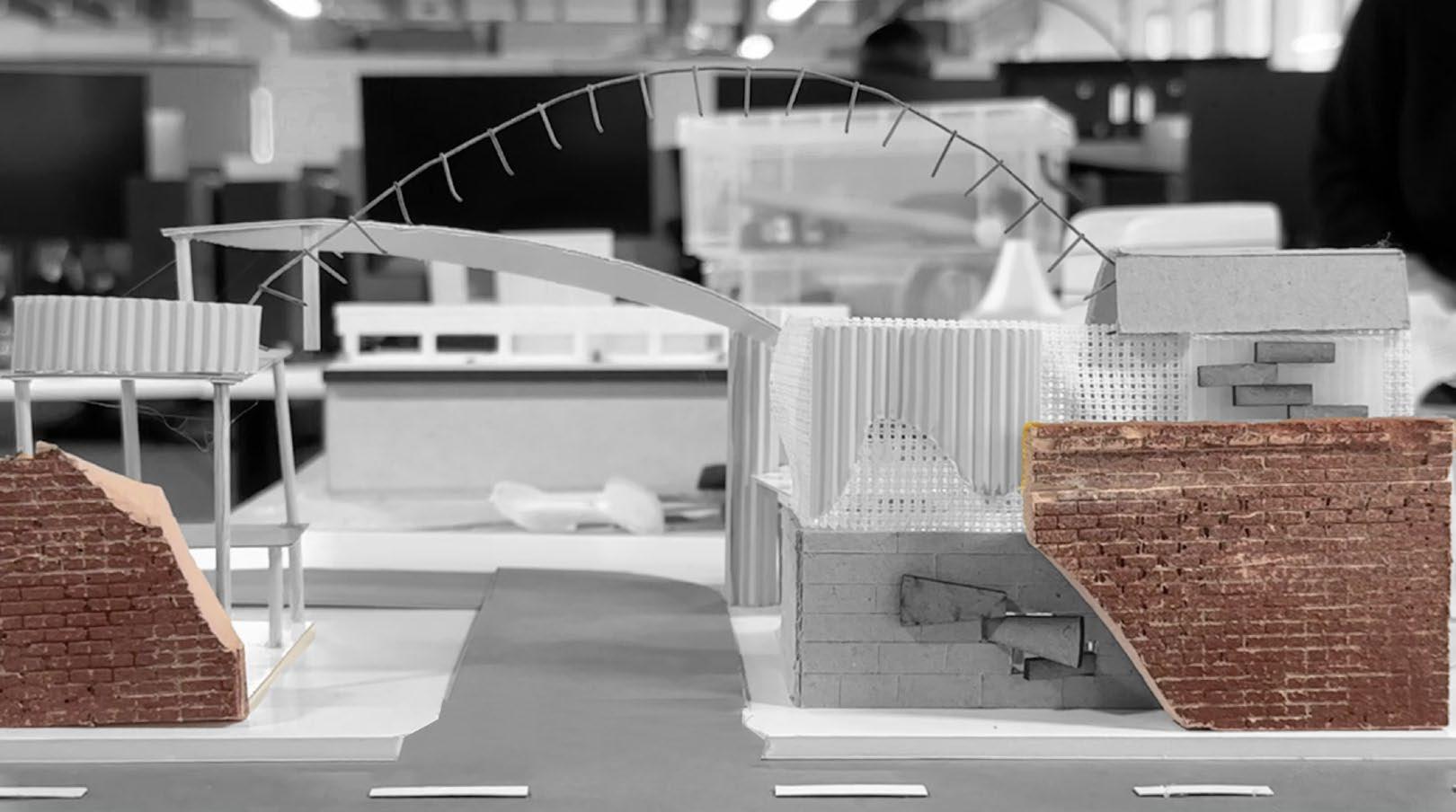

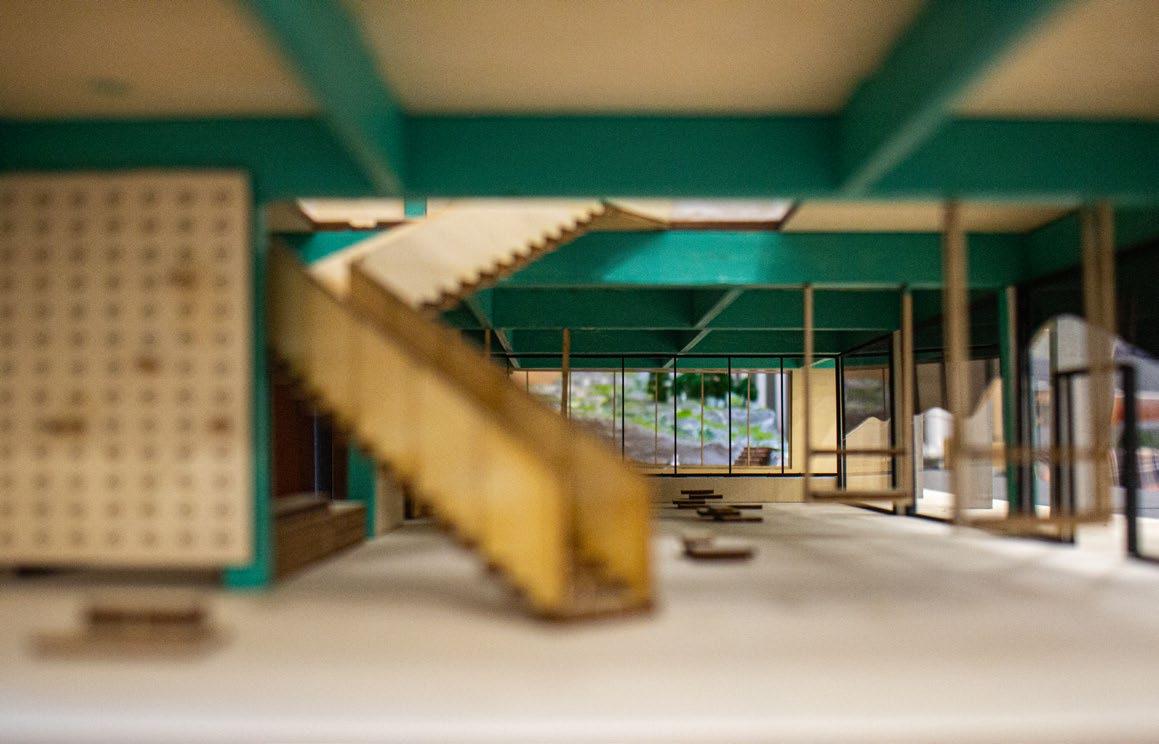

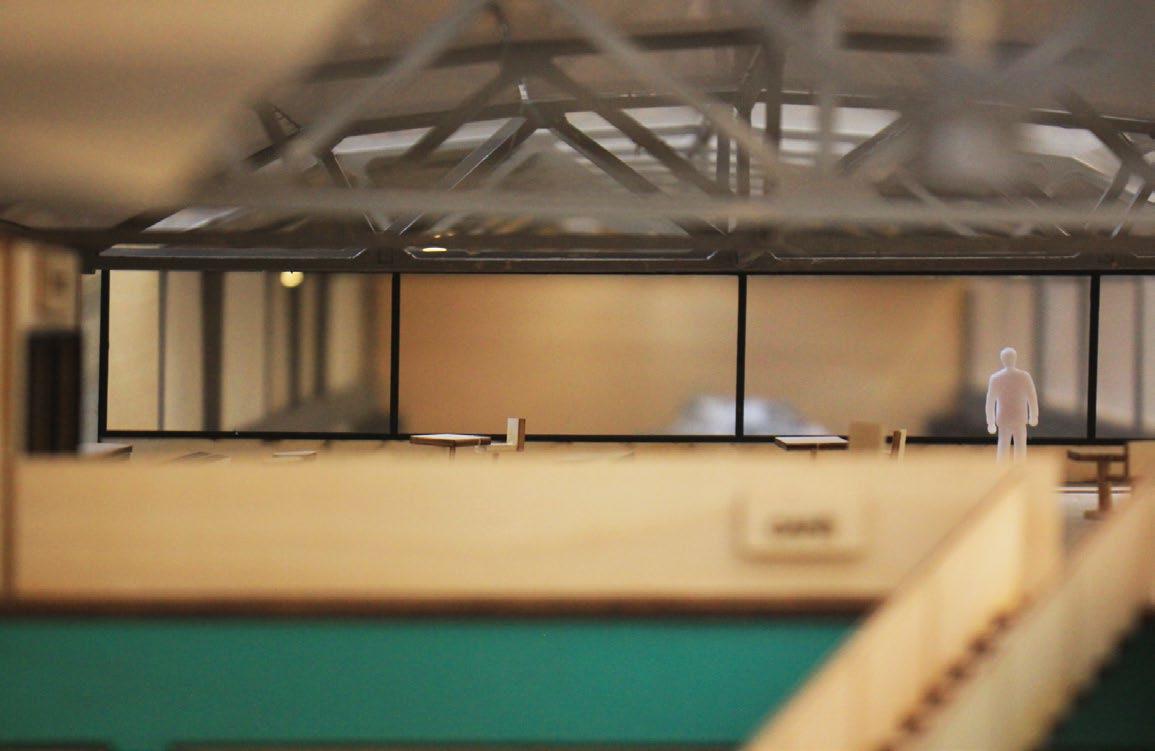

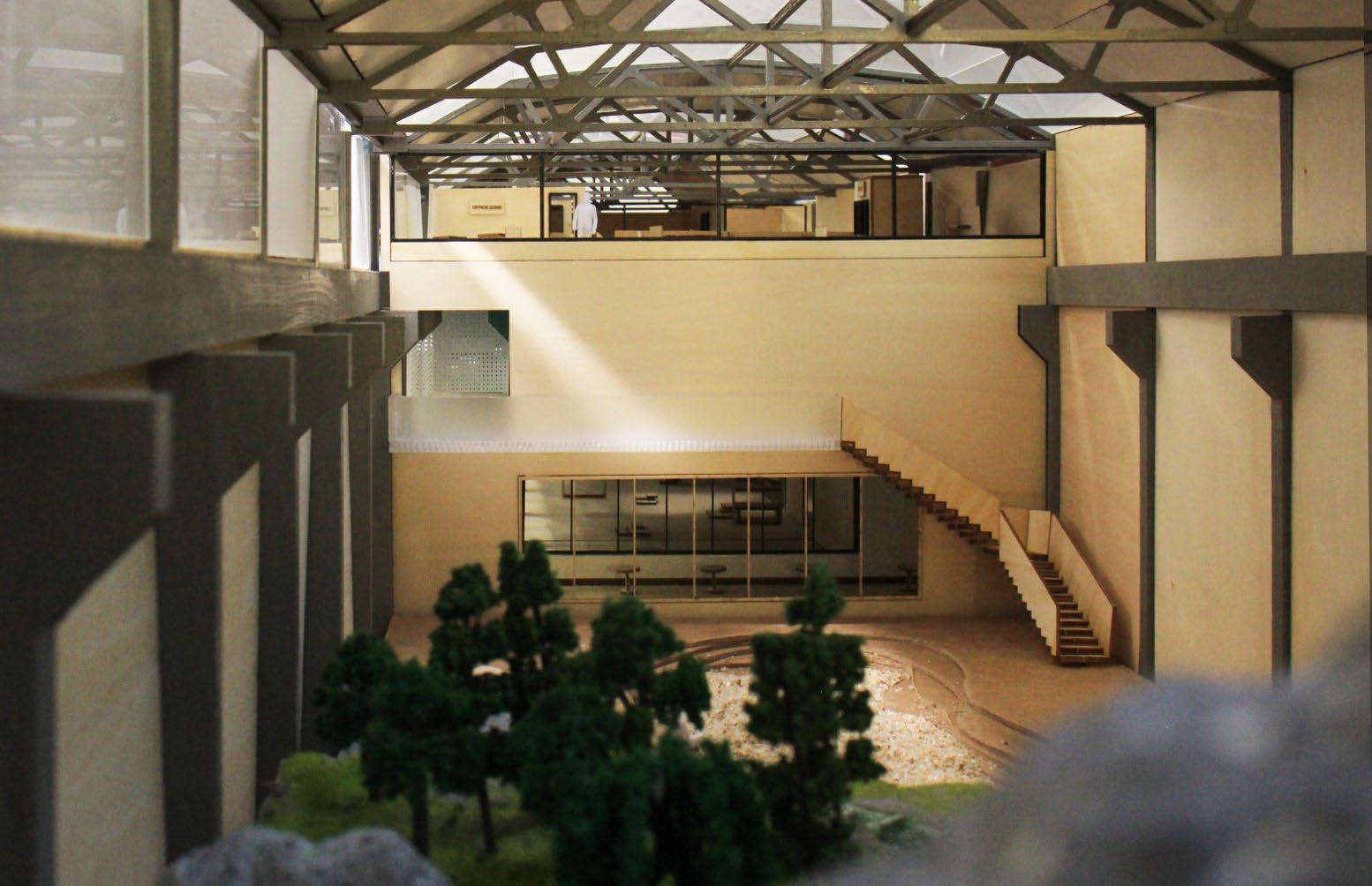

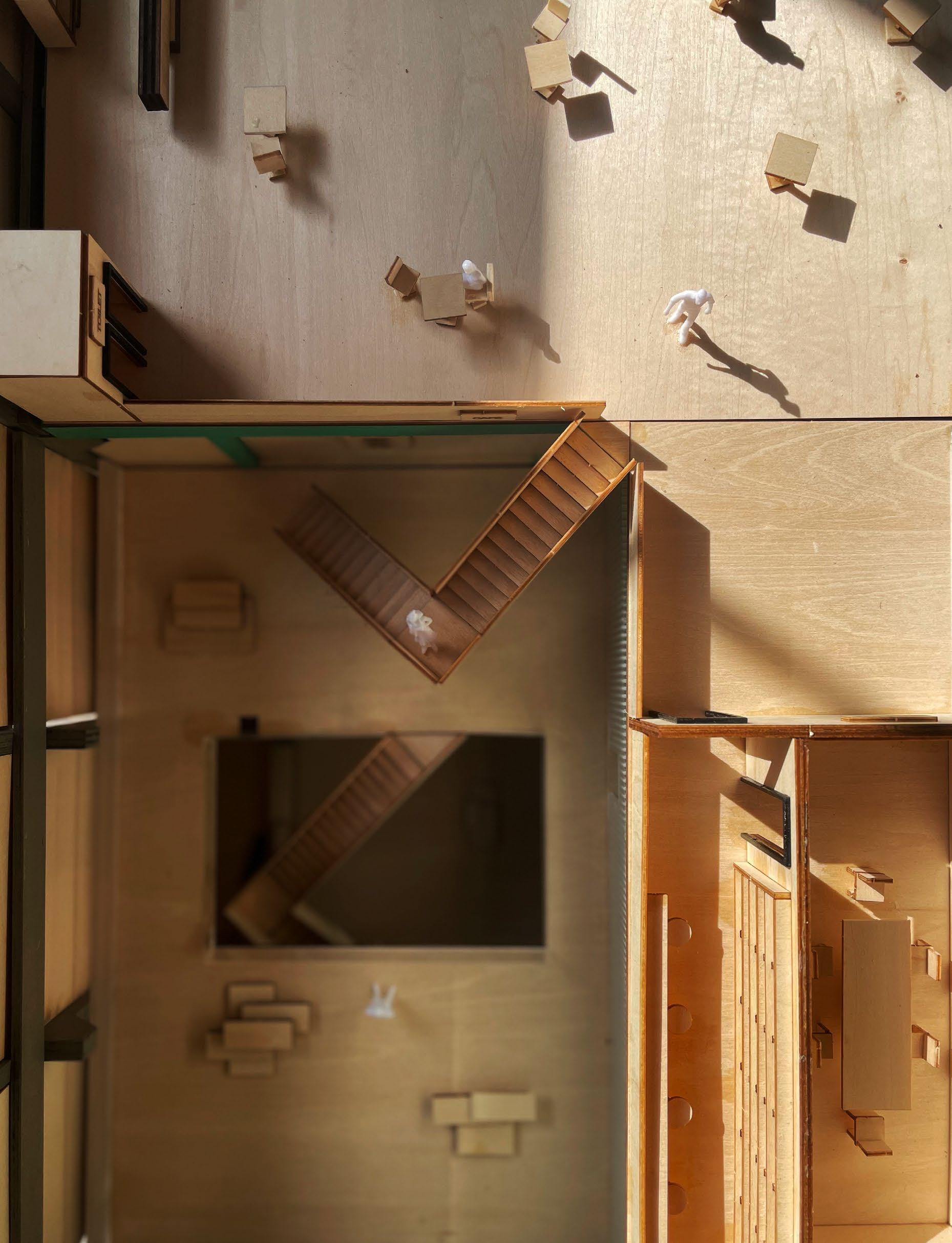

Concept Model Photographs 1:200

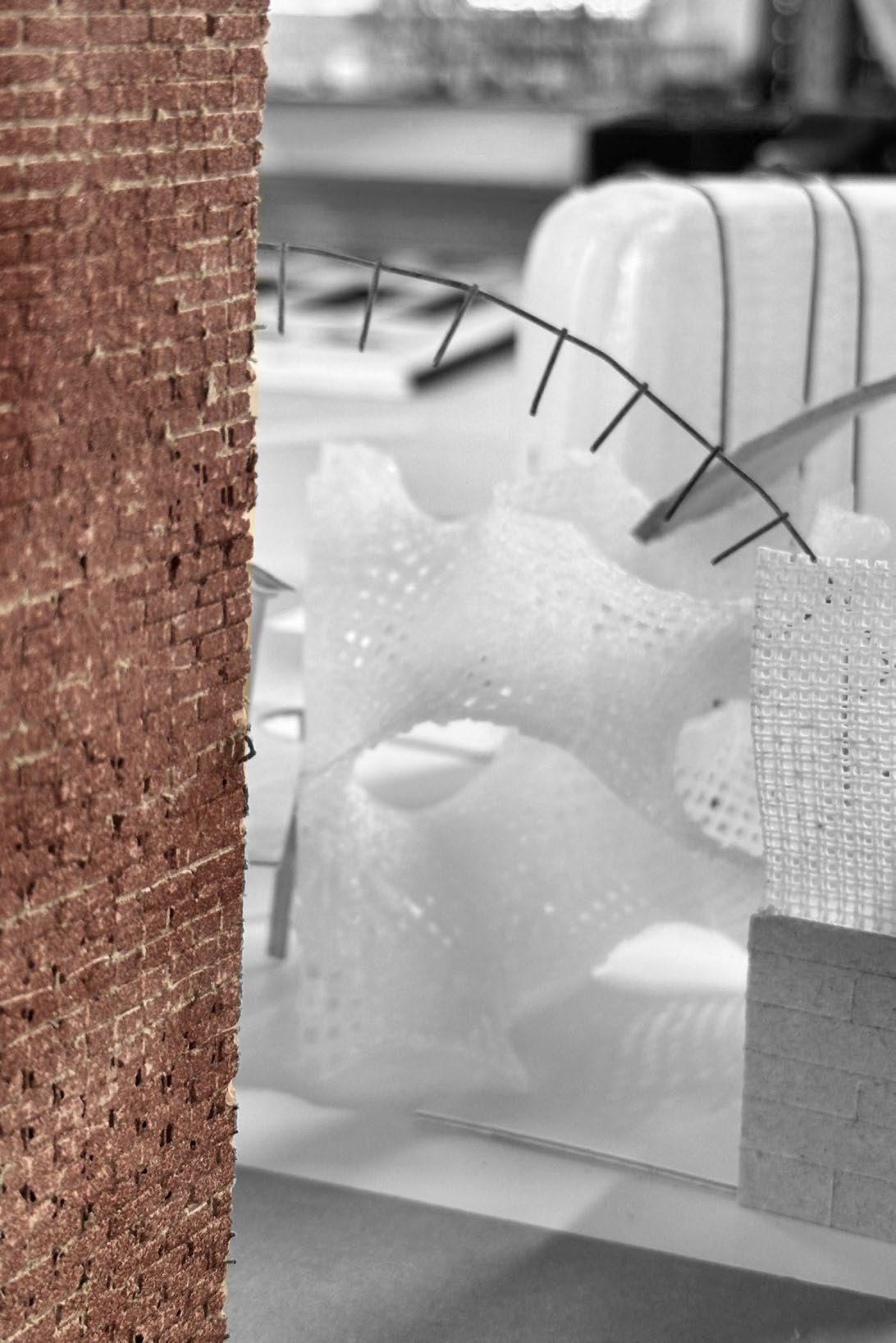

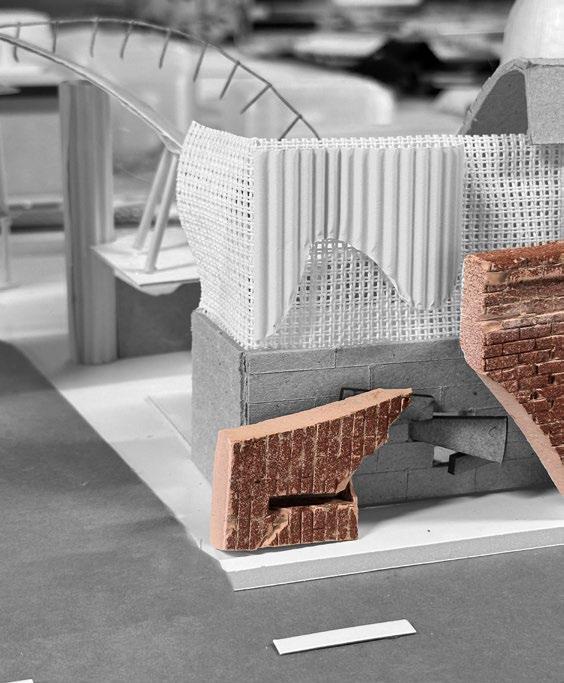

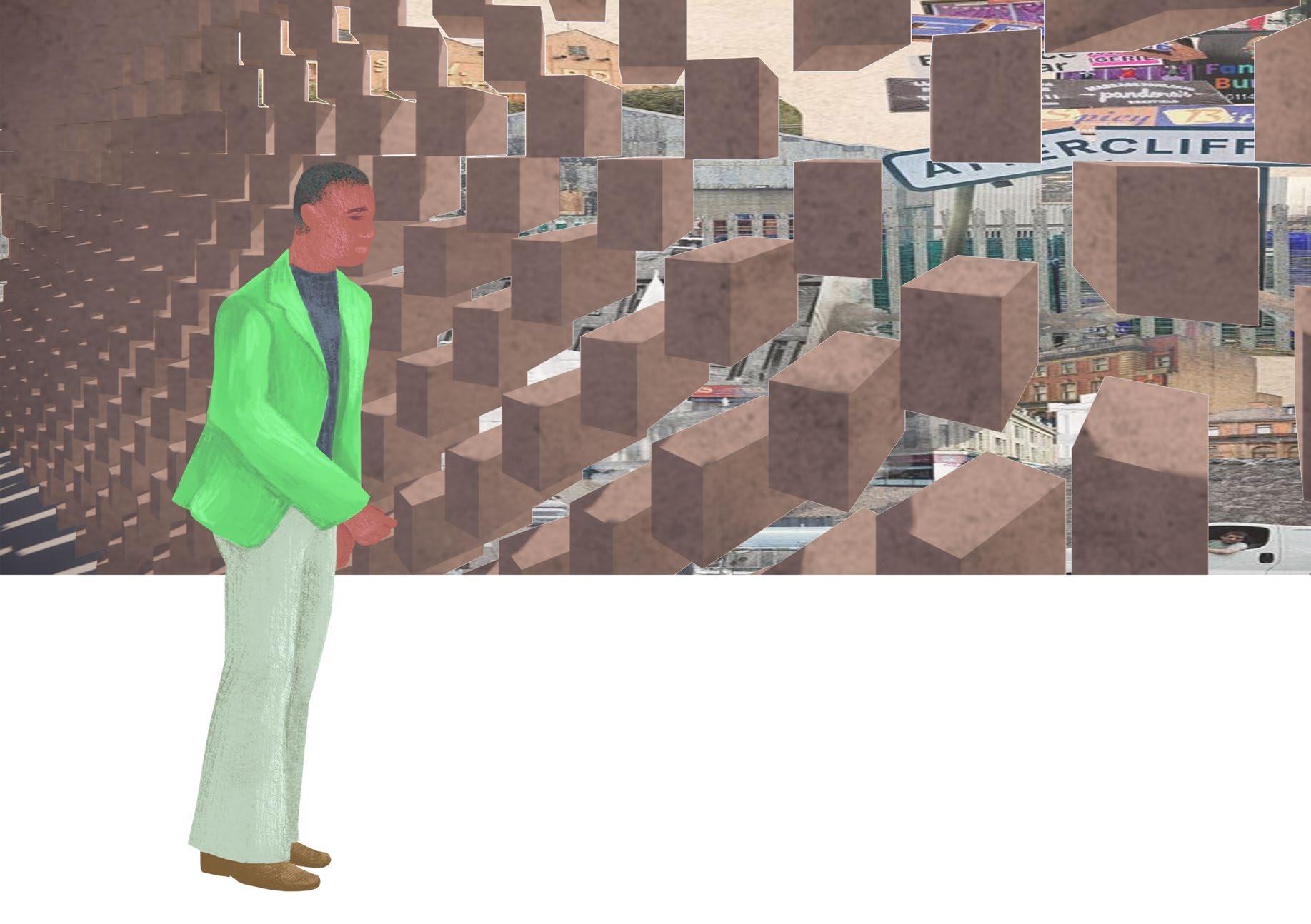

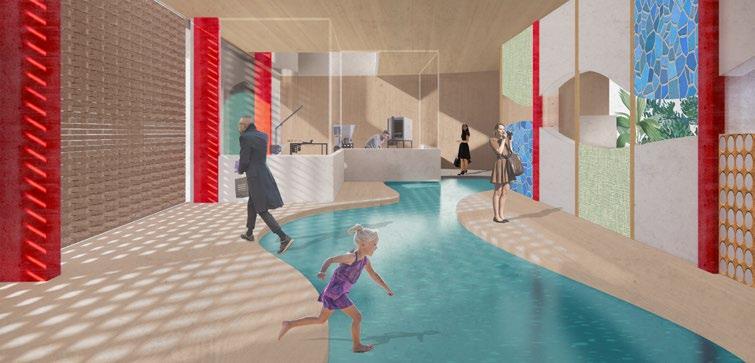

The dismantled brick block has been reused in my project as the facade of the building. Though the edges of the dismantled brick block are uneven, the roughness and curved edges give a sense of natural aesthetics and create a unique appearance. Ideas further develop through the model buildup process by testing the aesthetic and use of existing materials like bricks. The model materials, such as the clay brick wall, are dismantled from other modeling works, making this a process of reclaiming and reusing materials.

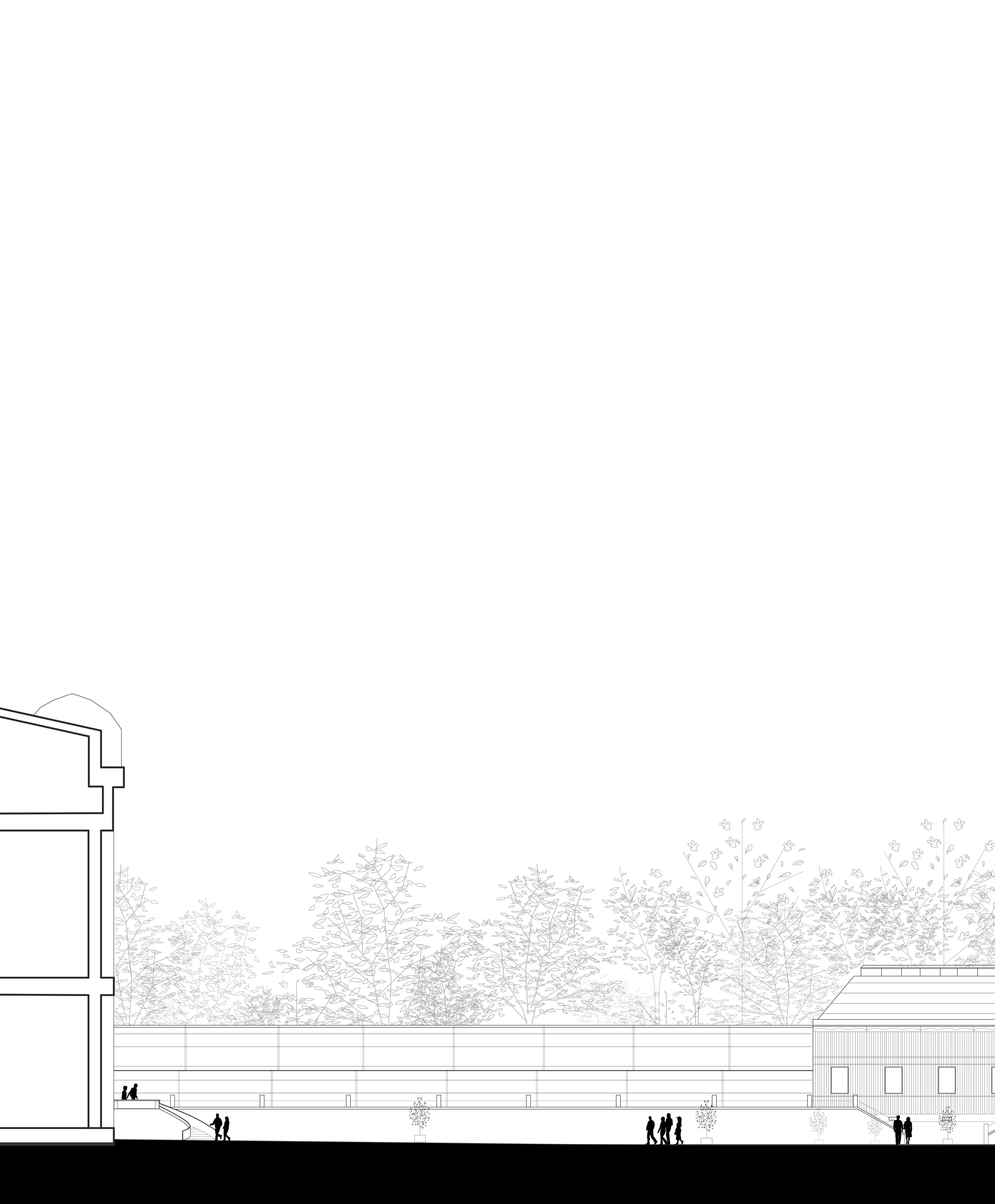

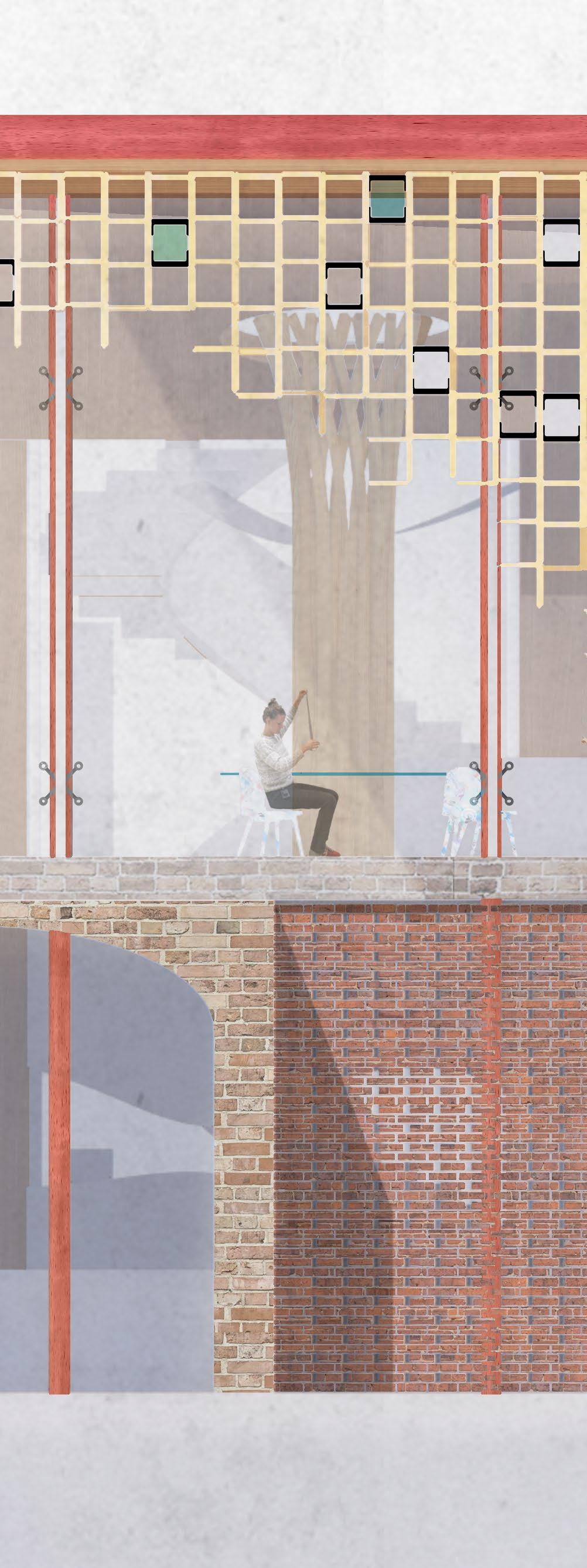

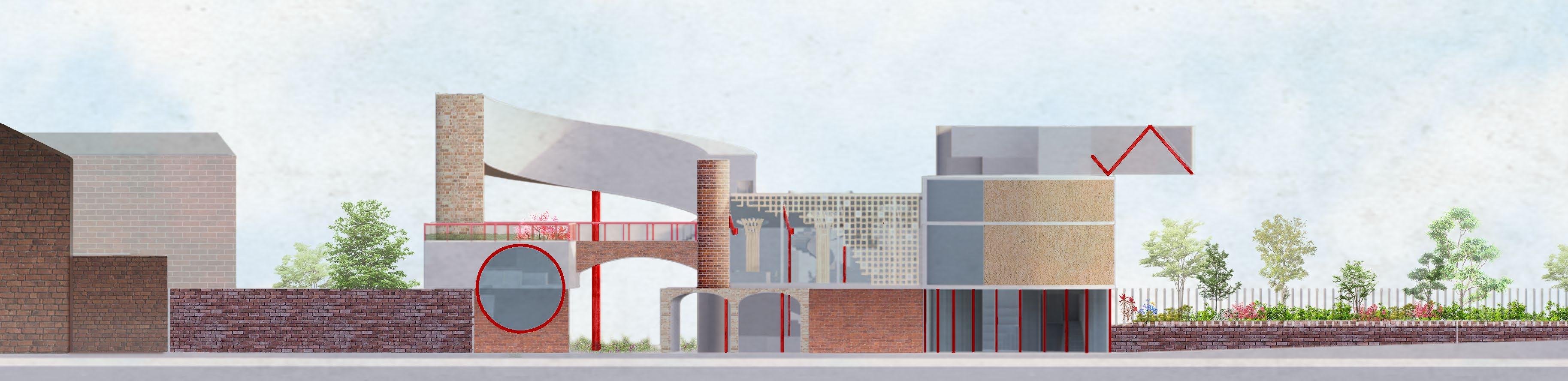

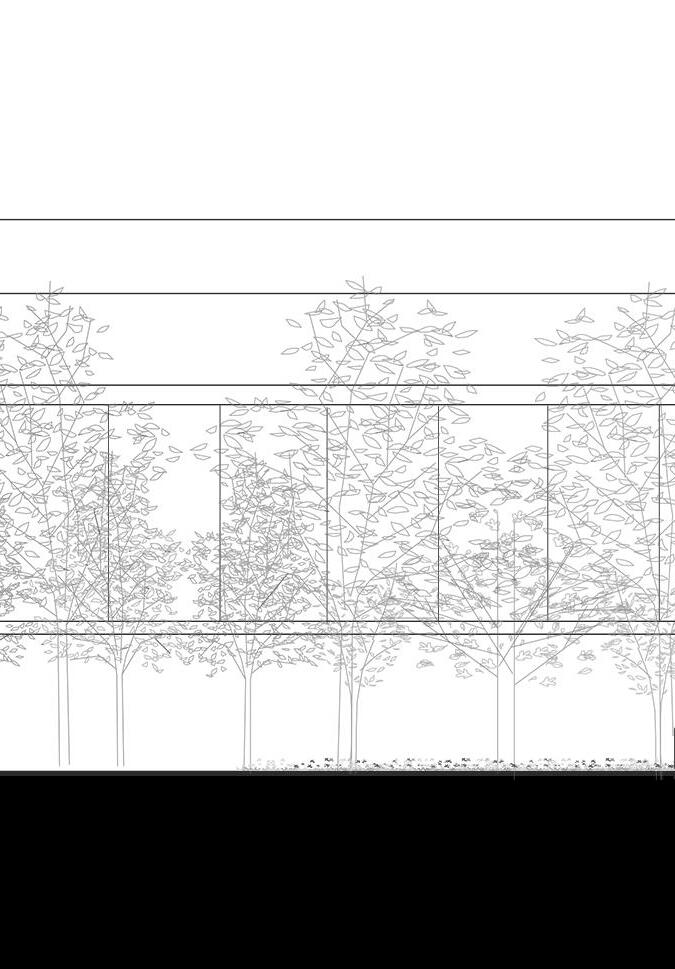

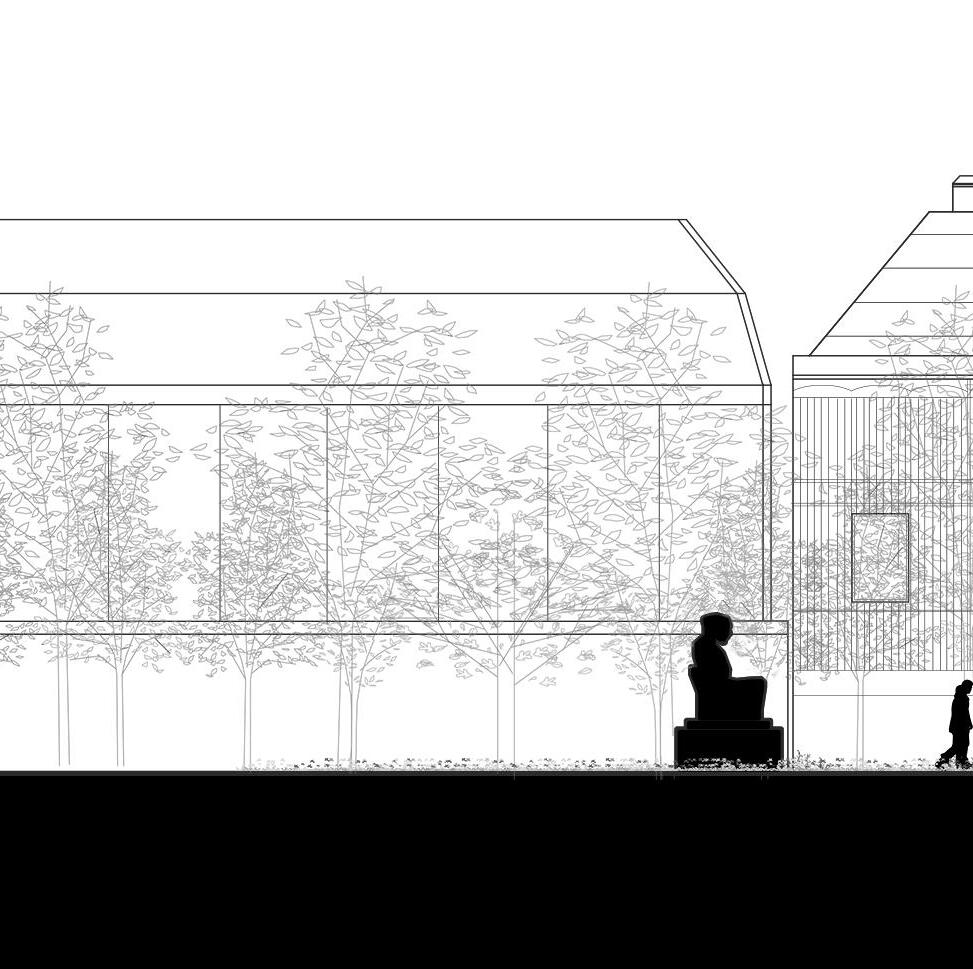

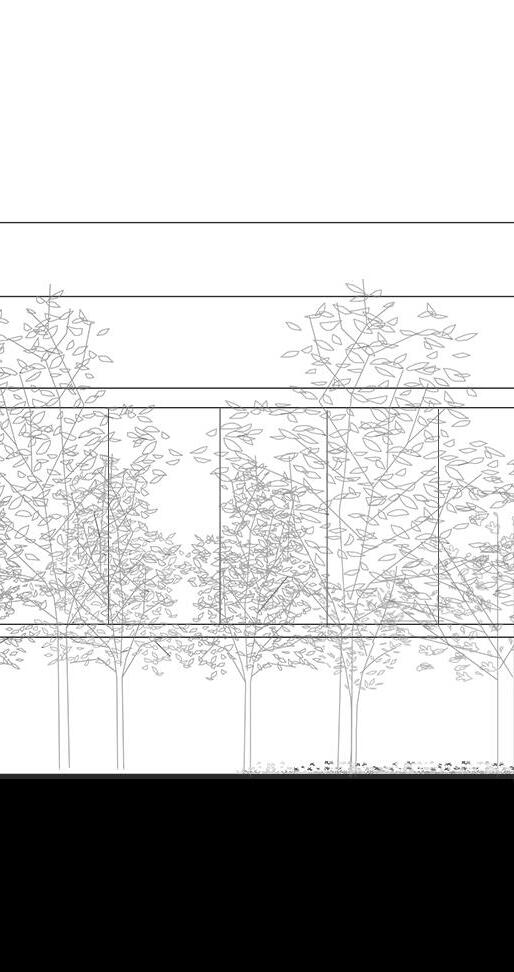

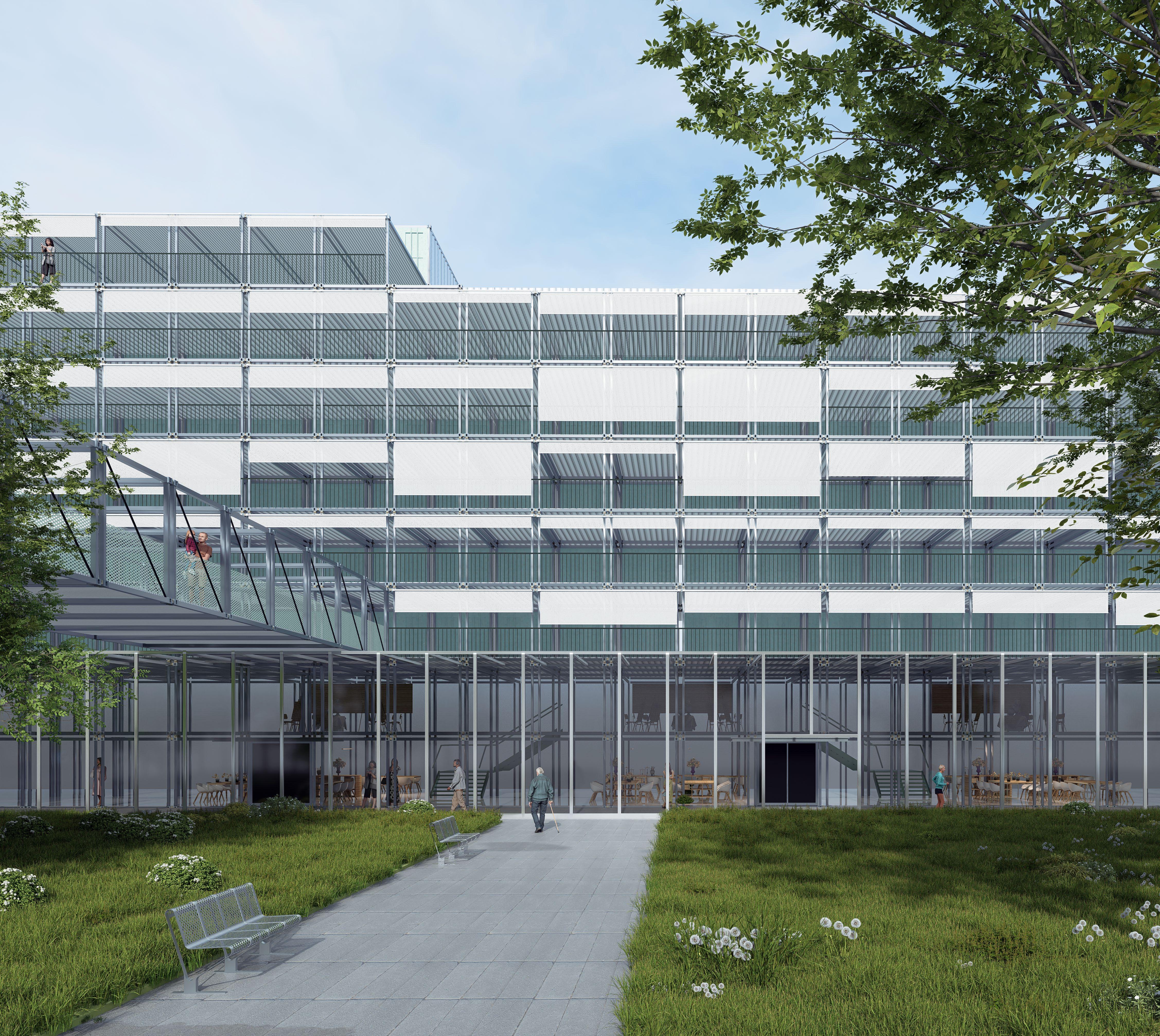

North-West Elevation
view from Attercliffe Road

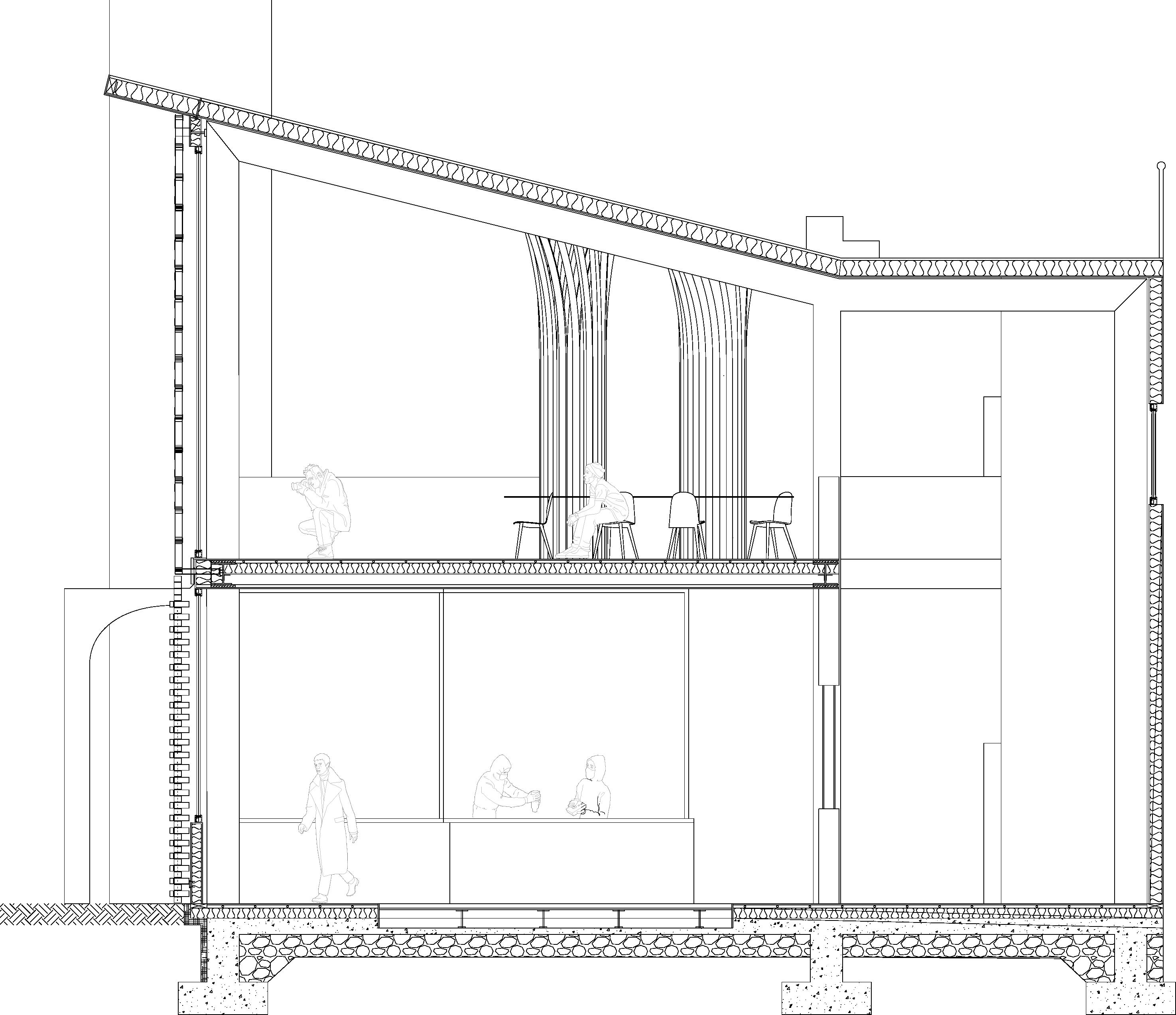

Section A-A’ 1:20
North-West Elevation
view from Attercliffe Road

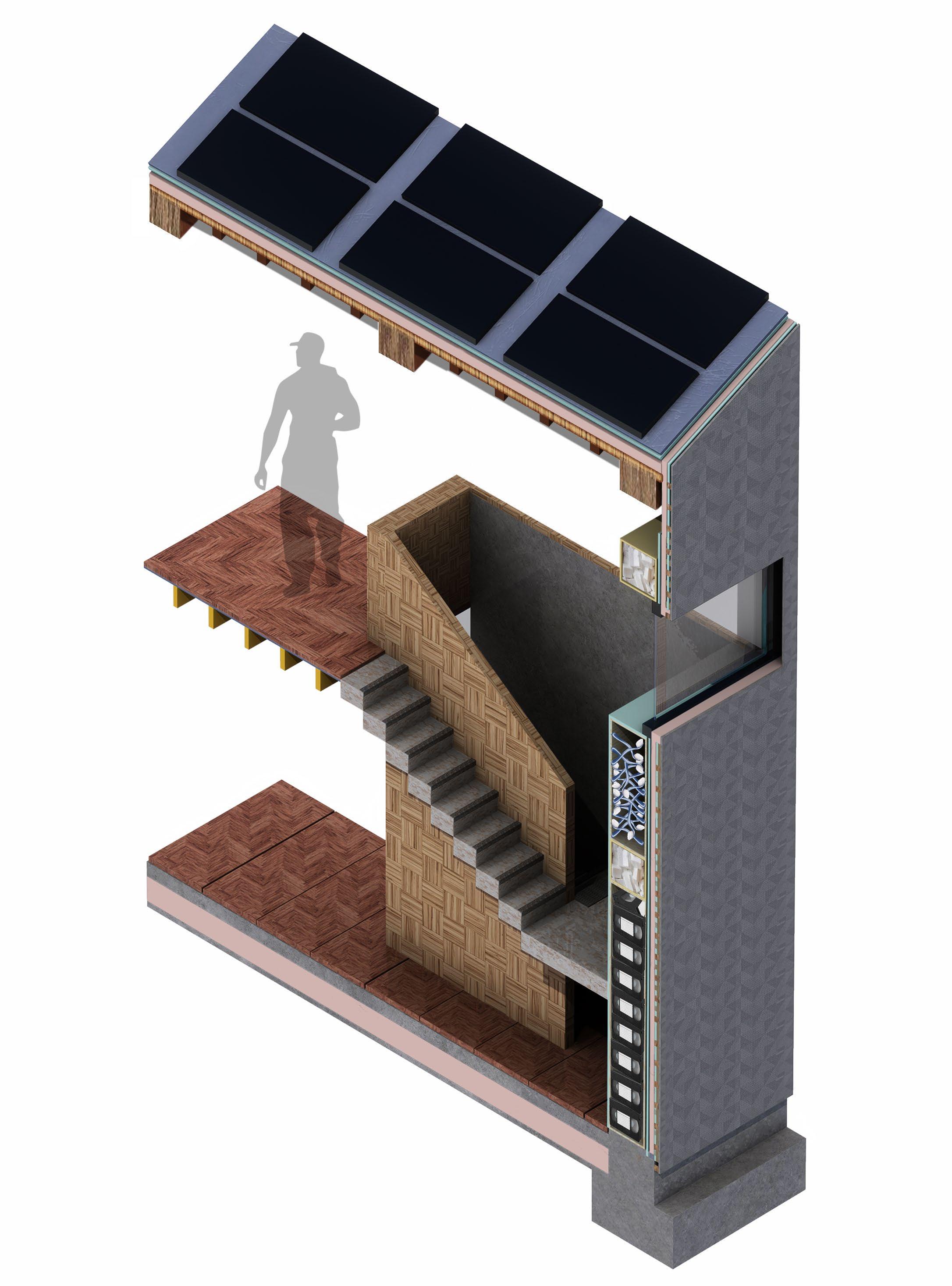

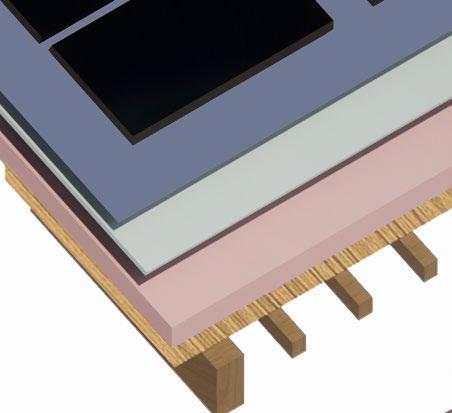

A. SIP Roof Panel
- standing seam metal roof with roofing paper
- SIPs with polyurethane core, 190mm thick
- SIP screws on to the continuous sealant recommended by manufacturer
- OSB roof sheating, 10mm
- waterproof barrier
- hardie trim boards used for all fascia and soffits
- drywall with wood finish

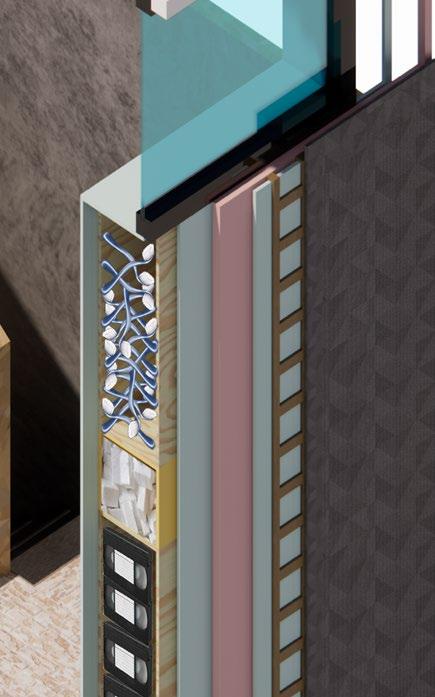

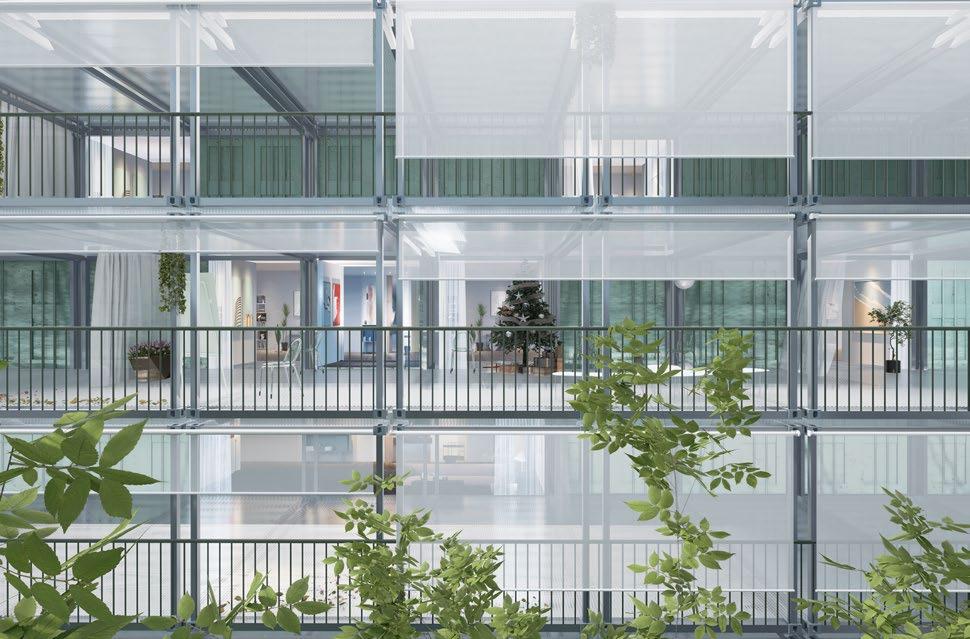

B. Shading Panel Frame Facade To Floor
1.
- waste materials shading panels use click-on folding lock bracket and fit onto the timber frame (waste shading panels: plastic and perforated metal plate) prefabricated timber shading frame with fire retardant resin and , 100mm thick
- metal support bracket with thermal break plate srewed on to the steel beam with bolt nail
- steel I-beam with aerogel insulation
2.
- low E triple glazed window with metal angle, 15mm cavity
- aluminium hollow window frame
- pine planks floor finish, 15mm
- acoustic break
- cement screed with underfloor heating pipes
- damp proof membrane
- steel beam,256mm*146mm with rockwool insulation
- serivice void
- OSB board, 20mm - pine plank ceiling finish, 10mm

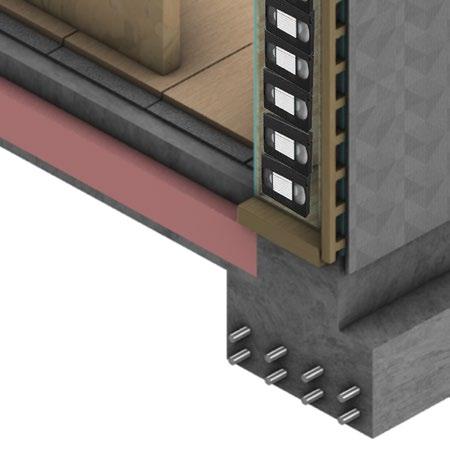

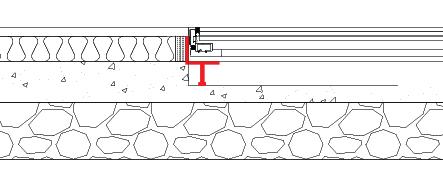

C. Strip Foundation
3.
- projecting brick wall panel with reinforcing vertical bar, 220*90*70mm
- metal anchor tied to the insualtion layer
- mineral wool with sheating board, 130mm
- gymsup board, 10mm
4.
- steel column, 400mm width
- pine plank floor finish, 12mm
- cement screed with underfloor heating pipes
- thermal break block
- mineral wool insulation board, 130mm
- damp proof membrane
- reinforced concrete ground bearing slab with strip foundation, 200mm
- well compacted hardcore fill
5.
- structural glass flooring/insulated
- adjustable cap
- rigid insulation block
- steel angle support
- cavity filled with waste materials
- concrete ground slab
Maritime Horizon
Location: Southampton, UK
Time: Apr. 2023
Category: Academic Individual Project

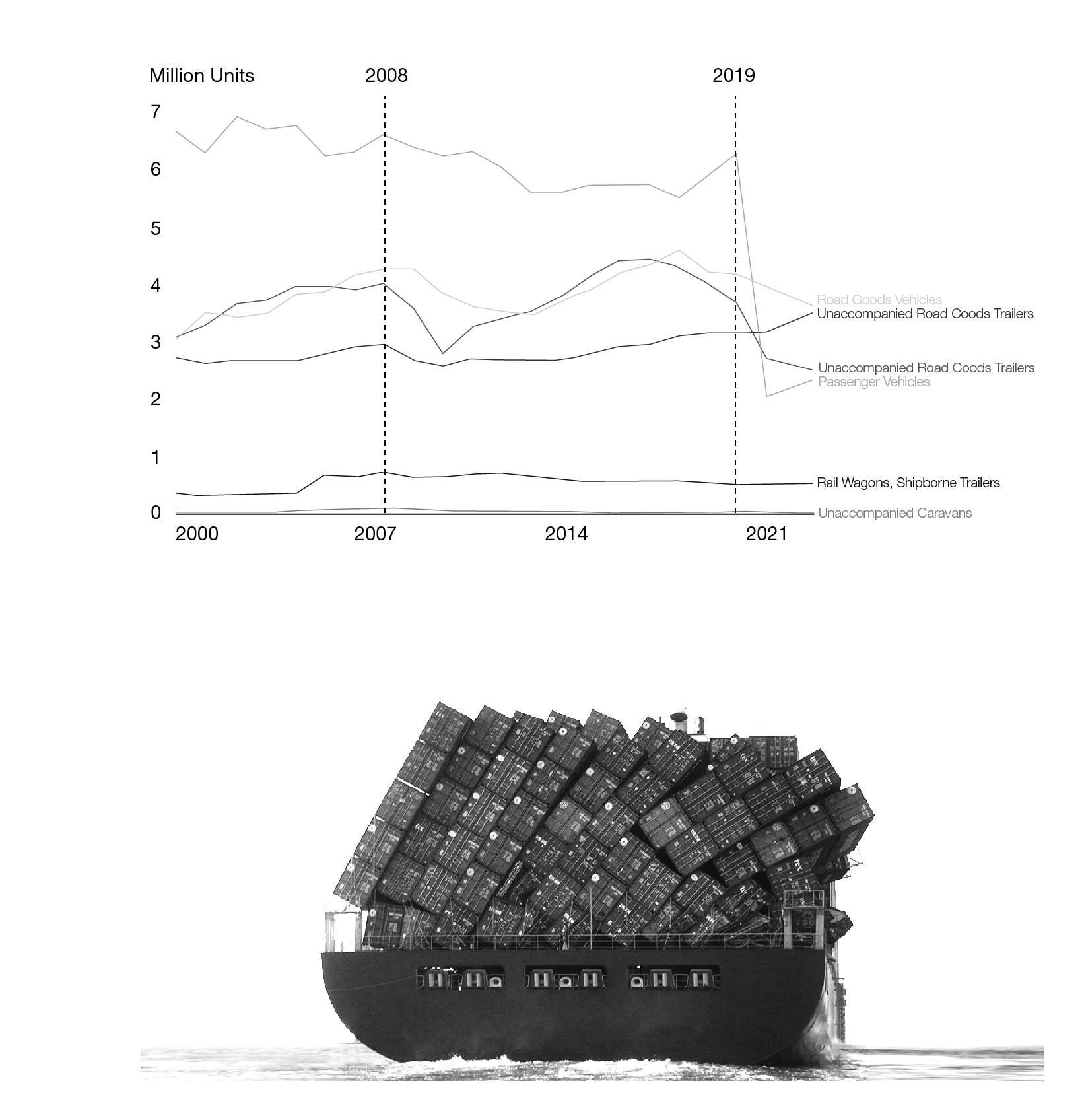

In the pursuit of sustainable urban innovation, this project is rooted in the belief that empty shipping containers, once vessels of global trade, can be repurposed into vibrant living spaces, thus extending their lifespan and addressing the stagnation at ports. By creating a community for port workers, forge a symbiotic relationship between industry and residence. “Maritime Horizon” envisions a future where unused containers become the building blocks of a dynamic, eco-conscious neighborhood.
Site & Concept

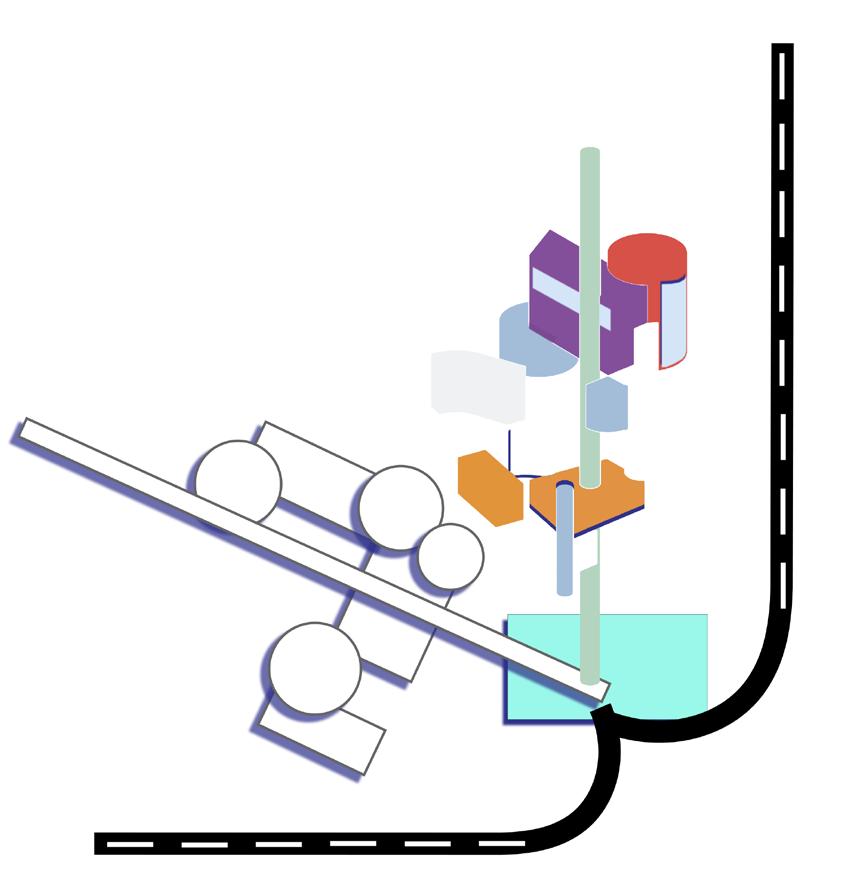

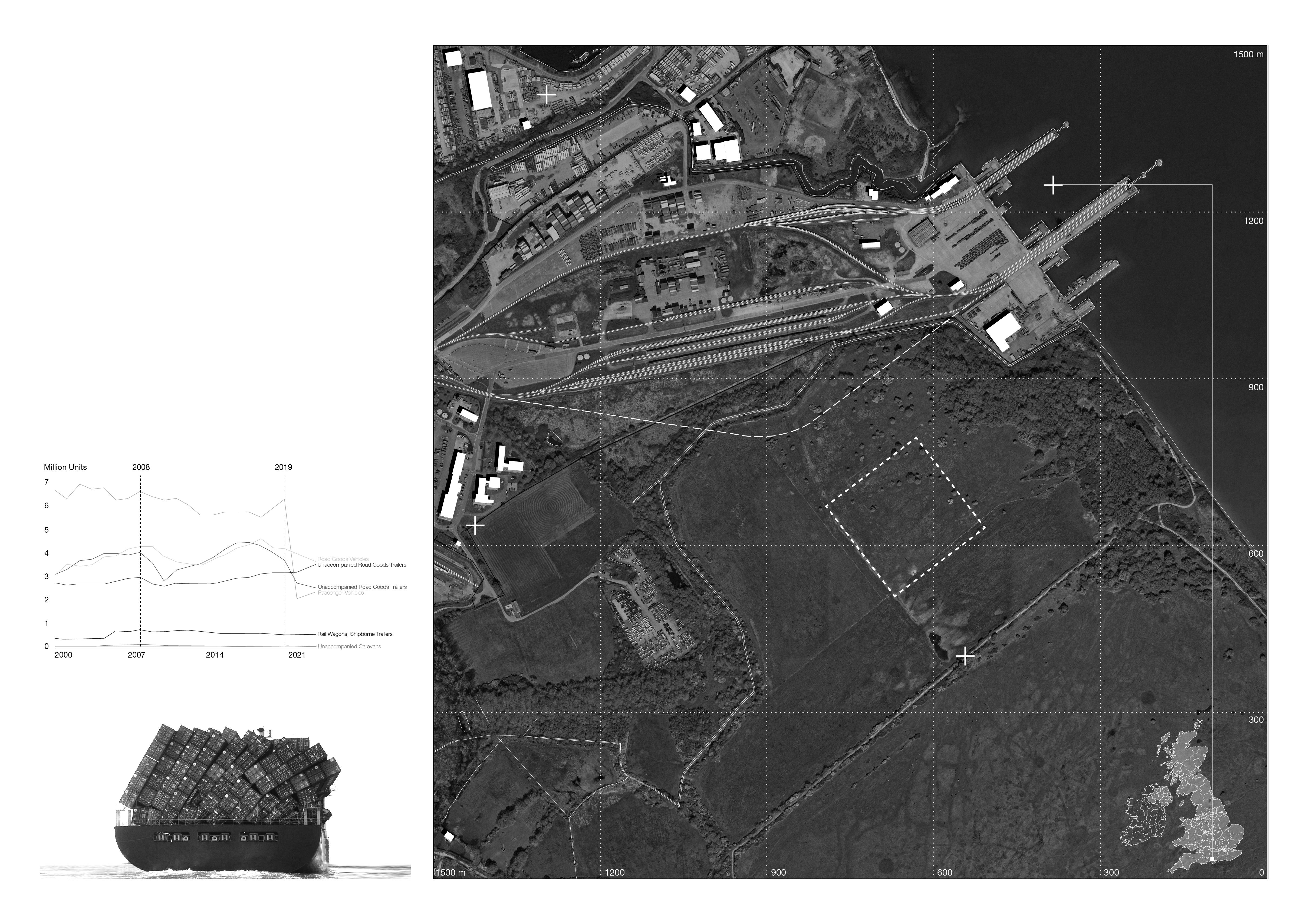

”Maritime Horizon” transforms Marchwood Military Port into a vibrant container-based community. Partnering with ABP and SGL, it repurposes shipping containers into living and communal spaces, integrating logistics with residential and recreational areas. This sustainable project drives economic growth, creates jobs, and revitalizes the waterfront, fostering cultural, social, and environmental prosperity.
Veal’s Ln
Marchwood Military Port
Solent Gateway
Marchwood Industrial Park

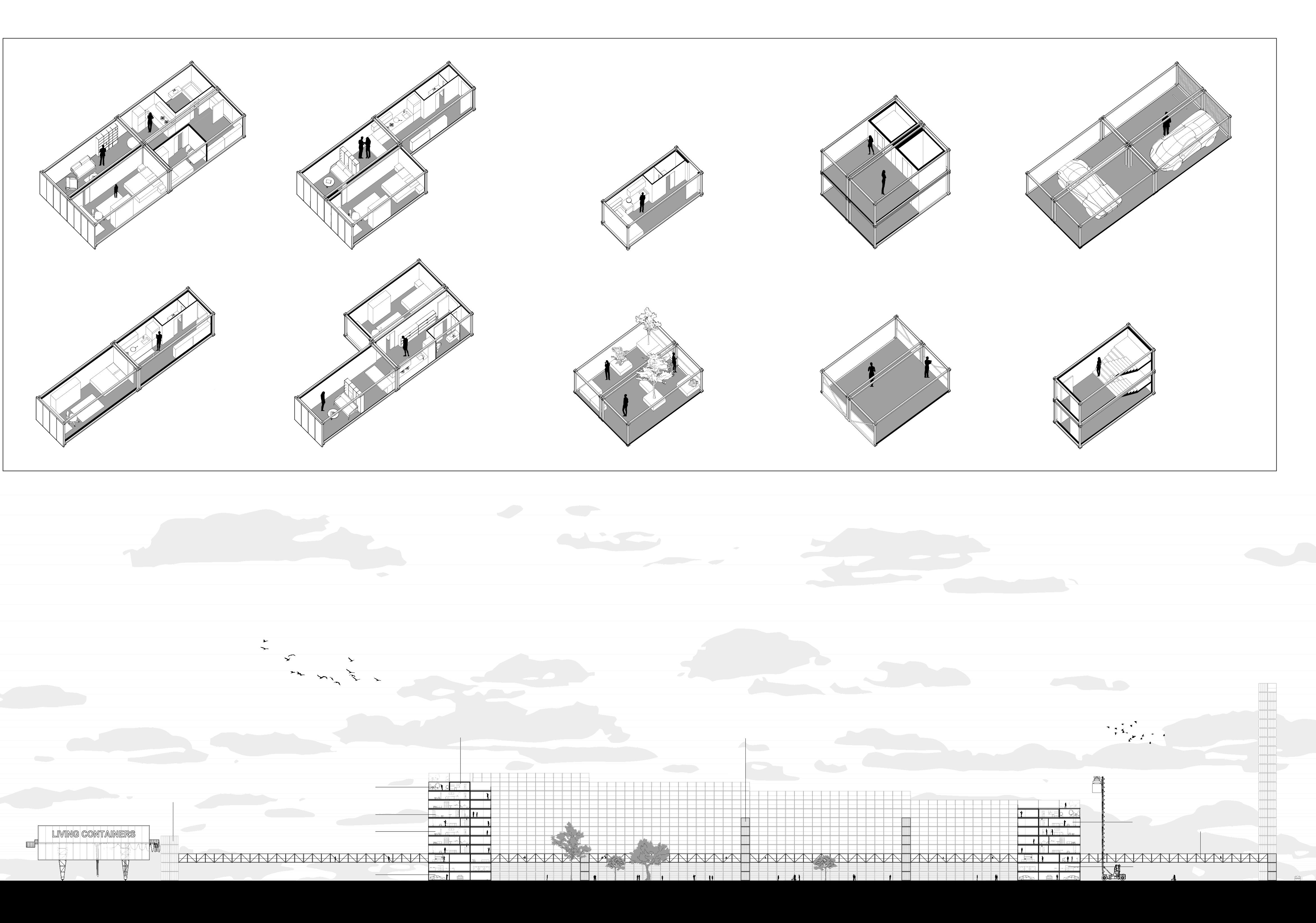

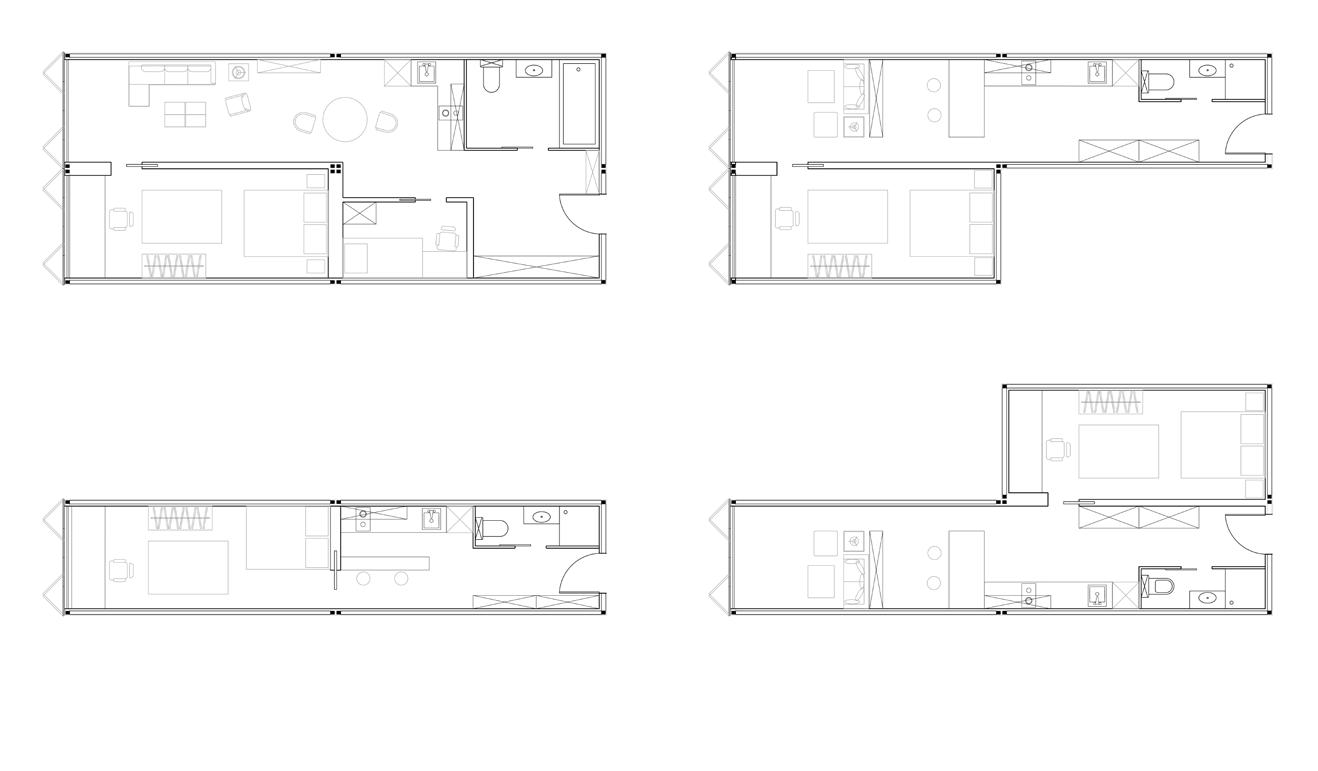

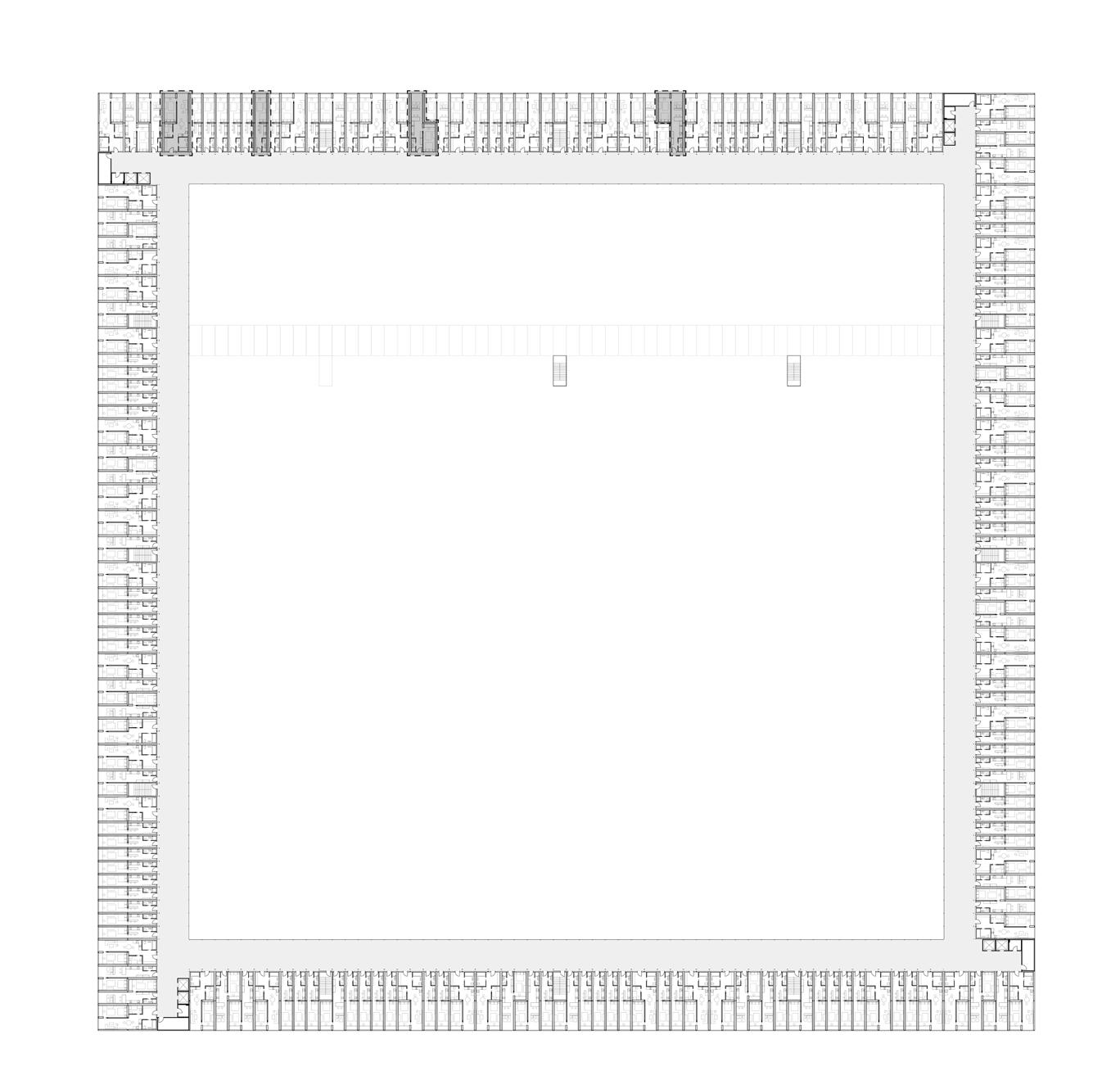

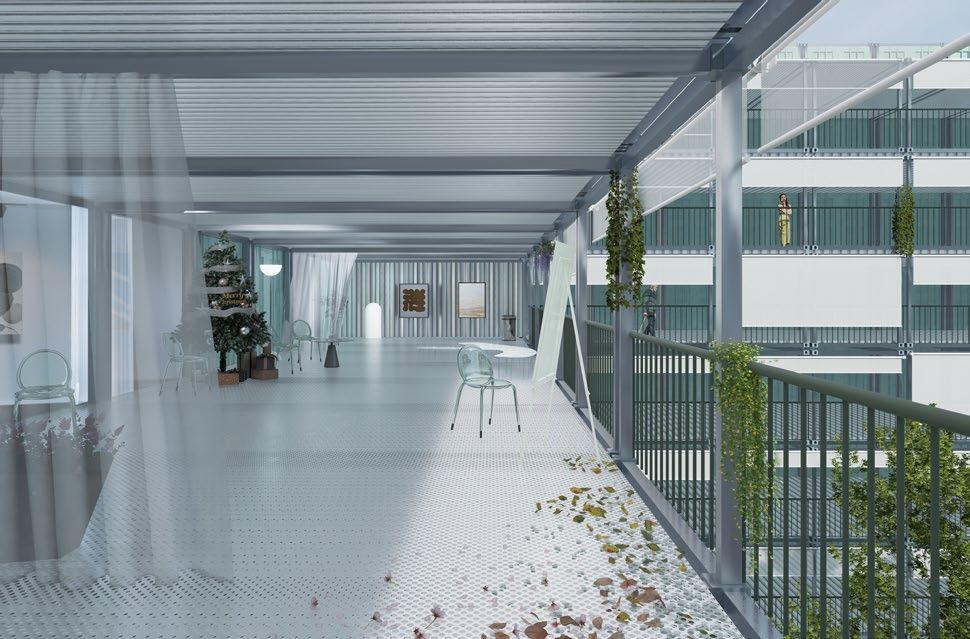

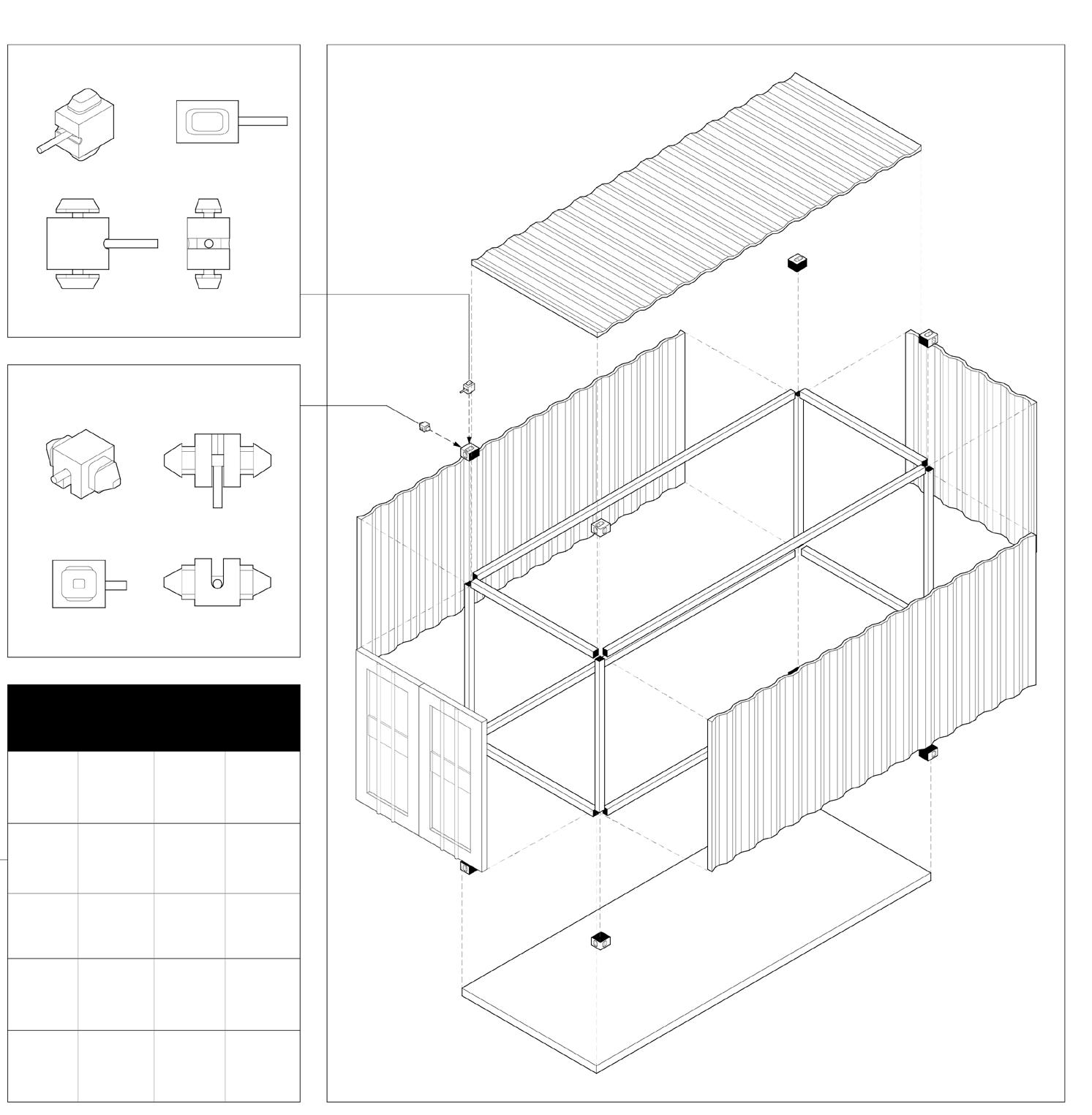

The activity zone is situated on the third floor, offering an extensive array of communal and social services. This floor encompasses essential facilities crucial for a thriving community. The general floor plan is positioned on the fourth floor and above, characterized by highly flexible building blocks. These blocks can be easily assembled and reassembled based on the available number of empty containers and the specific requirements for residential purposes.
Black Axis
Location: Paris, France
Time: Oct. 2023
Category: Competition Project
Collaboration with Chuanqi Liu and Muyun Xiao
Muséum national d’histoire naturelle

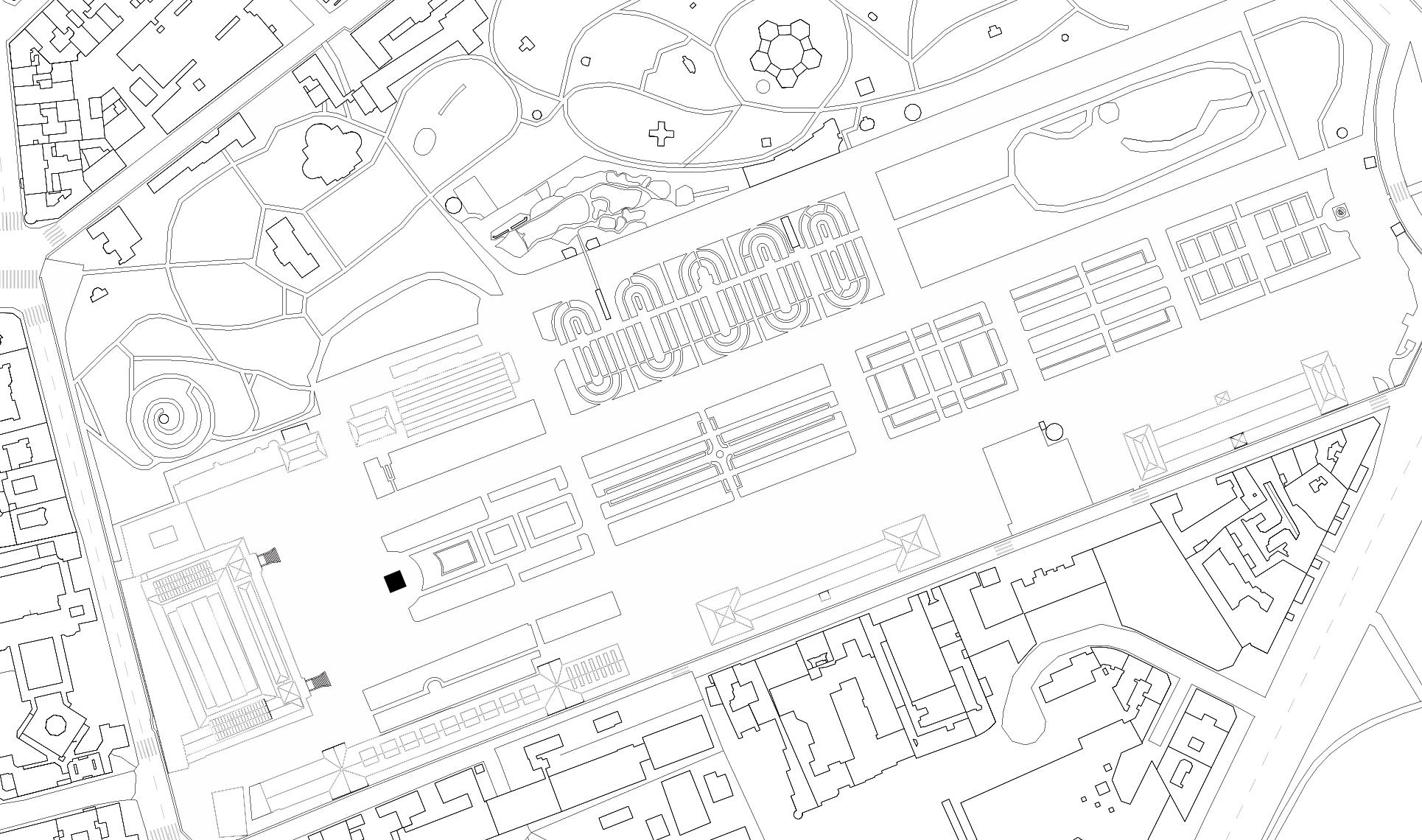

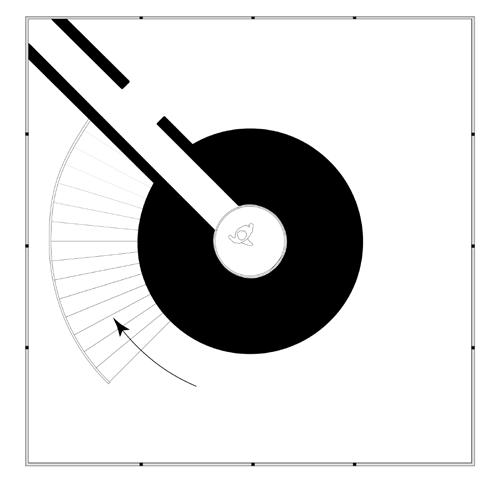

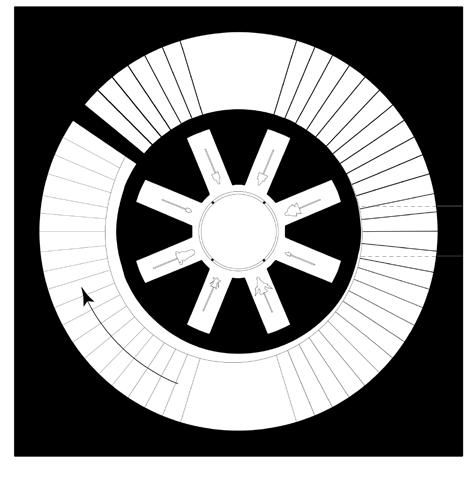

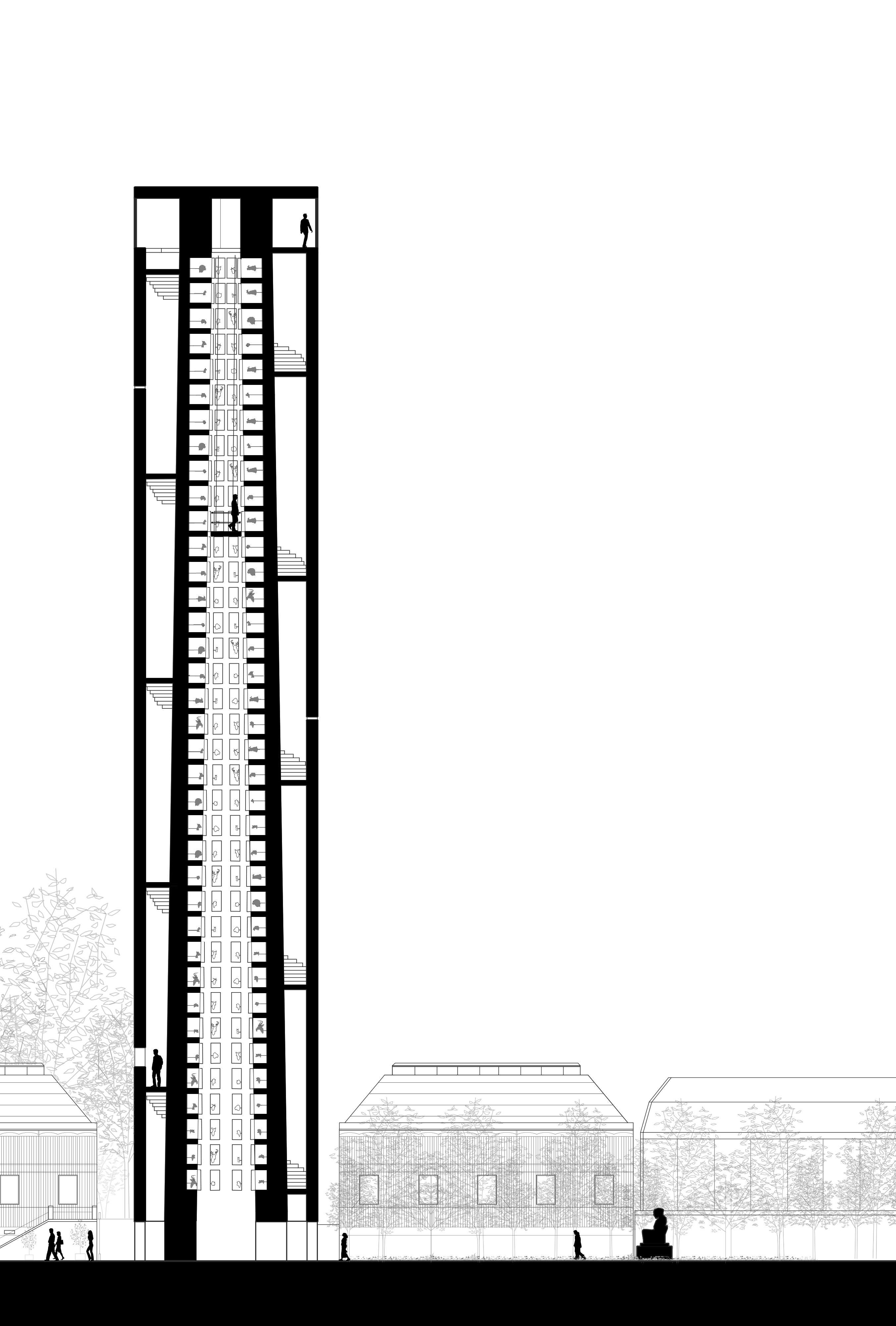

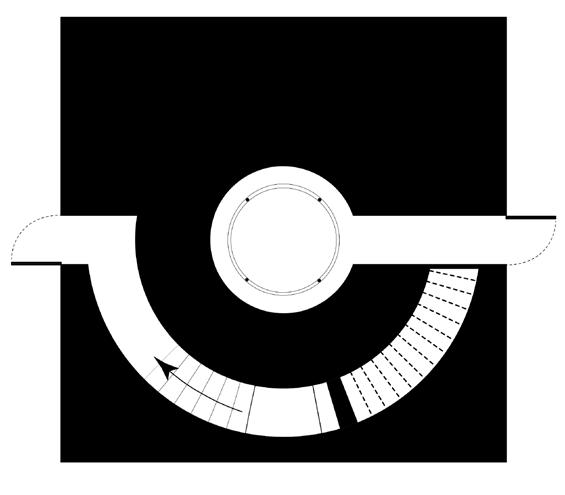

Envisioning a powerful response to this complex tapestry, our proposal introduces the “Black Axis,” a monumental structure standing fifty meters tall—an architectural ode commemorating the extinct species of the Anthropocene. Nestled on the museum’s forecourt, this exotic monument beckons contemplation on the intricate dance between humans and the non-human realm. As you ascend the axis, adorned with the heads of the extinct, you engage in a mental reversal—a recalibration of the traditional human-centric gaze. At its zenith, Paris and the iconic Eiffel Tower come into view, symbolic of the Anthropocene’s inception. Welcome to the Anthropic Epoch Remembrance—a manifesto manifested in structure, beckoning reflection and metamorphosis.

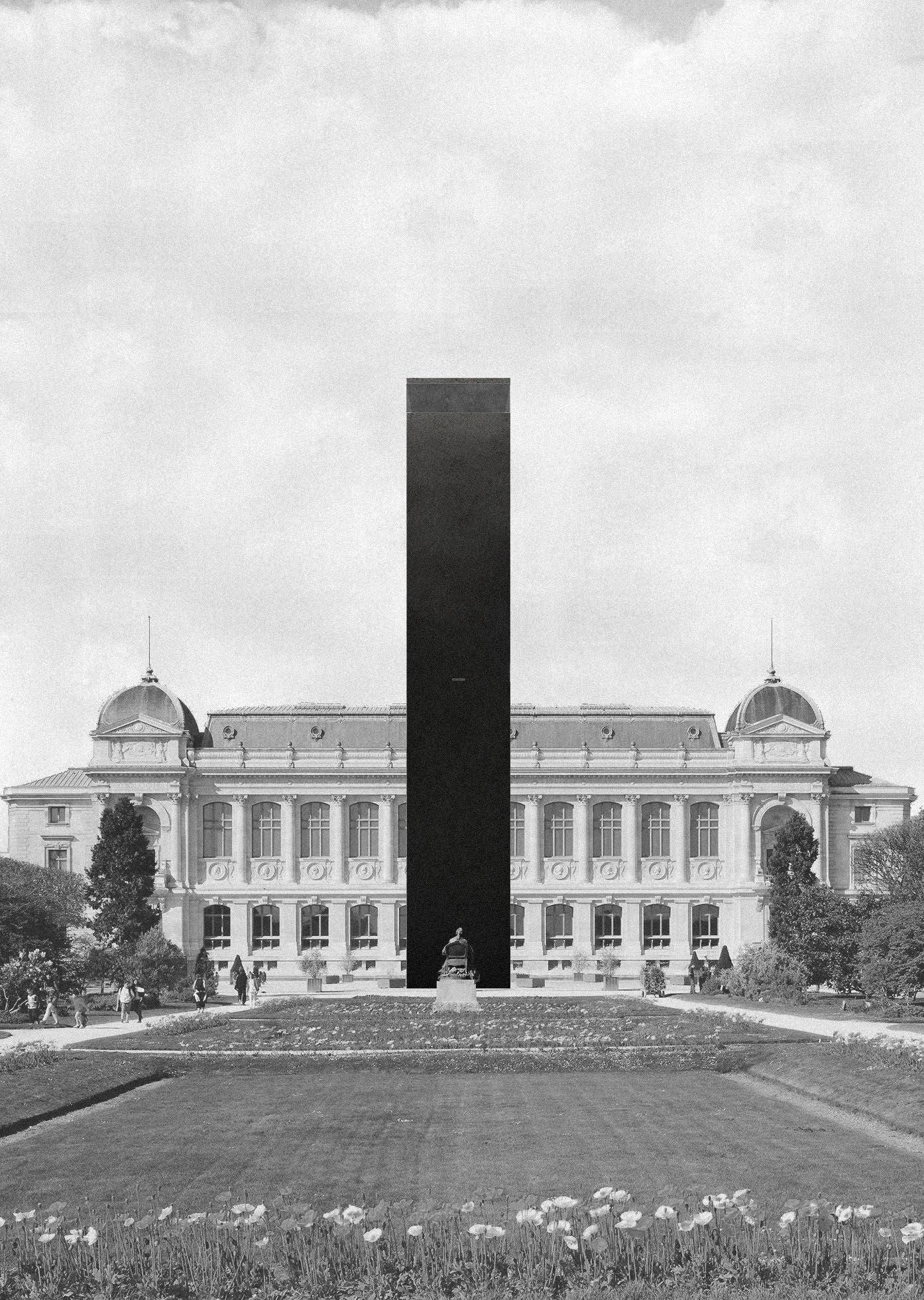

Black Axis

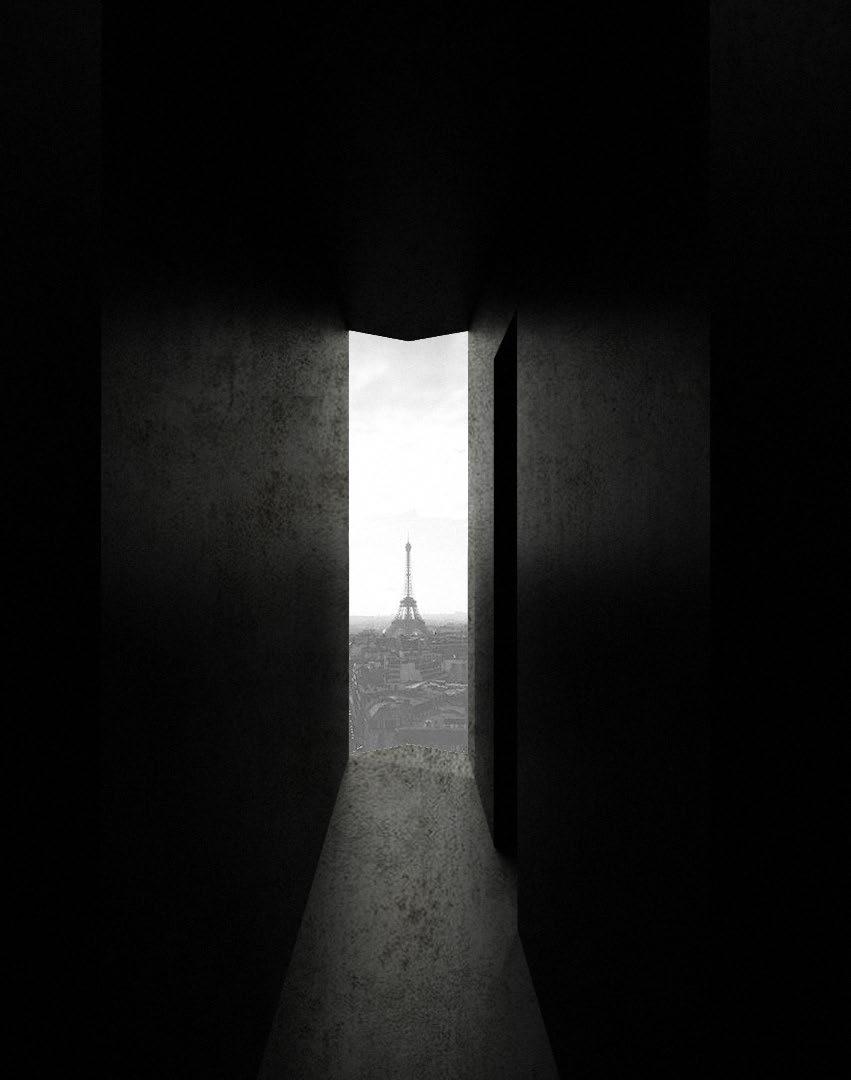

1.view of effiel tower from lift exit on
3. view of the back of Niche

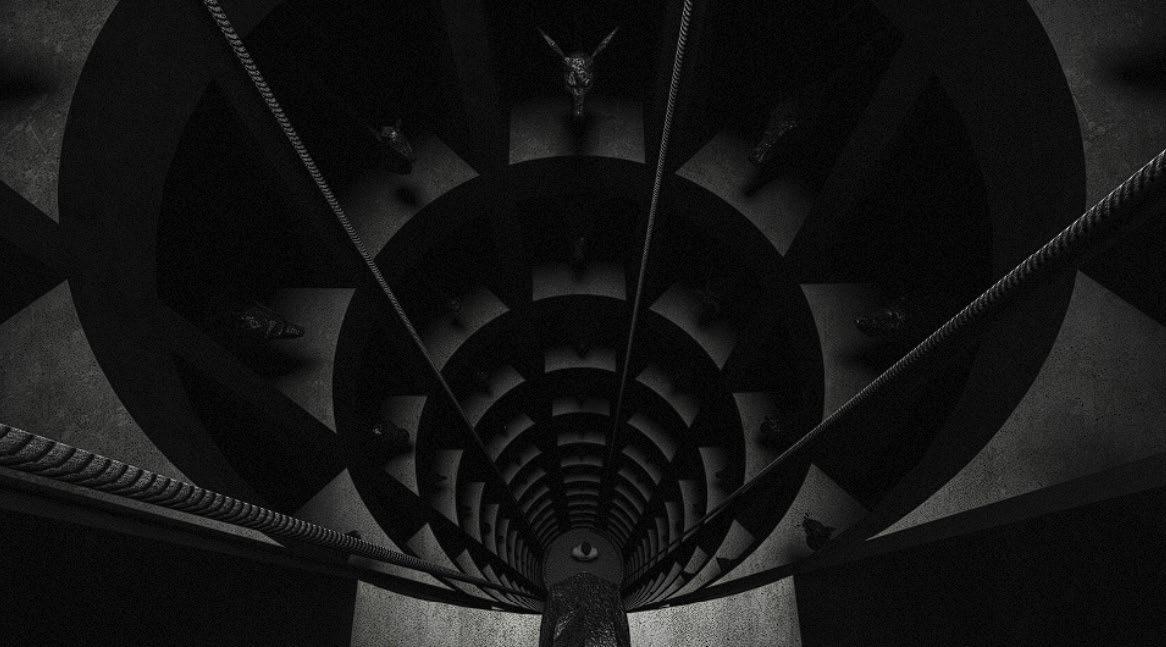

2. view through Niches & species statues

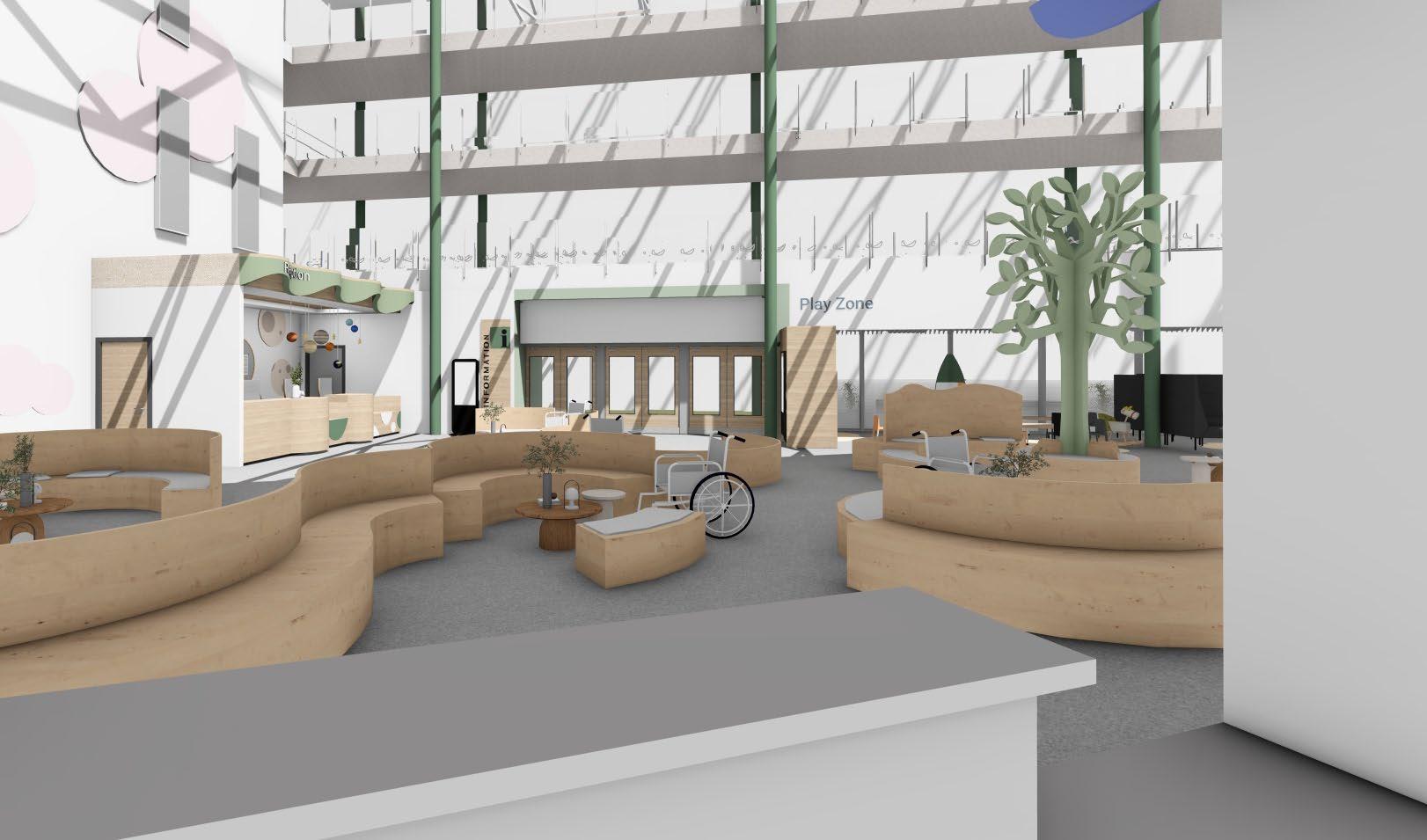

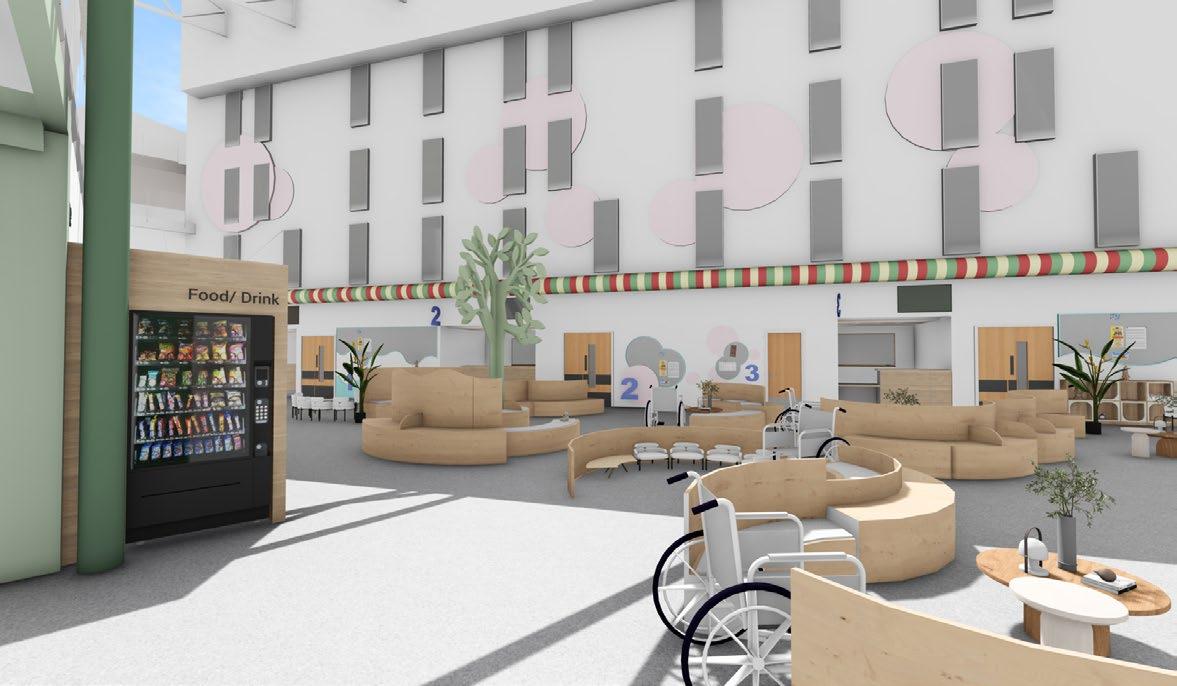

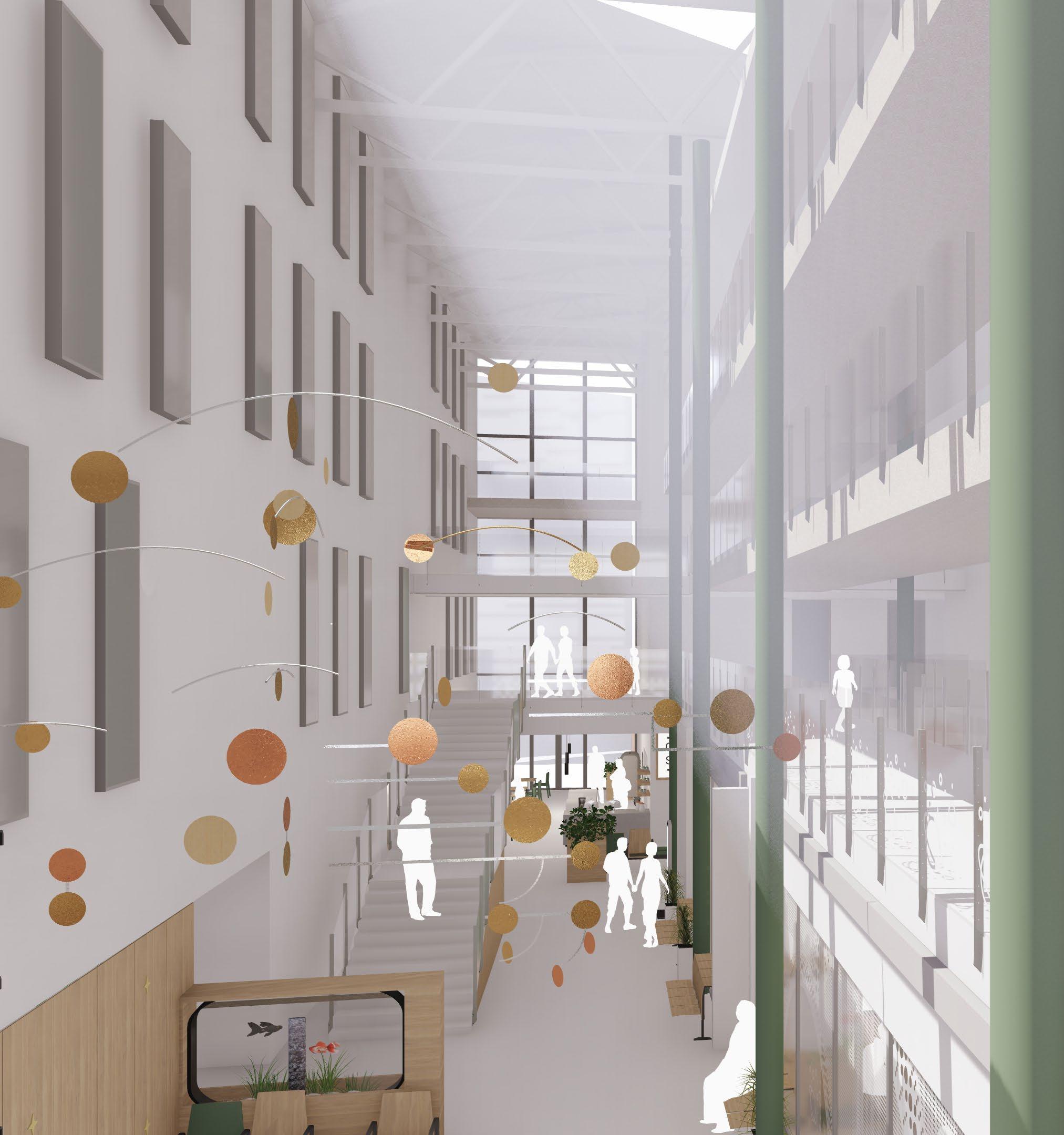

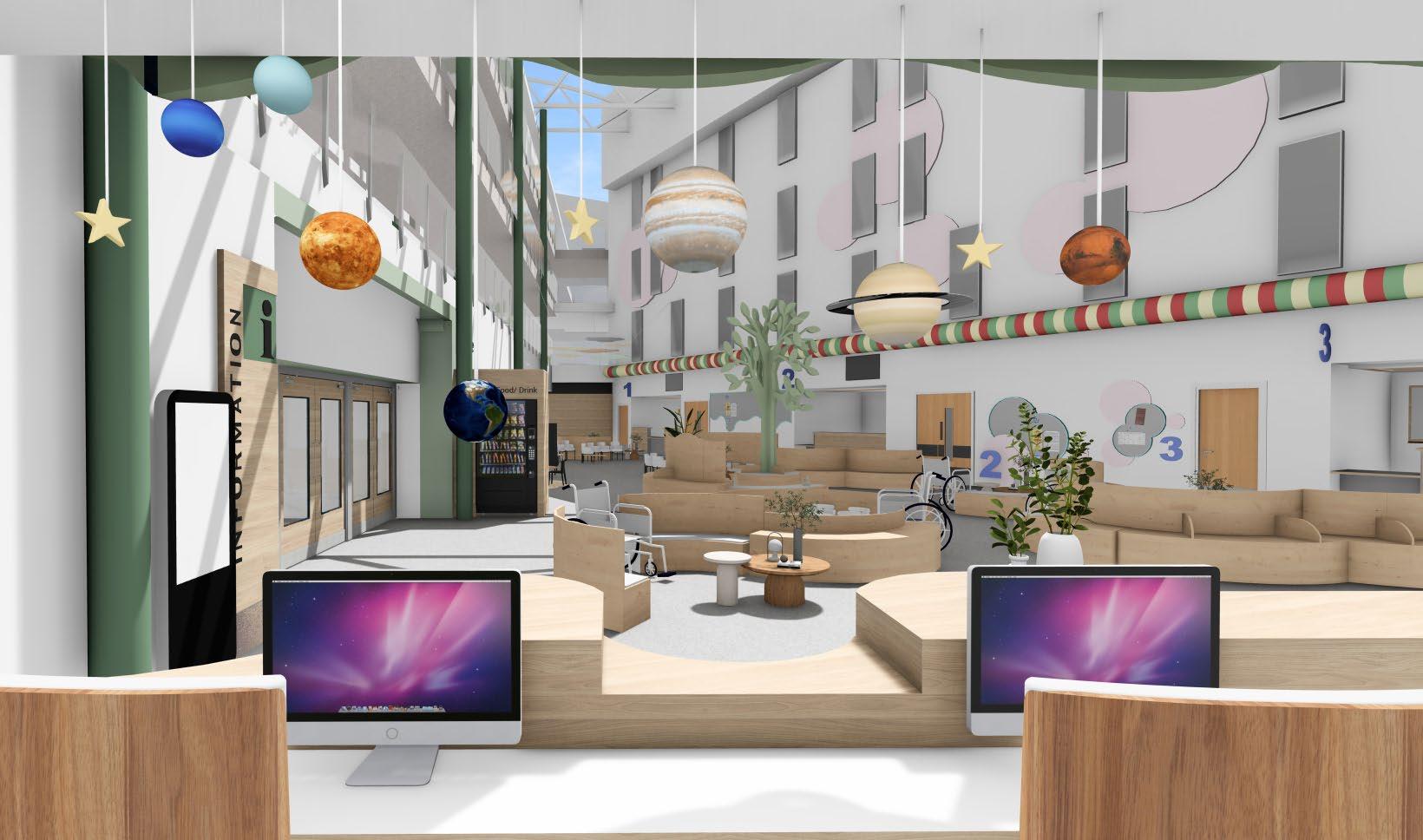

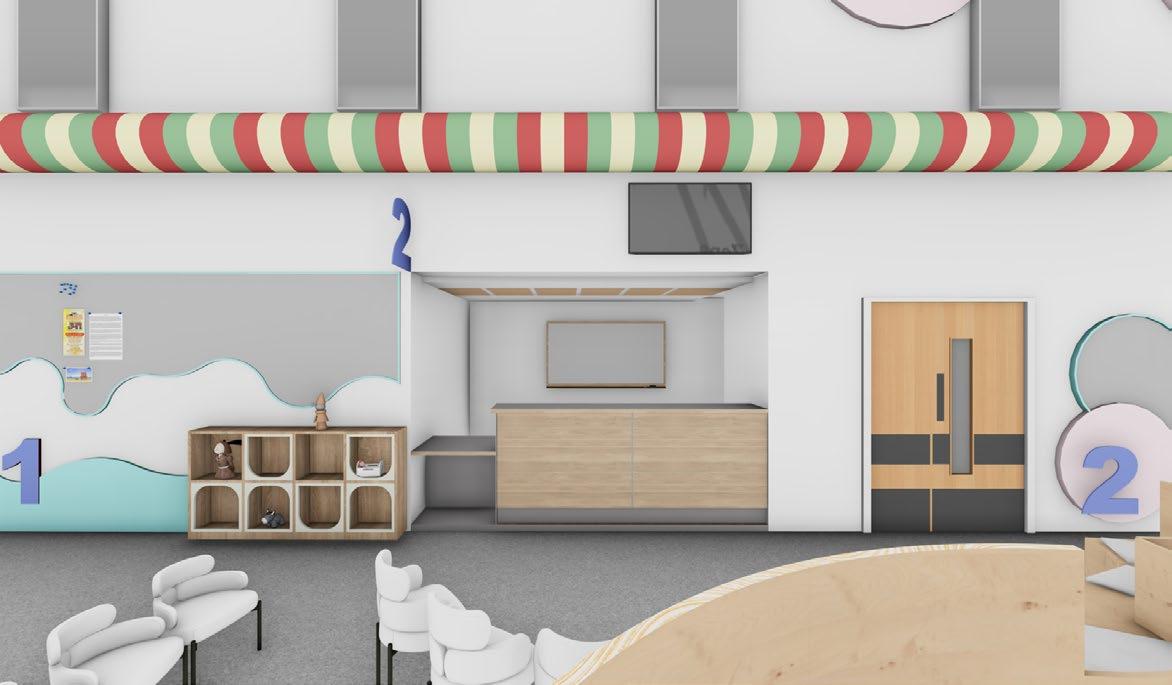

Royal Manchester Children’s Hospital
Location: Manchester, UK
Time: Nov. 2024 ~ present
Category: Practice Experience
Current Stage: Stage 2

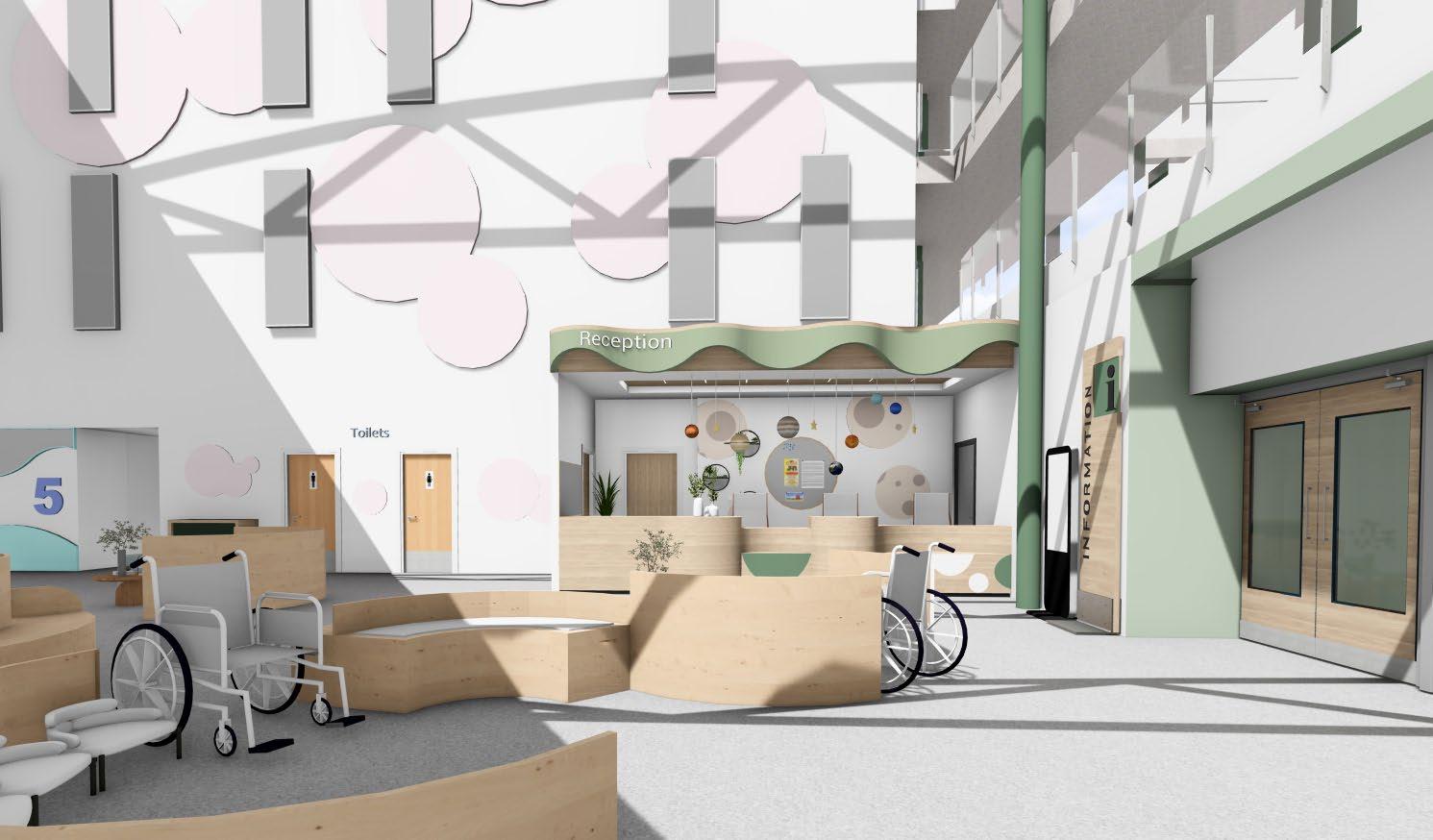

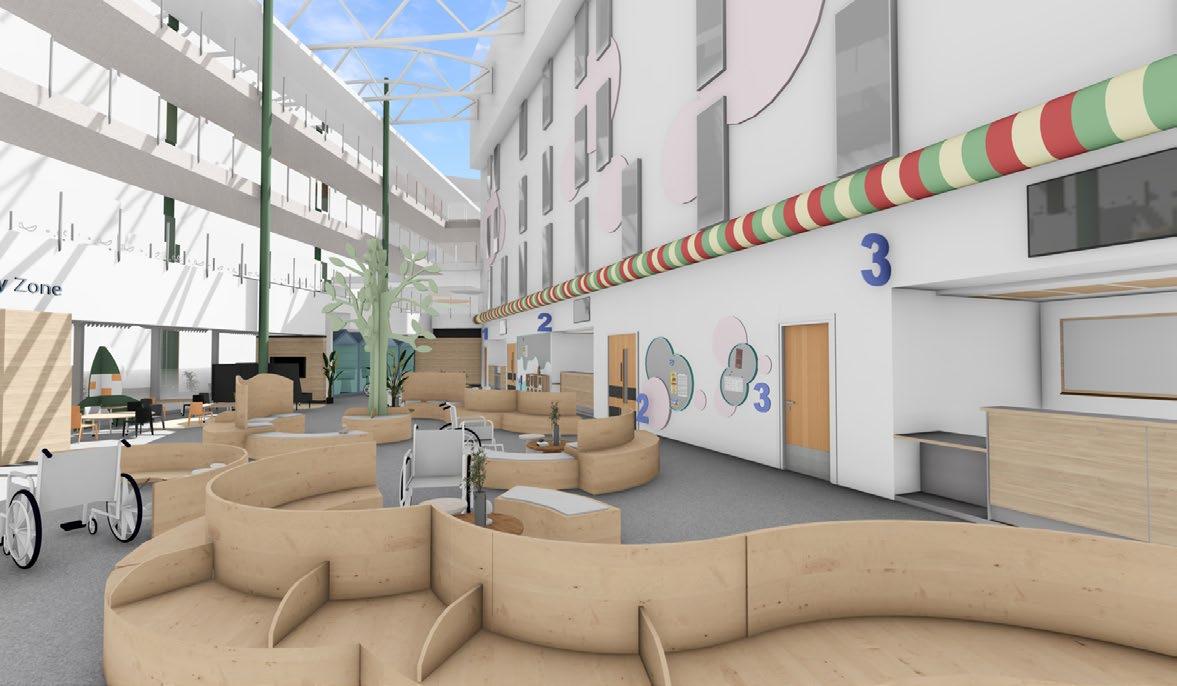

In this project, was responsible for independently designing the outpatient zone of the Royal Manchester Children’s Hospital, working through RIBA Plan of Work Stage 2 and 3, which is the current phase of the project.
My role encompassed the complete design of the space, including the creation of detailed plan drawings in Revit and high-quality visualizations in Lumion, all while adhering to the company’s standard workflow. In December, I presented design proposals to the senior project team at Manchester Foundation Trust (MFT), gathering and incorporating their valuable feedback to refine the design. I consistently tracked the project’s progress to ensure the outpatient zone met both its functional requirements and the highest standards of design excellence. The project was reviewed again in January and is now poised for further development based on the current design.
C-Sheet

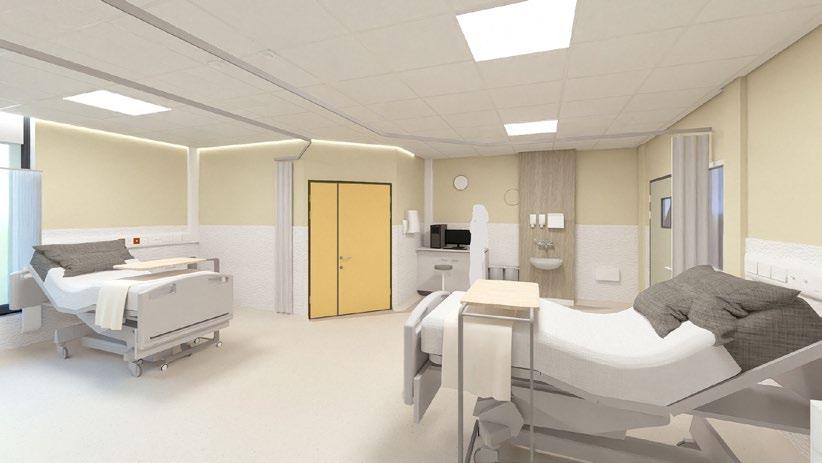

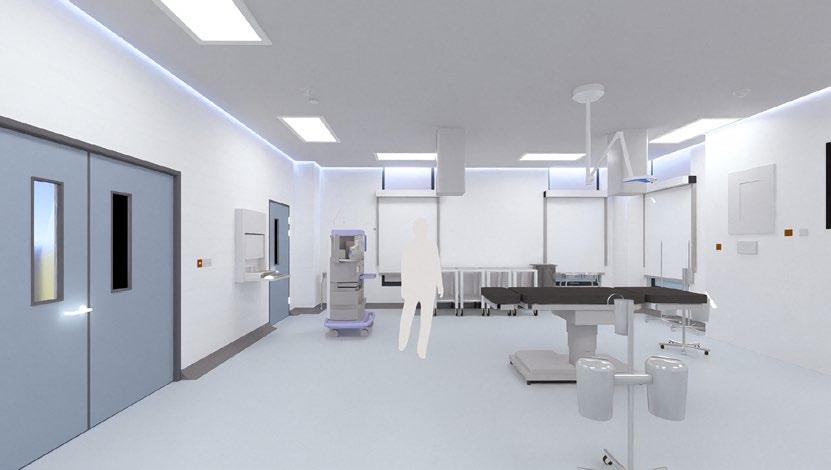

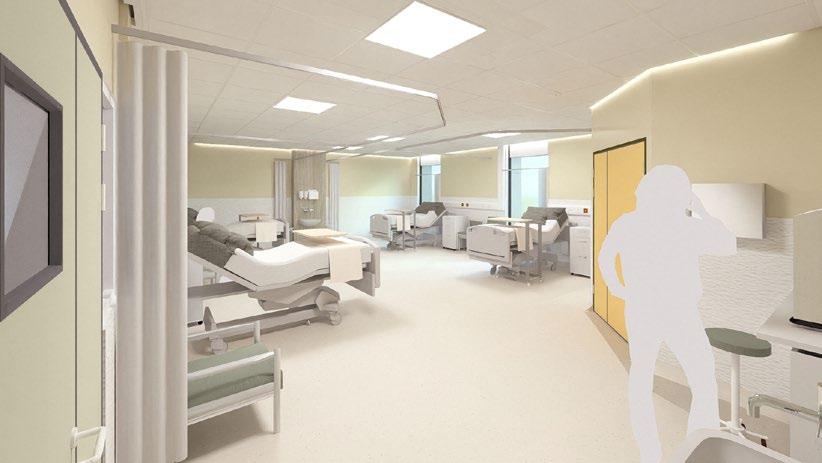

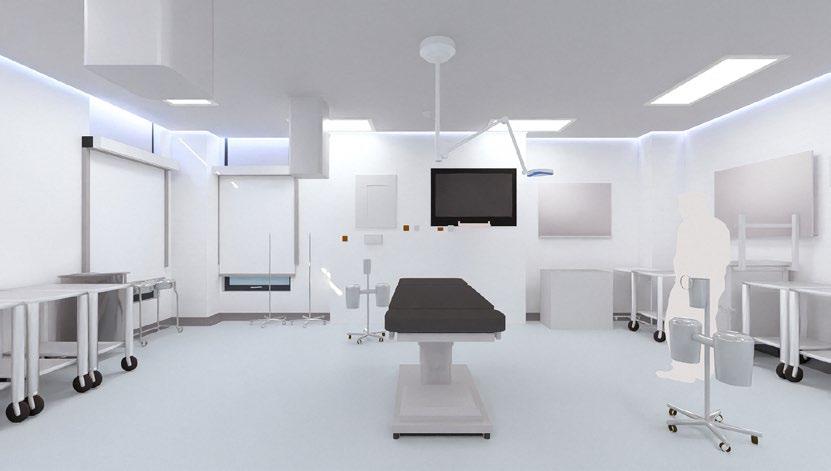

Royal Surrey Country Hospital
Location: Surrey, UK
Time: Nov. 2024 ~ present
Category: Practice Experience
Current Stage: Stage 4
contributed to RIBA Stages 3 and 4 of the Cancer and Surgical Innovation Centre at Royal Surrey County Hospital, which is currently in Stage 4, focusing on construction and manufacturing preparations. This involved working with architectural construction sheets (C-sheets) and mechanical and electrical (M&E Sheets) systems, allowing me to gain valuable experience in coordinating technical details and specifications.

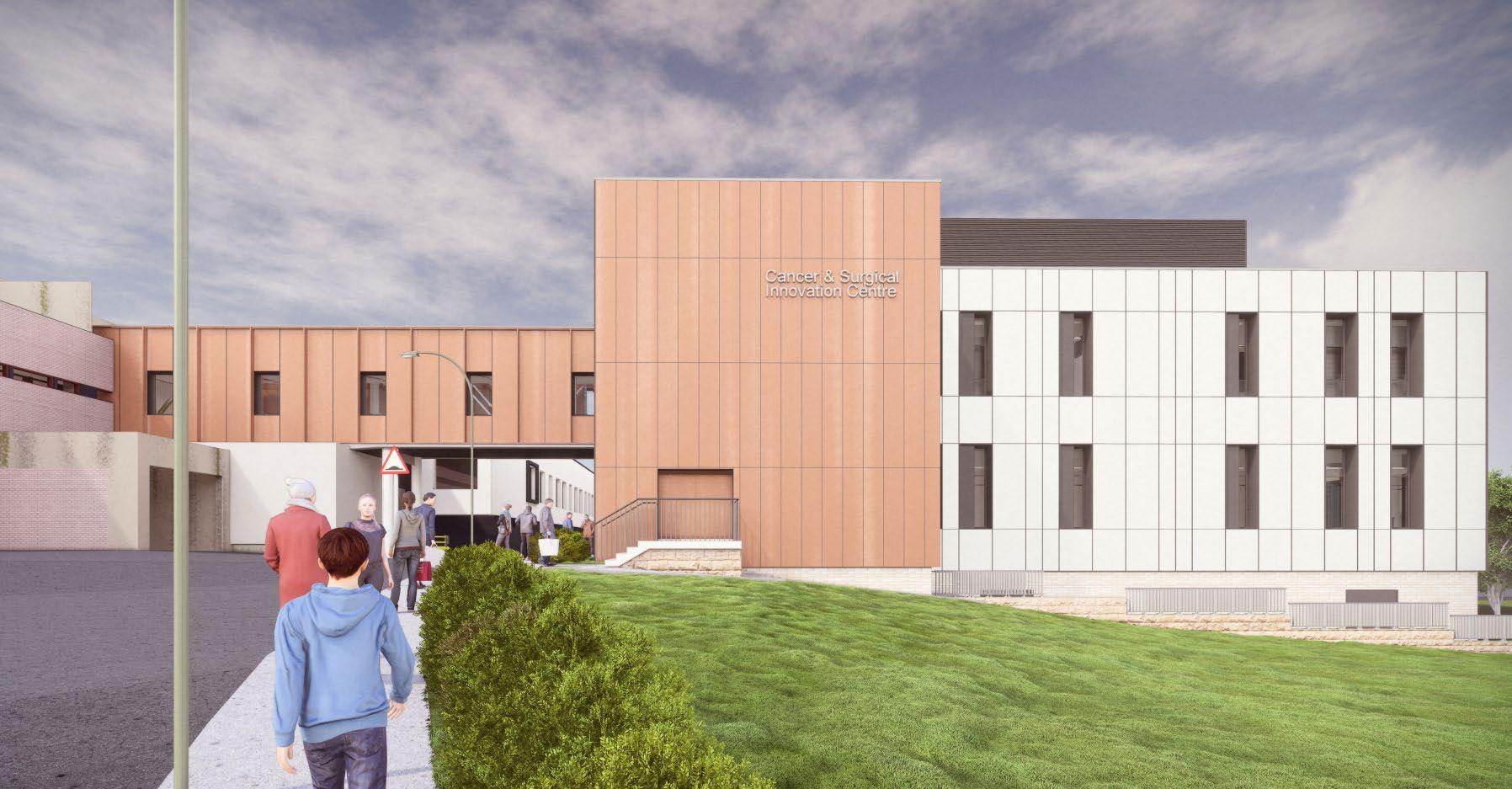

The external material visuals I created, based on pre-selected materials, were officially approved and are now progressing to the next stage in collaboration with MTX Contracts and the NHS Foundation Trust. Additionally, had the opportunity to participate in the initial selection process for interior materials, which is still ongoing.

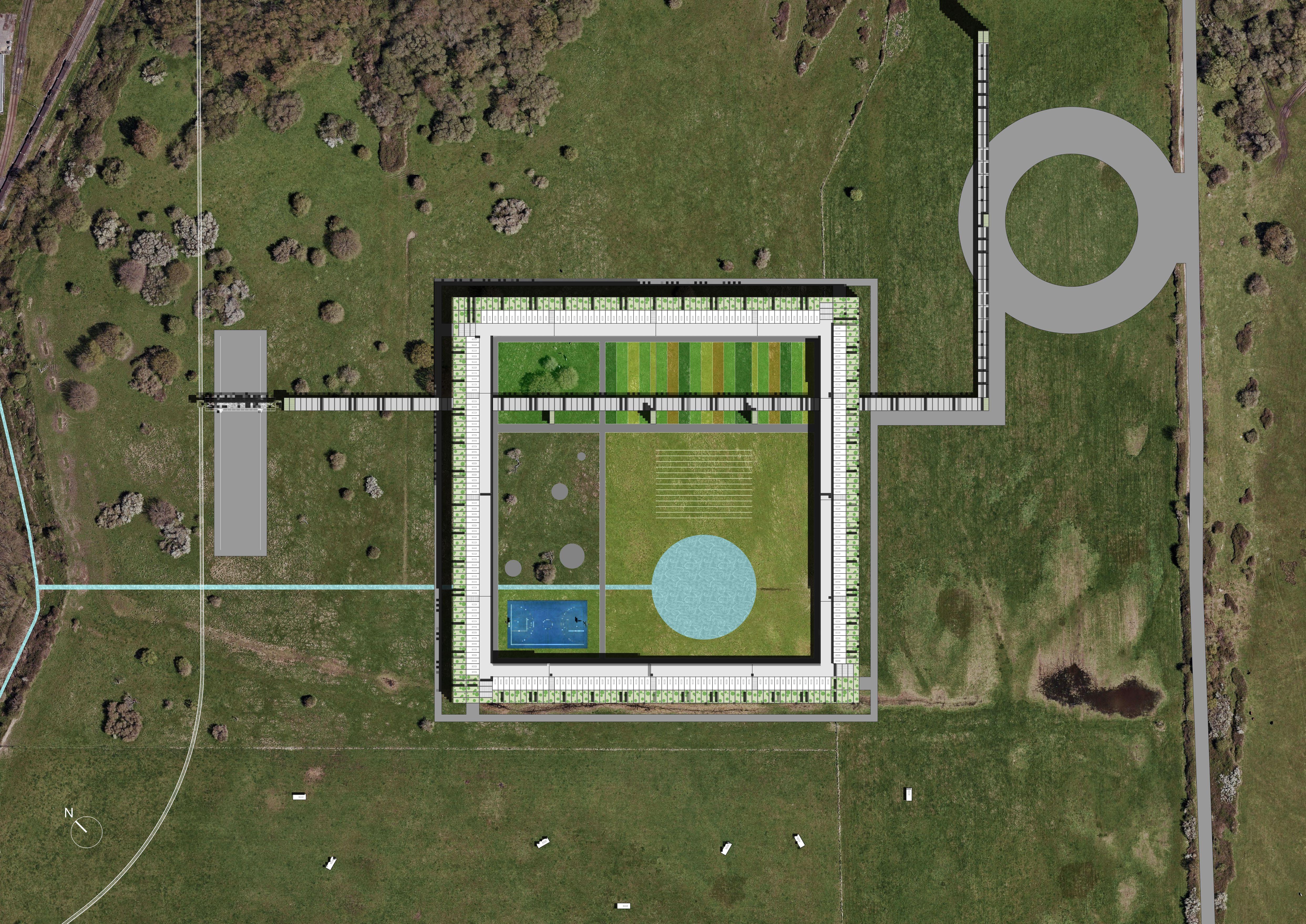

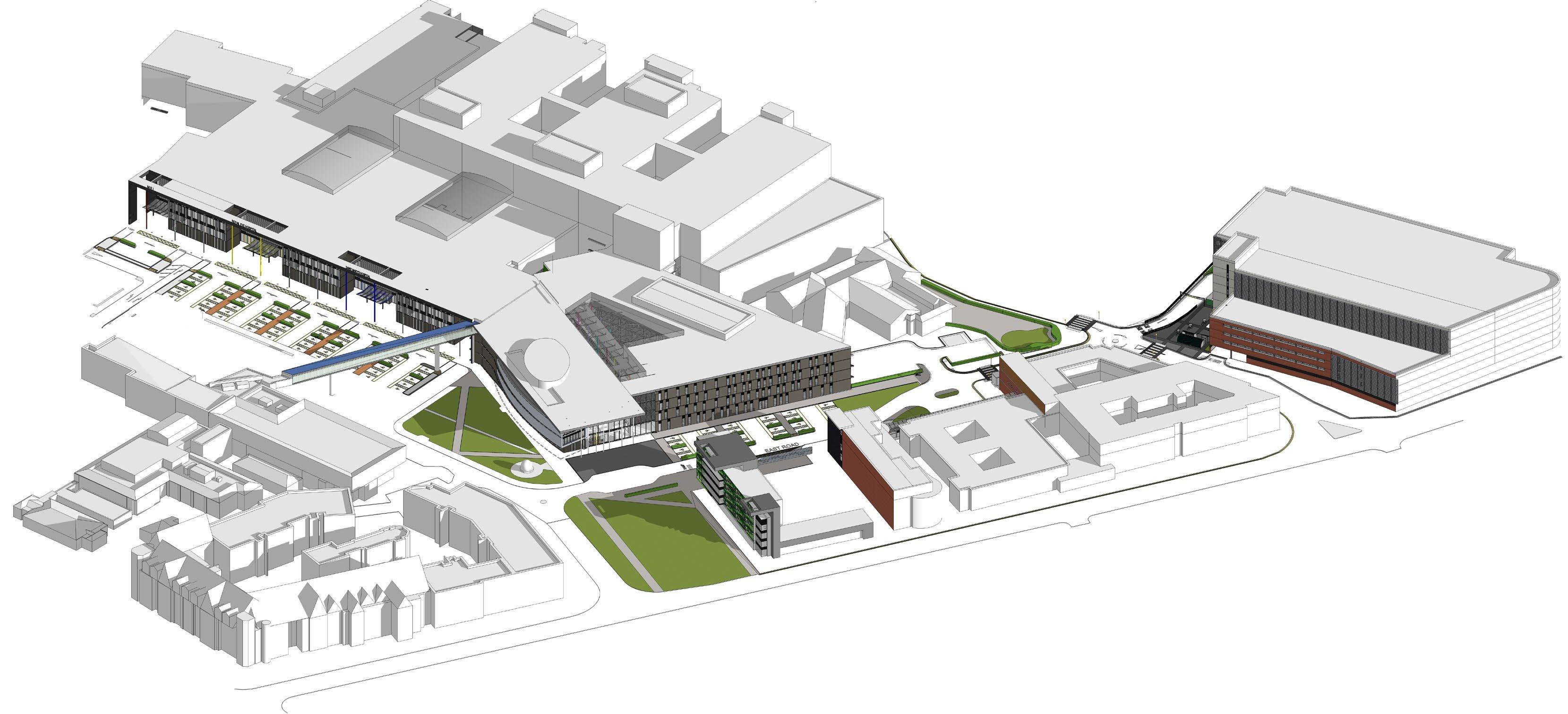

Site Masterplan
Location: Salford, UK
Time: Jan. 2022
Category: Technical Studies (extract from academic studio project)
A Walk in the Park: Connection
Embedded in the architectural design of this art center is a commitment to dissolve unseen divides and enhance societal bonds. With a symbolic sculpture art as a city emblem, it transcends mere aesthetics, becoming a powerful catalyst for unity. This iconic symbol invites citizens to collaborate willingly, fostering a shared identity within the vibrant spirit of city life.

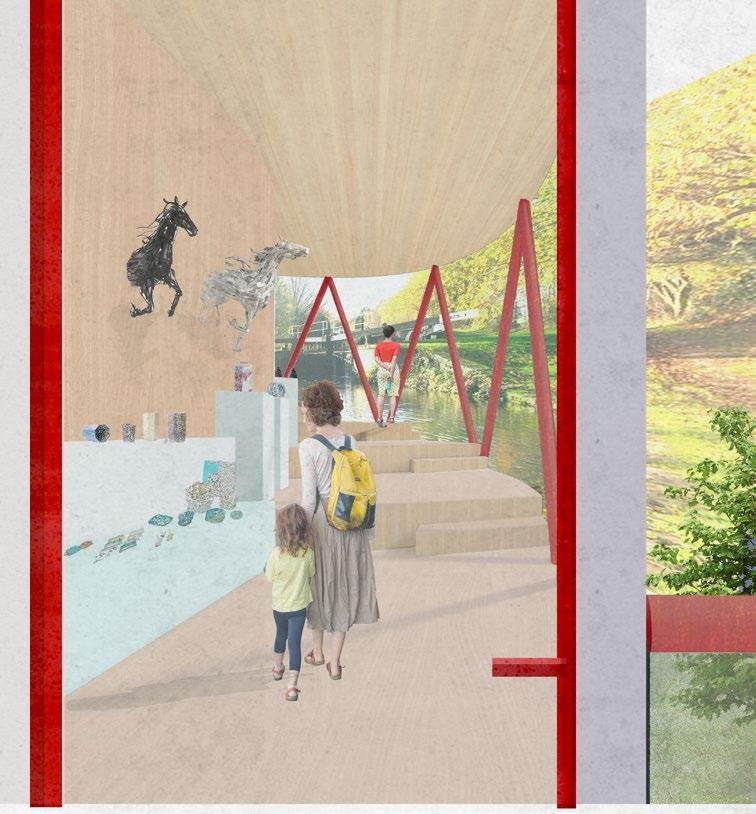

View
5. Glazing wall; triple glazed glass supported by steel spider fitting and steel framework.
7. Ground floor; suspended Floor with air vacumm; insulation layer; vapor barrier; concrete slab composite steel deck steel beam (exposed)

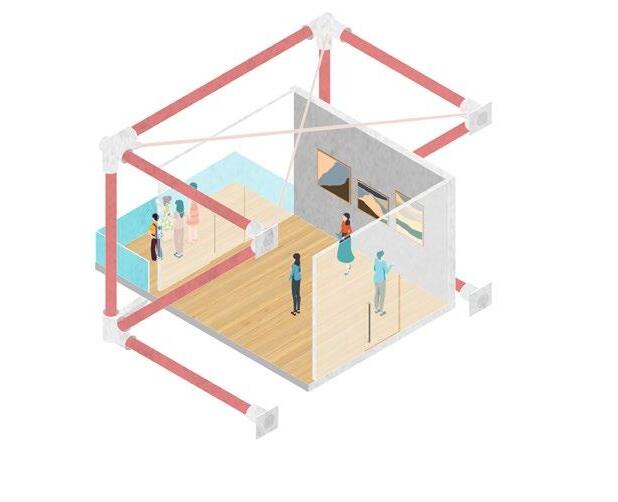

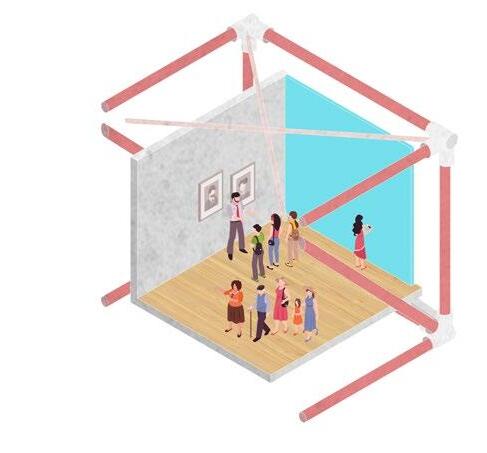

Exhbition Hall 1: Flexible Art Hall
The elevated height of this exhibition hall is suitable for displaying large artworks, facilitating visitors, and the floorto-ceilingwindows ensure ample natural light and easy access for passersby to enjoy the exhibition.
Exhbition Hall 2: Flexible Art Hall
For locals to exhbit their own art work made in making space and the art pieces are changing periodically.
Exhbition Hall 3: Talks & Lecture Hall
A space which allows the different arrangements of chairs and talks which accommodate different talks (art pieces, cultures & history).
Communal Space (cafe)
One big table in cafe area, allowing more social interaction within the space
Space

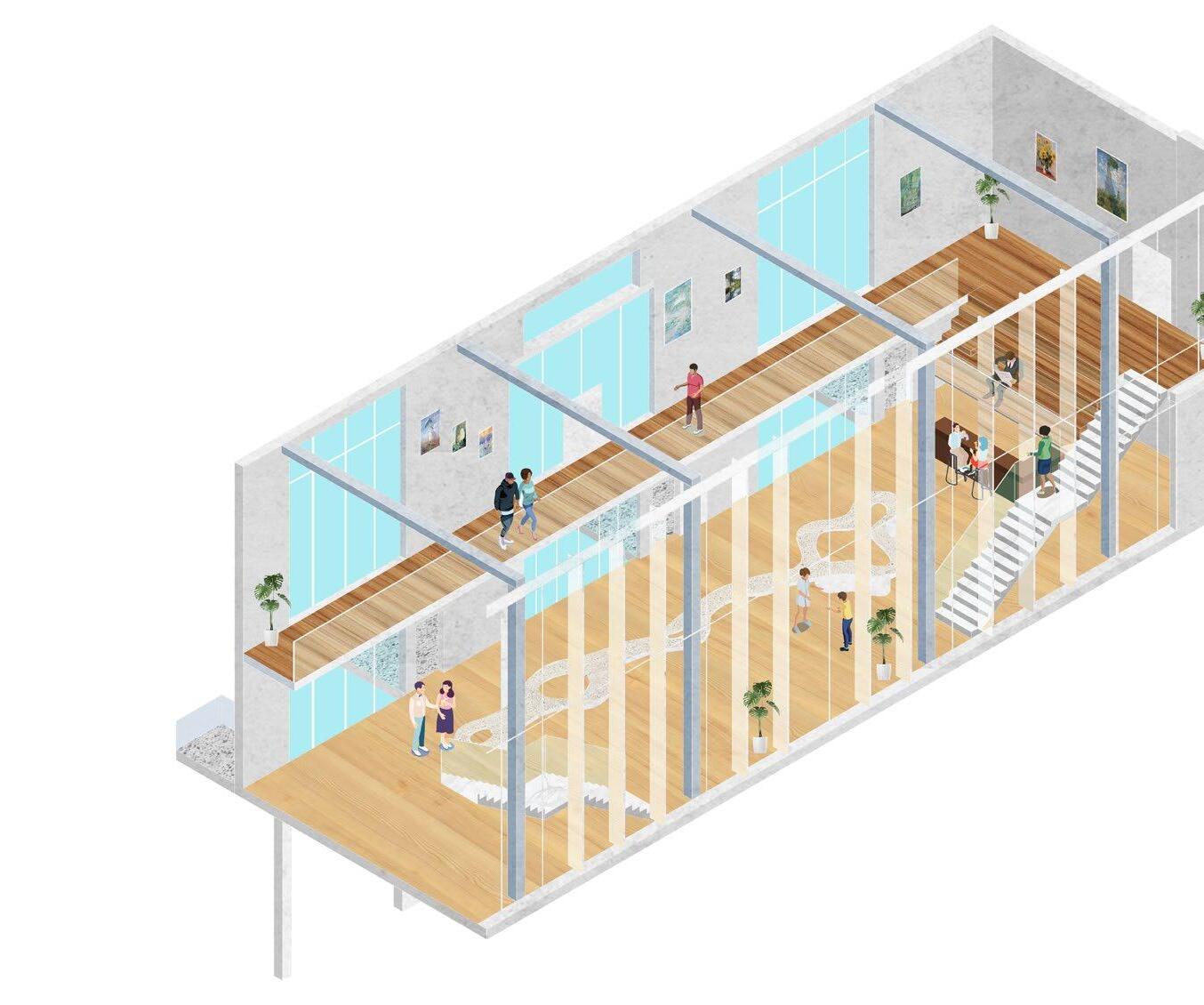

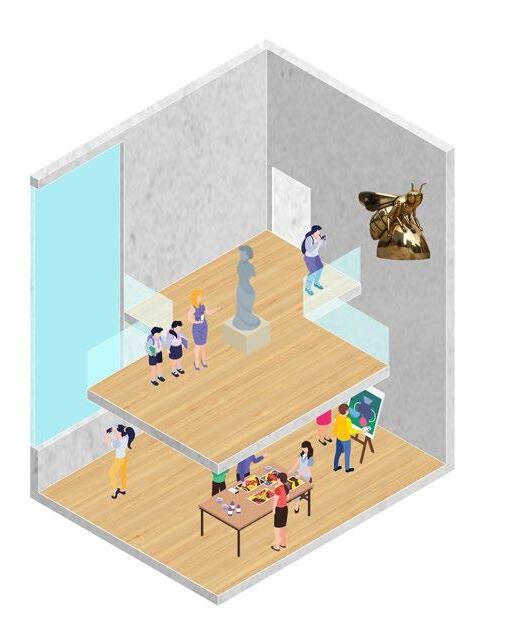

A working area, designed as a space for artistic creation, situated directly below the sculpture art hall, and the ceiling of thisarea features two openings that allow people in this area to appreciate the artworks suspended above.

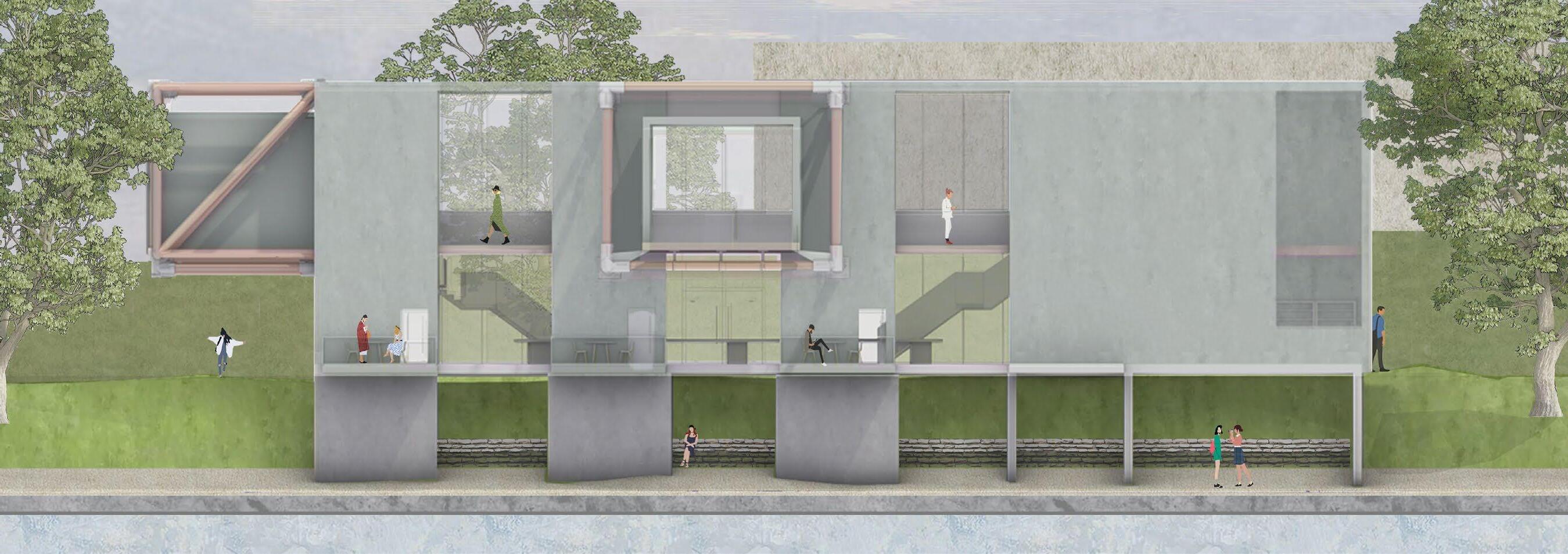

Elevation - River Side

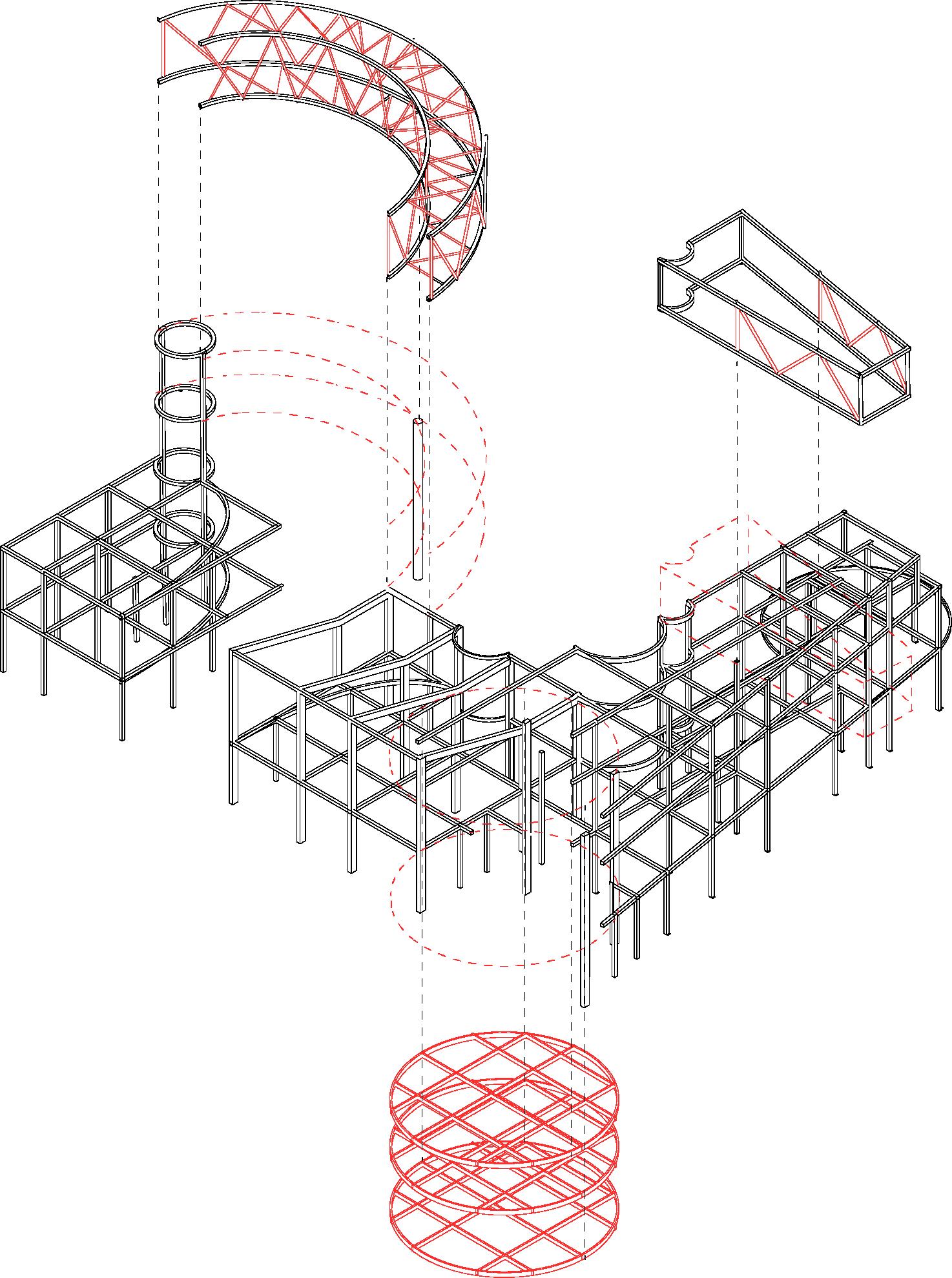

1. Steel tube exoskeleton; prefabricated; space frame with Howe trusses on sides; cantilevered from one side.
2. Foundation (from g floor to ground); reinforce concrete with embedded steel column.
3. Cladding steel panels; satin finish.
4. Internal partition and finish; white painted plasterboard with minimal structural interruption.
Waste House
Location: University of Brighton’s Faculty of Arts, Brighton, UK
Time: Dec. 2023
Category: Technical Case Studies

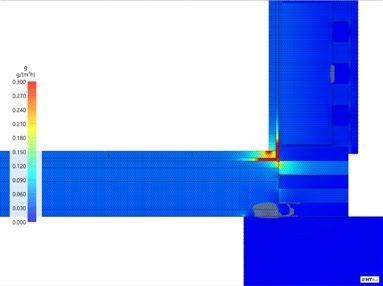

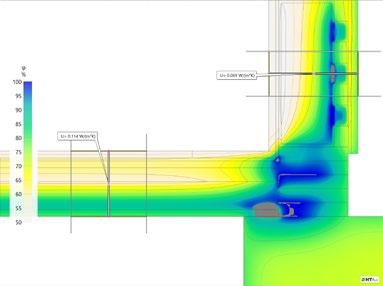

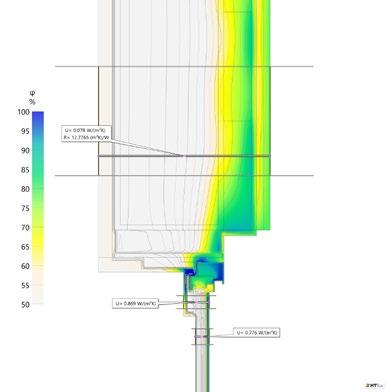

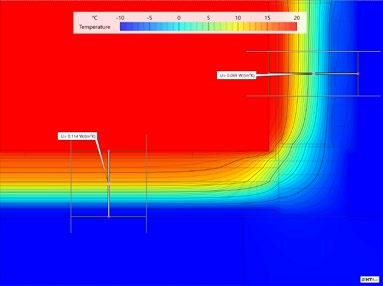

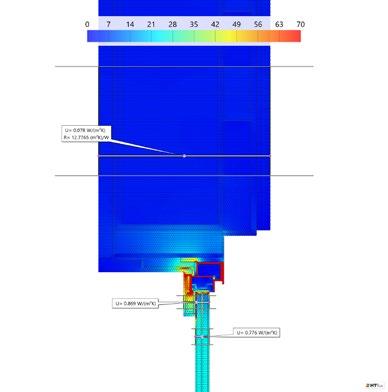

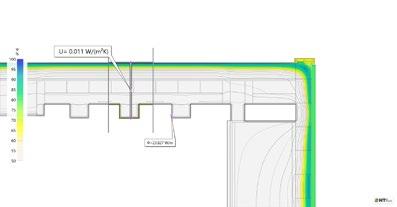

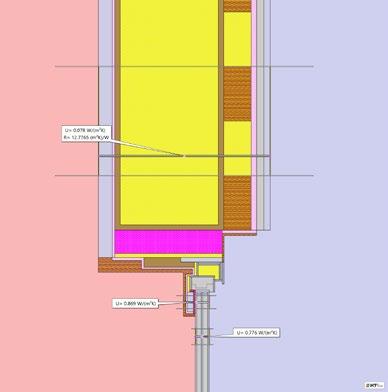

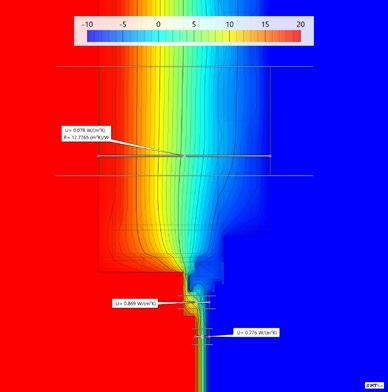

This project focuses on further investigation into building envelopes, using the Waste House—one of the most sustainable buildings in the UK—as a key precedent for study. It provides valuable insights into sustainable construction processes and materiality, analyzing practical approaches to achieving zero carbon emissions. The entire house is constructed from locally sourced waste materials in Brighton, showcasing an innovative and eco-friendly approach to building design.
DESERTRAINFOREST MOUNTAIN
Indoor Out
Location: Nanjing, China
Time: Dec. 2022
Category: Personal Model Making Project
Immerse yourself in an innovative shopping experience where nature serves as the ultimate fitting room, every step is a journey beyond boundaries. “Indoor Out” is not just a project; it’s a reimagining of how we shop and connect with the world around us. In this innovative space, the outdoors becomes an expansive fitting room, inviting you to touch, feel, and experience products in environments that mirror the very landscapes you long to explore. “Indoor Out” is a promise to blur the lines between retail and adventure, creating a multisensory symphony where the artistry of shopping meets the freedom of exploration.
Materials used: Plywood, Acrylic Board, Foam Board, Sustainable Paints, Plaster, Water Feature Paste, 1:50 People & Tree Model

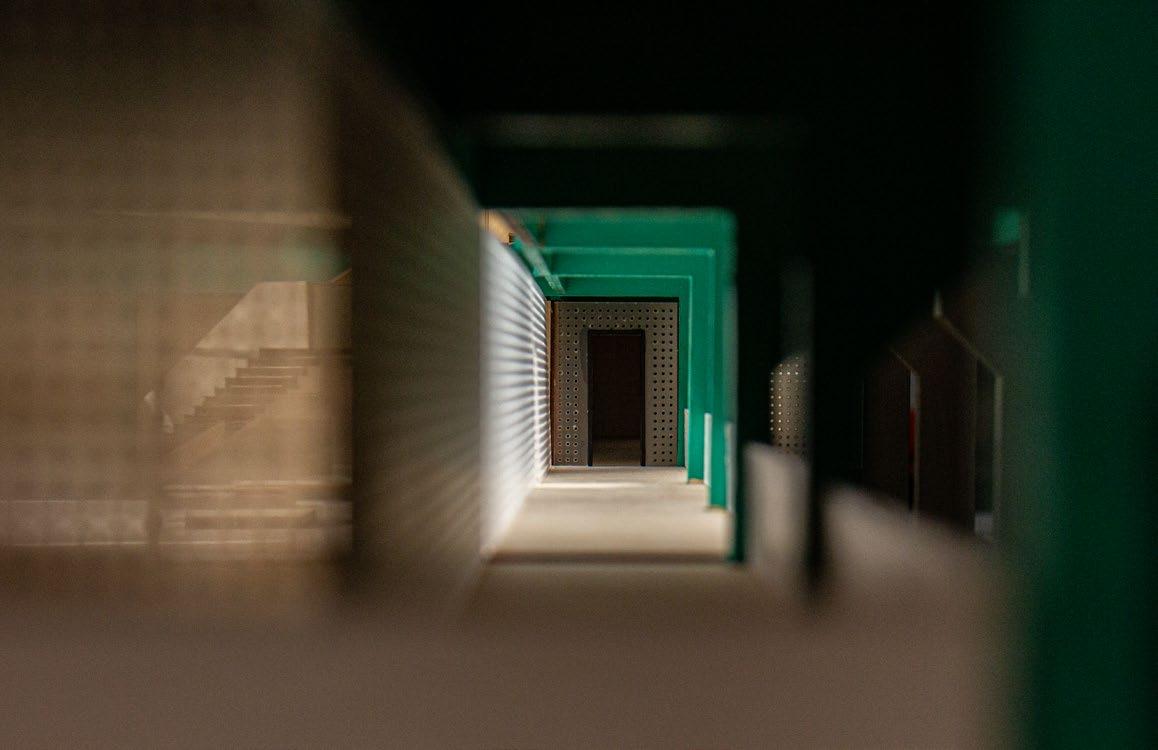

A set of photographs of the final model are taken from varies perspectives. Final Model has been made into 4 seperate parts, which allows easy assembling and photography.
