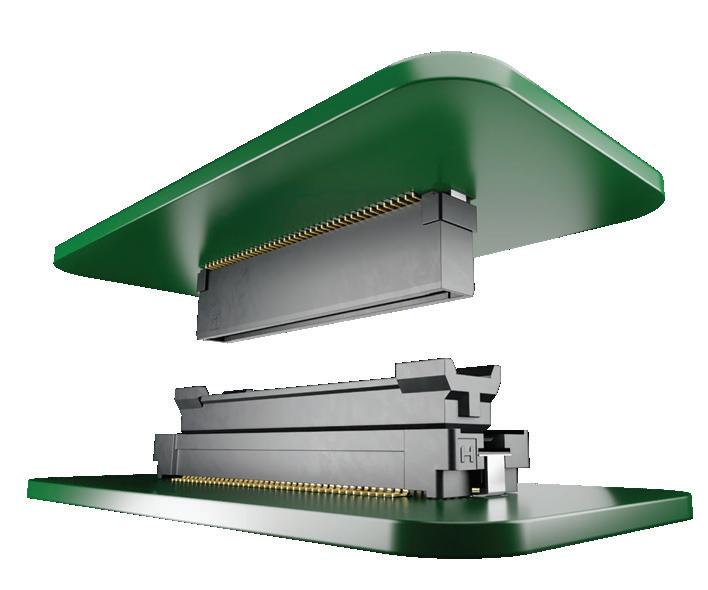

Harwin Flecto connectors are fine-pitch, high-pin-count board-to-board connectors offering perfect alignment, high-speed data transmission, mixed signal and power options, and multiple mating heights.

CONNECT TECHNOLOGY WITH CONFIDENCE.

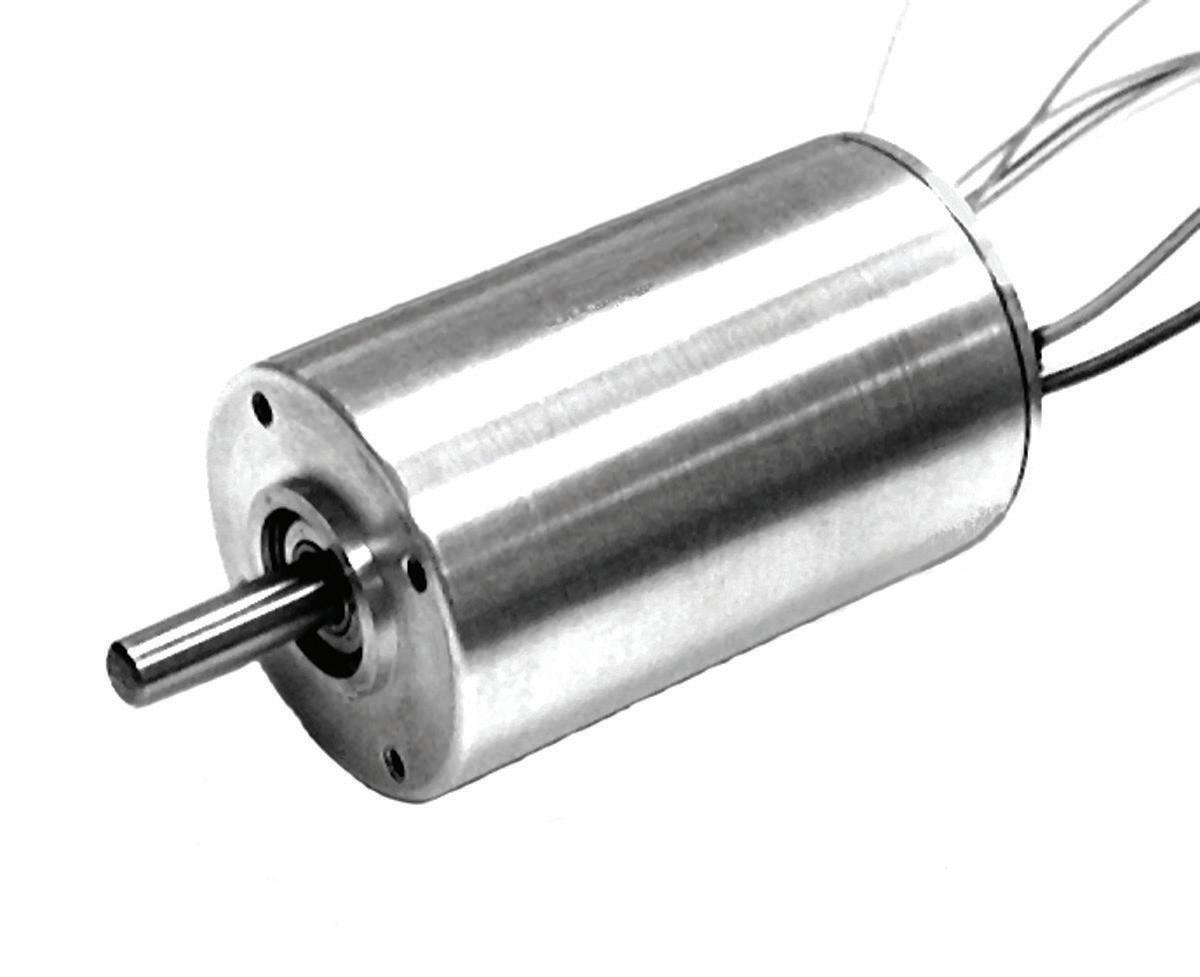

Brushless Motors

Solid or hollow shaft, high performance, housed and frameless, brushless motors and matching drives for demanding applications.

Hall or sensorless motors and drives for surgical tools, aerospace, military, and scientific instrument applications. Custom drive programing and designs available. Motors up to 95% efficient, power up to 1,500 watts. Highest power density in the industry.

Operating temperatures from -73C to 150C

Slotless and slotted designs. Available with encoders and gearheads and separate or integral electronics.

Quantities 1 to 5,000.

www.koford.com

Contact us at mail@koford.com

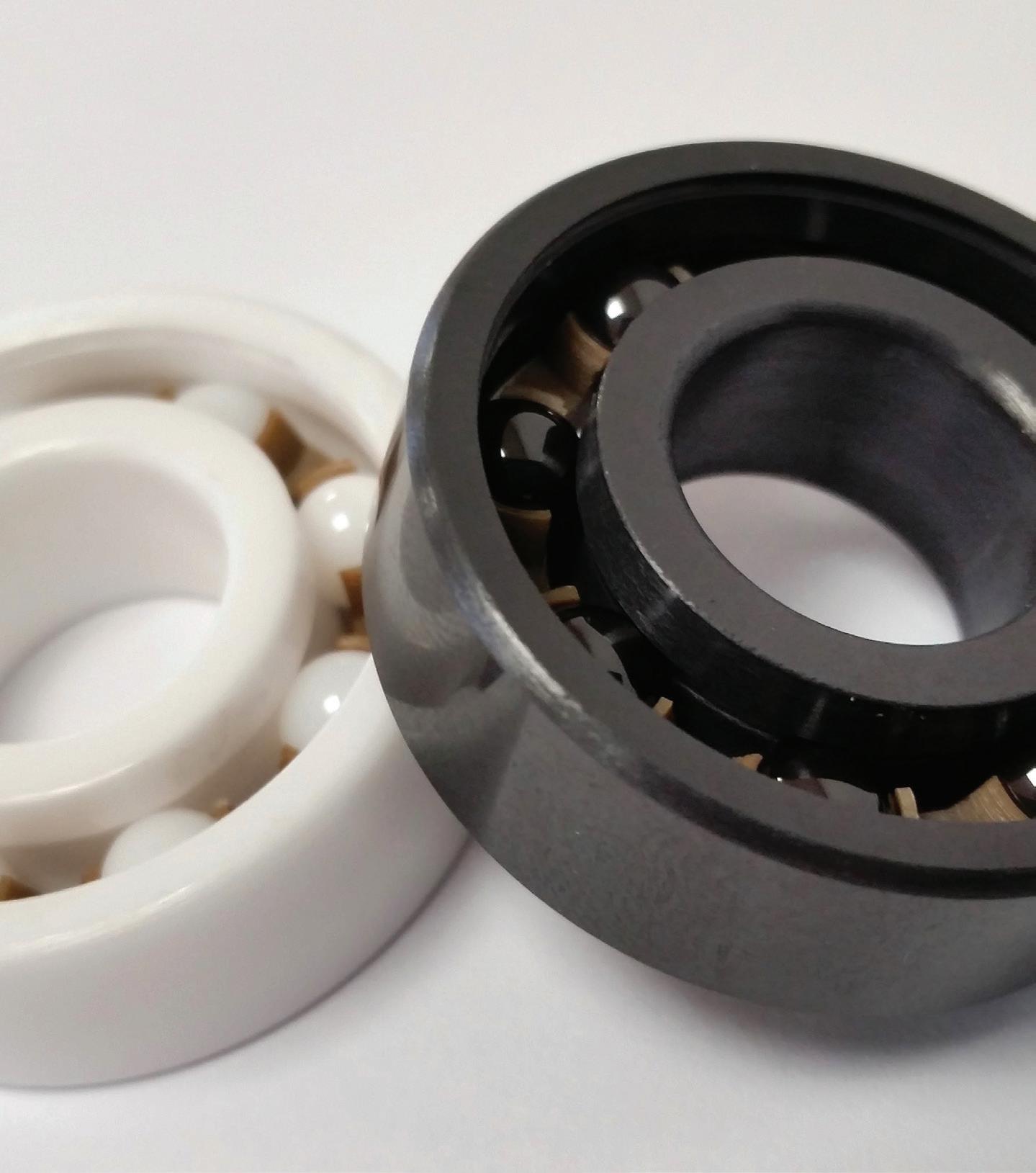

Because they are lightweight and vacuum-compatible, ceramic bearings will be greatly relied upon in space exploration.

are most commonly used in applications where excellent corrosion resistant is required, along with exposure to extremely low or high temperatures. In other words, ceramic beings are ideal for use in space.

One of the key advantages of full ceramic bearings is that they can run constantly at speed without lubrication, which is why Si3N4 is often used in vacuum environments.

ZrO2 bearings can be used up to 400° Celsius, and Si3N4 bearings up to 800° Celsius. Also, for these temperatures, it is recommended that the bearings should be full complement. This means the bearing doesn’t have a ball retainer; instead, the free space allows additional balls to be fitted. This increase in ball complement allows for significant increases in radial bearing capacity, although maximum speed is significantly reduced. Down to approximately minus 200° Celsius, ceramics also have excellent low-temperature performance provided a suitable cage is used.

With their lightweight and vacuum-compatible properties, silicon nitride bearings will be greatly relied upon in space-exploration applications. They will particularly benefit satellites and spacecraft, which need optimal weight capacities to perform enhanced flight dynamics and acceleration. These specialist bearings, along with their stainless-steel counterparts, will be vital to ensuring that the next giant leap for humankind is a farfrom-risky business. AD

SMB Bearings

• smbbearings.com

Edited by Mike Santora

Vibe check: testing components for satellite-environment readiness

The European Space Agency (ESA) has added a microvibration test instrument, developed by the National Physical Laboratory (NPL), to its satellite testing facilities. NPL is the UK’s National Measurement Institute, developing and maintaining the national primary measurement standards. The instrument measures vibrations generated by satellite subsystems to quantify their effects on images and measurements made from space. This facility is the result of five years of collaboration between NPL and ESA.

Vibrations onboard a satellite can be caused by common instruments and mechanisms, such as spinning reaction wheels, solar array drives, and rotating cryocoolers. ESA needed to be able to measure and correct for these jitters and vibrations to improve the accuracy of its Earth observations. This required the simulation of satellite components under a range of controlled vibration conditions.

“The NPL won a tender to design a system for the European Space Agency, which required a very high level of performance,” said Dan Veal, Senior

Research Scientist with the National Physical Laboratory in the United Kingdom. “The system was required to measure very low frequency related to very low force. ESA needed a better way to check satellite components for these micro-vibrations, and to what effect they might disrupt a spacecraft.”

Measurement Platform Supported by a Vibration Isolation Platform

“NPL developed a platform which can characterize any force produced by a satellite component weighing up to 150 pounds,” added Veal.

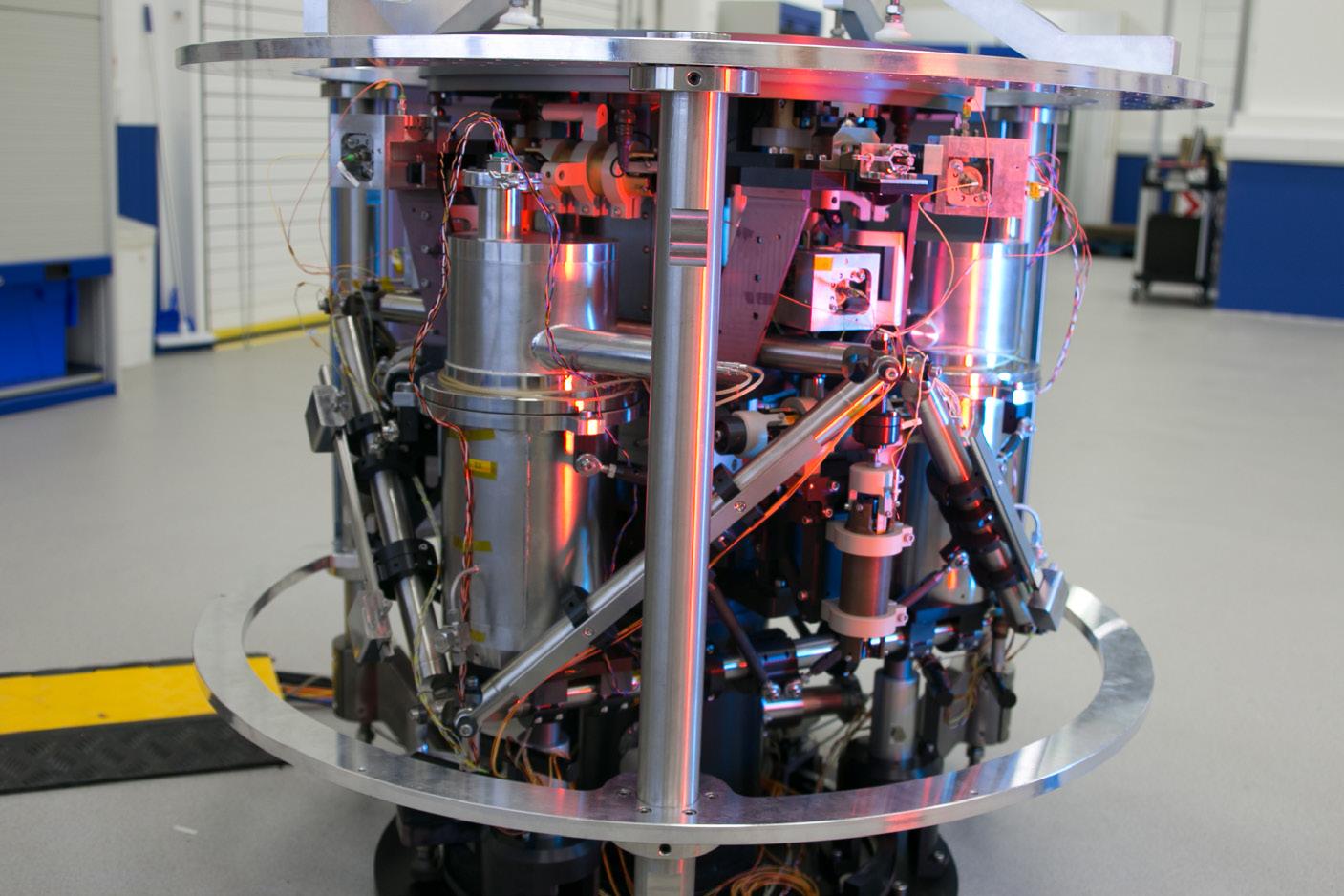

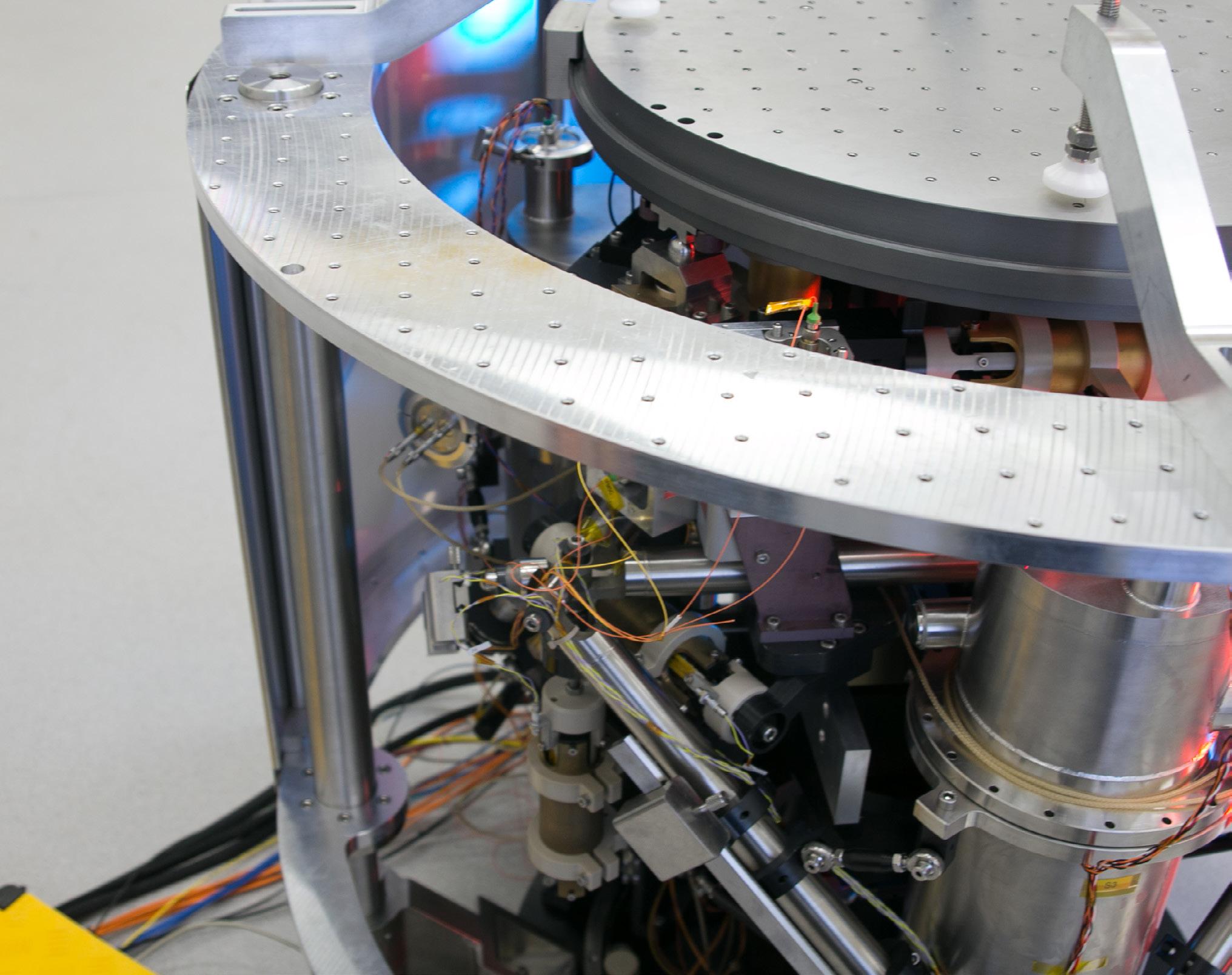

European Space Agency’s micro-vibration test platform. | National Physical Laboratory

The micro-vibration platform can measure vibrations to an unprecedented degree of accuracy. It is so sensitive it can measure the force of a single dropped feather. Sometimes housed in a vacuum chamber to simulate space conditions, when used in air, the system is enclosed in a tent to limit perturbations caused by airflow.

The platform is built as a structure of two main levels: 1) a lower vibration isolation platform to cancel disturbances coming from the ground, and 2) an upper measurement platform.

Lower Vibration Isolation Platform

The lower vibration isolation platform uses a passive Negative-Stiffness vibration isolator, coupled with three highly sensitive active seismometers that control actuators, to sense ground vibrations coming into the system. The seismometers are designed to measure up to 0.3 hertz. Coupled with the Negative-Stiffness isolators, the passive/active system enables vibration isolation down to 0.1 Hz.

This system significantly reduces the effects of the vibration coming from sources, such as footsteps and

even waves from the nearby North Sea, ensuring a quiet environment for the measurement platform that is mated on top.

“We developed the lower vibration isolation platform around Minus K’s Negative-Stiffness isolators because they are capable of passively isolating vibrations down to 0.5 Hz,” explained Veal. “This was very important for our low-frequency application. But we also selected Negative-Stiffness because it is vacuum compatible.”

“Essentially, we stripped the Negative-Stiffness isolators down to their core systems, then augmented them with active seismometers connected with a custom interface,” explained Veal. “This enabled us to get down to 0.1 Hz isolation.”

Negative-Stiffness vibration isolation was developed by Minus K Technology, an OEM supplier to manufacturers of scanning probe microscopes, micro-hardness testers, and other vibration-sensitive instruments and equipment, such as for testing zero-g simulation of spacecraft.

These vibration isolators are compact and do not require electricity

• High Temp. Adhesive Tapes

• Engineering Grade Polymer Films

• PTFE Coated & Silicone Coated Fabrics

• Silicone Rubber Sheeting

Converting Capabilities

• Roll Width Slitting

• Adhesive Lamination

• Automated Sheeting

• Die Cutting

• Rapid Prototyping

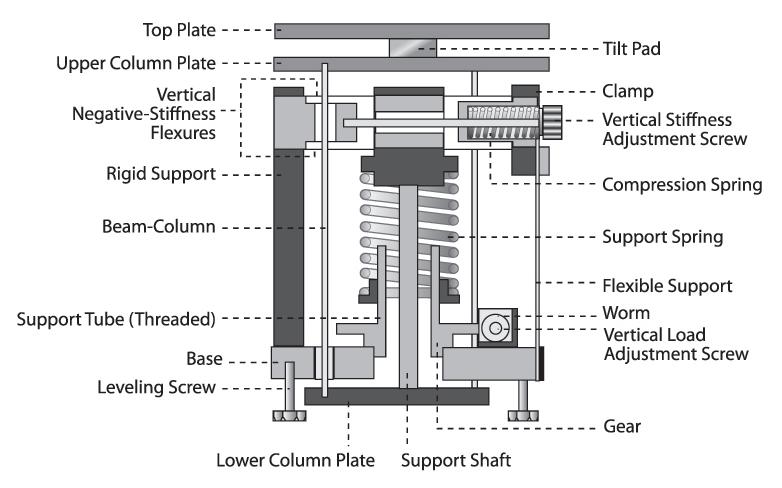

Schematic of Negative-Stiffness Isolator

Schematic of a Negative-Stiffness isolator. | Minus K Technology

or compressed air, enabling sensitive instruments to be located wherever a production facility or laboratory needs to be. There are no motors, pumps, or chambers, and no maintenance because there is nothing to wear out. They operate purely in a passive mechanical mode.

What is very advantageous about Negative-Stiffness isolators is that they achieve a high level of isolation in multiple directions. These isolators have the flexibility of custom tailoring resonant frequencies to 0.5 Hz* vertically and horizontally (with some versions at 1.5 Hz horizontally).

(*Note that for an isolation system with a 0.5 Hz natural frequency, isolation begins at 0.7 Hz and improves with increased vibration frequency. The natural frequency is more commonly used to describe the system performance.)

“Vertical-motion isolation is provided by a stiff spring that supports a weight load, combined with a Negative-Stiffness mechanism,” said Erik Runge, Vice President of Engineering at Minus K Technology. “The net vertical stiffness is made very low without affecting the static load-supporting capability of the spring. Beam columns connected in series with the vertical-motion isolator provide horizontal-motion isolation. A beam column behaves as a spring combined with a negative-stiffness mechanism. The result is a compact passive isolator capable of low vertical and horizontal natural frequencies and high internal structural frequencies.”

Negative-Stiffness isolators deliver very high performance, as measured by a transmissibility curve. Vibration transmissibility is a measure of the vibrations that are transmitted through the isolator relative to the input vibrations. Negative-Stiffness isolators, when adjusted to 0.5 Hz, achieve approximately 93% isolation efficiency at 2 Hz; 99% at 5 Hz; and 99.7% at 10 Hz.

Upper Measurement Platform

Resting on top of the lower vibration isolation platform is the upper measurement platform. This platform allows for two modes of operation:

Upper measurement platform. | National Physical Laboratory

Find the Right Part Faster

OUTLINED

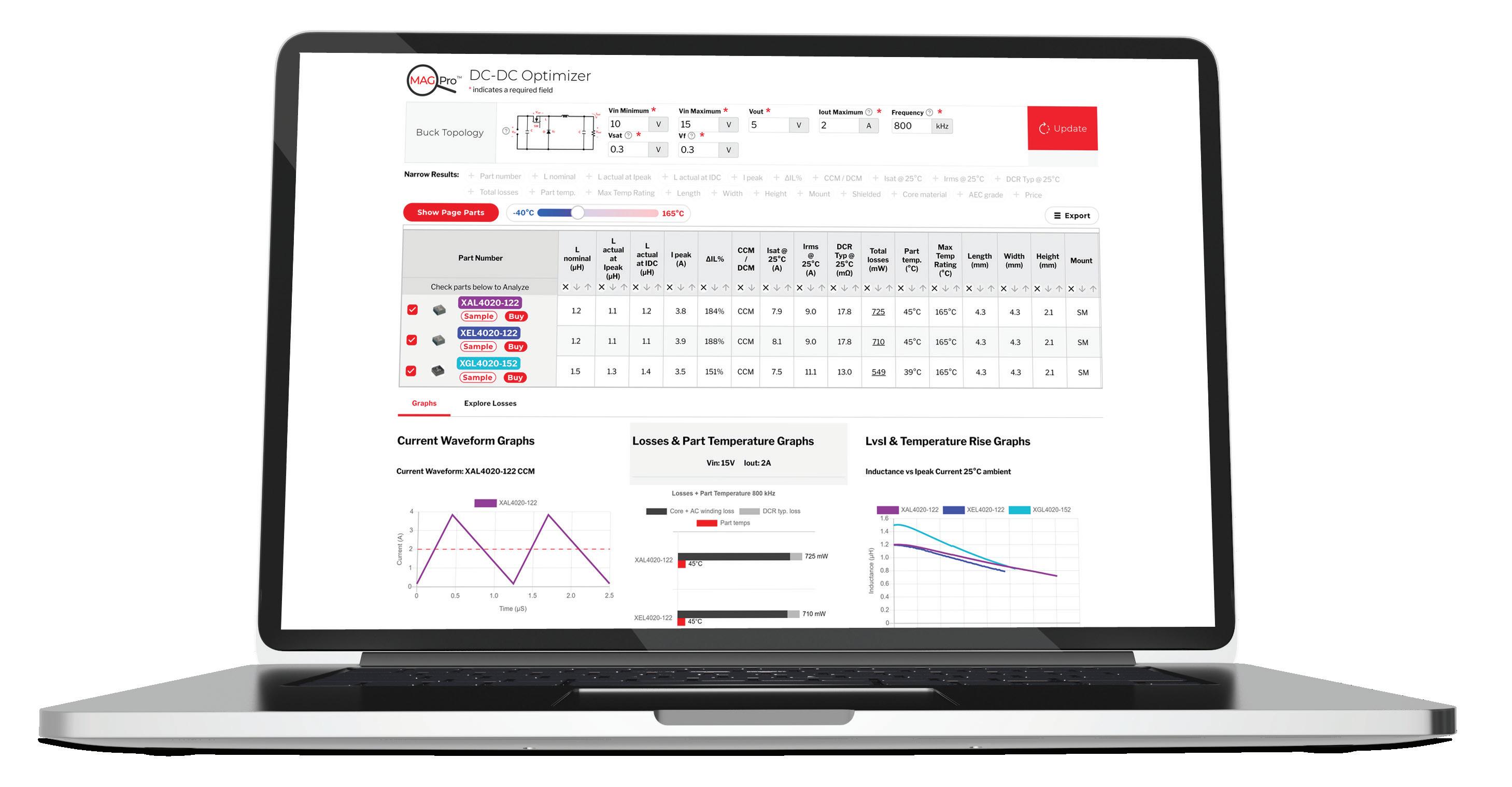

Designed by Engineers for Engineers, our DC-DC Optimizer helps you find the optimal power inductors for your converter designs quickly and easily, reducing your design cycle time.

Coilcraft’s MAGPro suite of online inductor analysis tools are designed to enable inductor selection and circuit optimization based on sound engineering principles and measured data.

The DC-DC Optimizer starts with your power converter parameters, calculates the needed inductor specifications, identifies off-the-shelf part numbers, and provides

side-by-side performance analysis.

The tool identifies optimal inductors for buck, boost, and buck-boost converters. With just a few clicks you can go from VIN/VOUT converter requirements to inductor selection complete with losses and saturation analysis, all based on verified inductor data.

Reduce your design cycle time with confidence at www.coilcraft.com/tools.

NO BOUNDARIES, JUST CONNECTIONS

CUSTOM CABLE FROM COAST TO COAST

Since 1898, we've partnered with the most innovative companies around the world to solve complex challenges and advance technology.

As industry leaders, you can depend on our decades of experience, unrivaled reliability, and custom cable solutions that power technology from coast to coast and around the globe.

1. It can measure the forces and torques exerted by a specimen mounted on the test table to a micronewton scale.

2. It actively produces and directs a predefined micro-vibration disturbance in multiple axes simultaneously onto a specimen to test its susceptibility to such disturbances.

“Components and subsystems can be mounted on the platform and tested before the satellite is assembled and launched into space,” said Veal. “This is very important because the platform simulates what the satellite will experience from its components in space by generating small, controlled forces and torques to shake satellite instruments and components in six degrees of freedom (6DoF).”

For the level of precision needed for the upper platform, NPL custom-

designed and manufactured many of the system’s components to strict requirements. This included such devices as actuators, which were custom-designed for magnet size, windings, coils, and linearity.

Validating Micro-Vibration Measurement of Satellite Components

The micro-vibration test platform was designed to measure very low frequency related to very low force.

| National Physical Laboratory

The micro-vibration test instrument gives the ESA confidence that a satellite’s mechanisms in space will generate verified forces and torques as displayed and confirmed on the microvibration test instrument on Earth. ESA and its contracted manufacturers, rely

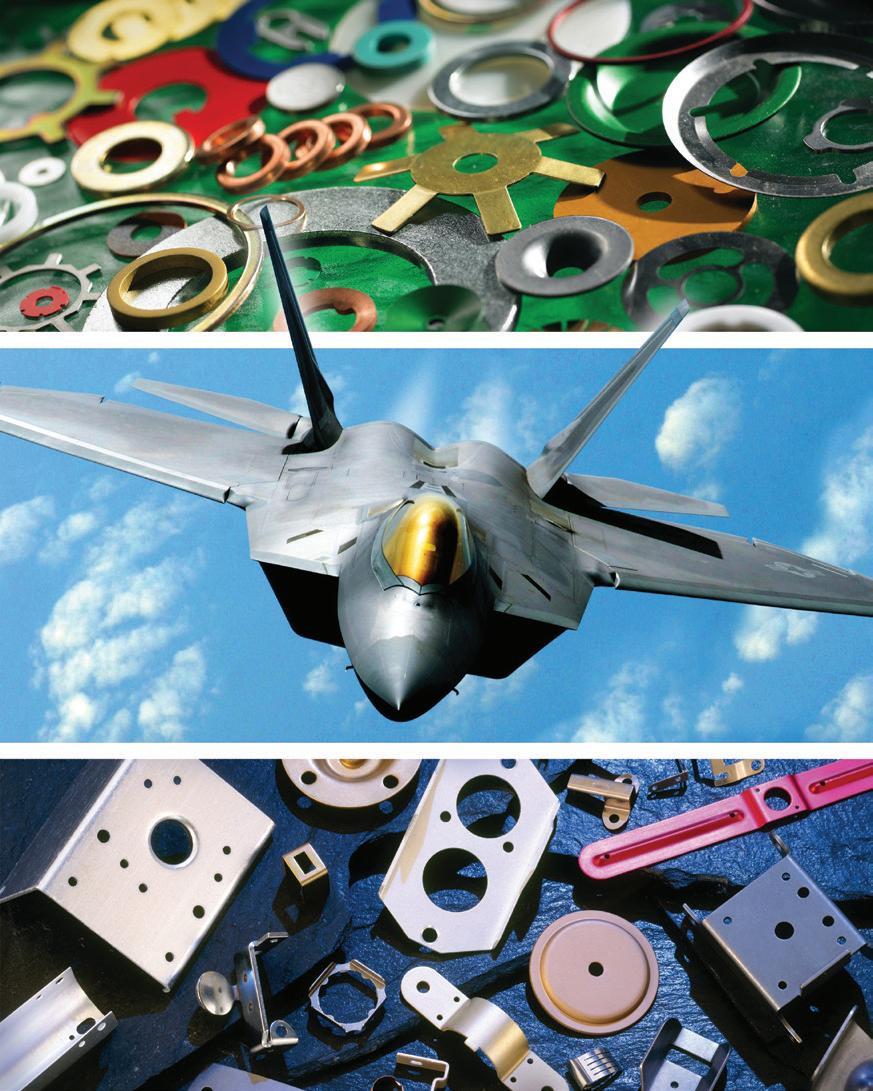

Precision Stamped Components for the Aerospace & Defense Industry

Boker’s provides custom stamped component parts to accommodate nearly any aerospace and defense application, including avionics, control systems, engines, hydraulic, pneumatic and other equipment that require unique specifications. Boker’s Quality Management System is certified to the stringent AS 9100:2016/ISO 9001:2015 standard, and can comply with DFARS and RoHS, with the ability to manufacture to customer provided AN, NAS, MS and MIL spec standards.

At Boker’s, we know that aerospace and defense OEMs demand manufacturing partnerships with the highest levels of precision, quality management and performance, along with a strong understanding of unique industry requirements ranging from space/non-space qualifications to AMS specifications. For over 100 years, Boker’s continues to meet the evolving design needs of the aerospace, aviation and defense industries.

on exact specifications as developed, verified, and standardized by NPL research acquired from the microvibration test instrument. Critical to the success of this project has been Negative-Stiffness vibration isolation.

Minus K • minusk.com

Kapton® polyimide tape with a low outgassing adhesive

This specialized Kapton® tape joins treated polyimide film with 3M™ 966, a 2 mil. high temperature (up to 400°F) acrylic adhesive laminated on one or two sides. The balanced performance properties of polyimide and adhesive with low outgassing lowleachable chloride makes this tape ideal for different aerospace applications; including label overlays, flexible circuit attachments, and wire or harness cable wrapping. Customizable in sheets, rolls, and die cut parts. CS Hyde is your source for custom or short run adhesive lamination of polymer film substrates, including PTFE, Nylon, Mylar, PEEK, ULTEM, and other high-performance films.

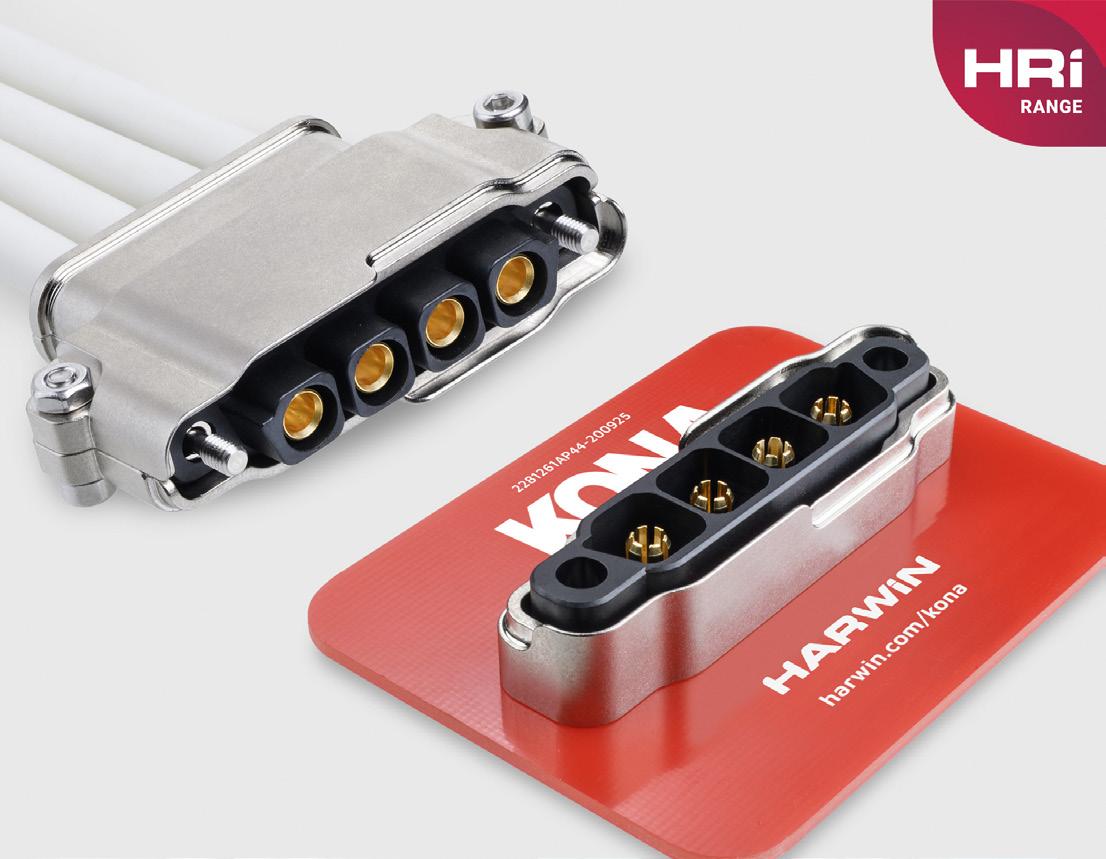

Kona Connectors

60A per contact, Highreliability Connectors

Kona expands the Harwin High-Reliability portfolio into new levels of current – 60A per contact. Designed to withstand testing environments and conditions.

• 2, 3 or 4 single row configurations

Vertical cable-to-board or cable-to-cable

• Vibration and shock resistant, compact power future-proofed

• 60A max per contact

• 6-finger contact design to maintain electrical contact through high vibration and shock

Other useful features include reverse fix screws, polarization, and identification of the #1 position.

Harwin provides CAD Models, Test Reports and F.O.C samples to assist you in the design process.

For more information, visit harwin.com

CS Hyde Company www.cshyde.com

800-461-4161 • Lake Villa, IL 60046

LEMO®: Your UxV Interconnect Solutions Partner

Experience seamless connectivity with LEMO® connectors for UxV applications. Our high- performance, rugged, and lightweight aluminum connectors are designed to withstand the toughest of environments while delivering effortless interconnectivity.

Power up with low/high current contacts or Ethernet for smooth data transmission in a high-quality connector range for outdoor environments with multiple keying options to prevent mismating.

LEMO® UxV Connectors include the T Series, M Series, B Series, T Series, and K Series designed for uncrewed/crewed vehicles, commercial and military aviation, drones, surveillance, space launchers and stations, as well as data communication applications.

When you choose LEMO® , you can have confidence in the reliability and performance of its products, backed by unwavering dedication to quality and customer satisfaction.

Scan the QR code to learn more!

LEMO USA, Inc. 635 Park Ct, Rohnert Park, CA, 94928 USA (707) 578-8811 • Info-us@lemo.com • www.lemo.com

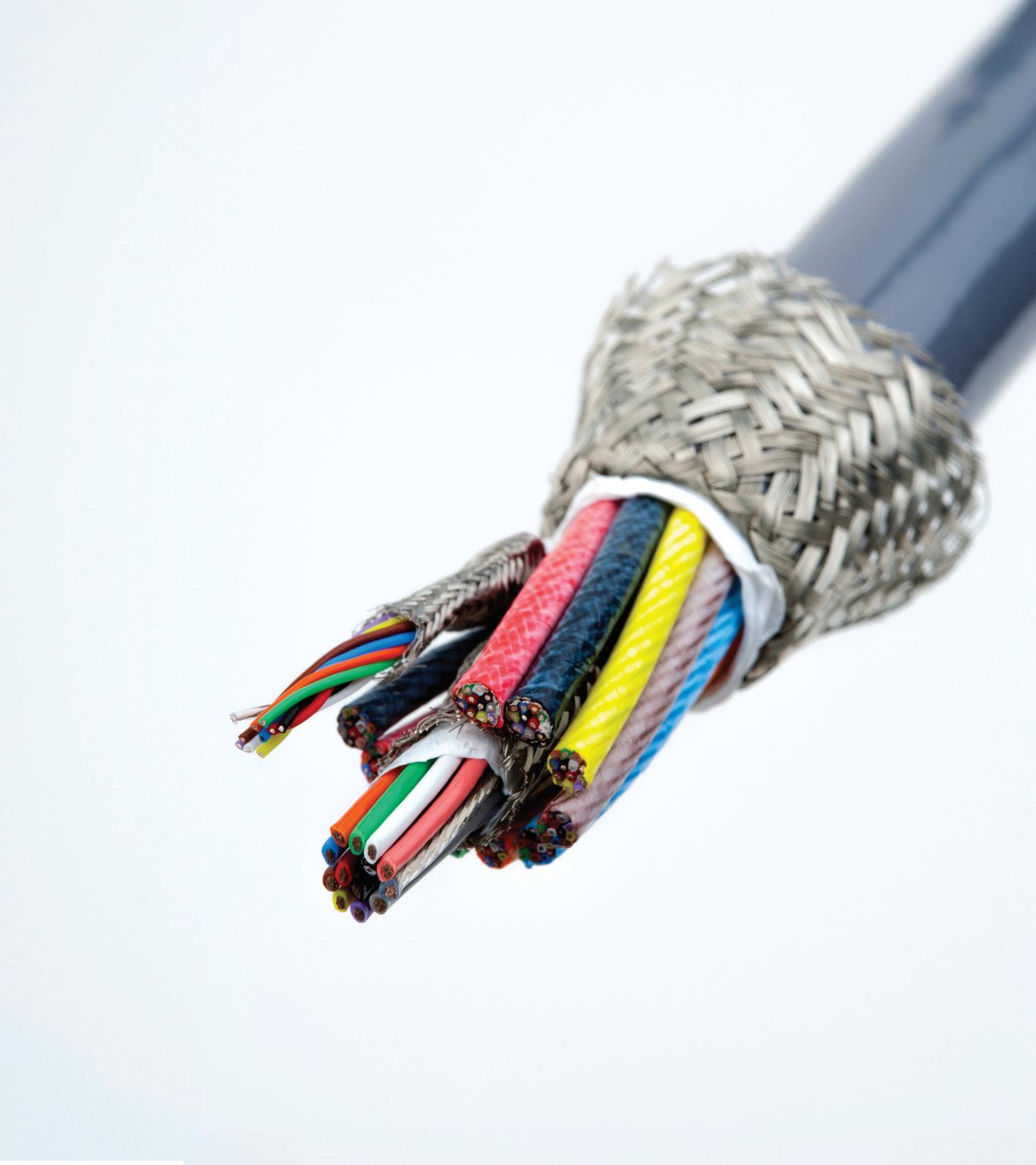

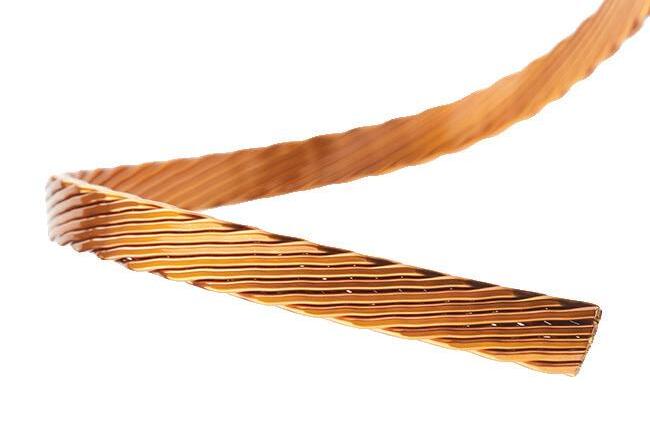

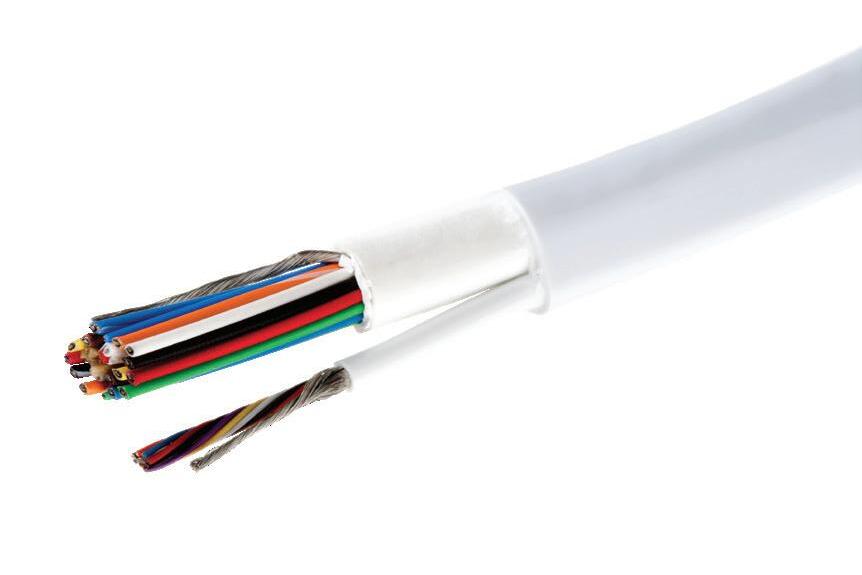

New England Wire Technologies

Advancing innovation for over 100 years

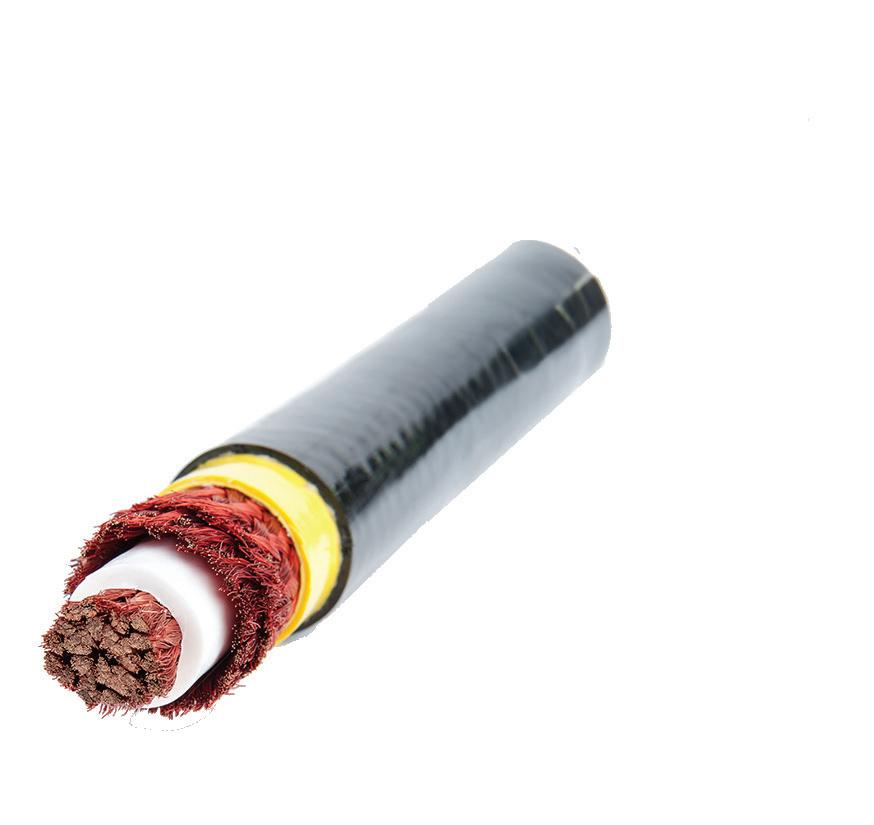

Why accept a standard product for your custom application? NEWT is committed to being the premier manufacturer of choice for customers requiring specialty wire, cable and extruded tubing to meet existing and emerging worldwide markets. Our custom products and solutions are not only engineered to the exacting specifications of our customers, but designed to perform under the harsh conditions of today’s advanced manufacturing processes. Cables we specialize in are LITZ, multi-conductor cables, hybrid configurations, coaxial, twin axial, miniature and micro-miniature coaxial cables, ultra flexible, high flex life, low/ high temperature cables, braids, and a variety of proprietary cable designs. Contact us today and let us help you dream beyond today’s technology and achieve the impossible.

NEWENGLANDWIRE TECHNOLOGIES

New England Wire Technologies www.newenglandwire.com

603.838.6624

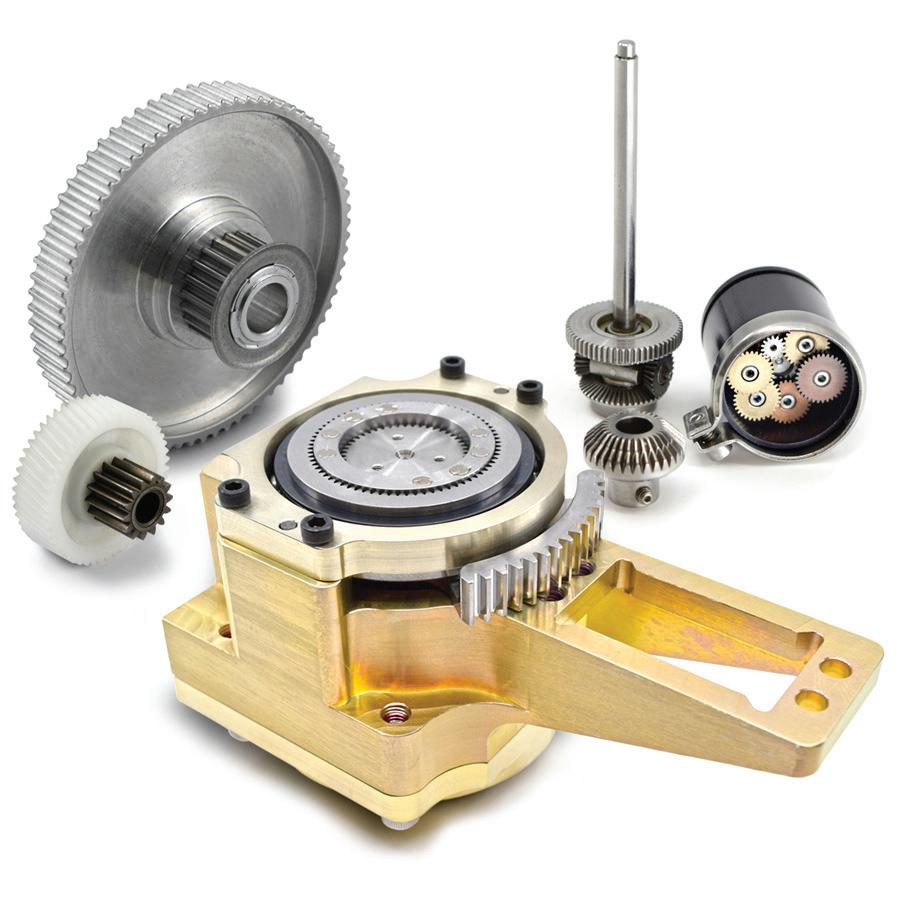

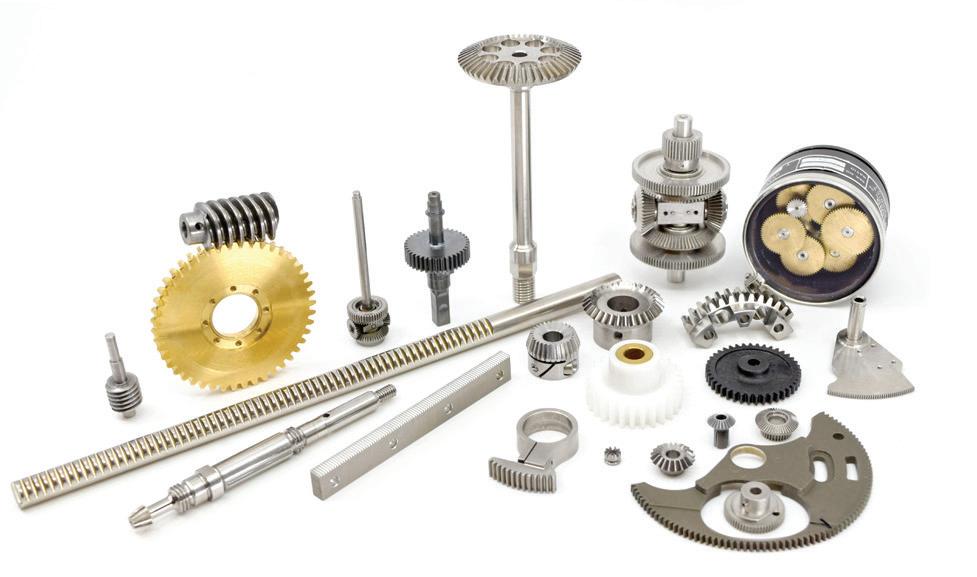

Stock and Custom Aerospace Components and Assembly

SDP/SI provides engineering development, manufacturing, and assembly for the aviation, defense, and space industries.

ISO 9001 + AS9100 certified, we create precision gears, high-quality mechanical components, and motion control solutions for OEM’s such as Honeywell, Boeing, Raytheon Co., NASA, Lockheed Martin, GE Aviation Systems, and more. From actuation/positioning systems to instrumentation, SDP/ SI components can be found on commercial and military jets, missiles, satellites, tanks, UAVs, and robotics. Prototype to high-volume production, we have the technology, CNC equipment, and expertise you need.

Call Us! (516) 328-3300

Stock Drive Products/Sterling Instrument (SDP/SI)

250 Duffy Avenue, Hicksville, NY 11801

www.sdp-si.com

sdp-sisupport@sdp-si.com (516) 328.3300

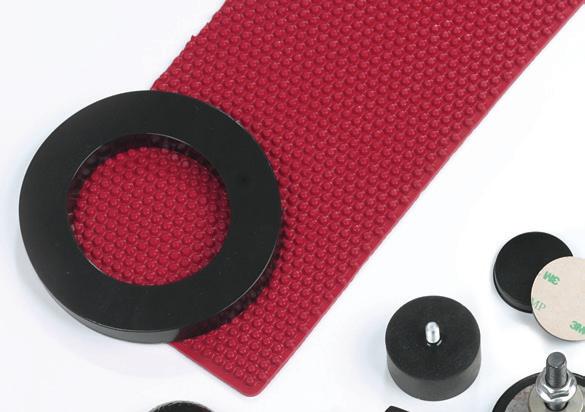

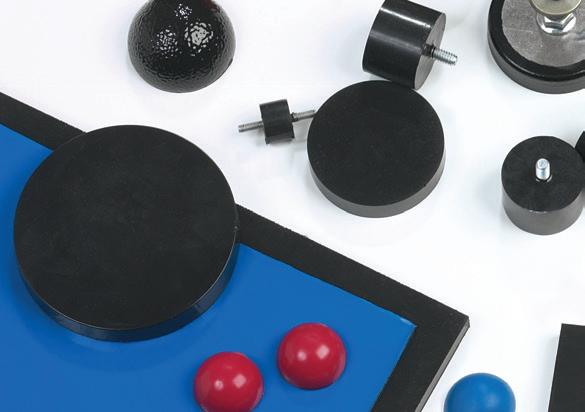

Sorbothane, Inc. –Shock and Vibration Solutions
