portfolio-yanan wang

Date of Birth:01/13/1990

Female BeiJing,China

Email:13522531377@139.com

Tel:+8613522531377

EDUCATION

Hebei University of Technology

Bachelor of Architecture

Major: Architecture

IELTS:6.5

AA DRL: Graduate Student

WORKING EXPERIENCE & DESIGN PROGRAMS

CRCCRE China Railway Construction Real Estate Group Co.Ltd.

Principal Architect

Project Engagement:

Development of upscale courtyard villa ‘CRCCRE-Humble Administrator Jiangnan’ project

Upscale apartment project development

Zhangjiakou Wanquan Xishan International City Residential Area Planning Project

China Railway Construction Guianhua Villa

Zhubo Design

Architectural Project Manager

Project Engagement:

Xiamen Taihe Baitang Bay Jinshanling Residential Planning Project

Poly Nanhu Zhongjie Residential Planning Project

Lanzhou Vanke City Exhibition Zone Design

Shenzhen Zhongzhou Shangsha Kindergarten Design

CCDI

Principal Architect

Project Engagement:

Vantone Beijing Huairou Residential Area Planning Project

Xi'an Huayuan Jingyue II commercial design

Architect

Project Engagement:

Xiamen Railway Line 1 Comprehensive

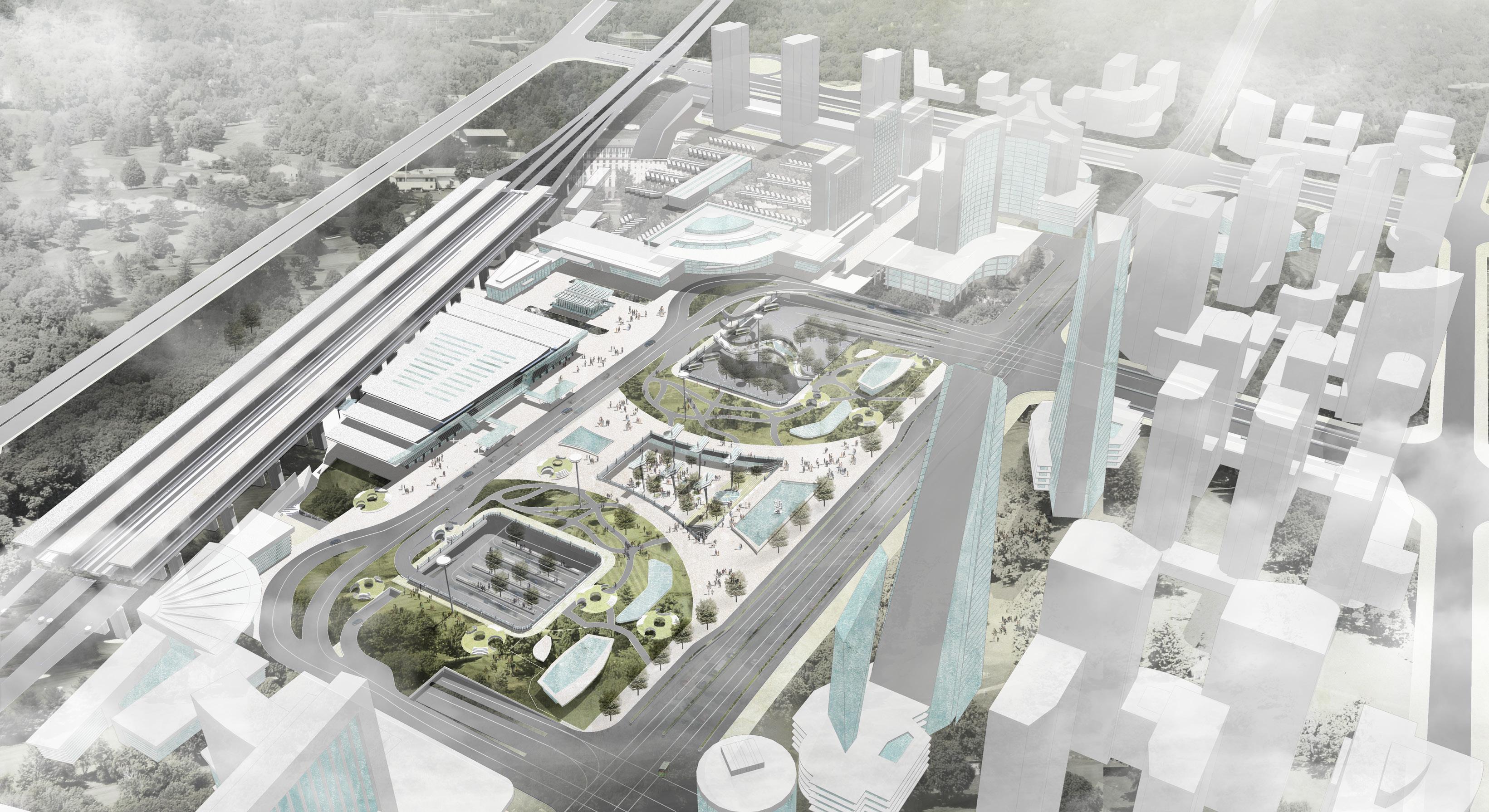

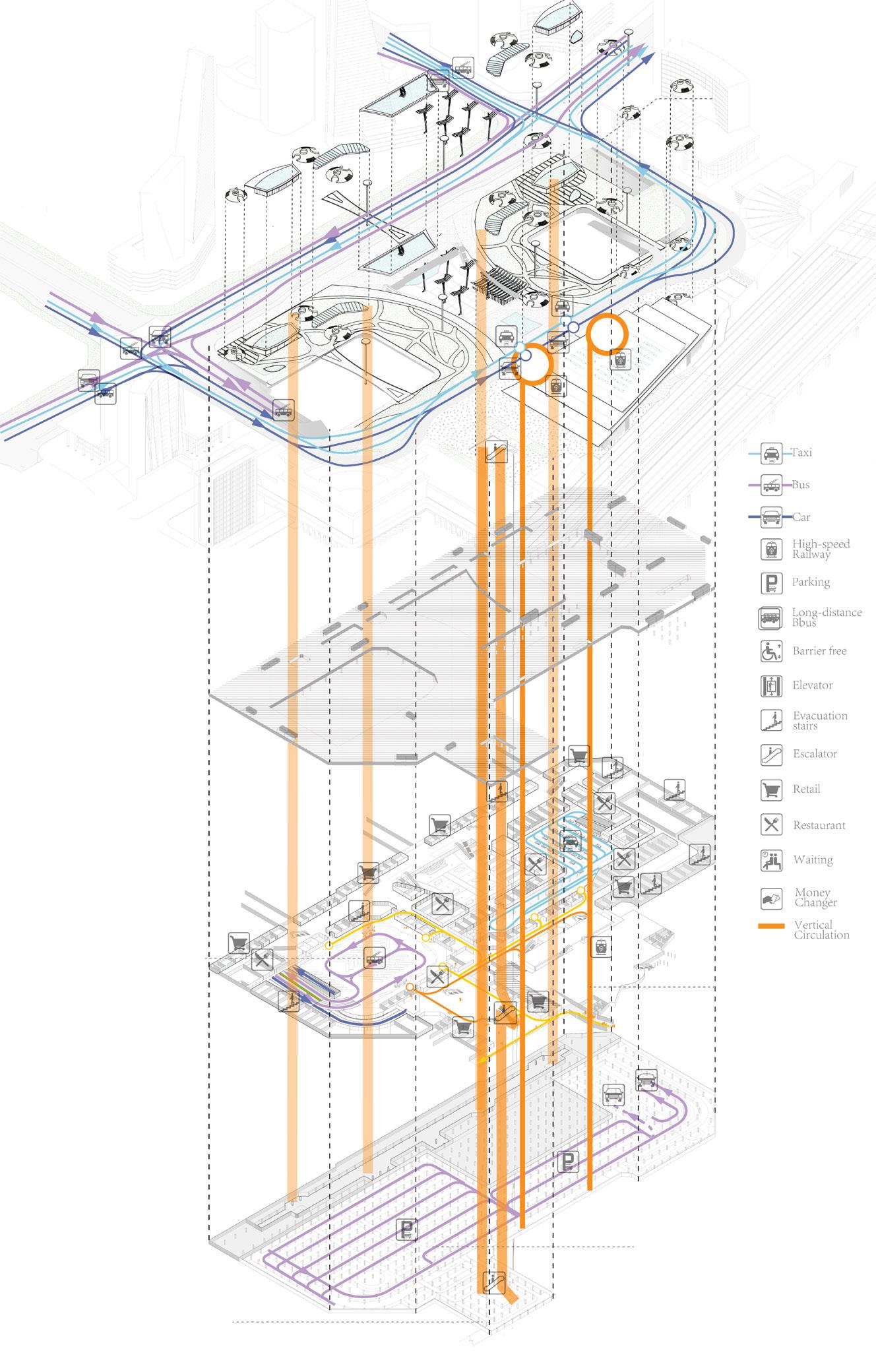

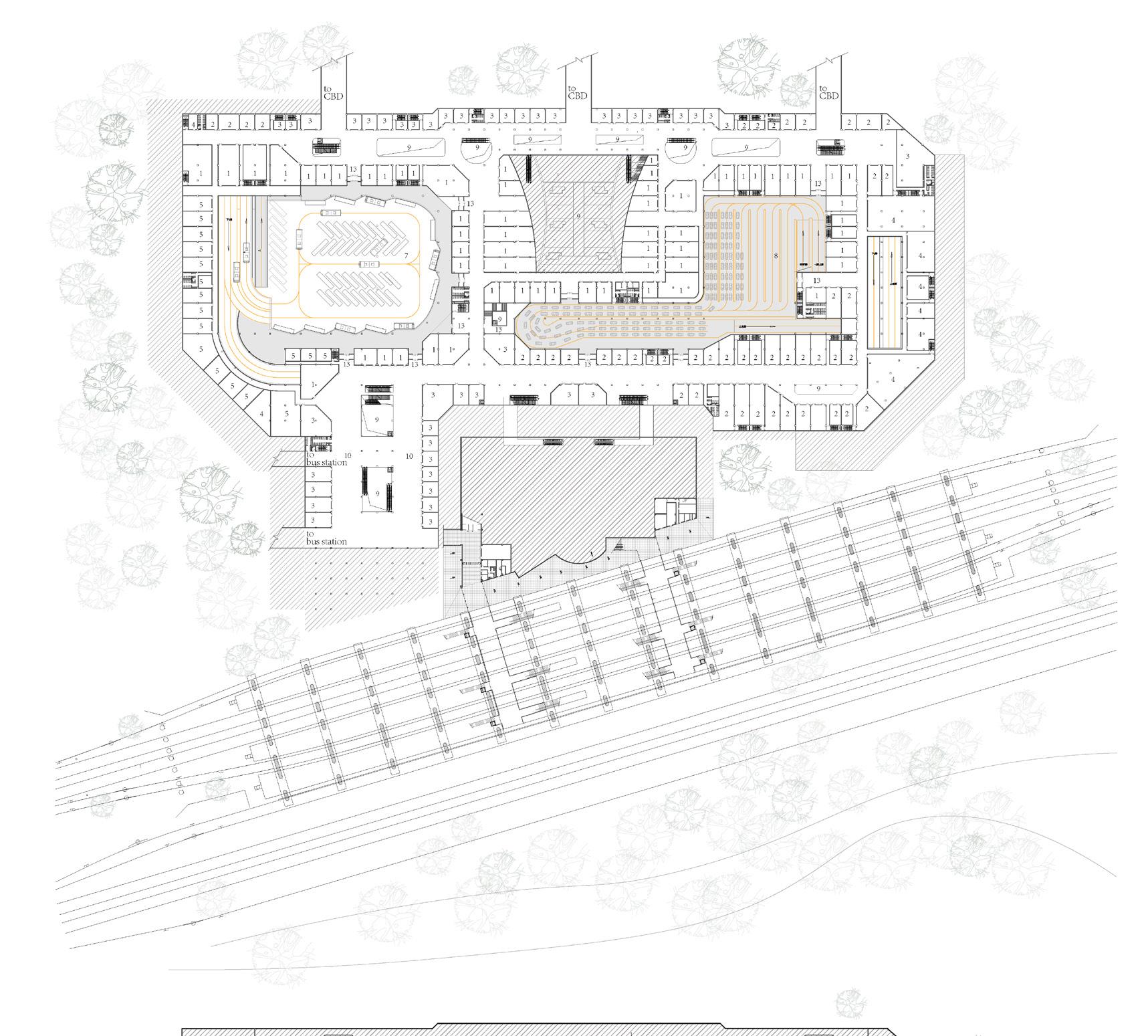

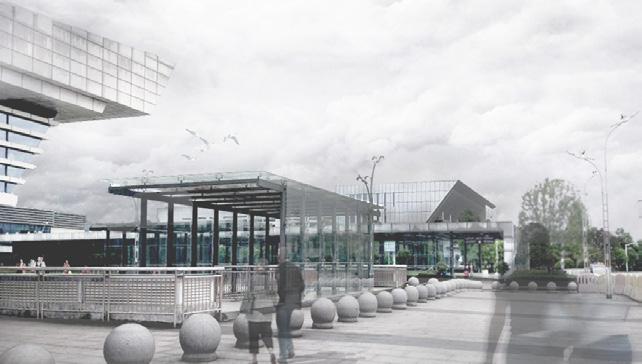

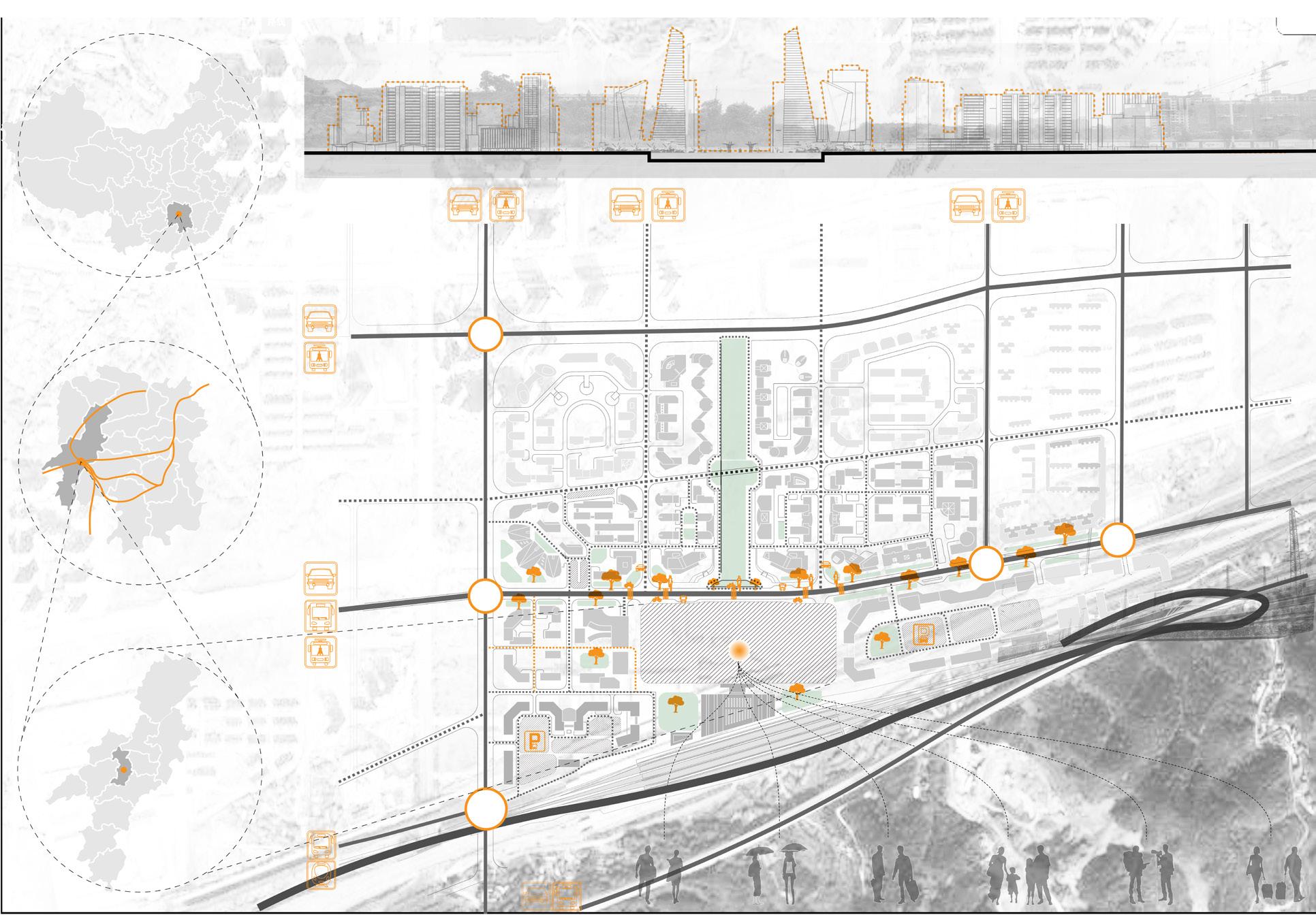

Huaihua South Station Front Square and Comprehensive Transportation Hub Project

Nanning Anji Wanda Plaza Grand Commercial Design

Shaanxi Baoji Wuzhou Central Park commercial complex design

Ningbo Wantou Primary School Design

PUBLICATIONS

An Analysis of The Conservation and Development Ideas of The Countryside Based on The Concept of The Pastoral Complex

The Concept of The Pastoral Complex

Published on Theoretical Studies on Urban Construction in Nov. 2022

Domes�c Uniform Number: CN11-9313/TU; Interna�onal Publica�on Number: ISSN2095-2104

HONORS AND AWARDS

‘China Railway Construction Guianhua Villa’project

Patent for Utility Model

Patent for Appearance design

‘CRCCRE - Humble Administrator Jiangnan’ project

Granted 14 national patent technologies

Awarded 4 international awards:

Golden Nugget Awards/International Residential Architecture Awards Italian A Design Awards/MUSE Design Awards

Second Class

Scholarship/Third Class Scholarship Outstanding Student

SKILLS & INTERESTS

Modelling software: Rhino, Grasshopper, Sketchup

Rendering Software: V-ray，Enscape，Lumion

Drawing Software: Procreate, Sketchbook, Photoshop, Indesign, Illustrator

Multimedia Software: Premeire, Cinema 4D

Presentation Software: Acrobat, Powerpoint

Manual model making:Laser cutting, 3D printing

Photography skills: Lightroom, composition basics, camera basics, splitting

Dribbling , story line authoring

Interests: piano, painting, photography

CONTENTS

Site:SiChuan,China

R&D Work/Individual work

Date：2020.07-2020.12

Instructor: Luping Hu

Our society is in a constant state of change. People are moving around and becoming more and more uninhibited. Migrants have become a new demographic. Their workplaces are located in different areas and time zones. These transplants are constantly changing their homes and adapting to their new environment time and time again. Does Starbucks really alleviate the 'jet lag syndrome' (through caffeine and daily work), or does it simply enhance the sense of spatial and temporal chaos?

How should one live in a normal city?

Is buying a house therefore still attractive?

In the global village, serviced flats seem to offer a natural habitat for the transplanted population. An abstract way of life. Unrestricted and free.

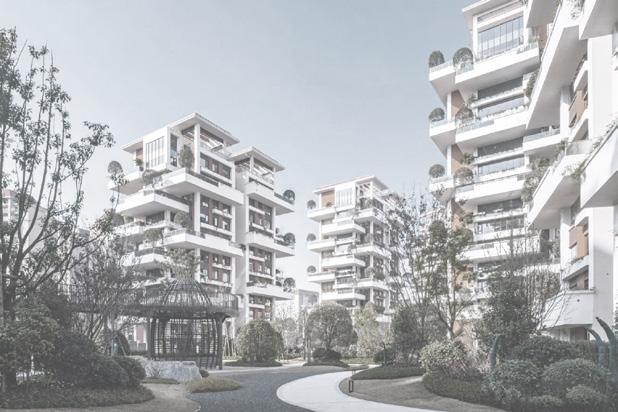

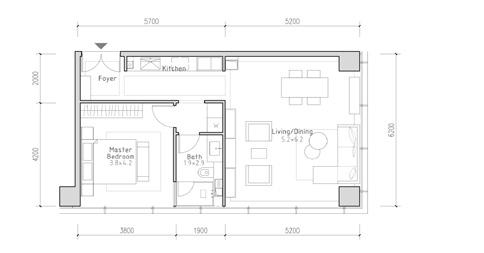

Project1：High-End Residence Innovative Serviced Apartment

Stage1 Stage2 Stage3 Stage4 Stage5

Lilong Life

Multiple families live together and are closely connected

Tube-shaped Apartment

The vertical development of family living space, closer family connection, part of the public space used

Congregate Housing

The quality of living has improved, and the number of family units has further decreased, often with only three generations living

The Description Of Representative Customer Group

If there is a commercial complex nearby, such as shopping and entertainment facilities, I do not have to rush from one district to another.

Living Alone In The City House prices have risen, the pace of life has accelerated, the lifestyle has changed, and the number of family units has decreased.

Future Life

With the reduction of the number of families and the diversification of functional needs, we began to envisage a new living mode...

R&D Results In The Field - Product House

Traffic jams are often encountered on the way to work.

A clubhouse (including a gym and swimming pool, etc.) is desired, as well as children's play facilities and areas that are more appealing to families.

The rooms in the dwelling are difficult to open with larger windows and views are generally limited

We hope that there will be a detailed property management service, such as renting and management, followed by reminder messages,

As a business person, I often have to work late and when I get home I have some work to do, so it would be nice to have a separate office area.

Traffic jams are often encountered on the way to work, so if housing in the area around your work, you don't have to waste time on the road.

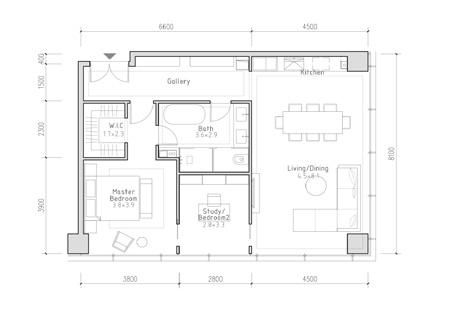

I would like the living room and dining room to be together, so I can practice yoga and put projections in the open space.

The master bedroom, as a necessary space for rest, needs a comfortable resting space and needs.

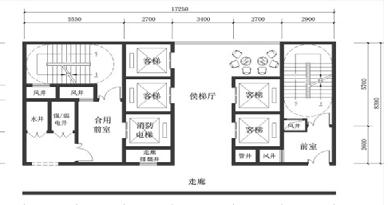

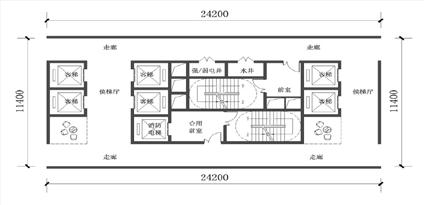

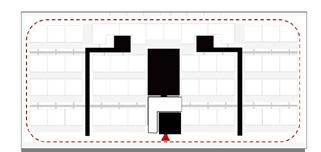

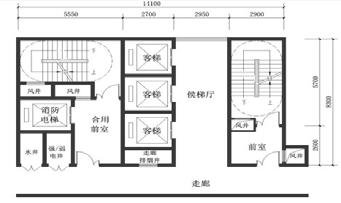

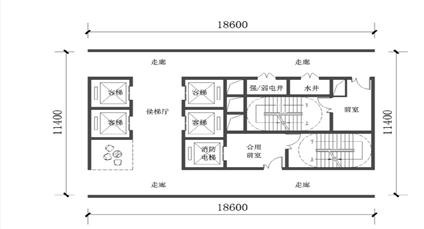

6+1 lifts. One lift

2+1

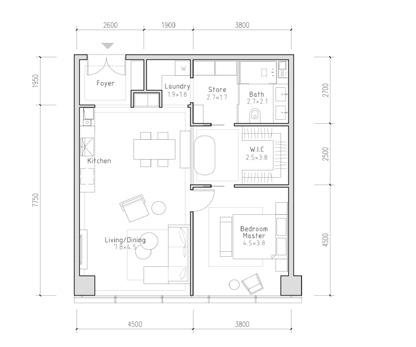

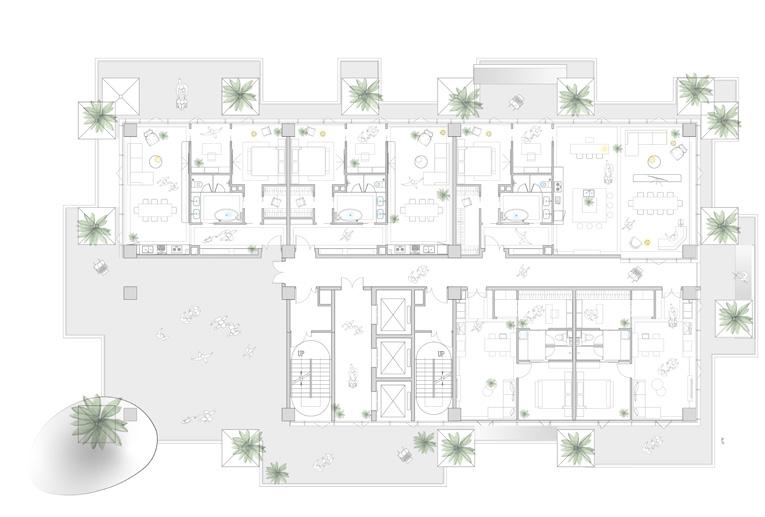

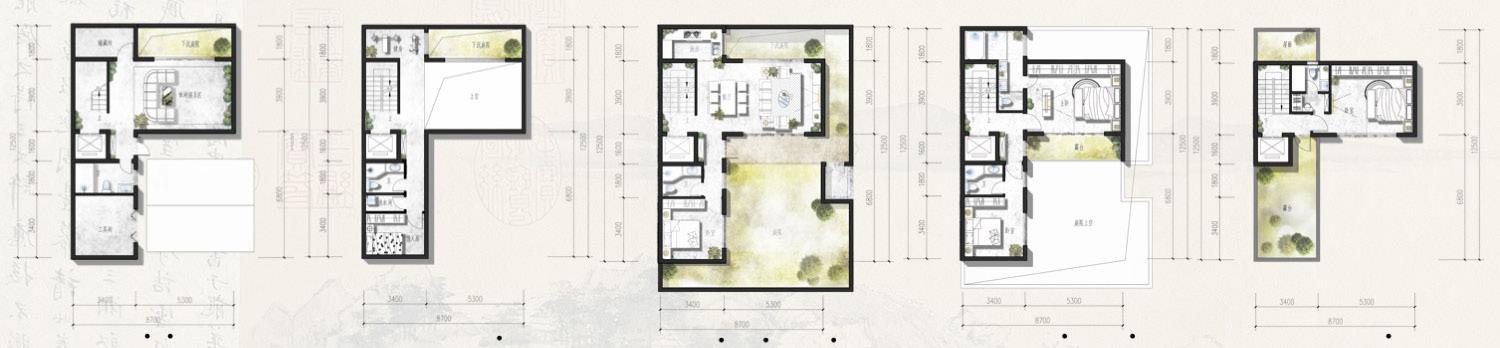

Four Modular Floors

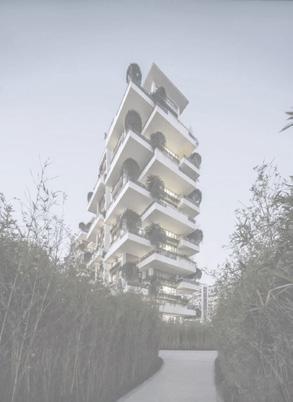

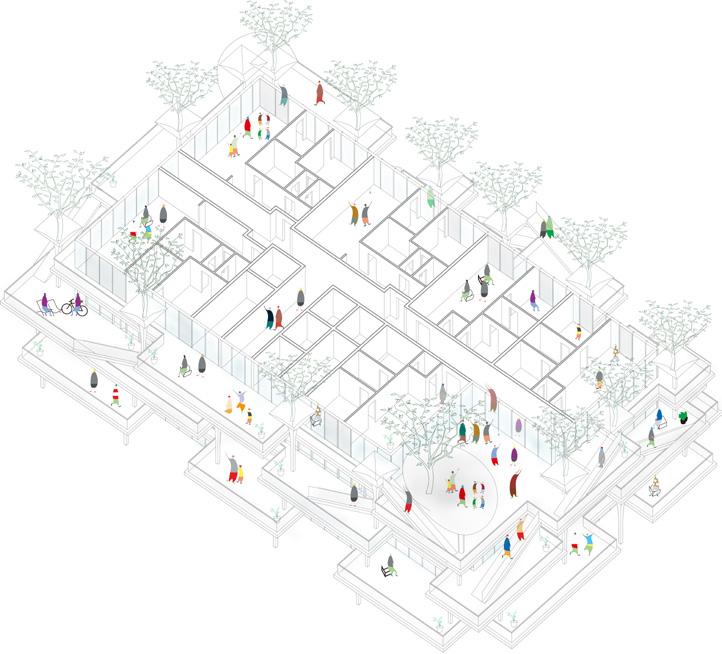

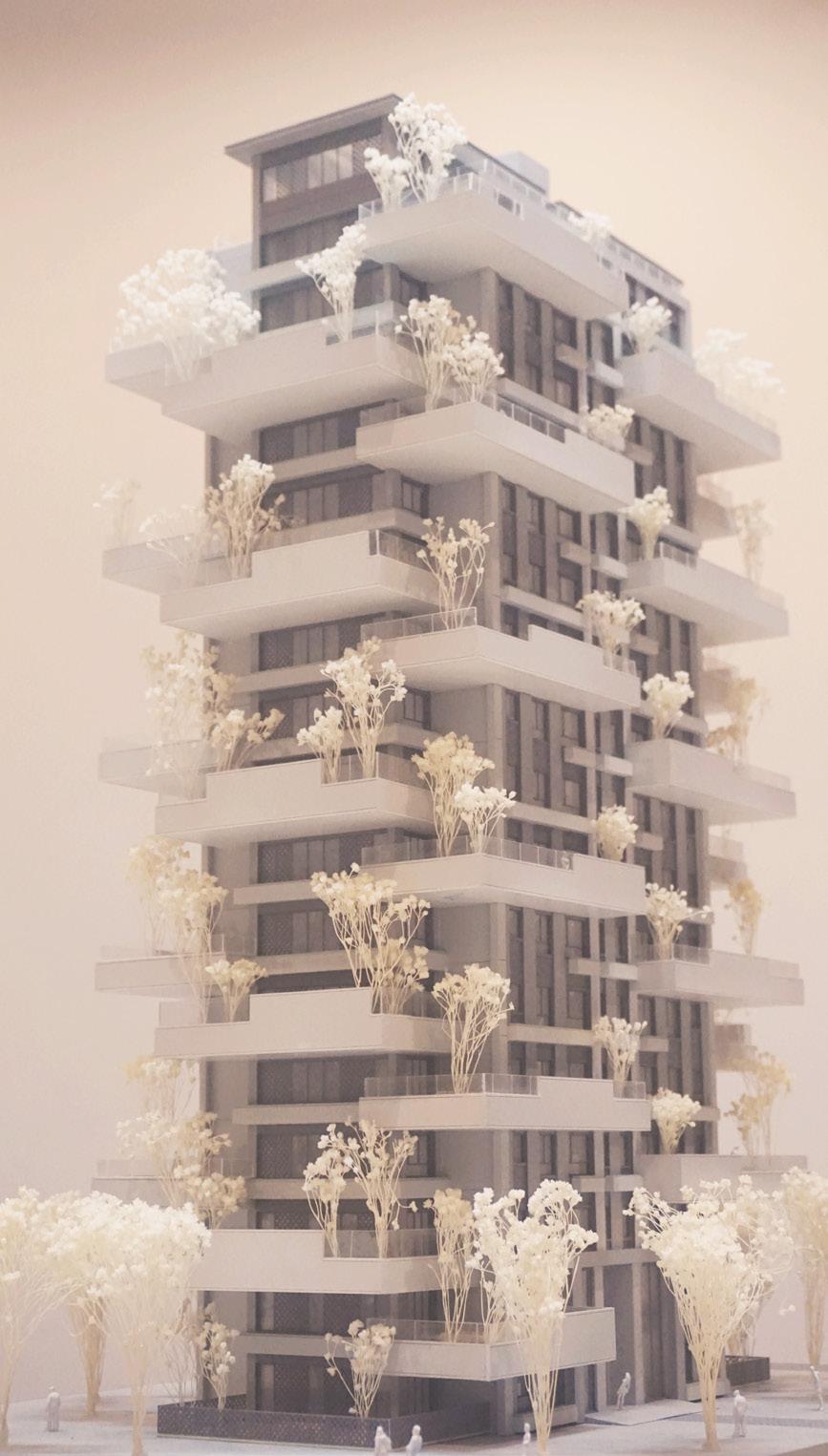

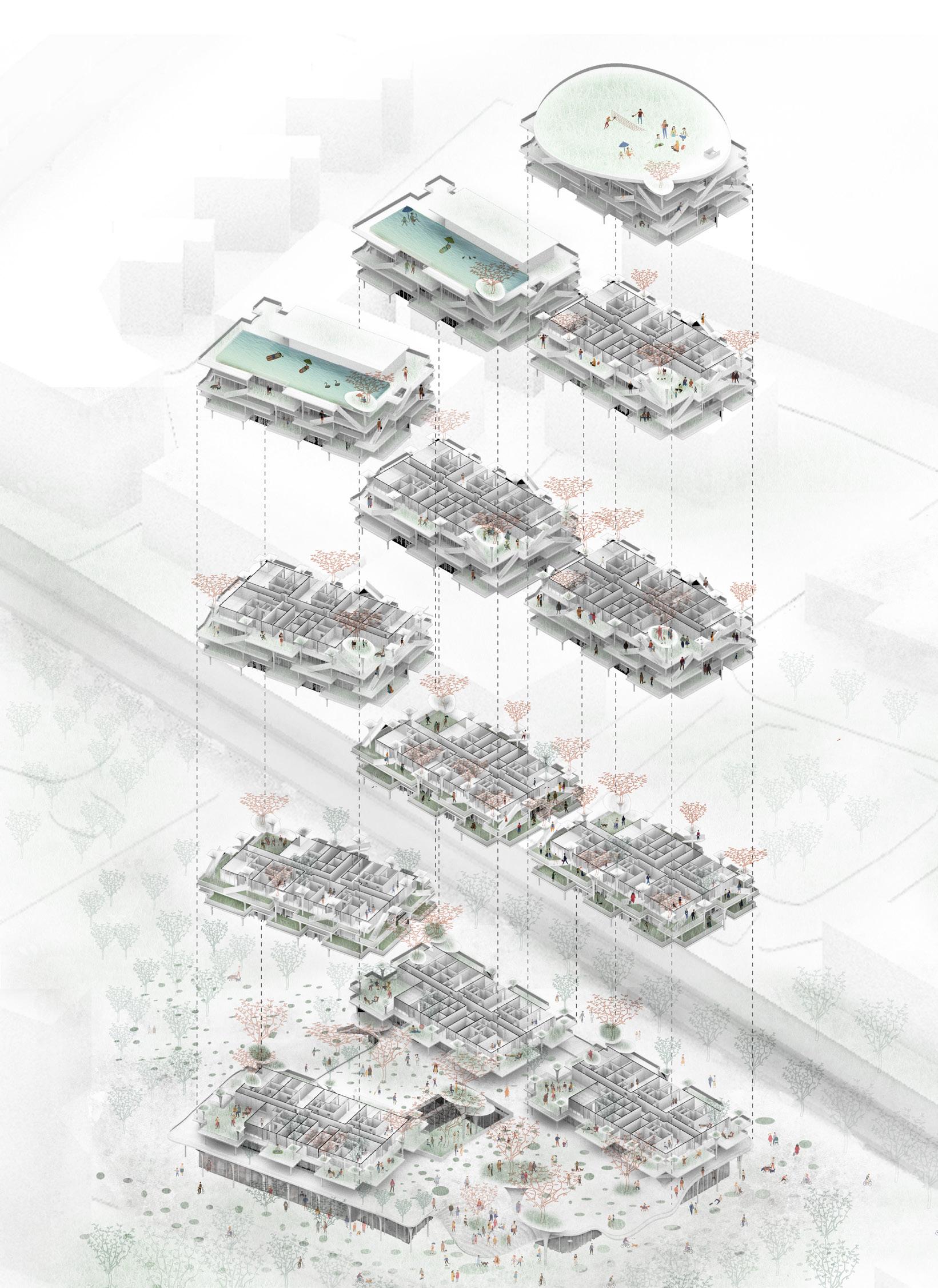

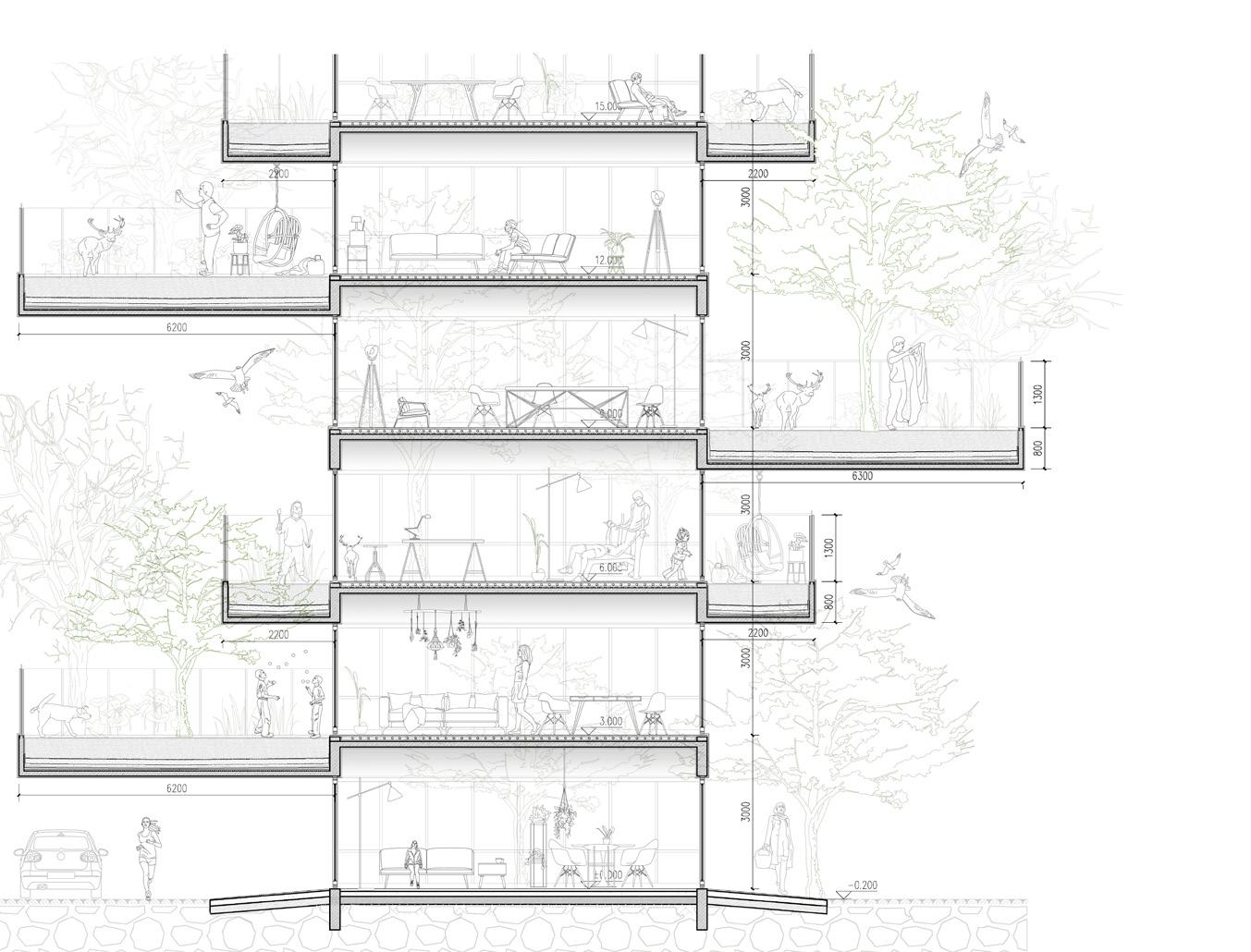

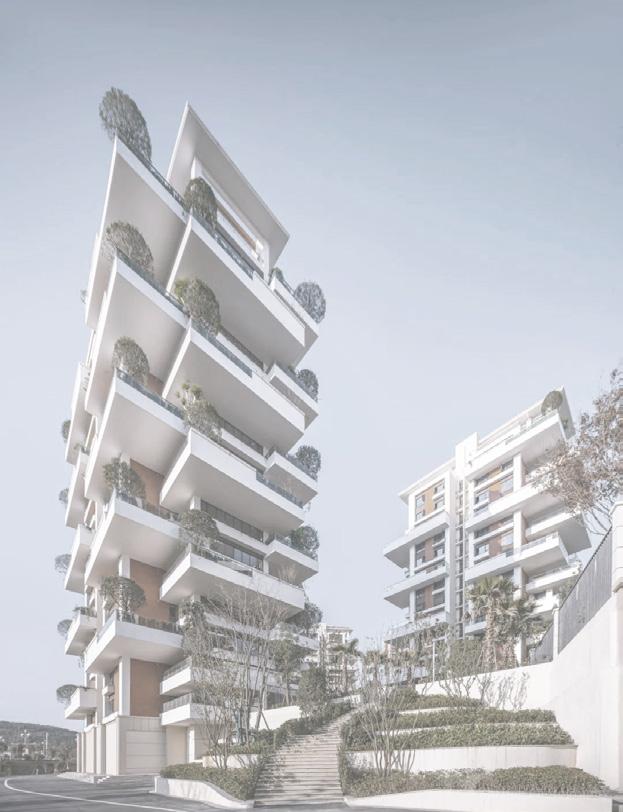

The scheme consists of a series of stacked floor plates that rotate and stack roof plates to create varying degrees of privacy, giving a rich psychological experience of openness or closure, light or darkness. This is complemented by the accent of vegetation and the fascinating views out to the periphery and beyond. In order to ensure the differentiation of the building volumes and to maintain a reasonable architectural proportion, the tower consists of four modular floors that are repeated in different ways throughout the building. The building structure is supported by a system of cores and regular column networks, so that the interior walls do not need to be loadbearing and can be flexibly arranged for a variety of uses.

4+1 lifts. One lift for 1.5

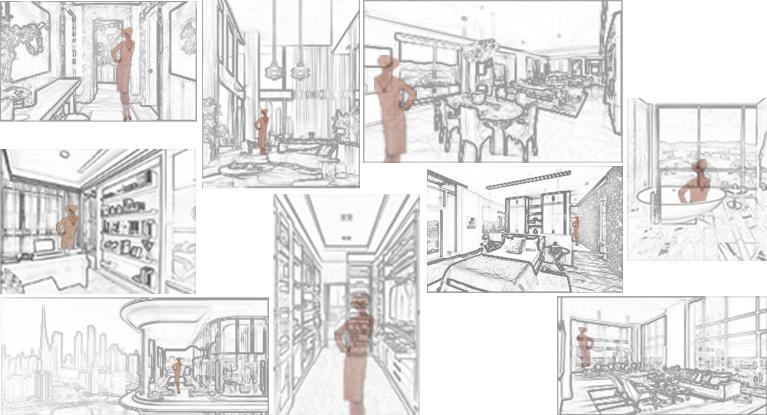

scene1 Entrance hall

The opposite view treatment,fine storage, concave door bucket design, increase privacy;

3+1

scene2 Public Areas

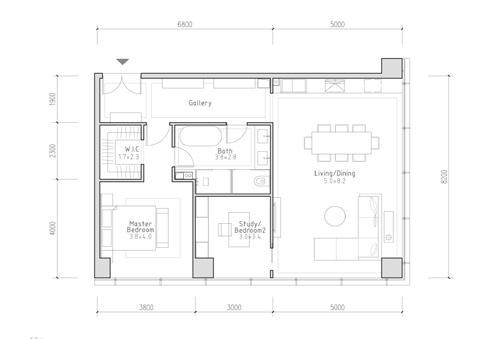

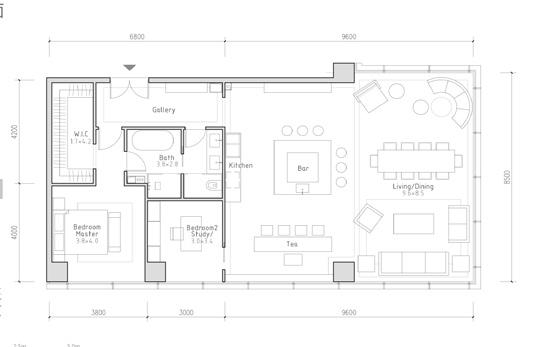

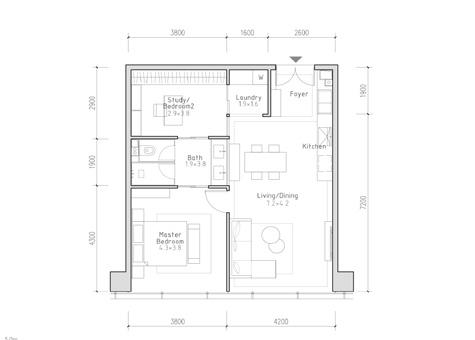

Approx. 1/2 or more; average bedroom area of 76 m² ~ 136 m²; transformation of the living room

Giving more functionality with a western kitchen, breakfast counter, bar and lounge area, it becomes a further extension of family life.

scene3 LDK Integration

The integration of space, migratory movement, amplification of space, relaxation, hospitality, communication and interaction.

scene4

Ribbon Windows

180or270view for a magnified visual experience; emphasis on the wide horizontal spread, the sense of picture presented by the landscape.

scene5 variable space

Personalised functional requirements with glass partitions / folding doors to make the home growable

scene7 Exclusive Bathroom Cloakroom

Four separate layout forms, luxury double basin + viewing bathtub, walk-in cloakroom and storage experience; making life more "private"

scene6 luxurious master bedroom suite

The emphasis is on being more human, privacy , the different needs of men and women, where the first rays of the morning sun are welcomed and every cell of the body is awakened.

scene8

Large Scale

Floor Heights

Floor-to-ceiling windows with wide views and absolute possession of firstline views

"The city has both an urban atmosphere full of literature and the bustle of a metropolis." Chengdu is a city that blends traditional and modern culture very well.

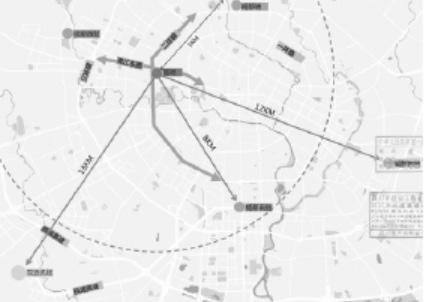

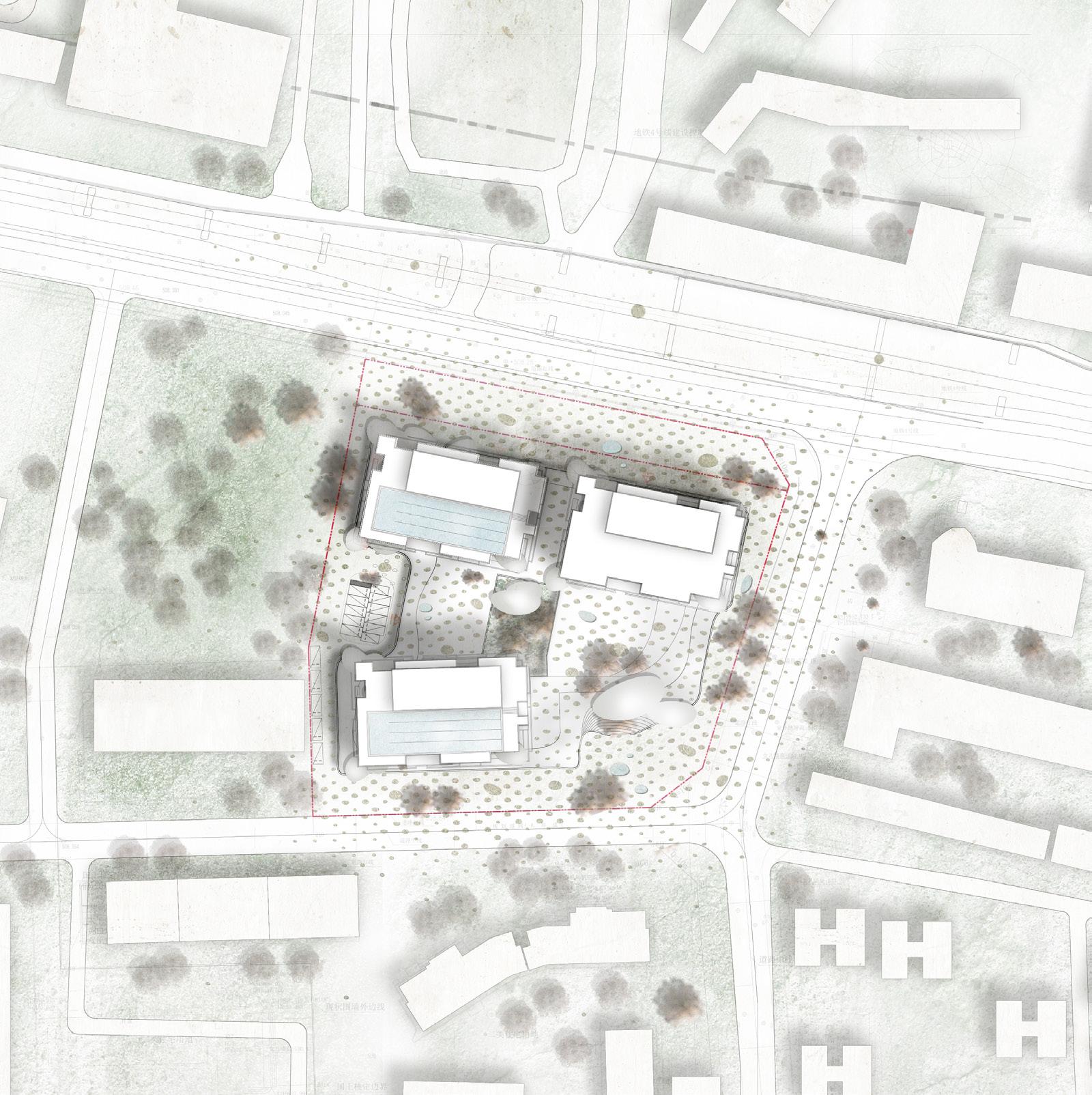

The base is located on the inner side of the Second Ring Road in the western part of Chengdu, close to the Chengdu-Wen Interchange elevated, the project is conveniently located, with mature commercial facilities such as education and healthcare, a strong cultural and governmental atmosphere, and according to the superior location of the whole city. The three buildings reach a height of 145m, offering stunning views of the Chengdu skyline.

Unusual balconies and outdoor staircases create a dramatic spatial structure, both partly static and private, and partly floating and public, with the floors adding to each other to form open, permeable spaces, connected to each other and to the surrounding landscape and city. It is an ideographic, interwoven space that connects the different floors of the development into an open and inclusive social space.

An abstract way of life, unrestricted and free.

People gather here not only to have their own lives but also to mahjong, drink wine, sip tea, listen to Sichuan opera, eat hot pot and work out with their neighbours around them.

Sichuan opera

mahjongg

Tea Ceremony

storytelling;

hotpot

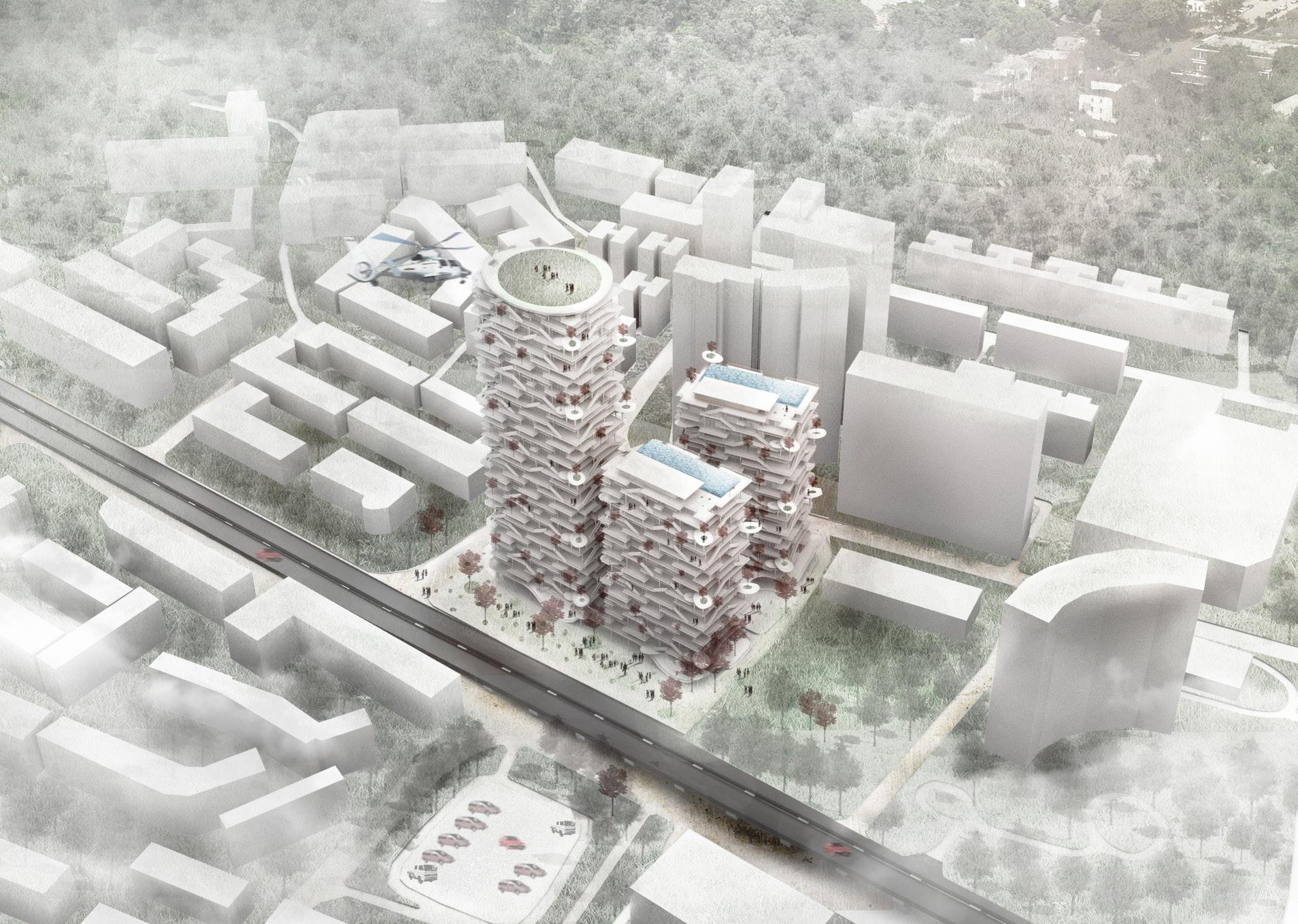

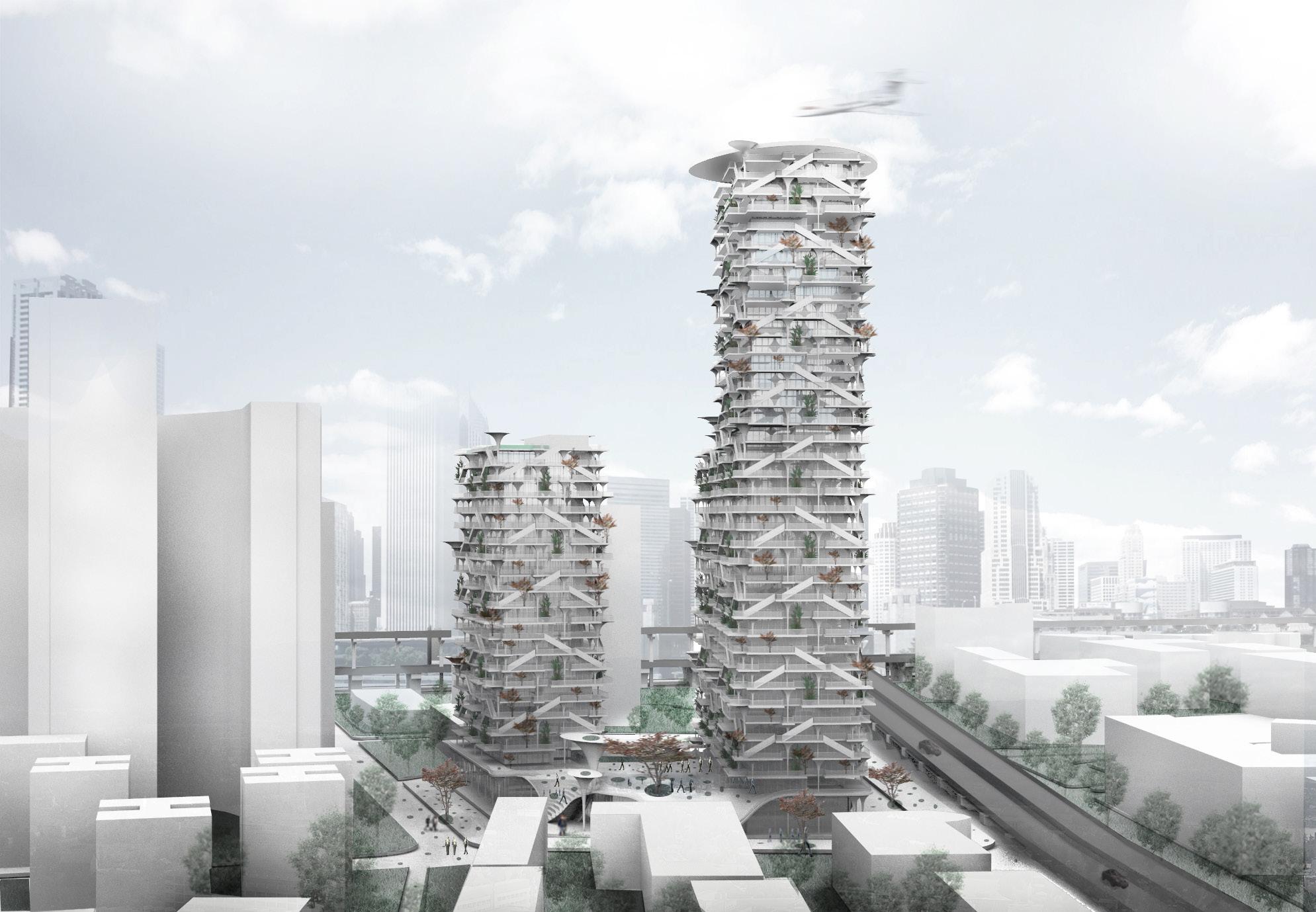

Birdview Perspective

Our society is in a constant state of change. People are moving around and becoming more and more uninhibited. Migrants have become a new demographic. Their workplaces are located in different areas and time zones. These transplants are constantly changing their homes and adapting to their new environment time and time again. Does Starbucks really alleviate the 'jet lag syndrome' (through caffeine and daily work), or does it simply enhance the sense of spatial and temporal chaos? How should one live in a normal city?

Is buying a house therefore still attractive?

In the global village, serviced flats seem to offer a natural habitat for the transplanted population. An abstract way of life. Unrestricted and free.

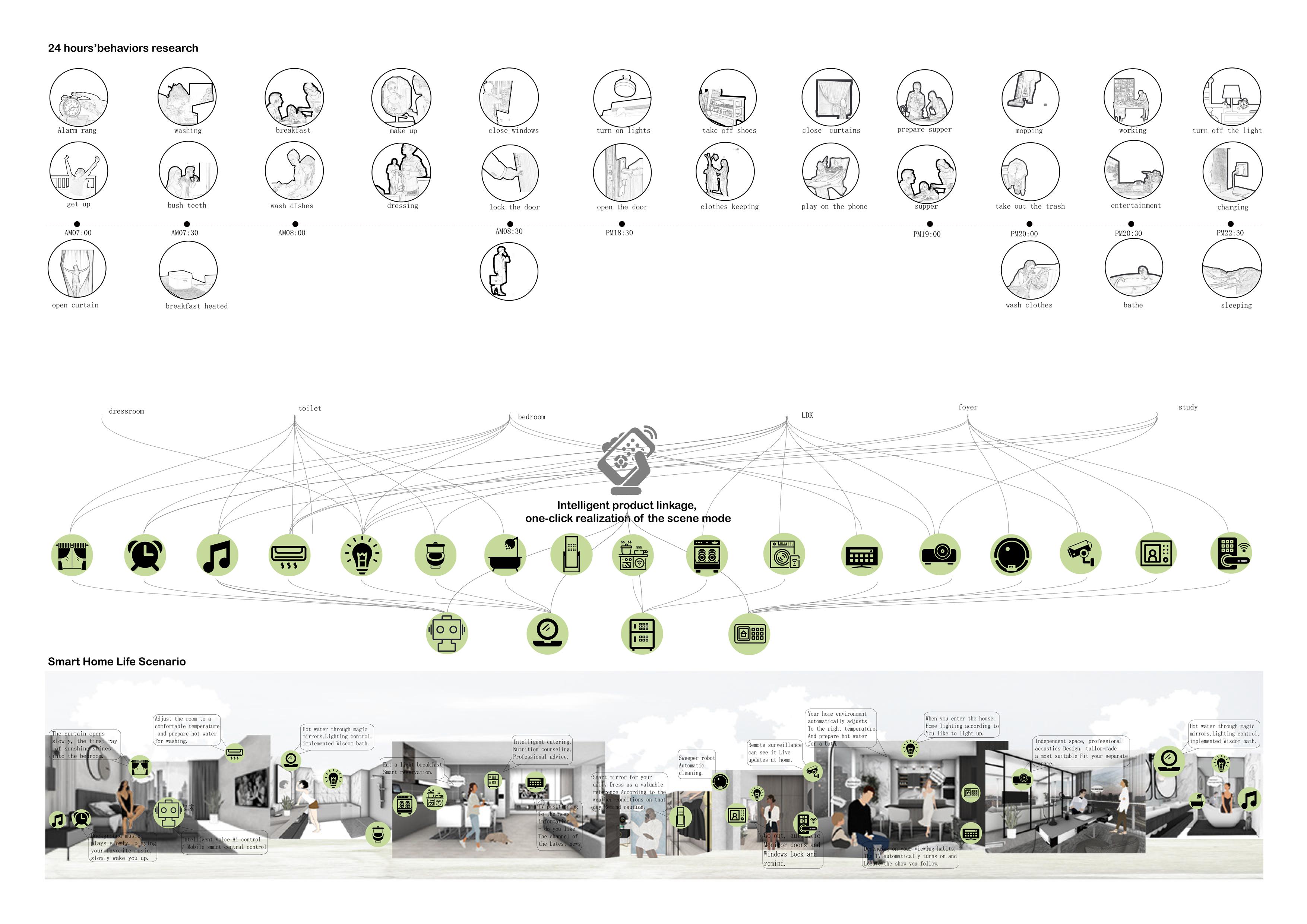

1 Entrance

Smart peephole H=1450MM

Smart Scenario Panel H=1300MM

Global scenes: preset "home", "away from home" and other common scenes, one key to turn off indoor lights and air conditioning, fresh air and other equipment, convenient and quick.

Smart peephole: The gate is equipped with 150° wide angle night vision smart peephole, with human body sensing detection function, strangers will automatically capture and push alarm information to the owner's mobile phone, and can realize visual intercom function with indoor intelligent terminal. Intelligent door lock: the entrance door is equipped with an intelligent door lock, which can be opened remotely by fingerprint, password, face recognition and APP, which is convenient and quick.

Electric-drive

Smart 2 Frame Panel H=700MM

2 inline frame panels H=700MM

Intelligent lighting: set up different scenes such as "reading", "watching movies", "getting up at night", etc. to present various moods with a single click

Smart curtains: equipped with motorised curtains, the curtains can be controlled automatically and can also be linked to scenes.

Intelligent air-conditioning: the intelligent system integrates air-conditioning control and can set different temperatures according to personal preferences, so you can start the airconditioning in advance through the APP before coming home and enjoy a comfortable temperature when you arrive home.

Emergency Alarm: Equipped with an emergency alarm button, you can push the alarm information to your family's mobile phone in time in case of emergency.

2 multi- function -readingroom

Intelligent Voice: The intelligent voice screen created in collaboration with KDDI can achieve touch screen control of air conditioning,lighting and curtains

Smart curtains: equipped with motorised curtains, the curtains can be controlled automatically and can

Smart

Electric-drive

Smart 2 Frame Panel H=700MM

2 inline frame panels H=700MM

Smart Voice Screen H=1300MM

2 multi- function -bedroom

WiFi coverage: High speed WiFi network with distributed deployment structure,creating a stable and high-speed wireless network, connecting to the world one step faster.

Intelligent lighting: set up different scenes such as "reading", "watching movies", "getting up at night", etc. to present various moods with a single click

Smart curtains: equipped with motorised curtains, the curtains can be controlled automatically and can also be linked to scenes

Intelligent air-conditioning: the intelligent system integrates air-conditioning control and can set different temperatures according to personal preferences, so you can start the airconditioning in advance through the APP before coming home and enjoy a comfortable temperature when you arrive home

Smart Fresh Air: Intelligent system with integrated fresh air control, which can be automatically activated or switched off according to indoor air quality

WiFi coverage: High-speed WiFi network with distributed deployment structure, creating a stable and high-speed wireless network, connecting to the world one step faster.

Emergency Alarm: Equipped with an emergency alarm button, you can push the alarm information to your family's mobile phone in time in case of emergency.

Smart Fresh Air: Intelligent system with integrated fresh air control, which can be automatically activated or switched off according to indoor air quality

Intelligent lighting: set up different scenes such as "reading", "watching movies", "getting up at night", etc. to present various moods with a single click

Smart curtains: equipped with motorised curtains, the curtains can be controlled automatically and can also be linked to scenes

Intelligent air-conditioning: the intelligent system integrates air-conditioning control and can set different temperatures according to personal preferences, so you can start the airconditioning in advance through the APP before coming home and enjoy a comfortable temperature when you arrive home

Smart Fresh Air: Intelligent system with integrated fresh air control, which can be automatically activated or switched off according to indoor air quality

Intelligent Voice: The intelligent voice screen created in collaboration with KDDI can achieve touch screen control of air conditioning, fresh air, lighting and curtains as well as voice control, with multiple control methods, allowing owners to truly experience the convenience brought by smart home.

Print deviation problems between layers:

The first layer is that the printing process is the basis between the rest of the parts, so once failed, almost all print specifications may be distorted.

Solutions:

First, adjust the temperature of your device and keep it high enough to prevent the plastic from cooling down and curling, because it tends to shrink.

If the first layer still curls up, raise the set temperature until you are satisfied with the result.

Next, check that your vertical or Z-axis is at the correct height, between 0.10 and 0.25 mm. This height should allow the printer to create an appropriate pressure between the nozzle and the bed, which is essential for printing the first layer.

Finally, make sure that the printing bed is clean, free of grease and any obstructions that may prevent the material from bonding.

Model warping

First adjust the lower knob of the platform to minimize the platform, and then select the platform calibration in the printer settings; Then adjust the knob corresponding to the platform angle to make the platform just contact the nozzle when the nozzle drops to the calibration point each time; Use this method to calibrate the four platform angles once.

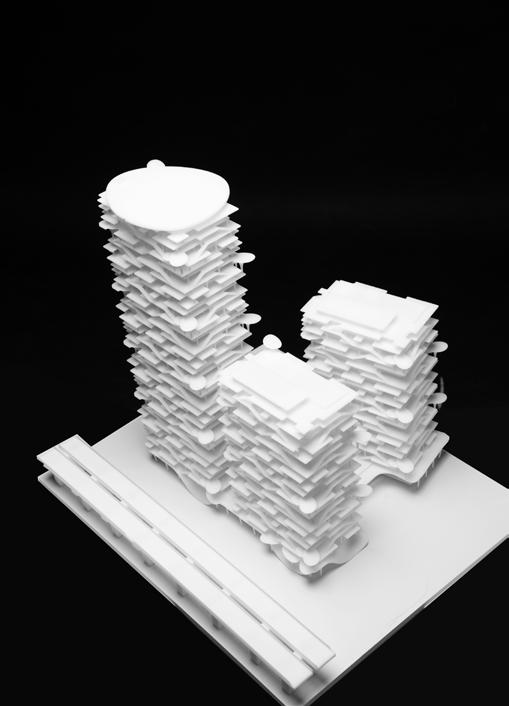

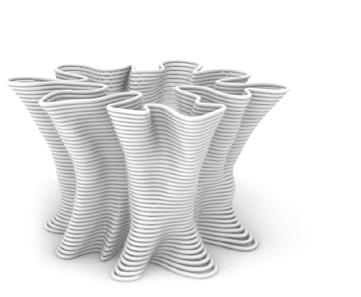

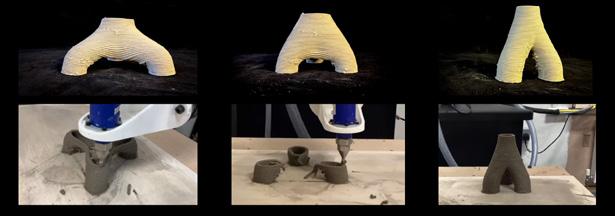

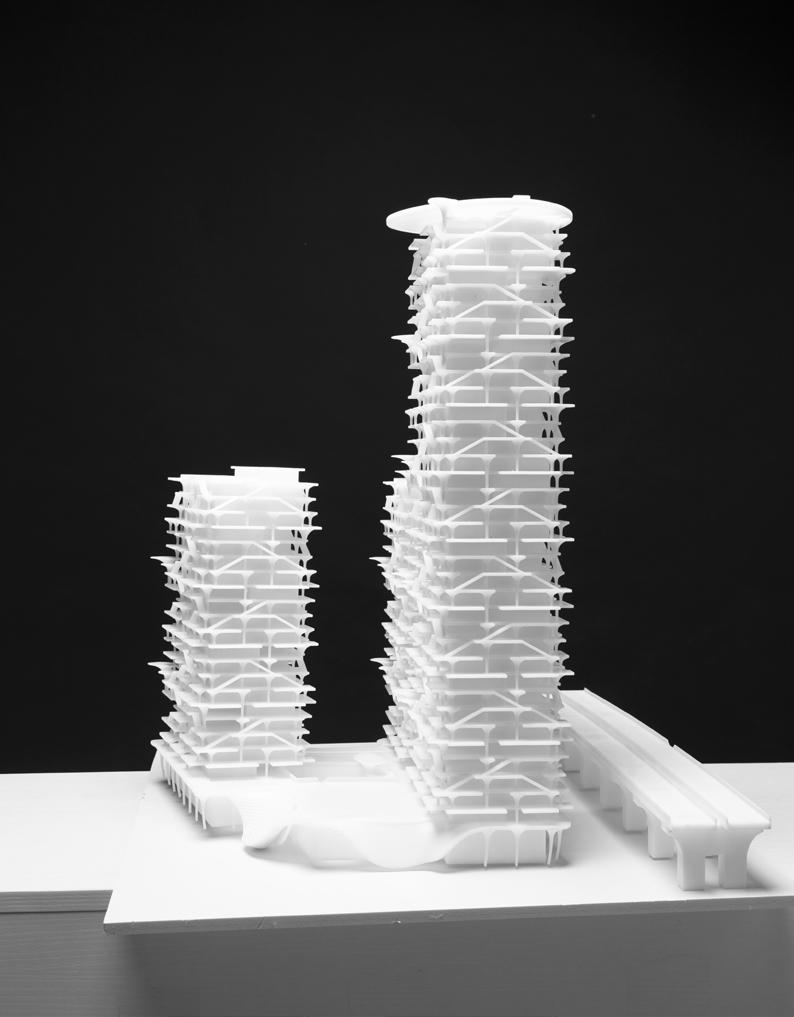

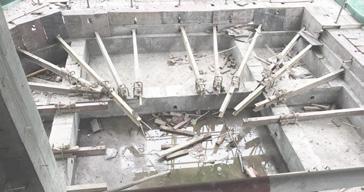

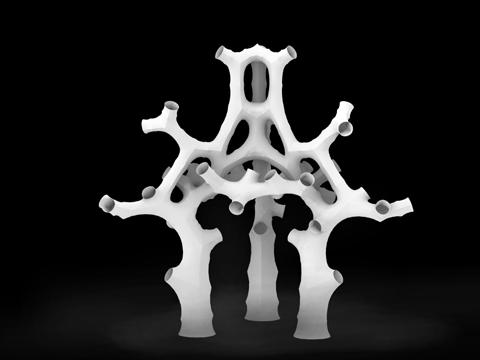

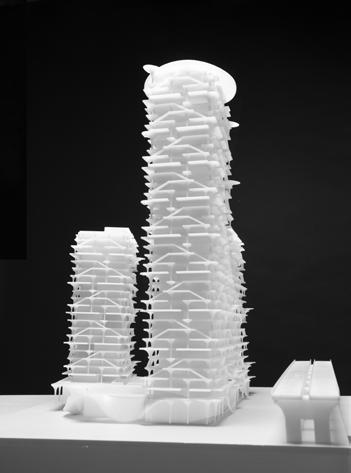

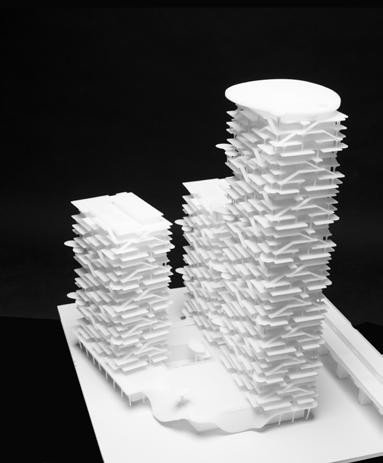

3D model printing：

Material:

Photosensitive resin material is used for 3D model printing in this project. Reasonable setting of supports is a very important issue in model printing. In addition, the model surface will have defects if the support is not removed carefully.

Material choose:

The 3D printing building materials need to have fluidity, and also need to take into account the temperature factor. If the fluidity is large, the materials cannot be stacked during the printing process. If the fluidity is small, the print head is easy to be blocked.

Accuracy:

3D printing maintains the integrity of the wall through the close bonding between layers. The higher the precision is, the thinner the thickness is. The lack of precision leads to the lack of smoothness between layers, rough surface and single stripe style.

Site:BeiJing,China

Academic/Indevidual work

Date：2021.07-2021.12

Instructor:Piyang Ni/Junzhuo Zhang

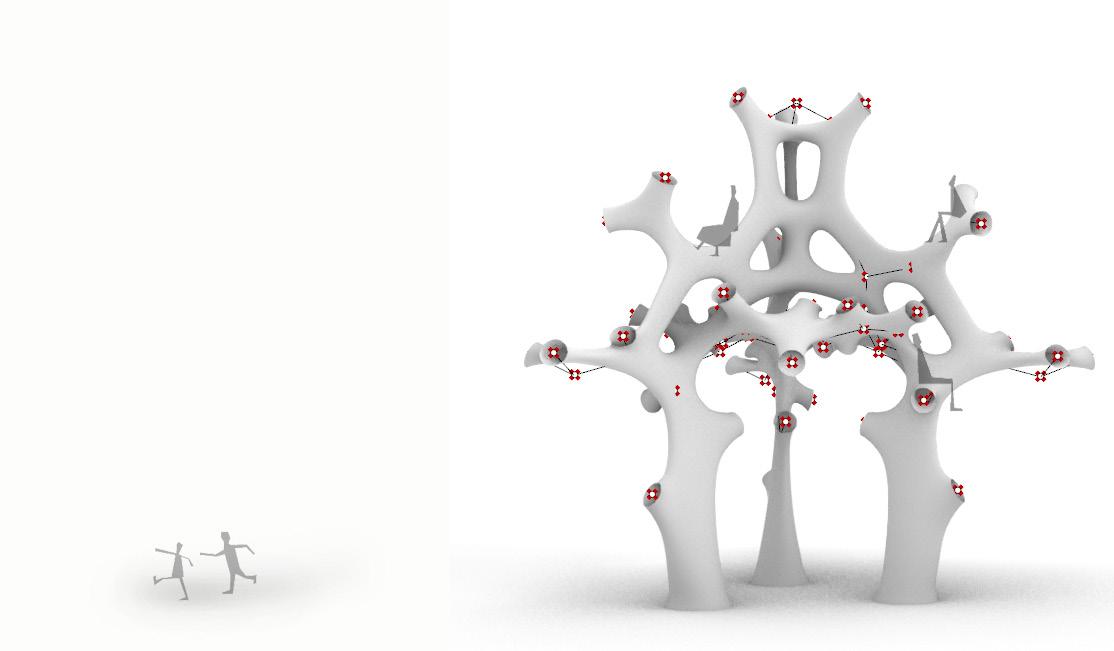

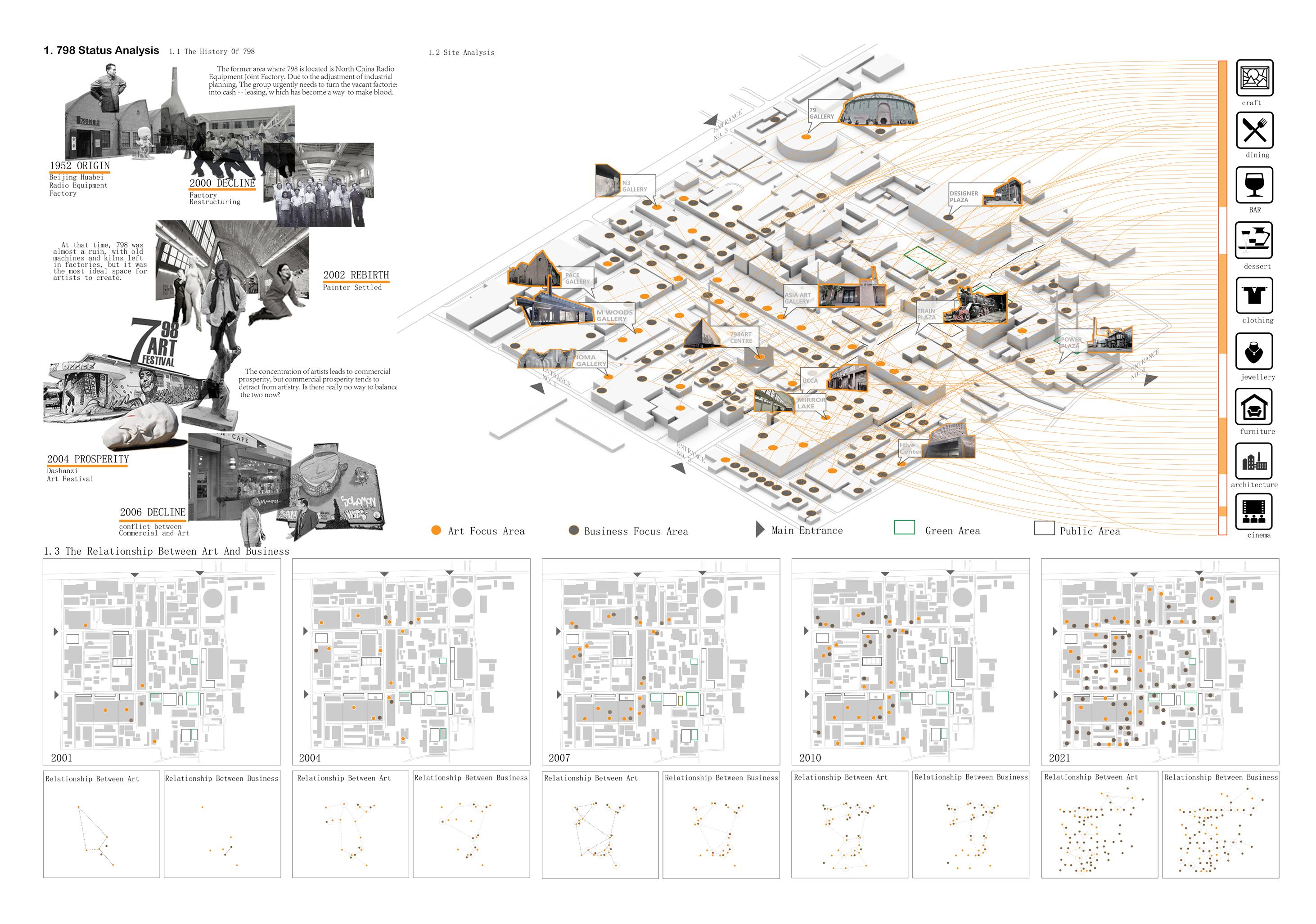

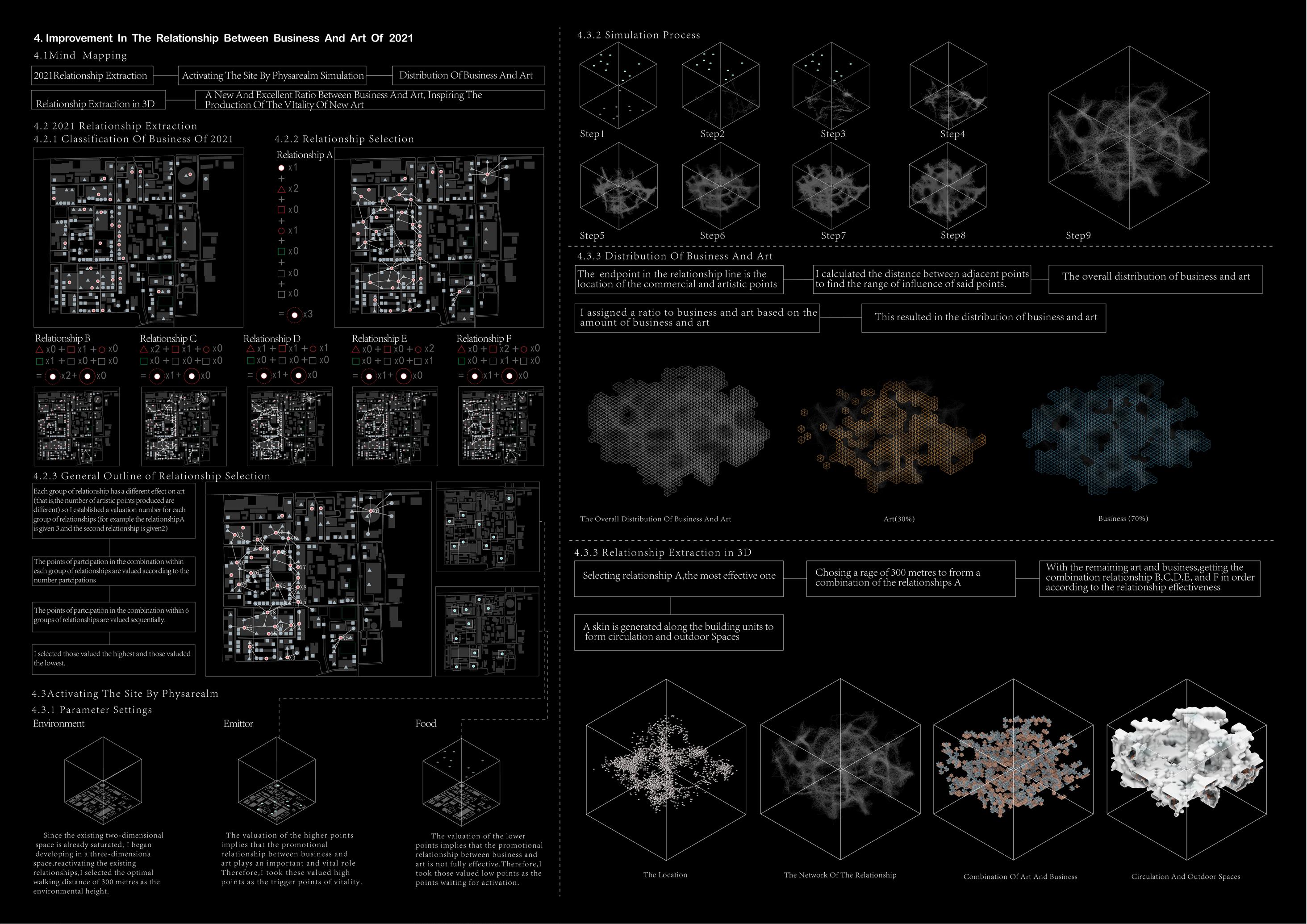

In the 798 Art District, I want to explore the connection and balance between the serious social environment and artistic events. In Beijing, the political centre of the post-industrial era, the artists in the 798 Art District have been forced to move out of the area as the commercial boom has led to a squeeze on their living space by capital. However, commerce and artistry are not antithetical, so attempt to detect this tenuous connection and quantify the past contradictions.

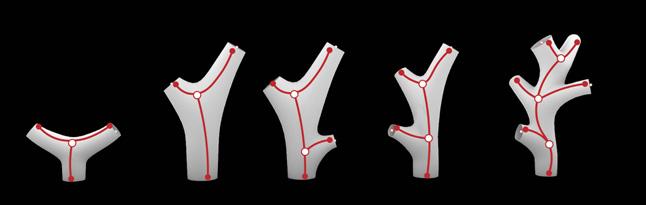

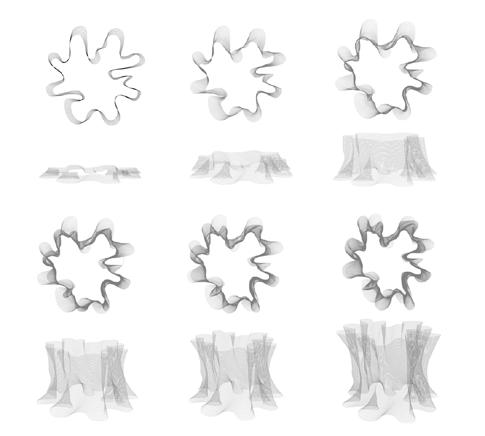

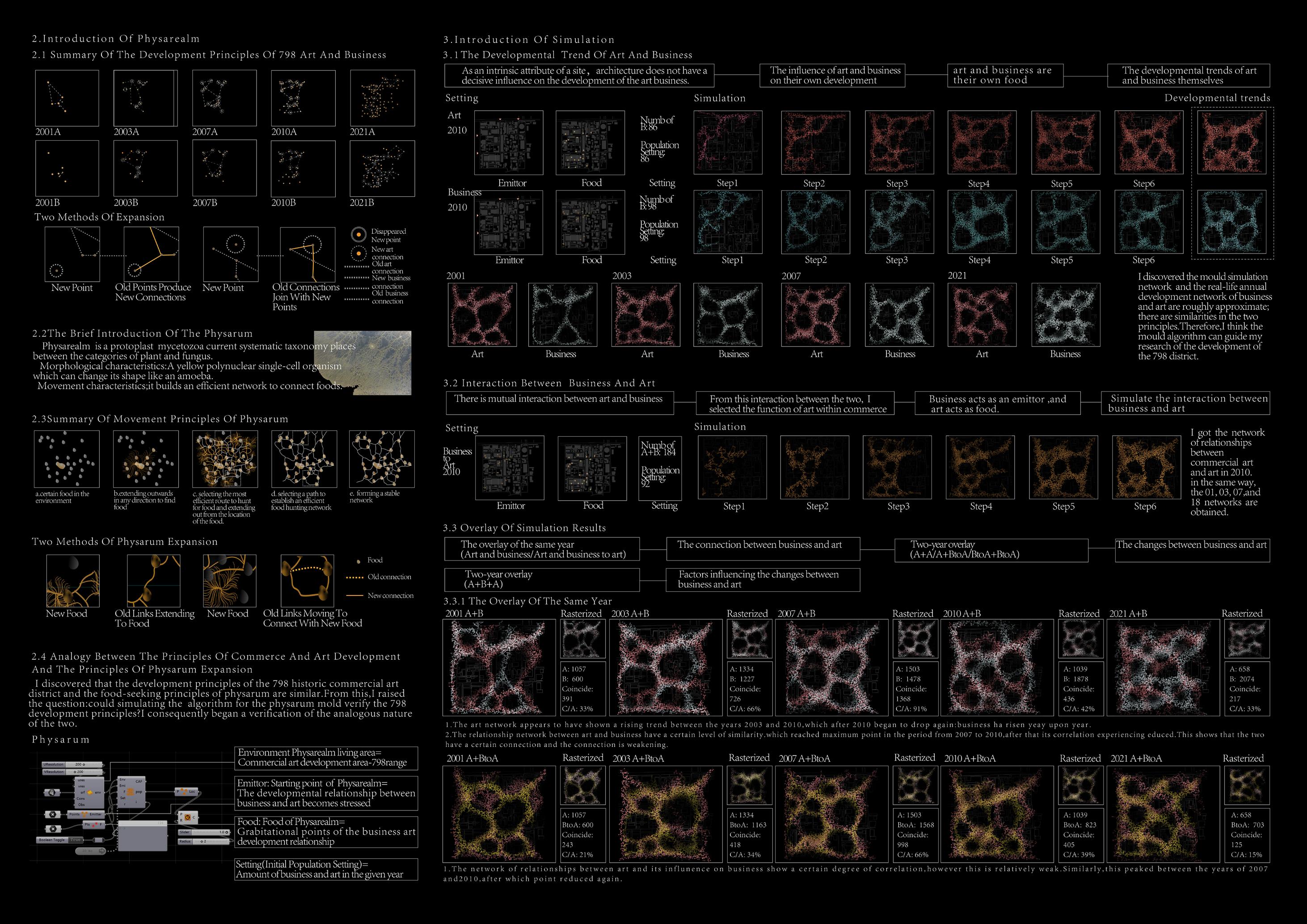

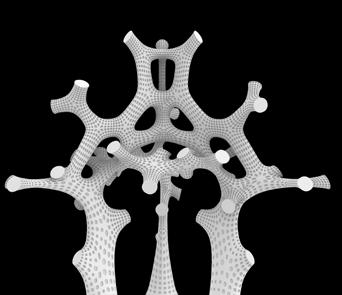

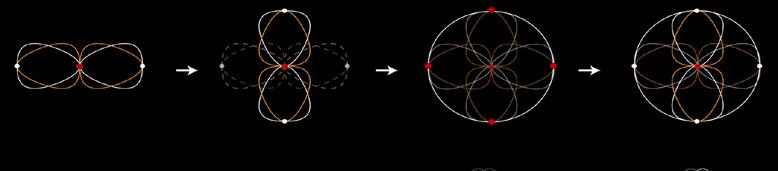

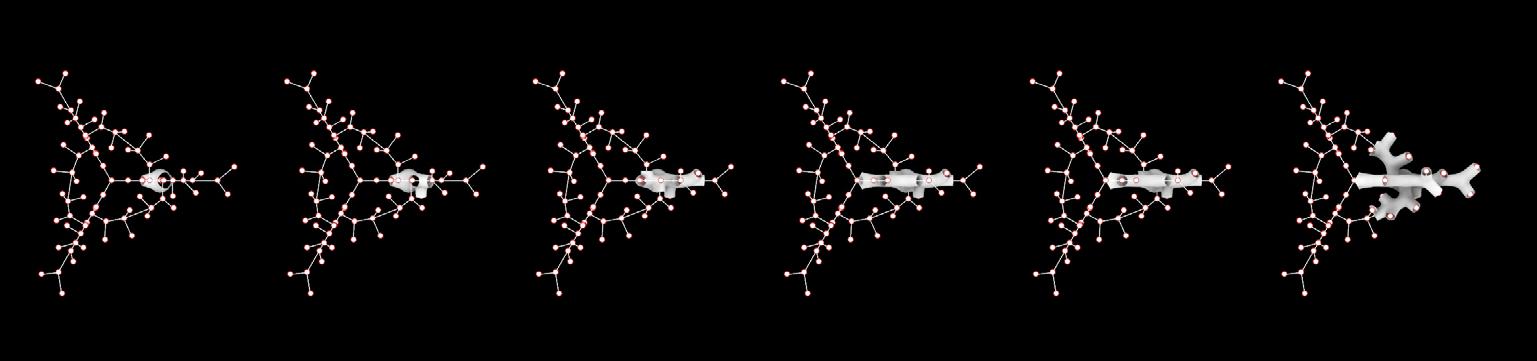

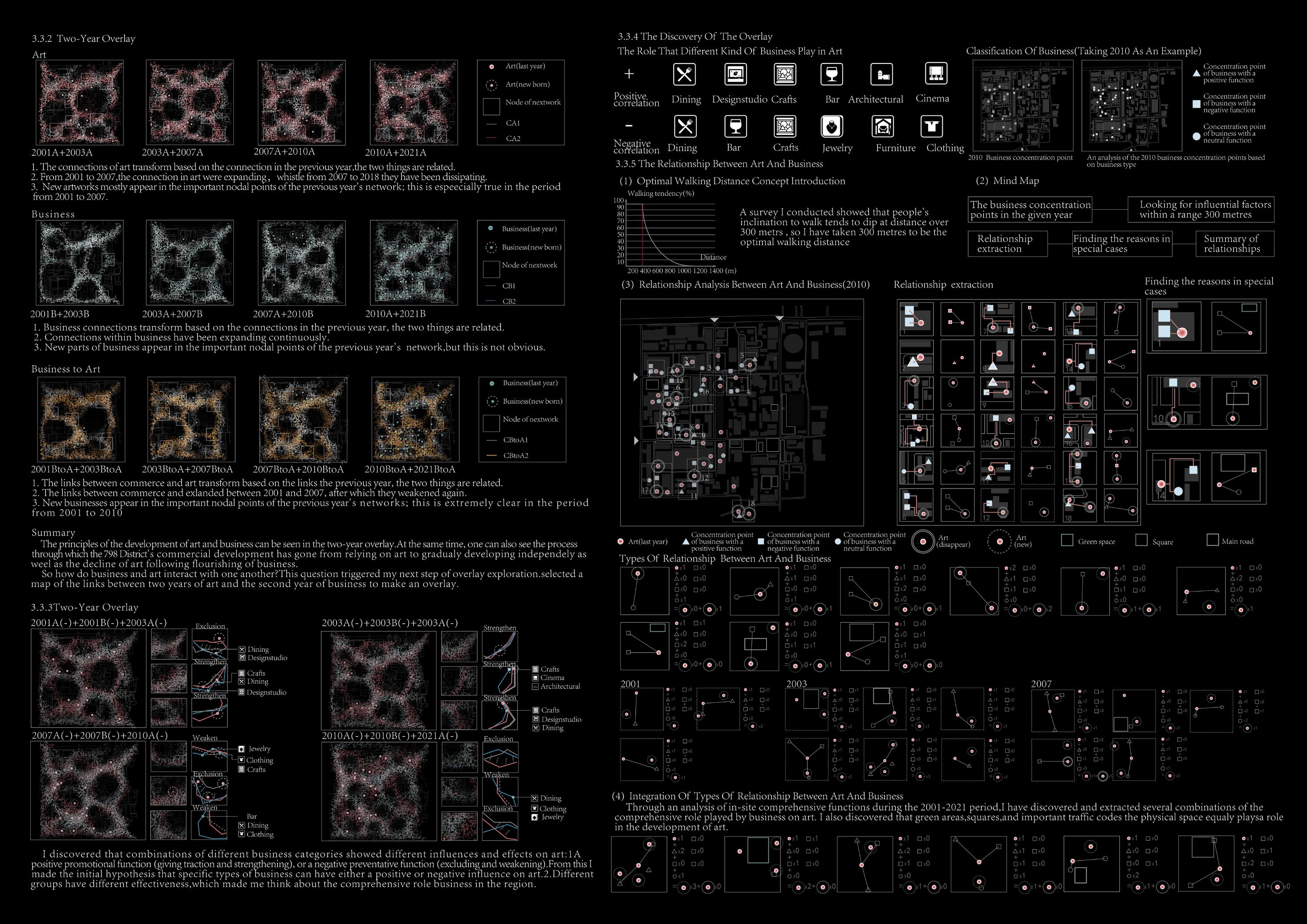

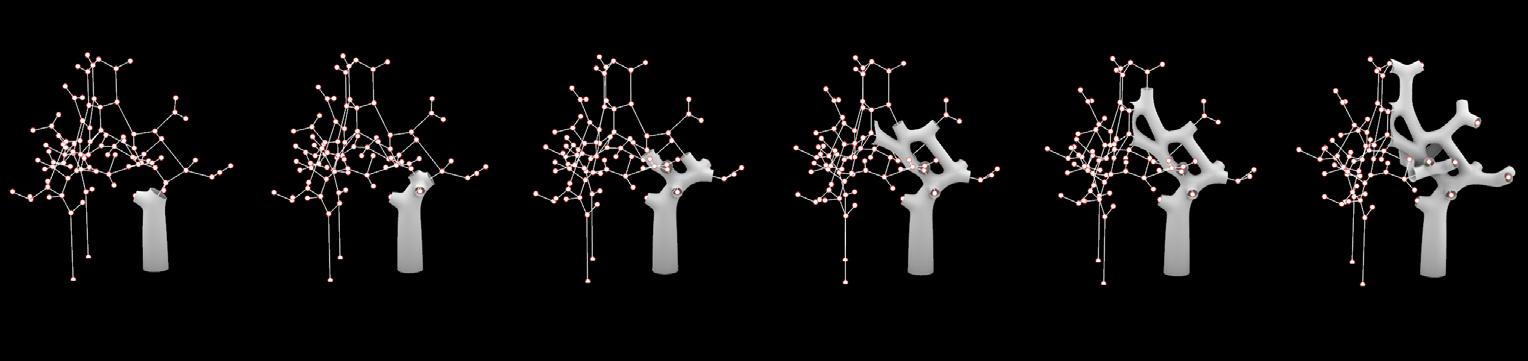

By simulating the natural growth path of mould, I have established the most efficient way to establish the link between commerce and art. By artificially interfering with spatial patterns to direct the scale of people flow and event activity between different functional spaces. Finally, I place this explored model of optimal balance on the ground to obtain a universal spatial form capable of re-integrating resources in the hope of creating a self-sufficient community structure for the art business and cultural industry.

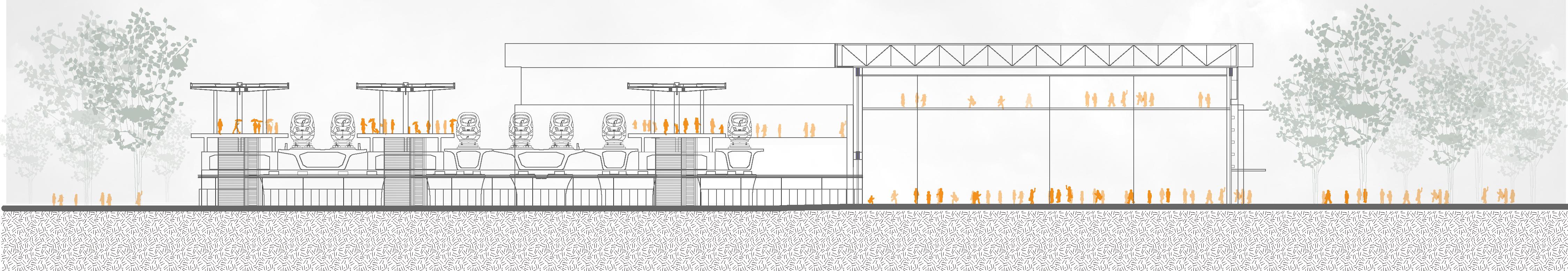

PROJECT2：798 ART COUNTERATTACK

798 ART COUNTERATTACK

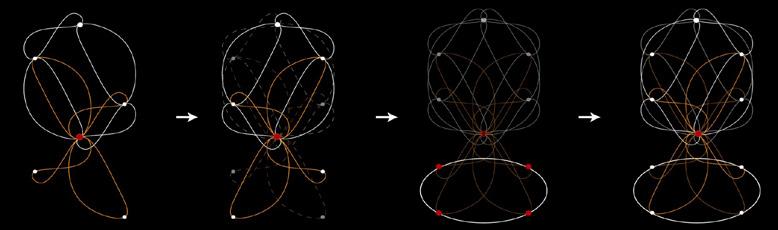

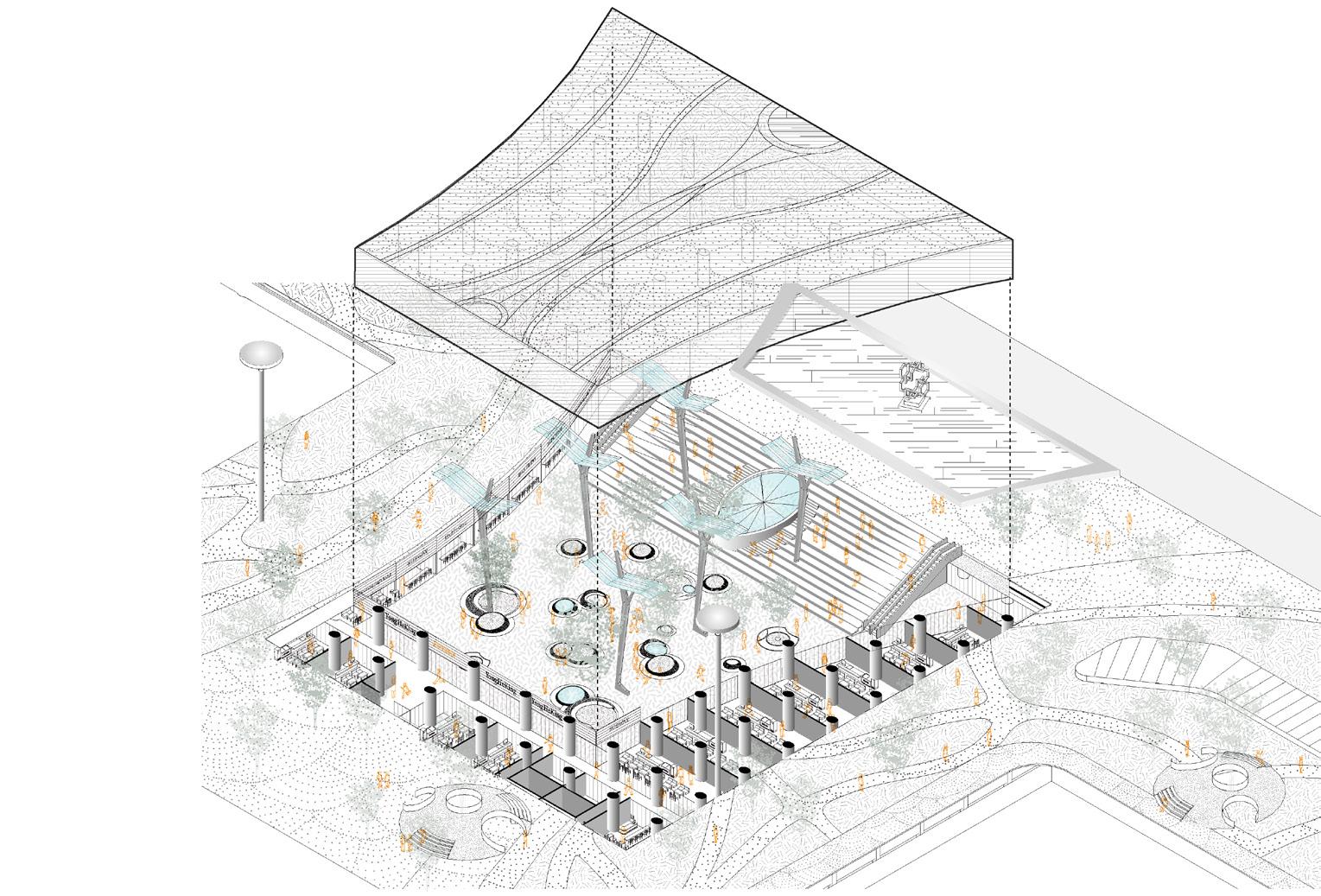

The main body of the building is divided into two parts: the skin and the building unit. The art and commercial unit are the main leisure and entertainment experience areas. The skin, as the outdoor public space of the traffic core, connects the commercial and art units, forming the courtyard and space, and turning into the outdoor sculpture and fashion exhibition, or holding various activities.

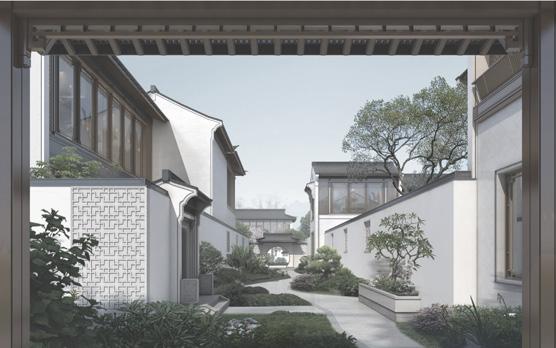

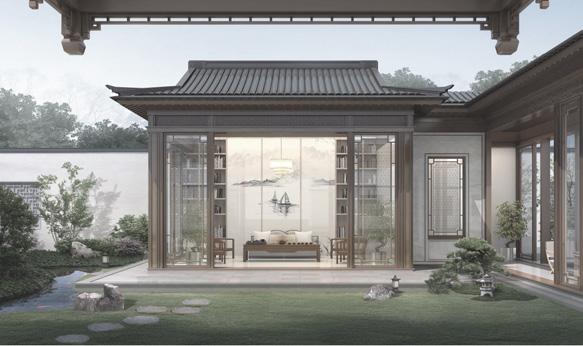

Project 3：High-End Courtyard Villa

Site: SuZhou,China

R&D Work/Group work

Date：2020.07-2020.12

Instructor: Luping Hu, Weiping Song

We attempted to design residential products for different circles of customers in the context of the ‘villa ban policy’. Even though the rigid indexes of the field project limited the unlimited development of imagination, it gave me precise criteria for evaluating the value of my design. Having identified the needs of different circles of users, we extracted from the construction patterns of classical gardens a type of housing that could combine privacy, fresh air, multi-storey environments, economy and modern structures.

we retained the physically fine materials of classical architecture and replaced some of the traditional materials, which are susceptible to erosion, with modern materials such as metals. Finally, the combination of indoor and outdoor environments creates a fluid space by constructing corridors, courtyards, rooms and terraces, which inadvertently echoes Mies van der Rohe's concept of ‘fluency space’.

Product advice

Based on the project positioning (mid to high-end market), land attributes (basically urban improvement) and existing main products (large

and high comfort level) of CRCC's existing products, combined with the current market trend, the following area segments are recommended.

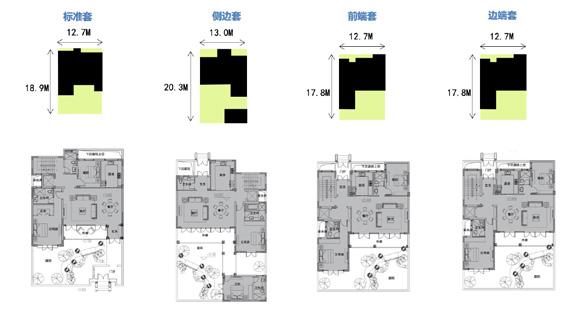

·About 150 m² - Maximise the ultimate floor area ratio of the product

About 175 m² -Balancing product comfort and ultimate floor area ratio

·Around 200 m² - Comfort is the priority

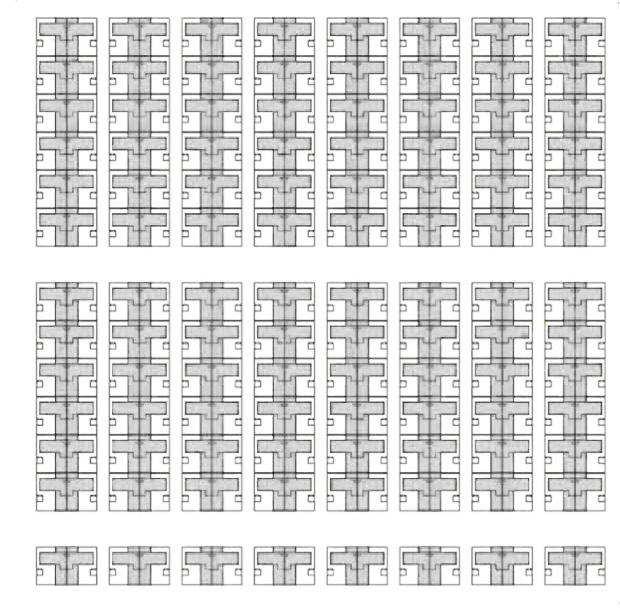

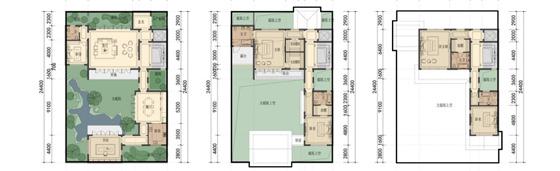

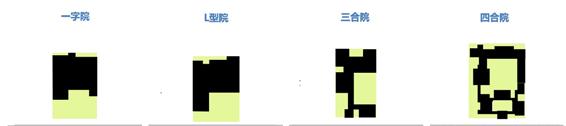

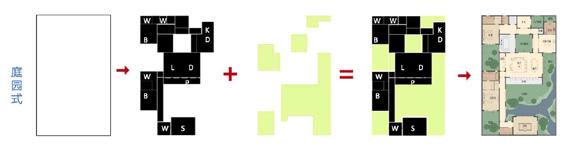

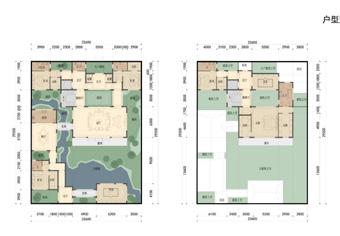

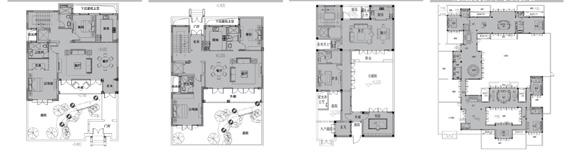

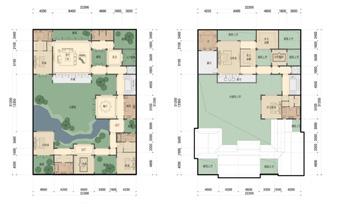

Iteration product basic module

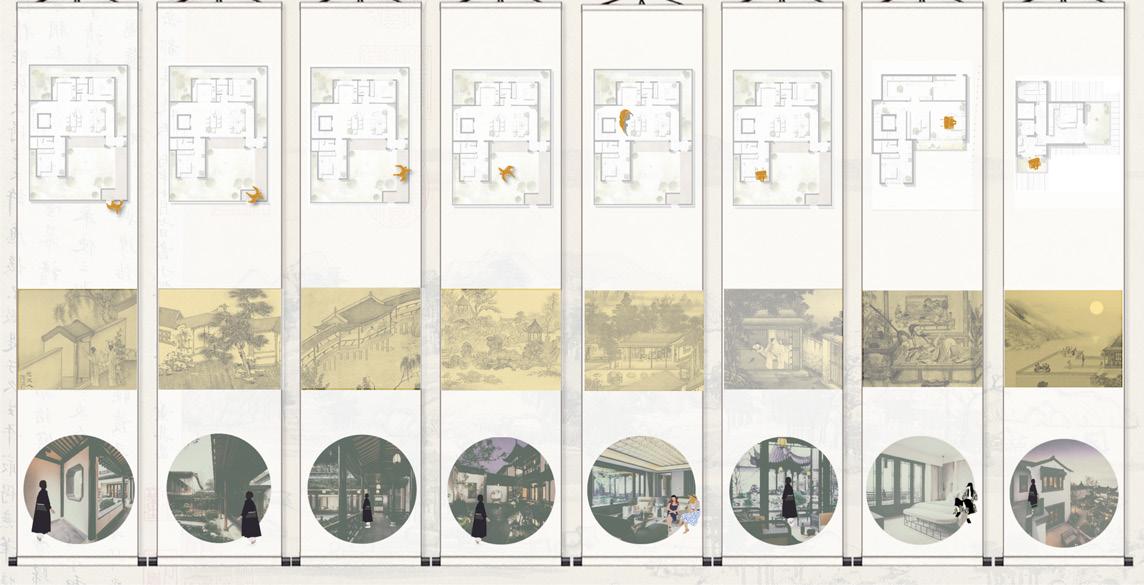

Eight Chinese gardens for living scenarios

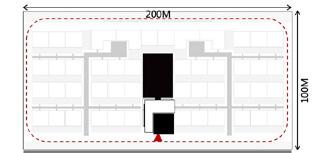

·Step1:Select the core location of the site, determine the club and the central garden

Research methodology

·Step2:Divide internal group with fire road

·Step3:Combined with the horizontal splicing form and land size of the villa, roadway is formed.

·Step4:Combined with the product form, divide the yard to form the final effect.

Through a quantitative analysis of the simulated plots, the derive a matching relationship between plot conditions (floor area ratio, building density) and product selection Planning principles. Planning principles.

Make full use of standardised products to ensure product quality. Not only by the value of the goods, but also by the quick positioning and fast landing.

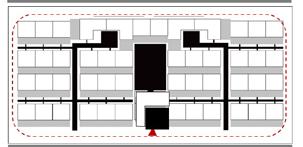

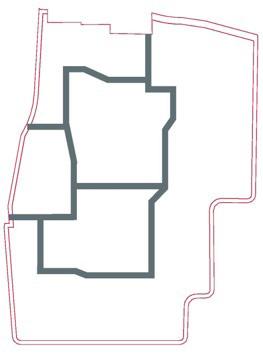

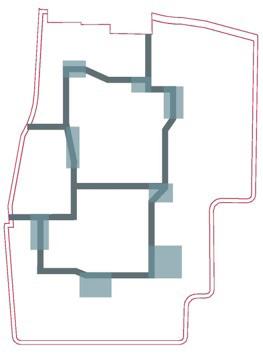

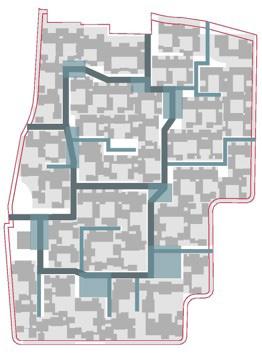

Planning generation logic: a rectangular combination with the fire road to divide the internal clusters; Combined with the horizontal splicing form and land size of the courtyard, the horizontal entry roadway space is formed.

At the same time, combined with the product form, the courtyard is divided to form the final effect. The planning structure of "garden" connecting "lane" and "lane" connecting "court" is generated as a whole.

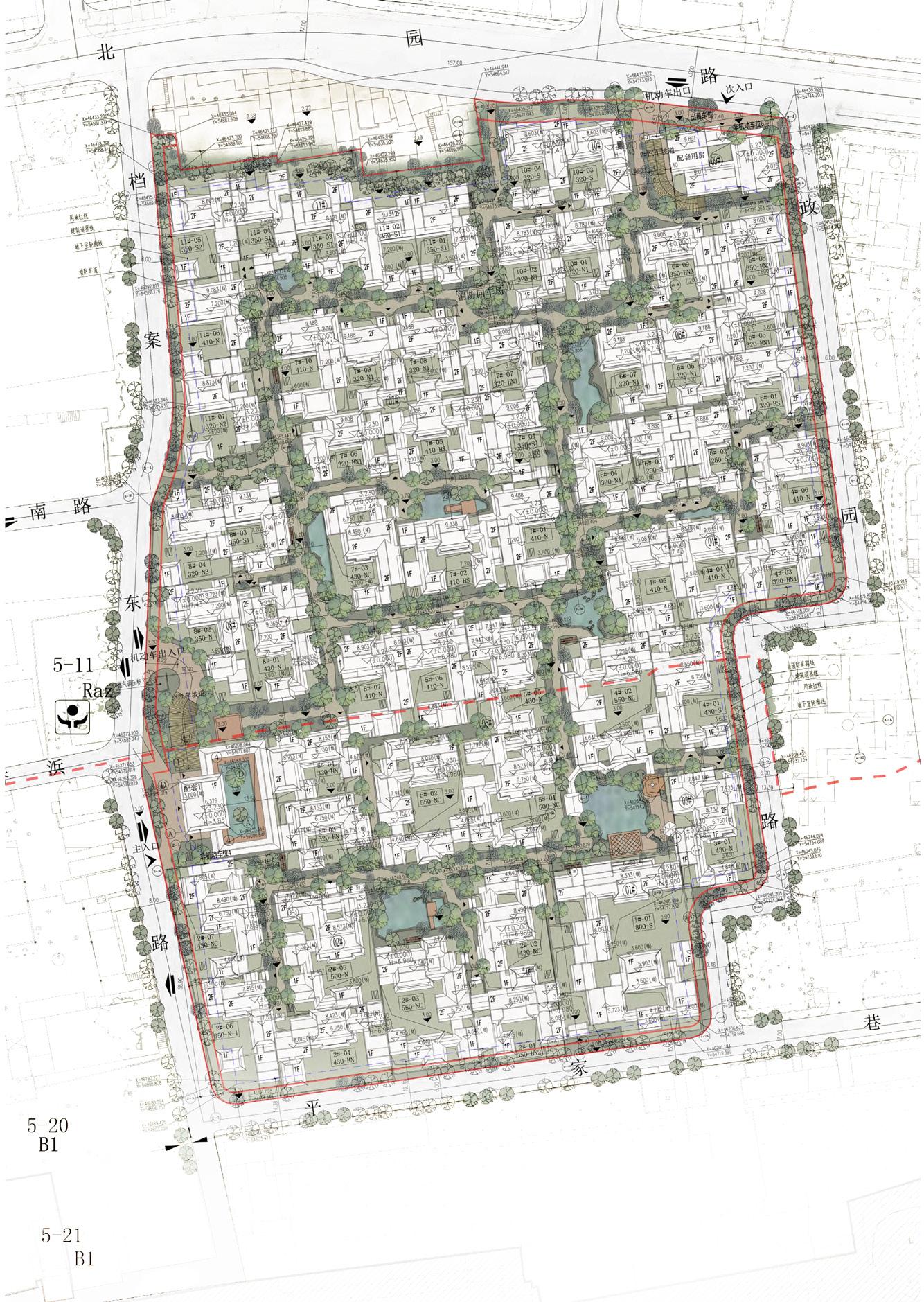

Masterplan Strategy:

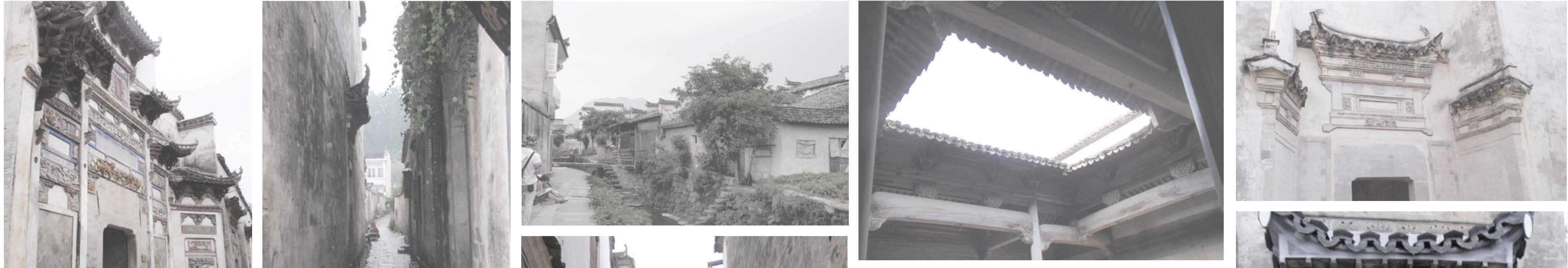

The traditional garden space is not only for appreciation, but also a container for life, providing space and scenes for various functions of daily life such as reading, meeting friends, entertainment, gardening, exercising, etc. Through the setting of paths, the enclosure of buildings and the coordination of various functional spaces, we can try to give people the needs of daily life and form different scenes of life, making the garden closely linked to daily life and becoming a multifunctional space that can be viewed, appreciated, visited and used.

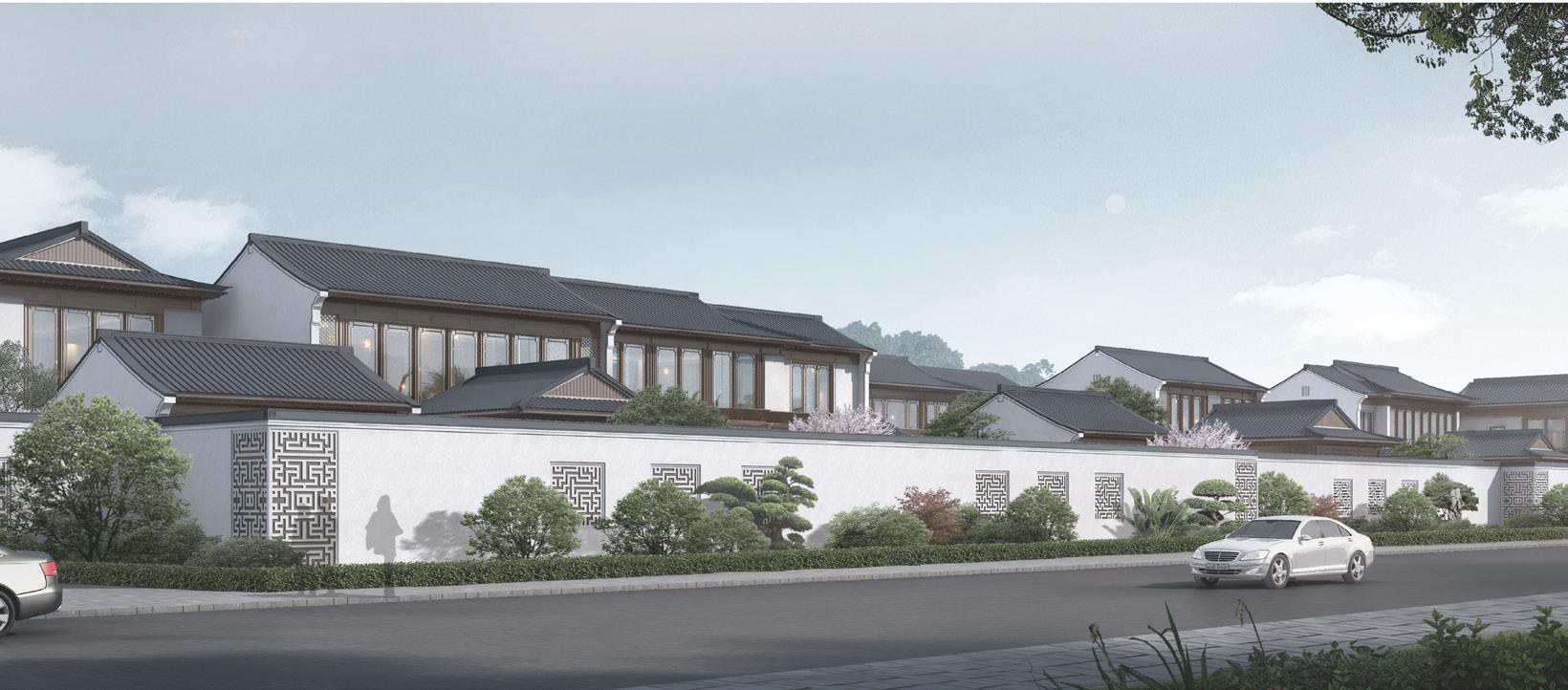

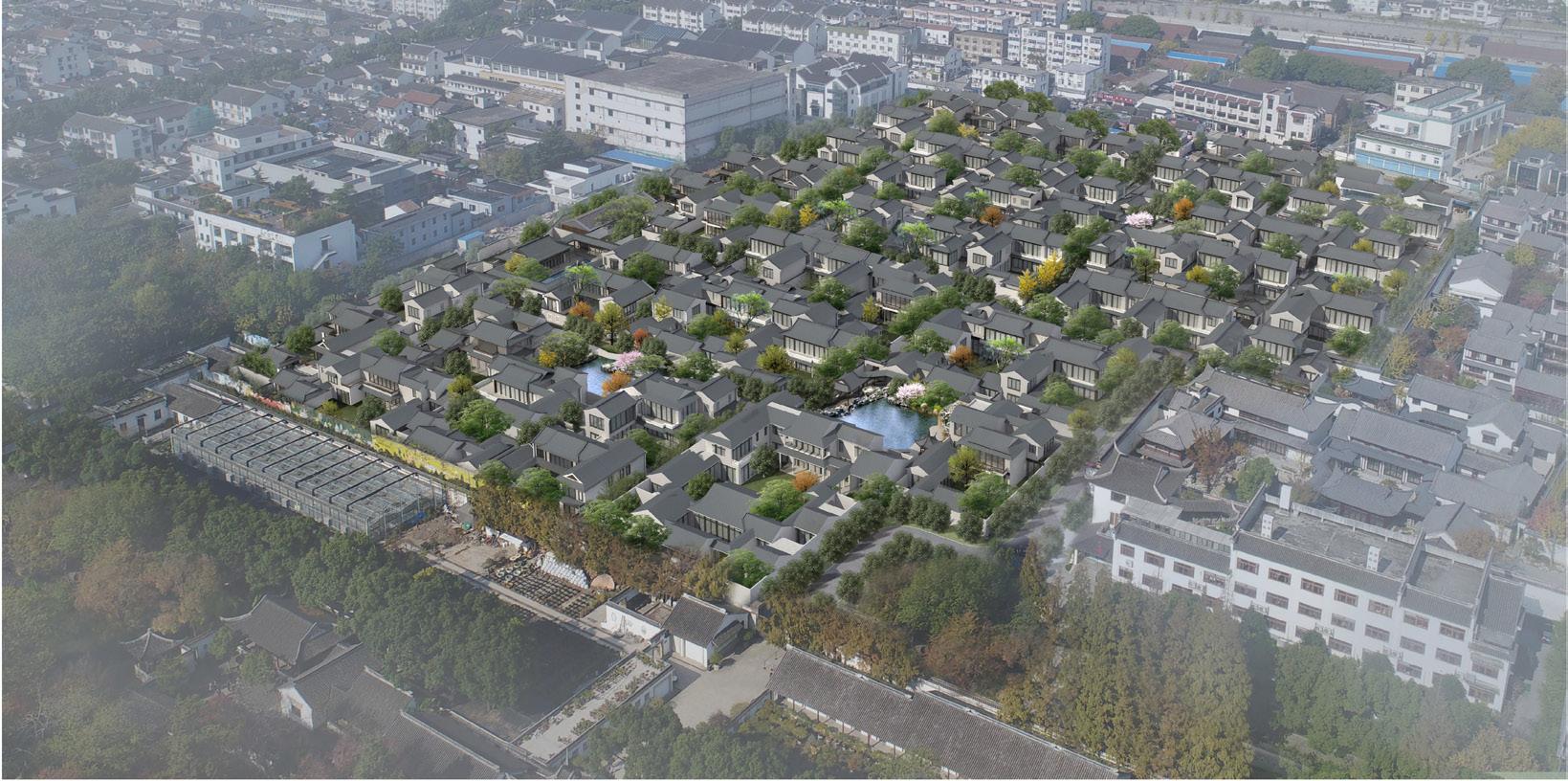

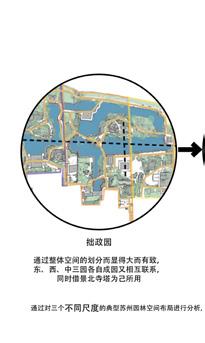

R&D Landing Project: Humble Administrator's Garden, Suzhou

General layout: The layout is based on the garden, emphasising the flow of the landscape and the integration of landscape and architecture, the public open garden space introduces the concept of traditional garden life, the garden and life are integrated with each other, and can be visited, enjoyed and lived in. Household design: drawing on the essence of Suzhou gardens, the organic combination of space, emphasising the flow of the courtyard and the borrowing and extension of indoor and outdoor spaces.

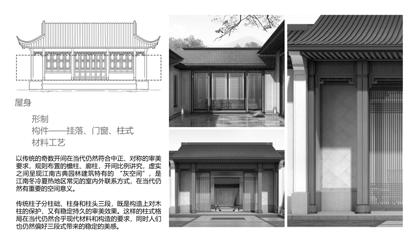

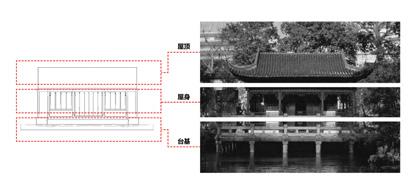

Modelling research: analyse the architectural features of the gardens of Jiangnan, emphasise the inheritance of classics, the interactive relationship between architecture and garden space is the focus of garden architecture, create architecture based on the present and in line with the aesthetic sensibilities of contemporary people.

The map-base relationship of city

1. The buildings around the base are relatively sparse, and the streets are characterised by large horizontal spacing and close vertical spacing.

2. The layout of the general plan emphasises the relationship with the urban space and the staggered integration into the texture of the old city.

3. The general plan has locally enlarged spatial nodes, echoing the rhythm of urban space while providing public spaces open to the public for touring and appreciation.

raising-of-truss method

tiling sheathing tile flying rafter

wall

drip tile verge board column

purlin purlin panel panel

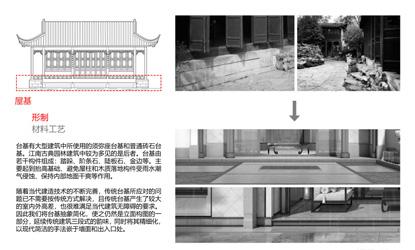

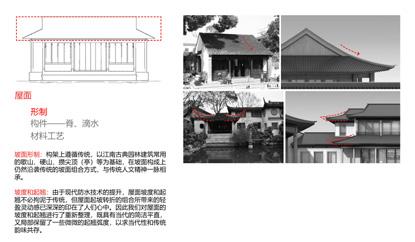

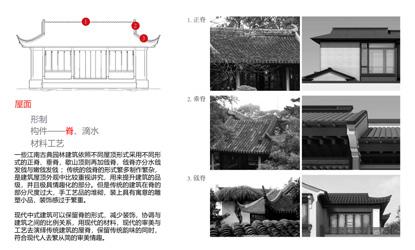

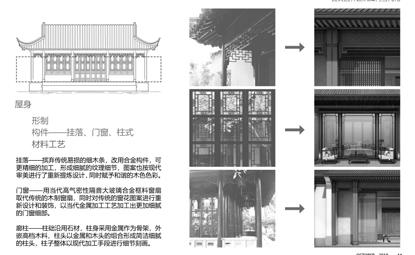

Variations and trade-offs in building materials:

When all the traditional decorative elements of classical Chinese architecture are removed, it is possible to obtain a "Chinese architectural prototype". It is the basis for carrying the contemporary version of classical Jiangnan garden architecture.

The following will explore on the basis of this prototype: the possibilities and concrete ways in which individual constructions can be contemporaryised with new materials or new methods of construction, while continuing the flavour and style of traditional Jiangnan garden architecture.

The requirements of contemporary technical innovation (changes and trade-offs in building materials).

doors and windows

frame of doors and windows

doors and windows openings

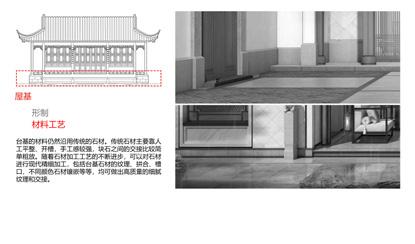

column base

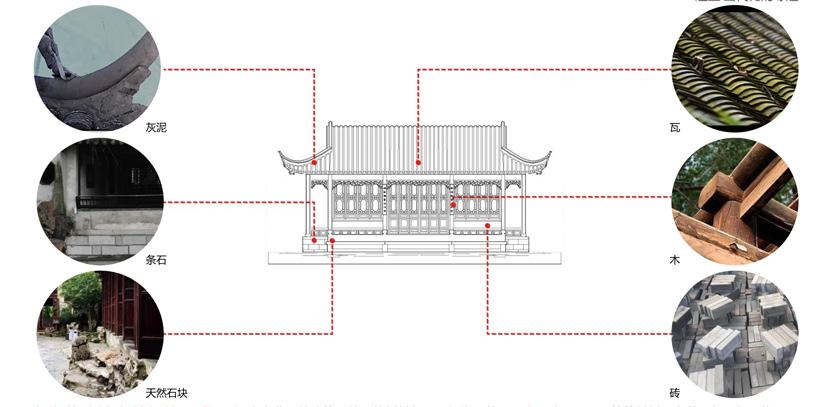

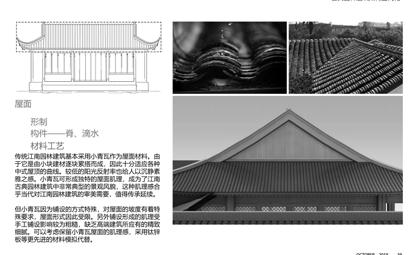

The materials used in classical garden architecture in the south of the river are the common folk materials of tile, wood, brick, stone, clay, etc., which have the characteristics of being easily available, easy to construct and simple to hand over. Some of these materials, such as brick and stone, have good physical properties and unique texture after masonry, and are still used in large quantities in contemporary times, meeting the needs of contemporary architecture.

However, some parts of the materials, such as the roof tiles, plaster, boarding and wooden balustrades, are not as durable as they could be due to their physical properties and the fact that they are more susceptible to weathering.

Name of element

Ridge - can be streamlined and replaced by stone or wrought metal

Raised bend - the number of raised bend sections can be reduced

Bumpers - can be streamlined to reduce the height of the projection and the rise

Tile - sleeping tiles - can be replaced with more elaborate metal tiles

Flying rafters Rafters - can be replaced by more elaborate timberwork or metal rods

Guttering - for regulatory purposes, metal finished gutters are required for organised drainage

Drip tiles - code related and require the installation of metal finished guttering for organised drainage

Joint - can be deleted or replaced by lines only

Panelling - more modern detailing can be added

Beaufort - Refinable shape

Hanging Fish - can be streamlined

Doors and window casings - can replace original brick casings with stone

Doors and windows - can be partially conformed to

Flying rafters Rafters - can be replaced by more elaborate timberwork, or metal rods

Guttering - code related, metal finished gutters are required for organised drainage

Drip tiles - code related and require metal finished guttering for organised drainage

Trusses - may be deleted or replaced by lines only

Joint - can be deleted or replaced by lines only

Panelling - more modern detailing can be added

Roofing:

Forming

Main Ridge

Vertical Ridge

Elements - ridge, drip Materials and techniques

Diagonal Ridge

Modern Chinese architecture can retain the form of the ridge, reduce the decoration, harmonise the proportional relationship between the building and the modern materials.

Body of the house:

Form Components-hanging, windows, doors, columns

Materials and techniques

The windows and doors are decorated with openwork, which plays a role in ventilation and lighting, and in addition has the effect of transmitting the scenery through the windows. However, the windows and doors of classical gardens all suffer from a lack of light, poor airtightness and poor sound insulation, and need to be optimised with modern windows and doors to improve their performance in terms of light, heat.

Roofing:

Forming Elements - ridge, drip Materials and techniques

A Chinese style tile that protects the cleanliness of the walls. It has a sagging edge at one end and a bottom tile at the gable end, with a rounded, pointed tile at the lower end, which is placed at the gable end when the roof is built.

Body of the house:

Form Components-hanging, windows, doors, columns

Materials and techniques

The traditional odd number of rooms still meet the aesthetic requirements of middle and symmetrical in contemporary times, and the proportion of rooms is exquisite.

Most of the buildings in the Jiangnan gardens are also constructed in the same way as the timber frame, basically consisting of three main parts: the roof, the body and the pedestal. The traditional three-part composition of the façade is well established. The 'Chinese building prototype' shown on the left retains the basic pattern of the vertical three-part structure.

Three-part Pattern

Single-storey buildings: The traditional proportions are adopted and the three-part pattern is retained, with eaves projections or verandahs creating multiple semi-outdoor spaces.

Multi-storey buildings: Starting with classical proportions, the problem of low eaves on the second and third floors of traditional buildings is improved, and the proportions of each storey are perfected.

Body of the house:

Roofing:

Forming Elements - ridge, drip Materials and techniques

Traditional jiangnan garden buildings basically use small green tiles as roofing materials, because it is made up of small building materials one by one, so it is very suitable for all kinds of Chinese roof curves

Body of the house: Form Components-hanging, windows, doors, columns

Materials and techniques

The classical gardens of Jiangnan are mainly built with timber frame structures, the basic practice is to form a frame with columns and beams, with four columns forming a room, with doors, windows and maintenance walls filled in between the columns,

Form Components-hanging, windows, doors, columns

Materials and techniques

hanging: Converted alloy member windows, doors:Replace the traditional wooden window sashes with modern large glass alloy frame sashes with high air tightness and sound insulation

Foundation of the house:

Form

Materials and techniques

We abstracted the base so that it was still a part of the facade composition, continuing the charm of the traditional three-section architecture.

Roofing:

Wood

Forming Elements - ridge, drip Materials and techniques

Slope form: the composition follows the tradition, based on the hills, hard hills and saved pinnacles (pavilions) commonly used in classical garden architecture in the south of the Yangtze River, and still follows the traditional slope combination in the slope composition. Slope and warping: thanks to modern waterproofing technology. not have to be traditional.

Body of the house: Form Componentshanging, windows, doors, columns

Materials and techniques

It is often made of hollowed-out wooden lattices or carved panels.

Foundation of the house:

Form

Materials and techniques

The material used for the foundation is still traditional stone. The traditional stone is mainly levelled and slotted by hand, with a strong manual feel and a simple and rough intersection between the blocks. With the continuous progress of the stone technology.

Summary table of improvements to decorative elements

We attempted to design residential products for different circles of customers in the context of the ‘villa ban policy’. Even though the rigid indexes of the field project limited the unlimited development of imagination, it gave me precise criteria for evaluating the value of my design. Having identified the needs of different circles of users, we extracted from the construction patterns of classical gardens a type of housing that could combine privacy, fresh air, multi-storey environments, economy and modern structures.

BIRDVIEW PERSPECTIVE

Flowing Gardens

Pay attention to the creation of small courtyard characteristic space, and combine the functions to create space characteristics;

The shaping of the landscape and the function of the use space should be combined, and attention should be paid to the creation of the depth of sight in the public space;

From beginning to end, the courtyard is the scenery, the square is the boundary, and the square is the scenery. The emphasis is on moving the scenery, and the use of the landscape to increase the flexibility of the building. The scenery can be formed everywhere, and the entry can be made everywhere.

STREET PERSPECTIVE

Street Perspective 2

Street Perspective 3

WingRoom Perspective

We retained the physically fine materials of classical architecture and replaced some of the traditional materials, which are susceptible to erosion, with modern materials such as metals. Finally, the combination of indoor and outdoor environments creates a fluid space by constructing corridors, courtyards, rooms and terraces, which inadvertently echoes Mies van der Rohe's concept of ‘fluency space’

Site:HuaiHua,China

Work/Group work

Date：2012.07-2014.06

Instructor:Yu An/Xiaogang Liu

The integrated transportation hub is designed as a turning point, where people can switch between different modes of transportation, including buses, buses, social vehicles, rental vehicles. Within the hub, there will be some restaurants and retail shops to activate the space and attract crowds.

The starting point of the project is to build the urban public living room of Huaihua city, transforming the monotonous public space into a vibrant urban hub, forming a new city name card.

Project4：HuaiHua South railway station Hub

Overall Streamline Design Site Analysis

Hunan Province

Located in the southeastern hinterland of China,a bridge between the provinces

Huaihua City Huaihua is the west gate of Hunan, the gateway of Guizhou and Yunnan.

Huaihua South Railway Station

The Surrounding Land The future plan is a row of high-rise hotels, office buildings,In terms of volume collocation and functional layout

Before The Land

The square in front of the station corresponds to the center of the future business district.

The Surrounding Land buildings of high-speed railway station and north road are coordinated. While highlighting the world Trade Center and the high-speed rail station.

The Site

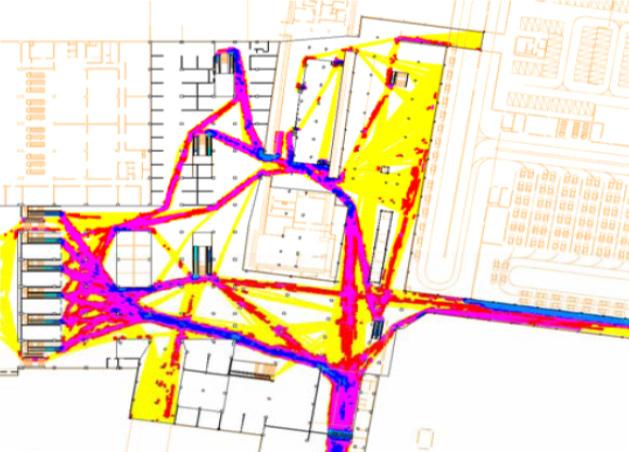

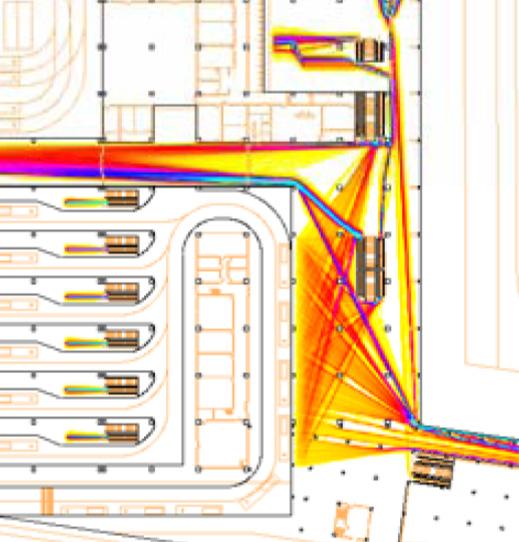

Pedestrian Simulation Analysis

Application in transportation buildings: determine the main circulation space, reasonably distribute the auxiliary space (commercial), evaluate the conflict between circulation lines

his project will all kinds of vehicles in and out of the ground and underground Port relatively centralized setting. And follow along Out of the principle can be minimized on Interference from urban roads. Both entrance and exit ramps Moderately wide to prevent accidental congestion Affect the normal traffic order in front of the station.

Transfer Hall：

Inbound streamline: Taxis usually drop off passengers at ground level, In bad weather, taxis can stay underground Layer up. Outbound streamline: After getting out of the station at the exit of the first underground floor, through Go through the transfer space to the rental pickup area.

Bus Streamline：

Inbound streamline:

The bus drops off passengers on the underground floor,Transfer space through the hub to reach the ground square floor The inbound.

Outbound streamline:

After getting out of the station at the exit ofthe first underground floor, throughGo through the transfer space to the bus boarding area.

Long-distance Bus Flow：

Inbound streamline:

Through the underground first and second floor long-distance station and The junction enters the junction area for transfer.

Outbound streamline:

After exiting the station at the exit on the first floor of the underground, Special connection through the first and second floors underground Access to the coach station.

Social traffic lines：

Vertical Transportation：

Interior vertical traffic design, mainly focused on In important transfer nodes, escalator forms, Eye-catching colors, combined with the layout of the sunken square.

Passengenr Input Line：Fall in ground layer normally guest, encounter evil Drop-off on the second floor in bad weather.Passengenr Output Line：The social bus passengers are on the basement level, After the exit , pass down to the underground The second floor parking lot exits.

SECTION PERSPECTIVE

Community Berths

This project envisages the future of bus stops as "community berths", which are communities in themselves. Expand existing bus lines to build "bus hub", so that different bus lines converge. Add stations and station facilities at the same time. For every passenger between Huaihua and other places to provide a more efficient, more sustainable way of travel.

Where do you want to go?

Does this bus go to Central market?

Unlock it with your phone

The Bridge

Let's Share an umbrella!

Let's go windowshopping

Hurry Up!

Where to buy a ticket?

The Future Plan

The Current Plan

We tried to create a human-vehicle balance field inside and outside the square, making the railway station square an open and dynamic daily theater that belongs to the present.

With the advantage of the landmarks for the project, a hundreds of meters long bridge on foot, connected on both ends of the station, pedestrian Bridges within the space in the design of give a person the sense with flow forward, but also have to stop to have a rest facilities, this for pedestrians in buildings and natural scenery on the way forward together with the outside world, provides the essences of appreciation, rest, exhaustion of body and mind to ease the journey.

The future Plaza acts as a flexible urban space that responds to the movement of people in the surrounding environment, rather than providing fixed procedures to meet these services. Built at the junction of the two junctions, the 60-meter diameter sunken plaza is designed along the station exit landmark and underground level to create a spatial experience. The open-air plaza can host a variety of activities, such as events, performances and exhibitions, while leaving as much space as possible for cultural events

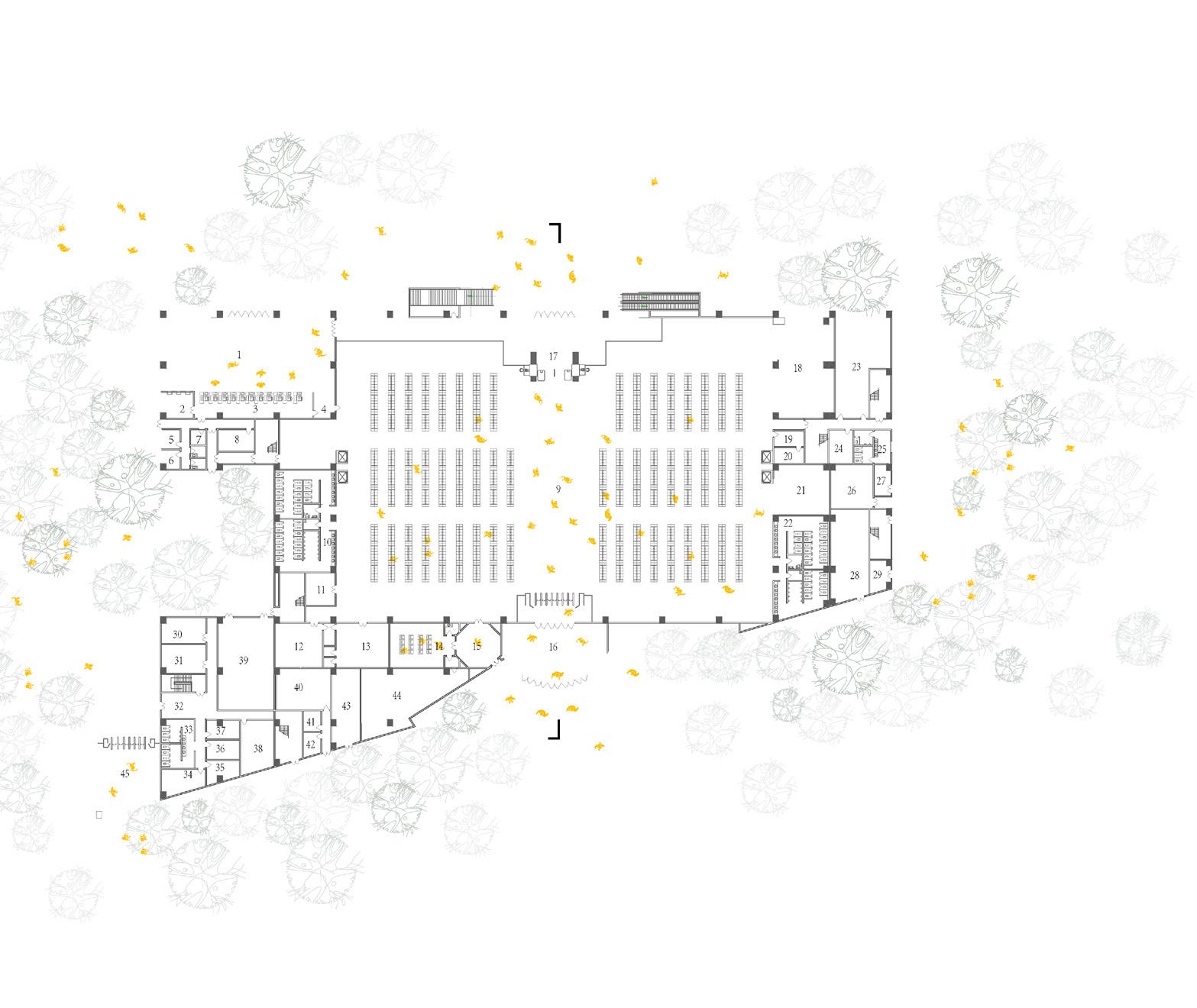

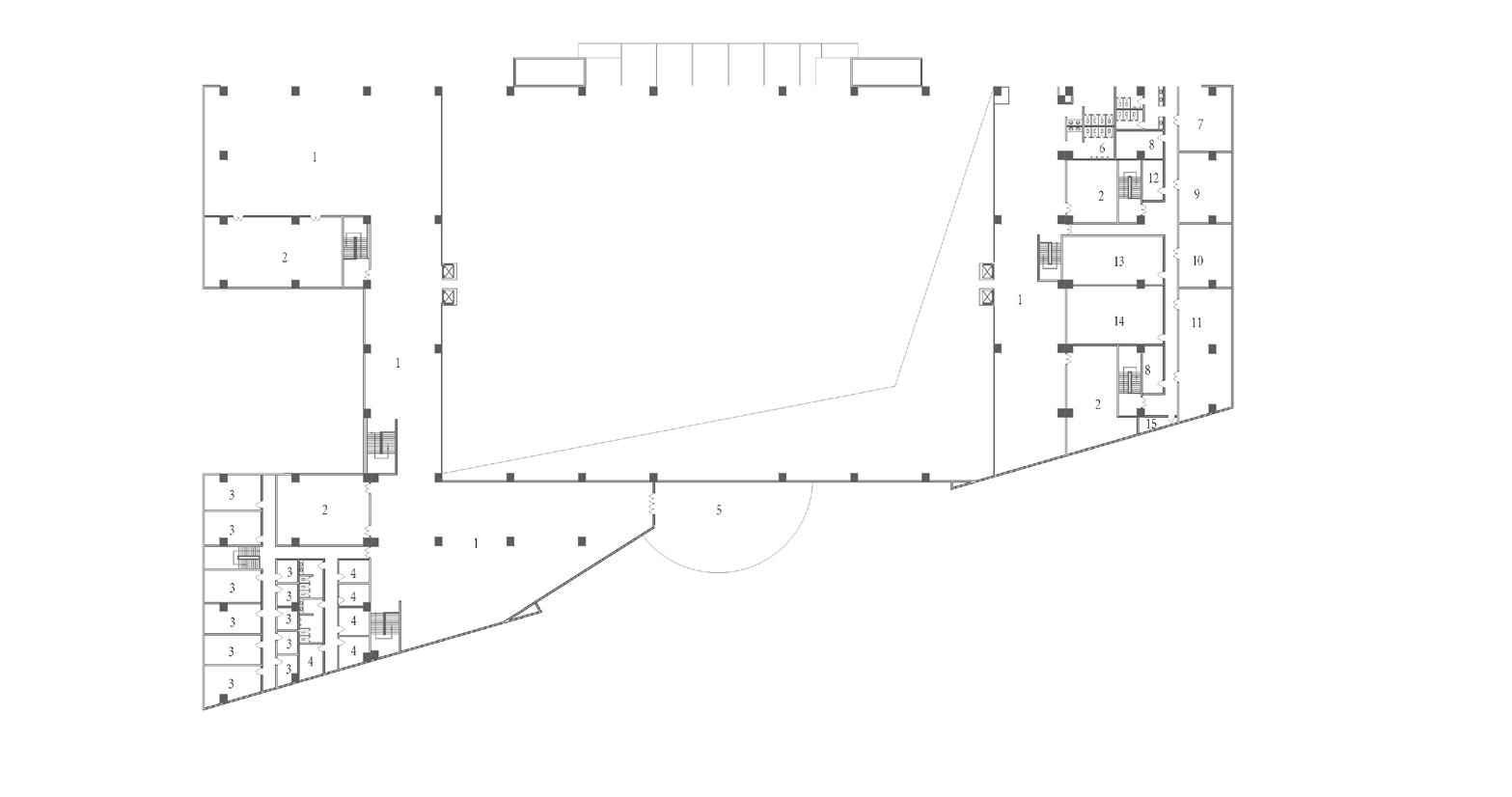

Plans Of The Station And The Hub

Inside the hub, we arrange all kinds of transfer streamline reasonably. To avoid internal congestion caused by excessive concentration, And to chieve a complete sense of people andcars diverging. Synthesize all kinds of people flow line, set up all kinds of commercial supporting equipment reasonably. It not only greatly enriched the environment of passenger transfer space but also greatly improved the value of commercial space.

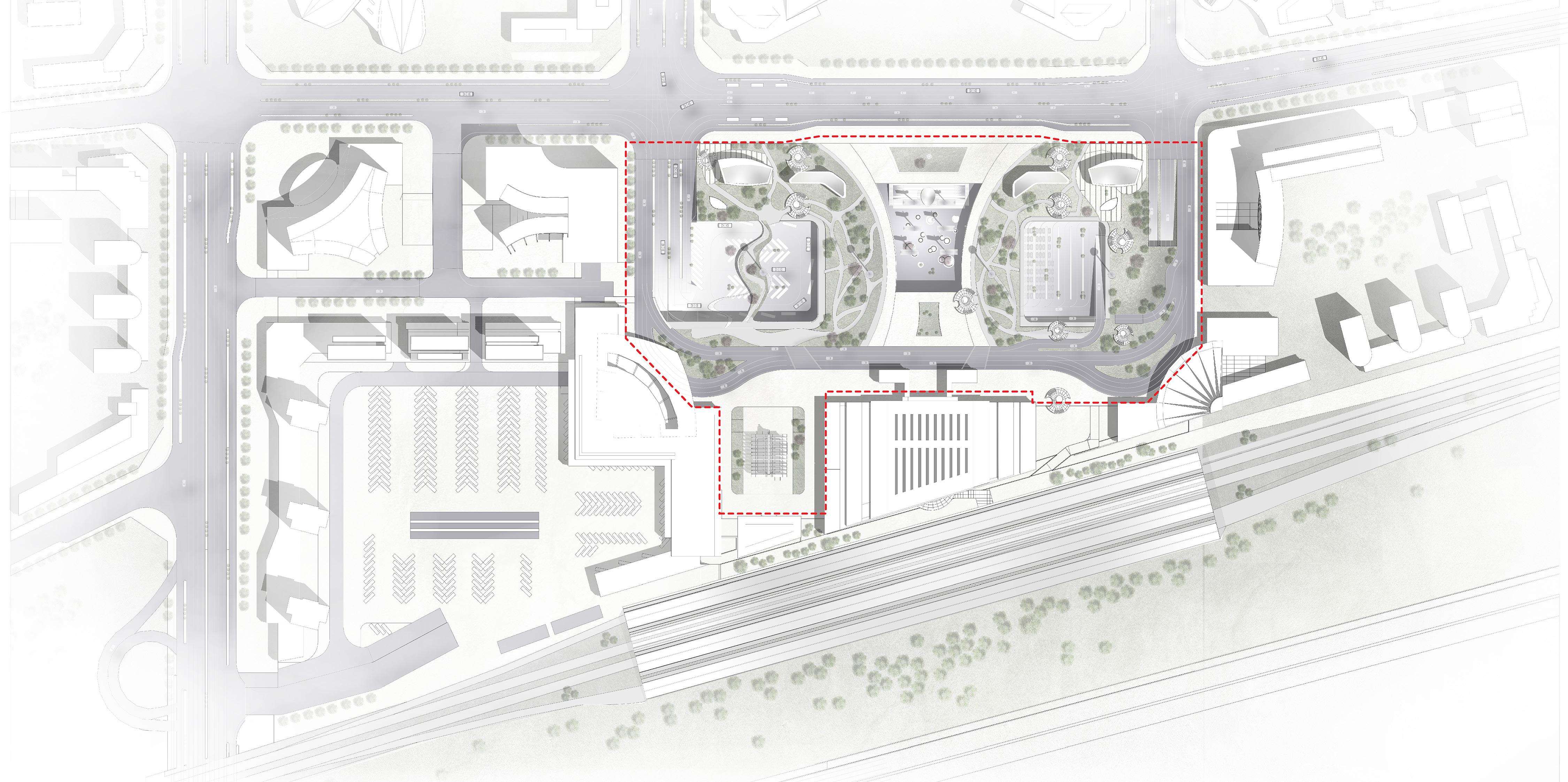

MasterPlan

1.Public Transport Hub

2.Taxi Hub

3.Station Square

4.The Subway Station

5.Long-distance bus Station

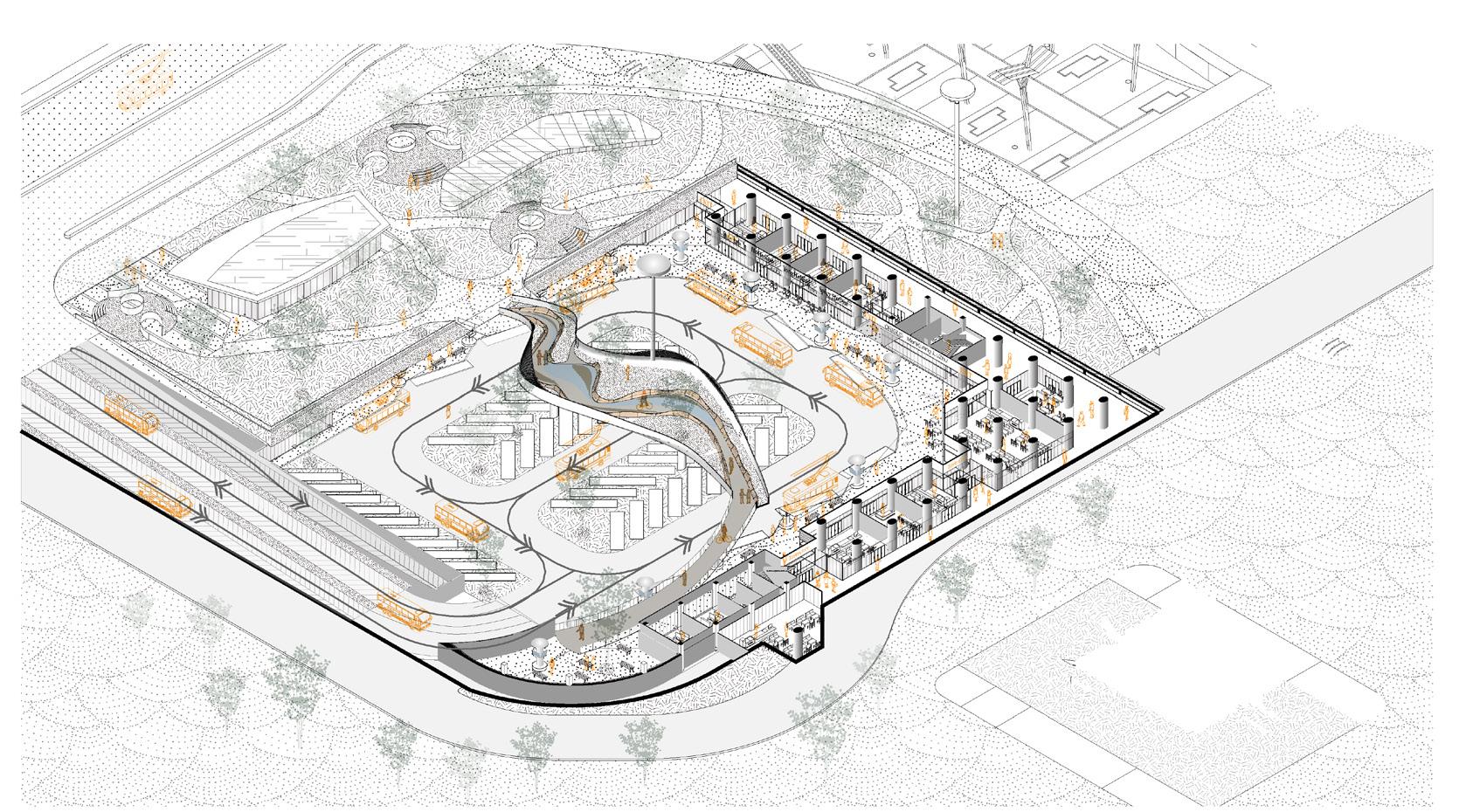

Station Hub Design

Based on the principle of human-oriented and nearby transfer, the scheme effectively solves the complex transfer problems among high-speed railway stations, long-distance stations, bus stations, bus transit stations, taxi stations and other stations by using the main transfer mode covering a variety of above-ground and underground transportation forms.

Inside the hub, we arrange all kinds of transfer streamline reasonably. Avoid the internal congestion caused by excessive concentration, and achieve a complete sense of the diversion of people and vehicles. By integrating all kinds of people flow lines and reasonably setting up all kinds of commercial supporting facilities, the environment of passenger transfer space is greatly enriched and the value of commercial space is greatly improved.

Underground hub as the core construction of station area, with its surrounding the outbound coach station hall, the outbound ticket office, the waiting area and the high-speed rail station hall have transfer between channels, and can be reserved things on both sides of the buildings and the underground nest between station underground commercial street, plus a square on the ground near the high weir road two commercial main entrance on the ground. It has really formed a large-scale comprehensive transportation hub connecting ground and underground.

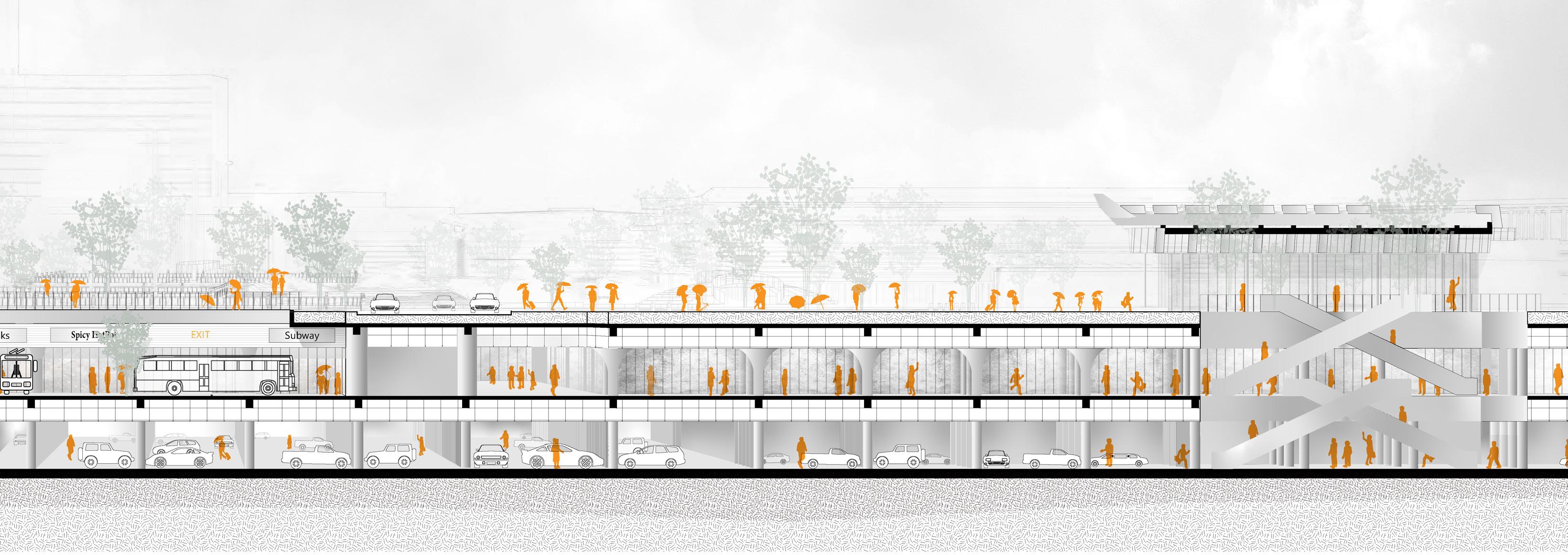

Section Of Railway Station

The main room of Huaihua South Station has 1 floor and 2 floors in part. The platform is located on the second floor of the station. After entering the waiting hall, passengers directly enter the station through the ticket gate on the north side, and then enter the platform through stairs or underground passage.The square in front of Huaihua South Station is divided into two floors above ground and two floors underground.

Urban Public Living Room

Through

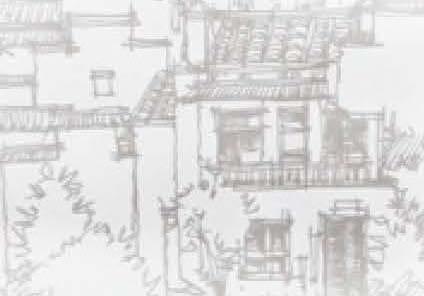

Charcoal sketch: (2016.05):

The project is a commercial complex with mountains as its shape as inspiration

project sketches:

Sketches

Still-life painting: (2008.09):

This kind of static material has strong sense, bright surface and hard texture; Highlights and reflections are obvious; The lines should be more precise and detailed.

Project sketches

Residential area planning project: coloured pencils (2009.07):

The organic combination of natural factors and human factors in space makes people enjoy both the material and spiritual aspects of garden space

OTHER WORKS 01 Paintings：

Including watercolor sketch, sketch, pen light color, and some project sketches

Water color:

Hong Village: (2009.07):

Super high-rise project: (2018.09):

Hong Village: (2009.07):

Water color:

Pen light color:

Waiting hall: (2020.12):

a long queue for Out-patient waiting, a scene of new normal across Beijing and the rest of china.

Charcoal sketch:

3-Unit Single Track System - Directional release of energy

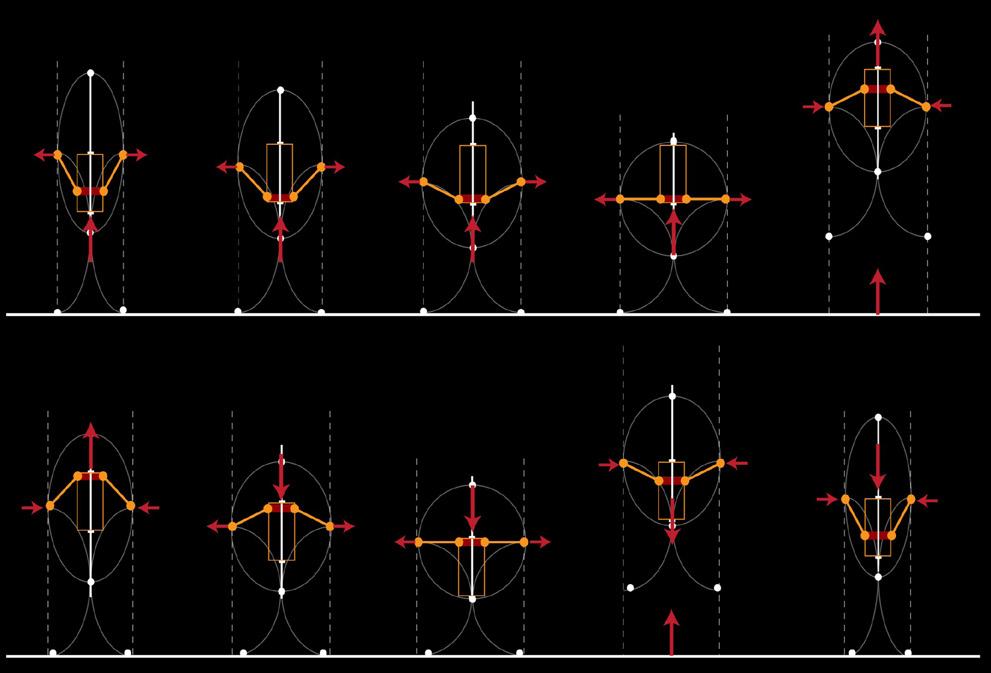

Double Track System - Transformation of form of track

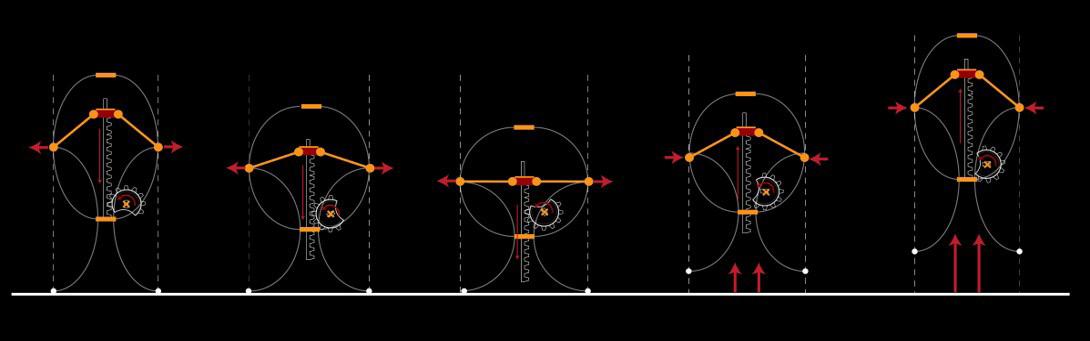

Gears introduced to actuate ‘Nunchucks’ system

Challenges:

- Need strong torque to spin the threaded rod to move cage.

- Difficult to repeat.

OTHER WORKS 02：

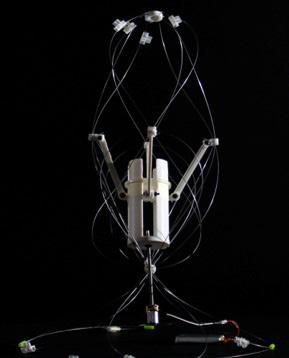

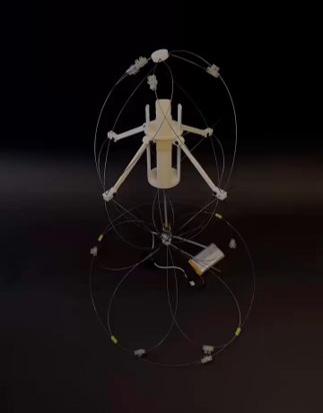

(Inter)Active WireFrames: Group work

(Inter)Active WireFrames investigates piano wires’ material properties, and their potential to create mobile structures.

05 OTHER WORKS

Bend Squeeze Folding

Cylinder 30° Branch System

Twist Twist

scale scale +

Translate

scale + Rotate

scale +

Translate

45° 60° Testing of the toolpath of branches in two directions

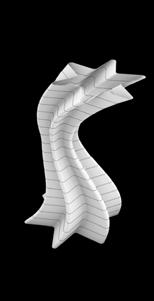

Multiple iterations were carried out in combination with the growth laws of tree branches, using different segments for assemblage to the overall main structure.

The free growth of the three cluster structure is a dialogue between technology and craftsmanship, human and nature.

Branch System

Geometry Variation

Branch Assemblage

Logic and Design of Toolpath :Group work

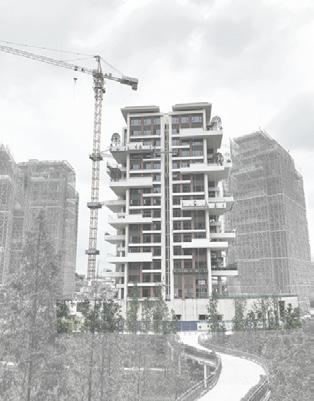

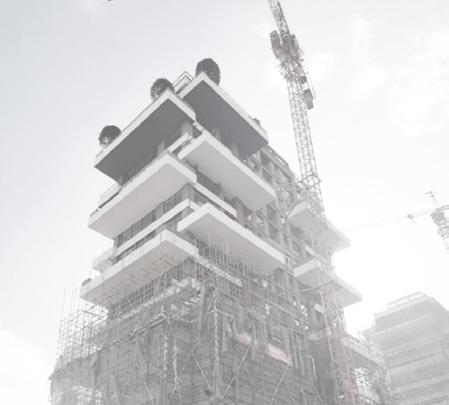

OTHER WORKS 03： model making, details design and Photography： HuaYu Vertical Villa of Guian

Aiming at ecological housing, we adopt the design methods of aerial courtyard and vertical forest, and use scientific and technological means and ecological means to create new residential products. Date:2019.11

OTHER WORKS

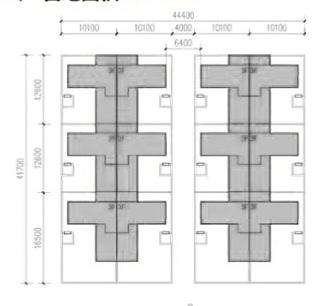

"Huayu Villa" creates a huge private terrace for each family. Every three floors are staggered and empty, realizing the tridimensional and spatialization of the terrace, integrating nature into architecture, and forming the amazing effect of "forest in the air". Living houses blur the boundary between architecture and nature and form a better dialogue with the natural environment.

1.Planting soil and vegetation layer. 2. geotextile filter layer ≥ 200g/m. 3.drainage (storage) layer 150mm gravel. 4.protective layer: 70mm C20 fine aggregate concrete, with two-way internal φ 6@200 Steel mesh. 5.Isolating layer: One layer of 0.4mm polyethylene film. 6.Root puncture resistant waterproof layer 1.5mm polyvinyl chloride (PVC) waterproof coiled material. 7. waterproof layer 2mm two-component polyurethane waterproof coating. 8.Brush one layer of base treatment agent. 9.20mm 1:2.5 cement mortar leveling. 10.30mm at the thinnest part 1:8 cement hydrophobic expanded perlite to find 2% slope. 11.Reinforced concrete roof slab

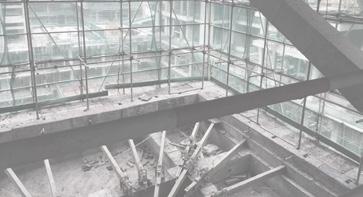

According to the comparison scheme, the method of "turning up the beam+caisson" is adopted. The gap between the structural plate and the beam height is combined with the beam pipe to form a planting space with a net depth of 600mm. Combined with the fixed tree pool, the planting requirements can be fully met.

After comparison of multiple schemes,the structural team adopted the method of enlarging the corner column. At the corner of the building's solid structure, the corner column was aligned with the inner shear wall to form a tie structure, which played a role in stabilizing the terrace slab.

OTHER WORKS 04: video making, Humble administration.Tiangnan

Yuanye ancient and modern, ChinaRailwayConstruction • humble administration Jiangnan carries the pro「ound heritage o「Chinese civilization. When the tide o「 Chinese culture rises gradually,Chinese symbols in architecture also begin to be used in new houses, forming a major feature Based on the idea of "harmony between man and nature" and "integration of house and garden", the unique and exemplary philosophical artistic conception of 56 1egendary vi11as has been r认ieved. Date:2020. 06

Photography Pingshan Village

Pingshan, a thousand-year-old village, derives its name from a mountain. JiyangRiver flows through the village, wilh pink walls and blaek tiles on both sides, numerous residential buildings. /Dale:2009. 07

Tradiliona1 vi11ages are nol on1y lhe maleria1 space o「 production and 1i「e, but also the culturn! link of emotional allribulion and identity. Wilh lhe globalizalion and the convergence o「 arch江ccturc, the rural development is relatively slow, and lhe regional characteristics can be preserved.

Yanan Wang

School of Architecture and Art Design, llellei Cniversily()「Techno1ogy

Bachelor of Architccturc

Major: Architecture (5-years Program)

AA :DRL Program)

TELTS: 6. 5

Experience in piano：
