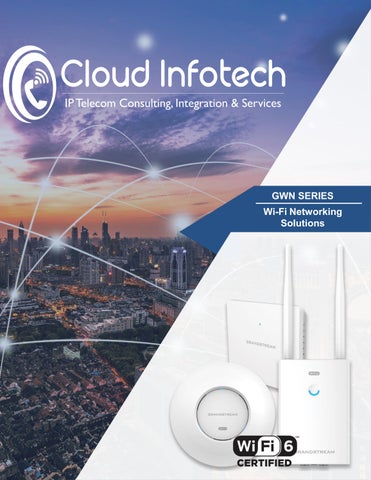

GWN Series Wi-Fi Networking Solutions

GWN SERIES Wi-Fi NETWORKING SOLUTIONS

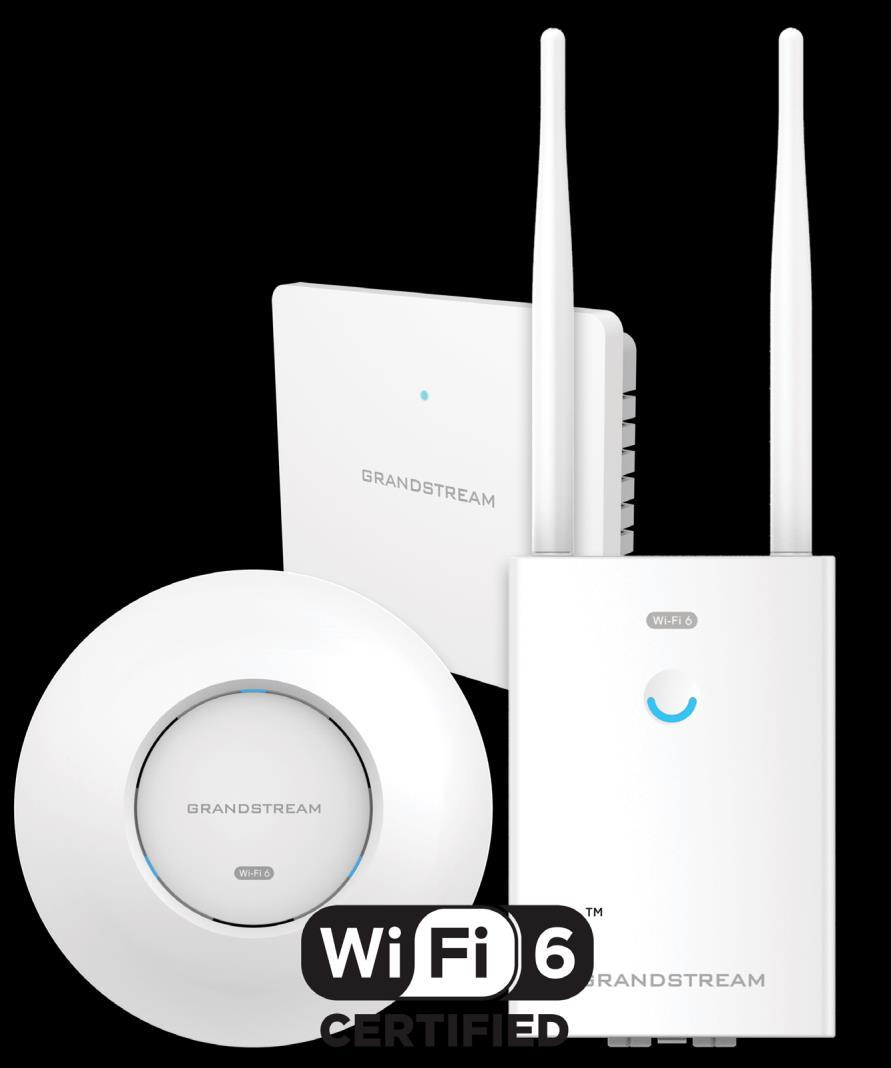

Grandstream’s powerful Wi-Fi networking solutions provides high-performance functionality, leading-edge wireless coverage, next-generation features and easy management. GWN Series access points can be managed in a variety of ways, from a built-in controller to our cloud-based management system (GWN.Cloud) and our local software management system (GWN Manager). The entire series was built to support demanding wireless environments that have a multitude of users and devices that require consistent and reliable Wi-Fi connections.

3-Year Warranty

Free Management (Cloud, software & embedded)

Remote Management (by mobile app or web)

GWN7664

802.11ax 4x4:4 Wi-Fi 6

Access Point

• 3.55 bps wireless and 3.5 Gbps wired throughput

• Dual-band 4x4:4 MUMIMO with DL/UL OFDMA technology

• PoE and PoE+ power adaptation

• Supports up to 750+ simultaneous Wi-Fi devices

• Up to 175-meter coverage range

• Advanced QoS to ensure real-time performance of low-latency applications

• Integrated controller that manages

• up to 50 GWN series local access points

• Includes GWN.Cloud: Configure, manage and administer your access points from a single place

• Anti-hacking secure boot and security

ACCESS POINTS

GWN7660

802.11ax 2x2:2 Wi-Fi 6

Access Point

• 1.77 Gbps and 2 Gigabit Ethernet ports

• Dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology

• PoE and PoE+ power adaptation

• Supports up to 256+ simultaneous Wi-Fi devices

• Up to 175-meter coverage with advanced QOS

• Integrated controller that manages

• Up to 50 GWN series local access points

• Includes GWN.Cloud: Configure, manage and administer your access points from a single place

• Anti-hacking secure boot and security lock of critical data

GWN7630

802.11ac Wave-2 4×4:4 Enterprise

Wi-Fi Access Point

• 2.5 Gbps wireless throughput and 2 Gigabit wireline ports

• Dual-band 4×4:4 MU-MIMO technology

• Self power adaptation upon auto detection of PoE or PoE+

• Supports 200+ concurrent Wi-Fi client devices

• Up to 175-meter coverage range

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot

• Manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management

GWN7625

802.11ac Wave-2 Enterprise

Wi-Fi Access Point

• 2.03 Gbps wireless and 2 Gigabit port

• 2.4G 2×2:2, 5G 4×4:4 MU-MIMO technology

• PoE and PoE+ power adaptation

• Supports 200+ concurrent Wi-Fi client devices

• Up to 165-meter with advanced QOS

• Integrated controller that manages up to 50 GWN series local access points

• Includes GWN.Cloud: Configure, manage and administer your access points from a single place

• Anti-hacking secure boot and security lock of critical data

GWN7624

In Wall Wi-Fi Access Point

• 2.03 Gbps wireless throughput and 4x Gigabit wireline ports

• 5GHz 4×4:4 MU-MIMO

• Supports up to 200 concurrent Wi-Fi client

• devices

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/ control lockdown via digital signatures,

• unique security certificate

• Self power adaptation upon auto detection of PoE or PoE+

• Embedded controller manages up to 30

• local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

GWN7615

802.11ac Wave-2 3x3:3 Enterprise Wi-Fi Access Point

• 1.9Gbps aggregate wireless throughput and

2x Gigabit wireline ports

Dual-band 3x3:3 MU-MIMO technology

GWN7605

Wi-Fi Access Point 802.11ac Wave-2 2x2:2

• 1.27Gbps aggregate wireless throughput

and 2x Gigabit wireline ports

GWN7602

Wi-Fi Access Point with Switch Integrated Ethernet

• 1.17Gbps aggregate wireless

•

•

•

Self power adaptation upon auto detection of PoE or PoE+ Support 200+ concurrent Wi-Fi client devices

Up to 175-meter coverage range

Advanced QoS to ensure real-time performance of low-latency applications

Anti-hacking secure boot

GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller

GWN SERIES - Wi-Fi ROUTERS

Dual Band Wi-Fi Router

• 1.27Gbps aggregate wireless throughput with 5x auto-sensing Gigabit ports

• Dual-band 2x2:2 MU-MIMO

• Built-in VPN support allows easy access to corporate networks

• Supports up to 100 wireless client devices

• Supports Mesh networking with Grandstream access points to

GWN7052

• Dual-band 2x2:2 MU-MIMO with beamforming technology

• Self power adaptation upon auto detection of PoE/PoE+

• Supports 100+ concurrent Wi-Fi client devices

• Up to 165-meter coverage range

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot

• Manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

throughput, 1x Gigabit and 3x 100Mbit wireline speed

• Up to 100 meters coverage range

• Supports up to 80 clients and a 100 meter coverage range.

• Self power adaptation upon auto detection of PoE/PoE+ and PSE

• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device

• Advanced QoS to ensure realtime performance of low-latency applications Anti-hacking secure boot

Wi-Fi 6 Dual-Band Router

• Powered by Wi-Fi 6 (802.11 ax) with up to 4x increased data capacity

• Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology

• Built-in VPN support allows easy access to corporate networks

• Supports up to 256+ wireless client devices

• Support Mesh networking & wired AP connection to provide easy provide easy network expansion

• Powerful security features include guest network, network blacklist, Antihacking secure boot & critical data/control lockdown

via digital signatures, and more

• Secure cloud provisioning through GWN.Cloud

• Rich firewall features including Anti-DoS, traffic rules, NAT and ALG GWN7062

•

network expansion

Powerful security features include guest network, network blacklist, Anti-hacking secure boot & critical data/control lockdown via digital signatures, and more

• Secure cloud provisioning through GWN.Cloud

• Rich firewall features including Anti-DoS, traffic rules, NAT and ALG

GWN

- OUTDOOR LONG-RANGE WEATHERPROOF ACCESS POINTS

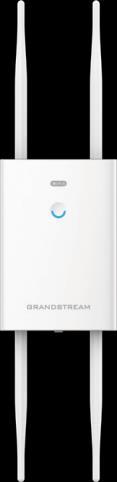

GWN7664LR

Outdoor Long-Range HighPerformance Wi-Fi 6 Access Point

3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughput Dual-band 4×4:4 MU- MIMO with DL/UL OFDMA technology

Up to 300-meter coverage range

Support 750+ concurrent Wi-Fi client devices

Advanced QoS to ensure real-time performance of low-latency applications

Anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate/random default password per device

Self power adaptation upon auto detection of PoE/PoE+

Embedded controller can manage up to 50 local GWN series APs; GWN.Cloudoffers unlimited AP management; GWN Manager offers premise based software controller

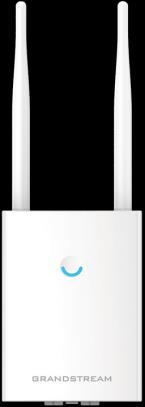

GWN7605LR

Outdoor Long-Range Weatherproof

802.11ac Wi-Fi Access Point

• 1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports

• Dual-band 2x2:2 MU-MIMO with

• beam-forming technology

• PoE and PoE+ power adaptation

• Supports 100+ concurrent Wi-Fi devices

• Up to 250-meter coverage range

• Advanced QoS to ensure real-time performance

• Anti-hacking secure boot and critical data/ control lockdown

• Flexibilty of 2 detachable/ changeable antennas

• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

GWN SERIES - MANAGEMENT

GWN.Cloud GWN

GWN7660LR

Outdoor Long-Range HighWi-Fi 6 Access Point

• 1.77Gbps aggregate wireless throughput and2x Gigabit Ethernet ports

• Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA technology

• Up to 250-meter coverage range

• Support 256+ concurrent Wi-Fi client devices

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/ control lockdown

• Self power adaptation upon auto detection of PoE or PoE+

• Embedded controller can manage up to 50 local GWN APs; GWN.Cloudoffers unlimited AP management, & GWN Manager offers onpremise software AP management

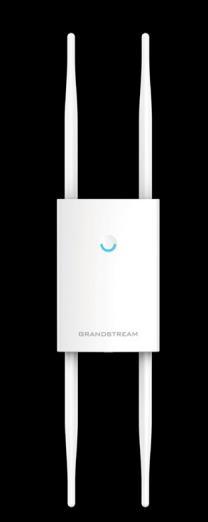

GWN7630LR

High-Performance Outdoor Long-Range Wi-Fi Access Point

• 2.5Gbps wireless throughput and 2x Gigabit wireline ports

• Dual-band 4x4:4 MIMO technology

• PoE and PoE+ power adaptation

• Support 200+ concurrent Wi-Fi client devices

• Up to 300-meter coverage range

• Advanced QoS to ensure real-time performance of low-latency applications

• Anti-hacking secure boot and critical data/ control lockdown

• Flexibilty of detachable/ changeable antenna for different application scenarios

• Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management

Embedded

• Free to use

• Cloud-based platform

• Complete scalability - no limits on the number of APs

• Access from anywhere via web or mobile app

• Visit gwn.cloud to sign up

• Free to use

• Linux-based software for local server deployment

• Supports up to 3,000 APs

• Manage via web and GWN.Cloud mobile app

• Download at grandstream.com/support/tools

• No additional cost

• Controller functionality built-in to all GWN Series APs

• Master AP can control 30-50 GWN Series APs

• Manage via web user interface
