AL-WOUROUD LINE
Client:
Dr. Abdul Qadir bin Nasser Al Obeikan Partners Holding Company
Area: 695,813 m2
Project Description:
The alwroud line project in Taif was consulted and supervised by our firm. Throughout the design process, the past is integrated with the future to create a seamless transition between past and future. The foundation design of the buildings reflects the importance of ancient values through the use of authentic Saudi urban heritage, and the buildings begin to advance in modern designs with a distinctive integration of modern values. The project covers an area of 695,813 square meters. It is divided into multi-use areas, including commercial, residential, museums, and a cinema complex, and supports sustainable and historical thinking

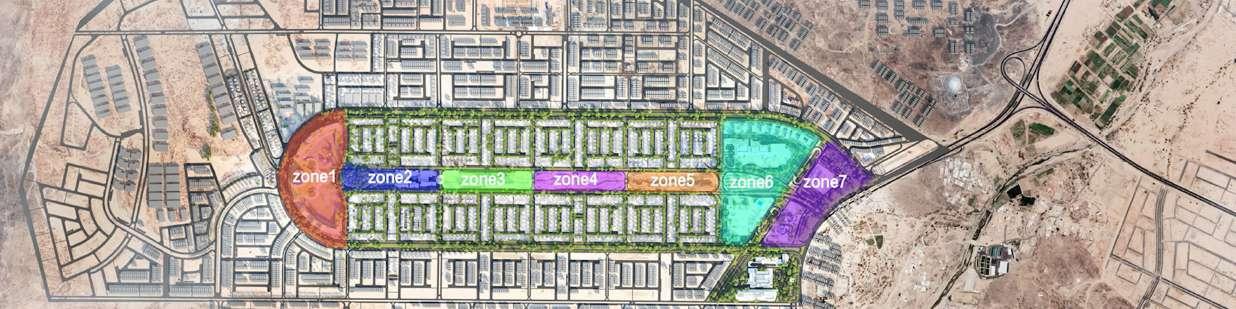

MASTER PLAN
Scope Of Supervision (Work Areas):

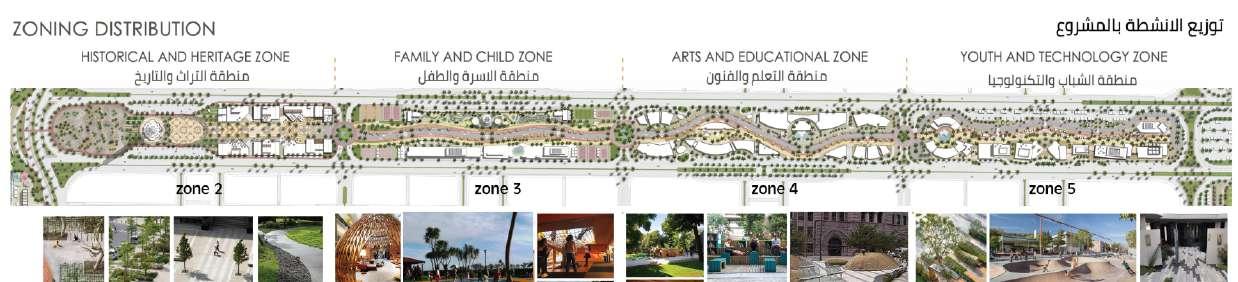

Area 02: Heritage And History Area (Total Area: 56,650 M2)
- A Mountain Garden With An Area Of 16,000 M2
- A Lighthouse With A Height Of 151 Meters + A Mosque
- Al-Mashhad Area (Eid Prayer Hall)
- Commercial Buildings (North And South) (Built Area 10,695 M2)
• Northern Buildings: Consisting Of A Parking Area (Basement), Ground Floor, And An Annex
• Southern Buildings: Consisting Of A Ground Floor And An Annex
- An Area Of Pedestrian Walkways And Fountains Between The Buildings
Zone 03: Family And Children’s Area (Total Area: 60,000 M2)
- The Walkway Is 500 Linear Meters Long
- Open Playground Area (Football Field, Padel Court, Multi-Activity Field)
- Indoor Playground Area (Eardom Stadium)
- Sand Playground + Outdoor Cinema
- 5-Star Hotel
- Restaurants And Cafes Area
-Administrative Offices
- Ground Floor Parking
- Games Area + Car Racing Circuit
- Services Area (Mosques + Restrooms)
- District 04: Learning And Arts District (Total Area: 54,313 M2)
- A Walkway 500 Meters Long
- Administrative And Service Buildings (Multi-Use)
- 4 Star Hotels
- Commercial Centers
- Car Parking
Zone 05: Youth And Technology Zone (Total Area: 57,300 M2)
- Multiple-Use Buildings
- Closed Cinema Area
- Car Parking
Zone 06 & 07: Services Area
-Shopping Mall
- Celebrations Center
-Museum
-Petrol Station
-Hospital
- Commercial And Residential Activities
-Petrol Station
- Social Sports Club
External Mosques (10 Mosques) (Mosque Area Approximately 1,370 Square Meters):
- Service Buildings (Toilets For Men And Women)
- Administrative Building:
- An Environmentally Friendly Building (Using The Green Building System) Dedicated To Project Management, Consisting Of Three Floors (Ground Floor - First Floor - Second Floor)
ةيسدنهلا تاراشتسلإل ةيبرعلا لاصو | 22
Huqqabaz
Services:
Procurement support to procure a main contractor and nominated subcontract packages On-site management of the contractor
Costmanagement of the contract work
MAKE IT REAL CAPTURE DREAM
C:\Users\nans3\Downloads\703\خل\اةلول\ليد.jpg G Project Title Drawing Title Approved Description Detailed Design Issue ASMAA .SAEED N
Infrastructure projects
Plot-363
Plot-674
Plot-655
Plot-425
Plot-Baksh
Plot-626
Plot-640
Plot-693
Plot-684
Plot-683
Plot-429 Plot-Tharwat

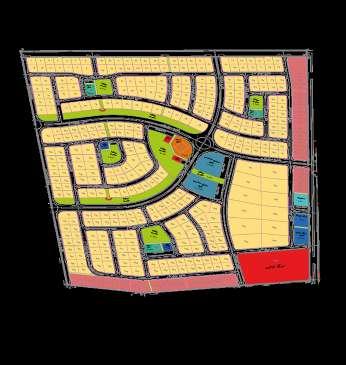

Masterplan PLOT-655
