Modern Bring Your Own Meeting (BYOM) spaces shouldn’t require juggling adapters, docking stations, or complex installs. TeamUp+ simplifies the experience by unifying video, audio, USB, control and power on a single platform. We made BYOM setups easy with solutions that help integrators save time and cost, and allow end users to just plug in and go.
In a space equipped for Bring Your Own Device (BYOD), a user can share their content on a display by connecting their device to the room system.
A video conferencing app installed on desktops and mobile devices for connecting with others virtually, face-to-face in both business and personal settings.
In a space equipped for BYOM, a user can host or join a video conferencing meeting by connecting their device to the room system.
Larger Meetings, Same Vendor
Video conferencing software that runs on a PC paired with a tablet, enabling the space to become a fully functional video conferencing space.
TeamUp+ is made to solve the everyday pain points of BYOM deployments with a predictable solution that scales from huddle rooms to lecture halls. The result? Faster installs, fewer support calls and a consistent experience across rooms.
What sets TeamUp+ apart:
• Problem-solving by design: Eliminates integration headaches with single-cable BYOM, intelligent USB/AV switching and built-in control options.
• Cost-saving: Consolidates extenders, hubs and adapters into fewer devices, standardizing room designs and reducing rework.
• Labor-saving: Auto-switching and USB routing cut setup time and simplify device hand-offs.
• Reliable performance: Built on proven standards – 4K60 video, HDBaseT 3.0 transport, USB 3.x/2.0 support, along with enterprise-grade options like Dante audio
Every space is different, but they all benefit from streamlined systems. TeamUp+ offers tailored solutions for small huddle areas, mid-size conference rooms and large or dualdisplay environments.
Compact 2x1 HDMI/USB-C Switcher
• One-cable BYOM bridge to connect laptops, cameras and mics without extra hubs
• Built-in USB-C charging and auto-switching for quick startups
• Great for soft codec environments (Zoom, Teams, Meet)
Medium Conference Rooms

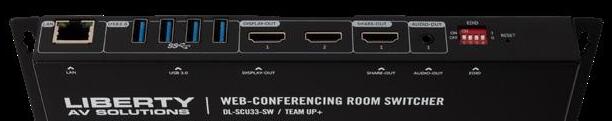

3x3 Web-Conferencing Switcher/Hub
• Share room USB peripherals between a fixed PC and guest laptops
• Flexible I/O options and auto-switching reduce setup delays and confusion
• Ideal for hybrid meetings with multiple participants
Medium / Larger Rooms and/or Dual Screen Requirements

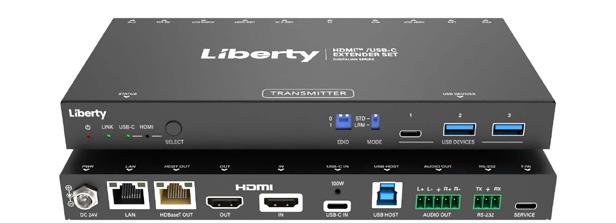

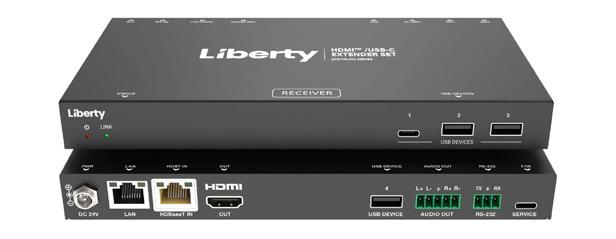

HDBaseT Collaboration Kit
• HDMI and USB-C input at the table; dual HDMI inputs & outputs at the display
• Reliable USB extension up to 70m for cameras and mics
• Perfect for hybrid classrooms or dual-screen meeting rooms
Medium / Larger Conference or Learning Spaces

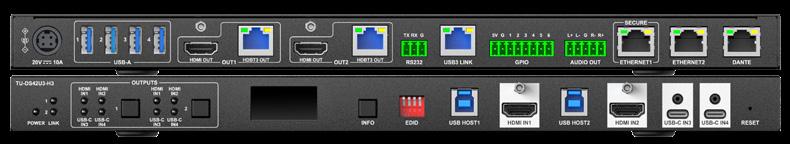

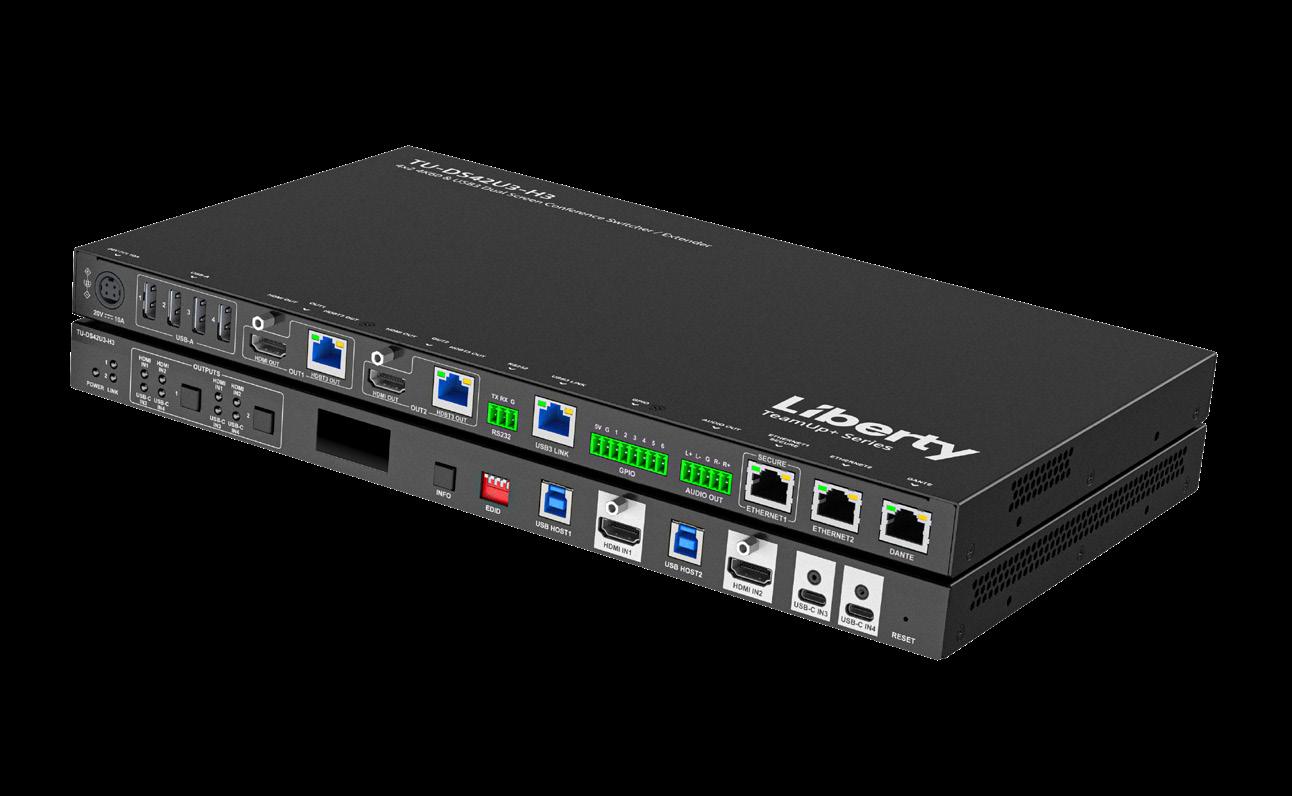

Advanced Dual-Screen (MST & DisplayLink) Collaboration Switcher
• Enterprise-grade for conference rooms, lecture halls and boardrooms
• Handles multiple HDMI/USB-C laptops, single cable dual display AV and USB3 extension, and Dante audio
• Reduces the need for multiple extenders or extra hardware
Every space is different, but they all benefit from streamlined systems. TeamUp+ and Digitalinx series offer tailored solutions for small huddle areas, mid-size conference / classrooms and large or dual-display environments.

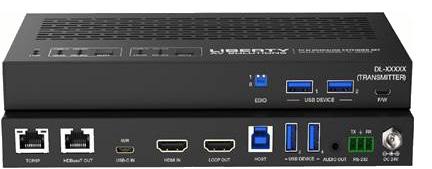

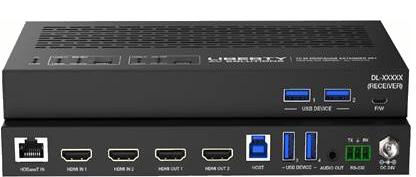

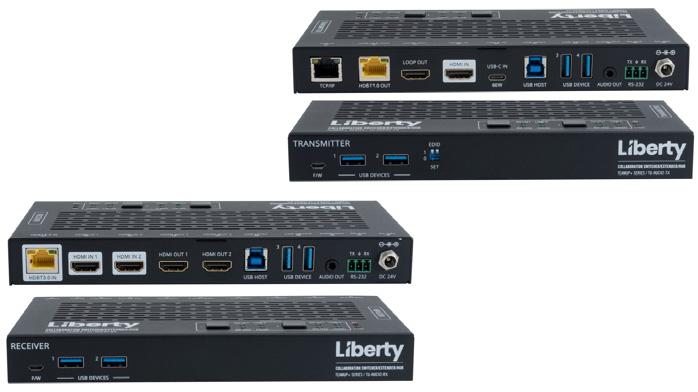

Standard Kit
• HDMI and USB-C input with charging
• HDBaseT 3.0 extension up to 100m
• Bi-Directional 1Gb ethernet extension including ethernet injection into the USB-C host port
• Supports webcams, microphones and other USB devices
• Power-over-Cable (PoC) for faster installs
TeamUp+ has the flexibility to fit unique spaces—just add what you need:

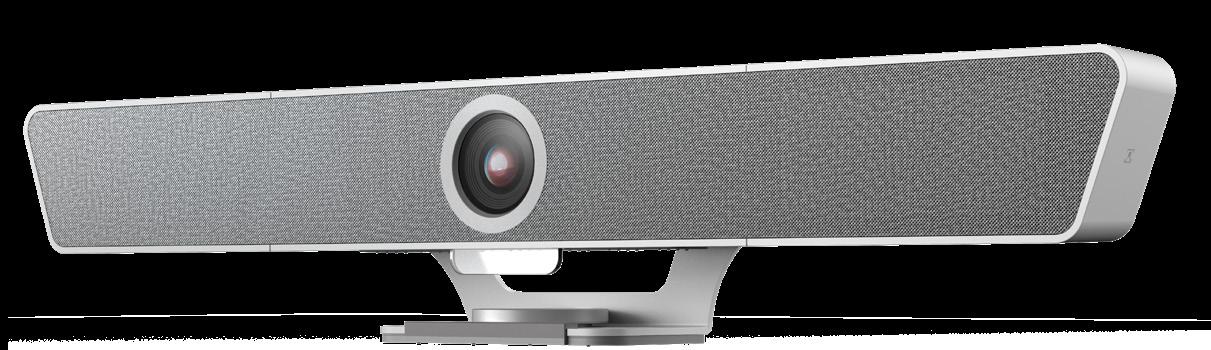

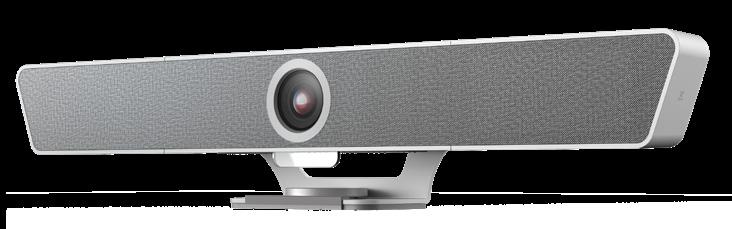

• Cameras: AI-powered video bar or mini 4k webcam
• Microphones: Ceiling, tabletop and 360° options

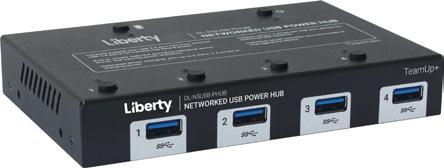

• USB and AV Accessories: Hubs, capture devices, extenders and cables

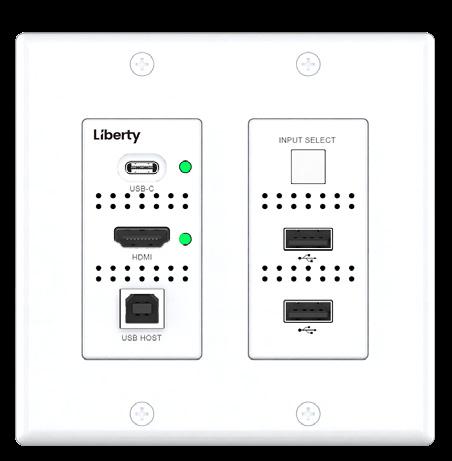

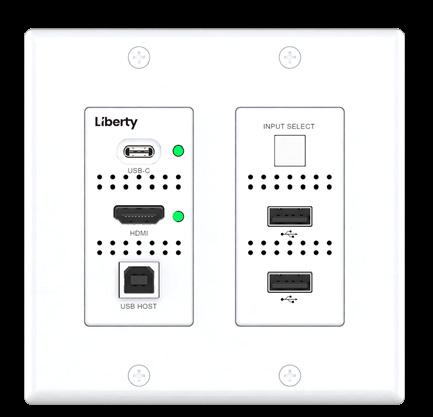

Wall Plate Kit
• Similar features in a clean wall plate form factor
• Ideal for classrooms and small conference spaces
• Supports HDMI, HDBaseT, & SDI inputs
• Analog audio embedding & de-embedding
• EDID Management
• USB-C supports ethernet pass-through & 100w charging for single cable connectivity to host computers
• IP & RS232 connection for control and remote management
TeamUp+ Docking Stations and Hubs bring dependable connectivity to any workspace — whether you’re at home, in the office, or on the go.

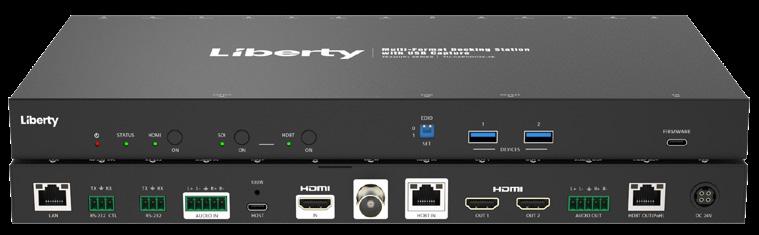

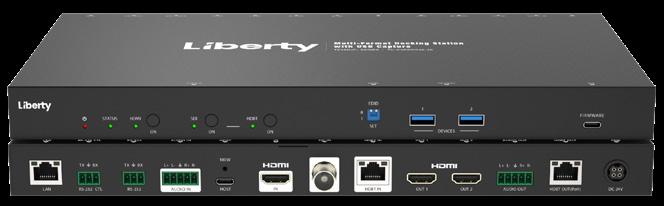

TU-CAPDOC32-4K - Multi-Format Docking Station with USB Capture
3x2 HDMI, HDBaseT and SDI docking station inputs with built in capture cards & USB-C Host port For hybrid classrooms or BYOM setups. Supports HDMI, HDBaseT, SDI, and built-in USB capture — all through one cable.
• Supports HDMI, HDBaseT, & SDI inputs

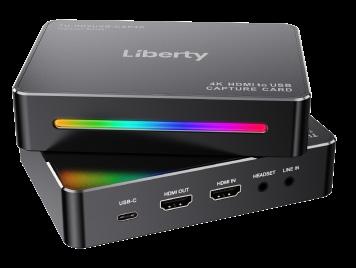

• Built in capture card converts all input types to USB with support of resolutions up to 4K60 making these sources available for collaboration & content sharing applications
• Analog audio embedding & deembedding
• 4 port USB3 client hub
• EDID Management
• USB-C supports ethernet pass-through & 100w charging for single cable connectivity to host computers
• IP & RS232 connection for control and remote management
• Dual HDMI out with mirrored HDBaseT 3.0 output supports DisplayLink allowing for different content on local and connected display/monitor
Simple, plug-and-play connectivity for laptops and peripherals.
• Dongle Style USB-C hub
• USB-C connection split into HDMI for AV and USB3 type A for Data up to 5Gbps

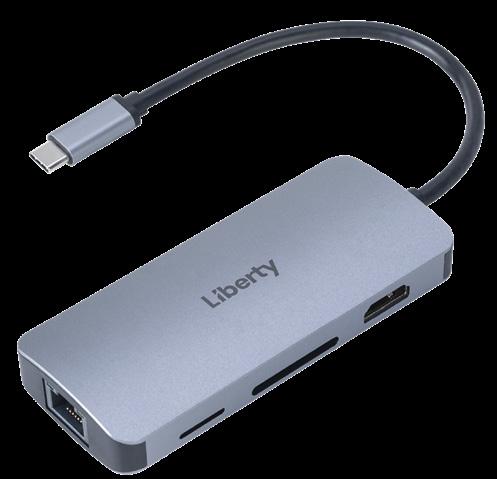

Advanced 8-in-1 USB-C Multi-Port Hub
• 1 USB-C power delivery port for device charger up to 100w
• Supports resolutions up to 4K
Compact, travel-ready hub with 4K HDMI, multiple USB 3.0 ports, and Gigabit Ethernet.
• 8-in-1 Liberty USB-C hub expands the limited USB connectivity of your computer with an HDMI output port, a gigabit Ethernet port (RJ-45 port), a USB-C charging port, three USB 3.0 ports, and SD and TF card slots
• USB-C 3.1 Gen.1 male connection with 1x RJ45 female, 1x HDMI female, 3x USB-A 3.0 female, 1x USB-C female PD charging port, 1x SD/TF slot
• Video resolutions: Supports a full range of resolutions up to 4K UHD 3840x2160 @ 30Hz, 2k, 1080p, 720p, 480p
• Ethernet data transfer rate: Pass up to 1 gigabit of Ethernet speed
• USB 3.0 compliance: Gen USB 3.1 while being fully backward compatible for USB 3.0/USB 2.0/USB 1.1
• USB 3.0 data transfer rate: Up to 5Gbps shared
• USB-C 3.0 PD charging port: Up to 100 watts of power delivery, intended ONLY for a laptop, mobile, and tablet charging
TU-220DOC - Dual-Screen USB Dock
Dual-display support with power delivery and Ethernet — great for hybrid offices.
• Dongle Style USB-C dock
• USB-C connection supports DP-MST for dual screen extend over 2 HDMI outputs
• 1 USB-C power delivery port for device charger up to 100w

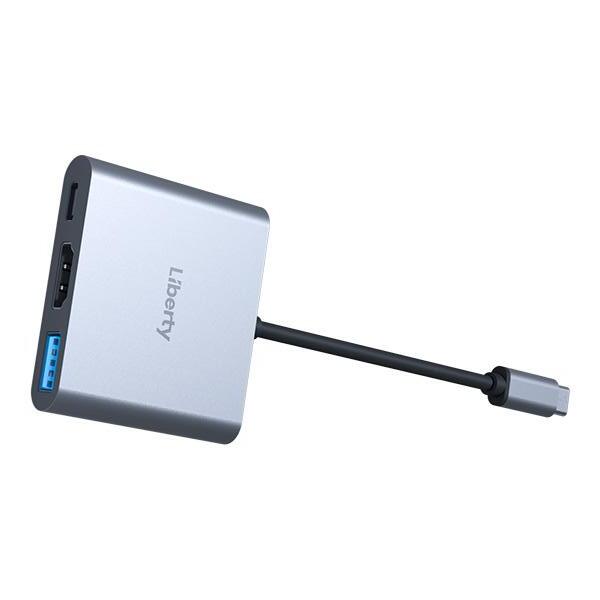

TU-230DOC - 3-IN-1 USB Dock/Hub
Simple, plug-and-play connectivity for laptops and peripherals.

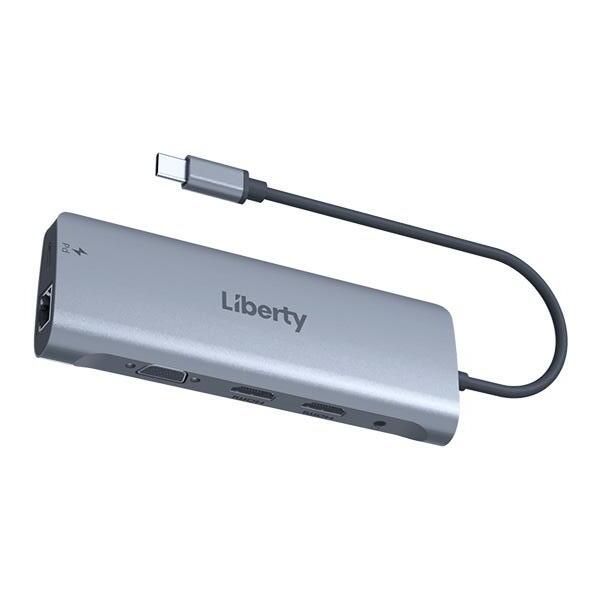

TU-350DOC - Triple-Screen Dock
• Non-Powered Docking
• USB C port connection
• 2 HDMI Video Ports
• 1 VGA port
• 3 USB 3.0 Type A port supporting up to 5Gbps
• Qty 2 USB3 type A device ports
• Supports resolutions up to 4K
• VGA output for legacy devices
• 1 USB C PD Port supporting up to 100W of charging power
• 1 3.5mm Stereo Audio jack
• 1 TF and 1 SD port
• 1 Network port RJ45 supporting 10/100/1000Mbps
Drives up to three displays with multiple USB ports and Ethernet pass-through.
• Non-Powered Docking
• USB C port connection
• 2 HDMI Video Ports
• 1 DisplayPort port
• Single display up to 4K@60Hz; Dual display up to 4K@60Hz
• MST; Triple display up to 4K@30Hz MST)
• 3 USB 3.0 Type A port supporting up to 5Gbps
• 2 USB 3.0 Type C port supporting up to 5Gbps

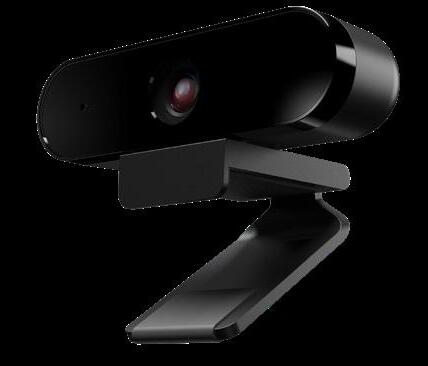

• TU-MCAM4K - Mini 4K webcam with AI framing Professional video quality for remote or hybrid environments.

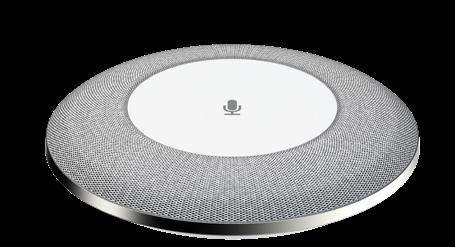

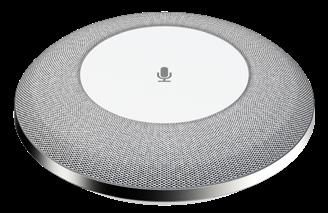

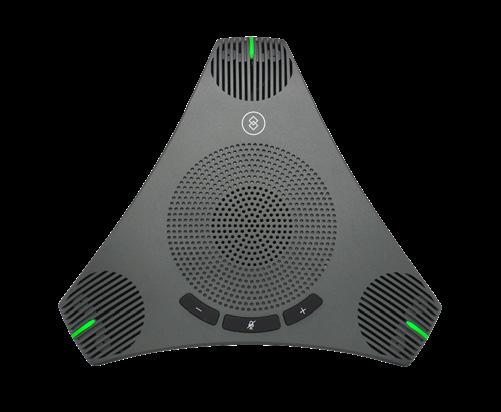

• DL-USB-360SPKMIC - 360° Speakerphone Mic All-in-one USB microphone and speaker for desks or small meeting areas.
• 2 USB 2.0 Type A port supporting up to 480Mbps
• 1 USB C PD Port supporting up to 100W of charging power
• 1 3.5mm Stereo Audio jack
• 1 TF and 1 SD port
• 1 Network port RJ45 supporting 10/100/1000Mbps
TU-MCAM4K DL-USB-360SPKMIC
TeamUp+ isn’t just hardware; it’s a smarter way to design collaboration spaces. By combining video, audio, USB and control into one streamlined platform, it removes the complexity that often derails BYOM deployments. Integrators gain predictable installs, end users get a plug and play experience, and IT teams reduce support headaches, all without sacrificing performance or flexibility.
With TeamUp+, you can:
• Walk into any room and connect with one cable microphones and displays.
• Standardize installs across multiple room types
• Cut truck rolls and support calls thanks to proven reliability and built in control features.

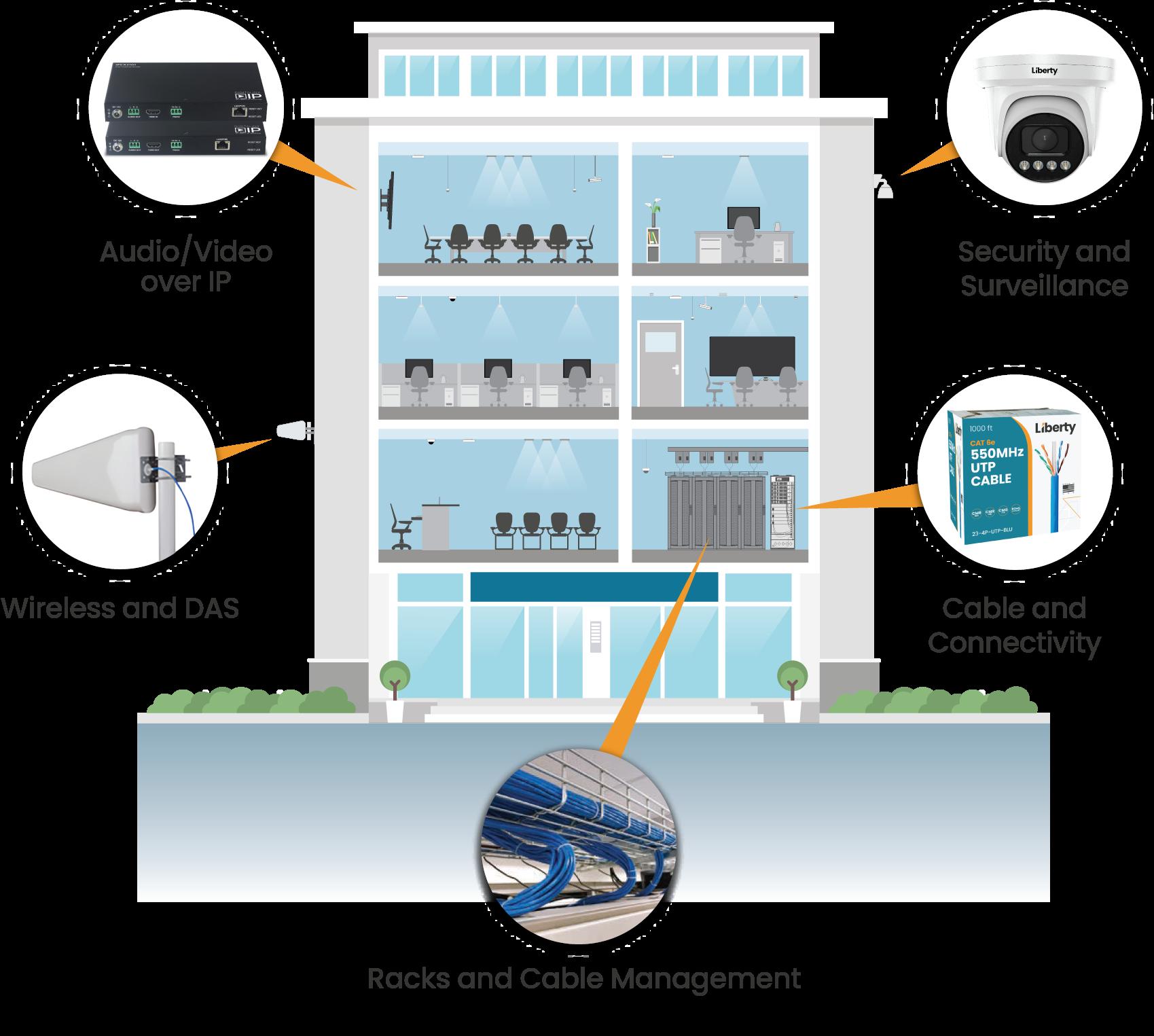

Liberty has a complete technology system of adaptable, advanced infrastructure systems across Audio/Video over IP, Security and Surveillance, Cable and Connectivity, Racks and Cable Management, Wireless and Distributed Antenna Systems, and Software and Services — all backed by the support of knowledgeable in-house, customer service teams. With an ever-growing portfolio of products, Liberty has maintained both quality and personal connection to the installer, delivering products that are dependable, affordable, cutting edge, yet easy to install and user-friendly that support the toughest of technical requirements.
Find out more about Liberty at Libertyonline.com
