Symbols and Definitions
Icon Description Icon
General
u xx Go to page
in (mm) Inches (milimeters)
lb (kg)
Part Number.
Pound (kilogram).
(Approx Weight) | straight section weight in meters, accessories weight in units
Product reference number
h Height - flange
Description
ft (m) Span distance in feet (meters)
More information
Packaging n Raw material
Width
Length in² (mm²) Cable fill, cross sectional area
Electrical Continuity guaranteed per IEC 61537
Patented Pemsa
{ Assembly time (seconds) w
Tool-less attachment
Safe working load
Quick click joint system
Working temperature range Impact strength
Finishes
EZ EN ISO 2081
PG Pregalvanized EN 10346
Approvals
Cable trays international standard IEC 61537
C8
Fire resistance
High resistance coating C8 IEC 61537
UL Certified approval AENOR N Mark
Acc. to directive 2006/95 CE
Compliance with directive RoHS 2002/95/CE
Product Solutions
Buildings
IT / Data centers
Photovoltaic / Energy
Tunnels
Food industry
Pharmaceutical
Renewable energies
Petrochemical industry
CableTrayandSupport SystemSelectionGuide
Certifications
CableTrayandSupport SystemSelectionGuide
Certifications Applications
ProtectiveFinishesfor CableTraySystems
ResistanceclassfinishesaccordingtoIEC61537
Note: This chart compares the hours of testing per IEC 61537 performed on each type of finish and the relative performance of the various finishes. Each hour of salt spray testing represents roughly a week (168 hours) of exposure in a harsh environment.
WireMeshCableTray Systemwith SafetyEdge

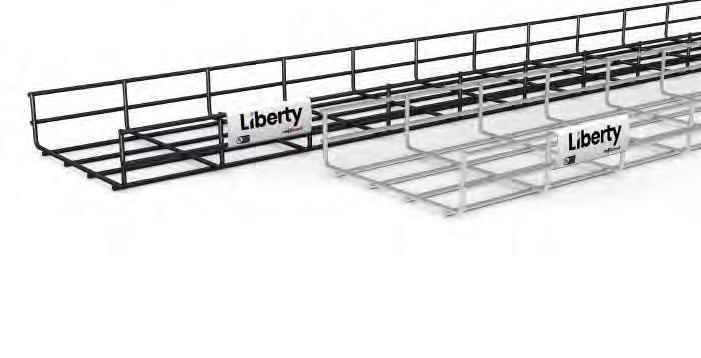

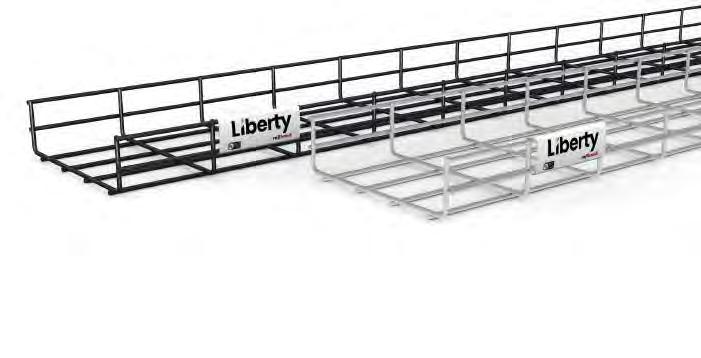

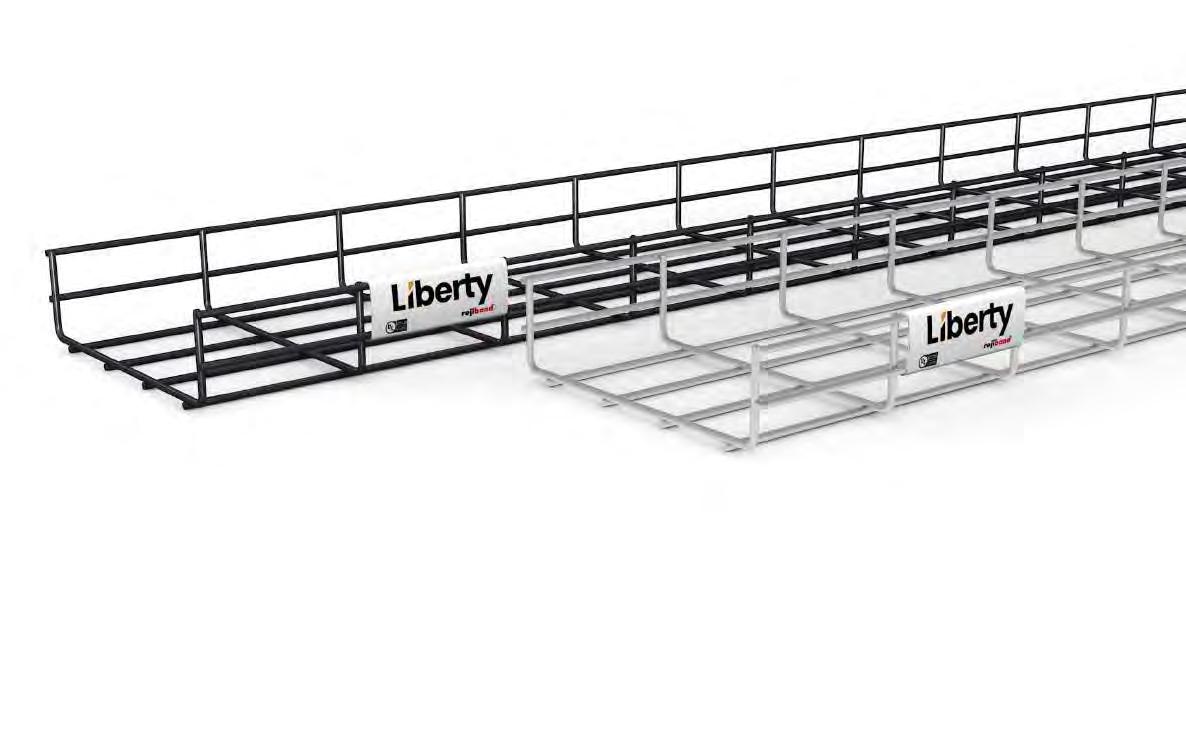

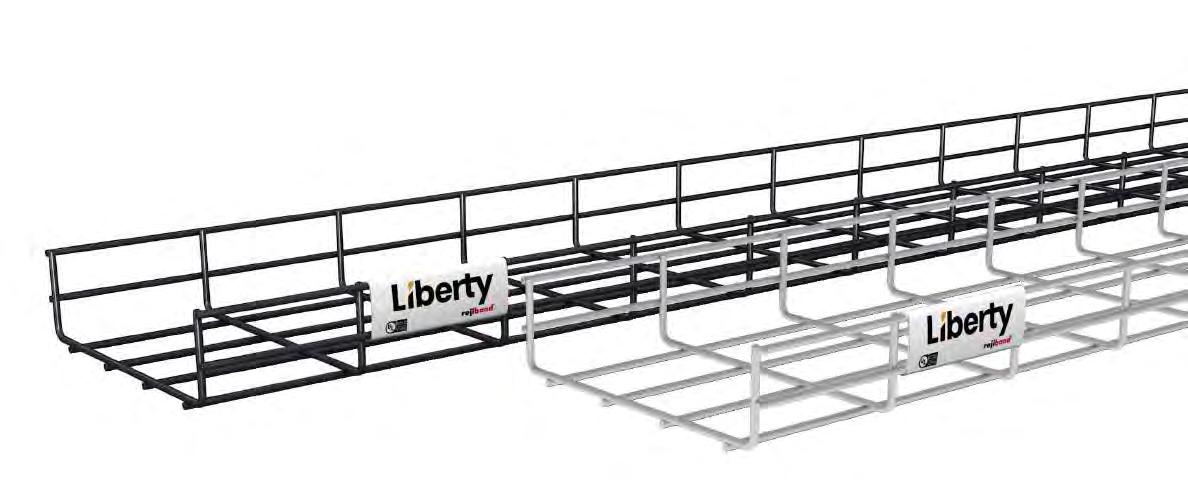

Electrowelded Wire Mesh Cable Tray with Safety Edge
EZ: Electrozinc Plated C8 (BK8): High Resistance BLACK C8 (BK8)
EZ C8 (BK8)

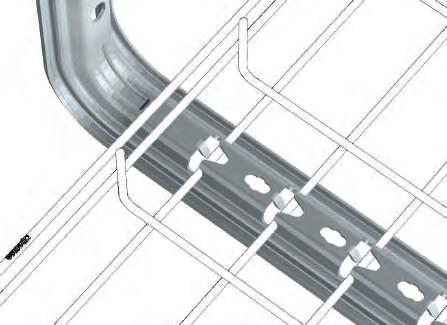

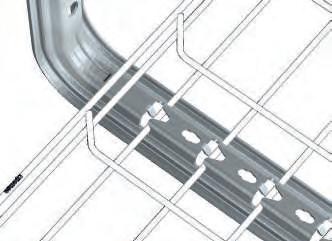

Bend tabs on supports to secure trays.
Advantagesandfeatures
Safety edge protects cables.
Quick Click Joint System provides fast installation, and savings on materials and handling costs.
2” (60 mm)
Notes: Sold individually. Each tray is 118”L (3 m). Weight per meter Hot-Dipped Galvanized and Stainless Steel finishes are also available with an extended lead time. Please contact Liberty for additional information and custom sizes Wire Mesh Wi
4 (100)L022000-21ZL022000-21B 1.74 (0.79) Y
6 (150)L022000-22ZL022000-22B 1.83 (0.83) Y
8 (200)L022000-23ZL022000-23B 2.38 (1.08) Y
12 (300)L022000-24ZL022000-24B 3.70 (1.68)
16 (400)L022000-25ZL022000-25B 4.50 (2.04) Y
18 (450)L022000-26ZL022000-26B 4.61 (2.09) Y
20 (500)L022000-27ZL022000-27B 5.29 (2.40) Y 24 (600)L022000-28ZL022000-28B 6.09 (2.76) Y
4 (100)L022000-31ZL022000-31B 2.34 (1.06) Y
6 (150)L022000-32ZL022000-32B 2.47 (1.12) Y
8 (200)L022000-33ZL022000-33B 3.00 (1.36) Y
4” (100 mm)
6” (150 mm)
12 (300)L022000-34ZL022000-34B 4.43 (2.01) Y
16 (400)L022000-35ZL022000-35B 5.22 (2.37) Y
18 (450)L022000-36ZL022000-36B 5.36 (2.43) Y
20 (500)L022000-37ZL022000-37B 6.02 (2.73) Y 24 (600)L022000-38ZL022000-38B 6.81 (3.09) Y
8 (200)L022056-63ZL022056-63B 5.09 (2.31) N
12 (300)L022056-64ZL022056-64B 6.00 (2.72) N
16 (400)L022056-65ZL022056-65B 6.92 (3.14) N
18 (450)L022056-66ZL022056-66B 7.07 (3.21) N
20 (500)L022056-67ZL022056-67B 7.12 (3.23) N
24 (600) L022056-68Z L022056-68B 8.75 (3.97) N L022001-50Z tu 12 L022001-50B tu 12
h X g - in. (mm)
Cross sectional area in2 (mm2)
Steel in finishes EZ and Black C8 (BK8)
Load Rating lb./ft. (kg/m)
Span of 5 ft. (1,5 m)
Class(NEMADesignation VE-1) USA Canada 60 Millimeter Height (2")
2" x 4" (60x100)6.9 (4.420) 30.80 (20.7)5AA2" x 6" (60x150)10.5 (6.783) 30.80 (20.7)5AA-
2" x 8" (60x200)14.5 (9.333) 30.80 (20.7)5AA-
2" x 12" (60x300)21.8 (14.050) 35 (23.5) 5A-
2" x 16" (60x400)29.47 (18.999) 35 (23.5) 5A-
2" x 18" (60x450)33.3 (21.500) 35 (23.5) 5A100 Millimeter Height (4")
4" x 14" (100x100)11.6 (7.462) 74.1 (49.8) 5AA-
4" x 16" (100x150)17.9 (11.562) 74.1 (49.8)5AA-
4" x 18" (100x200)25.2 (16.290) 74.1 (49.8)5AA-
4" x 12" (100x300)39.2 (25.290)115.2 (77.4) 5AA
4" x 18" (100x400) 52.93 (34.155) 115.2 (77.4) 5AA
4" x 18" (100x450)59.8 (38.580)115.2 (77.4) 5AA 150 Millimeter Height (6")
6" x 18" (150x200) 39.91 (25.754) 114(170)
6" x 12" (150x300) 61.80 (39.874)127.67 (190)
6" x 18" (150x400) 83.69 (53.994)127.67 (190)
6" x 18" (150x450)94.63 (61.054)134.39 (200)

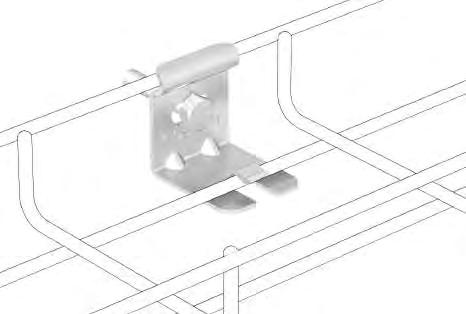

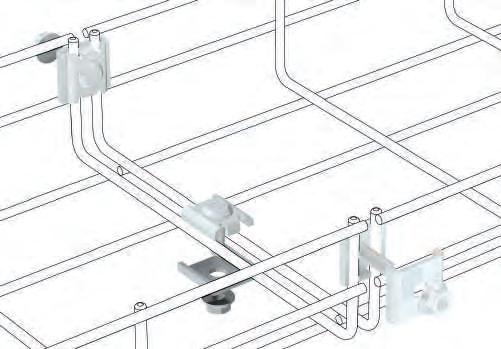

Splice Clamp Hardware
Part Clamp Hardware

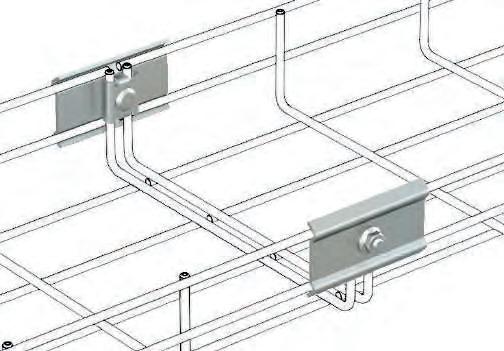

Heavy-Duty Side Joint Plate
in (mm) h 2, 4 (60, 100)
g 4 - 24 (100-600)
m Part Number lb/kg
EZ
C8

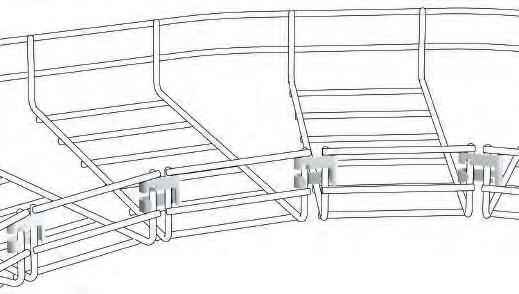

Horizontal Bend Clip
L022001-50Z 0.06 (0.03)
L022001-50B0.07 (0.03)
Notes: Sold in packs of 50. Use this clamp to splice tray sections when forming all end-to-end connections, turns, reductions and intersections.
in (mm) h 2, 4 (60, 100)
g 4 - 24 (100-600)
m Part Number lb/kg
EZ L022005-50Z0.04 (0.02)
C8
L022005-50B0.04 (0.02)
Notes: Sold in packs of 50. This clamp is used to install Side Joint Plate and Splice Plate or to secure tray to supports.
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
EZ
L022002-50Z0.11 (0.05)
C8 L022002-50B0.11 (0.05)
Notes: Sold in packs of 50. Use this plate with Part Clamp to reinforce the side splices on end-to-end connections when tray supports are spaced farther than 5' (1.5 m) apart.
in (mm) h 2, 4 (60, 100)
g 4 - 24 (100-600)
m Part Number lb/kg
EZ
C8
L022003-50Z 0.02 (0.01)
L022003-50B0.02 (0.01)
Notes: Sold in packs of 50. This clip is an alternative to the to the Splice Clamp for turns.

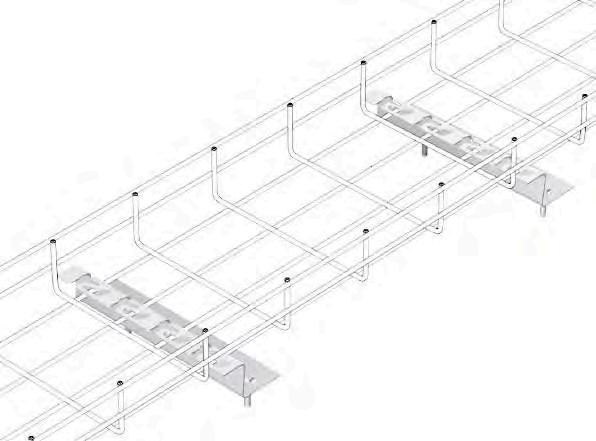

Secure attachment to supports as an alternative to the Quick Click System.
(100-150)2
(200-300)2+1*
(450-600)2+2* Note: * indicates bottom of tray
splice when support span is greater than 5 ft (1.5 m).

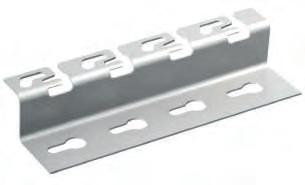

Adjustable Splice Plate
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
EZ L022004-10Z 0.14 (0.07)
C8 L022004-10B0.14 (0.07)
Notes: Sold in packs of 10. Use for intersections, reductions, and turns that are 120 to 160 degrees. Install with Part Clamp.

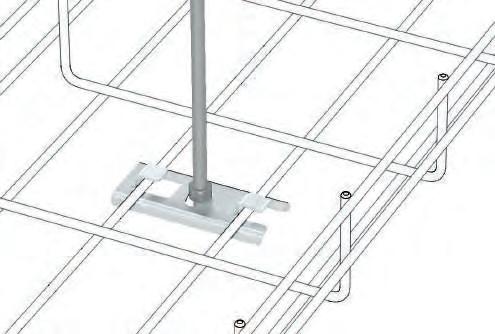

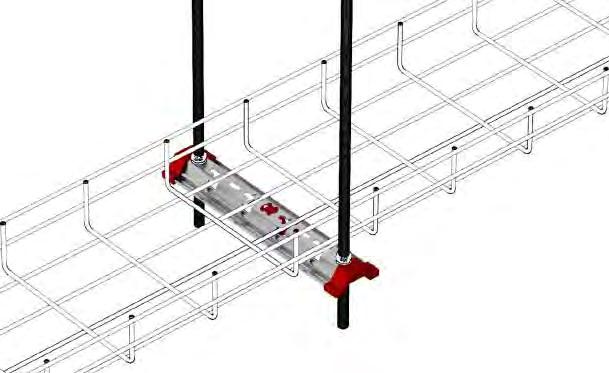

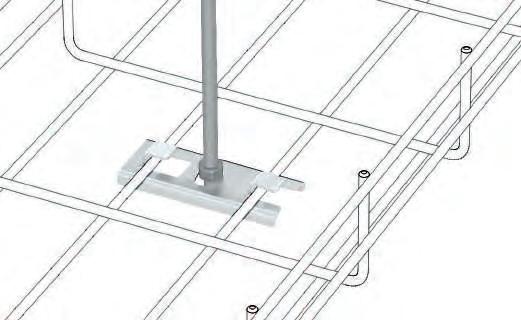

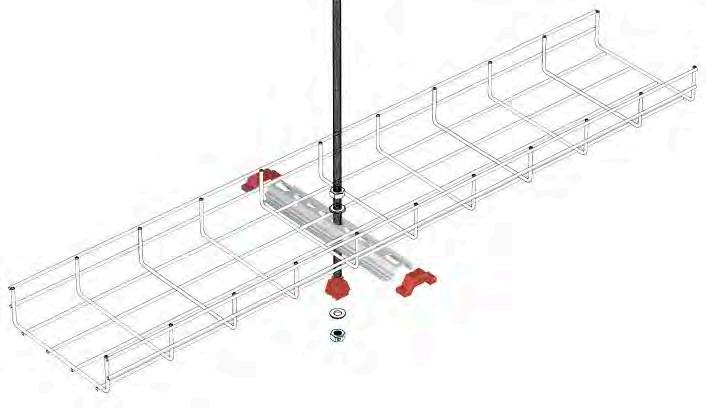

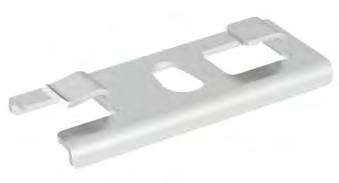

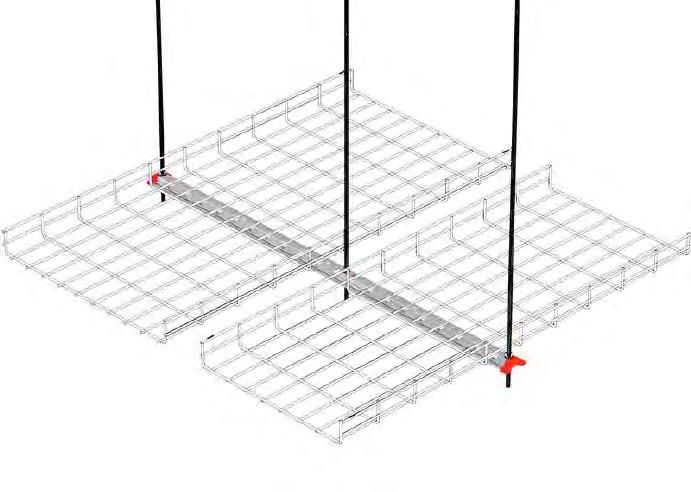

Central Hanging Plate in (mm) h 2, 4 (60, 100)
Ground Connector

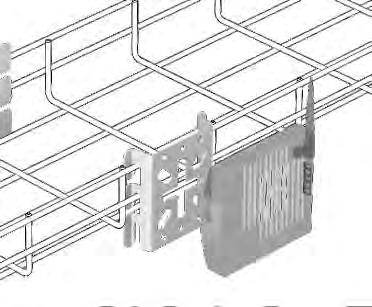

Light and Box Support
g 4, 6, 8 (100, 150, 200)
m M Part Number lb/kg
EZ 5/16" (M8) 3/8" (M10)
L022044-12Z 0.07 (0.03)
C8 L022044-12B 0.07 (0.03)
Notes: Sold in packs of 20. Use with either 5/16" (M8) or 3/8" (M10) threaded rod. Also used with L-shaped overlapping intersections and to secure tray vertically to a wall or directly to the floor.
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600) m AWG in2 (mm2) Ømáx in (mm) Part Number lb (kg)
3-14
Notes: Sold in packs of 20.
in (mm)
h 2, 4 (60, 100)
g 4, 8, 12, 24 (100, 200, 300, 600) m Part Number lb/kg
EZ L022037-10Z 0.31 (0.14)
C8 L022037-10B0.31 (0.14)
Notes: Sold in packs of 10. Does not attach to 6"W (150 mm) or 18"W (450 mm) tray.
For tray widths:
g 8"-24" (200-600 mm)

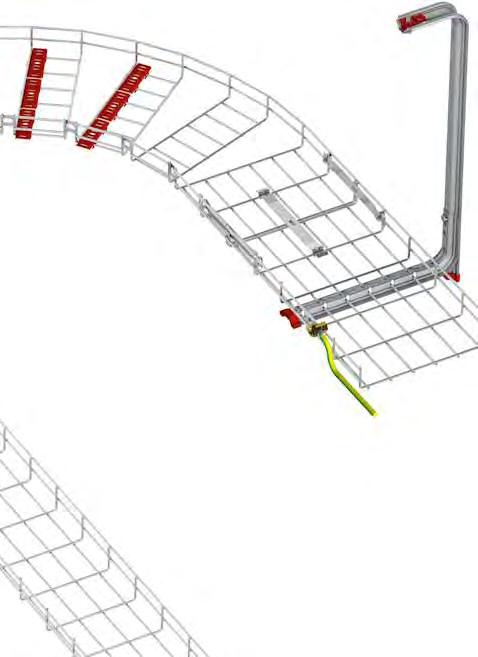

Use for turns and intersections

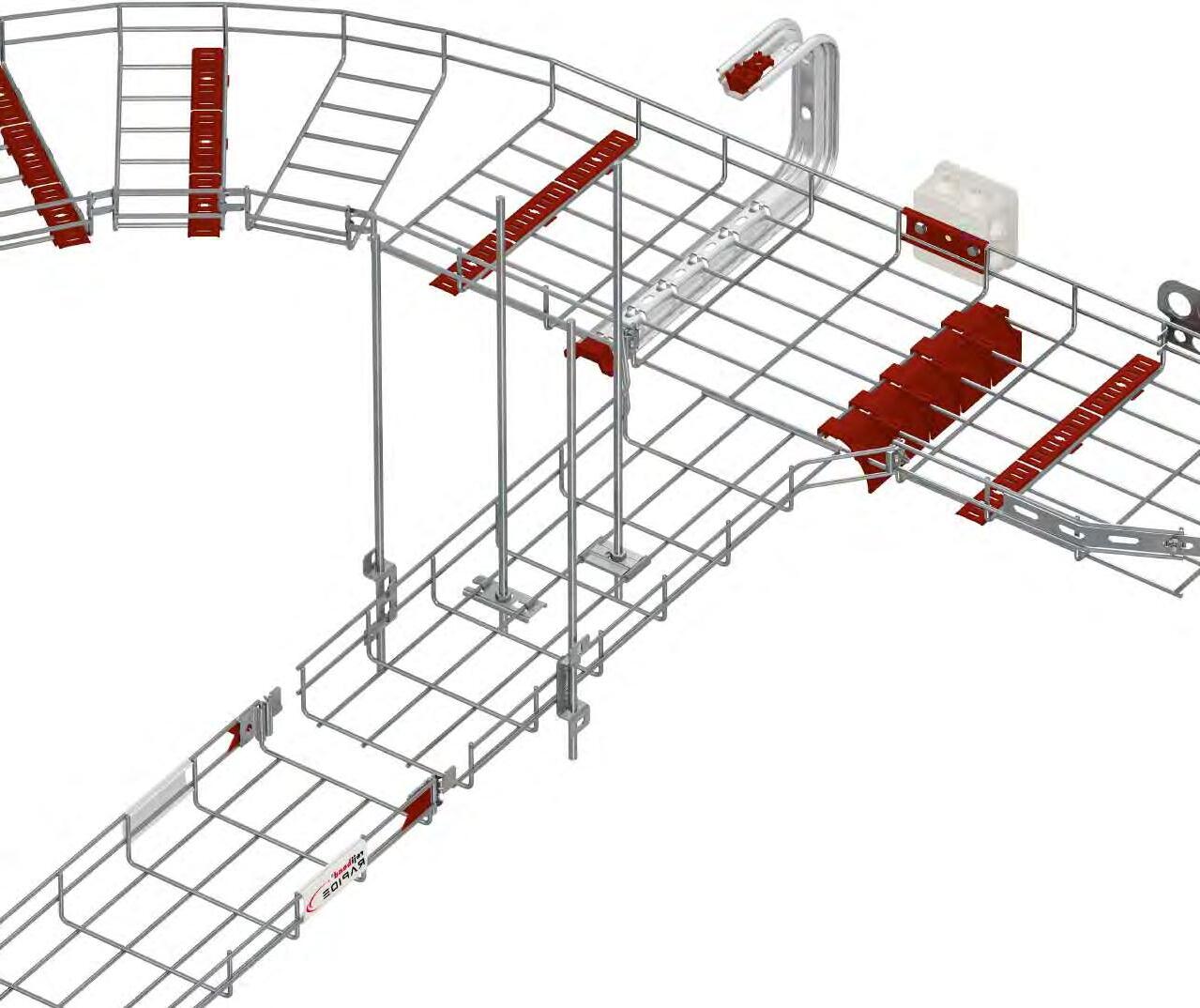

Versatile pathway
8" (200)21" (525)4" (100)
12" (300)25" (625)8" (200)
18" (450)33" (825)12" (300)
24" (600)37" (925)20" (500)
Central hanging plate x2 Use C/DIN 603 M6x20 screw and nut or 1/4-20 x 1" long screw and nut. 8"(200mm)+(2N) N
.02-.05 in2 (16-35 mm2.)Part Number L022007-020 Ømax = .26" (6,5 mm)
Note: *indicates bottom of tray
Reinforced Joint Clamp
Applications:
•Lighting
• Emergency lighting
• Boxes
• Router
• Sensors
• Detectors

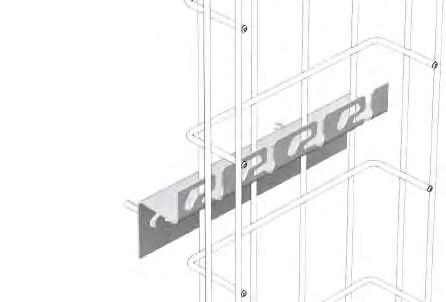

Channel Strut Clip

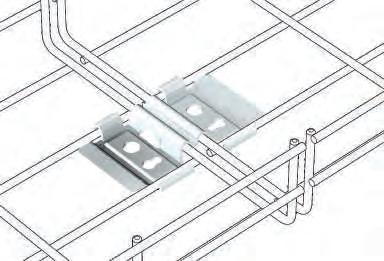

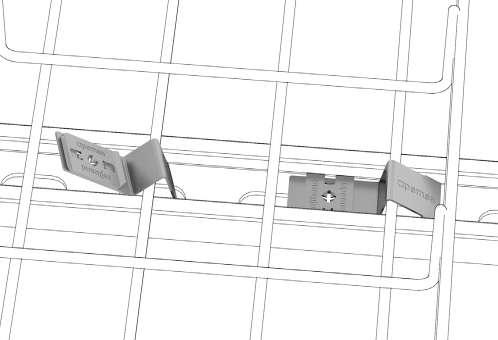

Base Rapid Splice
Side Rapid Splice
Universal Bracket
in (mm) h 2 - 6 (60, 150)
g 4 - 24 (100-600)
m Part Number lb/kg
GC L022010-50H0.02 (0.01)
in (mm) h 2 - 6 (60, 150) g 4 - 24 (100-600)
m Part Number lb/kg
EZ
L022015-10Z0.17 (0.08)
C8 L022015-10B0.17 (0.08)
in (mm) h 2 - 6 (60, 150)
g 4 - 24 (100-600)
m Part Number lb/kg
EZ L022023-50B0.10 (0.04)
L022023-50Z
C8 0.10 (0.04)
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
PG L022019-10G 0.38 (0.17)
C8 L022019-10B0.38 (0.17)
Notes: Sold in packs of 10.
Applications: •Lighting • Emergency lighting • Boxes • Router • Sensors • Detectors
Small Universal Bracket
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
PG L022018-10G 0.20 (0.09)
C8 L022018-10B0.20 (0.09)
Notes: Sold in packs of 10.

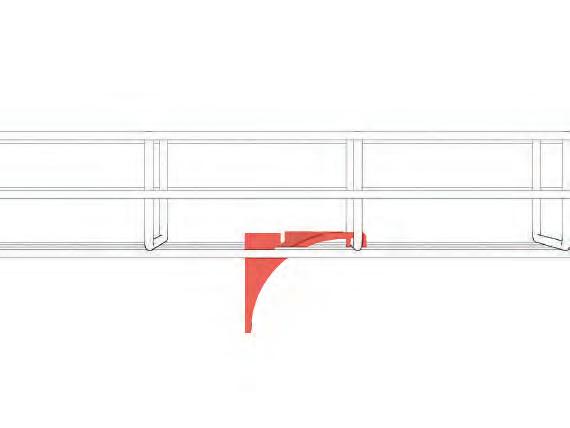

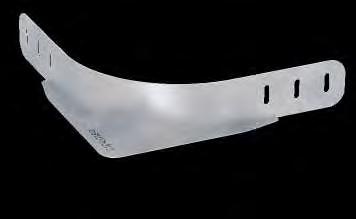

Corner Radius Support

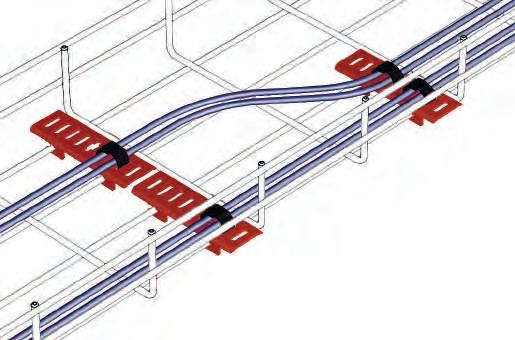

Cable Tie Clip
in (mm) h 2 - 6 (60, 150) g 4 - 24 (100-600)
m in (mm) Part Number lb/kg
EZ
2" (60)L022024-06Z0.77 (0.35) 4" (100)L022024-10Z1.12 (0.51)
6" (150)L022024-15Z1.59 (0.72)
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
Part Number lb/kg
L022052-20R0.02 (0.01)
Notes: Sold in packs of 20. Plastic is UL94-V0 rated.

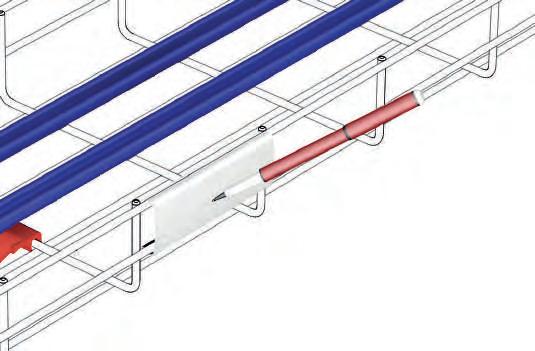

Identification Plate in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
Part Number lb/kg
L022051-20W0.02 (0.01)
Note: Sold in packs of 20.

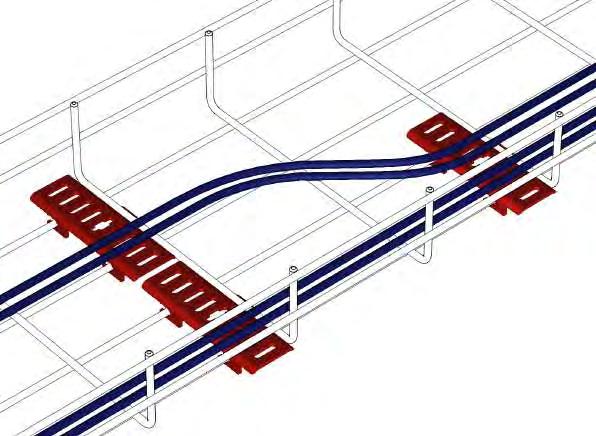

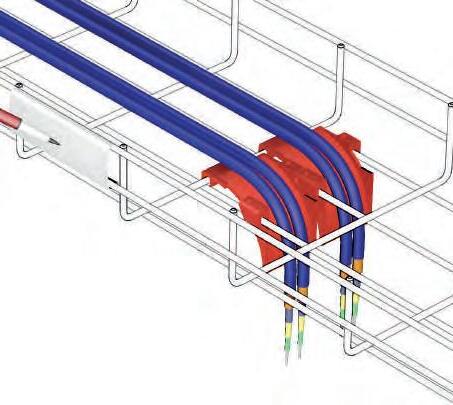

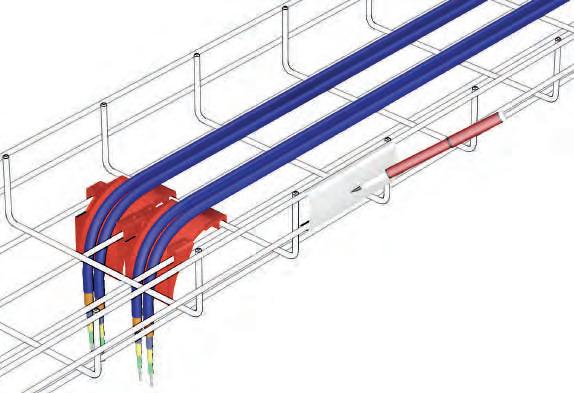

Cable Outlet
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
Part Number lb/kg
L022016-10R0.03 (0.01)
Note: Sold in packs of 10. Plastic is UL94-V0 rated.
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
PG L022017-00G0.29 (0.13)
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
EZ
C8
L022021-10Z 0.14 (0.07)
L022021-10B0.14 (0.07)
Note: Sold in packs of 10. 1/2" or 3/4" EMT conduit.
in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600)
m Part Number lb/kg
EZ
C8
L022032-25Z 0.12 (0.06)
L022032-25B0.12 (0.06)
Note: Sold in packs of 10.
Ø7x15

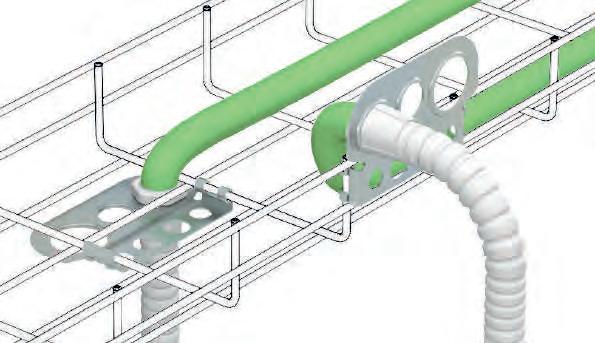

Cables Accepts multiple sizes of conduit fittings.

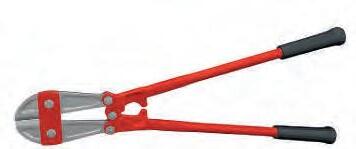

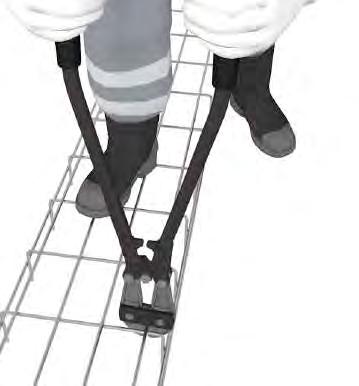

Flush Cutter
in (mm) h 2,4 (60,100) g 4 - 24 (100-600)
Part Number lb/kg
L022055-0013.53 (1.60)
Note: Sold individually.
Wire End Caps in (mm) h 2,4 (60,100) g 4 - 24 (100-600)
Part Number lb/kg
L022009-00B0.00 (0.00)
Note: Sold in packs of 100.
Touch-Up Spray Paint in (mm) h 2,4 (60,100) g 4 - 24 (100-600)
m Part Number lb/kg
Black L022054-00B1.15 (0.52)
Note: Sold individually.
Use to touch-up BLACK C8 (BK8) tray.

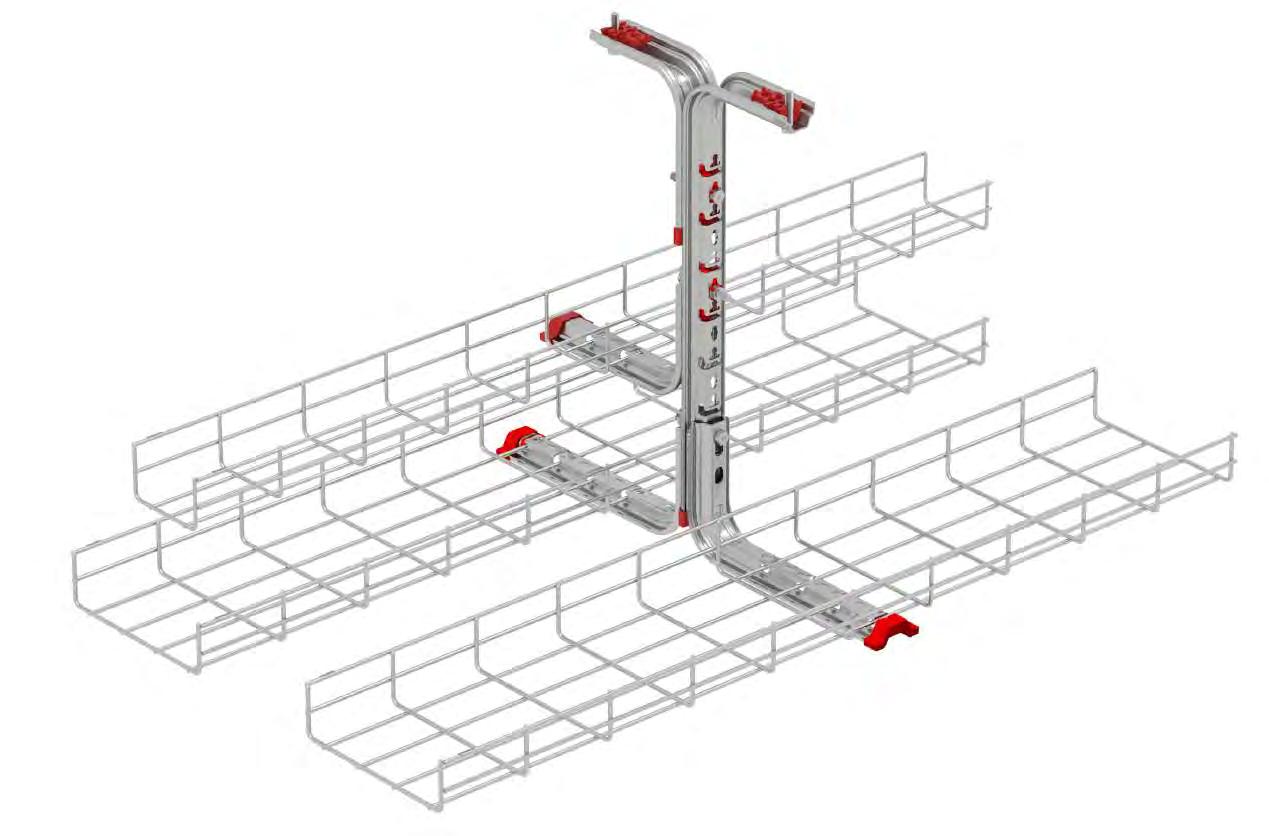

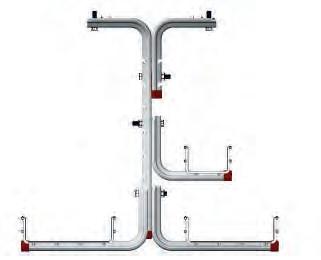

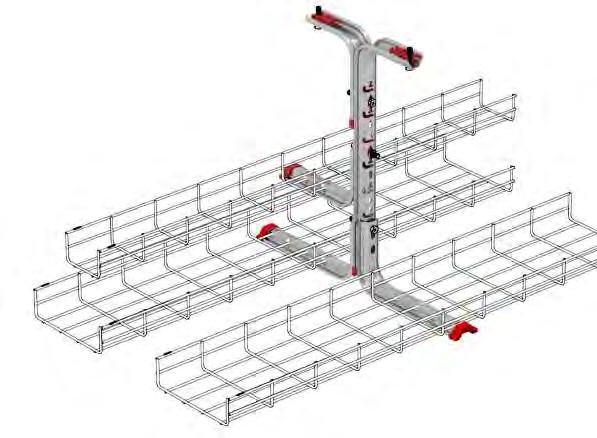

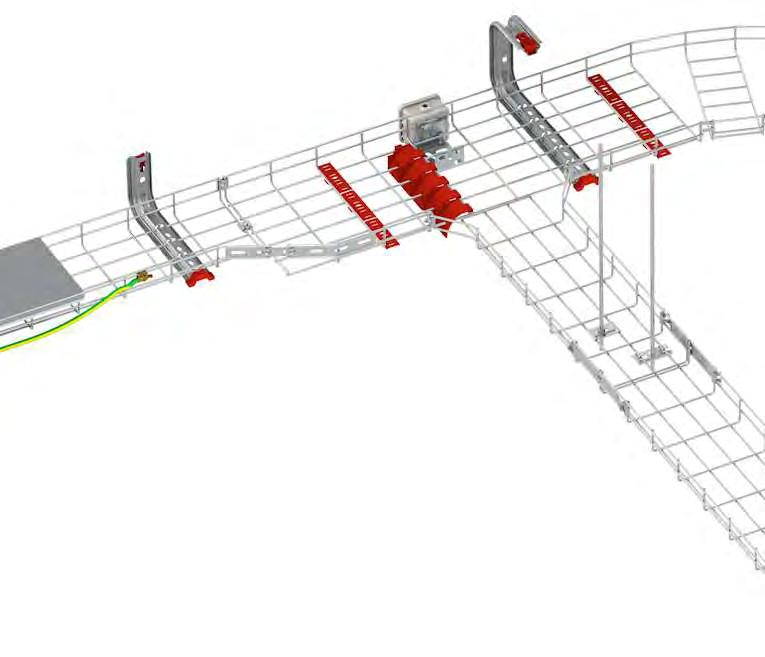

Wide Range of Supports, Channels and Structures
Technical Information

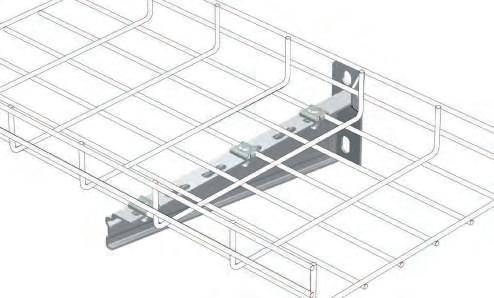

Reinforced supports with greater load-bearing capacity
Universal System. Compatible for with all cable trays
Load Rating lb (kg).
CeilingSupport
F Values obtained from test with a safety coefficient of 170% without ever reaching the collapse point. Guaranteed only for our hanger with security plug and supports reinforced with structural reinforcement.
Mf Values obtained in accordance with International Standard UNE-IEC 61537 (Section H) relating to the information for safe installation of trays with horizontal supports.
Mf1 Bending moment 1: Resulting bending moment on ceiling plane.
Mf2 Bending moment 2: Resulting bending moment from cantilever bracket. For further information please contact Liberty.
Advantages and features
Click System. No hardware required.
Pregalvanized or BLACK C8 (BK8) finishes
One single rod
Unobstructed access to the side of the Tray
Even load on both sides
Small Ceiling Support Bracket in (mm) h 2 (60) g 4-6 (100-150)
m Part Number lb/kg
EZ
C8
L022033-10Z0.28 (0.13)
L022033-10B0.28 (0.13)
Notes: Sold in packs of 10. Install with 1/4" (M6) or 5/16" (M8) threaded rod (ordered separately).

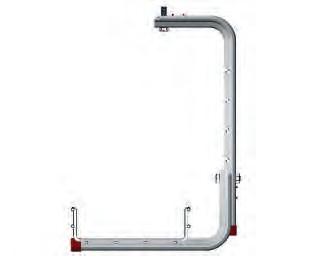

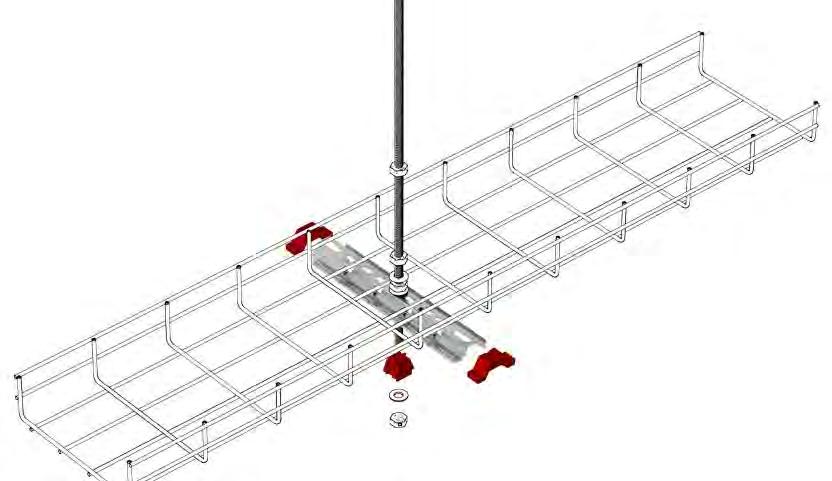

Click Central Hanging Plate in (mm) h 2, 4 (60, 100) g 4, 6, 8 (100, 150, 200)
m M Part Number lb/kg
C8
EZ 5/16" (M8) 3/8" (M10)
L022044-82Z0.10 (0.05)
L022044-82B0.10 (0.05)
Notes: Sold in packs of 20. Use with either 5/16" (M8) or 3/8" (M10) threaded rod.

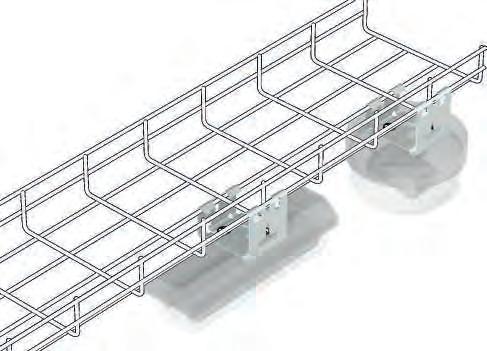

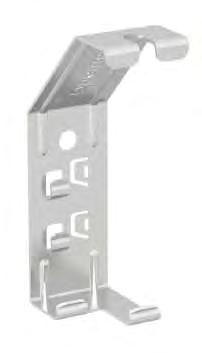

Edge Hanger Bracket in (mm) h 2, 4 (60, 100) g 4-12 (100-300) m Part Number lb/kg
PG
C8
L022045-01G0.13 (0.06)
L022045-01B0.13 (0.06)
Notes: Sold in packs of 18.

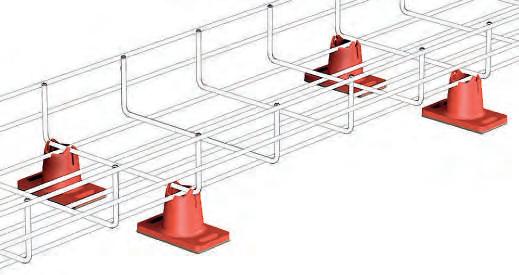

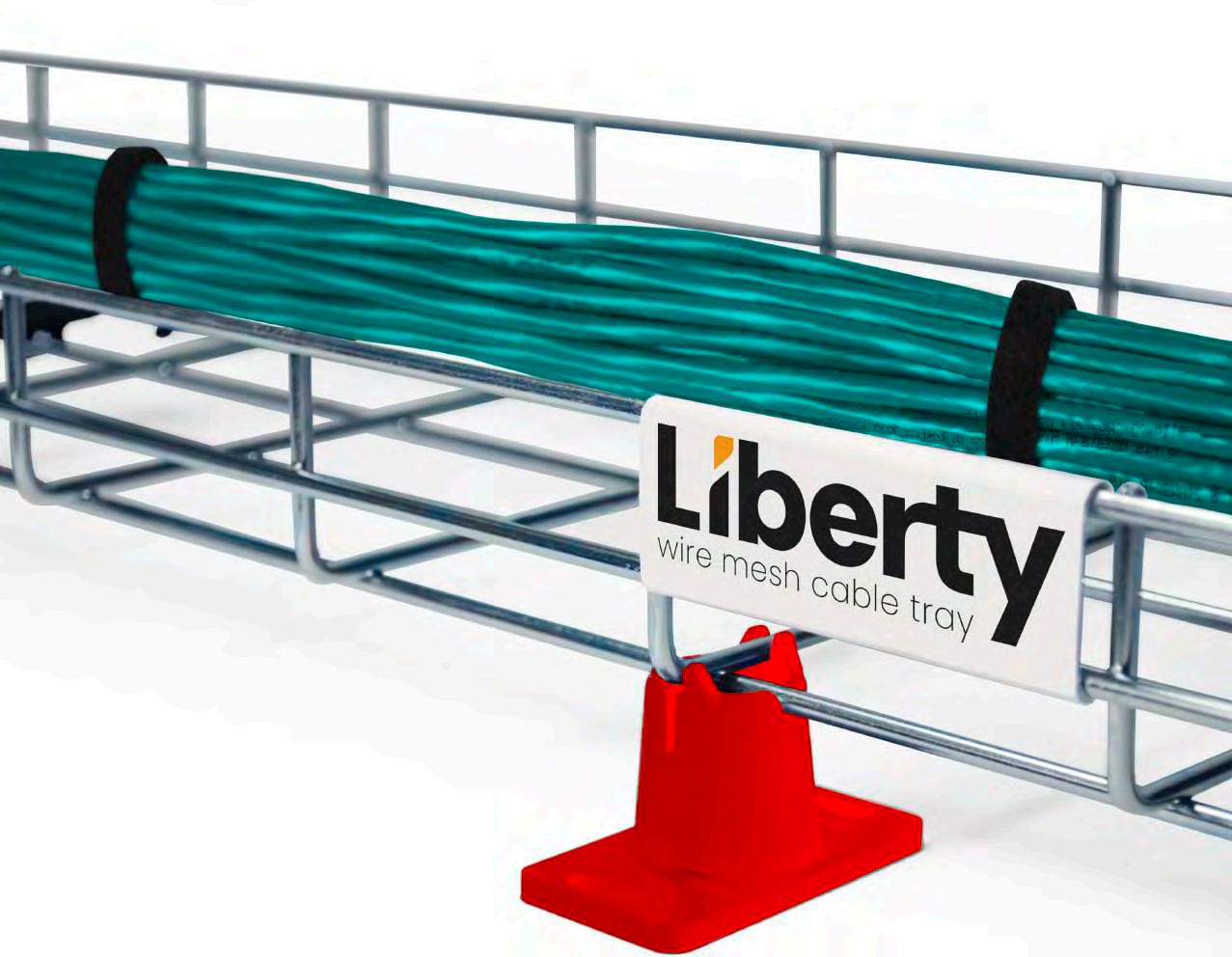

Support Foot in (mm) h 2, 4 (60, 100) g 4 - 24 (100-600) Part Number lb/kg
L022049-10R0.05 (0.02)
Note: Sold in packs of 100. Plastic is UL94-V0 rated.
in (mm) g 4 - 16 (100-400) m A Part Number lb/kg
4 (100)L022031-01G0.51 (0.23)
6 (150)L022031-02G0.57 (0.26)
8 (200)L022031-03G0.90 (0.41)
12 (300)L022031-04G1.12 (0.51)
16 (400)L022031-05G1.35 (0.61)
4 (100) L022031-01B 0.58 (0.26)
6 (150)L022031-02B0.65 (0.29)
8 (200)L022031-03B1.01 (0.46)
12 (300) L022031-04B1.26 (0.57) 16 (400)L022031-05B1.51 (0.69)
Notes: Sold in packs of 5. For trays 18" (450 mm) or wider, use Channel Strut Cantilever Support Bracket, SPLUS Omega Channel, or SPLUS Omega Pendant.

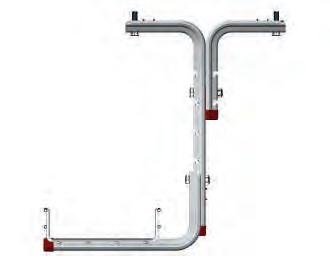

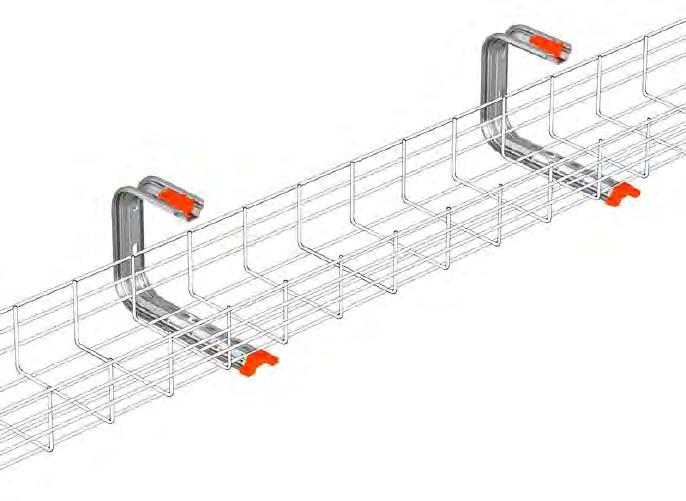

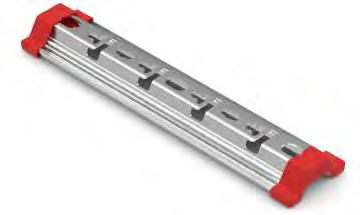

Omega Pendant. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.

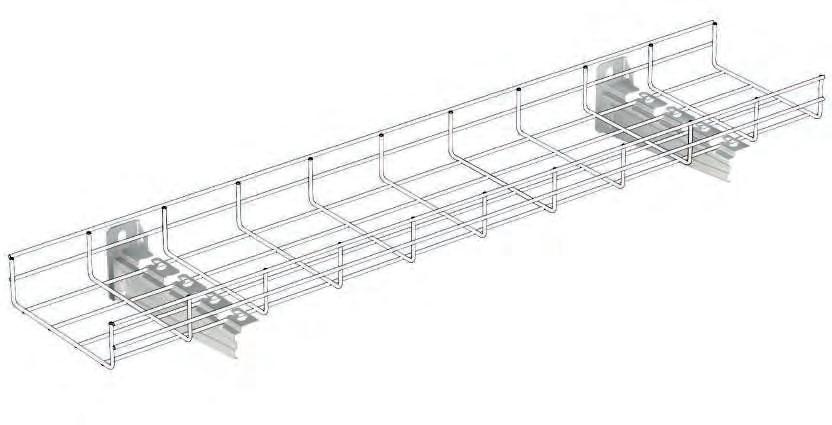

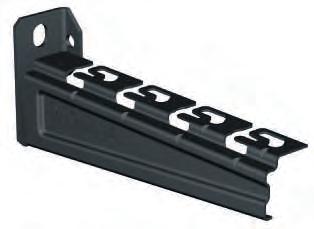

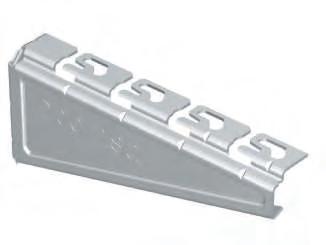

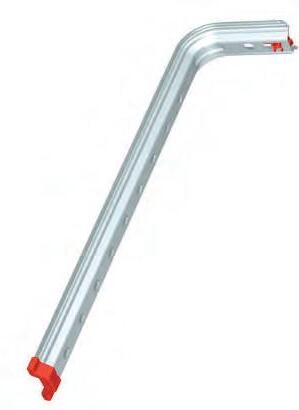

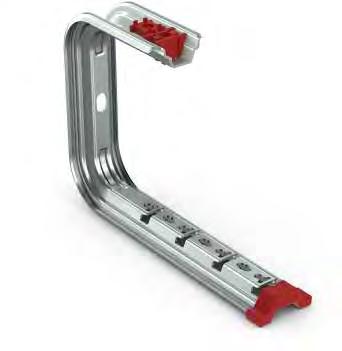

Ceiling Support Bracket
in (mm) g 4 - 16 (100-400) m A Part Number lb/kg
4 (100) L022041-01G0.90 (0.39)
6 (150) L022041-02G1.40 (0.64)
8 (200) L022041-03G1.70 (0.79)
12 (300) L022041-04G1.90 (0.88)
16 (400) L022041-05G2.00 (0.91)
4 (100) L022041-01B 0.90 (0.41)
6 (150) L022041-02B1.00 (0.43)
8 (200) L022041-03B1.40 (0.65)
12 (300) L022041-04B1.70 (0.76)
16 (400) L022041-05B1.90 (0.88)
Notes: Sold in packs of 4. For trays 18" (450 mm) or wider, use Channel Strut Cantilever Support Bracket, SPLUS Omega Channel, or SPLUS Omega Pendant. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.
Secure trays with Click ystem bendable tabs.
Plastic Insert Guide acts as installation guide and prevents hardware from rotating.
Unobstructed access to the side of the Tray
Channel Strut Cantilever Support Bracket
in (mm) g 4 - 24 (100-600) m A B C Part Number
6 (150)
4 (100) 3.5 (90) 2.1 (54)
8 (200)

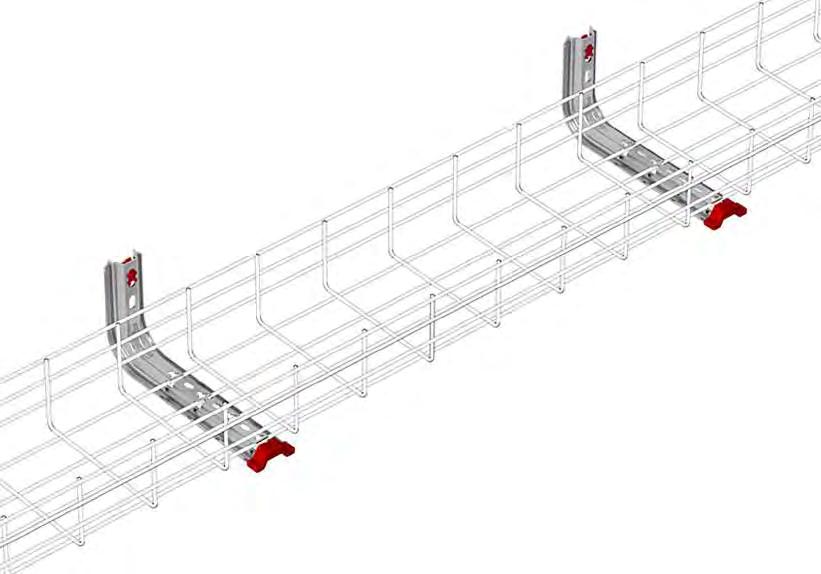

Channel Strut Cantilever Support Bracket
L022035-01G 0.39 (0.18)
L022035-02G 0.52 (0.24)
L022035-03G 0.85 (0.38) 12 (300)
L022035-30G 1.18 (0.54)
L022035-05G 1.69 (0.77) 20 (500)
16 (400) 4.9 (126) 3.6 (92)
L022035-06G 2.06 (0.93) 24 (600)
L022035-07G 2.42 (1.10)
Notes: Sold in packs of 4. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.
in (mm) g 4 - 24 (100-600) m A B C Part
4 (100) 3.5 (90) 2.0 (52)
6 (150) 3.5 (90) 2.0 (52)
L022035-01B 0.49 (0.22)
L022035-02B 0.60 (0.27) 8 (200) 3.5 (90) 2.0 (52) L022035-03B 0.69 (0.31) 12 (300) 3.5 (90) 2.0 (52) L022035-04B 0.88 (0.40)
(400)
(117)
(79) L022035-05B 1.63 (0.74)
(500) 4.6 (117) 3.1 (79)
Notes: Sold in packs of 4. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.
Note:
(110)
Note:
Secure trays with Click System bendable tabs.
Reinforced Design
Secure to wallboard or strut channel.

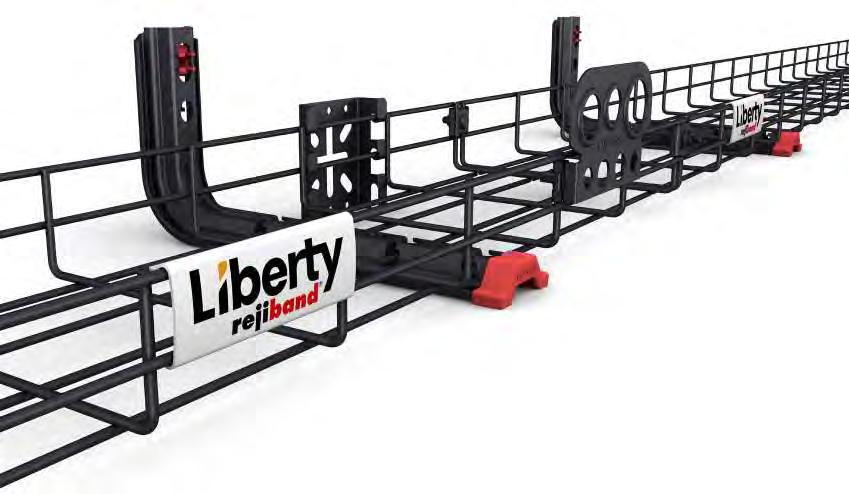

Trapeze Support
in (mm) h 2 - 4 (60, 100) g 4 - 24 (100-600)
m A Part Number lb/kg PG
4 (100)L022030-01G0.29 (0.13)
6 (150)L022030-02G0.39 (0.18)
8 (200)L022030-03G0.49 (0.22)
12 (300)L022030-04G0.69 (0.31)
16 (400)L022030-05G1.09 (0.41)
20 (500)L022030-06G1.29 (0.50) 24 (600)L022030-07G0.30 (0.59)
4 (100) L022030-01B 0.30 (0.14)
6 (150)L022030-02B0.41 (0.19)
8 (200)L022030-03B0.50 (0.23)
12 (300)L022030-04B0.71 (0.32)
16 (400)L022030-05B0.91 (0.41)
20 (500)L022030-06B1.11 (0.50)
24 (600)L022030-07B1.31 (0.59)
Notes: Sold in packs of 10. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.

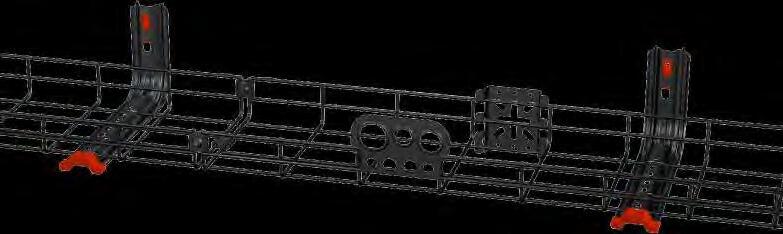

Trapeze Support
h 2 - 4 (60, 100) g 4 - 24 (100-600)
m L Part Number lb/kg PG
3.2' (1 m) L022030-10G 2.62 (1.19) 9.8' (3 m)L022030-30G7.63 (3.46)
Note: Sold individually. Install with 3/8" (M10) hardware. Secure tray with click system or optional Part Clamp.
Secure trays with Click System bendable tabs.
Provides unobstructed access to the side of the Tray.
Whensupportingfromacenterrod, loadbothtraysevenlyperside.

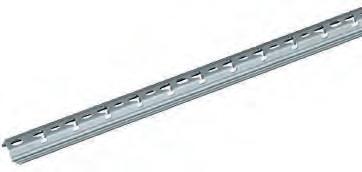

Cutthechanneltolength perrequirements.
Pendant Support
in (mm) g 2 - 4 (60, 100) 4 - 24 (100-600)
m A Part Number lb/kg
GS 20 (500)
L022046-07G 1.74 (0.79) 24 (600) L022046-08G 2.01 (0.91)
C8 20 (500)

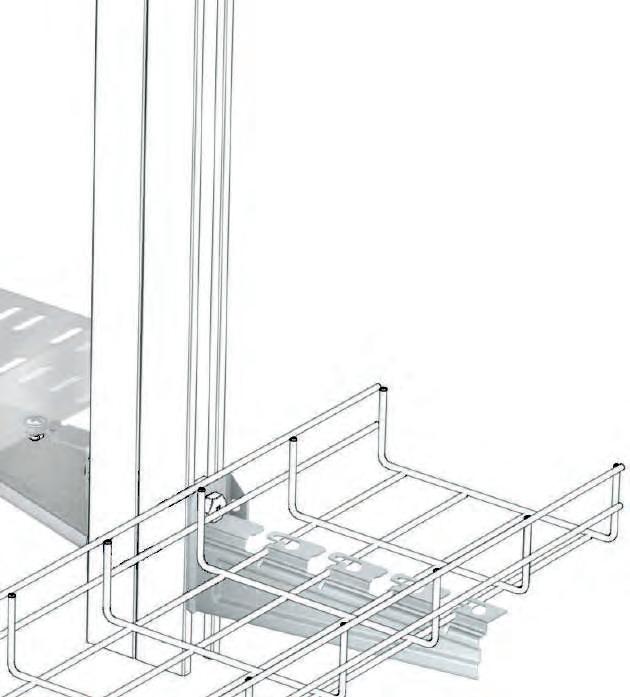

Stand Off Bracket
L022046-07B 1.15 (0.52) 24 (600)
L022046-08B 2.07 (0.94)
Notes: Sold in packs of 5. Install with 3/8" (M10) hardware. Attach Brackets with 5/16" (M8) hardware.
in (mm) g 2 - 4 (60, 100) 4 - 24 (100-600)
m A Part Number lb/kg
PG
3.9 (100) L022036-01G 0.24 (0.11)
7.9 (200) L022036-03G 0.49 (0.22)
11.8 (300) L022036-04G 0.73 (0.33)
5/16-18 x 2"L (M8 x 50 mm)
5/16" (M8)
Note: sold separately.
440 lb (200 kg) Mf1 610 in-lb (7 kg-m) Mf2 520 in-lb (6 kg-m)
3,470 in-lb (40 kg-m)
1,300 in-lb (15 kg-m)
727 lb (330 kg)
3,470 in-lb (40 kg-m)
1,300 in-lb (15 kg-m)
