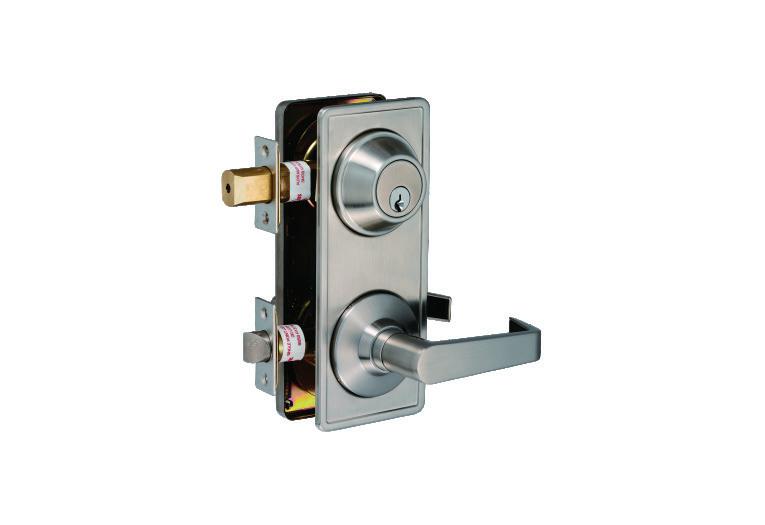

Interconnected Locks
Heavy duty commercial interconnected locks designed for moderate to heavy traffic applications on interior or exterior doors.
• 4" center to center
• 2-3/8" and 2-3/4" Backset Latches and Bolts included
• ANSI and T-Strike included
• One-Motion Egress – ADA T-Turn
• Lifetime Warranty
SPECIFICATIONS
Certifications ANSI A156.2 Grade 2, UL Listed 3 Hour Fire, ADA Compliant
Finishes Satin Chrome (626), Oil Rubbed Bronze (613)
Lever Designs and Keyway S-Lever (Straight), Clutched Mechanism ~ SCHL-C (6-Pin)
CTC & Escutcheon size CTC = 4" ~ Escutcheon 3-5/16" x 7-15/16"
Backset 2-3/8" & 2-3/4" Latches & Bolts Included
Strike ANSI - 1-1/4" x 4-7/8" & T-Strike Included
Door Thickness 1-3/8" to 1-3/4"
MODEL NUMBER
CS514759 GS210S 626 C 238/234 ANSI/TS
CS515234 GS210S 613 C 238/234 ANSI/TS
CS515707 GS210S-IND 626 C 238/234 ANSI/TS
w/ Indicator Deadbolt - Brushed Chrome
CS514760 GS251S 626 C 238/234 ANSI/TS Entry w/ Single Cylinder Deadbolt - Brushed Chrome
CS514761 GS280S 626 C 238/234 ANSI/TS Storeroom w/
Cylinder Deadbolt - Brushed Chrome
CS515708 GS280S-IND 626 C 238/234 ANSI/TS Storeroom w/ Indicator Deadbolt - Brushed Chrome
