GOH WEI HAO | Part 1 Architecture Portfolio 2020-2022

Portfolio

GOH WEI HAO

Selected Works

2019-2022

Bachelor of Science (Honours) Architecture Universiti Tunku Abdul Rahman

EDUCATION

Jan 2020 - Jan 2023

Bachelor of Science (Honours) Architecture University Tunku Abdul Rahman Sungai Long Campus CGPA 3.5714

Jan 2019- Jan 2020 Foundation in Arts University Tunku Abdul Rahman Sungai Long Campus CGPA 3.7868

Jan 2013- Jan 2017 SPM SMK Taman Desa Skudai Johor Bahru 2A+ 2A 5A- 1B+ 1B

CLUB & SOCIETIES

Jan 2020- Jan 2021 Member of UTAR Architecture Society

Jan 2021- Jan 2022 Chairperson of UTAR Architecture Society

ACHIEVEMENT & ACCOMPLISHMENT

May 2022

Bali Architectural Field Study University Tunku Abdul Rahman Sungai Long Campus Participant

May 2022

Studio VI: Final Year Poster Competition University Tunku Abdul Rahman Sungai Long Campus Top 10 Finalist

May 2021

Malaysia Level Bamboo Competition University Tunku Abdul Rahman Sungai Long Campus Participant

Sept 2021

JUST. architecture sdn. bhd. HeadOffice Suite 33-34 Menara 1, KL Eco City, Jalan Bangsar, Pantai Baru 59200, Kuala Lumpur, Malaysia Industrial Training

Jan 2021

UTAR Architecture Society Archinight University Tunku Abdul Rahman Sungai Long Campus Chairperson of Decoration Department

Jan 2019 - May 2022

UTAR Academic Achievement 100% Scholarship Holder ( Jan 2019- Jan 2020） Made President’s List 2 times Made Dean’s List 5 times

May 2018

TARUC Johor Bahru Architecture Field Study Tunku Abdul Rahman College University Main Campus in Setapak Participant

Contents.

Play in the Forest

Recreational Center in Ipoh Architectural Design VI

The Back

Art Perserving Center in Kajang Architectural Design V

The Weaver

Art Gallery Space in Nansha Bird Park China Malaysian Level Competition

Other Works

3D Visualization Sketches

PLAY IN THE FOREST

Recreational Center in Ipoh

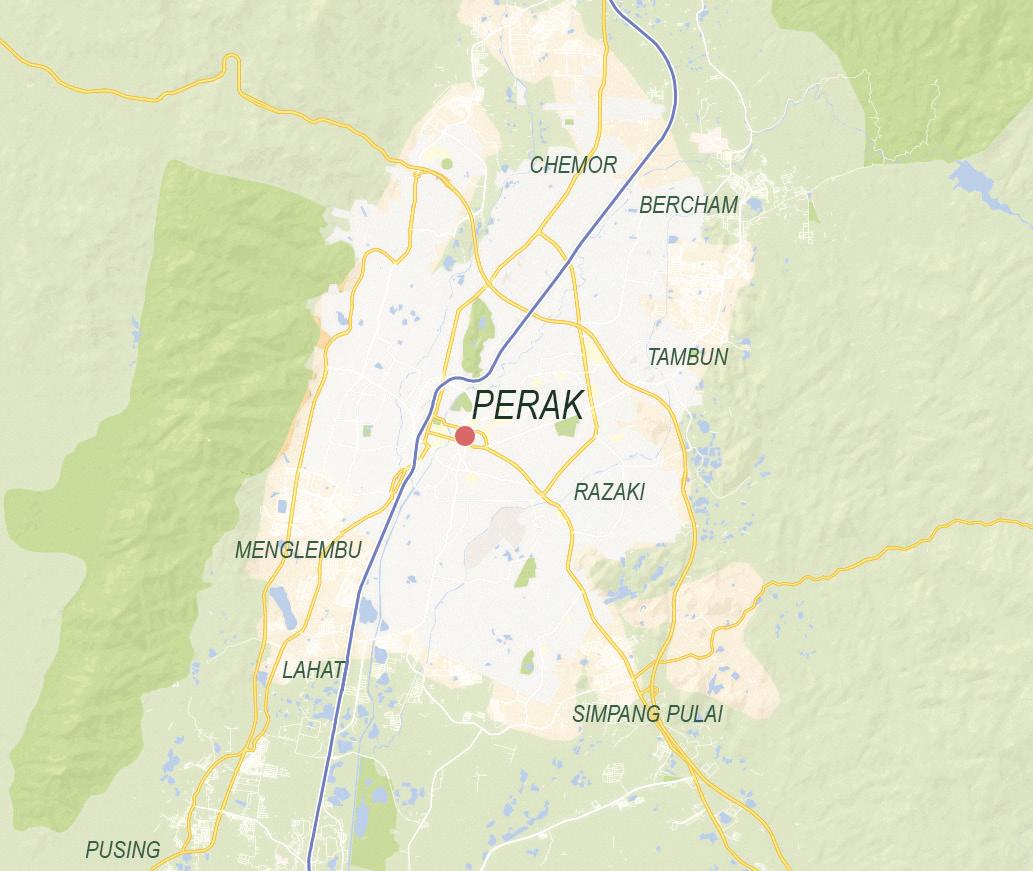

KEY PLAN N.T.S LOCATION PLAN N.T.S

DESIGN INTENTION

An recreational center aims to contribute the better development of Ipoh Town in term of its social aspects by eliminating the generation gap between the parents and their children, and to reconnect and link the family relationships through secluded surroundings and casual family activities.

IPOH

IS NOT HIGH

CONCEPTUAL ZONING

PRESERVED EXISTING GREEN

OPEN LAYOUT

BICYCLE CONNECTION

SPACE PLANNING

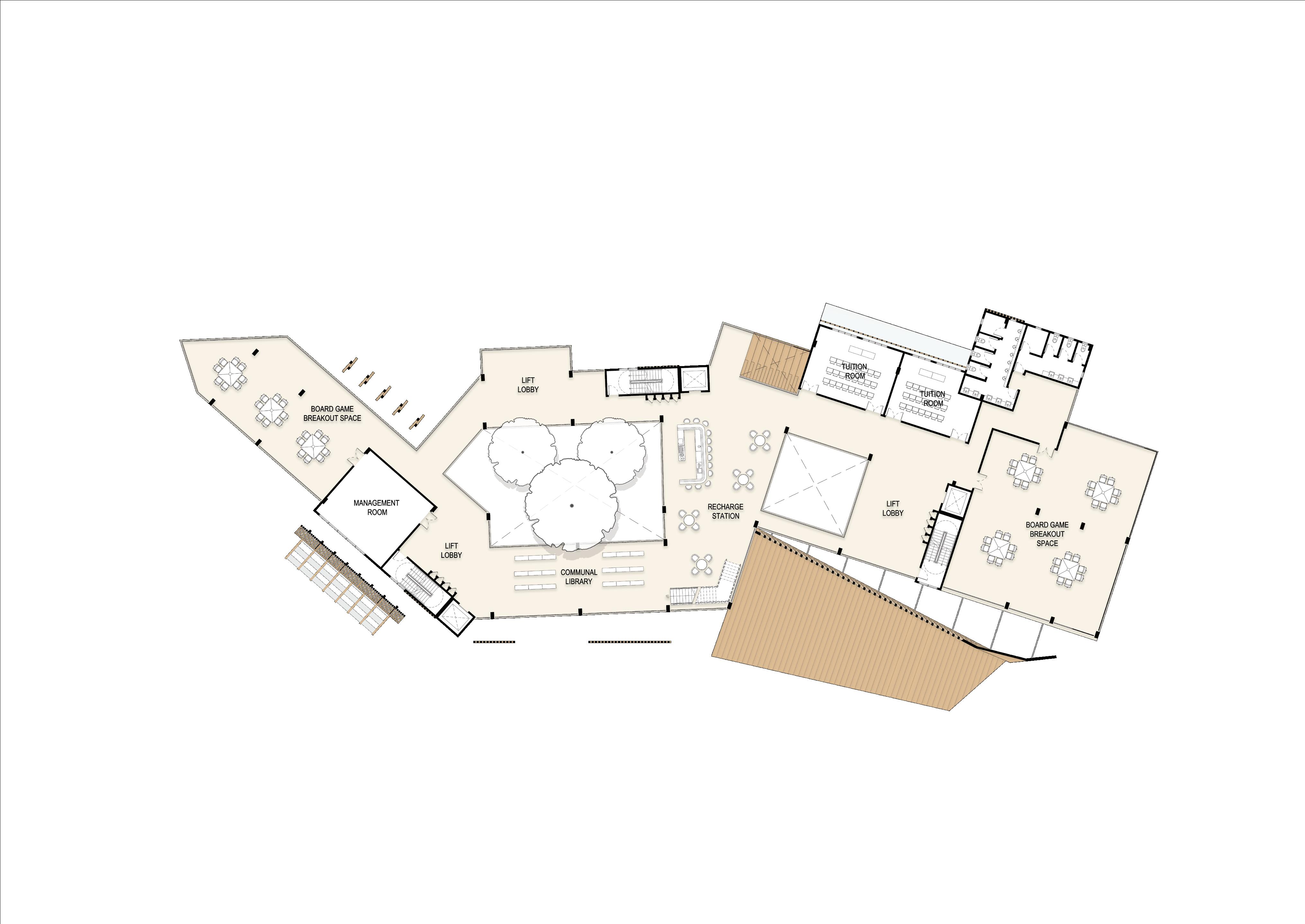

FIRST FLOOR PLAN N.T.S L

SECOND FLOOR PLAN N.T.S

THIRD FLOOR PLAN N.T.S

BASEMENT PLAN N.T.S

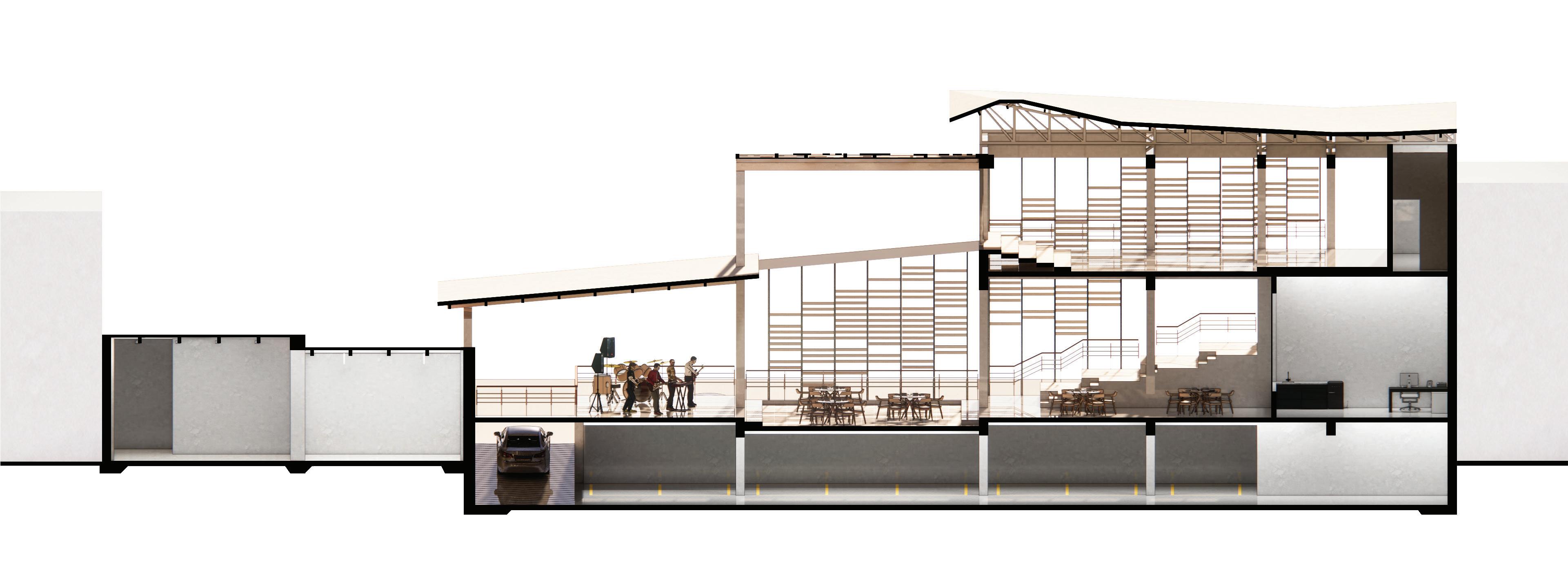

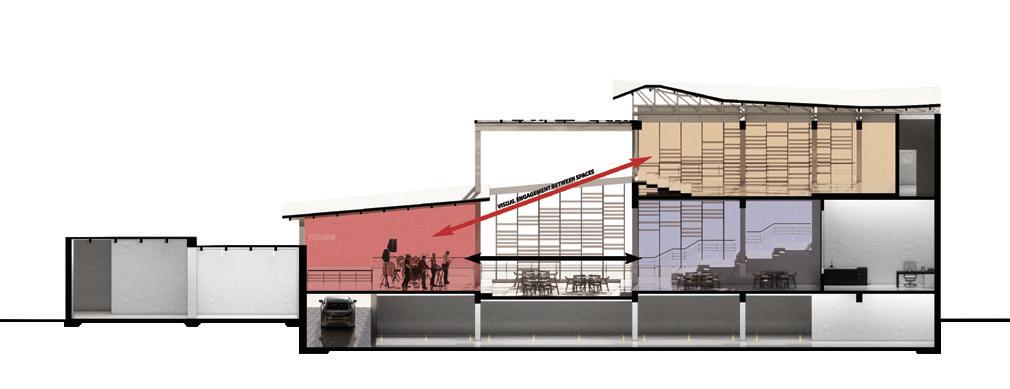

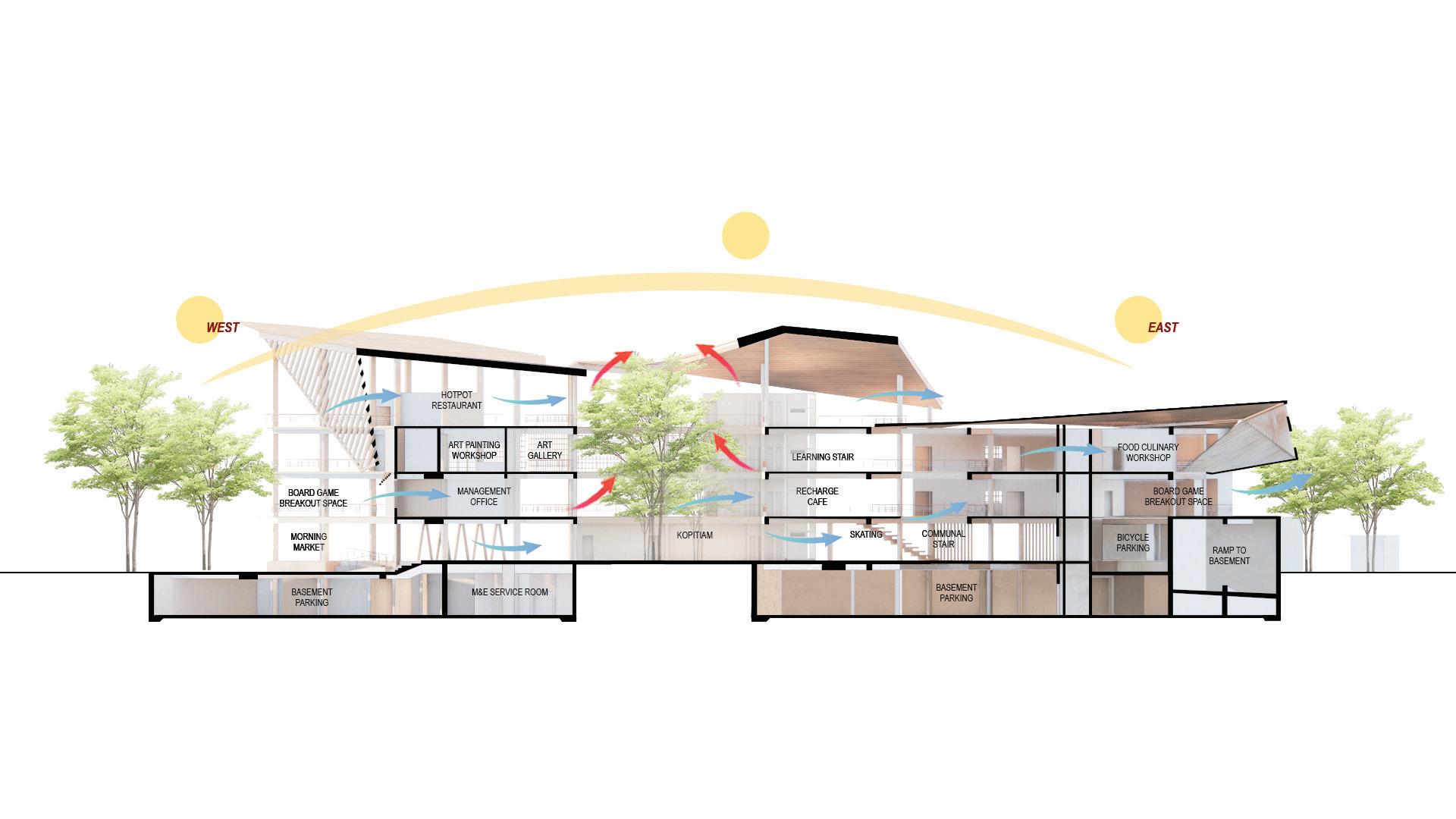

SECTION B-B N.T.S SECTION A-A N.T.S

CONSTRUCTION DRAWING

by GOH WEI HAO

Architectural Design Studio VI Session 202205

Bachelor of Science (Honours) Architecture

Lee Kong Chian Faculty of Engineering & Science Universiti Tunku Abdul Rahman

3

2 4

50MM THK. CROSS LAMINATED TIMBER ROOF PANELS TO MANUF'S DETAIL 5MM THK. DAMP PROOF MEMBRANE TO DETAIL

STEEL OPEN-WEB JOIST FRAMING STRUCTURE TO ENGR'S DETAIL

SUSPENSION ROD BRACKET FIXED TO SIDE FACE OF PURLINS

DETAIL

DETAIL 2

1000MM HEIGHT ALUMINIUM RAILING TO BE PAINTED FINISH WITH ORANGE COLOUR TO ENGR'S DETAIL 50MM THK. TIMBER FLUSH DOOR C/W 10MM THK. PLYWOOD THK. MS DOOR FRAME TO BE PAINTED FINISH 50MM THK. TIMBER SCREEN TO ENR'S DETAIL 25MM THK. TIMBER ACOUSTIC SUSPENDED CEILING PANEL TO MANUF'S DETAIL

REINFORCED CONCRETE BEAM TO ENGR'S DETAIL

110MM THK. CEMENT BRICK C/W 20MM THK. CEMENT PLASTER ON BOTH SIDES TO ENGR'S DETAIL MILD STEEL FRAMING TO ENGR'S DETAIL

Kelulusan Badan Pengurusan Bersama / Perbadanan Pengurusan NAMA JMB/ MC: ALAMAT 1: ALAMAT 2: ALAMAT 3: PENGESAHAN / COP JMB/MC: NO. TEL. JMB/MC:

O w n e r / P e m i k " Saya mengaku untuk bertanggungjawab terhadap sebarang kerosakan bangunan bersebelahan akibat dari kerja-kerja pembinaan yang dijalankan. "

NAMA PEMILIK / PENYEWA KEDIAMAN

TAN CHEE SAM NO. KAD PENGENALAN: 981129-12-0369

ALAMAT PEMILIK : ALAMAT 1: NO 2 LOT 506 JALAN PELABURAN BANDAR SULTAN SULEIMAN PELABUHAN. 4200 KLANG SELANGOR TEL: 082-6024480 EMAIL: tancheesamw@gmail.com

P r o j e c t T t l e / T a j u k P r o e k

CADANGAN PEMBINAAN SEBUAH PUSAT REKREASI TINGKAT 4 DI ATAS LOT 3, JALAN VEERASMY, 30000, IPOH UNTUK TERTUAN: TAN CHEE SAM

D r a w i n g T i t l e / T a u k L u k i s a n

GRD LEV FFL:+0 BASEMENT LEV FFL:-3600 GRD FLR LEV FFL:+1000 FIRST FLR LEV FFL:+4700 SECOND FLR LEV FFL:+8450

S a y a m e m p e a k u b a h a w a d e t a d e a l d i d a l a m p e a n i n i a d a a h m e n u r u t k e h e n d a k k e h e n d a k U n d a n g U n d a n g K e c i B a n g u n a n Seragam Selangor 1986 dan saya setuju terima tanggungjawab penuh dengan sewajarnya

P r e p a r e d b y / D i s e d a k a n o e h No. Pendaftaran LAM A8102

2 A102 ROOF TO FOUNDATION DETAIL 1:25 NO. LUKISAN DWG. NO. / 02 02

Drawn by / Dilukis oleh Checked by / Disemak oleh Date / Tarikh Scale / Skala 1:20

I BEAM

25MM THK. TIMBER ACOUSTIC SUSPENDED CEILING PANEL TO MANUF'S DETAIL

TIMBER BATTERN

SUSPENSION ROD BRACKET FIXED TO SIDE FACE OF PURLINS

ONE LAYER CHICKEN WIRED NET & SINGLE SIDED ALUMINIUM FOIL SISALATION

SUSPENSION ROD BRACKET FIXED TO SIDE FACE OF PURLINS

STEEL OPEN-WEB JOIST FRAMING STRUCTURE TO ENGR'S DETAIL

75MM THK. BONDED RIGIH POLYURETHANE INSULATION TO MANUF'S DETAIL

5MM THK. DAMP PROOF MEMBRANE TO DETAIL

50MM THK. CROSS LAMINATED TIMBER ROOF PANELS TO MANUF'S DETAIL

50MM THK. TIMBER SCREEN TO ENGR'S DETAIL

3 A103 DETAIL 1: TIMBER ROOF TO FACADE DETAIL 1:5

400MM REINFORCED COLUMN TO

PRESSURE

PRESSURE NAILED TO BACK

25MM THK. SOLID HOMOGENEOUS RECONSITUTED TIMBER MANUF'S 38MM THK.TIMBER

10MM

PRESSURE

TIMBER

450MM THK. CONCRETE BEAM

1000MM HEIGHT ALUMINIUM BE PAINTED WITH ORANGE

PRESSURE

MILD STEEL FRAMING TO ENGR'S DETAIL

L CHANNEL

BOLT & NUT

400MM X 600MM THK. REINFORCED CONCRETE ENGR'S DETAIL

PRESSURE TREAD BLOCK HANGER

BLOCK BACK STRINGER

THK.TIMBER

1000MM HEIGHT ALUMINIUM RAILING TO BE PAINTED WITH ORANGE COLOUR TO ENGR'S DETAIL

50MM THK. TIMBER FLUSH DOOR C/W 10MM THK. PLYWOOD THK. MS DOOR FRAME TO BE PAINTED FINISH

110MM THK. REINFORCED CONCRETE SLAB TO ENGR'S DETAIL

PVC CLIP WITH CONCEALED SCREW SYSTEM TO MANUF'S DETAIL

5MM THK. DAMP PROOF MEMBRANE TO DETAIL

TIMBER BATTERN

L BOLT WITH WASHER

5MM THK. DAMP PROOF MEMBRANE TO DETAIL

110MM THK.CEMENT BRICK C/W 20MM THK. CEMENT PLASTER ON BOTH SIDES TO ENGR'S DETAIL

Kelulusan Badan Pengurusan Bersama / Perbadanan Pengurusan NAMA JMB/ MC: ALAMAT 1: ALAMAT 2: ALAMAT 3: PENGESAHAN / COP JMB/MC: NO. TEL. JMB/MC:

O w n e r P e m i l k " Saya mengaku untuk bertanggungjawab terhadap sebarang kerosakan bangunan bersebelahan akibat dari kerja-kerja pembinaan yang dijalankan. "

NAMA PEMILIK / PENYEWA KEDIAMAN

TAN CHEE SAM NO. KAD PENGENALAN: 981129-12-0369

ALAMAT PEMILIK ALAMAT 1: NO 2 LOT 506 JALAN PELABURAN BANDAR SULTAN SULEIMAN PELABUHAN. 4200 KLANG SELANGOR TEL: 082-6024480 EMAIL: tancheesamw@gmail.com

P r o e c t T i t e / T a u k P r o j e k

CADANGAN PEMBINAAN SEBUAH PUSAT REKREASI TINGKAT 4 DI ATAS LOT 3, JALAN VEERASMY, 30000, IPOH UNTUK TERTUAN: TAN CHEE SAM

D r a w n g T t e / T a j u k L u k s a n

P r e p a r e d b y D s e d i a k a n o e h No. Pendaftaran LAM : A8102

S a y a m e m p e r a k u b a h a w a d e a d e t a i d d a a m p e a n n a d a a h m e n u r u k e h e n d a k k e h e n d a k U n d a n g U n d a n g K e c B a n g u n a n Seragam Selangor 1986 dan saya setuju terima tanggungjawab penuh dengan sewajarnya

Drawn by Dilukis oleh Checked by / Disemak oleh Date / Tarikh Scale Skala 1:5

NO. LUKISAN DWG. NO. / 03 03

MIRROR REFLECTING THE IMPORTANCE

A Performing Art Center that respects

IMPORTANCE OF CULTURE PRESERVATION

the local history and culture in Kajang

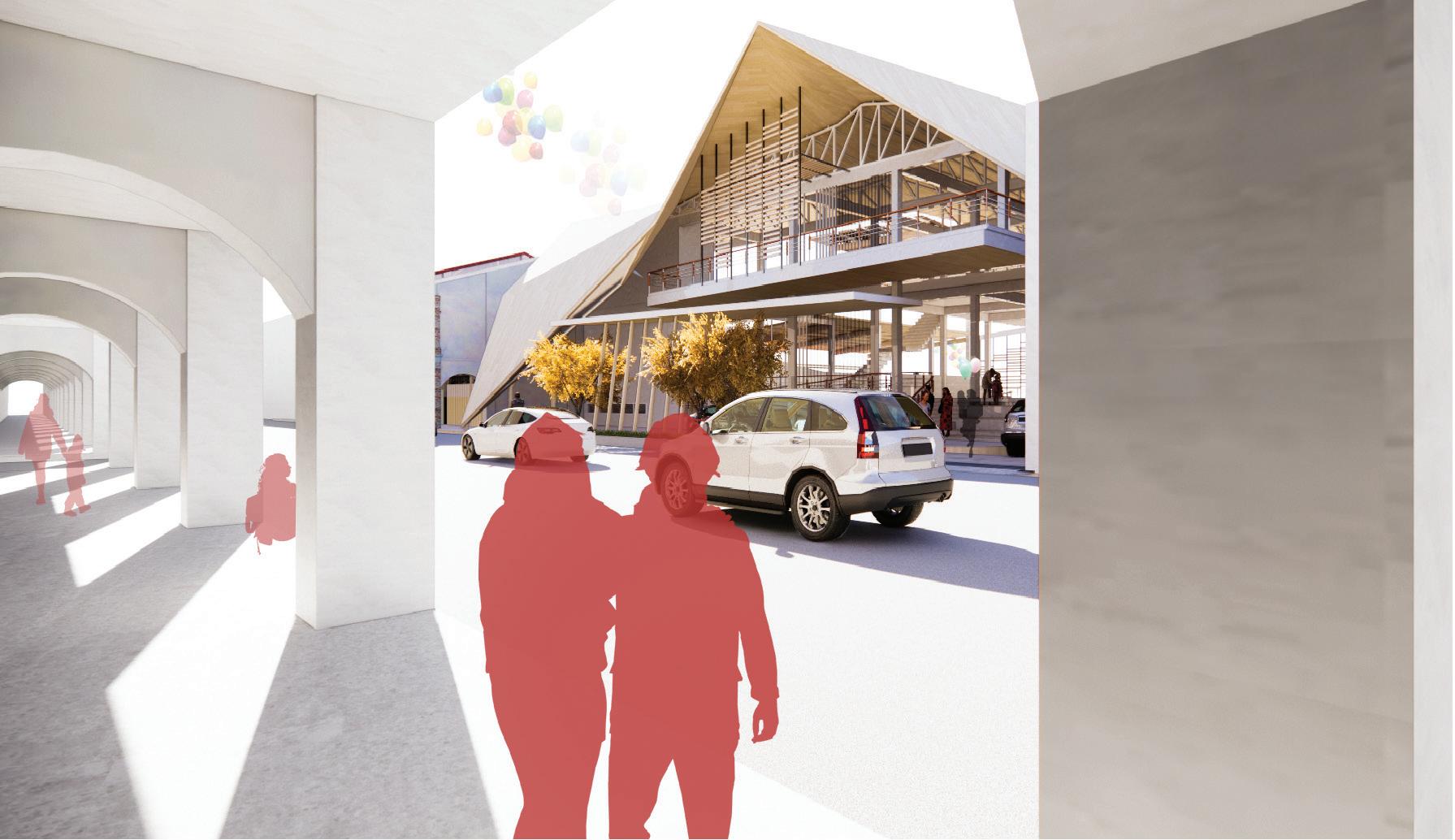

THE BACK

Mirror Re�lecting The Importance of Culture Preservation

University Tunku Abdul Rahman Architectural Design Studio V

Student Goh Wei Hao

Rusted grill gates are left permanently shut. Immigrants replaced the locals. Alleys with illegally parked vehicles, piles of garbage bags with rats having their morning breakfast. Five foot walkways became homes for the homeless. Street �illed with buzzing cars, rushing through and pass the old town, but not to stay. With the evolution of times, local culture and history has gradually aged. When children grow up as youngsters, there is a disconnection between the culture and youngsters.

What’s back? Basically looking back at the old cultural value of Kajang, the old trades, old architecture and the lost spaces of Kajang like the under-utilized 5 footwalkways and alleys that are �illed with activities in the olden days, now being a crime risk area instead.

Elderlies are moving on, leaving behind the cultural arts and crafts skills without inheritors, untold stories that are not jotted down, left forgotten soon. “The Back”, aims to re-congregate both the old and young like the olden days, by introducing primary and secondary spaces, programmes as a social bridge to allow users of di�erent age group to exchange knowledge and for the untold stories to be passed. The conceptual zoning of the spaces gives an opportunity for the youngsters to understand, experience and appreaciate the beauty of local culture and the history in the past.

Kajang, Selangor

KEY PLAN N.T.S

LOCATION PLAN N.T.S

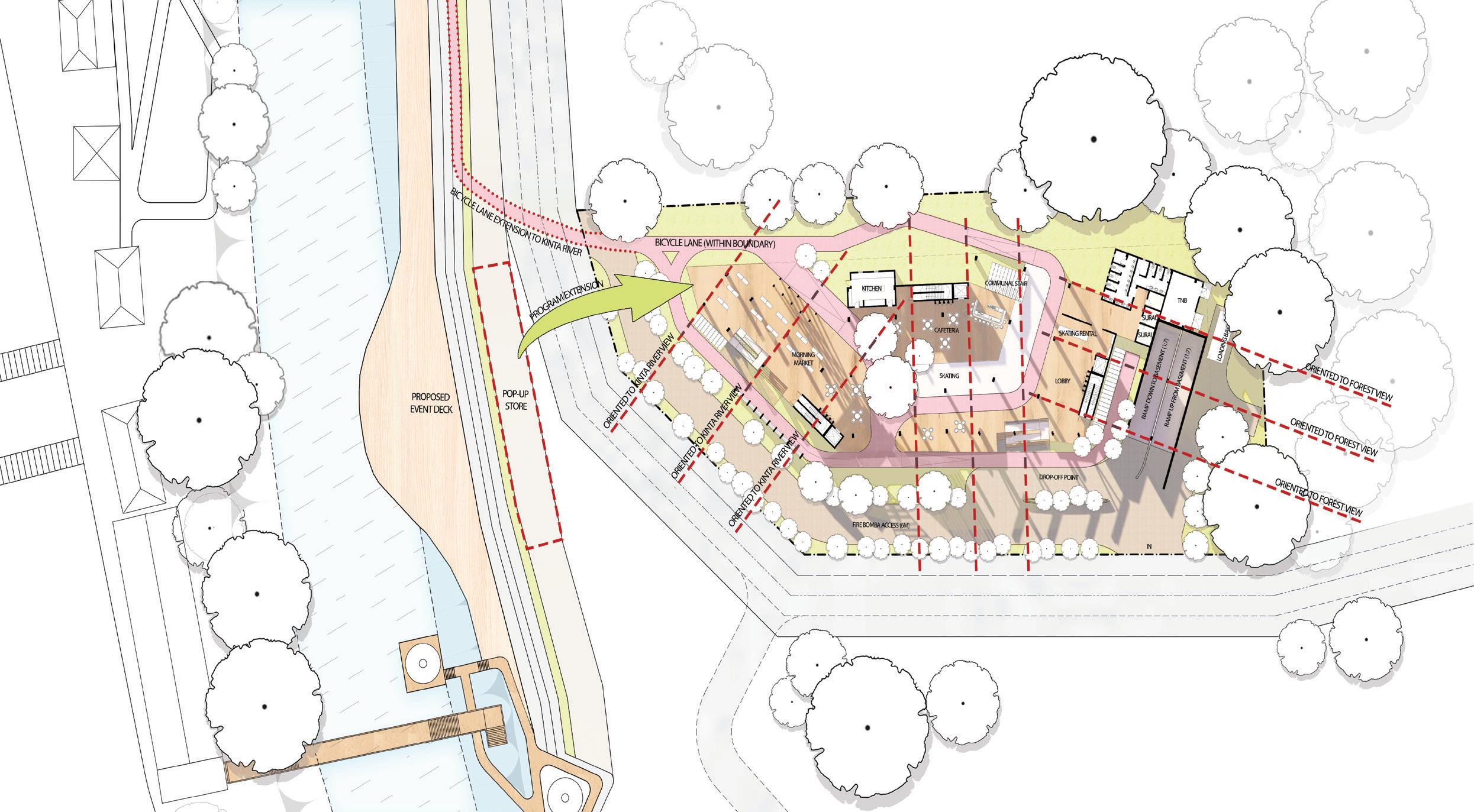

SITE PLAN N.T.S

OLD YOUNG

01

04

MASS VOLUME

2 old shophouses at the left side will be retained and 3 old shophouses at the right side will be demolished for the design.

02 MIRROR AXIS

OLD NEW will divided with a strong axis line. Old shophouse will retain its old architecture while New will have a �ierce, energytic modern look to grab the attention of youngster nowadays.

03

MODULARITY

Openness concept made the spaces to be �lexible. Programs can be easily reorga nized allowing changes over time and temporarily uses.

05

EXTRA PARKING SPACE

Sub-basement is designed to provide more parking to the site, reducing the numbers of vehicles that parked at the roadside. Tra�ic congestion might be avoided as su�icient car parking spaces are provided.

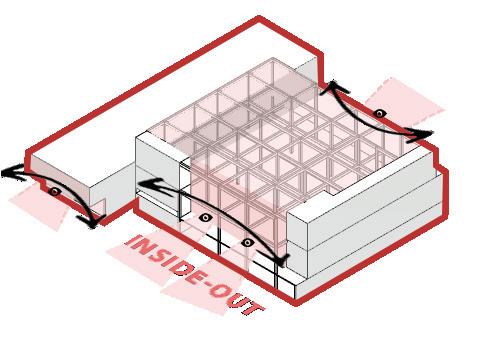

VIEW OPTIMIZATION

Geometric distortion and modular concept to maximize view. Di�erent viewing experi ences can be captured from outside looking in and inside looking outside.

06

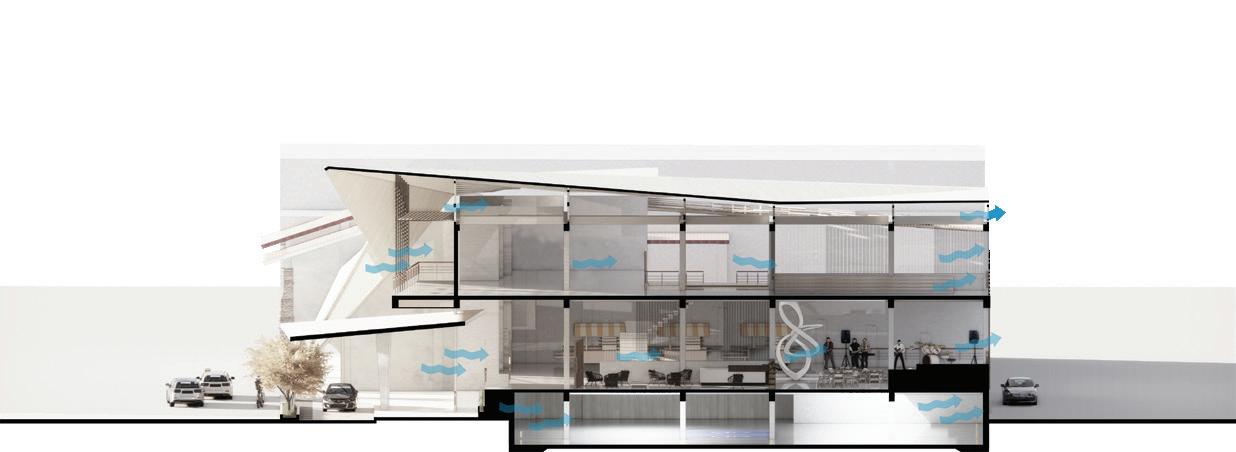

PERMEABILITY

Wind and natural light permeate the building due to its porous nature. The building will stay cool during daytime.

SCHEDULE OF ACCOMODATION

Spaces Unit No. Unit Area Total Area

GROUND FLOOR

Grand Lobby

Artisan Market

Kopitiam

Art Exhibition Gallery

Rattan Workshop

1 1 1

Sculpture Workshop

165 224 150

Plaza Stair 1 75 75

1 65 43

165 224 150

1 Workshop Lecture Room 43 43 1

Public washroom Surau

Music Studio

Prefunction Hall Semi-Open Lounge

Janitor Room Sta� O�ice Reception

1 2 2 1 1

6 38

Total

65 43 Dance Studio

1 1 1

110 27.5 10.5 235 150

1 81 81

110 55 21 235 150

FIRST FLOOR 1 117 117

Semi-open Amphithe 1 161 161

48

6 38 48

Public washroom 1 27.5 27.5 Total 819.5

Circulation Area

TOTAL Build up

995.5 178 1993

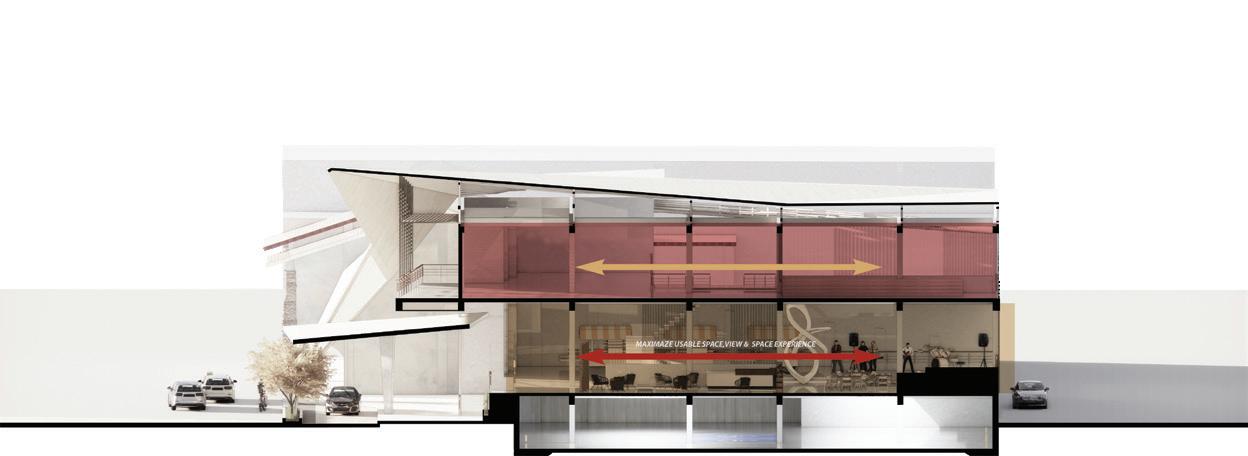

FIRST FLOOR PLAN N.T.S

GATELESS

Rear Elevation

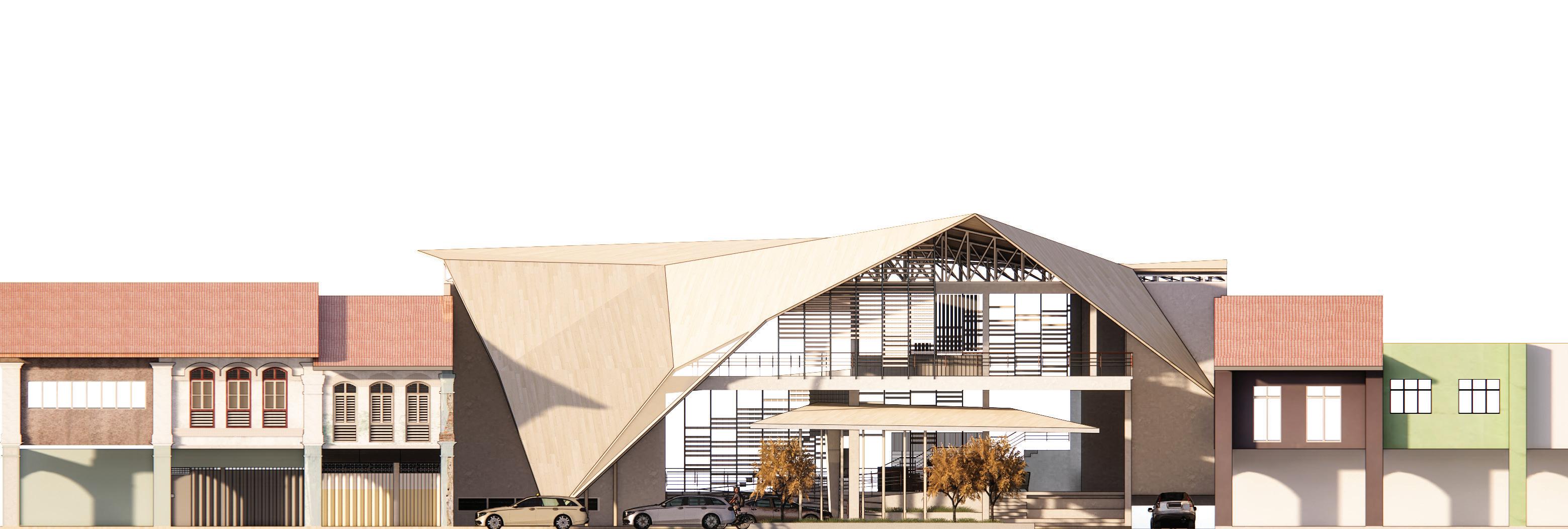

Front Elevation

Aluminium S-5 clip to manuf’s detail

Customized roof truss to engr’s detail

25mm thk. timber roof cladding to manuf’s detail

15mm thk. re�lective translucent glass panel to manuf’s detail

450mm thk. reinforced beam to engr

150mm thk. polycarbonate wall to engr

1200 mm height aluminium railing with orange colour to engr

300mm thk. shear concrete wall

600mm thk. reinforced planted box to engr

150 mm thk. customized timber rafter to engr

existing old shophouse’s REFLECTIVE JUST LIKE MIRROR SUSTAINABLE WARM ENVIRON MENT FOR A COMMUNITY CENTER OLDEN DAYS KOPITIAM FINISHES STYLE TRIGGER THE MEMORY CULTURE TRANS PARENCY NEVER HIDE OUR CULTURE TO OTHERS LIGHT, COST-EFFEC TIVE EASY INSTALLATION

reinforced concrete engr’s detail

s structural column

reinforced concrete engr’s detail

railing painted engr’s detail

wall to engr’s detail

engr’s detail reinforced concrete engr’s detail engr’s detail

SEMI OPEN LOUNGE

PRE-FUNCTION HALL

GRAND LOBBY CORRIDOR

竹

‘THE WEAVER’ , an open art gallery space that allows the visitors to witness the lightness and graceful ness of the fabric pieces and appreci ate the richness and nest unique appearance of the weaving. It was inspired by the exquisite Malay tradi tional craft, Songket. The intricate beauty of the Songket weaving pattern and method is projected, showing the enduring symbol of luxury and prestige. The diverse devel opment and profound cultural mean ings behind it are further explored, strengthening the inheritance and innovation of the Songket weaving.

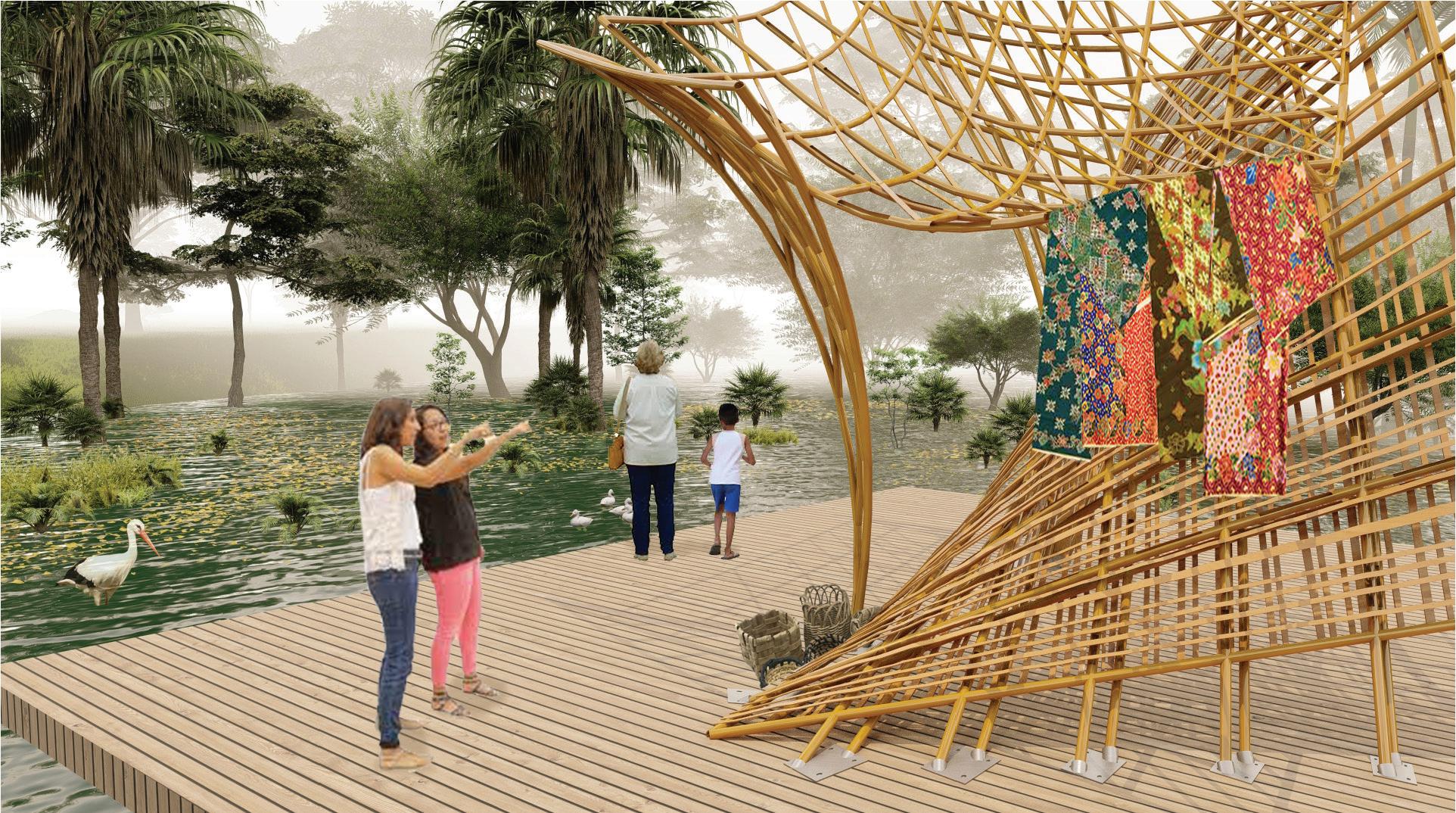

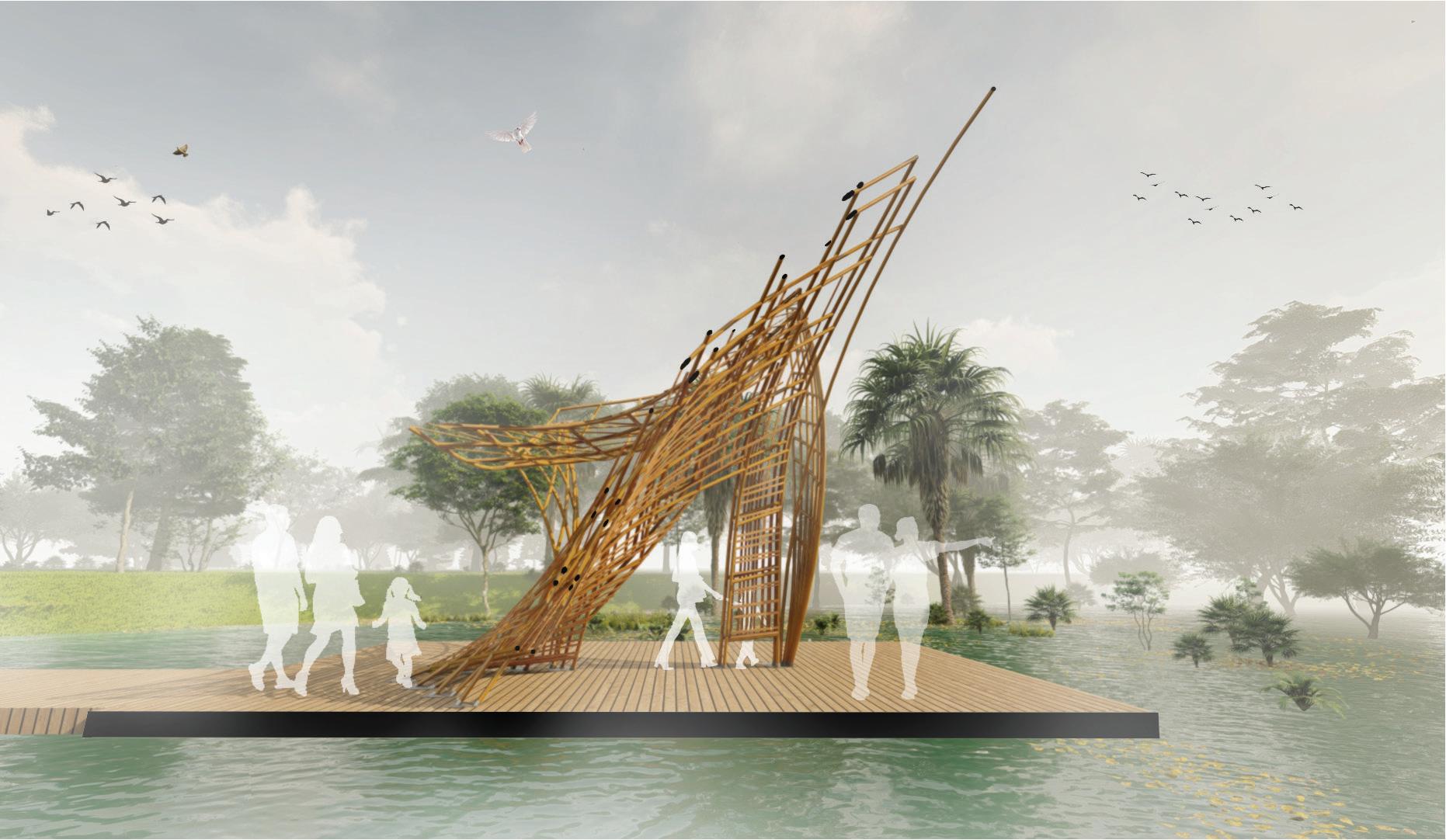

The Weaver

DESIGN INTENTS

To create an open art gallery space that re�lects the making process of songket weaving

To promote a declined Malay’s traditional art and craft

To introduce visitors the elegance of the fabric and the exquisite appearance of the weaving texture

REVITAL the visual beauty of Songket weaving

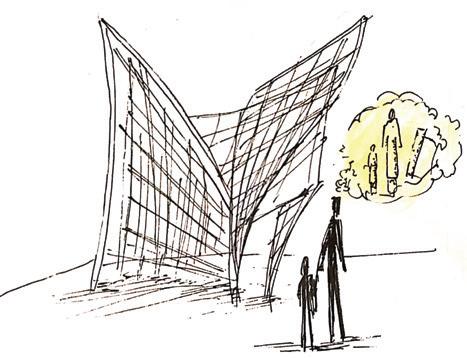

CONCEPTUAL SKETCH

PRESERVE the basics through innovation

REUNION the basic form of Songket weaving

ENDURE the lightness of fabric pieces

PLAY with the unique texture of weaving patterns

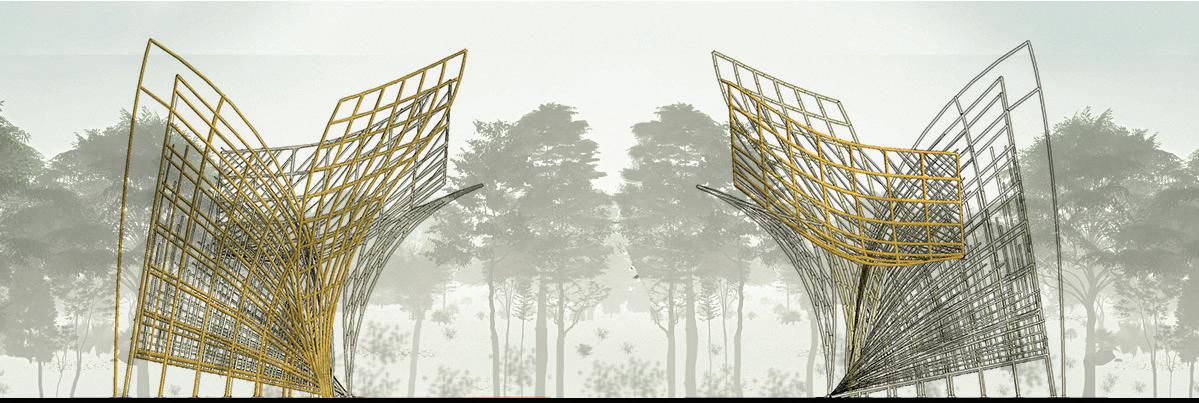

Front Elevation N.T.S

Left Elevation N.T.S

Rear Elevation N.T.S

Right Elevation N.T.S

Bamboo Lighting

Steel Bamboo and Steel Plate Joint Fillet Reinforced Joint Lashing Joint

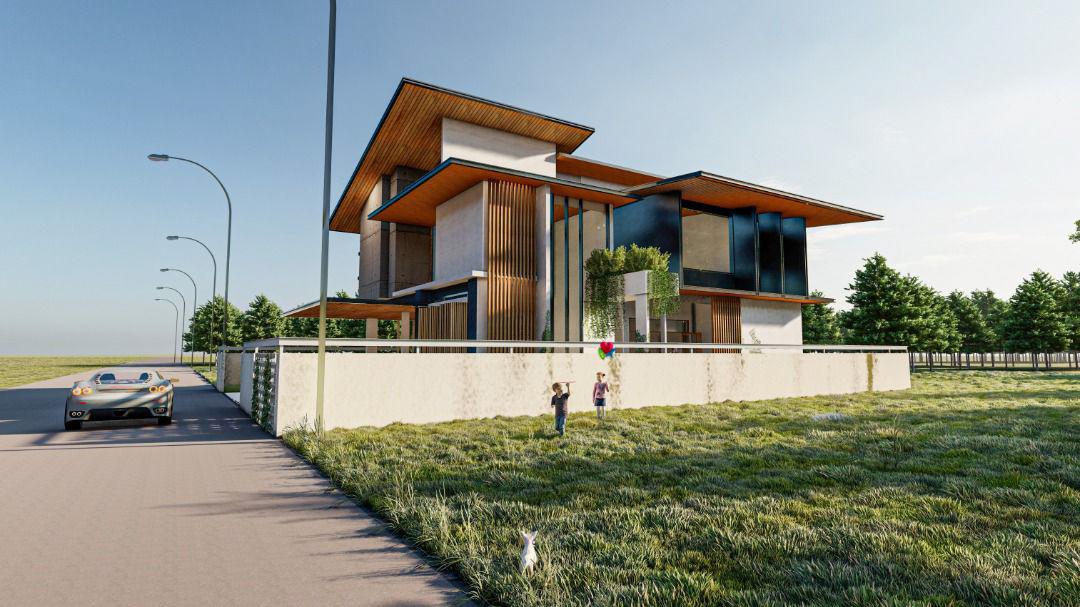

3D visualization illustrates the ability of designing the bungalow facade based on the given oor plans and how the facade be designed to ful ll its functionality, economical and aesthetical aspects.

The bungalow facade was designed based on the core function of the spaces, maximizing the light penetration and promoting better ventilation.
