SEMESTER PORTFOLIO EVAN CLARK & MAX WARD WENTWORTH INSTITUTE OF TECHNOLOGY STUDIO 06: INTEGRATED DESIGN STUDIO PROFESSOR GEOFF PINGREE SUMMER 2022LOWELL MAKERSPACE
PAGE 2 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD **NOTE:OFTABLECONTENTSDRAWINGSARE NOT TO SCALE** PHASE 1: SITE CONTEXT & DOCUMENTATION AND ANALYSIS PHASE 2: PRECEDENT ANAYSIS & INITIAL CONCEPTS324
SUMMER 2022 PORTFOLIO | PAGE 3 EVAN CLARK & MAX WARD PHASE 3: PROTOTYPE DESIGN PHASE 4: INTEGRATED DESIGN PROPOSAL 4012
PAGE 4 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD STUDIO 06: INTEGRATED DESIGN STUDIO PROFESSOR GEOFF PINGREE EVAN CLARK & MAX WARD PHASE 1: SITE CONTEXT DOCUMENTATION & ANALYSIS
SUMMER 2022 PORTFOLIO | PAGE 5 EVAN CLARK & MAX WARD

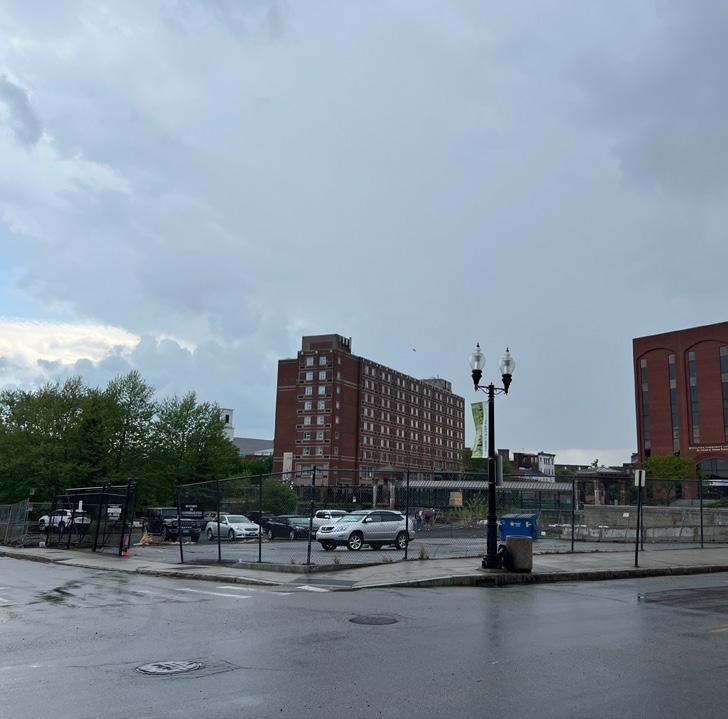

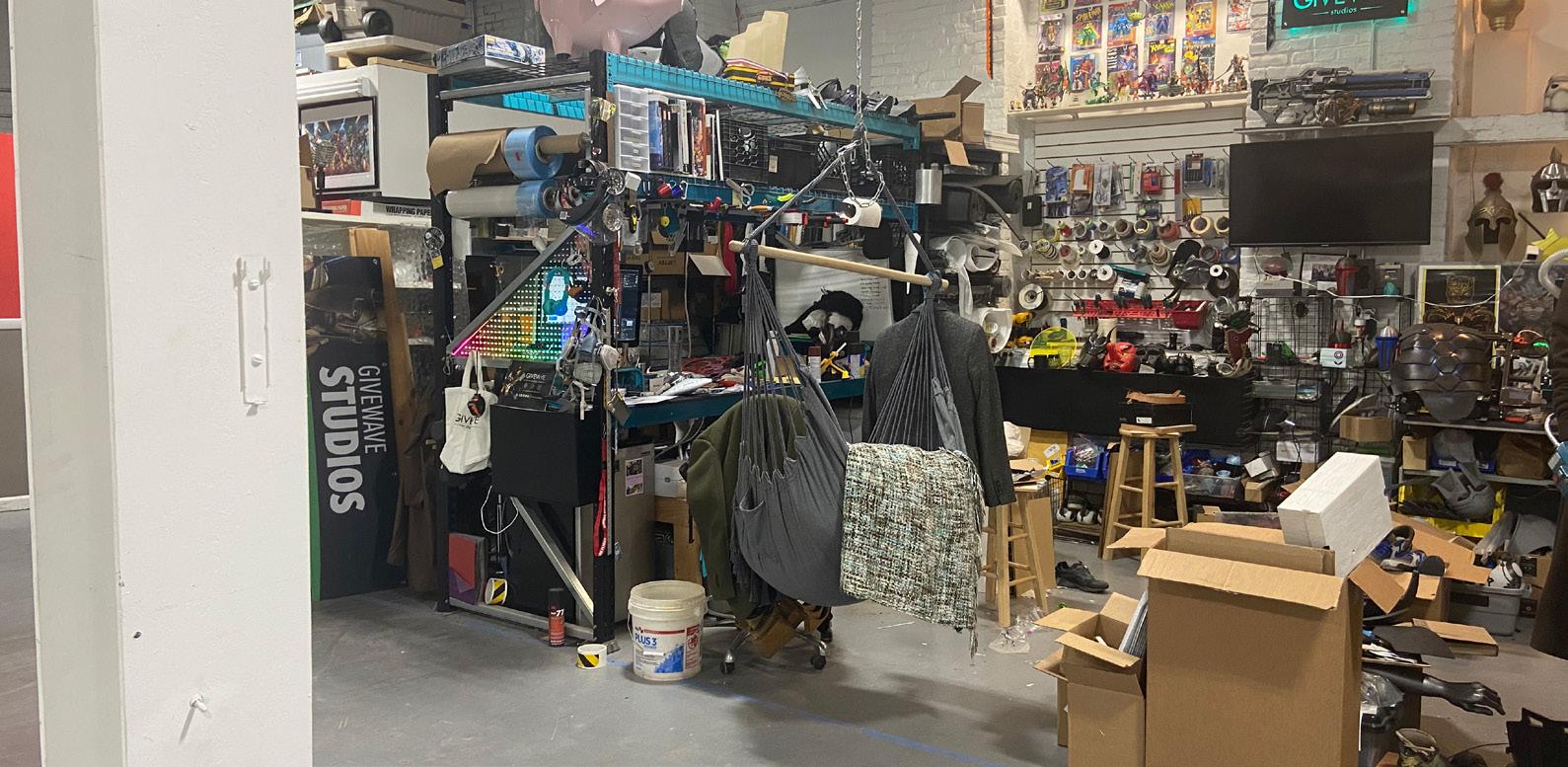

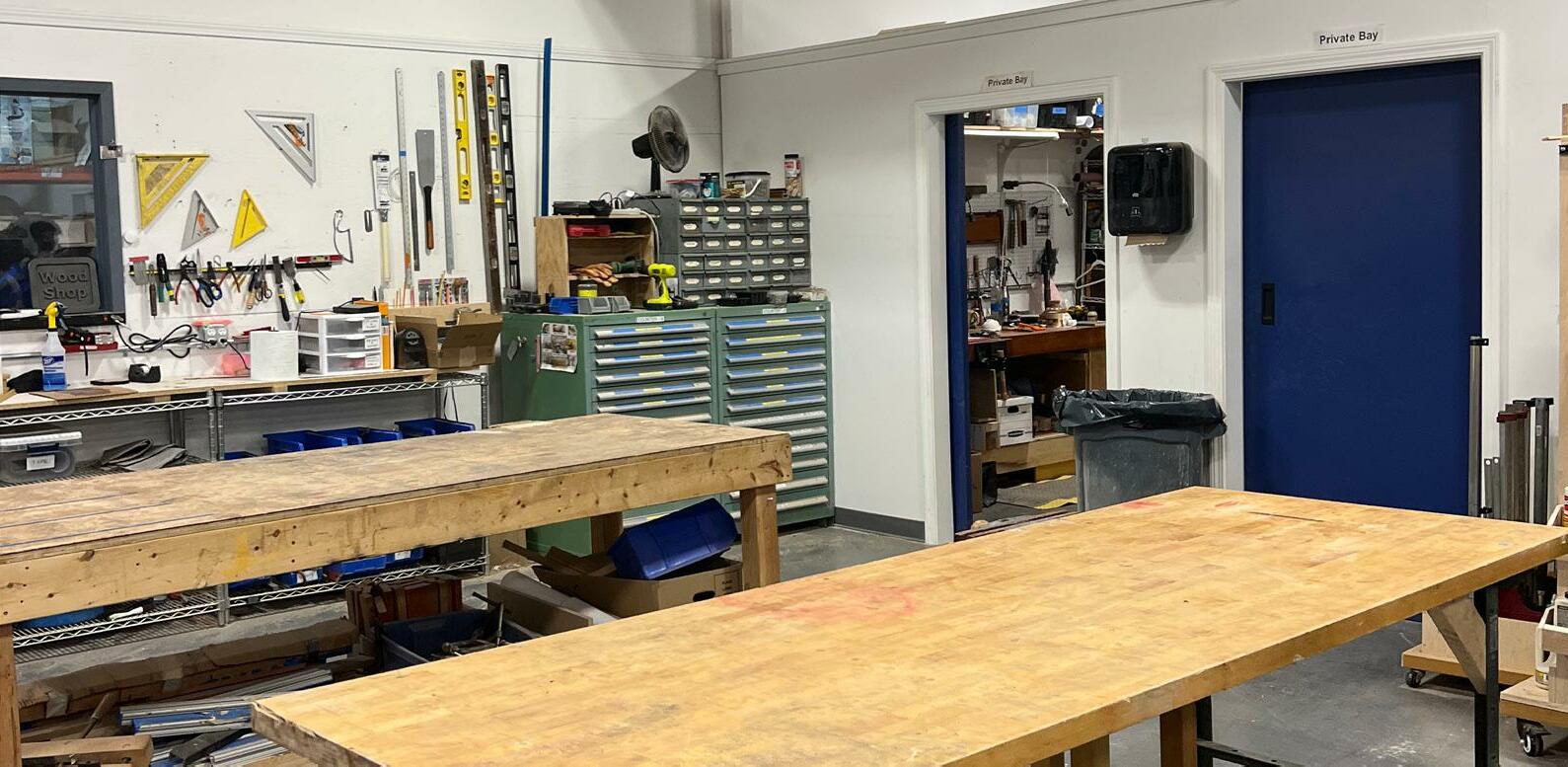

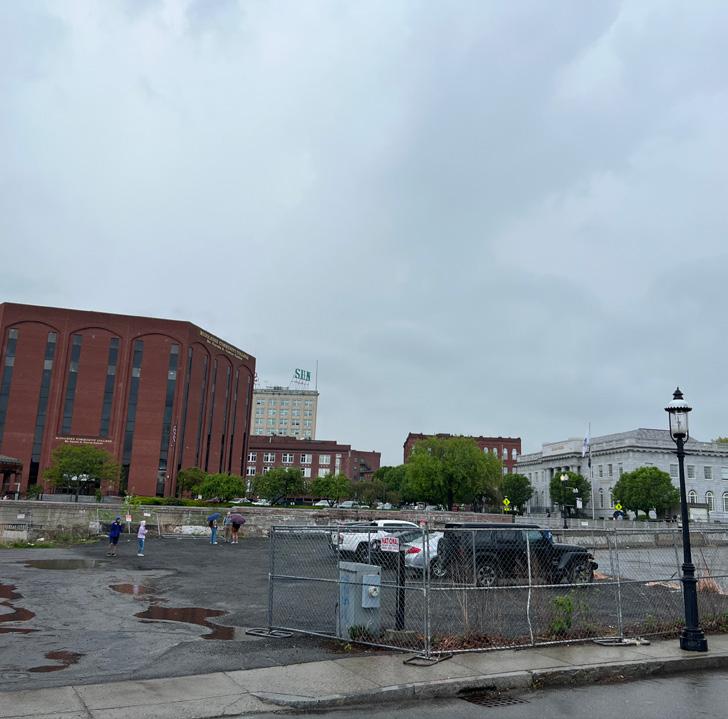

PAGE 6 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD LOWELL MAKES SITE VISIT PHOTOS
SUMMER 2022 PORTFOLIO | PAGE 7 EVAN CLARK & MAX WARD PRIVATE MAKER SPACES MATERIAL STORAGE SHOP SPACES OPEN STUDIO & COMMUNITY SPACES

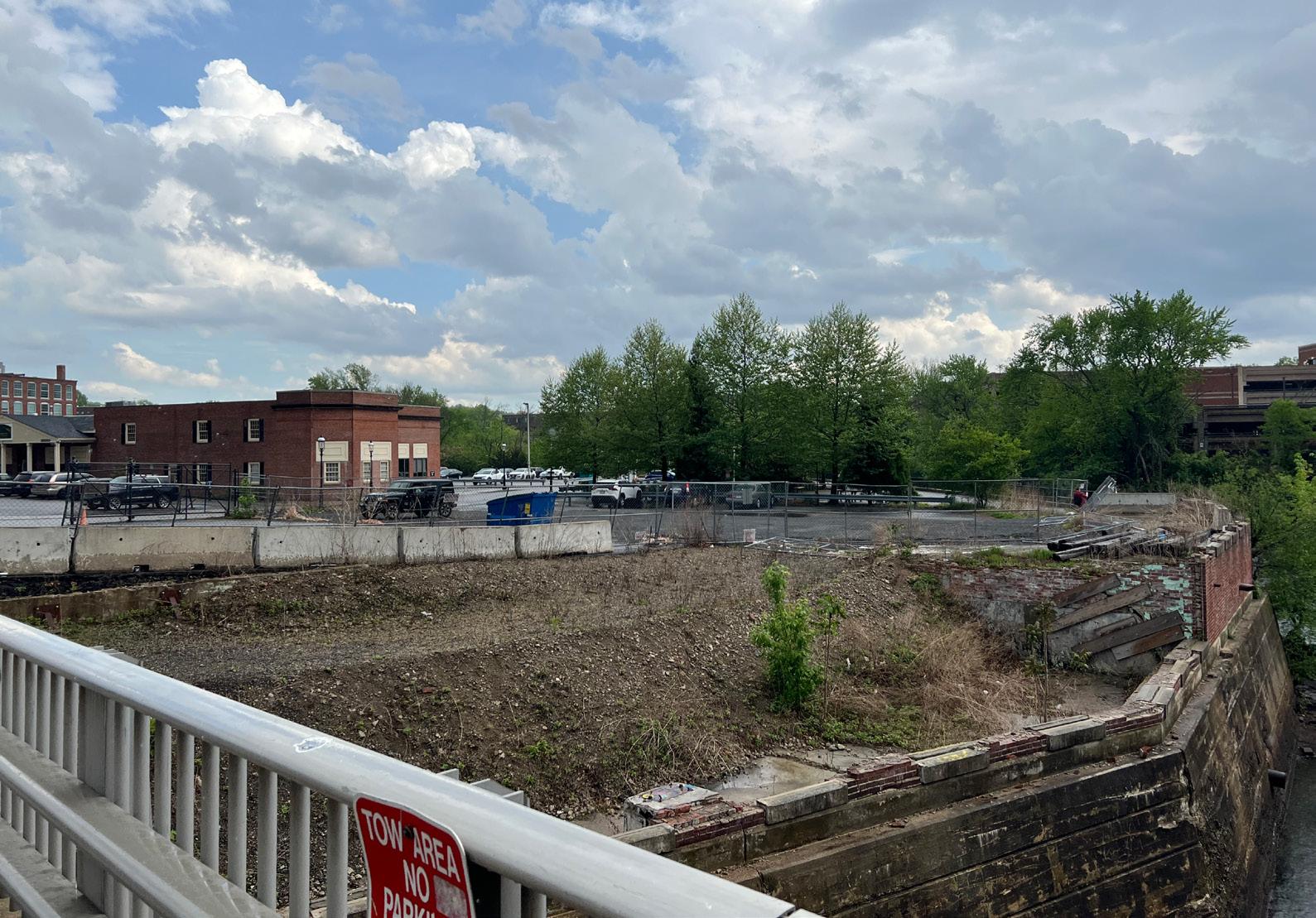

PAGE 8 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD SITE ANALYSIS AND PHOTOS
SUMMER 2022 PORTFOLIO | PAGE 9 EVAN CLARK & MAX WARD PHOTOGRAPHIC ESSAY

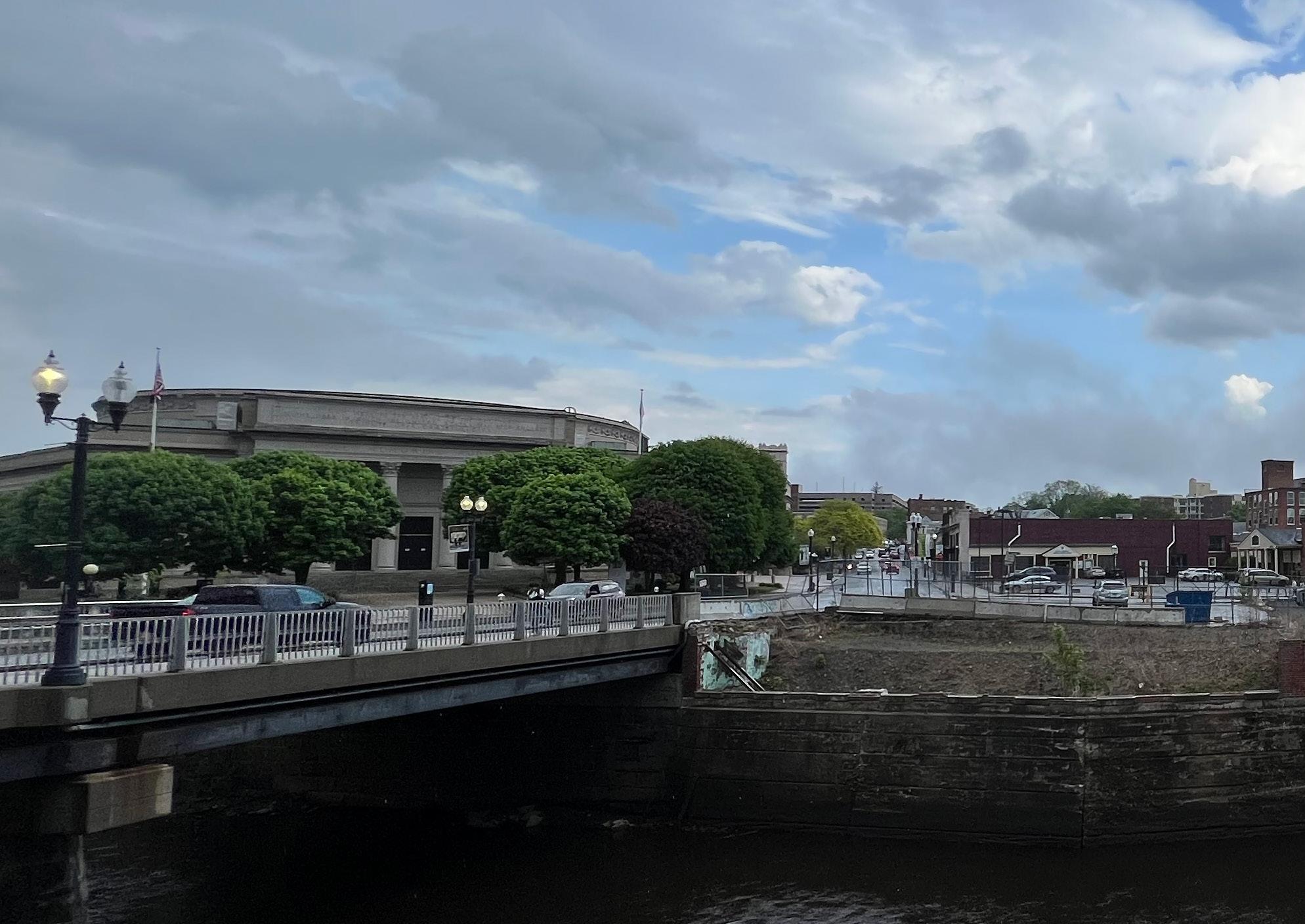

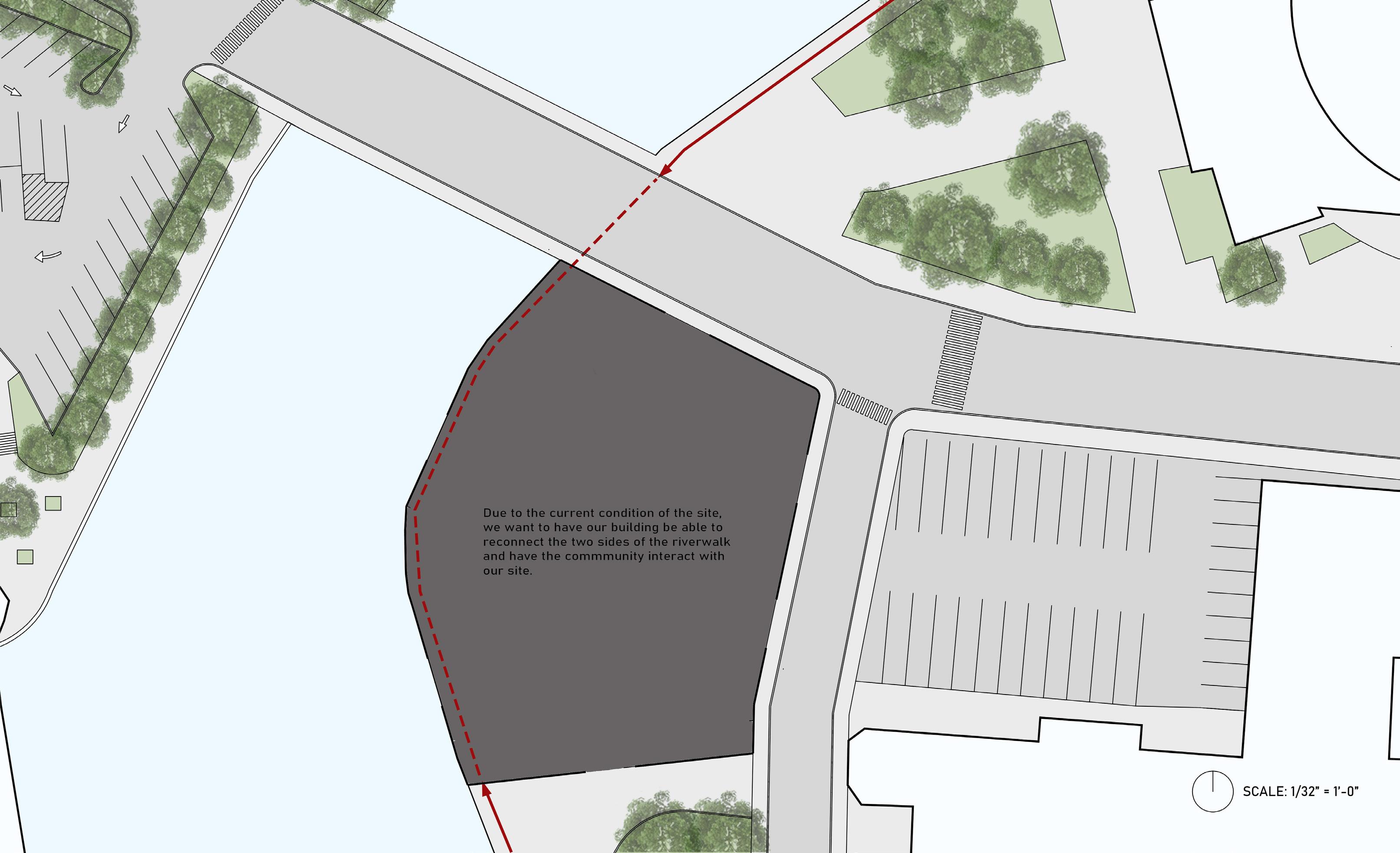

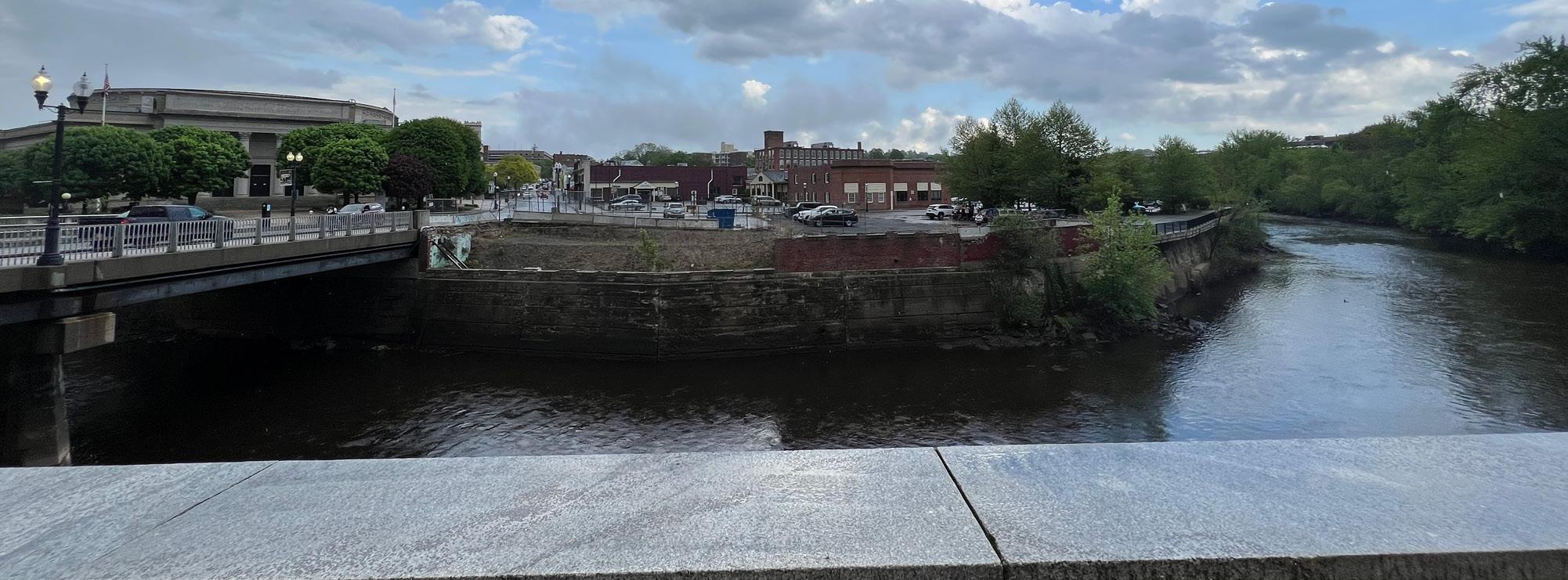

PAGE 10 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD RIVERWALK CONNECTION

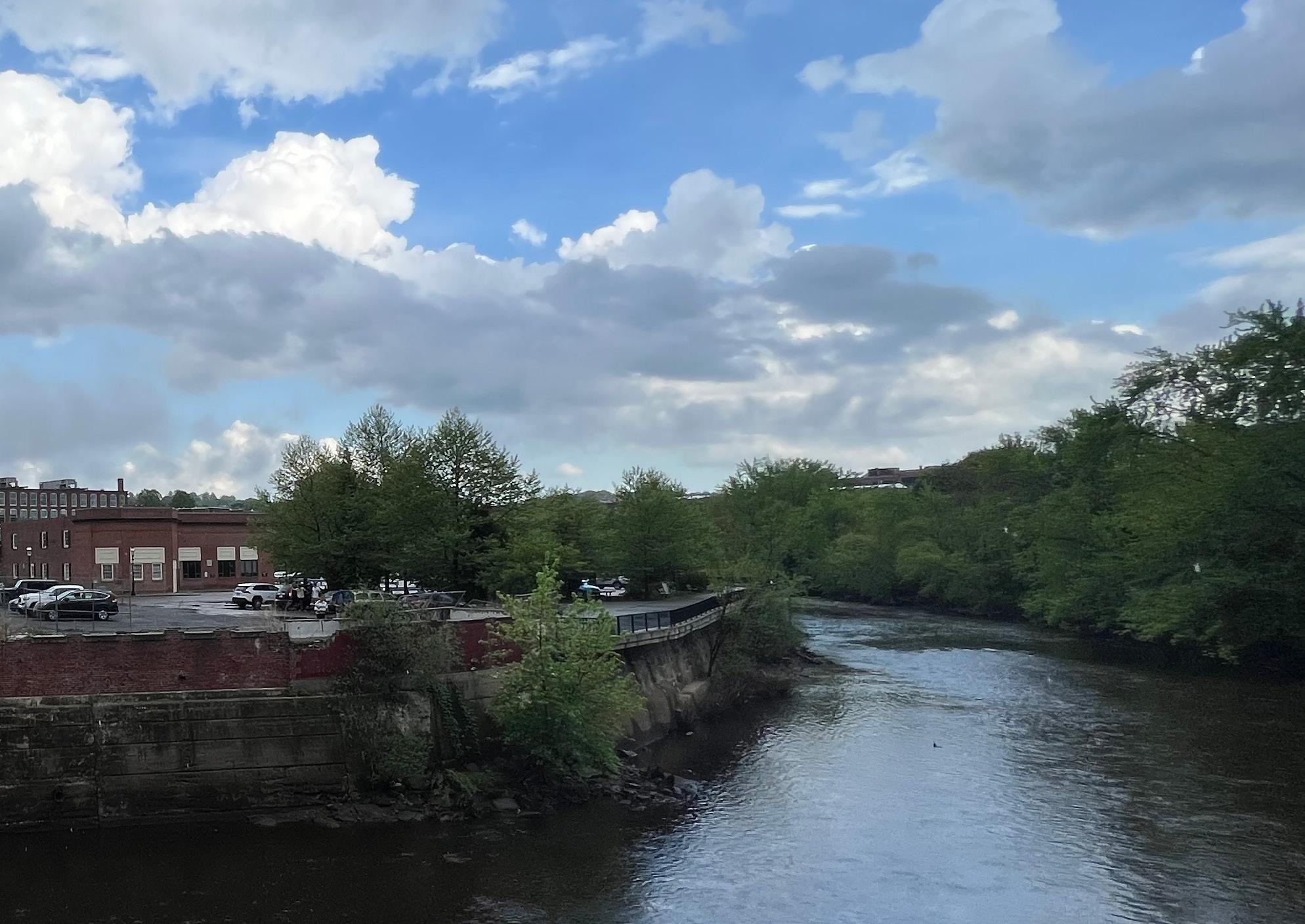

The Lowell site is located along the Concord River. The main street that approaches the site is East Merrimack street with Davidson street as the perpendicular side street. Upon the inital site visit, it was revealed that the site is relatively flat . One thing that we as a team think is a promient issue with the site currently is the disruption of the riverwalk along the concord river. We used this issue as a driving force during the design process and created a building that will successfully resolve the issue for the community.
SITE SUMMARY
SUMMER 2022 PORTFOLIO | PAGE 11 EVAN CLARK & MAX WARD
PAGE 12 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD STUDIO 06: INTEGRATED DESIGN STUDIO PROFESSOR GEOFF PINGREE EVAN CLARK & MAX WARD PHASE 2: PRECEDENT ANALYSIS & INITIAL CONCEPTS
SUMMER 2022 PORTFOLIO | PAGE 13 EVAN CLARK & MAX WARD

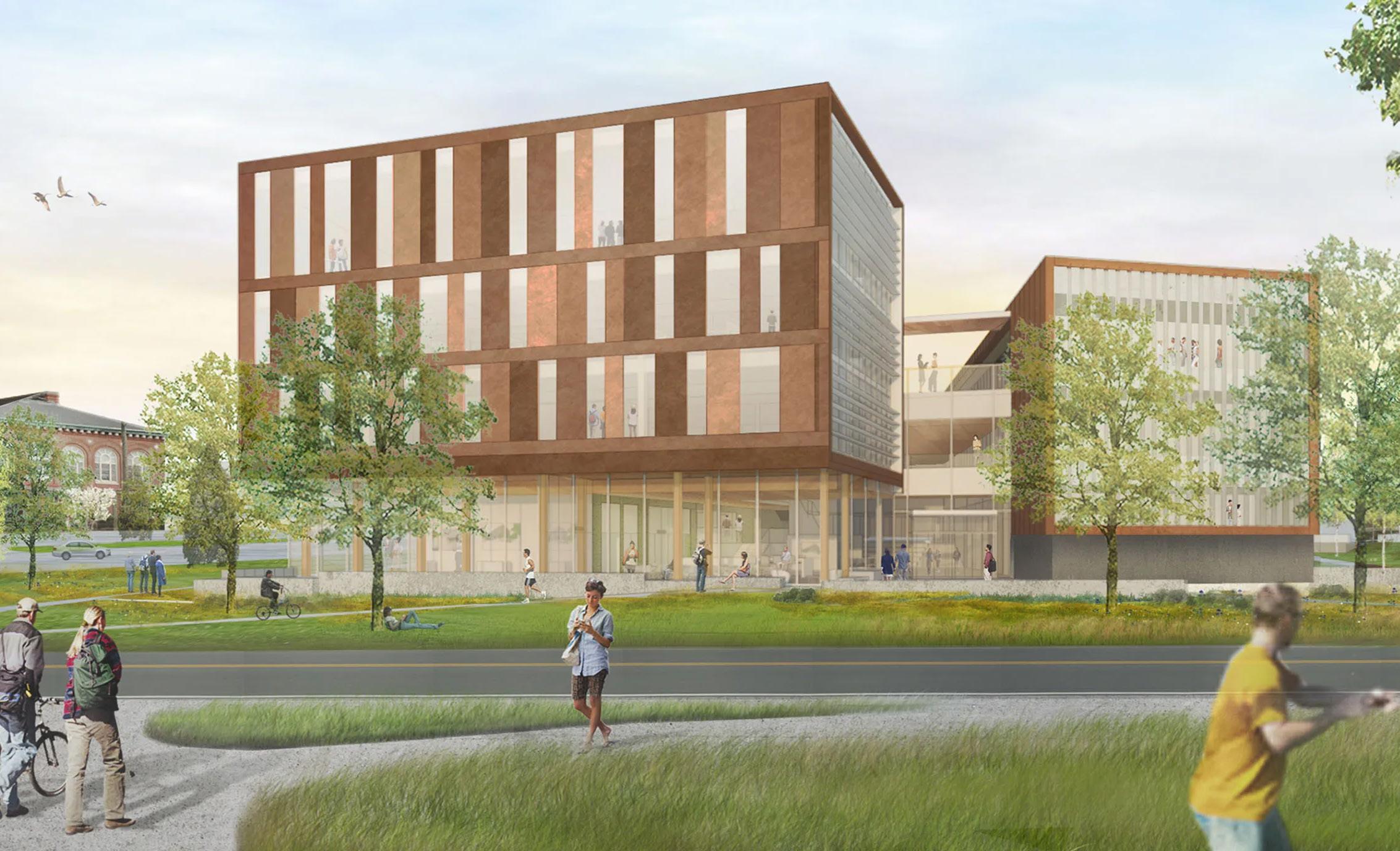

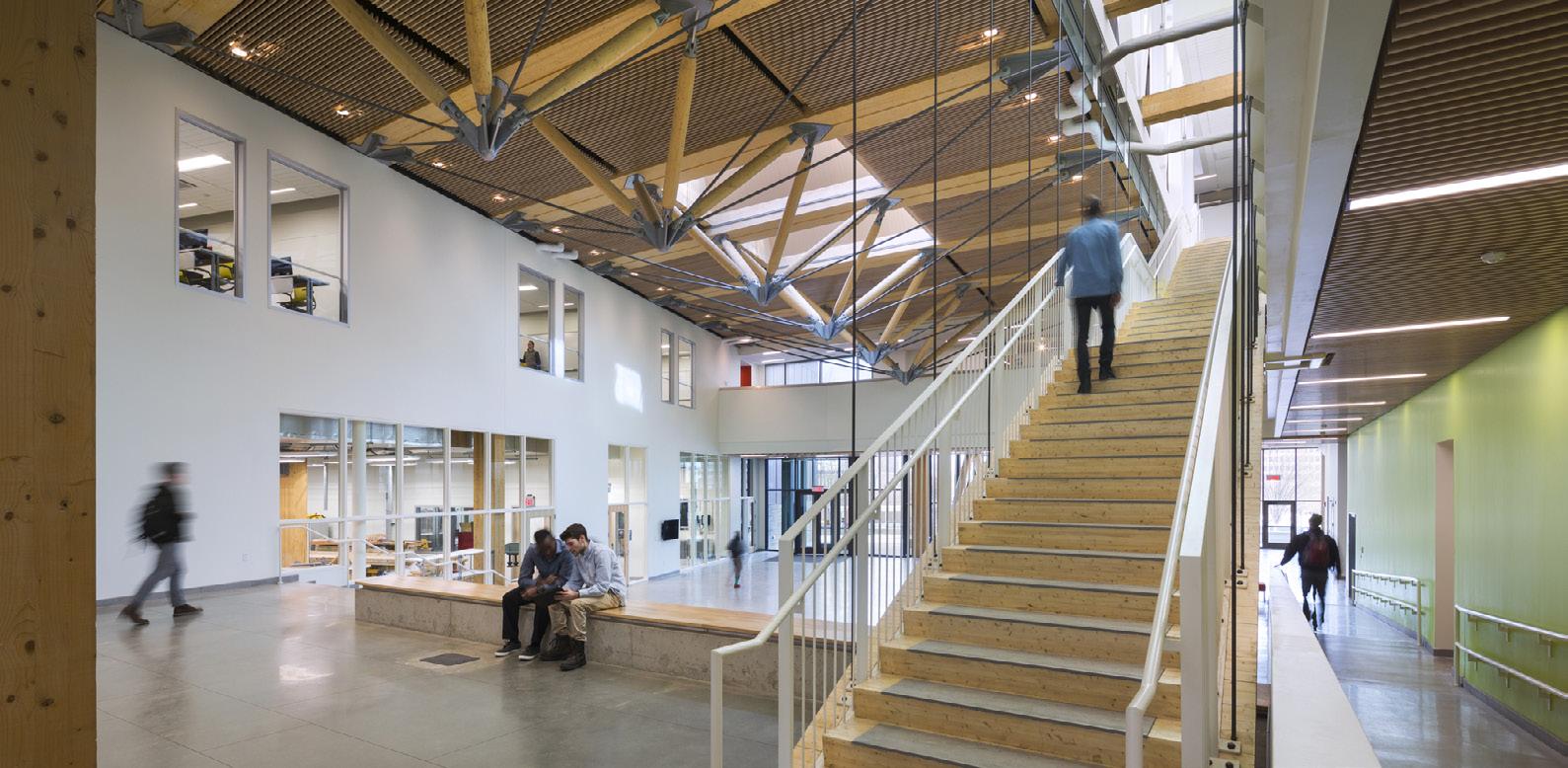

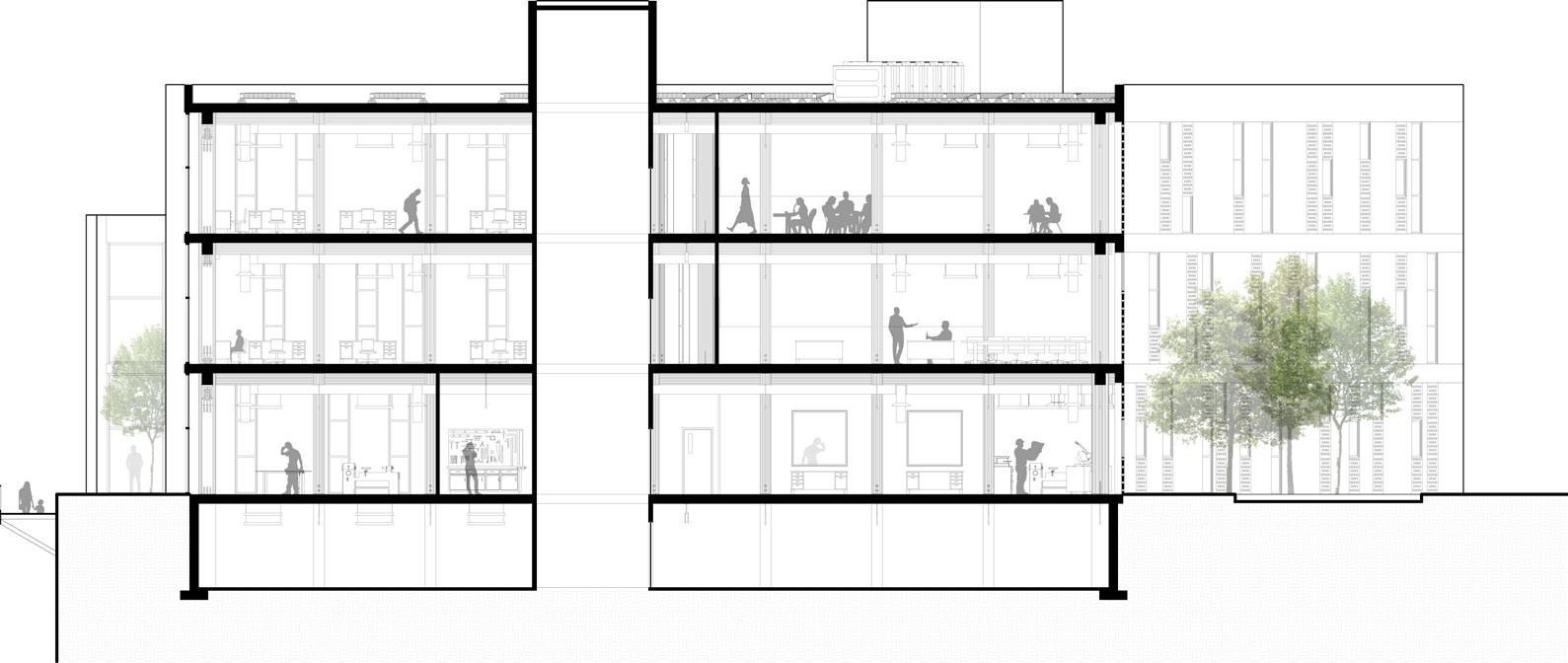

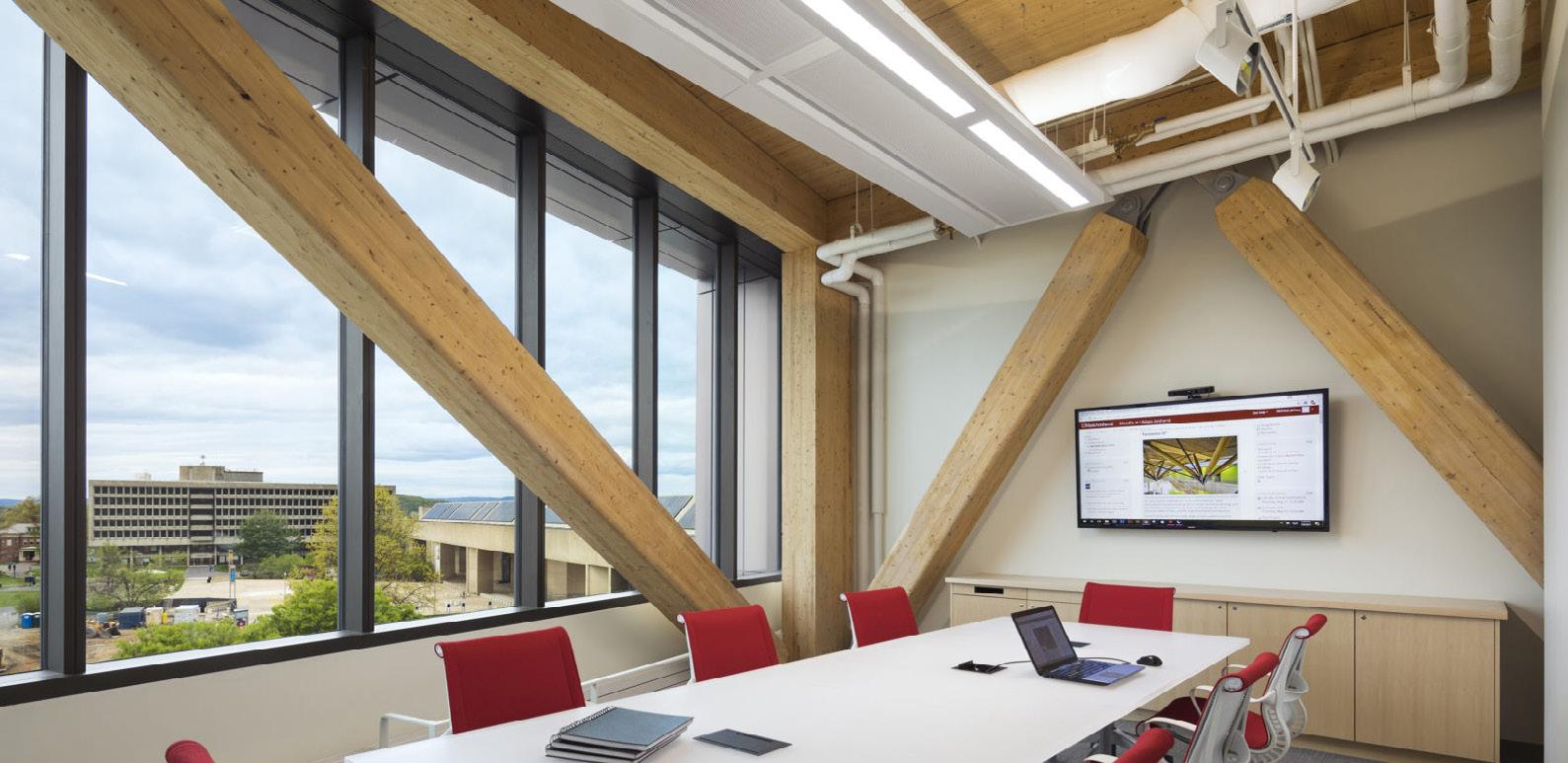

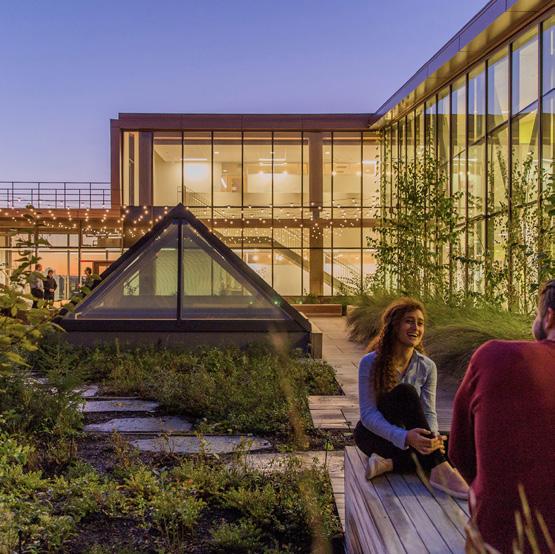

PAGE 14 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PRECEDENT STUDY: UMASS AMHERST DESIGN CENTER
SUMMER 2022 PORTFOLIO | PAGE 15 EVAN CLARK & MAX WARD

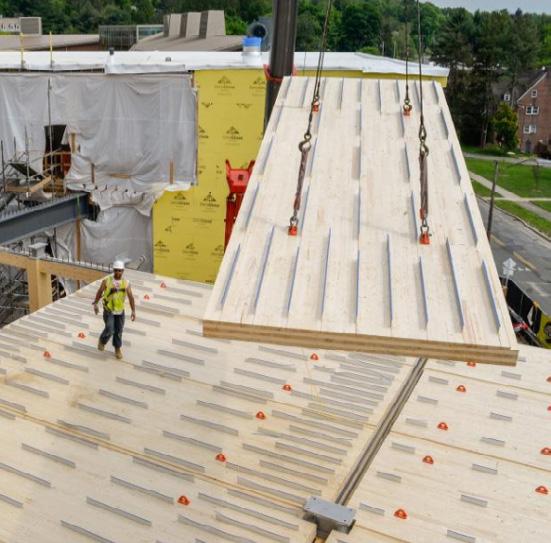

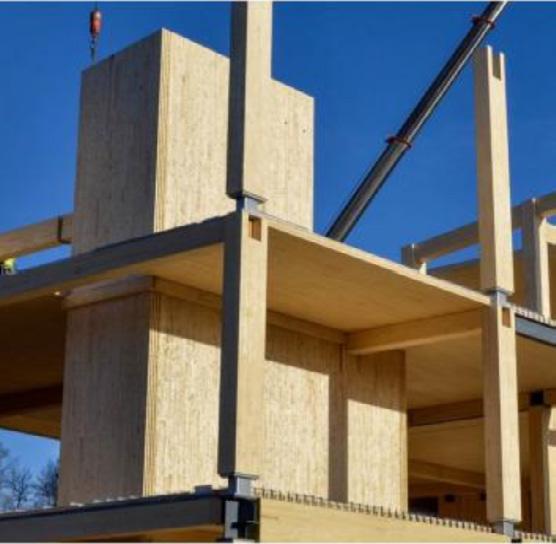

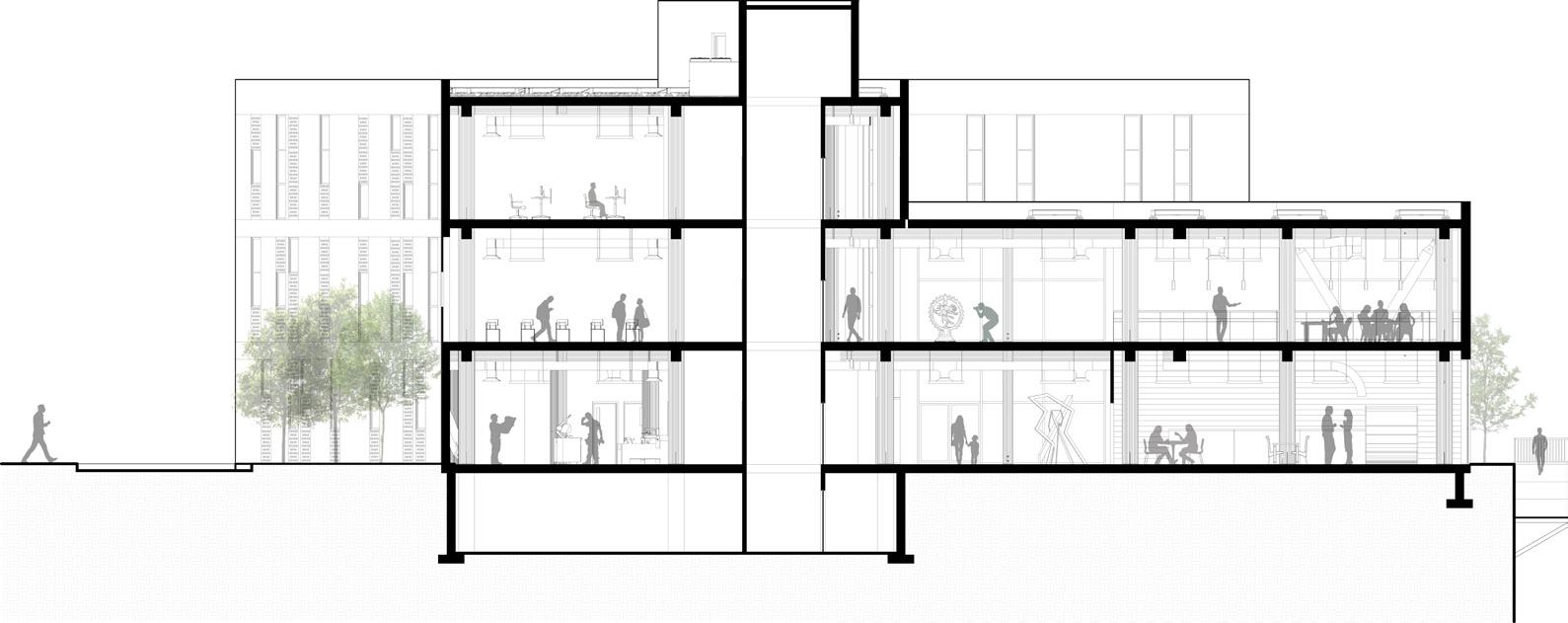

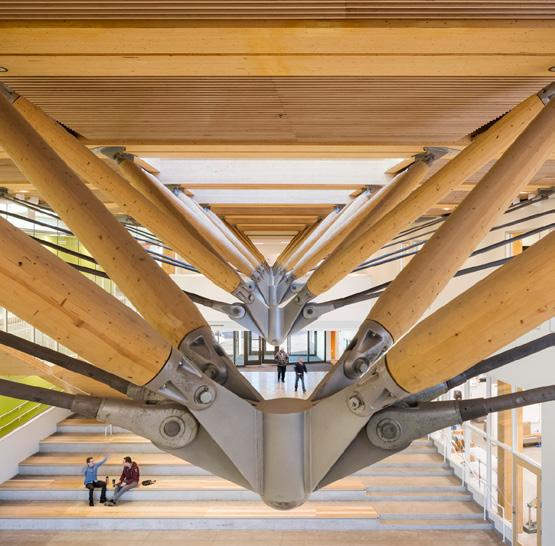

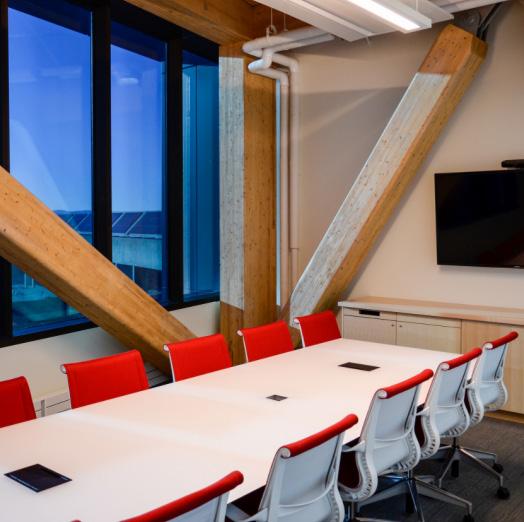

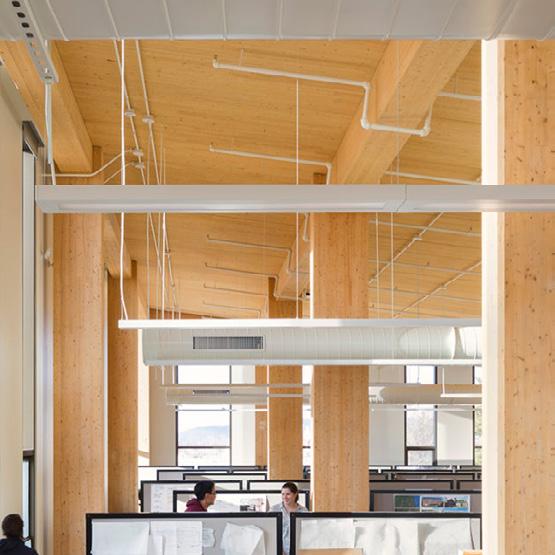

PAGE 16 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: STRUCTURE
1. CROSS LAMINATED ROOF DECK 4. COMPOSITE GLULAM ZIPPER TRUSS 5. GLULM POST & BEAM 6. FOUNDATION & FOOTINGS 7. SOIL 2. CONCRETE FLOOR SLAB 3. CLT FLOOR PANELS SUMMER 2022 PORTFOLIO | PAGE 17 EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: STRUCTURAL EXPLODED AXON 2.1. 3. 4. 6. 6. 7.
PAGE 18 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: ENCLOSURE STRATEGY

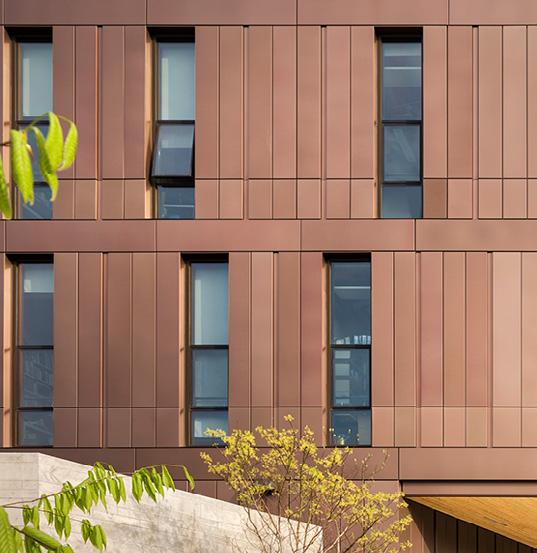

1. GYPSUM INTERIOR WALL 2. COPPER ANDONIZED ALUMINUM WRAPPER 3. SINGLE PANE WINDOWS 4. BLUE STONE BASE WALL SUMMER 2022 PORTFOLIO | PAGE 19 EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: ENCLOSURE EXPLODED AXON
PAGE 20 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: ENVIRONMENTAL CONTROL STRATEGY
5. LIGHTING FIXTURES 4. HVAC SYSTEMS 3. RADIANT FLOORING 1. SLOPED ROOFTOP 2. OPERABLE WINDOWS SUMMER 2022 PORTFOLIO | PAGE 21 EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: ENVIRONMENTAL CONTROLS EXPLODED AXON
PAGE 22 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: PASSIVE & ACTIVE DIAGRAM
STRUCTURAL SYSTEM BUILDING ENVIRONMENTALENCLOSURECONTROLS SUMMER 2022 PORTFOLIO | PAGE 23 EVAN CLARK & MAX WARD UMASS AMHERST DESIGN CENTER: COMPOSITE MODEL
PAGE 24 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD CANAL CONCEPT DISCURSIVE IMAGE

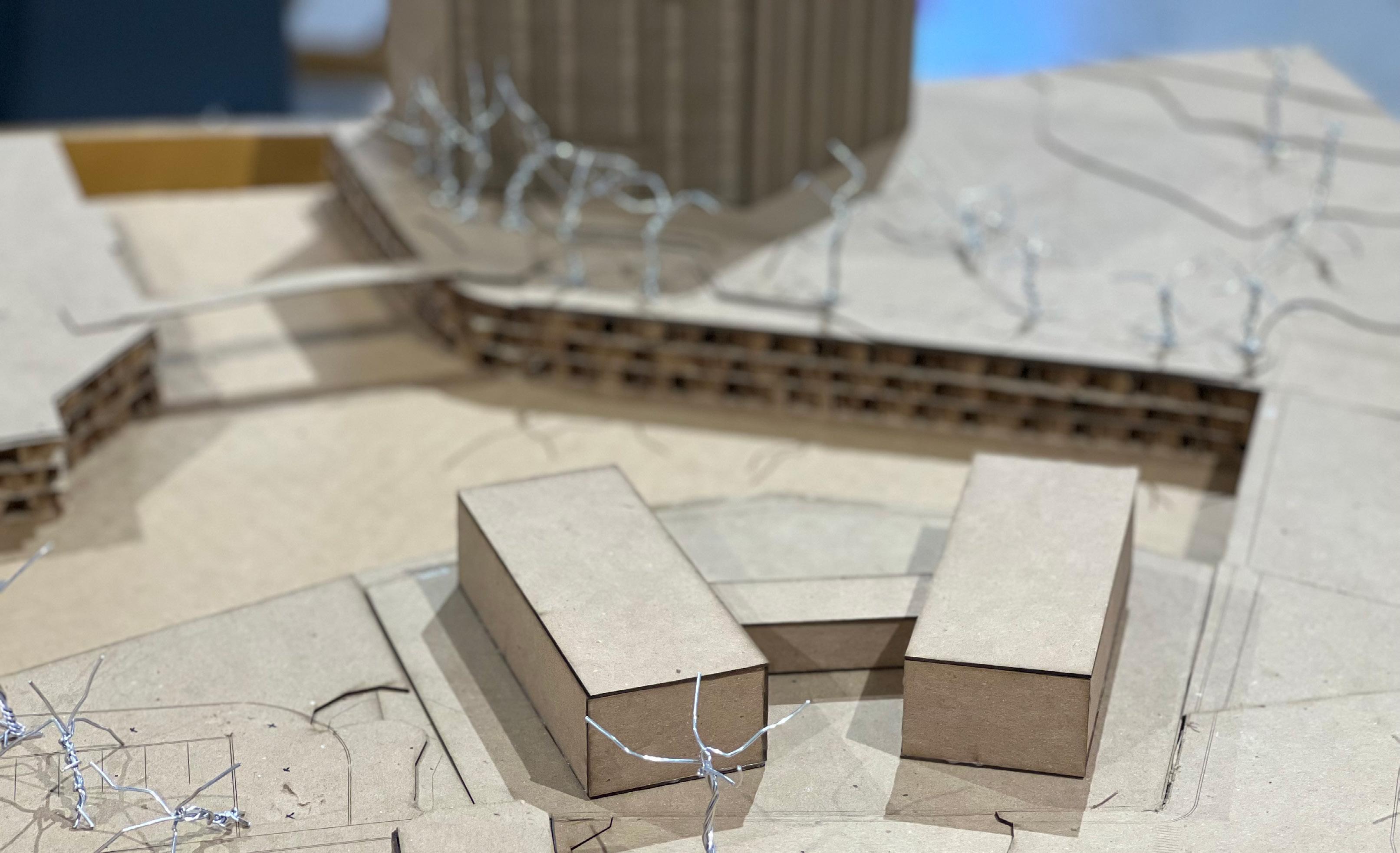

SUMMER 2022 PORTFOLIO | PAGE 25 EVAN CLARK & MAX WARD SHADOWS DISCURSIVE IMAGE: MASSING HEIGHT STUDY HANDS ON VS. COMMUNITY BRANCHES
BINOCULARS SCHEME: TWO MAIN MAKER SPACE WINGS THAT HAVE GLASS FACADES LOOKING OUT TO THE RIVER THAT REAVEAL THE INSIDE OPERATIONS TO PEOPLE PASSING BY ALONG THE RIVER WALK. THE WINGS ARE CONNECTED BY A CENTRAL COMMUNITY SPACE AS WELL AS A CENTRAL COURTYARD THAT ATTRACTS THE COMMUNITY OFF OF THE RIVERWALK PAGE 26 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD MASSING CONCEPT PROGRESSION
SUMMER 2022 PORTFOLIO | PAGE 27 EVAN CLARK & MAX WARD

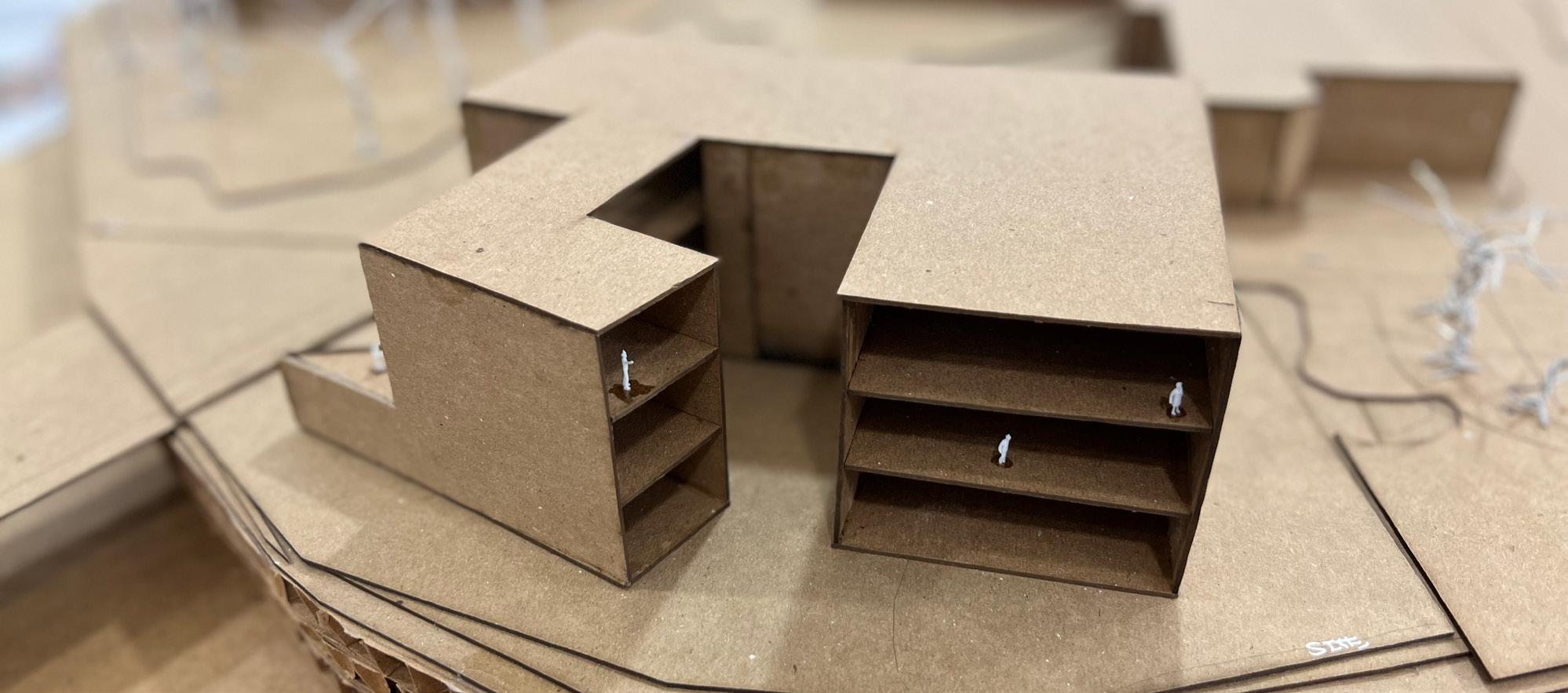

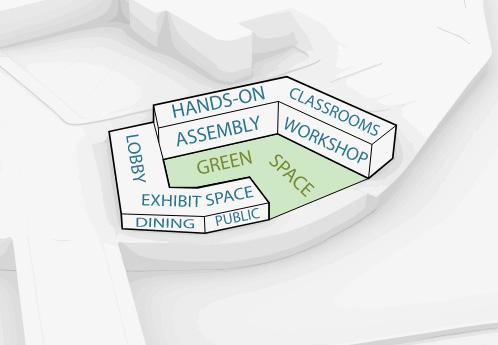

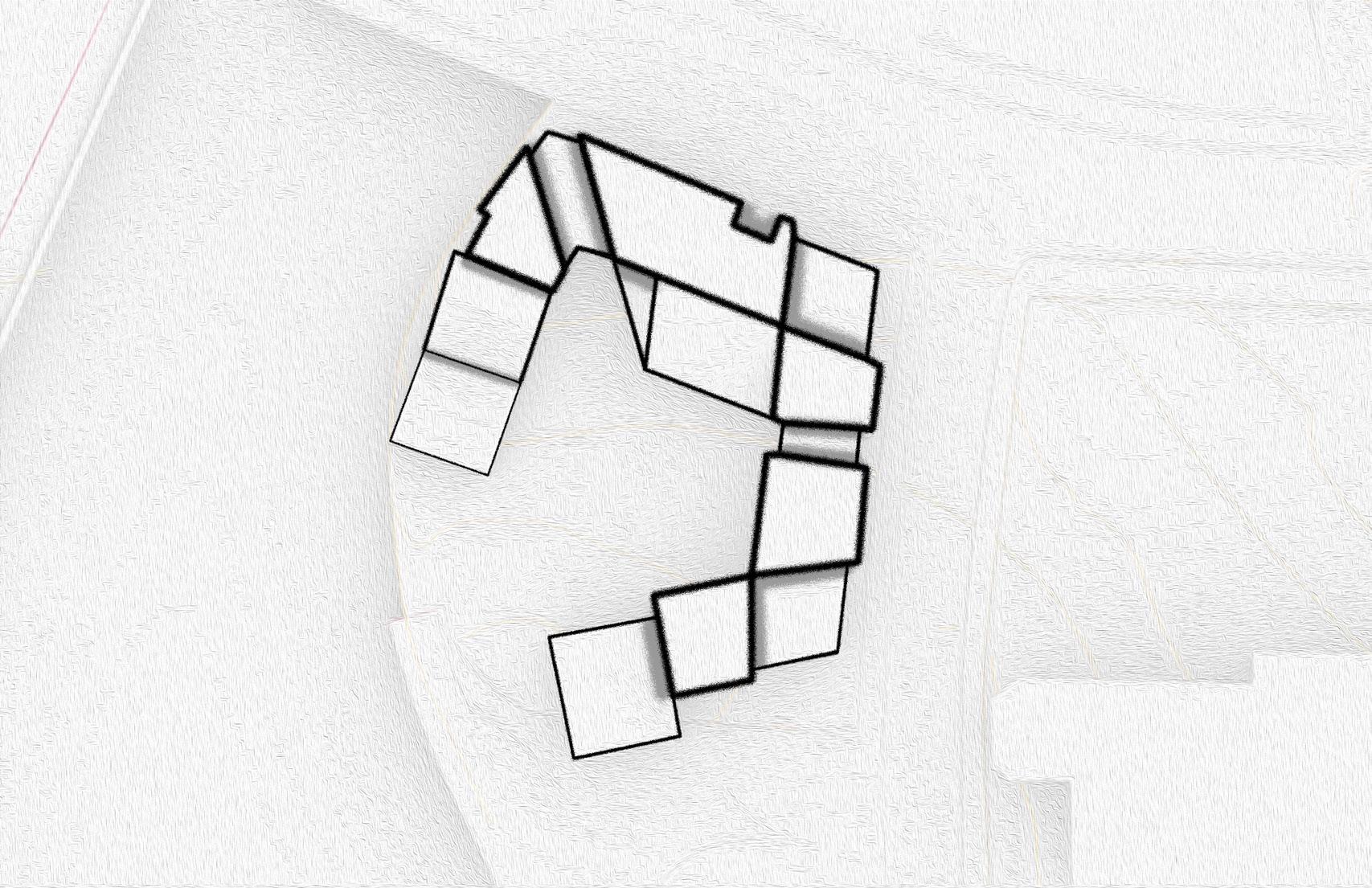

PAGE 28 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD MASSING CONCEPT PROGRESSION
SUMMER 2022 PORTFOLIO | PAGE 29 EVAN CLARK & MAX WARD
PAGE 30 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD MASSING CONCEPT PROGRESSION
SUMMER 2022 PORTFOLIO | PAGE 31 EVAN CLARK & MAX WARD
PAGE 32 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD STUDIO 06: INTEGRATED DESIGN STUDIO PROFESSOR GEOFF PINGREE EVAN CLARK & MAX WARD PHASE 3: PROTOTYPE DESIGN
SUMMER 2022 PORTFOLIO | PAGE 33 EVAN CLARK & MAX WARD

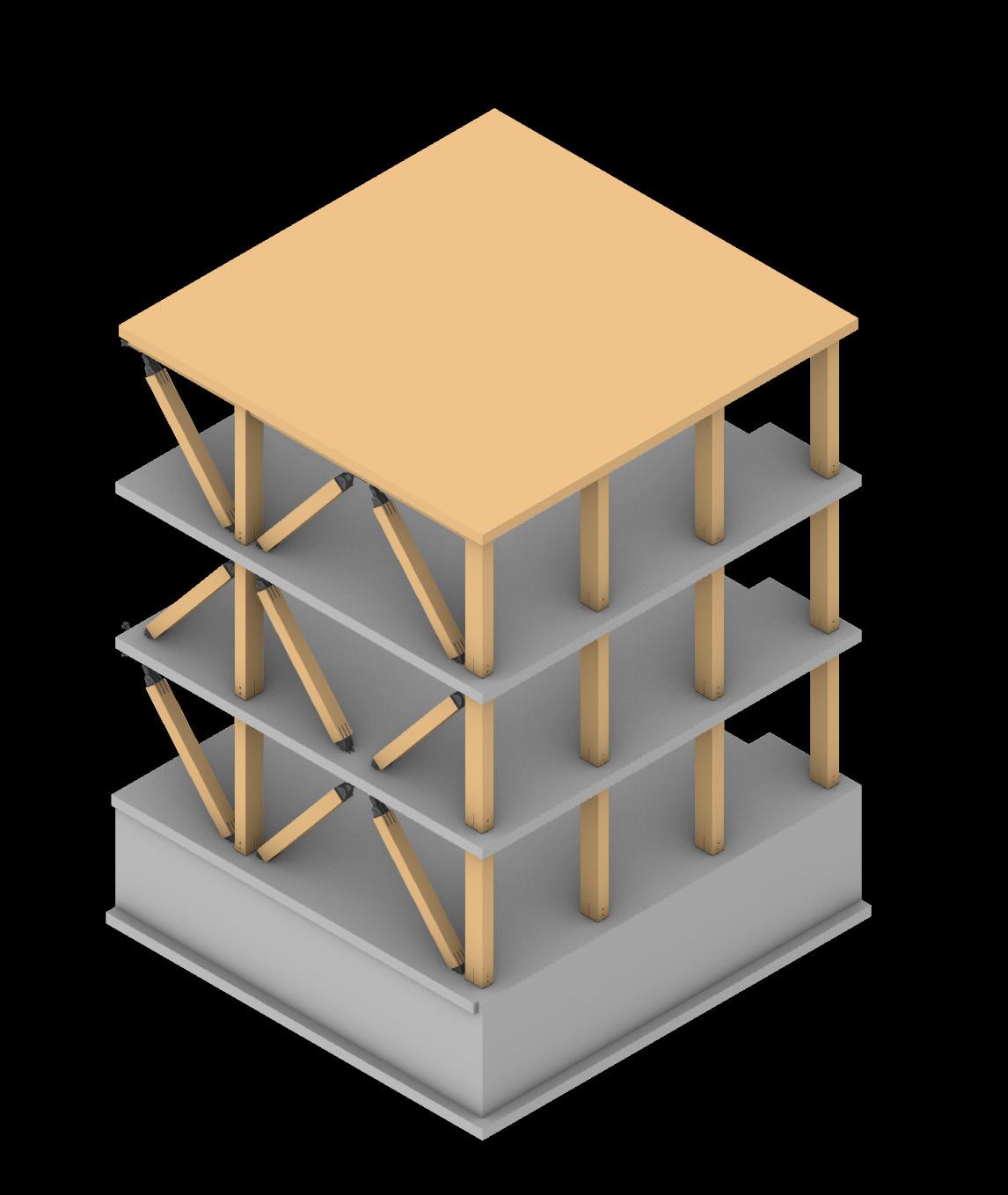

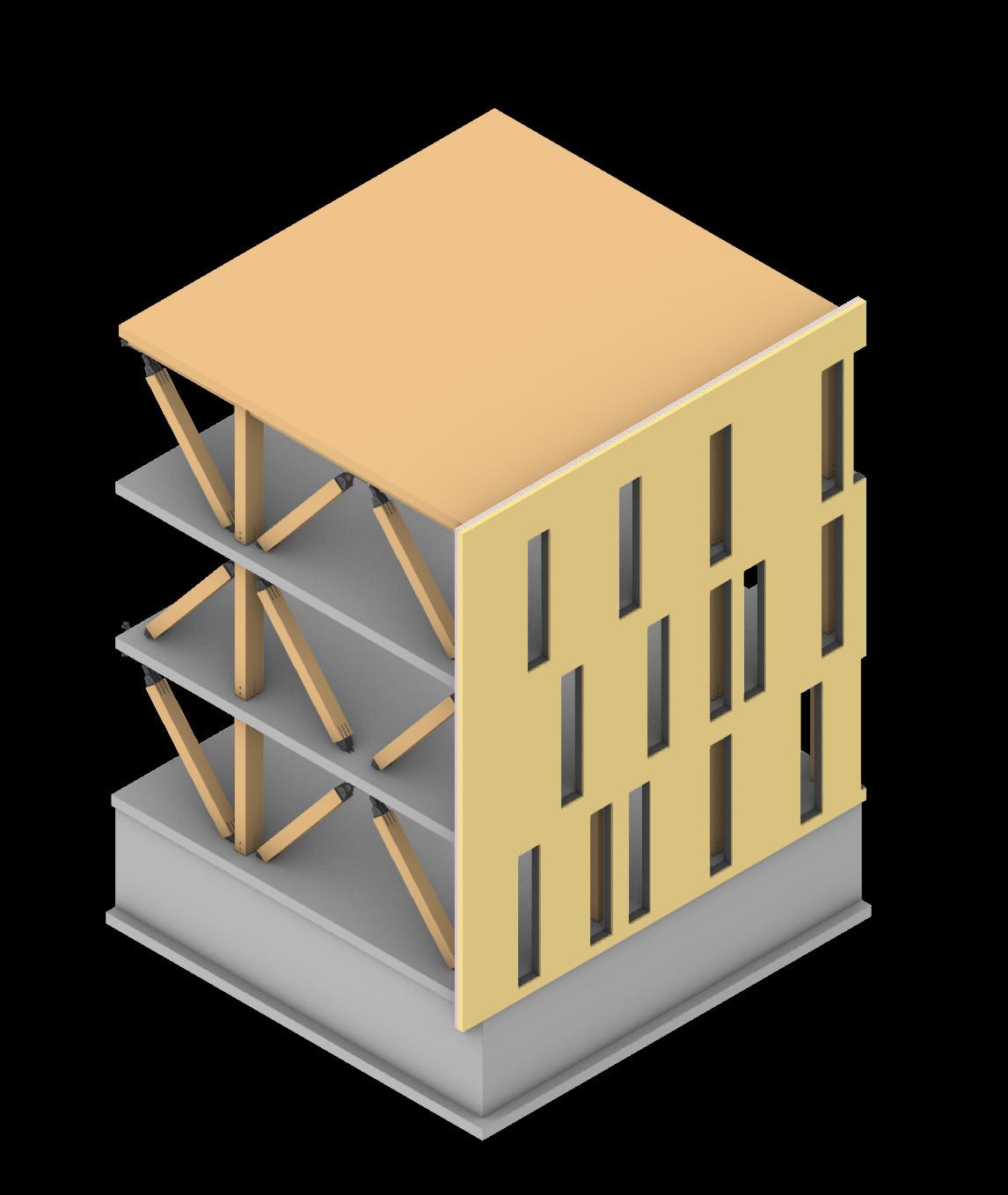

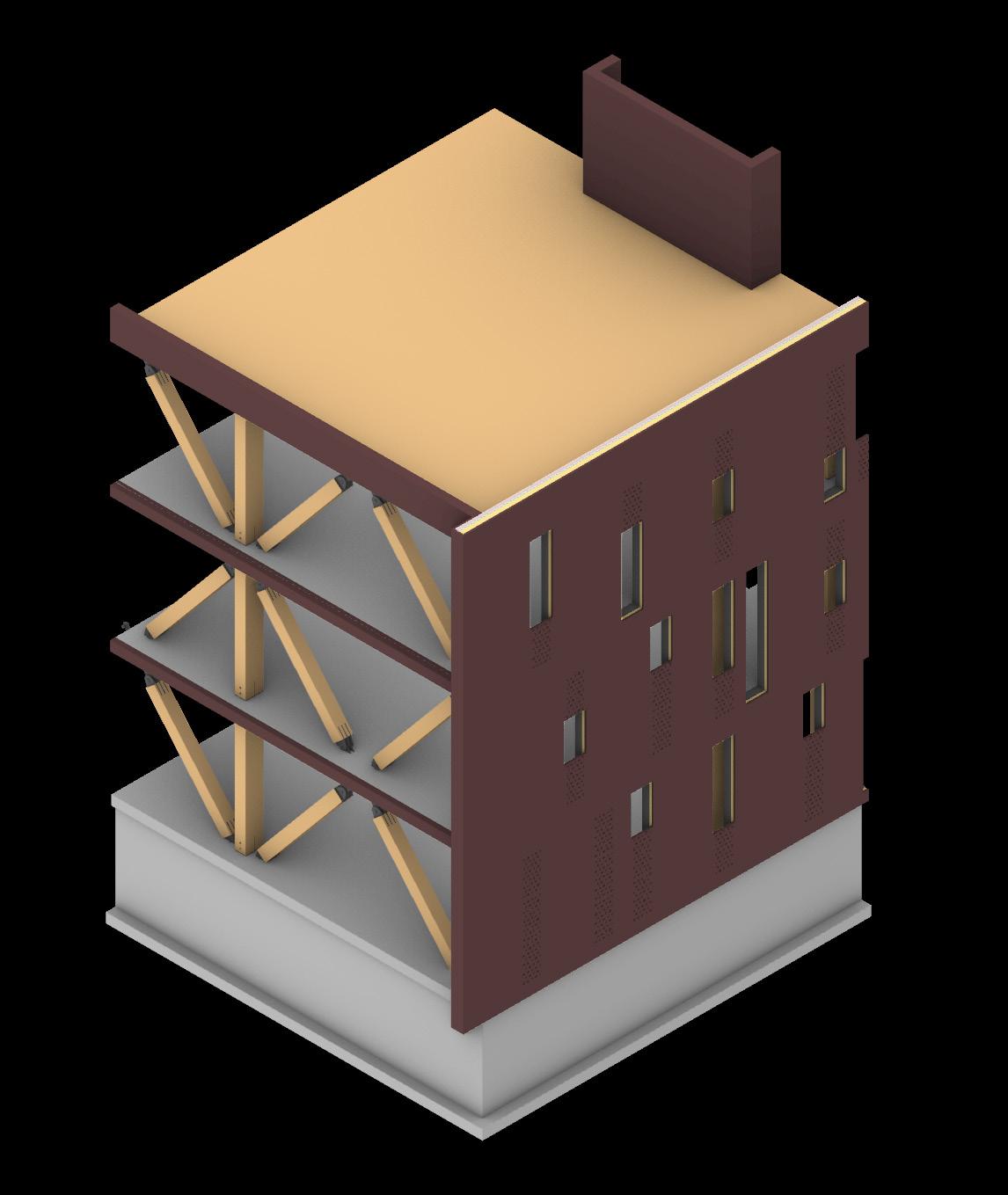

The structure of the prototype consists of a hybrid system. The most prominent aspect is the heavy timber glulam post and beams. This component was chosen because of the many benefits it has to offer such as long spans, lighter dead load, fire resistency, construction assembly regardless of weather conditions resulting in a reduce time schedule, as well as the aesthetic mass timber has to offer. The post and beams are tied together with a steel I-Beam connection that creates the separation of floors. Most of the steel connections are covered by a concrete floor slab that allow for the hands-on activities of the maker space. Under the floor slab are prefabricated 7 ply CTL ceiling planels that sit on the beams perpendicularly. For lateral support, glulam crosss bracing as well as a light guage steel stud framing system are installed. The steel stud framing system were chosen due to the concrete floor slab that will need to be drilled into and connected with a pin and bolt. Finally, the system is tied into the ground with a traditional pre-casted concrete foundation wall and footings for the columns to sit on. The concrete components were chosen becuase it is the best material and most traditional system to interact with the ground.

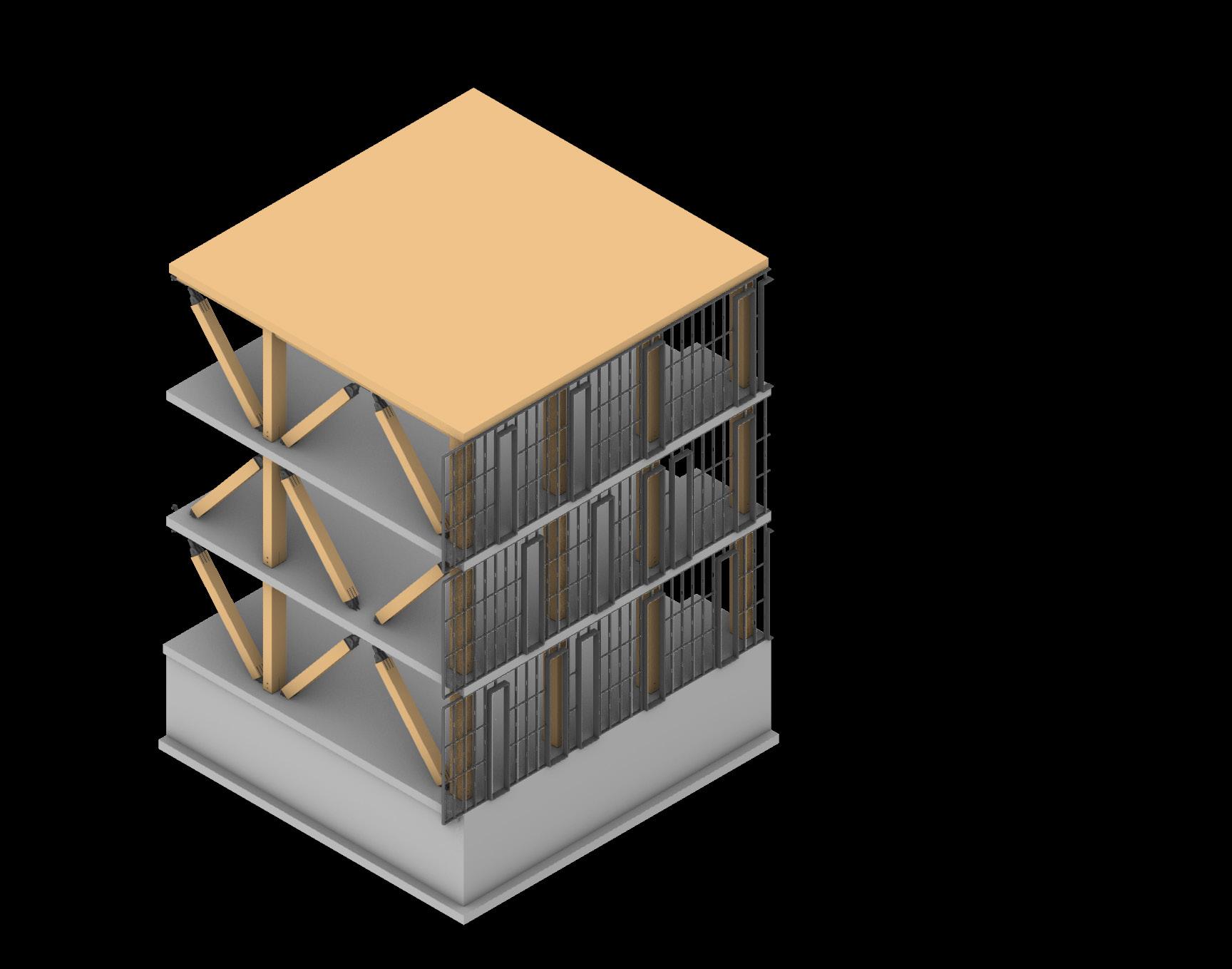

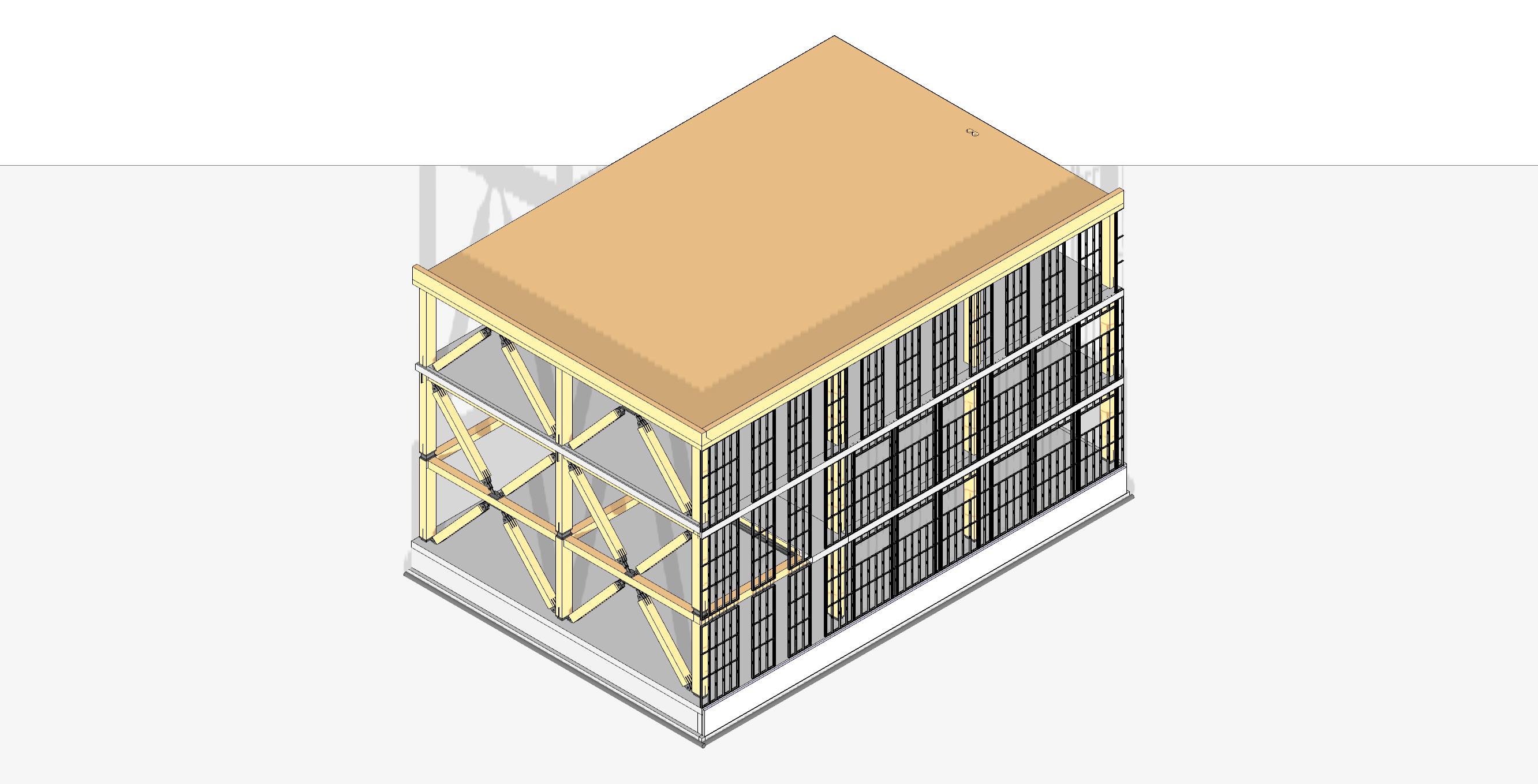

CONCRETE FLOOR SLAB 7 PLY CLT CEILING PANELS STEEL I-BEAM CONNECTION GLULAM TIMBER CROSS BRACING REINFORCED CONCRETE FLOOR SLAB LIGHT GUAGE STEEL STUD FRAMING 16” O.C. GLULAM TIMBER POST & BEAM CONCRETE FOUNDATION WALL (FOOTINGS & CONCRETE COLUMNS INSIDE) PAGE 34 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PROTOTYPE: STRUCTURAL CONCEPT
STRUCTURAL SYSTEM

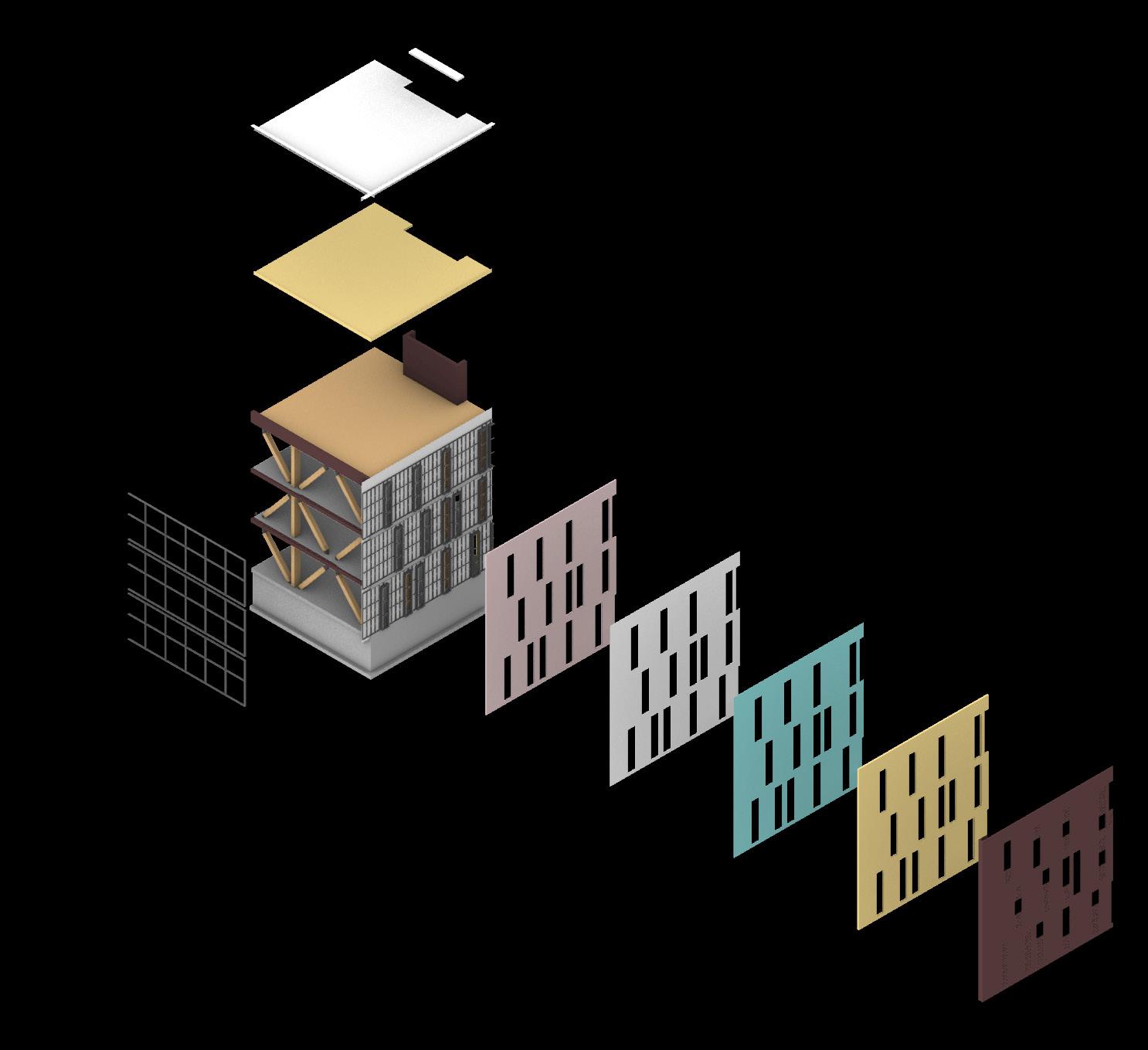

ALBEDO ROOF (MEMBRAME ROOFING BELOW) EXTERIOR SHEATHING AIR / VAPOR BARRIERRIGID INSULATIONRAINSCREENBOARDSALUMINUM METAL PANELS GLAZING CURTAIN WALL PARAPET METAL CAP INTERIOR GYPSUM BOARD BATT INSULATION SUMMER 2022 PORTFOLIO | PAGE 35 EVAN CLARK & MAX WARD PROTOTYPE: ENVELOPE CONCEPT
The enclosure system of the prototype consists of two wall conditions along with the roof condition. One of the walls is a glazing curtain wall. This wall system was chosen because it will allow people to see inside the maker space, specifically the lobby and exhibition spaces where there will be a lot of community interaction. The other wall system is more opaque with punched out windows and is enclosed by aluminum metal panels. The panels act as a rainscreen which are clipped onto and are connected to the light gauge steel stud framing. Within the rainscreen is interior and exterior gypsum boards, an air / vapor barrier as well as a vapor retarder, rigid insulation for the outter portion of the wall, and batt insulation in between the steel studs. Finally, for the roof a standard flat roof assembly was designed with membrane roofing that slowly inceases in height so that the roof isn’t completely flat and can collect water. It is covered by an albedo material that reflects sunlight. For the parapit, a metal cap will protect it from the elements.
ENCLOSURE SYSTEM

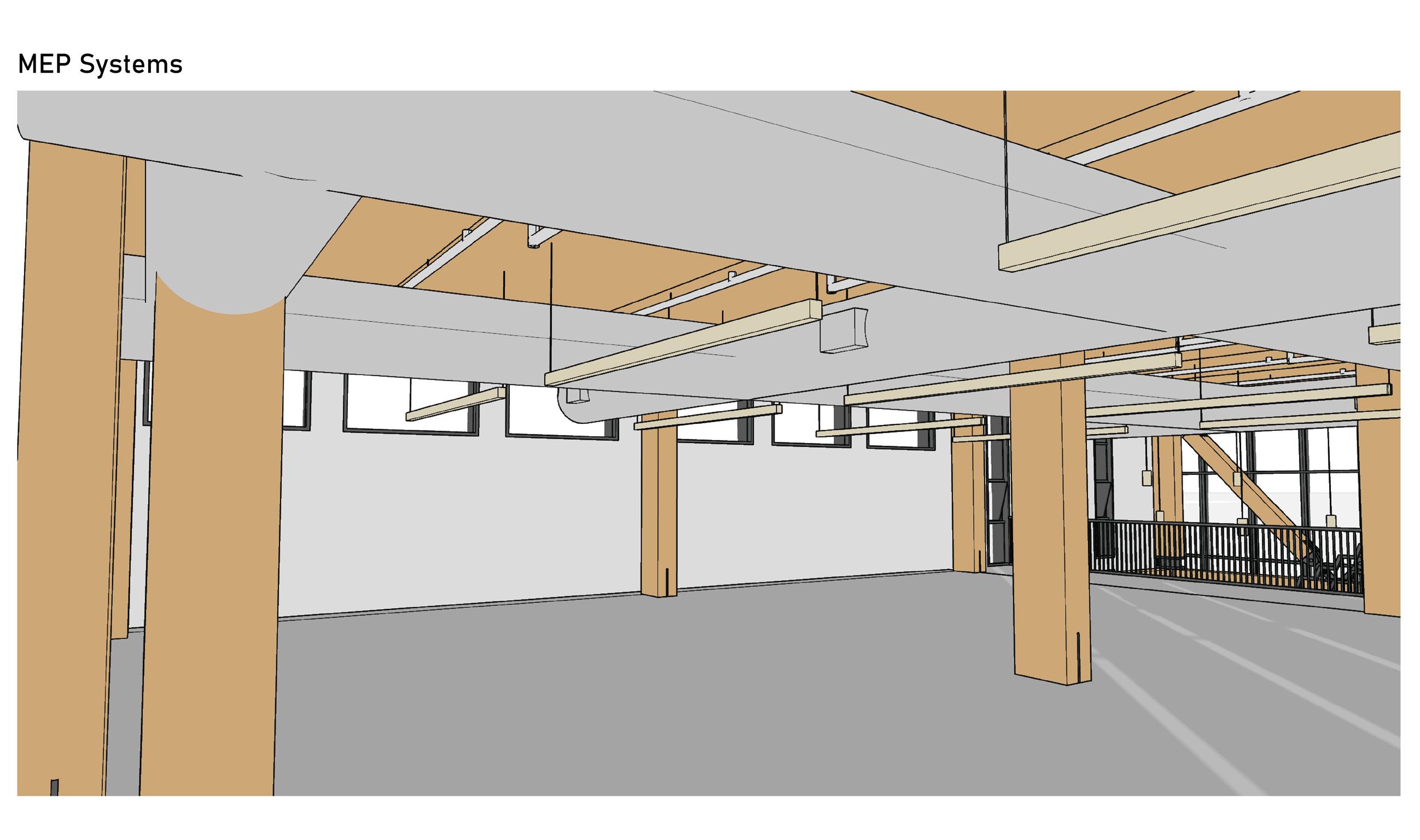

ENVIRONMENTAL CONTROLS & LIGHITNG

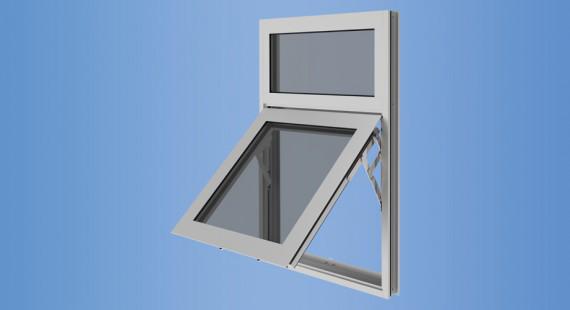

The interior building systems consist of both passive and active systems that help make the building perform efficiently as well as maximize user comfort. First, for passive systems there are operable windows that bring in natural ventilation to some spaces so that occupants can enjoy fresh air. There are also shading devices incorporated on the windows to block direct glare and cool the building at certain points of the day.. For active sytems, to offset the high electricity costs of the building, photovoltaic panels were installed on the roof facing south for optimal sun exposure. A user comfort system that works with the HVAC system is the radiant flooring which is a piping system covered by the concrete floor slab. When needed, hot water will run through the pipes heating up the floor as well as the rest of the room. For typical active systems found within the prototype you have artifical strip lights, a typical supply & return HVAC system, as well as a fire protection sprinkler system. All of these systems are exposed and hang because of the aesthetic of the heavy timber structure. Overall, these systems will help make for a efficent builidng.

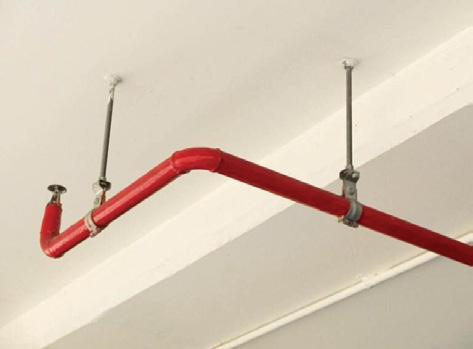

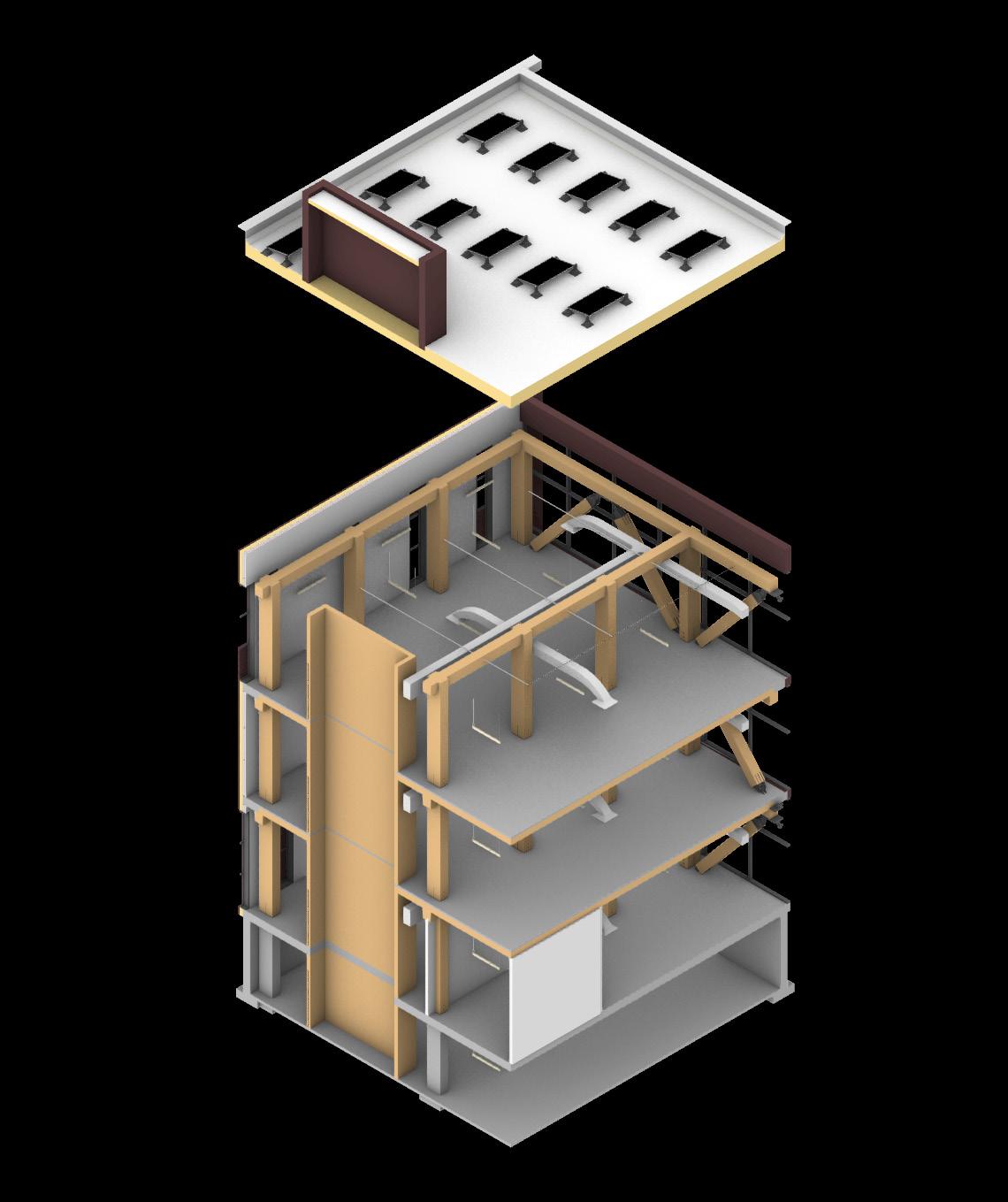

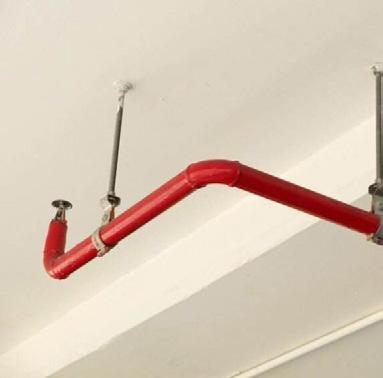

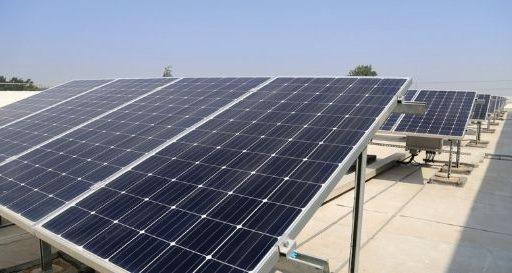

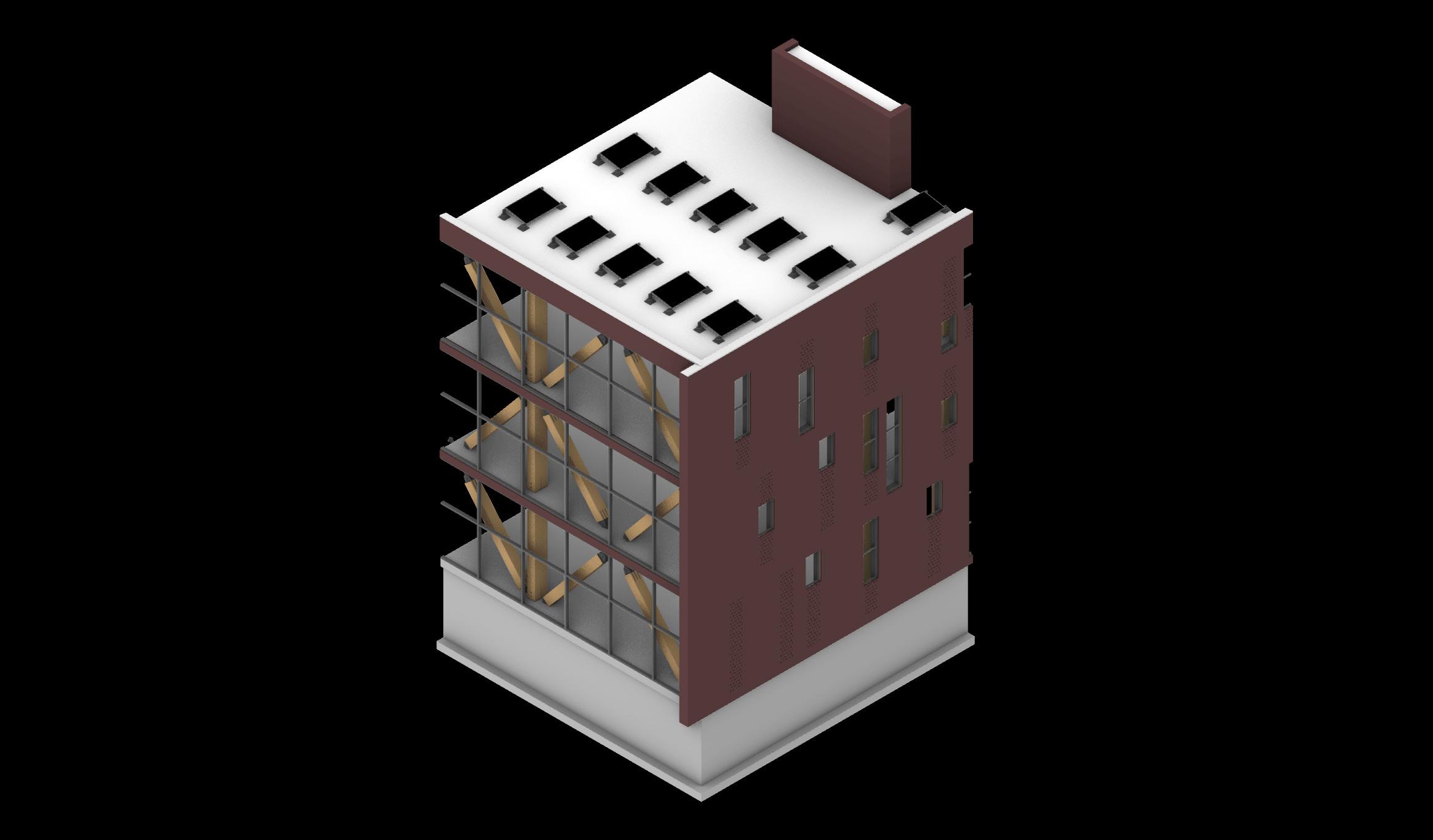

FIRE PROTECTION SPRINKLER SYSTEM SHADING DEVICE RADIANT FLOORING SUPPLY & RETURN HVAC SYSTEM OPERABLE HANGINGPHOTOVOLTAICWINDOWSPANELSARTIFICALSTRIP LIGHTING HVAC ROOF SYTEM PAGE 36 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PROTOTYPE: SYSTEMS CONCEPT

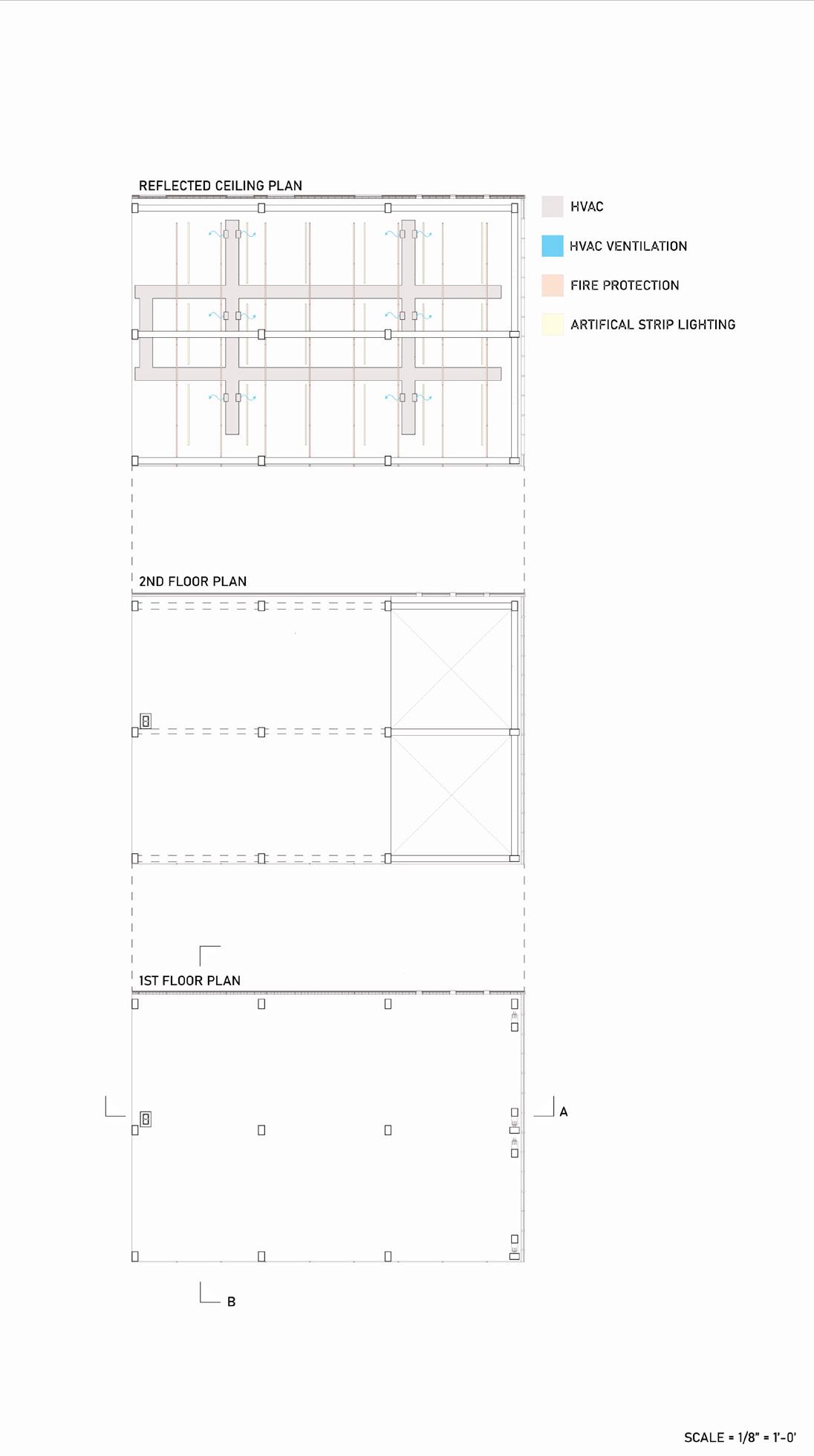

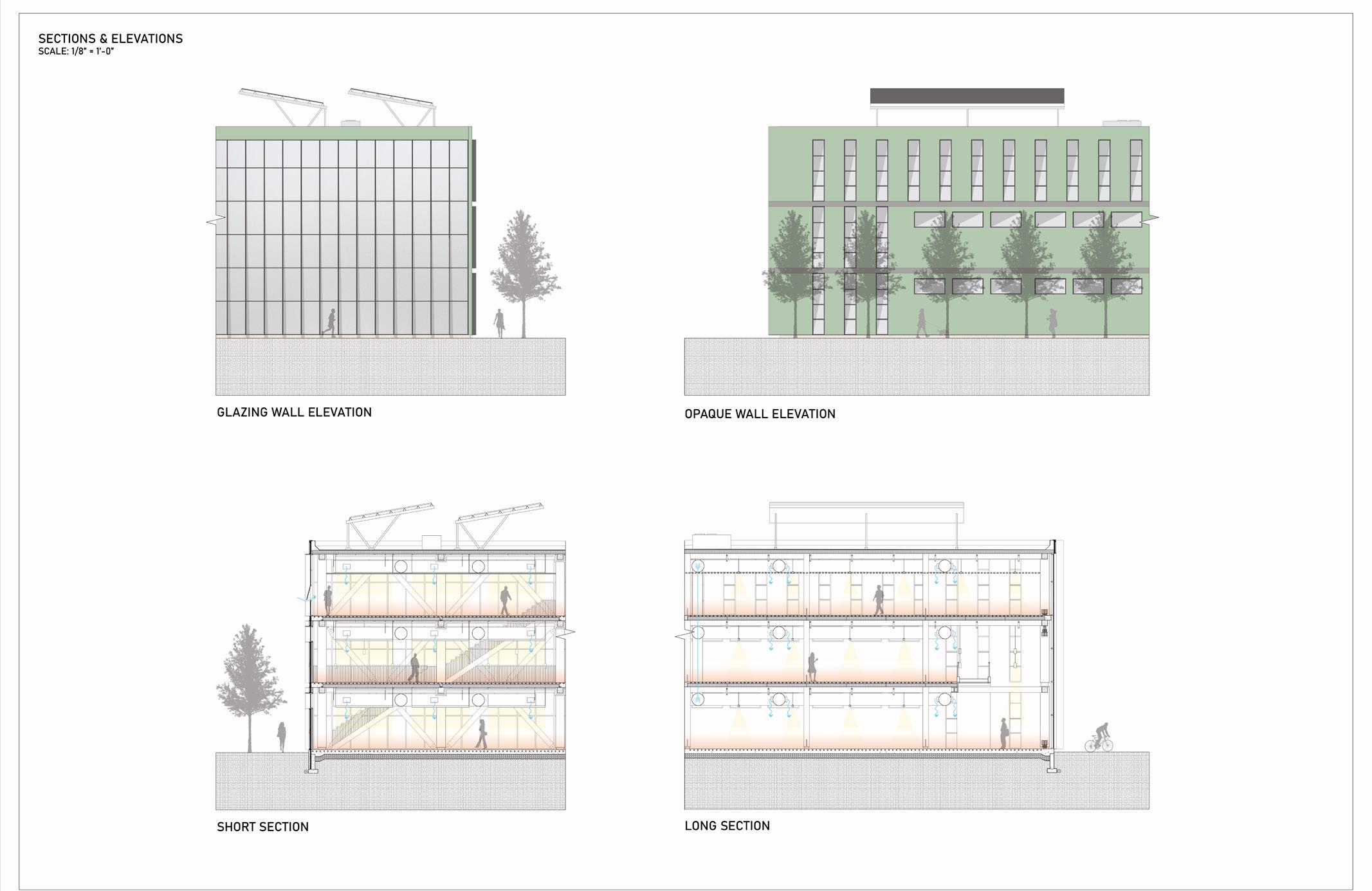

SUMMER 2022 PORTFOLIO | PAGE 37 EVAN CLARK & MAX WARD PROTOTYPE: PLANS, SECTIONS & ELEVATIONS
PAGE 38 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PROTOTYPE: DETAILED WALL SECTIONS & PERSPECTIVES
SUMMER 2022 PORTFOLIO | PAGE 39 EVAN CLARK & MAX WARD
PAGE 40 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD STUDIO 06: INTEGRATED DESIGN STUDIO PROFESSOR GEOFF PINGREE EVAN CLARK & MAX WARD PHASE 4: INTEGRATED DESIGN PROPOSAL
SUMMER 2022 PORTFOLIO | PAGE 41 EVAN CLARK & MAX WARD

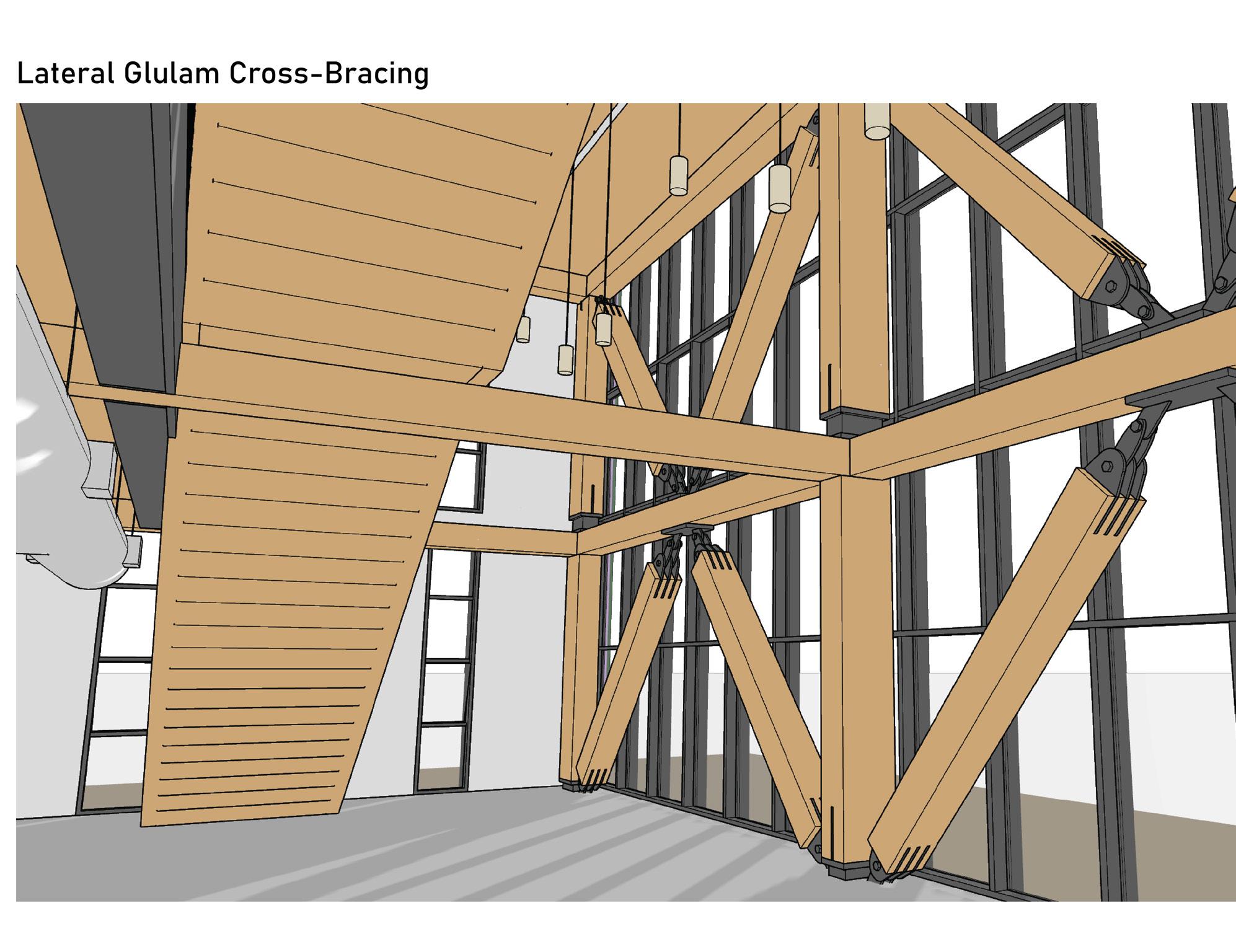

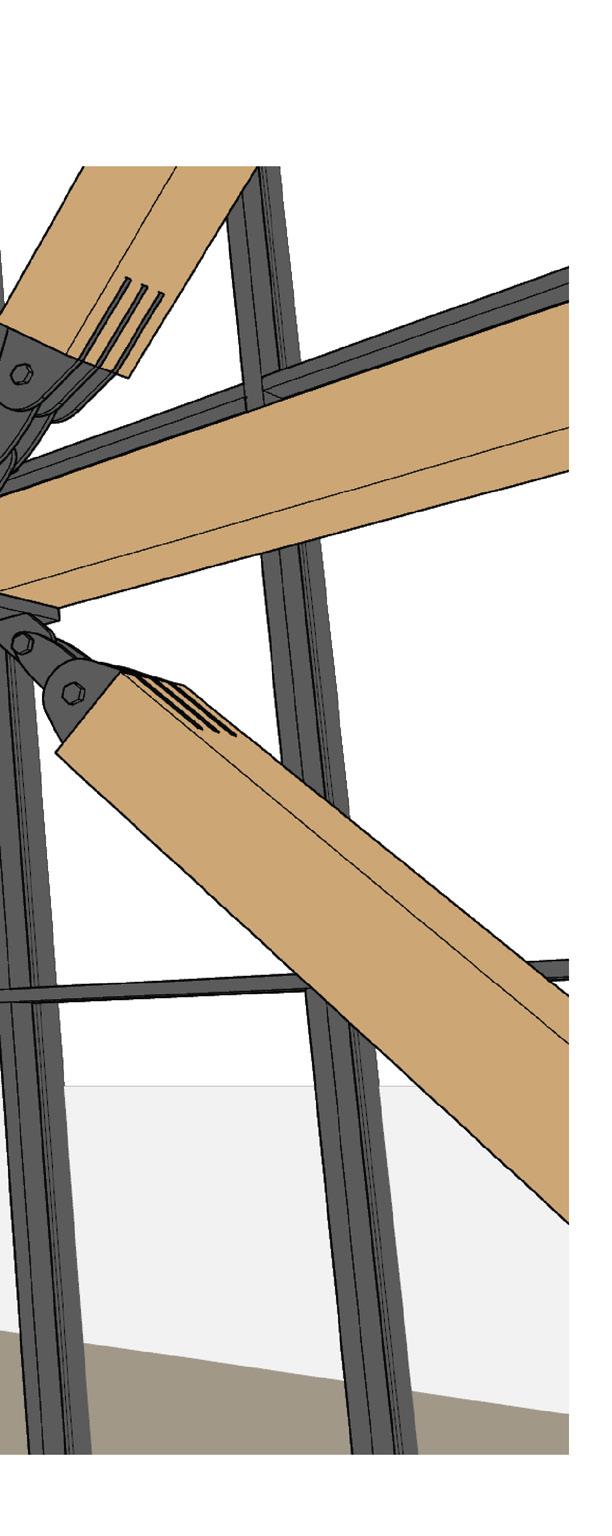

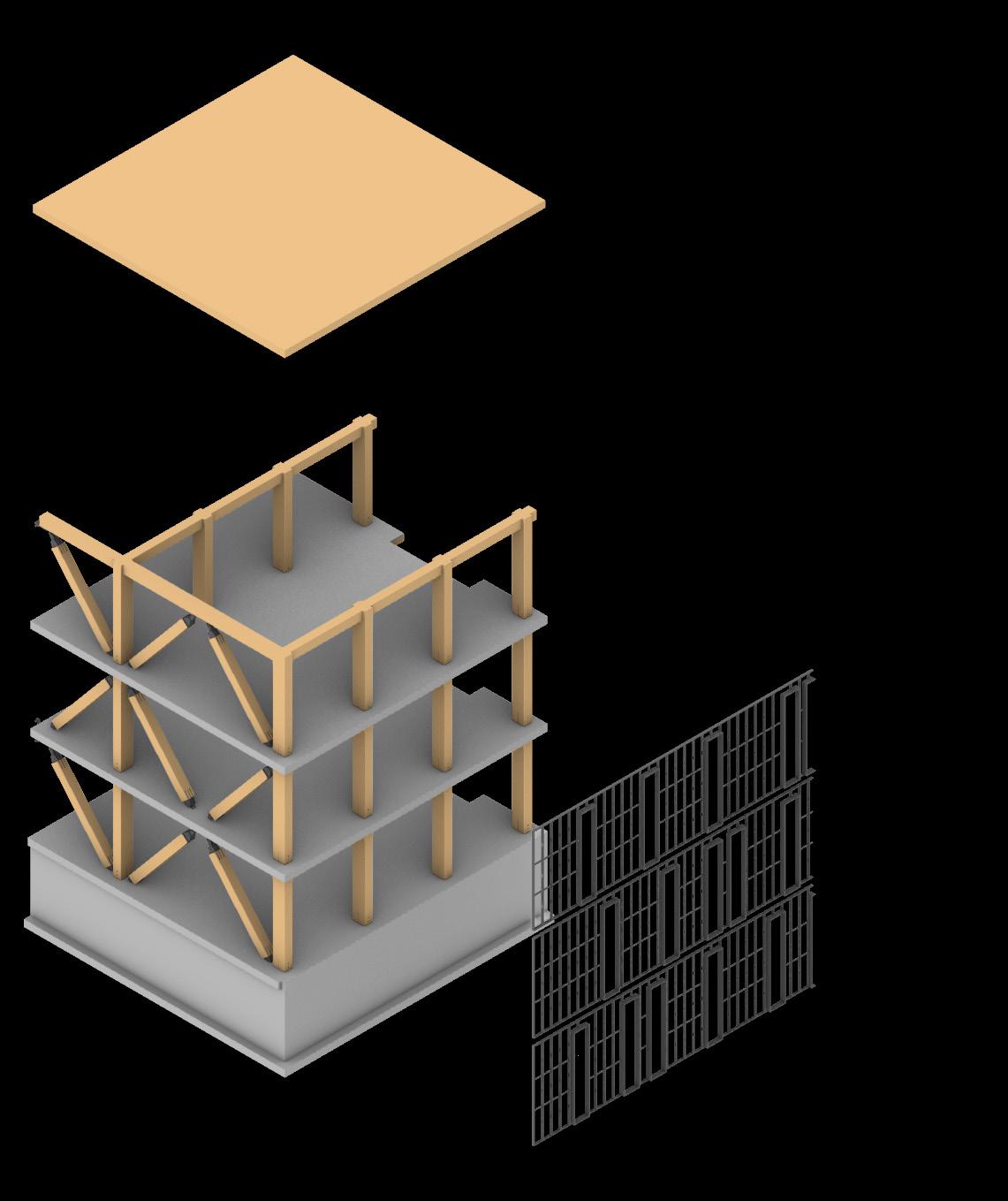

REVISED STRUCTURAL SYSTEM CONCEPT GLULAM TIMBER & STEEL I-BEAM CONNECTION
The structural concept of the building takes heavy inspiration with the UMASS Amherst Design Center. Like the UMASS Building, we use a heavy timber structure consisting of heavy timber glulam post and beams. We believe heavy timber for the structure was the best choice over standard structural materials because of the many benefits it has to offer such as long spans, lighter dead load, fire resistency, construction assembly regardless of weather conditions resulting in a reduce time schedule, environmentally friendly and comes from a renewable resource, and is aesthetically pleasing becuase it can be exposed. The post and beams are tied together with a steel I-Beam connection that creates the separation between the floors. Most of the steel connections are covered by a concrete floor slab that allow for the hands-on activities of the maker space. Under the floor slab are prefabricated 7 ply CTL ceiling planels that sit on the beams perpendicularly. For lateral support, glulam crosss bracing as well as a light guage steel stud framing system are used. The steel stud framing system was chosen due to the concrete floor slab that will need to be drilled into and connected with a pin and bolt. To tie the whole building together, it meets the ground with a traditional pre-casted concrete foundation wall and footings for the columns to sit on.
PAGE 42 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD
PREFABRICATED 7 PLY CLT CEILING PANELS GLULAM POST & BEAMS CONCRETE FLOOR SLABS STEEL I BEAM COLUMN CONNECTION LIGHT GUAGE STEEL STUD FRAMING @ 16” O.C. REINFORCED CONCRETE FLOOR SLAB CONCRETE FOUNDATION WALL HEAVY TIMBER CROSS-BRACING SUMMER 2022 PORTFOLIO | PAGE 43 EVAN CLARK & MAX WARD

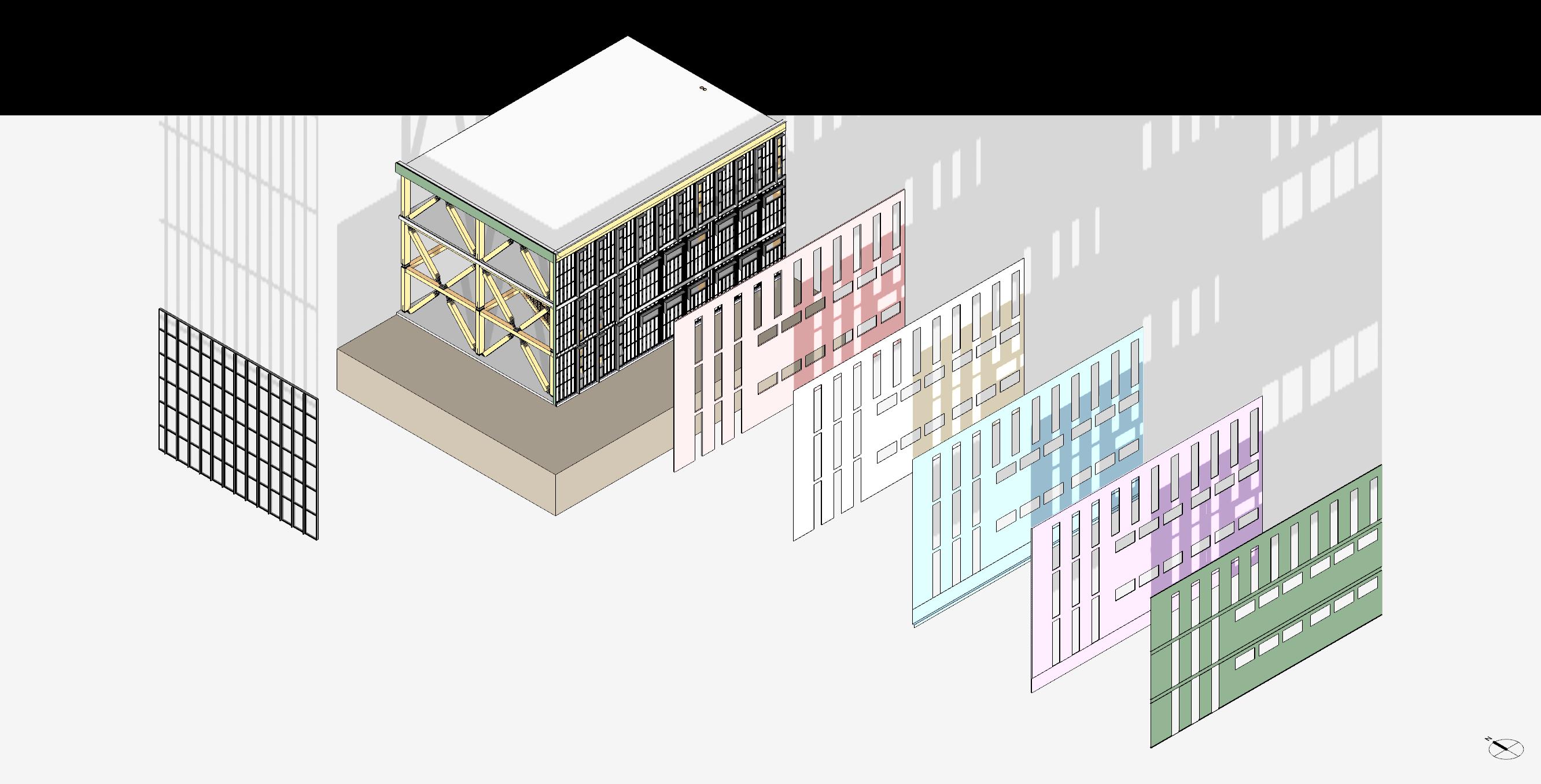

REVISED ENCLOSURE SYSTEM CONCEPT 3D WALL SECTION
PAGE 44 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD
The enclosure concept for the building consists of two wall conditions along with the roof condition. One of the walls is a glazing curtain wall. This wall system was chosen because it will allow people to see inside the maker space revealing the community interaction as well as showing off the heavy timber cross bracing. The other wall system is more opaque with punched out floor to floor windows and is enclosed by aluminum metal panels. The paneling system acts as a rainscreen which are clipped onto and are connected to the light gauge steel stud framing. Within the rainscreen is interior and exterior gypsum boards with spray insulation on the exterior portion in between the steel studs, an air / vapor barrier as well as a vapor retarder, mineral board as rigid insulation for the outter portion of the wall. Finally, the roof is a standard flat roof assembly with rigid insulation that slowly inceases in height so that the roof isn’t completely flat and can collect water. It is covered by an albedo roof membrane material that reflects sunlight. For the parapit, a metal cap will protects and caps the walls from the elements. Overall, these two wall conditions will provide thermal comfort to the occupants as well as intrigue the outside community of the ongoing activities that the maker space has to offer.
ALBEDO ROOFING MEMBRANE TOP & PARAPET METAL CAP 6” MIN. RIGID INSULATION GLAZING CURTAIN WALL 1/2” EXTERIOR SHEATHING (OSB) AIR / VAPOR BARRIER 4” MINERAL BOARD RIGID INSULATION RAINSCREEN METAL PANELING SYSTEM 2” SPRAY INSULATION SUMMER 2022 PORTFOLIO | PAGE 45 EVAN CLARK & MAX WARD
PAGE 46 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD

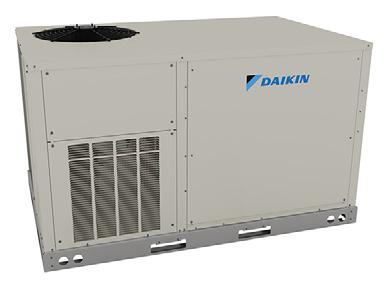

The interior building systems consist of both passive and active systems that help make the building perform efficiently. First, for passive systems there are operable windows that bring in natural ventilation so that occupants can enjoy fresh air. There are also shading devices incorporated on part of the windows to block direct glare and cool the building at certain points of the day. For active sytems, to offset the high electricity costs of the building, photovoltaic panels were installed on the roof facing south for optimal sun exposure. There are also typical active systems found within the building such as you have hanging linear artifical lights, an HVAC system that is powered by a heat pump system, as well as an automatic fire protection sprinkler system to protext the mass timber stucture. One thing to note about the heat pump system is that they run more effiecently and comply with the changing energy code. All of these systems are exposed and hang to show the aesthetic of the heavy timber.

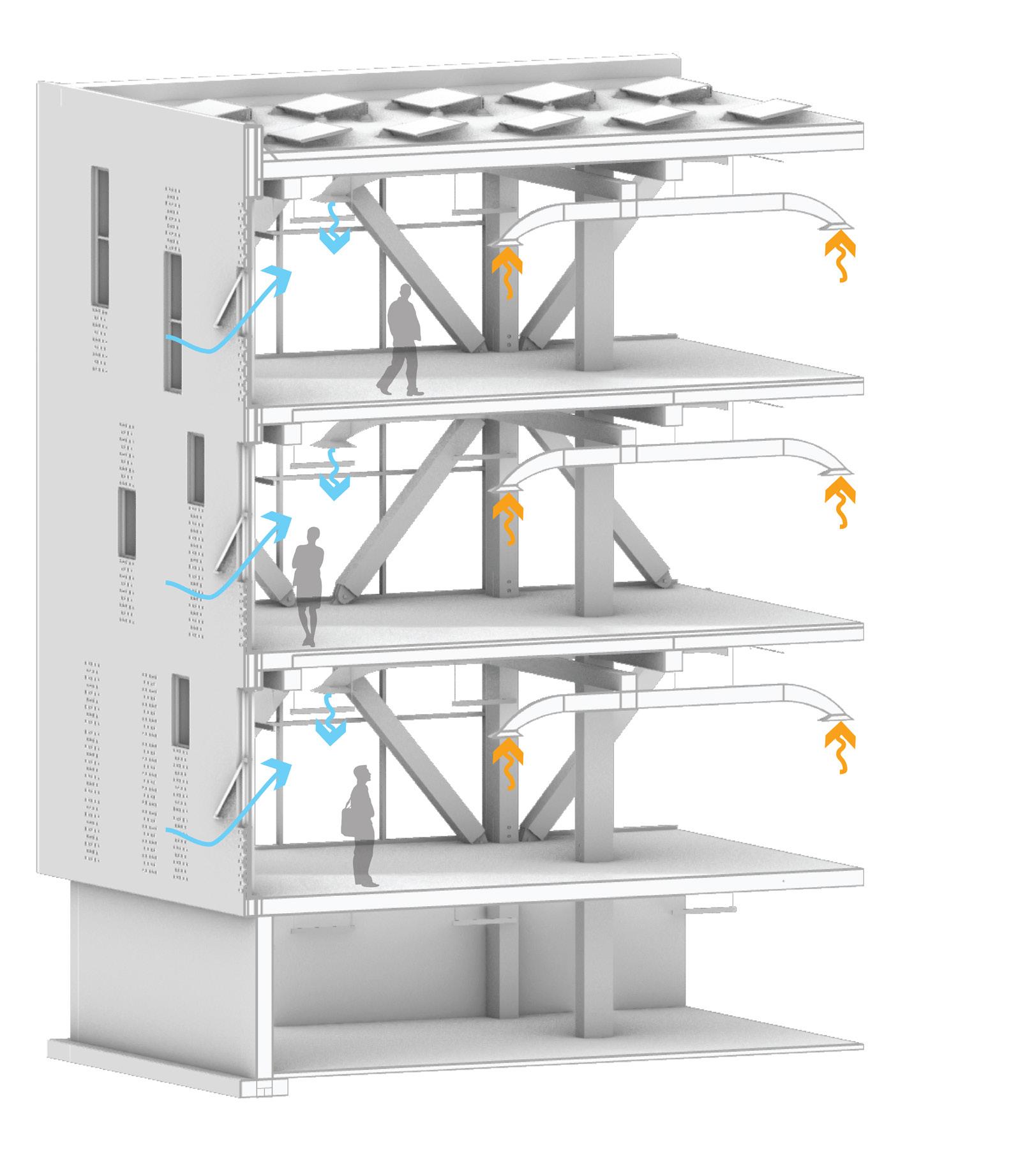

REVISED PASSIVE & ACTIVE ENVIORMENTAL CONTROL STRATEGIESVENTILATION STRATEGY

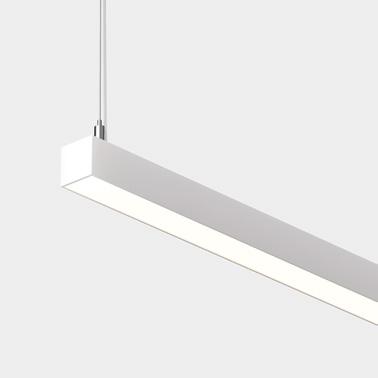

OPERABLE FLOOR TO FLOOR WINDOWS PHOTOVOLTAIC PANELS HVAC DUCTS CONNECTED TO HEAT PUMP SYSTEM FIRE HANGINGPROTECTIONLINEAR LIGHTING SUMMER 2022 PORTFOLIO | PAGE 47 EVAN CLARK & MAX WARD

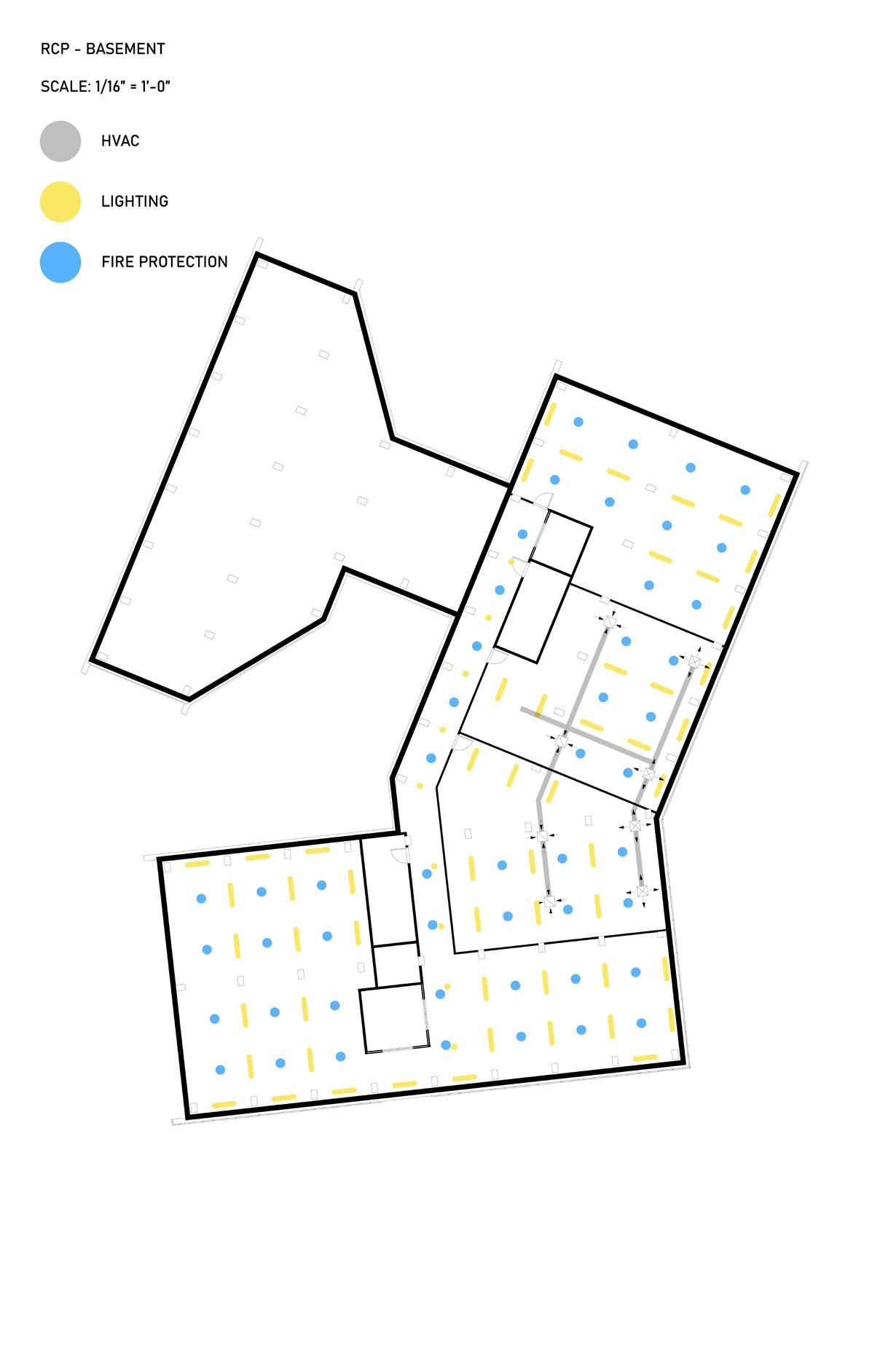

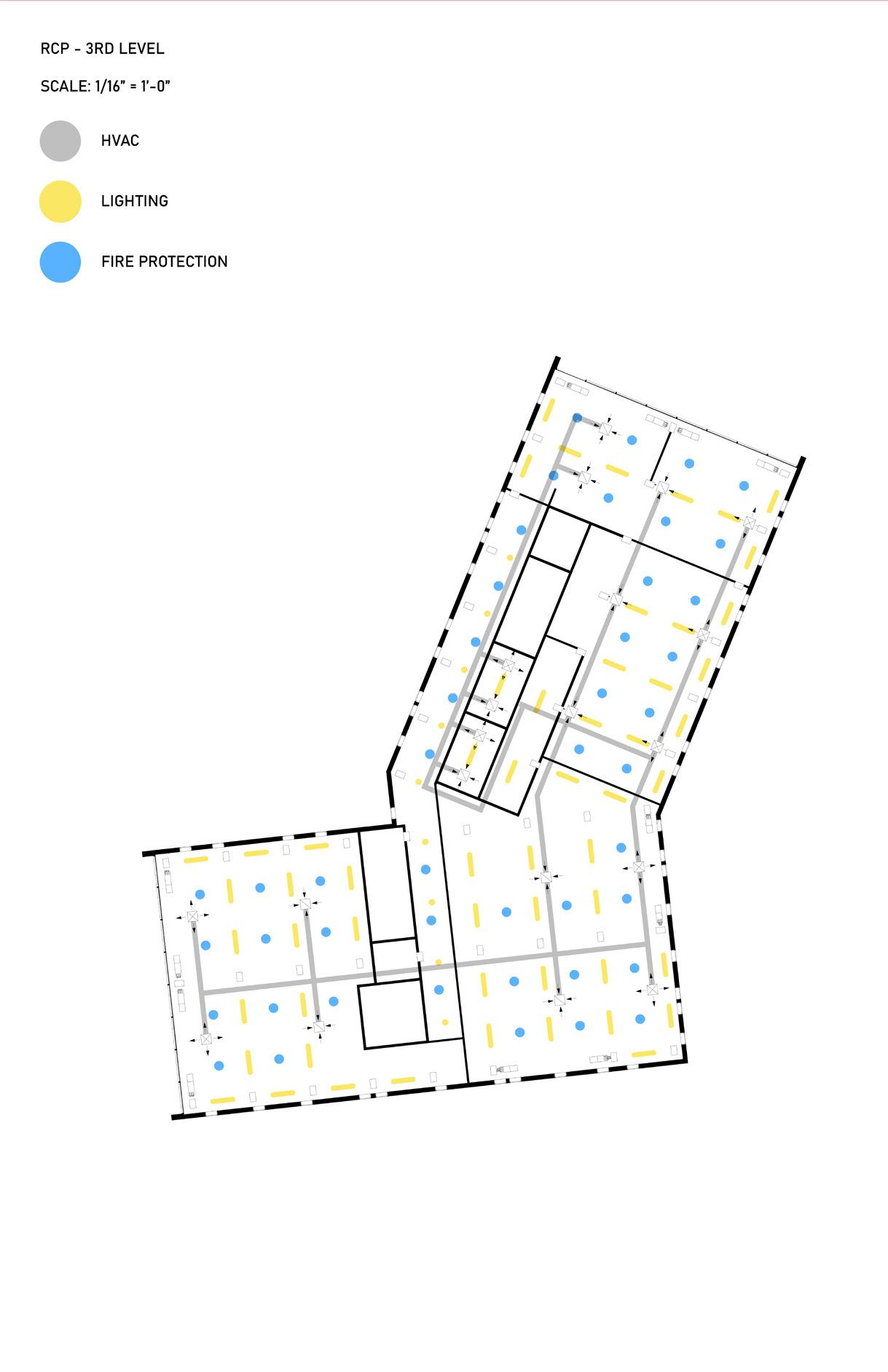

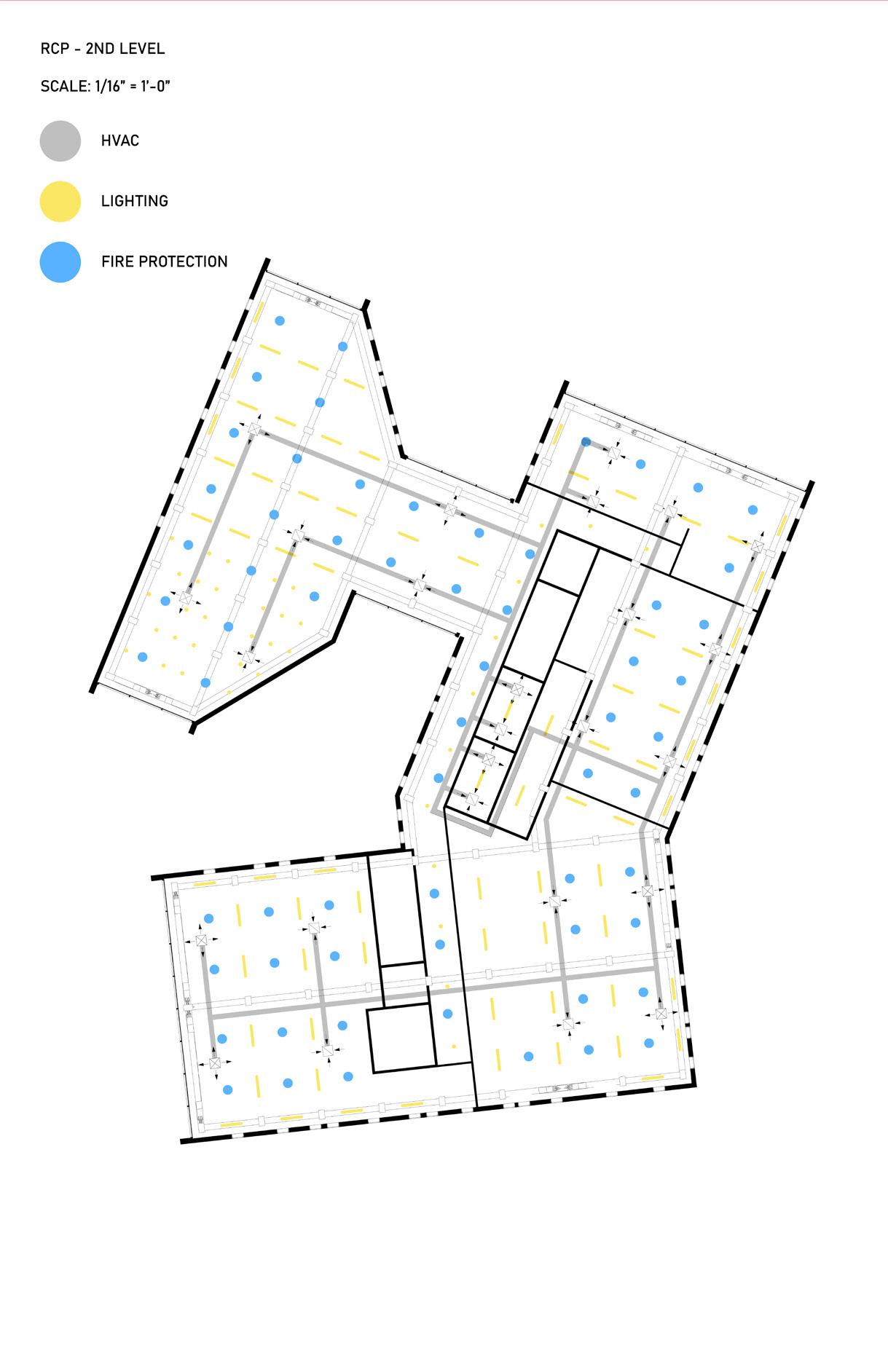

PAGE 48 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD REFLECTED CEILING PLANS
SUMMER 2022 PORTFOLIO | PAGE 49 EVAN CLARK & MAX WARD

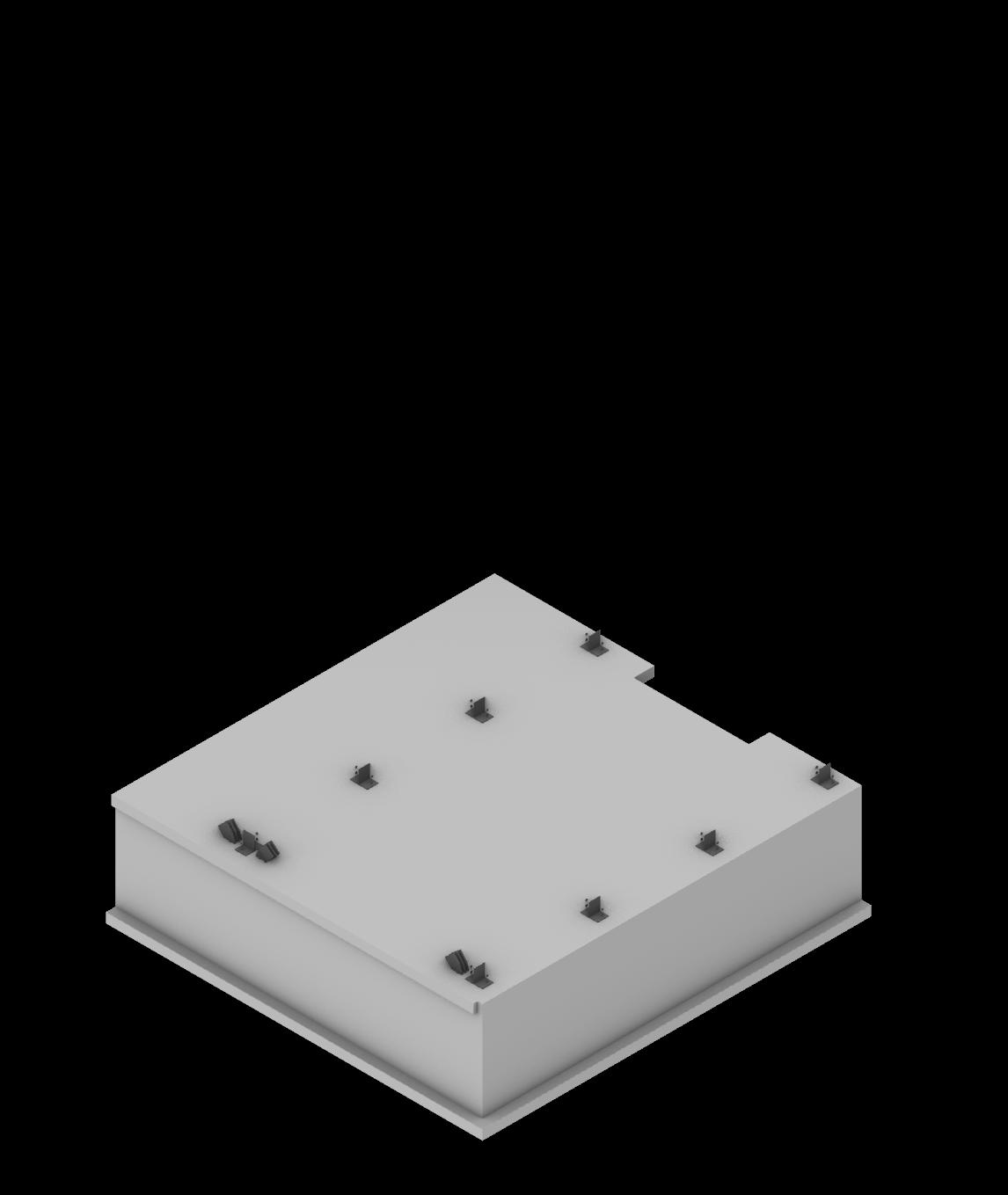

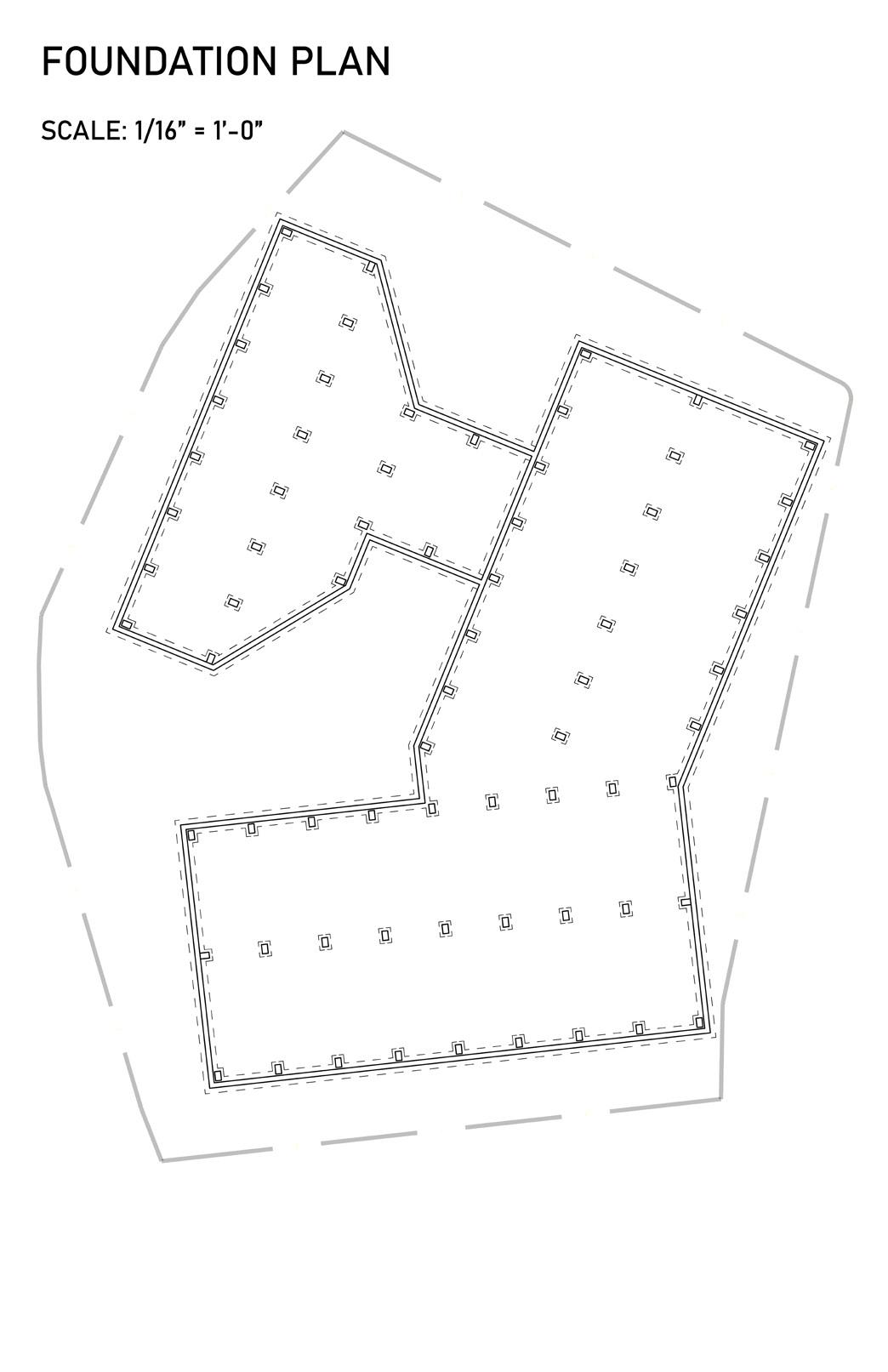

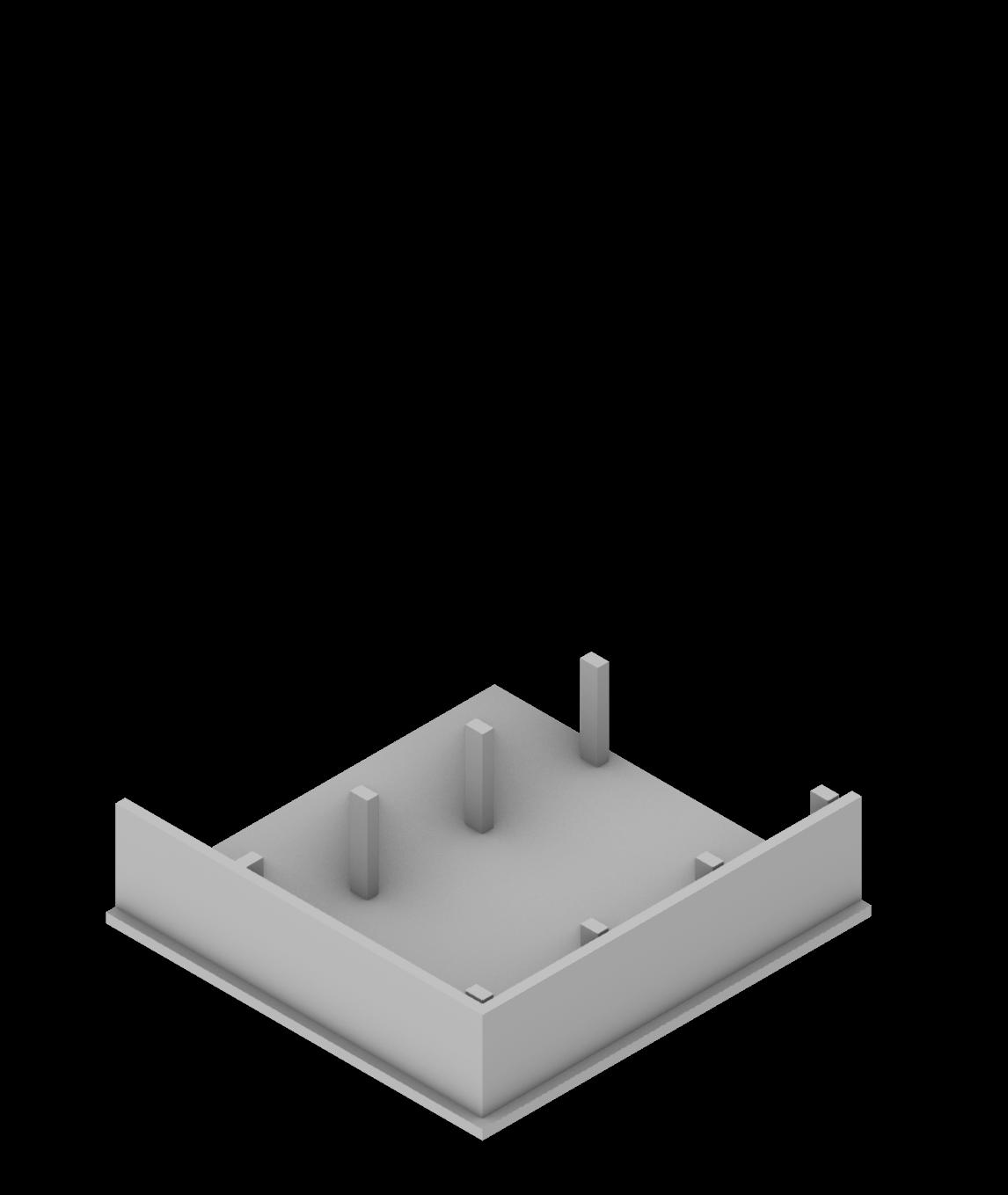

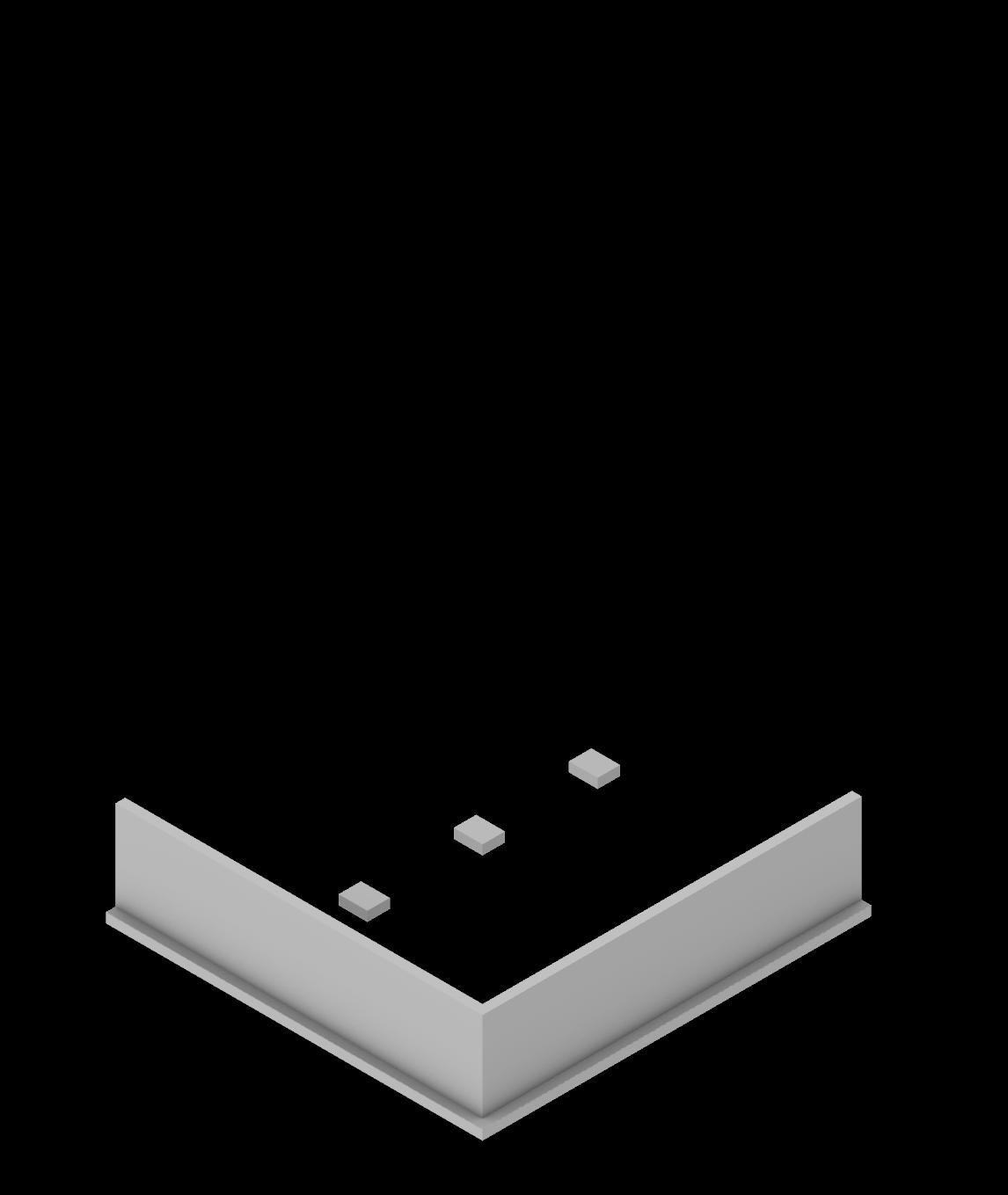

PAGE 50 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD 1. FOUNDATION WALL & FOOTINGS 2. CONCRETE BASEMENT COLUMNS

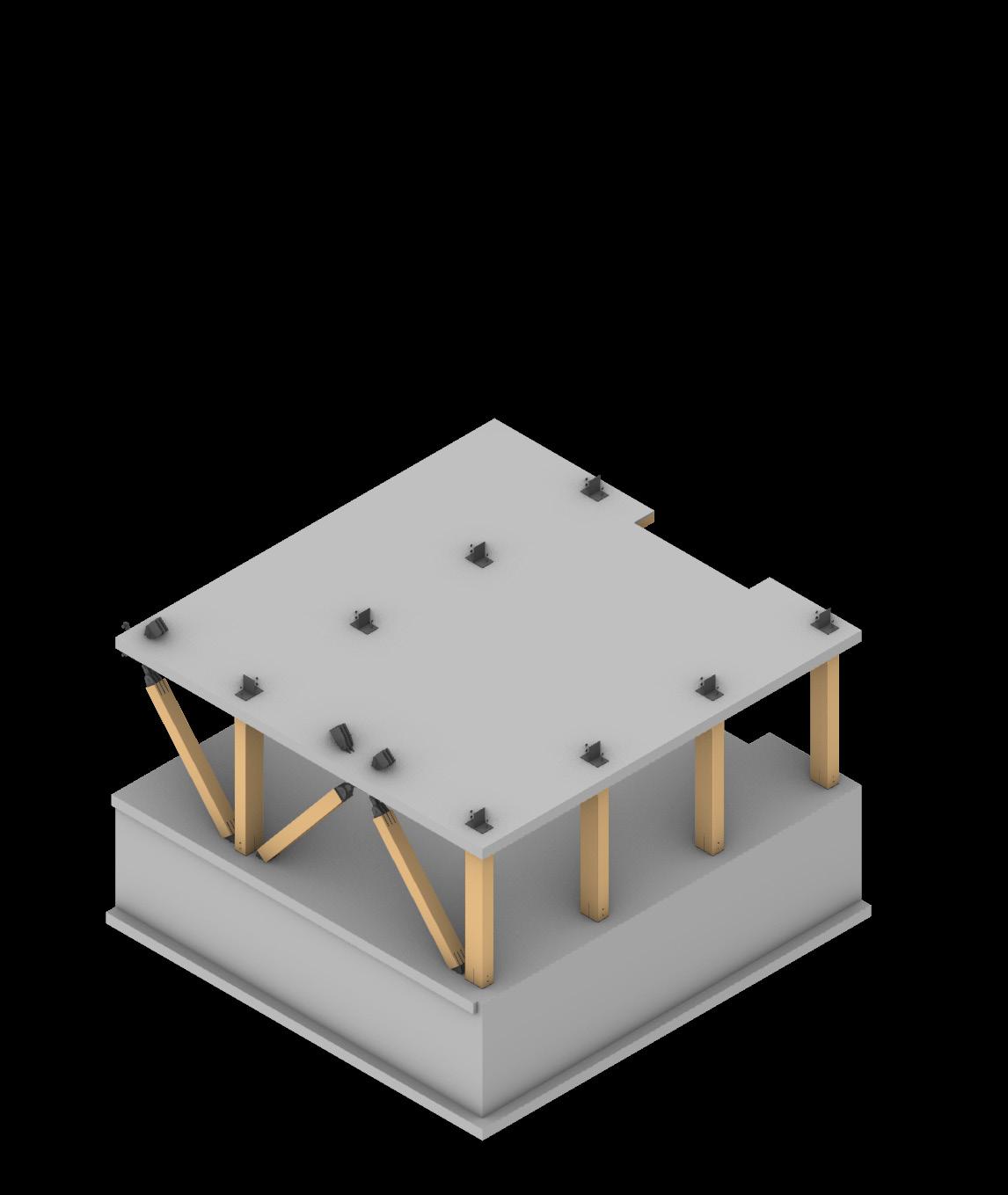

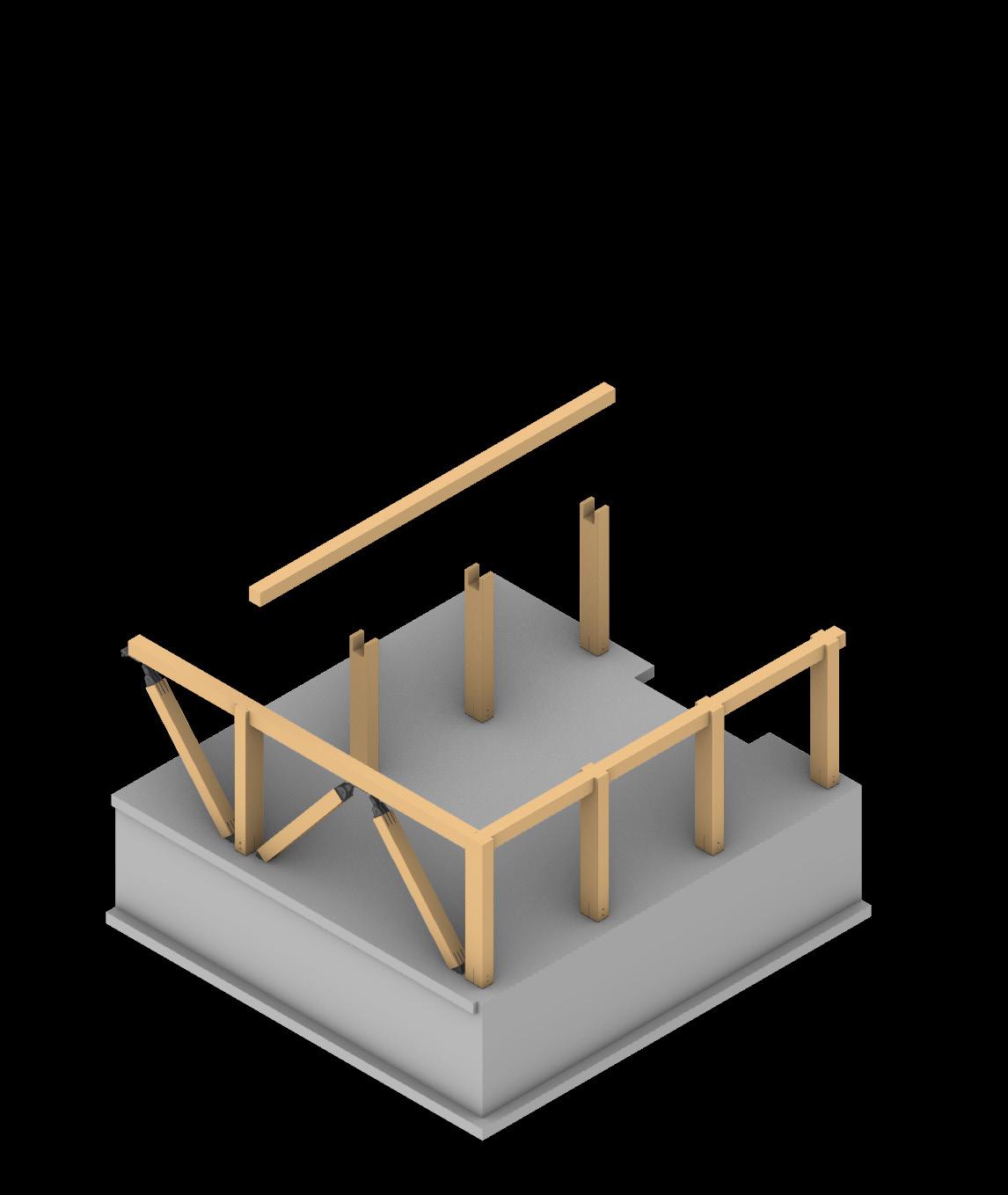

SUMMER 2022 PORTFOLIO | PAGE 51 EVAN CLARK & MAX WARD 3. REINFORCED CONCRETE FLOOR SLAB & STEEL I-BEAM CONNECTOR 4. GLULAM COLUMNS & HEAVY TIMBER CROSS BRACING

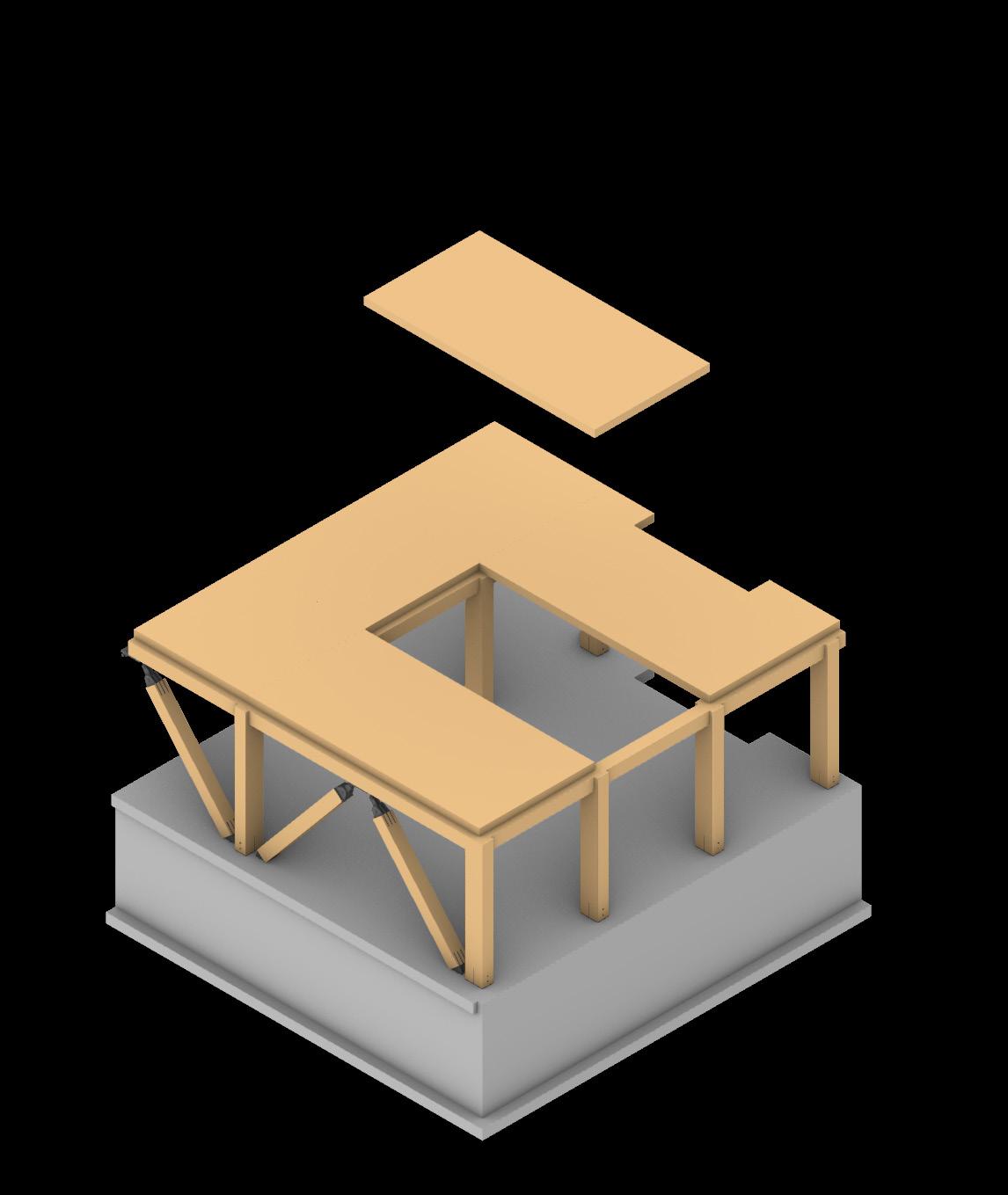

PAGE 52 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD 5. GLULAM BEAMS 6. PREFABRICATED 7-PLY CLT CEILING PANELS
SUMMER 2022 PORTFOLIO | PAGE 53 EVAN CLARK & MAX WARD 7. CONCRETE FLOOR SLAB 8. PROCESS REPEATED UNTIL ROOF CAP

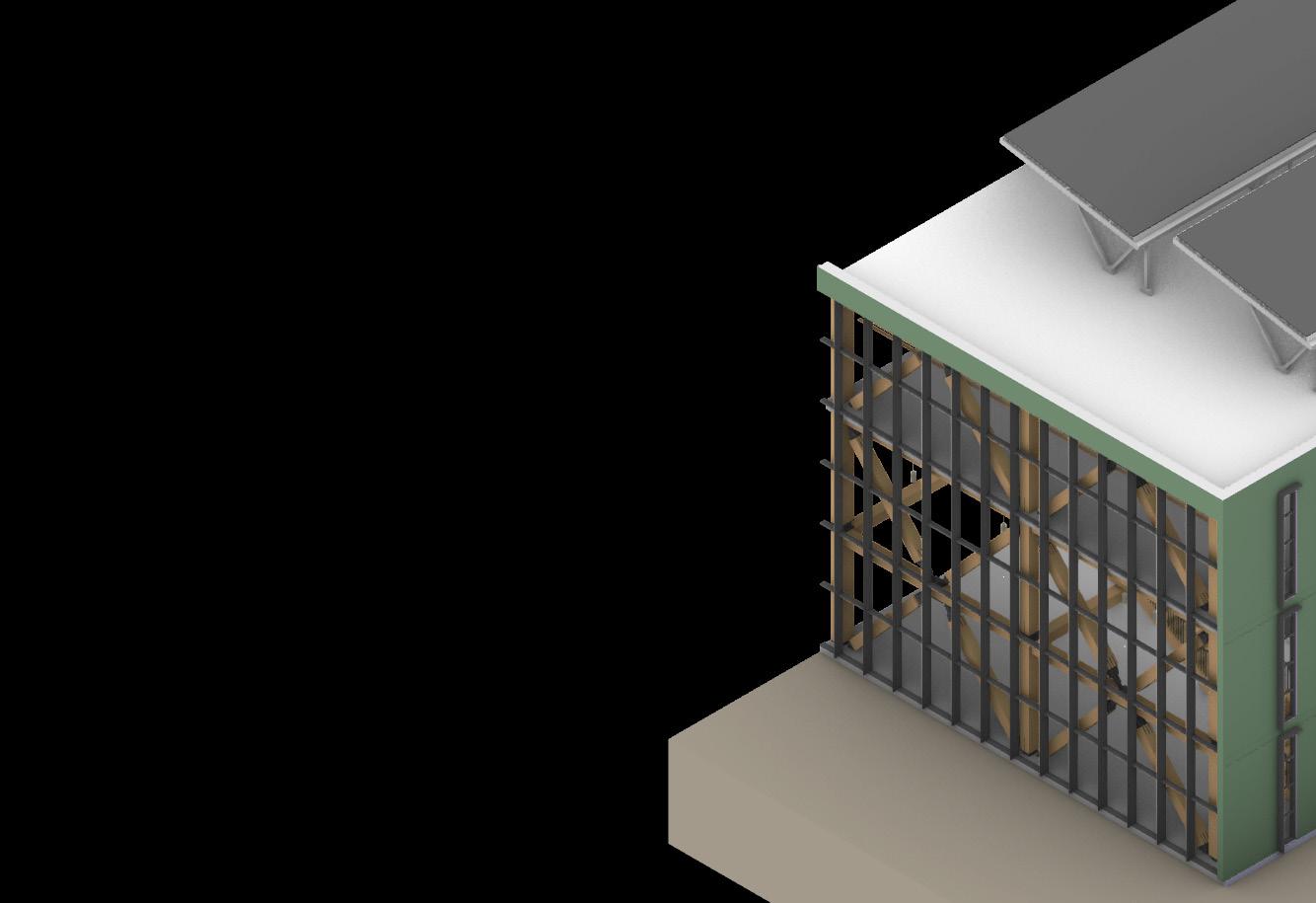

PAGE 54 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD 9. LIGHT GUAGE STEEL STUD FRAMING @ 16” O.C. FOR LATERAL SUPPORT 10. INTERIOR GYPSUM BOARDS & EXTERIOR SHEATHING (OSB) WITH SPRAY INSULATION BETWEEN METAL STUDS
SUMMER 2022 PORTFOLIO | PAGE 55 EVAN CLARK & MAX WARD 11. AIR / VAPOR BARRIER 12. MINERAL BOARD (RIGID INSULATION)

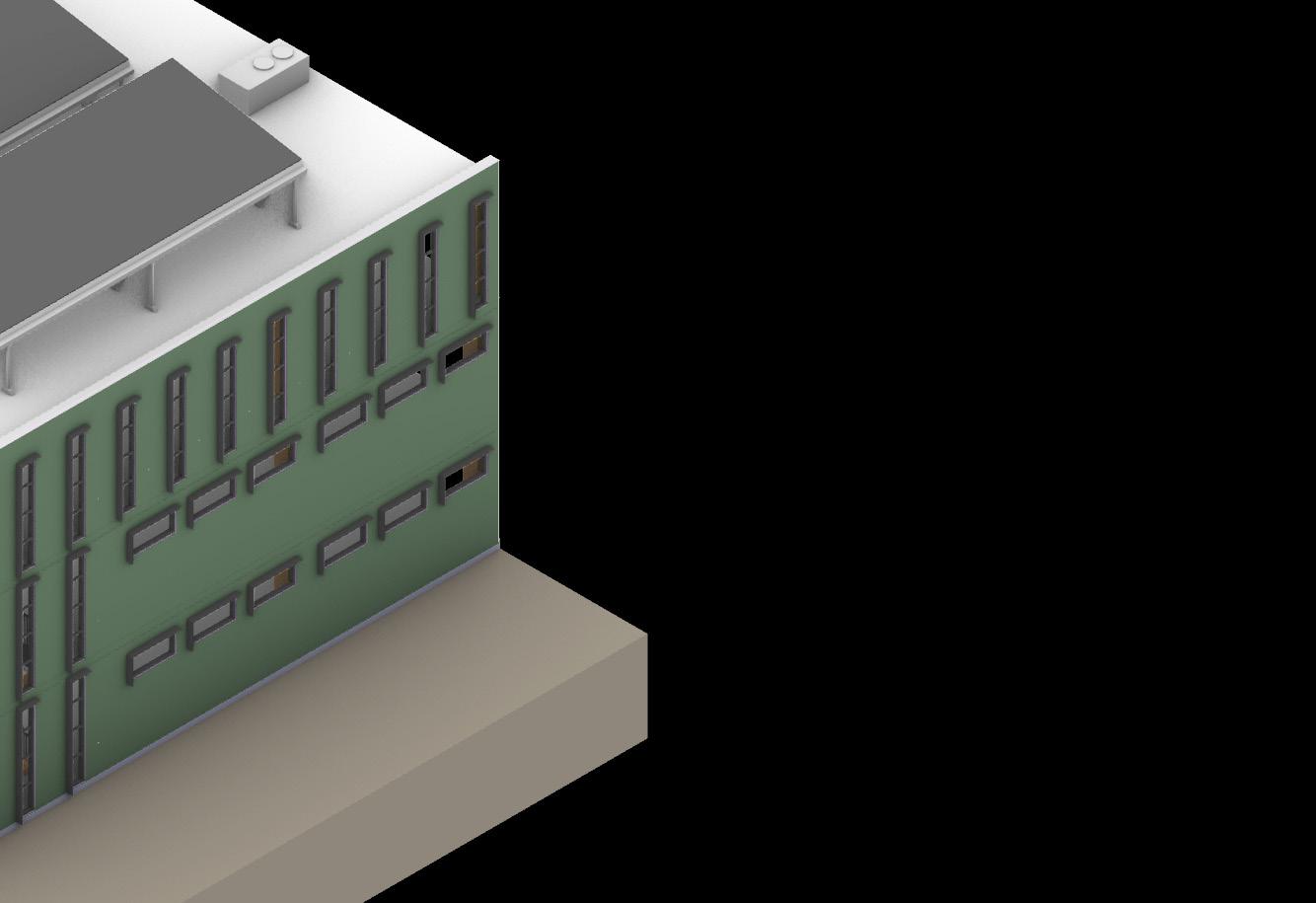

PAGE 56 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD 13. ALUMINUM METAL PANELING 14. OPAQUE WALL WINDOWS & GLAZING CURTAIN WALL INSTALLED
SUMMER 2022 PORTFOLIO | PAGE 57 EVAN CLARK & MAX WARD 15. RIGID INSULATION 16. ALBEDO MEMBRANE & METAL PARAPET CAP

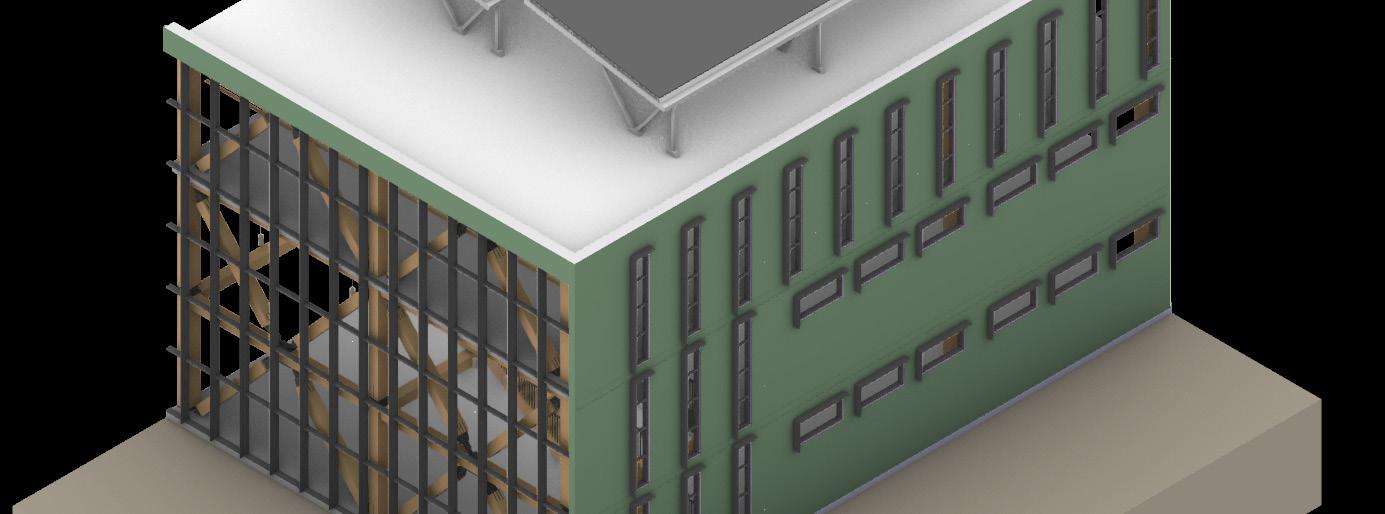

PAGE 58 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD 17. SYSTEMS INCORPORATION
SUMMER 2022 PORTFOLIO | PAGE 59 EVAN CLARK & MAX WARD LOWELL MAKERSPACE CODE REVIEW -Construction Type: Type IV (Heavy Timber) -Allowable Height with a Sprinkler System: 85’ -Proposed Height: 42’ -Number of Stories with a Sprinkler System: 6 Stories -Proposed Number of Floors: 3 Stories -Allowable Area w/ Sprinkler System: 108,000 SF -Proposed Area: 46,086 SF -Sprinklered or Non-Sprinklered: Automatic Sprinklered Building with Fire Alarm System -Occupant Load per Floor (Refer to Chart for Breakdown): -Basement: 73 -1st Floor: 589 -2nd Floor: 310 -3rd Floor: 195 -Total: 1,167 -Access-Minimum Door Widths: 32” -Minimum Egress Corridor Width: 72” / 6’ -Maximum Corridor Length: 50’ in a sprinklered building -Maximum Distance of Travel to Exit: 300’ to a corridor in a sprinklered building -Max Length of Dead End Corridors: 50’ in a sprinklered building -Number of Fixtures: 41 (Refer to Chart for Breakdown) -Accessible Means of Egress -Doors: 36” for accessible route, 32” for an opening -Stairs: -Hallways:48”36” min
PAGE 60 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PROGRAM LIST
PRIVATE SPACES MAKER CORESCOMMUNITYSPACESSPACES SUMMER 2022 PORTFOLIO | PAGE 61 EVAN CLARK & MAX WARD PROGRAMMING SECTION DIAGRAM

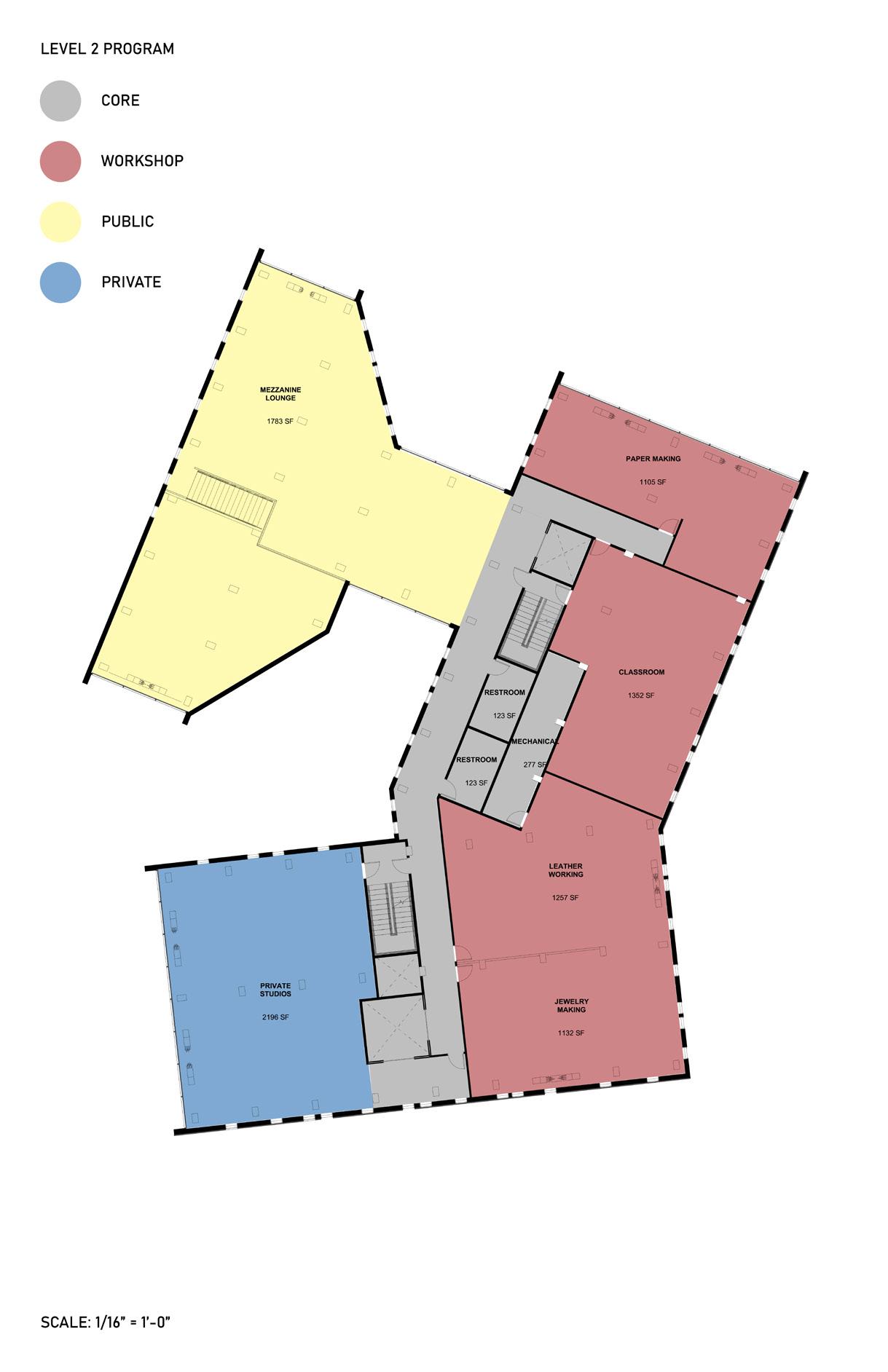

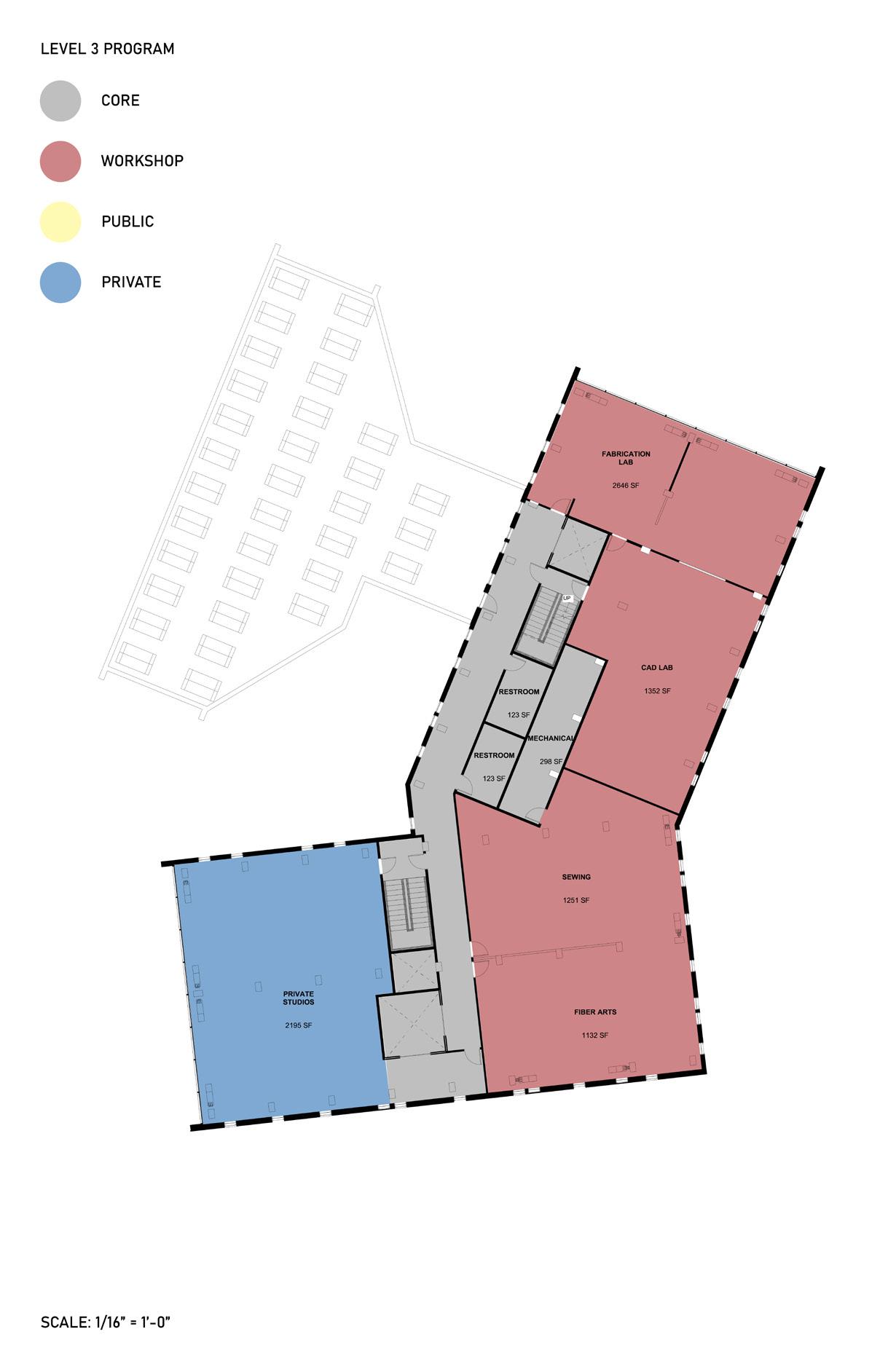

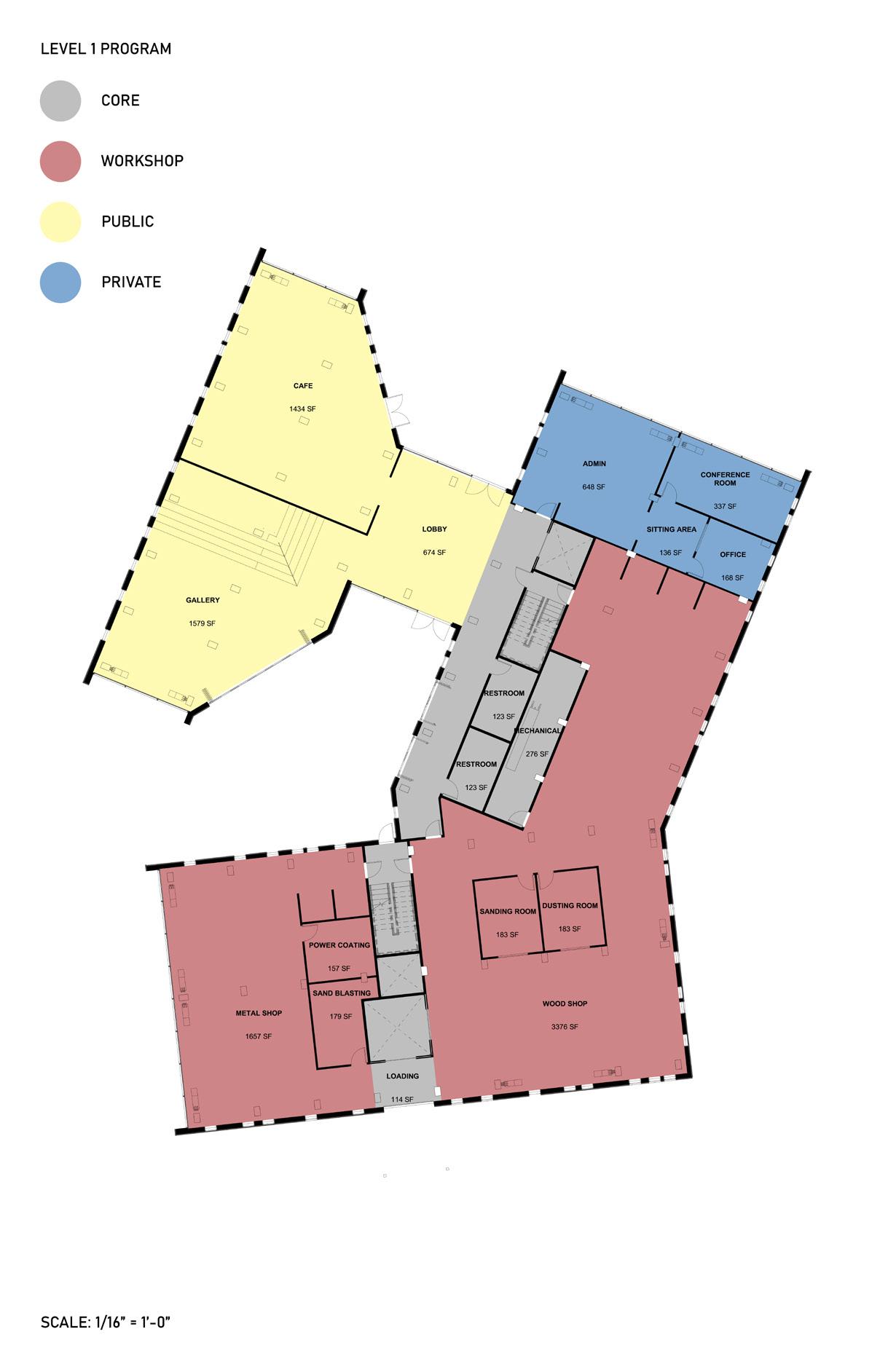

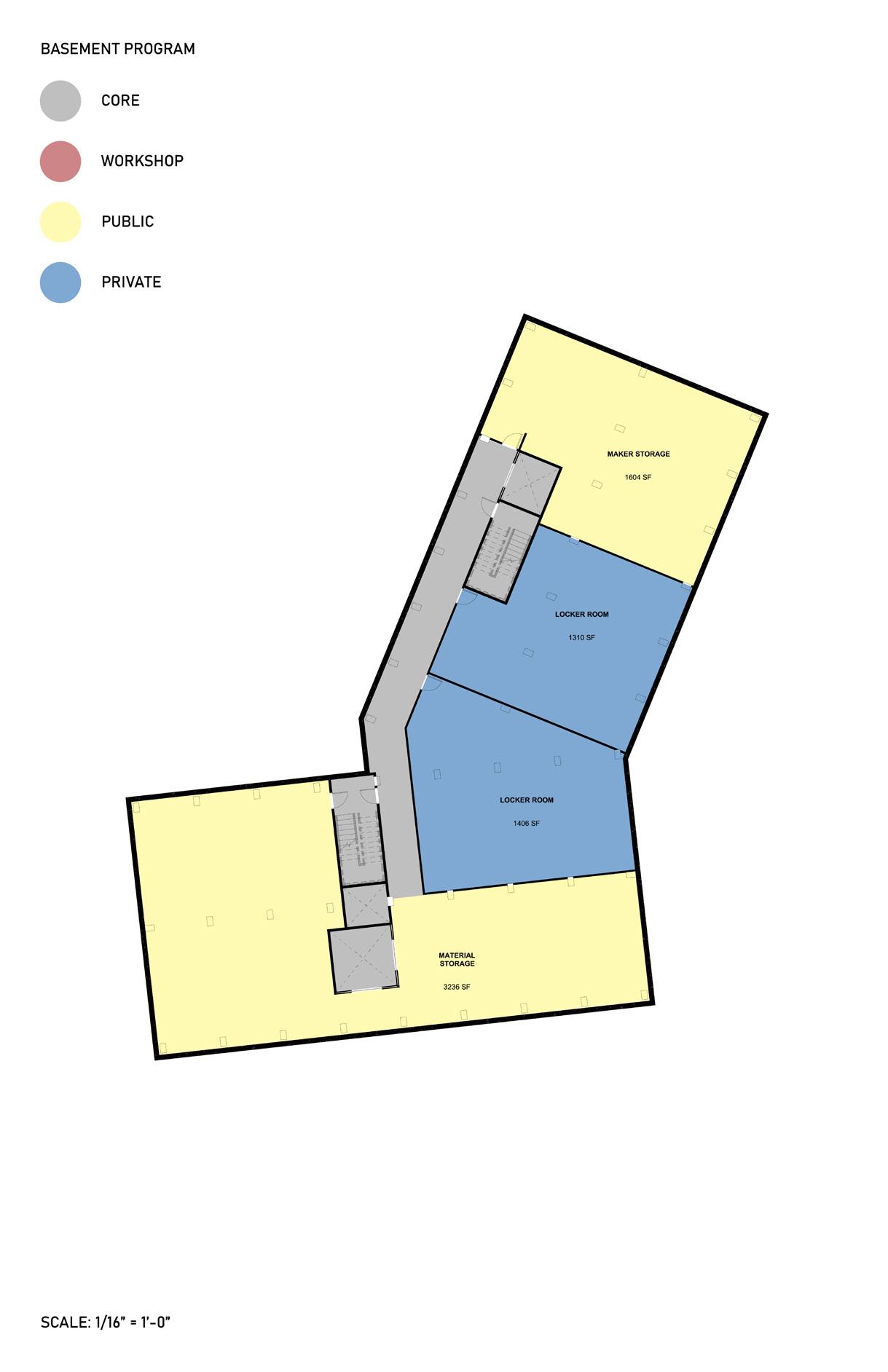

PAGE 62 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX PROGRAMMINGWARDPLAN DIAGRAMS
SUMMER 2022 PORTFOLIO | PAGE 63 EVAN CLARK & MAX WARD

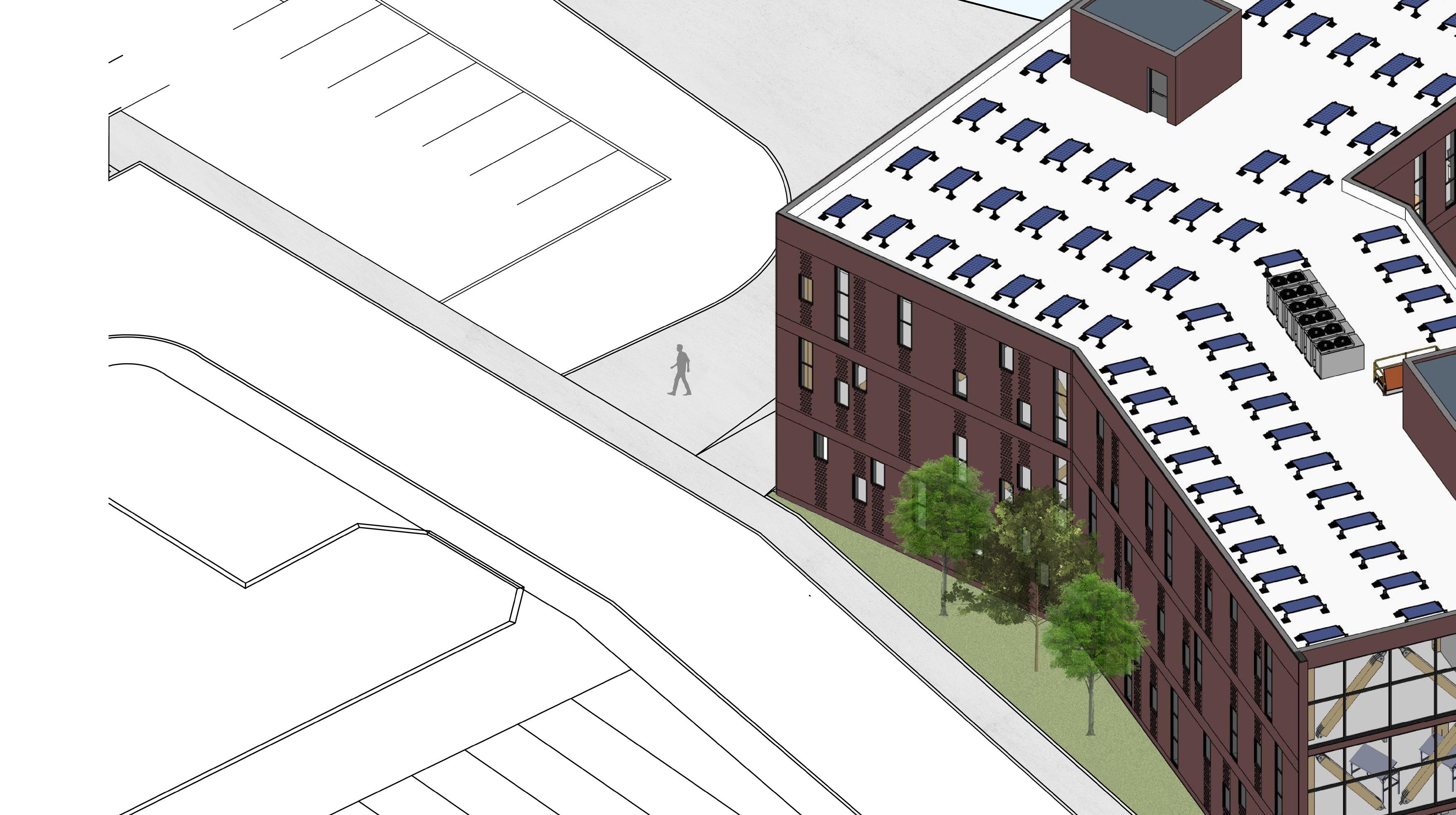

PAGE 64 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD SITE APPROACH

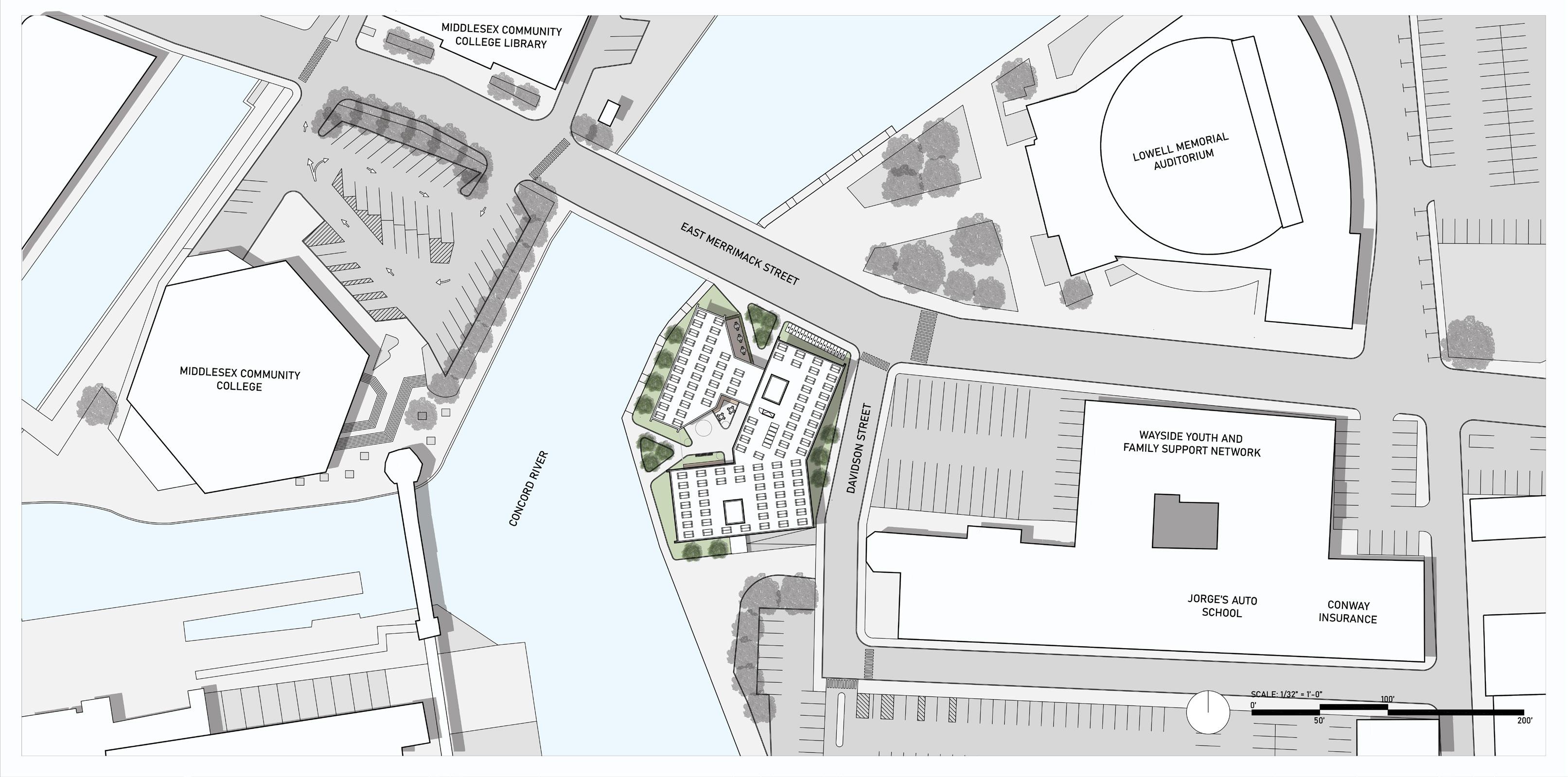

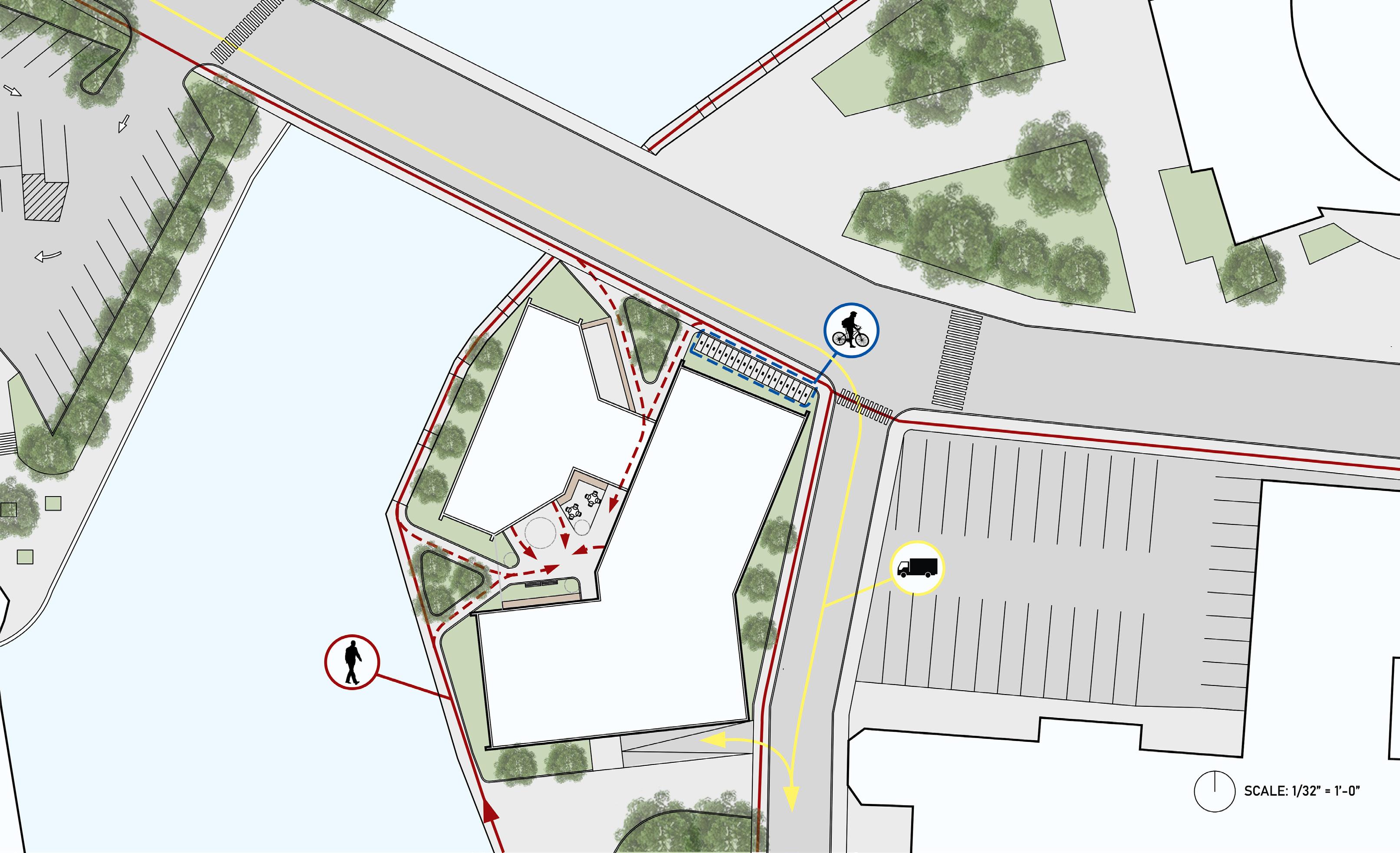

SUMMER 2022 PORTFOLIO | PAGE 65 EVAN CLARK & MAX WARD SITE PLAN

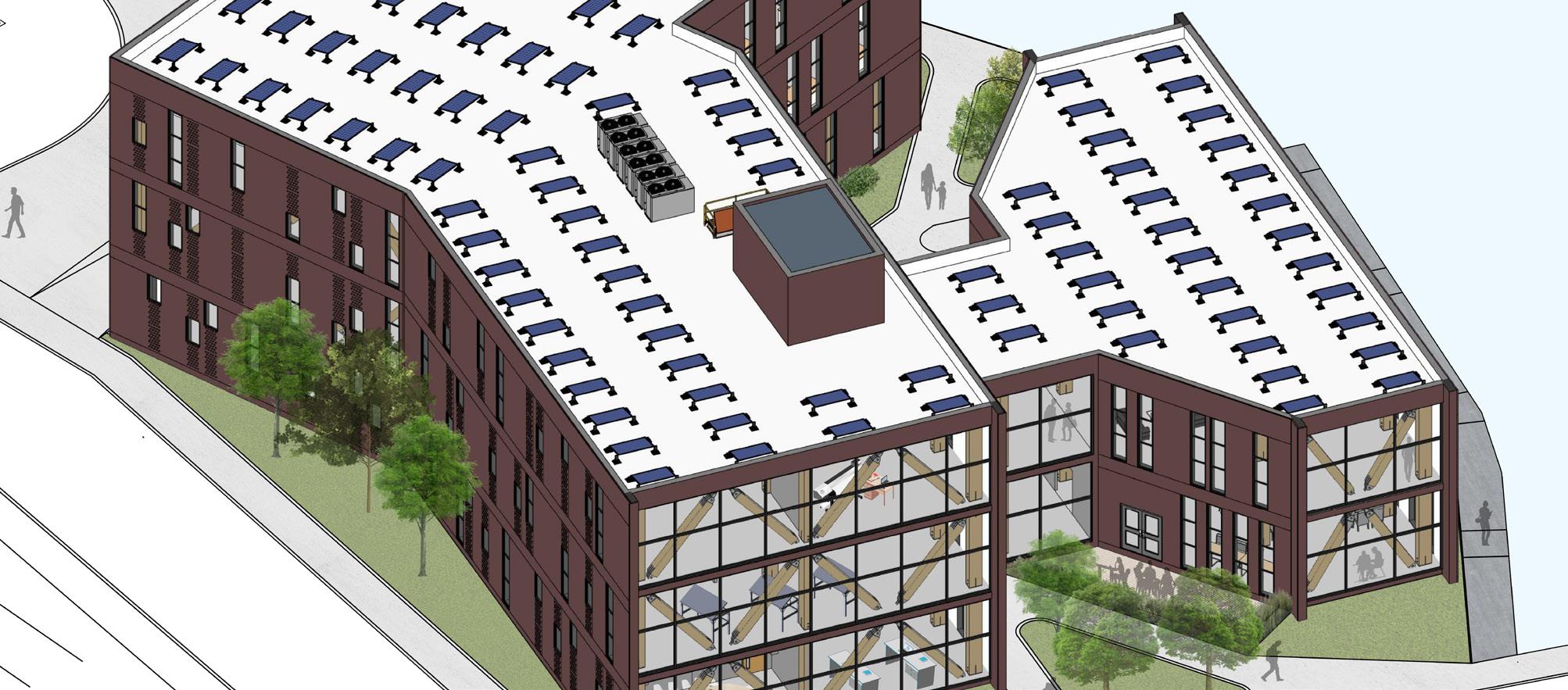

PAGE 66 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD FRONT AXON

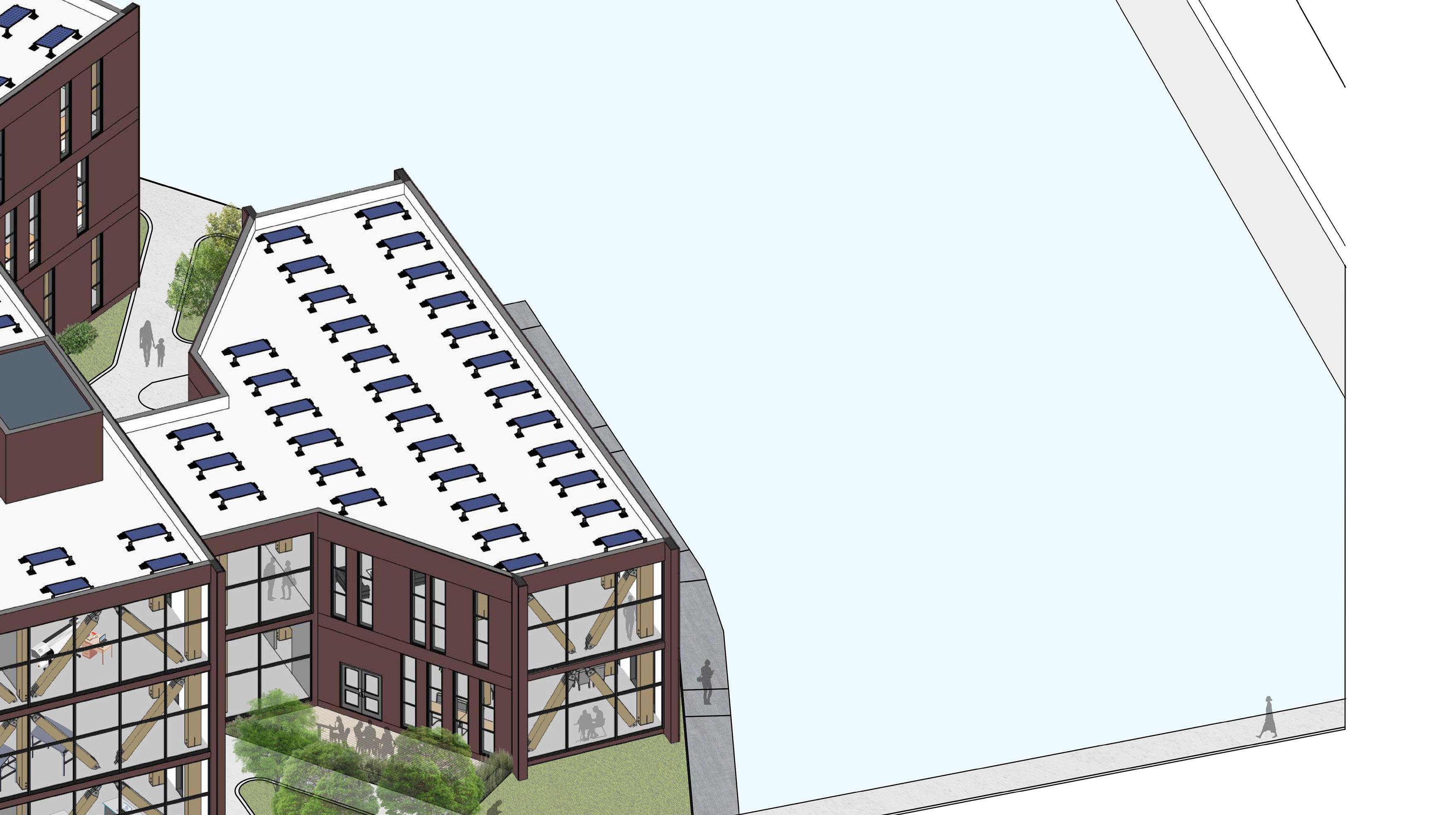

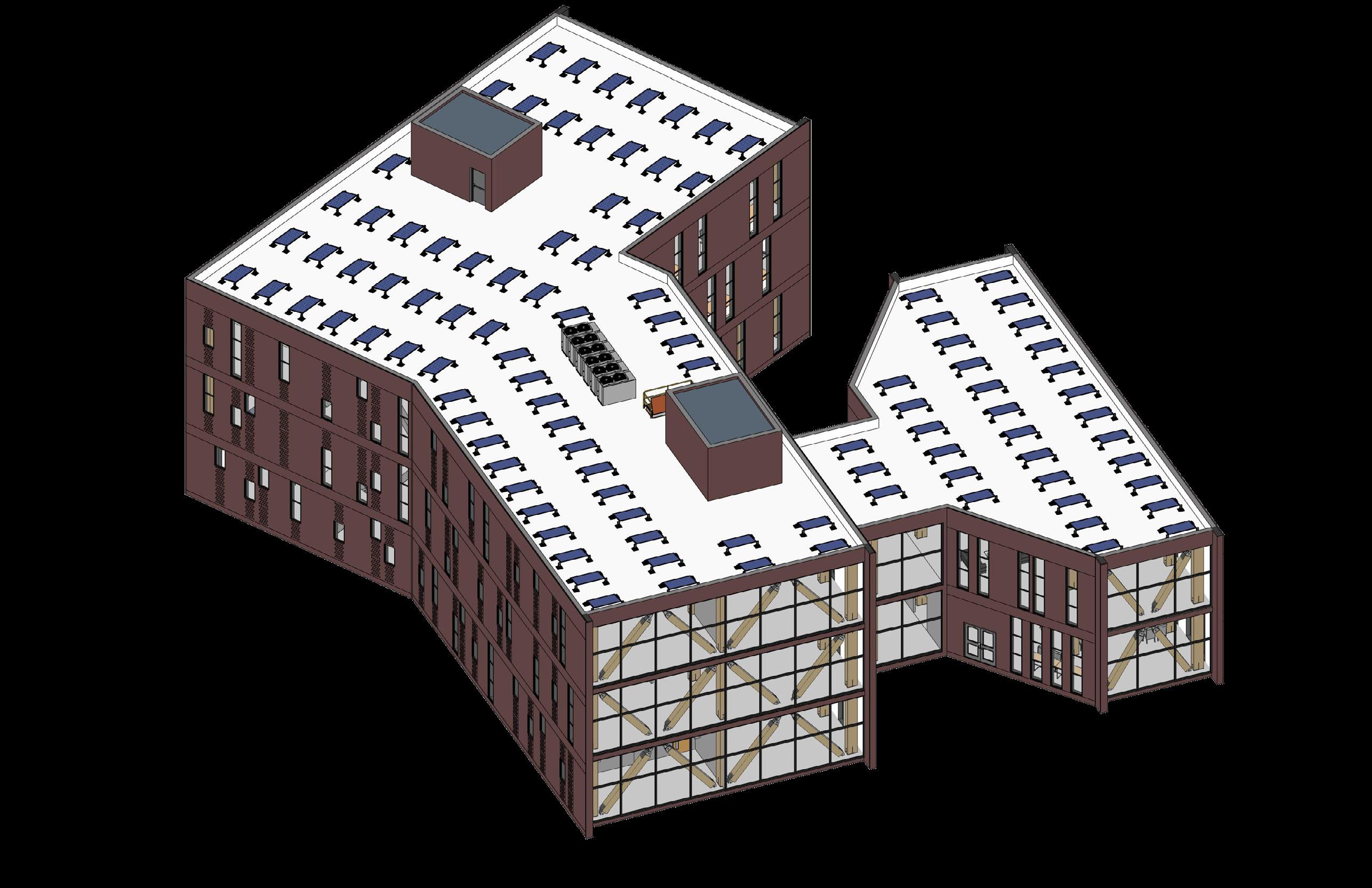

SUMMER 2022 PORTFOLIO | PAGE 67 EVAN CLARK & MAX WARD BACK AXON

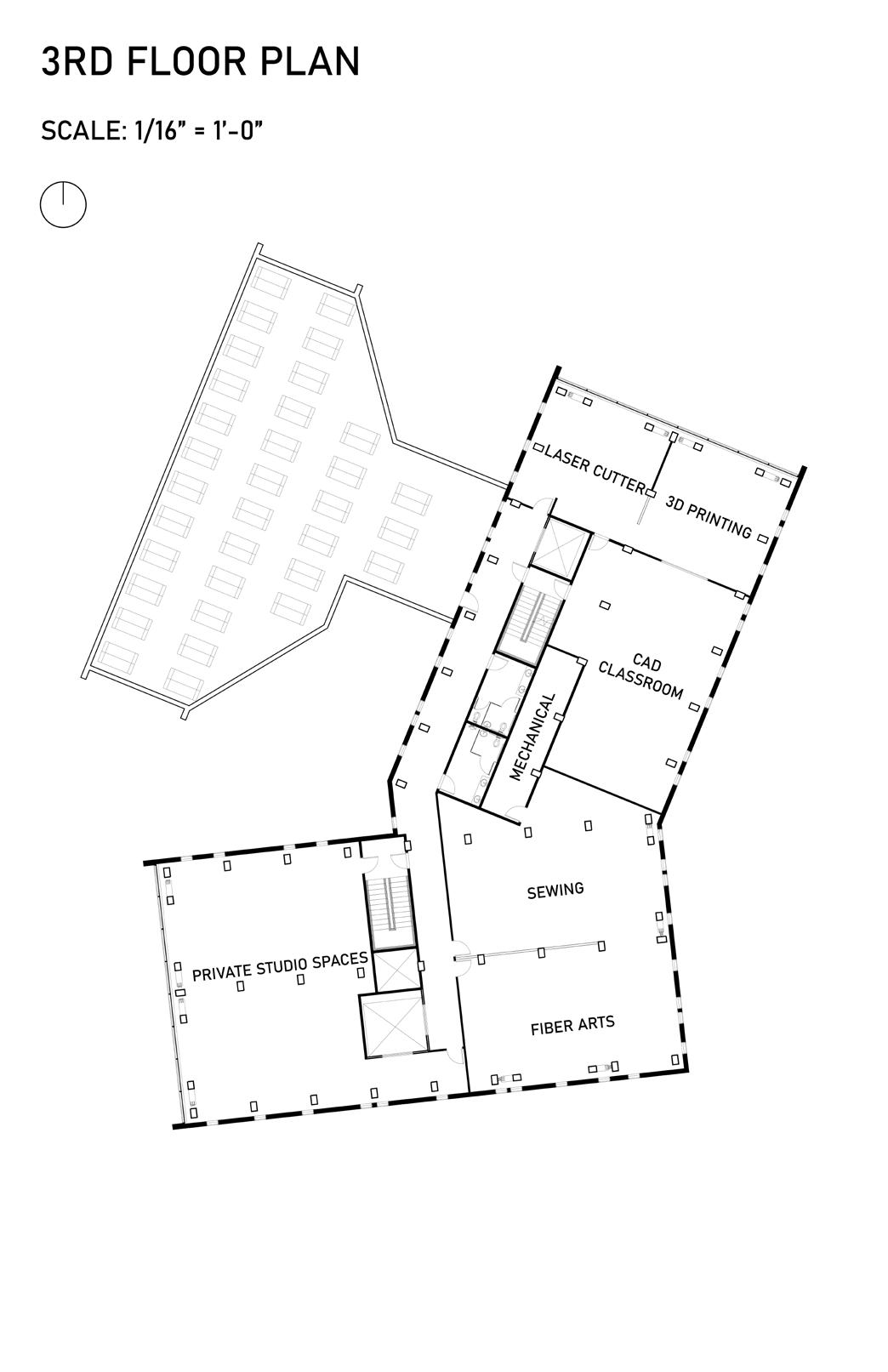

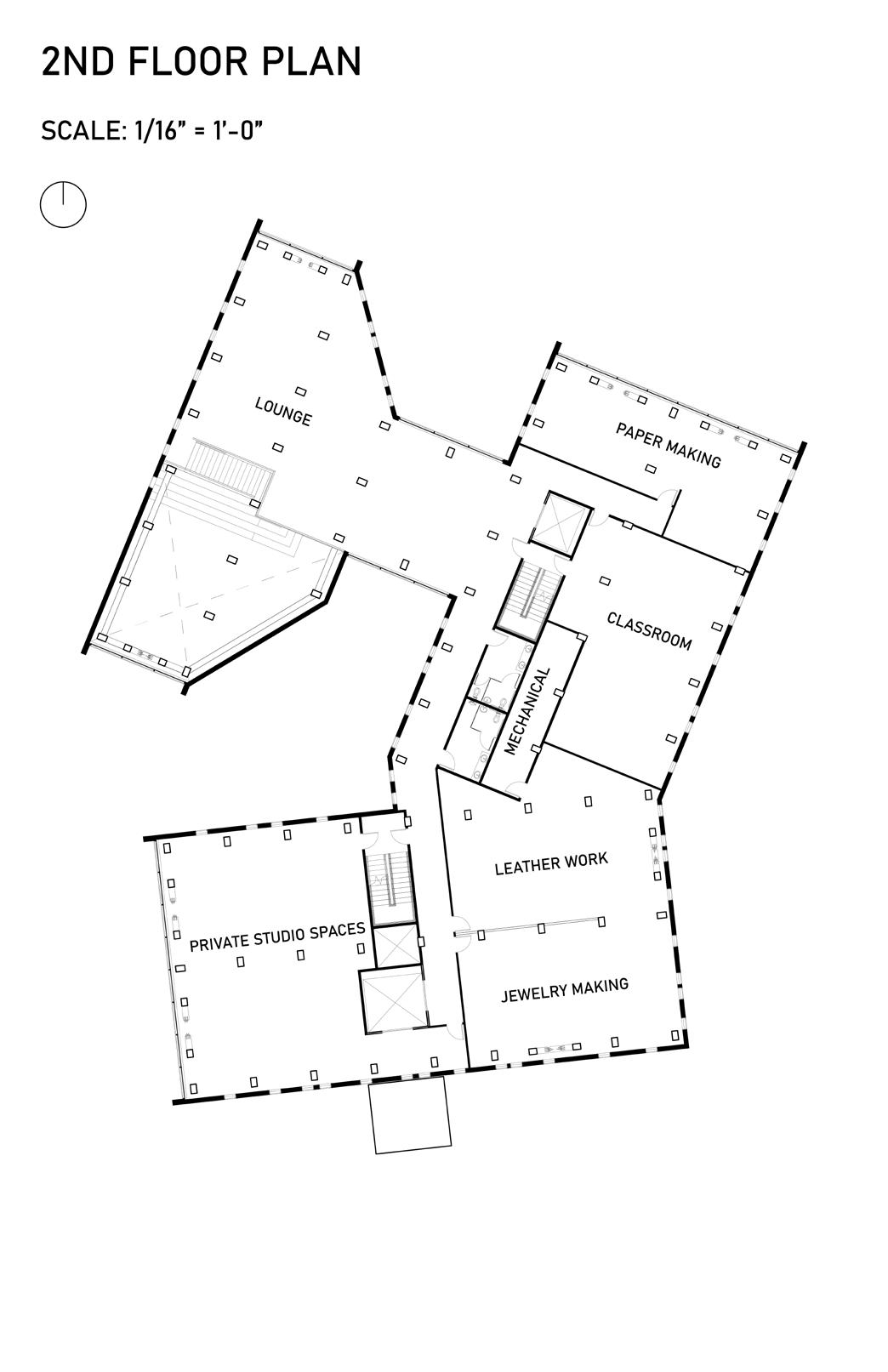

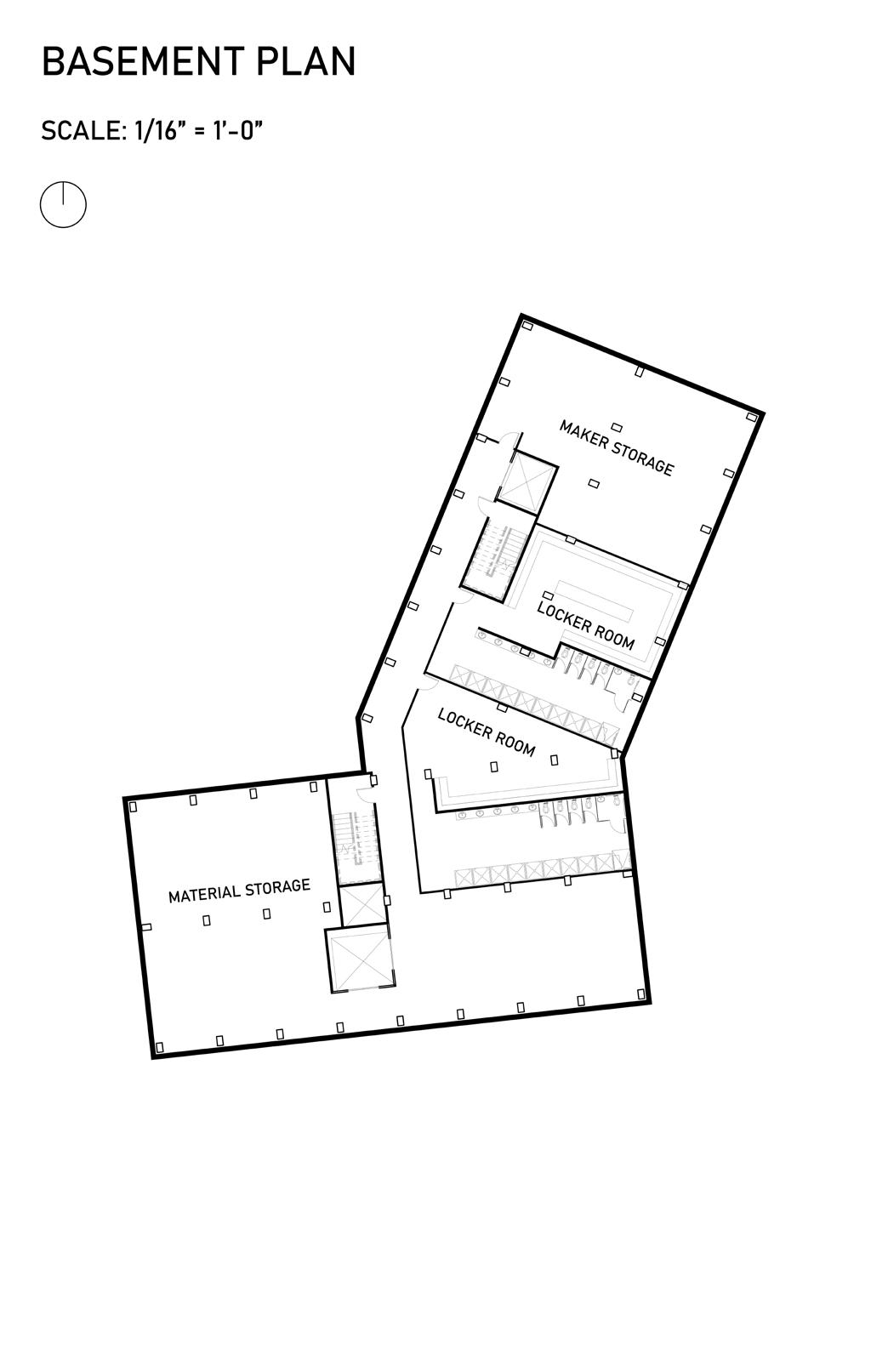

PAGE 68 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD FLOOR PLANS
SUMMER 2022 PORTFOLIO | PAGE 69 EVAN CLARK & MAX WARD

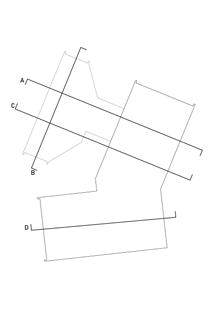

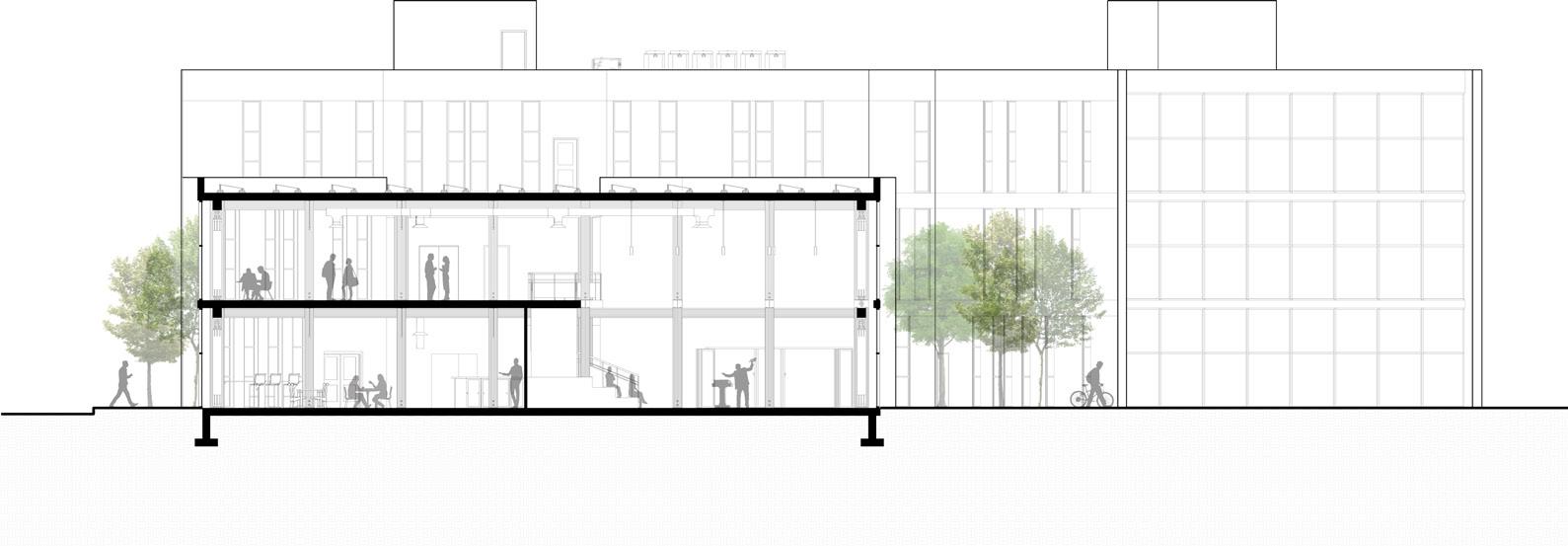

PAGE 70 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD SECTION A SECTION B SECTIONS
SUMMER 2022 PORTFOLIO | PAGE 71 EVAN CLARK & MAX WARD SECTION C SECTION D

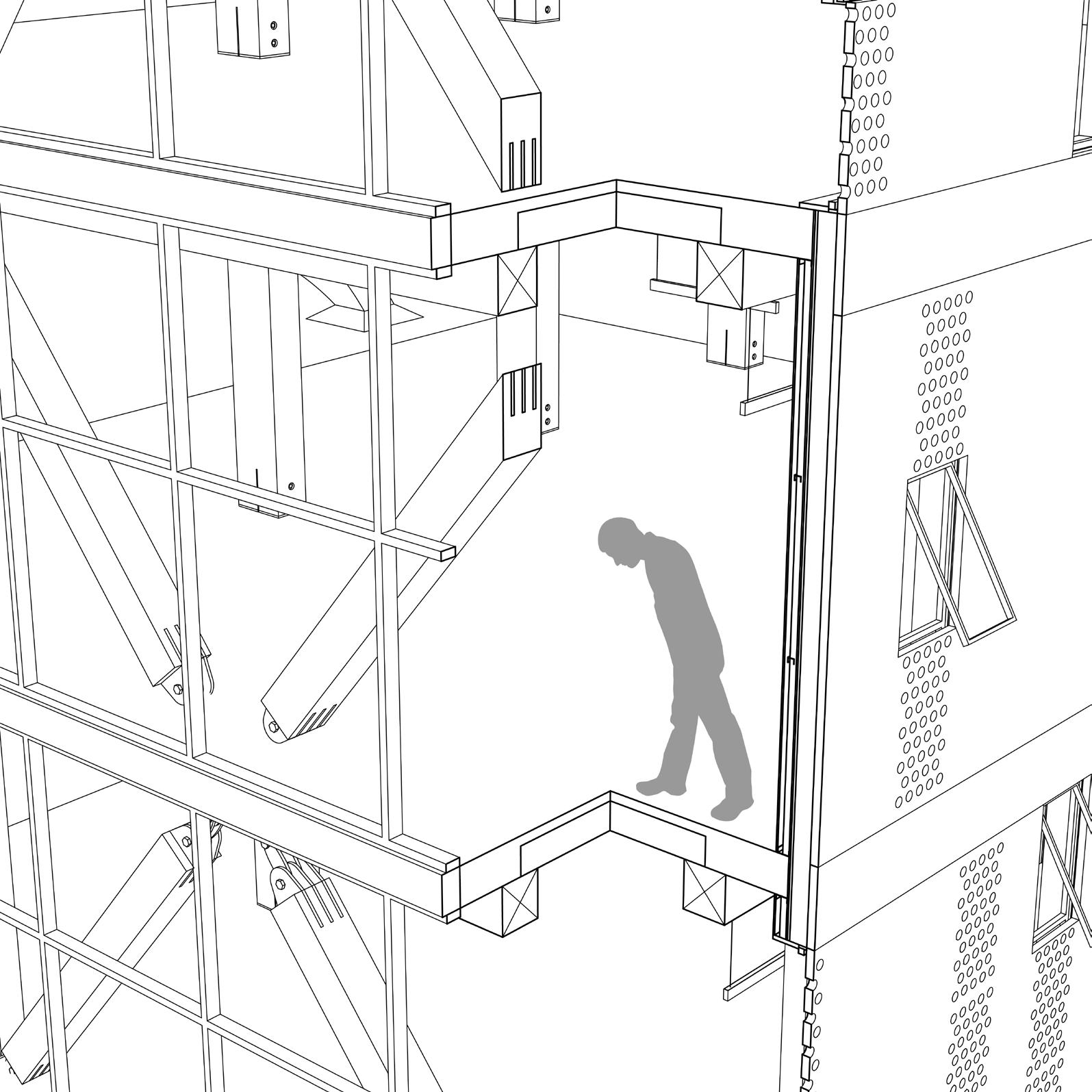

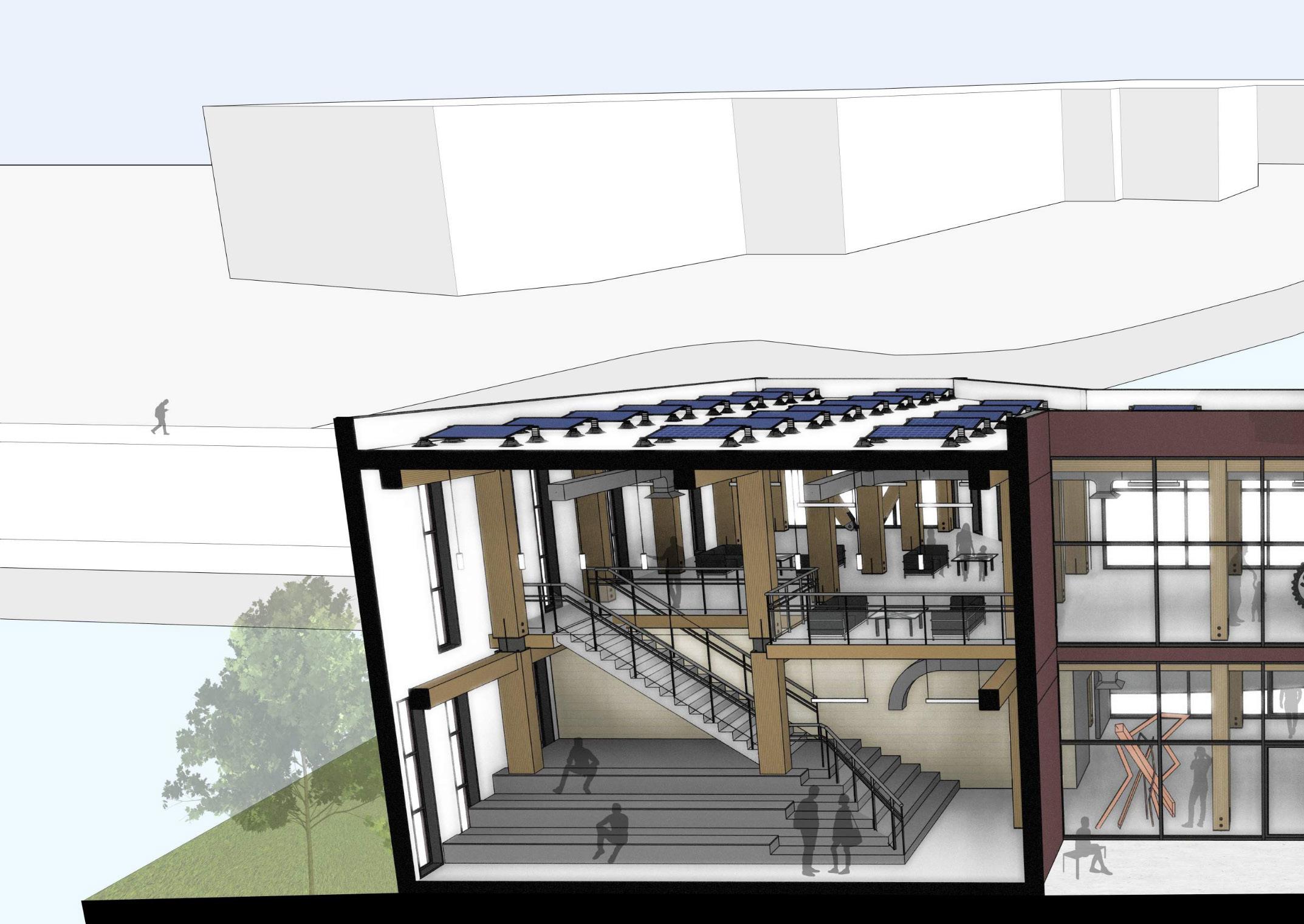

PAGE 72 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD SECTION PERSPECTIVE
SUMMER 2022 PORTFOLIO | PAGE 73 EVAN CLARK & MAX WARD
PAGE 74 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD GLAZING WALL DETAILED SECTION, PLAN & ELEVATION
SUMMER 2022 PORTFOLIO | PAGE 75 EVAN CLARK & MAX WARD OPAQUE WALL DETAILED SECTION, PLAN & ELEVATION

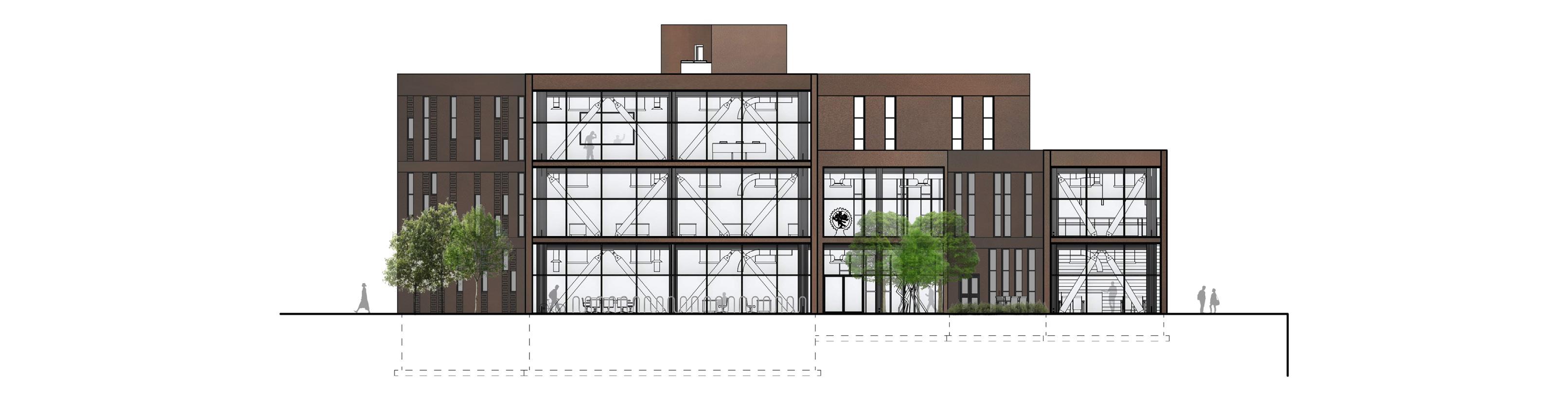

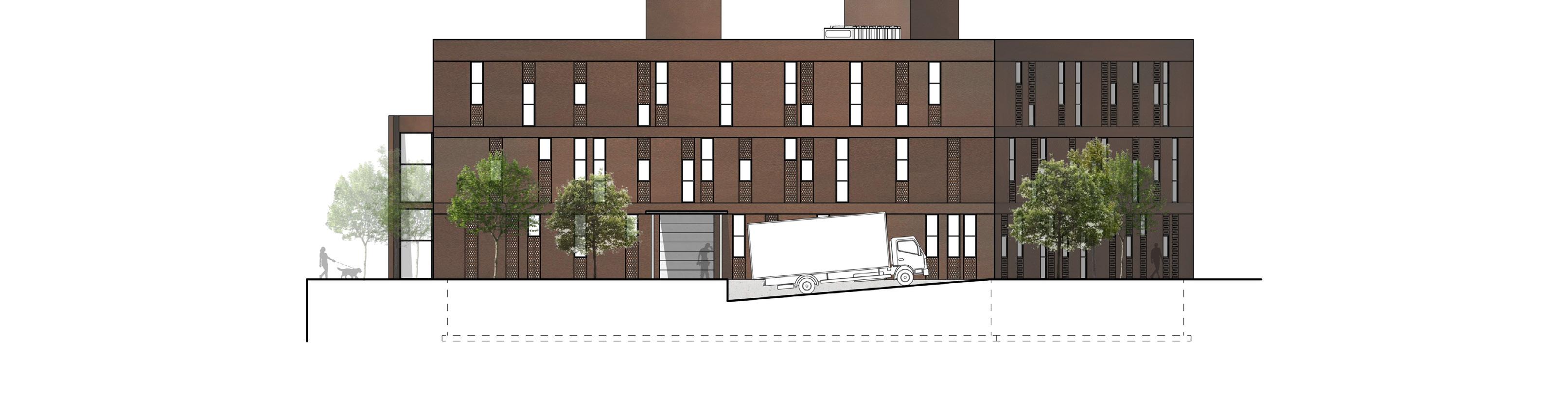

PAGE 76 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD SOUTHELEVATIONSNORTHELEVATIONELEVATION

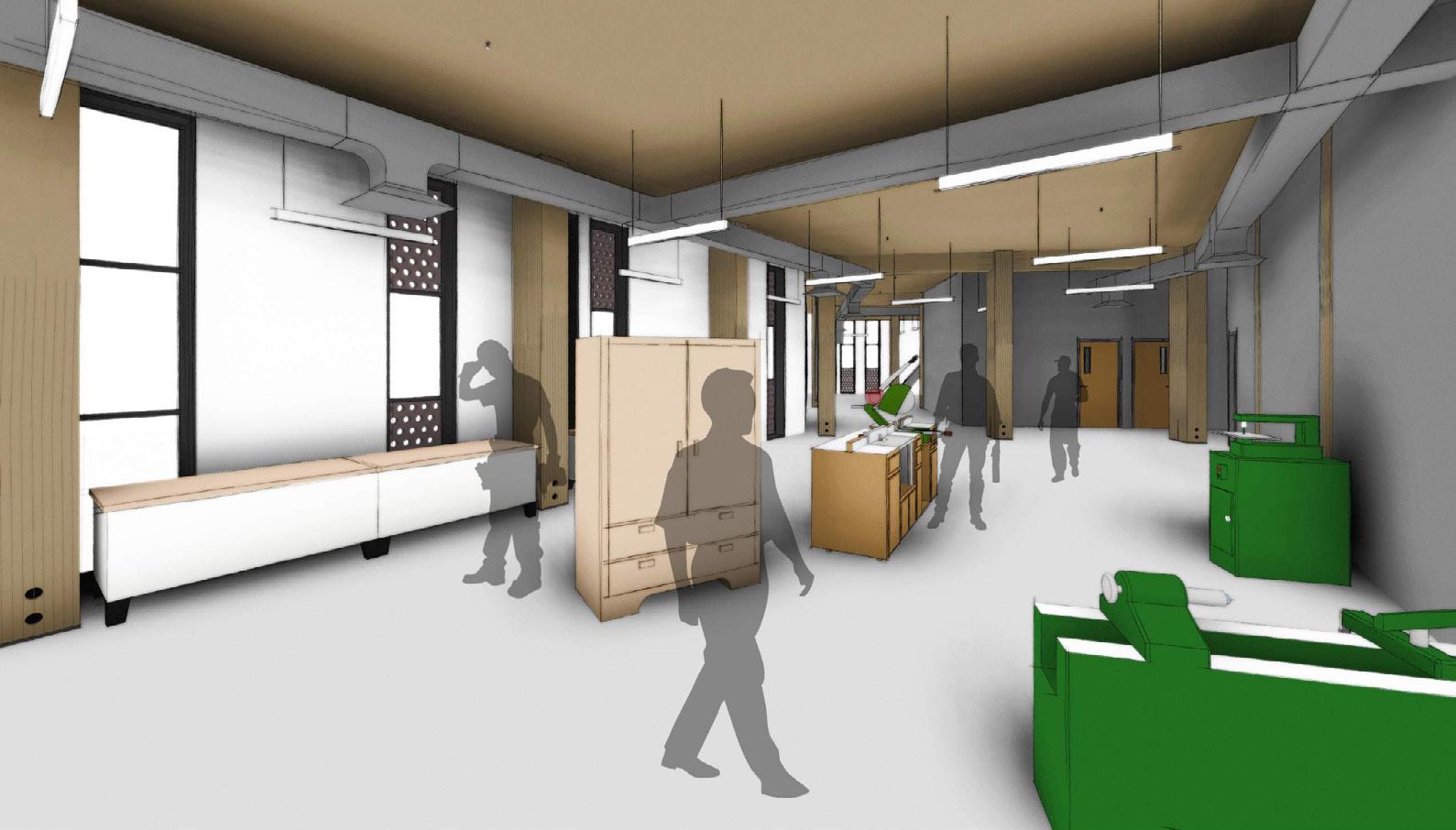

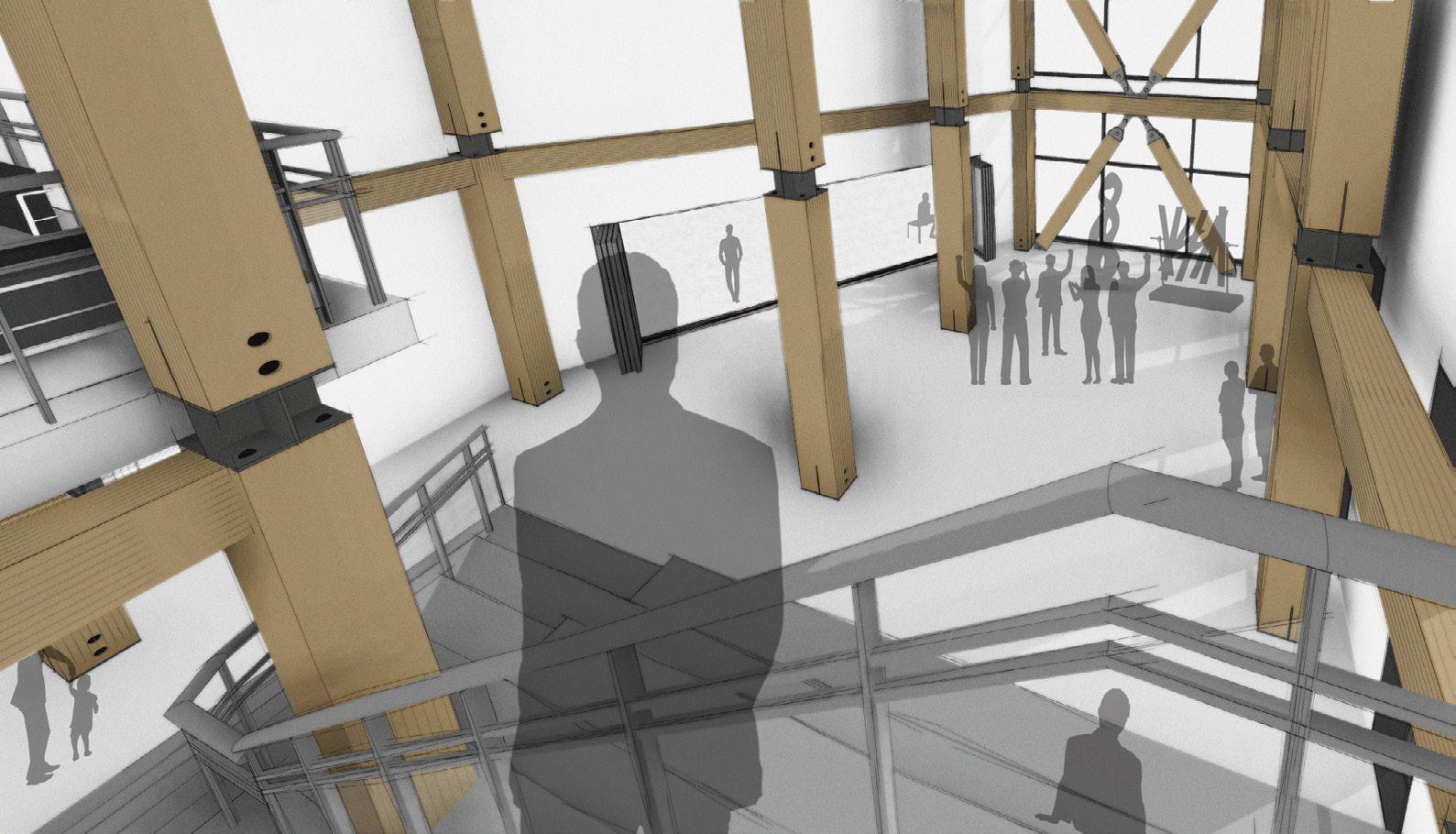

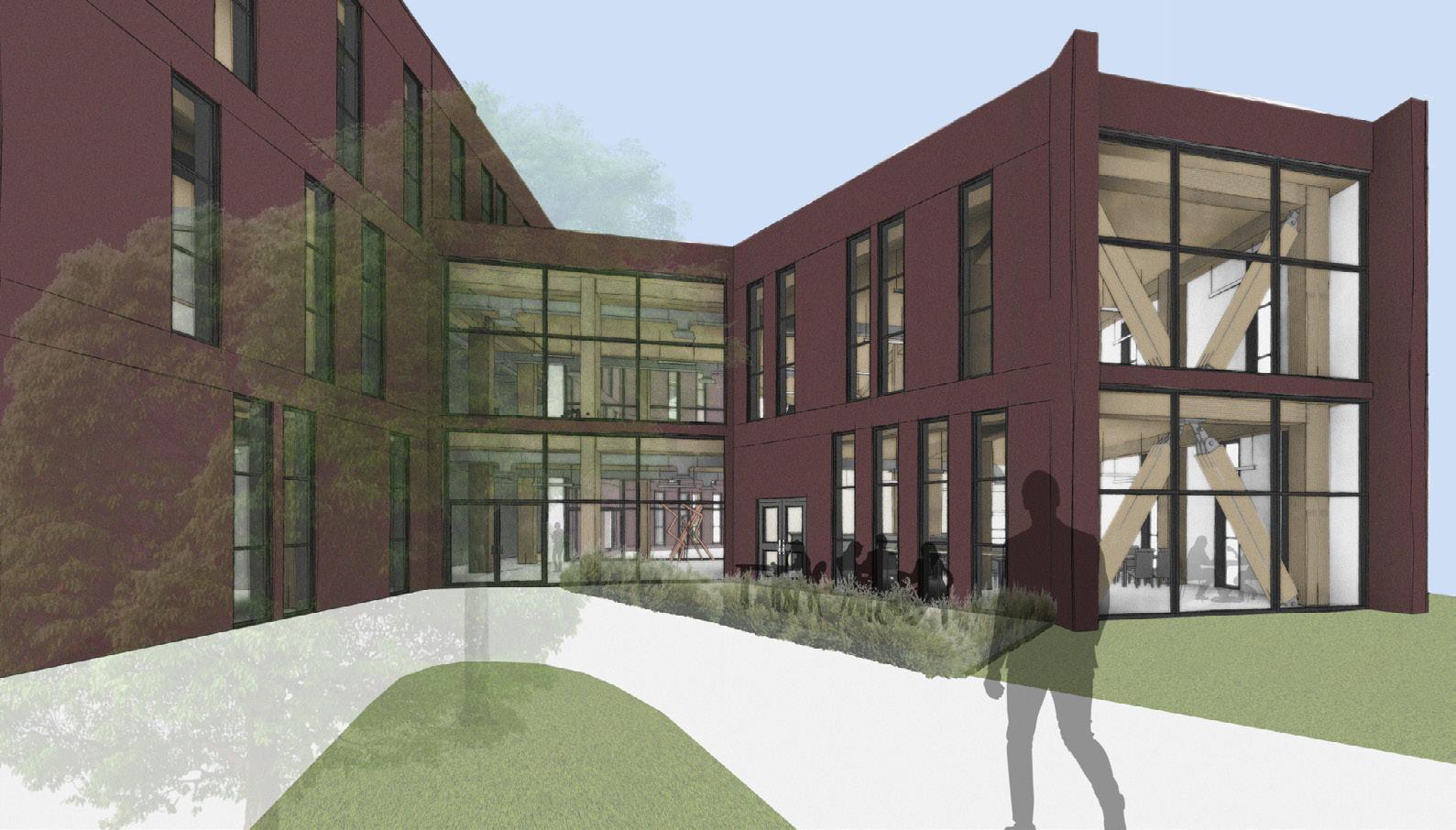

SUMMER 2022 PORTFOLIO | PAGE 77 EVAN CLARK & MAX WARD GALLERY PERSPECTIVE FRONT ENTRANCE PERSPECTIVE GRAND STAIR PERSPECTIVE WOODSHOP PERSPECTIVE PERSPECTIVES

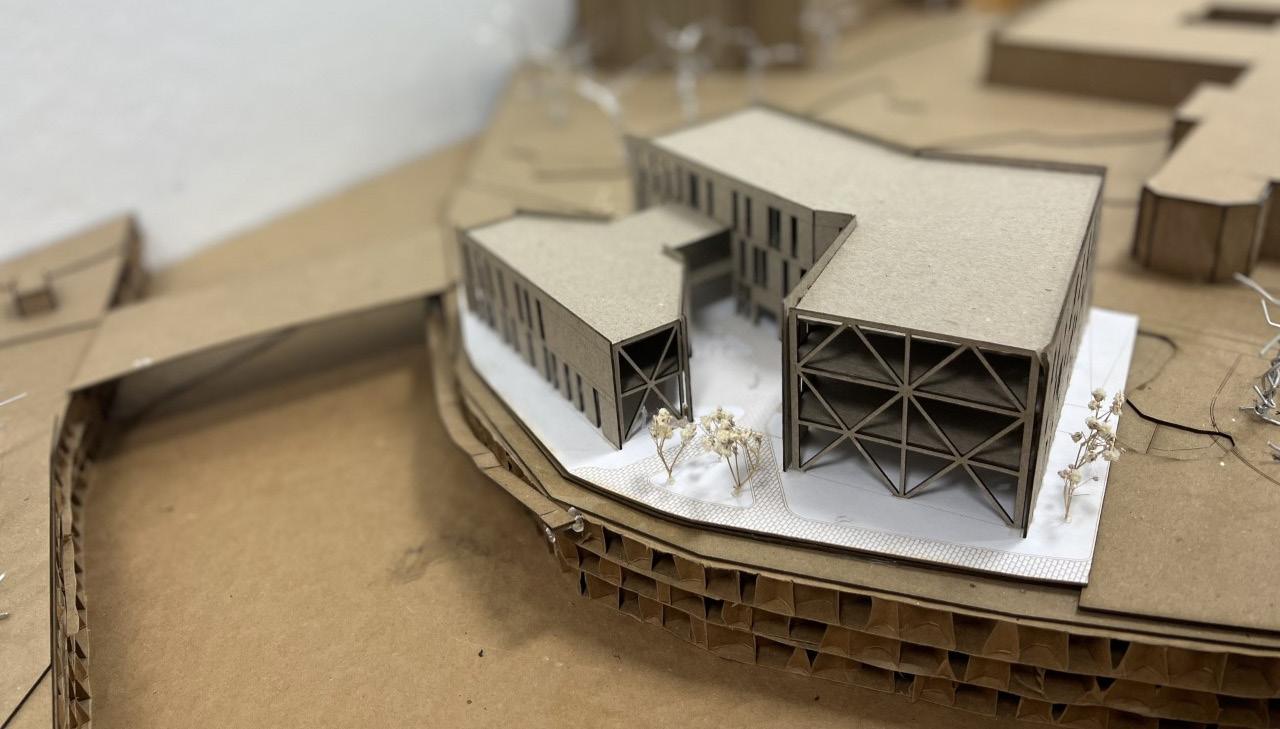

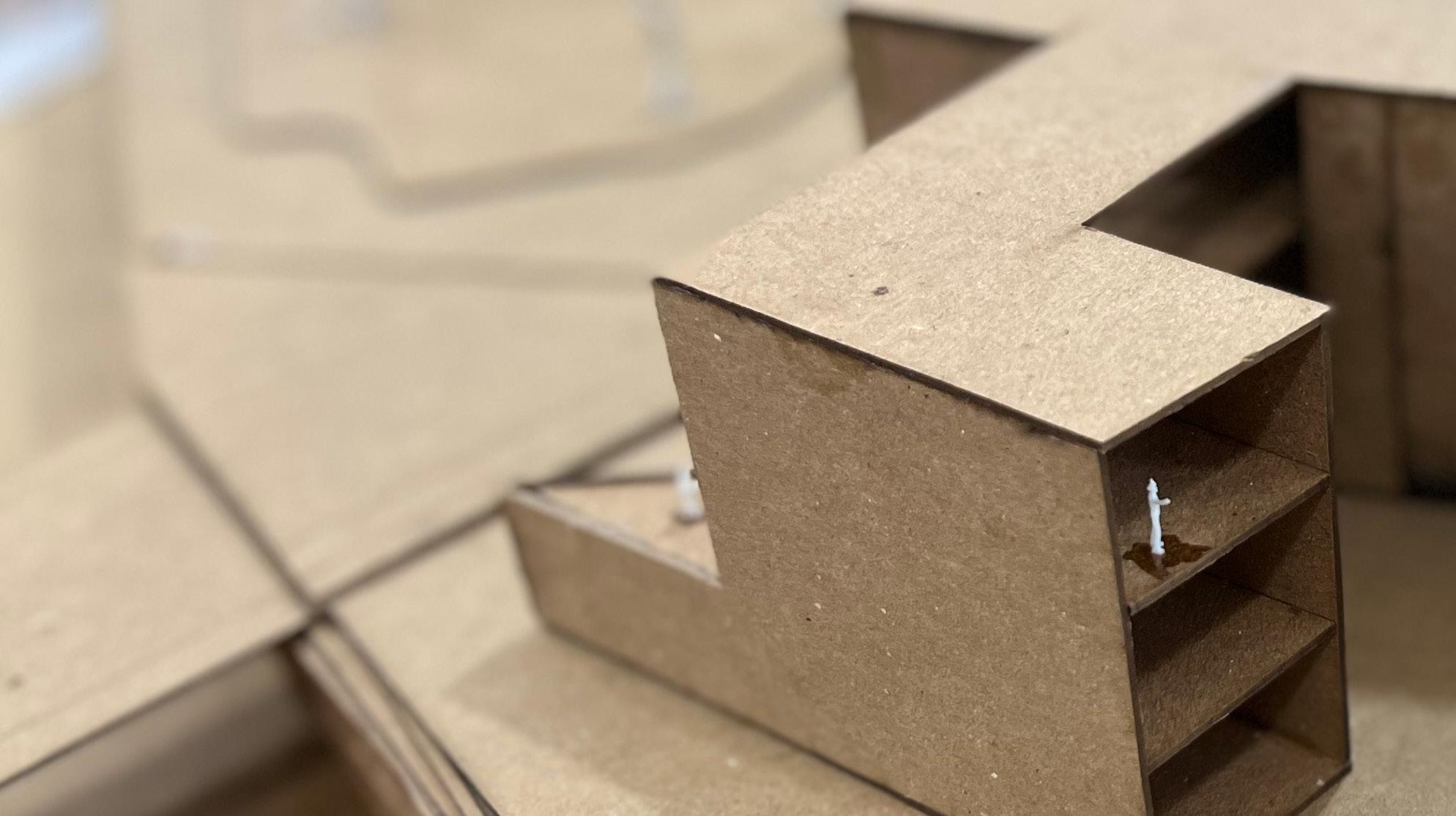

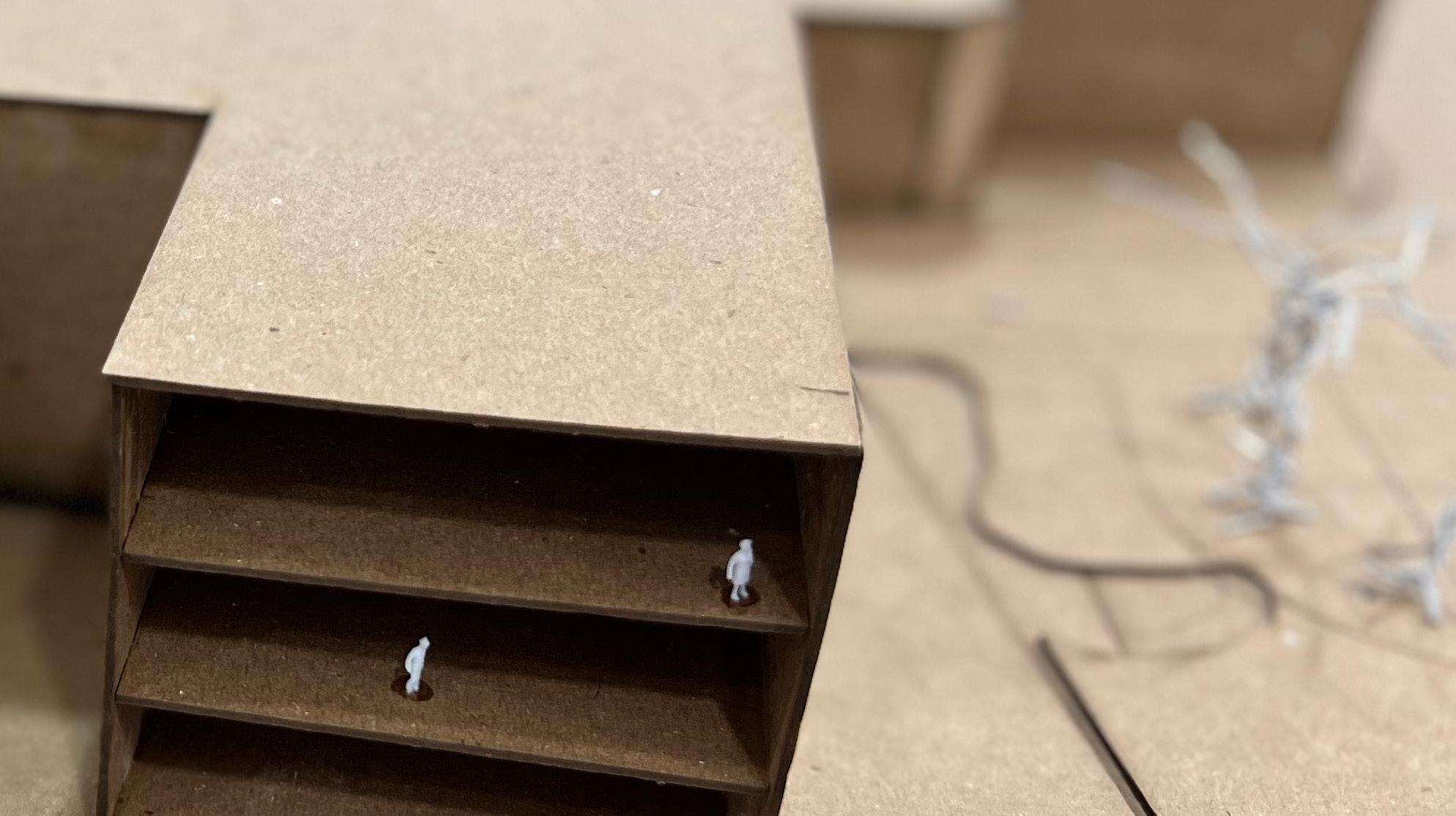

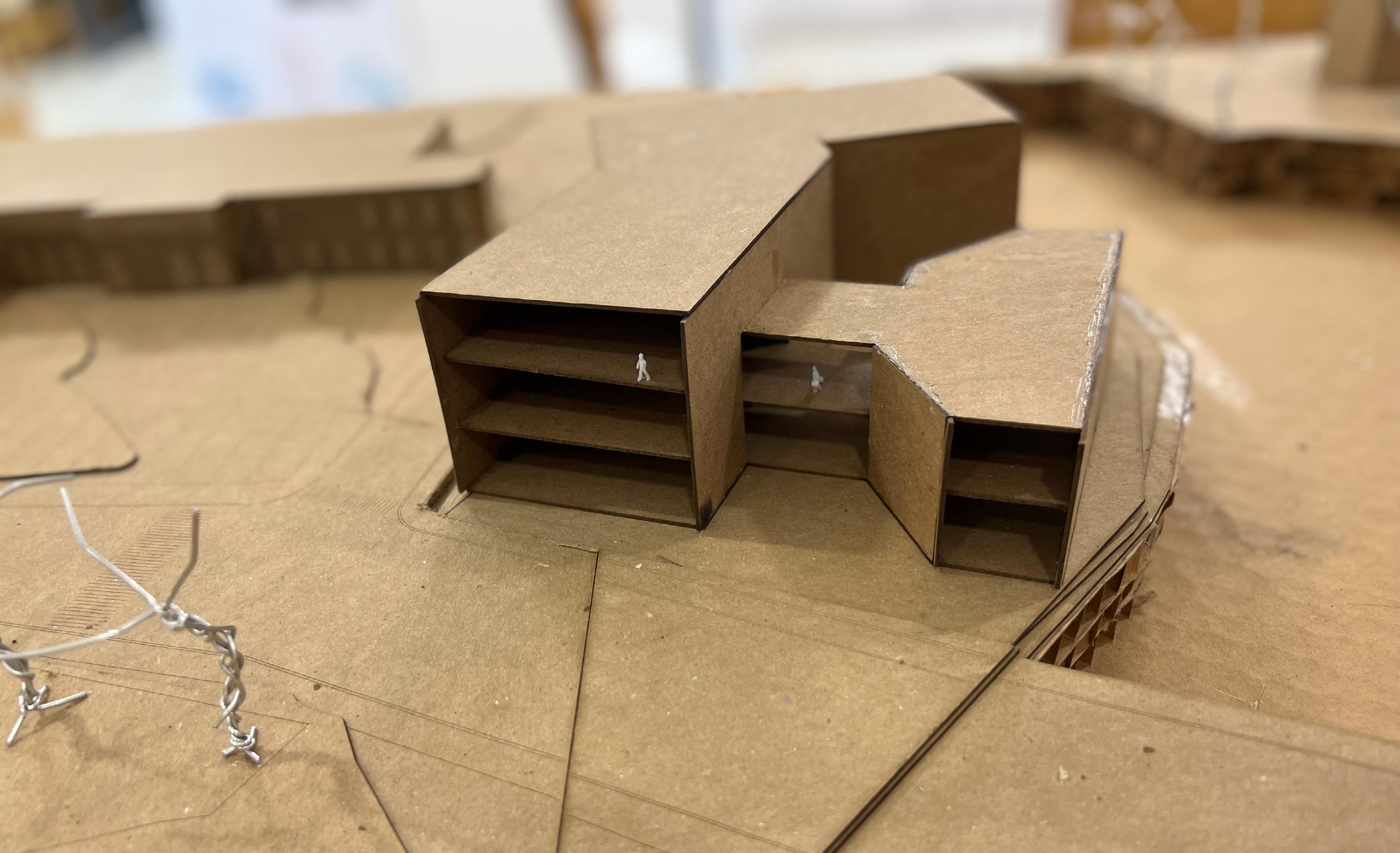

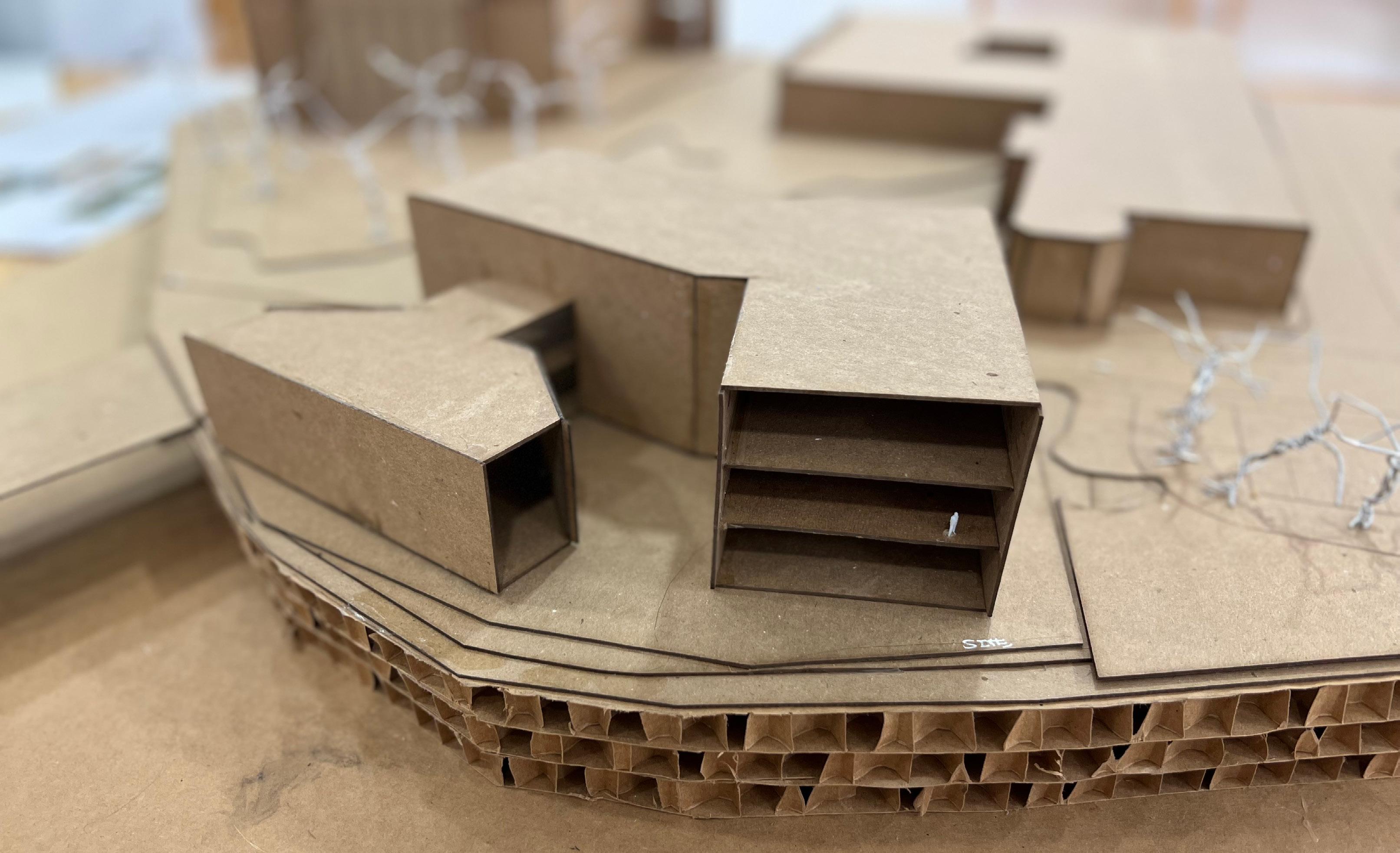

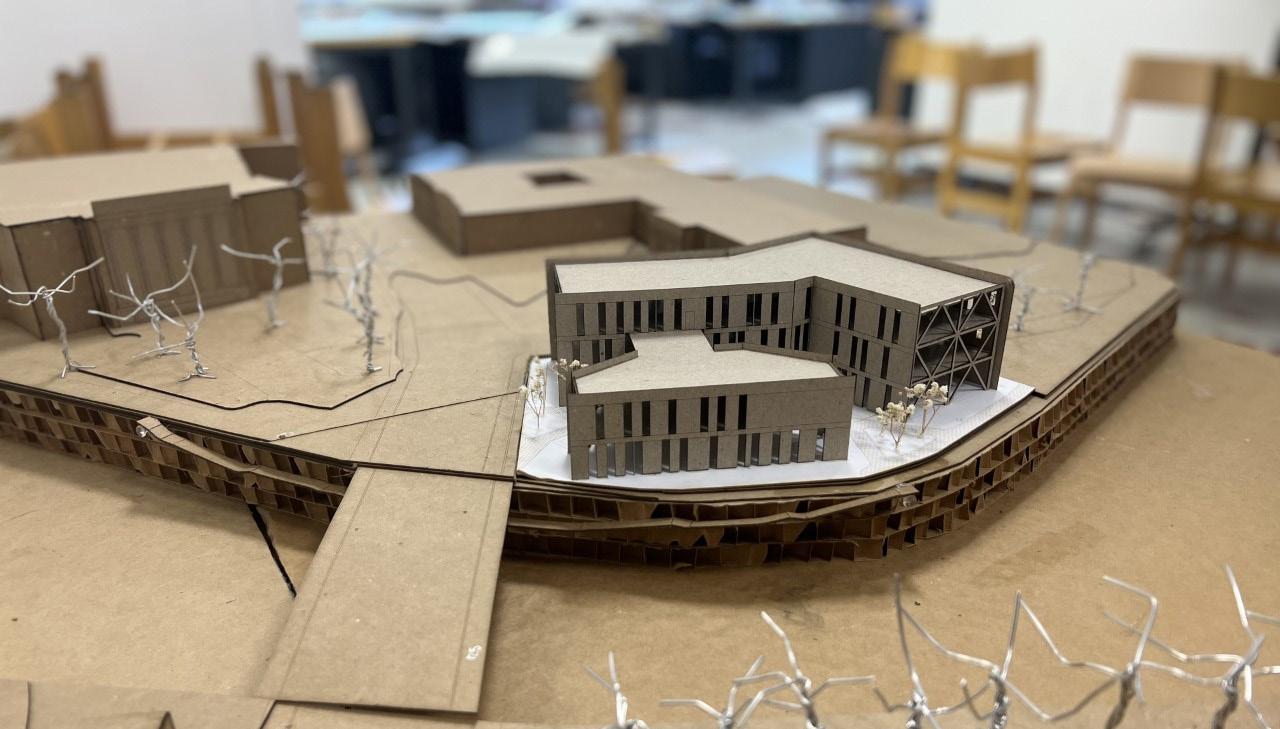

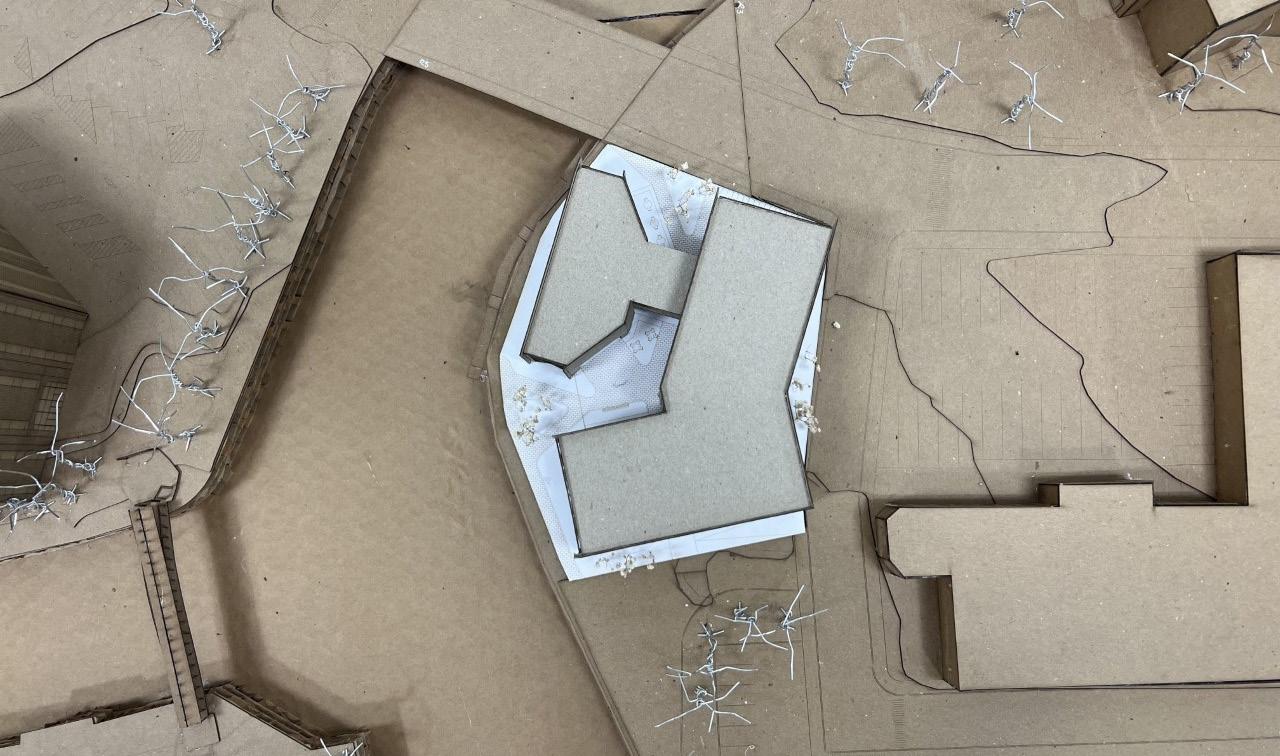

PAGE 78 | SUMMER 2022 PORTFOLIO EVAN CLARK & MAX WARD PHYSICAL MODEL
SUMMER 2022 PORTFOLIO | PAGE 79 EVAN CLARK & MAX WARD
