XINYI WANG
Application Portfolio | Master of Urban Design
Graduate from University of Hong Kong

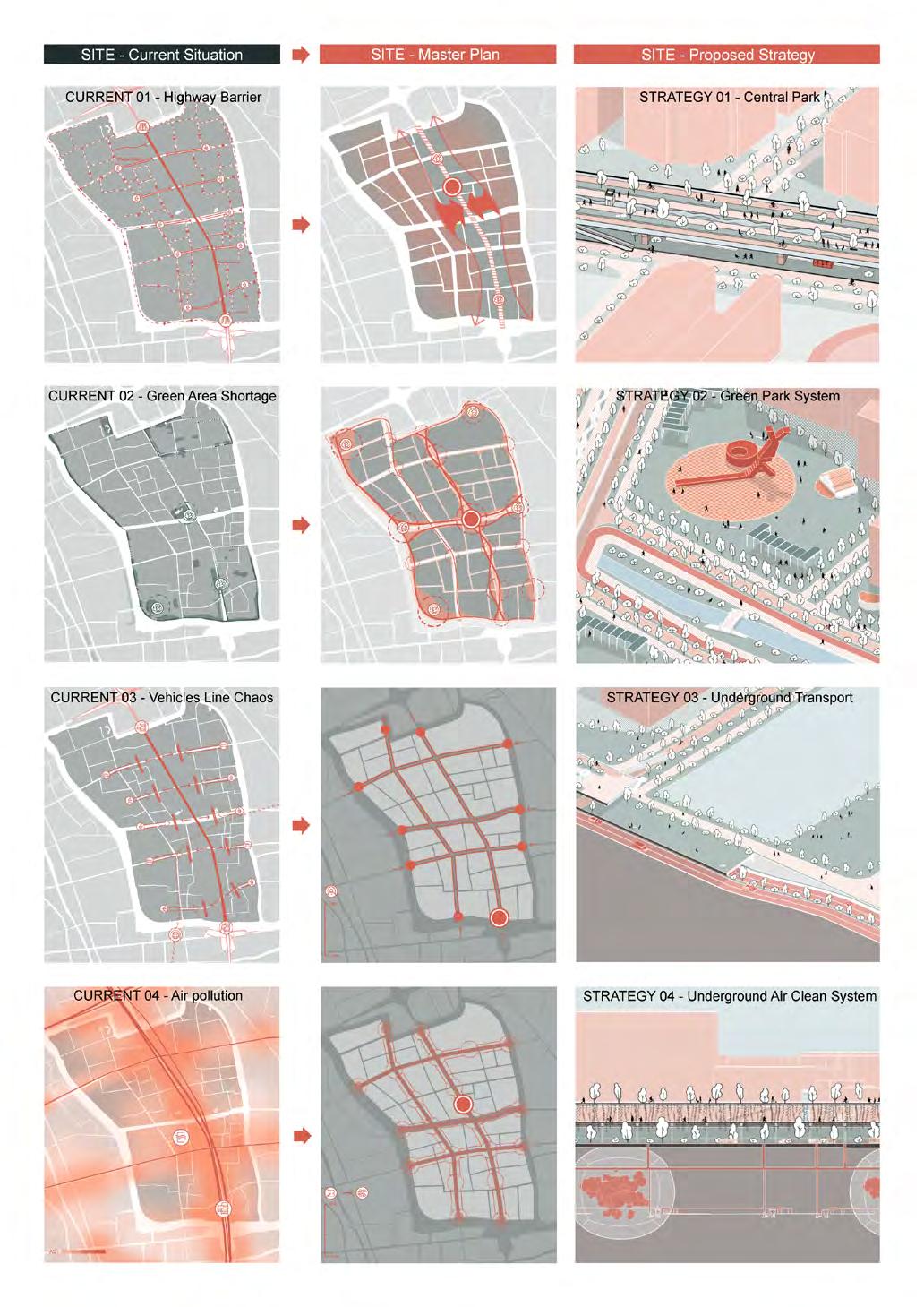

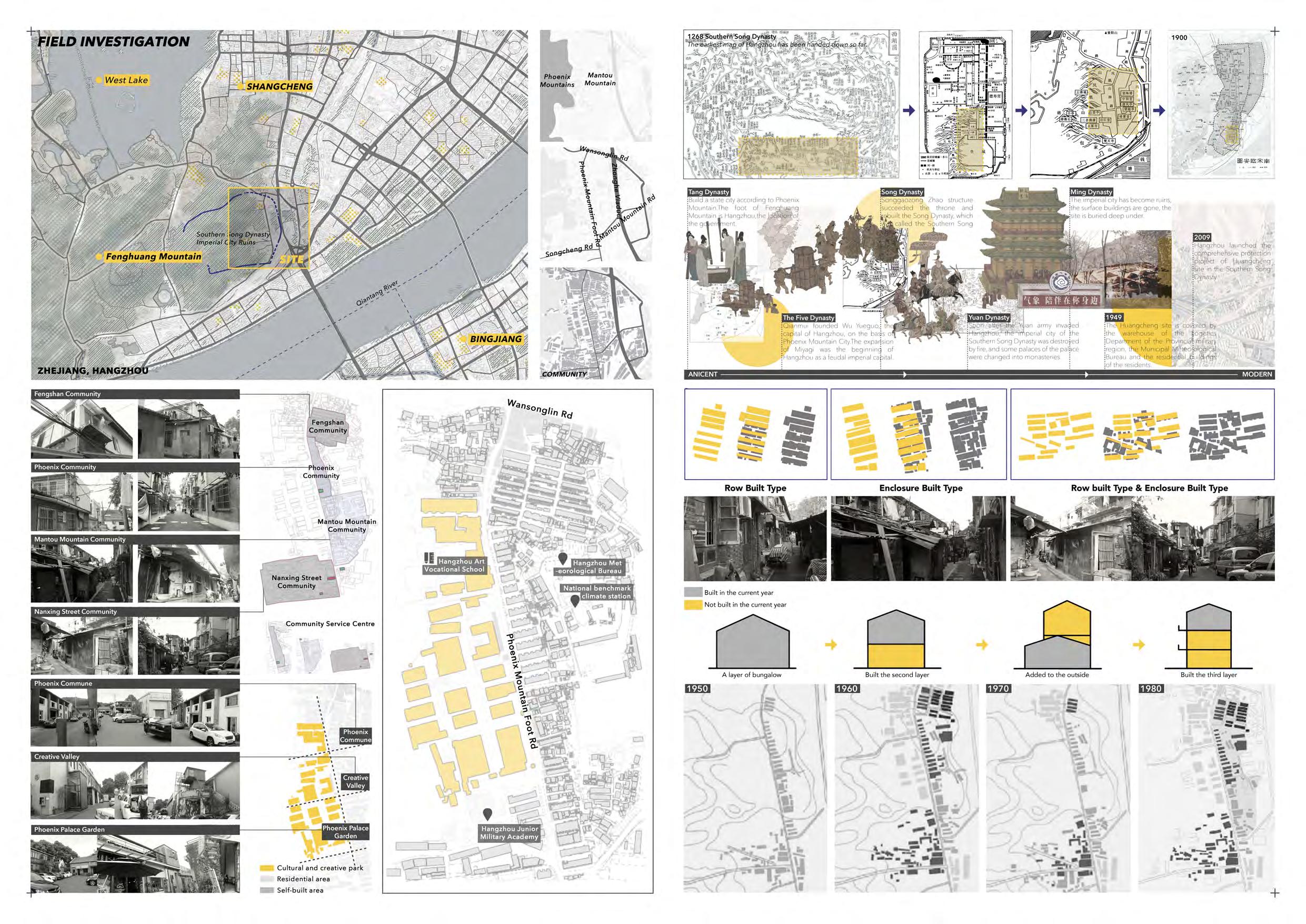

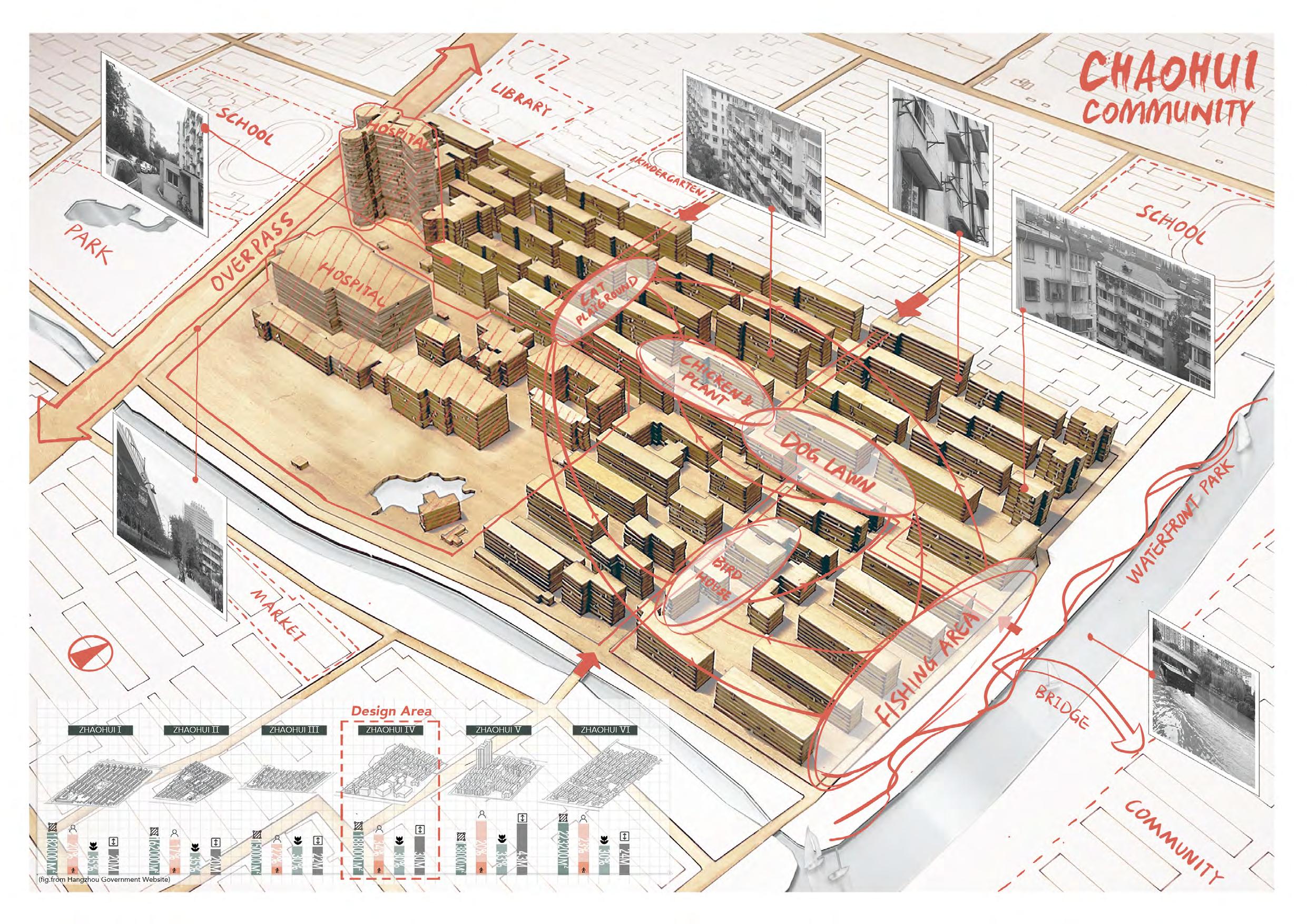

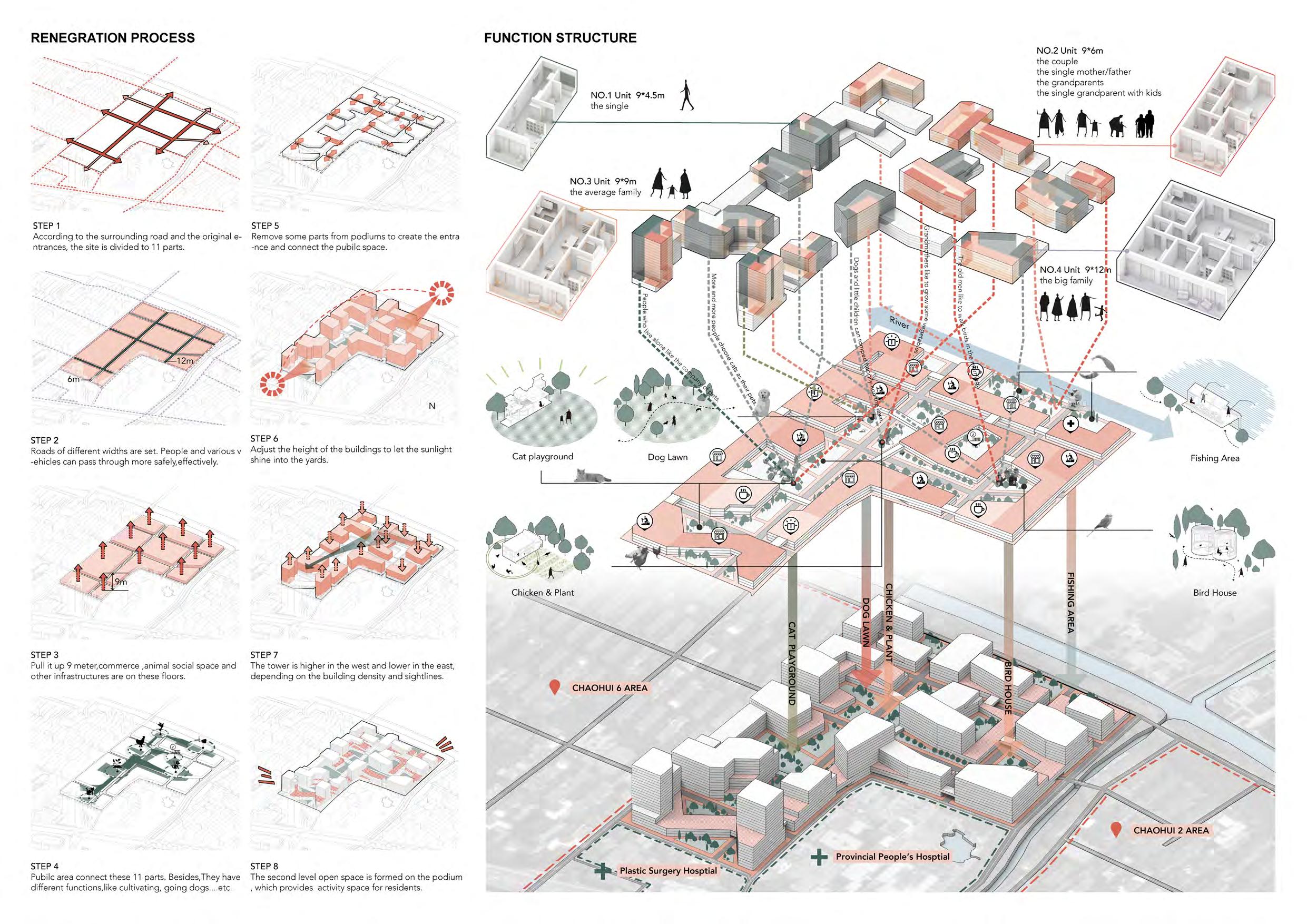

Chaohui District 4 is situated on the east side of Chaohui Cluster, bordered by Zhejiang Provincial People's Hospital to the west, with Shangtang Viaduct leading to congested traffic. It lies on the east side of the Shangtang River and is adjacent to the Chaohui District 2 and District 6 to the north and south, which is currently accessible by the freight vessel and the vaporetto. By conducting a study of nine neighborhoods in Chaohui and the proportion of residents in each age group, District 4 is selected as the design site.

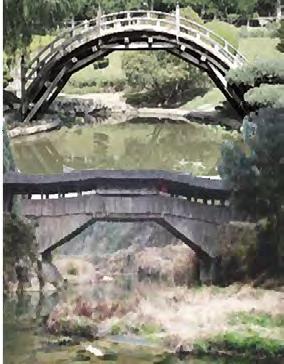

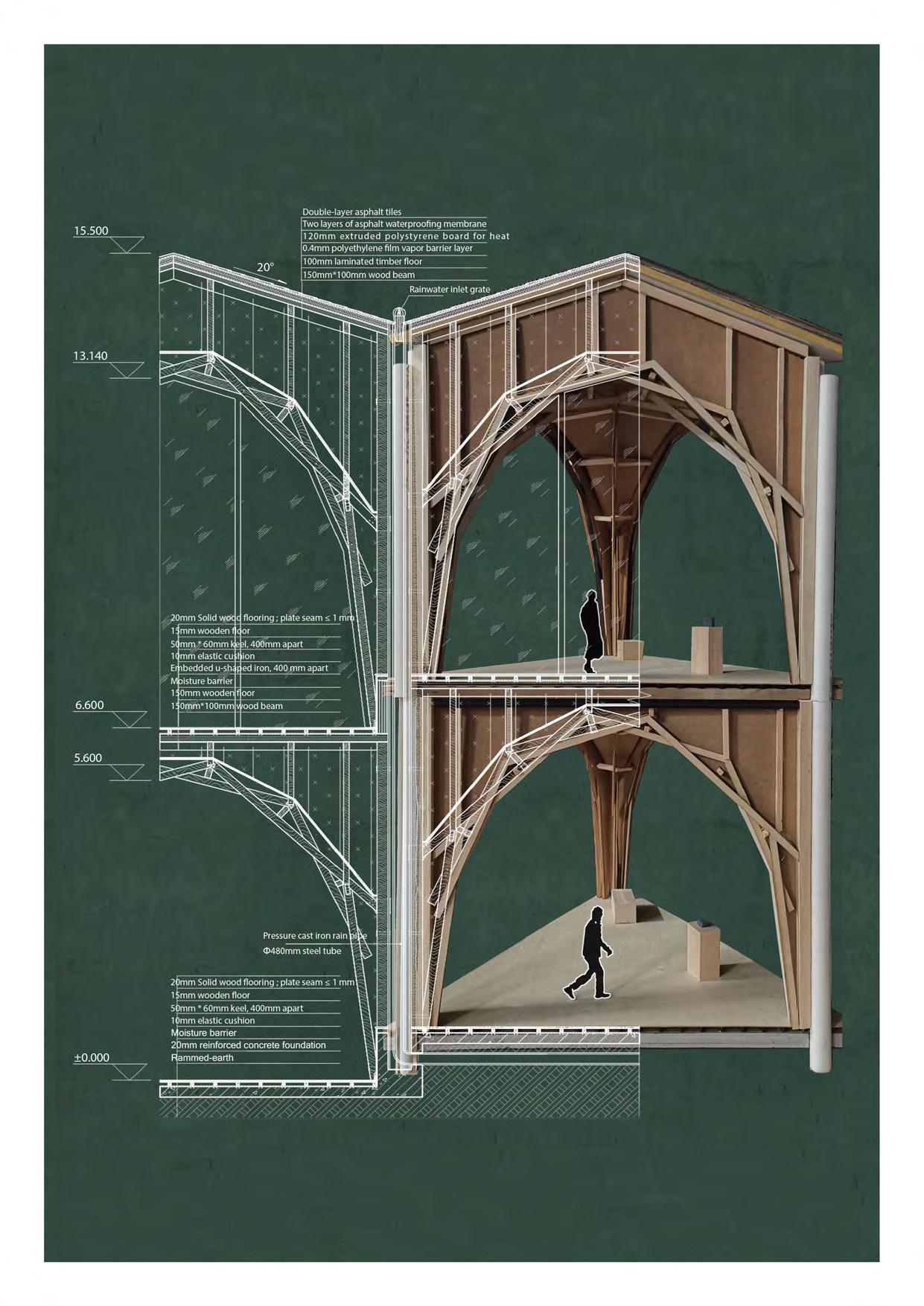

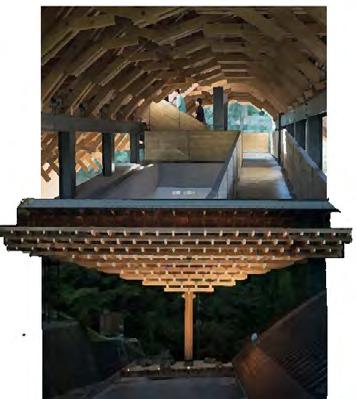

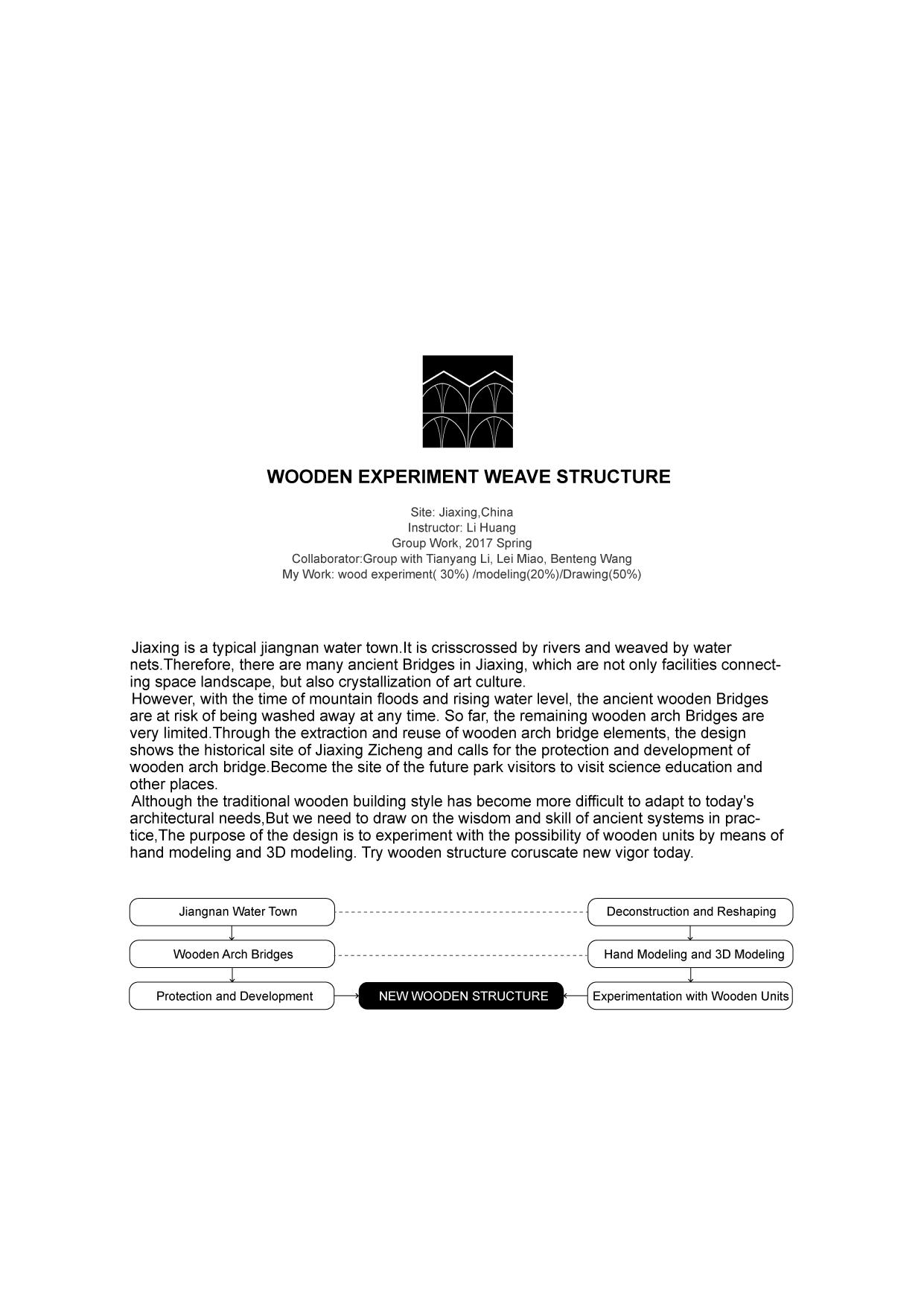

The deconstruction and reshaping of the woven timber arch bridge has resulted in a spatial structure of orthogonal triangular units, which are used as a combination for spatial arrangement combinations and embedded functions.

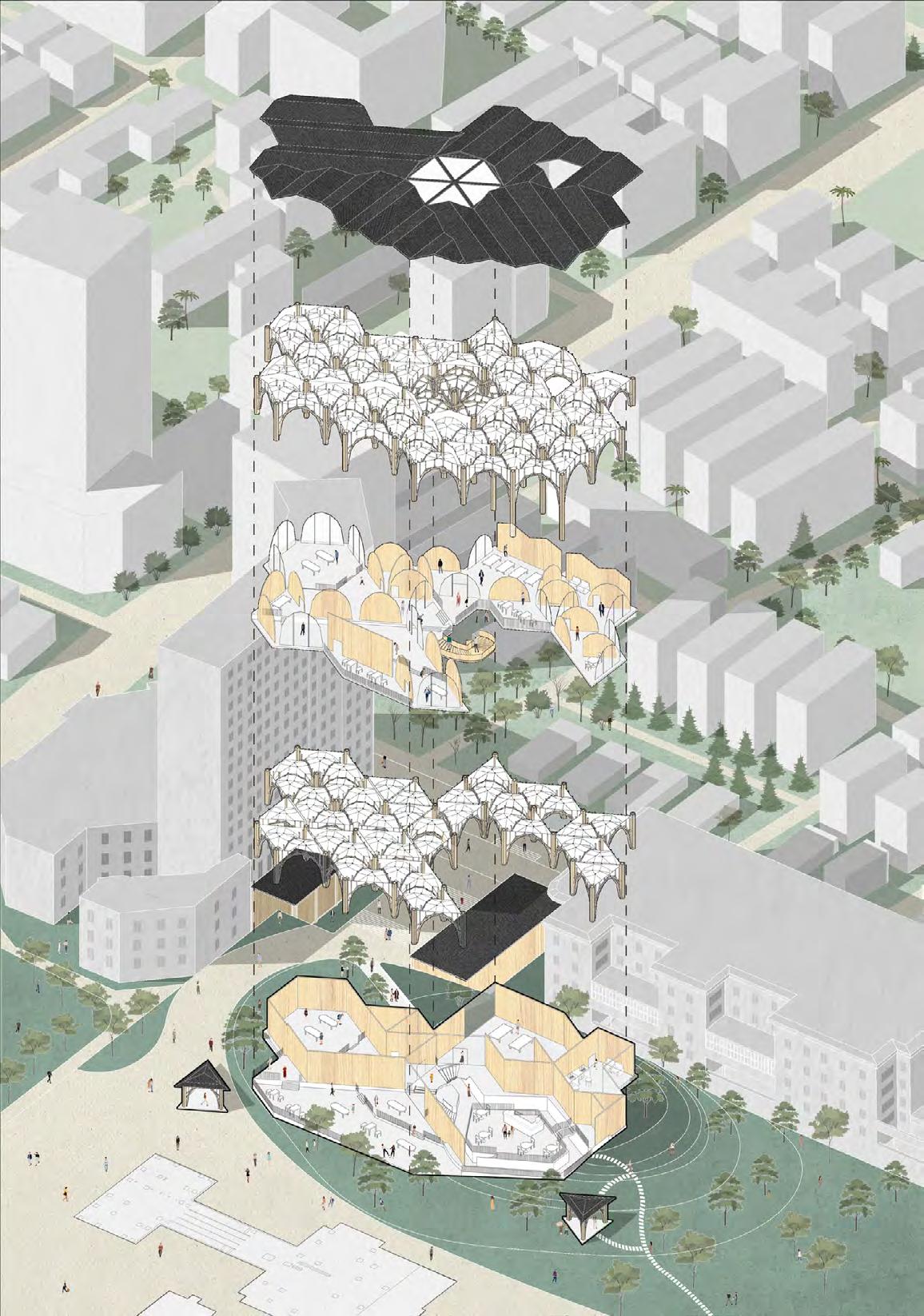

EXPLOSION AXONOMETRIC DRAWING

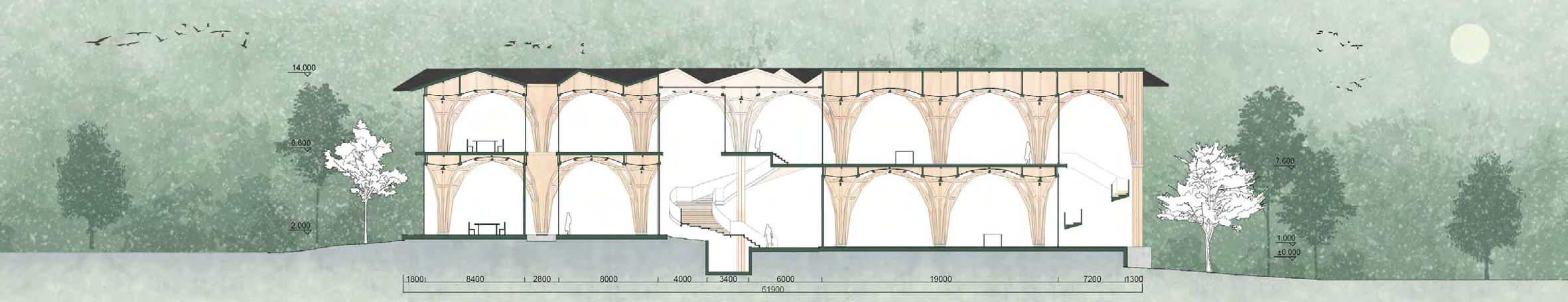

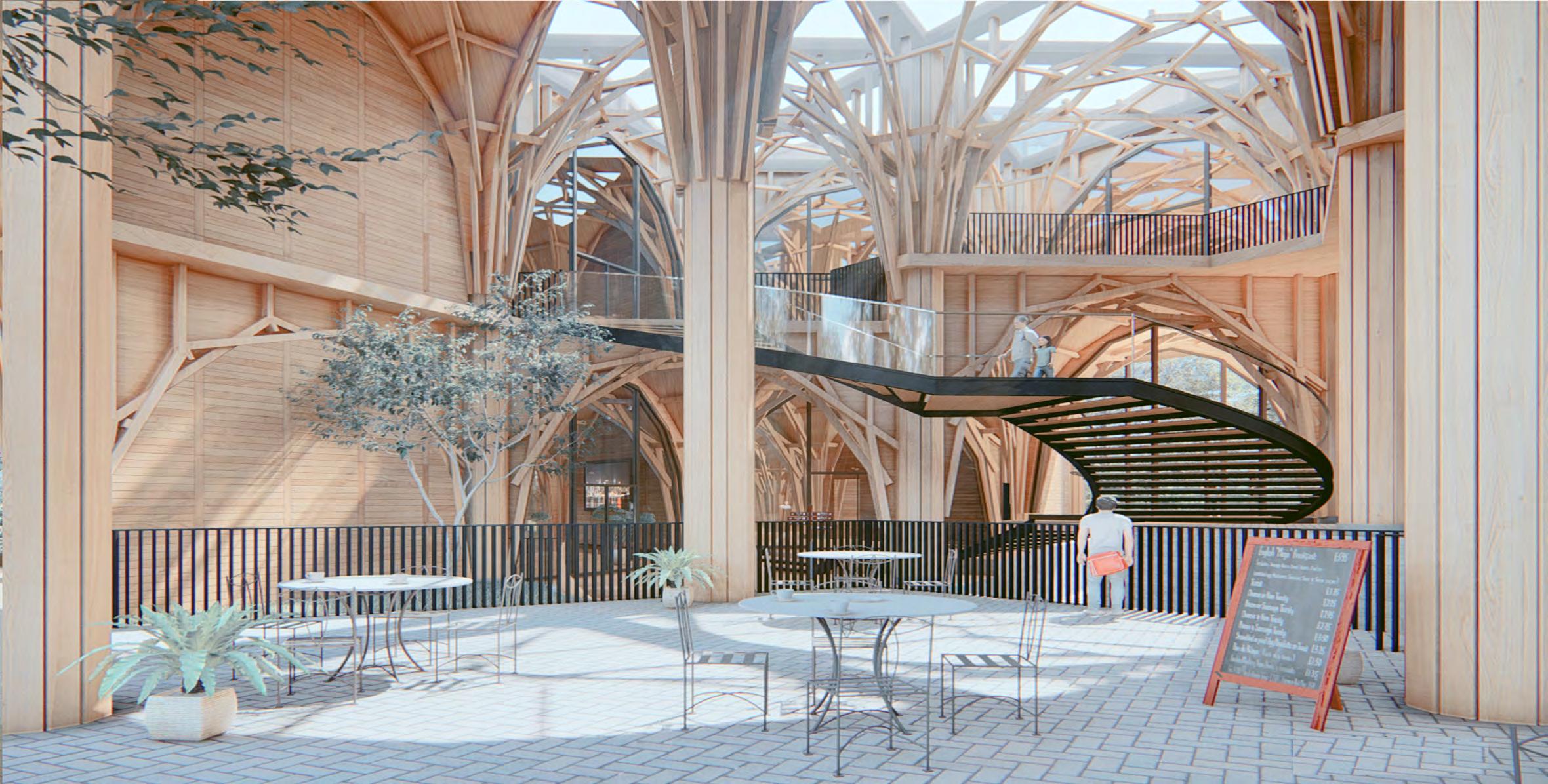

The various exhibition spaces are organised as a whole through a vertical pathway that runs from end to end. Through the core tra c space, the exhibition space is dispersed to functional spaces in di erent directions and at different heights, forming a spatial pattern that is both dispersed and linear.

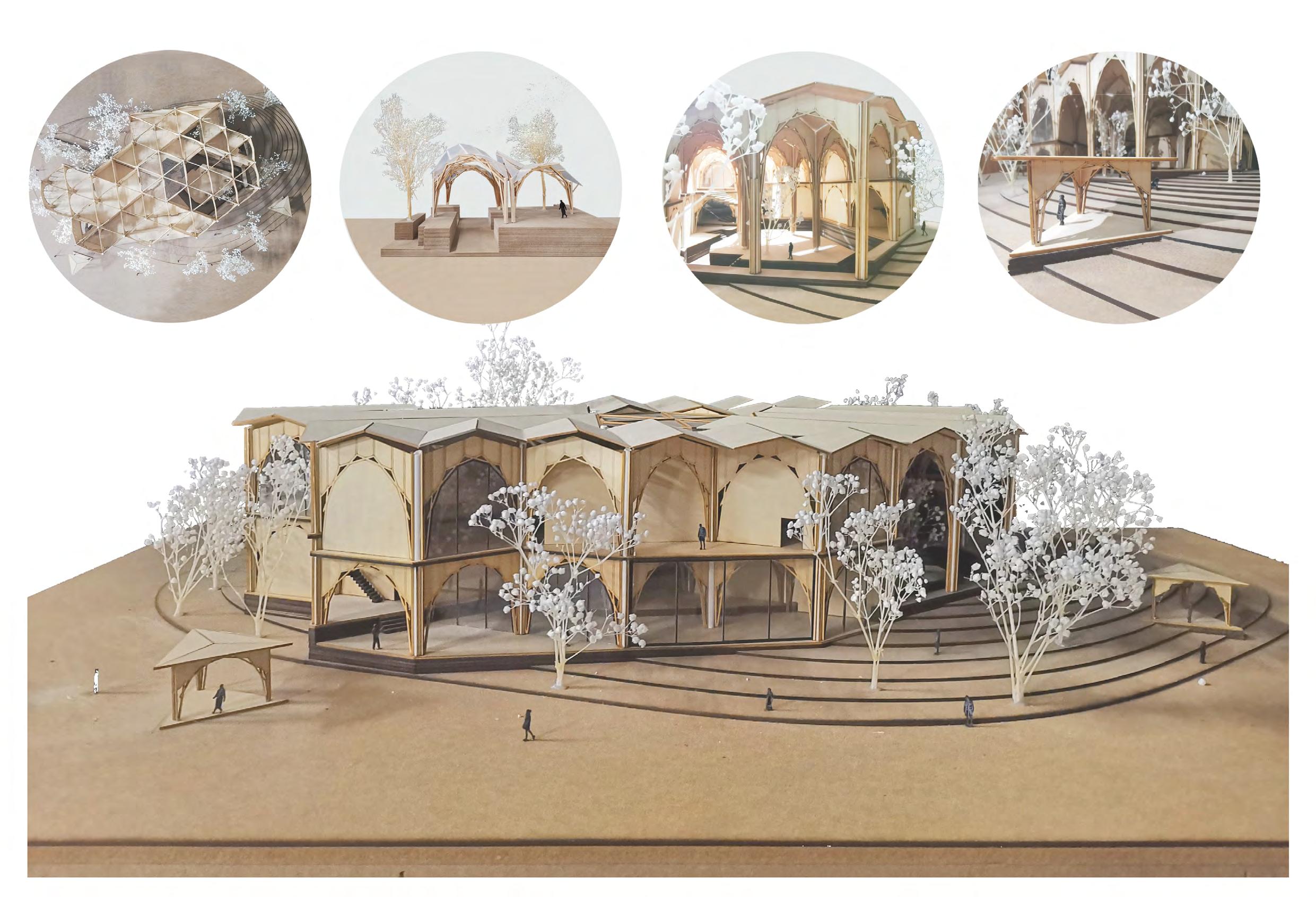

MANUAL MODEL

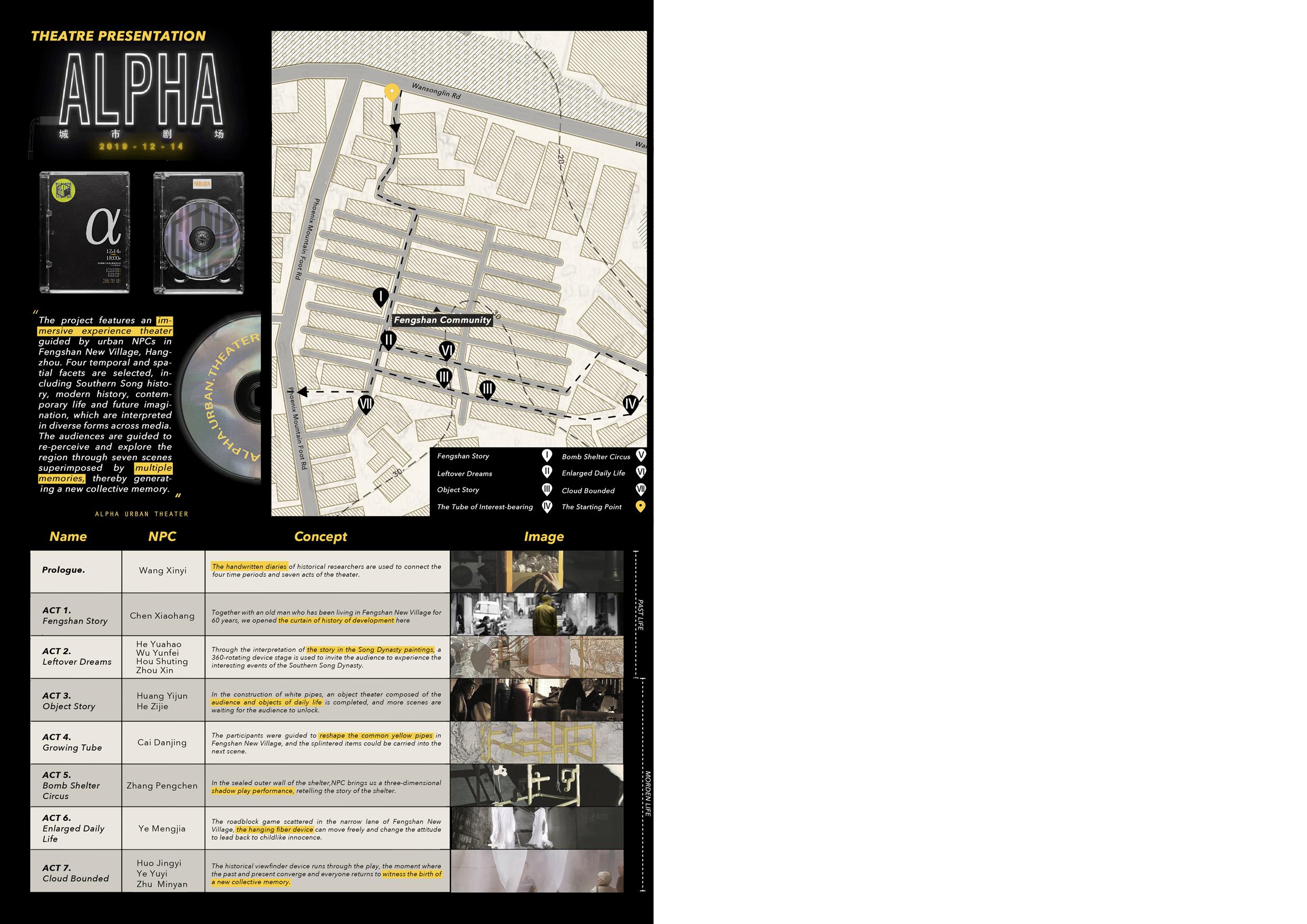

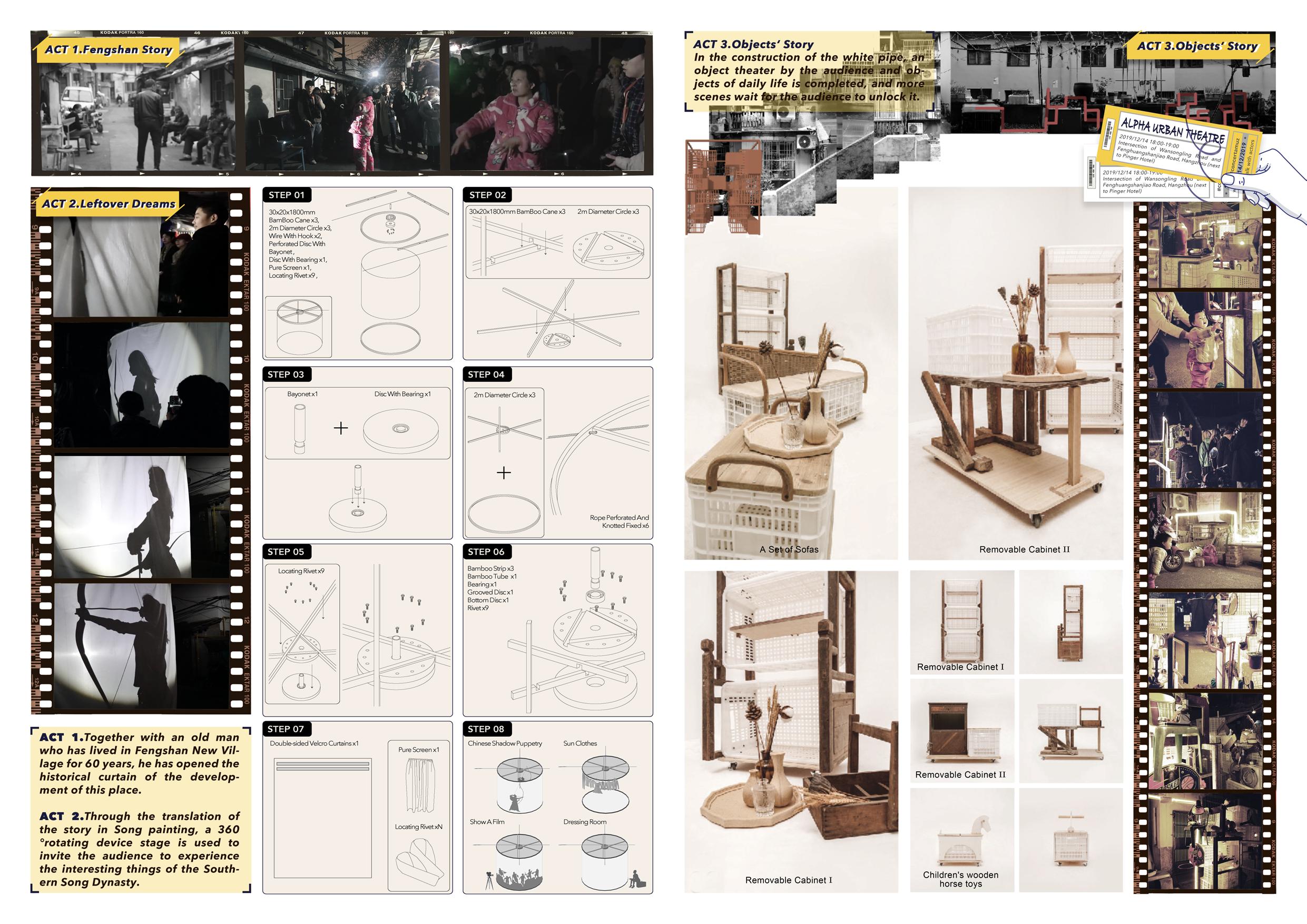

- LEFTOVER DREAMS -
In this act，Audience were invited to experience the interesting events of the Song Dynasty, shoot ing an arrow. We used shadow puppetry to present it.

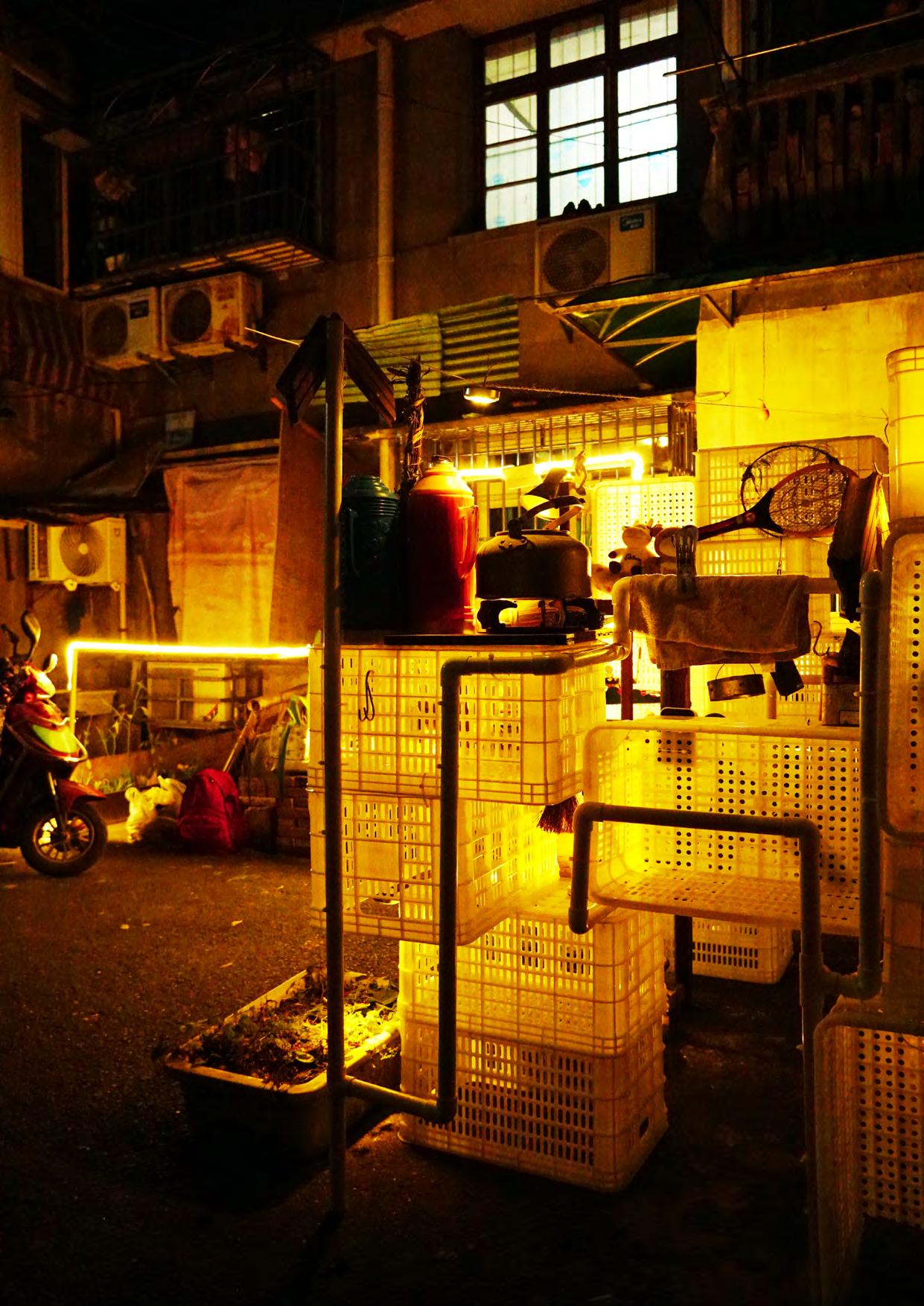

- OLD COLLECTIONS FROM THE COMMUNITY -

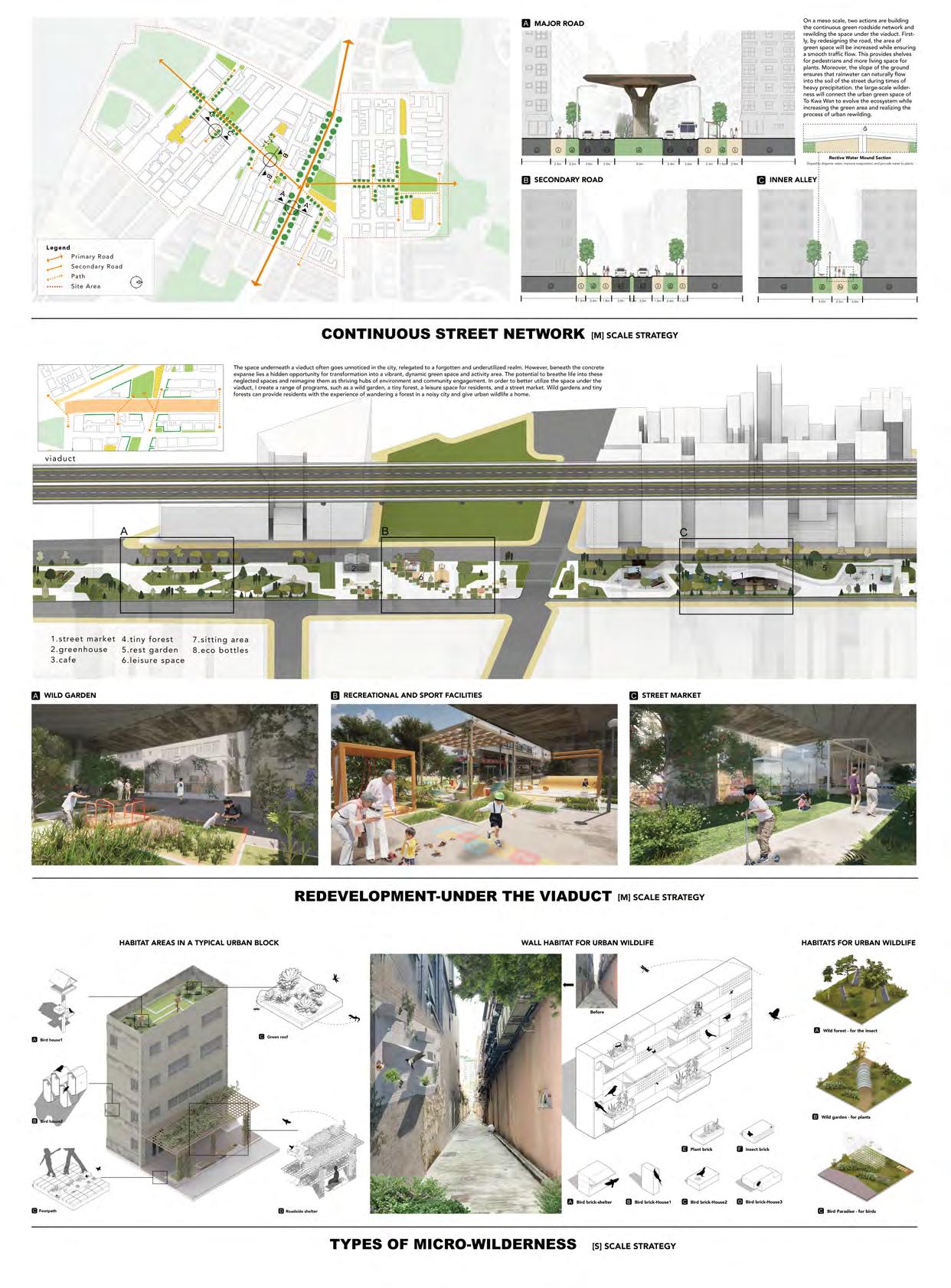

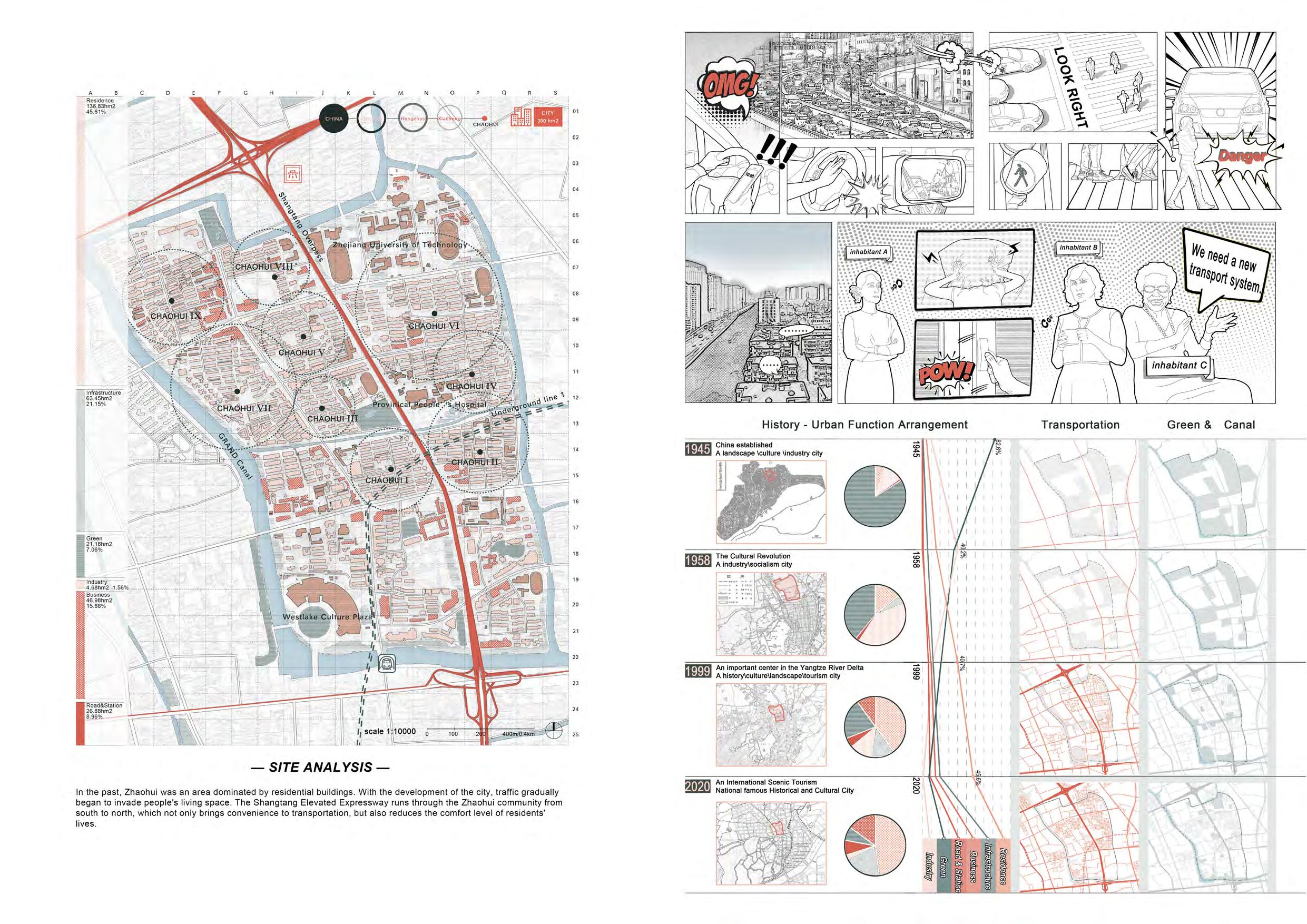

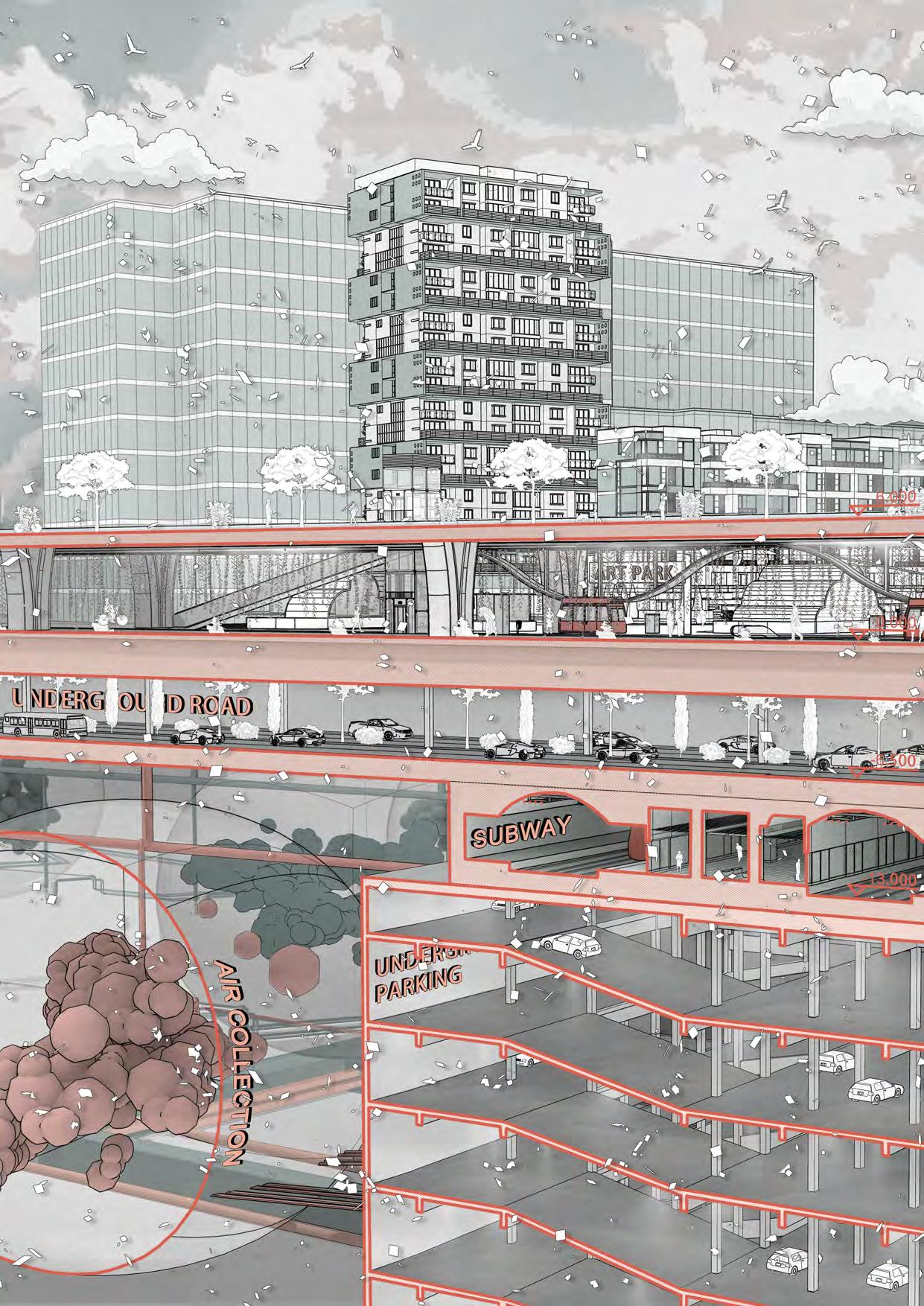

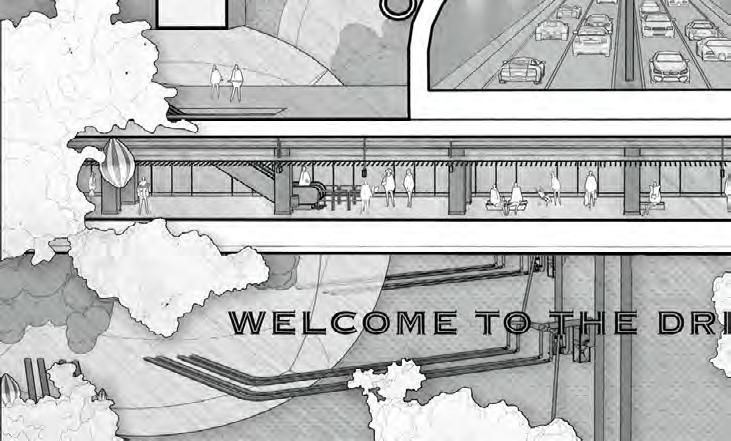

In the past, Chaohui was an area dominated by residential buildings. With the development of the city, traffic gradually began to invade people's living space. The Shangtang Elevated Expressway runs through the Chaohui community from south to north, which not only brings convenience to transportation, but also reduces the comfort level of residents' lives.
