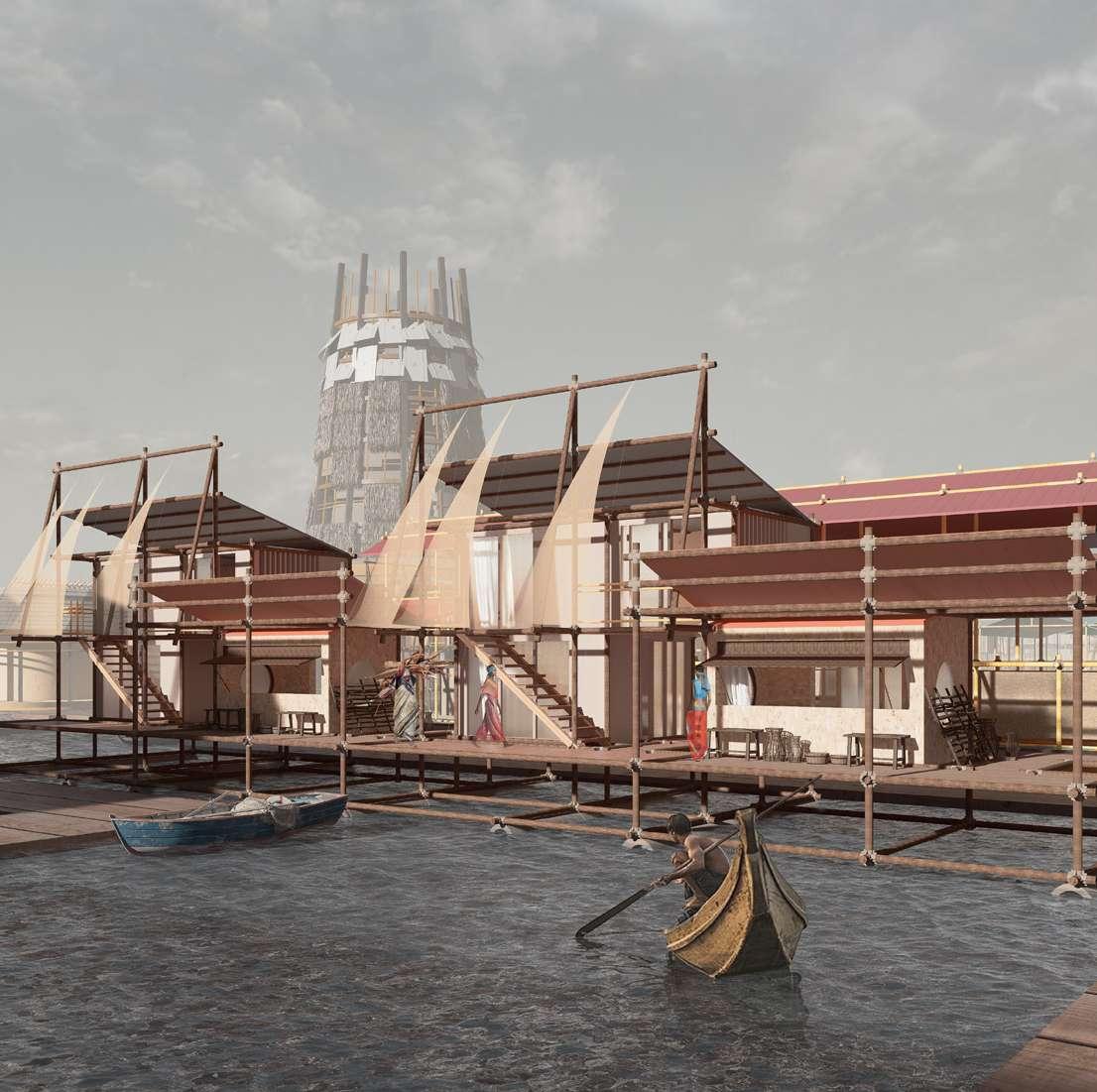

SUSTAINABLE COCONUT ISLAND

Editable Floating Community

Site:Jakarta, Indonesia

Individual Work

2023.11-2024.1

Climate change is a global issue that may seem distant, but proactive measures should be taken to mitigate its potential impacts. This project envisions a hypothetical scenario where Jakarta, Indonesia, could face challenges of land submersion due to rising sea levels caused by climate change by the year 2100. As the world's largest exporter of coconut products, Indonesia generates a significant amount of coconut shells as waste, often burned. However, coconut shells are, in fact, a sustainable and renewable building material.

Simultaneously, we take inspiration from the indigenous maritime community of the Bajo people, utilizing them as a model for sustainable and resilient urban migration. In this context, the goal is to explore innovative methods, leveraging renewable resources such as coconut shells, to establish a more flexible and sustainable urban development model. Through adaptive measures to rising sea levels and the integration of local culture, the aim is to provide a comprehensive solution, laying a solid foundation for the future development of Jakarta.

The Guardian

CLEVER COCONUT TREE

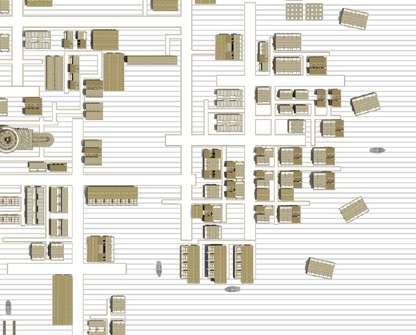

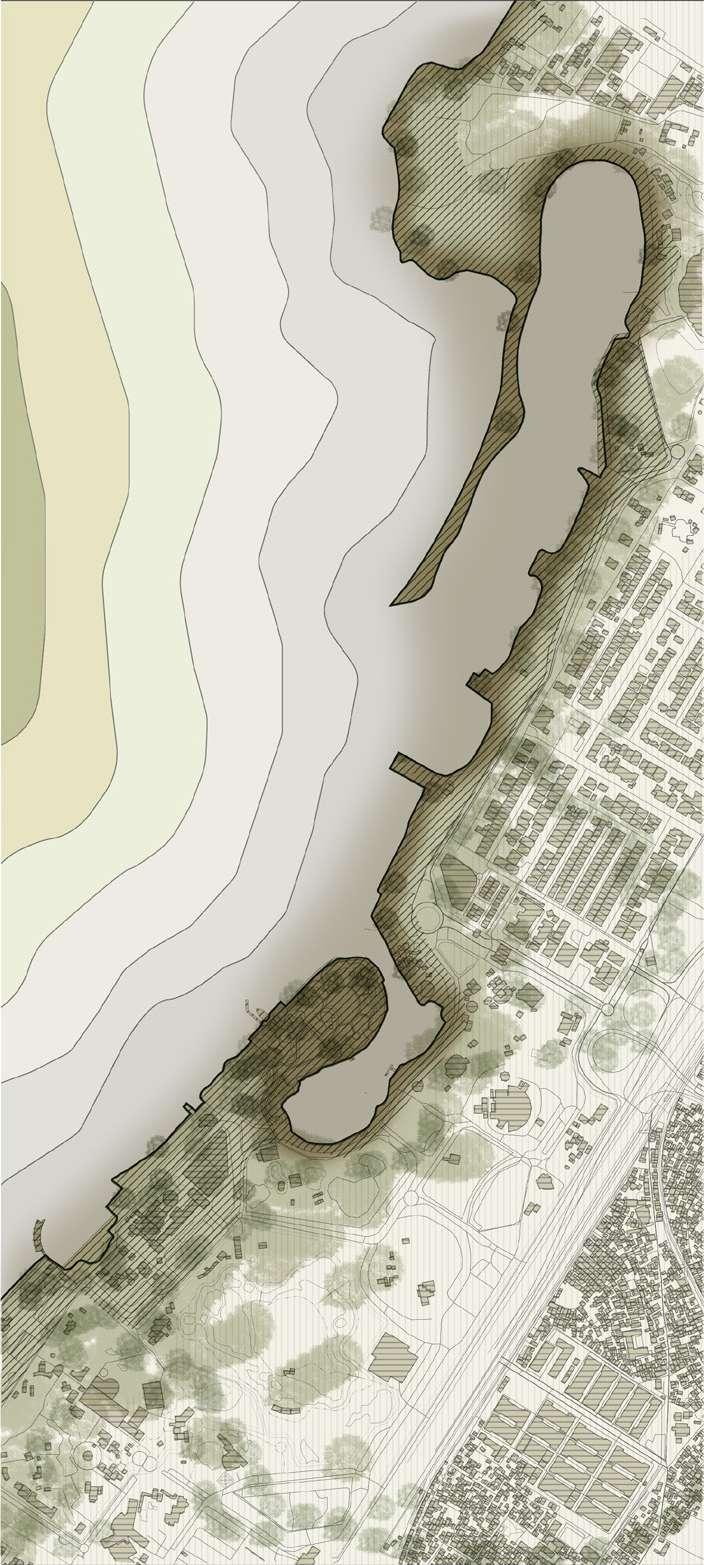

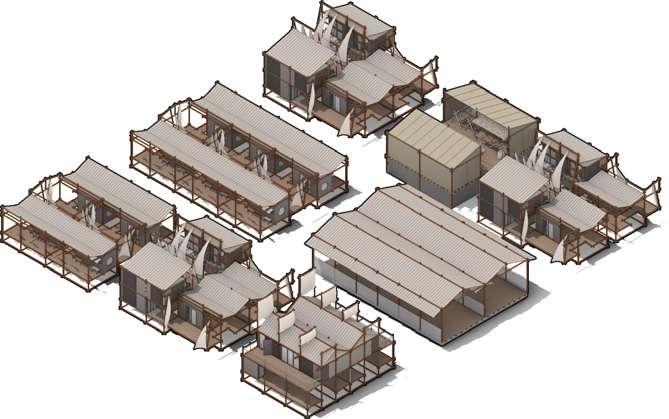

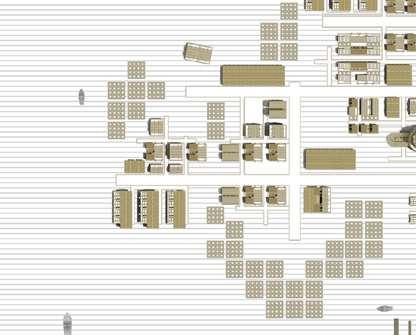

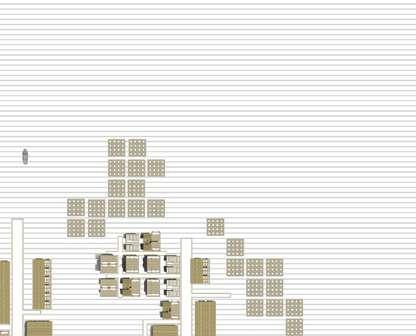

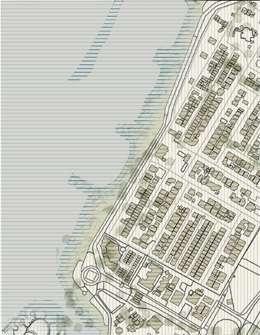

FUNCTIONAL AREA GENERATION LOGIC MASTER PLAN

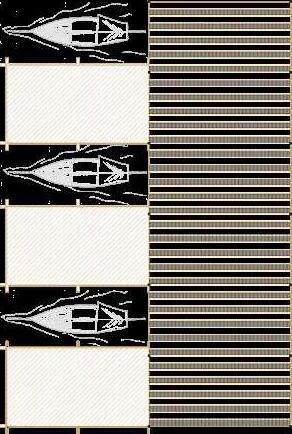

LEARNING LIKE THE BA YAO ETHNIC GROUP

RESEARCH ON RESIDENTS' LIVING HABITS MODULAR BLOCK GENERATION LOGIC

Utilizetheecosysteminwaterbodiestoprovidea growthenvironmentforfish,whilealsoproviding thenutrientsneededforcropgrowth.

AGRICULTURE(FISHING,PLANTING)

POWERPLANT

Theuseoftidalmotiontogenerateelectricity ensuresstableproductionoperations

ECONOMICINDUSTRIALZONE(PROCESSING,MARKET)

Centralizedmanufacturingandproductionbusiness areas,ensuringcoordinationandcooperationbetween differentindustriesandservices

Convenientforworkingpeople toquicklyaccessservices

ASSEMBLYSPACE(GATHERING,PRAYING)

Storage

PUBLICAREAS(EDUCATION,HEALTHCARE,PARKS)

facilities,Providebasicfacilitiessuchasschoolsandmedical activitiesutilizeopenoceanspacesforcommunity andculturalperformances.

POWERPLANT

ECONOMICINDUSTRIALZONE(PROCESSING,MARKET)

WATERRESOURCESCENTER

Microfiltration disinfection

Coarsescreening

market,Residentscanquicklyreachthe convenienceandlandhasimprovedthe ofresidents

sewage

sewageAbsorbseawaterandcollectdomestic fromresidentstopurifyitinto purewaterandcollectitforcirculation.

Utilizingwindpowergeneration andstoragetoachievesustainable electricityconsumption

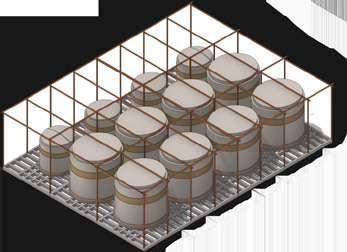

WATERCOLLECTIONDEVICE

Responsibleforstoringfilteredwater toavoidwatershortagesduringpeak periodsfordomesticuse

moreBeingclosetolandmakesthetransportationofgoods convenient.Promotedeconomicexchangebetween maritimecitiesandland. Efficientandcompactstructurethatintegrates residentialareasandreducestransportation demand.

andTheportareathatprovidescargohandling,warehousing, logisticsservicesservesasakeynodefortrade betweenthecityandotherregions.

RESIDENTIALSOCIALIZING

PUBLIC SERVICE AREA

Ensure that residents in public service areas have convenient access to various public services.

PRODUCTION AND PROCESSING AREA

This area is used for industrial and production activities and requires convenient transportation and logistics networks to support production activities.

ROOF DETAIL DRAWING

COCONUT MATERIAL

This area is mainly used for residential purposes, emphasizing the quality of life and convenience of residents.

ECONOMIC MARKET ZONE

This area is the commercial and economic center of the city, and the core of its commercial activities and economic development.

The roof is equipped with solar panels, which can meet the electricity needs of households, and the excess is stored in household batteries

RAINWATER COLLECTION AND RECYCLING SYSTEM

SOLAR ENERGY COLLECTION SYSTEM

on

STEP1

STEP2

STEP3

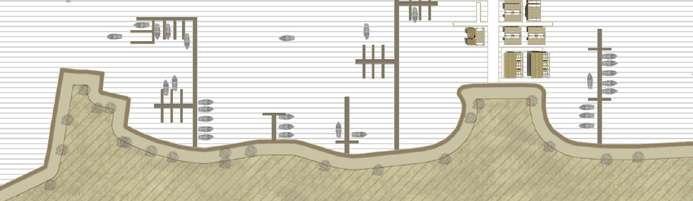

Building the first floating island from a city like the ocean

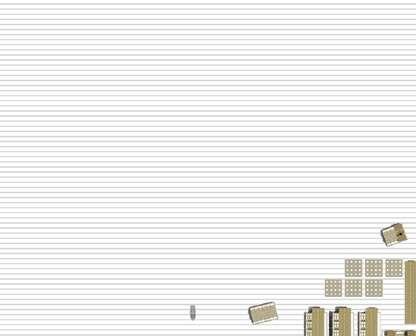

Floating islands slowly fill both sides of the coastline

Floating islands become part of land and attempt to expand outward

RESILIENT +MODULAR

STEP4

Construction process

Starting from local materials

Use Process

Sustainable recognition

Future development

Powerful scalability

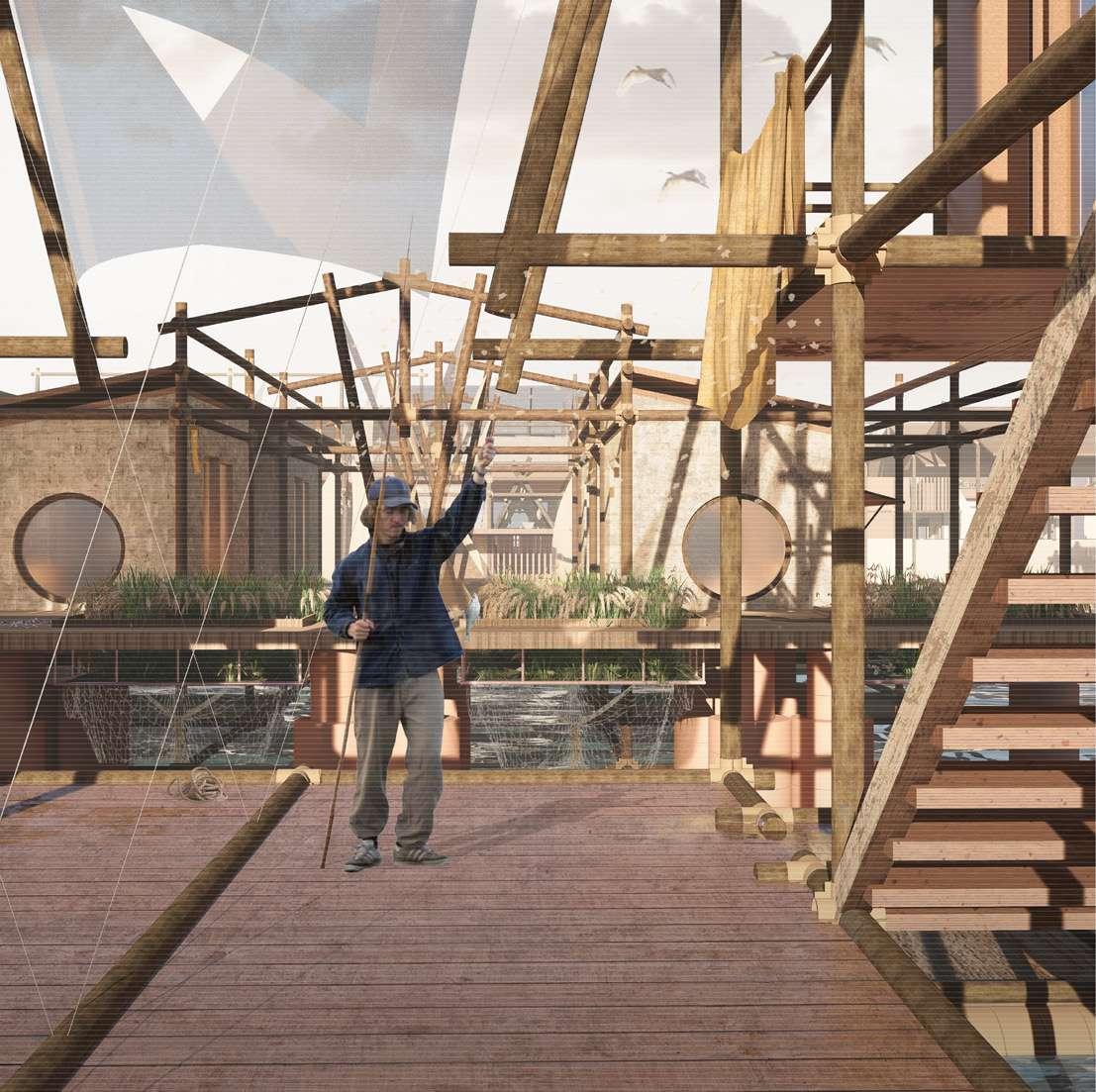

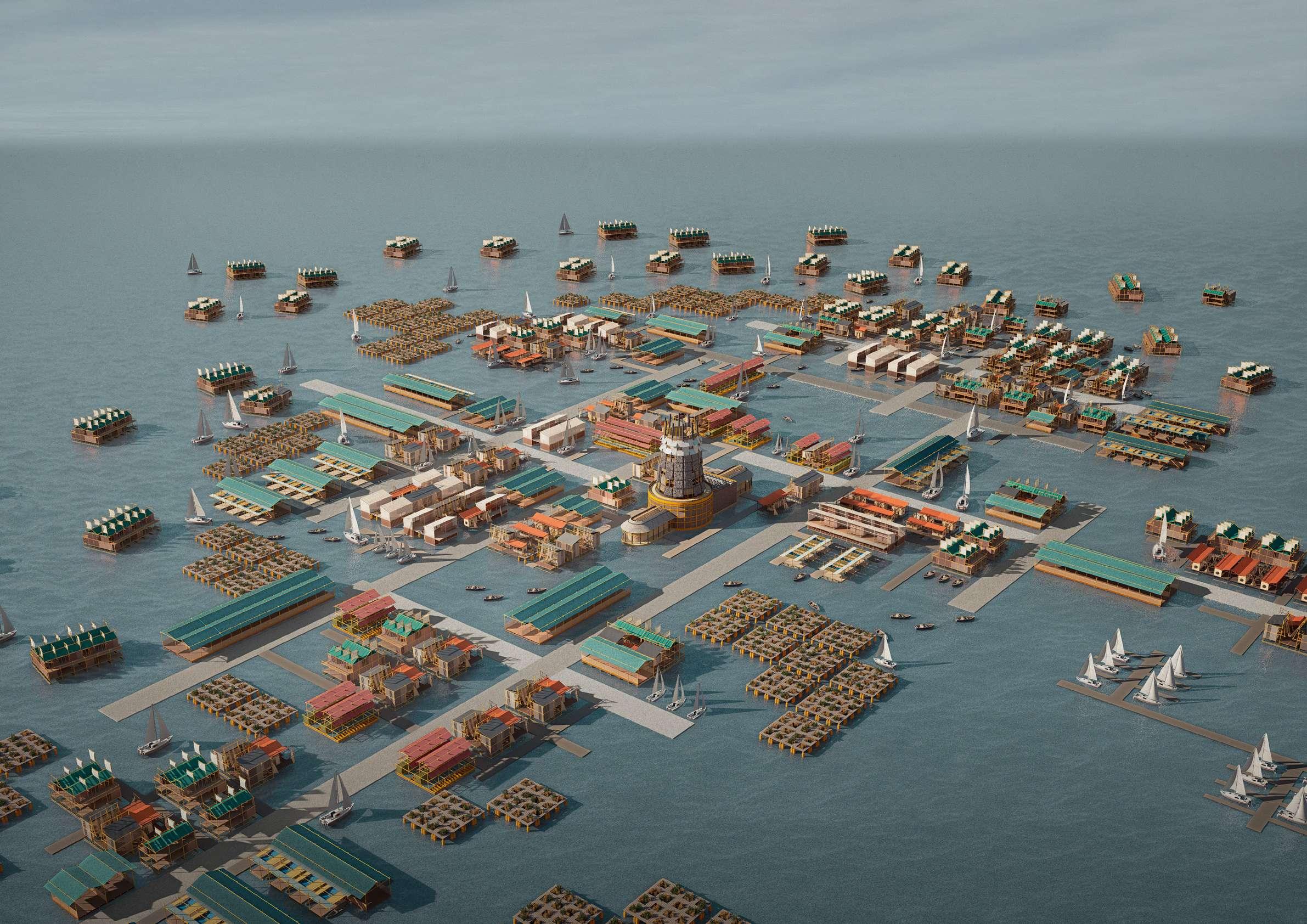

Sustainable Coconut Island Roaming at Sea

SUSTAINABLE COCONUT ISLAND

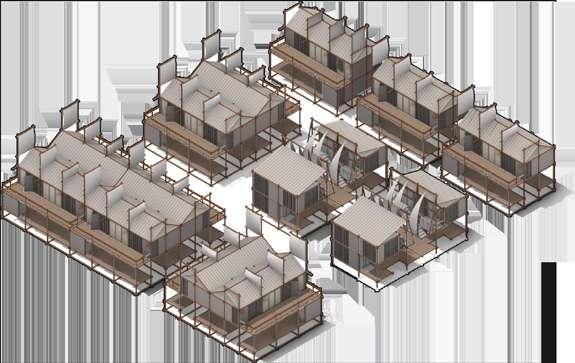

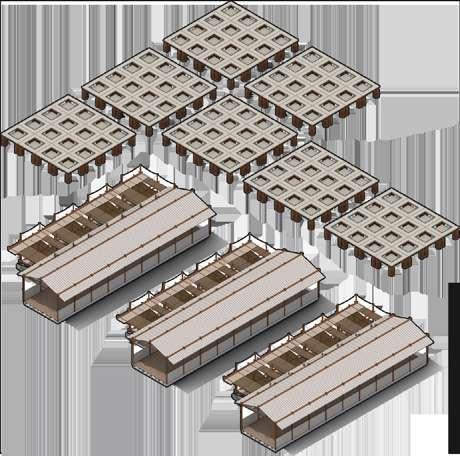

SOCKETS AND EDITABLE

Supporting structure

Detachable

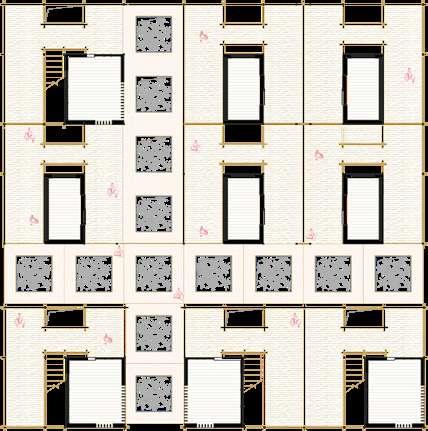

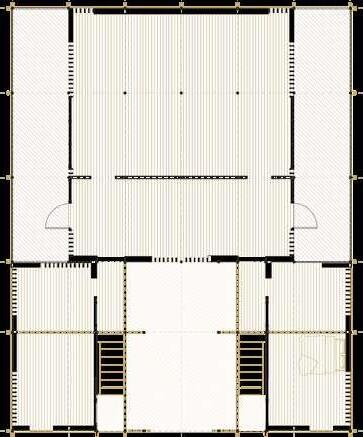

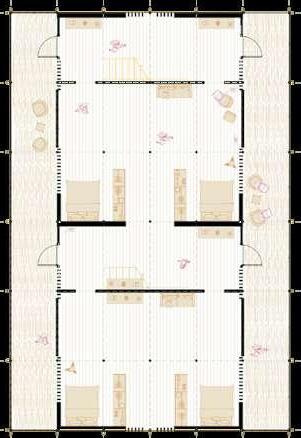

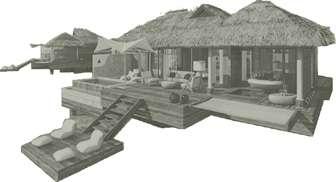

Residential unit

Flexible choice

Public utilities

Match according to needs

Sustainable Coconut Island expands through a "common language" by reusing recyclable materials to expand or shrink space based on population, needs, ecology, and environment. Not only contribute to the well-being of residents, but also contribute to the sustainable development of ecology.

02

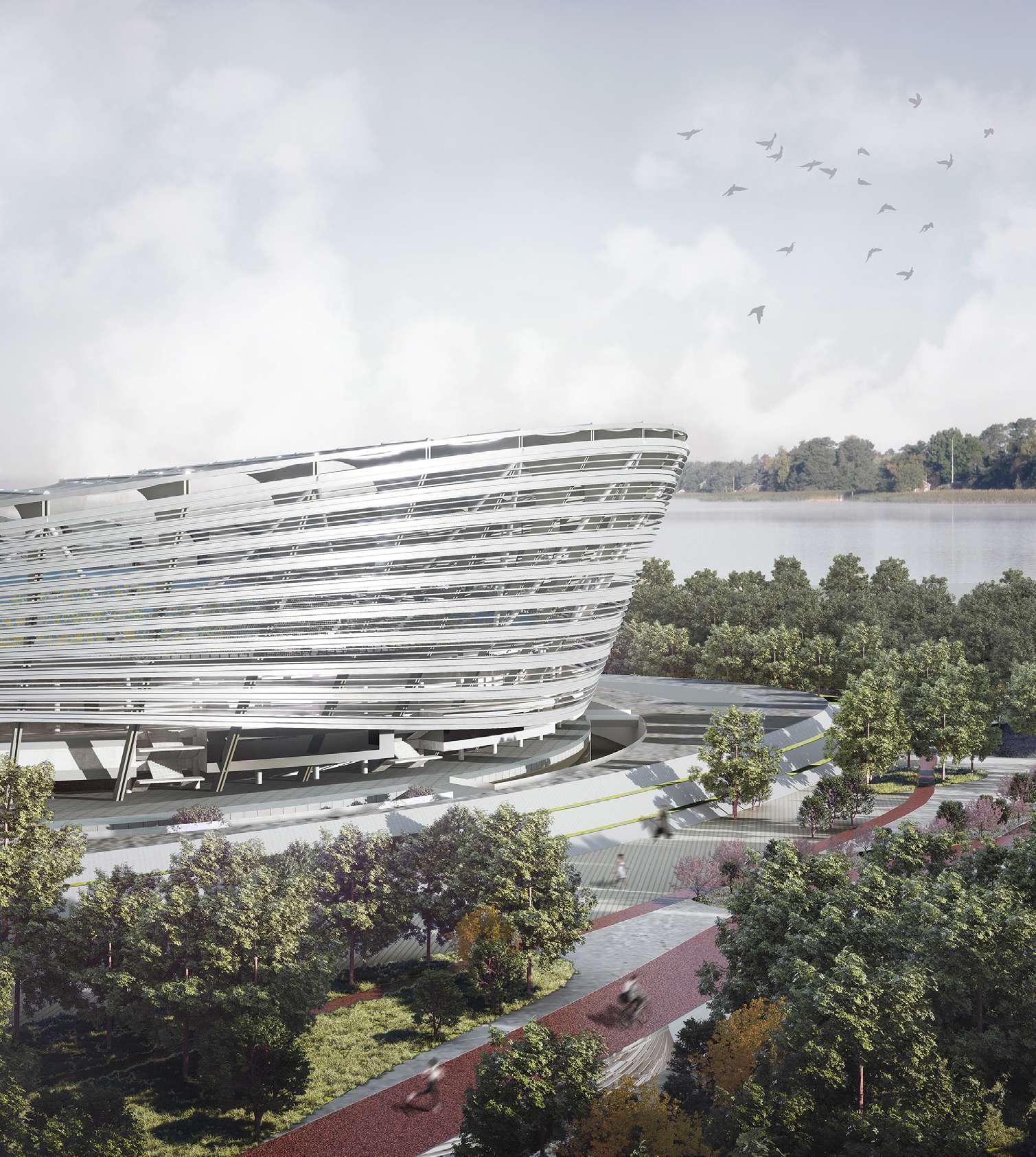

RIPPLING

Design Of Long Span Buildings

Site:Hangzhou, China

Individual Work

2023.06-2023.09

The project is located by the Qiantang River in Hangzhou. For people living in the south of the Yangtze River, the rainy climate is a headache, which also makes it difficult for spectators to watch sports events on rainy days. Therefore, I started by studying the structure, material and mechanical properties of umbrellas, which are essential for people in rainy days, to find the commonalities of umbrellas.

On this basis, I used the light weight and toughness of umbrella bones to construct the opening and closing structural system of the stadium cover. In studying the structural system, I applied machine learning methods such as KARAMBA Mechanical Analysis and OCTOPUS Multi-Objective Optimisation to ensure the rationality and optimality of the generated building structure.

This system is flexible and collaborative, allowing for freer opening and closing in all weather conditions, allowing the venue to host events and even concerts in all weather conditions.

ANALYSIS OF THE THEORETICAL

Henri Lefebvre believes that space is constructed by human perception and experience, and is an important component of human culture. He also believes that different types of space are interrelated and together constitute human spatial experiences.

Matthias Weischer believed that space is constructed by human perception and experience, and is an important component of human culture. He also believes that different types of spaces are interrelated and together constitute human spatial experiences.

Gaston Bachelard emphasizes that space is not only the location of physical entities, but also a spiritual place that can influence human emotions and consciousness, and can be expressed and explained through poetry, art, and science.

Solid Centre

Gaston Bachelard emphasizes that space is not only the location of physical entities, but also a spiritual place that can influence human emotions and consciousness, and can be expressed and explained through poetry, art, and science.

Operational Difficulty

Openness

City Stadium

Open External Space Facilities

Emphasize Internal Venue Experience Change

Efficient Planar Organization

Flexible Spatial Layout Diversity

SPACE ENVIRONMENT

SPACE ENVIRONMENT

Ancillary Space

Breaken Public Space

Contact

The completed large-scale sports building is a entity for the external space,separating the internal and external activities.

The completed large-scale sports building is a entity for the external space, separating the internal and external activities.

Public spaces are attached around the venue, which may be small sports centers or leisure spaces, and they may be idle

Public spaces are attached around the venue, which may be small sports centers or leisure spaces, and they may be idle

Void Centre

Positive Connect

When alarge volume is insented into an open playground,the open space is compressed into a ring

When alarge volume is insented into an open playground,the open space is compressed into a ring

Negative Barriers

Solid Centre Ancillary Space Breaken Public Space Negative Barriers

After a building becomes an immortal entity, it becomes a symbolic center.

After a building becomes an immortal entity, it becomes a symbolic center.

A transparent space,inside and inside,inside and outside can be seen each other

A transparent space, inside and inside,inside and outside can be seen each other

1.Sightlines for seated spectators

Typically the nearest touchline, or outside lane of running track, or boundary of area of activity

Point of focus

Key to diagram:

X: Distance from viewpoint

Y: Height from viewpoint

K: Number of rows within a segment

At the same time, this is a closed ring, and the line of sight and moving line are blocked ,and such a narrow and narrow space is not conducive to stimulating communication and activities.

At the same time, this is a closed ring, and the line of sight and moving line are blocked ,and such a narro space is not conducive to stimulating communication and activities.

Seperation Attribute Spatial Continuity

A sports and public sports stadium usually has a portion raised and another portion sunk underground

Void Centre Positive Connect Seperation Attribute Spatial Continuity

A sports and public sports stadium usually has a portion raised and another portion sunk underground

Using ramps instead of flat surfaces in internal public spaces can increase coherence and openness

DESIGN PROCESS: VISION AND ERGONOMICS

ANALYSIS OF THE SIGHT OF SITTING AUDIENCES

C: Line of sight rise value C

Using ramps instead of flat surfaces in internal public spaces can increase coherence and openness X

2.Sightlines for wheelchair users

If spectators stand, they will, with the exception of the front row, experience a significant deterioration in the sightlines and "C" value. The focal point will move further away, usually into the activity area.

Note:

Designers should consider potential problems for other spectators when viewing from the sides and at high levels For reasons of clarity, all handrails have been omitted from the diagrams

I took inspiration from the umbrella scissor structure and further developed this system to help people better understand the functionality and performance of stadium roofs.

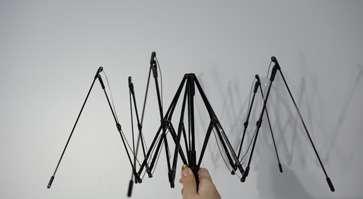

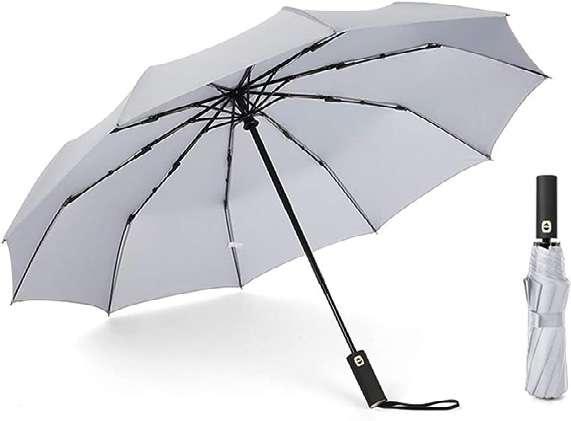

STRUCTURAL COMPOSITION OF THE UMBRELLA

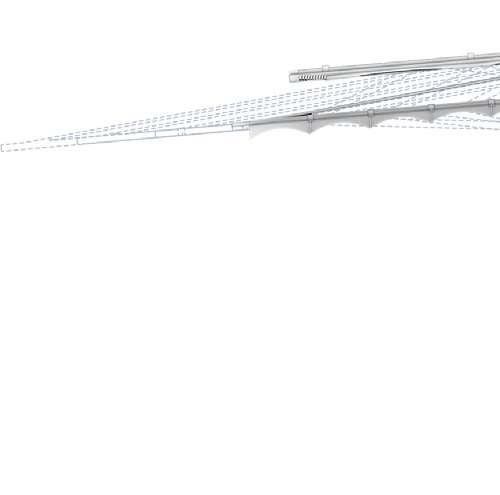

Umbrella opening and closing diagram

1.Fixed bottom

Ensure fixation at the bottom

Structural mechanical properties

skeleton under rain film

Connect the tips. The hinge joint is the maximum stress and deformation point under the action of wind force, and the mechanical performance of the hinge joint is better than that of the welded joint.

Improvement and optimization

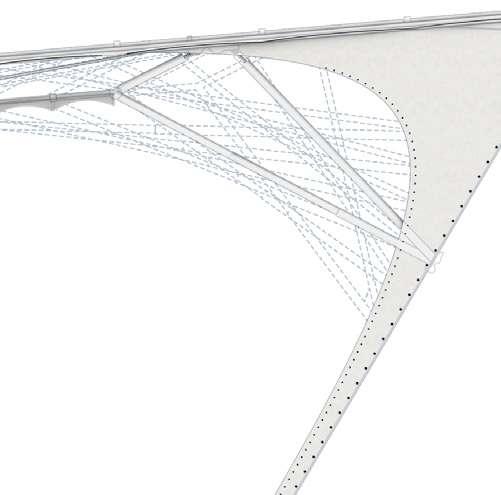

The principle of opening and closing :B slides along shaft toward A, resulting in the deformation of triangle ABb, parallelogram baC,C2 parallelogram cC2dD and E in the plane away from the shaft.

We achieve the opening and closing structure by controlling two points B and C. According to the force analysis, we need to add rods at points C and E to resist tension, and we need to add expandable rods at points B and D to resist pressure.

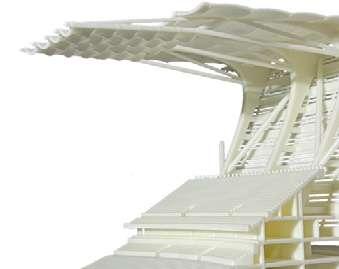

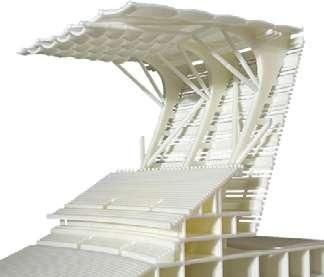

3D PRINTING STRUCTURE DIAGRAM

2.Push the sliding rod

3.Fixed sliding rod

Push the slider to slowly unfold the umbrella surface Ensure that the umbrella surface is fully folded and secure it

Original Structure Optimizing institutions

The distribution of stress is similor for long umbrella ond folding umbrella, with stress concentroled at the intersecion of ribs. The closer to the end of the ribs, the higher the degree of displacement, reaching the maximum at the tip umbrella and folding umbrella, with stress concentroled at the intersecion of ribs. The closer to the end of the ribs, the higher the degree of displocement, reaching the maximum at the tip.

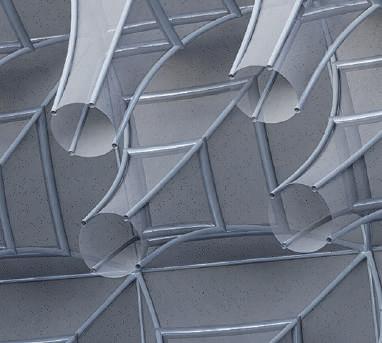

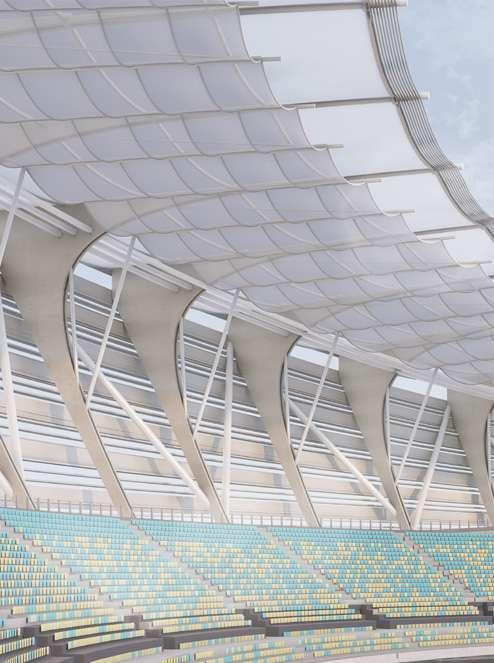

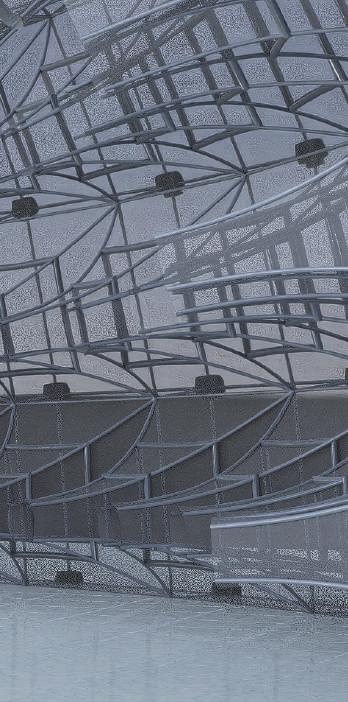

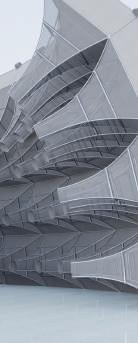

DETAILED STRUCTURE OF THE STADIUM COVER

3 4 5 6

Activity structure

1:Secondary strut

2:Main support rod

Fixed structure

3:Tie rod

4:brace

5:brace

6:Big arm

From the moment they begin to unfold, umbrellas emit a unique magic that transforms outdoor space into indoor space, sheltering from wind and rain.

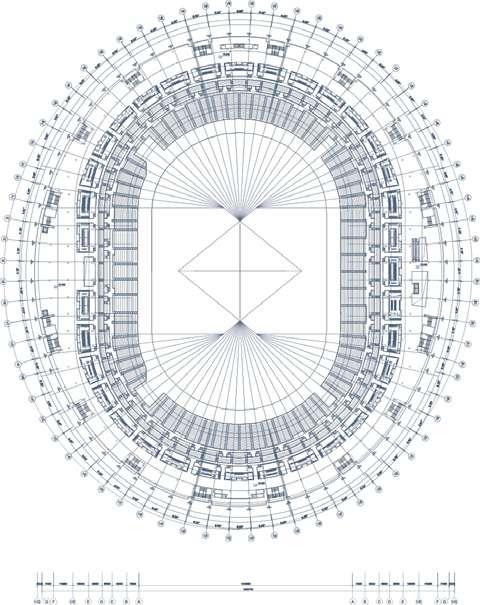

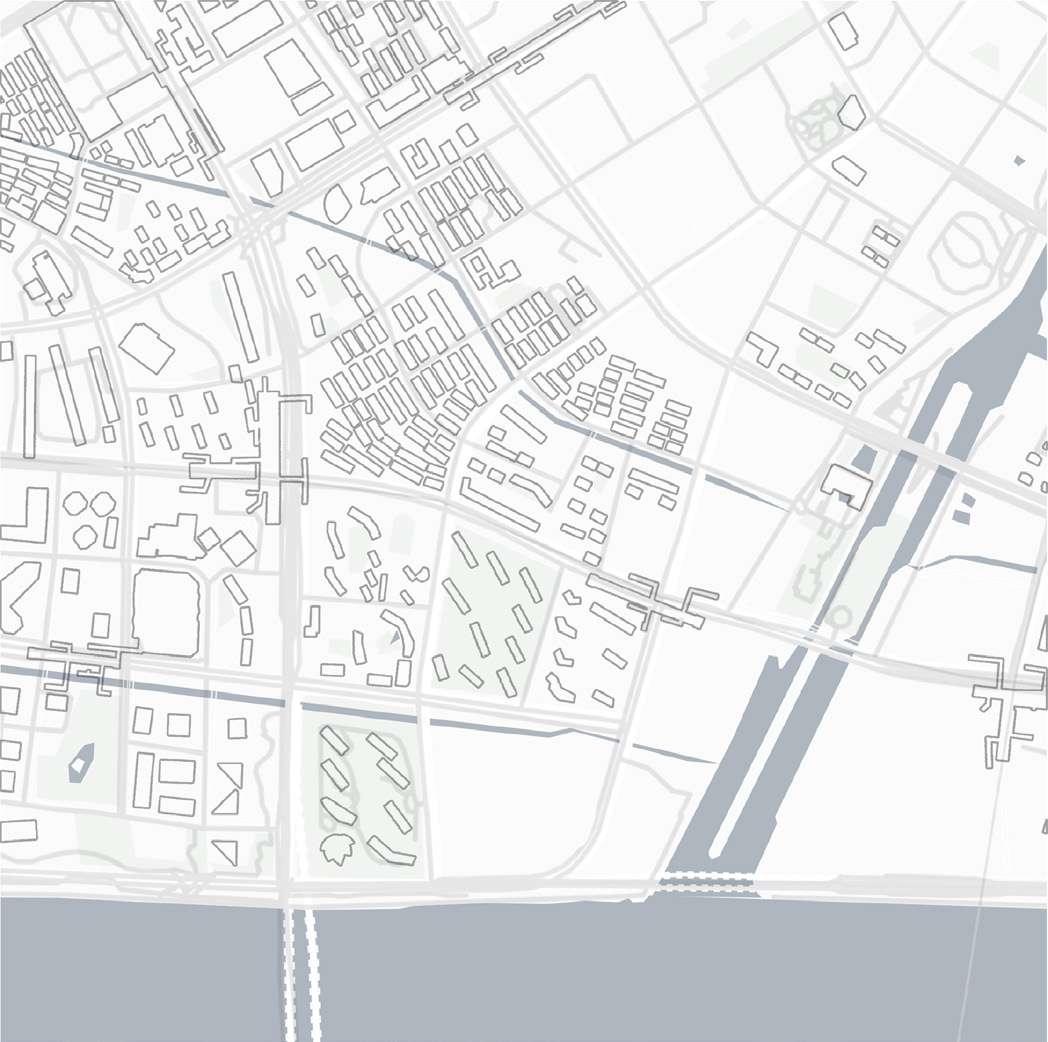

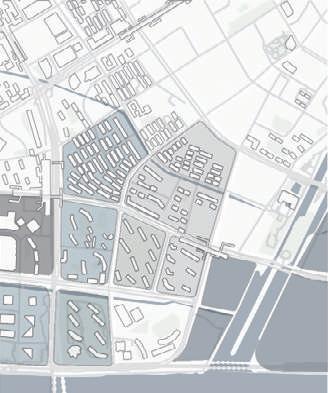

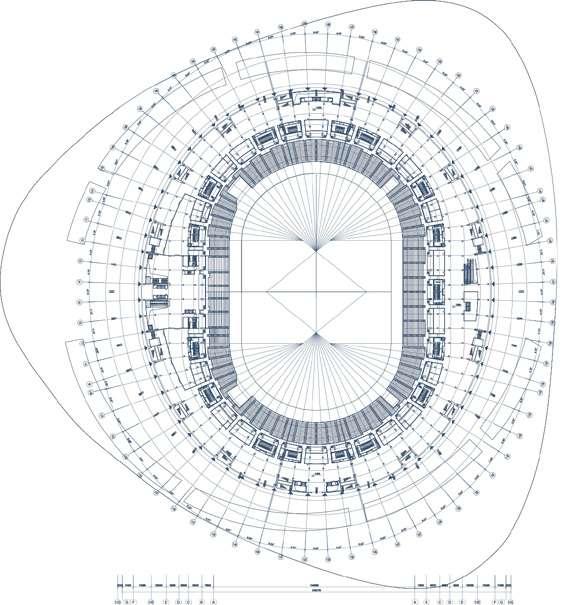

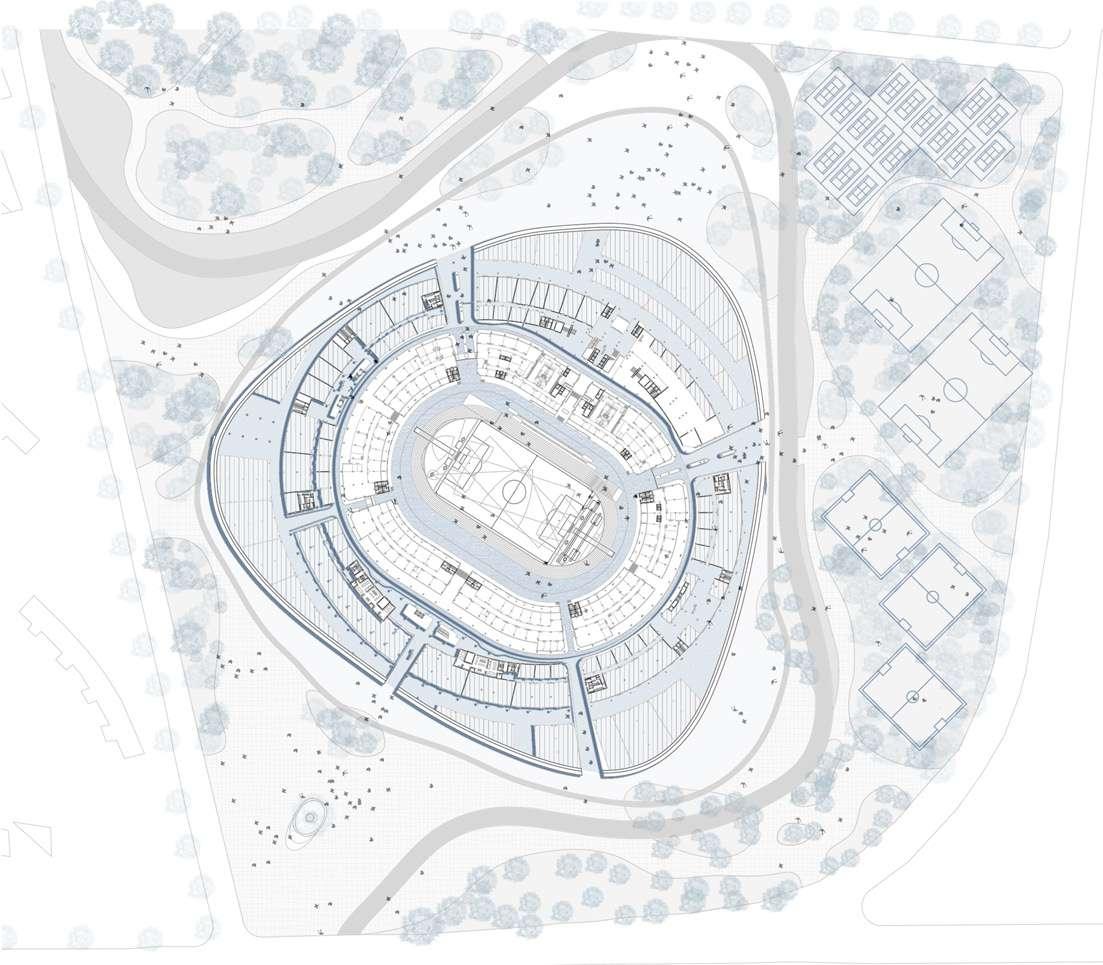

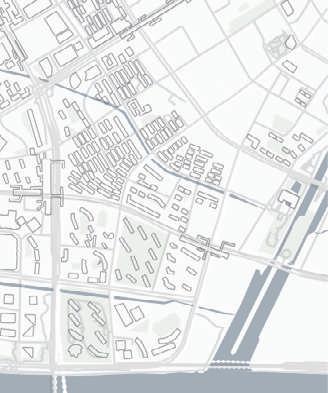

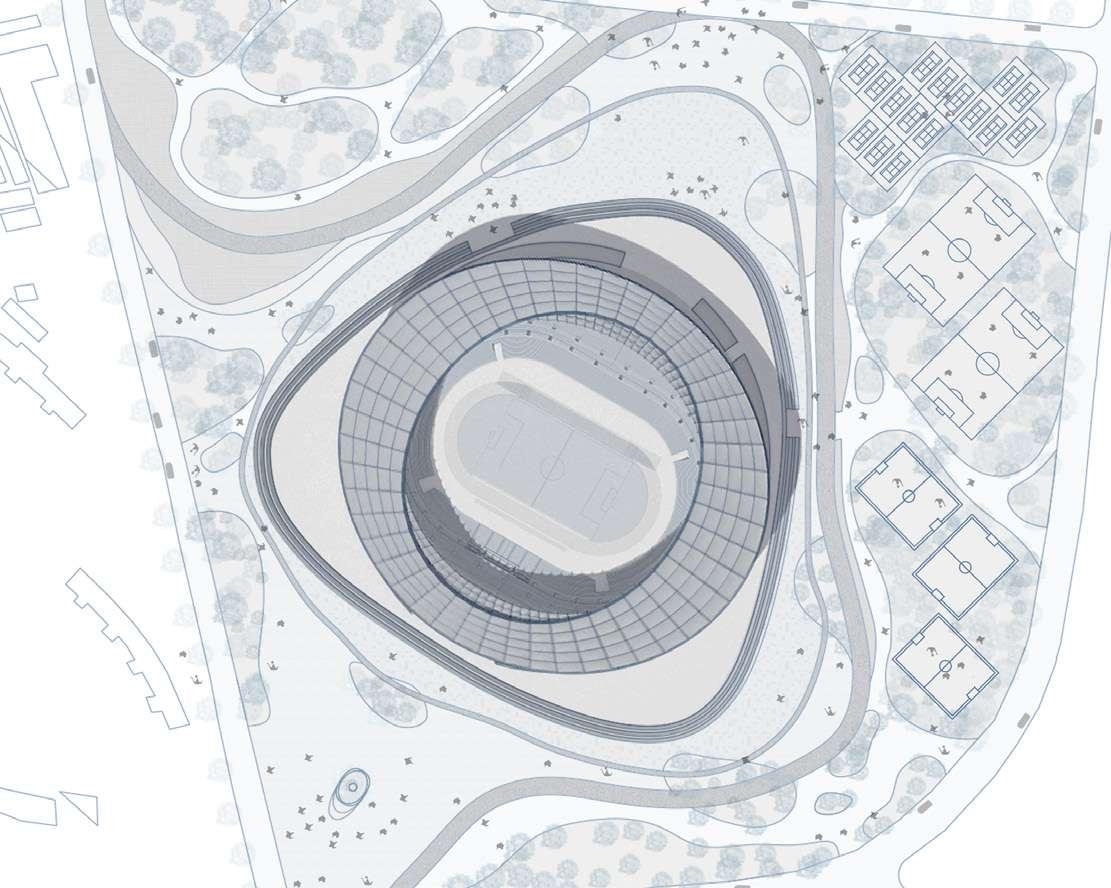

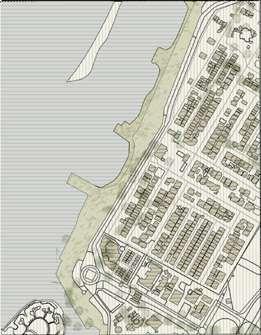

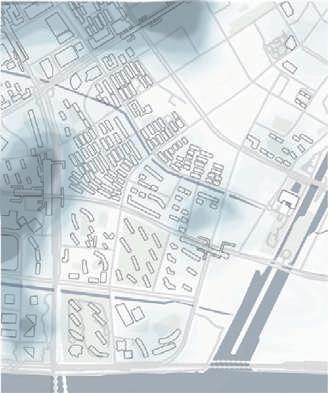

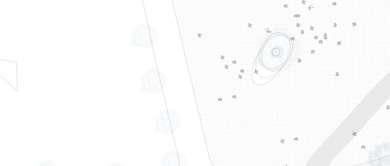

SITE PLAN

There are four traffic flow lines outside the venue - the main entrance on the south side (mainly facing the riverside); The entrance near the residential area on the west side (as well as the entrance for guests); To the north is the main entrance six of the sports stadium; The entrance of the sports field on the east side corresponds to the grassy slopes on the east and west sides of the field. The flat form of the building is a complete disappearance, suitable for a site located in the middle. There is a continuous flow line connecting traffic inside the site. The site is divided into two squares and two evacuation points

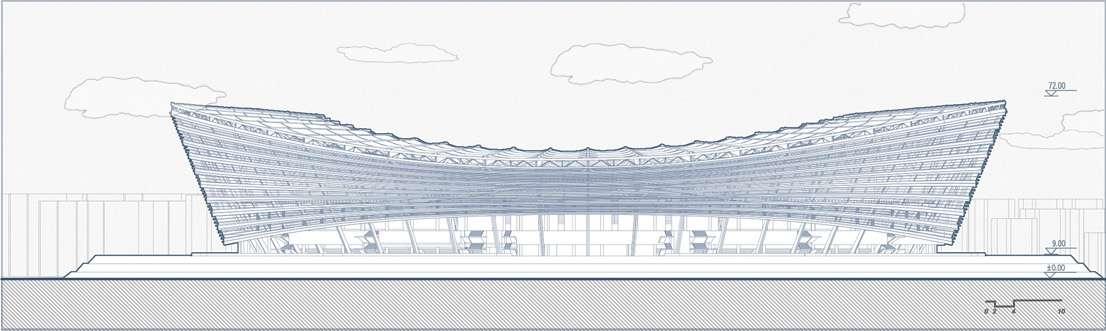

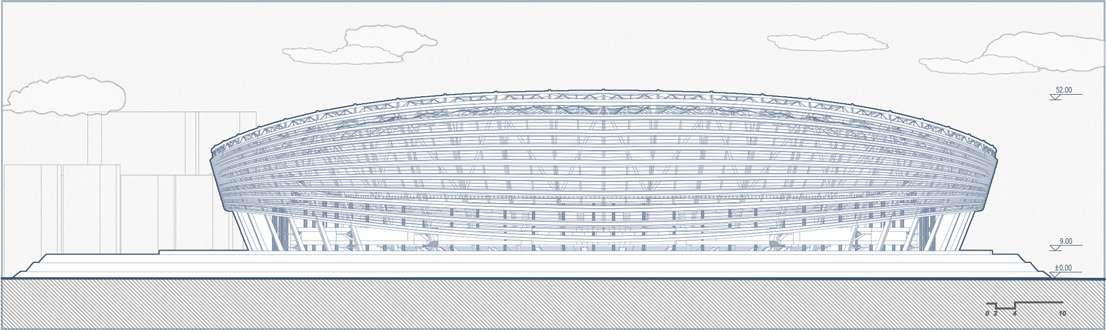

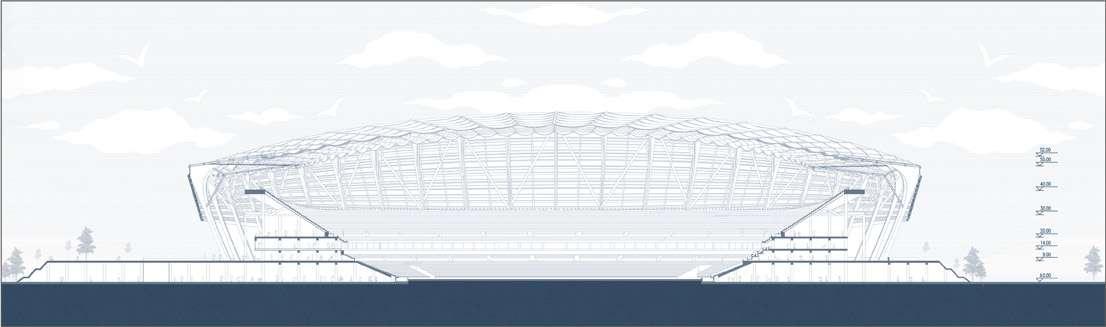

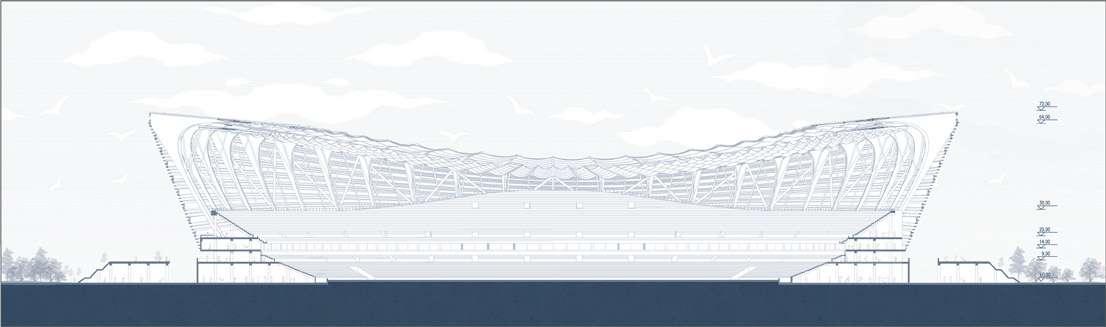

Southwest Facade

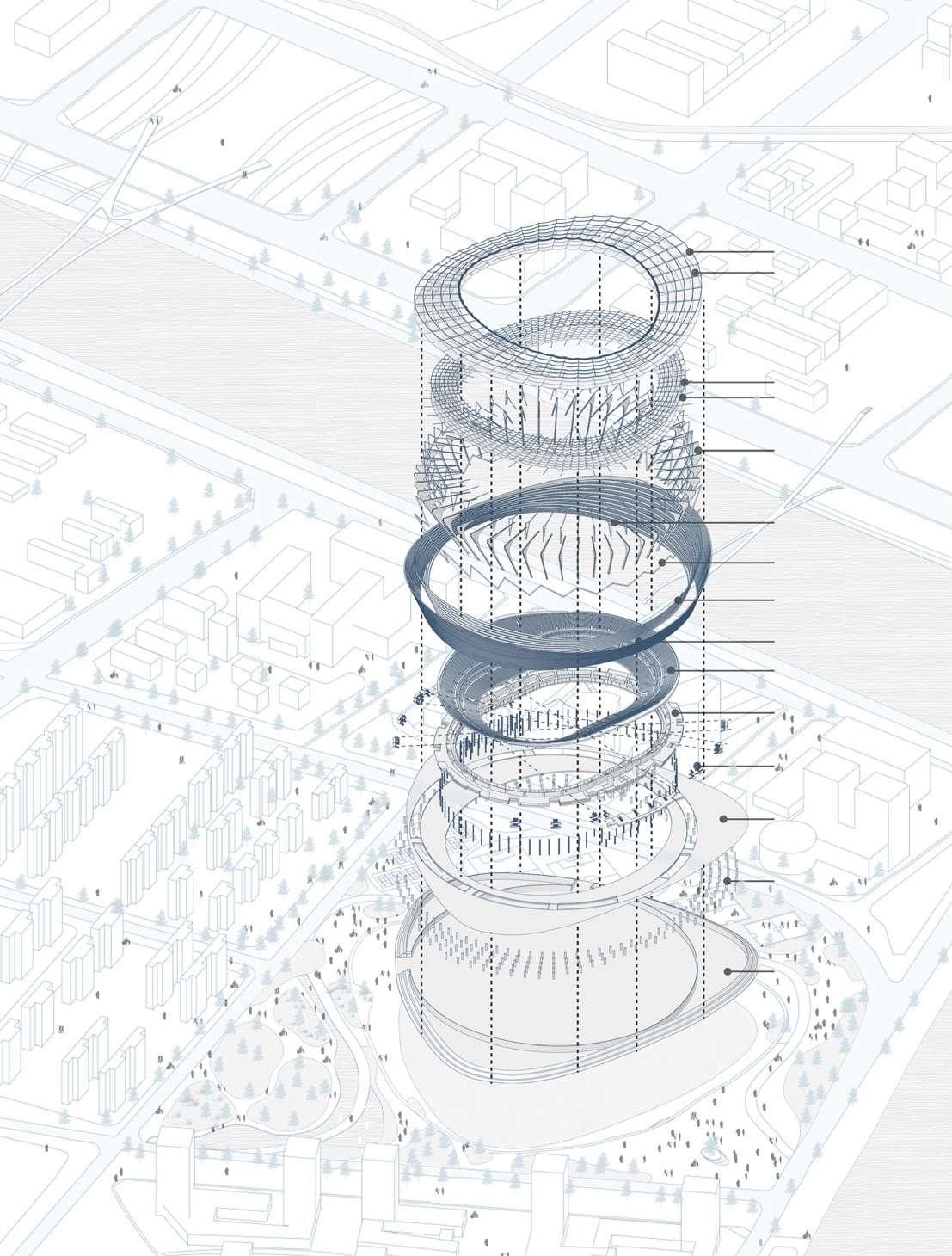

COMPOSITION ANALYSIS DIAGRAM

The continuous spiral space on the ground places crowded activity rooms, businesses, and sports venues below for convenient transportation. These belong to the introverted part. The gym, observation deck, and coffee shop are all built on high ground. Here, it is quieter, with a wider field of vision, and features both introverted and extroverted functionality. The underground part is a reverse spiral space that connects the audience room, athlete changing room, and other auxiliary rooms, with a continuous passage.

Southeast Facade

Stadium Unit: Welcome/Enter

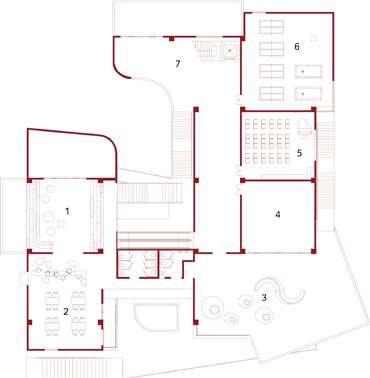

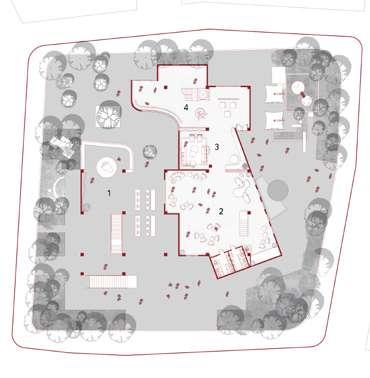

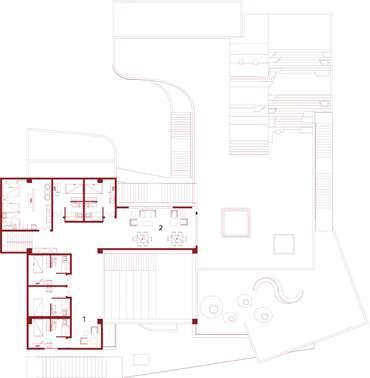

Layout Plan 01

The sports stadium has four entrances, each with a function of connecting different areas. After entering the stadium through these entrances, you can quickly choose the area you want to go to. Like a ribbon that connects all around.

Stadium Unit: Welcome/Watch Layout Plan 02

Second

Circulatory System

Stadium Unit:Features/Viewing Layout Plan 03

Circulate Streamline

There are openings in different directions in the base to connect different functional nodes. As the center, the amusement park weakens the solidified sense of space and creates an active space for traffic gathering.

Raising the base to divert traffic further enhances the continuity of the spatial sequence.

SECTION A-A

SECTION B-B

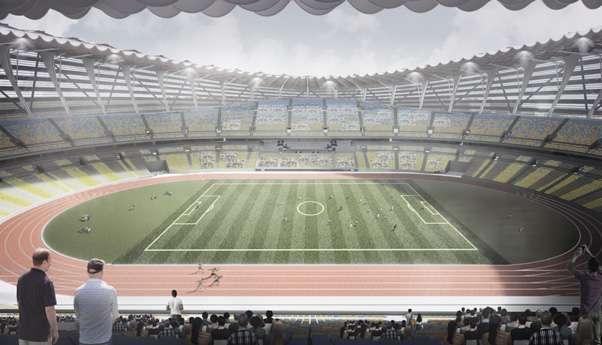

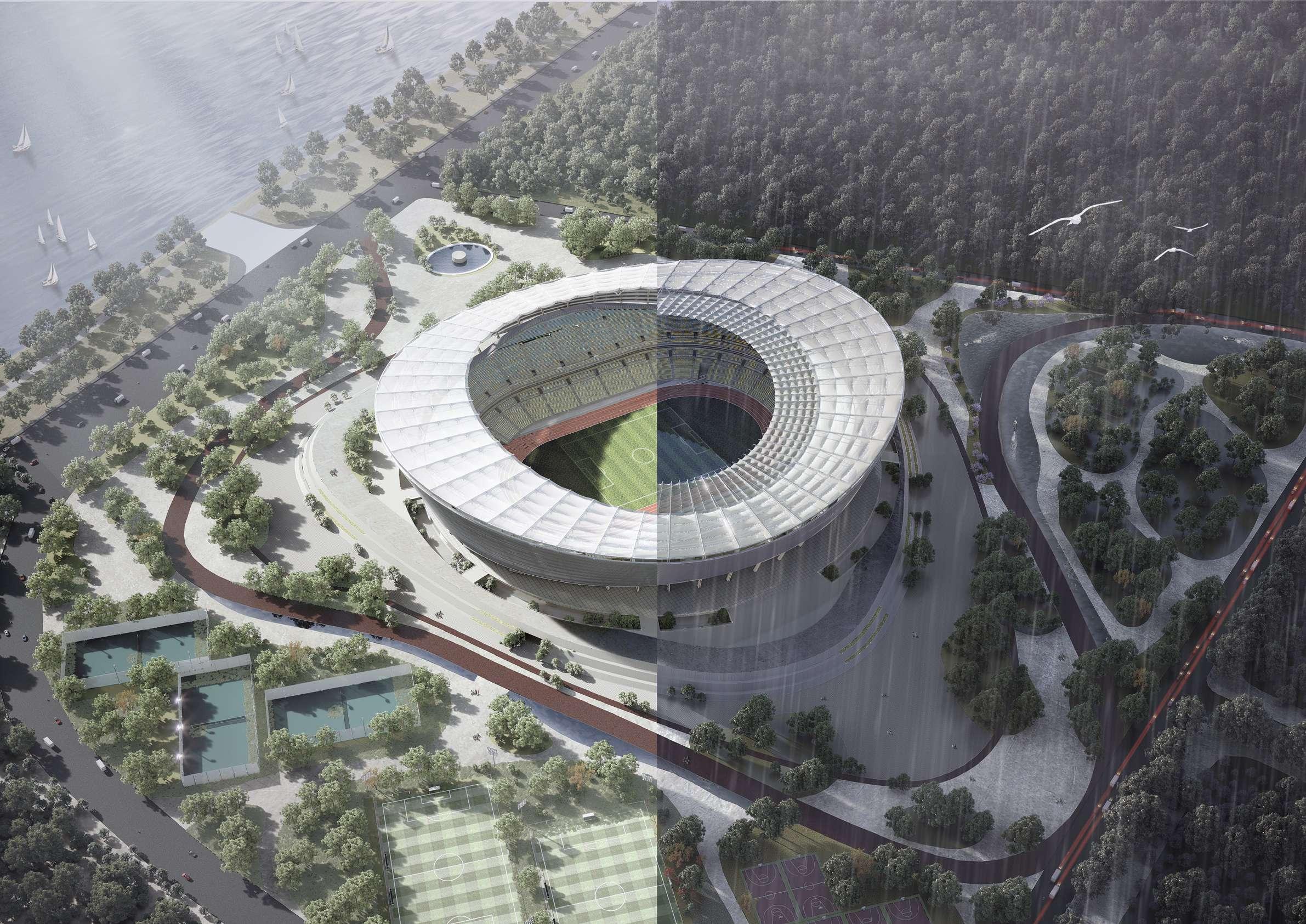

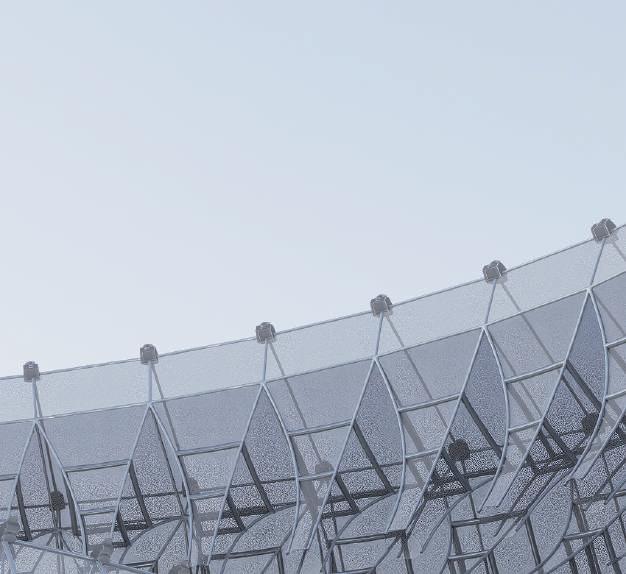

EFFECT PICTURE OF RAINY AND SUNNY DAYS

The stadium can open and close more freely under weather conditions, with the aim of allowing the venue to hold events and even concerts under any weather conditions.

03

LOST PARADISE

An innovative playground for future office spaces

Site:South Korea, Seoul

Individual Work

2023.09-2023.11

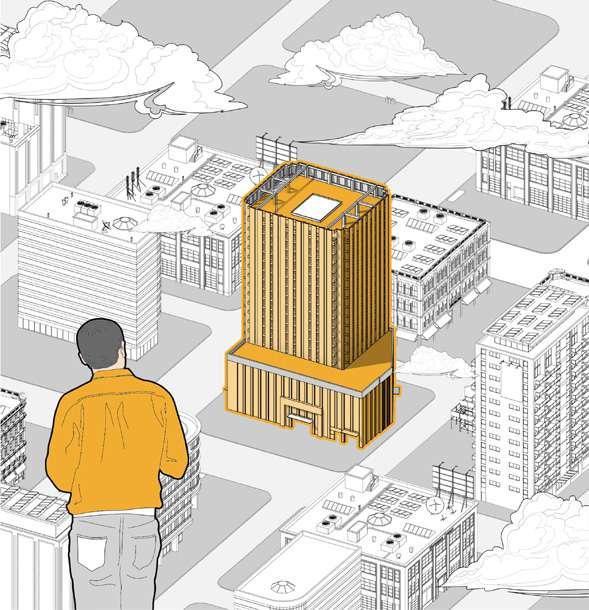

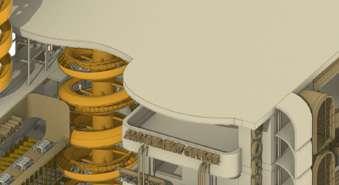

When this project explores the unique way of life and work in South Korea, we find it incredible that Koreans spend most of their time in office buildings, even on weekends, which leads to a monotonous and monotonous lifestyle in the region, stifling everyone's creativity and putting heavy pressure on individuals.

In the real transformation, different age groups have lost their cherished childlike innocence and dignity, despite their inner desire for balance. This disconnect between psychological needs and reality has led to the physical decline of amusement parks and the dull atmosphere of office spaces. I hope to reconstruct the human office of the 21st century through exquisite spatial connections and dramatic expressive techniques, and turn the office building into a playground for personal creative design and pursuit of free space.

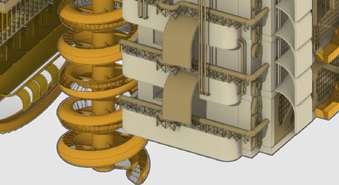

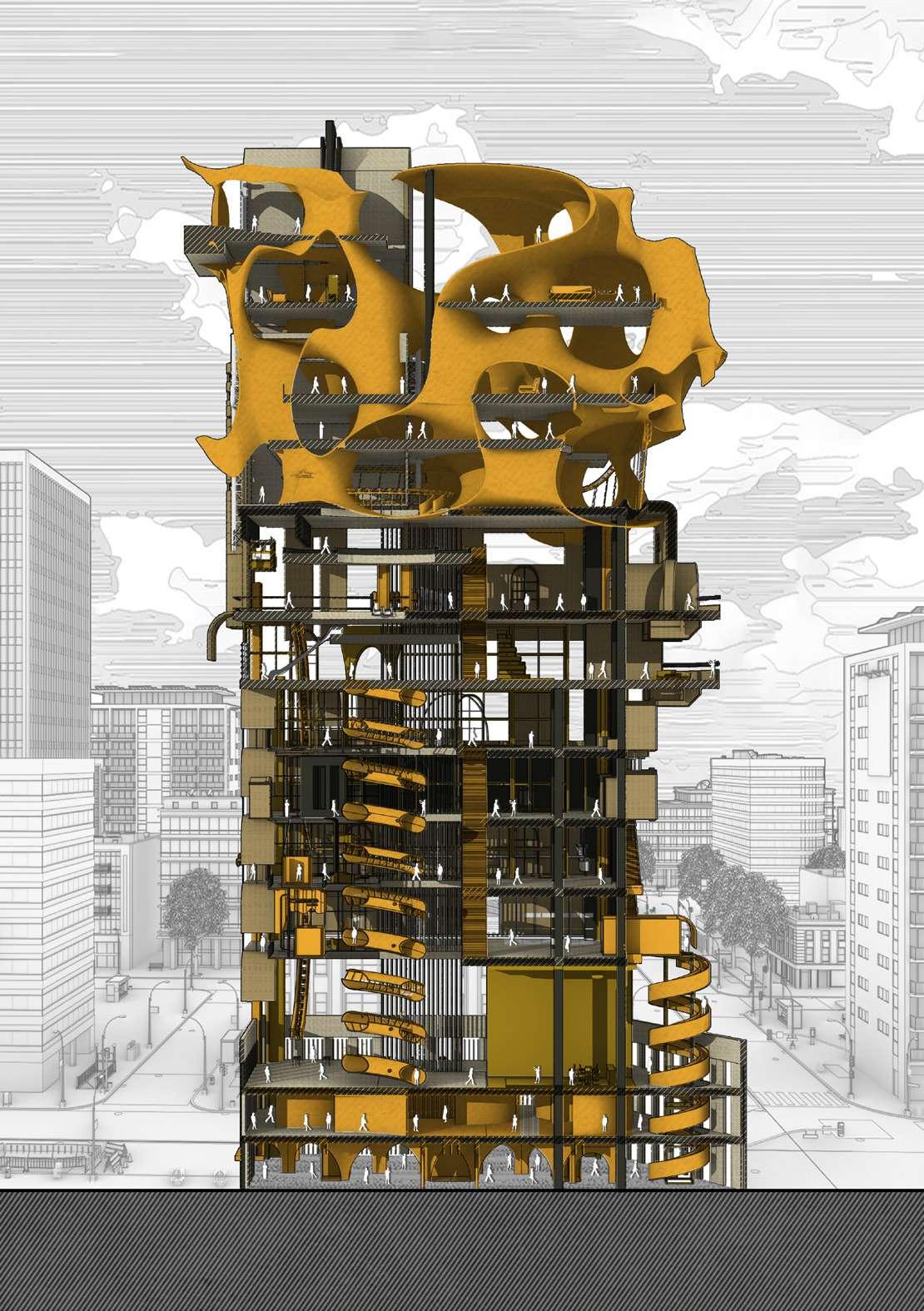

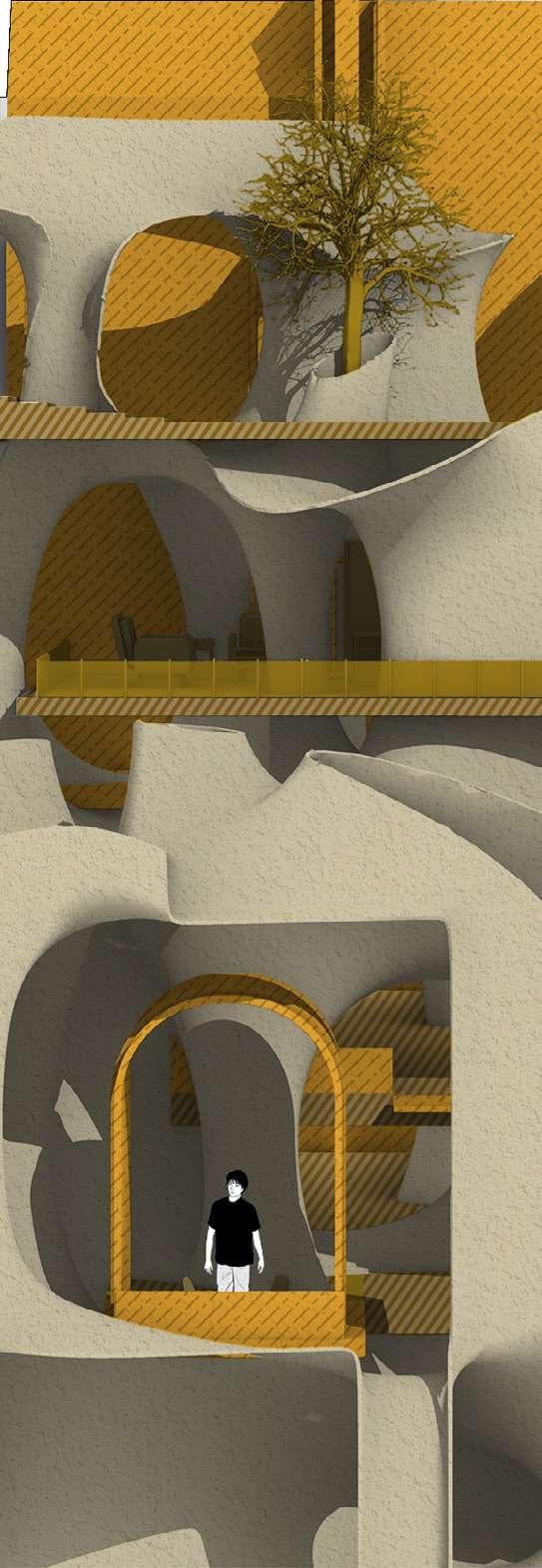

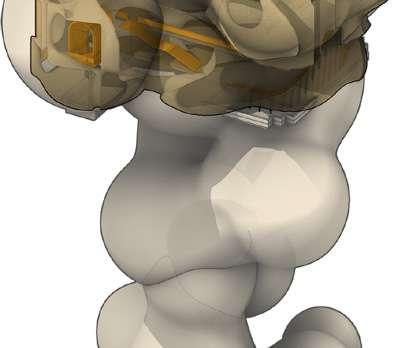

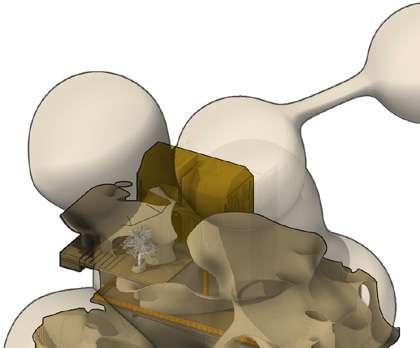

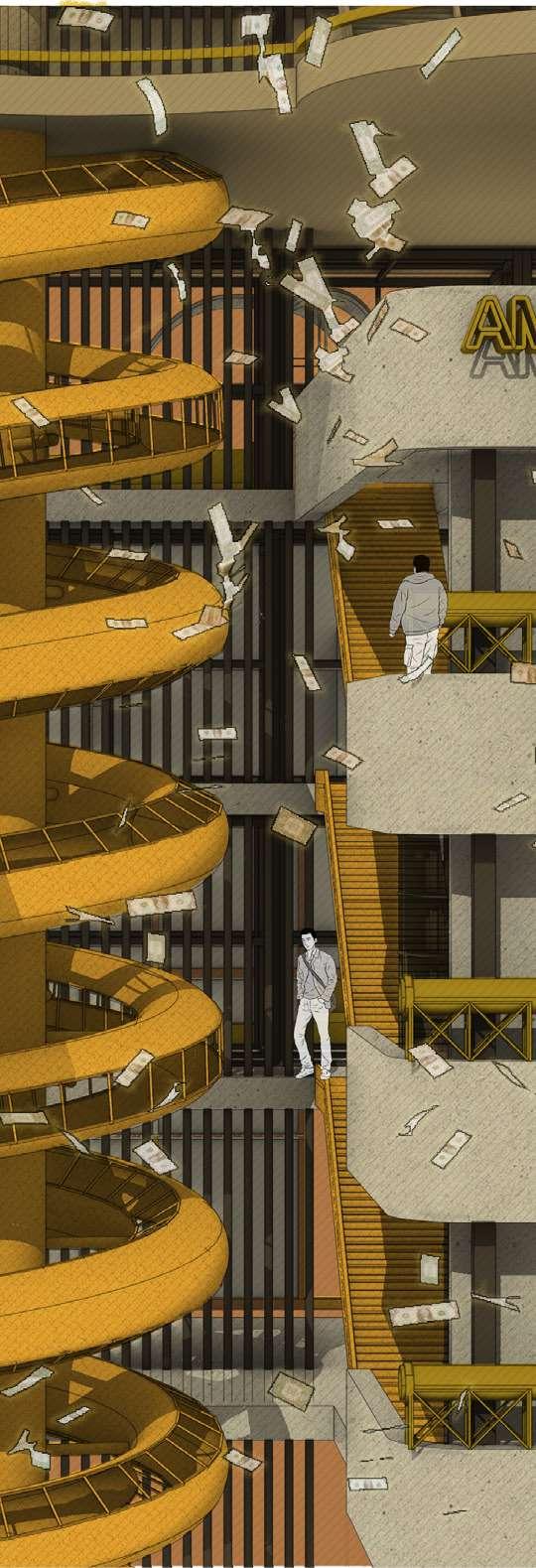

Driven by minimal structural configuration, we aim to become an open-source playground for future creative professionals to showcase their lives, creating a constantly changing and vibrant utopia of life. This vision aims to overturn tradition and create an exciting new working and living environment for people.

Employees generally believe that through hard work and overtime, they can obtain more career development opportunities and promotion, and hope to achieve better positions and benefits in the workplace.

Many Korean companies have a strong competitive culture, and employee promotions and salary increases are often linked to performance and job performance.

The South Korean education system emphasizes high scores and enrollment rates, which leads to students facing fierce competition from an early age

Hajun

Doyun

Eunu

anxiety Senior executive CEO confused

of inner truth, where people find inner balance and realize their dreams and values.

sublimation of utopia represents the sublimation completed by individuals in their career journey.

Architectural

04

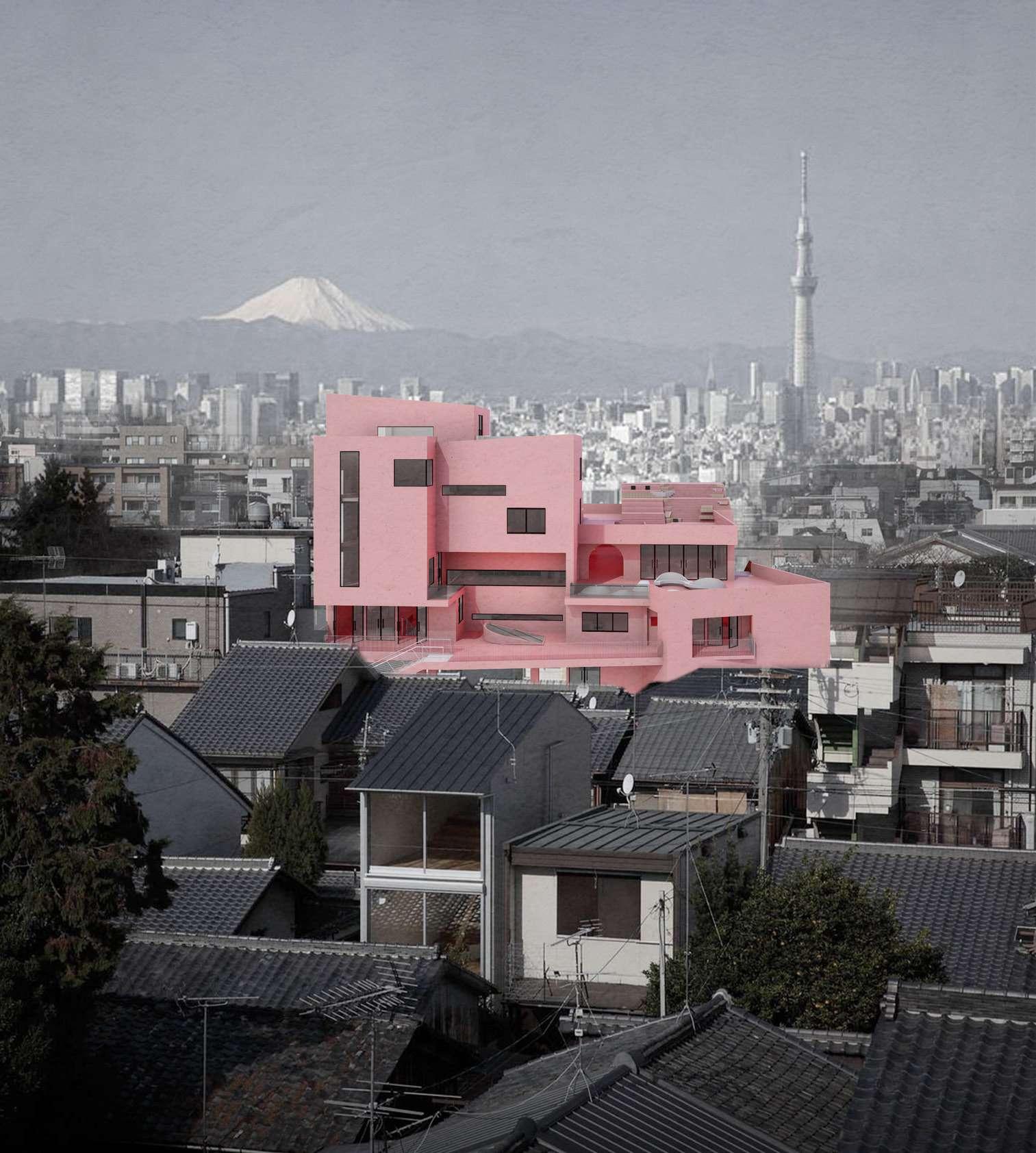

LOSS OF HARMONY

Library+Public Corridor+Elderly Care support

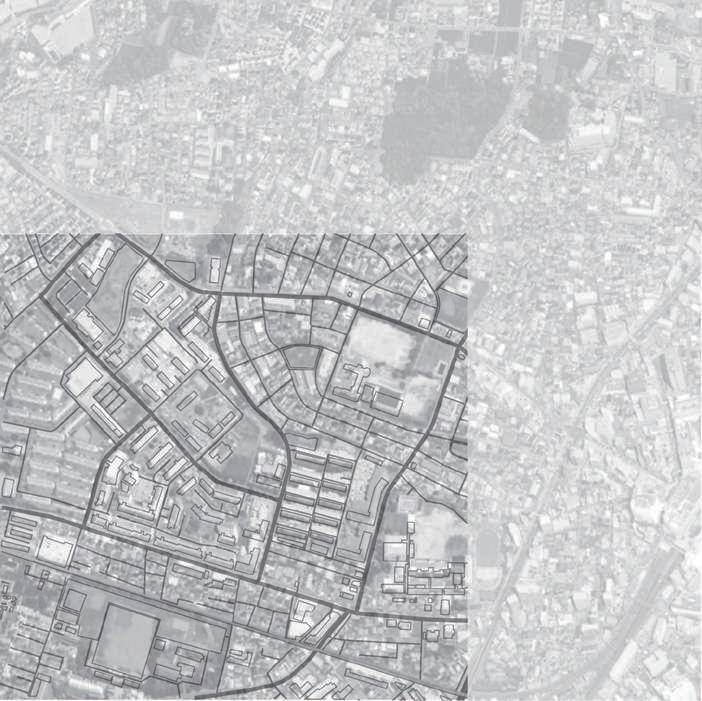

Site:Chiba Prefecture, Japan

Individual Work

2022.12-2023.05

I was inspired by my grandmother, who has been retired for many years and expressed concerns about having little activity in her daily life beyond meals. This prompted me to contemplate the happiness and societal attention given to elderly individuals in their retirement, especially those in vulnerable positions within society. I wondered if individuals who dedicated their youth to urban or societal causes might be forgotten by society in their later years.

During my research, I discovered that many elderly individuals enjoy listening to music through various mediums such as media and radio. They often find that music evokes rich memories, bringing joy and comfort. Music plays a significant role in the lives of the elderly, serving not only as a form of entertainment but also as a means of emotional expression and connecting with past memories.

Therefore, I aim to convey emotions and evoke social resonance through the medium of music. I have designed a community center that incorporates the concept of music, providing activities and services to enhance the lives of elderly individuals.

The first wave of baby boomers

The first wave of baby boomers

The second wave of baby boomers had the highest birth rate

Japan's Defeated Society Returns to Stability

The second wave of baby boomers had the highest birth rate

The government encourages childbearing because of the large number of laborers needed to develop the economy.

The aging of the community is beginning to show

The second wave of baby boomers had the highest birth rate

Social stability, rapid economic growth and a strong desire to have children

Japan's stagnant economy, young people's stress, declining birth rate, aging

Development

FAMILY PENSION

SOCIAL CARE

1970 2015

THE DEVELOPMENT OF PENSION MODEL

CARE ISSUES

Japan is an economically developed country. It has basically shifted from a family model of old-age care to a social condition of old-age care. With the Government's promotion, the community model of old age has also made great strides. However, on the whole, the living environment, medical protection and spiritual comfort for the elderly are still lacking. We hope to try out some new modes of ageing to solve this social problem as far as possible.

Japan is a developed country with a developed economy. It has basically changed from a family pension model to a social pension situation. Under the promotion of the government, the community pension model has also achieved great development. Some infrastructure construction has been completed, and the pension status of the elderly has changed significantly. But on the whole, the living environment, medical support, and spiritual comfort of the elderly are also very lacking. We hope to study and try some feasible pension models, and hope to solve this social problem as soon as possible.

SITUATION OF THE ELDERLY

Auditory

SITUATION OF THE ELDERLY

SPATIAL TRANSLATION OF MUSIC

"Architecture is frozen music", music is an auditory art in the time dimension, and architecture is a visual art in the space dimension, both of which have a strong appeal. Music reflects the changing space, and architecture has the rhythm of music. The two complement each other beautifully.

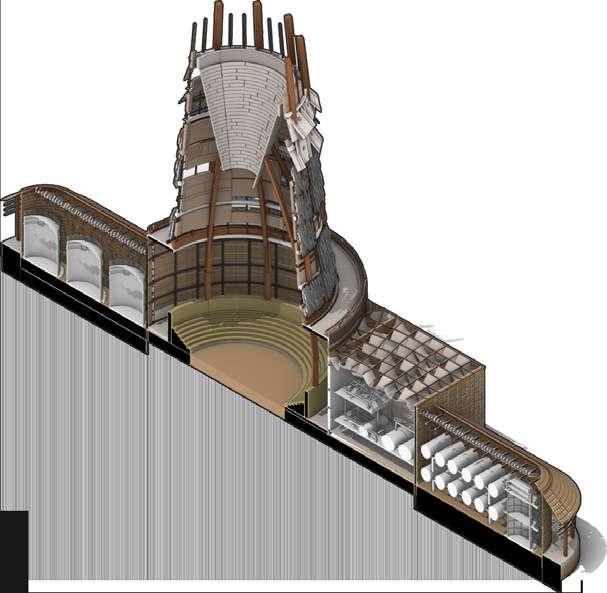

ARCHITECTURAL

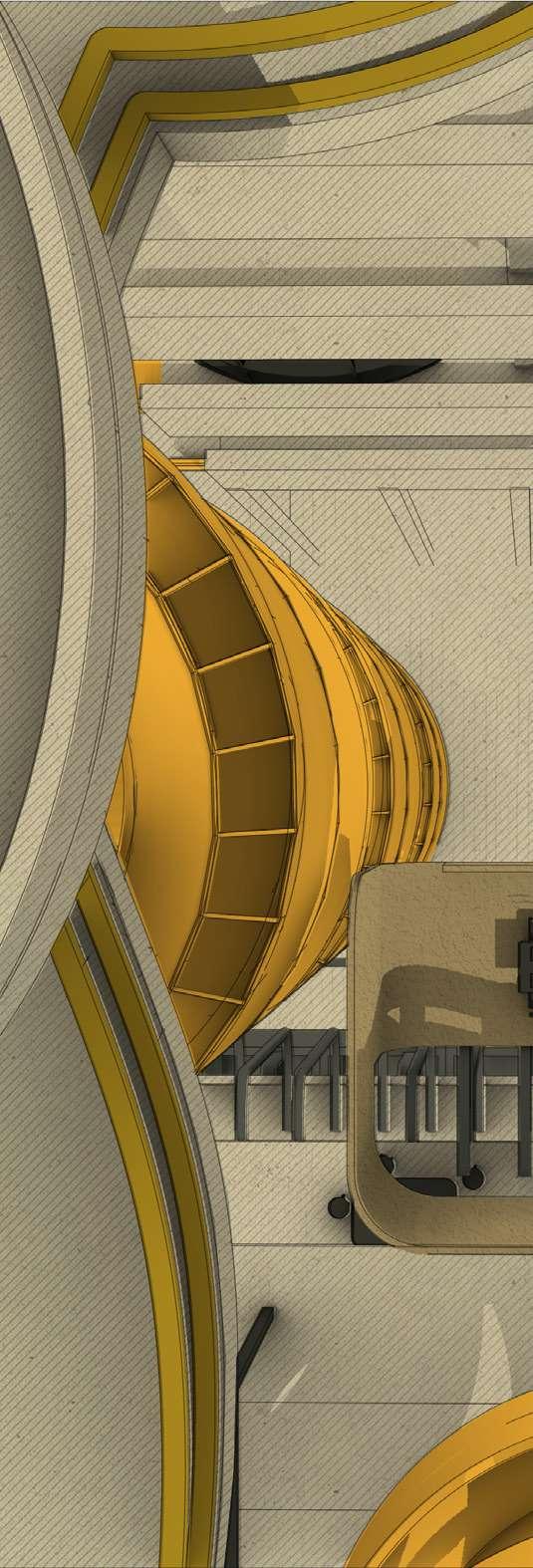

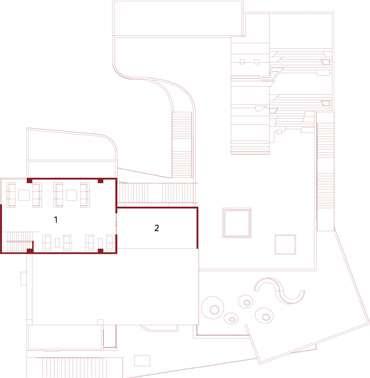

DRAWING AND SPACE PROMOTION

Space driven relationship diagram

Lecture hall

Exhibition

Event Area

Supermarkets and coffee shops

Dancing and Music Community clinics Service function

Lecture.. public public private communication knowledge community care

Short term accommodation Social function Hotels and Nursing

Interactive Community Center drive employment

Short term residence+activities

Reading aloud and drawing

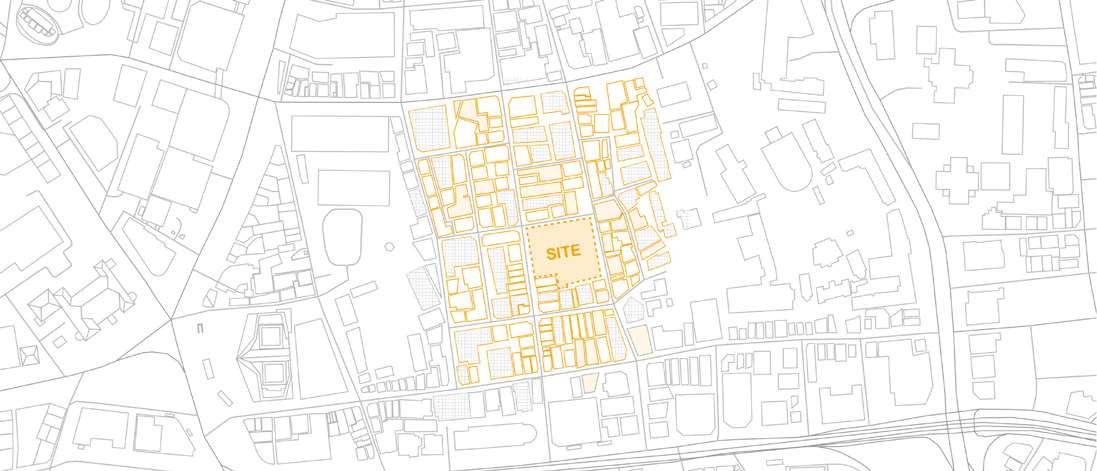

LOST AND SOUND - SHARED LANDSCAPE:

Elderly people can not only live more conveniently, but also maintain contact with society and spend more vibrant old age.

Balcony

Sunshine Bookstore

The surrounding community can access the Neighbourhood Centre from all directions, the building is lower in height than the surrounding buildings, and plants have been planted around the building and on the roof, which makes the building itself a kind of cityscape.

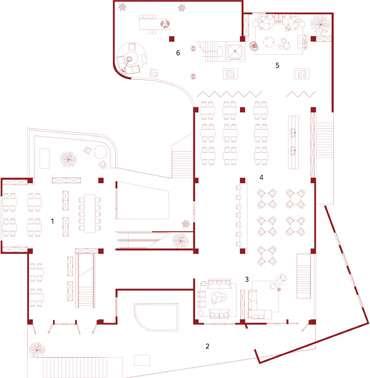

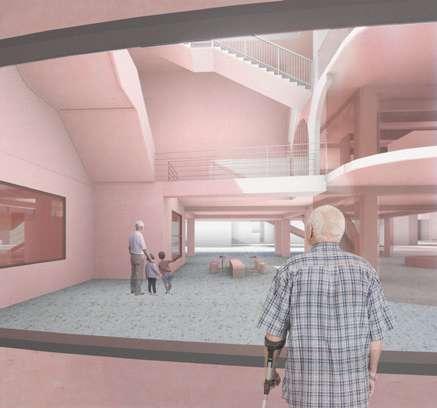

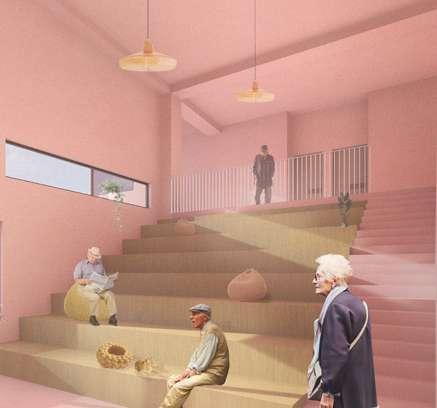

Atrium Area

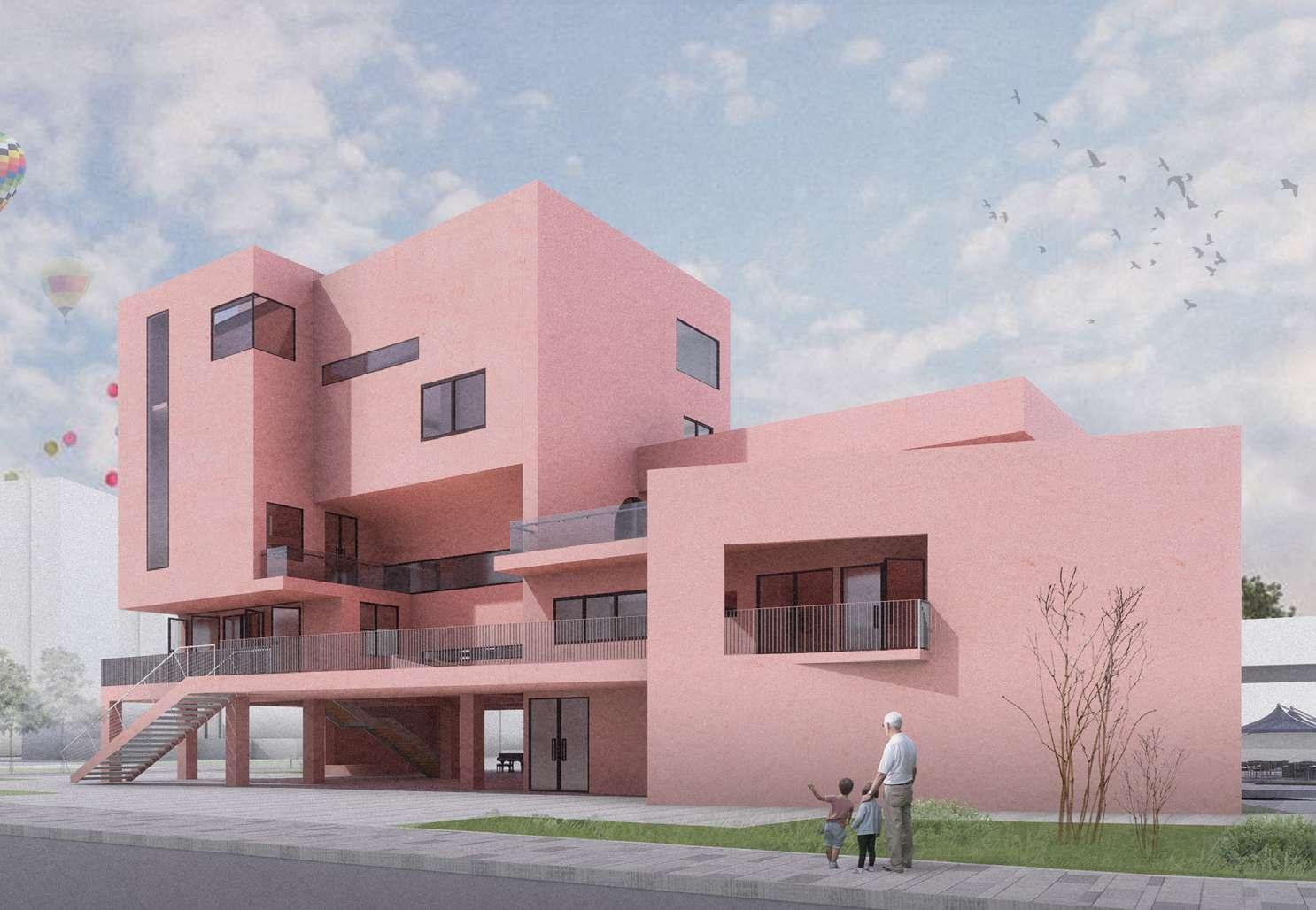

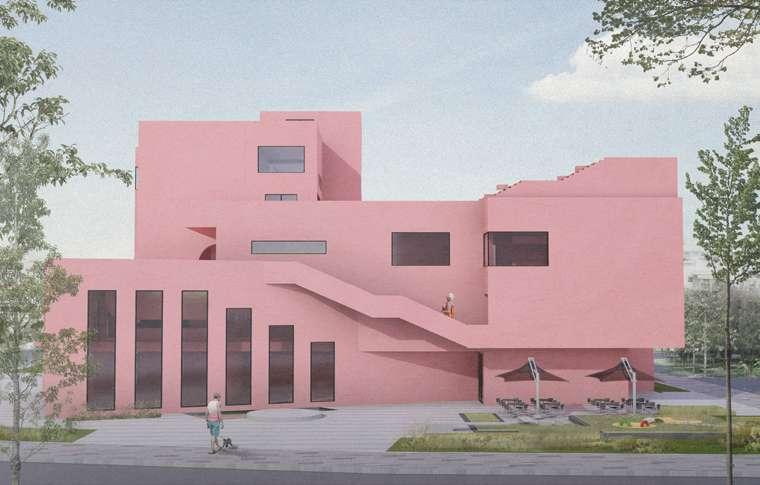

External

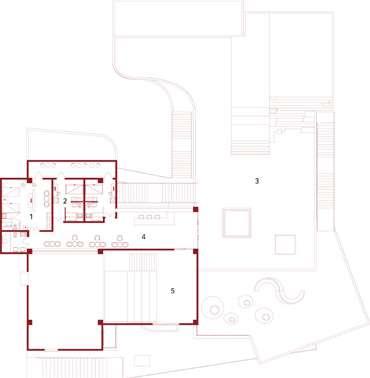

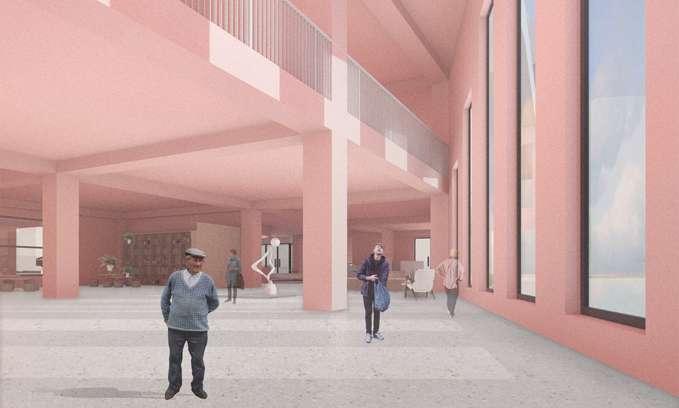

Lobby Area

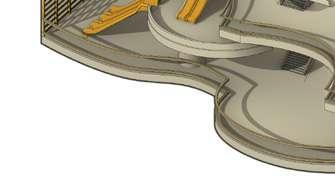

We have created an elevated space at the entrance, making it a small interactive plaza with an open space that facilitates the exchange of activities.

Side Entrance

An entrance is provided on the side of the building to welcome the flow of people from the kindergarten on this side.

Rear View Angle

We have created a small interactive plaza at the rear to complement the outdoor space.

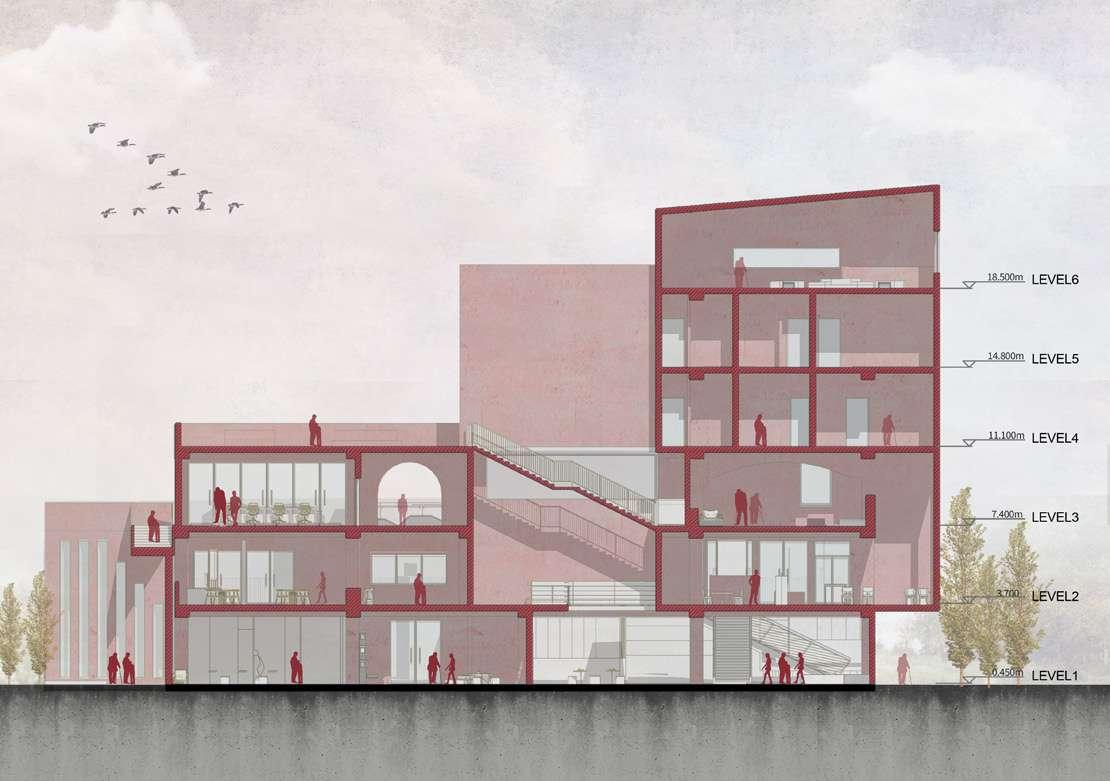

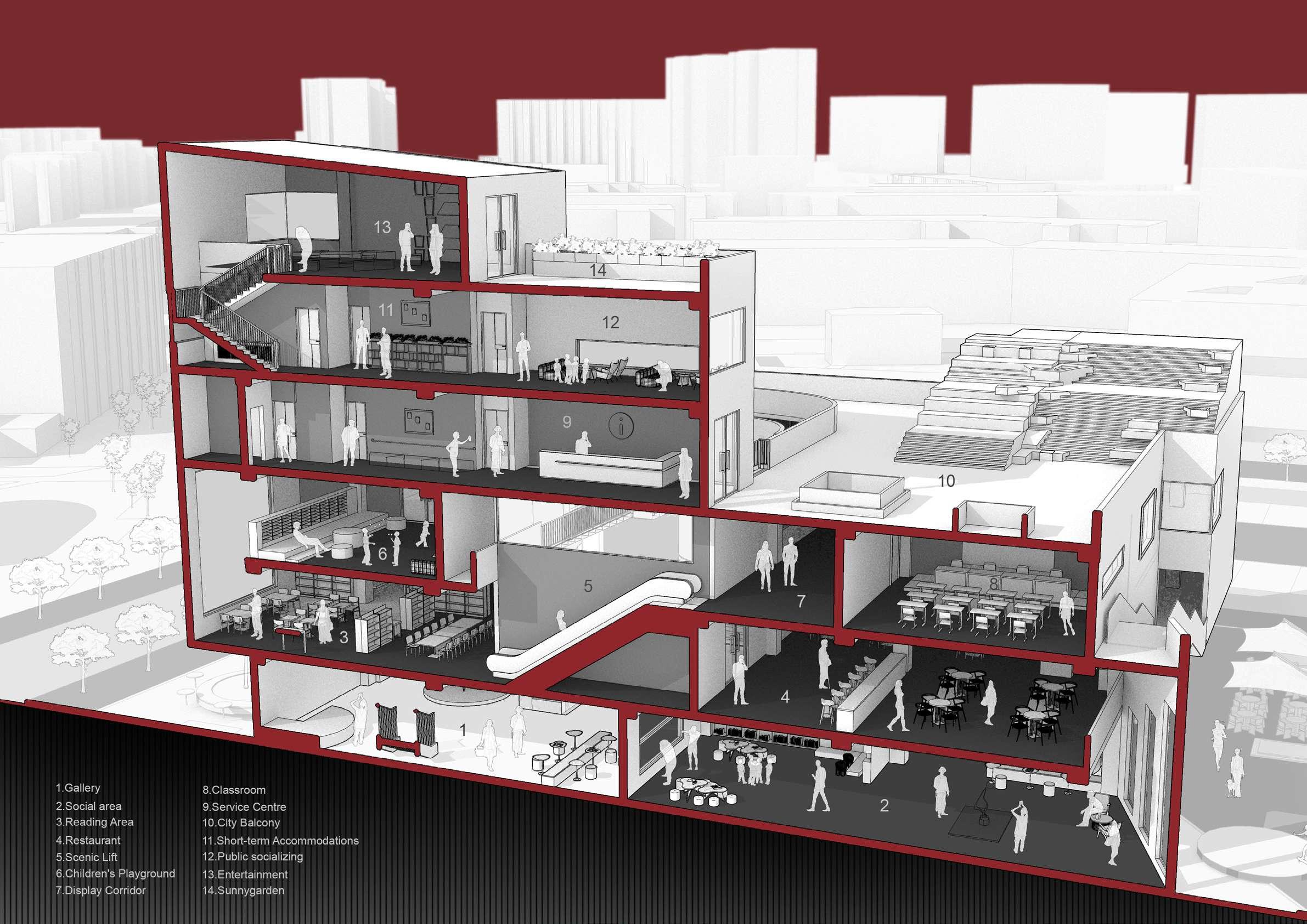

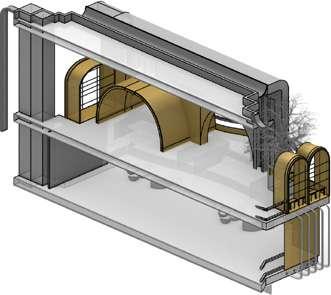

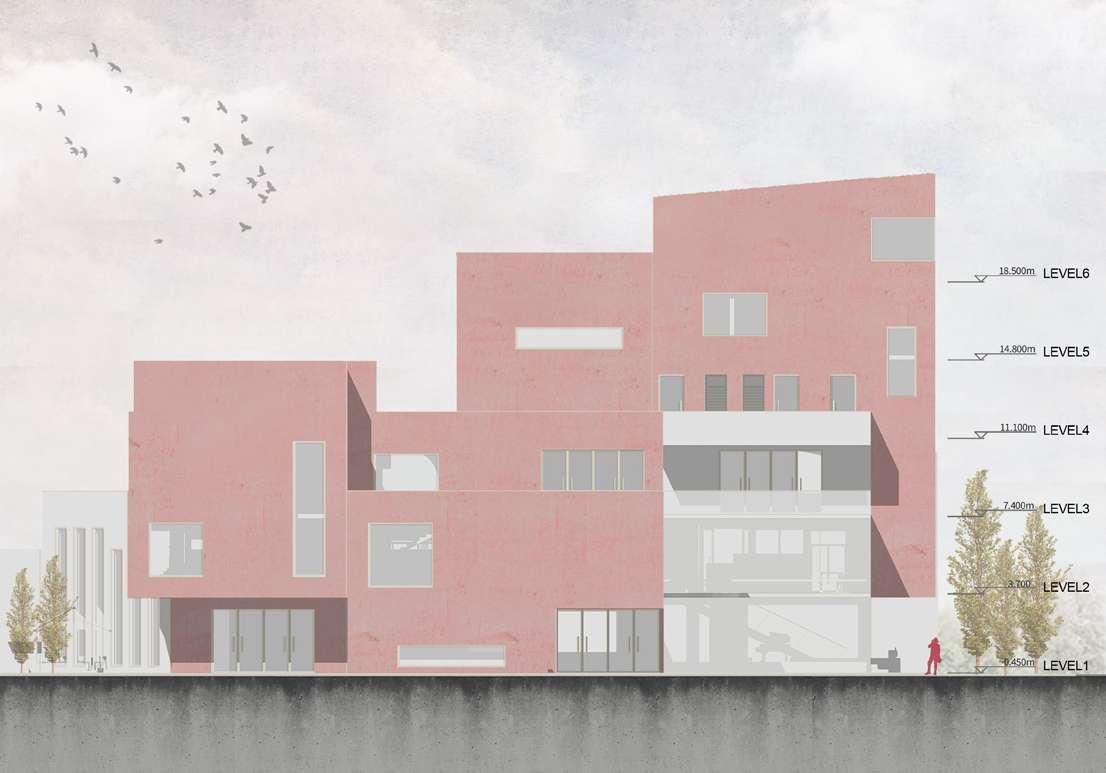

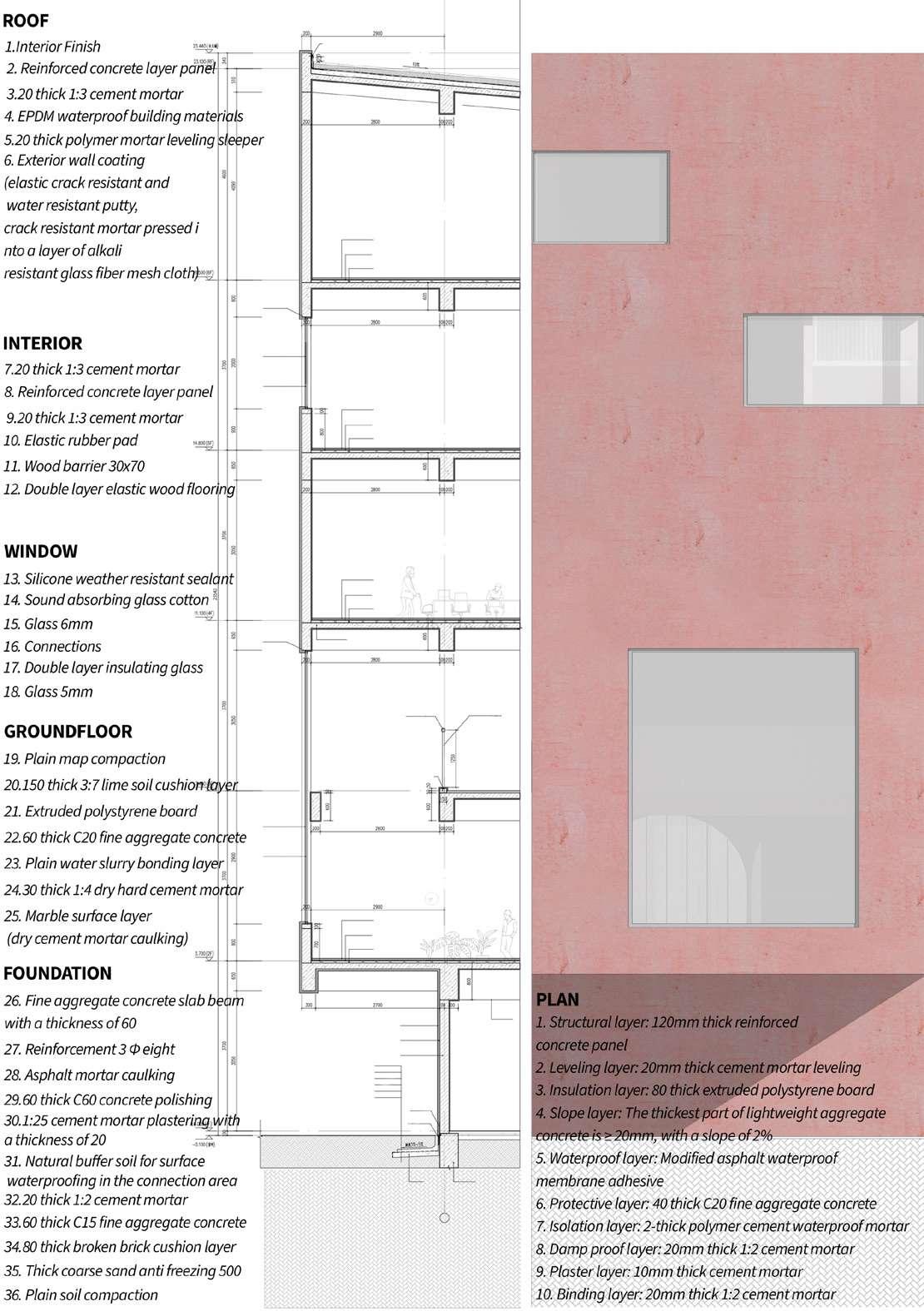

Vertical Profile

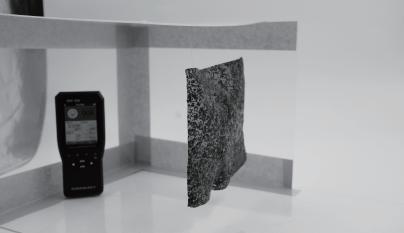

BREATHING WALL Biomaterial Experiment

Individual Work

2024.1-2024.2

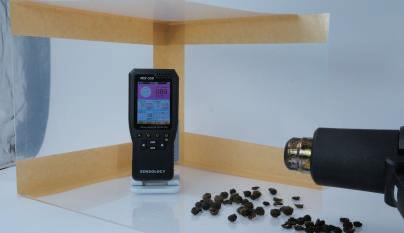

In contemporary urban living, indoor air quality has increasingly become a focal point of concern for individuals. With the rising demand for comfortable and healthy living environments, we have discovered a unique and innovative solution – the use of biogenic material Pseudomonas aeruginosa, to elevate indoor air quality to an entirely new level.

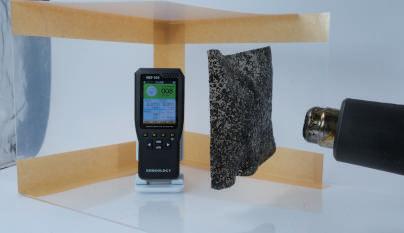

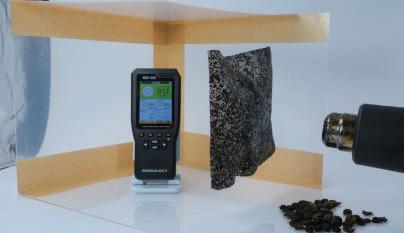

This innovative material not only possesses outstanding adsorption capabilities but also effectively absorbs and decomposes harmful substances in the air, such as formaldehyde and benzene, purifying indoor air. The application of this biogenic material is not only a respectful nod to restoring balance in the natural world but also a bold attempt at innovating indoor environments.

I aim to awaken people's awareness of indoor air quality and, through distinctive and innovative design principles, create a living space that prioritizes both health and comfort for modern urban residents.

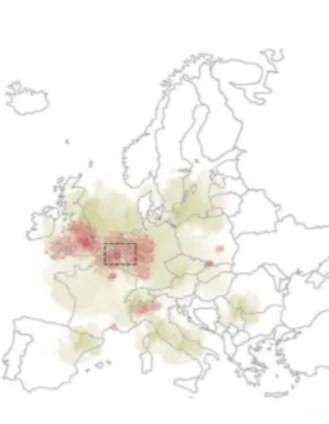

Industrial Pollution

Traffic Exhaust Energy Production

Industrial emissions and climate pollution have had a significant impact on London

Energy Production

Agricultural Activities

Respiratory tract infection

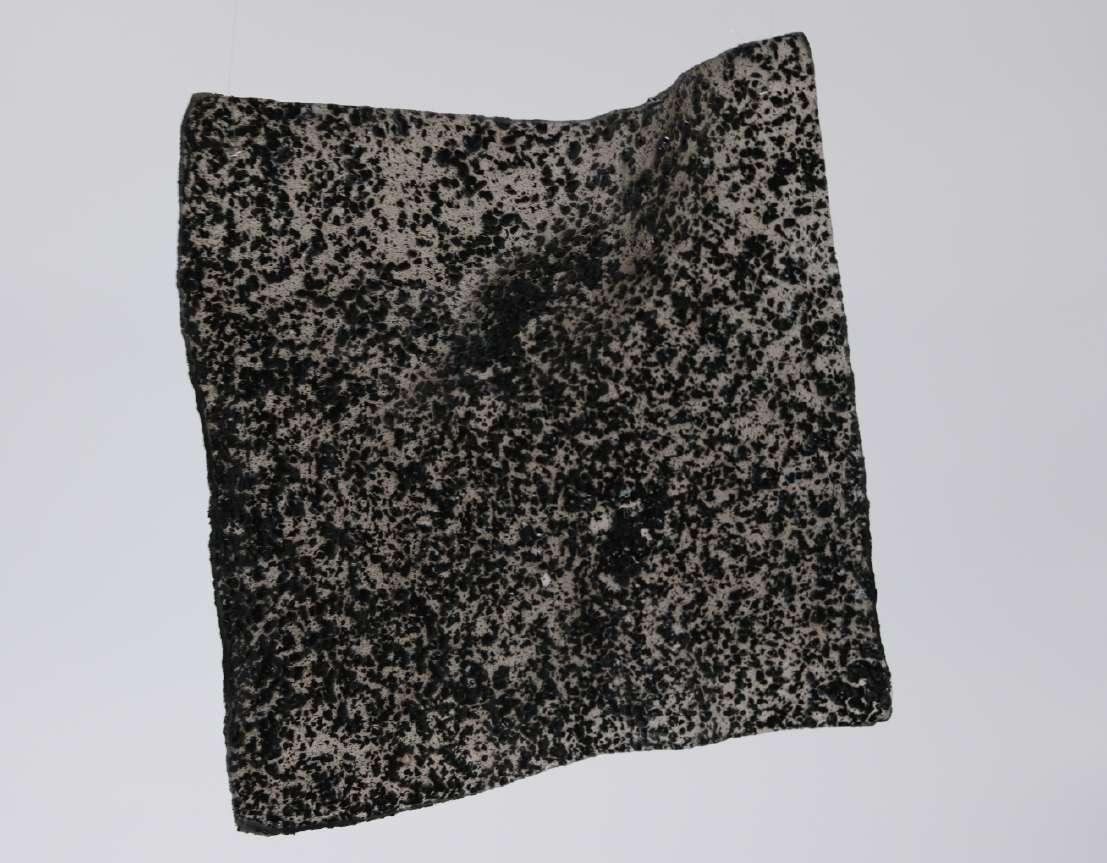

Can adsorb harmful gases and chemicals in the air.

Pneumonia infection

Wearing a mask when going out

Poor air quality

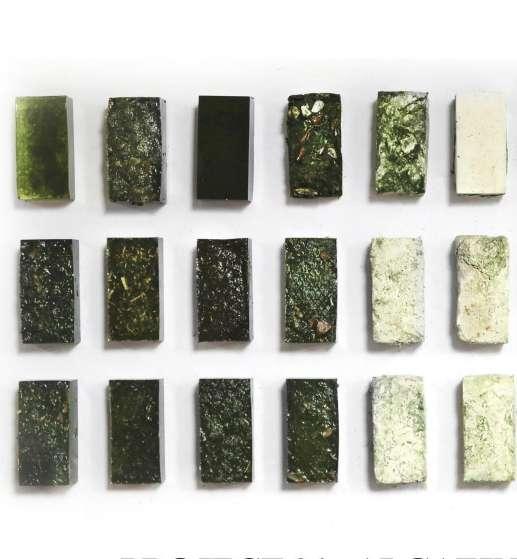

sodium alginate

activated carbon bacterium

It can have a certain degradation effect on some organic compounds, ammonia, etc. in the air

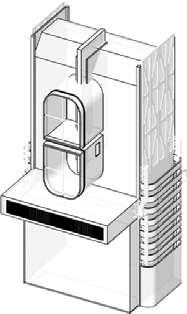

Flow chart

condensation

dehumidification indoor unit

purify

Breathable materialson

This study explores the application framework between design and biology. Utilize the possibility of biological regeneration and integrate them into the ecological environment.

Firstly, sodium alginate is produced to obtain the initial viscosity. Secondly, activated carbon is added to alginate. Secondly, bacterial culture medium is made to add bacteria to obtain a new material.

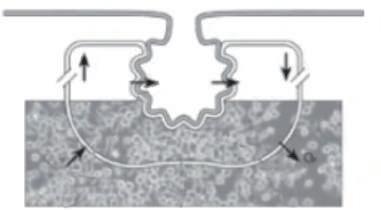

Decomposition of biomaterials

ADHESION DEHUMIDIFICATION FILTER

The

ALGINATE

ACTIVATED CARBON GERM

The

Bacteria diffused in the air

Glacier melting

Tree withering

SODIUM ALGINATE ACTIVATED CARBON

Through my research and experiments, my goal is to use the inherent properties of sodium alginate and its adhesive effect to bond my subsequent activated carbon and bacteria, mix them in specific proportions, apply pressure to maintain their shape, and complete this process through drying, dehydration, and demolding, which gives it a certain structure.

Five types of sodium alginate, ranging in weight to weight, I used to test their adhesion. And this material will be a component of an unstable structure, which is a stretchable and elastic structure to meet the needs of growth structures. In addition, the characteristics of light, hydrophobicity, or biodegradability in water.

Reaction immersed in water

The particle size of carbon less more more

Activated carbon has the function of adsorbing formaldehyde in the air and it can regulate indoor humidity <5mm 5-20mm >20mm

Sodium alginate glycerol mixed neutral carbon

Fine carbon

Medium carbon

Crude carbon reagent shaping

Less bubbles and good light transmittance

Few bubbles and average light transmittance

Too many bubbles and poor transparency

After conducting experiments, I chose fine carbon because it has the best transparency and the least amount of bubbles. Through the fusion with sodium alginate, I created a new material that can effectively deodorize, eliminate and neutralize indoor odors, and improve the freshness of the air.

Next, I will add Pseudomonas aeruginosa fusion material to better decompose indoor harmful substances such as formaldehyde and benzene, effectively purifying indoor air.

03-A

Culture medium

Bacterial culture

uipment: Agar culture medium, water, vessel uipment: Alcohol lamp, culture dish, bacteria, constant temperature incubator

Sodium alginate glycerol neutral carbon reagent shaping disinfect Streptococcus suis Pour into the culture medium transplant culture

Through my research and experiments, my goal is to use the inherent properties of sodium alginate and its adhesive effect to bond my subsequent activated carbon and bacteria, mix them in specific proportions

03-B

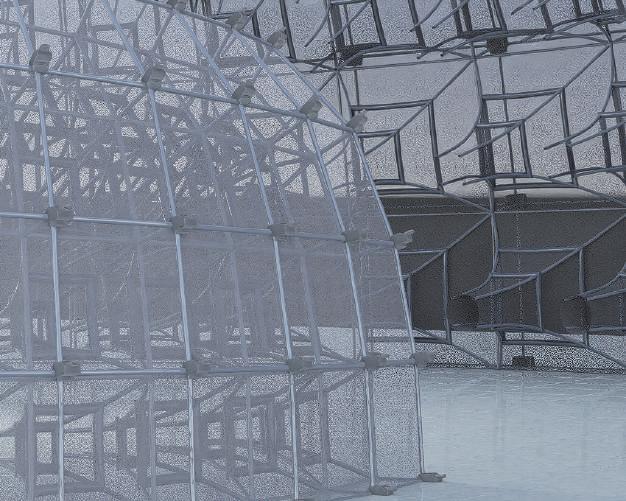

FINAL FORM

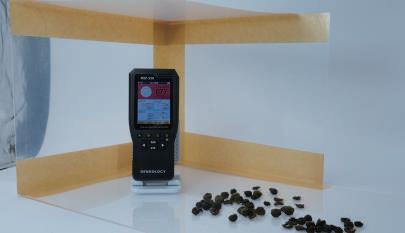

Build to simulate how this material can purify and alleviate indoor air quality, and see if it actually has any effect

0 high Measurement value
