In University, I began working for Deborah Greco, a prominent architect in Uberlandia, Brazil. Throughout my employment, I was involved at all stages of the design process, helped design spectacular houses from beginning to end, became highly skilled at using architectural programs, and interacted with clients in various capacities. The ARET program allowed me to learn and appreciate the different residential and commercial building methods used in Canada compared to Brazil. I acquired knowledge of electrical, mechanical, HVAC, plumbing, surveying, project management, and building material calculations Additionally, I completed presentations, which developed my communicative skills, and I am well versed in BCBC part 9 and the Alberta Building Code and the NBC. Currently I am in the process of studying the Alberta Building Code. Currently I work as an architectural technologist at Peake Design Group, collaborating with both architects, contractors and senior architectural technologists on both architectural and commercial projects. I believe that together, my Brazilian and Canadian architectural education and work experience, have allowed me to become a well rounded and highly skilled professional
ABOUT In 2018 I graduated from Architectural and Urban Design in Brazil, a 5-year Bachelor Degree program. I have since moved to Canada to pursue new opportunities and have graduated in April 2021 from Architectural and Engineering Technologies program (ARET) at Thompson Rivers University, a 3 year diploma program. In University I was on the Dean’s list in both Canada and Brazil, furthered my passion for both interior and exterior design, and became skilled at using several architectural programs. During my architectural program in Brazil, I researched and designed various types of buildings using AutoCAD and became proficient in Revit, Sketchup, V-ray, and Lumion. I now have over 7 years experience in using each of these programs.
EDUCATION CENTRO UNIVERSITARIO DO TRIANGULO Bachelor Degree in Architecture and Urbanism THOMPSON RIVERS UNIVERSITY Diploma in Architectural and Engineering Technologies PEAKE DESIGN GROUP Architecture Technologist BOARDWALK Capital Design Technologist EXCEL KITCHEN CABINETS Interior Designer DEBORAH GRECO ARCHITECTURE Architectural Intern WORK EXPERIENCE SOFTWARE PROFICIENCY PhotoshopExcelWordLumionEnscapeVSketchupAutoCadRevitray3D January 2012 – December 2017 January 2018 April 2021 December 2021 Present September 2021 December 2021 April 2021 August 2021 October 2016 June 2017
TABLE OF CONTENTS ` SOFIA’S CENTER Community Center And Accommodation For Children With Cancer In Uberlândia ACADEMIC 01 THE BRAZILIAN Multi purpose building in Kamloops 02 COLONIAL COFFEE Ranch Resort in Araguari 03 ACCESSORY DWELLING UNITS Affordable housing in British Columbia 04 HESTIA Planned Mixed use Neighborhood 05
•
Discipline: Final Graduation Project University: Unitri Program: Architecture and Urbanism Supervisor: Prof.ª MSc. Ana Flavia Ferreira de C. Paula Programs Used: • AutoCAD Sketchup ray
In addition, the events pavilion in Sofia’s Center features a gym, body expression classes, and a convention center that accommodates up to 73 people. It is a completely humanized and decorated space intended to make children feel like they are on a playground, with the goal of making their time at the hospital as pleasant as possible. Sofia’s Center’s design aligns with its purpose, focuses on family, and aims to transform a moment of anguish, into a world of hope and fantasy, where the patient feels totally outside of the conventional hospital environment This is evident in the choice and design of all furniture in the spaces, as well as the flooring and decoration
SOFIA’S CENTER Community Center And Accommodation For Children With Cancer In Uberlândia
• Photoshop
` The following project proposes the implementation of a community center, Sofia’s Center, with accommodation for children with cancer and their family members The center caters to those who are from other cities in the region that are undergoing treatment at the UFU Cancer Hospital in Uberlândia / MG Sofia’s Center, has not only accommodation, but also numerous activities and playrooms that serve as a distraction for children undergoing treatment. It also has an equipped kitchen to provide culinary courses to families and to other people who want to participate
• V

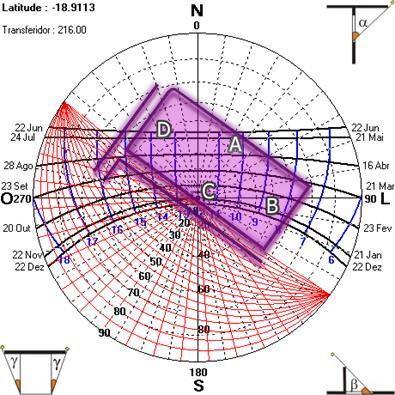

Subject Lot’s References Image By Google Earth SITE AND LOCATION Location: Uberlandia, Minas Gerais, Brazil. The lot chosen for this project is 5947.71 m² and it is located between João Pinheiro Street and Iguaçu Street. The strategic location is less than 100 meters away from the bus station and 500 meters away from Uberlândia’s cancer hospital and the pediatric unit for cancer treatment. There is also a supermarket 450 meters away SOLAR CHART Multifunction Building Community zones Outdoor ElevatedOvernightEvents/AmphitheaterplaygroundAccomodationwalkway Connection Between Spaces All zones are connected through an elevated walkway with nature views of the gardens on all sides Energy and Environment Divided water system (water tower distributes water to smaller water tanks located on each bulding) Gray water recycling - Rainwater harvesting Natural air circulation and natural lighting Big opening Double glazing windows with perforated metal louvers were used to help minimize the solar heat gain coefficient inside the building. DESIGN CONCEPT SECTIONS
FACADEBUILDINGEXPRESSIONPLAN NEW SITE PLAN WITH SECOND FLOOR PLAN NTS NEW SITE PLAN WITH FIRST FLOOR PLAN NTS
The building, in its function and in its form, has the main purpose of relating people, connecting users, families and society The elevated walkways connecting all the blocks allow people to move around freely, due to the various areas of coexistence This encourages the creation of bonds between individuals, and causes feelings of loneliness and anguish to be replaced with friendship and support

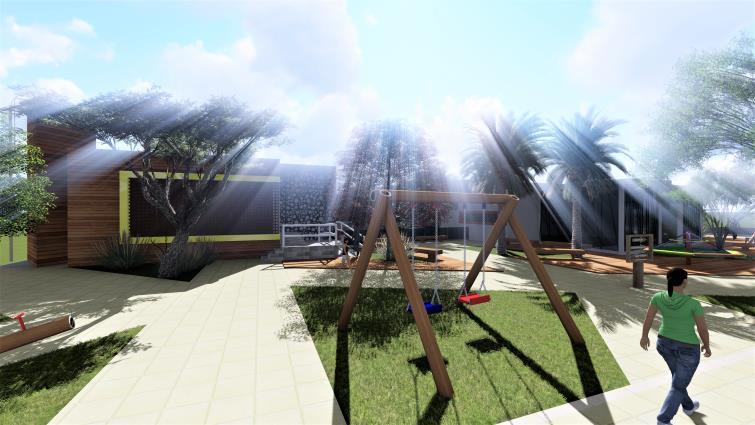

Exterior Parking Front Entrance Outdoor Waiting Area Elevated Walkway Outdoor Playground Outdoor Playground - Interior Outdoor Dining Reception Games Room Cafeteria Kitchen/
The center has both dedicated play and activity areas, and a cafeteria, which was designed to give the users a unique and fun experience. These aspects were designed to offer positive distractions for patients and their families. Culinary Class

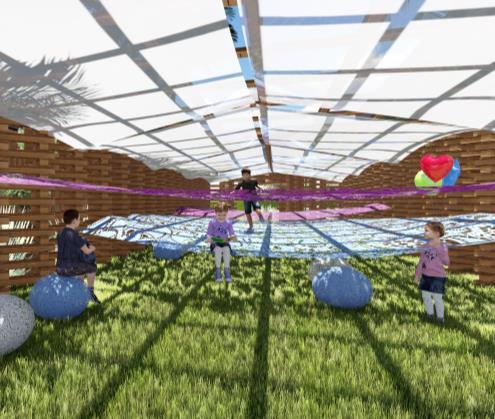

EXTERIOR RENDERINGS

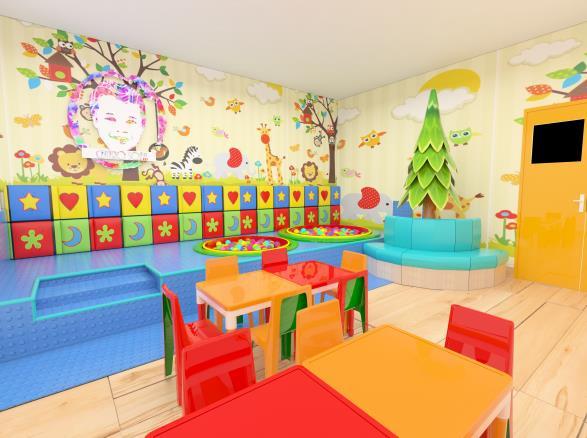

INTERIOR RENDERINGS
Patients and families are welcomed by vibrant colours, organic shapes and visual dynamics. My sister’s picture behind the reception desk is a sign of resilience and nonetheless, hope. This photo was taken 4 months after she was released from the children’s cancer hospital. She is there as a symbol to remind patients to never give up.
• Revit • Lumion • V ray
THE BRAZILIAN Multi Purpose building Discipline: ARET 3310 University: Thompson Rivers University Program: Architectural and Engineering Technologies Supervisor: Dale Parkes Programs Used:
This multi purpose building was designed as a requirement for the ARET 3310 class. We were asked to design a modern and unique high rise building for downtown Kamloops, BC. The building has three levels of underground parking, commercial space on the main floor, and residential on the other levels, which will be listed on the market.
BUILDING PLANS MAIN FLOOR PLAN NTS SITE PLAN WITH ROOF PLAN NTS UPPER FLOOR PLAN TYPICAL NTS UNDERGROUND PARKING PLAN TYPICAL NTS
ELEVATIONS WEST ELEVATION NTS SOUTH ELEVATION NTS
ELEVATIONS EAST ELEVATION NTSNORTH ELEVATION NTS
SECTIONS AND DETAILS WALLS SECTION NTS BUILDING SECTION FLAT ROOF W/ PARAPET DET NTS CURTAIN WALL DET NTS BRICK VENEER AND FOUNDATION WALL DET NTS EXTERIOR DOOR DET NTS
EXTERIOR RENDERINGS
INTERIOR RENDERINGS – SHOW SUITE UNIT 154 UNIT 154 LIVING ROOM UNIT 154 – MASTER BEDROOM UNIT 154 BATHROOM UNIT 154 KITCHEN
COLONIAL COFFEE Ranch Resort Discipline: Architecture Project VI University: Unitri Program: Architecture and Urbanism Supervisor: Cynthia de Souza Santos (Doc ) Programs Used: • AutoCAD • Sketchup
• V-ray • Photoshop
The concept and starting point center around an old farmhouse, or Boa Vista Farm, as it was known in the past The headquarters of the farmhouse was built in 1912, and it utilized typical Brazilian rural architecture style.
The new extension and additions convey a rustic but also modern style, however, they retain the charm and styling of the historic Brazilian farms. In addition to prioritizing comfort, the characteristics and landscape of the countryside are also a focal point.
This restoration project proposes an extension of an existing farmhouse to create a ranch resort.
DESIGN CONCEPT ELEVATIONS
Existing Farmhouse
MASSING CONCEPT
Sectorization Reception (Existing AccomodationEvents/Amphitheaterfarmhouse)
SITE AND LOCATION Location: Araguari, Minas Gerais, Brazil. The ranch area is located in the municipality of Araguari, towards Caldas Novas GO, in the region known as Patrona. It can be accessed via MT 223 and then by heading north on the unpaved road for approximately 10.8 km where there are coffee plantation trees The ranch consist of 8.59 hectare and has a large green area.
Overall, the historic property is in a good state of conservation. Most of the facades have already undergone some type of intervention and are generally well preserved, except for superficial problems such as the lack of stucco and paint on the walls.
Materials The main element, which appears in abundance is the wood of the demolition. It will be applied to floors, furniture, exposed columns and decks. Structural masonry bricks will be exposed on the inside of the rooms, to provide a more rustic appearance.
SUBJECT LOT IMAGE BY GOOGLE EARTH
SITE PLAN SITE PLAN NTS ENLARGED SITE PLAN WITH FLOOR PLAN NTS 1. Original Farmhouse 2. Acoomodation 3. Games room 4. Amphitheatre 5. Laundry room 6. Restaurant 7. Gym 8. Swim Up bar 9. Deep pool 10. Children’s pool 11. Sports court 12. Hiking trail 13. Petting zoo 14. Concierge 15. Employee accomodation 16. Parking lot 17. Changin room 18. Playground
PERSPECTIVES AccomodationRestaurantRoom Accomodation Block Restored farmhouse Circulation Between Blocks
The following canvasses my final undergraduate project for the architectural and engineering program at TRU.
The project consists of 3 accessory dwelling unit design options that could be purchased by homeowners in the city of Kamloops. The goal was to design a unit that was affordable, easy to build, and that fit most typical 50’x100’ lots in Kamloops, while meeting the garden suite development guidelines and the BC building code. The city of Kamloops zoning bylaw defines garden suites as one storey high buildings under 80m² Accessory dwelling units have a simple shape and minimal footprint which allows them to be more easily placed on most properties. The exterior is simple, and therefore the building doesn’t interfere with the existing house on the lot The indoor spaces have adaptions that allow for space maximization, which also creates more privacy and accessibility.
Affordable housing in British Columbia Discipline: CMNS - Final Report Project University: Thompson Rivers University Program: Architectural and Engineering Technologies Supervisor: Dale Parkes, Shannon Smyrl Programs Used: • Revit • Lumion
ACCCESSORY DWELLING UNITS

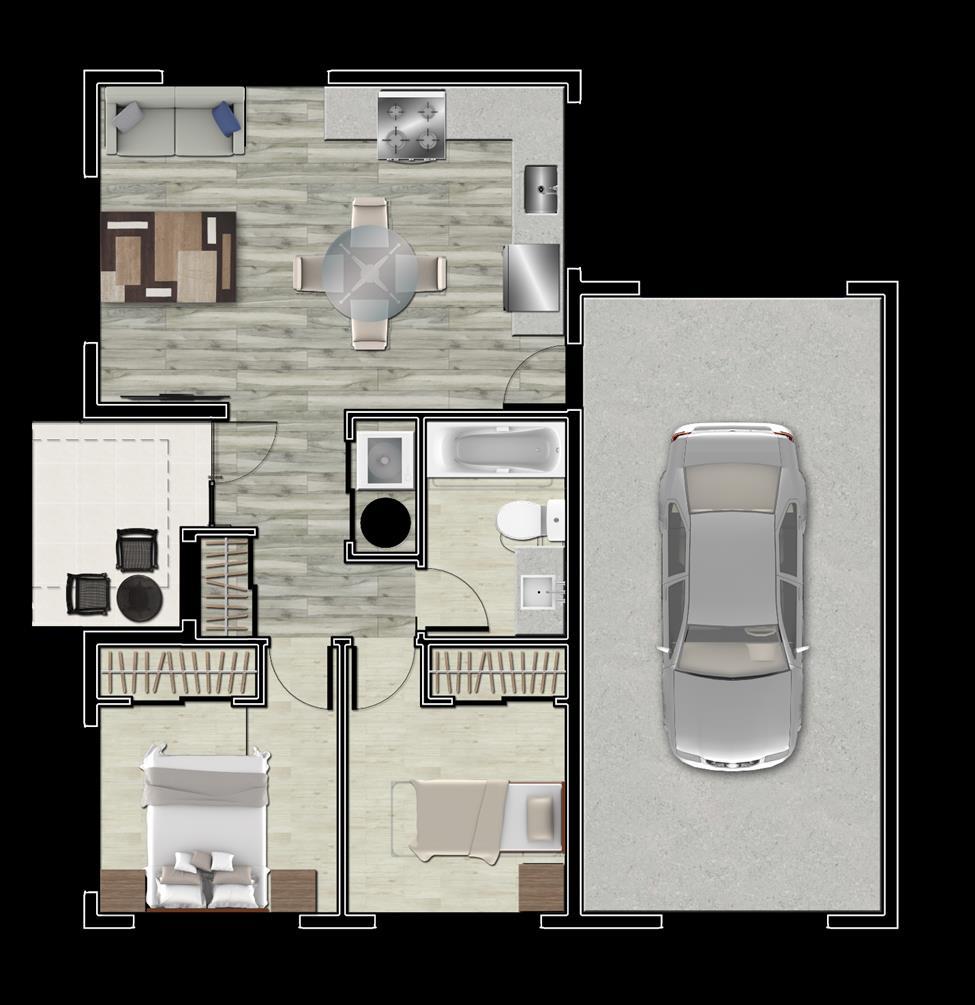

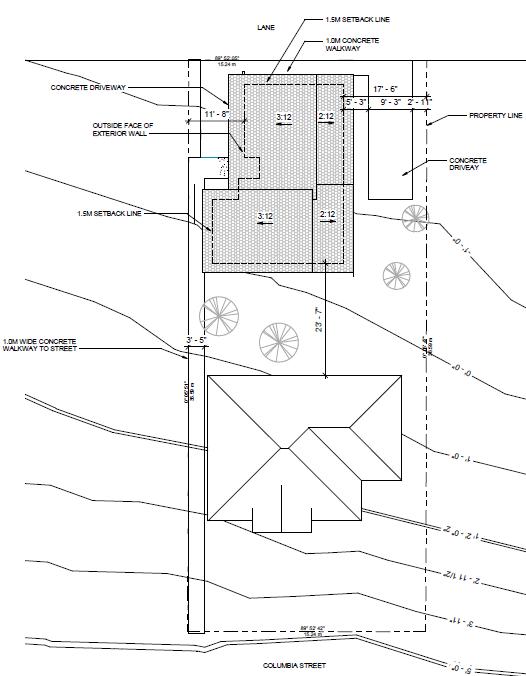

BUILDING PLANS MAIN FLOOR PLAN 50M2 NTS SITE PLAN 50M2 NTS SITE PLAN 60M2 NTS SITE PLAN 80M2 NTS MAIN FLOOR PLAN 60M2 NTS MAIN FLOOR PLAN 80M2 NTS
ELEVATIONS - 50m2 ELEVATIONS - 60m2
ELEVATIONS - 80m2

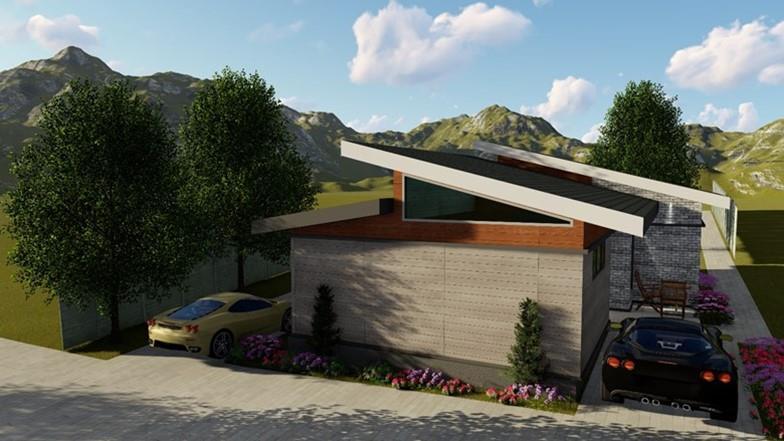

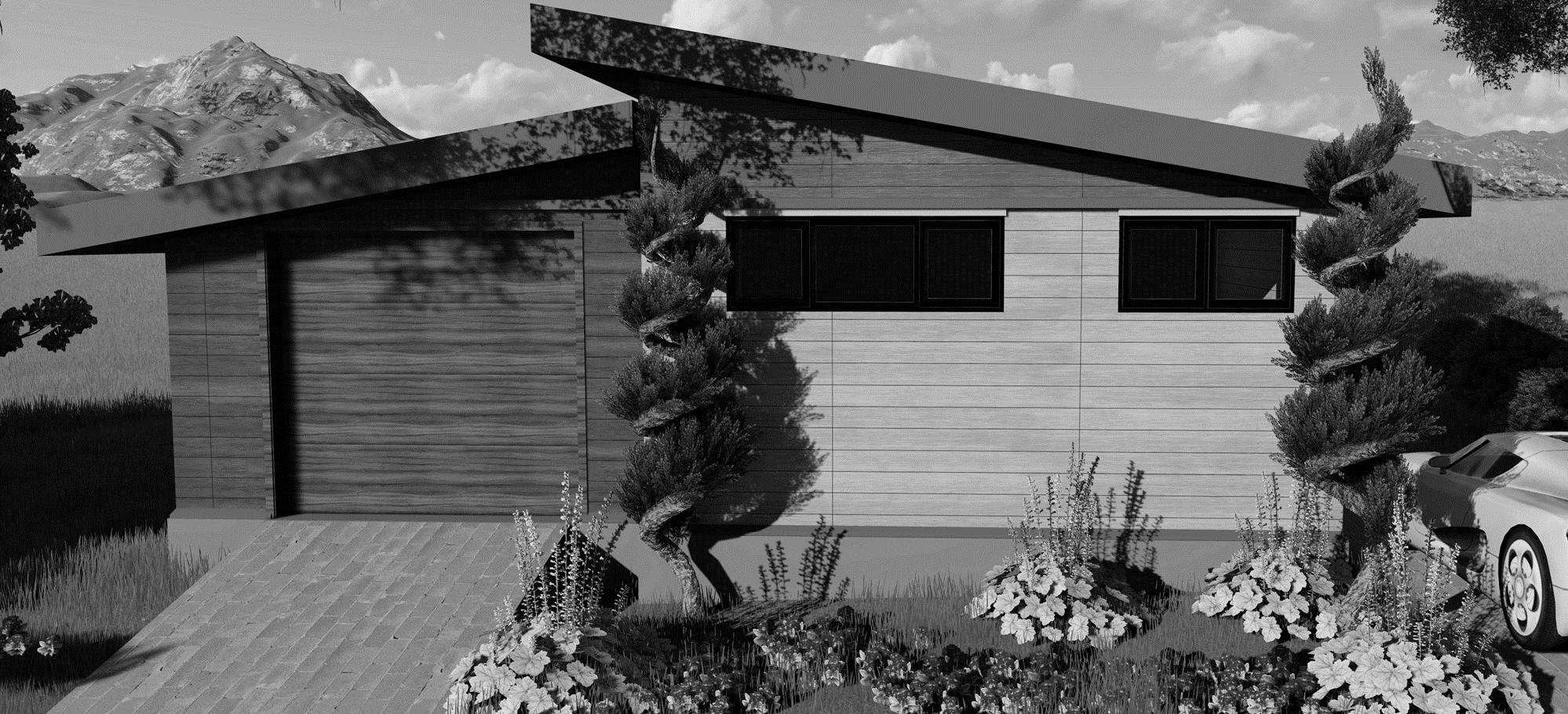

PERSPECTIVES 50M2 MAIN ENTRANCE 50M2 LANE ACCESS 60M2 – MAIN ENTRANCE 60M2 LANE ACCESS 80M2 MAIN ENTRANCE 80M2 – LANE ACCESS
HESTIA Mixed use Neighborhood Urban Design Project IV Unitri Architecture and Urbanism
The goal of the project was to encourage individuals to live where they work and play where they live, while minimizing their carbon footprint and maximizing their connection with the surroundings
Hestia is a planned mixed use neighborhood with integrated housing, commercial, and leisure constructions that are situated in an ideal location in Uberlandia
The neighborhood was designed to be accessible and allow people to run errands and partake in social engagements more efficiently Through the provision of diversified uses, people will occupy the public spaces at different times of the day, and therefore create less traffic and safety.
Cynthia de Souza Santos (Doc.) Programs Used: LumionSketchupAutocad
SITE AND LOCATION Location: Uberlandia, Minas Gerais, Brazil. EXISTING SITE PHOTOS SUBJECT LOT IMAGE BY GOOGLE EARTH The project area is located outside the urban perimeter at the West end of Uberlandia MG. SENSITIVITY MAPS
MASTER PLAN NTS LAND USE BYLAW MAP NTSEN

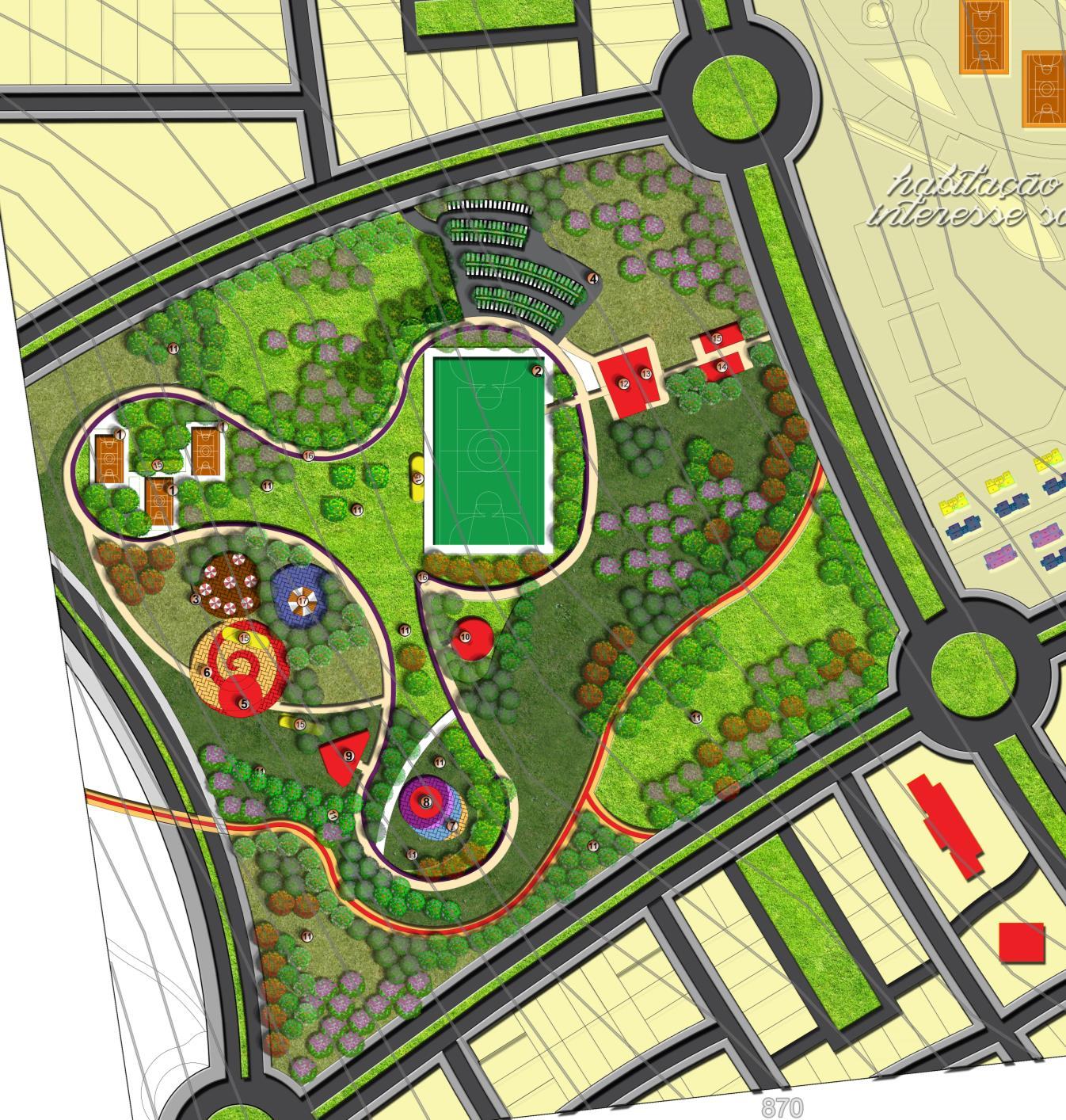

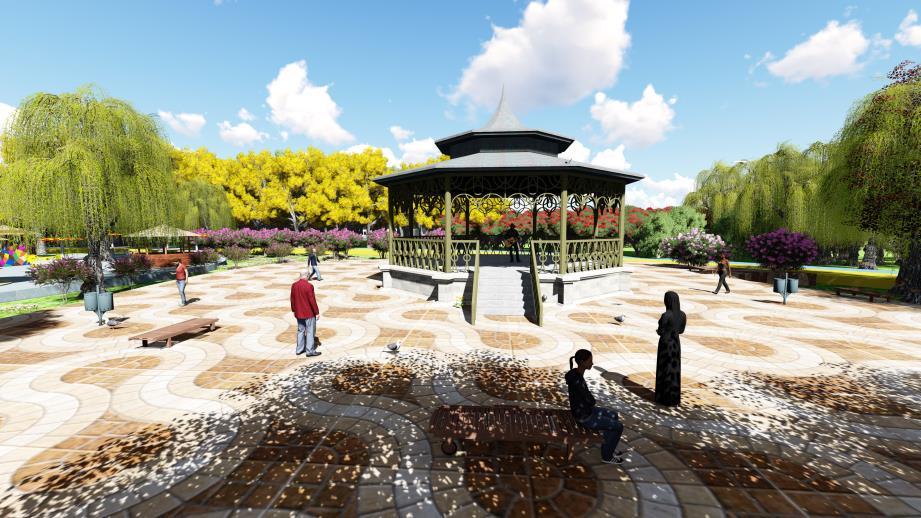

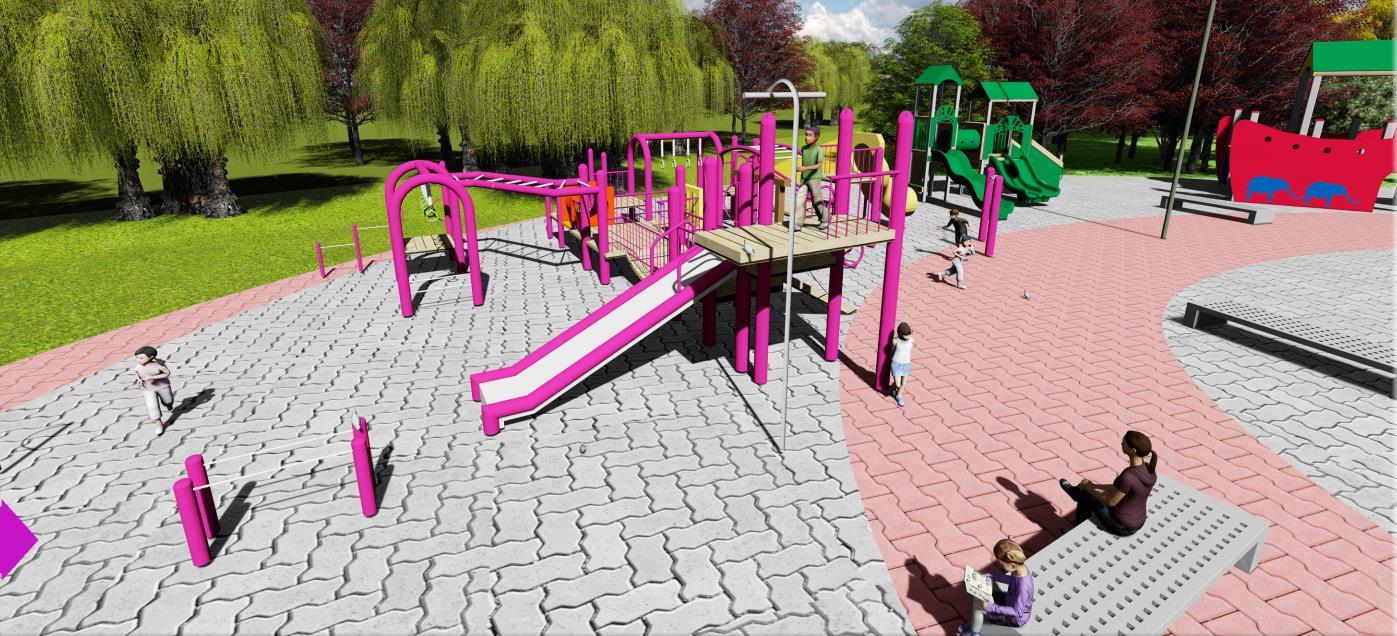

1 1 1 11 15 11 16 2 12 4 15 1314 3 17 15 6 5 15 11 9 11 11 8 11 7 11 10 16 11 11 1. RECREATIONAL COURT 2. FOORBALL FIELD 3. FOOD STAND 4. PARKING 5. OUTSIDE THEATER 6. PLAYGROUND 7. ZEN SPACE 8. NATURAL HISTORY MUSEUM 9. GREENHOUSE 10. ENVIRONMENTAL LEARNING CENTRE 11. PICNIC AREA 12. ADMINISTRATION BUILDING 13. SUPPLY BUILDING 14. POLICE STATION 15. WASHROOMS 16. TRAIL 17. BANDSTAND PERSPECTIVES ECOLOGICAL PARK PLAN NTS 3 6 17
1. RECREATIONAL COURT 2. COMMUNITY GARDEN 3. FLOWER GARDEN 4. ORCHARD 5. PARTY ROOM 6. EDUCATIONAL AREA 7. PLAGROUND PERSPECTIVESAFFORDABLE HOUSING COMMUNITY PROJECT 1 2 6 2 2 12 1 6 6 6 6 7 5 1 5 5 5 2 7 7 AFFORDABLE HOUSING LOCATION PLAN NTS 35 SM TOWNHOUSE 42 SM TOWNHOUSE 51 SM TOWNHOUSE 70 SM MULTIFAMILYTOWNHOUSEBUILDING A B C D A B
AFFORDABLE HOUSING FLOOR PLANS 35 SM TOWNHOSUE FLOOR PLAN SECTION A A SECTION B B ELEVATION 2 ELEVATION 4 ELEVATION 1 SECTION A A SECTION B B ELEVATION 2 ELEVATION 4 ELEVATION 1 35 SM TOWNHOSUE FLOOR PLAN
AFFORDABLE HOUSING MODELHESTIA NEIGHBOORHOD MODEL
