PORTFOLIO VIVEK PADARIYA Selected Works B.Arch 2024

CURRICULUM VITAE

Born on 28th Oct 1999 Surat, Gujarat

9558236061

20sa153.vivek@gmail.com vivek.padariya

About

An enthusiastic and creative architecture student, seeking new opportunities and experiences in unfolding spaces through design.

I believe great designs are the result of collaborative work combined with passion, innovation and sensative values that transforms a place into a unique solution that responds to human needs. I am passionate, self driven, hardworking and willing to go above and beyond to design spaces that best fits to our upcoming lifestyle.

I am looking forward to experience the work environment and gain practical knowledge to excel in a fruitful manner.

VIVEK PADARIA 2024 PORTFOLIO

Vivek Padariya

Education

Present Bachelor of Architecture

D.C Patel School of Architecture-A.P.I.E.D

2020 Diploma in Architecture

Government Polytechnic Vadnagar

2015 Grade X (CBSE)

Ryan International School, Adajan

Awards & Achievements

2020-2021 Highest Marks in First Year

2020-2021 Late Shri Rasik Shah Award (Studio I)

2021-2022 Late Shri Mahendra Modi Award (Studio IV)

2022-2023 Scholarship Award-Second Position (Studio IV)

2022-2023 Scholarship Award-First Position (Studio III)

2022-2023 Late Shri-Mahendra Modi Award-Second Position (Studio VI)

Competitions

2021-2022 ANDC (Temporary Shelter Design)

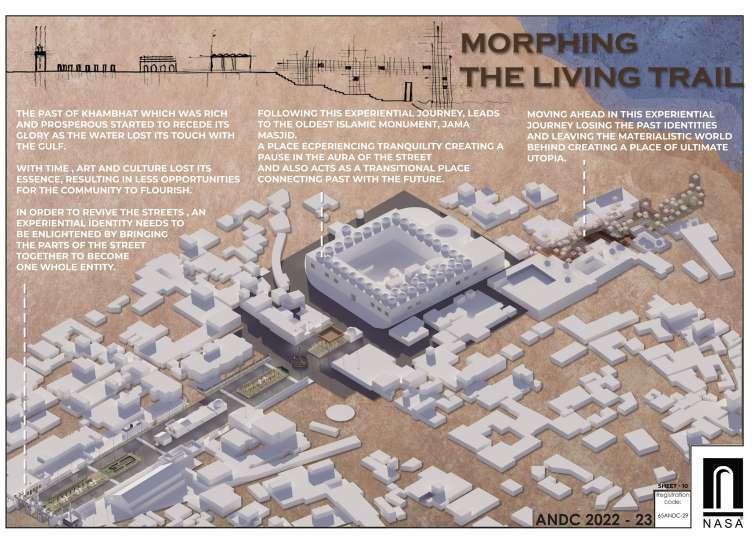

2022-2023 ANDC (Morphing The Living Trail)

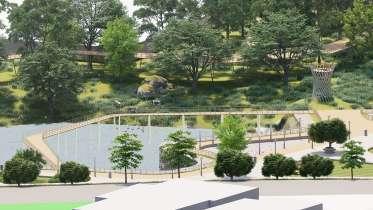

2022-2023 Mohammad Shaheer Landscape (Redefining Daman Beach)

2022-2023 C.P.Kukreja Trophy (Art Installation Celebrates Specific Cultural Significance)

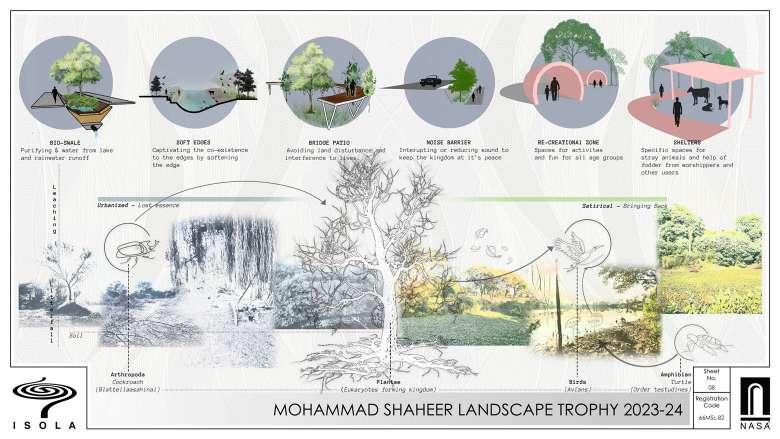

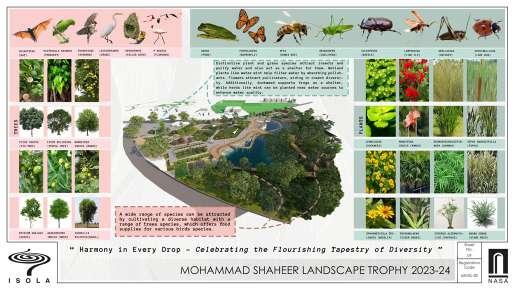

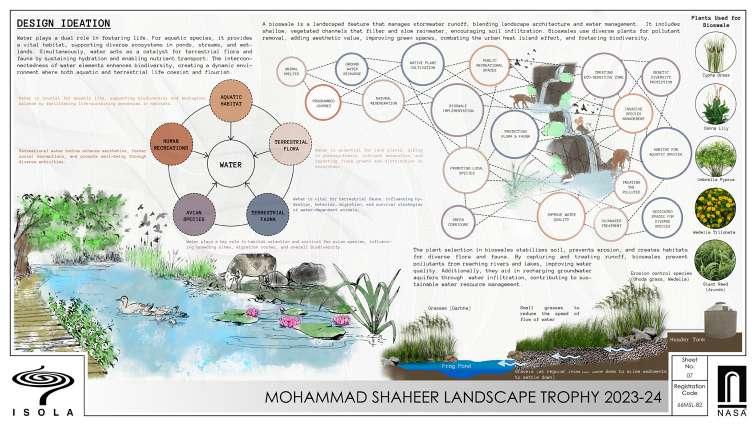

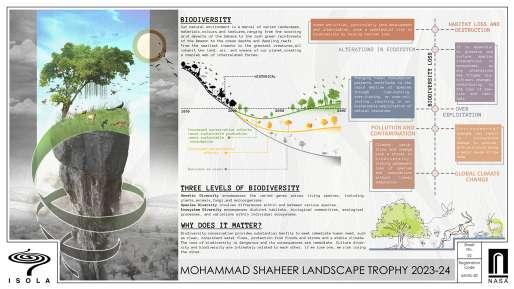

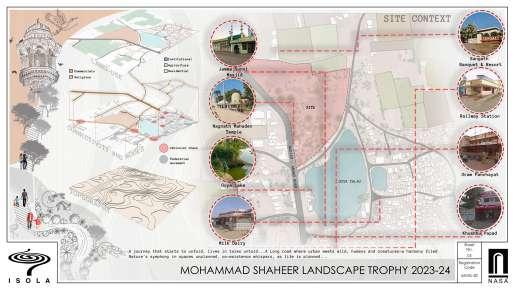

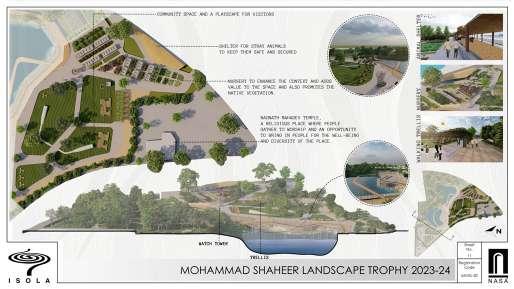

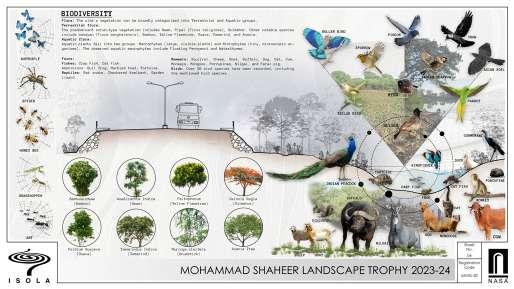

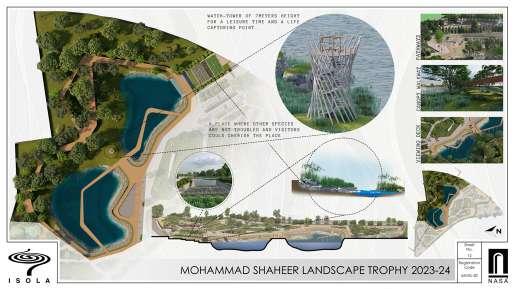

2023-2024 Mohammad Shaheer Landscape (Landscapes of Coexistence)

2023-2024 GRIHA (Divy Sangam)

Experience

2019 Architectural Intern

Breside Architects,Surat

Worked as an intern in an Architectural firm during the time period of my last sem VI in Diploma in Architecture.

Language

Gujrati (Mother Tongue)

English

Hindi

Workshops

2021 Bamboo (ANC Banglore)

Dynamic Character Design (ANC Banglore)

2021 Corrugated workshop (APIED)

2022 Clipoture Workshop (APIED)

Resin and Art Workshop (APIED)

The Wonders of AI in Architecture (ANC Kerala)

Glass Painting (ANC Kerala)

Mural (ANC Kerala)

Documentation

2021 Old Havelis-Vaso,anand

2021 KishenPole Bazer-Jaipur,Rajasthan

2022 Norbulingka Institute-Dharamsala

Sambhaavnaa Institute-Himachal Pradesh

2022 Indian Institute of Forest Management-Bhopal

Bharat Bhavan by Charles Correa-Bhopal

Software Skills

Manual Skills

Model Making Drafting

Intrest

CURRICULUM VITAE

01 06 14 28 08 20 10 24 04 07 02 05 06 03 BASIC ARCHITECTONICS Basic Design ACADEMIC TECHNICAL LIBRARY Working Drawing IDEATE INNOVATE INCUBATE Contextual Studio ELEMENTARY PHRONTISTERY Institutional Studio SCHOLARLY DISPLAY HAVEN Housing Studio SPACE OPTIMIZATION Anthropometry SURFACE STUDIO BLUEPRINT Material Studio VIVEK PADARIA 2024 PORTFOLIO 04 table of CONTENT

34 40 44 36 42 45 38 08 11 13 14 09 12 10 COMPETITION DOCUMENTATION MISCELLANEOUS ANDC NASA 64th 2022-2023 NORBULINGKA INSTITUTE Exploration CREATIVE CATALOG 3D RENDERS

Exploration MSL NASA 65th 2023-2024

SAMBHAVNA INSTITUTE

TABLE OF CONTENT 05

GRIHA - Shortlisted NASA 65th 2023-2024

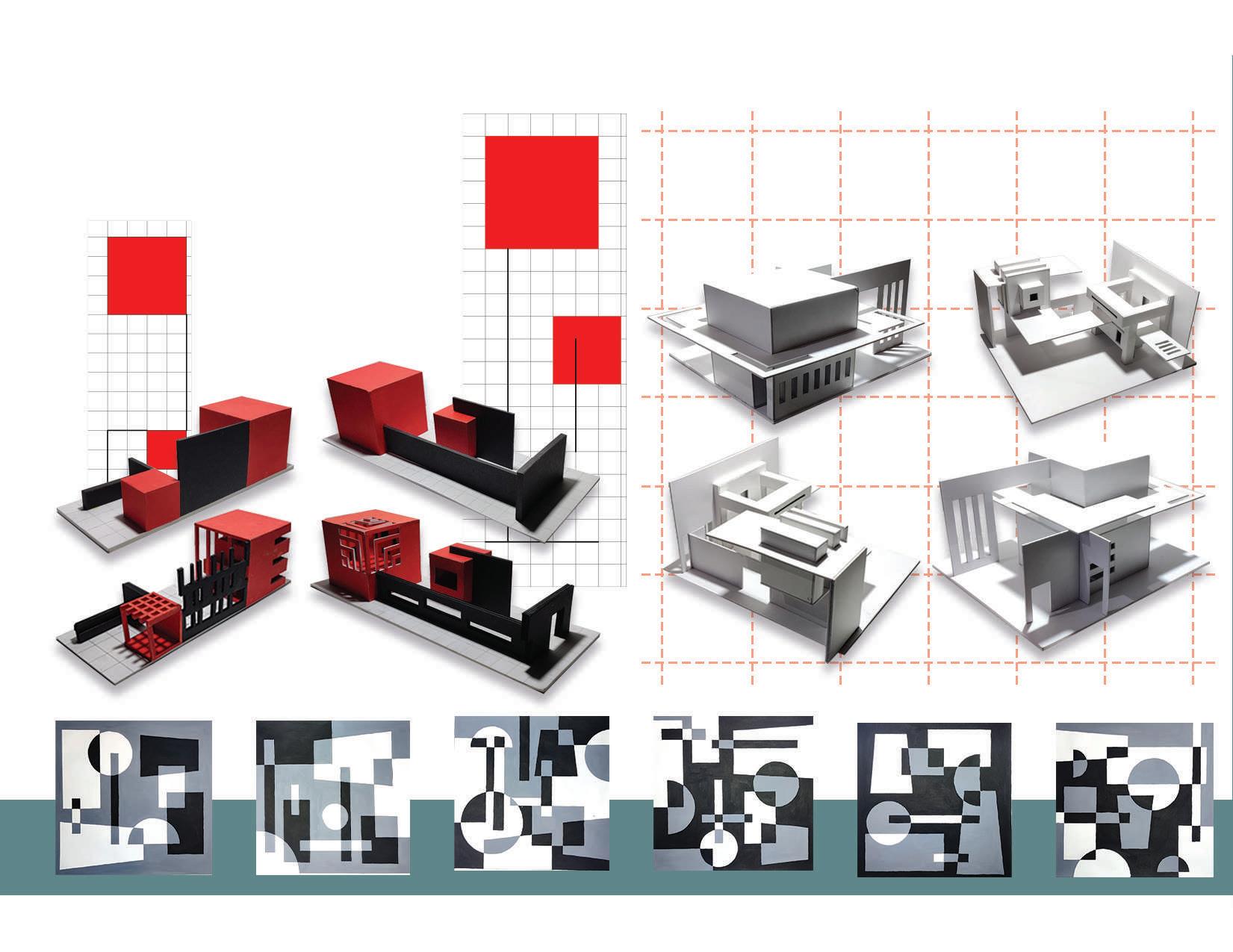

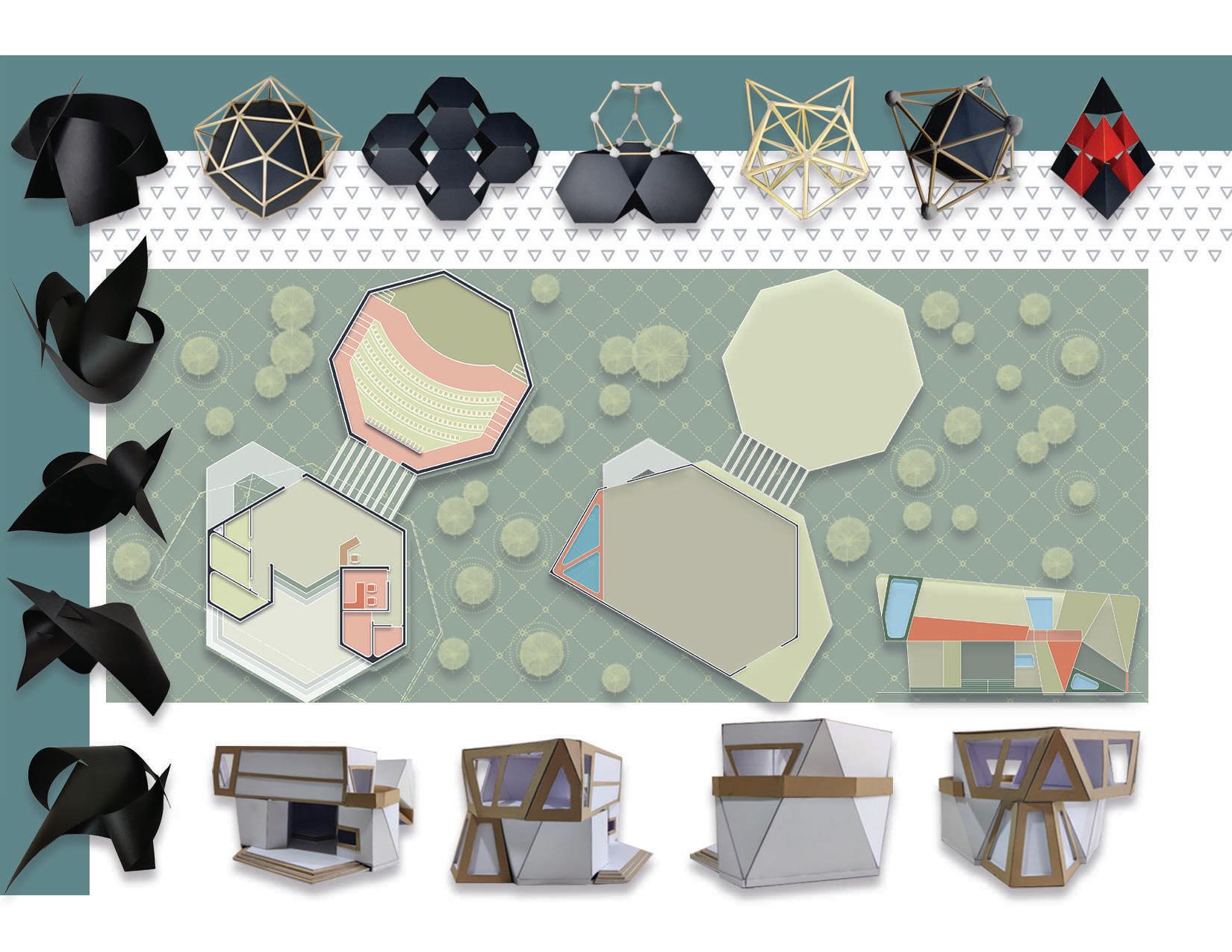

BASIC ARCHITECTONICS 01

The grid in design serves as the underlying structure that organizes all components of a composition, providing order, measurement, and cohesion. It acts as a visual guide that ensures consistency and alignment within a layout.

The interplay of light and shadow can help in showcasing the scale, form, and materiality of the design.

Specifically, the grid system helps create a hierarchical set of modules distinguished by size, proportion, and forms to meet specific dimensional requirements of spaces.

This scheme involves utilizing variations of a single color to establish visual harmony and coherence within a layout.

VIVEK PADARIA 2024 PORTFOLIO 6

Starting with a basic solid shape and then introducing modifications and extrusions to extend the form into three dimensions. This include stretching, rotating, and scaling the solid shape, as well as adding or subtracting elements to create a more complex structure.

1. Entry 2. Foyer 3.Reception 4. Admin 5. Watchman Cabin 6. Ramp 7. Auditorium 8. Exhibition Area 9. Toilet Legends 1 8 2 9 6 7 4 5 3 Elevation First Floor Plan Ground Floor Plan BASIC ARCHITECTONICS 7

SPACE OPTIMIZATION

Semester: First-Individual Project

Site: Dang,Gujarat

Design Brief: Personal Space

Designing with a focus on human dimensions involves understanding anthropometrics, spatial zones, privacy considerations, flexibility, circulation, and sensory factors. By addressing these aspects thoughtfully, and create environments that support personal space and contribute to occupants' comfort and satisfaction.

VIVEK PADARIA 2024 PORTFOLIO

Organizing architectural elements to delineate functional zones within a space

First floor plan 1. Living room 2. Kitchen+Dinning 3. Store Room 4. Toilet 5. Outdoor Seating Area 6. Swimming Pool 7. Staircase 8. Master Bedroom 9. Toilet 10.Studio 11. Balcony

Ground floor plan Front elevation 3d View Exploded Isometric View 1 5 10 7 9 8 11 6 2 4 3 7 Legends SPACE OPTIMIZATION 9

Semester: Third-Individual Project Site: Domana,Jummu

Design Brief: Community Center

Experimenting with different materials to inspire innovative design solutions.This emphasizes creativity, problem-solving, and innovation, empowering to push boundaries and create meaningful architectural solutions that respond effectively to social, environmental, and technological challenges. Through thoughtful design and community input, the Community Center will not only meet the diverse needs of its residents but also foster a sense of belonging and civic pride, strengthening social bonds and enhancing the overall quality of life in the neighborhood.

VIVEK PADARIA 2024 PORTFOLIO

BLUEPRINT 10 03

SURFACE STUDIO

1. Entry I 2. Entry II 3. Watchman Cabin I 4. Watchman Cabin II 5. Car Parking 6. Bike Parking 7. Main Entry 8. Community Hall 9. Stage 10.Green Room I 11. Green Room II 12. Sound Room 13. B-Toilet 14 G-Toilet 15. Admin Office 16. Conference Room 17. Dinning Area 18. Kitchen 19. Wash Area 20. Store Room 21. Loading Deck 22. Open Garden 23. Backyard 24. Corrider 25. Central Space Legends 3 6 6 1 7 8 5 9 24 25 22 5 10 12 11 13 14 17 18 23 19 20 21 15 16 2 4 Ground floor plan SURFACE STUDIO BLUEPRINT 11

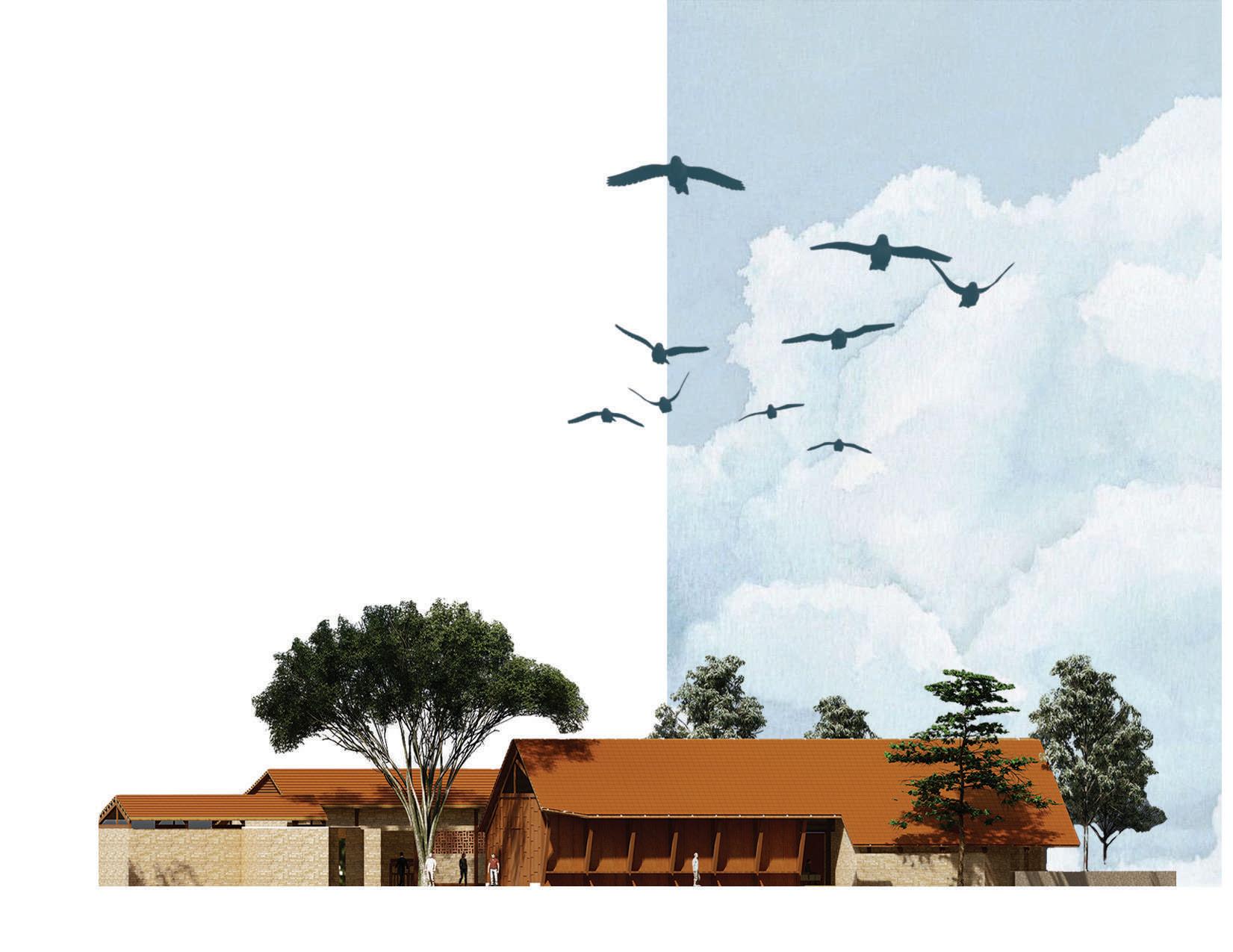

The juxtaposition of wood and stone in the Community Center design not only celebrates the beauty and richness of natural materials but also encourages exploration and appreciation of their unique properties. Through thoughtful detailing and craftsmanship, the integration of wood and stone creates a harmonious and timeless architectural expression that resonates with the values and aspirations of the community.

VIVEK PADARIA 2024 PORTFOLIO 12

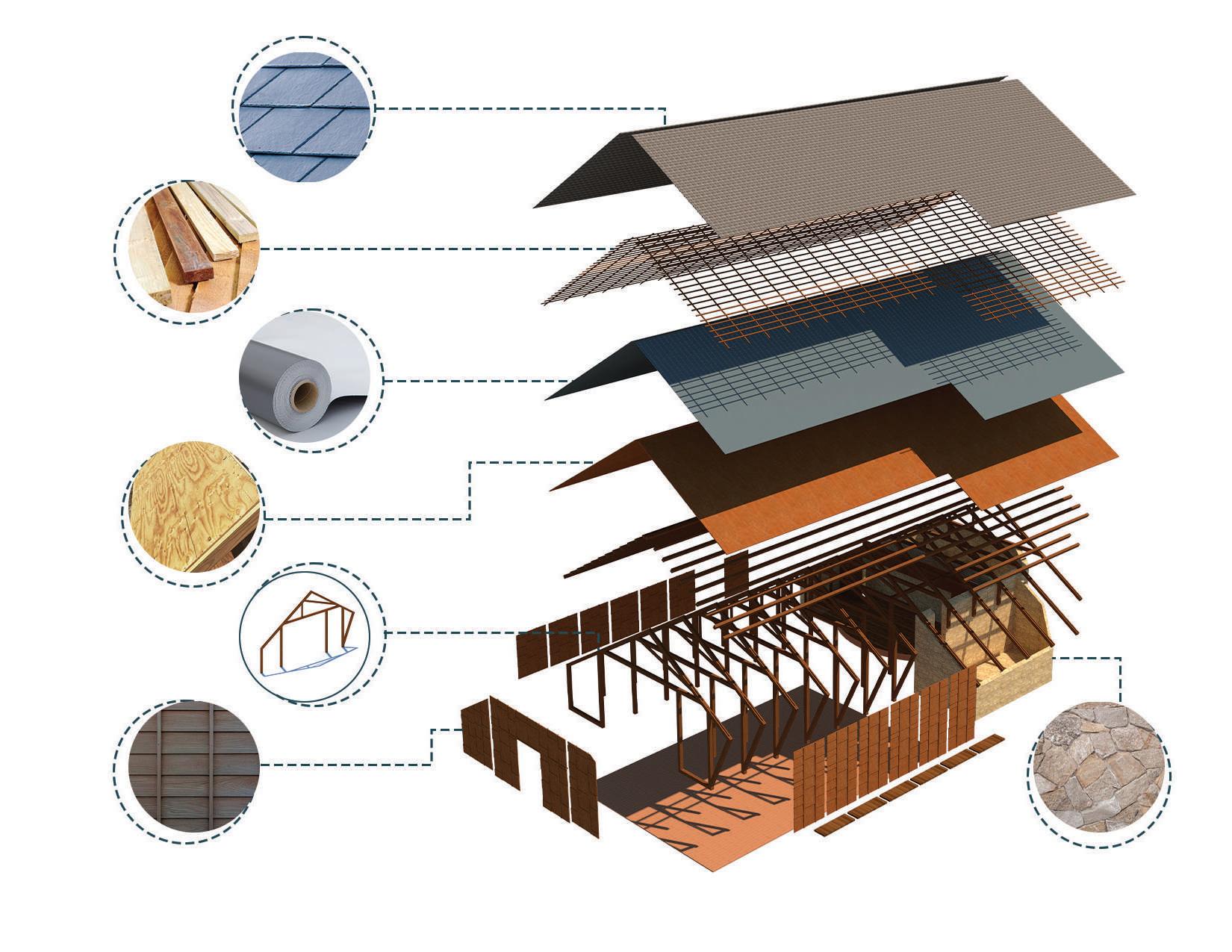

Exploded Isometric View

Slate roofing: a timeless choice blending elegance with durability.

Batten: essential for securing and supporting roofing materials while ensuring proper ventilation.

Waterproof membrane: safeguarding sloping roofs against moisture infiltration with resilience.

Plywood: providing structural integrity and support to sloping roofs with versatility.

Wooden truss the backbone of structural support, bearing the weight with grace and strength

Wooden planks enhancing structural stability and aesthetic appeal with innovative design

Stone wall adding solidity and texture as a secondary material with enduring presence.

SURFACE STUDIO BLUEPRINT 13

THE ESSENTIAL STRUCTURE AND FORM OF A DESIGN

N ROLL NO: 20SA153 SUB STUDIO SCALE 1:100 NAME VIVEK PADARIA KEY PLAN NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 3750X4440 COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO SETTING OUT PLAN 01 FINAL JURY 11360 7890 7430 17280 15600 3450 26160 2520 5580 28570 23990 7920 4900 1500 4210 540 1500 4610 5500 15010 1590 3960 13840 14380 6000 6850 1420 18200 10000 7350 5430 4520 3000 10750 7930 6070 2270 5750 5500 4000 2000 10350 3390 10710 10450 3000 7350 7640 8000 6210 9220 9080 1650 6350 5960 9030 6560 1650 4220 11360 13730 7430 15600 2720 5070 17940 20640 26190 2150 4620 R1 R2 R3 19840 R7 R8 R11 R14 R15 R16 R17 R18 R20 R21 CP CP CP CP CP CP RP SP R1 RP CP STATION POINT REFERANCE POINT REFERANCE POINT CRITICAL POINT SP1 3670 540 6330 90° 90° 90° 90° 135° 90° 135° 90° 90° 90° 90° A B C D E F 1 2 3 4 5 6 7 8 2 3 4 5 6 7 8 G H I A B C D E F G H I J J 1 EXCAVATION LINE GROUND BEAM PLINTH BEAM WOODEN POST N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:100 NAME VIVEK PADARIA KEY PLAN NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS MMUNITY COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO FOUNDATION 05 FINAL JURY GROUND BEAM 570 1050 570 7750 570 1050 570 3650 570 1050 570 4000 570 1050 580 7800 580 1050 2950 1050 570 2000 3600 2750 3600 2100 3750 6170 10030 4000 2000 18000 22200 580 1050 3950 1050 3950 1050 2950 1050 2950 1050 2950 1050 2950 1050 580 28200 580 1050 2550 1050 1700 1050 2550 1050 1050 1050 2700 4000 4000 4000 4120 4880 5000 3600 2750 3600 2100 3740 580 1050 580 4000 580 1050 580 7800 580 1050 580 3800 580 1050 580 6210 10000 4000 2000 39100 580 1050 570 2800 580 1050 570 2800 580 1050 570 1800 580 1050 2950 1050 2950 1050 570 2380 1050 570 5800 580 1050 570 5000 5000 4000 4000 4000 4000 8000 7800 2950 2950 3800 3920 7750 3950 7750 2950 7750 2950 1620 600 2400 2370 2950 2950 3650 2100 2380 570 2200 570 7750 3950 3650 2800 570 4000 5800 580 570 3750 580 4000 2950 7750 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 MATERIAL CONCRETE RANDOM RUBBLE MASONRY DOLMAINT STONE TOTAL 38 NOS. OF COLUMN PLAN WOODEN POST CONCRETE STONE CLADDING BOLTING A B C D E F 1 2 3 4 5 6 7 8 G H EXCAVATION LINE GROUND BEAM PLINTH BEAM ROLL NO: 20SA153 SCALE 1:100 NAME : VIVEK PADARIA KEY PLAN MM BE CROSS DISCREPANCY TO THE ARCHITECTS THE BE STRUCTURAL TOGETHER LEGENDS COMMUNITYHALL 9700X20750 CONFERENCEROOM 3750X5850 OFFICE 3750X4440 GREENSPACE 3000X6000 PLACE 5000X6000 STAGE 4750X9600 GREEN3200X3300 GREENROOM 3200X3300 SOUNDROOM3200X2600 M.TOILET 3240X7730 F.TOILET 4370X5240 PASSA DINNINGAREA 15650X9650 KITCHEN 8050X5650 STORE3750X5650 PASSAGE PASSAGE WASHARE2100X3650 SOFTSCAPE SOFTSCAPE SOFTSCAPE PARKING PASSAGE ASSAGE STAIRS STAIRS RAMP +450 COMMUNITY LOCATION JAMMU DATE CHECKED BY : DRAWING TITLE WORKING FOUNDATION 05 FINAL JURY 250MM WOODEN COLUMN SS STEEL PLATE BOLTING FOR FIXING RANDOM RUBBLE MASONRY RCC 450X450MM 8mm DIA STEEL BARS RCC BASE SAND FILLING WITH LEVEL GRAVELS EARTH FILLING SKIRTING WOODEN BOARDS FLOORING PCC KOTA STONE PCC 1800 1200 175 200 450 200 175 GROUND BEAM STONE CLADDING RUBBER JOINT FOR EXPANSION 350 570 1050 570 7750 570 1050 570 3650 570 1050 570 4000 570 1050 580 7800 580 1050 2950 3600 2750 3600 2100 3750 6170 10030 4000 18000 22200 580 1050 3950 1050 3950 1050 2950 1050 2950 1050 2950 1050 2950 1050 580 28200 580 1050 2550 1050 1700 1050 4000 4000 4000 4120 4880 5000 3600 2750 7800 2950 3920 7750 3950 7750 2950 7750 2950 1620 600 2400 2950 2950 3650 2100 2380 570 2200 570 7750 3950 3650 2800 570 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 MATERIAL CONCRETE RANDOM RUBBLE MASONRY DOLMAINT STONE TOTAL 38 NOS. OF COLUMN PLAN WOODEN POST CONCRETE STONE CLADDING BOLTING COLUMN COLUMN COLUMN COLUMN COLUMN SITTING 230 2010 230 2010 230 2010 230 1960 230 230 1550 230 2010 750 1030 1440 520 400 A' A 2010 KEY PLAN NOTES 1. ALL DIMENSIONS ARE 2. ALL DIMENSION SHOULD CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT NOTICE OF THE ARCHITECTS BEFORE EXECUTION CONTRACTORS 3. DRAWINGS ARE NOT SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND DRAWING TO BE READ LEGENDS B' B ONE BK THK FLEMISH BOND PLANTERS SOIL 100 MM THK P.C.C COMPACTED SAND YELLOW SOIL RUBBLE FILLING 30 MM THICK ROUGH KOTAH SECTION AA' SCALE 1:10 ONE BK THK FLEMISH BOND 100 MM THK P.C.C COMPACTED SAND YELLOW SOIL RUBBLE FILLING 30 MM THICK ROUGH KOTAH 35 MM THK KOTA STONE BRK BAT FILLING SITTING SECTION BB' SCALE 1:10 COURSES 1,3,5 (FLEMISH BOND) COMPOUND WALL : PLAN ELEVATION Setting Out Layout Foundation Detail Foundation and Excavation Layout Semester: Sixth-Individual Project Site: Domana,Jummu Design Brief: Working Drawing of Community Center VIVEK PADARIA 2024 PORTFOLIO

DELINEATING

) 14 TECHNICAL LIBRARY04

(

2100X3650

w w3 A B C D E F G 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 H I J A B C D E F G H I J K K COMMUNITYHALL 9700X20750 CONFERENCEROOM 3750X5850 OFFICE 3750X4440 GREENSPACE 3000X6000 FIREPLACE5000X6000 STAGE 4750X9600 GREENROOM 3200X3300 GREENROOM 3200X3300 SOUNDROOM3200X2600 M.TOILET 3240X7730 F.TOILET 4370X5240 PASSAGE DINNINGAREA 15650X9650 KITCHEN 8050X5650 STOREAREA 3750X5650 PASSAGE PASSAGE TOILET2000X1200 TOILET1200X1500 3240 3340 4250 1820 1820 1280 5395 4370 3340 2260 1880 1900 3500 WASHAREA 2100X3650 BIKE PARKING BIKE PARKING SOFT SCAPE SOFT SCAPE SOFT SCAPE SOFT SCAPE SOFTSCAPE SOFT SCAPE SOFTSCAPE SOFTSCAPE SOFTSCAPE CAR PARKING CARPARKING CURBING PLANTATION CHAJJA PASSAGE PASSAGE RAMP STAIRS

400 400 STAIRS

1200 SOFT SCAPE WATCHMAN CABIN 1850X3790 LVL +0 ROAD LVL LVL +150 LVL+300LVL+450LVL+600 LVL+750 LVL+300 LVL+300 TOILET1200X1500 BIKE PARKING LVL+750 LVL+1150 LVL+850LVL+950LVL+1050 LVLLVL+1050 +950LVLLVL+850 +750 LVL+735 LVL+735 LVL+750 LVL+750 LVL+750 LVL+290 LVL+290 NO NO SILL LINTEL SIZE DESCRIPTION FRAME MATERIAL HINGE TYPE QUANTITY UP UP UP UP 4000 900 7280 1770 450 3550 450 3550 450 3550 450 4000 4000 4000 4000 5000 1450 3550 26400 450 3150 450 2300 450 3150 450 1650 450 3600 2750 3600 3860 610450 1130 40 1130 640 450 610 1130 40 1130 640 450 610 1130 40 1130 640 450 1780 1820 250 250 1700 6200 1700 1900 250 4750 250 1050 3690 260 720 1000 930 600 3720 1000 930 600 2800 1000 1150 1000 1030 1000 1170 1500 420 3130 3120 3130 2200 5790 870 1500 3600 2750 3600 3860 1980 2520 3660 9700 250 5600 250 2560 1500 300 100800 370 1000 370 3200 2350 900 100 1600 900 100 2600 3200 1610 2350 900 1890 1610 370 1000 370 1870 260 4740 260 1140 1550 6500 1600 1300 900 2350 2450 1500 4700 1500 2450 2350 900 9600 15900 1730 2500 1000 2500 1820 3820 5000 2000 3000 1820 1820 4650 1000 550 1220 2000 5130 6550 3680 2520 1980 3860 1000 58005100 700 24300 24000 1300 8630 8810 330 1650 500 320 1020 2040 2000 710 1200 900 1330 800 480 1040 2000 1040 2150 2610 1000 130 580 610 1000 3300 1000 200 2150 800 800 1200 800 920 1950 870 5850 3750 4650 1200 2000 300 800 250 1220 2000 4780 3500 2500 3750 1420 1200 350 1500 1300 300 1650 6550 1500 2520 1200 2000 6230 7230 1000 2550 1550 640 1110 1720 1730 1000 610 390 1000 1030 1000 820 1240 2340 1200 2160 950 1170 130 1740 2110 1960 2310 1200 300 1090 1090 3120 1240 2510 540 1000 540 1040 1240 5850 2510 1340 2000 150 500 400100 600 600 1500 4820 2000 9180 3700 250 880 2000 870 250 3750 250 3700 3630 2400 3620 2400 1001200 250 3750 3740 260 3690 250 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1650 4790 24000 2450 8530 4400 7000 3000 3000 1500 1000 5000 2940 4460 3040 2000 3000 700 700 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 15100 1460 2000 1850 2000 3060 24640 2500 15390 5850 2060 250 960 2000 780 260780 2000 960 260 2960 6120 1260 10350 1850 3950 1500 3750 1420 1200 5710 910 2000 780 260780 2000 910 2000 1800 100 2100 3650 3650 5650 2000 4000 6080 300300 300 2770 1430 4600 1500 2930 12640 R1850 R2000 R860 23900 5340 1990 R350 R350 R350 6230 4380 4410 R350 R350 R350 3270 2290 2290 R850 5000 3570 3000 7030 23100 3440 4530 2690 R350 R350 R350 1500 4990 10000 4170 5000 3870 15000 2000 4650 D D4 D2 D2 D5 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D6 D5 D1 D1 W1 W1 V V V1 V1 V1 W2 W2 W2 W3 W4 W4 W5 W5 V1 N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:100 NAME VIVEK PADARIA KEY PLAN NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS COMMUNITY9700X20750 CONFERENCE 3000X6000 4750X9600 3200X2600 PASSAGE COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO CIVIL PLAN 04 FINAL JURY w w3 A B C D E F G 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 H I J A B C D E F G H I J K K COMMUNITYHALL 9700X20750 CONFERENCEROOM 3750X5850 OFFICE 3750X4440 GREENSPACE 3000X6000 FIREPLACE5000X6000 STAGE 4750X9600 GREENROOM 3200X3300 GREENROOM 3200X3300 SOUNDROOM3200X2600 M.TOILET 3240X7730 F.TOILET

PASSAGE DINNINGAREA

KITCHEN 8050X5650 STOREAREA

PASSAGE PASSAGE TOILET2000X1200 TOILET1200X1500 3240

4250

2260 1880

BIKE PARKING BIKE

SOFT

SOFT SCAPE SOFT

SOFT SCAPE SOFTSCAPE SOFT

SOFTSCAPE SOFTSCAPE SOFTSCAPE CAR PARKING CARPARKING CURBING PLANTATION CHAJJA PASSAGE PASSAGE RAMP STAIRS STAIRS STAIRS RAMP SOFT SCAPE WATCHMAN CABIN 1850X3790 LVL +0 ROAD +150 LVL+300LVL+450LVL+600 LVL+750 LVL+300 LVL+300 TOILET1200X1500 BIKE PARKING LVL+750 LVL+1150 LVL+850LVL+950LVL+1050 LVLLVL+1050 +950LVLLVL+850 +750 LVL+735 LVL+735 LVL+750 LVL+750 LVL+750 LVL+290 LVL+290 NO NO SILL LINTEL SIZE DESCRIPTION SINGLE SHUTTER FLUSH DOOR D FRAME SIZE MATERIAL HINGE TYPE 01. 02. 03. 04. D1 D2 D3 2300X3500 3500 60X100 WOOD BUTT HINGE DOUBLE SHUTTER WOOD AND GLASS DOOR 2400 1130X2400 50X150 WOOD,GLASS BUTT HINGE 2630 900X2630 70X150 SINGLE SHUTTER FLUSH DOOR WOOD BUTT HINGE SINGLE SHUTTER FLUSH DOOR 2630 1100X2630 50X150 WOOD BUTT HINGE 05. D4 DOUBLE SHUTTER FLUSH DOOR 2630 2000X2630 50X150 WOOD BUTT HINGE 06. D5 SINGLE SHUTTER FLUSH DOOR 2100 1200X2100 50X150 WOOD BUTT HINGE 07. D6 SINGLE SHUTTER FLUSH DOOR 2000 800X2000 50X100 WOOD BUTT HINGE QUANTITY 1 1 1 NO NO SILL LINTEL SIZE DESCRIPTION FRAME SIZE MATERIAL HINGE TYPE W1 01. 1000 3000 1180 X 1955 DOUBLE SHUTTER WINDOW QUANTITY 60X130 GLASS,WOOD BUTT HINGE W2 02. 700 2500 2300 1800 DOUBLE SHUTTER WINDOW 60X130 GLASS,WOOD BUTT HINGE W3 03. 3200 2400 3200 SHUTTER SLIDING WINDOW 60X130 GLASS,WOOD BUTT HINGE 1 W4 04. 2100 2600 2000X500 DOUBLE SHUTTER WINDOW 60X130 LOUVERED,GLASS BUTT HINGE W5 05. 900 2400 2000 1500 DOUBLE SHUTTER SLIDING WINDOW 60X130 GLASS,WOOD BUTT HINGE W6 06. 1000 2500 2500 1500 60X130 GLASS,WOOD BUTT HINGE 1 DOUBLE SHUTTER SLIDING WINDOW UP UP UP UP 4000 900 7280 1770 450 3550 450 3550 450 3550 450 4000 4000 4000 4000 5000 1450 3550 26400 450 3150 450 2300 450 3150 450 1650 450 3600 2750 3600 3860 610450 1130 40 1130 640 450 610 1130 40 1130 640 450 610 1130 40 1130 640 450 1780 1820 250 250 1700 6200 1700 1900 250 4750 250 1050 3690 260 720 1000 930 600 3720 1000 930 600 2800 1000 1150 1000 1030 1000 1170 1500 420 3130 3120 3130 2200 5790 870 1500 3600 2750 3600 3860 1980 2520 3660 9700 250 5600 250 2560 1500 370 1000 3200 2350 100 1600 100 2600 3200 1610 2350 900 1890 1610 1000 1870 260 4740 260 1140 1550 6500 1600 1300 900 2350 2450 1500 4700 1500 2450 2350 900 9600 15900 1730 2500 1000 2500 1820 3820 5000 2000 3000 1820 1820 4650 1000 550 1220 2000 5130 6550 3680 2520 1980 3860 1000 58005100 700 24300 24000 1300 8630 8810 1650 500 320 710 1200 900 1330 480 1040 2150 1000 130 580 610 1000 3300 1000 2150 800 1200 800 920 1950 5850 3750 4650 1200 2000 1220 2000 4780 3500 2500 3750 1420 1500 1650 6550 1500 2520 1200 2000 6230 7230 1000 2550 1550 640 1110 1720 1730 1000 610 1000 1030 1000 1240 2340 1200 2160 950 130 1740 2110 1960 2310 1200 300 1090 1090 3120 1240 2510 540 1000 540 1040 1240 5850 2510 1340 2000 400 600 600 1500 4820 2000 9180 3700 250 880 2000 870 250 3750 250 3700 3630 2400 3620 2400 1001200 250 3750 3740 260 3690 250 4790 24000 2450 8530 4400 7000 3000 3000 1500 1000 5000 2940 4460 2000 3000 700 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 15100 2000 1850 2000 3060 24640 2500 15390 5850 2060 250 960 2000 780 260780 2000 960 260 2960 6120 1260 10350 1850 3950 1500 3750 1200 5710 910 2000 780 260780 2000 910 2000 1800 100 2100 3650 3650 5650 2000 4000 6080 300300 300 2770 1430 4600 1500 2930 12640 R1850 R2000 R860 23900 5340 1990 R350 R350 R350 6230 4380 4410 R350 R350 R350 3270 2290 2290 R850 5000 3000 7030 23100 3440 4530 2690 R350 R350 R350 1500 4990 10000 4170 3870 15000 4650 D4 D2 D2 D5 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D6 D5 D1 D1 W1 W1 V V1 V1 V1 W2 W2 W2 W3 W4 W4 W5 W5 V1 Detailed Master Plan layout TECHNICAL LIBRARY 15

400 400 400

STAIRS RAMP

4370X5240

15650X9650

3750X5650

3340

1820 1820 5395 4370 3340

1900 3500 WASHAREA

PARKING

SCAPE

COMMUNITYHALL 9700X20750 GREENSPACE 3000X6000 FIREPLACE5000X6000 STAGE PASSAGE PASSAGE PASSAGE TOILET2000X1200 SOFTSCAPE LVL +150 KEY PLAN NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS COMMUNITY CENTER STARTING POINT ARTING STARTING STARTINGPOINT STARTINGPOINT POINT STARTINGPOINT STARTINGPOINT STARTING STARTINGPOINT STARTINGPOINT RTING 10 STARTINGPOINT STARTINGPOINT STARTING STARTI POINT STARTING STARTINGPOINT STARTINGPOINT STARTINGPOINT EXHAUST FAN AS PER WINDOW DETAIL CEILING FAN 1X40W FTL LIGHT AT 2100 MM FROM FFL WALL BRACKET LIGHT AT 2100 MM FROM FFL CEILING LIGHT SWITCH BOARD AT 1050 MM FROM FFL NO. LOCATION SWITCH BOARD S.B. HEIGHT FAN POINT F.P. REGULATOR WALL POINT W.P. HEIGHT CEILING POINT C.P. PLUG POINT AMP 16 AMP A.C. POINT BELL POINT T.V. POINT MODULES SB-1 1400 TOILET 01. SB-2 2 2500 SB-3 SB-4 SB-5 10 1 2500 SB-6 SB-1 SB-2 SB-3 SB-6 SB-5 SB-4 COMMUNITY HALL 02. SB-7 1400 1400 1400 1400 1400 SB-11 SB-10 SB-9 SB-8 SB-15 SB-14 SB-13 SB-12 SB-7 1400 24 10 1 10 1 10 1 2 12 12 2 SB-16 13 SB-17 SB-18 SB-19 18 1 1 18 12 12 2 2500 SB-20 SB-22 SB-23 SB-24 SB-21 1 1 2500 1 1 2500 1 1 2500 1 2500 1 2500 SB-28 SB-26 SB-25 SB-27 1 1 2500 1 1 2500 1 2 2500 10 SB-31 SB-32 SB-30 SB-29 SB-33 4 3 2500 14 2 3 2500 12 2 3 2500 12 4 4 2500 16 SB-34 SB-35 1 1 1 1 2500 1 2500 1 2500 2100 1510 1590 1080 1660 1590 1010 600 600 1240 1250 1250 31401770 3140 1770 3140 1420 2580 1420 2480 1520 2580 1420 1200 930 890 1790 1610 1320 1610 1790 1200 1600 2400 1600 2400 1600 2400 1600 3050 3070 4000 4000 3270 1240 1240 1240 1240 1240 1790 1610 1320 1610 16001790 1580 3410 1580 960 1390 1390 1390 1390 1670 1770 650 1070 1040 1230 1520 3430 2430 2040 2230 2920 1 1 2500 1 1 2500 N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:100 NAME VIVEK PADARIA KEY PLAN NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO ELECTRIC LAYOUT 09 FINAL JURY COMMUNITYHALL 9700X20750 GREENSPACE 3000X6000 STAGE PASSAGE PASSAGE TOILET2000X1200 LVL +0 ROAD LVL LVL +150 FLOORING HARDWOOD LAMINATED FOAM PAD GYPSUM CONCRETE DPC PCC WOODEN FLOORING TYPE-1 DINNING AREA NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS BONDED CRACK ISOLATION WATERPROOFING MEMBRANE (1) PRIMER / SEALER FOR GYPSUM (2) FIRM-FILL BRAND GYPSUM CONCRETE MIN. 3/4"(19MM) LATEX-PORTLAND CEMENT BOND COAT GROUT TILES (3) PRIMER PLYWOOD TAR STA TING OIN TARTING POINT START 10 10 12 10 25 26 400X400 300X300 CERAMIC 600X600 230X1220 400 400 1200 300 300 600 600 CERAMIC FLOORING TYPE-1 HALL AREA LVL +0 ROAD LVL +150 FLOORING HARDWOOD LAMINATED FOAM PAD GYPSUM CONCRETE DPC PCC WOODEN FLOORING TYPE-1 DINNING AREA NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS LATEX-PORTLAND GROUT TILES CERAMIC FLOORING EXHAUST FAN AS PER CEILING FAN 1X40W FTL LIGHT AT 2100 WALL BRACKET LIGHT CEILING LIGHT SWITCH BOARD AT 1050 NO. LOCATION SWITCH BOARD S.B. HEIGHT FAN POINT F.P. REGULATOR WALL POINT W.P. HEIGHT CEILING POINT C.P. PLUG POINT AMP 16 AMP A.C. POINT BELL POINT T.V. POINT MODULES SB-1 1400 TOILET 01. SB-2 4 1 2 8 1 2 2500 8 SB-3 1 2 SB-4 3 1 2 SB-5 10 1 1 2500 4 SB-6 1 2 COMMUNITY HALL 02. SB-7 1400 1400 1400 1400 1400 SB-8 SB-15 SB-14 SB-13 SB-12 SB-7 SB-8 SB-9 SB-10 SB-11 SB-12 SB-13 SB-15 SB-16 SB-17 SB-18 SB-19 SB-20 SB-14 1400 1400 1400 1400 1400 1400 1400 1400 1400 24 2 10 1 1 9 2 1 10 1 1 9 2 1 10 6 1 6 2 2 6 6 1 1 6 4 2 2 9 2 1 12 9 2 1 12 2 2 9 1 1 6 13 4 1400 18 1 1 1 1 18 1400 1400 2 2 2 2 12 12 1400 2 2500 2 1400 SB-21 1400 SB-22 1400 SB-23 1400 SB-24 1400 SB-25 1400 SB-26 1400 SB-27 1400 SB-28 1400 SB-29 1400 SB-31 1400 SB-32 1400 1 1 2500 2 8 1 1 1 2500 2 8 1 1 1 2500 2 8 2500 1 2500 2 GREEN ROOM 03. SB-28 OFFICE 04. 1 1 1 2500 3 2 2 2 2 6 2 1 1 2500 8 1 1 2500 2 2 2 10 6 4 4 4 2500 4 2 14 2 2 2500 4 2 12 05. 1400 SB-33 1400 SB-34 1400 SB-35 1400 SB-36 SB-30 1400 2 2 2500 4 2 12 4 4 2500 4 2 16 1 1 1 1 1 1 2500 1 2500 1 2500 2 2 2 1 1 1 8 8 8 DINNING AREA KITCHEN 06. 2100 1510 1590 1080 1660 1590 1010 1420 2580 930 890 1790 1610 1320 1610 1790 1200 1600 2400 1600 3050 3070 4000 4000 1790 1610 1580 SB-38 SB-37 SB-38 WATCHMAN CABIN 07. 1400 1 1 1 2500 2 1 8 1400 1 1 2500 2 1 8 NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS Electrical

Isometric View With Showing Roof in Detail VIVEK PADARIA 2024 PORTFOLIO 16

Layout Electrical Layout Table Flooring Layout

PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 FFL LVL +0 ROOF TOP LVL +6500 SELL BOTTOM LVL +2000 LINTEL LEVEL LVL +2100 SILL LEVEL LVL +300 ROOF LVL +2800 1 2 3 1 2 3 3500 6510 SECTION BB' 1 2 3 4 5 6 7 1 2 3 4 5 6 7 4000 4000 4000 4000 4000 4000 ROOF TOP LVL +5500 ROOF BOTTOM LVL LVL +3500 LINTEL LVL LVL +2700 SILL LVL LVL +1200 FFL LVL +0 JALI WALL SECTION CC' OFFICE CONFERENCE ROOM ROOF LVL +4600 ROOF BOTTOM LVL +3100 BEAM BOTTOM LVL +3100 FFL LVL +0 N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:50 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO OVERHEAD TANK 14 FINAL JURY KEY PLAN 700X20 CONFEREN 3750X444 SPACE REEN 3200X X5240 PASSAGE 8050X PASSAGE SSAGE 2100X3650 ARKIN SSAGE PASSAGE NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 200 200 ELEVATION PLAN 200 BRICK JALI 200 10 200 10 200 10 200 200 10 200 60 BRICK JALI 10MM PLAIN CONCRETE 1200 1500 800 450 450 350 2700 800 2800 2060 580 210 250 1750 650 2000 850 830 MIRROR 2300 310 450 50 2200 300 1810 590 1530 1620 2000 D D D D D D D SEATING PLANTATION ONE STEP DOWN D1 D1 W2 W2 W2 D3 STONE CLADDING KOTA STONE WOODEN POST PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 FFL LVL +0 ROOF TOP LVL +6500 SELL BOTTOM LVL +2000 LINTEL LEVEL LVL +2100 SILL LEVEL LVL +300 ROOF LVL +2800 1 2 3 1 2 3 3500 6510 SECTION BB' 1 2 3 4 5 6 7 1 2 3 4 5 6 7 4000 4000 4000 4000 4000 4000 ROOF TOP LVL +5500 ROOF BOTTOM LVL LVL +3500 LINTEL LVL LVL +2700 SILL LVL LVL +1200 FFL LVL +0 JALI WALL SECTION CC' OFFICE CONFERENCE ROOM ROOF LVL +4600 ROOF BOTTOM LVL +3100 BEAM BOTTOM LVL +3100 FFL LVL +0 ROLL NO: 20SA153 SUB STUDIO VI NAME : VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY AR-3601 KEY PLAN 700X20 CONFEREN ROOM 3750X44 3240X7 X5240 PASSAGE 3750X565 PASSAGE SSAGE 2100X3650 SCAPE SSAGE PASSAGE NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 200 200 ELEVATION PLAN 200 BRICK JALI 200 60 1200 1500 800 450 450 350 2700 800 2800 2060 580 210 250 1750 650 2000 850 830 MIRROR 2300 310 450 50 2200 300 1810 590 1530 1620 2000 D D D D D D D SEATING PLANTATION PLANTATION D1 D1 W2 W2 W2 D3 STONE CLADDING KOTA STONE WOODEN POST ROLL NO: 20SA153 SCALE 1:50 NAME VIVEK PADARIA COMMUNITY LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING ELEVATION 15.5 FINAL JURY KEY PLAN STAIRS 1 2 3 4 5 5 4000 4000 4000 4000 5000 5000 ROOF TOP LVL +4870 ROOF BOTTOM LVL +3630 PARAPET LVL +1200 PLINTH LVL +450 LINTEL LVL +3250 SILL LVL +1500 ROOF TOP LVL +6500 620 2030 280 2650 280 2030 1750 280 280 FIX GLASS FIX GLASS FIX GLASS BRICK JALI W5 D1 D2 W W W PLINTH LVL +450 ROOF BOTTOM LVL +3630 ROOF TOP LVL +4870 ROOF TOP LVL +6500 TRUSS JOIN LVL +5940 HEAD ROOM LVL +4800 ROOF END LVL +3950 LINTEL LVL +3690 SILL LVL +2020 PARAPET LVL +1070 PLINTH LVL +450 650 1000 1000 1000 1150 1000 1000 1000 3560 2580 NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS HOLES FOR ANCHOR BOLT 50x50x50x80MM ALUMINUM ANGLE FLOOR BRACKET TOP OF PARAPET CLEAR WIDTH 50x80MM ALUMINUM TOP BRACKET 50MMx80MM ALUMINUM INTERMEDIATE BRACKET ADJUSTABLE STAPLE PLATE NOTCH IN DOOR TO ACCOMODATE STAPLE PLATE 2500MM SECURITY DOOR WITH SIDE PANELS FRONT ELEVATION SECTION NOSING (20MM) RISER (150MM) CEMENT MORTAR KOTA STONE FRICTION STRIP DRIP MOULD DPC 420 COMPACT EARTH PLAIN CEMENT CONCRETE R.C.C CEMENT MORTAR TREAD NOSING (20MM) 100 KOTA STONE FINISH RISER PLINTH STAIR CASE SCALE 1:5 700 300 ROLL NO: 20SA153 SCALE 1:20 NAME VIVEK COMMUNITY LOCATION DATE CHECKED BY DRAWING TITLE WORKING MISCELLANEOUS FINAL JURY KEY PLAN NOTES 1. ALL DIMENSIONS 2. ALL DIMENSION CHECKED IF FOUND NOTICE OF BEFORE EXECUTION CONTRACTORS 3. DRAWINGS SCALED ONLY DIMENSIONS 4. ARCHITECTURAL DRAWING LEGENDS HOLES FOR ANCHOR BOLT 50x50x50x80MM ALUMINUM ANGLE FLOOR BRACKET TOP OF PARAPET CLEAR WIDTH 50x80MM ALUMINUM TOP BRACKET 50MMx80MM ALUMINUM INTERMEDIATE BRACKET ADJUSTABLE STAPLE PLATE NOTCH IN DOOR TO ACCOMODATE STAPLE PLATE 2500MM SECURITY DOOR WITH SIDE PANELS FRONT ELEVATION SECTION 62 50x6mm 16Ø BOLT (100 mm LONG) M.S.FLAT OUTSIDE INSIDE DETAIL A PLAN ELEVATION 350MM COUMPOUND WALL 15MM M.S PIPE 50MM THICK TIMBER PLANKS ROLLER BOLTING HINGE HANDEL FIX WOODEN POST DETAIL-A 150 80 1760 808080 1180 80 1180 80 1180 80 150 1920 3860 5860 70 1350 SCALE 1:5 DETAIL B NOSING (20MM) RISER (150MM) CEMENT MORTAR KOTA STONE FRICTION STRIP DRIP MOULD RCC COMPACT EARTH PCC DPC 420 150 COMPACT EARTH PLAIN CEMENT CONCRETE R.C.C CEMENT MORTAR TREAD NOSING (20MM) 80 20 KOTA STONE FINISH RISER PLINTH STAIR CASE SCALE 1:5 700 170 900 300 N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:20 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO MISCELLANEOUS DETAILS 19 FINAL JURY KEY PLAN NOTES 1. ALL DIMENSIONS ARE MM CHECKED AND ANY DISCREPANCY NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS HOLES FOR ANCHOR BOLT 50x50x50x80MM ALUMINUM ANGLE FLOOR BRACKET TOP OF PARAPET CLEAR WIDTH 50x80MM ALUMINUM TOP BRACKET 50MMx80MM ALUMINUM INTERMEDIATE BRACKET ADJUSTABLE STAPLE PLATE NOTCH IN DOOR TO ACCOMODATE STAPLE PLATE 2500MM SECURITY DOOR WITH SIDE PANELS FRONT ELEVATION SECTION 50 50x6mm 16Ø BOLT (100 mm LONG) M.S.FLAT OUTSIDE INSIDE DETAIL A PLAN ELEVATION 350MM COUMPOUND WALL 15MM M.S PIPE 50MM THICK TIMBER PLANKS ROLLER BOLTING HINGE HANDEL FIX WOODEN POST DETAIL-A 5860 50 50 1350 SCALE 1:5 DETAIL B NOSING (20MM) RISER (150MM) CEMENT MORTAR KOTA STONE FRICTION STRIP DRIP MOULD RCC COMPACT EARTH PCC DPC COMPACT EARTH PLAIN CEMENT CONCRETE R.C.C CEMENT MORTAR TREAD NOSING (20MM) 80 20 KOTA STONE FINISH RISER PLINTH STAIR CASE SCALE 1:5 700 150 180 180 180 180 180 180 170 300 Section A-A' Front Elevation Section B-B' COMMUNITYHALL 9700X20750 NFERENC3750X5850 OFFICE 3750X4440 GREEN PLA TAGE 4750X9600 GREENROOM 3200X3300 GREEN3200X3300 SOUNDROOM3200X2600 M.TOILET 3240X7730 F.TOILET 4370X5240 PASSAGE DINNING15650X9650 TCHEN 8050X565 STORE REA 3750X5650 PASS PASSAGE TOILET WASH0X3650 SOFTSCAPE STAIRS RAMP TOILET KEY PLAN NOTES LEGENDS COMMUNITY CENTER AR-3601 Class-E plastic tube comes with ambient pressure rating (PN15) and operating temperature range -5°C PVC CAP WATER PVC PIPE FROM THICKER (52.5MM A B A B TECHNICAL LIBRARY 17

KITCHEN LAYOUT SCALE 1:50 FLOORING LAYOUT SCALE 1:50 SECTION AA' SCALE 1:50 SECTION BB' SCALE 1:50 SECTION CC' SCALE 1:50 20MM THICK POLISHED GRANITE 50MM THICK UNFINISHED KOTTA STONE 15MM THICK MORTAR 50MM THICK UNFINISHED KOTTA STONE 20MM THICK FINISHED MARBLE UNFINISHED SINK SECTION DD' SCALE 1:5 400 140 165 80 470 440 B B' A A' C' C FFL LVL +0 PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 FFL LVL +0 FFL LVL +0 PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 PARAPET LVL +3250 TERRACE LVL +2950 BEAM BOTTOM LVL +2650 SECTION DD' D D D 150MM THICK SLAB PARAPET 350MM THICK STONE WALL 300 STORAGE FOR DISH WASH (SS RACK) 620X1920 PCC 100MM 1 2 3 1 2 3 1 1 2 2 2 3 2 3 EXHAUST FAN LUWARD CHIMNEY DRY STORAGE RACK HORIZONTAL FRIDGE SS RACK FRIDGE FRIDGE SS RACK OVEN STORAGE COMMERCIAL KITCHEN PLATFORM DOUBLE FRYER IPS PCC PCC PCC 100 20 CERAMIC SCALE 1:2 GROUT SKIRTING CONCRETE PRIMER GYPSUM CONCRETE TOPCOAT CEMENTITIOUS BOND COAT CERAMIC TILES PLASTER STOP PLASTER AND PAINT SLOPE SLOPE SLOPE SLOPE 1 4 10 11 12 13 14 15 16 2 3 4 5 8 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2 3 4 R R R R N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:50 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO KITCHEN 12 FINAL JURY KEY PLAN 9700X20750 NFERE SPACE PASSAG NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 3430 2320 2700 KITCHEN 8050X5650 STORE AREA 3750X5650 WASH AREA 2100X3650 LVL +750 LVL +600 800 1130 2420 4000 VERTICAL STORAGE FRIDGE FRIDGE SS RACK DRY PLATFORM SINK STORAGE STORAGE HORIZONTALFRIDGE SS RACK CYLINDER STOVES 560 550 1120 550 1150 550 1180 550 620 810 330 240 1010 1500 2140 1440 1630 260 2100 1010 2830 1180 2000 800 100 1680 300 1990 700 800 2000 980 450 570 100 500 200 630 390 910 800 310 330 630 820 1020 500 500 400 400 300 300 580 2000 500 2050 350 2000 1270 400 350 500 400 400 2000 500 2000 150 1030 520 450 1730 390 360 490 195 565 650 520 550 600 GAS BURNER GAS PIPE UTENSIL CHIMNEY FLOOR DROP DETAIL A DETAIL A 600 300 PORCELAIN MATT CERAMIC TILES MATT TILES ROUGH GRANITE 350MM THICK STONE WALL 1700 2340 810 WATER TANK LVL + 5250 PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 FFL LVL +0 3610 3240 5670 1960 600 4250 1230 1900 2150 2330 1280 1190 500 700 1080 1700 3610 4370 950 1850 1750 2230 2510 4360 1040 1000 1200 1000 1150 1000 1030 1000 2350 1170 1500 3810 1090 3490 FLOORING PARAPET LVL +3170 TERRACE LVL +2870 BEAM BOTTOM LVL +2650 FFL LVL +0 ELECTRICAL TOILET LAYOUT SECTION AA' SECTION BB' SCALE 1:50 SCALE 1:50 SCALE 1:50 B' B A A' SECTION CC' SECTION DD' 1 2 4 1 2 4 1 1 2 2 3 3 150MM THICK SLAB RCC PARAPET 350MM THICK STONE WALL ROUGH GRANITE SB-3 4 5 R R 2 3 3 STARTING POINT STARTING POINT STARTING STARTING STARTING POINT MIRROR 250 D D D D D D D D3 2380 180 170 2460 2397 120 1600 70 C TIMBER MOVABLE LOUVERED SHUTTERS OPENABLE WITH TEAK WOOD FRAME A' A 1955 INSIDE B OUTSIDE 1180 OUTSIDE INSIDE A REBATED JOINT PIVOT HANDLE TEAK MOVABLE LOUVRE 60 SECTION AA' LINTEL SELL 350MM THICK STONE WALL WINDOW W1 FINISHED LVL 70X200MM TEAK 50X65 MM OPENABLE MM TOUGHENED GLASS WINDOW FRAME A A 120 70 2300 D 2300 INSIDE OUTSIDE PLAN STOPPER WINDOW W2 WINDOW W3 OUTSIDE INSIDE D NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 3200 2397 1790 120 1600 70 C R.C.C LINTEL 150MM THICK 130X60MM TEAK WOOD FRAME 50X65MM OPENABLE SHUTTER FRAME 10MM THICK WOODEN HANDLE REBATED JOINT PIVOT STOPPER 250 55 750 65 50 300 50 130 60 30 MM THK LOUVER 15 MM THK WOODEN HANDLE 65x50MM SHUTTER FRAME BEADING BUTT HINGE PIVOT 130x70 MM TEAK WINDOW FRAME 350 MM THK STONE WALL 100 70 65 50 50 15 130 TIMBER MOVABLE LOUVERED SHUTTERS OPENABLE WITH TEAK WOOD FRAME A' A 1955 1180 INSIDE B OUTSIDE 1180 OUTSIDE INSIDE A REBATED JOINT PIVOT HANDLE TEAK MOVABLE LOUVRE 140 60 1660 190 1960 1000 SECTION AA' LINTEL SELL 350MM THICK STONE WALL WINDOW W1 PLAN 70X200MM TEAK WINDOW FRAME 50X65 MM OPENABLE SHUTTER FRAME MM TOUGHENED GLASS 100X200MM TEAK WINDOW FRAME 15X15 M.M. WOODEN M.M.BEADING 6 M.M. THICK GLASS GLAZING 90 RUBBER STRIP A A 120 70 1620 2300 D 2300 INSIDE OUTSIDE PLAN 130X75MM TEAK WOOD FRAME 15MM BEADING 65X50MM OPENABLE SHUTTER FRAME FASTENER 5 MM THK TOUGHENED FLOAT GLASS 650 75 55 65 73 50 750 65 50X65mm SHUTTER FRAME BEADING HINGE 70X200MM TEAK WINDOW FRAME 200 MM THICK WOODEN PARTATION 6 MM THICK TOUGHENED GLASS 1000 70 STOPPER WINDOW W2 WINDOW W3 PLAN OUTSIDE INSIDE 90 530 580 580 530 90 90 DETAIL B SCALE 1:5 DETAIL A SCALE 1:5 DETAIL C SCALE 1:5 DETAIL D SCALE 1:5 DETAIL D SCALE 1:5 26 50X40MM TRACK 6MM THICK PLY 1000 700 2397 1790 120 1600 70 C R.C.C LINTEL 150MM THICK 130X60MM TEAK WOOD FRAME 50X65MM OPENABLE SHUTTER FRAME 10MM THICK WOODEN HANDLE PIVOT STOPPER 250 55 750 65 50 300 130 60 30 MM THK LOUVER 15 MM THK WOODEN HANDLE 65x50MM SHUTTER FRAME BEADING BUTT HINGE PIVOT 130x70 MM TEAK WINDOW FRAME 350 MM THK STONE WALL 100 70 65 50 50 15 130 TIMBER MOVABLE LOUVERED SHUTTERS OPENABLE WITH TEAK WOOD FRAME A' A 1955 1180 INSIDE B OUTSIDE 1180 OUTSIDE INSIDE A REBATED JOINT PIVOT HANDLE TEAK MOVABLE LOUVRE 140 60 1660 190 1960 1000 SECTION AA' LINTEL SELL 350MM THICK STONE WALL WINDOW W1 PLAN 70X200MM TEAK WINDOW FRAME 50X65 MM OPENABLE SHUTTER FRAME 6 MM TOUGHENED GLASS 100X200MM TEAK WINDOW FRAME 15X15 WOODEN M.M.BEADING A A 120 70 1620 2300 D 2300 INSIDE OUTSIDE PLAN 130X75MM TEAK WOOD FRAME 15MM BEADING 65X50MM OPENABLE SHUTTER FRAME FASTENER 5 MM THK TOUGHENED FLOAT GLASS 650 75 55 65 73 50 750 65 50X65mm SHUTTER FRAME BEADING HINGE 70X200MM TEAK WINDOW FRAME 200 MM THICK WOODEN 6 MM THICK TOUGHENED GLASS 1000 70 STOPPER WINDOW W2 WINDOW W3 PLAN OUTSIDE INSIDE 90 530 580 580 DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 26 1000 700 R.C.C LINTEL 150MM THICK 130X60MM TEAK WOOD FRAME 50X65MM OPENABLE SHUTTER FRAME 10MM THICK WOODEN HANDLE STOPPER 250 55 750 65 50 300 130 60 30 MM THK LOUVER 15 MM THK WOODEN HANDLE 65x50MM SHUTTER FRAME BEADING BUTT HINGE PIVOT 130x70 MM TEAK WINDOW FRAME 350 MM THK STONE WALL 100 70 65 50 50 15 130 TIMBER MOVABLE LOUVERED SHUTTERS OPENABLE WITH TEAK WOOD FRAME A' A 1955 1180 INSIDE B OUTSIDE 1180 OUTSIDE INSIDE A REBATED JOINT PIVOT HANDLE TEAK MOVABLE LOUVRE 140 60 1660 190 1960 1000 SECTION AA' LINTEL SELL 350MM THICK STONE WALL WINDOW W1 PLAN A A 2300 2300 INSIDE OUTSIDE PLAN 130X75MM TEAK 15MM 65X50MM OPENABLE FASTENER 5 MM FLOAT 650 75 55 65 73 WINDOW W2 DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 1000 700 1790 120 1600 70 C R.C.C LINTEL 150MM THICK 130X60MM TEAK WOOD FRAME 50X65MM OPENABLE SHUTTER FRAME 10MM THICK WOODEN HANDLE STOPPER 250 55 750 65 50 300 130 60 30 MM THK LOUVER 15 MM THK WOODEN HANDLE 65x50MM SHUTTER FRAME BEADING BUTT HINGE PIVOT 130x70 MM TEAK WINDOW FRAME 350 MM THK STONE WALL 100 70 65 50 50 15 130 TIMBER MOVABLE LOUVERED SHUTTERS OPENABLE WITH TEAK WOOD FRAME A' A 1955 1180 INSIDE B OUTSIDE 1180 OUTSIDE INSIDE A REBATED JOINT PIVOT HANDLE TEAK MOVABLE LOUVRE 140 60 1660 190 1960 1000 SECTION AA' LINTEL SELL 350MM THICK STONE WALL WINDOW W1 PLAN 50X65 SHUTTER A A 120 70 1620 2300 D 2300 INSIDE OUTSIDE PLAN 130X75MM TEAK WOOD FRAME 15MM BEADING 65X50MM OPENABLE SHUTTER FRAME FASTENER 5 MM THK TOUGHENED FLOAT GLASS 650 75 55 65 73 50 750 65 200 MM THICK 1000 70 WINDOW W2 DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 1000 700 Kitchen Layout VIVEK PADARIA 2024 PORTFOLIO 18

400 66 615 620 65 SUPPORT/IN-WALL TANK WALL TILE10mm THK. CEMENT BOARD 9mm THK. 150 DN15mm-COLD WATER PIPE (EMBEDDED) RISING SPRAY K-97258X 600 395 FFL 20MM THICK MORTAR 100MM PCC 150MM RCC TOILET TILE FLOORING FLOORING LAYOUT ELECTRICAL LAYOUT WALL MOUNT WC SECTION CC' SCALE 1:20 20MM THICK MORTAR 5 MM THK 600 X 300 CERAMIC WALL TILES TELEPHONIC BLACK GRANITE (19MM THK.) SEALANT 5MM THK. PILLAR COCK 350MM THICK STONE WALL FIXING CLIP AND BOLT (MINIMUM SIX SUPPORTS REQUIRED) SCALE 1:50 SCALE 1:50 UNDER COUNTER FIXING WASH BASIN DETAIL SECTION DD' SCALE 1:20 ROUGH GRANITE PCC ROUGH GRANITE ROUGH GRANITE PCC SB-1 SB-2 SB-6 SB-5 SB-4 1 2 3 4 1 6 7 2 3 4 5 R R R R 1 2 3 4 1 10 11 12 13 14 15 1 16 17 18 19 1 2 1 2 3 R 6 R R STARTING POINT STARTING POINT POINT STARTING POINT POINT N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:50 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO OVERHEAD TANK 13 FINAL JURY KEY PLAN 3750X585 4440 STAGE 3200X3300 3750X5650 2100X3650 NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 600 600 PORCELAIN MATT CERAMIC TILES ROUGH GRANITE 300 300 PORCELAIN MATT CERAMIC TILES FINISHED LVL 5M.M. THICK PLY TOP RAIL LOCK RAIL BOTTOM RAIL 70X200 M.M. DOOR FRAME 30X20 MM WOODEN STRIPS ELEVATION TEAK WOOD 70 900 70 2630 70 620 120 120 900 70 45 90 25 350 155 900 HINGE 70X200mm TEAK WOOD FRAME 150X20mm TEAK WOOD STYLE WOODEN STRIPS 5mm THICK PLYWOOD 10mm THICK TEAK WOOD BUTT HINDGE IRON HOLD FAST 860 70 70 1130 B 1000 OUTSIDE TOP RAIL LOCK RAIL BOTTOM RAIL 6 M.M. THICK TOUGHENED GLASS GLAZING UNFINISHED LVL 230x70 MM TEAK WOOD FRAME 200 900 200 830 80200 50 1130 6MM BIDDING 50 830 900 200 2320 2400 70 2400 DOOR D2 SECTION AA' A A PLAN ELEVATION SECTION AA' INSIDE OUTSIDE PLAN INSIDE A INSIDE OUTSIDE DETAIL A SCALE 1:5 DETAIL B SCALE 1:5 DOOR D1 A A HOLD FAST HOLD FAST FINISHED LVL 5M.M. THICK PLY TOP RAIL LOCK RAIL BOTTOM RAIL 70X200 M.M. DOOR FRAME 30X20 MM WOODEN STRIPS ELEVATION TEAK WOOD 70 900 70 2630 70 620 120 120 900 70 45 90 25 350 155 900 HINGE 70X200mm TEAK WOOD FRAME 150X20mm TEAK WOOD STYLE WOODEN STRIPS 5mm THICK PLYWOOD 10mm THICK TEAK WOOD BUTT HINDGE IRON HOLD FAST 860 70 70 50X65mm SHUTTER FRAME BEADING HINGE 70X200MM TEAK WINDOW FRAME 6 MM THICK TOUGHENED GLASS 1130 B 1000 OUTSIDE TOP RAIL LOCK RAIL BOTTOM RAIL 6 M.M. THICK TOUGHENED GLASS GLAZING UNFINISHED LVL 230x70 MM TEAK WOOD FRAME 200 900 200 830 80200 50 1130 6MM BIDDING 50 830 900 200 2320 2400 70 2400 DOOR D2 SECTION AA' A A PLAN ELEVATION SECTION AA' INSIDE OUTSIDE PLAN INSIDE A INSIDE OUTSIDE DETAIL A SCALE 1:5 DETAIL B SCALE 1:5 DOOR D1 A A HOLD FAST HOLD FAST N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:20 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION : JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE : AR-3601 WORKING DRAWING STUDIO DOOR 18 FINAL JURY KEY PLAN COMMUNITY FEREN ROOM 750X585 OFFIC 3750X4440 X9600 200X3300 0X330 SOUND 40X773 0X5240 PASSAGE DINNIN15650X9 8050X PASSAGE PASSAGE PARKING SSAGE PASSAGE NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 110 2290 3500 D ELEVATION PLAN 2000 D4 ELEVATION PLAN 2630 OUTSIDE INSIDE INSIDE OUTSIDE ELEVATION PLAN 1200 D5 2100 3200 FINISHED LVL 90 200 1270 200 1270 200 15X15 M.M. WOODEN M.M.BEADING 6 M.M. THICK GLASS GLAZING 90 RUBBER STRIP 60X370 M.M. TOP RAIL W3 530 90 90 D DETAIL D SCALE 1:5 50X40MM TRACK 90X90MM DOOR FRAME 6MM THICK PLY ROLL NO: 20SA153 SUB STUDIO VI NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY AR-3601 WORKING DRAWING STUDIO KEY PLAN CONFERENCE3750X5850 OFFICE 3750X4440 5000X6000 STAGE 4750X9600 3200X3300 3200X330 SOUND3200X2600 M.TOILET 3240X7730 4370X5240 PASSAGE DINNING15650X9650 8050X5650 3750X5650 PASSAGE 2100X3650 SCAPE SCAPE ARKING PASSAGE STAIRS STAIRS NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 3200 2397 1790 120 1600 70 C OPENABLE FRAME FINISHED LVL 90 200 1270 200 1270 200 70X200MM TEAK WINDOW FRAME 50X65 MM OPENABLE SHUTTER FRAME 6 MM TOUGHENED GLASS 100X200MM TEAK WINDOW FRAME 15X15 M.M. WOODEN M.M.BEADING 6 M.M. THICK GLASS GLAZING 90 RUBBER STRIP 60X370 M.M. TOP RAIL A A 120 70 1620 2300 D 2300 INSIDE OUTSIDE PLAN 130X75MM TEAK WOOD FRAME 15MM BEADING 65X50MM OPENABLE SHUTTER FRAME FASTENER 5 MM THK TOUGHENED FLOAT GLASS 650 75 55 65 73 50 750 65 50X65mm SHUTTER FRAME BEADING HINGE 70X200MM TEAK WINDOW FRAME 200 MM THICK WOODEN PARTATION 6 MM THICK TOUGHENED GLASS 1000 70 STOPPER WINDOW W2 WINDOW W3 PLAN OUTSIDE INSIDE 90 530 580 580 530 90 90 DETAIL C SCALE 1:5 DETAIL D SCALE 1:5 D DETAIL D SCALE 1:5 26 50X40MM TRACK 90X90MM DOOR FRAME 6MM THICK PLY N ROLL NO: 20SA153 SUB STUDIO VI SCALE 1:20 NAME VIVEK PADARIA COMMUNITY CENTER LOCATION JAMMU KASHMIR DATE CHECKED BY DRAWING TITLE AR-3601 WORKING DRAWING STUDIO WINDOW 17 FINAL JURY KEY PLAN COMMUN9700X20750 OFFICE 3750X4440 PLACE 5000X6000 4750X9600 3200X 3200X3300 SOUND3200X260 DINNING15650X9650 8050X5650 PASSA 2100X3650 PASSAGE STAIRS NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 700 250MM WOODEN COLUMN SS STEEL PLATE BOLTING FOR FIXING RUBBER JOINT FOR EXPANSION 6MM THICK GLASS OPENABLE SHUTTER BEADING PATI HOLD FAST TEAK WOOD FRAME WOODEN POST 50MM OVERHANG MAX. NAILING WOODEN TRUSS SLATE TYING BATTENS SLATE DETAIL-B DETAIL B 250 130 120 1790 DETAIL-D FASCIA NAILER 5/8" PLYWOOD DECKING SLATE WITH FASTENERS SLATE "Z" RETAINER STRIP SET IN SEALANT ICE & WATER SHIELD FIELD CUT, BEND RETURN IN PANEL, & HOOK RETURN OVER "Z" RETAINER STRIP GUTTER SUPPORT GUTTER STRAP (FIELD FORMED) GUTTER DETAIL A DETAIL-A NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSION SHOULD BE CROSS CHECKED AND ANY DISCREPANCY IF FOUND TO BE BROUGHT TO THE NOTICE OF THE ARCHITECTS BEFORE EXECUTION BY THE CONTRACTORS 3. DRAWINGS ARE NOT TO BE SCALED ONLY WRITTEN DIMENSIONS PREVAIL 4. ARCHITECTURAL AND STRUCTURAL DRAWING TO BE READ TOGETHER LEGENDS 250MM WOODEN COLUMN SS STEEL PLATE BOLTING FOR FIXING RCC 450X450MM 8mm DIA STEEL BARS RCC BASE SAND FILLING WITH LEVEL GRAVELS EARTH FILLING KOTA STONE PCC GROUND BEAM STONE CLADDING RUBBER JOINT FOR EXPANSION DPC WOODEN FLOOR POLY VAPOUR BARRIER GYPSUM CONCRETE 19MM 1ST LAYER GYPSUM CONCRETE 19MM 2ND LAYER DPC 6MM THICK GLASS OPENABLE SHUTTER BEADING PATI HOLD FAST TEAK WOOD FRAME WOODEN POST PCC DPC 19MM GYPSUM CONCRETE (FIRM-FILL BRAND) 1ST LIFT 25MMX100MM WOOD BASE FOR SLEEPER 25MMX50MM WOOD SLEEPER GLUED & FASTENED 19MM HARDWOOD FLOOR 50MM SCREWS POLY VAPOR BARRIER 19MM GYPSUM CONCRETE (FIRM-FILL BRAND) 2ND LIFT PCC 50MM OVERHANG MAX. NAILING WOODEN TRUSS SLATE TYING BATTENS SLATE DETAIL-B DETAIL 150 550 425 190 50 300 300 1200 100 200 150 175 200 185 15 500 270 250 130 120 500 640 260,39 175 50 STONE CLADDING RUBBER JOINT FOR EXPANSION DETAIL-D FASCIA NAILER 5/8" PLYWOOD DECKING SLATE WITH FASTENERS SLATE "Z" RETAINER STRIP SET IN SEALANT ICE & WATER SHIELD FIELD CUT, BEND RETURN IN PANEL, & HOOK RETURN OVER "Z" RETAINER STRIP GUTTER SUPPORT GUTTER STRAP (FIELD FORMED) GUTTER DETAIL A DETAIL-A ICE & WATER SHIELD "Z" CLOSURE PLYWOOD DECKING SEALANT AT VERTICAL LEG & UNDER "Z" CLOSURE SLATE WITH FASTENERS SLATE VENTED RIDGE FLASHING OPENING IN DECK FOR AIR FLOW FRAMING PERFORATED "Z" POP RIVET SEALANT AT VERTICAL LEG OF "Z" CLOSURE DETAIL DETAIL C 250MM WOODEN COLUMN SS STEEL PLATE BOLTING FOR FIXING RCC 450X450MM 8mm DIA STEEL BARS RCC BASE SAND FILLING WITH LEVEL GRAVELS EARTH FILLING KOTA STONE PCC GROUND BEAM STONE CLADDING RUBBER JOINT FOR EXPANSION DPC WOODEN FLOOR POLY VAPOUR BARRIER GYPSUM CONCRETE 19MM 1ST LAYER GYPSUM CONCRETE 19MM 2ND LAYER DPC 6MM THICK GLASS OPENABLE SHUTTER BEADING PATI HOLD FAST TEAK WOOD FRAME WOODEN POST PCC DPC 19MM GYPSUM CONCRETE (FIRM-FILL BRAND)

LIFT 25MMX100MM WOOD

FOR SLEEPER 25MMX50MM WOOD

19MM HARDWOOD

19MM

PCC 50MM OVERHANG MAX. DETAIL-B 150 550 425 190 50 300 300 1200 100 200 150 300 175 200 150 185 15 500 270 250 130 120 1790 500 640 260,39 175 50 DETAIL-D FIELD RETURN HOOK "Z" GUTTER STRAP (FIELD FORMED) DETAIL-A ICE & WATER VENTED RIDGE FLASHING FRAMING PERFORATED "Z" POP RIVET Toilet Layout Wall Section TECHNICAL LIBRARY 19

1ST

BASE

SLEEPER GLUED & FASTENED

FLOOR 50MM SCREWS POLY VAPOR BARRIER

GYPSUM CONCRETE (FIRM-FILL BRAND) 2ND LIFT

IDEATE INNOVATE INCUBATE

Semester: Forth-Individual Project

Site: Jaipur,Rajasthan

Design Brief: Skill Development Center

05

The Center aims to create a dynamic, inclusive environment that fosters professional growth, learning, and innovation. Its innovative amenities and flexible learning spaces cater to the diverse needs of professionals and students. The center prioritizes accessibility and sustainability, utilizing natural light, eco-friendly technologies, and natural light to create a positive learning environment. Interactive learning centers, practical workshops, and collaborative areas will encourage creativity, teamwork, and skill development. The center aims to empower individuals, close skill gaps, and promote socioeconomic growth both within and outside the community.

VIVEK PADARIA 2024 PORTFOLIO

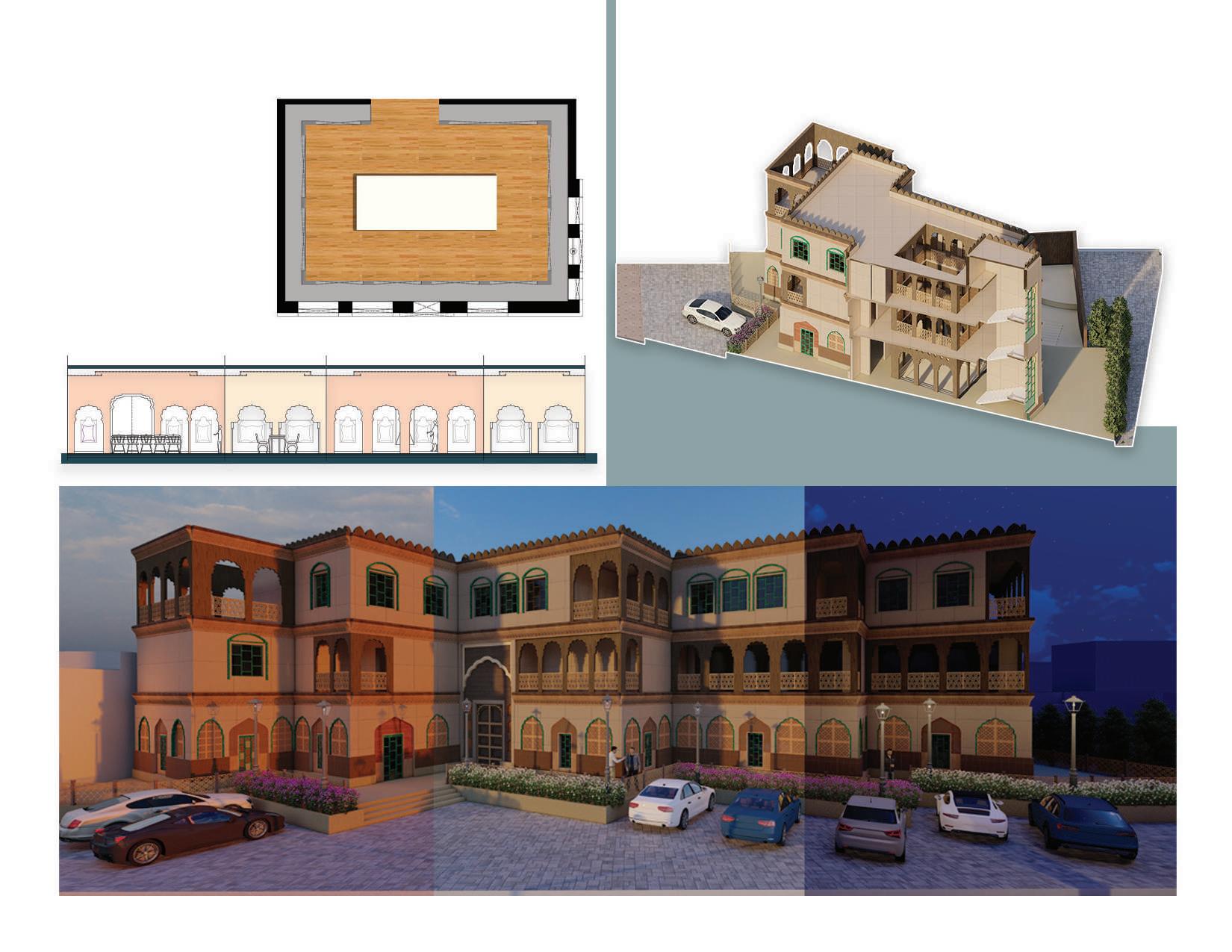

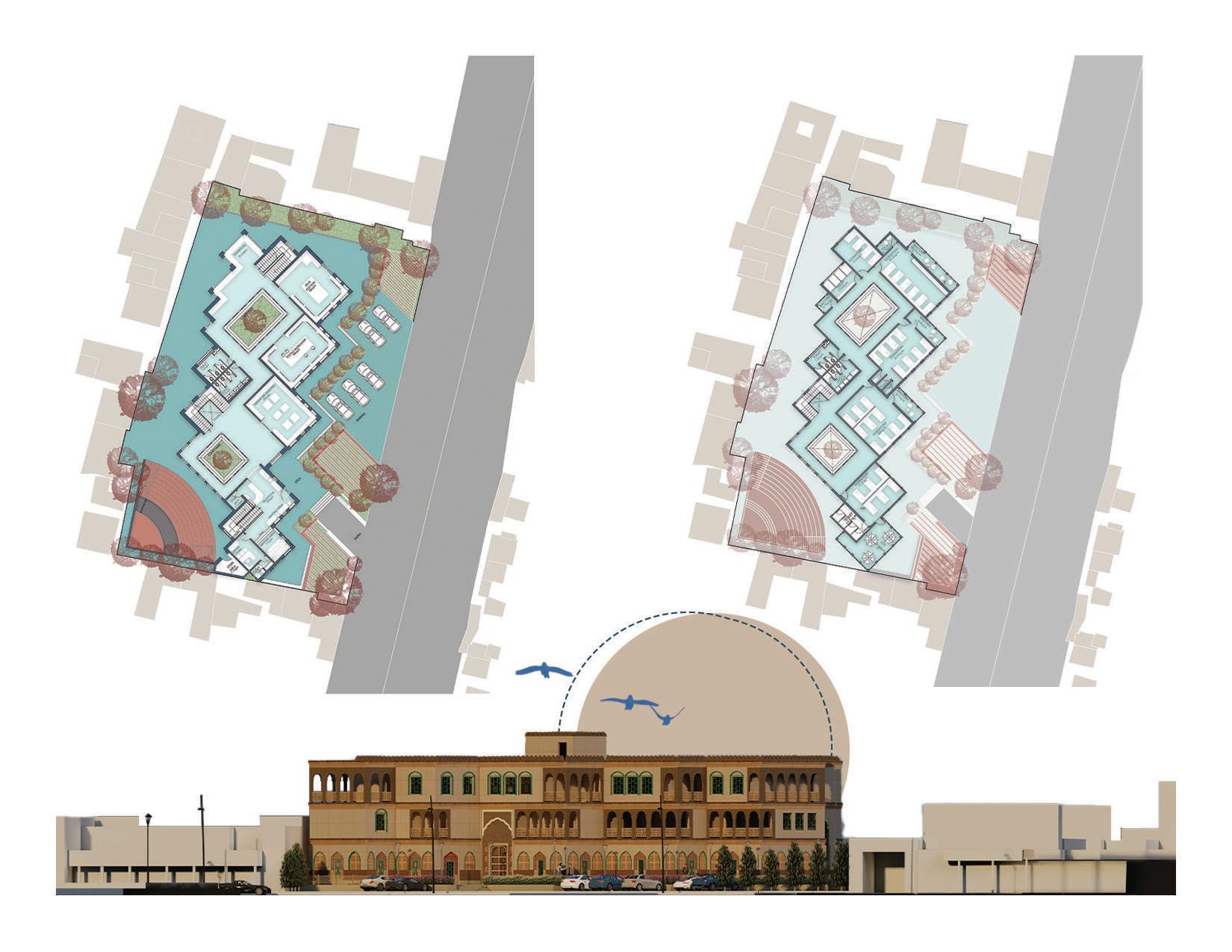

Ground Floor Plan First Floor Plan 1. Entry I 2. Foyer 3. Admin 4. Waiting Area 5. Toilet 6. Staircase I 7. Courtyard I 8. Workshop I 9. Workshop II 10.Workshop III 11. Exhibition Area 12. Courtyard II 13. B-Toilet 14 G-Toilet 15. Staircase II 16. Open Exhibition Area 17. Open Amphitheatre 18. Parking 19. Greanscape 20. Dorm I 21. Dorm II 22. Dorm III 23. Dorm IV 24. Dorm V 25. Common Toilet 26. Balcony 27. Roof Top Legends 3 4 5 2 6 7 17 1 8 14 13 15 12 10 18 19 19 20 26 27 21 22 23 24 25 14 13 11 16 9 IDEATE INNOVATE INCUBATE 21

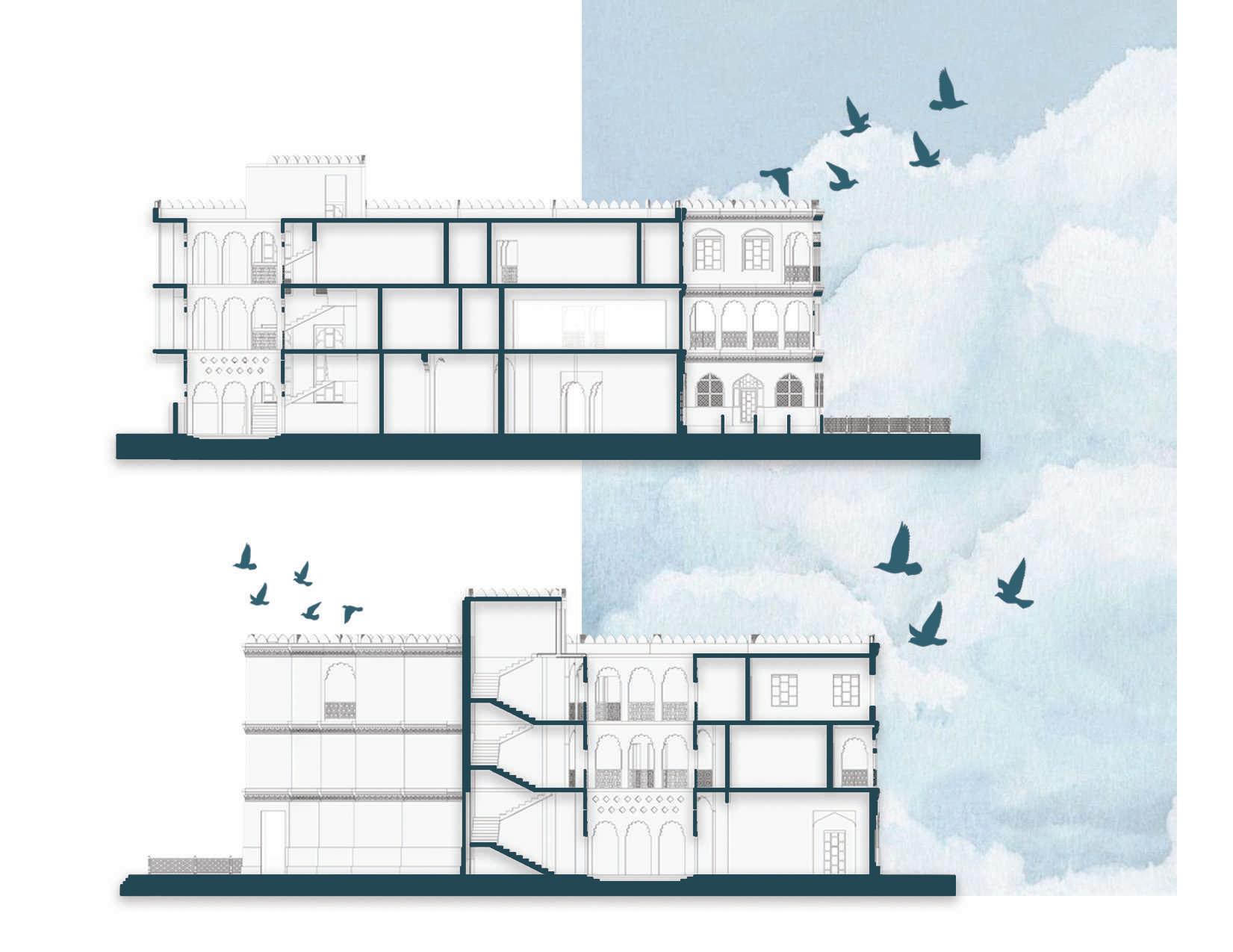

Section A-A' Section B-B' VIVEK PADARIA 2024 PORTFOLIO 22

Optimizing functionality and creativity in a room tailored for fabric innovation

Plan Sectional Isometric Internal Wall Elevation

IDEATE INNOVATE INCUBATE 23

Textile Workshop

ELEMENTARY PHRONTISTERY

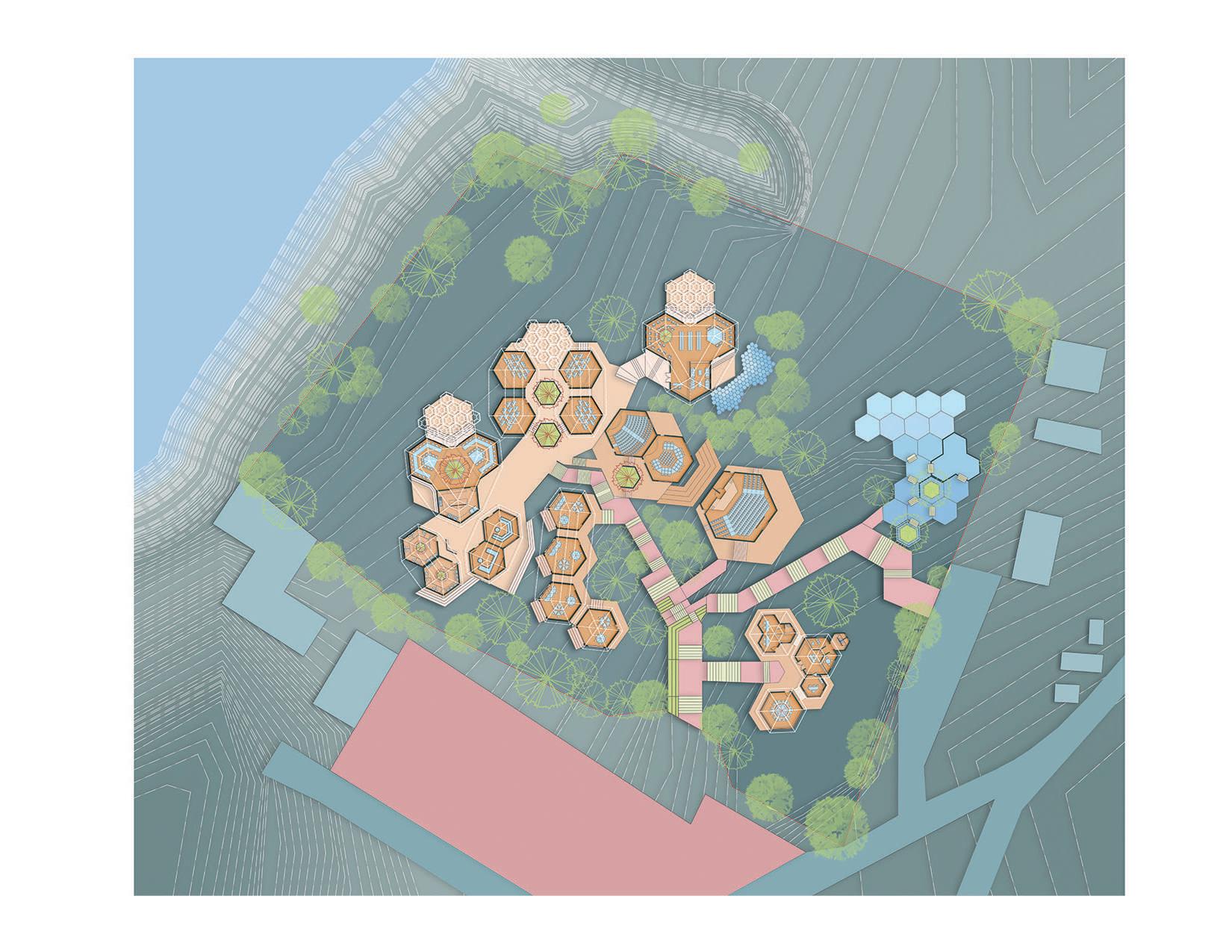

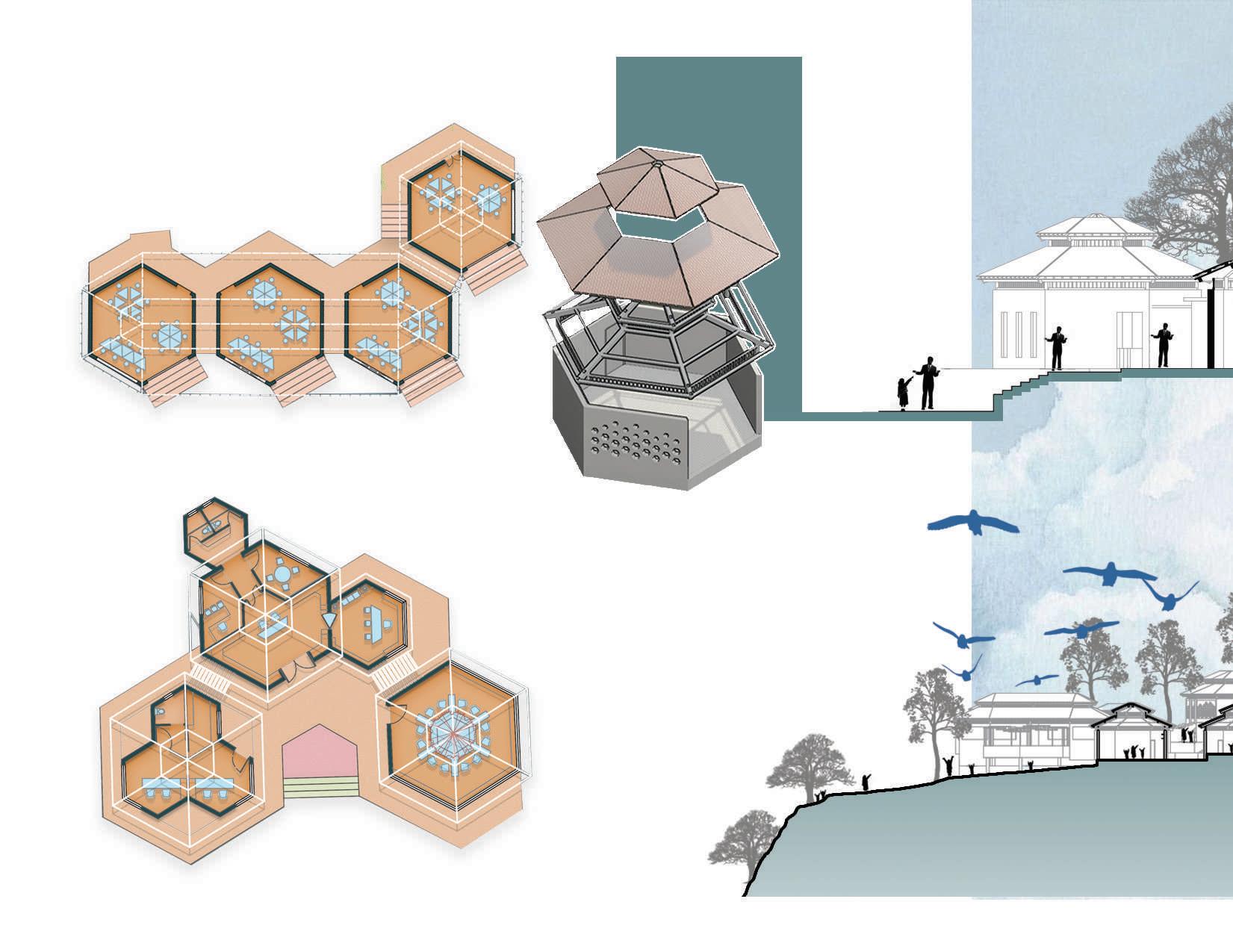

Semester: Fifth-Individual Project Site: Asa Gam, Near Narmada River,Gujarat Design Brief: Primary School

06

VIVEK PADARIA 2024 PORTFOLIO

1. Entry I 2. Entry II 3. Play Area 4. Admin 5. Auditorium 6. Classroom 7. Staff Room 8. B-Toilet 9. G-Toilet 10.Av Room 11. Computer Room 12. Library 13. Canteen Legends 1 2 3 4 5 11 10 12 6 6 7 9 8 13 Master Plan ELEMENTARY PHRONTISTERY 25

Exploded view of classroom showing material Primary Classroom Plan Admin Block Plan

VIVEK PADARIA 2024 PORTFOLIO 26

Section of Admin Block

By seamlessly incorporating elements like natural materials, open spaces, and organic forms, can create spaces that not only coexist with nature but also celebrate its beauty and essence. The essence of structures blending with nature lies in their ability to merge seamlessly with the landscape, creating spaces that evoke a sense of tranquility and unity with the environment.

Site Section ELEMENTARY PHRONTISTERY 27

Section of Canteen

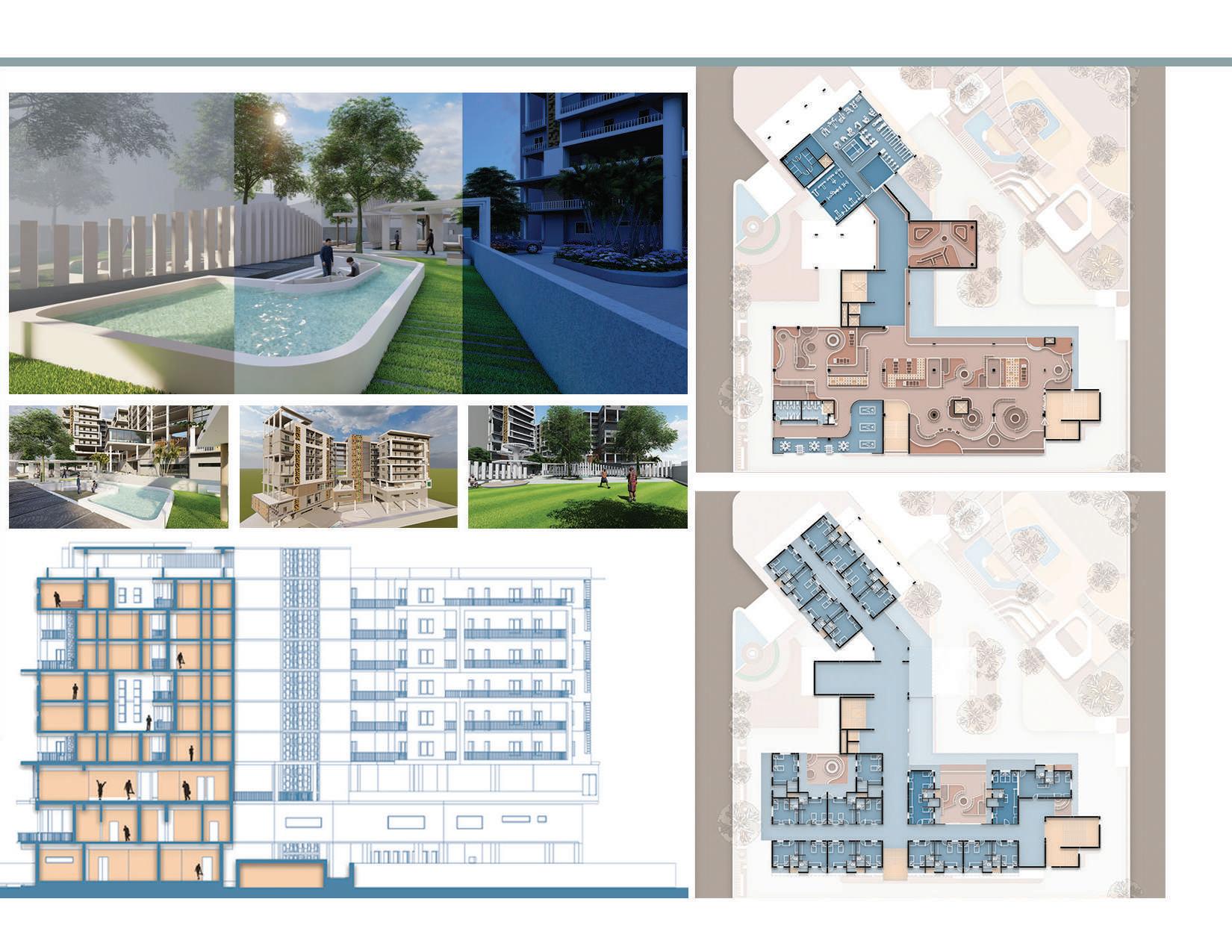

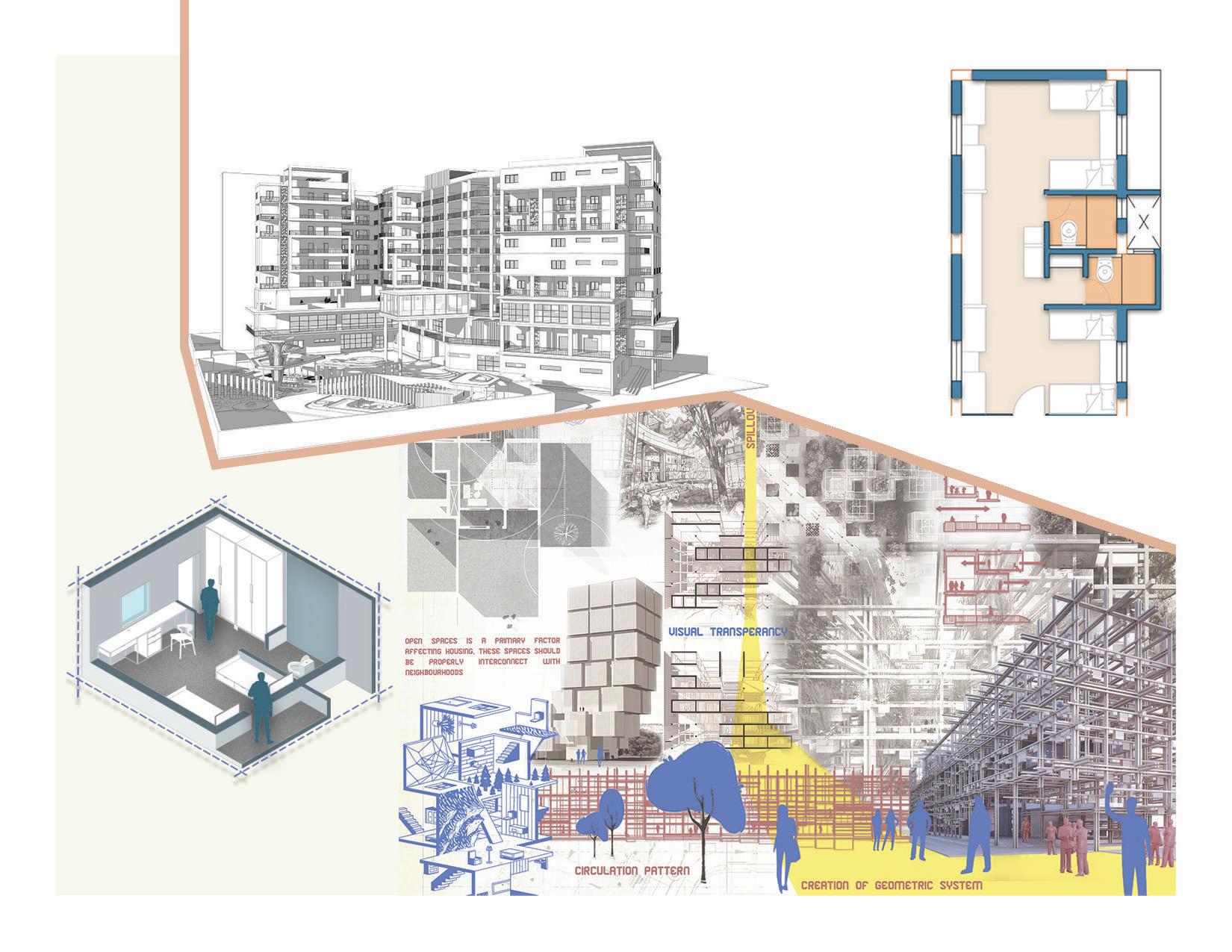

SCHOLARLY HAVEN DISPLAY

Semester: Seventh-Individual Project

Site: Vidyanagar,Gujarat

Design Brief: Student Accomodation

07

Designing student accommodation involves creating a space that caters to the diverse needs of students while promoting a sense of community and well-being. This includes designing comfortable and functional living quarters with modern amenities, communal areas that encourage interaction and collaboration, and amenities such as study spaces, recreational areas, and laundry facilities. The goal is to provide a safe, supportive, and enriching environment that enhances the overall student experience and contributes to their academic success and personal growth.

VIVEK PADARIA 2024 PORTFOLIO

The hostel rooms for design field students are thoughtfully designed to accommodate both privacy and camaraderie, featuring configurations for both 2 sharing and 4 sharing. Each room is equipped with functional furniture, ample storage space, and dedicated work areas to facilitate creative endeavors and academic pursuits.

Shared spaces are designed to encourage collaboration and interaction, providing settings where ideas can flourish and friendships can blossom.

Amenities such as maker spaces, material libraries, and exhibition areas further enrich the student experience, promoting hands-on learning and creative exploration. With a focus on fostering innovation, collaboration, and personal growth, the hostel serves as a hub for aspiring designers to thrive and realize their full potential.

SCHOLARLY HAVEN DISPLAY 29

Utilizing staggered namic spatial experience. of each balcony, can while also enhancing The double-height that combines splendor natural light, and enhanced feature of the building, moment of arrival.

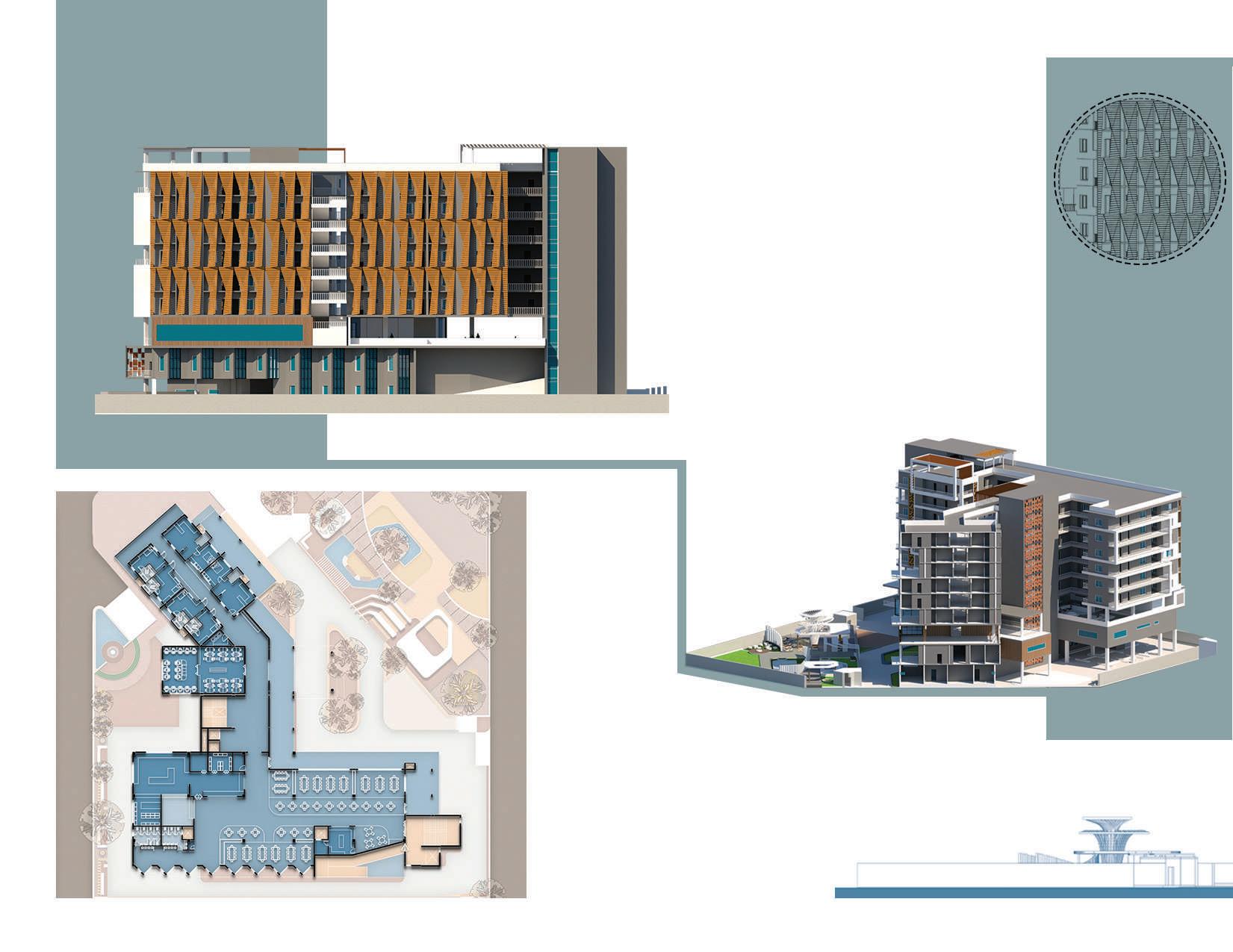

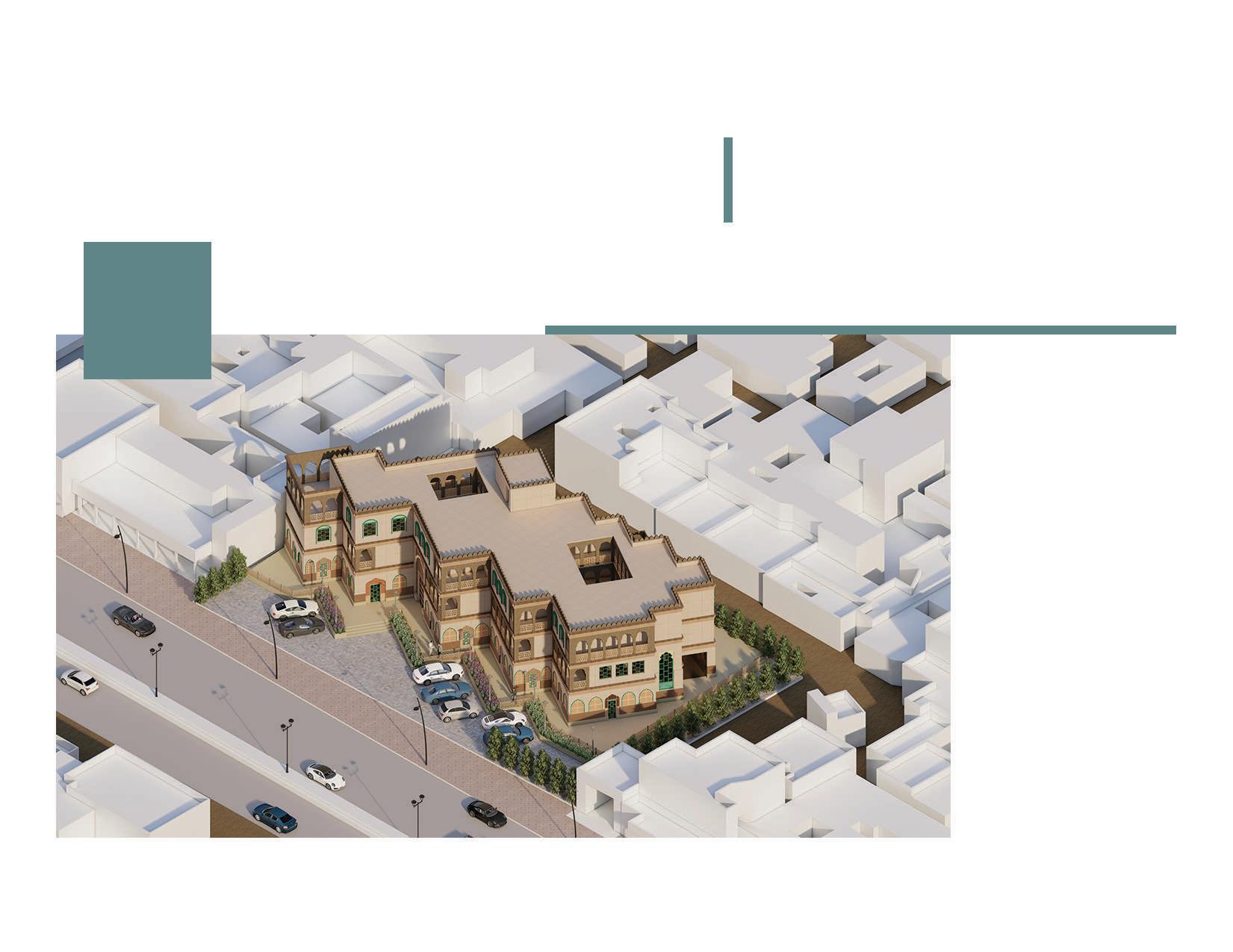

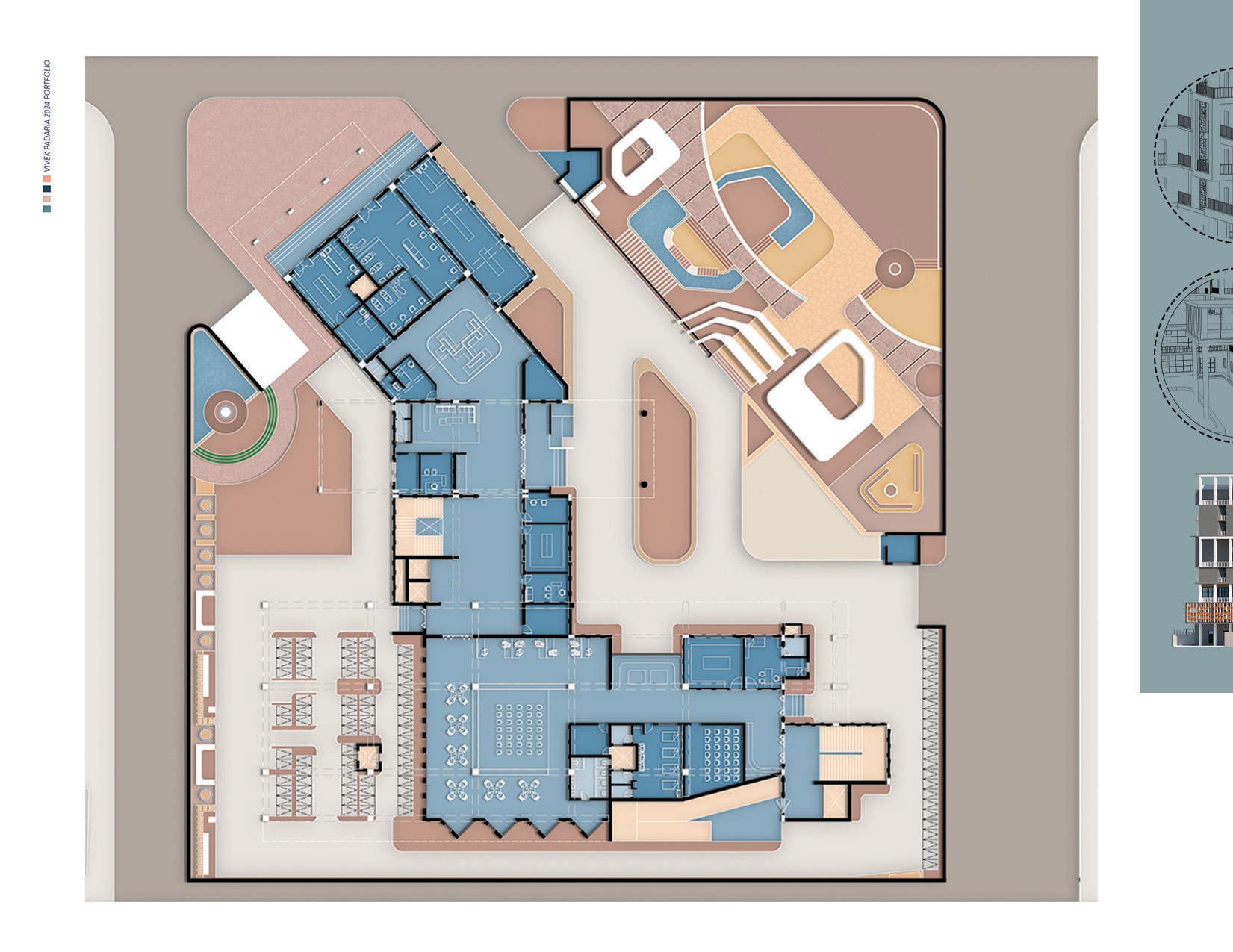

Ground Floor Master Plan 1. Entry I 2. Entry II 3. Landscape 4. Drop off Point 5. Foyer 6. Reception 7. Admin 8. Watchman cabin 9. Locker Room 10.Warden Office 11. Surveillance Room 12. Stair Case 13. Working Area 14 Medical room 15. Store Room 16. T.V Room 17. Staff Room 18. Toilet 19. Parking 20. Basement 21. Shop I 22. Shop II 23. Shop III Legends 2 1 23 22 21 5 4 6 7 12 8 9 10 11 13 17 16 15 14 1 18 19 20 8 3

VIVEK PADARIA 2024 PORTFOLIO 30

balcony design to optimize panoramic views, creating a dyexperience. By carefully considering the orientation and placement can ensure that occupants have access to breathtaking views enhancing the overall aesthetic appeal and functionality of the space.

entry space at the drop-off area serves as a striking focal point splendor with functional utility. Its soaring proportions, abundant enhanced accessibility make it a welcoming and memorable building, setting the stage for a positive user experience from the

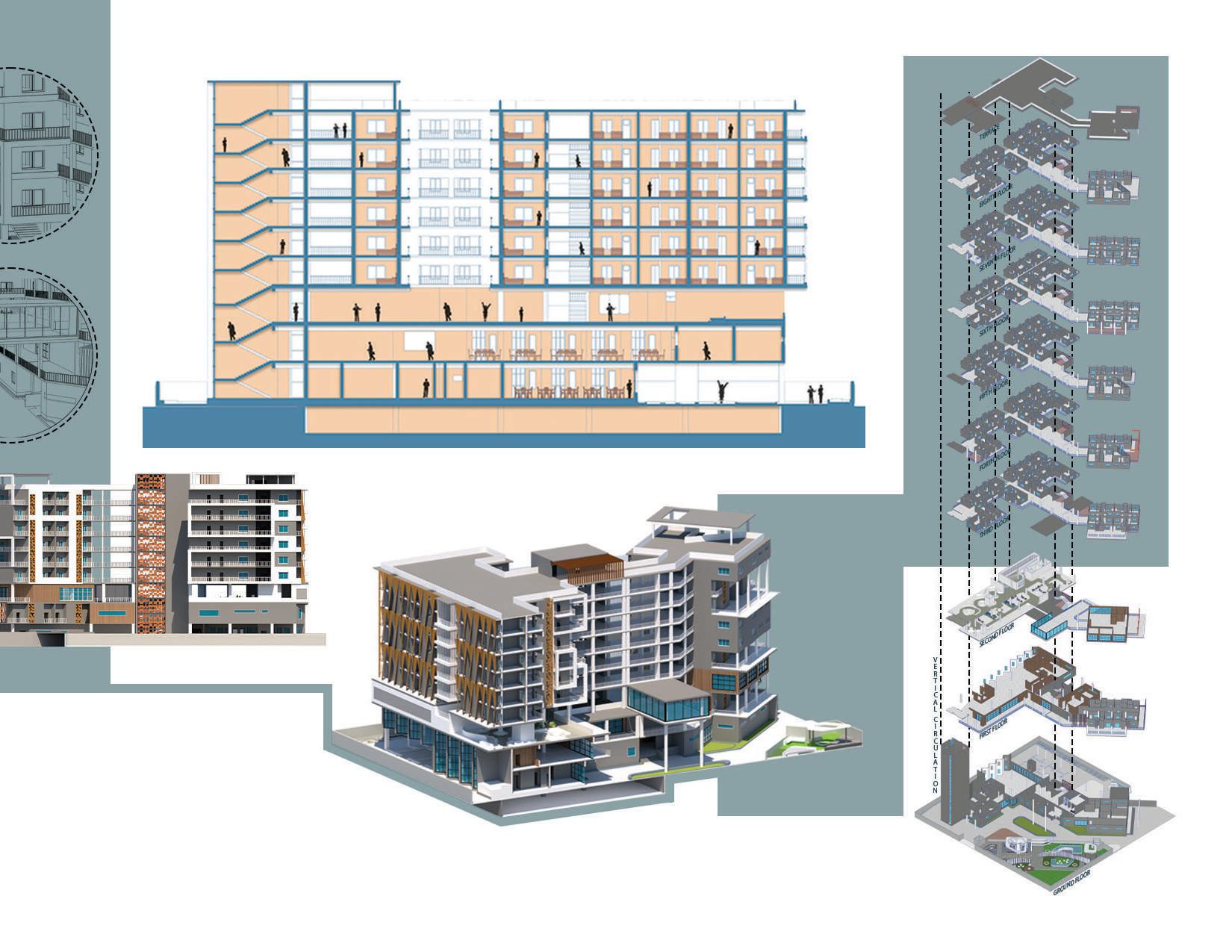

Section

Isometric Section

View

Site

Elevation

Exploded

SCHOLARLY HAVEN DISPLAY 31

The incorporation of wooden battens on the southern facade serves as an effective strategy to counteract solar heat gain, thereby enhancing the comfort and livability of the building's interior spaces. By providing a protective shield against the intense rays of the sun, these carefully positioned battens effectively minimize heat transfer through the building envelope. This not only helps to maintain a more stable and comfortable indoor temperature throughout the day but also reduces the reliance on mechanical cooling systems, leading to energy savings and environmental sustainability.

With carefully curated plantings, verdant pathways, and tranquil seating areas, the green scape fosters a connection with nature, promoting well-being and rejuvenation for residents and visitors alike. Additionally, sustainable design principles such as rainwater harvesting, native plant species selection, and efficient irrigation systems are integrated to enhance ecological resilience and minimize environmental impact

First Floor Master Plan

Kitchen

Dinning Area

Cafe

Passage

Toilet

Computer Room

Reading Room

Laundry Room

Faculty Room 10.Room Legends 1 2 3 4 4 5 5 7 8 9 10 6 Elevation Wooden pannel Isometric Section

VIVEK PADARIA 2024 PORTFOLIO 32

Typical Floor Plan Site Section Second Floor Plan 1. Gym 2. Passage 3. Toilet 4. Lodge Room 5. Indoor Games 6. Stair Case 7. Podium Level Legends 1 7 2 4 3 3 5 6 6 1. 2 Sharing Room 2. 4 Sharing Room 3. Common Area Legends SCHOLARLY HAVEN DISPLAY 33

08 VIVEK PADARIA 2024 PORTFOLIO 34

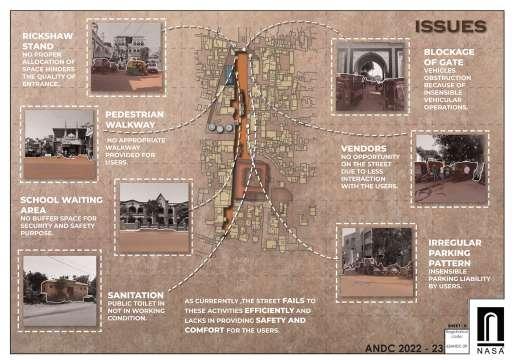

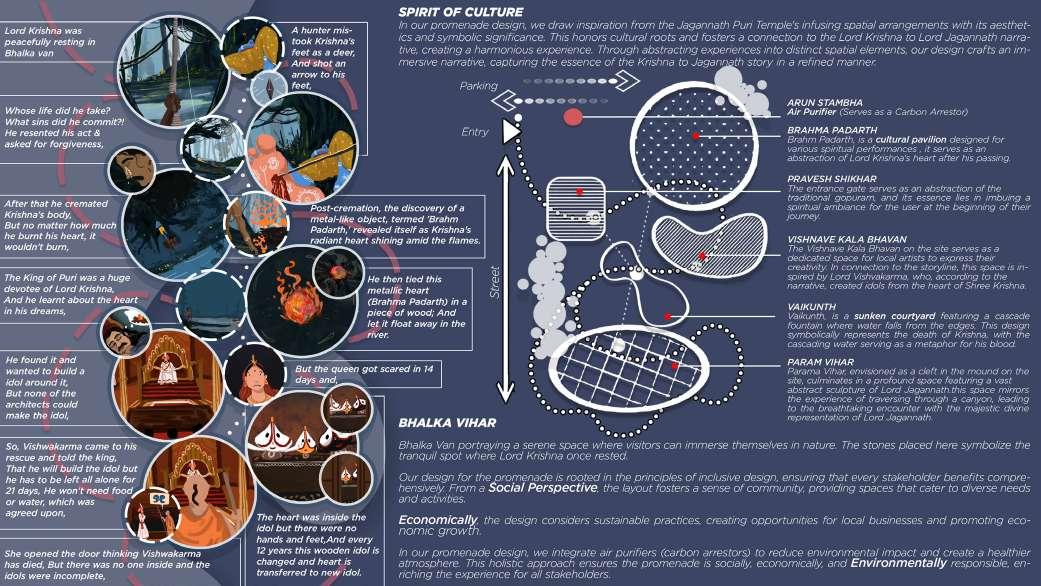

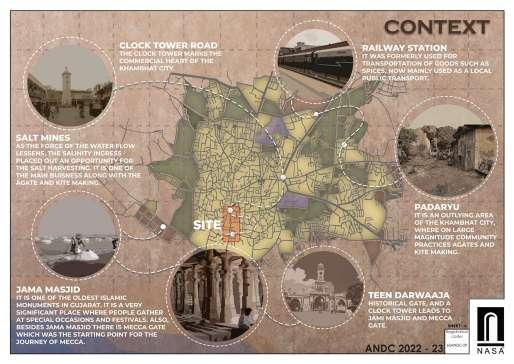

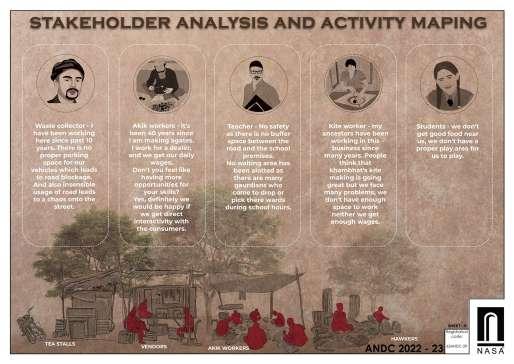

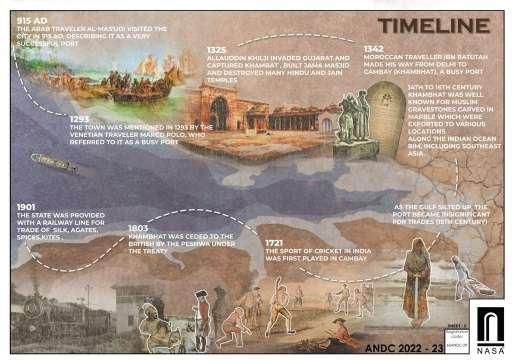

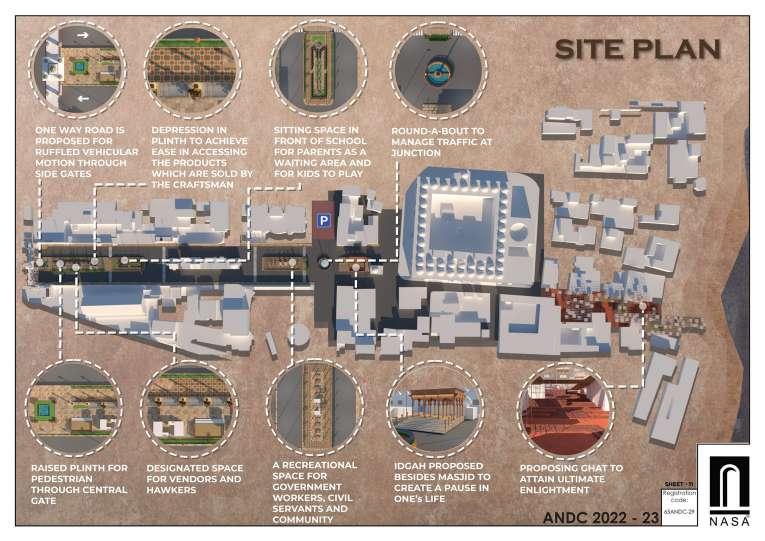

ANDC NASA 64TH 2022-2023

35 NASA COMPETITION

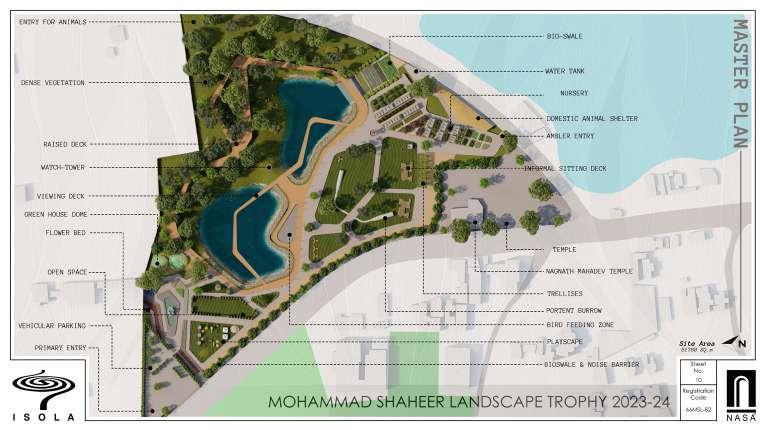

MSL NASA 65TH 2023-2024 09 VIVEK PADARIA 2024 PORTFOLIO 36

37 NASA COMPETITION

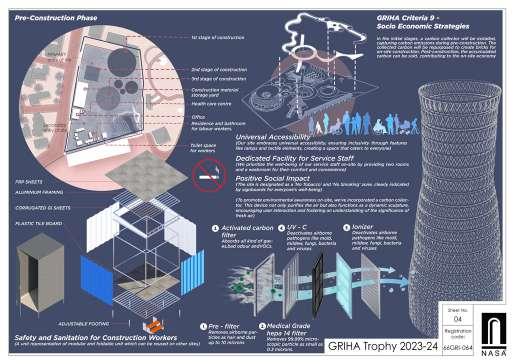

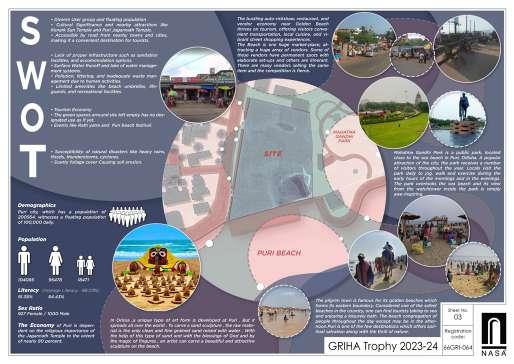

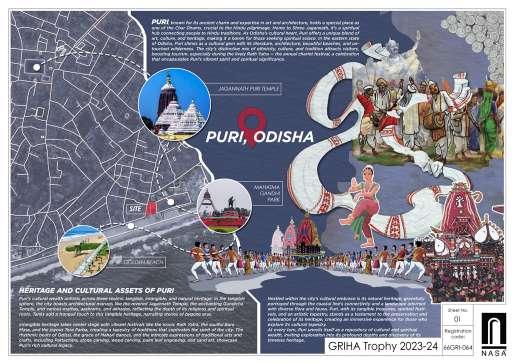

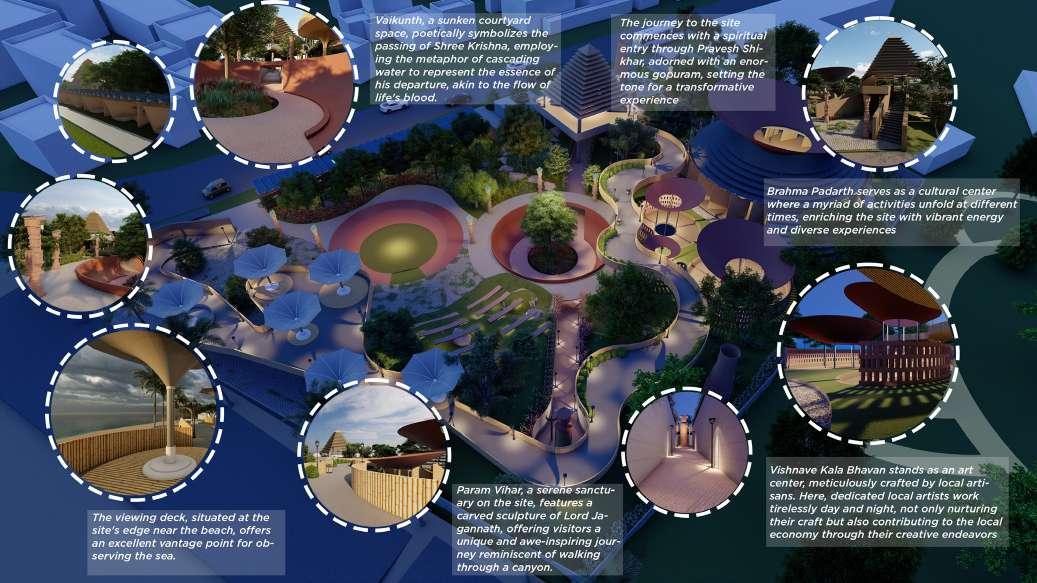

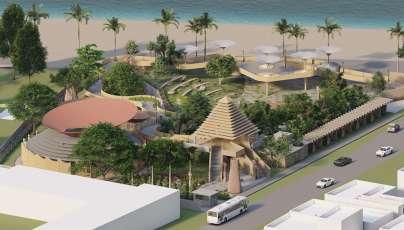

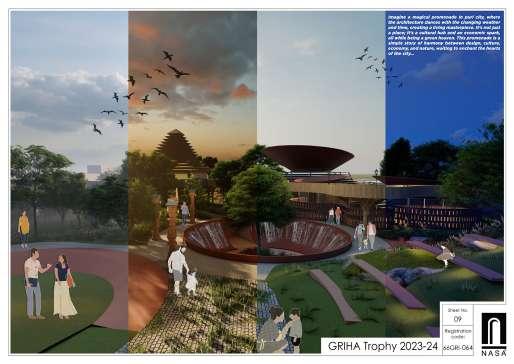

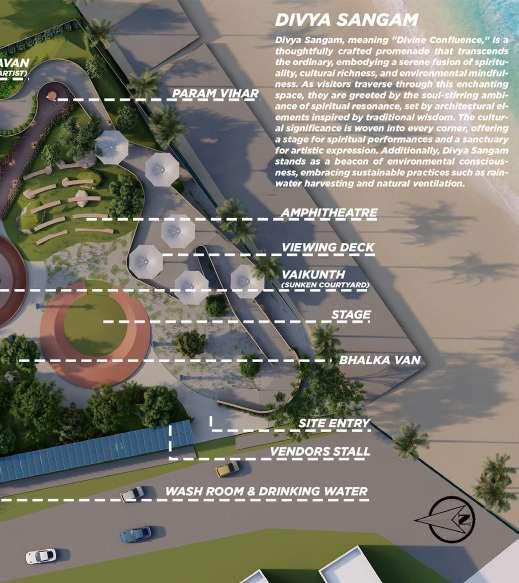

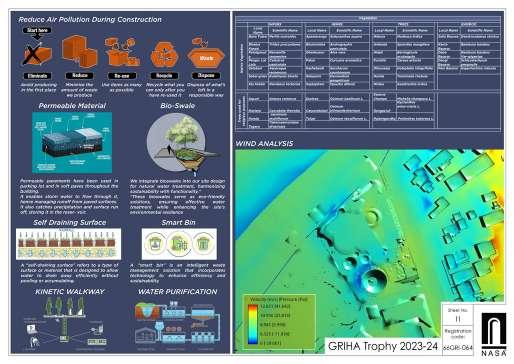

GRIHA NASA 65TH 2023-2024-SHORTLISTED ENTRY 10 VIVEK PADARIA 2024 PORTFOLIO 38

NASA COMPETITION 39

NORBULINGKA INSTITUTE

The Norbulingka Institute, located near Dharamshala, is a significant institution dedicated to preserving Tibetan arts and culture. Named after Norbulingka, the summer residence of the Dalai Lamas in Lhasa, Tibet, the institute is built in a traditional Tibetan style amidst gardens and ponds. It houses the Academy of Tibetan Culture, Literary and Cultural Research Centre, and the Centre of the Arts. Norbulingka is renowned for its more than 1000 murals of Buddha, frescoes of all the Dalai Lamas, and drawings from the life of the 14th Dalai Lama.

1.5

EXPLORATION 0 1

Sectional Elevation

VIVEK PADARIA 2024 PORTFOLIO 40

Workshop Area

0 1.5 Studio Area Sectional

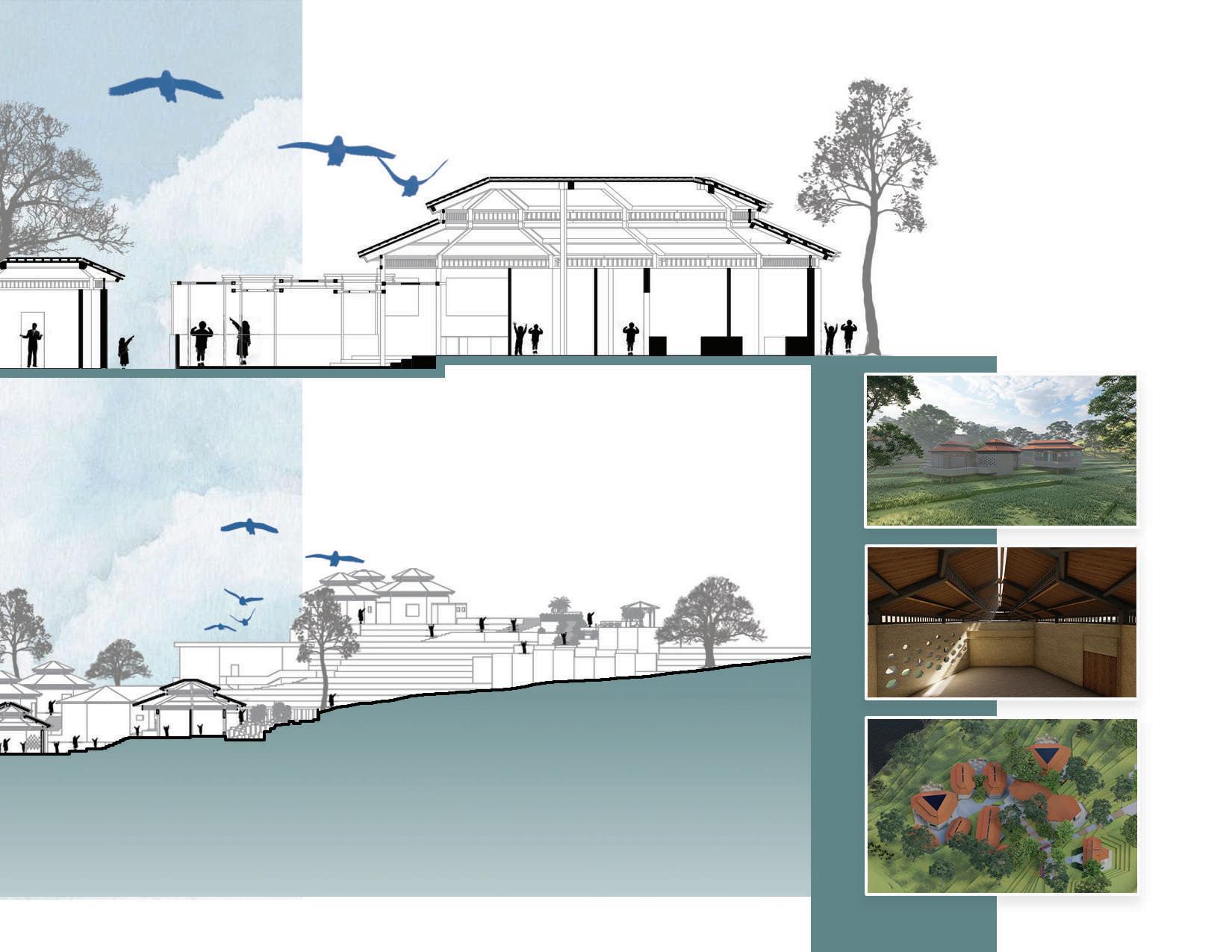

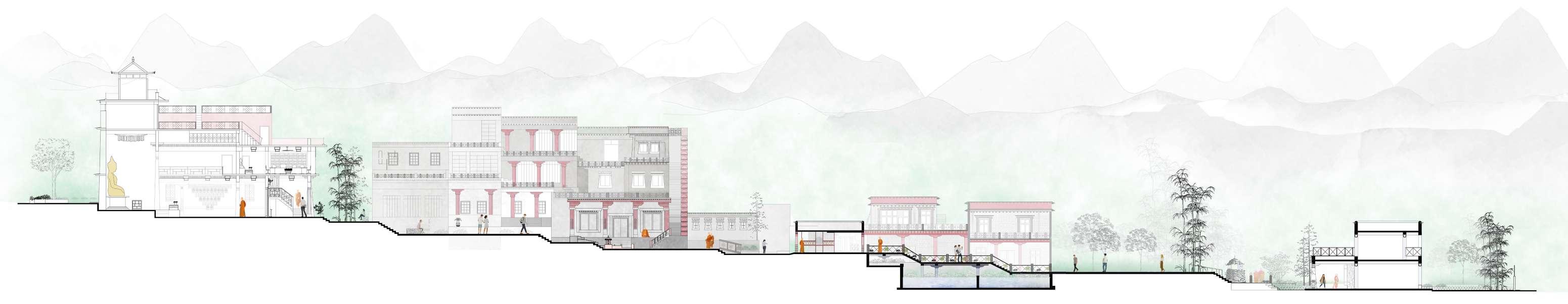

Longitudinal Site Section BASIC ARCHITECTONICS 41

Elevation

INSTITUTE EXPLORATION 12 Sectional Elevation Sectional Elevation Sectional Elevation Sectional Elevation Sectional Elevation Cow Shade Library VIVEK PADARIA 2024 PORTFOLIO 42

SAMBHAAVAA

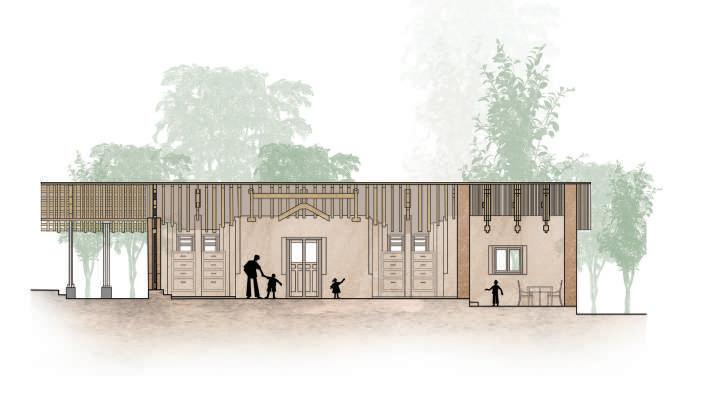

Didi Contractor, a renowned architect specialising in traditional eco-friendly construction methods of the Himalayas along with local carpenters, masons and workers, has helped give shape to Sambhaavnaa's core values. The Insitute is managed and run by a small team of locals and visiting volunteers.

The institute's campus, nestled in the Himalayan mountains, feature architecture that blends harmoniously with its surroundings, perhaps utilizing vernacular architectural styles or incorporating traditional building techniques to create a sense of place and connection to the local culture and environment.

Using local materials not only reduces environmental impact but also fosters economic development within the community.ocally available materials include stone, timber, bamboo, mud, and locally sourced bricks or tiles. These materials used in a way that reflects the architectural style of the region and contributes to the overall sustainability and aesthetic of the institute's design.

Sectional Elevation

1.5 0 1 1.5 BASIC ARCHITECTONICS 43
