info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com BLADE™ GLASS RAILING SYSTEM PRODUCT DATA Perforated Metal Glass BLADE - AVAILABLE INFILLS Wire Mesh Picket Panel CableNet Multiline Laser Cut Panel
BLADE - AVAILABLE INFILLS

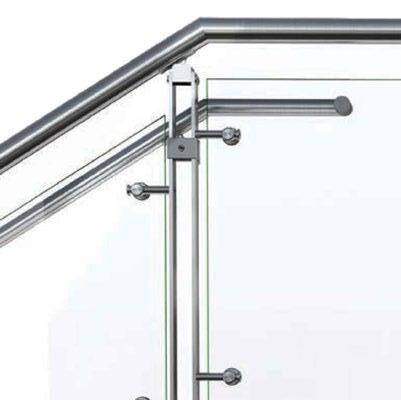

Glass
Perforated Metal
Wire Mesh
Picket Panel
CableNet

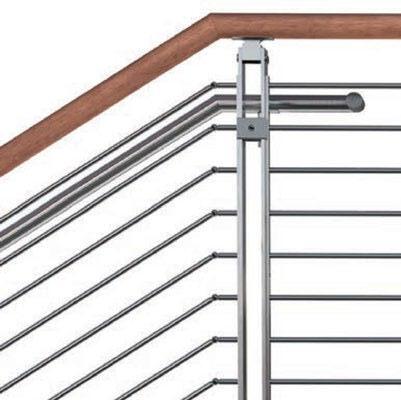

Multiline
Laser Cut Panel
Our BLADE Stainless Steel Railing System has an ultra-contemporary design with minimum obstruction to the line of sight. The system consists of two 2” wide vertical bars, with a cube cap at the top and barrel bolts at the bottom. This expertly-crafted system makes it appear as though the in-fill panels are suspended in air!
BLADE is available in ECM or powder-coated colors and with an option for LED illuminated rail.
2
info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

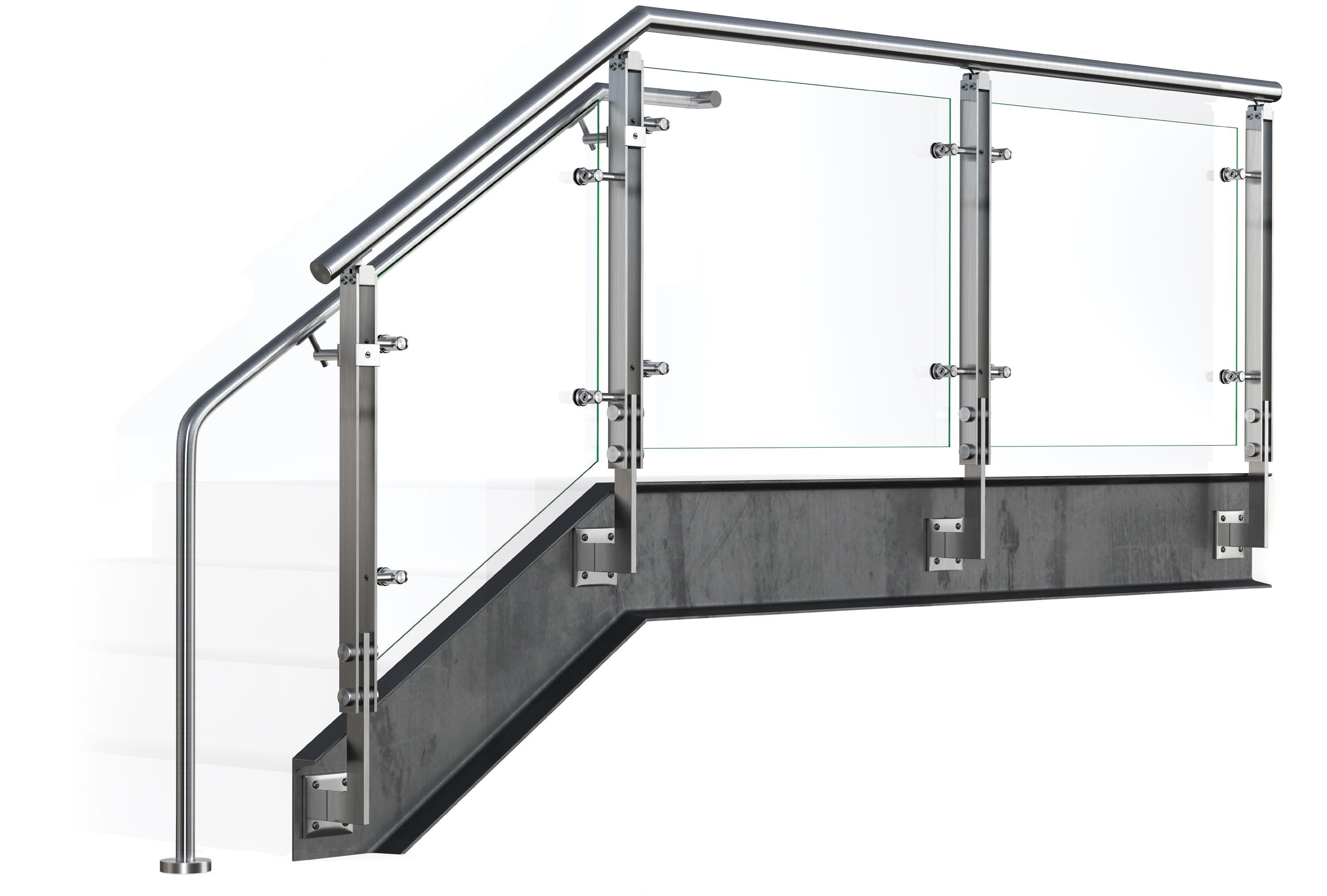

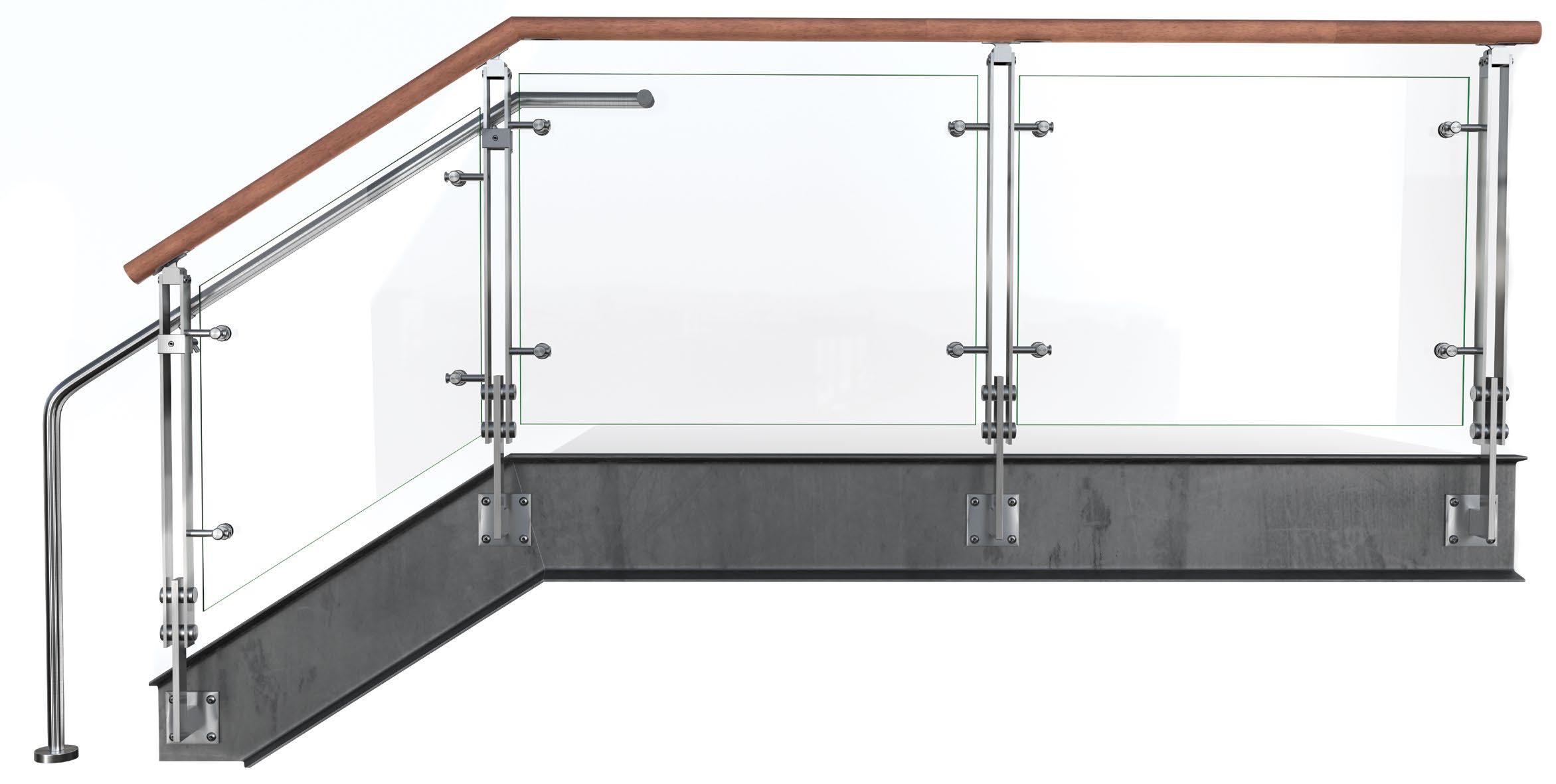

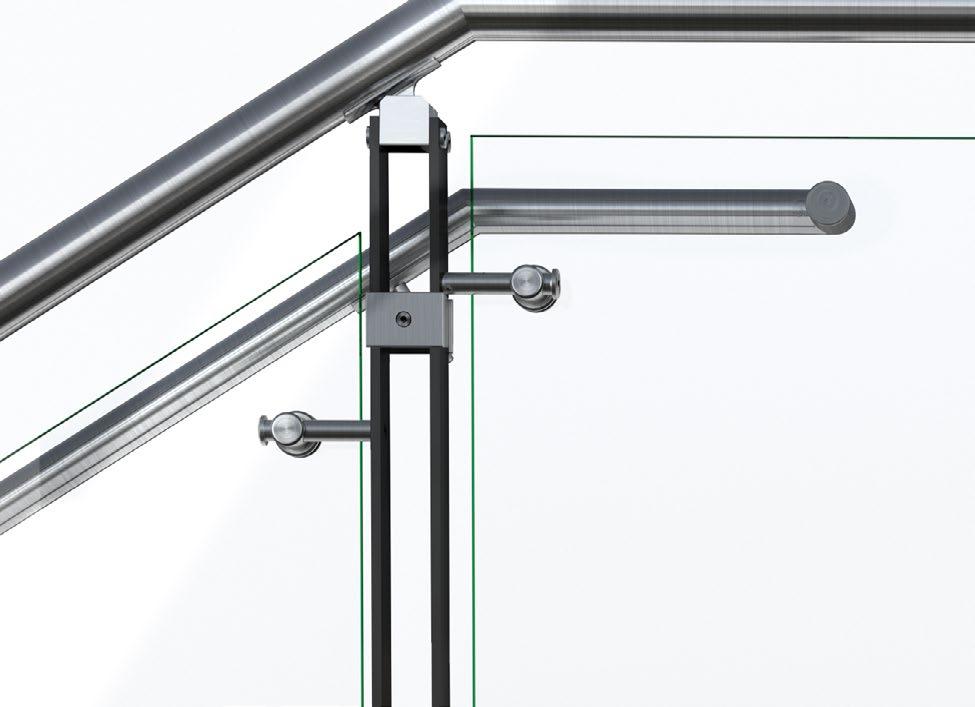

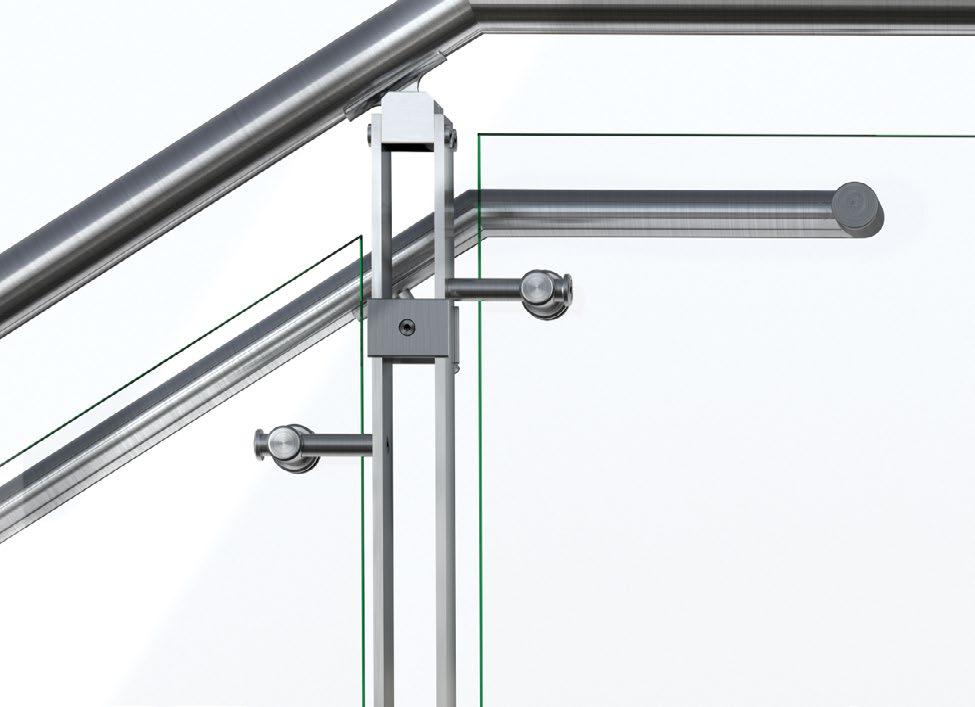

BLADE™ GLASS RAILING SYSTEM
Other mounting options available.
BLADE™ GLASS & METAL SYSTEM - TECHNICAL DATA
MATERIAL FINISH SIZE/SPACING
Stainless Steel (304 or 316)
POST INFILL OPTIONS
#6 Satin, #8 Mirror
ECM
Powder Coat Stainless Steel (201)
2” Double flat bar post: @ 5’-0” max. O.C.
4’-6” max. for Perforated and Wire Mesh infill.
4’-0” max. for MultiLine infill.
Fascia, Top or Core mount.
TOP RAIL/HAND RAIL
Glass Clear, Tinted or Frit
Perforated Metal
Wire Mesh
Min. 3/8” laminated glass with PVB or SGP interlayer¹
Glass standard thickness: 3/8”, 1/2”, 5/8”, 3/4”
Interlayer standard thickness: SGP: 0.035” , 0.06”
PVB: 0.035”
1” wide frame
Picket Panel Ø1/2” picket
#6 Satin
Multiline Ø1/2” multiline
CableNet Ø1” Wide frame, Ø1/16” (1.5mm) cable mesh
Powder Coat - Super Polyester (AAMA 2604) - $ 4
Laser Cut 1/4” thick aluminum panel.
Powder Coat - PVDF (AAMA 2605) - $$
Stainless Steel Tube Ø1-1/2” or Ø2” for Hand Rail Ø1-1/2”, Ø2” or 2”x1” Rectangular Tube for Top Rail
Stainless Steel Tube with LED ²
Wood (Red Oak, Cherry or Maple) ³
Wood (Red Oak, Cherry or Maple) with LED
#6 Satin, Powder Coat
#6 Satin Unstained
Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD Ø2”
Ø2” with LED LINEAR
1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.
2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.
3. Other species available upon request.
4. $ to $$$: Indicates finish type comparative cost.
3
info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com
BLADE RAILING SYSTEM
Glass Infill
AVAILABLE GLASS TYPES:
LEVEL
LAMINATED GLASS
TOP RAIL STRINGER
HAND RAIL
Ø2" TUBE
Ø1-1/2" TUBE
2"x1" TUBE
FINISH FLOOR
Ø1-1/2" iRAIL
TOP RAIL OPTIONS
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
4
MAX
MAX
5'-0"
5'-0"
1'-0" 1'-0"
LAMINATED GLASS
BLADE POST
TOP RAIL HAND RAIL 2" NOM.
3" NOM.
Clear Monolithic Clear Laminated (PVB or SGP)
Colored Laminate (PVB only)
Bent Tinted Satin Etched
VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V A I
Ceramic Frit
33 4 " NOM. GAP
R4"
1 0'-0"
3'-0" 3'-6"
Page 2.1 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. AVAILABLE GLASS TYPES TOP RAIL OPTIONS BLADE RAILING SYSTEM GLASS INFILL

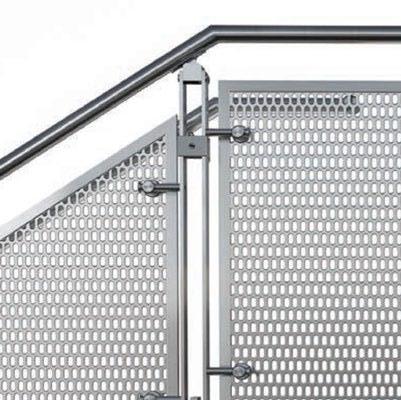

Perforated Metal Infill
TOP RAIL
HAND RAIL
BLADE RAILING SYSTEM
AVAILABLE PERFORATED TYPES:
3'-0" 3'-6"
R4"
BLADE POST
PERFORATED METAL
FINISH FLOOR
TOP RAIL
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
5
1'-0" 1'-0"
NOM.
VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM
2"
3" NOM.
33 4 " NOM. GAP
4'-6" MAX
4'-6" MAX
LEVEL 1 0'-0"
OPTIONS Ø2" TUBE Ø1-1/2" TUBE 2"x1" TUBE Ø1-1/2" iRAIL
STRINGER 9 16 1" 1 16 " (14 GA) SECTION VIEW
HAND RAIL PERFORATED METAL TOP RAIL
SPIDER CLAMP
1" 13 4 " 5 16 " 1 8 " 9 16 " 11 16 " 3 8 " 5 8 " 7 16 13 16 " 7 8 1 1 16 PMSL-0325
PMRO-1014 PMSQ-1013 PMRO-1217 PMSL-1122 Ø3 8 " Ø1 2 " Ø 1 4 " 3 8 " Page 2.2 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com BLADE RAILING SYSTEM PERFORATED METAL INFILL VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
OPTIONS AVAILABLE PERFORATED TYPES
PMRO-0610
TOP RAIL
TOP RAIL
WIRE MESH
HAND RAIL
STRINGER
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
6

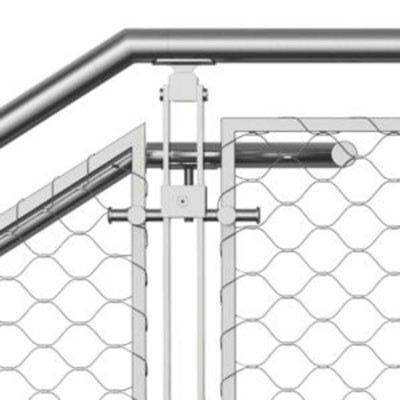

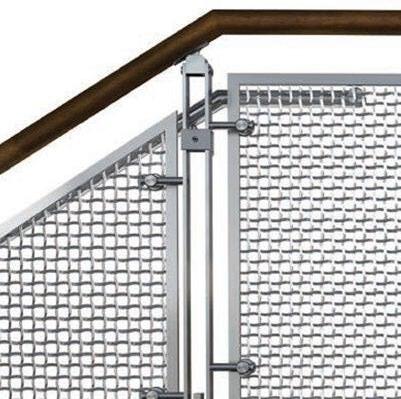

Wire Mesh Infill
VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM I
BLADE RAILING SYSTEM
LEVEL 1 0'-0"
FLOOR 3'-0" 3'-6"
FINISH
4'-6" MAX 4'-6"
TOP RAIL OPTIONS Ø2" TUBE Ø1-1/2" TUBE 2"x1" TUBE Ø1-1/2" iRAIL
MAX 1'-0" 1'-0"
RAIL
RAIL 2" NOM. 3" NOM. 33 4 " NOM. GAP R4" WM-10 1 5 16 " 7 16 " WM-15 WM-13 WM-17 WM-19 WM-20 WM-21 9 16 " TYP. 1" TYP. WM-11 WM-12 WM-14 7 16 11 16 1 2 13116 33 4 " 7 16 21 8 " 7 8 1 7 8 1 7 8 " 5 8 " 9 16 " 1 1 16 " 13 16 " 15 16 " 3 8 " AVAILABLE WIREMESH TYPES: SPIDER CLAMP Page 2.3 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. WIRE MESH INFILL BLADE RAILING SYSTEM AVAILABLE WIRE MESH TYPES
OPTIONS
WIRE MESH BLADE POST TOP
HAND
TOP RAIL
VIVA V A

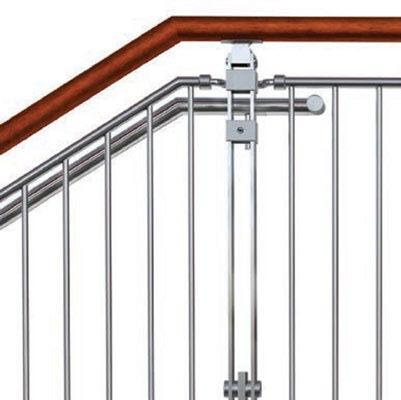

Picket Infill
TOP RAIL
3" NOM. RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com
BLADE RAILING SYSTEM
PICKET
Ø2" TUBE
Ø1-1/2"
TUBE
3'-0" 3'-6"
R4"
BLADE POST
PICKET
LEVEL 1 0'-0"
FINISH FLOOR
2"x1" TUBE
TOP RAIL OPTIONS
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
7
5'-0" MAX 5'-0" MAX 1'-0" 1'-0"
HAND RAIL 2" NOM.
iRAIL
RAIL
Ø1-1/2"
HAND
STRINGER
TOP RAIL
2 " TUBE 4" MAX. Page 2.4 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. BLADE RAILING SYSTEM PICKET PANEL INFILL
RAIL OPTIONS
Ø1" TUBE Ø1
TOP
BLADE RAILING SYSTEM
Multiline Infill
TOP RAIL
HAND RAIL
BLADE POST
MULTILINE
LEVEL 1 0'-0"
FINISH FLOOR
TOP
RAIL OPTIONS
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
8 4'-0" MAX 4'-0" MAX 1'-0" 1'-0"
2"
4"
VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM I
MAX.
MAX.
R4"
3'-0" 3'-6"
TUBE 2"x1" TUBE Ø1-1/2" iRAIL HAND RAIL MULTILINE TOP RAIL STRINGER Ø 1 2 " TUBE 4" MAX. Page 2.5 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. MULTILINE INFILL BLADE RAILING SYSTEM TOP RAIL OPTIONS
Ø2" TUBE Ø1-1/2"
BLADE RAILING SYSTEM
Page 2.6 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. BLADE RAILING SYSTEM CABLENET INFILL
CONTINUOUS PANEL
TOP RAIL
3" NOM. V A
FRAME
CABLENET
1"
R4"
41 2 " NOM. GAP 5'-0" MAX 5'-0" MAX
BLADE POST
CABLENET PANEL
LEVEL 1 0'-0"
41 2 3 8 60°
DIMENSIONS ARE NOMINAL
TOP RAIL STRINGER 8 "
CABLENET PANEL
HAND RAIL
Ø1/16" [Ø1.5mm]
Ø1-1/2" TUBE
3'-0" 3'-6"
2"x1" TUBE
FINISH FLOOR
Ø1-1/2" iRAIL
TOP RAIL OPTIONS
TOP RAIL OPTIONS
9 CP09 CP09 CP08
Infill
1'-0" 1'-0" CableNet
HAND RAIL 2" NOM. VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
Ø2" TUBE
7x7 CONSTRUCTION CABLE
BLADE RAILING SYSTEM
Laser cut w/ spiders
TOP RAIL
HAND RAIL
Visit https://vivarailings.com/ for range of design patterns Or provide your custom pattern
5'-0" MAX
ALUMINUM
BLADE POST
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
10
V V A TM I
VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com Page 2.1B OF 5 12/4/2023
5'-0" MAX 1'-0" 1'-0" ALUMINUM
PANEL
2" NOM. 3" NOM. 33 4 " NOM. GAP R4" LEVEL 1 0'-0" FINISH FLOOR 3'-0" 3'-6"
RAIL OPTIONS Ø2" TUBE
TUBE 2"x1" TUBE
iRAIL
RAIL
TOP
Ø1-1/2"
Ø1-1/2"
HAND
PANEL
RAIL STRINGER info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. LASERCUT INFILL BLADE RAILING SYSTEM TOP RAIL OPTIONS
TOP
11 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com BLADE GLASS RAILING SYSTEM
BLADE RAILING SYSTEM
Mounting Condition, Top Mounted Post
Anchored to Concrete ¹ - $
Detail# BL-T01 ³
Embed Plate (By others)
Cored into Concrete - $$
Detail# BL-T02
Welded @ Steel Channel - $
Detail# BL-T03
Welded @ Embed Plate - $
Detail# BL-T04
(1) Min. 4000 PSI concrete, Typ.
(2) $ to $$$: Indicates mounting type comparative cost
(3) Bolting is not a available option for top mount with cable infill
VIVA
3/8" BENT
Anchored to Concrete Slab on Deck - $$
Detail# BL-T05
PLATE
25 8 " 6" MIN.
(BY OTHERS)
Anchored to Concrete Welded to Steel Plate - $
Detail# BL-T06
BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
12 6" MIN.
²
3" MIN. 5" MIN. 6" MIN. 5" MIN. 5" MIN. 5" MIN.
61 2 " MIN. 3" MIN. VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM I
RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO
Page 3.1 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. BLADE RAILING SYSTEM MOUNTING CONDITION, TOP MOUNTED POST
(1)
Mounting Condition, Fascia Mounted Post
BLADE RAILING SYSTEM
Anchored to Concrete ¹ - $$$
Detail# BL-F01
Welded @ Steel Tube - $$
Detail# BL-F04
Welded @ Embed Plate - $$
Detail# BL-F02
Embed Plate (By others)
Welded @ Steel Channel - $$
Detail# BL-F03
13 6" 6" 6"
MIN.
6"
Min. 4000 PSI concrete, Typ. 6" MIN. 6" VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM
6" 6"
RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. 3" MIN. Welded @ Pour Stop - $$ Detail# BL-F05 3" MIN. STUD or DEFORMED REBAR (BY OTHERS) 3/8" THICK POUR STOP (BY OTHERS) Page 3.2 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. BLADE RAILING SYSTEM MOUNTING CONDITION, FASCIA MOUNTED POST
VIVA
30°
22°
14 VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM I BLADE RAILING SYSTEM Illuminated Railing Ø11 2 " 36 " TO FF TOP RAIL ILLUMINATED HANDRAIL 27 8 " 4 2 " TO FF Illuminated Hand rail Option Illuminated Top rail Option iRAIL POD ORIENTATION OPTIONS 18" 24" OR 36" iRAIL POD SPACING OPTIONS POD
ASYM. LINEAR
LINEAR ORIENTATION OPTIONS
iRAIL
ASYM.
SYM.
iRAIL Linear SYM.
See Viva iRail Railing System for more info Page 4 OF 5 12/4/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com BLADE RAILING SYSTEM iRAIL LIGHTED RAILING SYSTEM ILLUMINATED RAILING
POD
POD
LINEAR
FINISHING OPTIONS
#6 SATIN - #8 MIRROR
#8 Mirror Finish comes at an additional cost to our #6 Finish.
Available in Satin Black, Brass, Gold & Copper.
POWDER COAT
Available in Standard and Premium Colors
15
info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com BLADE GLASS RAILING SYSTEM
ECM

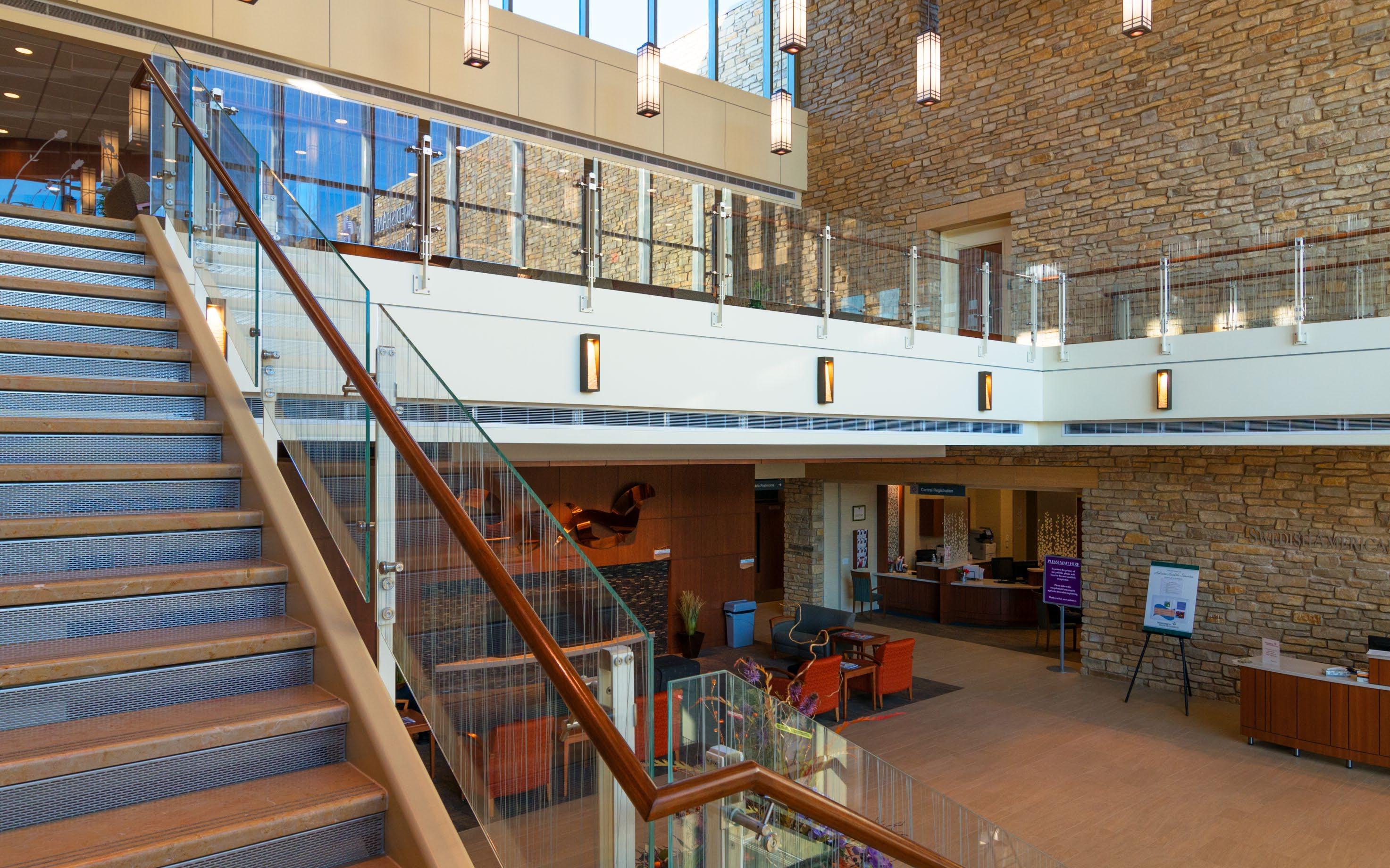

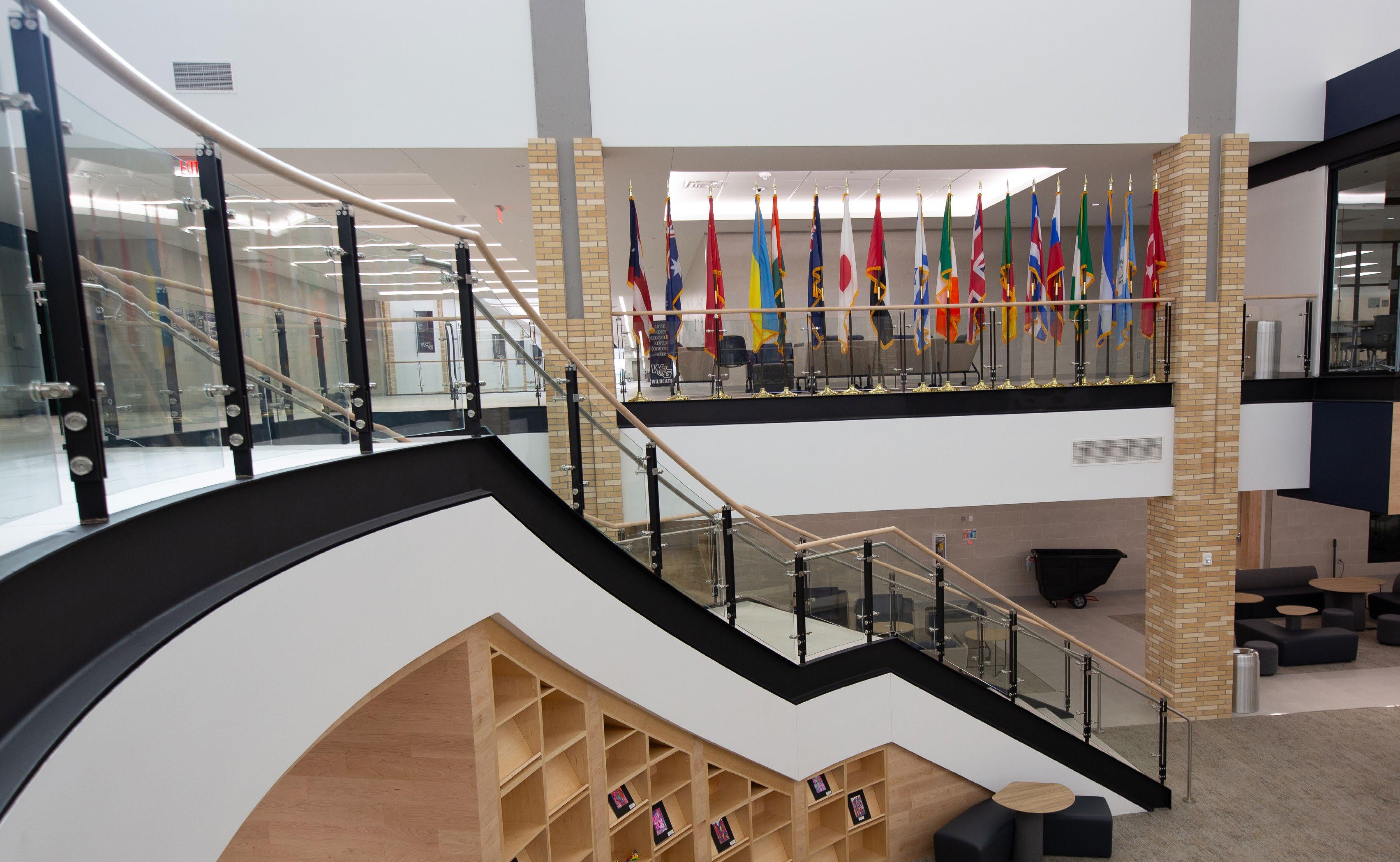

16 BLADE GLASS RAILING SYSTEM WALNUT GROVE HS info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: Pogue Construction Architect: Huckabee Architects WALNUT GROVE HIGH SCHOOL (PROSPER HS #3) - PROSPER, TX
17 BLADE GLASS RAILING SYSTEM JM FAMILY HEADQUARTERS info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: Kaufman Lynn Construction Architect: PGAL Architects JM FAMILY HEADQUARTERS - DEERFIELD BEACH, FL
18 BLADE GLASS RAILING SYSTEM OFFICES AT KIMBALL PARK General Contractor: Links Construction Architect: BOKA Powell OFFICES AT KIMBALL PARK - SOUTHLAKE, TX info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com
19 BLADE GLASS RAILING SYSTEM THE TERRACES AT SOLANA General Contractor: Scott + Reid General Contractors Architect: BOKA Powell THE TERRACES AT SOLANA - WESTLAKE, TX info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com
151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 (Dallas/Fort Worth Metroplex) PH: 972.353.8482 | info@vivarailings.com vivarailings.com NORTH AMERICA OPERATIONS Dallas/Fort Worth, TX San Diego, CA Atlanta, GA Orlando, FL New York, NY Washington DC Regional Locations Version:120423 Kansas City, KS ICC-ES 4405 Certified SHOE™ Structural Glass Railing System The American Institute of Architects The California Contractors State License Board Certified Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing US Companies Eight Years in a Row 2012-2019 Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing Texas Companies #211 LEED Material & Resources Credits 4.1 and 4.2
