TENG VITOU LI
Hello,
My name is Teng Vitou Li, and I am a graduate of the Advanced Diploma of Building Design (Architectural) program at Holmesglen Institute in Melbourne, Australia.
In this portfolio, I have selected some projects that reflect my experience during the course and I would be glad to show them to you.
I believe that architecture is a cultural product and we have the duty to create a positive transformation on space, people and the planet I am constantly looking for new experiences that allow me to grow professionally and personally In addition to architecture, I am passionate about music and I used to play soccer in my free time I am young, but I am a fast learner
EDUCATION
Advanced Diploma of Building Design (Architectural)
Holmesglen Institute
2022 - 2024
EXPERTISE
MODELING
ArchiCAD
Auto CAD
RENDERING
Twinmotion
D5 Render
SOFT SKILLS
Drawing
Teamwork
Creativity
LANGUAGE
English Khmer Second language Native
REFERENCES
Upon request
3 STOREY APARTMENTS BUILDING CREATING A LIVABLE COMMUNITY THROUGH DESIGN / 2024
THIS PROJECT SHOWCASES THE DESIGN AND DEVELOPMENT OF A THREE-STORY APARTMENT BUILDING, AIMING TO PROVIDE A COMFORTABLE AND SUSTAINABLE LIVING ENVIRONMENT WITHIN AN URBAN SETTING.
MY ROLE ENCOMPASSED THE FULL ARCHITECTURAL SPECTRUM,

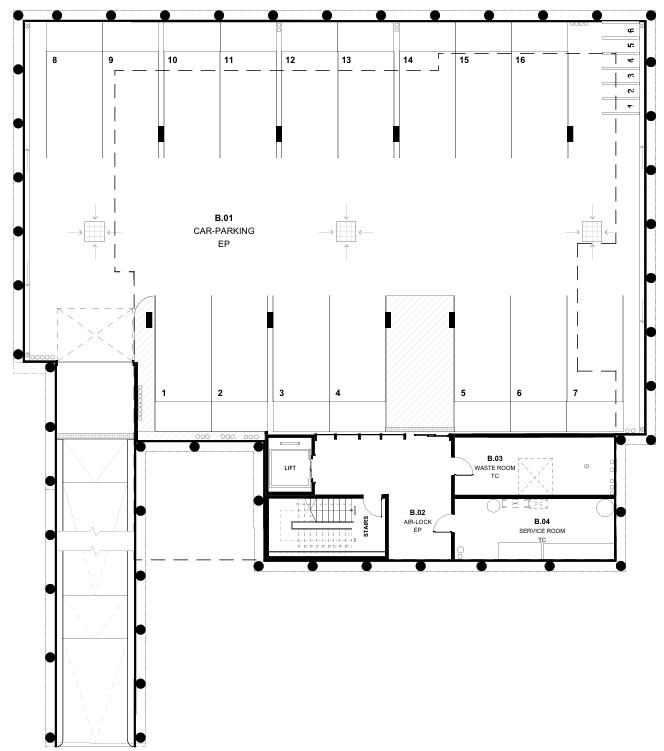

BASMENET PLAN
WELCOME TO YOUR SPACIOUS CAR BASEMENT, DESIGNED FOR CONVENIENCE AND EASE WITH ROOM FOR UP TO 16 CARS AND 6 BIKE CYCLE RACKS, PARKING ARE EFFORTLESS, ENSURING A STRESS-FREE EXPERIENCE EVERY TIME YOU ARRIVE HOME
BEYOND ITS FUNCTIONALITY, THIS BASEMENT OFFERS MORE THAN JUST PARKING; IT PROVIDES DIRECT ACCESS TO THE APARTMENT ABOVE
WHETHER YOU'RE LOOKING TO SECURE YOUR CARS OR ENJOY THE CONVENIENCE OF A DIRECT ENTRYWAY, THIS CAR BASEMENT COMBINES PRACTICALITY WITH ACCESSIBILITY, MAKING IT AN IDEAL CHOICE FOR MODERN LIVING

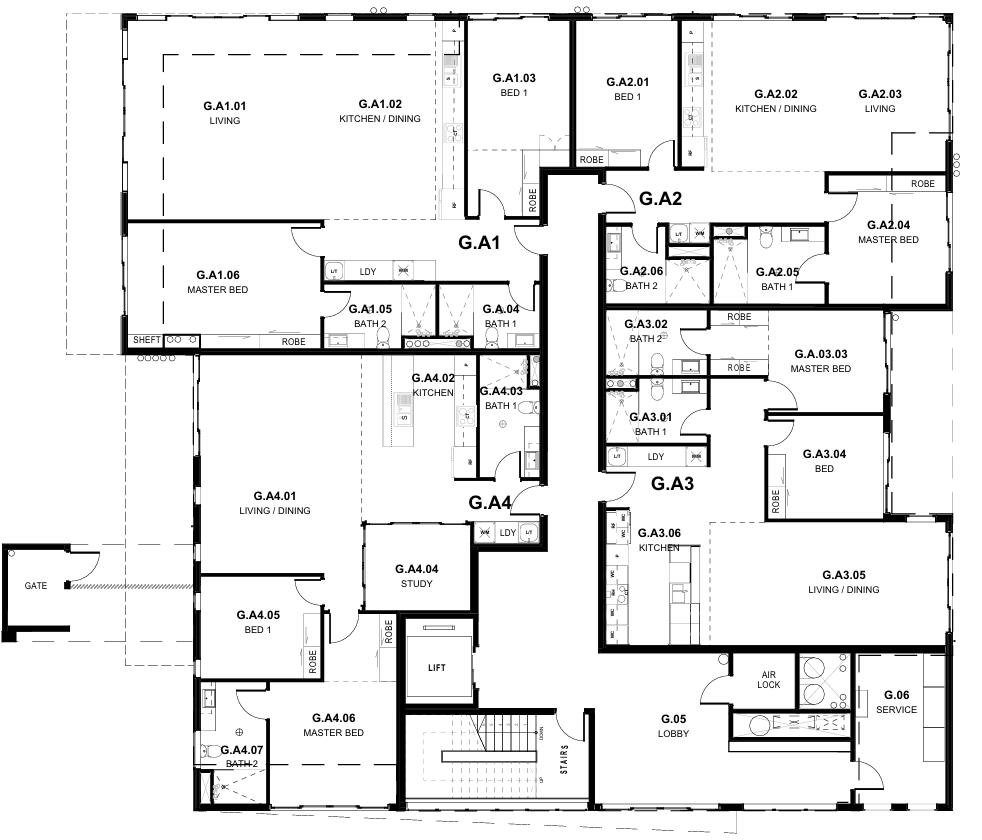

GROUND FLOOR PLAN
ON THE GROUND FLOOR PLAN OF OUR APARTMENT BUILDING, WHERE CONVENIENCE MEETS COMFORT THIS LEVEL FEATURES FOUR DISTINCT UNITS, EACH OFFERING TWO BEDROOMS AND TWO BATHROOMS, DESIGNED FOR MODERN LIVING REQUIREMENTS.
WHAT SETS THESE GROUND-FLOOR UNITS APART IS THEIR GENEROUS PRIVATE OPEN SPACES, IDEAL FOR NEW FAMILIES OR ANYONE WHO RELISHES OUTDOOR LIVING. EACH APARTMENT OPENS UP TO ITS OWN EXPANSIVE OUTDOOR AREA, PROVIDING AMPLE ROOM FOR RELAXATION, PLAY, OR ENTERTAINING GUESTS.
WHETHER YOU'RE ENJOYING A MORNING COFFEE ON YOUR PRIVATE OPEN SPACE OR HOSTING A BARBECUE WITH FRIENDS, THESE SPACIOUS OUTDOOR ZONES OFFER A PERFECT RETREAT RIGHT AT YOUR DOORSTEP
FIRST FLOOR PLAN
ON THE FIRST FLOOR OF OUR BUILDING, WHERE CONVENIENCE MEETS COMMUNITY LIVING THIS LEVEL BOASTS FOUR SPACIOUS APARTMENTS, EACH FEATURING TWO BEDROOMS AND TWO BATHROOMS, SIMILAR TO THE GROUND FLOOR LAYOUT.
WHAT DISTINGUISHES THE FIRST FLOOR IS ITS EMPHASIS ON EXPANSIVE BALCONIES, OFFERING AMPLE SPACE FOR RELAXATION AND OUTDOOR ENJOYMENT. IDEAL FOR INDIVIDUALS AND SMALL FAMILIES ALIKE, THESE BALCONIES PROVIDE A PERFECT RETREAT FOR TAKING IN FRESH AIR OR HOSTING SMALL GATHERINGS WITH NEIGHBORS
WHETHER YOU'RE UNWINDING AFTER A LONG DAY OR ENJOYING MORNING COFFEE WITH A VIEW, THESE BALCONIES ENHANCE THE LIVING EXPERIENCE BY SEAMLESSLY BLENDING INDOOR COMFORT WITH OUTDOOR TRANQUILITY.

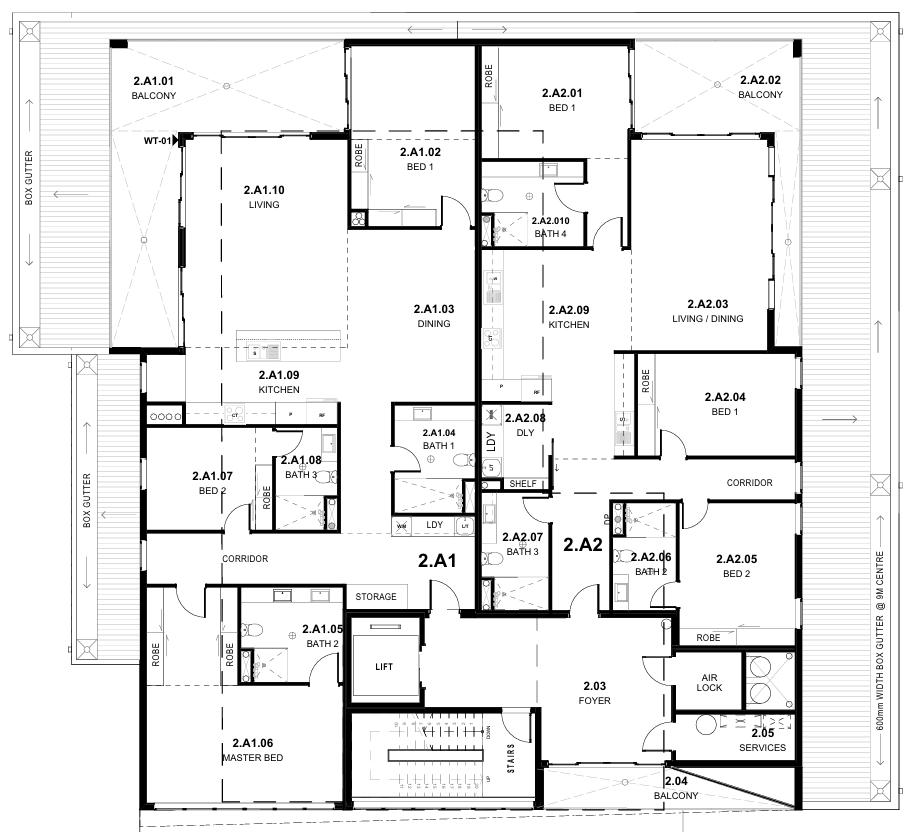

SECOND FLOOR PLAN
ON THE SECOND FLOOR, WHERE ACCESSIBILITY MEETS COMFORT IN OUR THOUGHTFULLY DESIGNED APARTMENTS THIS FLOOR FEATURES TWO ACCESSIBLE UNITS, METICULOUSLY CRAFTED WITH THE NEEDS OF INDIVIDUALS WITH DISABILITIES IN MIND. IT HAS 2 APRTMENTS ON THE SECOND FLOOR, EACH FLOOR OFFER 3 BEDROOMS AND 3 BATHROOMS WITH GENEROUSE BALCONY EACH APARTMENT ON THIS FLOOR OFFERS SPACIOUS LAYOUTS DESIGNED TO MAXIMIZE MOBILITY AND EASE OF USE WIDE DOORWAYS, ACCESSIBLE FIXTURES, AND CAREFULLY PLANNED SPACES ENSURE THAT EVERY RESIDENT CAN NAVIGATE THEIR HOME WITH COMFORT AND INDEPENDENCE. THESE APARTMENTS ARE GENEROUSLY SIZED TO ACCOMMODATE VARIOUS ACCESSIBILITY NEEDS WITHOUT COMPROMISING ON LIVING SPACE OR STYLE.

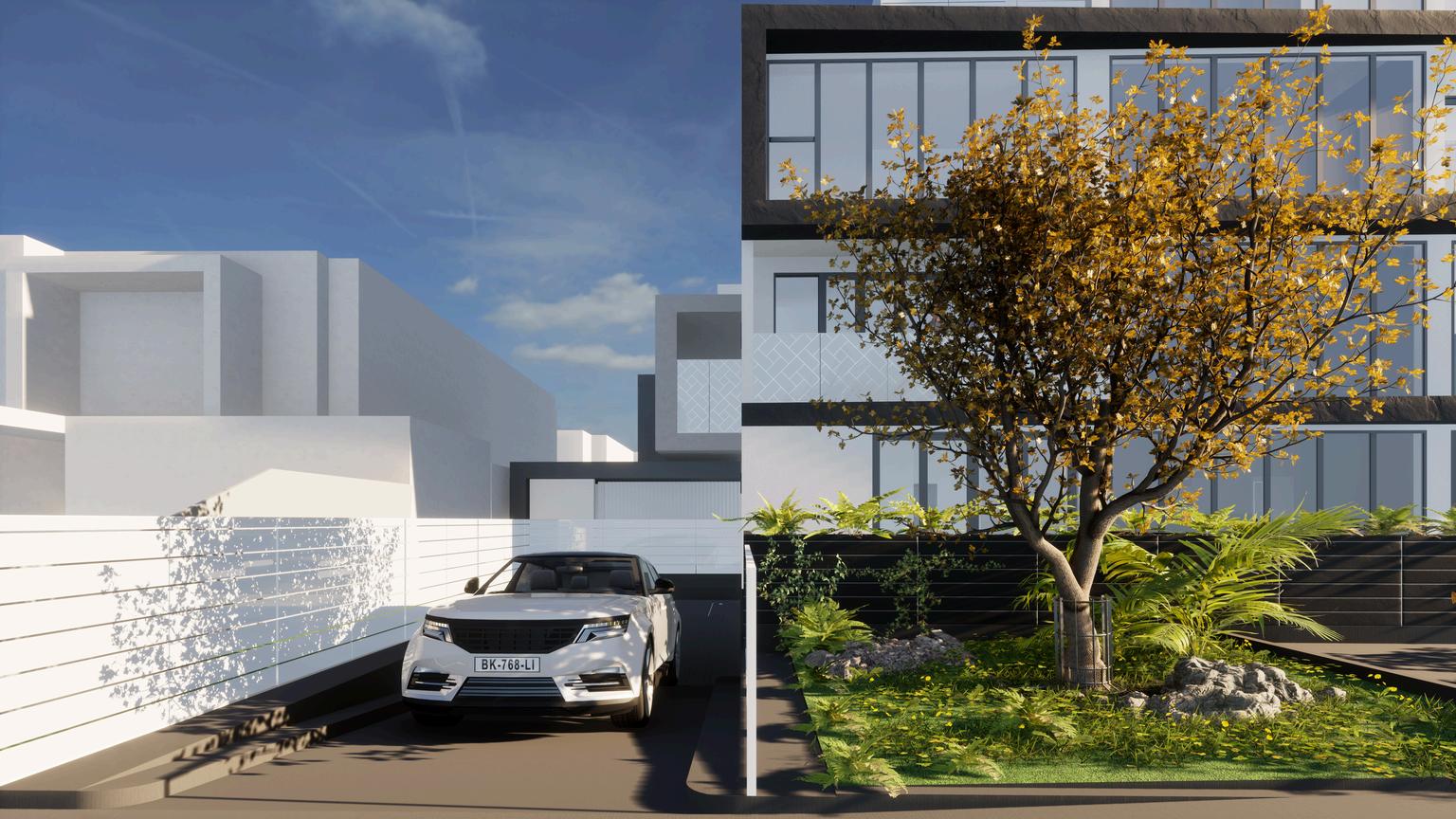

IMAGES RENDER
LIVING ROOM PERSPECTIVE 1
KITCHEN PERSPECTIVE
LIVING ROOM PERSPECTIVE 2

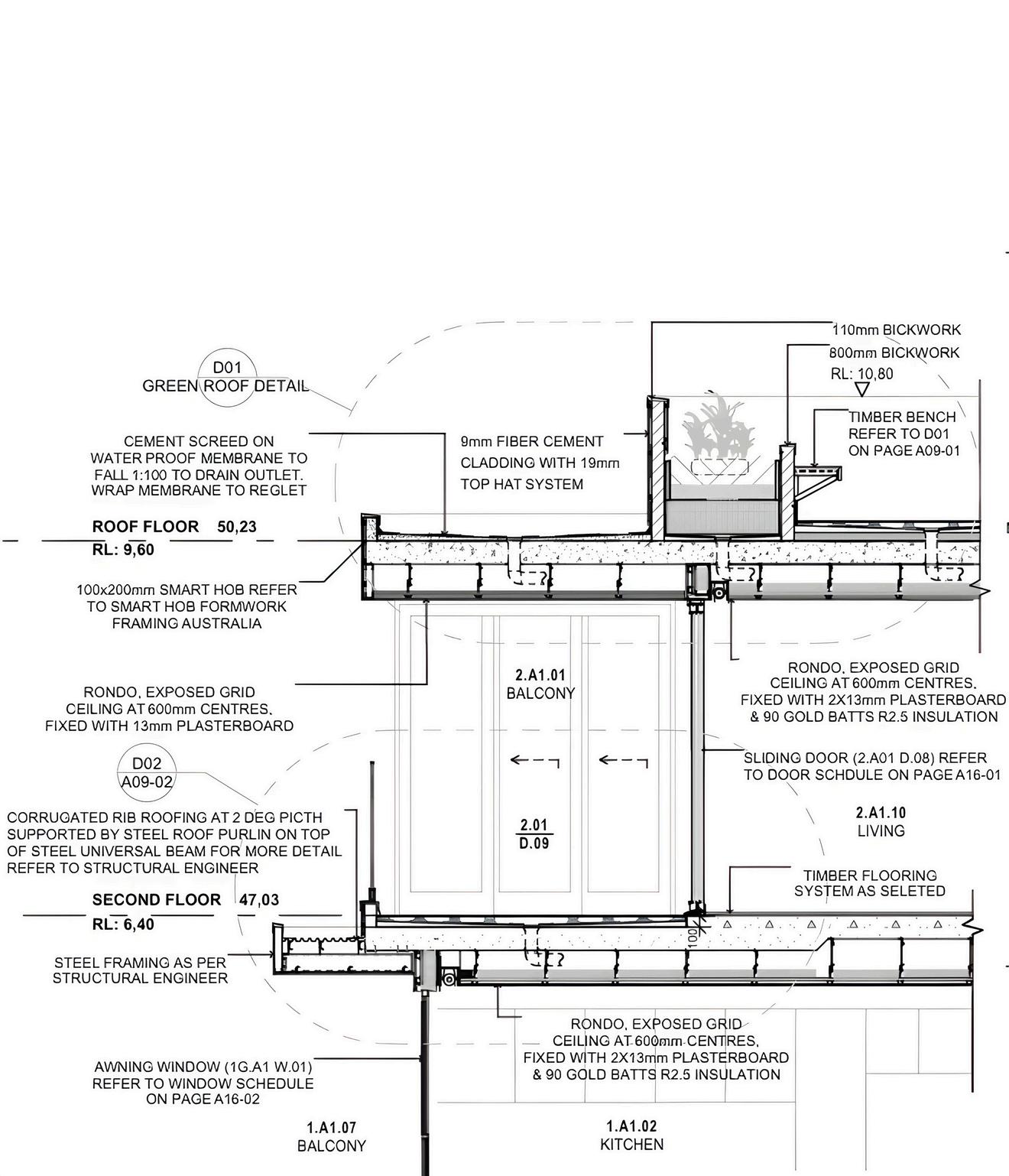

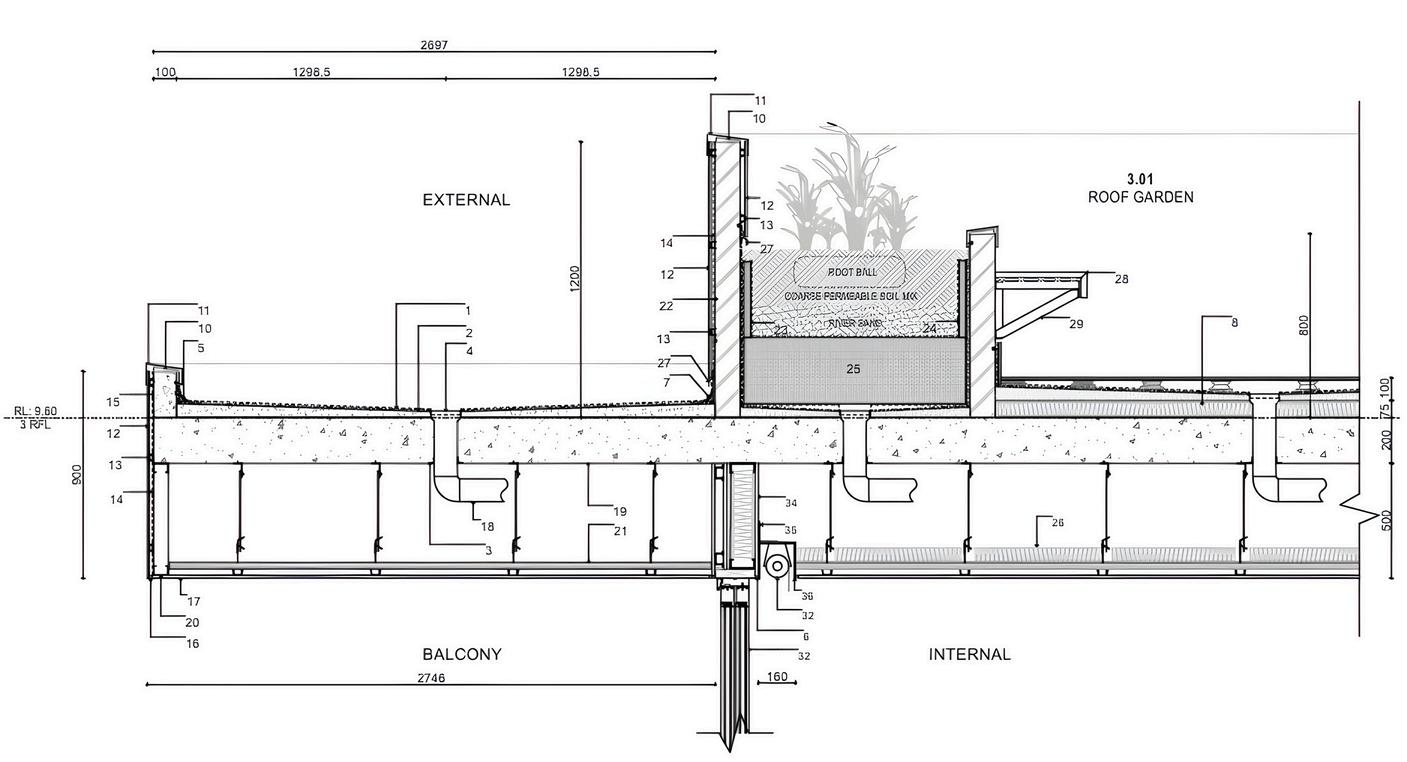

GREEN ROOF DETAIL
LEGEND
1. ALUMINIUM SUB-SILL FLASHING INSTALL UNDER ALUMINIUM SLDING DOOR
2. JOHNSON TILES 300X600MM LIGHT GREY 3 VERSIPAVE GP REFER TO MANUFACTURE ELMICH
4. SLIDING DOOR REFER TO DOOR SCHEDULE ON PAGE A16-01
5 ALUMINIUM WATERSTOP ANGLE REFER TO MANUFACTURE DEMTECH AUSTRALIA 6 EUROPEAN OAK TIMBER FLOOR REFER TO MANUFACTURE MARKET TIMBRS
7 CEMENT SCREED FALL TO DRAIN IN 1:100
8. BOSTIK DOUBLE TANKED BITUMINOUSE LAYER
9 WATERPROOFING MEMBRANE ON TOP OF CEMENT SCREED 10 COLOBOND COUTER-FLASHING
11. WHITE COLORBOND PARAPET FLASHING TO BE MATCH WITH WALL CLADDING
12. DRAIN OUTLET WITH GRATED COVER 13 ALUMINIUM BASE CHANNEL, EASY GLASS PRO 'F' REFER TO MANUFACTURE Q RAILING 14 GLASS PANEL WITH PRIVACY SCREEN, 50:50 SWITCHGLASS REFER TO MANUFACTURE SWITCH GLASS
15. ALUMINIUM CAP RAIL REFER TO MANUFACTURE Q RAILING
16. 19MM TOP HAT SYSTEM 17 9MM FIBRE CEMENT CLADDING
VAPOR BARRIER
COLORBOND APON FLASHING
25. STEEL TIL BEAM AS PER STRUCTURAL ENGINEER
26 STEEL FRAMING AS PER STRUCTURAL ENGINEER
27. 10MM DRIP GROOVE
28 9MM FIBRE CEMENT CLADDING
29. STEEL PURLINS AS PER STRUCTURAL ENGINEER
30 SHS STEEL HANGERS BY STRUCTURAL ENGINEER
31 STEEL UNIVERSAL BEAM BY STRUCTURAL ENGINEER
32 TIMBER PACKER
33. 35MM TOP HAT SYSTEM
34 90 GOLD BATTS R2 5 INSULATION
35. 90X90MM ANGLE STEEL
36 202MM STEEL STUD WALL, WT-01 REFER TO WALLL TYPE SCHEDULE PAGE A14
37 EXTRUDED ALUMINIUM CEILING POCKET
38. RONDO, EXPOSED GRID CEILING AT 600MM CENTRES, FIXED WITH 2X13 PLASTERBOARD
39. DRAIN PIPE
40 R2 0 CEILING INSULATION ON TOP OF CEILING SYSTEM
41 200MM CONCRETE SLAB REFER TO STRUCTURAL ENGINEER
42. FILLET
43 METAL FLASHING WITH DRIP EDGE
GROUND FLOOR OPEN SPACE DETAIL
LEGEND
1 DRAIN OUTLET WITH GRATED COVER
2. WATER PROOFING MEMBRANE ON TOP OF CEMENT SCREED
3 VERSIPAVE GP REFER TO MANUFACTURE ELMICH AUSTRALIA
4. CEMENT SVREED REFER TO STRUCTURAL ENGINEER
5 GRANITO BLACK OUTDOOR MATT PORCELAIN TILES
6. ALUMINIUM WATERSTOP ANGLE REFER TO MANUFACTURE DEMTECH AUSTRALIA
7 SLIDING DOOR REFER TO DOOR SCHEDULE ON PAGE A16-01
8. ALUMINIUM SUB-SILL FLASHING INSTALL UNDER SLIDING DOOR
9 FILLET
10. GEOTEXTILE FITER FABRIC WRAP ENTIRE STONE
11 SLOPE DRAIN TO SUMP OR OUTFALL
12. STONE PAD OR GRANULAR BACKFILL
13 GEOTEXTILE
14 SAND UNDER CONCRETE SLAB REFER TO ENGINEER FOOTING DRAWING
15. CONCRETE FOOTING REFER TO ENGINEER FOOTING DETAIL
16 VAPOR BARRIER
17. FLIXIBLE SEALANT
18 HAFT-TANK REFER TO MANUFACTURE RAIN SMART SOLUTIONS
19. BLACK NEW TILE WALL PANEL REFER TO BUNNING WARHOUSE
20 1 2M HEIGHT BLOCKWORK PLANTER BOX
21. NERO DRAINAGE SELL

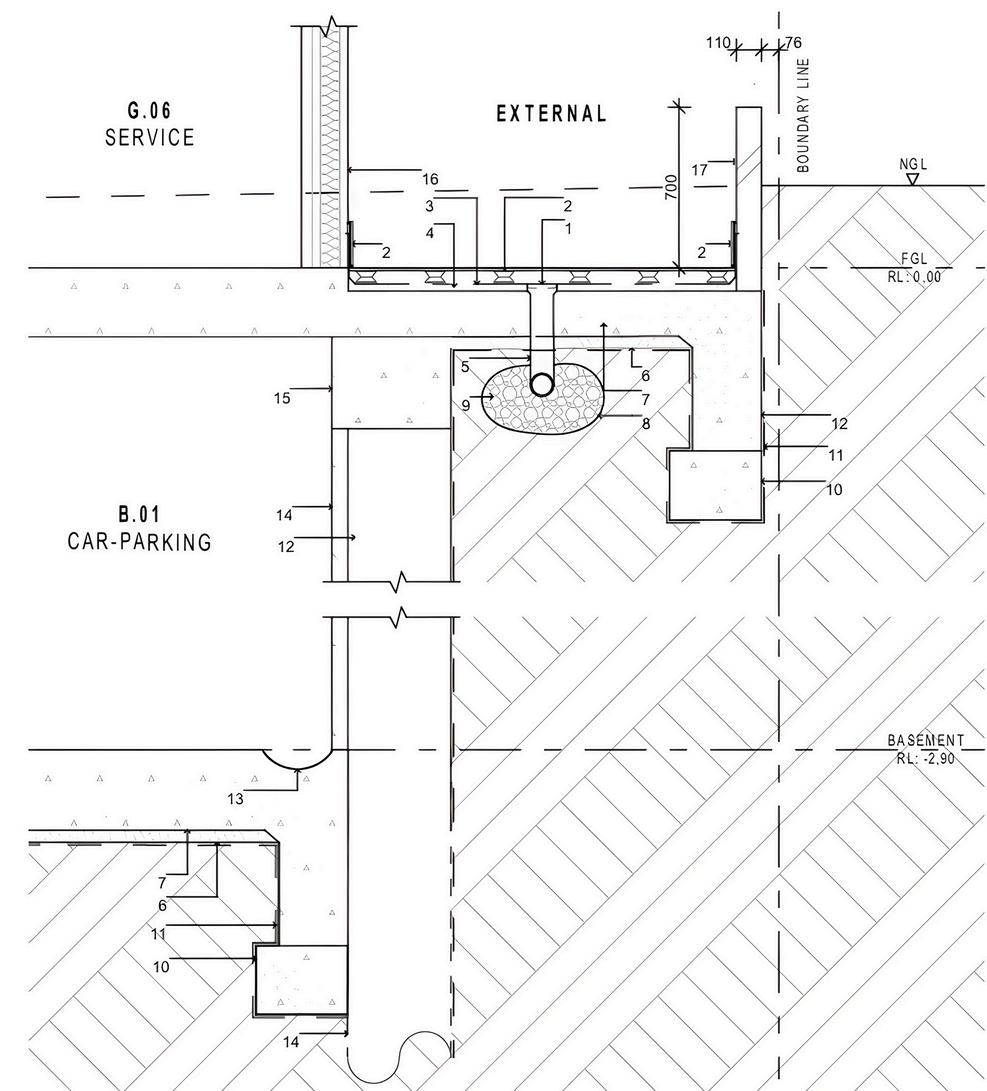

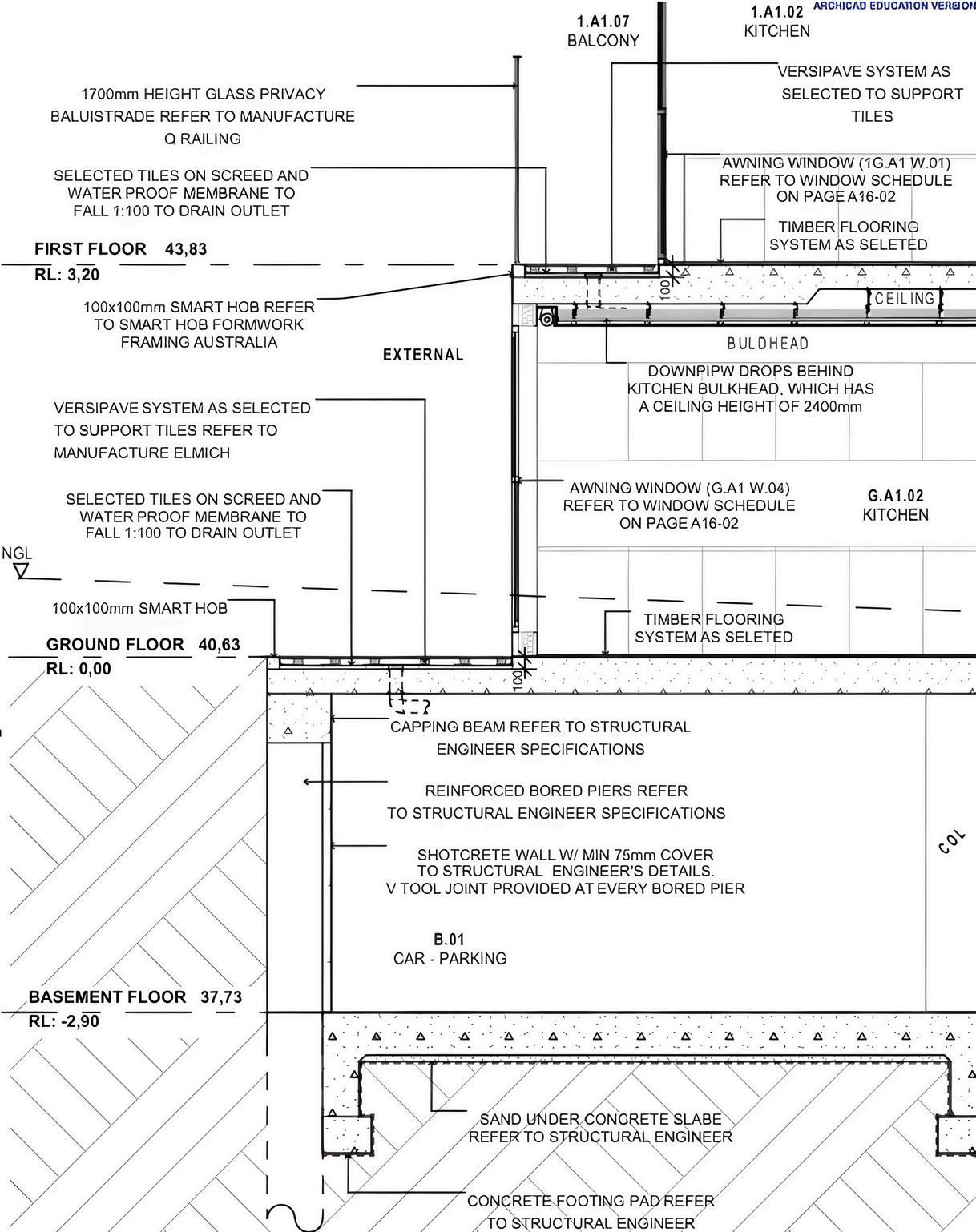

BORED PIER DETAIL
LEGEND
1 DRAIN OUTLET WITH GRATED COVER
2. GRANITO BLACK OUTDOOR MATT PORCELAIN TIES
3 WATERPROOFING MEMBRANCE ON TOP OF CEMENT SCREED
4. CEMENT SCREED FALL 1:100 TO DRAIN OUTLET
5 SLOPE DRAIN TO SUMP OR OUTFALL
6. SAND UNDER CONCRETE SLABE REFER TO STRUCTURAL ENGINEER
7 COCRETE SLAB TO AS PER STRUCTURAL ENGINEER
8. GEOTEXTILE FITER FABRIC WRAP ENTIRRE STONE
9 STONE PAD OR GRANULAR BACKFILL
10. CONCRETE FOOTING PAD REFER TO STRUCTURAL ENGINEER
11 VAPOR BARRIER
12. REINFORCED BORED PIERS REFER TO STRUCTURAL ENGINEER SPECIFICATIONS
13 300MM WIDTH SPOON DRAIN AROUND BASEMENT PERIMETER FALL TO DRAINAGE
OUTLETS AS PER HYDRAULIC ENGINEER'S SPECIFICATIONS. DRAINAGE TO COLLECTION POINT
14 SHOTCRETE WALL W/ MIN 75MM COVER TO STRUCTURAL ENGINEER'S DETAILS V TOOL JOINT PROVIDED AT EVERY BORED PIER
15 CAPPING BEAM REFER TO STRUCTURAL ENGINEER SPECIFICATIONS
16 WALL (WT01) REFER TO WALL TYPES SCHEDULE ON PAGE A07-01
17. 700MM HEIGHT BRICKWORK
G R E E N R I V E R H O U S E
A MODERN RETREAT NESTLED IN A FICTIONAL PARADISE / 2024
THIS PROJECT EXPLORES THE DESIGN OF A VACATION HOUSE, APTLY NAMED THE GREEN RIVER HOUSE, SITUATED IN A TRANQUIL FICTIONAL LOCATION. THE GREEN RIVER HOUSE SERVES AS A SANCTUARY, A PLACE TO ESCAPE THE HUSTLE AND BUSTLE OF EVERYDAY LIFE AND RECONNECT WITH NATURE
THE ARCHITECTURAL MODEL WAS CREATED USING ARCHICAD SOFTWARE, ALLOWING FOR A DETAILED AND PRECISE REPRESENTATION OF THE DESIGN SUBSEQUENTLY, THE MODEL WAS RENDERED IN TWINMOTION, A POWERFUL RENDERING ENGINE THAT BRINGS THE DESIGN TO LIFE WITH STUNNING VISUALS AND IMMERSIVE QUALITIES
THIS APPROACH, UTILIZING BOTH ARCHICAD AND TWINMOTION, ALLOWS FOR A COMPREHENSIVE EXPLORATION OF THE GREEN RIVER HOUSE CONCEPT, FROM ITS INITIAL CONCEPTION TO A FINAL, CAPTIVATING VISUALIZATION THE FOLLOWING SECTIONS WILL DELVE DEEPER INTO THE DESIGN ELEMENTS AND CONSIDERATIONS THAT SHAPED THIS UNIQUE VACATION HOUSE

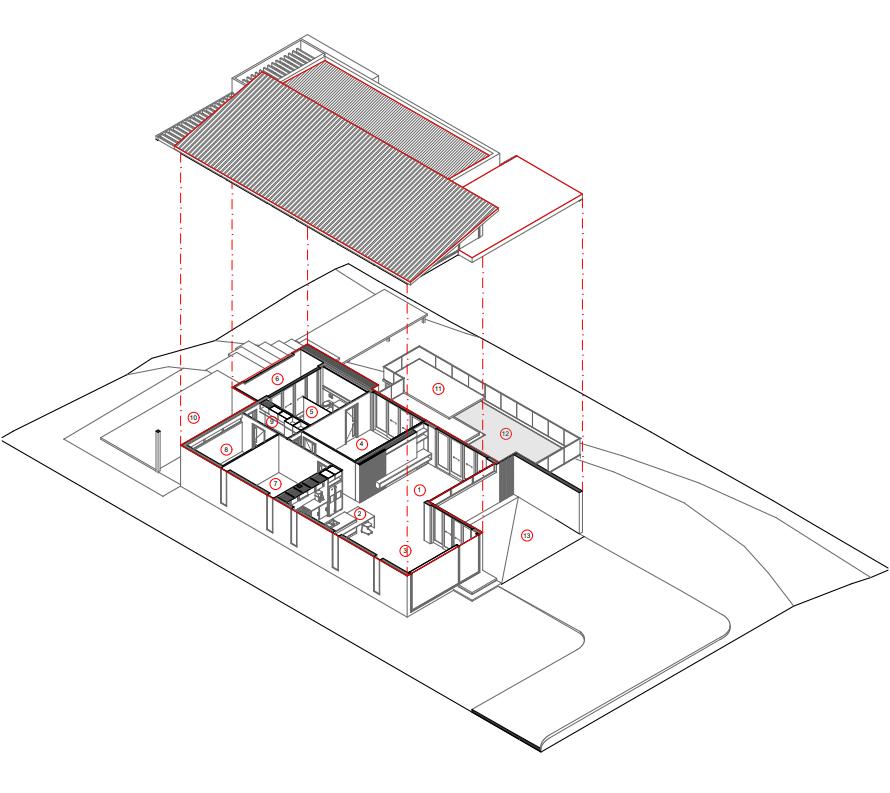

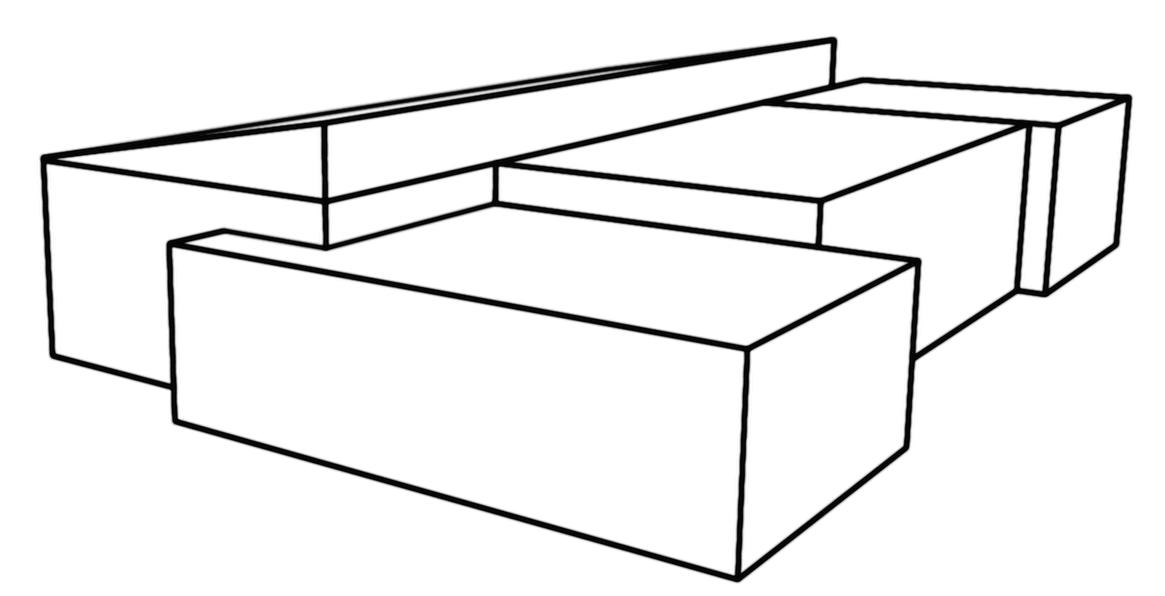

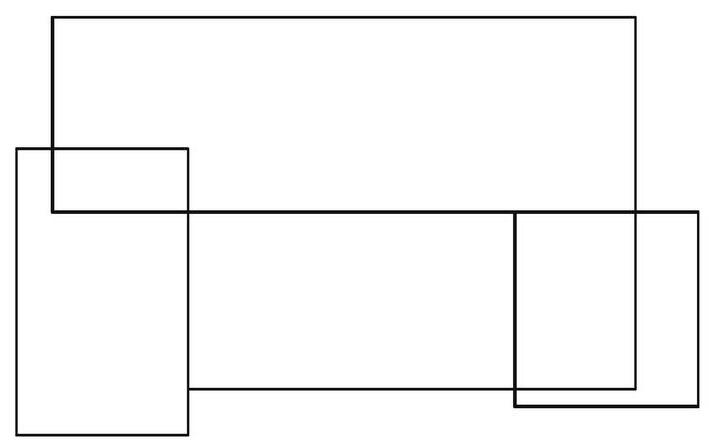

OVERLAY
IMAGES RENDER
WEST PERSPECTIVE 1
WEST PERSPECTIVE 2
FLOOR-TO-CEILING WINDOWS DOMINATE THE RIVER-FACING BESIDE, OFFERING UNOBSTRUCTED VIEWS AND CREATING A LIGHT-FILLED, AIRY INTERIOR. THESE WINDOWS LIKELY UTILIZE HIGHPERFORMANCE GLASS FOR INSULATION AND UV PROTECTION
LIVING ROOM PERSPECTIVE 1
LIVING ROOM PERSPECTIVE 2
THE LIVING SPACES LIKELY FEATURE AN OPEN FLOOR PLAN, WHERE THE LIVING ROOM, DINING ROOM, AND KITCHEN FLOW INTO ONE ANOTHER. THIS ALLOWS THE BREATHTAKING RIVER TO BE ENJOYED FROM MULTIPLE AREAS.
BEDROOM PERSPECTIVE
KITCHEN PERSPECTIVE

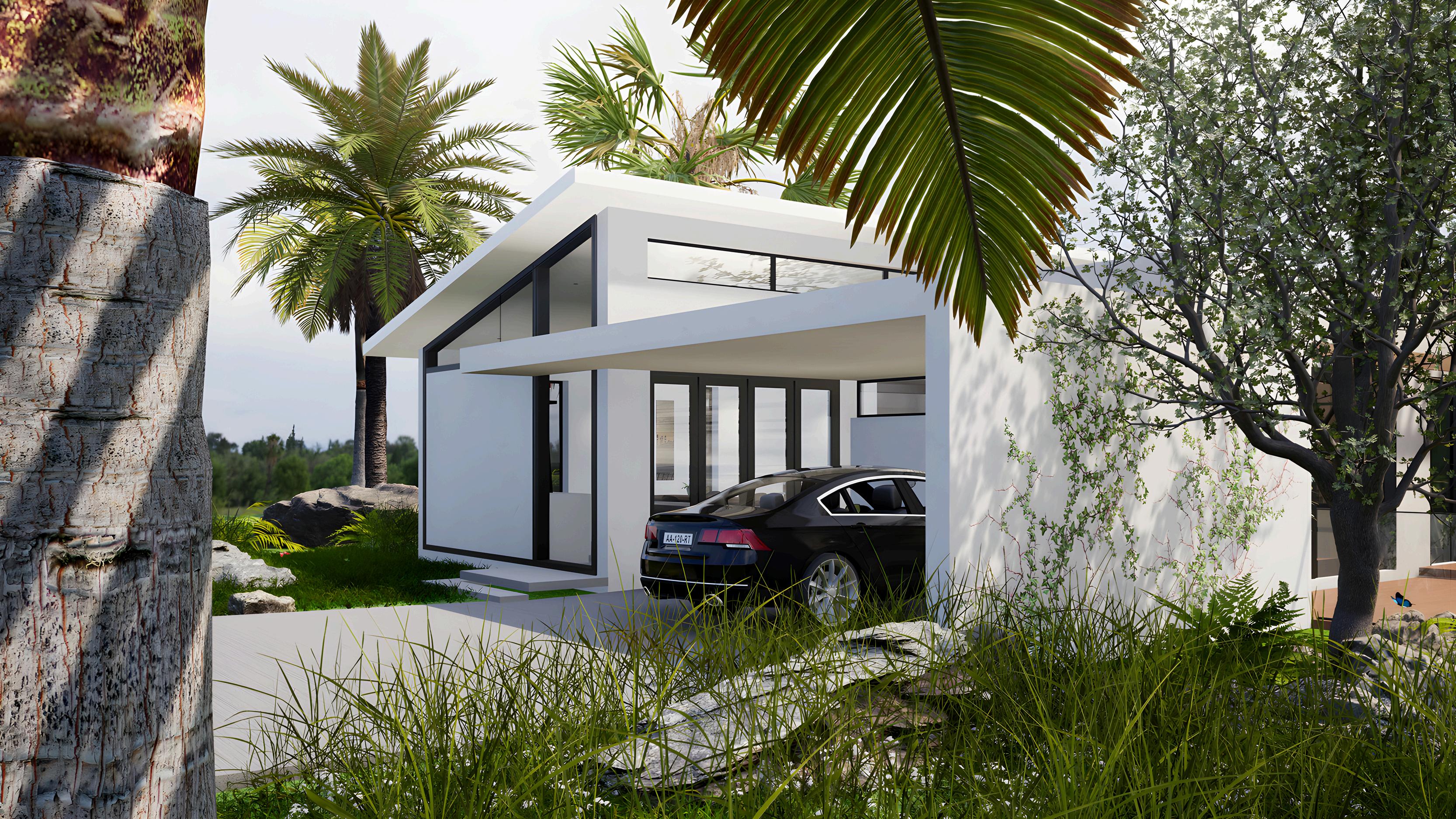

FRONT PERSPECTIVE 1
FRONT PERSPECTIVE 2
G A R T G A L L E R Y 03
A
THE AG ART GALLERY RENOVATION. TRANSFORMING A SPACE TO INSPIRE ARTISTIC EXPRESSION / 2023
THIS PROJECT TAKES ON THE EXCITING CHALLENGE OF RENOVATING THE AG ART GALLERY UTILIZING A FLOOR PLAN PROVIDED BY THE INSTRUCTOR, THE FOCUS WAS ON REVITALIZING THE INTERNAL SPACE WHILE INCORPORATING THOUGHTFUL EXTERNAL MODIFICATIONS.
ARCHICAD SOFTWARE PLAYED A CRUCIAL ROLE IN THIS PROJECT IT ALLOWED FOR THE CREATION OF A DETAILED AND ACCURATE 3D MODEL OF THE RENOVATED GALLERY WALLS WERE ADJUSTED, NEW FEATURES WERE INTRODUCED, AND THE OVERALL LAYOUT WAS OPTIMIZED TO ENHANCE ARTISTIC PRESENTATION AND VISITOR FLOW
ONCE THE ARCHITECTURAL MODEL WAS COMPLETE, TWINMOTION, A POWERFUL RENDERING ENGINE, TRANSFORMED THE DIGITAL SPACE INTO A VISUALLY STUNNING AND IMMERSIVE EXPERIENCE
THROUGH HIGH-QUALITY RENDERS AND ANIMATIONS, THE PROJECT BREATHES LIFE INTO THE REVAMPED AG ART GALLERY, SHOWCASING ITS POTENTIAL TO INSPIRE AND ENGAGE FUTURE VISITORS.

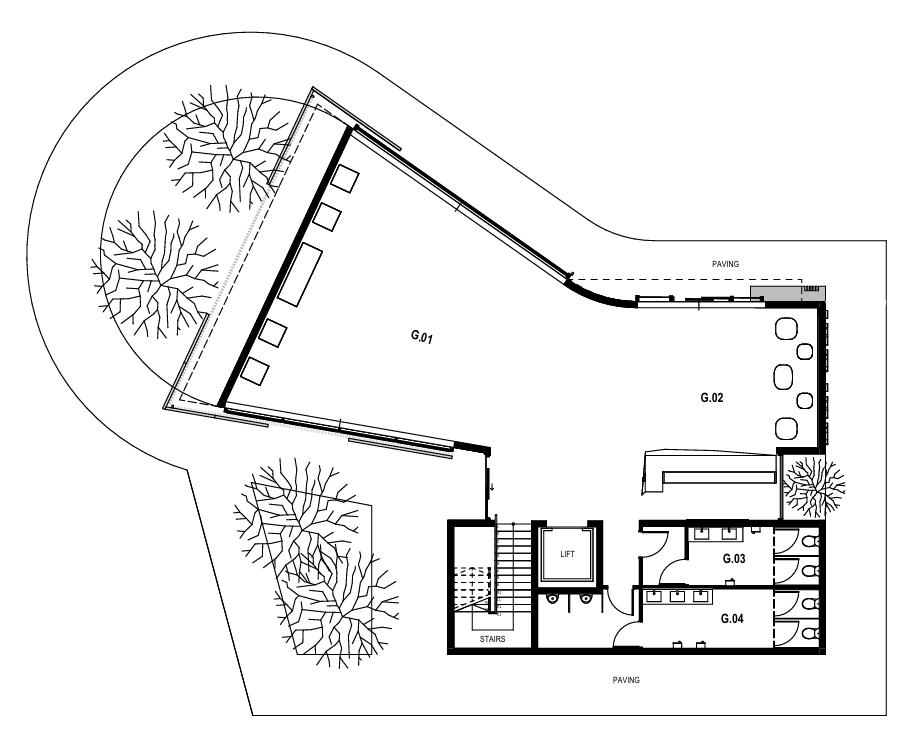

LEGEND
G 01 GROUNF FLOOR DISPLAY AREA
G 02 RECEPTION DESK
G.03 FEMALE RESTROOM
G 04 MALE RESTROOM
GROUND FLOOR PLAN
WELCOME TO THE AG GALLERY, A STUNNING TWO-STORY ARCHITECTURAL IN THE HEART OF THE CITY'S CULTURAL DISTRICT AS YOU STEP INSIDE, THE GROUND FLOOR WELCOMES YOU WITH ART DISPLAYS THAT SPAN GENRES AND STYLES, SHOWCASING BOTH ESTABLISHED AND EMERGING ARTISTS FROM AROUND THE WORLD. THIS SPACE INVITES YOU TO IMMERSE YOURSELF IN THE CREATIVITY AND EXPRESSION OF CONTEMPORARY ART
CONVENIENTLY LOCATED ON THE GROUND FLOOR ARE SEPARATE, TASTEFULLY DESIGNED MALE AND FEMALE RESTROOMS, ENSURING COMFORT AND ACCESSIBILITY FOR ALL VISITORS FOR THOSE REQUIRING ASSISTANCE, A CENTRALLY LOCATED LIFT AND STAIRCASE PROVIDE SEAMLESS ACCESS TO THE UPPER LEVEL, ENHANCING THE GALLERY'S INCLUSIVITY
AT THE HEART OF THE GROUND FLOOR STANDS A WELCOMING RECEPTION DESK, WHERE KNOWLEDGEABLE STAFF MEMBERS EAGERLY AWAIT TO GUIDE YOU THROUGH THE GALLERY'S OFFERINGS, PROVIDE INSIGHTFUL INFORMATION ABOUT THE CURRENT EXHIBITIONS, AND ASSIST WITH ANY INQUIRIES YOU MAY HAVE

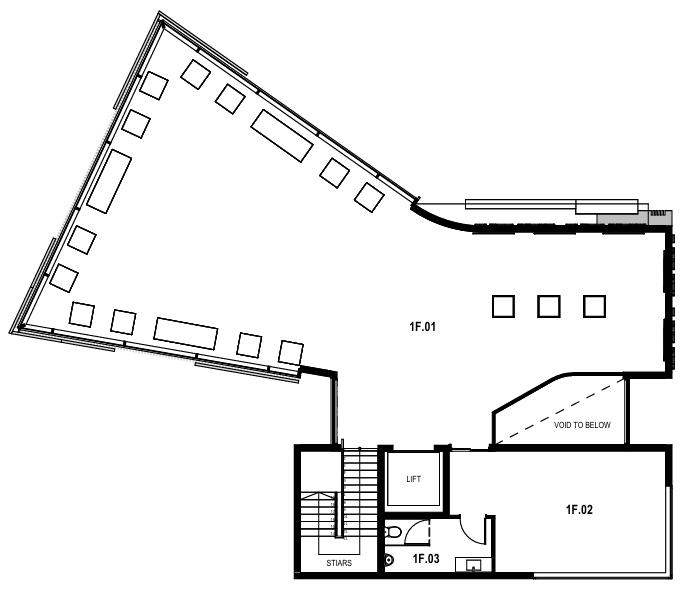

FIRST FLOOR PLAN
A SCEND TO THE FIRST FLOOR. HERE, OFFICE SPACES FOR GALLERY STAFF, YOU'LL DISCOVER ANOTHER EXPANSIVE AREA DEDICATED TO THE CELEBRATION OF ARTISTIC EXPRESSION THIS UPPER LEVEL HOSTS ADDITIONAL ART DISPLAYS, OFFERING A DEEPER EXPLORATION INTO THE DIVERSITY AND RICHNESS OF CONTEMPORARY ARTISTRY

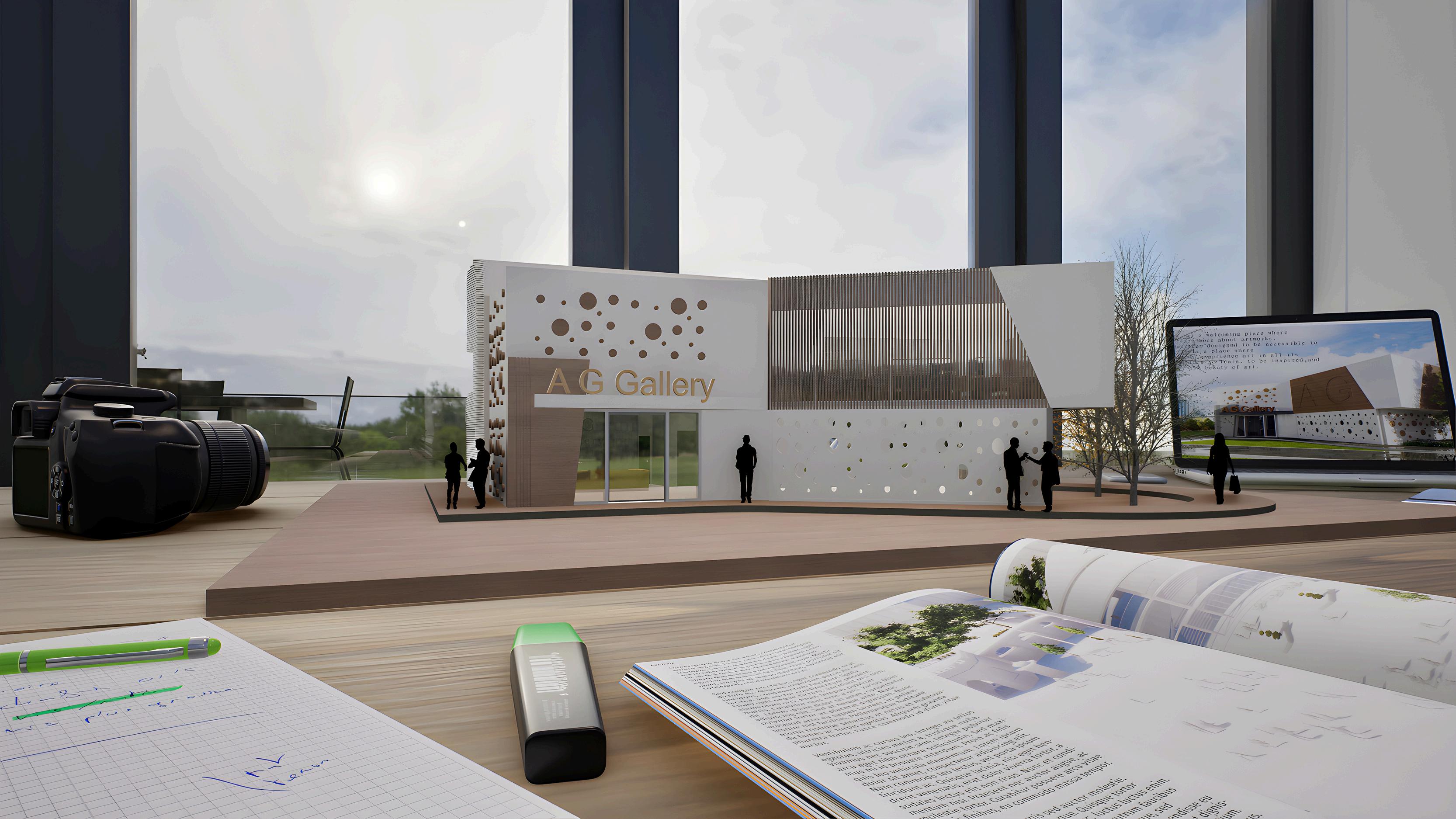

THIS CLOSE-UP VIEW SHOWCASES A HIGHLY DETAILED AND REALISTIC ARCHITECTURAL MODEL OF AN ART GALLERY SITUATED ON A WORKING DESK
CRAFTED FROM WOOD WITH A RECTANGULAR BASE, THE MODEL IS RENDERED IN TWINMOTION 2024.1, WHILE THE ORIGINAL BUILDING DESIGN WAS CREATED IN ARCHICAD 27.

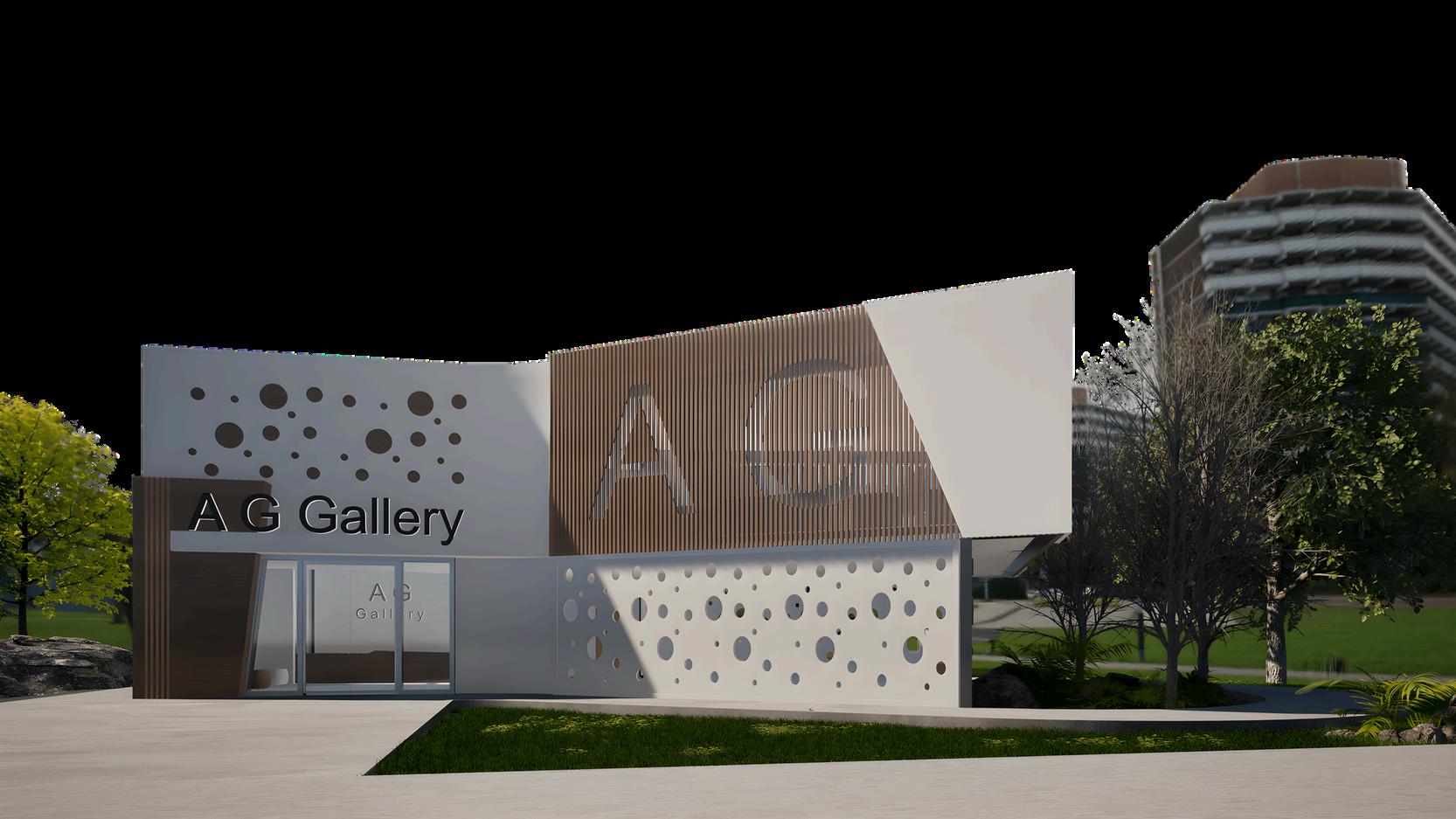

FRONT PERSPECTIVE
REAR PERSPECTIVE
FIRST FLOOR DISPLAY AREA PERSPECTIVE 1
FIRST FLOOR DISPLAY AREA PERSPECTIVE 2
RECEPTION PERSPECTIVE
FIRST FLOOR DISPLAY AREA PERSPECTIVE 3

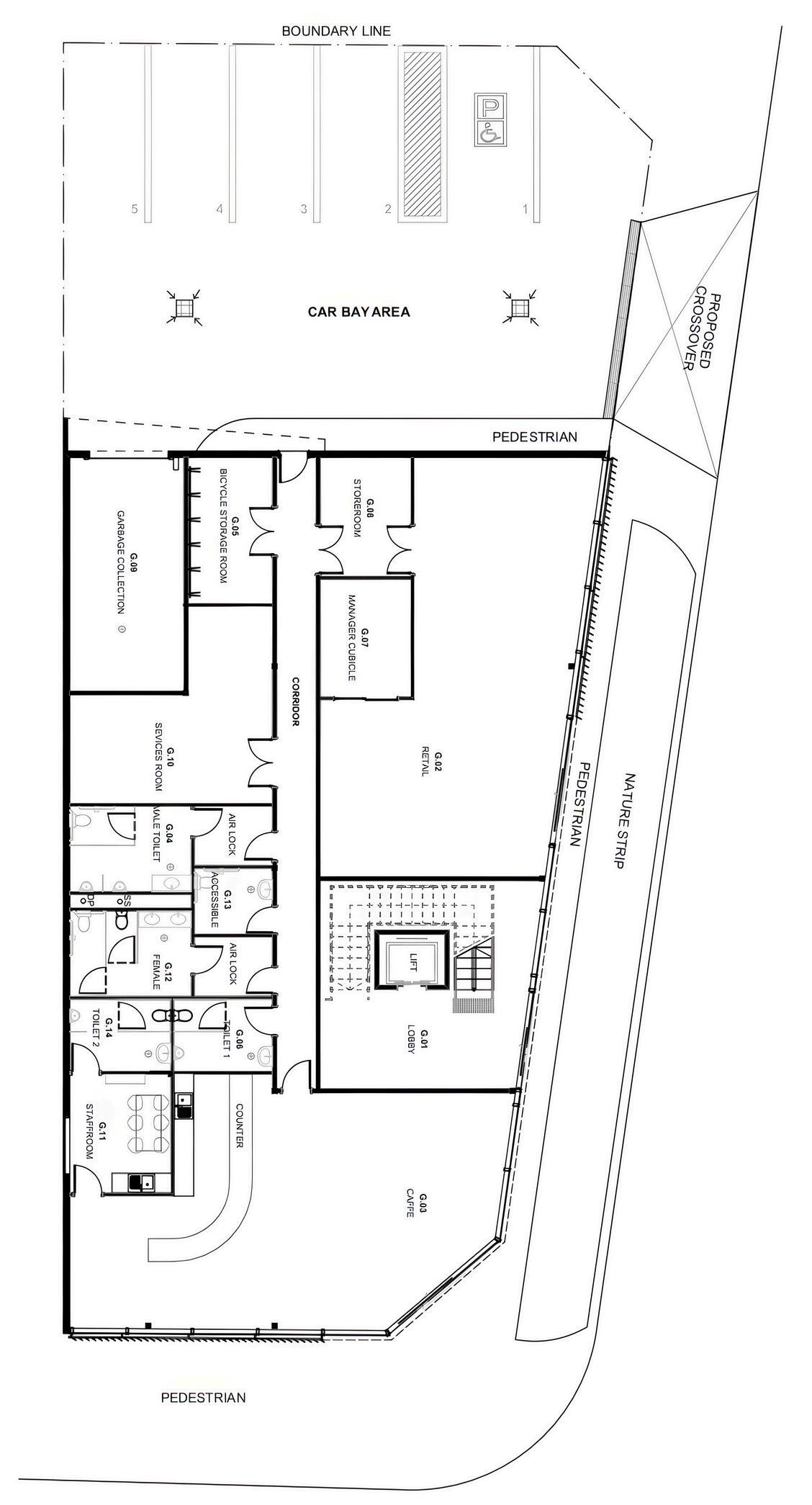

GOUND FLOOR PLAN
AT STREET LEVEL, THE BUILDING OFFERS A WARM AND INVITING CAFE AND RETAIL SPACE.
DESIGNED FOR EASY CUSTOMER ACCESS, THIS AREA PROVIDES A BUSTLING HUB FOR SOCIAL INTERACTION AND COMMERCE
WHETHER GRABBING A COFFEE OR BROWSING RETAIL OFFERINGS, VISITORS ENJOY A SEAMLESS EXPERIENCE

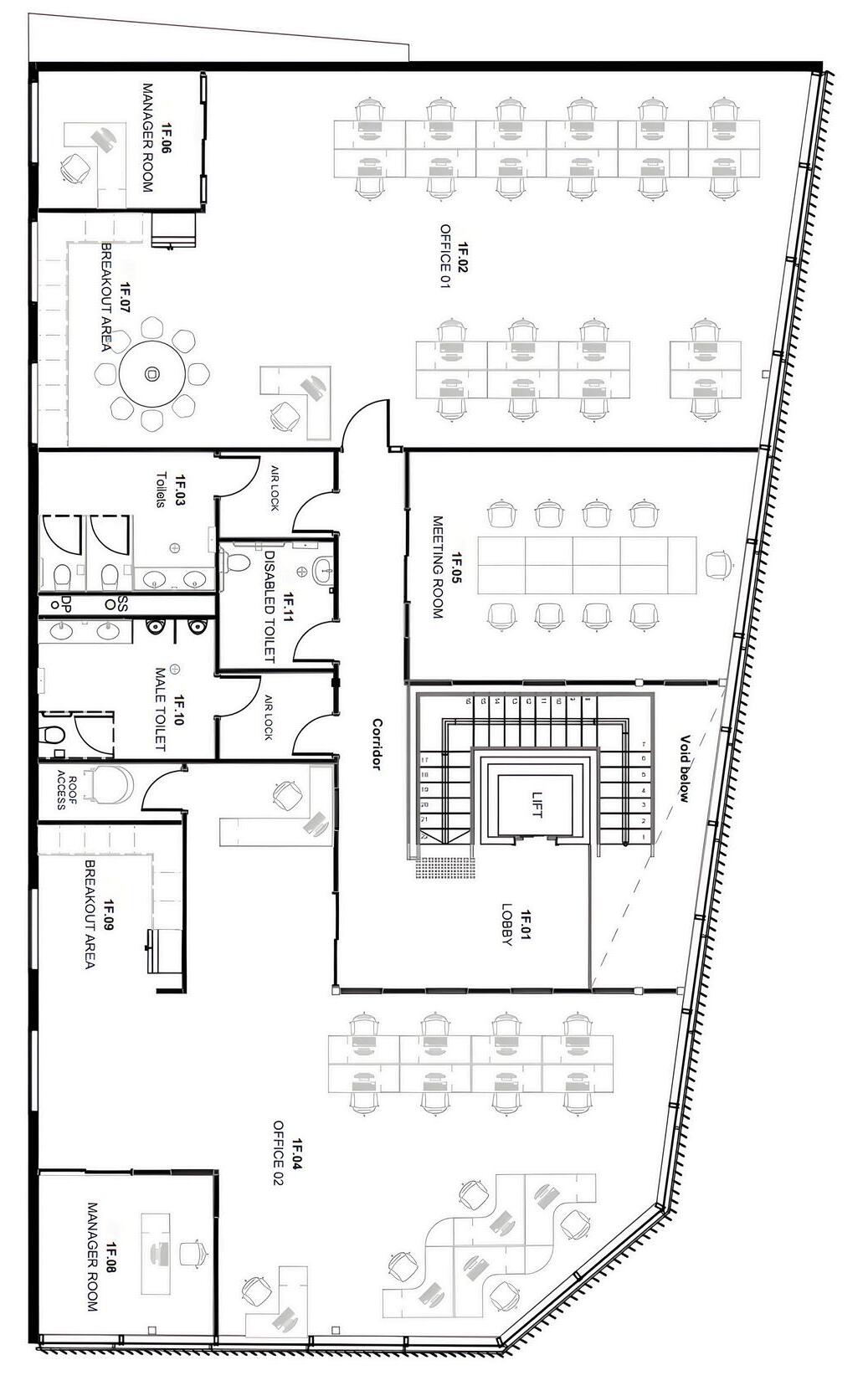

ASCENDING VIA A MODERN LIFT OR STAIRS, THE FIRST FLOOR HOSTS TWO RENTAL OFFICES
THESE SPACES ARE METICULOUSLY DESIGNED TO CATER TO DIVERSE PROFESSIONAL NEEDS, OFFERING A CONDUCIVE ENVIRONMENT FOR PRODUCTIVITY AND BUSINESS GROWTH.

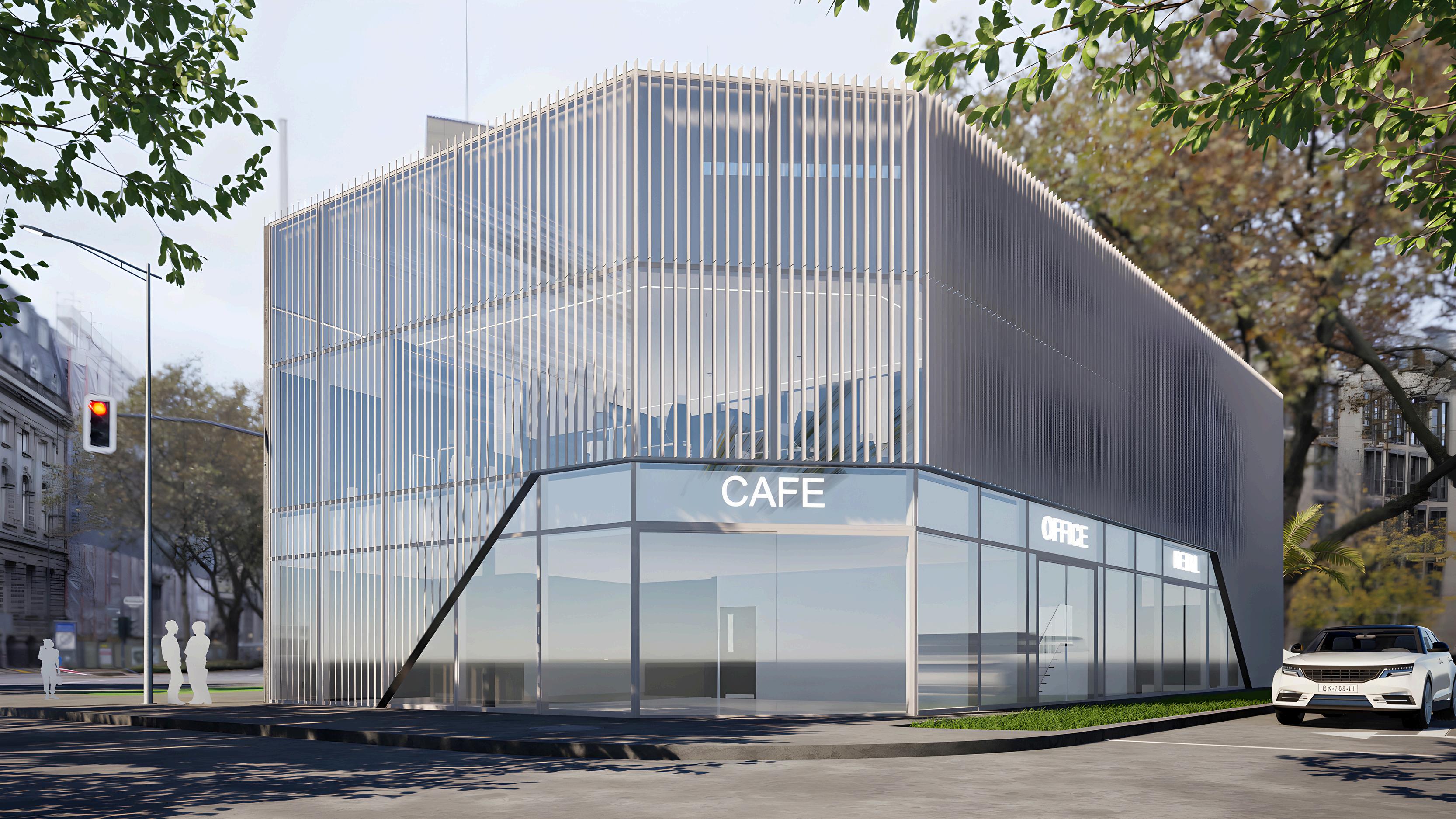

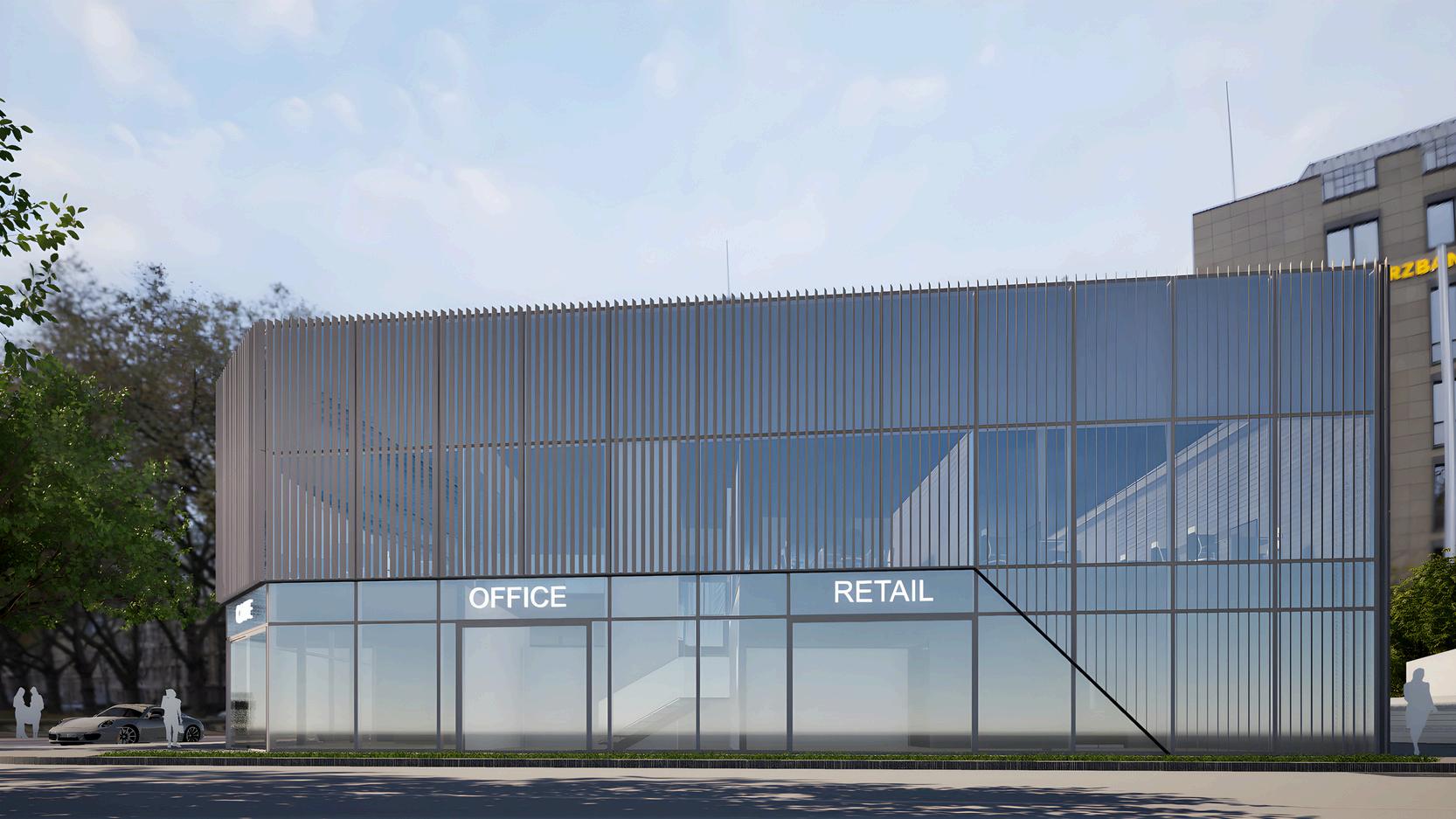

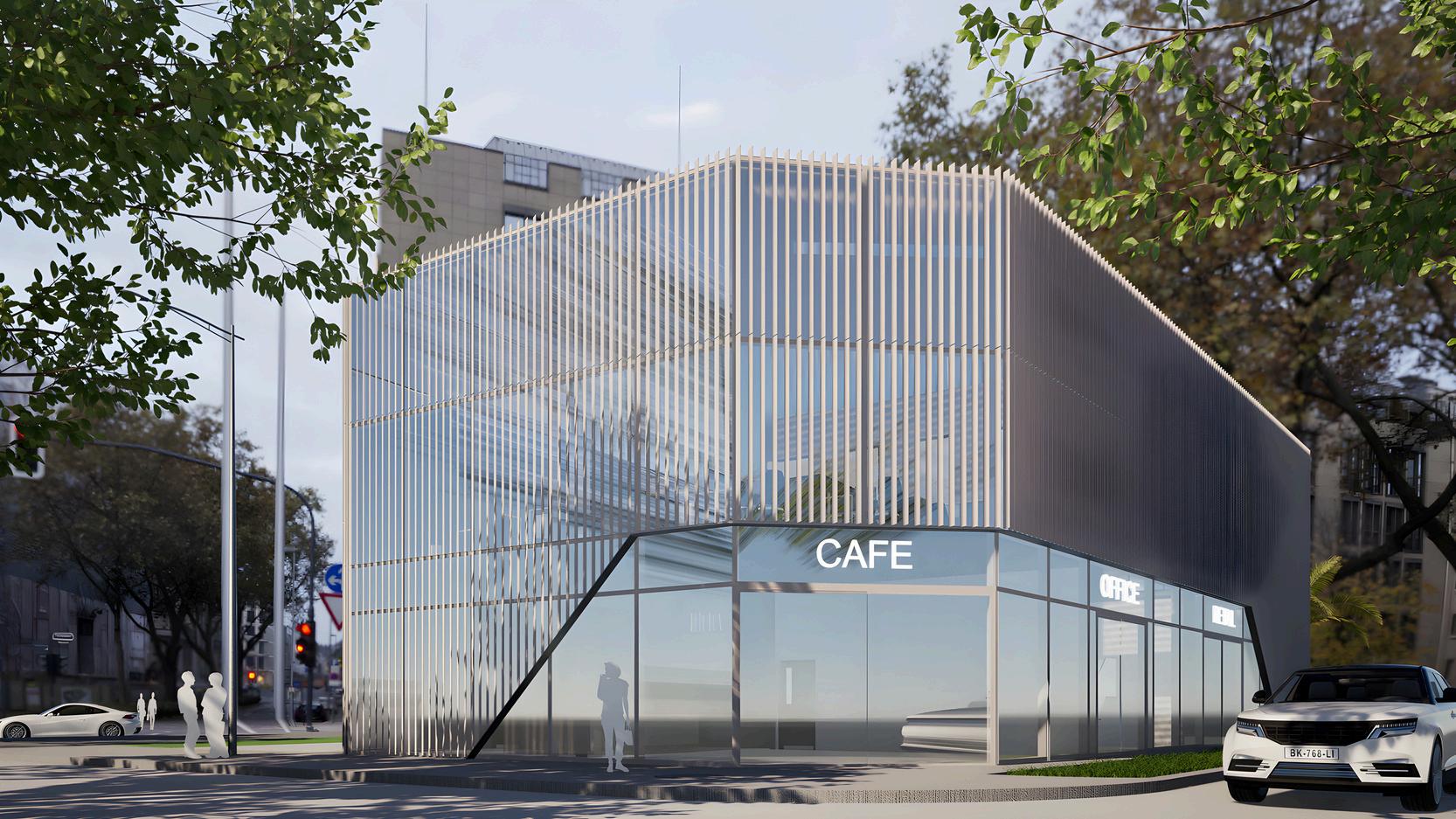

SOUTH PERSPECTIVE
SOUTHWEST PERSPECTIVE
MEETING ROOM PERSPECTIVE
OFFICE PERSPECTIVE

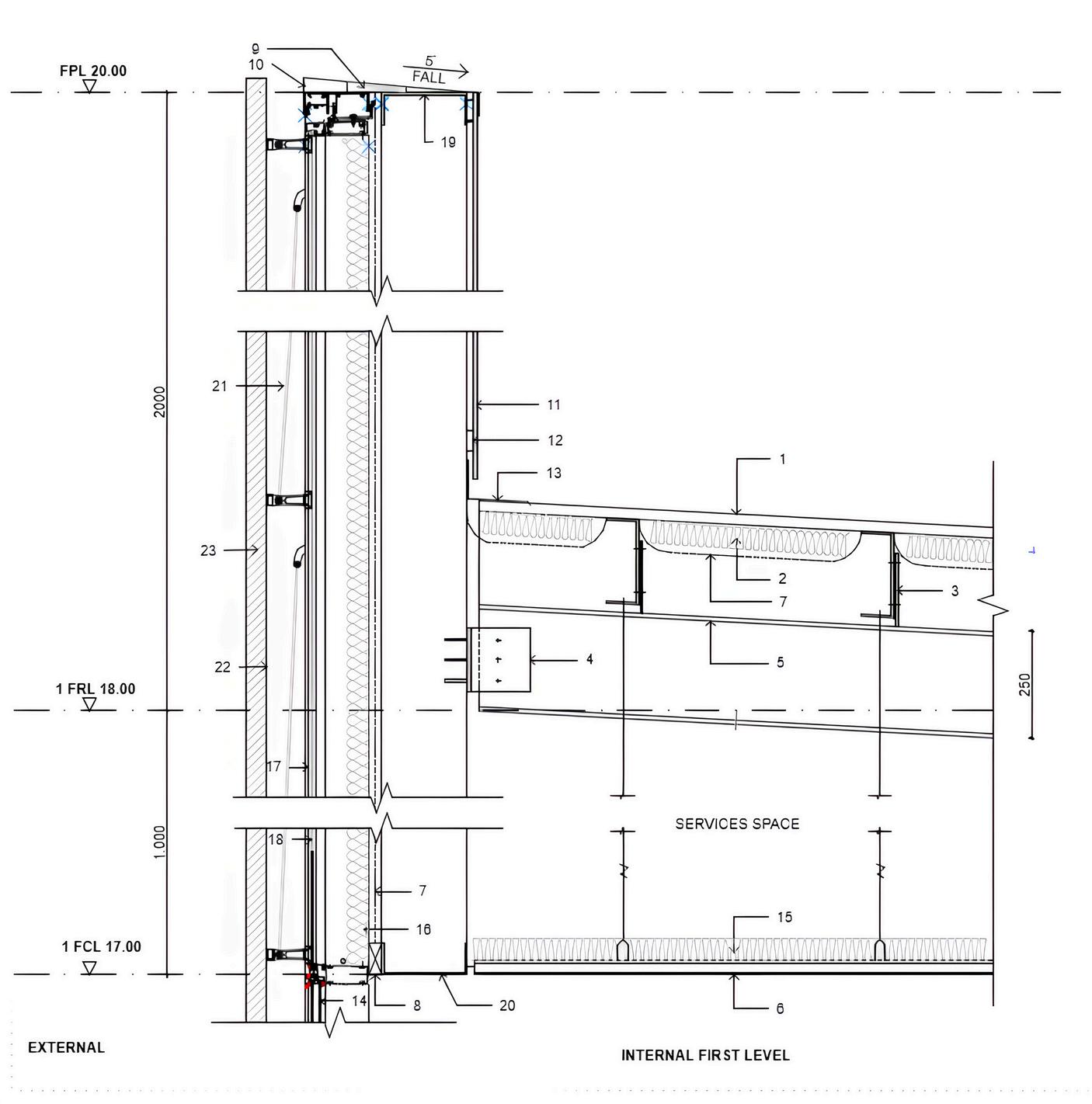

LEGEND
1. COLORBOND STEEL 1.79M DOUBLE SIDED FENCING INFILL SHEET AT 3 DEGREE PITCH
2. R5.0 BRADFORD GOLD HIGH-PERFORMANCE INSULATION BATTS
3 C PURLING FIXED TO ANGLE CLEAT REFER TO STRUC ENGINEER
4 STEEL ANGLE CHEAT FIXED TO RAFTER AND THE TRUSS
5. STEEL RAFTER SUPPORTED C PURLING REFER TO STRUC ENGINEER
6. RONDO, EXPOSED GRID CEILING SPAN OF MAIN TEE AT 600MM BETWEEN HANGERS AND SPACING OF MAIN TEE 1200MM, FIXED WITH 13MM GYPROCK PERFORATED TILE. CSR 6801 REFER TO THE RED BOOK
7. NON-PERMEABLE ROOF SARKING REFER TO MANUFACTURE BRADFORD
8. TIMBER PACKER FIXED TO TRUSS AND HORIZONTAL MULLION
9 MARINE GRADE TIMBER PACKER SUPPORTED CAPPING FLASHING
10. CAPPING FLASHING TO 5 DEGREE FALL
11 FIBRE CEMENT SHEET LINING SUPPORTED BY TOP HATS
12. TOP HATS REFER TO MANUFACTURE RONDO
13 COLORBOND APRON FLASHING
14 BLACK TINTED DOUBLE GLAZING REFER TO CAPRAL ALUMINUM
15. R.5.0 BRADFORD ACOUSTIGUARD 75GW CEILING INSULATION
16 R 5 0 BRADFORD ACOUSTIGUARD 75GW WALL INSULATION
17. HUNTER EVO 150MM CURTAIN WALL REFER TO MANUFACTURE CAPRAL ALUMINUM
18. BLACK TINTED GLAZING REFER TO MANUFACTURE CAPRAL ALUMINUM
19. TOP CHORRD OF TRUSS REFER TO STRUC. ENGINEER
20 BOTTOM CHORD OF TRUSS SUPPORTED BY STRUCTURAL COLUMNS REFER TO STRUC. ENGINEER
21 PAINTED ALUMINUM DIAGONAL SAG RODS (2 PER UNIT) REFER TO STRUC.ENGINEER
22 BRACKET ARM FIXED TO VERTICAL MULLION REFER TO STRUC.ENGINEER
23 ALUMINUM FLAT BAR REFER TO STRUC ENGINEER
LEGEND
1. BLACK OPAL CARPET REFER TO MANUFACTURE BEAULIEU
2 UB STRUCTURAL STEEL SUPPORTING CONCRETE SLAB REFER TO STRU ENGINEER
3. CONCRETE SLAB ON BONDEK SUPPORTED BY STRUCTURAL STEEL BEAM
4. SECONDARY STEEL BEAM FIXED TO STEEL CLEAT REFER TO STRU ENGINEER
5. BLACK TINTED GLAZING REFER TO MANUFACTURE CAPRAL ALUMINUMM
6. BLACK TINTED DOUBLE GLAZED REFER TO MANUFACTURE CAPRAL ALUMINUM
7. HUNTED EVO 150MM CERTAIN WALL REFER TO MANUFACTURE CAPRAL ALUMINUM
8. SHS COLUMN SUPPORTED SLAB STRUCTURAL REFER TO STRU ENGINEER
9. RONDO, EXPOSED GRID CEILING AT 600 CENTRES, FIXED WITH 2X13 PLASTERBOARD
10 R 5 0 BRADFORD ACOUSTIGUARD 75 GW WALL INSULATION
11. SKIRTING DUCTS, SINGLE COMPARTMENT REFER TO MANUFACTURE ECD
12. BRACKET ARM FIXED TO VERTICAL MULLION FOR SUPPORTING ALUMINUM FLAT BAR REFER TO STRUC ENGINEER
(NOTE: ARMS AT THE BOTTOM ARE NOT CROSS BRACED)
13 PAINTED ALUMINUM DIAGONAL SAG RODS (2 PER UNIT) REFER TO STRUC.ENGINEER
14 ALUMINUM FLAT BAR REFER TO STRUC ENGINEER
15. STEEL ANGLE CLEAT FIXED TO HORIZONTAL MULLION
