Mercado on 702

Nova Laboratories

Caffe Intrecciato

Caliche Natural Science Center

Trinity University

Welcome Center Model Fundamentals

Can Chicano Activism inspire architecture?

Mercado on 702

Fall 2022

University of Texas at San Antonio | ARC 4156

Instructor: Darryl Ohlenbusch

Softwares: Revit, Illustrator, Photoshop

Focused on supporting the revitalization efforts of downtown San Antonio, Mercado on 702 set out with the goal of transforming a 1936 industrial warehouse into an innovative arts complex that is representative of the Westside Latino community.

I conducted a historical analysis of San Antonio’s Westside through historical photographs personally collected with the assistance of the Esperanza Peace and Justice Center and Institute of Texan Cultures. I became interested in understanding the community in times of protest and its implications on architecture in a local context.

Because of the relationship I developed with Esperanza Peace and Justice Center, my professor allowed me to coordinate the final architectural critique to include the senior members of the organization as guest jurors to bring awareness to gentrification in the San Antonio Westside which sparked interesting discussion on the role of architectural design in preserving and representing cultures across communities.

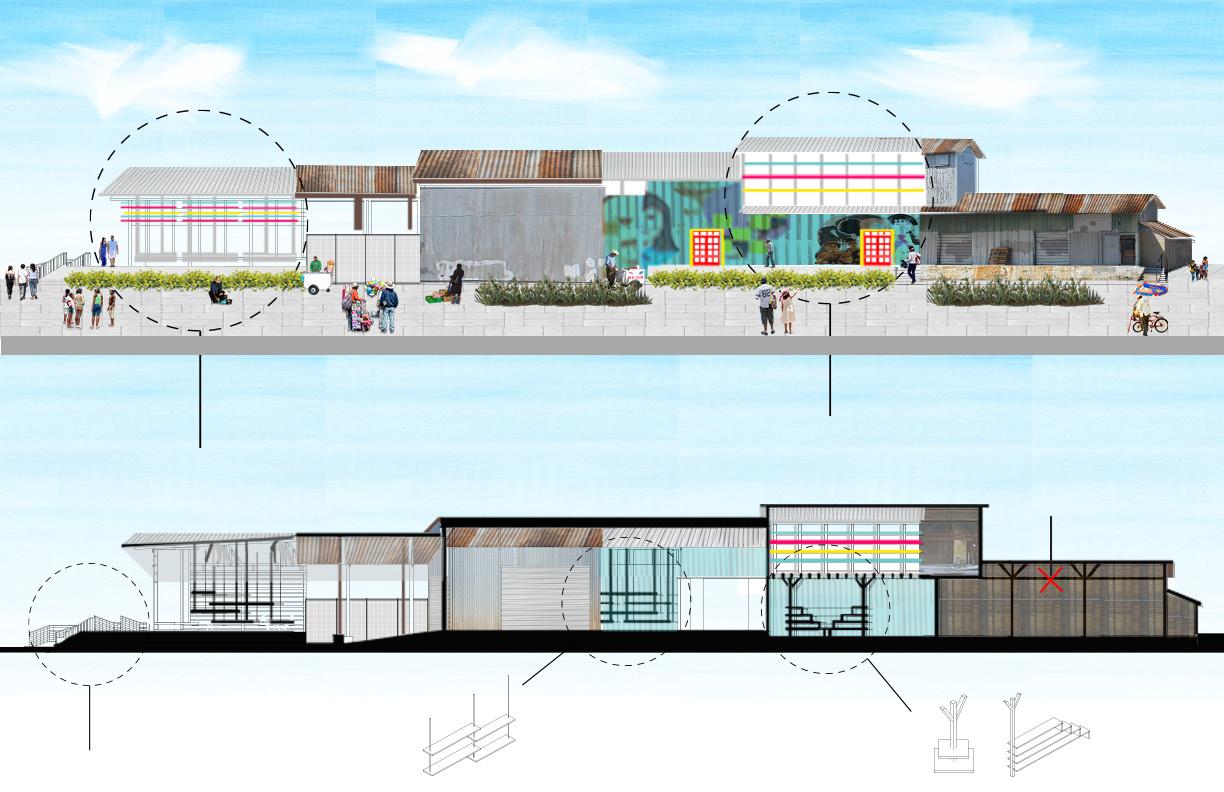

Entrance Perspective View

History of San Antonio’s Westside

Earliest Record of Westside Community, 1837

Architectural Housing of Westside, 1930s

Current Efforts of Activism & Preservation, 1980- Westside was first recorded in San Antonio’s 1837 City Charter as property used for agricultural farmland until the late 1800s. In 1881, construction of the International and Great Northern Railroad Line resulted in the area to develop as a community.

In the 1930s, housing conditions were deemed unsanitary and many makeshift houses were built as a solution to the housing problems. A popular housing style was the shotgun house, a narrow single home with one to two bedrooms with a kitchen.

Approaching the 1980s, Esperanza Peace & Justice Center was founded by Chicana activists in 1987 to provide equal representation for underserved minority groups through art and cultural events. The center is currently working on the first Westside museum to conserve, research, and exhibit the heritage of the Westside.

Guadalupe Street developed as a thriving entertainment and commerical mainstreet with theaters and restaurants. During the 1960s, Guadalupe Street became a significant area for Mexican American Civil Rights movement. Since the 1980s, it continues to promote Chicano arts and culture.

Rise of Guadalupe Street, 1960s to 1970s

The construction of interstate highways in the 1970s created further division between Westside neighborhoods and downtown San Antonio. Economic decline displaced families out of the area and further gentrification threatened the cultural essence of the Westside.

Highway Construction & Decline, 1960s

Major Chicano organizations such as the Mexican American Youth Organization (MAYO) were founded in the Westside and made San Antonio a major epicenter for the Chicano Movement.

Chicano Activism in Westside

The organization of product displays are inspired by the shapes and forms anaylzed in local Chicano Activism photographs.

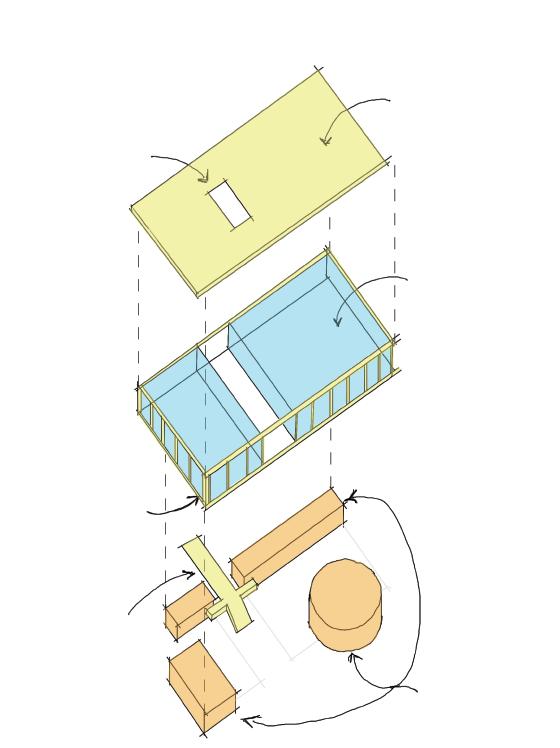

Outside area becomes an enclosed patio space with natural ventilation and shading systems.

Celerestory windows are added for natural lighting and the facade receives a new paint job.

Second floor is removed for higher ceiling, wood beams are repurposed for product displays.

Floors are leveled and ADA compliant entranced have been added.

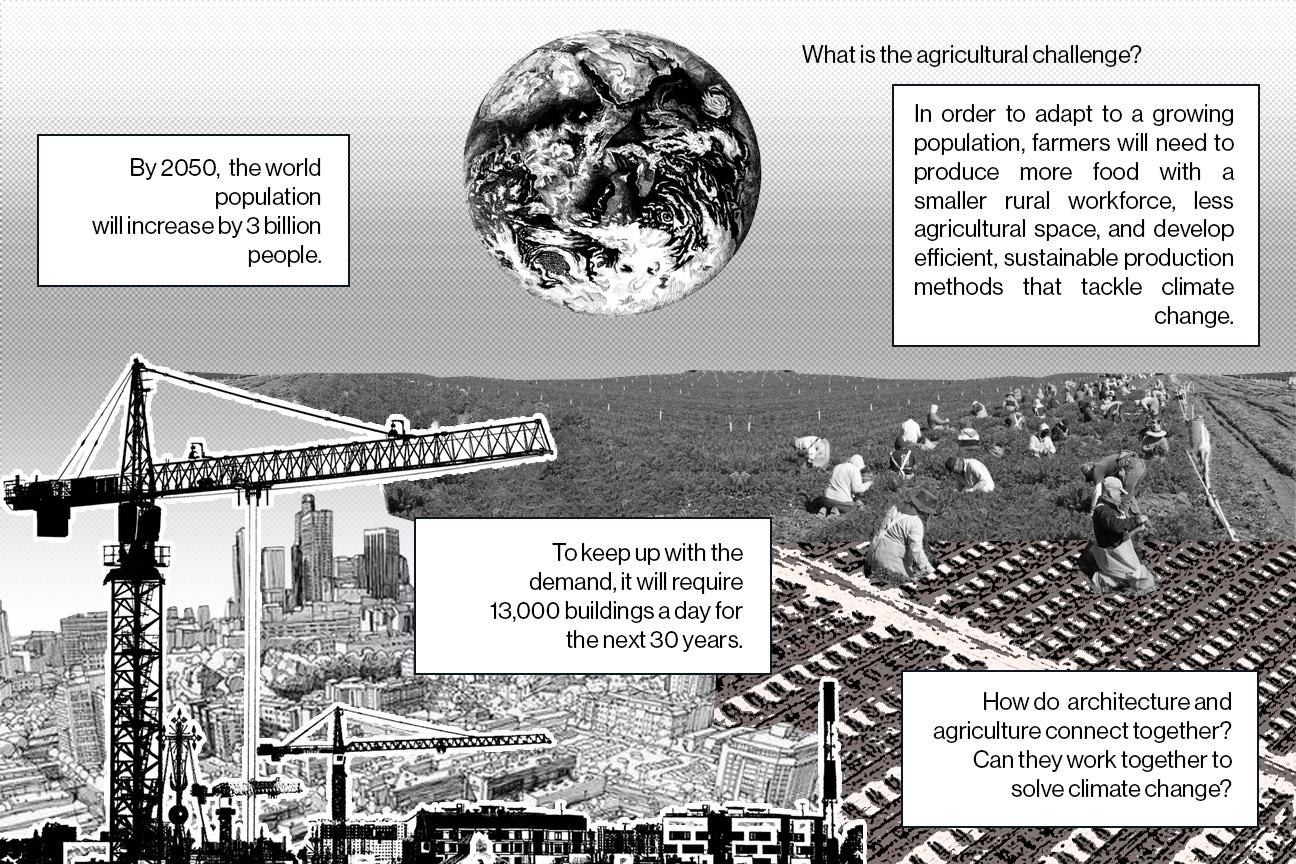

Can interpreting buildings as open systems enable us to develop better solutions for the climate crisis?

Nova Laboratories

Fall 2021

University of Texas at San Antonio | ARC 4246

Instructor: Michael Guarino

Softwares: Revit, Illustrator, Photoshop

Located in the heart of the developing tech district in Downtown San Antonio, Nova Laboratories connects science and technology through an open system that fully sustains the building as its own living ecosystem.

The systems concept is inspired by David Benjamin’s talk: “Architecture as an open system” and his biowelding framework utilizing mycellium mushrooms as a biomaterial. I implemented my agricultural knowledge of food processing and hydroponic systems as a reinterpretation of Benjamin’s initial approach to create the system that is creates the building.

Riverwalk

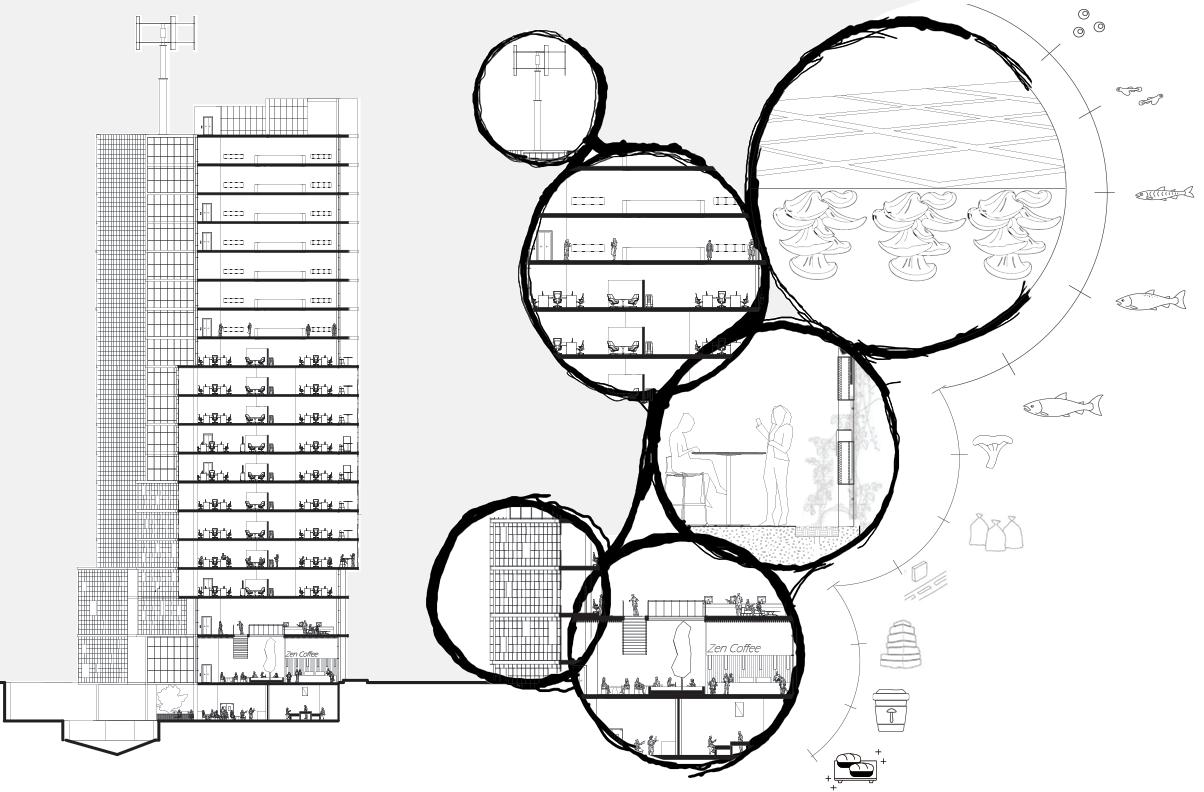

The architectural form is organized by the flow of the system sustaining the laboratories. From the building material to the coffee and sushi served on the lower levels; everything is grown inside Nova Laboratories using a hydroponic system.

Can architectural relationships be formed utilizing modularity and scale?

Caffe Intrecciato

Spring 2021

University of Texas at San Antonio | ARC 2156

Instructor: Curtis Fish

Softwares: Rhino, Illustrator, Photoshop

Caffe Intreecciato, “Interlooped Coffee” revitalizes an ancient Roman theater archaeological site into a coffee shop/museum that invites the local community of Urbino and its visitors to become immersed with a piece of lost Roman history.

The dynamic form of Caffe Intrecciato derives from different iterations of plaster model studies that were inspired the construction of a groin vault, a common vaulting system found locally in Urbino. Plaster modular blocks were created to develop a massing model influenced the final design.

Once a physical massing model was selected, Rhino was implemented to further investigate the site deeper. The project was organized on a modular grid that fit the site, and the groin vault arc hes were scaled in relation to the program and view.

Lower Level Interior View

Plaster Model Studies

To understand the site, I created a scaled model of the portion containing the Roman Theater. The plaster making motivated me to explore the construction of the groin vault which inspired a series of massing models that led to the final design.

The project is organized on a grid that is natural to the site, the groin vault modular system is abstracted according to the arcade typology used.

3/16= 1’ Massing Models Plaster, 12” x 18”x15”

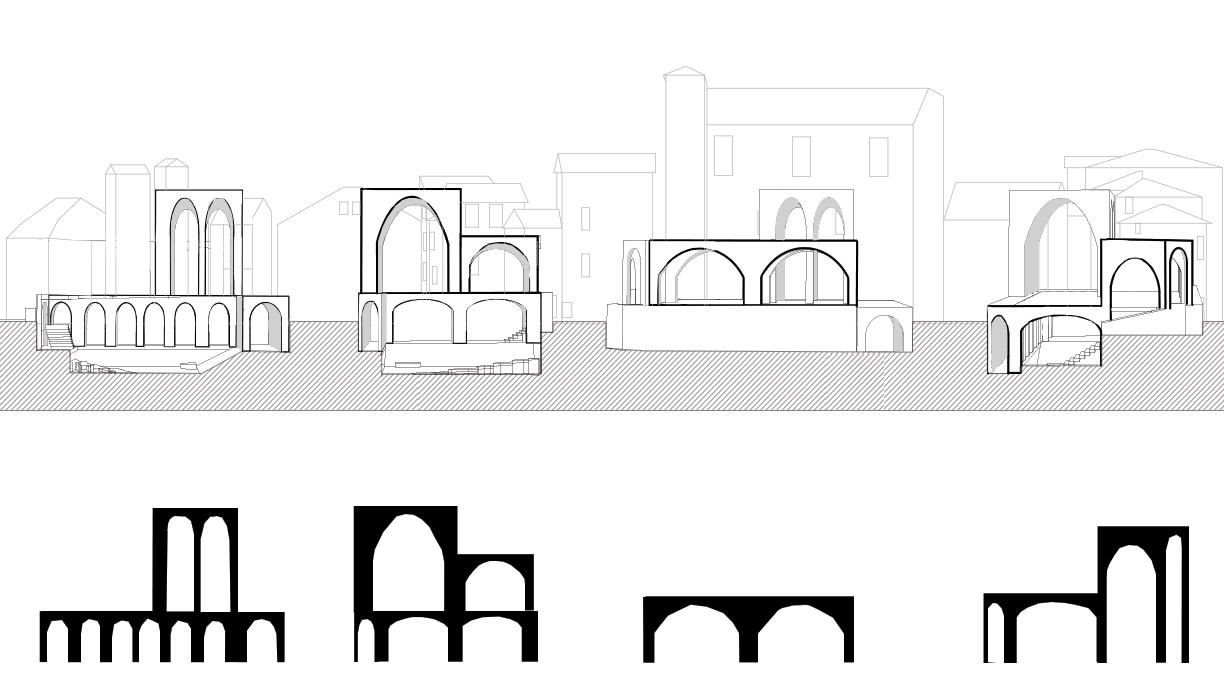

Arcade Typologies:

Arcade 01:

Arcade 02:

Arcade 03:

Arcade 04:

Open Space

Open Space Cafe

Cafe Cafe

Roman Ruins Roman Ruins

Roman Ruins

Open Space

Passageway Passageway Passageway Passageway

Stairs to Cafe Corner View

Views Into the Roman Ruins

Can architecture form be derived from rocks?

Caliche Natural Science Center

Fall 2020

University of Texas at San Antonio | ARC 2166

Instructor: Armando Araiza

Softwares: Rhino, Illustrator, Photoshop

Caliche Natural Science Center aims to provide an interactive learning experience about nature for visitors of O.P. Schanbel Park. Caliche also incorporates a climbing gym and event space to adapt to a diverse variety of public activities and events.

Caliche Natural Science Center is an abstract form experiment utilizing rocks that were collected in the surrounding areas of the project site. Each rock is similar in scale but chosen for their interesting facets. All the rocks were reimagined in a drawing exercise that annotated possible options for the entrance and an interactive activity that occurs on the rock. The most interesting concept was developed further to become the future form for the Caliche Natural Science Center.

Entrance Perspective View

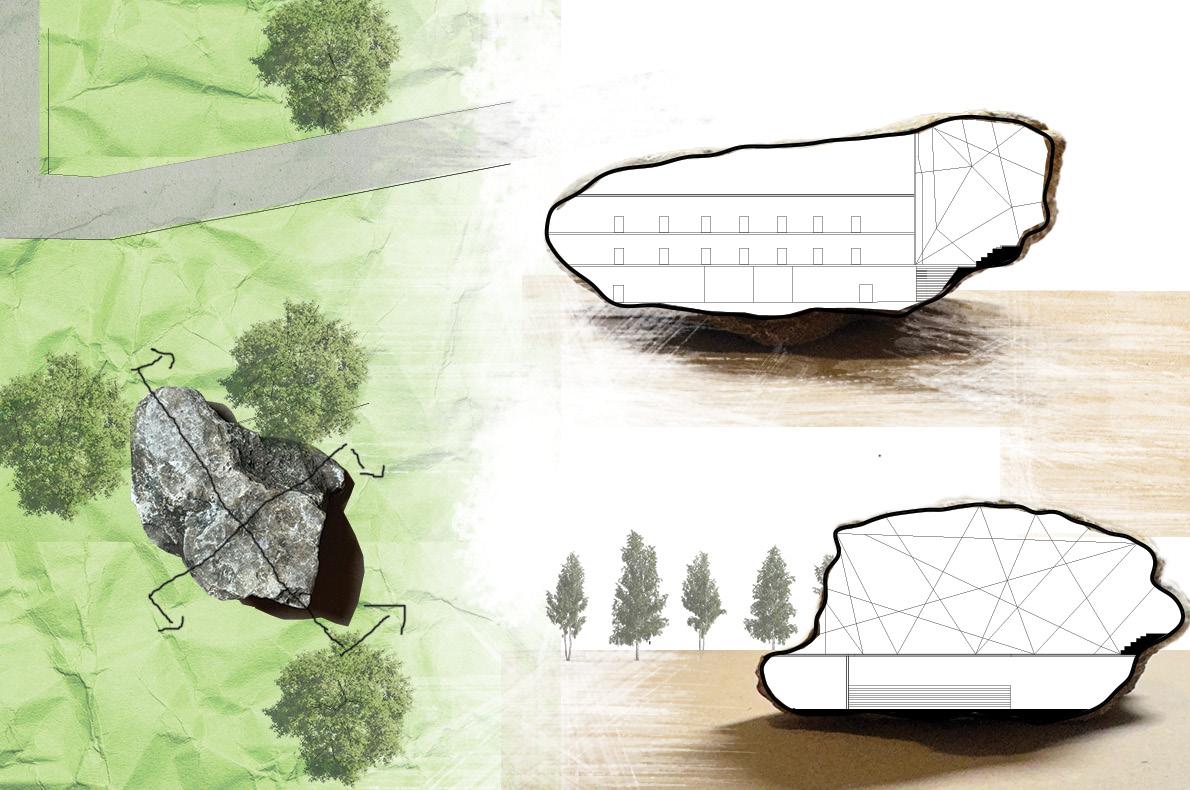

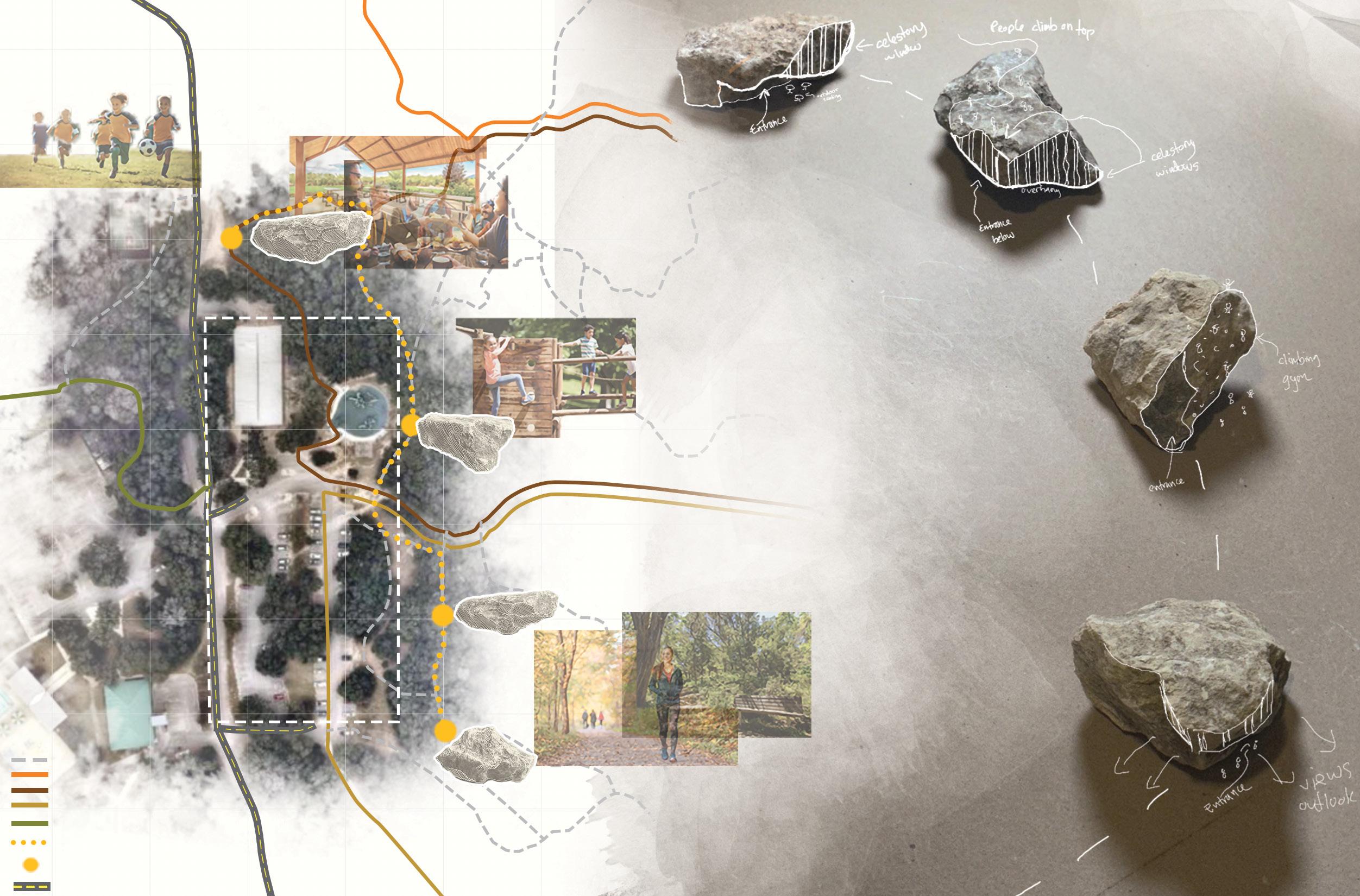

Design Iterations with rocks selected from the project site

Section B:

Event Space

Classrooms

Classrooms

Welcome Area

A:

Section

Climbing Gym

Climbing Gym

Climbing Gym Seating

SectionB

SectionA

Professional Work:

Trinity University

Welcome Center Model

August 2023

Overland Partners Architects | Higher Education Team

Project Team: Richard Archer (Principal), Adam Bush (Principal), Nina Lazaro (Intern) & Lucas de Menezes Pereira (Designer)

Softwares: Rhino, LightBurn

Honors: First Prize in Design Competition

Trinity University is a private liberal arts college located in downtown San Antonio, Texas nestled in a forest of native live oaks. My firm was invited to a private design competition for a Welcome Center that will be located on the northside of the campus with the intent to provide services to prospective, current, and alumni students.

I led the construction of the physical model for the final presentation. This was my first time using a lasercutting machine, wood working, working with acrylic, chipboard, and wood as model materials, and constructing the largest model I have built. This project is a great accomplishment for me, because I had 4 weeks to overcome a learning curve and produced a physical model that impressed the clients.

Two weeks after the competition concluded, the Overland Team was awarded first prize and hired as the architects for the project. Currently, the Trinity Welcome Center is in the schematic design phase, where the design team and I submitted the package to transition into design development recently.

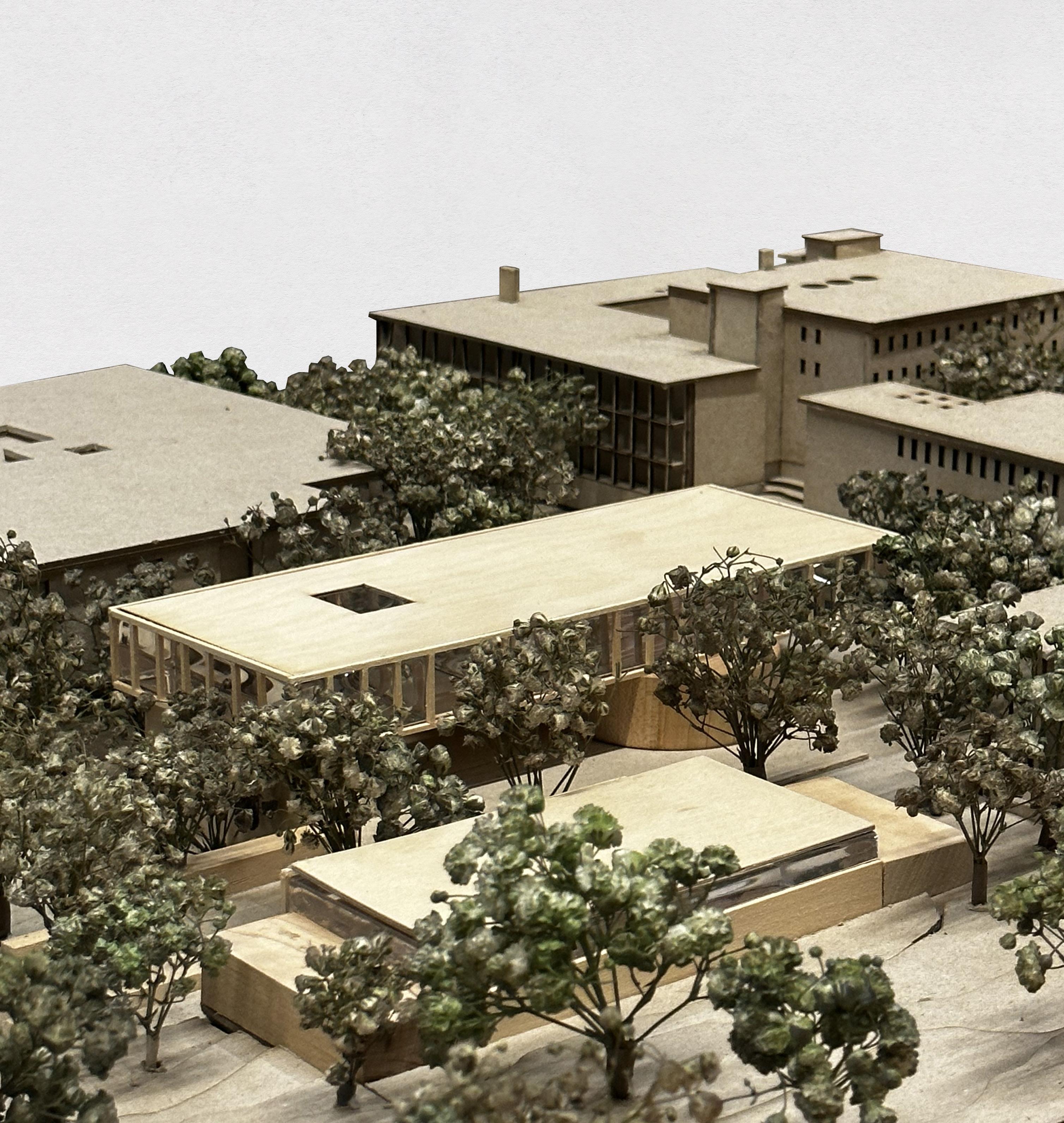

Model Making Process

Solid Wood Blocks

Basswood

Curtain Wall Grid

Acrylic Blocks

Skylight Cutout

Basswood Sheet

Basswood Stair

Clo3D Virtual Fashion Design Certificate

Fundamentals of Clo3D

Fall 2023

Parsons School of Design | PCFD 0550

Instructor: Stone Hubbard

Softwares: Clo3D, Photoshop

Clo3D is a virtual clothing design and digital pattern-making software that allows designers to model garments in 2D and 3D digital spaces, run material simulations, render animations, and print out physical patterns that can be constructed in the real world.

I have recently completed the first course of the certificate, where I learned to navigate the 2D and 3D basic sewing, trim, and pattern making tools and accquired the basic technical knowledge regarding clothing design, construction, and fabrication.

Our final project was to create a complete look that implemented at least two construction techniques taught in the course styled in a digital render presentation. I designed a red cocktail dress that incorporated a princess styleline bodice and an exaggerated Juilet sleeve shaped like a bow. As I progress through the certificate courses, the design will develop to include the advanced garment construction and hardware that I envision for this look.
