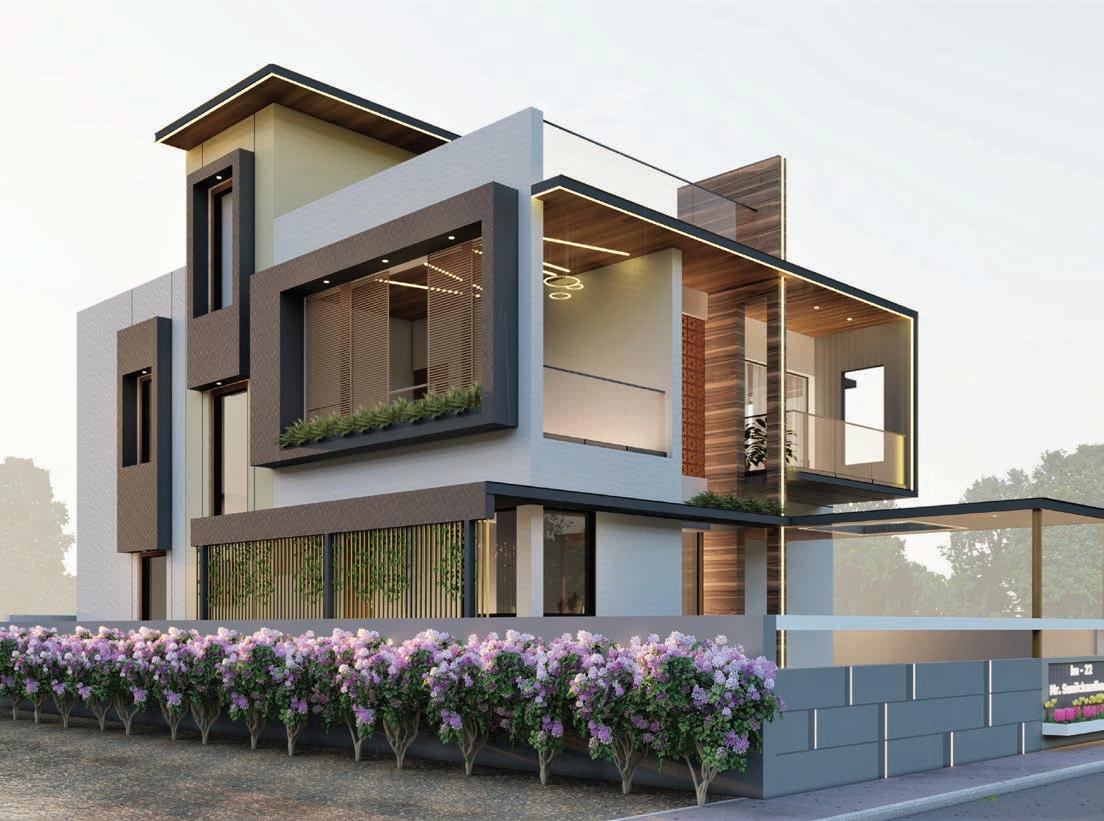

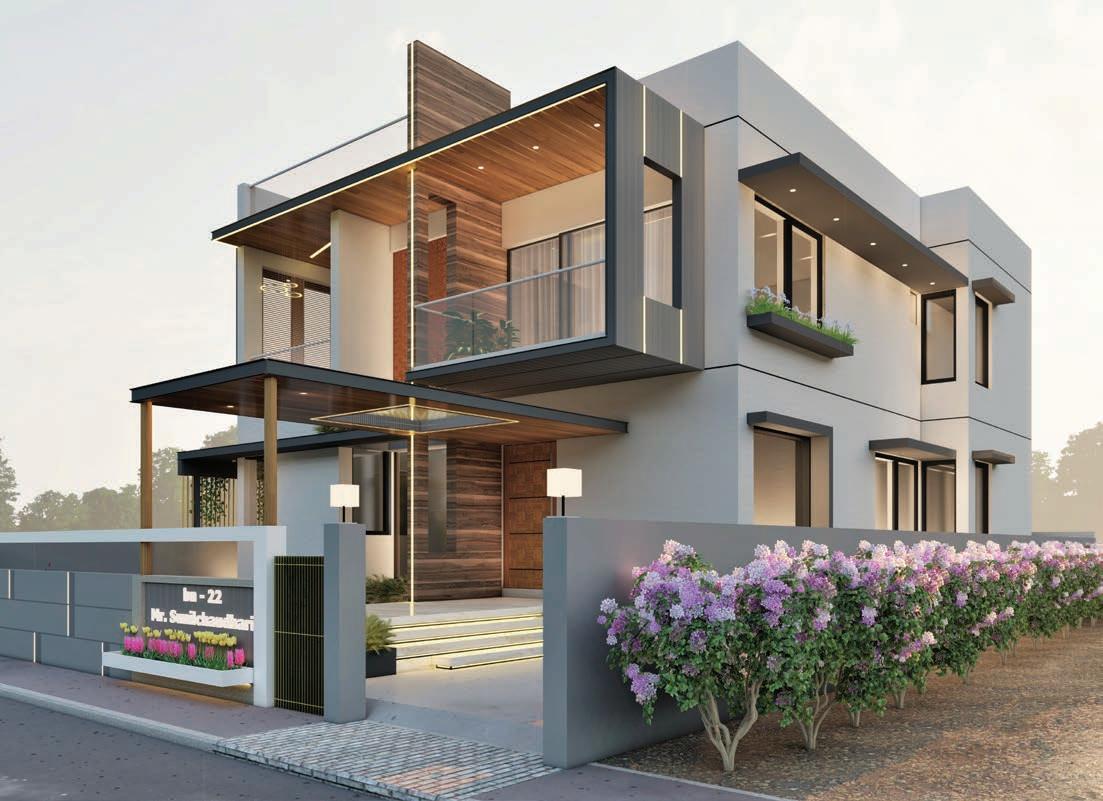

Ritu Nanda Design is a boutique architecture and interiors firm with offices in mumbai and goa focused on delivering luxurious , one of a kind spaces that perfectly combine aesthetics innovation, comfort and functionality.From ultra luxury villas for sale in goa to architecture and interior design services for homes, offices, restaurants and hotels across india the firm has built its reputation on its unmatched attention to detail, stylistic creativity and commitment to quality products and service.

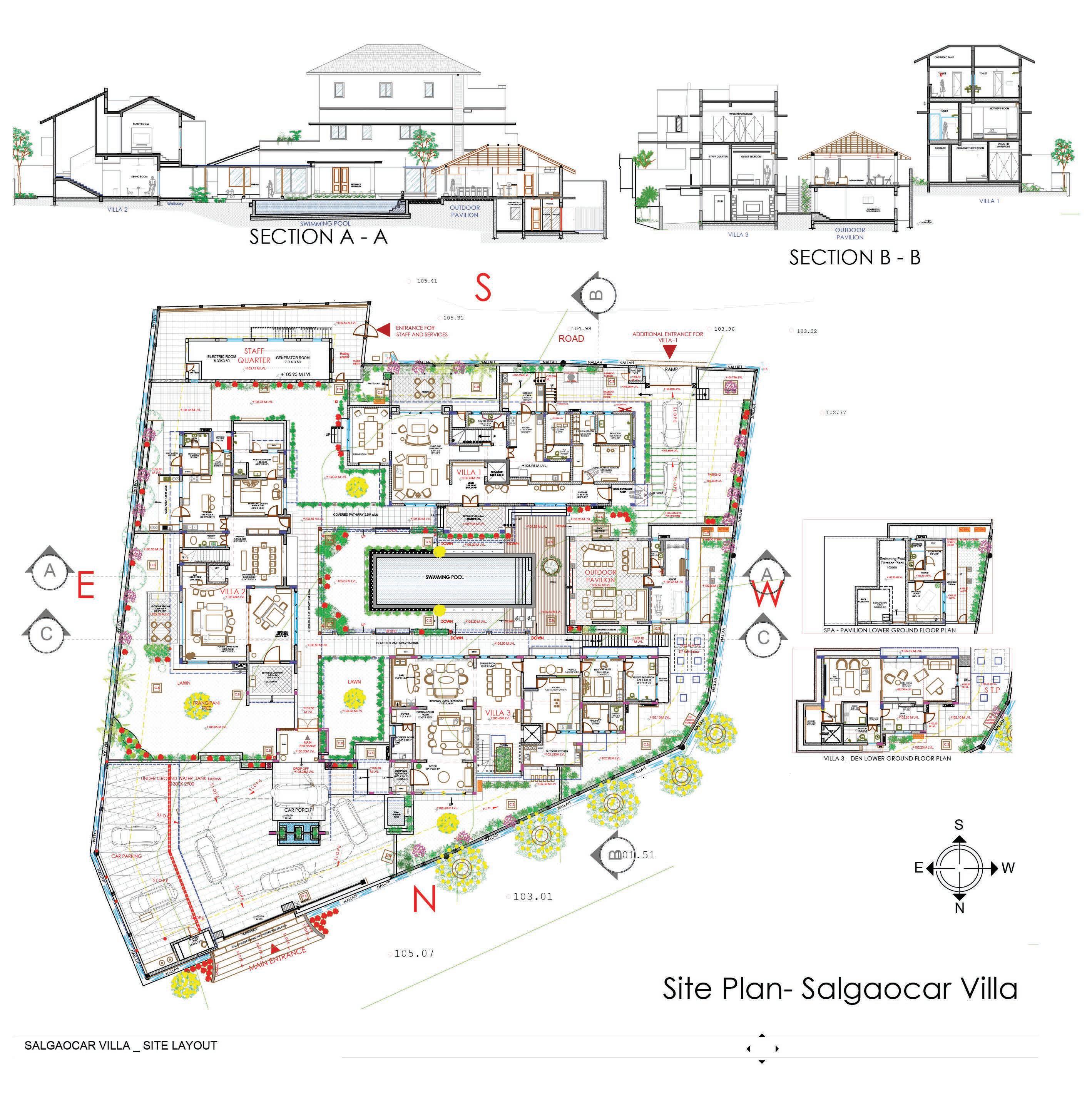

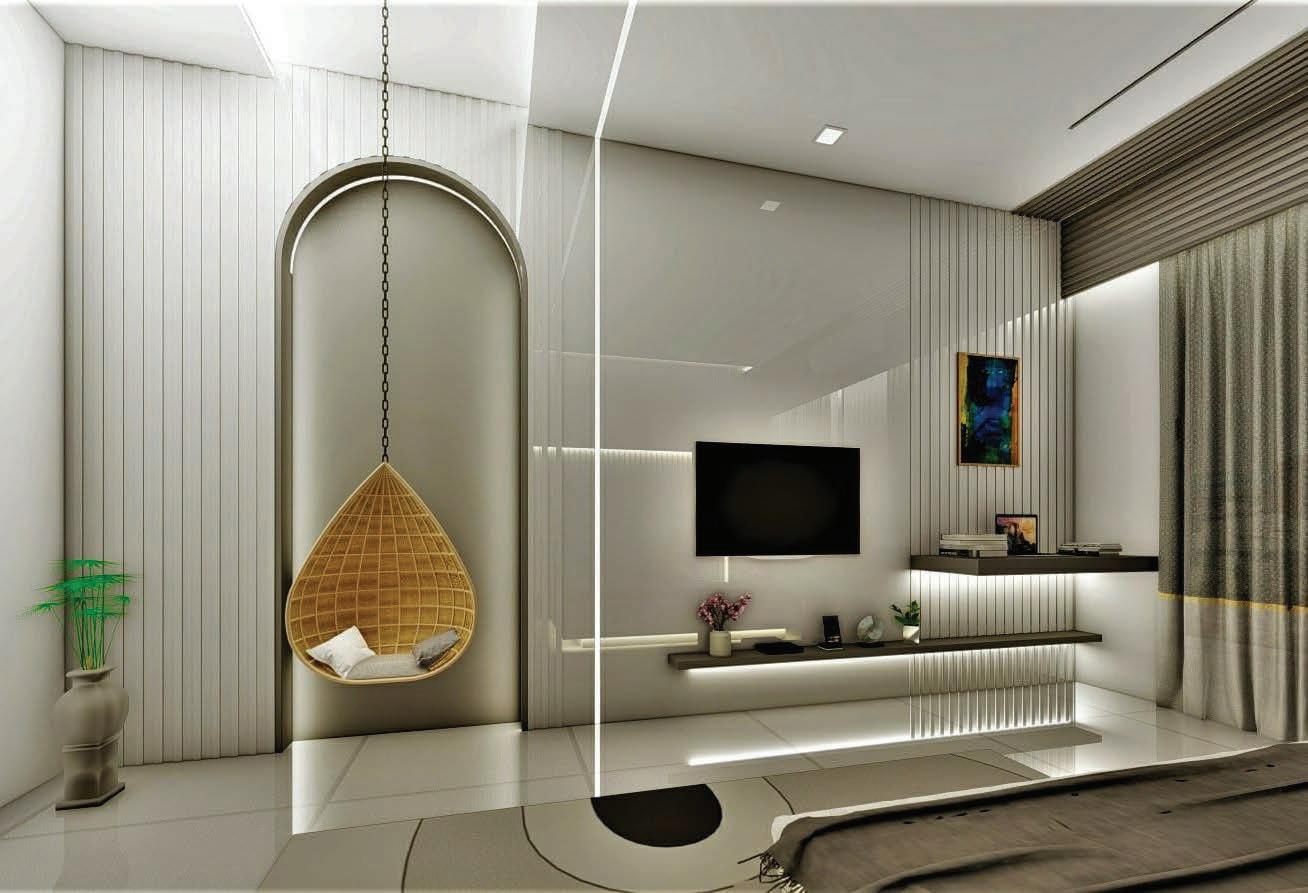

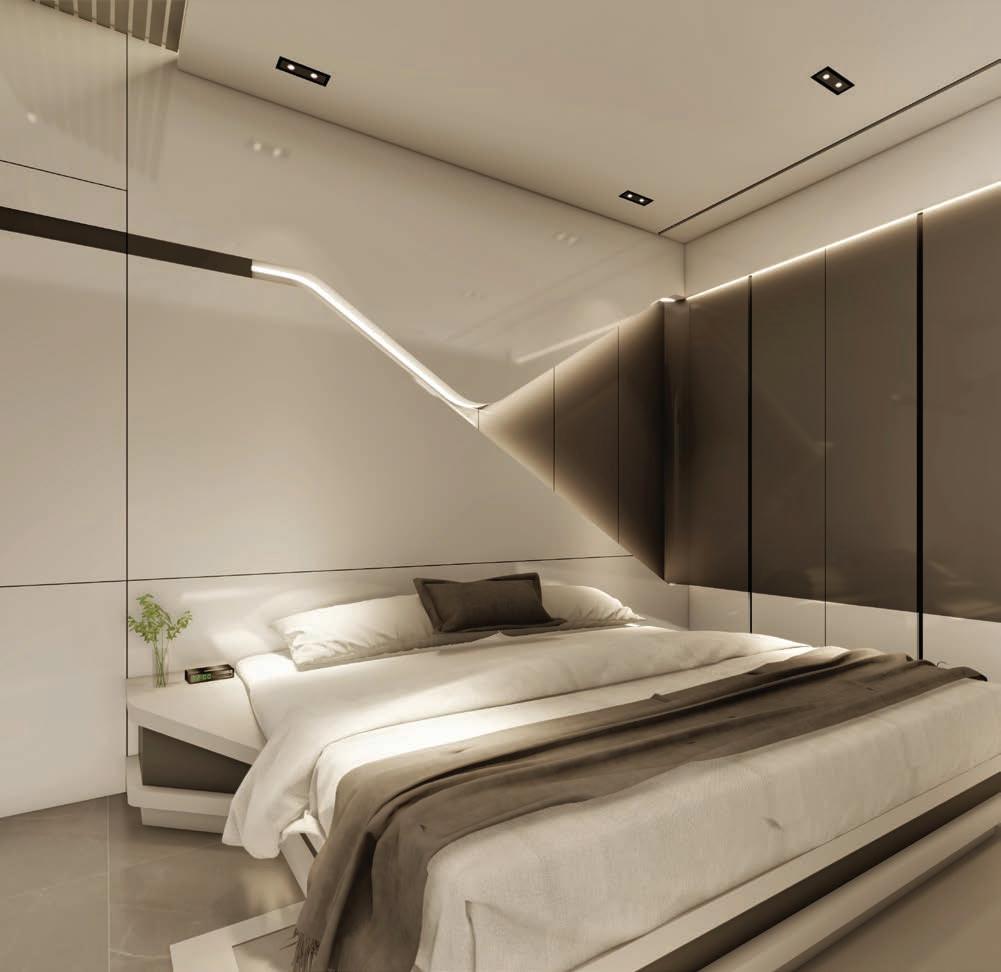

Site: Salgaocar’s Bhavan is built in around 29,181 sq ft area.This site is combination of 3 big villas villa 1 has ground floor : Dining area, formal living area,kitchen , powder bathroom , staff quarters, lift, grand mothers bedroom with walking wardrobe and bathroom.
First floor : Library, guest bedroom with bathroom and wardrobe area, Master bedroom with walking wardrobe and bathroom , study room , pooja room
Second floor : Guest bedroom 2 with bathroom , Guest bedroom 3 and lift lobby sitting.
Villa 2 has Ground floor : Verandah, formal living room with bar area, dining area, kitchen , staff quarters, guest bedroom , powder bathroom.
First floor : master bedroom with walking wardrobe and master bathroom , younger kid’s bedroom , elder kid’s bedroom , family room.
Villa 3 has ground floor :Foyer area , formal living area, informal living area with bar , dining room , kitchen , staff quarters, outdoor kitchen , giest bedroom
First floor : Masters bedroom with walking wardrobe and master bathroom , younger kid’s bedroom , elder kid’s bedroom , family room
Second floor : den area living room , bathroom, utilityroom study and bar area.
03
EXHAUST FAN
WALL MOUNTED FAN
CEILING LIGHTS ON CENSOR
ENTRANCE VERANDAH
· SB 1 bottom @ 300mm from FFL. (6 module)
· 1 no. 6 AMP switch + socket.
VERANDAH
· SB 2 center @ 1375 mm from FFL (8 module) Venrandah
· 1 no. switch for 2 ceiling points. (near seating)
· 1 no. switch for 2 ceiling point. (above entrance door)
· 1 no. switch for 1 wall points. (near seating)
· 1+2 switch for fan and regulator.
· 1 no. switch for 2 wall points. (entrance verandah)
· 1 no. switch for pelmet light point.(feature wall, entrance
· SB 3 bottom @ 300 mm from FFL (3 module)
· 1 no. 6 AMP switch + socket. (near console)
· SB 4 bottom @ 300 mm from FFL (6 module)
· 2 no. 6 AMP switches + sockets for lamp and charging
· SB 5 center @ 1375 mm from FFL (12 module)
· 1+1 no. switch for 2 ceiling points and 1 dimmer. (over sofa)
· 1+1 no. switch for 2 ceiling points and 1 dimmer. (over sofa)
·
LIGHT POINTS U T i
UPS SYSTEM INDICATION IN SWITCHBOARD LEGEND
SL E LIGHT ON SENSOR INDICATED IN SB LEGEND
·
(6 module)
· 1 no. 6 AMP switch + socket. for charging · SB 7 top @ 300 mm from FFL (3 module)
· 2 no. modules for Internet
· 1 no. point for telephone
· SB 8 from the floor (3 module)
· 1 no. 6 AMP
CHAIR BASIN 2 5 7 9 10 11 12 13 PAVED AREA 1.56 M WIDE ±0.015 M LVL. BEDROOM-1 (GUEST) 4.68 X 4.76 M (15'3" X 15'-6") KITCHEN 4.58 X 5.20 M (14'-11" X 16'11") VERANDAH 4.27 X 6.80 M (13'-11" X 22'1" ENTRANCE VERANDAH 3.0 X 4.5M (9'-9" X 14'-7") UTILITY 1.85 X 2.01 M (6'-0"X6'-11") VERANDAH 1.85 1.75 6'0" X 5'8" STAFF QUARTER 2.45X2.61 M (8'-0"X8'6") GUEST BATHROOM 4.68 X 2.41 (15'-3" X 7'-10") FORMAL LIVING ROOM 6.01X 7.20 M (19'-7" X 23'5" DINING ROOM 3.48 X 4.90 M (11'-4" X 15'11" PASSAGE 1.61 X 6.43 M (5'-3" X 20'11" BAR 2.30 X 1.75 M (7'6" X 5'8") WC AREA 1.20 1.46 MM 3'11" 4'9" FULL LENGTH MIRROR SHOWER AREA 1.50 1.75 MM 4'11" 5'8" WC BAR STORAGE BUNK BED WC BASIN SHOWER 0.85 X 1.20 MM 2'9" 3'11" SERVANT BATHROOM 1.65 X 1.20 MM 5'4" .3'11" +105.635 M LVL. +105.65 M LVL. +105.65 M LVL. +105.65 M LVL. +105.65 M LVL. +105.65 M LVL. +105.635 M LVL. +105.65 M LVL. +105.65 M LVL. +105.65 M LVL. +105.635 M LVL. glass at and remaining thin concrete wall WALK-WAY LIFT POWDER ROOM 4.05 1.30 (13'-2" X 4'3" WB WC +105.635 M LVL. UP STAFF QUARTER VERANDAH UP CROCKERY UNIT SOFA 7'-0" 2'-9" CHAIR CHAIR SIDE TABLE 21" DIA SIDE TABLE 18" DIA CONSOLE 4'-6" 1'-4" COFFEE TABLE 4'-0" 4'-0" BAR COUNTER LEDGE CENTER TABLE 5'-0" X 5'-0" CHAIR 2'-6" 2'-6" SIDE TABLE DIA SIDE TABLE 2'-0" 2'-0" SOFA 8'-0" 3'-0" SOFA 8'-0" 3'-0" OTTOMAN 5'-0" 2'-0" CONSOLE 1'-6" 6'-0" 10 SEATER DINING TABLE 4'-0" X 8'-6" SIDE TABLE 1'-9" 1'-6" KING SIZE BED SIDE TABLE 1'-6" DIA SIDE TABLE 1'-9" X 1'-6" DRESSING TABLE 2'-9" X 1'-6" WARDROBE -0" 2'-0" OTTOMAN 20" 20" TABLE 2'-8" MACHINE IFB SENORITA 600 530 720 595x 560x 597 COUNTER COUNTER STOOL +105.50 M LVL. +105.95 M LVL. +105.35 M LVL. COVERED PATHWAY 2M wide +105.50 M LVL. COVERED PATHWAY 2.0M wide +105.35M LVL. +105.50 M LVL. VILLA 2 GROUND FLOOR PLAN W2 D4 W9 W10 D1 D2 W11 D6 CONSOLE +104.46M LVL C.B. 1300 2000 3300 1300 SA RA RA SA RA SA RA C.B. SB-1B SB-1 SB-4A SB-3 SB-2 SB-3A SB-4 SB-6 SB-8 SB-10 SB-7 SB-9 U U U SB-11 SB-9A SB-14A SB-16 SB-14 SB-16C SB-15 SB-32 SB-27 SB-33 SB-28 SB-28A SB-30A SB-32A SB-37 SB-36 T SB-29 SB-31 SB-32B SB-32C SB-28B SB-19 SB-20 SB-17 SB-21 SB-18 T SB-18A SB-19A SB-21A SB-18B SB-38 SB-39A SB-39 SB-34 SB-35 SB-24 SB-26 SB-22 SB-23 SB-25 SB-38B SB-34A SB-39B SB-35A SB-34B SB-5 SB-5A 3415 GROUND FLOOR ELECTRICAL LAYOUT Drawn by: Viraj Checked by:Bhavin NOTE: • ALL DIMENSIONS ARE IN MM UNLESS SPECIFIED • ANY DISCREPANCIES SHOULD BE CLARIFIED WITH THE ARCHITECT / INTERIOR DESIGNER • DO NOT SCALE THE DRAWING FOLLOW THE WRITTEN DIMENSION RITU NANDA DESIGN LOCATION: GOA DATE: 12-09-2019 Address: 2nd Floor Sidhwa Estate, Old BMP Building, N A Sawant road, Colaba, Mumbai-400005 Email id: ritunandadesign@gmail.com SCALE : NTS N E S W SALGAOCAR VILLA _ VILLA 2 PRODUCED BY AN AUTODESK STUDENT VERSION
AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION
BY AN AUTODESK STUDENT VERSION
PRODUCED BY
PRODUCED
INDICATION
S.B.
SWITCH BOARD SYMBOL FAN 6 AMP 6/ 16 AMP HANGING LIGHT FIXTURE TWO WAY CONNECTING FROM FIXTURE TO S.B. WALL LIGHTS TELEPHONE POINT INTERNET BOARD SB CONNECTING FROM FIXTURE TO
20 AMP DESCRIPTION CEILING LIGHTS COVE LIGHTING EXTERNAL LIGHTS SERVICES LIKE INTERNET/TV, DISTRIBUTION BOARD TUBE LIGHTS INTERCOM POINT S SPEAKER POINT INDICATION UPER
1+2 switch for fan and regulator.
area) · 1+2 switch for fan and regulator.
area) · 1+1 no.
light point and 1 dimmer.
sofa) LIVING ROOM
(Living
(Living
switch for 1 hanging
(over
SB 6
top @ 300 mm from FFL
switch + socket (on side table)
SB 9 from the floor (3 module)
1 no. 6 AMP switch + socket (on side table)
SB
bottom
1+1
1 dimmer (bar walls) · 1 no. switch for cove lighting. (over bar) · 1 no. switch for 1 wall point. (on lift wall) · 2 no. 6/16 AMP switches + sockets for coffee machine,etc · 1 no. switch for 1 up-lighter point. (periphery of villa) · 1 no. switch for 2 up-lighter point. (periphery of villa) · SB 11 bottom @ 600 (3 module) bar area split into SB 11, SB 11A, SB 11B · 1 no. 6/16 AMP switch + socket for wine cooler DINING AND PASSAGE GUEST BEDROOM · SB 19 bottom @ 600 mm from FFL (4 module) -side table · 1 no. switch 1 wall point. · 1 no. 6 AMP switch + socket. (for charging) SB 20 bottom @ 600 mm from FFL (8 module) -side table 1 no. switch 2 ceiling points. (above bed) 1 no. switch 1 wall point. (above bed) 1+2 switch for fan and regulator. (above bed) 1 no. 6 AMP switch + socket. (for charging) · SB 21 bottom @ 300 mm from FFL (2 module) · 2 no. modules for internet · SB 22 center @ 1375 mm from FFL (10 module) · 1 no. switch 2 ceiling point. (on sensor) · 1 no. switch 1 wall point. (above full length mirror) · 1 no. switch 1 ceiling point. (in shower area) · 1 no. switch for geyser. · 1 no. switch for 1 wall point. (above basin mirror) · 1+2 switch for fan and regulator · 1 no. switch 1 wall point. (for garden) · SB 23 bottom @ 900 mm from FFL (3 module) · 1 no. 6 AMP switch + socket for appliances · SB 24 bottom @ 550 mm from FFL (4 module) dressing table · 1 no. switch 1 wall point. (above dressing mirror) · 1 no. 6 AMP switches + sockets for appliances GUEST BATHROOM · SB 26 bottom @ 3000 mm from FFL (2 module) · 1 no. socket 20 AMP for 1 geyser point · SB 27 center @ 1375 mm from FFL (8 module) · 1 no. switch for 2 ceiling points. (near hob and sink) · 1 no. switch for 2 ceiling points. (near appliance counter) · 1+2 switch for fan and regulator. (near sink) · 1+2 switch for fan and regulator. (near hob) KITCHEN · SB 28 top @ 2000 mm from FFL (2 module) · 1 no. 6/16 AMP socket for aqua-gaurd/R.O. (switch at SB 28 A) · SB 30 A bottom @ 1350 mm from FFL (1 module) · 1 no. switch for chimney (socket at SB 31) · SB 33 bottom @ 1500 mm from FFL (2 module) · 1 no. 20 AMP socket for fridge. (switch at SB 32 A) · SB 34 bottom @ 1400 mm from FFL (8 module) · 1 no. switch for 1 tube light. · 1+2 switch for fan and regulator. · 1 no. switch for 2 ceiling points. · 1 no. switch for 1 ceiling point. (outside utility) · 1 no. switch for washing machine. (socket at SB 35) · 1 no. switch for dryer. (socket at SB 35) UTILITY · SB 35 top @ 750 mm from FFL (2 module) · 1 no. 6/16 AMP socket behind washer and dryer. (switch at SB 34 A) · SB 36 center @ 1375 mm from FFL (2 module) · 1 no. switch for 2 wall lights. (near hob) · 1 no. switch for 1 wall light. (near sink) KITCHEN BALCONY · SB 37 bottom @ 900 mm from FFL (6 module) · 1 no. 6 AMP switch + socket. (fan, etc) · 1 no. 6/16 AMP switches + sockets for appliances · SB 38 center @ 1375 mm from FFL (8 module) · 1 no. switch for 1 tube light. (above bathroom door) · 1+2 switch for fan and regulator. · 1 no. switch for 1 wall point. (outside servant room) · 1 no. switch for 1 tube light. (inside bathroom) · 1 no. switch for geyser. · 1 no. switch for exhaust fan. SERVANT AREA POWDER BATHROOM · SB 17 bottom @ 1200 mm from FFL (4 module) -behind tv · 1 no. 6/16 AMP socket for tv. · 2 no. switch spare. (for wires) · SB 18 bottom @ 700 mm from FFL (3 module) · 1 no. switch for t.v. · 1 no. switch for 1 socket for set top box. (at SB18 A) · 1 no. switch for 1 socket for music system. (at SB18 A) · SB 16 center @ 1375 mm from FFL (3 module) · 1 no. switch for 1 wall point. (above basin to be convert in hanging light · 1 no. switch for exhaust) · 1 no. switch for 1 wall point. · SB 25 bottom at 2100 mm from FFL · 1 no. 6 AMP socket provision for wardrobe light · SB 14 bottom @ 300 mm from FFL (3 module) · 1 no. 6 AMP socket for charging/vacuum. · SB 38B height to be confirmed (2 module) · 1 no. socket 20 AMP for 1 geyser point · SB 3A bottom @ 300 mm from FFL (3 module) · 1 no. 6 AMP switch + socket. (near console) · SB 39 B bottom @ 700 mm from FFL (1 module) · 1 no. point for intercom. · SB 39 bottom @ 700 mm from FFL (12 module) · 1 no. switch for 1 tube light. (above bed) · 1 no. switch for t.v. · 1+2 for 6/16 AMP switch socket for set top box. · 2 no. 6 AMP switches + sockets. (wall mounted fan, charging) · 1 no. switch spare. · SB 1B center @ 1375 mm (2 module) · 1 no. switch for bell. · SB 5 A below SB 5 from FFL (12 module) · 1+1 no. switch for 1 hanging light point and 1 dimmer. · (Over Ledge) · 1 no. switch for 2 wall points. (living room passage) · 1 no. switch for 1 wall points. (above lift ) · 1+1 no. switch for 2 ceiling points and 1 dimmer. (above dining) · 1+2 switch for fan and regulator. (above dining) · 1 no. switch for 1 wall point. (in dining room) · 1 no. switch for cove lighting. (dining) · 1 no. switch spare · SB 15 center @ 1375 mm from FFL (4 module) · 1 no. switch for 2 wall point. (passage outside kitchen) · 1 no. switch for 1 wall light point ( Inside crockery unit · 1 no. switch for 4 wall points, 2 way. (stairs till 1st floor on SB 42) · 1 no. switch for 2 foot lights, 2 way. (stairs till 1st floor on SB 42) · SB 29 bottom @ 650 mm from FFL (2 module) · 1 no. 6/16 AMP socket for dishwasher · SB 31 top @ 2000 mm (3 module) · 1 no. 6/16 AMP socket for chimney. (switch at SB 30 A) · SB 32 bottom @ 1350 mm from FFL (6 module) · 3 no. 6/16 AMP sockets for appliances. (switches at SB 32 A) · SB 33 A bottom @ 1500 mm from FFL (2 module) · 1no. 20 Amp socket for fridge. (switch at SB 32 A) GROUND FLOOR SWITCH BOARD LEGEND · SB 18 A bottom @ 450 mm from FFL (6 module) · 2 no. 6/16 AMP sockets. (switches at SB 18) · 2 no. switches spare. (for cables) · SB 4 A bottom @ 300 mm from FFL (3 module) next to SB 4 · 1 no. point for intercom. · 2 no. modules for Internet · SB 14 A bottom @ 300 mm from FFL (3 module) · 1 no. point for intercom. · 2 no. modules for Internet. · SB 19 A bottom @ 600 mm from FFL (2 module) next to SB 19 · 1 no. point for telephone · 1 no. point for intercom · SB 28 A top @ 1350 mm from FFL (6 module) · 1 no. switch for 1 wall point. · 1 no. switch for 1 ceiling point. (entrance) · 1 no. switch for aqua-gaurd/R.O. (socket at SB 28) · 1 no. switch for dishwasher. (socket at SB 29) · 1 no. switch for instant geyser. (socket at SB 28 B) · 1 no. switch for exhaust fan. · SB 32 A bottom @ 1350 mm from FFL (6 module) · 1 no. switch for 1 wall point. · 1 no. switch for double door fridge. · 1 no. switch for single door fridge. · 3 no. switches for sockets at SB 32. · SB 32 B bottom @ 1350 mm from FFL (4 module) · 1 no. point for telephone. · 1 no. point for intercom. · 2 no. module for Internet. · SB 32 C bottom Height and placement to be confirmed (6 module) from floor for island counter · 4 no. 6/16 AMP switches + sockets for appliances. · SB 34 A bottom @ 1400 mm from FFL (6 module) · 2 no. 6 AMP switches + sockets. (for ironing, charging, etc) · SB 39A bottom @ 1200 mm from FFL (4 module) -behind tv · 1 no. 6/16 AMP socket for tv. · 2 no. switches spare. (for cables) · SB 21 A bottom @ 300 mm from FFL (3 module) · 1 no. 6 AMP socket for vacuum/charging · SB 35 A top @ 750 mm from FFL (2 module) · 1 no. 6/16 AMP socket behind washer and dryer. (switch at SB 34 A) · SB 18 B center @ 1375 mm from FFL (1 module) · 1 no. switch for 1 wall point. (above tv) · SB 34 B bottom @ 2100 mm from FFL (3 module) · 1 no. 6/16 AMP switch + socket. (instant geyser) · SB 28 B top @ 2000 mm from FFL (2 module) · 1 no. 6/16 AMP socket for Instant geyser CEILING LIGHTS ON SENSOR · SB 16 C center @700 mm from FFL (3 module) · 1 no. 6 AMP switch + socket. for charging · SB 9 A bottom @ 300 mm from FFL (6 module) at courtyard · 1 no. 6 AMP switch + socket. (floor fan) · 1 no. 6/16 AMP switch + socket. (for barbeque) PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION 04
·
·
·
10
@1000 mm from FFl (12 module) bar area ·
no. switch for 2 wall points and
535 [1'-9"] 535 [1'-9"] GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @545MM FROM CEILING SLAB PLASTER GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @125MM FROM CEILING SLAB PLASTER GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @535MM FROM CEILING SLAB PLASTER GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @125MM FROM CEILING SLAB PLASTER PELMET 300 MM CLEAR FINISHED IN APPROVED WHITE PAINT COLOUR ELEVATION AA' 450 [1'-6"] ELEVATION BB' 450 [1'-6"] 125 [5"] 535 [1'-9"] GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @535MM FROM CEILING SLAB PLASTER GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @125MM FROM CEILING SLAB PLASTER 125 [5"] 535 [1'-9"] GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @545MM FROM CEILING SLAB PLASTER GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @125MM FROM CEILING SLAB PLASTER ELEVATION CC' ELEVATION DD' PELMET 300 MM CLEAR FINISHED IN APPROVED WHITE PAINT COLOUR PELMET 300 MM CLEAR FINISHED IN APPROVED WHITE PAINT COLOUR 318 [1'-1"] 450 [1'-6"] AC CONTINUOUS VENT 2350 CHECK ON SITE SB 3A 300 400 2099 2791 ON FLOOR SB 4 EQ EQ 2945 CHECK ON SITE SB 6C EQ EQ 2305 2350 2350 300 675 12MM THK GYPSUM MOLDING @12MM FROM 125MM FALSE CEILING 12MM THK GYPSUM MOLDING @12MM FROM 125MM FALSE CEILING 12MM THK GYPSUM MOLDING @12MM FROM 125MM FALSE CEILING 12MM THK GYPSUM MOLDING @12MM FROM 125MM FALSE CEILING 200 [8"] 3000 [9'-10"] FROM FFL (CHECK ON SITE ENTRANCE LOBBY 3000 [9'-10"] FROM FFL (CHECK ON SITE 150 7702 CHECK ON SITE 150 3000 [9'-10"] FROM FFL (CHECK ON SITE 3000 [9'-10"] FROM FFL (CHECK ON SITE 3410 [11'-2"] LIVING AREA & DINING AREA PLAN SB-6C SB-3A SB- 4 @ -150mm from bottom of ceiling slab plaster A' CL CL CL CL PELMET TO BE FINISHED IN APPROVED WHITE PAINT COLOUR 1200 [3'-11"] 1500 [4'-11"] 1850 [6'-1"] 1500 [4'-11"] 2680 [8'-10"] 850 [2'-9"] 300 [1'] 300 [1'] 150 [6"] 300 [1'] 12MM GYPSUM MOLDING DESIGN 12MM GYPSUM MOLDING DESIGN 5404 [17'-9"] CHECK ON SITE EQ 8374 [27'-6"] CHECK ON SITE SB-6 SB-6A EQ SB-16 SB-2A SB-2 A C C' D D' B' B PELMET TO BE FINISHED IN APPROVED WHITE PAINT COLOUR SB-6B Arched Entryway 300(w)x250(h) 300(w)x150(h) Air -Tight Box. 1200 475(w)x100(h) 500(w)x150(h) 475(w)x100(h) 475(w)x100(h) 475(w)x100(h) 475(w)x100(h) 475(w)x225(h) 300(w)x325(h) 1302 1655 1697 849 700(w)x225(h) 300(h) SIDE TABLE 2'-6" X1'-8" 1500 [4'-11"] 1050 [3'-5"] 2495 [8'-2"] CHECK ON SITE DETAIL FOR MOLDING BAND@ ELEVATION BB' 535 [1'-9"] 300 [1'] 150 [6"] 450 [1'-6"] 150 [6"] GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @150MM FROM CEILING SLAB PLASTER 12MM THK GYPSUM MOLDING @150MM FALSE CEILING PELMET TO BE FINISHED IN APPROVED WHITE PAINT COLOUR GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @535MM FROM CEILING SLAB PLASTER SIDE TABLE 1'-6" DIA SIDE TABLE 12" DIA SIDE TABLE 12" DIA LIVING & DINNING AREA Drawn by: Viraj Checked by: Bhavin NOTE: • ALL DIMENSIONS ARE IN MM UNLESS SPECIFIED • ANY DISCREPANCIES SHOULD BE CLARIFIED WITH THE ARCHITECT / INTERIOR DESIGNER • DO NOT SCALE THE DRAWING FOLLOW THE WRITTEN DIMENSION RITU NANDA DESIGN LOCATION: GOA DATE: 11-09-2019 Address: 2nd Floor,Sidhwa Estate, Old BMP Building, N A Sawant road, Colaba, Mumbai-400005 Email id: ritunandadesign@gmail.com Scale : NTS N E S W SALGAOCAR'S HOUSE _ VILLA 1 NOTE: • • • SALGAOCAR'S 05
BAR 2.30 X 1.75 M (7'6" X 5'8") LIFT FORMAL LIVING ROOM 6.01X 7.20 M (19'-7" X 23'5" ) 650MM DOWN FROM CEILING 600MM DOWN FROM CEILING 150MM FROM BOTTOM OF CEILING SLAB A A' B B' C C' D' D CL CL CL CL CL CL CL CL DETAIL FOR COVE @ ELEVATION BB 650 [2'-2"] 150 [6"] GYPSUM CEILING TO BE FINISHED IN GOLD LEAFING GYPSUM COVE LIGHT IN LED / T5 TUBE LIGHT ELEVATION AA' 650 [2'-2"] 150 [6"] GYPSUM CEILING TO BE FINISHED IN GOLD LEAFING GYPSUM COVE LIGHT IN LED T5 TUBE LIGHT SLIDING DOOR BAR COUNTER PELMET TO BE FINISHED IN APPROVED WHITE PAINT COLOUR GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @150MM FROM CEILING SLAB PLASTER 450 [1'-6"] 150 [6"] 650 [2'-2"] 150 [6"] BAR COUNTER 150 [6"] ELEVATION BB' DETAIL FOR COVE @ ELEVATION BB A.C UNIT A.C UNIT CONTINUOUS AC VENTS GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @150MM PLASTER GROOVE CEILING FINISHED IN APPROVED WHITE PAINT COLOUR @ 650 MM FROM CEILING SLAB PLASTER ( AS PER DETAIL PROVIDED) ELEVATION CC' 650 [2'-2"] AC UNIT GROOVE CEILING FINISHED IN APPROVED WHITE PAINT COLOUR @ 650 MM FROM CEILING SLAB PLASTER AS PER DETAIL PROVIDED). 150 [6"] FIXED GLASS 650 [2'-2"] AC UNIT ELEVATION DD' BAR COUNTER 150 [6"] GROOVE CEILING WITH APPROVED WHITE PAINT COLOUR @650 MM FROM CEILING SLAB PELMET TO BE FINISHED IN APPROVED WHITE PAINT COLOUR GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @150MM FROM CEILING SLAB PLASTER BEAM PELMET 300 MM CLEAR FINISHED IN APPROVED WHITE PAINT COLOUR 1700 [5'-7"] 3400 [11'-2"] 6800 [22'-4"] CHECK ON SITE 1700 [5'-7"] 680 [2'-3"] 450 [1'-6"] GYPSUM COVE LIGHT IN LED T5 TUBE LIGHT 4280 [14'-1"] CHECK ON SITE CL CL EQ EQ EQ EQ CHECK ON SITE SB 9 SB 8 SB-5 SB-5A 2350 CHECK ON SITE 2350 SB 5A SB 5 300 CHECK ON SITE 450 [1'-6"] SB 6 SB 7 300 300 450 1630 650 [2'-2"] 450 [1'-6"] GYPSUM CEILING TO BE FINISHED IN APPROVED WHITE PAINT COLOUR @150MM FROM CEILING SLAB PLASTER CHECK ON SITE 2350 SB 10A SB 10 SB 11 SB 11B SB 11A 600 1000 SB-10 SB-11 SB-10A i SB-11A SB-11B 300 PELMET 300 MM CLEAR FINISHED IN APPROVED WHITE PAINT COLOUR 300 SB-6 SB-8 SB-7 SB-9 T LOOPING FOR DINING ROOM U 1375 600 600 150 [6"] 150 [6"] 5757 [18'-11"] CHECK ON SITE 100 100 [4"] EQ EQ 1200 [3'-11"] 1200 [3'-11"] 2136 [7'] 2136 [7'] 2857 [9'-4"] 300 [1'] 300 [1'] 4600 CHECK ON SITE EQ EQ 626 FORMAL LIVING ROOM Drawn by: Viraj Checked by: Bhavin NOTE: • ALL DIMENSIONS ARE IN MM UNLESS SPECIFIED • ANY DISCREPANCIES SHOULD BE CLARIFIED WITH THE ARCHITECT / INTERIOR DESIGNER • DO NOT SCALE THE DRAWING FOLLOW THE WRITTEN DIMENSION RITU NANDA DESIGN LOCATION: GOA DATE: 12-09-2019 Address: 2nd Floor,Sidhwa Estate, Old BMP Building, N A Sawant road, Colaba, Mumbai-400005. Email id: ritunandadesign@gmail.com Scale : NTS N E S W SALGAOCAR VILLA _ VILLA 2 06
SECTIONAL ELEVATION CC' ELEVATION ISLAND COUNTER AA' SECTIONAL ELEVATION DD' SECTIONAL ELEVATION BB' FRIDGE BOSCH W700 D770X H1710 FRIDGE SAMSUNG W836 X D788 X H1862 UTILITY 1.85 X 2.01 M (6'-0"X6'-11") WASHING MACHINE IFB SENORITA PLUS 598 513 858 SINK DRYER IFB MAXI DRY EX 600 530 X 720 DRYER 600 530 720 MACHINE PLUS FRIDGE BOSCH W700 X D770X H1710 FRIDGE SAMSUNG W836 D788 XH1862 510x510 OVERALL SIZE OVEN KOV MGM 595x 560x 597(WxDxH) DRAWER FOR CUTLERY DRAWER FOR CUP AND SUCER DRAWER FOR BOWLS FRIDGE FRIDGE HYDRAULIC FREE FLAP OVER HEAD STORAGE WITH DISH RACK GEYSER TALL UNIT PULL OUT DRAWER FOR BIG BOWLS DRAWER FOR PLATES SHUTTER SCREEN RO SYSTEM KENT HYDRAULIC FREE FLAP NICHE HYDRAULIC FREE FLAP OVER HEAD STORAGE SECTIONAL ELEVATION AA' CHIMNEY AS PER APPROVAL DRAWER FOR CUTLERY DRAWER FOR CUP AND SUCER DRAWER FOR BOWLS P U O U OVER HEAD STORAGE SHUTTER WITH INTERNAL PULL OUT DRAWER SHUTTER WITH INTERNAL PULL OUT DRAWER SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL GEYSER SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES OVEN KOV 60 MGM 595x 560x 597 (WxDxH) ISLAND COUNTER STOOL HOB OVER HEAD STOARGE SHUTTER WITH INTERNAL SHELVES CHIMNEY SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES APPLIANCES OVER HEAD PACKING COUNTER STOOL COUNTER SINK GEYSER DISH RACK OVER HEAD STORAGE TALL UNIT SHUTTER WITH INTERNAL SHELVES SHUTTER WITH INTERNAL SHELVES HYDRAULIC FREE FLAP OVER HEAD STORAGE MAIN KITCHEN MAIN KITCHEN OUTDOOR KITCHEN OUTDOOR KITCHEN MAIN KITCHEN MAIN KITCHEN ISLAND COUNTER STOOL STOOL COUNTER STOOL STOOL COUNTER STOOL STOOL DRAWER DRAWER DRAWER DRAWER TOP PLAN RIGHT SIDE LEFT SIDE LEFT SIDE ELEVATION FRONT ELEVATION RIGHT ELEVATION 650[2'-2"] 835 [2'-9"] 1525[5'] 700 [2'-4"] 650[2'-2"] 600[2'] 1487[4'-11"] 2011 [6'-7"] 1761[5'-9"] 1968[6'-5"] 835 [2'-9"] 900[2'-11"] 1525 [5'] 150[6"] 225[9"] 381[1'-3"] 381[1'-3"] 381[1'-3"] ISLAND COUNTER SECTIONS 900[2'-11"] 600[2'] 882[2'-11"] A A' B B' C' C D D' 900[2'-11"] 215 [8"] BACK SPLASH BACK SPLASH 1)OVER HEAD STORAGE - PRISTINE PU - IVORY 2)UNDER COUNTER STORAGE - PRISTINE PU - BEIGE RAGE 3)TALL UNIT - PRISTINE PU - STEEL MESH FINISHES 38 [1"] 20 [1"] OUTDOOR KITCHEN 900 75 451 451 451 451 900 75 451 451 451 451 1000 100 OUTDOOR KITCHEN 900 75 451 451 451 451 GRANITE COUNTER GRANITE COUNTER IFB A B 1874 600 1874 454 [1'-6"] 454 [1'-6"] METECNO ROOF 2150 3325 440 METECNO ROOF CHECKED BY: Bhavin DATE : 12-09-19 ADDRESS: SIDWA HOUSE,BMP BDLG. 2ND FLOOR,COLABA FIRE STATION LANE, NEAR HARBOR HEIGHTS SOCIETY, EMAIL ID:contactritunanda@gmail.com RITU NANDA DESIGN INTERIOR DESIGNER & STYLIST SCALE : NTS DRAWN BY: Viraj REVISION : NOTE: · ALL DIMENSIONS ARE IN MM UNLESS SPECIFIED · ANY DISCREPANCIES SHOULD BE CLARIFIED WITH THE ARCHITECT / INTERIOR DESIGNER ·DONOT SCALE THE DRAWING FOLLOW THE WRITTEN DIMENSION SALGAONCAR VILLA _ VILLA-2 KITCHEN LAYOUT AND ELEVATIONS N E W S 900[2'-11"] 2400[7'-10"] PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION 07
1200 [3'-11"] 62 [2"] 1320 [4'-4"] EQ EQ ELEVATION AA FIRST FLOORGUEST BATHROOM ELEVATION DD WC AREA 156 [6"] 2246 [7'-4"] ELEVATION EE 600 [2'] Niche 600 [2'] Window Paint on wall Walk-in Wardrobe open shelf open shelf Openable Wardrobe 1200 [3'-11"] 1338 [4'-5"]-BASIN COUNTER 2246 [7'-4"] 600 [2'] 2462 [8'-1"] 100 [4"] 400 [1'-4"] 1195 [3'-11"] 750 [2'-6"] Niche Niche 1300 [4'-3"] Niche START TILE 1 REM 2 REM 2 3 4 START TILE 2 1 3 REM REM MATCH FLOOR TILE JOINTS TILE START TILE 1 2 REM REM START TILE 1 2 3 4 2 1 2 3 4 5 6 7 8 9 R E M R E M Quartz ledge top 600 [2'] 600 [2'] 600 [2'] MATCH FLOOR TILE & WC LEDGE WALL TILE JOINTS WITH WALL TILE 600 [2'] 600 [2'] 18 17 10 595 [1'-11"] 600 [2'] WALL TILE CREMA MARFIL (POLISHED) 1200 X 2400 MM QUARTZ COUNTER BIANCO NEVE - 10'-4"X4'-9" COMPANY- KALINGA STONE FLOOR TILE & WALL TILE PORTLAND BIANCO 600 MM X 600MM COMPANY- SOMANY TILE TILE QUANTITY 200 SQFT = 59 NOS 10% EXTRA(WASTAGE) - 20 SQFT = 6 NOS TOTAL QUANTITY-220 SQFT =65 NOS GUEST'S BATHROOM - SELECTED TILES QUANTITY BASIN WALL BACK SPLASH SIZE -150 MM X 150MMSQUARE SHAPE- ALEATORY P01 GOLD HIGHLIGHTER (MATT) ( FROM BOMBAY) TILES QUANTITY 19 NOS EXTRA(WASTAGE) = 4 NOS TOTAL QUANTITY - 23 NOS SHOWER WALL TILE CREMA MARFIL (POLISHED) 1200 X 2400 MM COMPANY- QUTONE TOTAL QUANTITY = 1 NOS CHECKED BY: Dharita DATE :29-08-18 RITU NANDA DESIGN DRAWN BY: Viraj REVISION : LOCATION : GOA NOTE: · ALL DIMENSIONS ARE IN MM UNLESS SPECIFIED · ANY DISCREPANCIES SHOULD BE CLARIFIED WITH THE ARCHITECT / INTERIOR DESIGNER · DONOT SCALE THE DRAWING FOLLOW THE WRITTEN DIMENSION DAWDA'S RESIDENCE - DONA PAULA FIRST FLOOR - GUEST BATHROOM- TILING DETAILS E W N S Address: 2nd Floor ,Sidhwa Estate, Old BMP Building, N A Sawant road, Colaba, Mumbai-400005 email id:ritunandadesign@gmail.com B A D A D B C C E E rem rem START TILE 400 [1'-4"] 350 [1'-2"] 115 [5"] 115 [5"] 300 [1'] 450 [1'-6"] 2450 [8'] 150 [6"] 150 [6"] 2400 [7'-10"] 600 [2'] MATCH WC LEDGE WALL TILE JOINTS WITH WALL TILE ELEVATION BB 600 [2'] 500 ELEVATION CC Paint on wall Paint on wall Paint on wall Niche Quartz / Tile 775 350 Glass partition Glass Door for shower area 1200 [3'-11"] 800 [2'-7"] 462 [1'-6"] 764 [2'-6"] 565 [1'-10"] 548 [1'-10"] 677 [2'-3"] 565 [1'-10"] 1 2 MATCH FLOOR TILE & WC LEDGE WALL TILE JOINTS WITH WALL TILE REM 600 [2'] REM 1 Rem 1 START TILE Rem START TILE 20 [1"]Quartz 20 [1"] 600 [2'] REM 16 15 14 13 12 11 START TILE TOWEL RACK 62 [2"] 1200 [3'-11"] 1338 [4'-5"]-BASIN COUNTER 62 [2"] 1200 [3'-11"] 62 [2"] open shelf open shelf LOUVER SLIT SHUTTER MIRROR SB 28 SB 29 SB 25 SB 26 SB 27 08
Coworking Office Space
In architecture and design, the design process typically starts with defining the ‘Shell/Architecture ’ of the building as a first step. The factors affecting the ‘Shell/Architecture’ are, by and large, external in nature such as: climate, privacy and so on.
The interior elements are generated as next step in the process in a manner that justifies the requirements ‘imposed’ by the ‘shell’. In this process, the ‘Shell/Architecture’ becomes a dominating force in determining interior layout and interior elements. The intent of this unit was to find a synthesis in the design process such that the ‘boundary’ between ‘architecture’ and ‘Interior Architecture’ gets dissolved, to pave the way for a built form that is primarily a resultant of ‘Interior Architecture’
The AIM is to Design a coworking space to support start-ups, Small, and many more. Coworking Spaces Bring Out Unity In Diversity In The Workplace. The intention is to create a workspace that felt uncrowded and roomy. A space that encourages connectivity and collaboration with a homely. The co-working space will naturally be divided without using free-standing walls to maximize the natural lighting throughout the space.
INVOLVE : By introducing new tools, skills, events, workshops, talk series ect Community is what coworking spaces are built on.
INSPIRE : By giving secluded areas where one will be able to focus on whatever task they’re working on, however, there are also many open spaces which encourage conversation and collaboration. By giving dedicated workspace which needs to find between comfort and motivation.
IMPACT : Flexible work Arrangements / Multiple work environments / Social Engagements
Site :

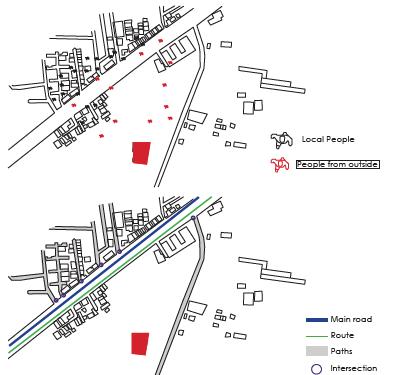

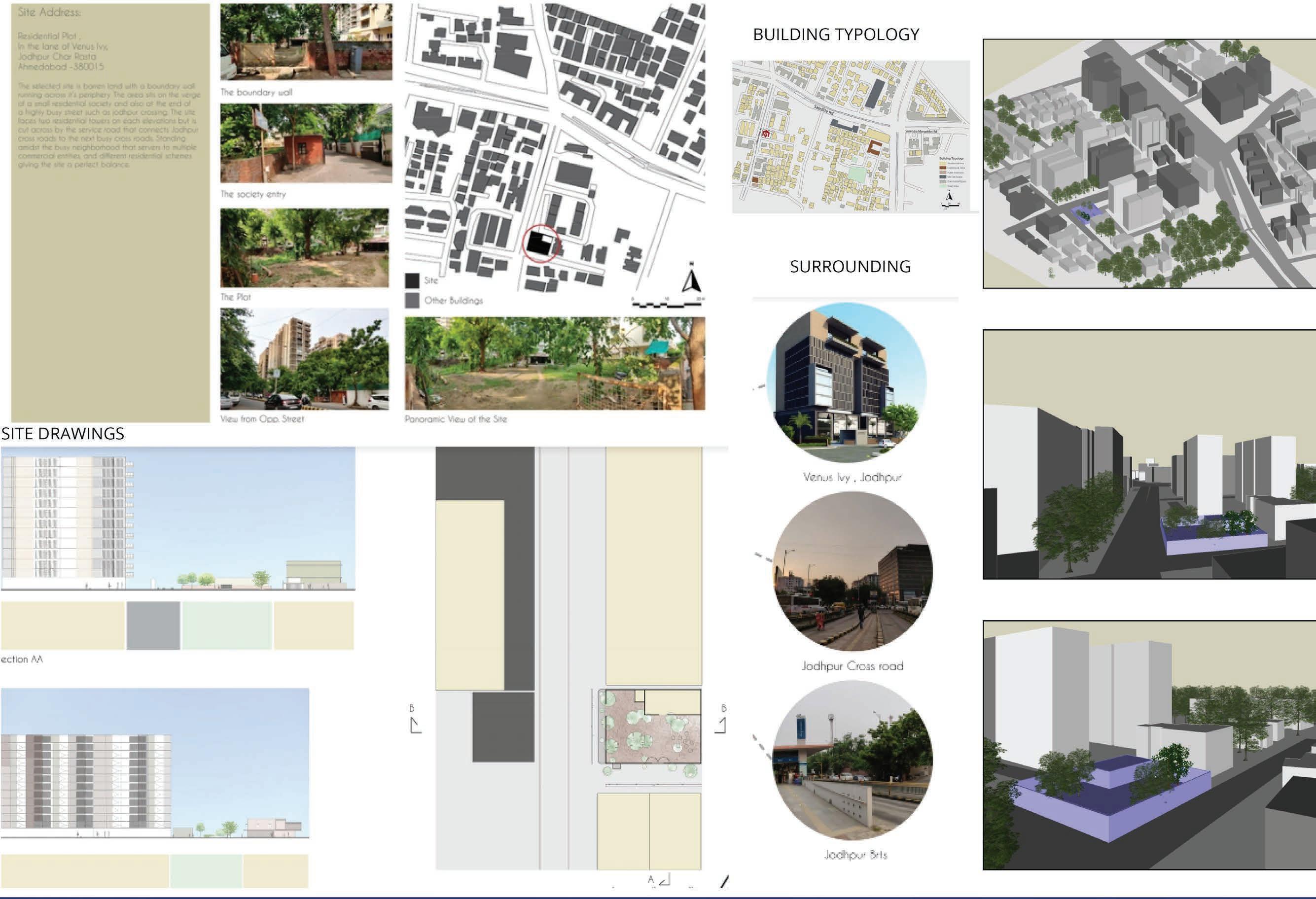

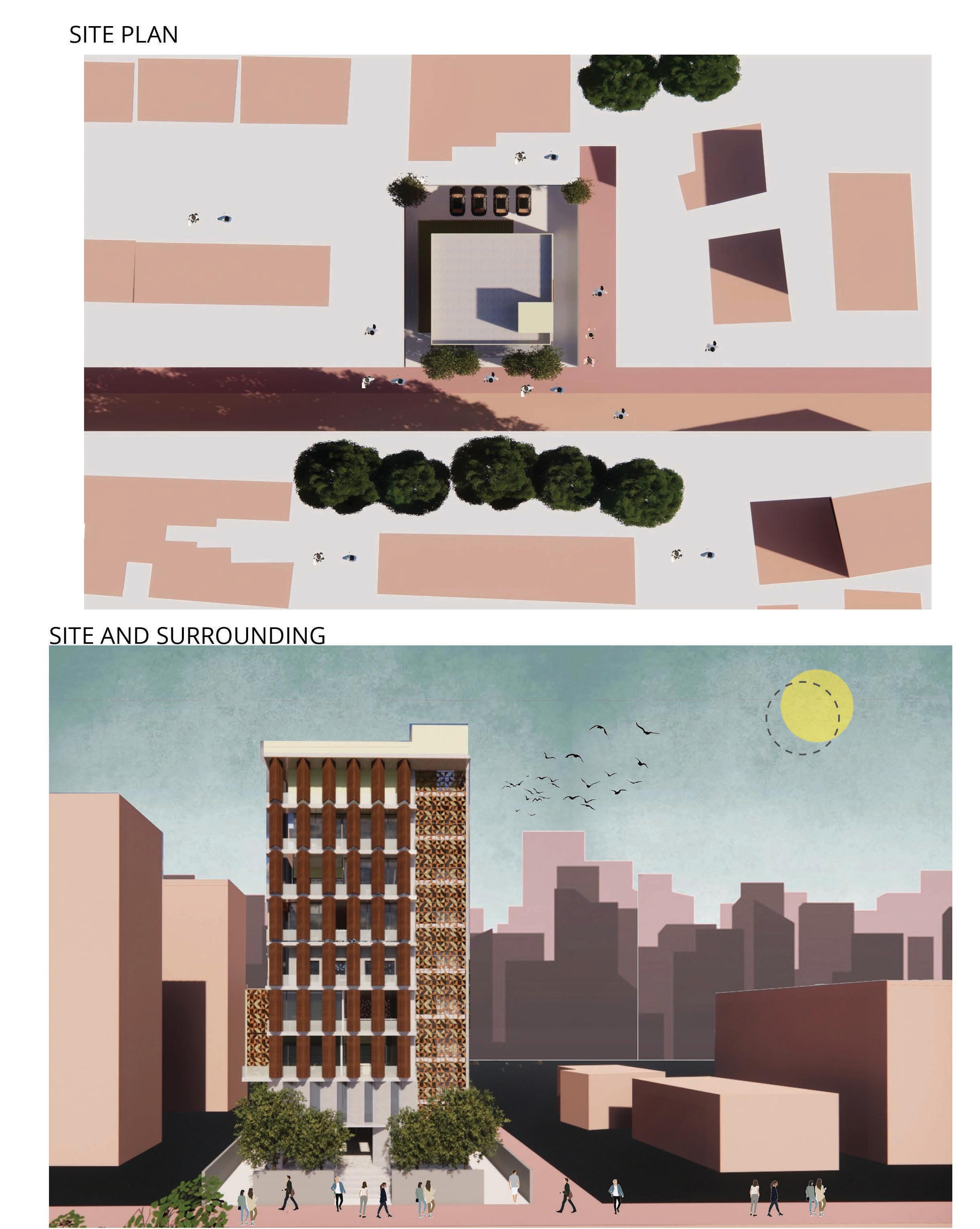

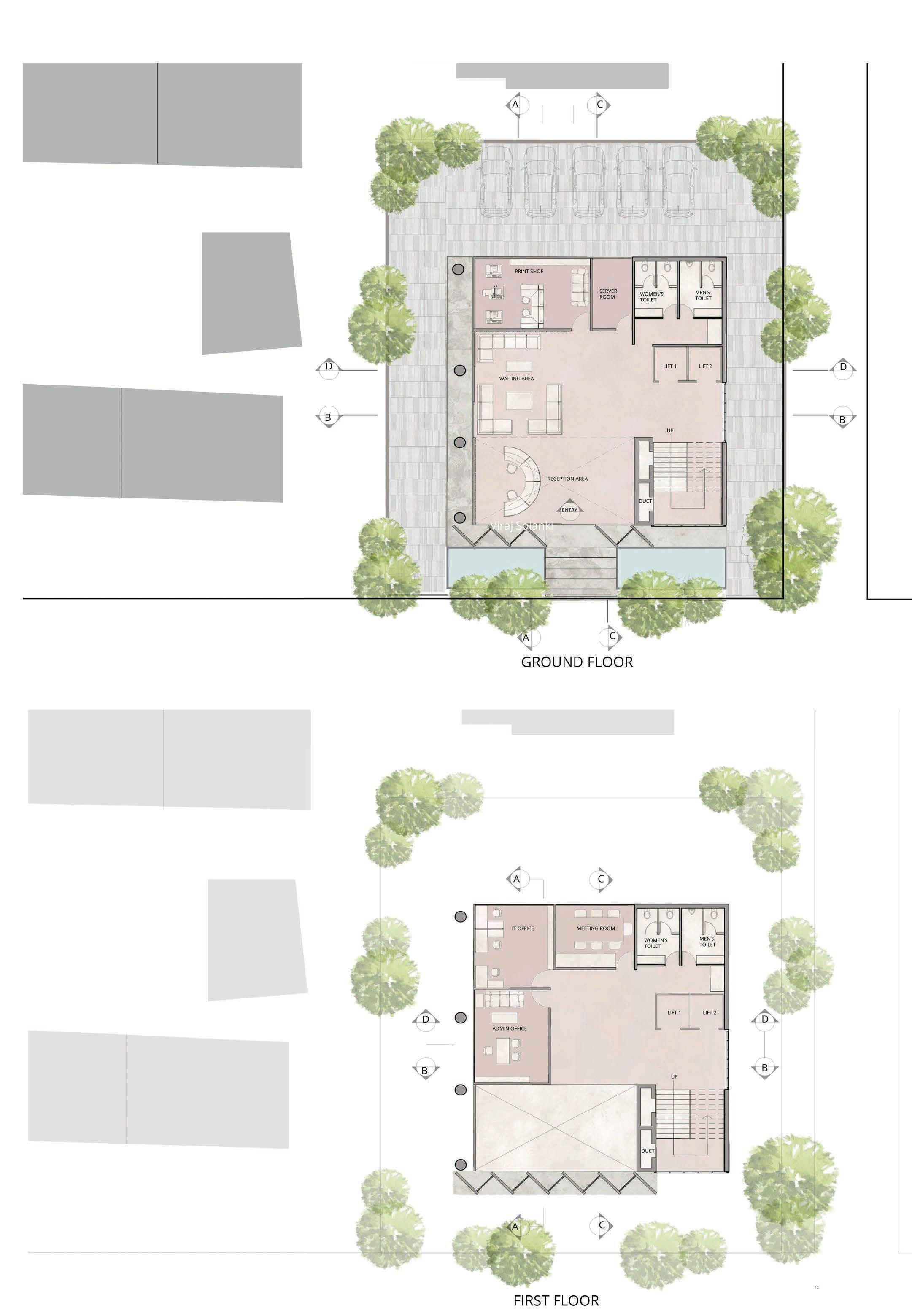

The selected site is barrier land with a boundary wall running across its periphery. The area of the end of a highly busy street such as jodhpur crossing. The site faces two residential towers on each elevations buts is cut across by the service road that connects jodhpur cross road to the next busy cross road. Standing amidst the busy neighbourhood that serves to multiple commercial building and different residential schemes giving the site a perfect.
AEKAY
Cluster 4

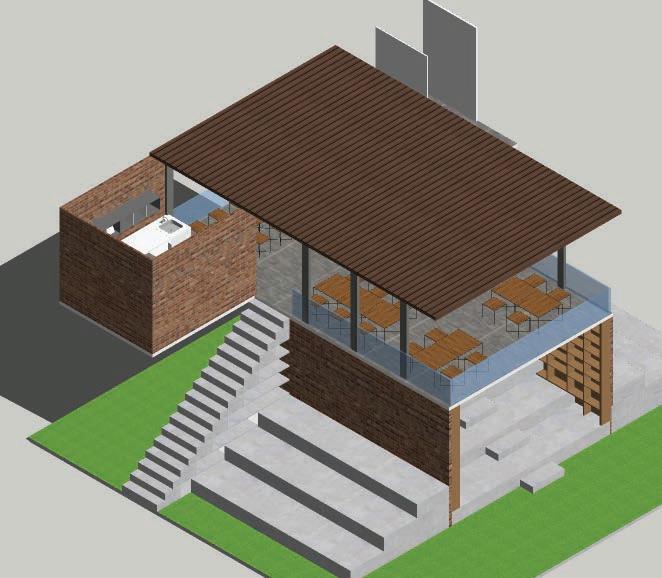

Cafe Library
Cluster 1 1 medium Scale 4 freelancer
Cluster 2 1 Small Scale 3 freelancer
Cluster 2 1 Small Scale 3 freelancer
09

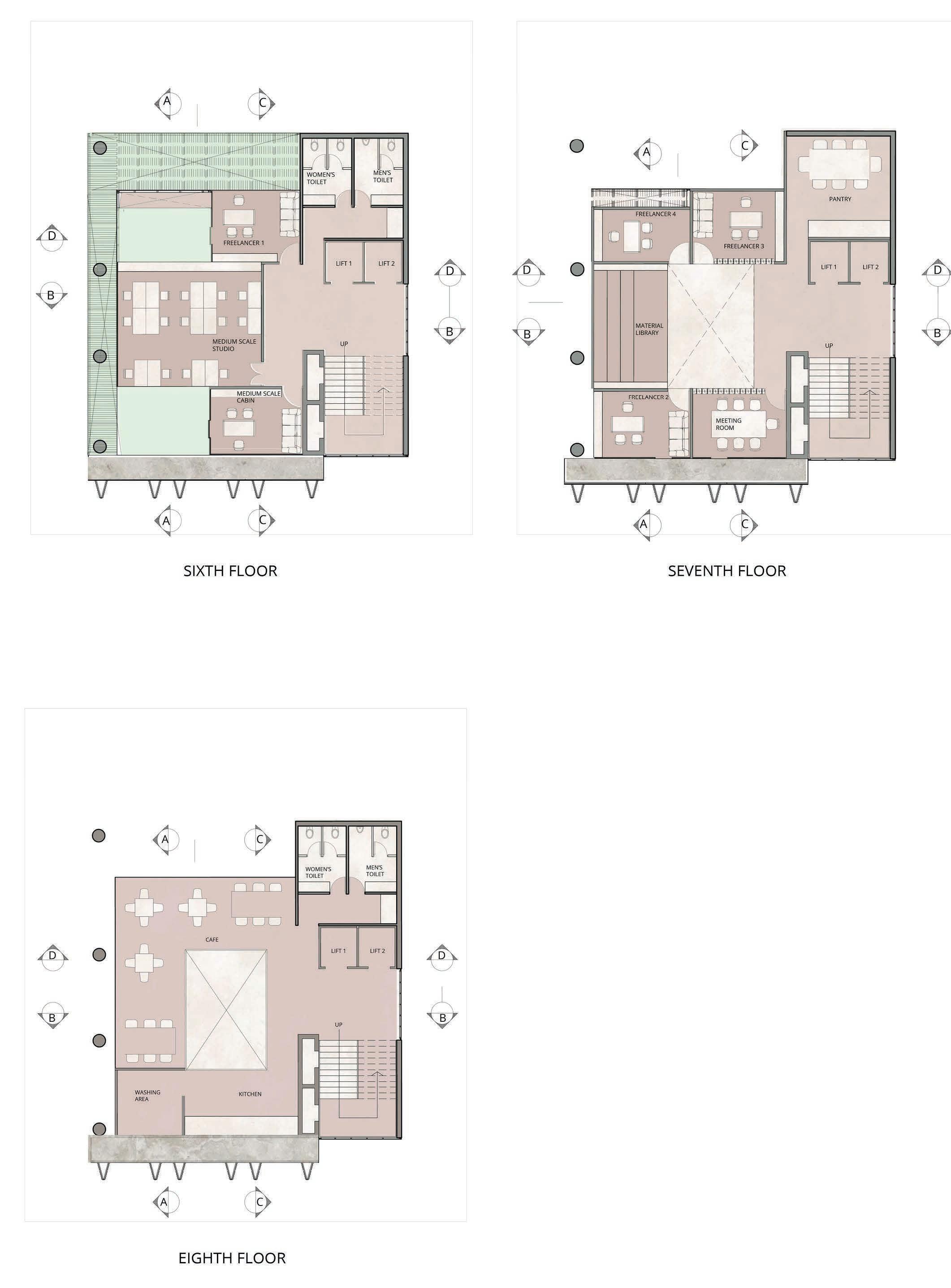

CLUSTER 1 CLUSTER 3 CLUSTER 2
4A-4B 10
CLUSTER

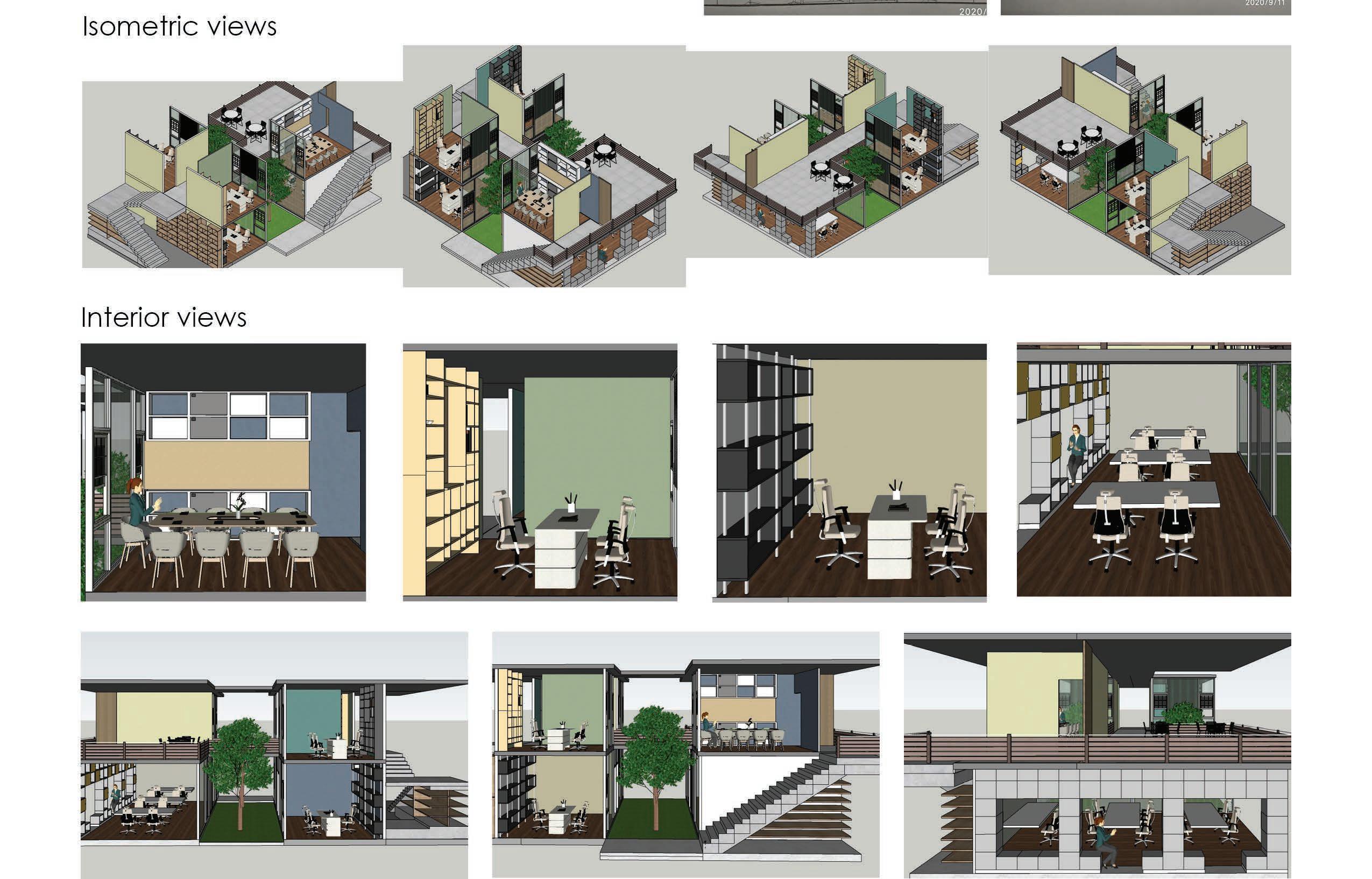

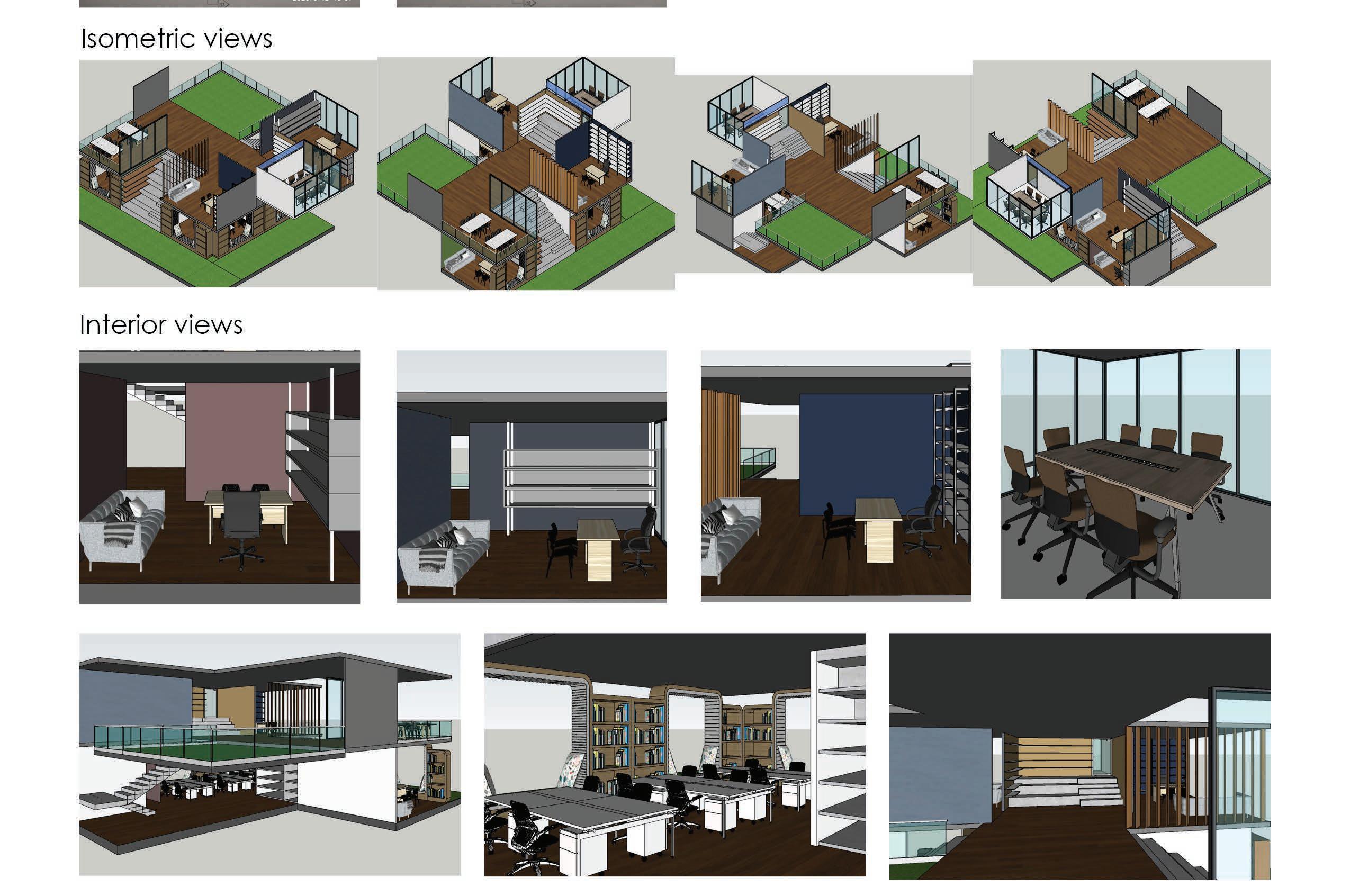

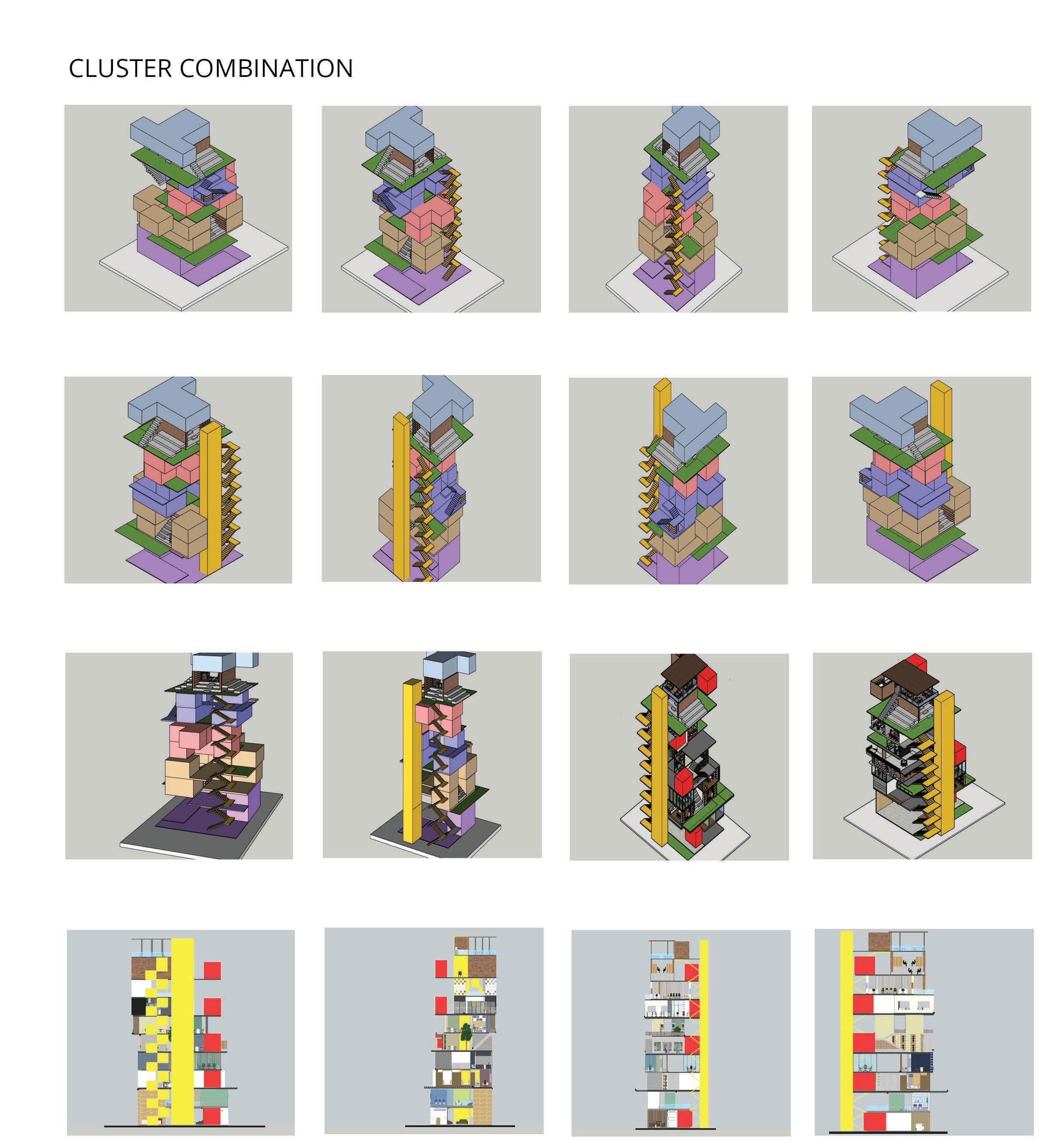

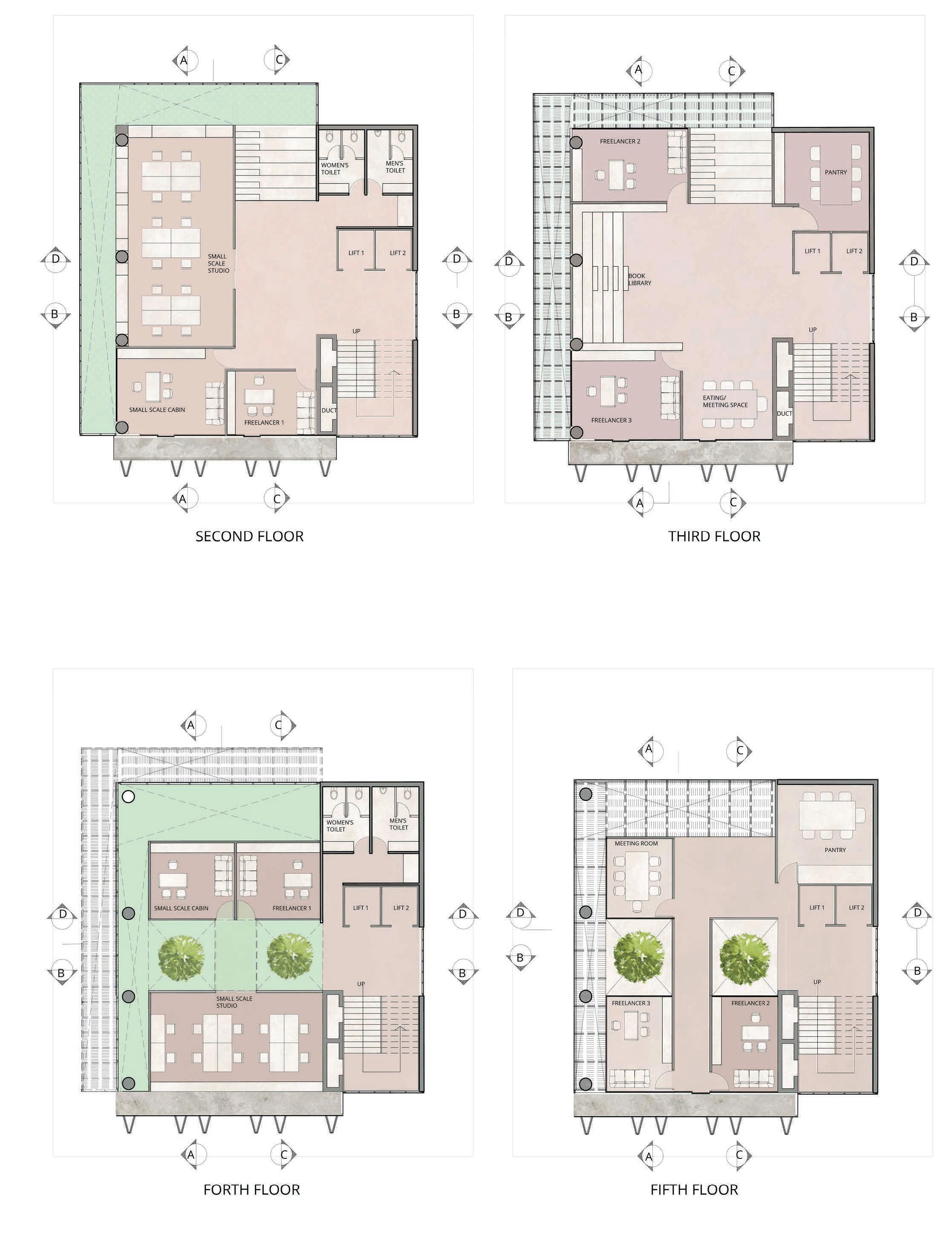

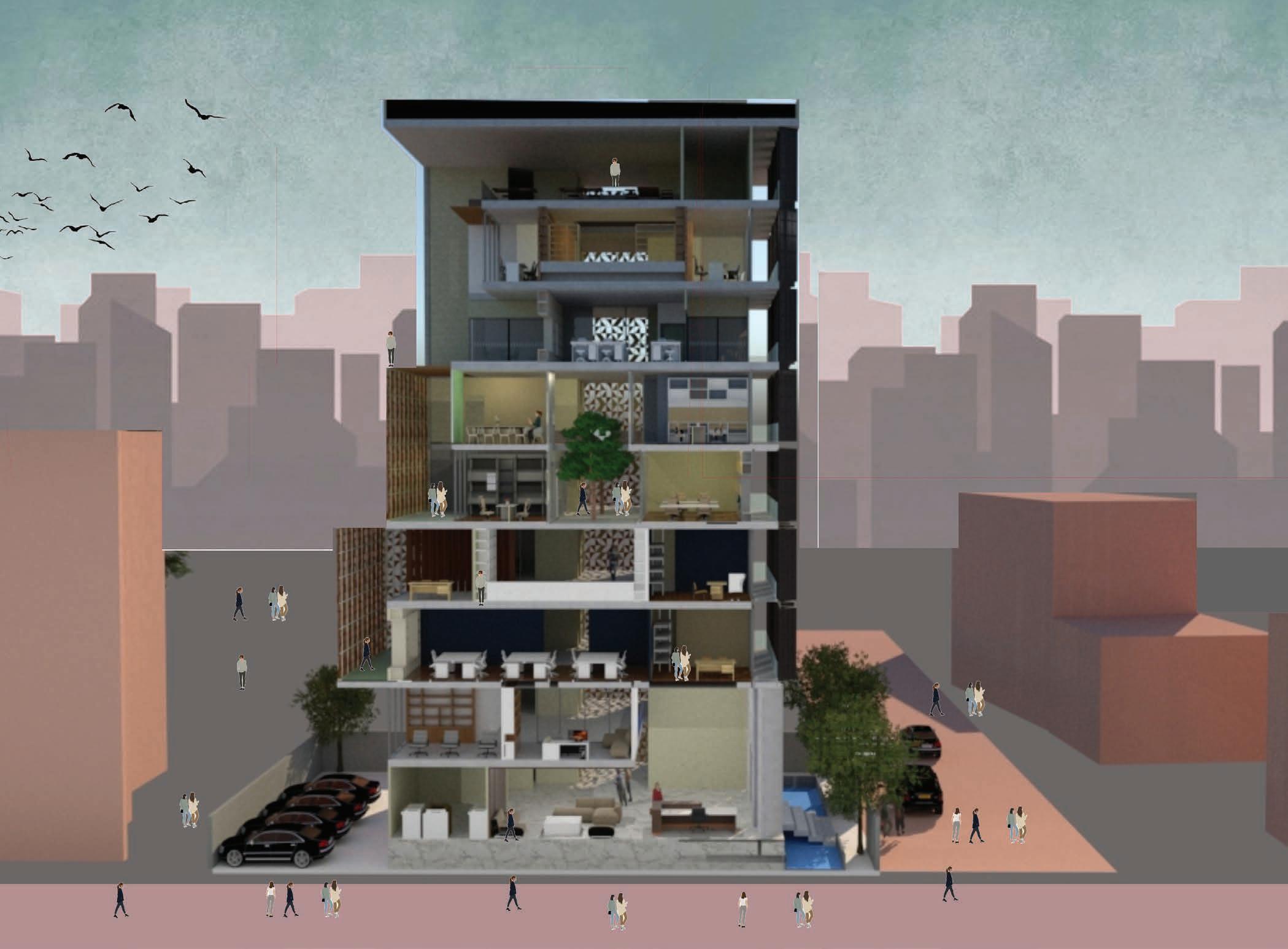

Cluster combination is a combination of the indiviual clusters which were designed considering the requirements of that particular cluster.
The final individual cluster are placed on top of eachother and try to made a vertical building outof those clusters. The minor changes are done to make the vertical building.

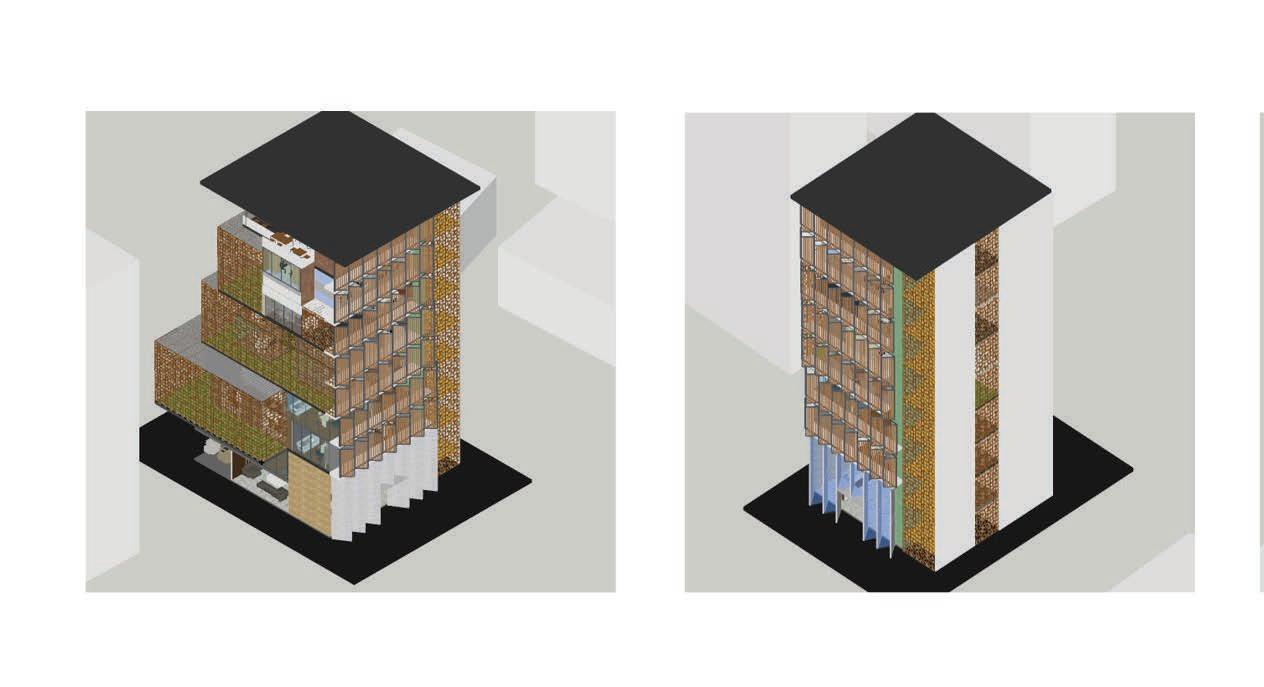

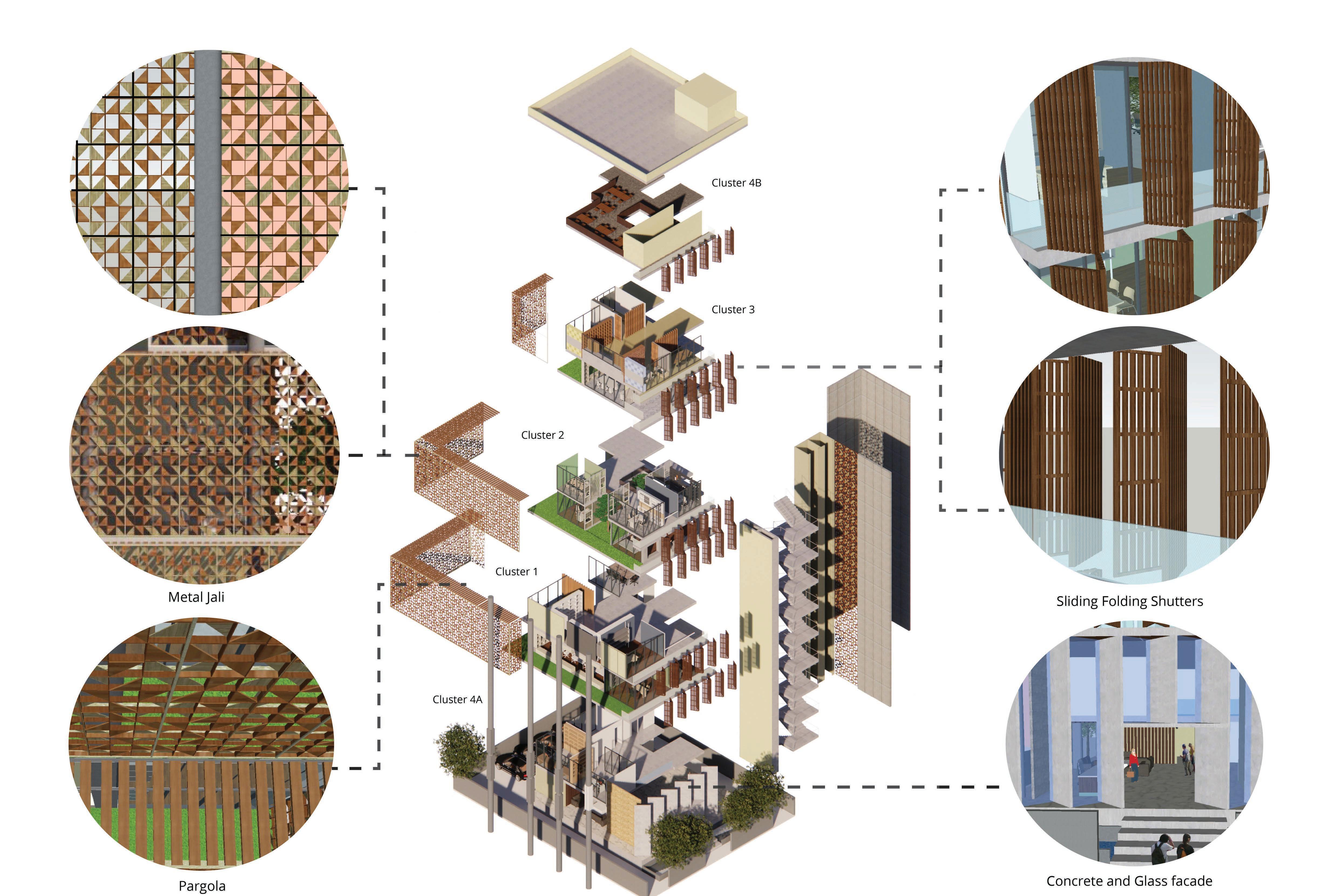

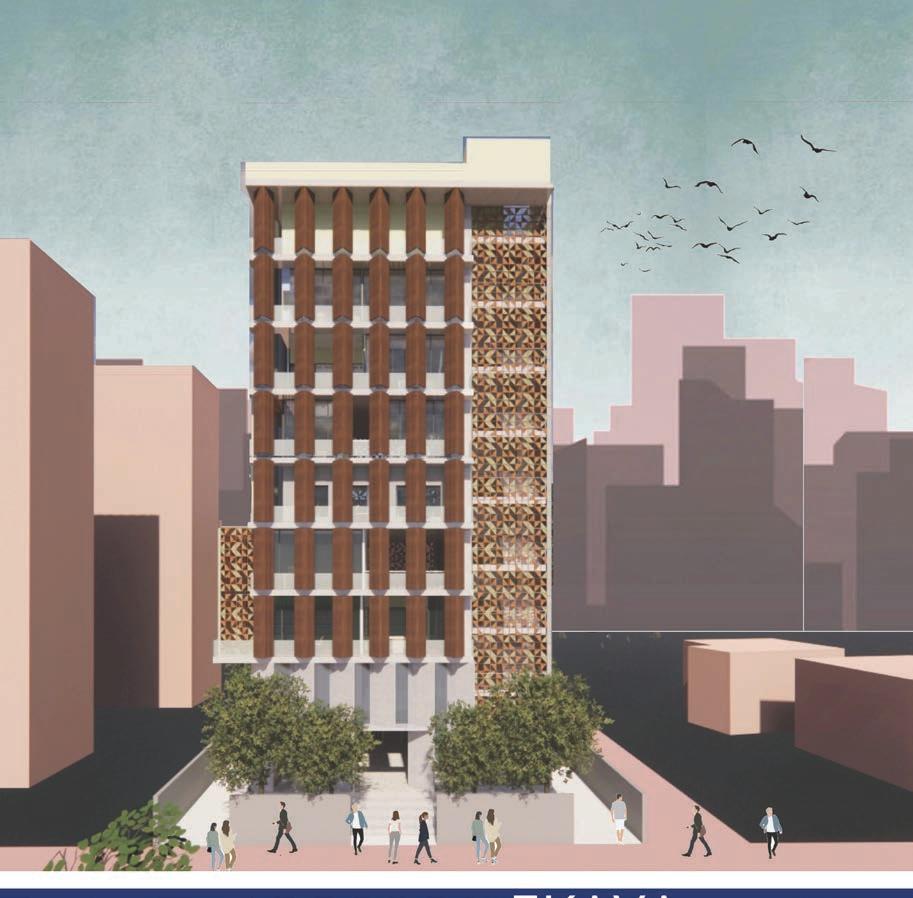

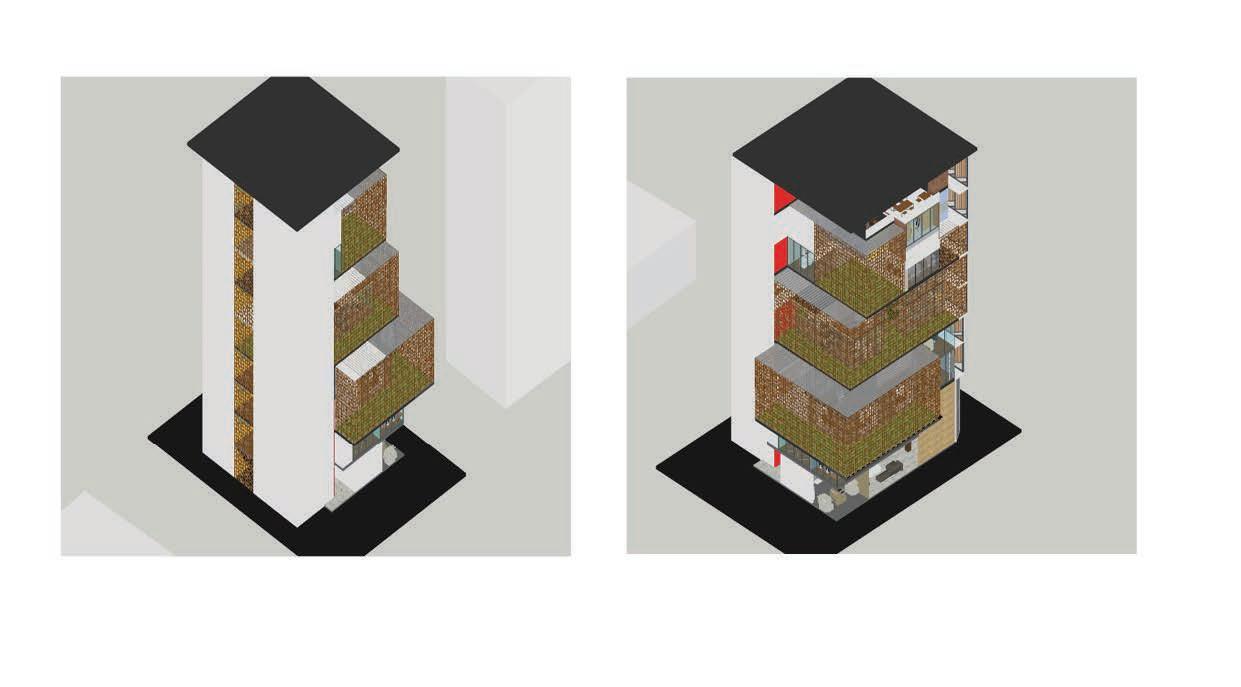

Skin exploration is done considering the direction of each facade.
Material of each facade has been finalized after the sun and wind study.
Skin exploration
11
12
13
14

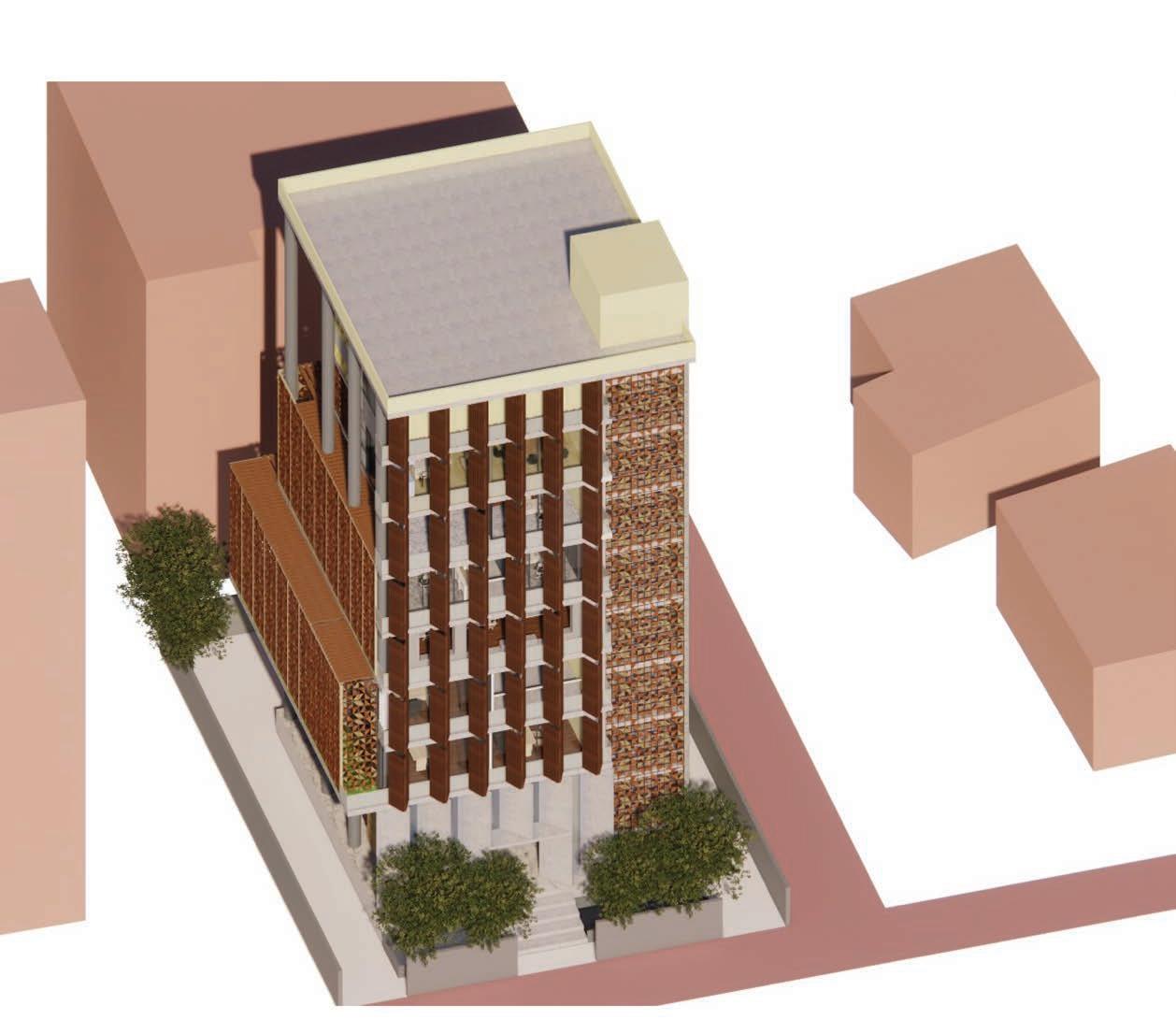

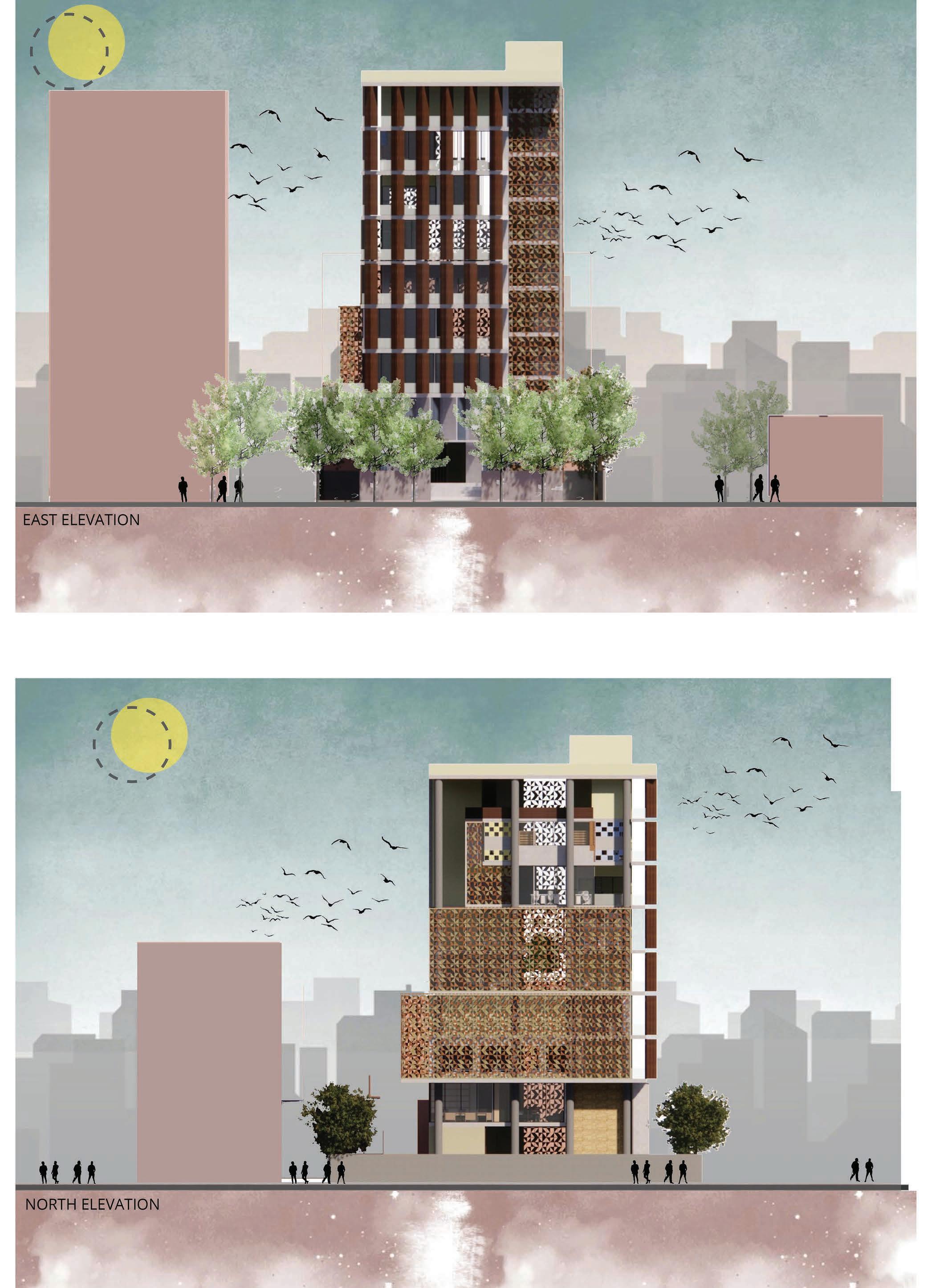

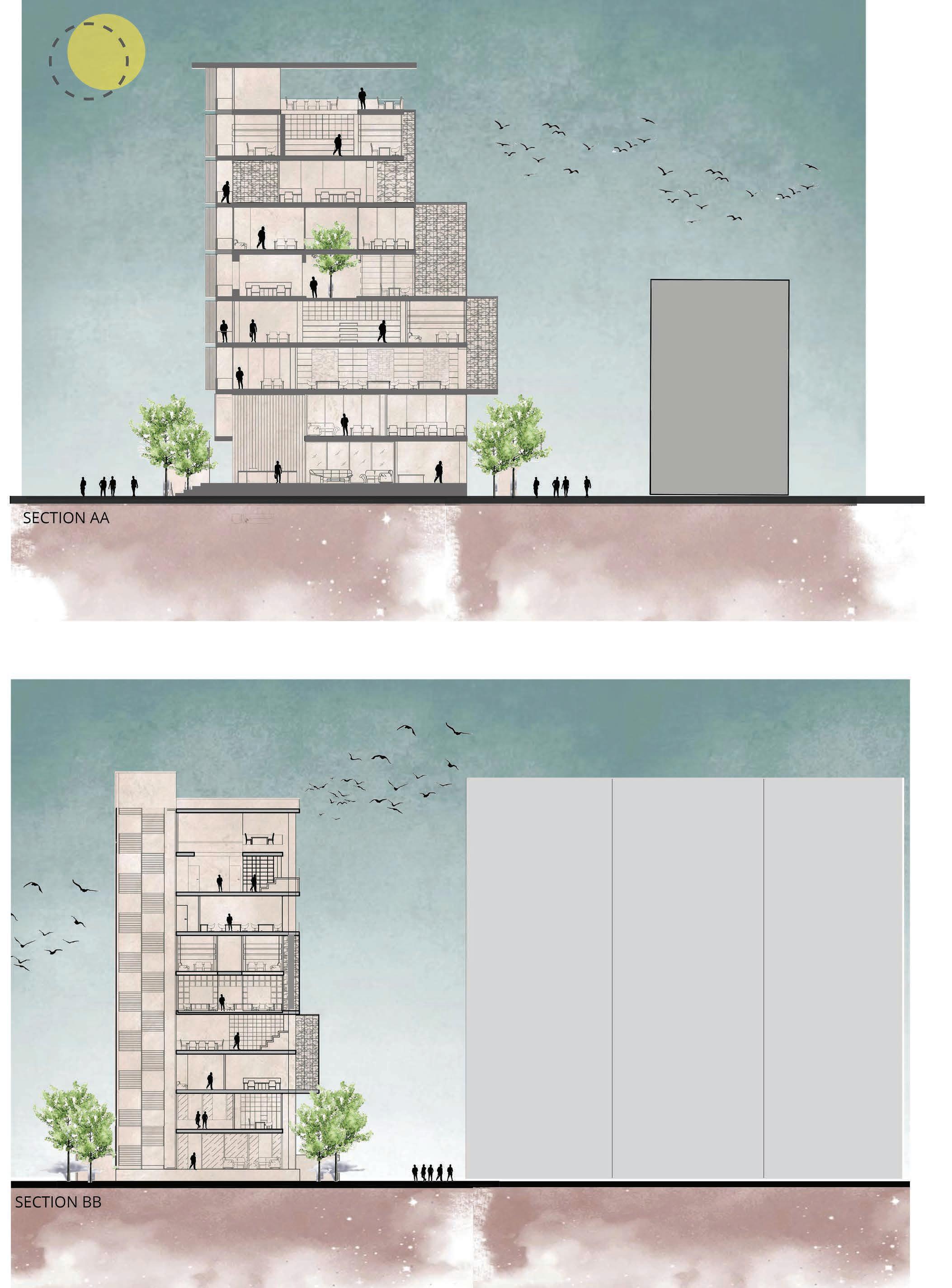

Folding sliding shutters are used on east facade.
Concrete and glass facade is used on entrance.
South facade is made up of concrete and metal jali.
Metal jali is used in north and west side of building.
Wooden pergolas are used on metal jali to cover double height space from rain/ sun light.
Building is supported from 4 concrete circular columns.
15

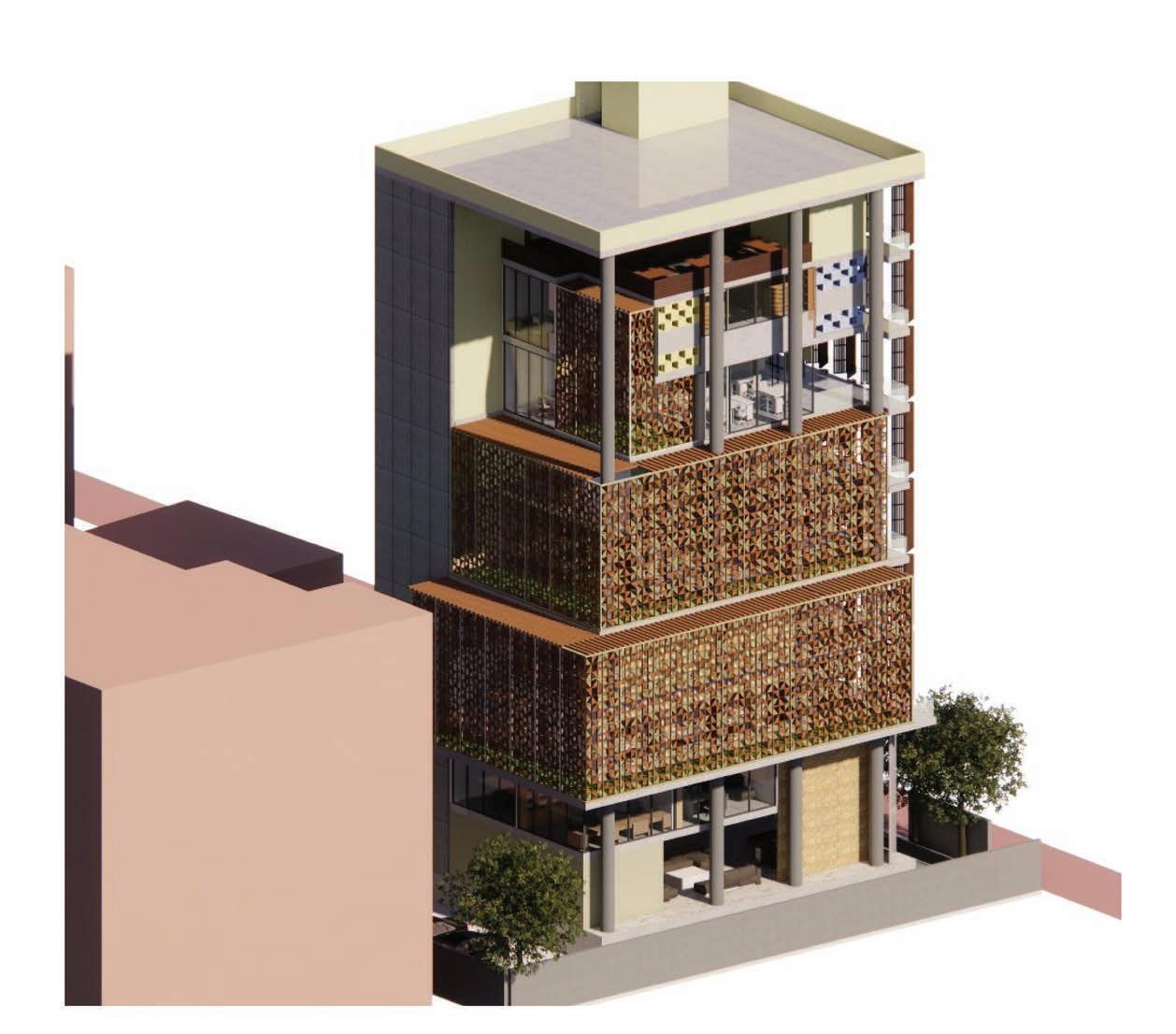

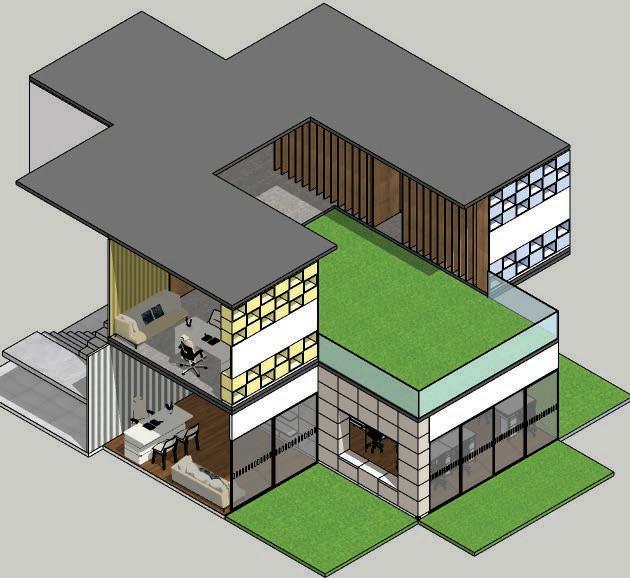

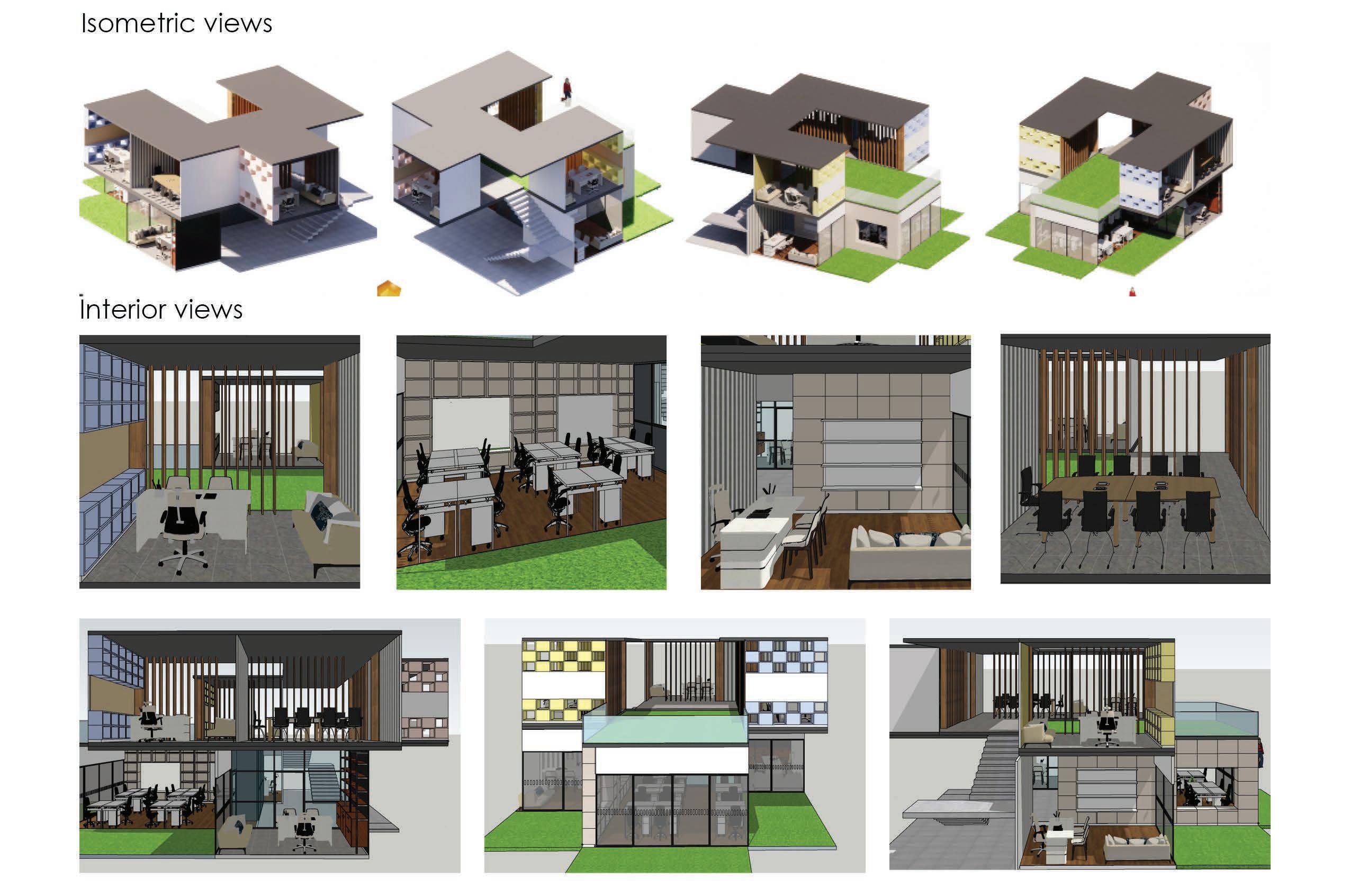

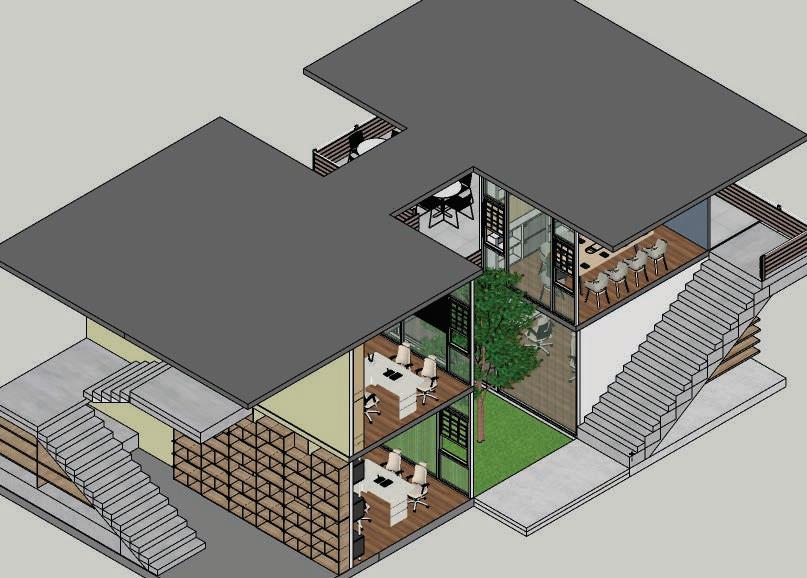

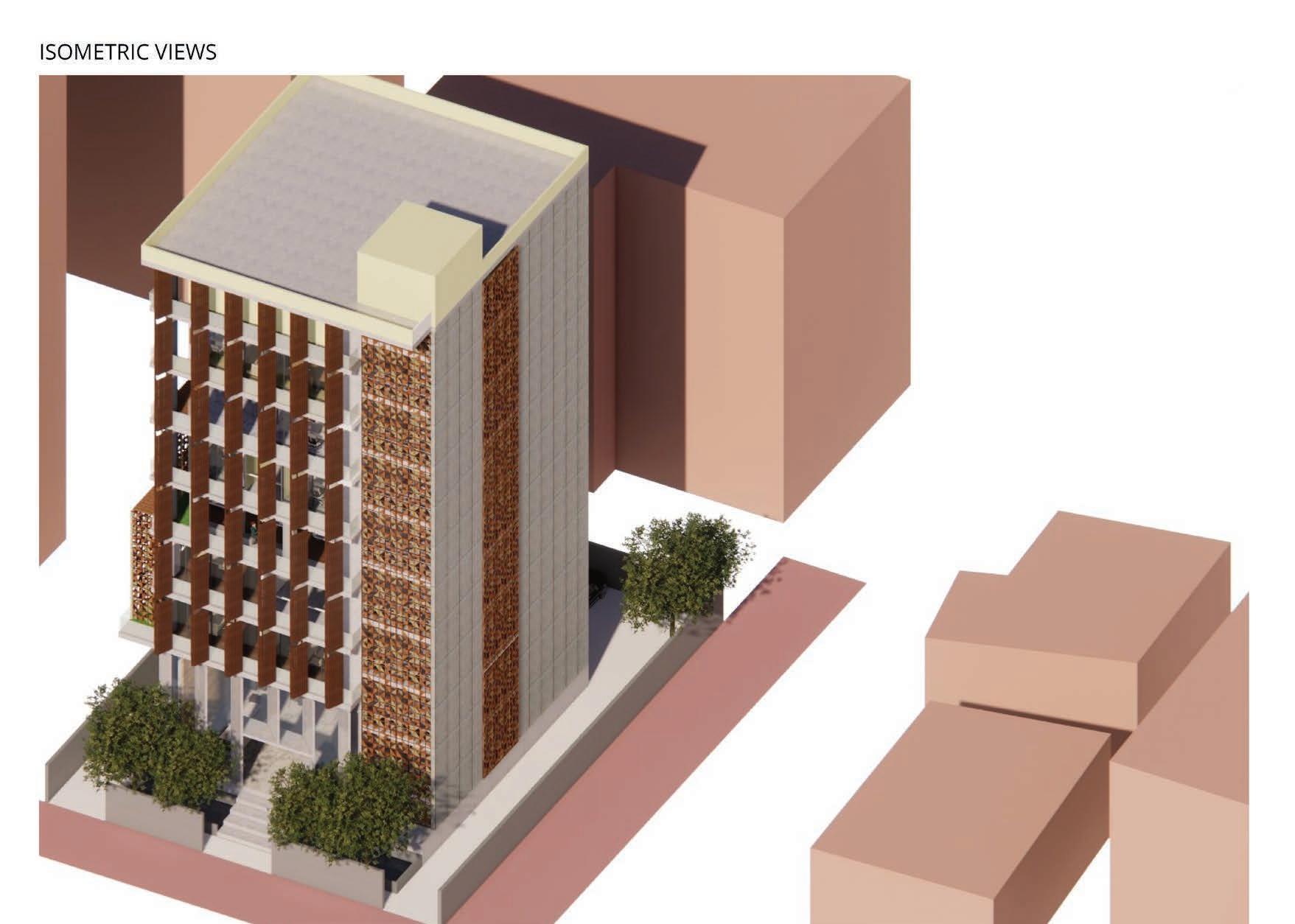

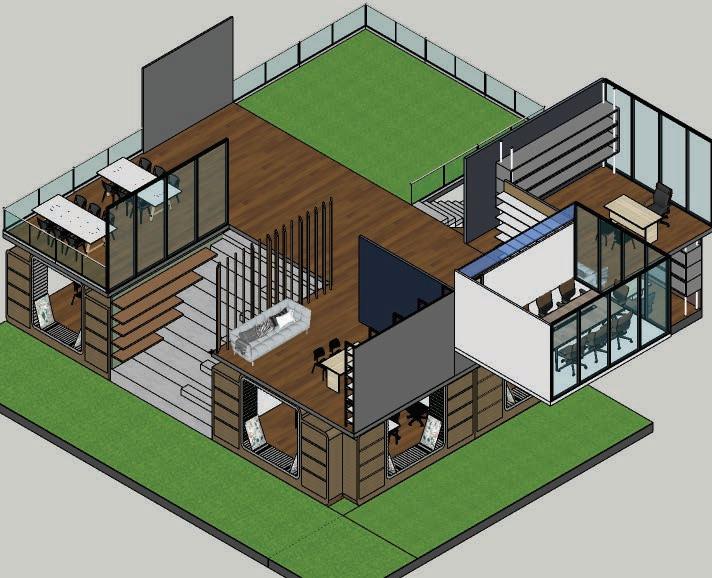

Isometric Views
16
LOST BUT NOT FORGOTTEN
The studio focused on suitable retired buildings in a city, blurring the conventional boundaries between, architecture and interiors. We researched every aspect of the existing architectural space and fabric, including its history and setting, the essence of its emotional power, and its place in the collective urban memory. We then designed inspiring interior-architectural transformations that generated new spatial purposes, experiences, expressions, meaning, emotions and memories. Working from the inside out, we created interior architecture that stimulates new civic memories.
The program started as a place where healthy physical training habits could be inculcated. It would also engage those people who are excluded from most training facilities and provide coaching and training facilities while also working with local community groups to improve access to members of local communities. It intends that the old mill workers and other underprivileged people around the site who have no proper place to practice would become motivated to improve their own physical and mental health. It would also make people aware of Akhadas, where traditional Indian sports like Kushti, Pole Mallakhamb, and Rope Mallakhamb take place. It would create a space where traditional and modern exercises could be blended, making way for the revival of 21st-century Akhadas. It would be a nurturing space rather than a hindering space, and hence a typical gym, where one requires following a certain language would not be adopted, as the intent is more holistic. The aim of the center would be to allow people to connect.
SITE : New Commercial Mill, Amdupura,Ahmedabad
An industrial mill building next to arvind mill, on the edge of ahmedabad city. The site is surrounded by many industrial buildings. It has approximatly 2100 sq m of area.The roads are connected with brts to the main city area.Arvind mill is developing a smart city on the opposite side of the n.c mills which will increse.
PROGRAM : The new commercial mill will serve as a community health and wellness center. Exaggeration the overlap and contrast between the old traditional and modern style of making body healthy which will be the mixture of traditional and modern sports center where people will come to acquire physical and mental health care.
The center will have diffrent types of activities which for all types of people. There will be activities for youngsters, childrens, womens, mens...
PRIMARY SPACES SECONDERY SPACES Typical akhada wrestling makhamb
Silk Aerial Rock climbing shower area
Changing room Storage Theater for shows Reception
Entry
Accomodation
Toilets
Akhada space with sand
Wrestling space with met
Malkhamb
Yoga meditation
Silk aerial
Aerobics/zumba
Rock climbing
Performance space
Kitchen
yoga/ meditation Aerobics/ Zumba
Primary connection
Secondary connection
Reception area
Waiting area
Storage room
changing room
Rest room
Kitchen shower area
Toilets
Relaxing space
17
PROGRAM BRIEF
18

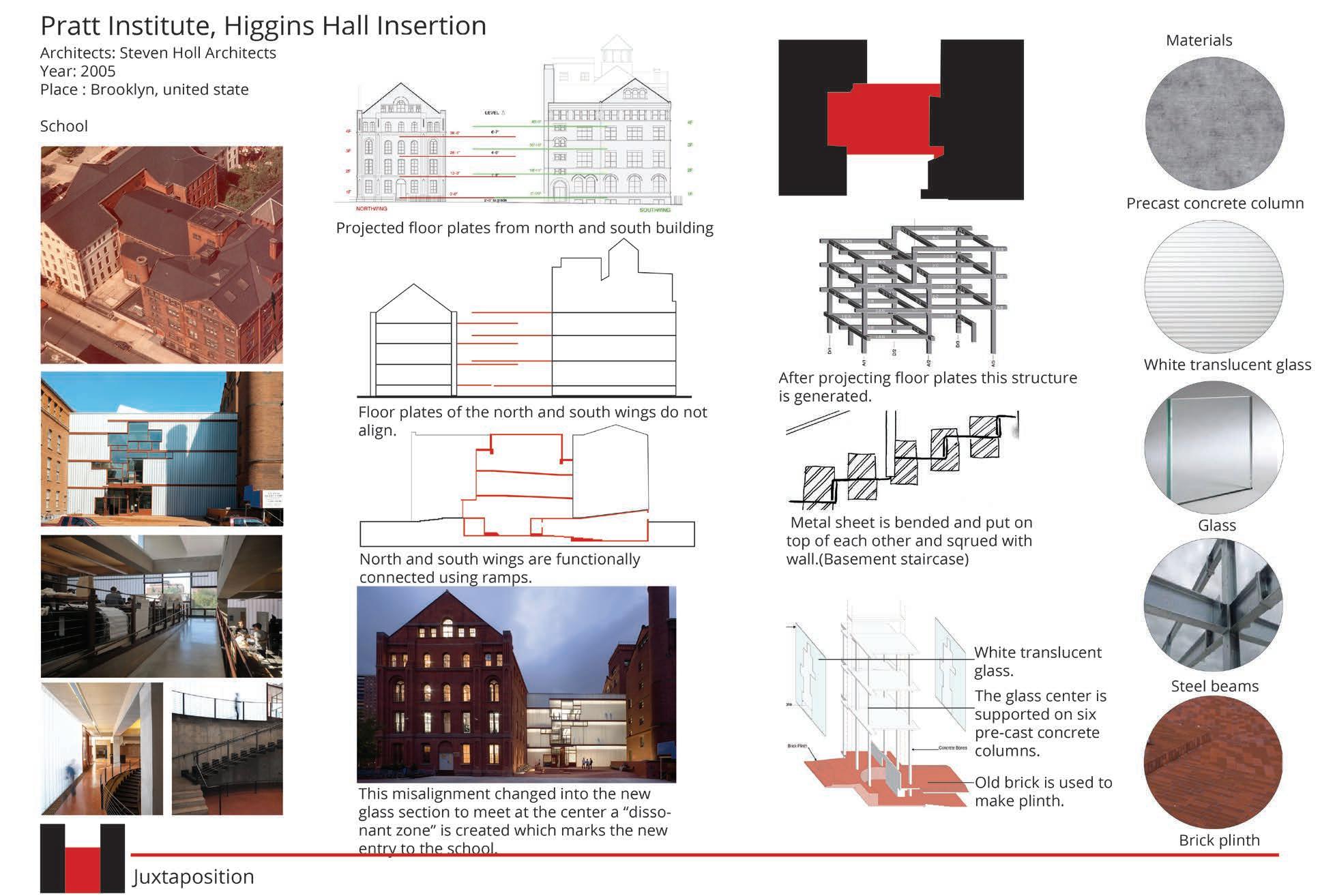

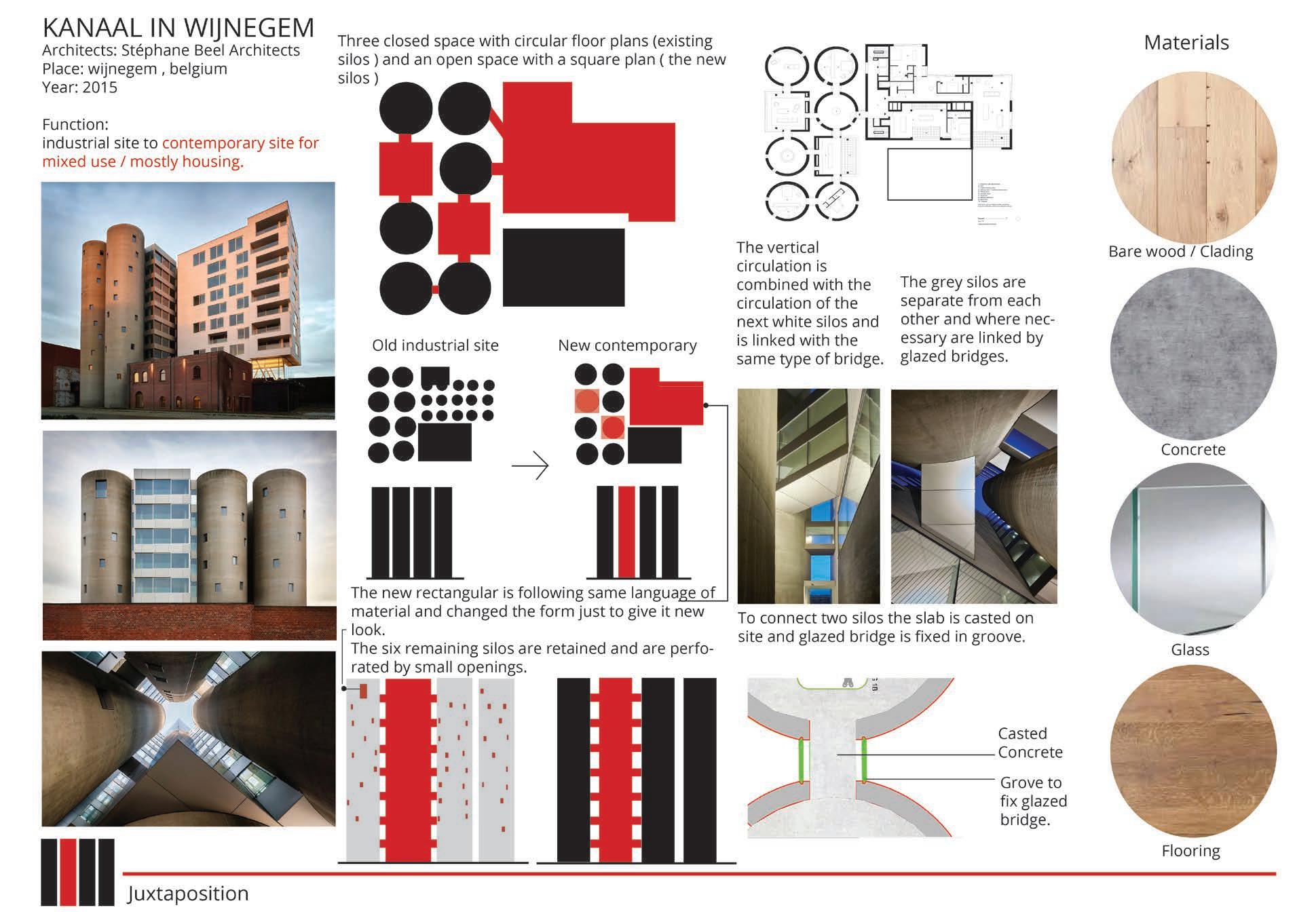

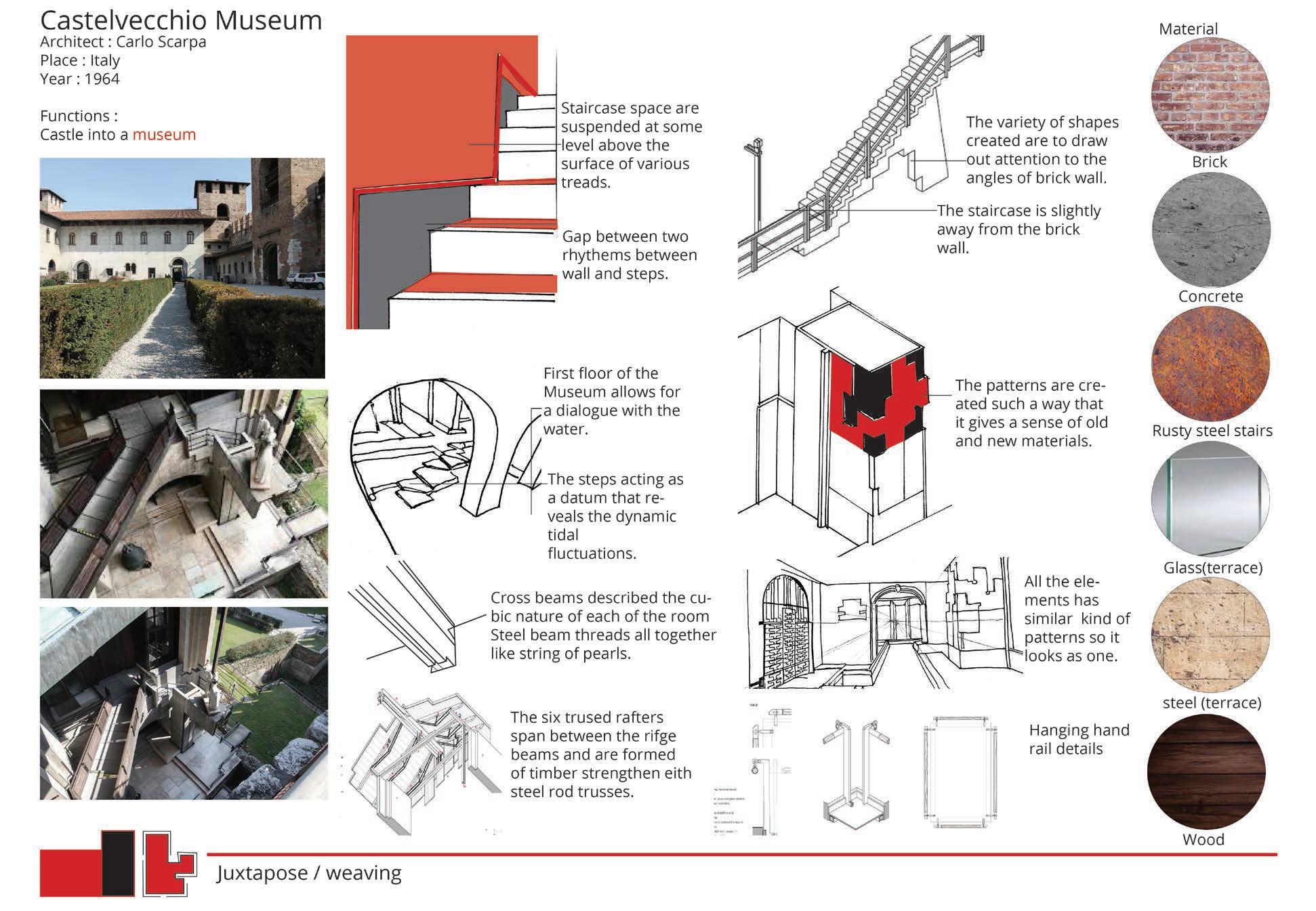

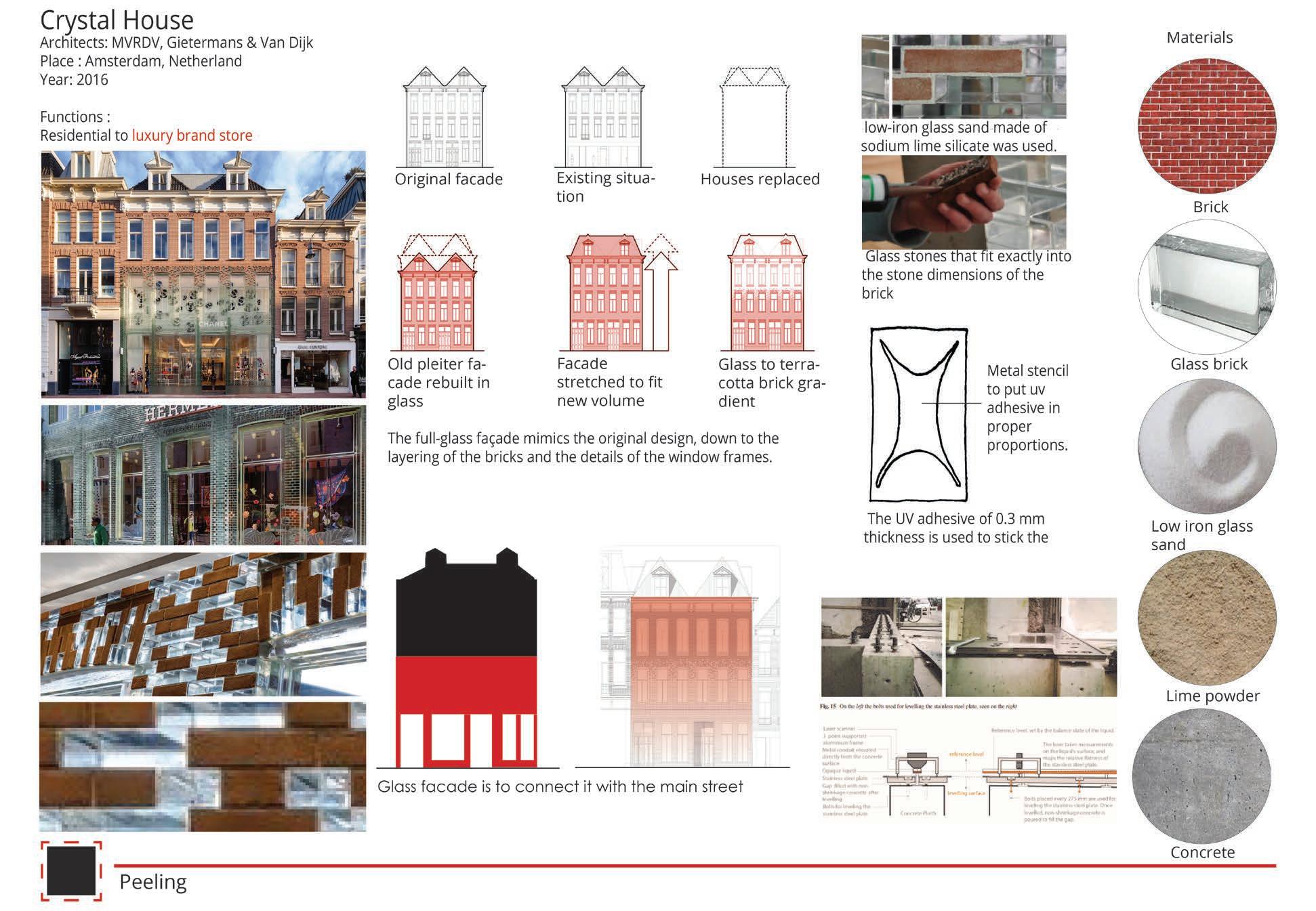

CASESTUDIES

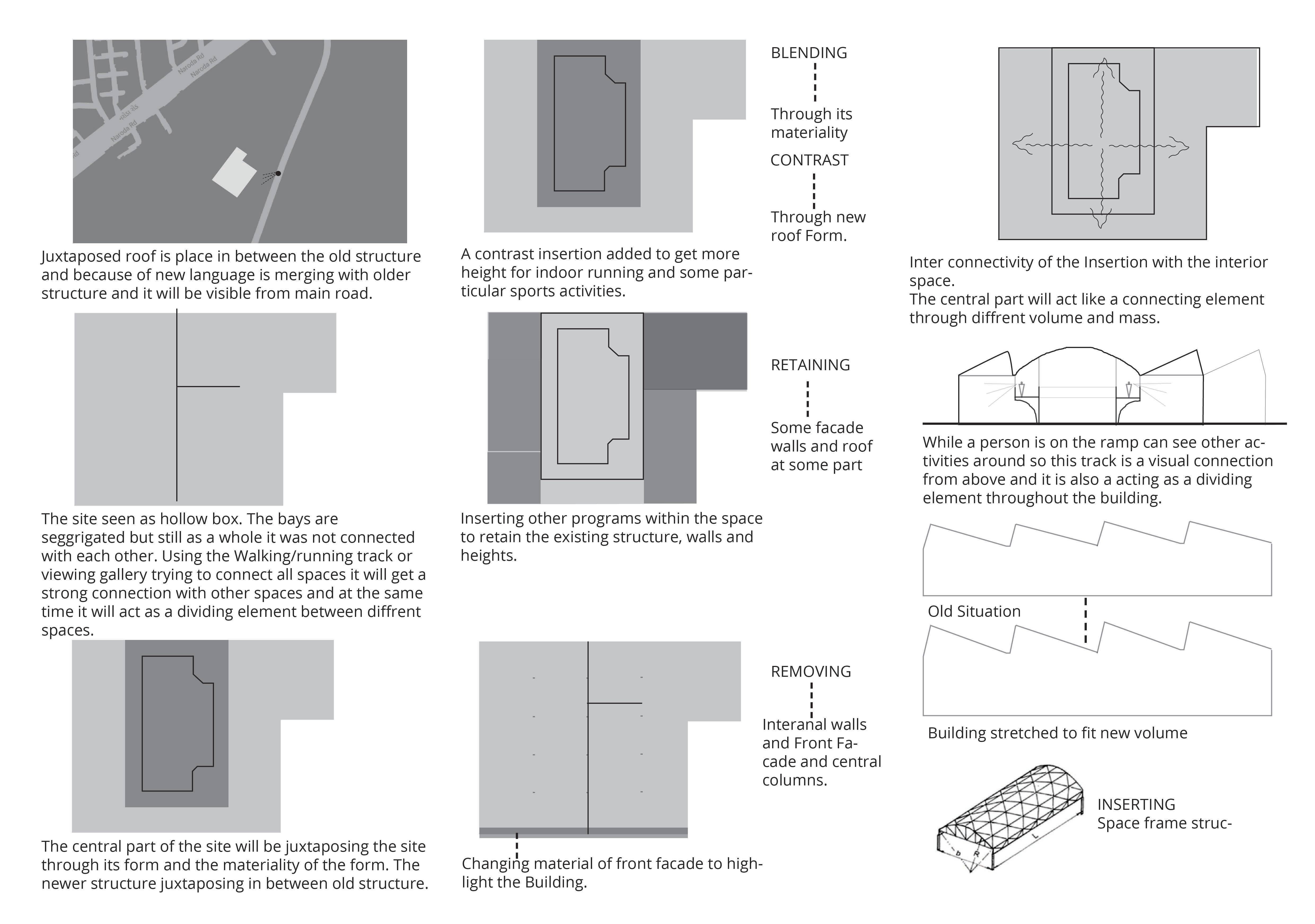

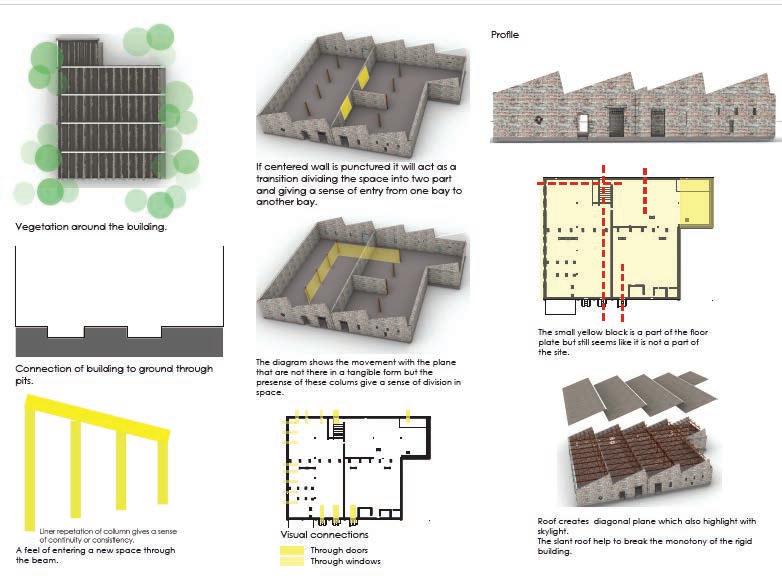

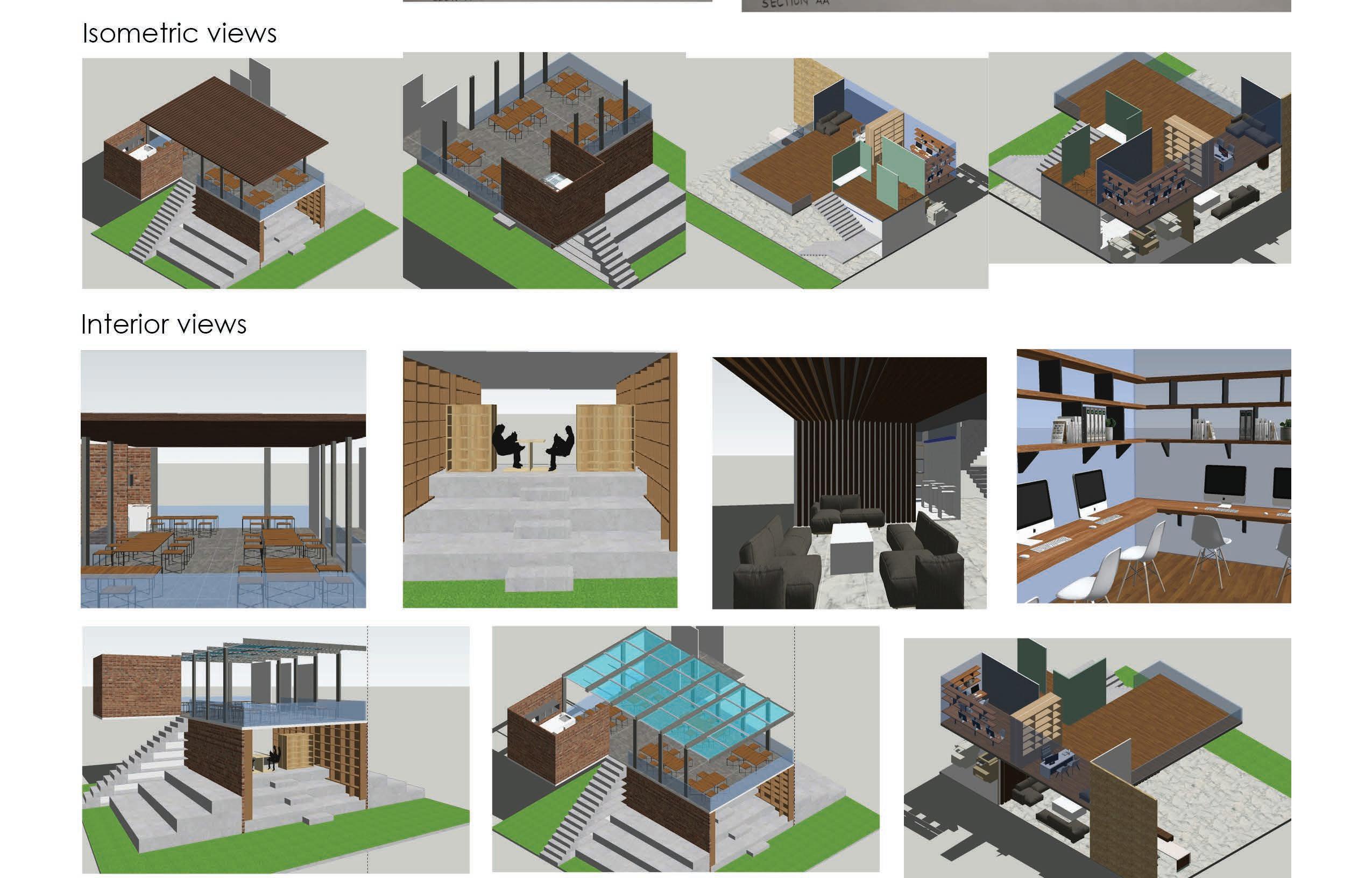

SPATIAL INQUIRES AND IMPRESSION 19

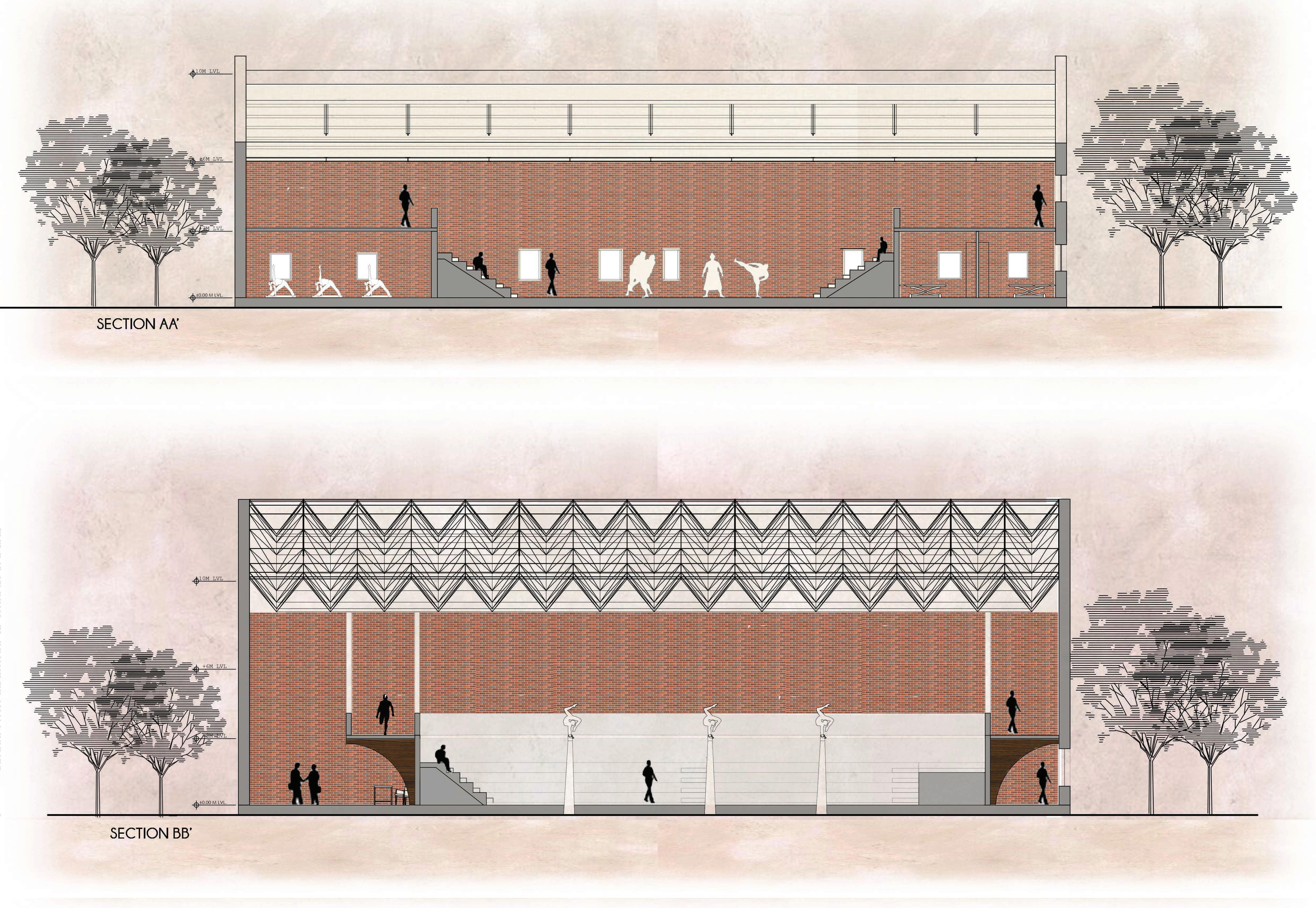

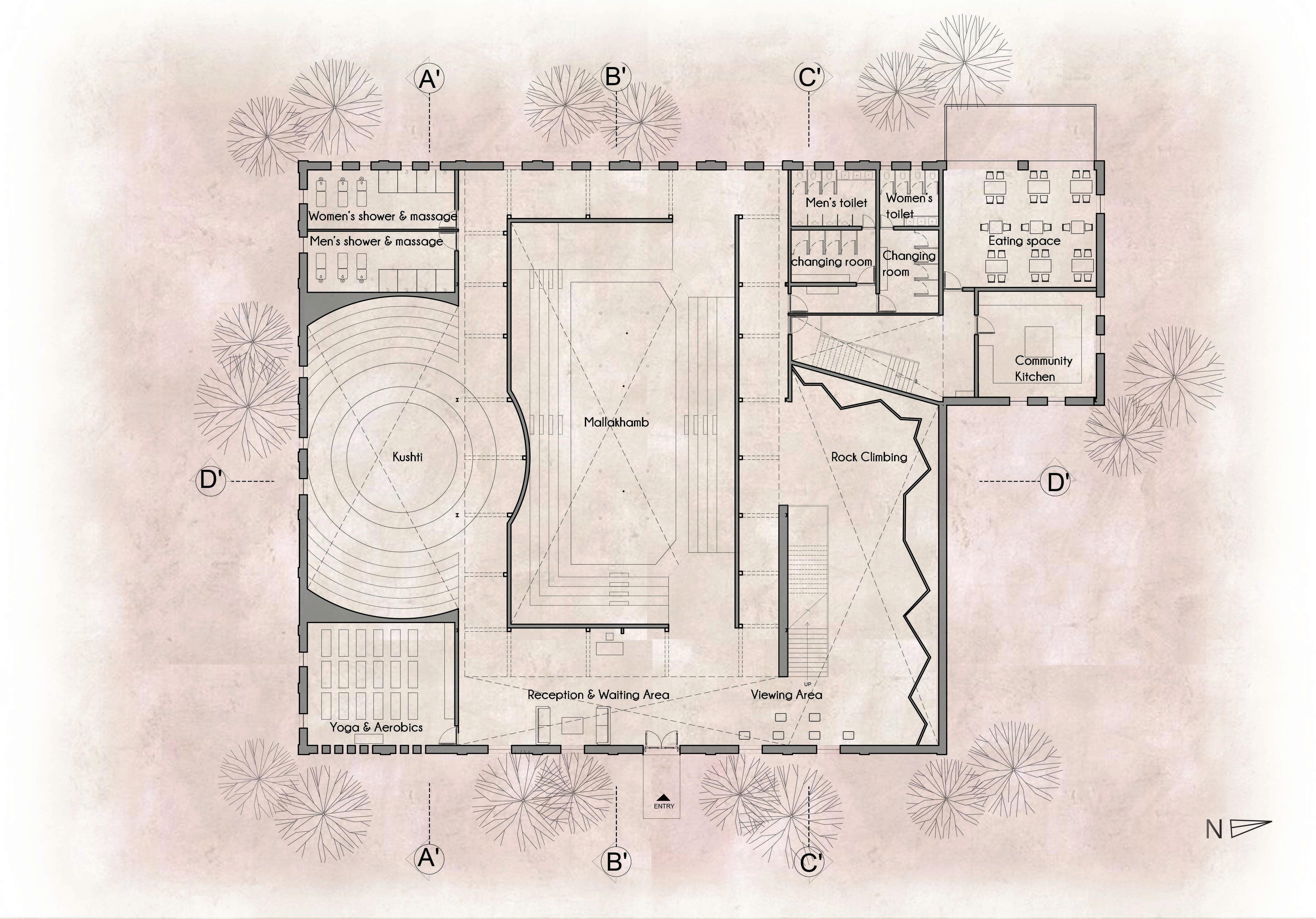

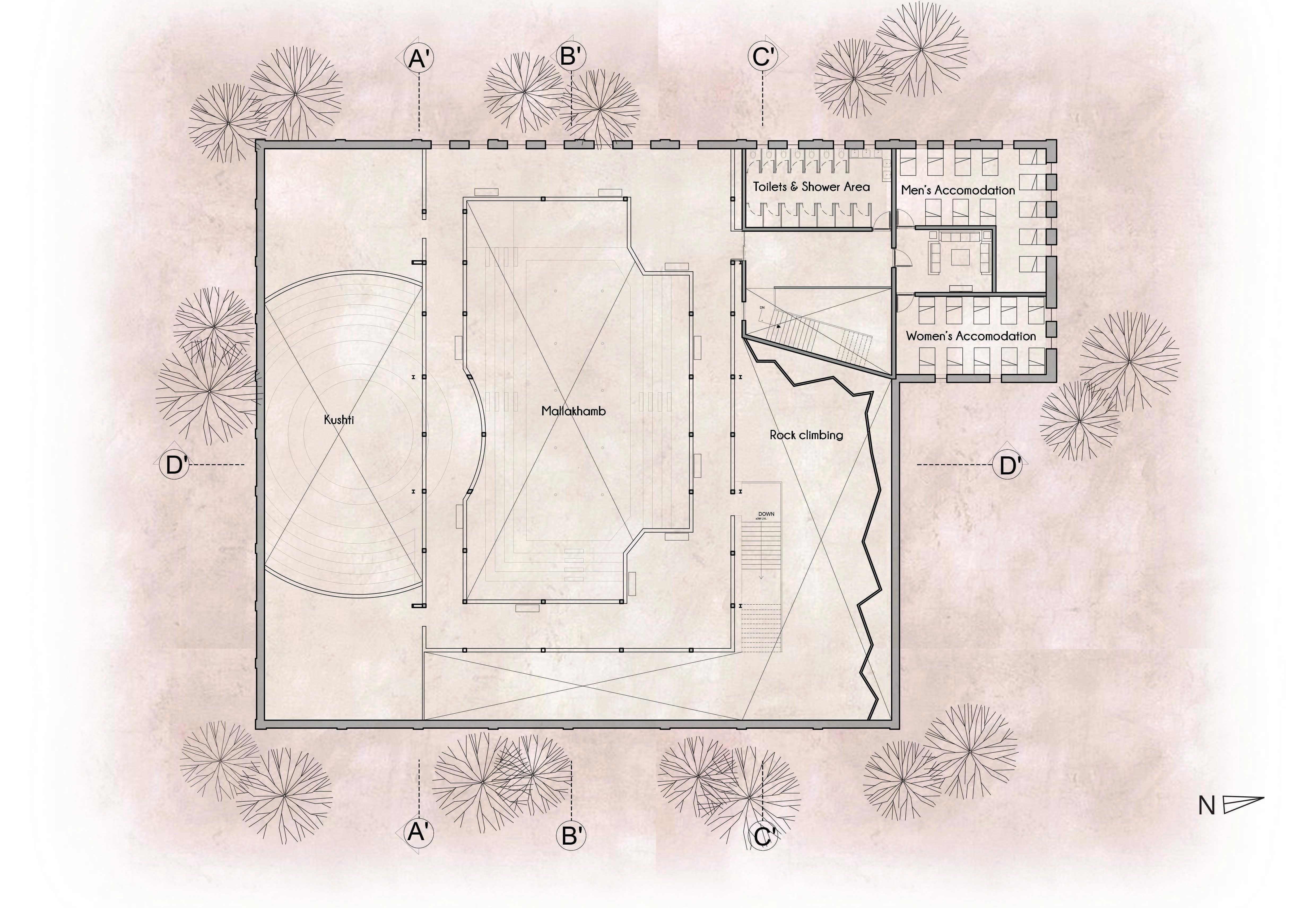

FLOOR PLAN 20
