PORTFOLIO
VINCENTREICONCEPCION
ARCHITECTURAL
2024
T A B L E O F C O N T E N T S
PROPOSED RESIDENTIAL HOUSE
PROPOSED RESIDENTIAL BUILDING
2-STOREY TOWNHOUSE WITH ATTIC
PROPOSED RESIDENTIAL COMPLEX
DESIDO COMMUNITY RESIDENCES
PROPOSED LANDSCAPING
SAUDADE ESPLANADE
PROPOSED COMMERICAL BUILDING BUNGALOW WITH ATTIC
HYPORYNE
LIFESTYLE MALL
1
2
3
4
5

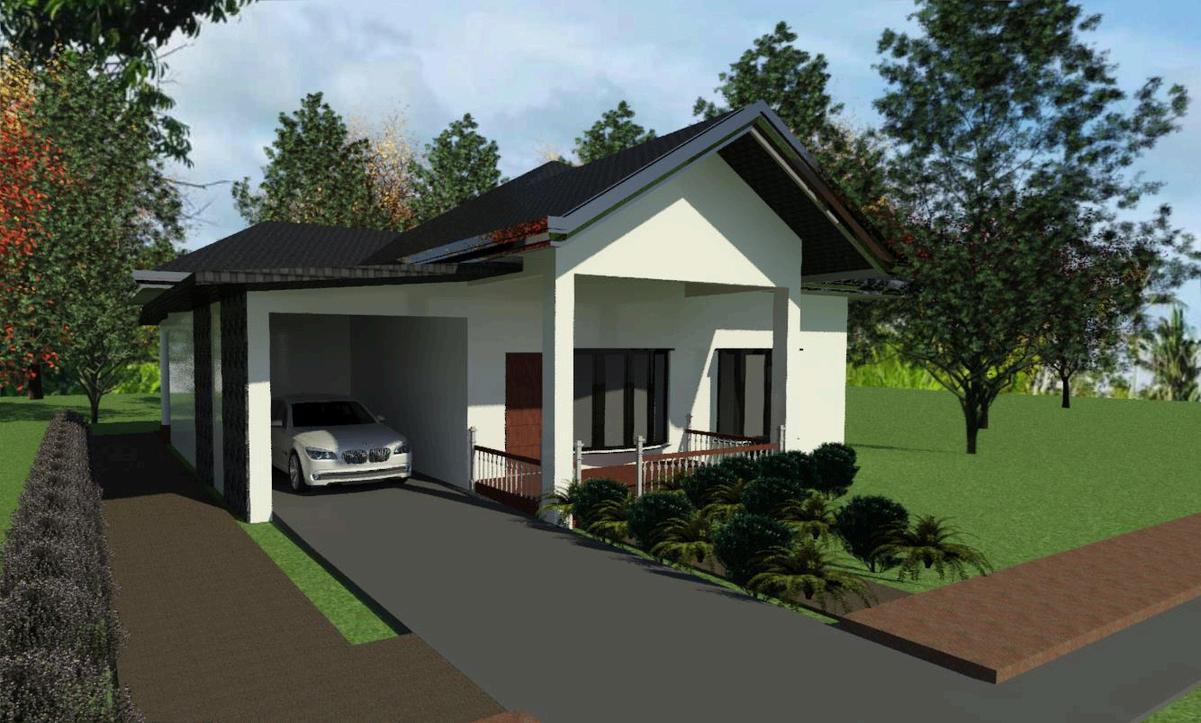

PROPOSED BUNGALOW WITH ATTIC
COMPUTER-AIDED DESIGN - REVIT: PRACTICE

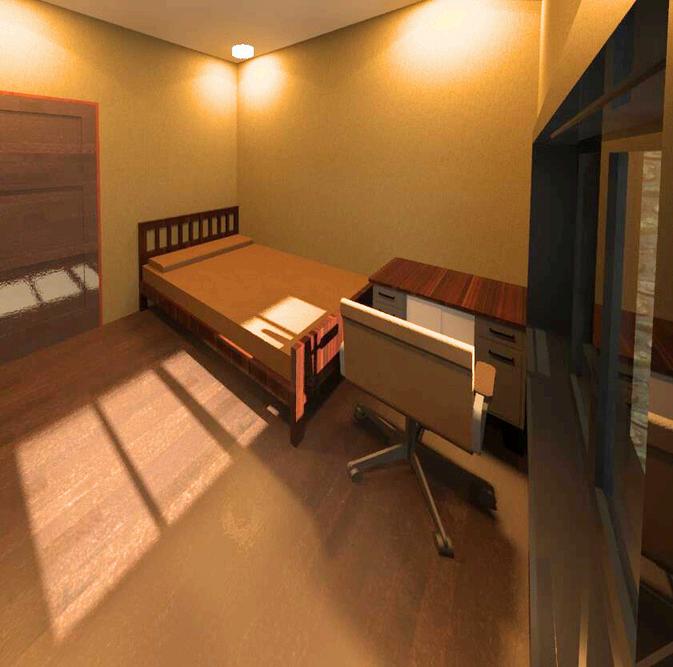

BEDROOM 1
BEDROOM 2
FRONT PORCH
LANAI
DINING AREA
LIVING AREA
T&B
KITCHEN
The Bungalow aims to capture a local and modern suburban appearance with its minimal design elements It serves as a functional residential house with the implementation of a carport, as well as a lanai to improve the quality of life of the users
An attic is implemented in the house to provide more space such as for storage and more circulation to make use of the surface floor area between the first floor and the roof
PROPOSED BUNGALOW WITH ATTIC

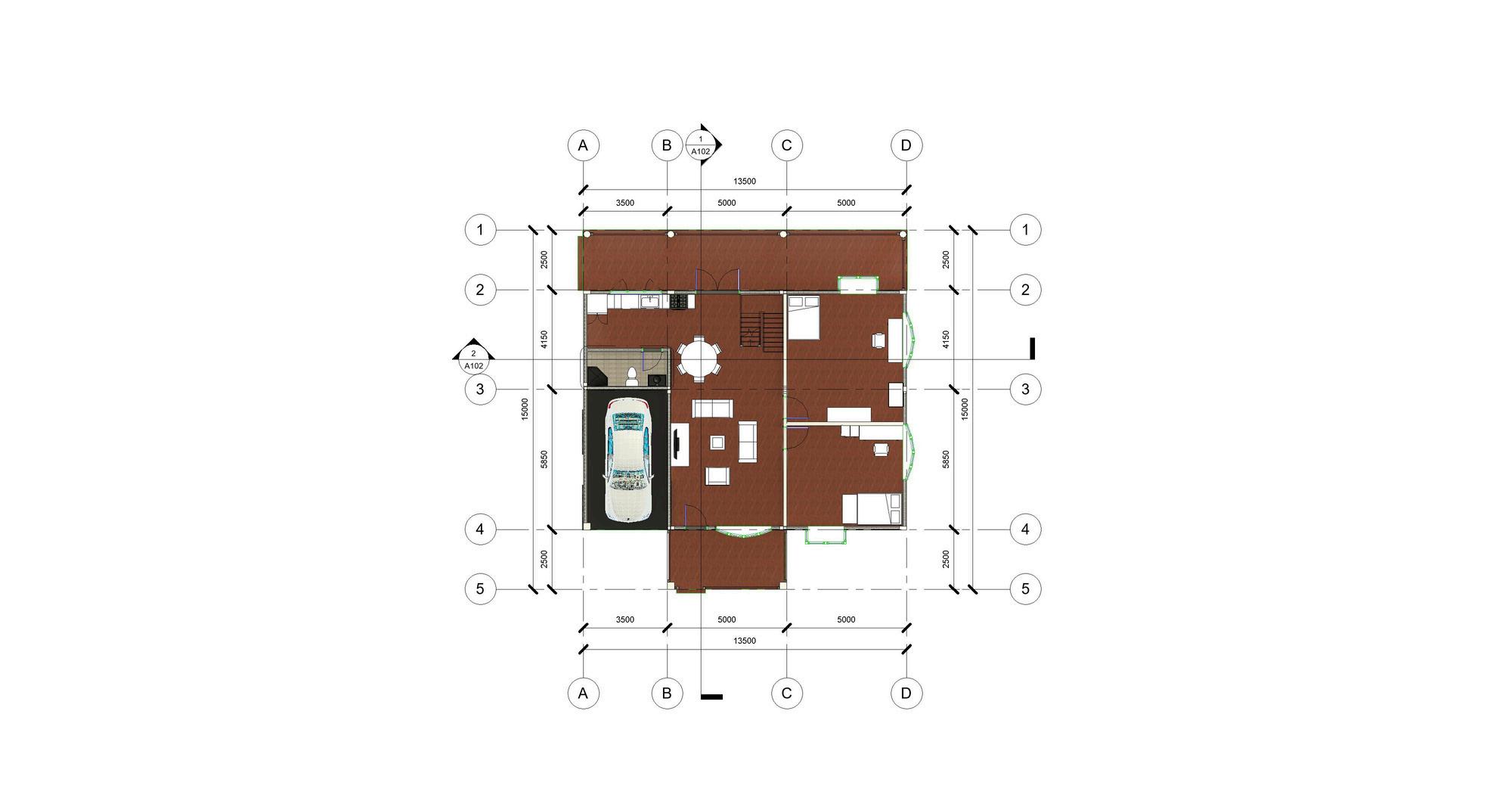

PLAN

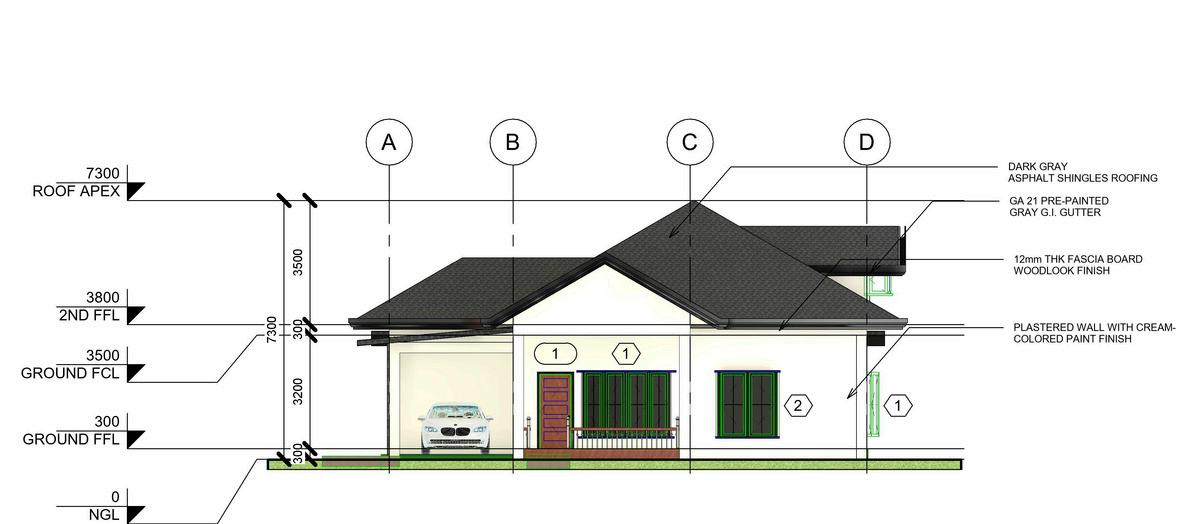

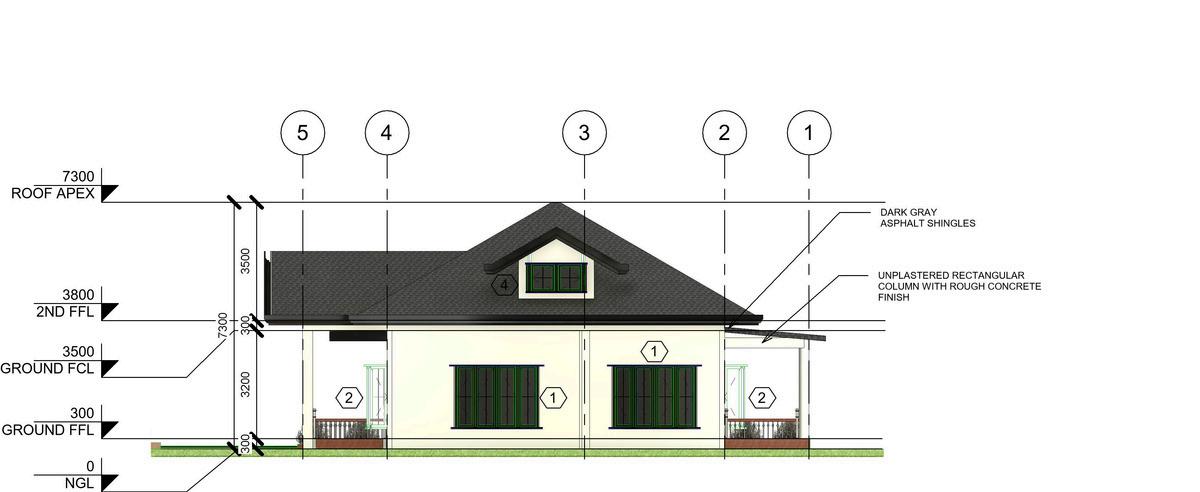

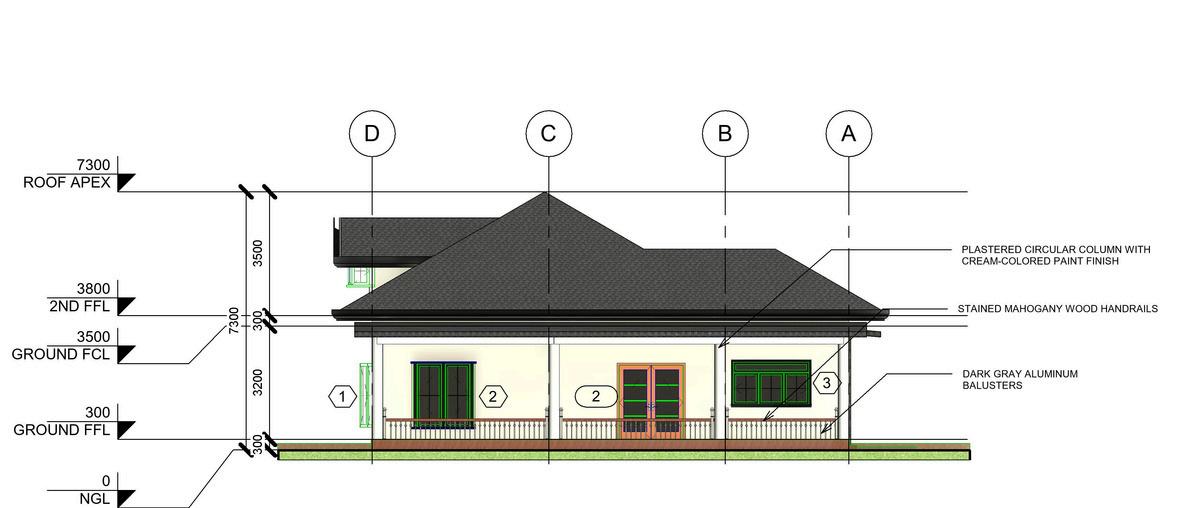

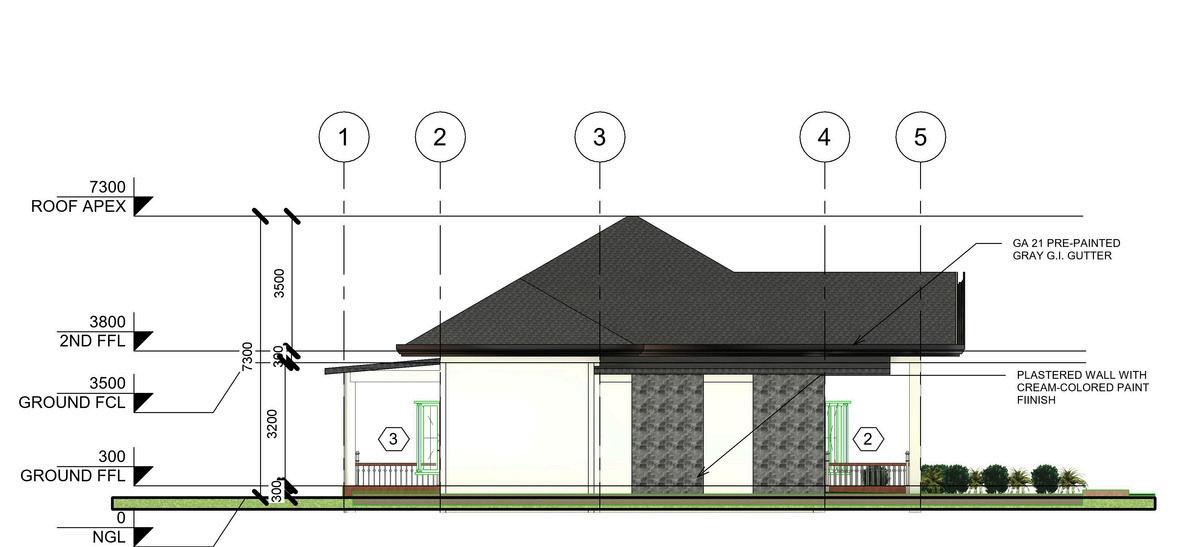

ELEVATION LEFT-SIDE ELEVATION REAR ELEVATION RIGHT-SIDE ELEVATION ATTIC

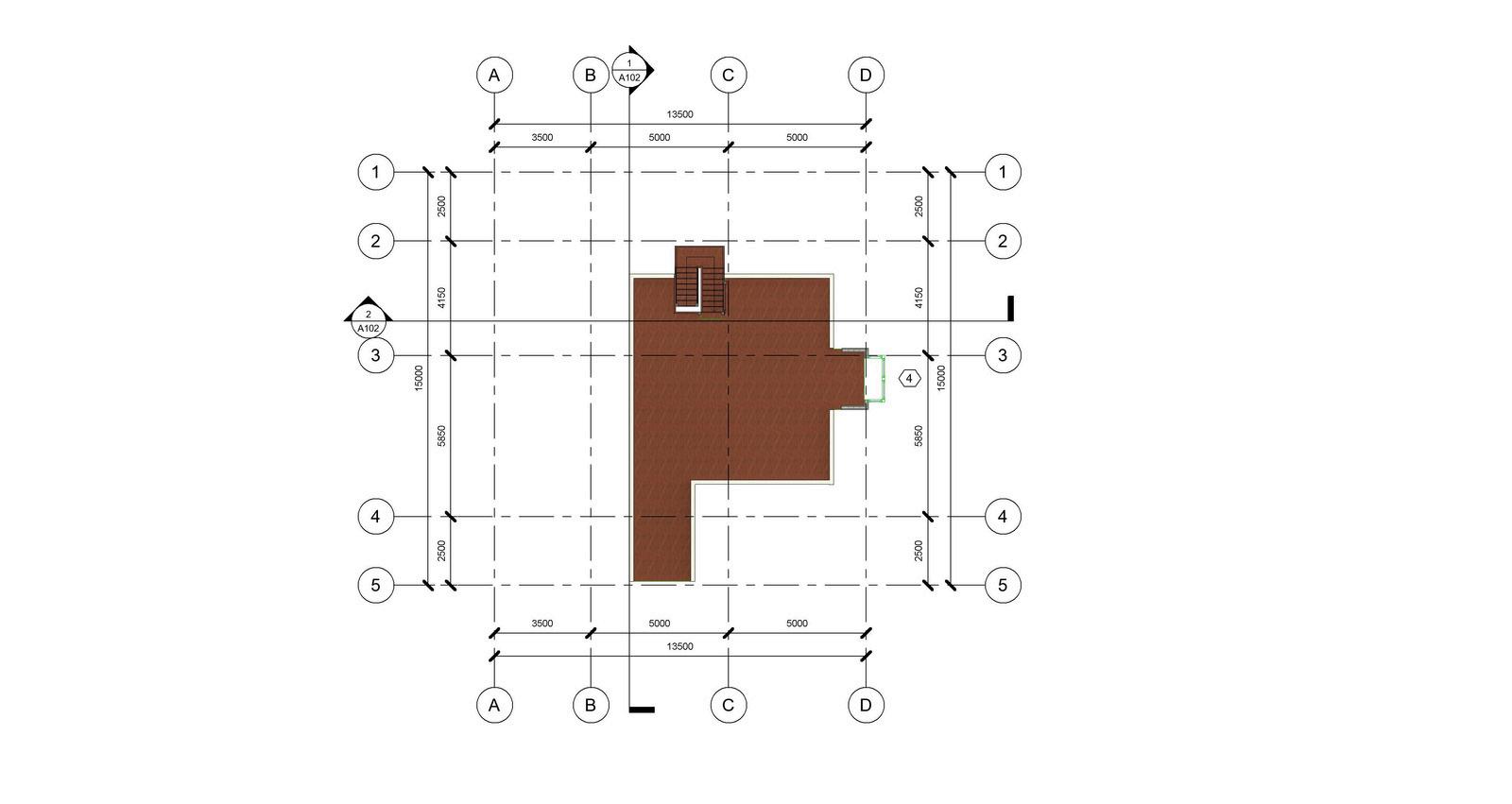

ATTIC
FRONT

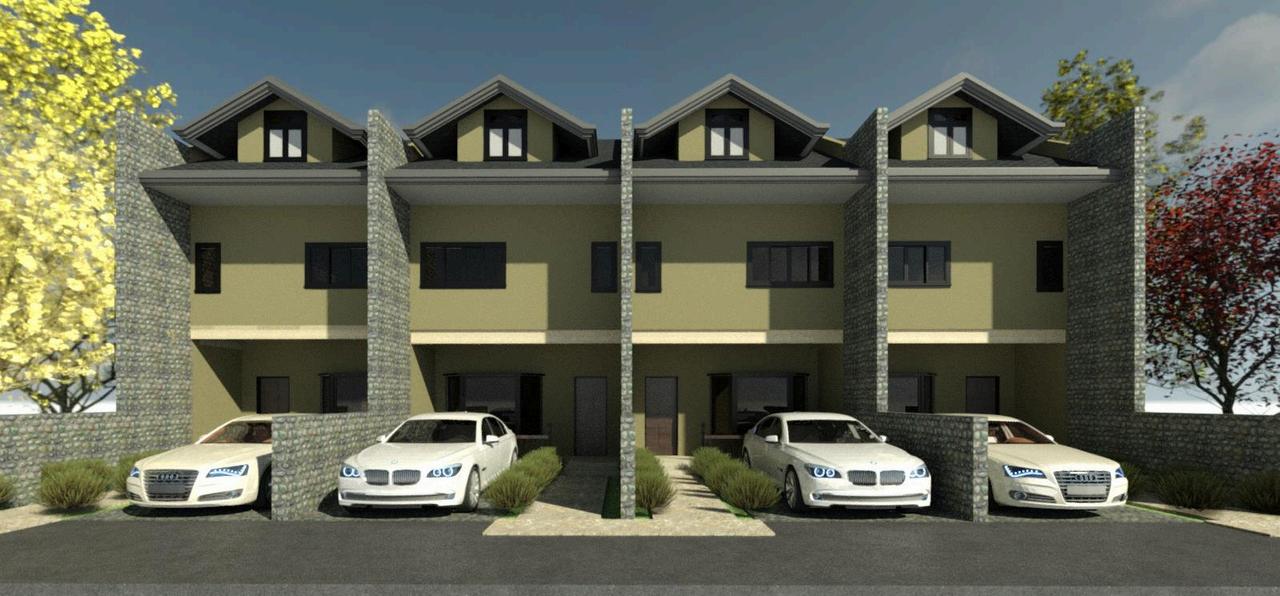

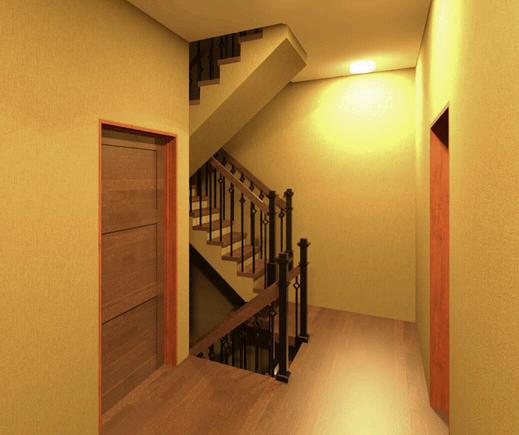

PROPOSED TWO-STOREY
TOWNHOUSE
COMPUTER-AIDED DESIGN - REVIT: FINAL PLATE

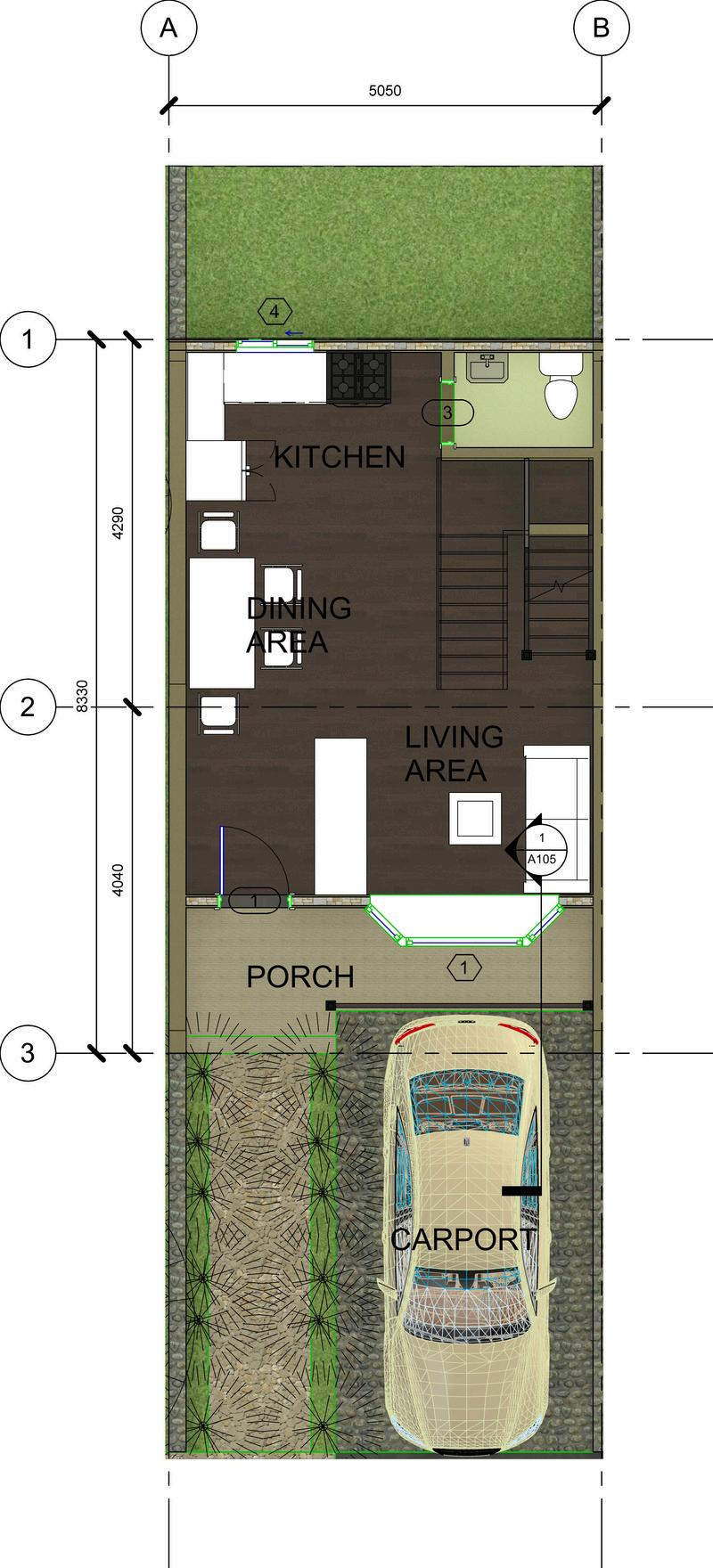

UNIT BLOW-UP PLAN

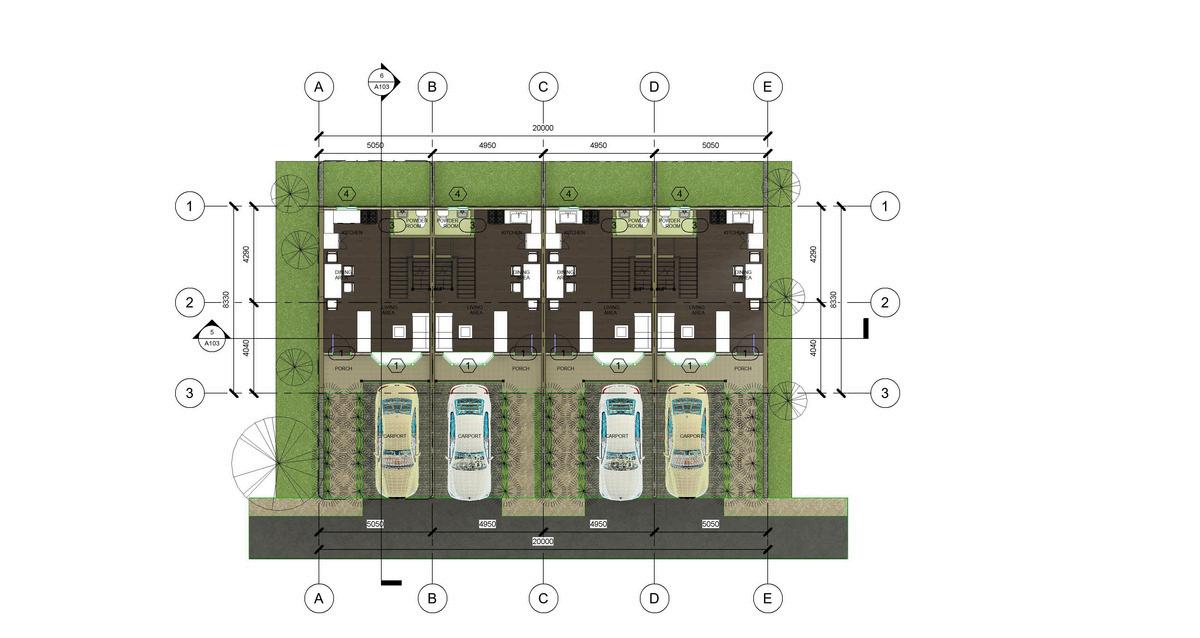

GROUND FLOOR

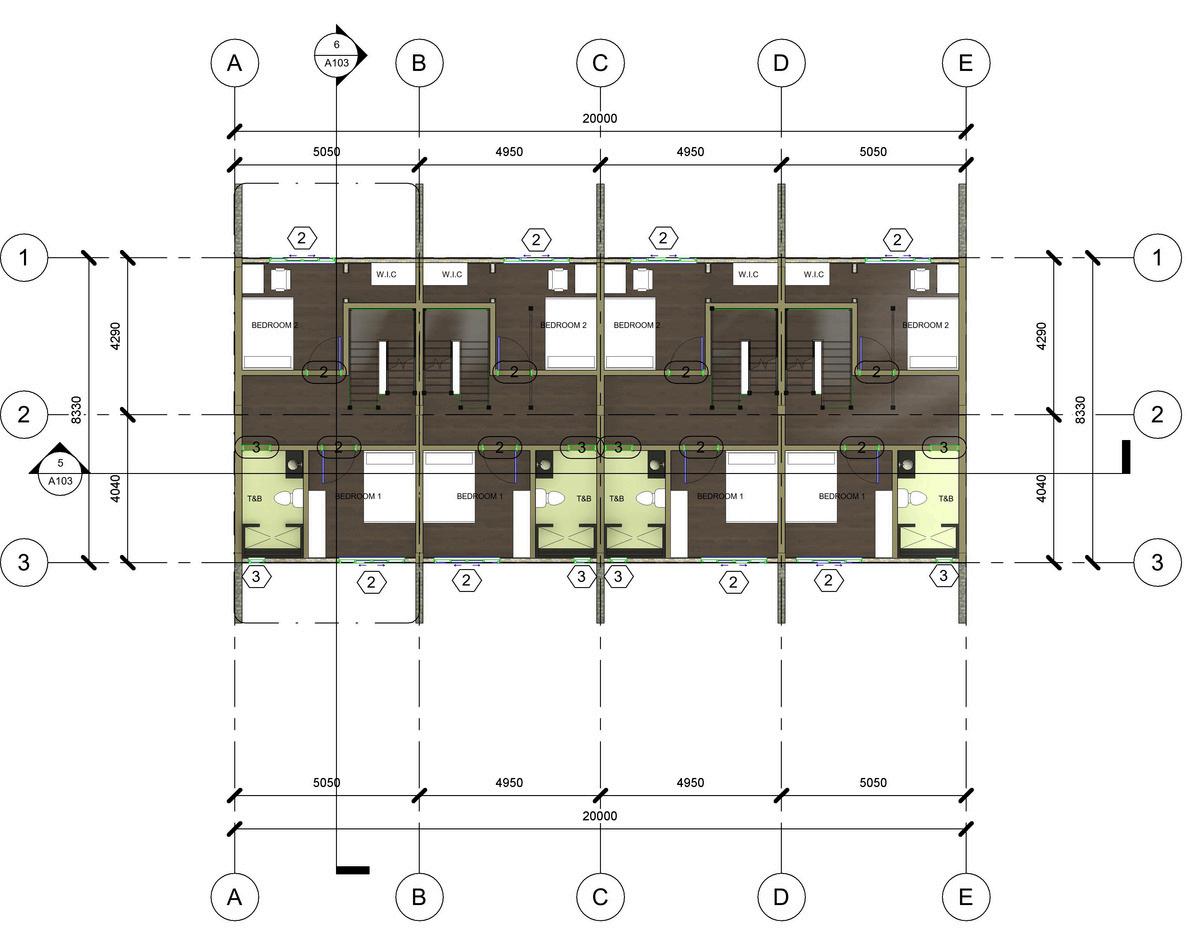

PLAN 2ND FLOOR PLAN

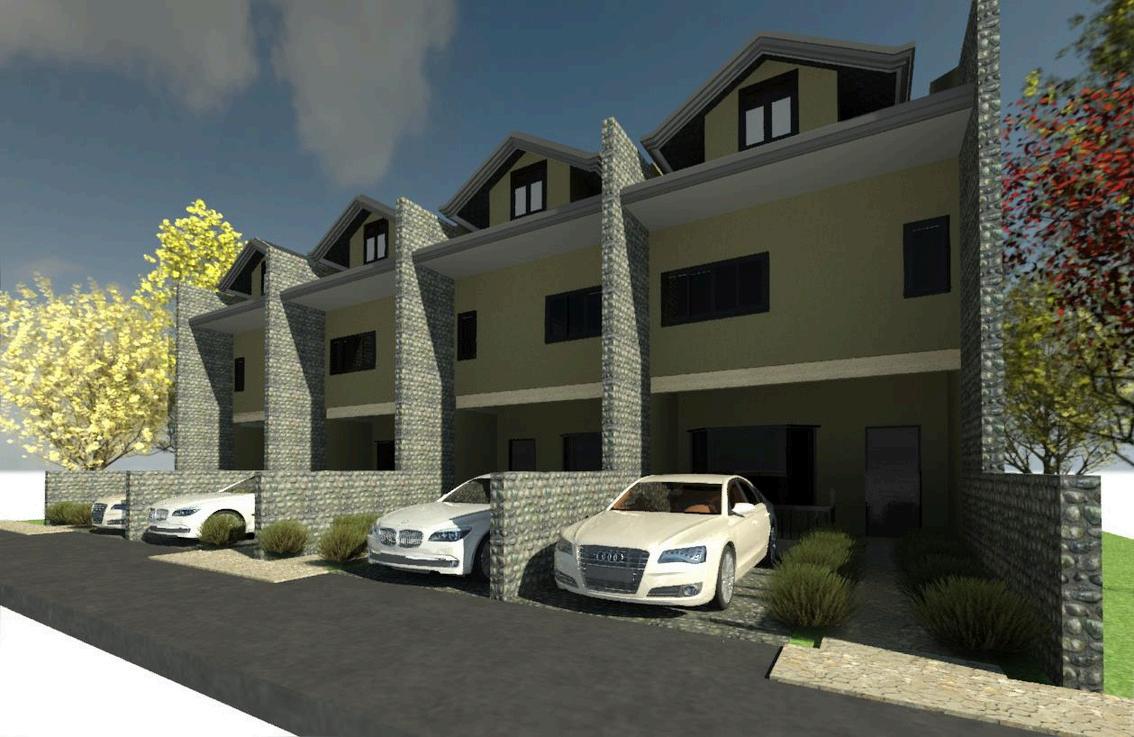

The building is a socialized complex that objects a functional and healthy living space for its users. It consists of four two-storey units with an additional attic to maximize the spaces of living
PROPOSED TWO-STOREY TOWNHOUSE ATTIC

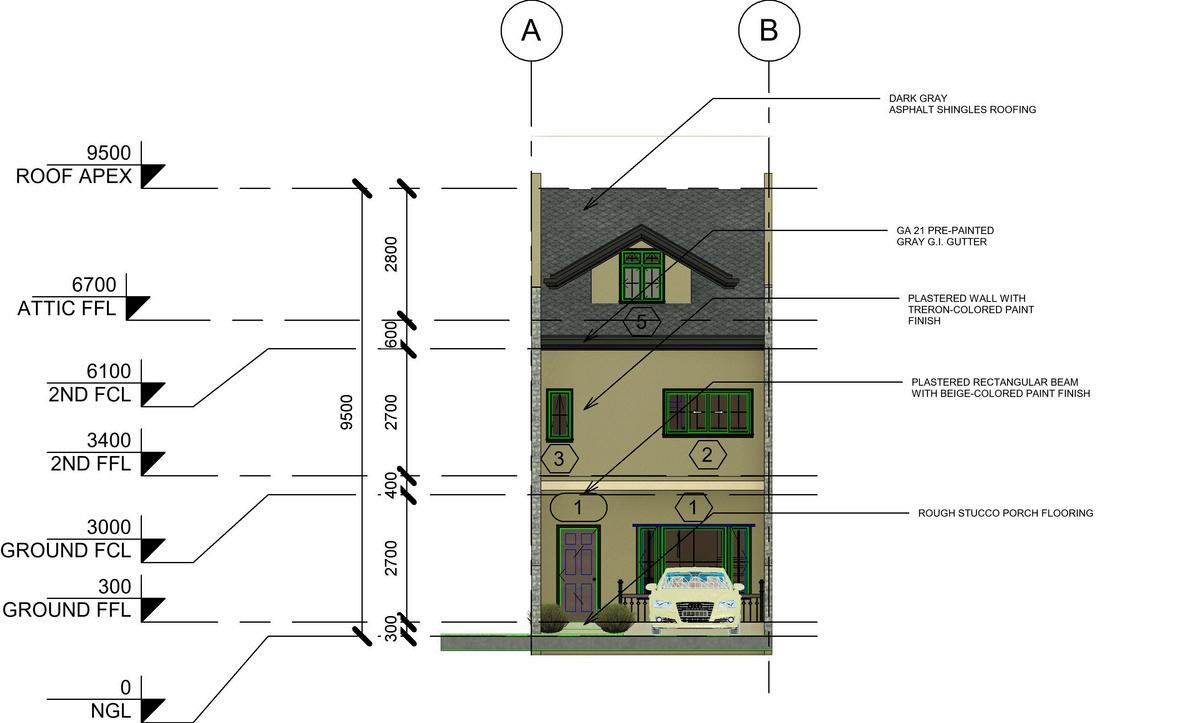

FRONT ELEVATION

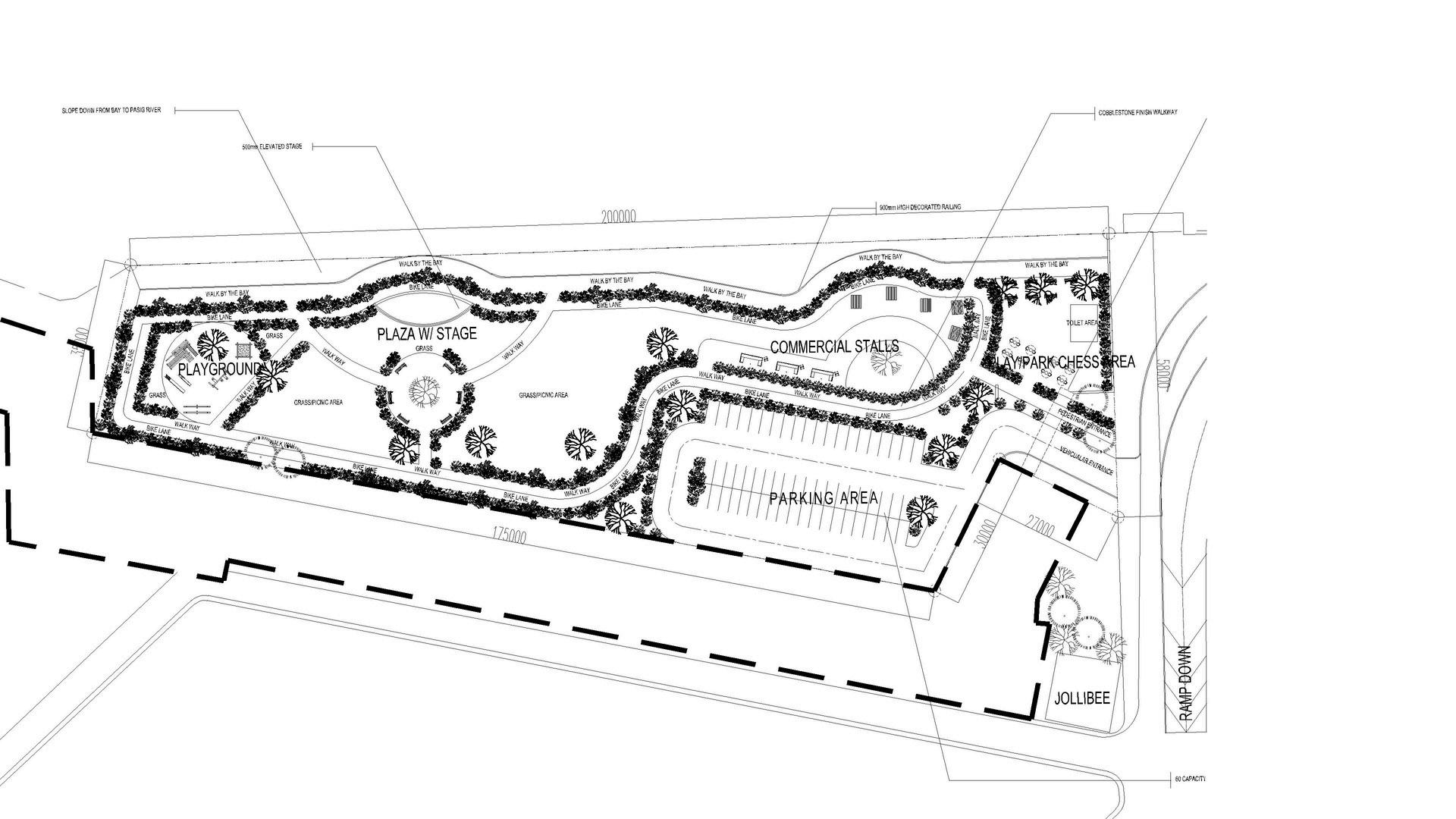

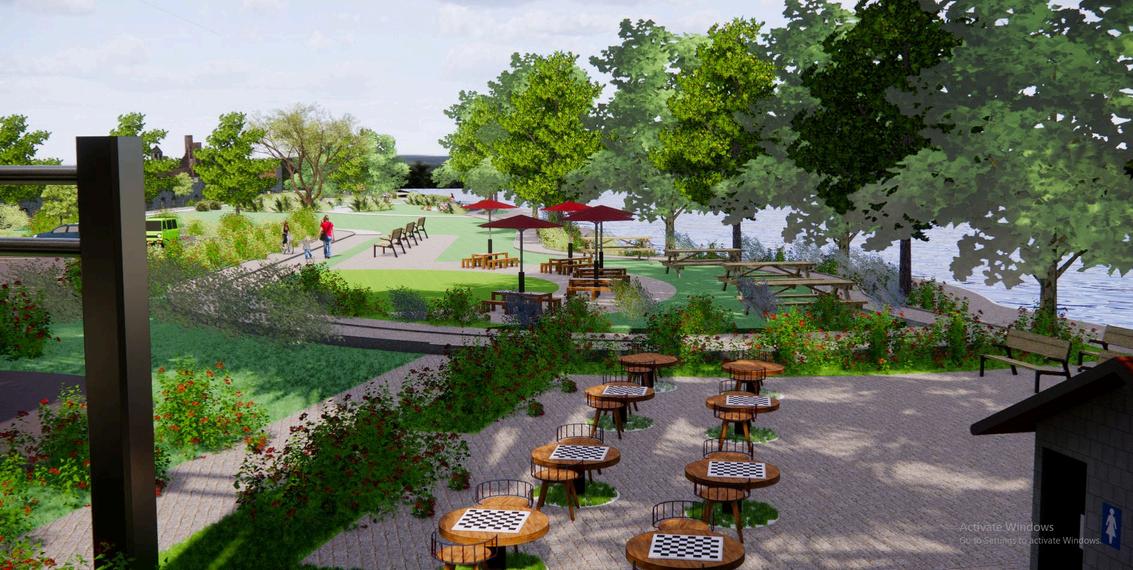

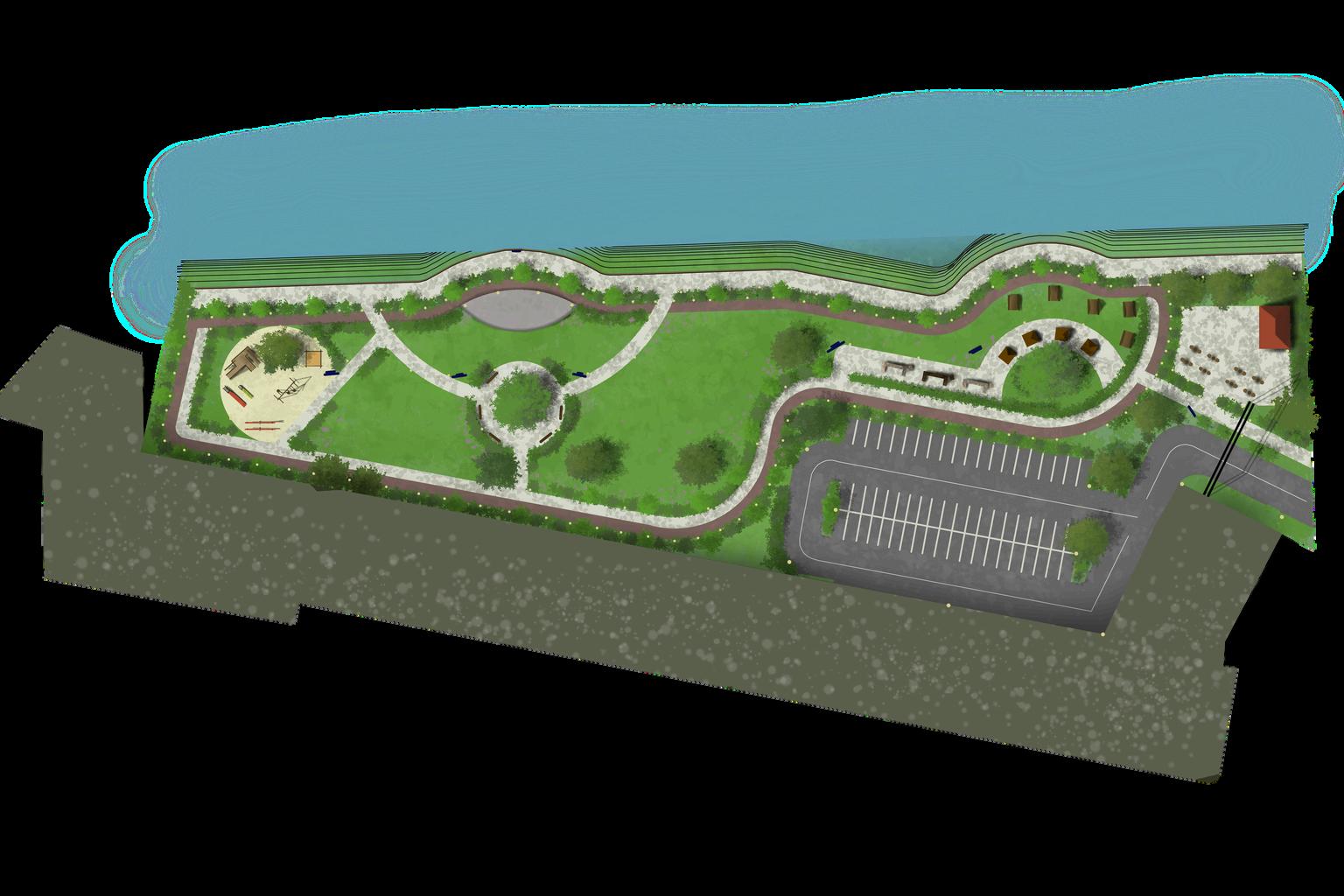

SAUDADE ESPLANADE
PLANNING: FINAL PLATE (COLLABORATION)

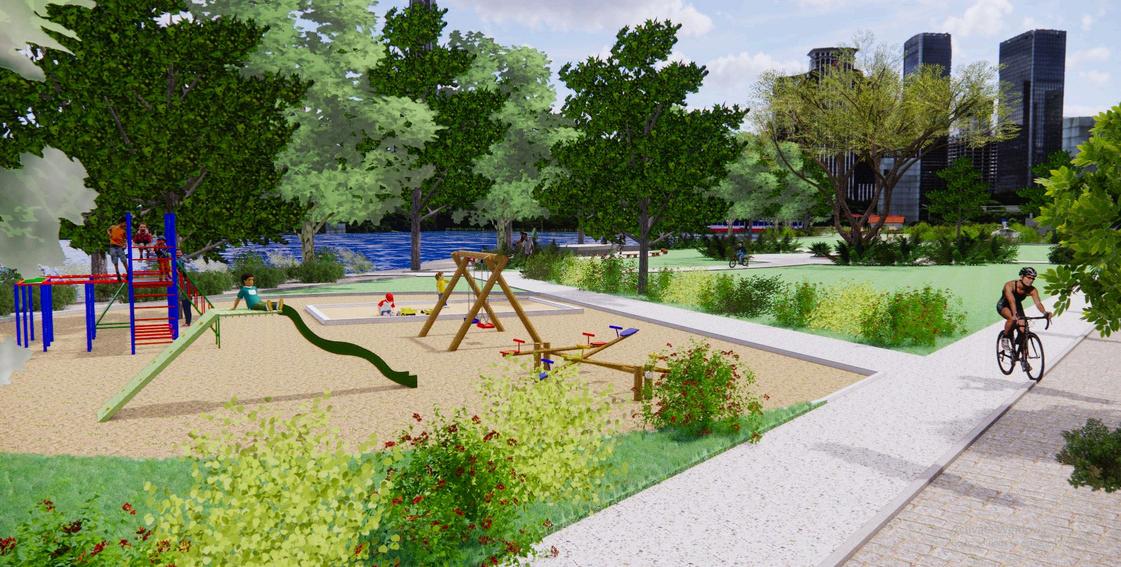

The Saudade Esplanade aims to capture the concept of heritage conservation, as well as integrating modern elements in architecture and design With the site being established at the edge of Intramuros, the design provides a harmony of not only having to appreciate the historical architecture of the area and the Pasig river as it also provides a functional open space to the public

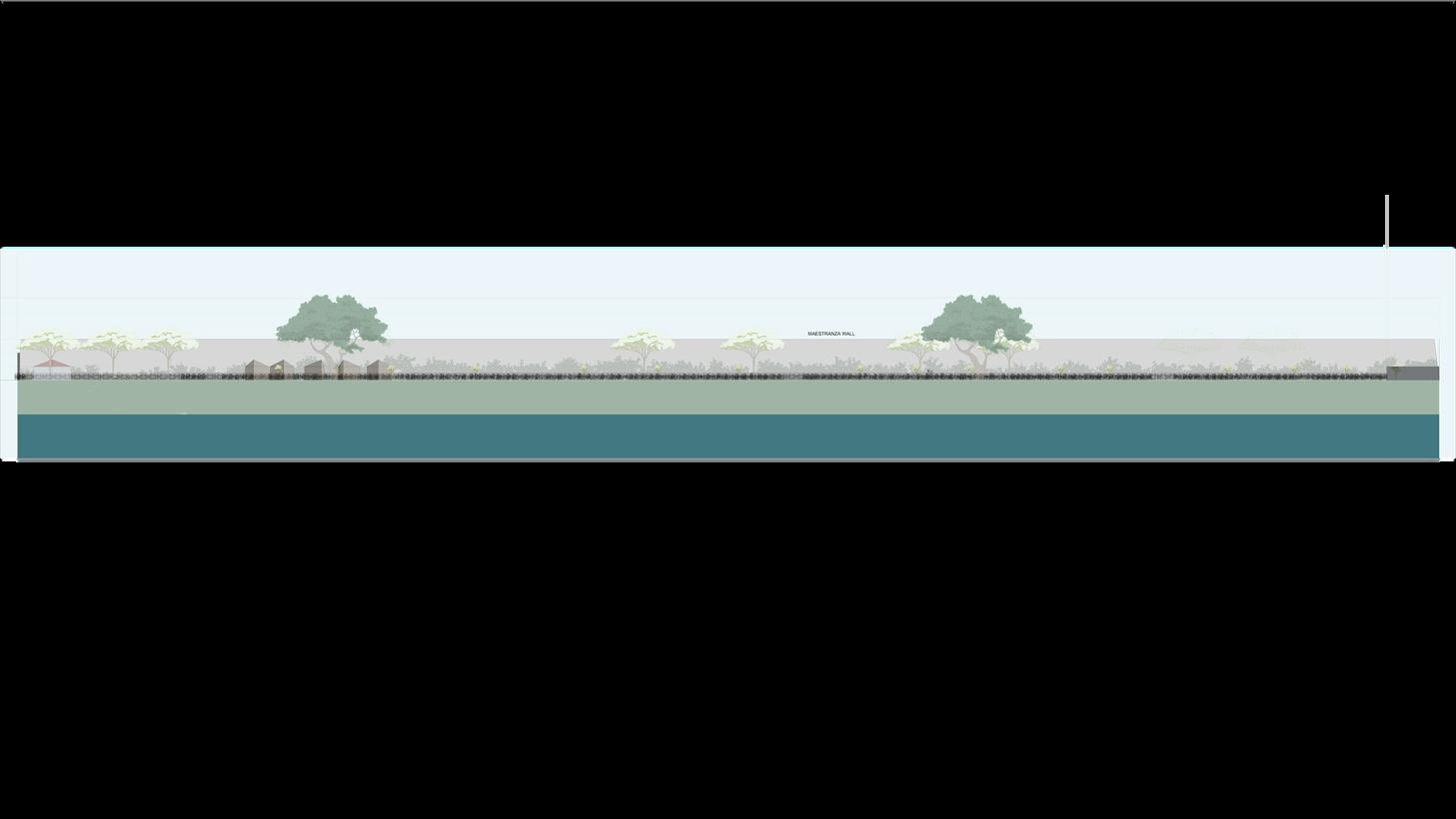

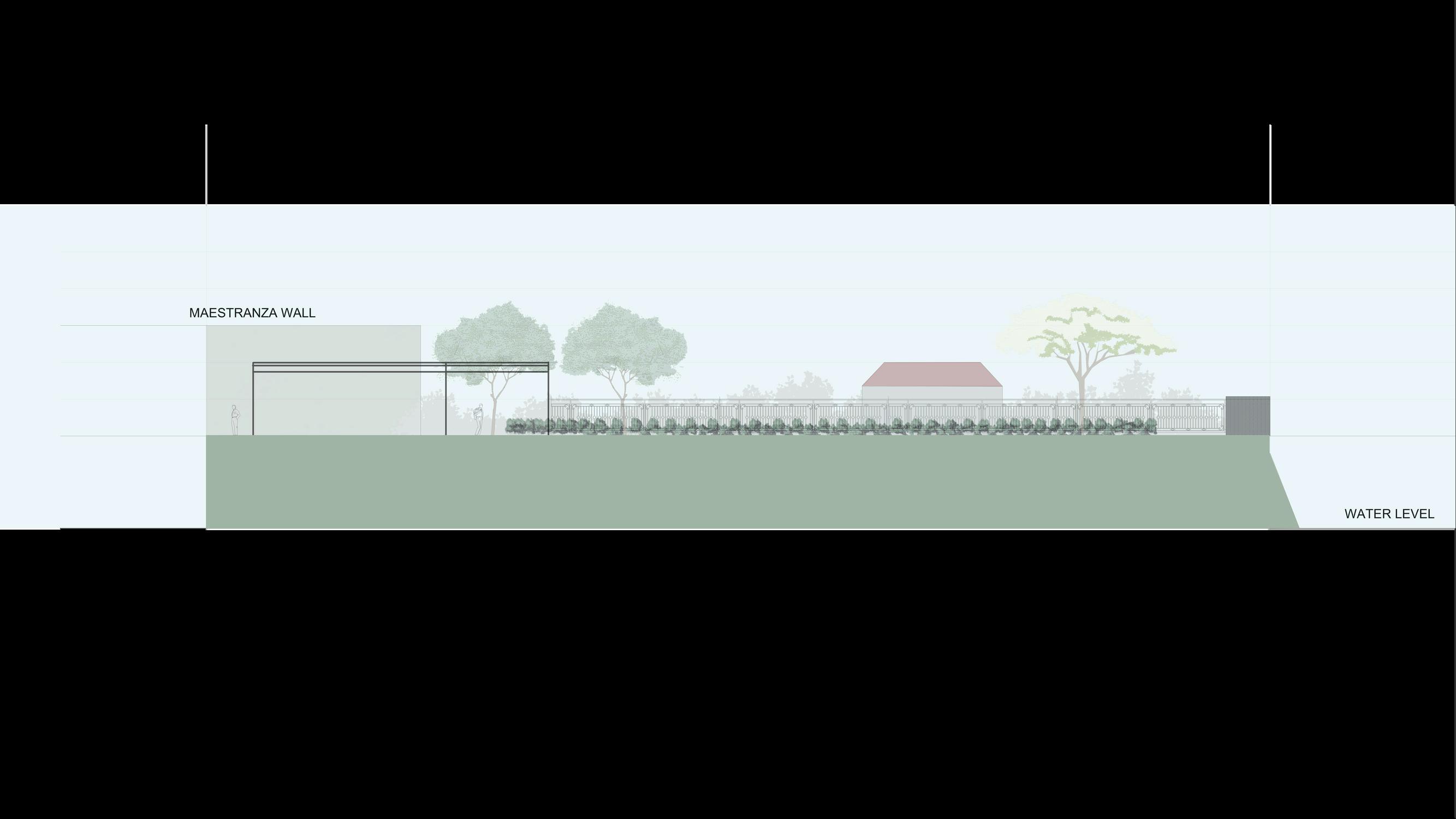

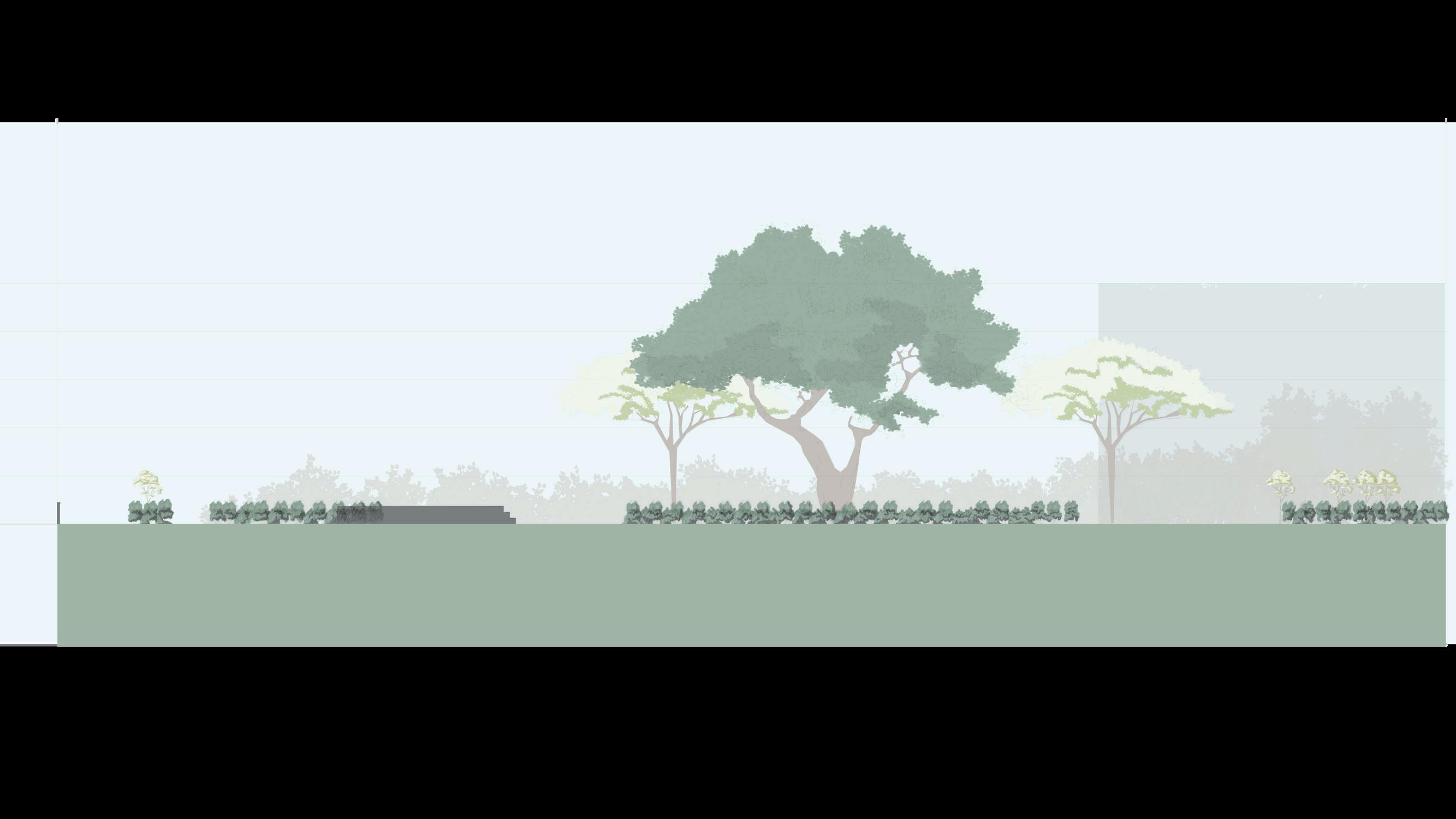

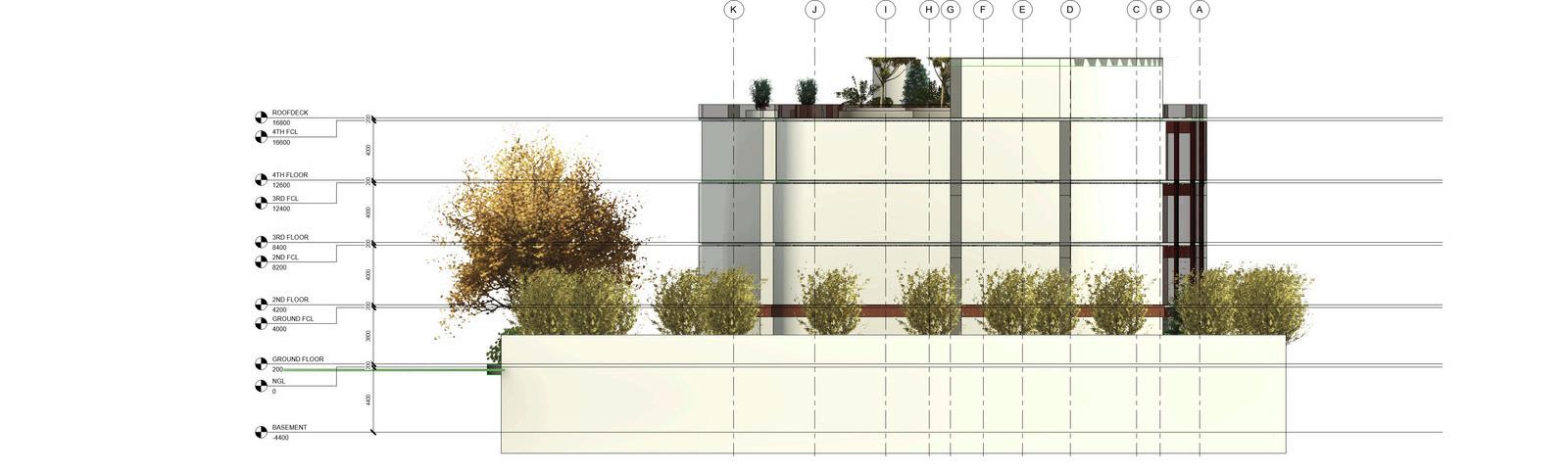

F R O N T E L E V A T I O N S I D E E L E V A T I O N C R O S S S E C T I O N
SAUDADE ESPLANADE

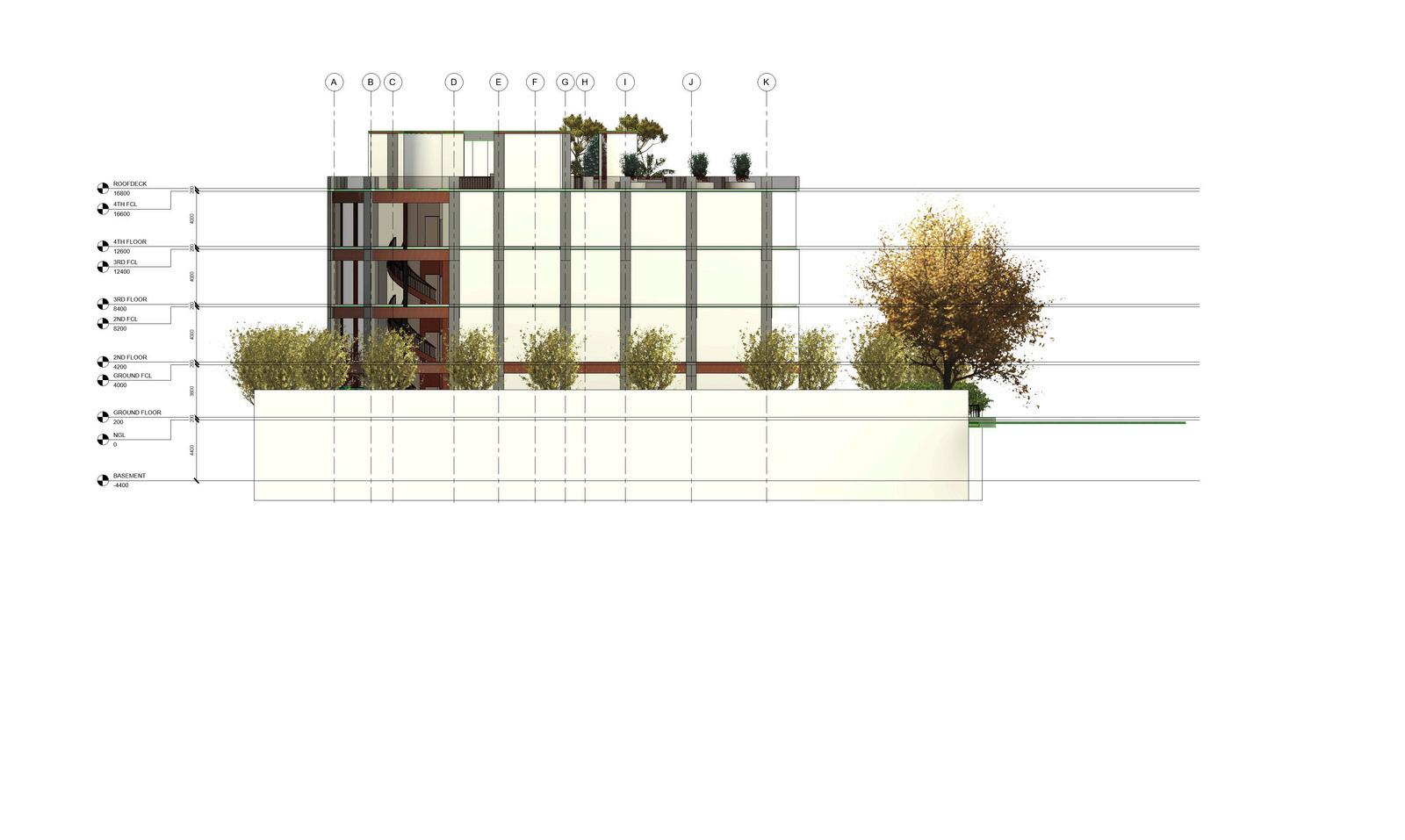

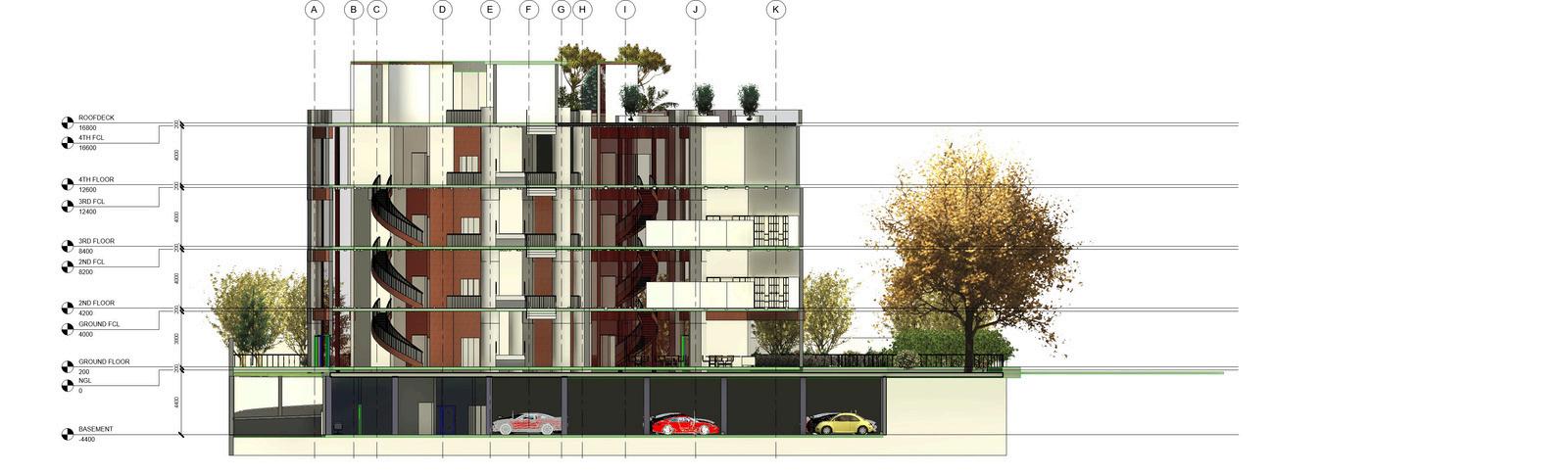

DESIDO COMMUNITY RESIDENCES
ARCHITECTURAL DESIGN 6: MIDTERM PLATE (COLLABORATION)

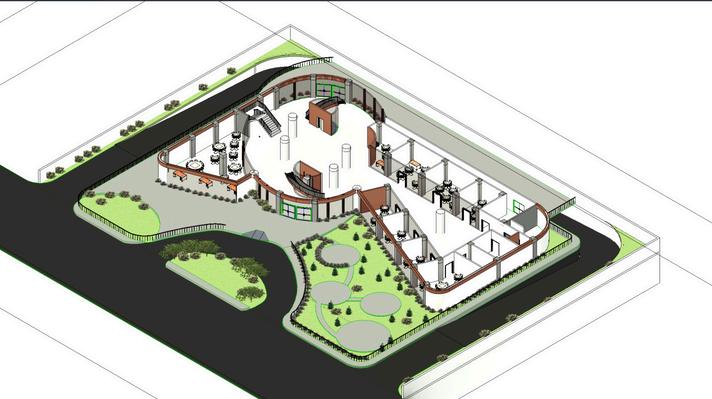

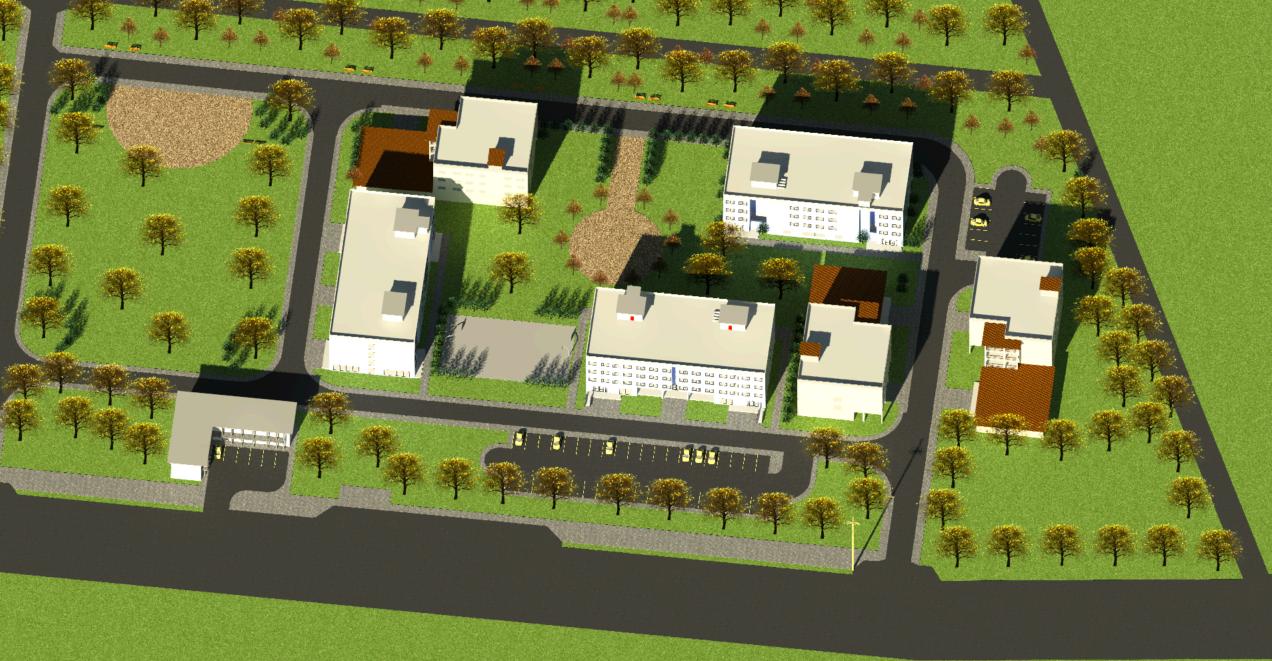

The proposed Desido Community Residences property is a Middle Income Mixed-Use Development It is to create a lively, welcoming neighborhood while offering sustainable, affordable housing options This low-rise development prioritizes social interaction, accessibility, and environmental sustainability

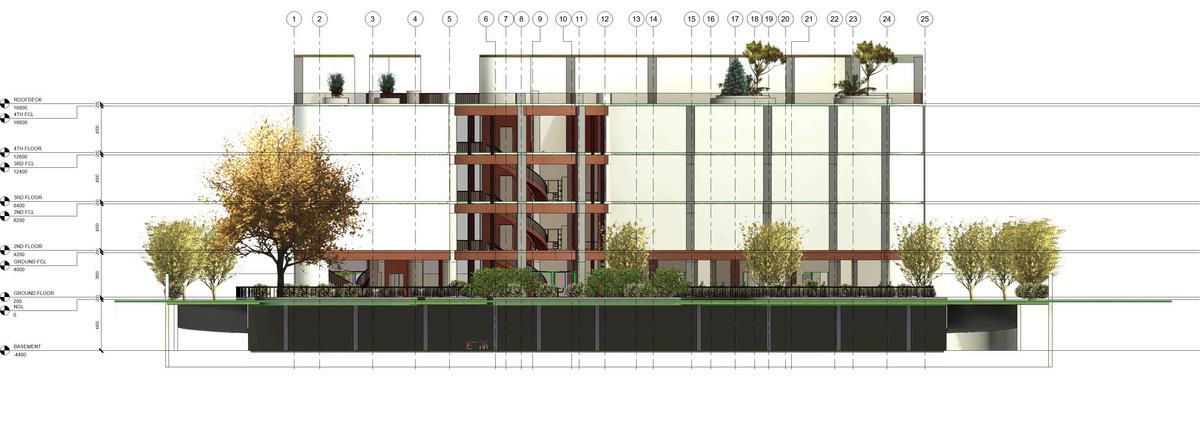

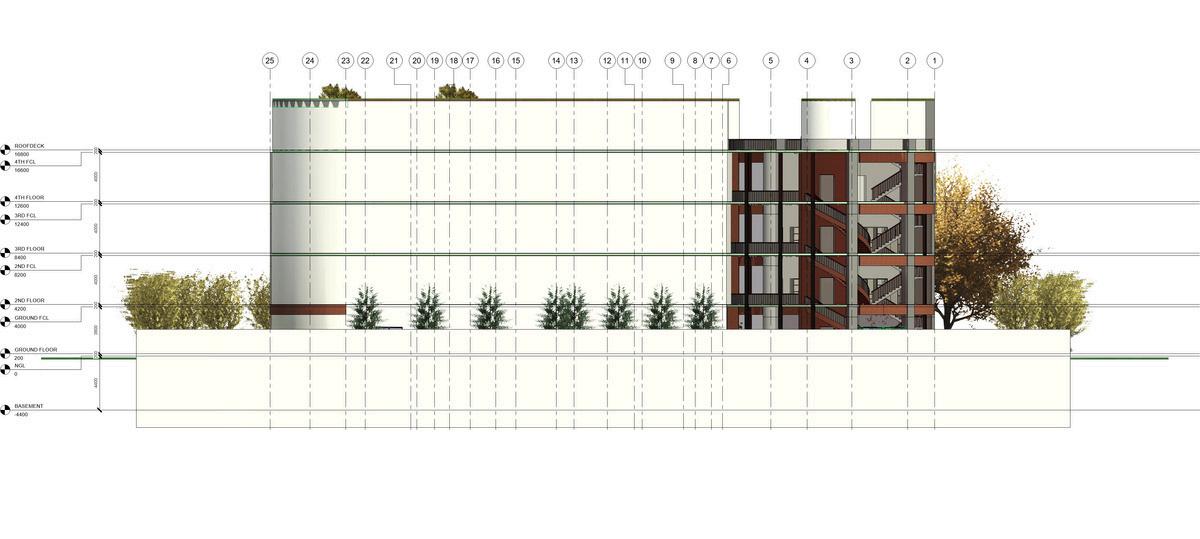

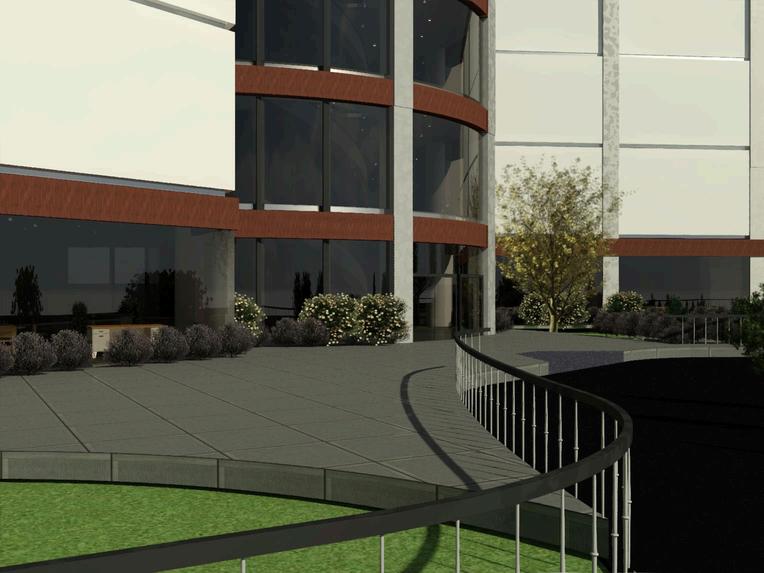

HYPERONE LIFESTYLE MALL
ARCHITECTURAL DESIGN 6: FINAL PLATE (COLLABORATION)

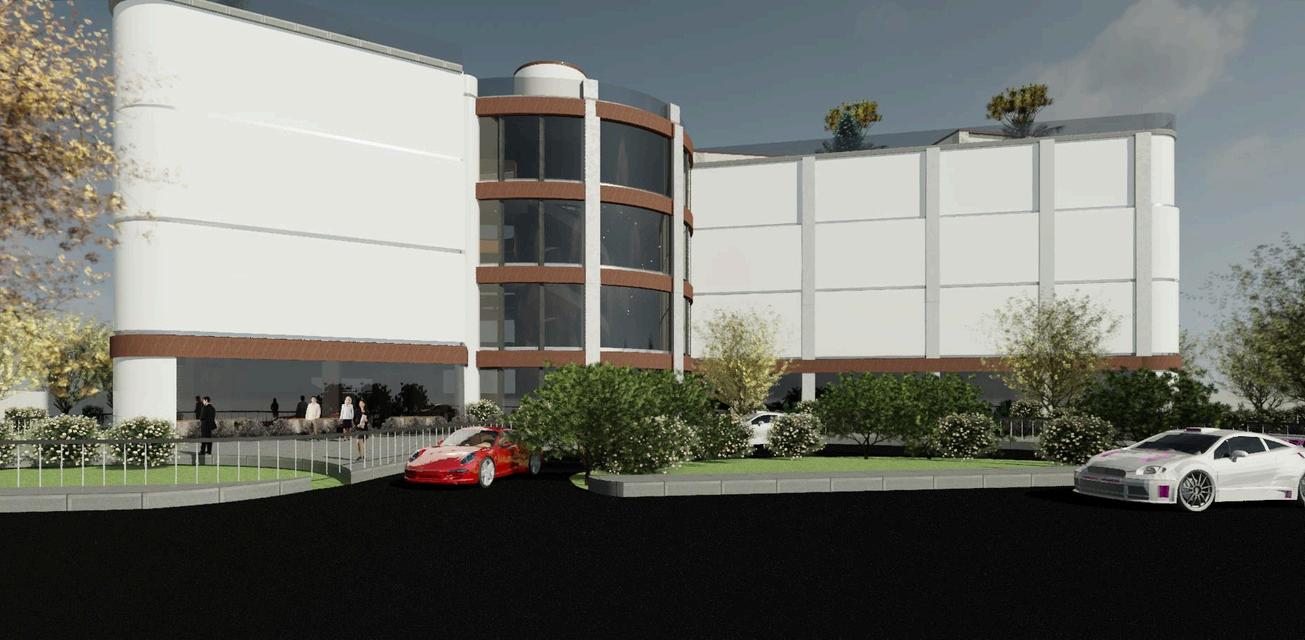

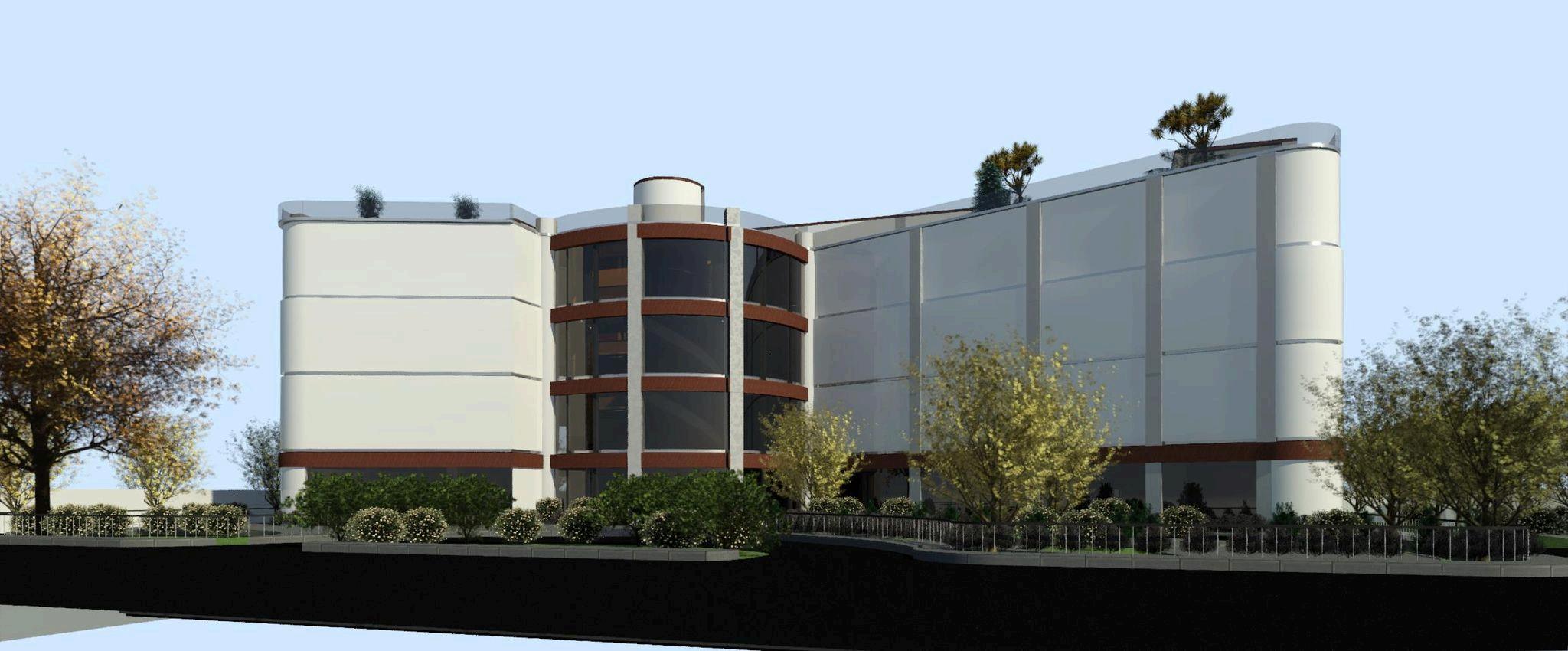

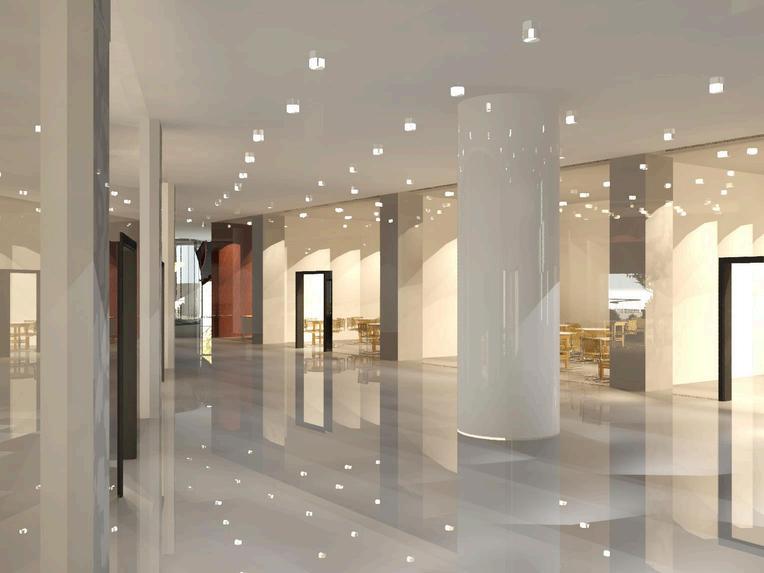

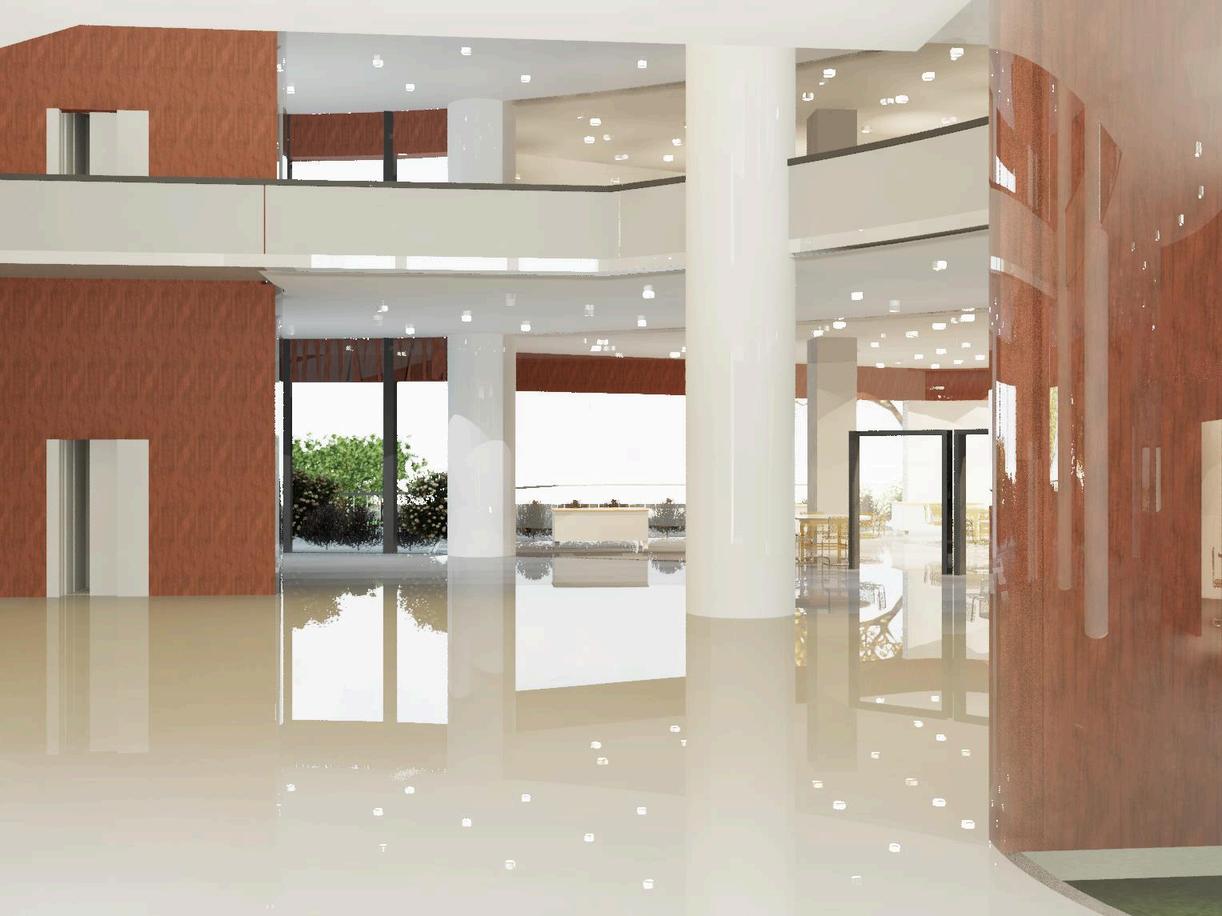

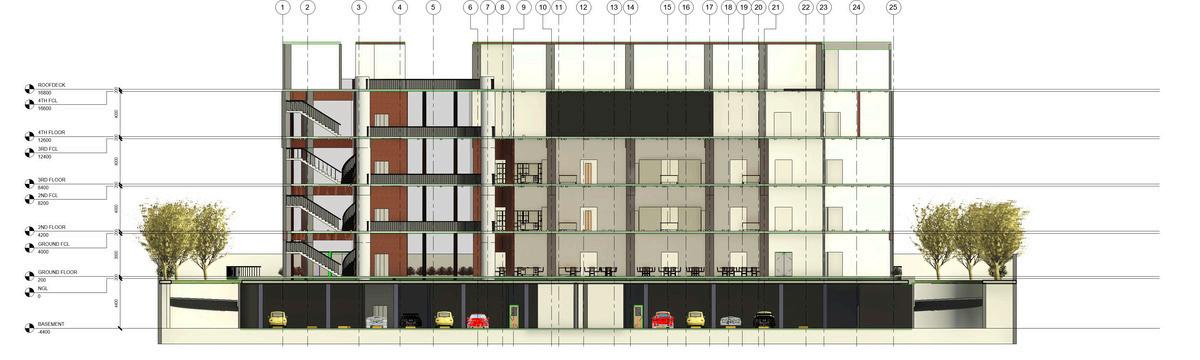

The Hyperone Lifestyle Mall is a proposed development that is located at Katipunan Ave Quezon City The mall focuses on the user-centric approach with eco-friendly design where in not only does it benefit the environment but also with optimizing its sustainability especially in the energy consumption of the structure. The proposed structure aims to foster a vibrant community space that caters to any user needs and any demographic

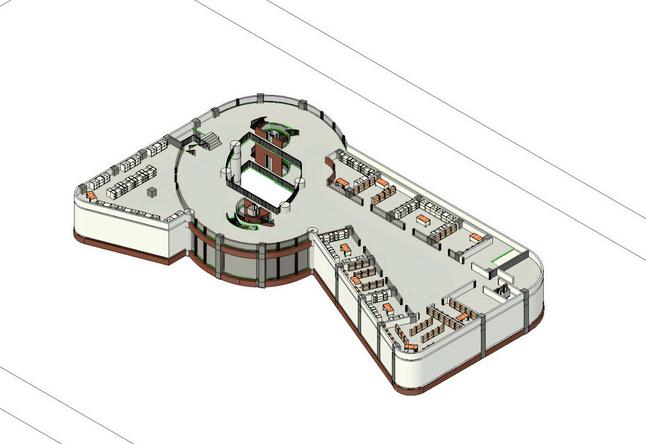

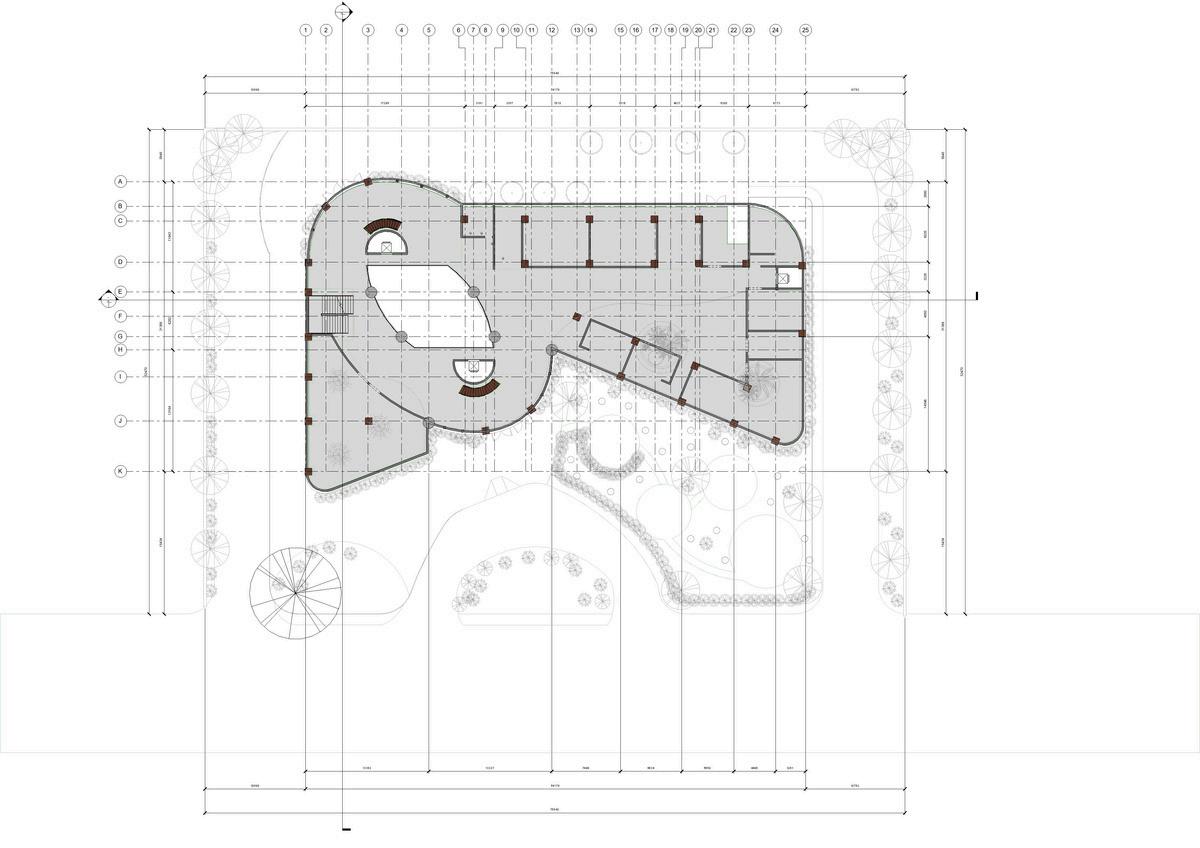

TYPICAL MALL FLOOR PLAN

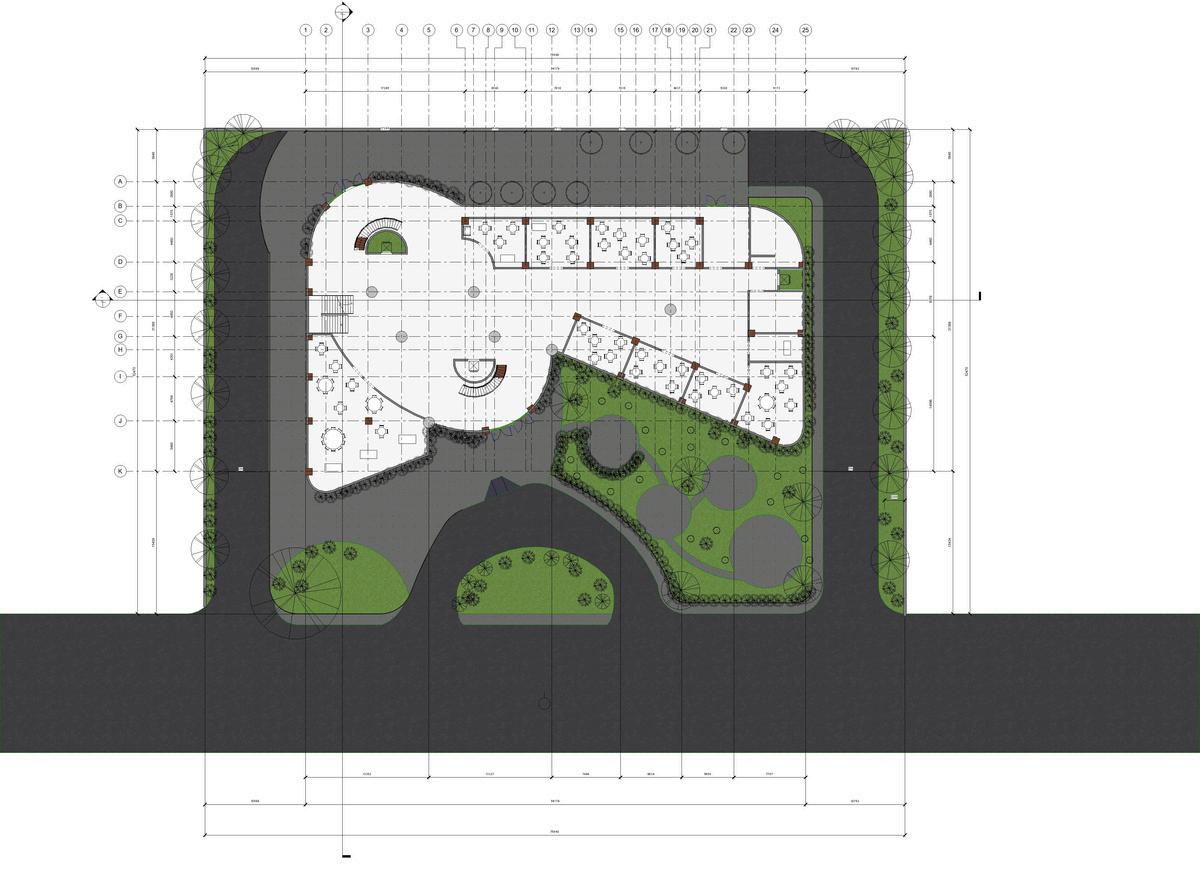

GROUND FLOOR PLAN
GROUND FLOOR

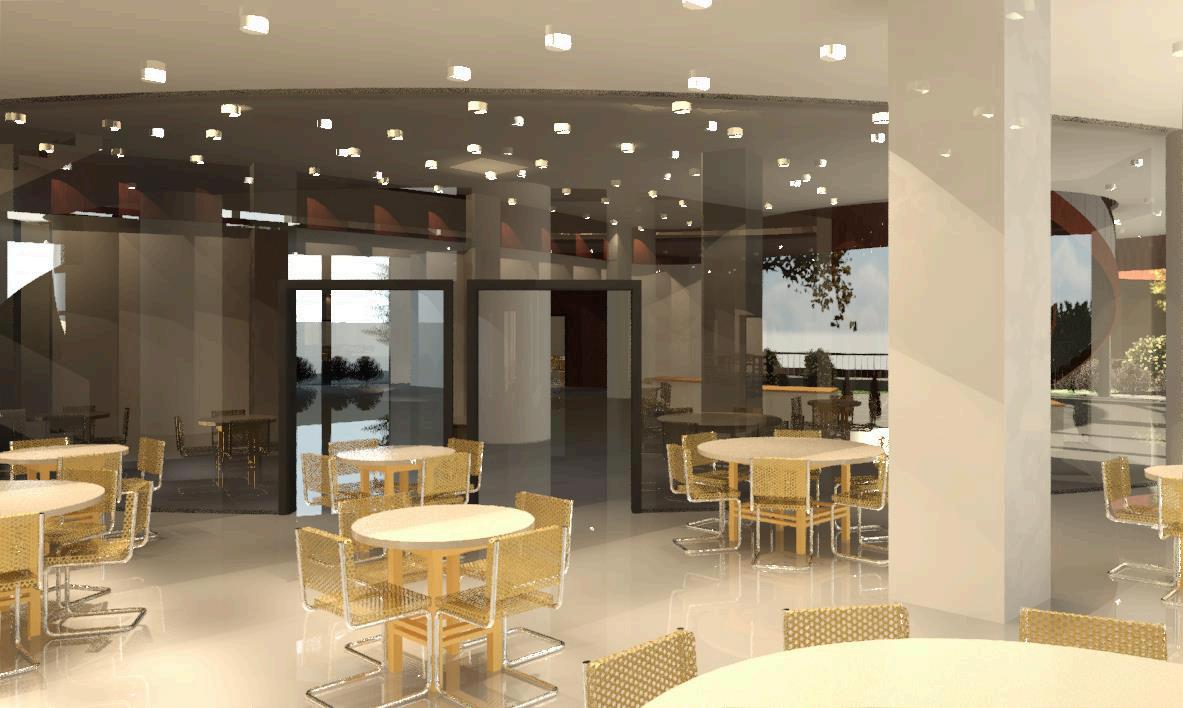

-Food and Dining Experiences
-Garden and Recreations

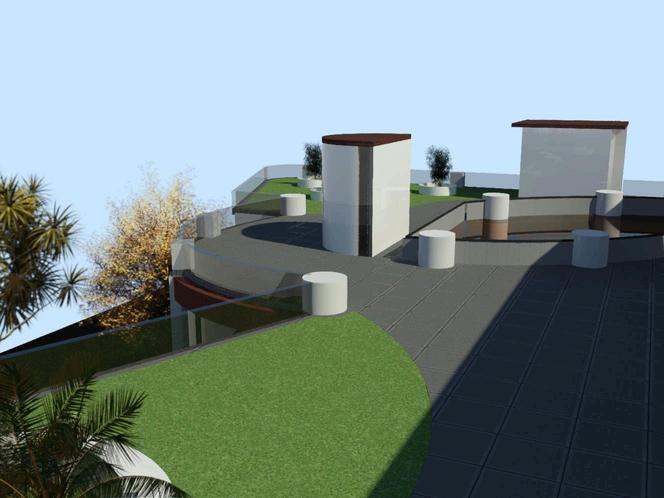

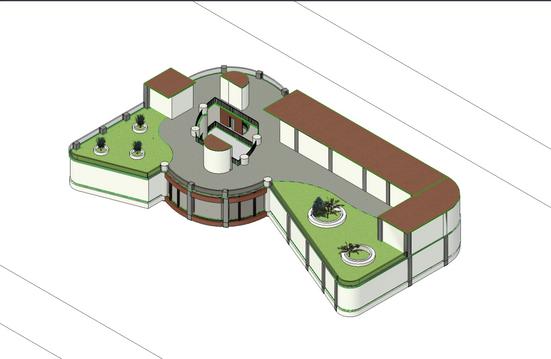

ROOFDECK
-GreenParkandRecreations
-SolarPanel&AirCondenser Location
2ND,3RDAND4THFLOORFLOOR
-LifestyleShopping
-EntertainmentAreas
-Cinema
-AdminOffice
-GadgetandAppliancesZone

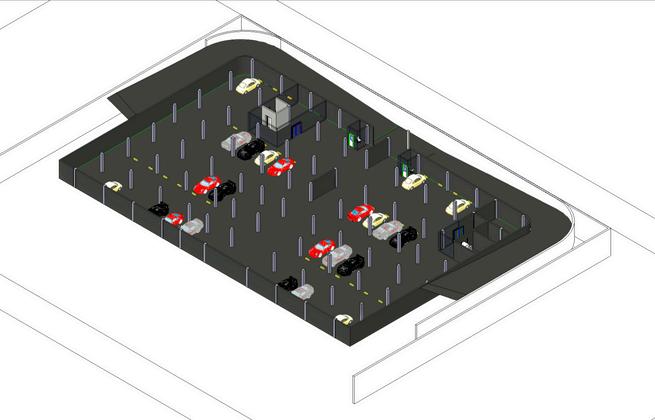

BASEMENT -VehicleParking -UtilityAreas
HYPERONE LIFESTYLE MALL
HYPERONE LIFESTYLE MALL
