The site was located in Saligramapuram - Vizag. The total site area is 64,749 sqm - 6 acre length 425m bredth 175m.
Tge site is very well connected to easy accessbilyty for people in Vizag
Permissible ground coverage - 25,900sqm
Total FAR - 2
Permissible height - 24m
Total built up area - 1,29,500sqm
Total floors - G + 4
Basements - 2

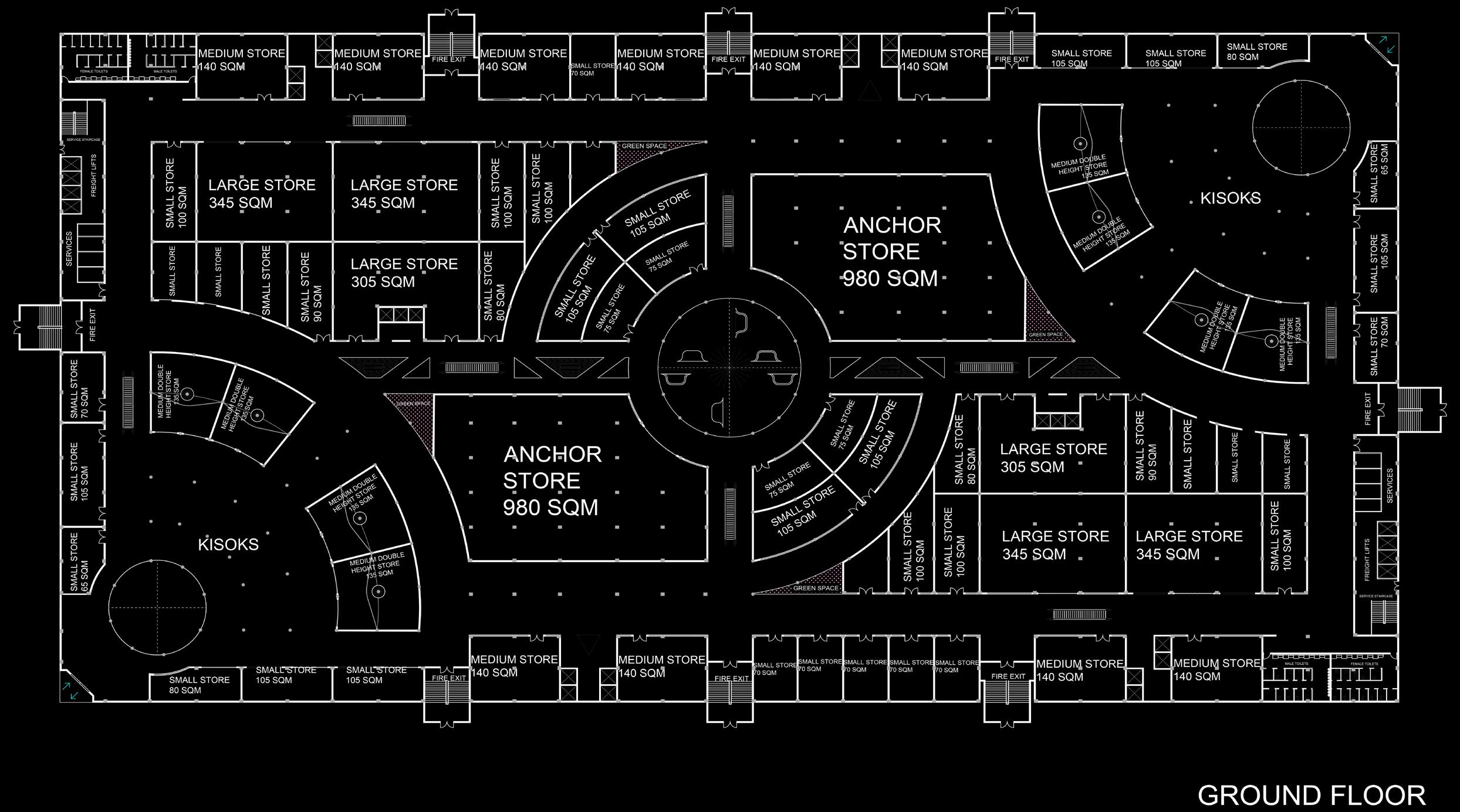

GROUND FLOOR 21,800 / RETAIL : It totally consists of retail stores, having 2 anchor stores, 6 large stores, 10 medium stores, 8 double height stores, and 26 small stores
Circulation : Having 3 large atriums, well designed corridors, providing kiosks Services : provided fire staircase at every 30 meter radius, 8 fright lifts and separate AHU. electrical, service stair case. the ground floor connected to basement for to enter super mart.

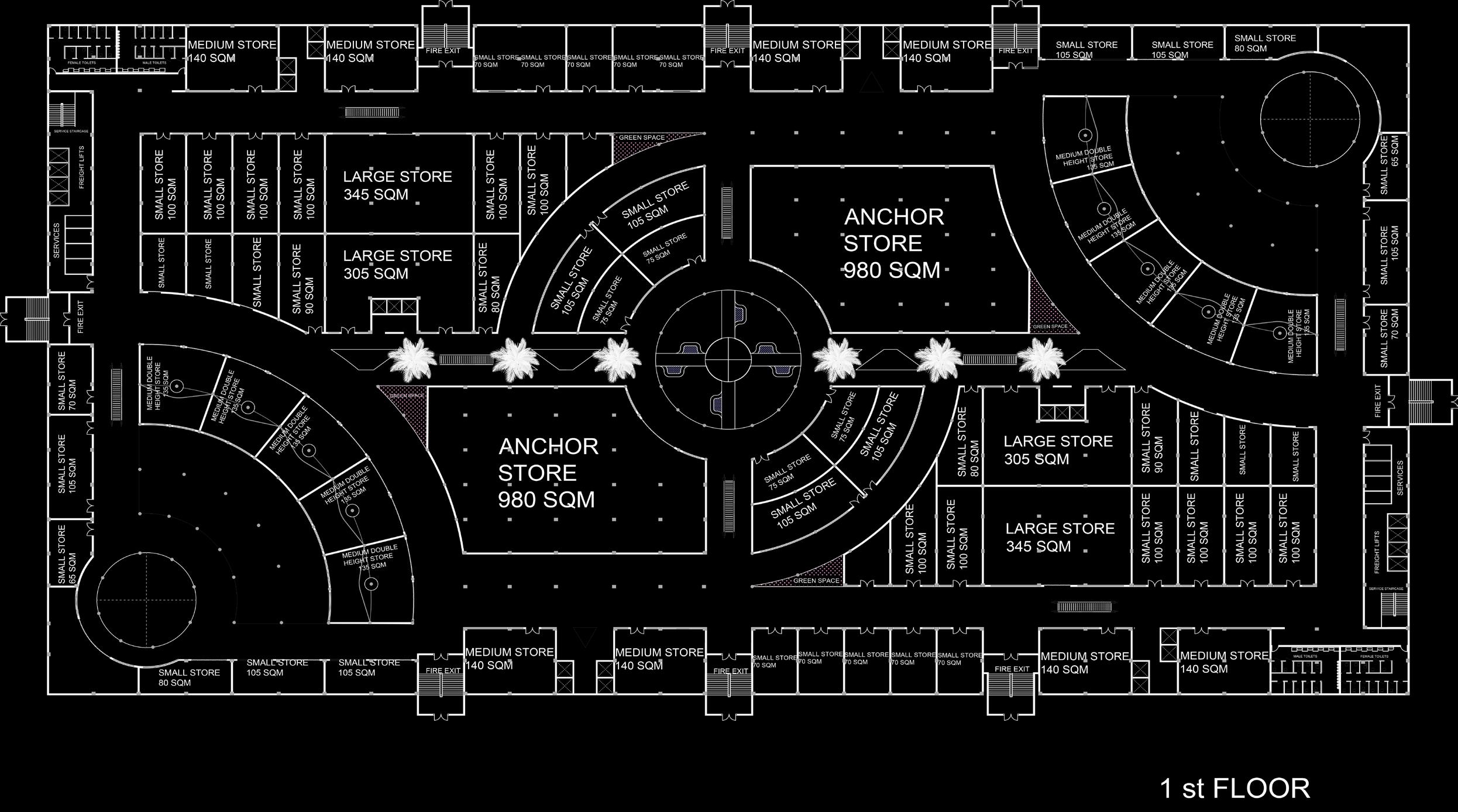

FIRST FLOOR 21,280 / RETAIL It totally consists of retail stores, having 2 anchor stores, 4 large stores, 32 medium stores. 8 double height stores, and 24 small Stores.
Circulation : having 3 large atriums, well designed corridors, providing kiosks and 8 escalator Services : provided fire staircase at every 30 meter radius, 8 fright lifts and separate AHU, electrical, service stair case. first floor having view point of mall at center atrium

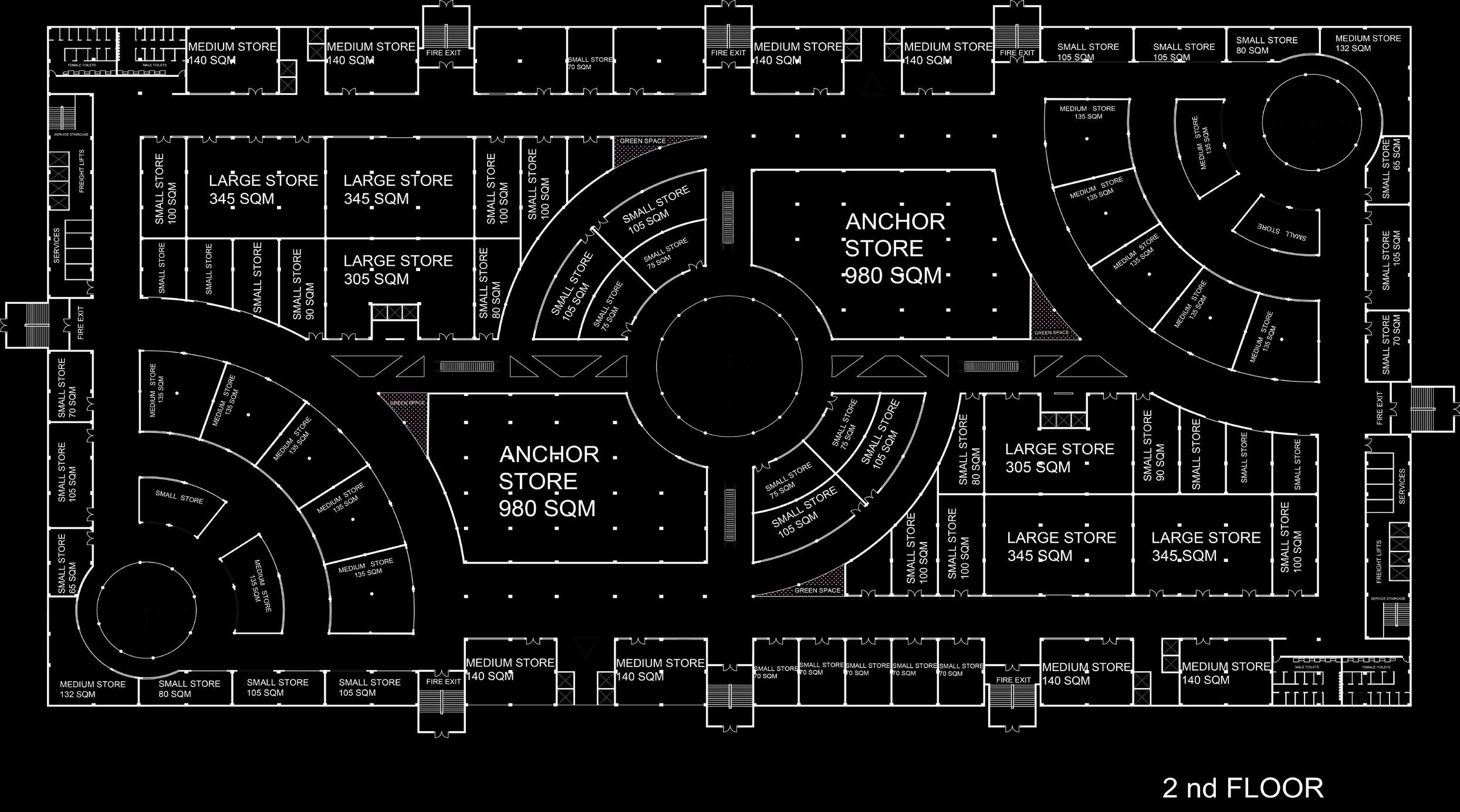

FIRST FLOOR 21,095 / RETAIL: It totally consists of retail stores, having 2 anchor stores, 6 large stores, 34 medium stores, and 30 small stores
Circulation : having 3 large atriums, well designed corridors, providing, 4 escalator, 16 lifts
Services : provided fire staircase at 30 meter radius. 8 p fright and separate AHU, electrical, service stair case.

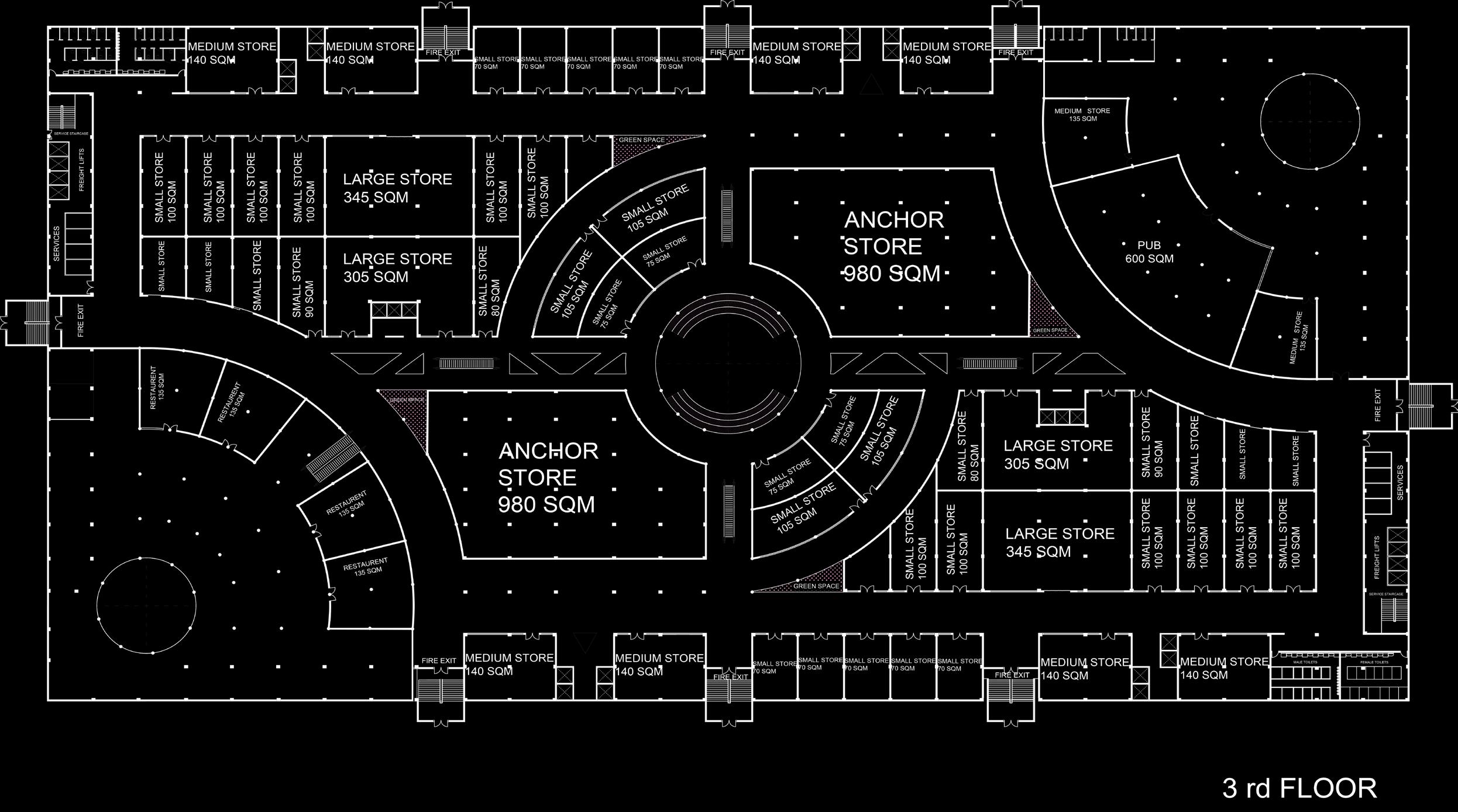

THIRD FLOOR 21,095 / FUN ZONE : It consists of retail stores, having 2 anchor stores, 4 large stores, 24 medium stores, 8 double height stores, and 26 small Stores.
Fun zone : 6 rastaurents and pub
Circulation : having 3 large atriums. well designed corridors, 4 escalator, 16 lifts
Services : provided fire staircase at every 30 meter radius, 8 fright lifts and separate AHU, electrical, service stair case. the third floor having best city view’ at the atriums and central atrium having green vegitation

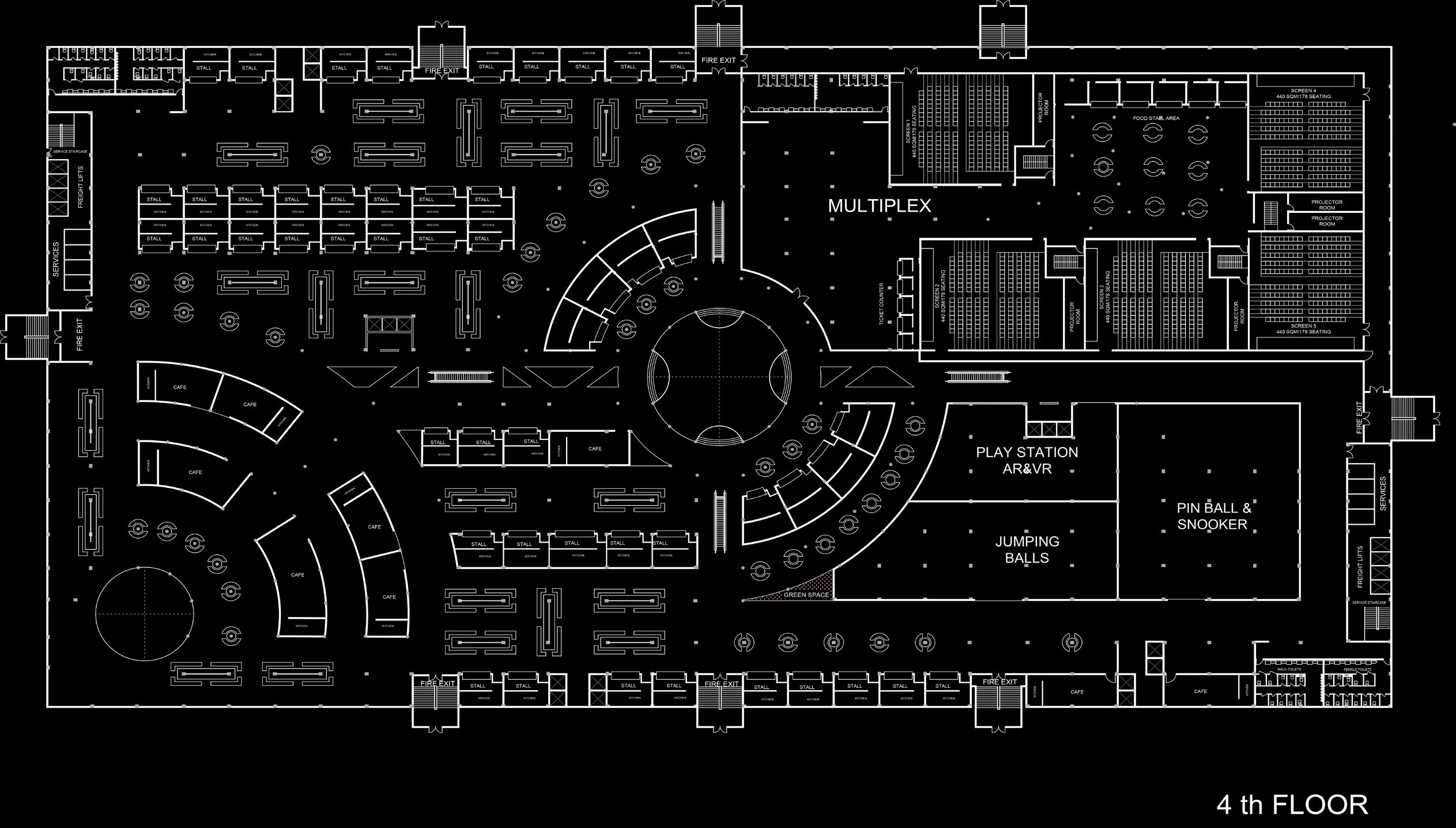

FORTH FLOOR 21,260 ENTERTAINMENT:
It consists of food court. multiplex with 5 screens and game zones of play station. snookers. pin ball, ar & vr, jumping balls, casino
Circulation : having 2 large atriums, well designed corridors and 4 escalator 14 lifts
Services : provided fire staircase at every 30 meter radius. 8 fright lifts and separate AHU, electrical, service stair case. Over hanging seating area at central atrium with best view of mall.

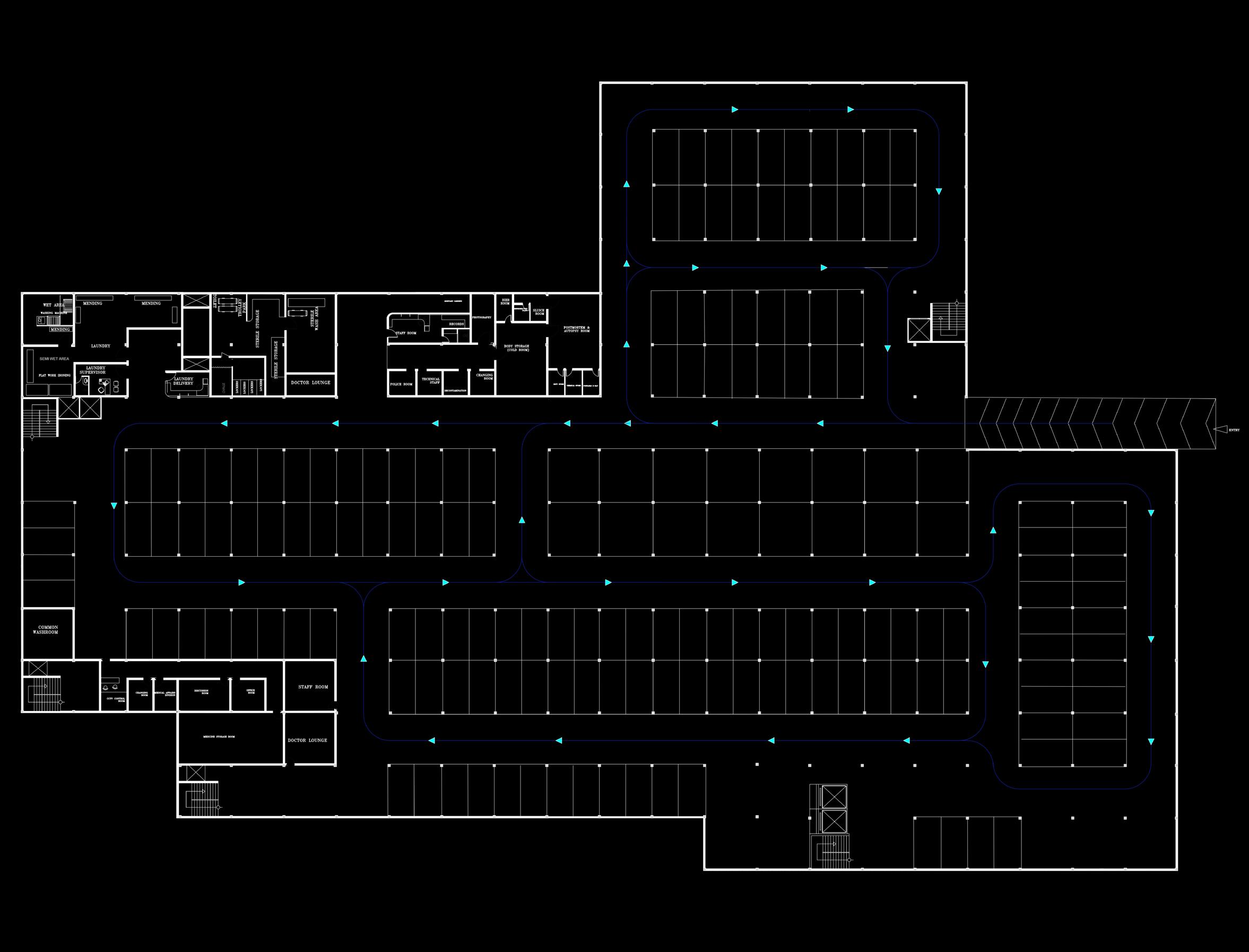

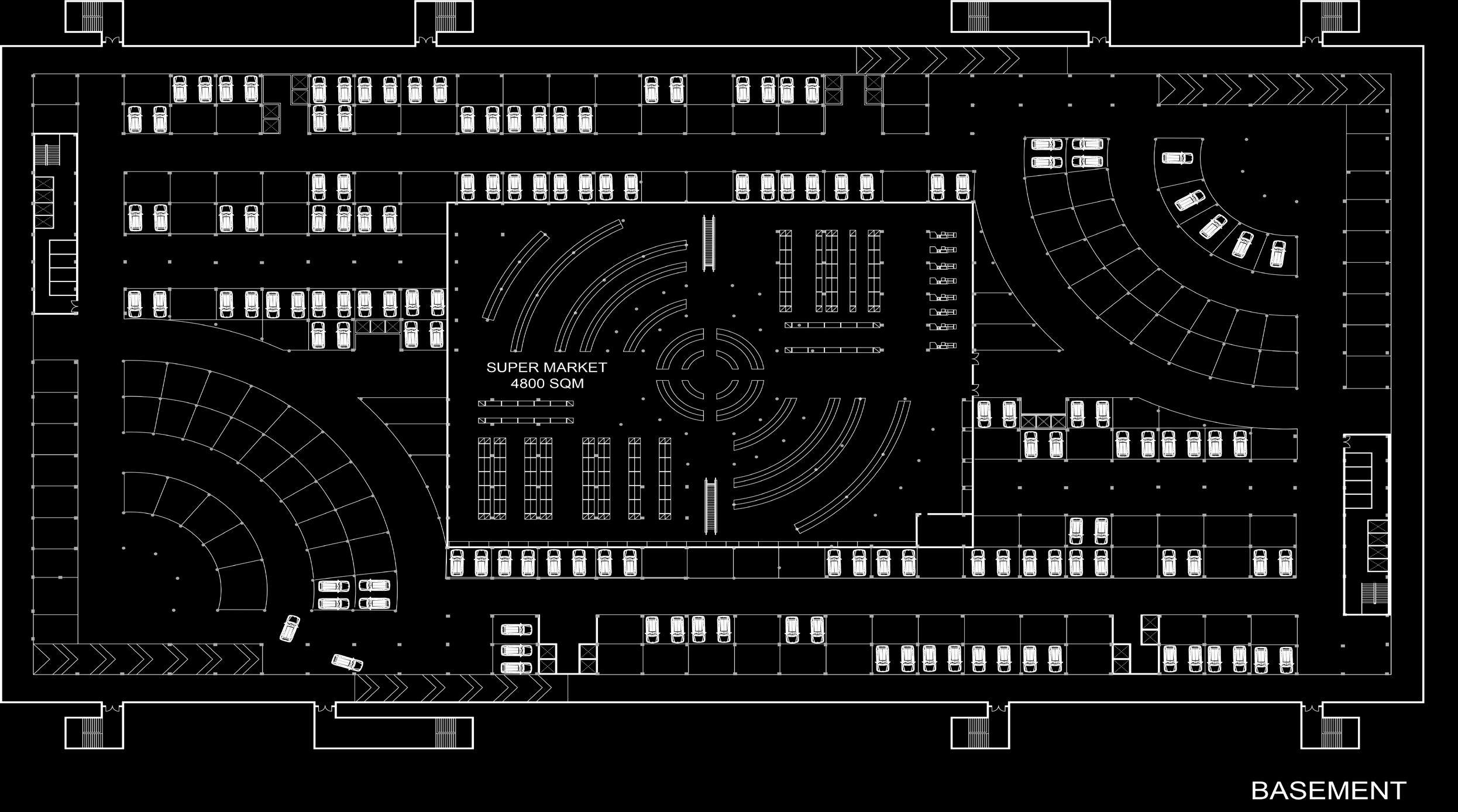

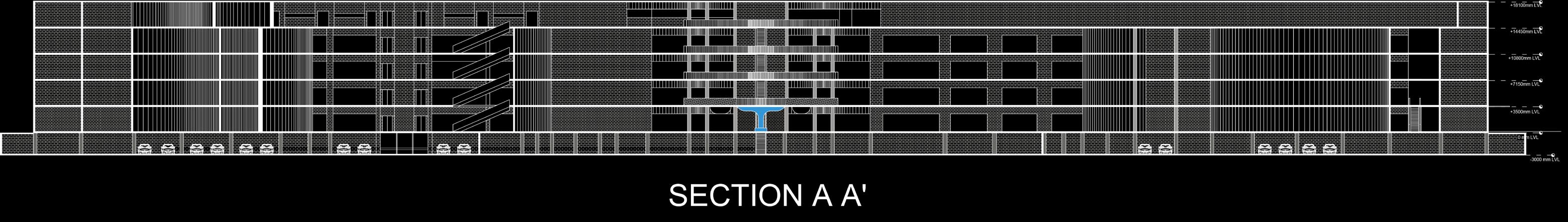

BASEMENT 25,700 / CAR PARKING & SUPERMARKET : services : provided fire staircase at every 30 meter radius, 8 fright lifts and separate AHU, electrical, service stair case. the ground floor connected to basement for to enter super mart

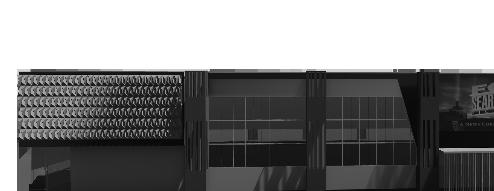

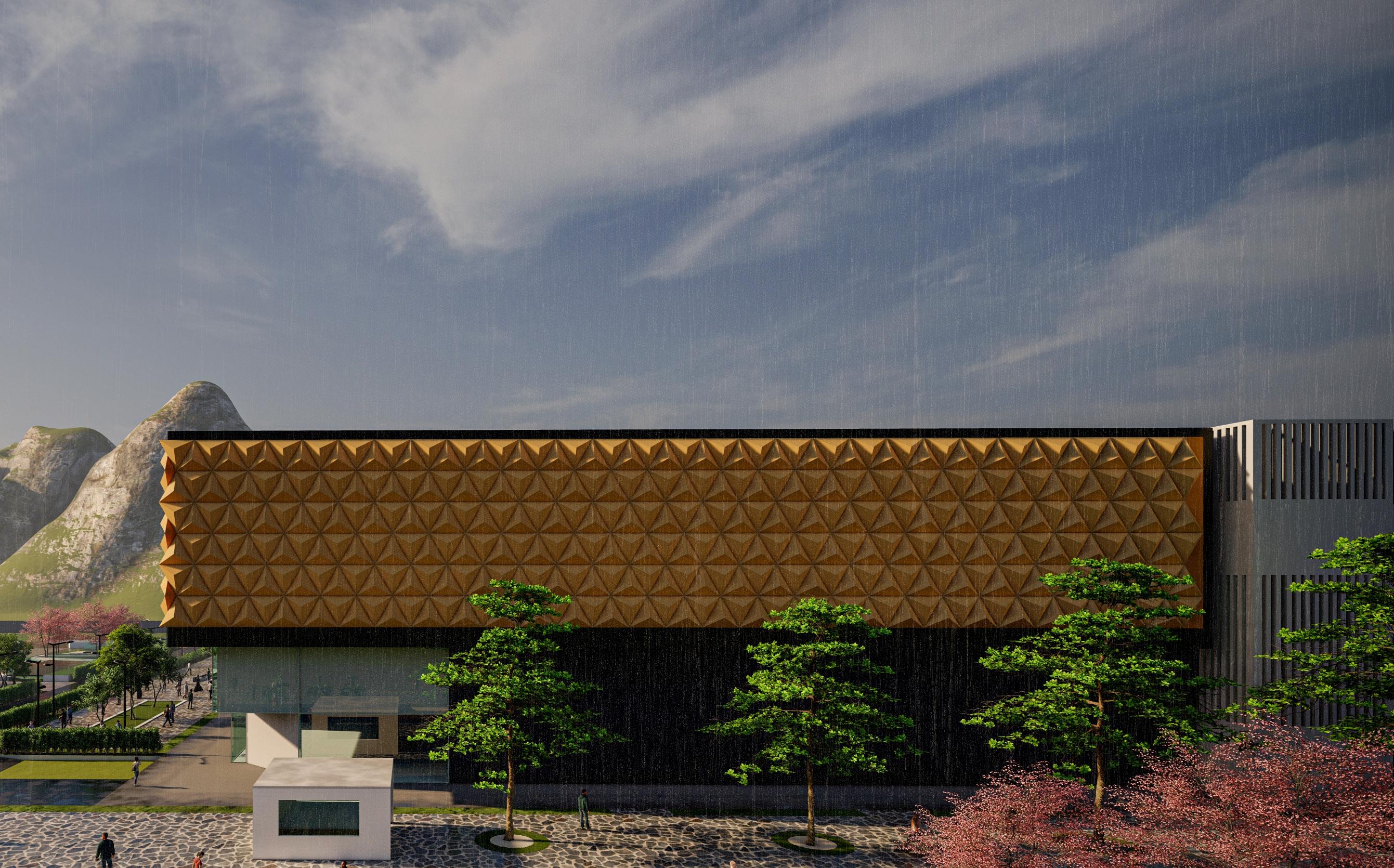

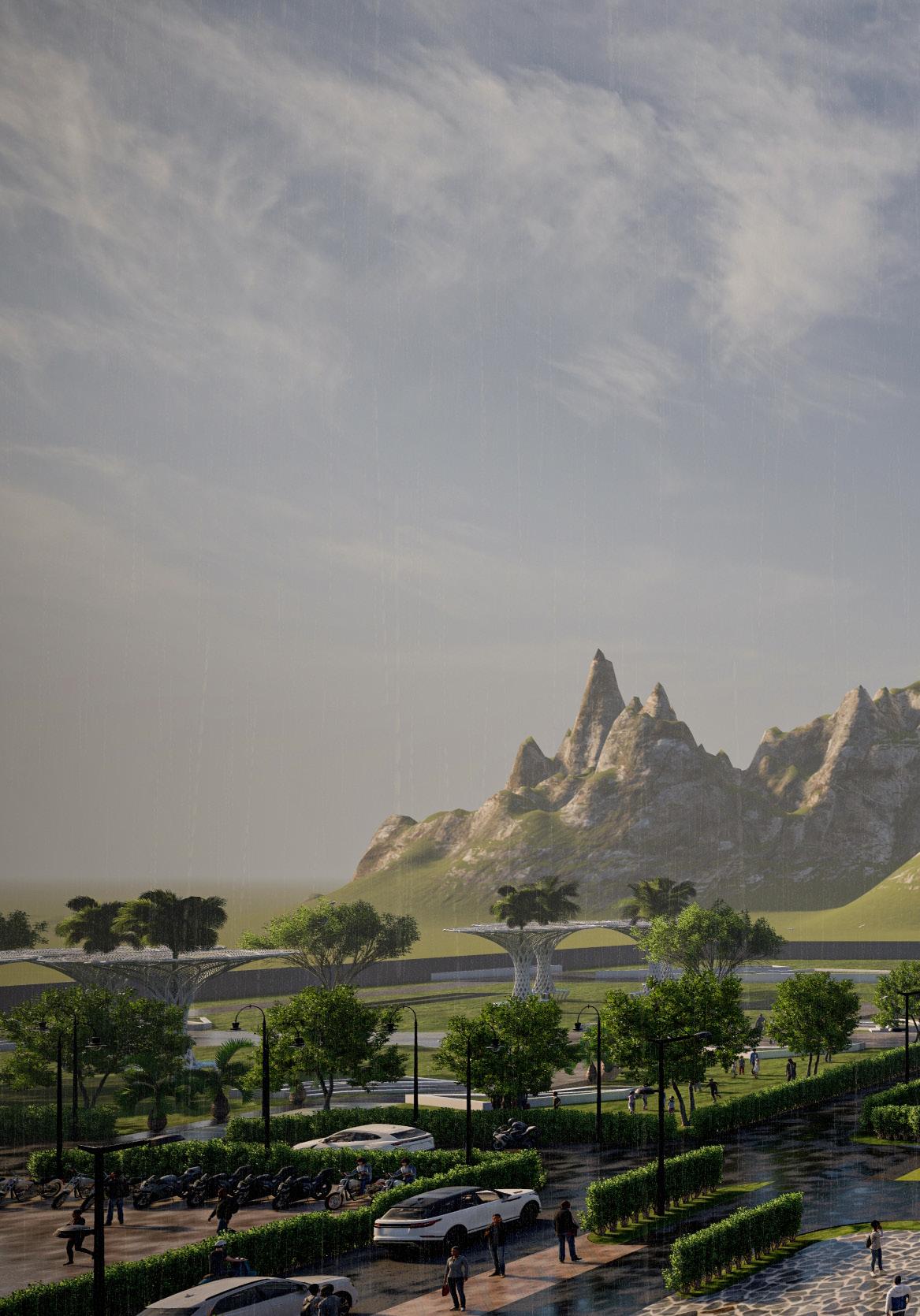

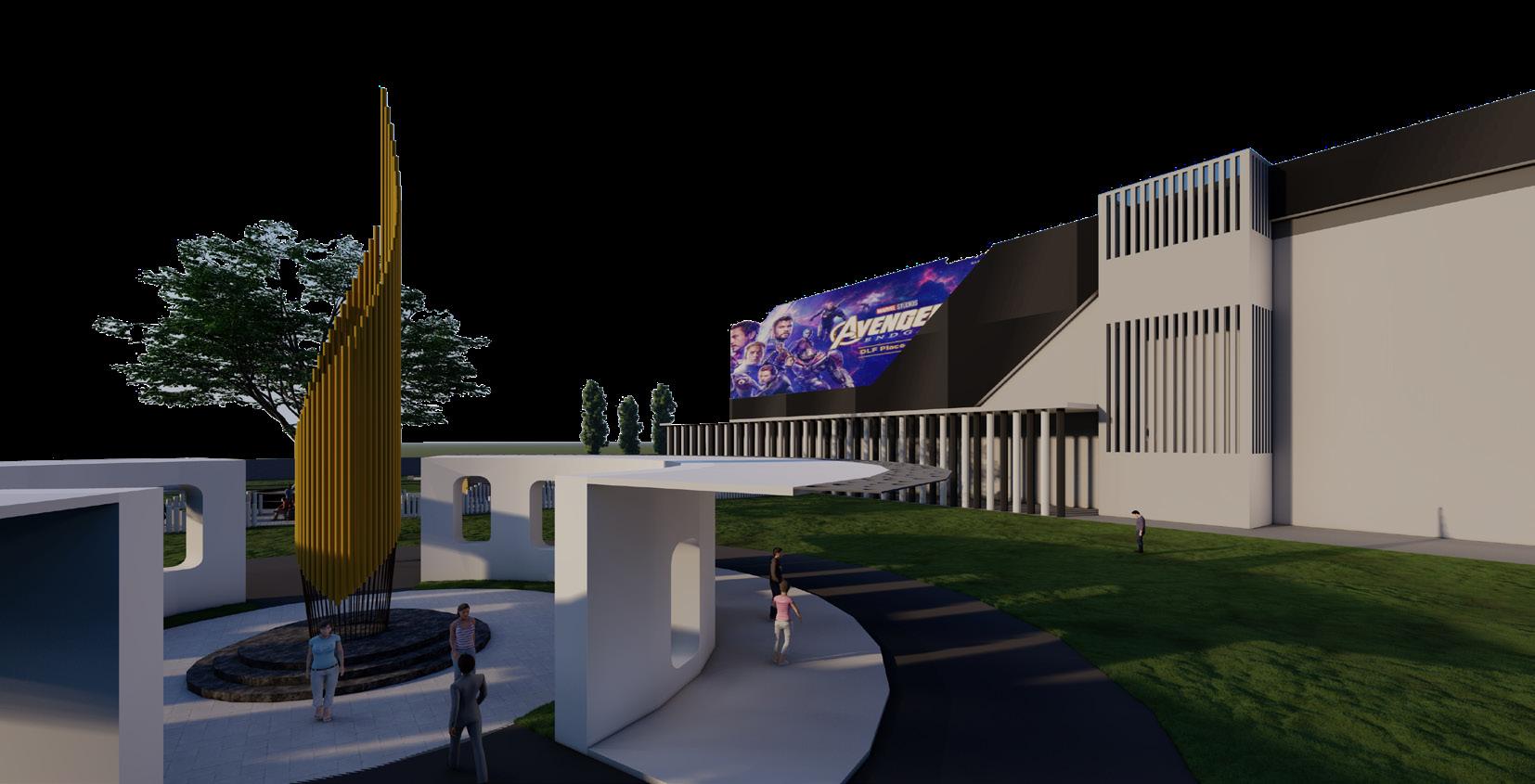

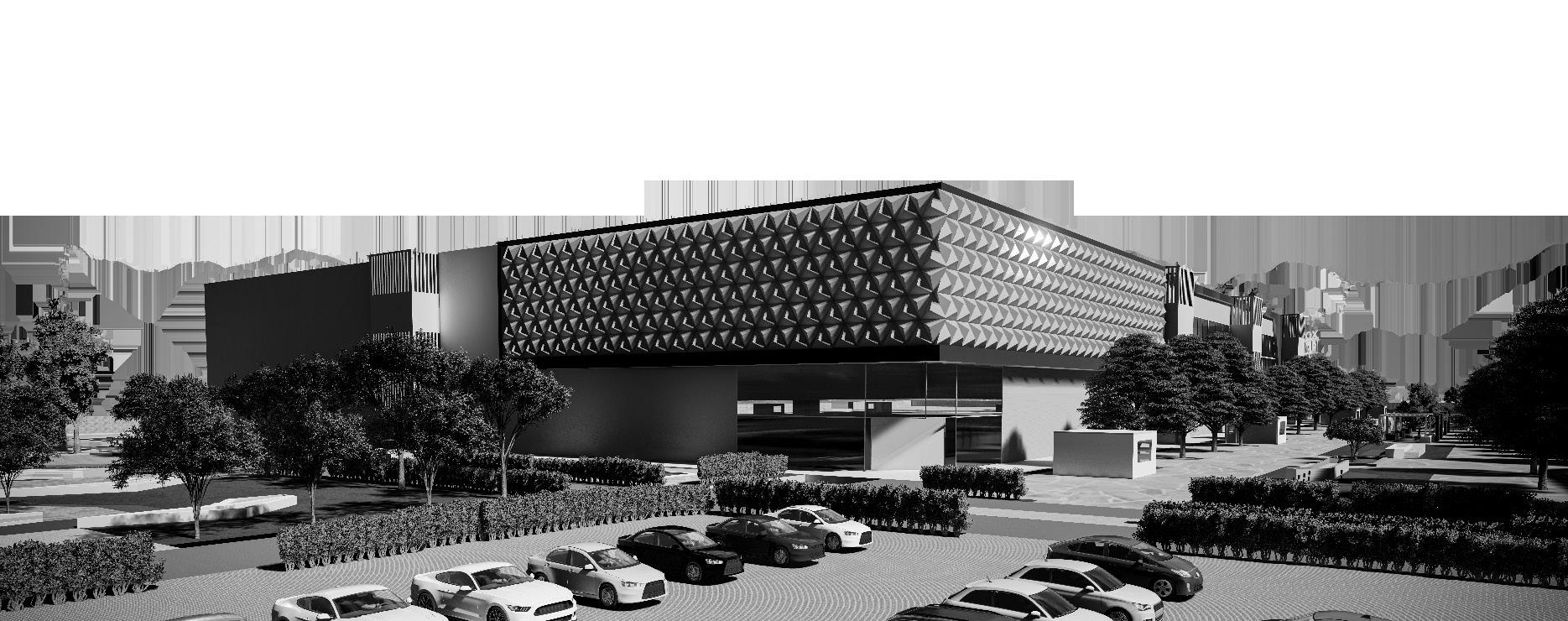

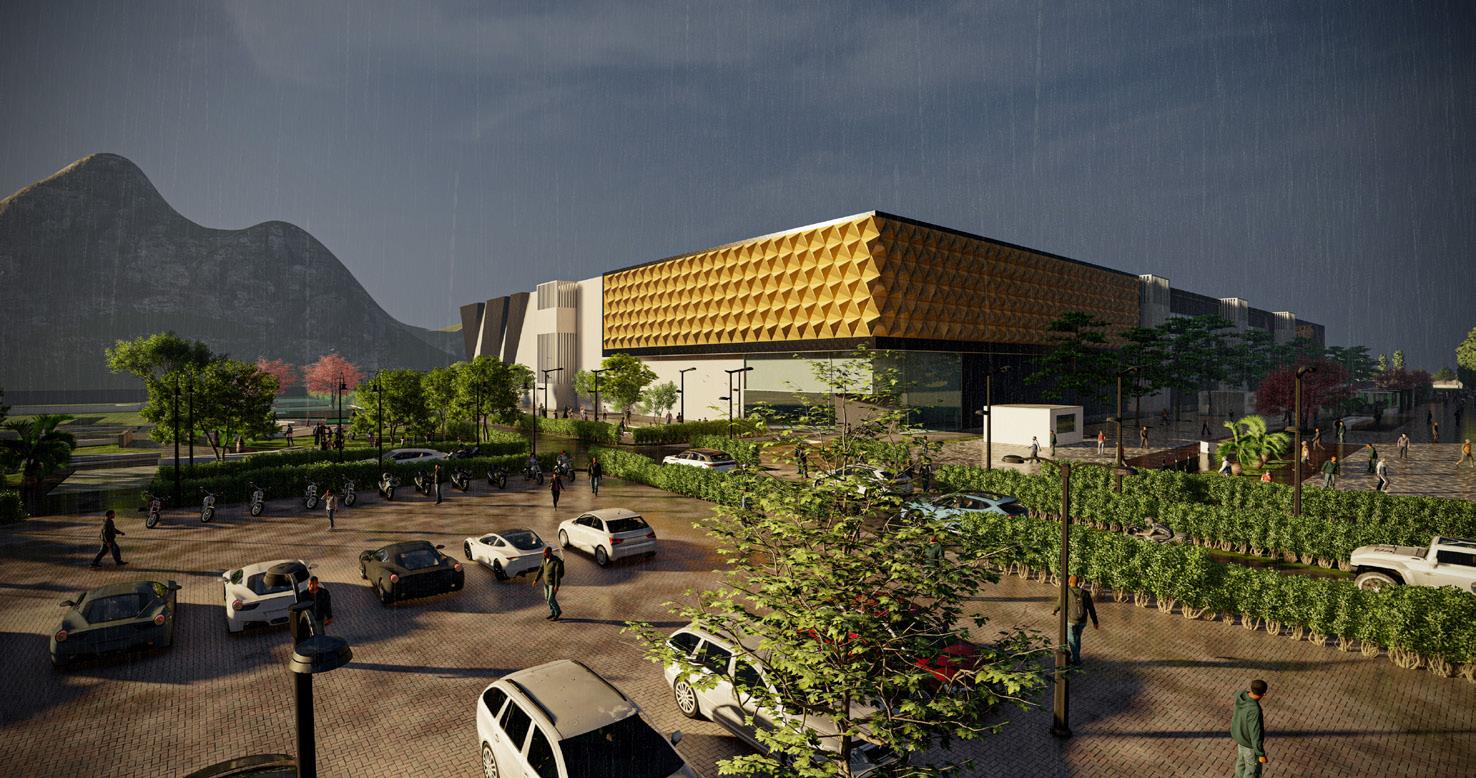

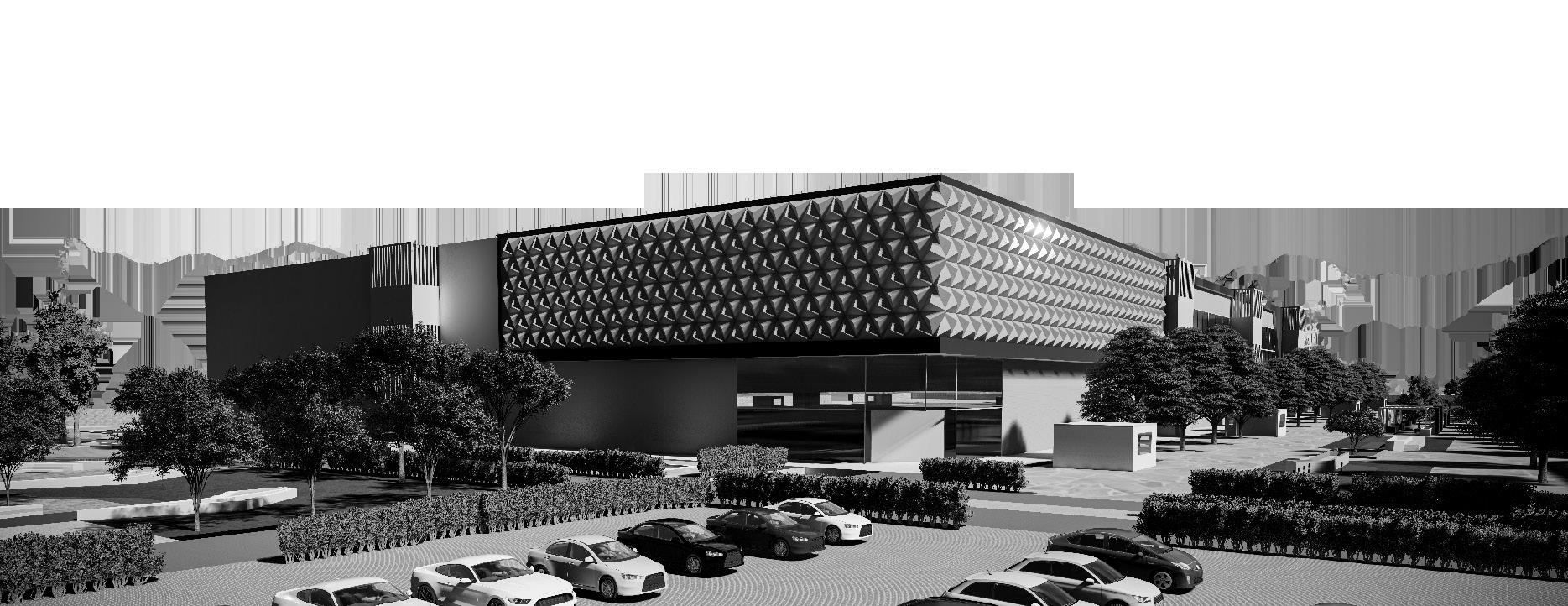

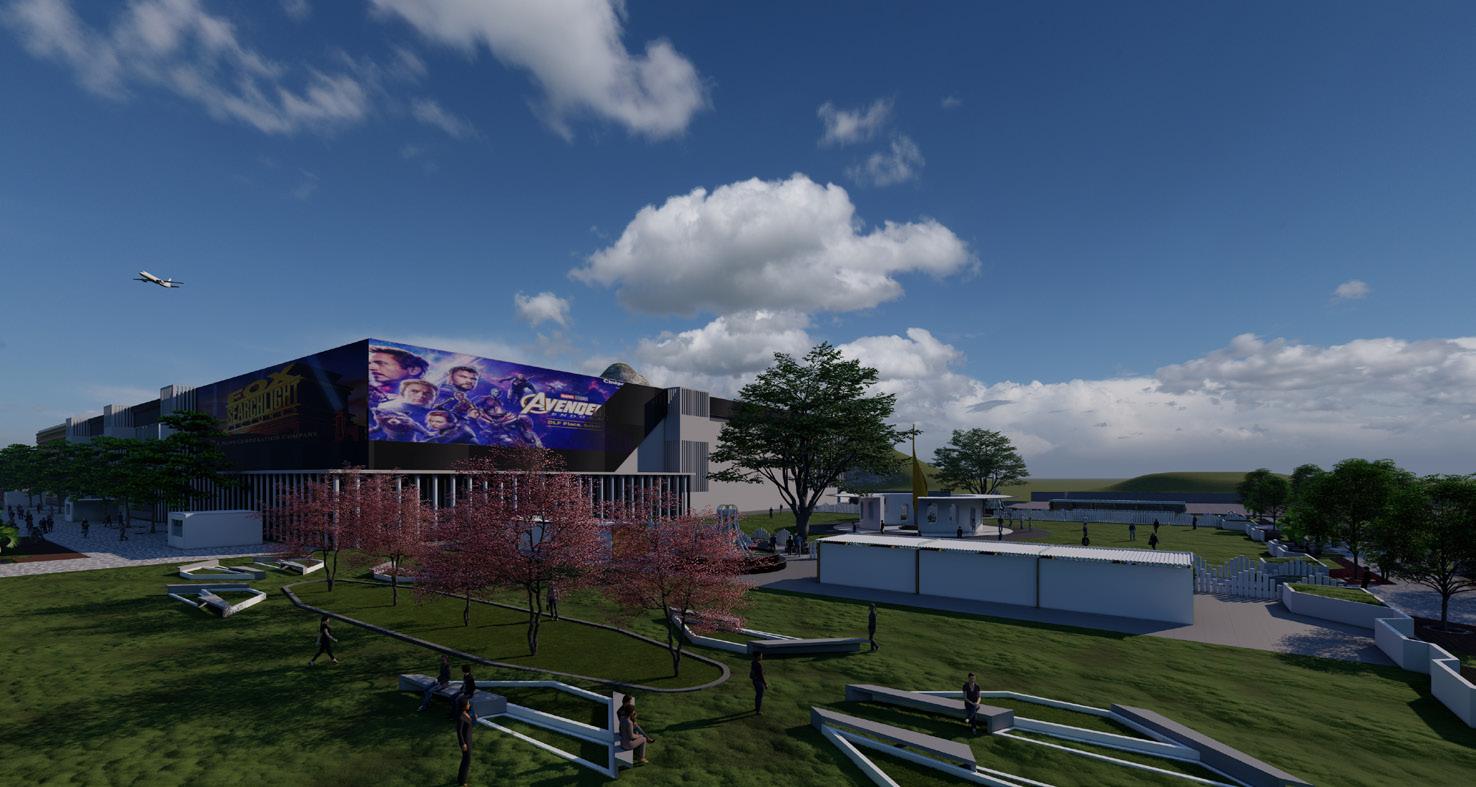

RENDERS

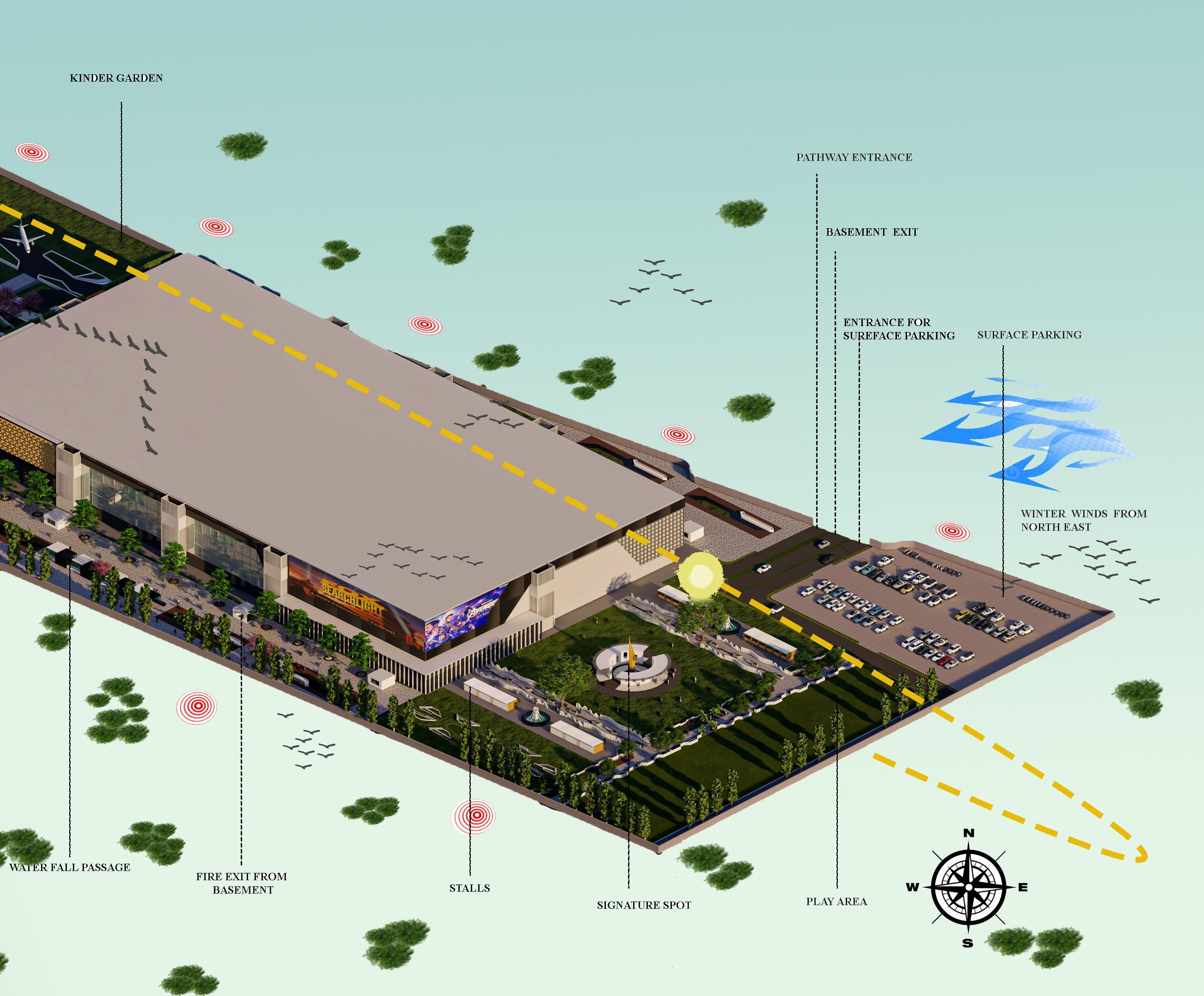

Water fall passage
Palm tree seating area with landscape

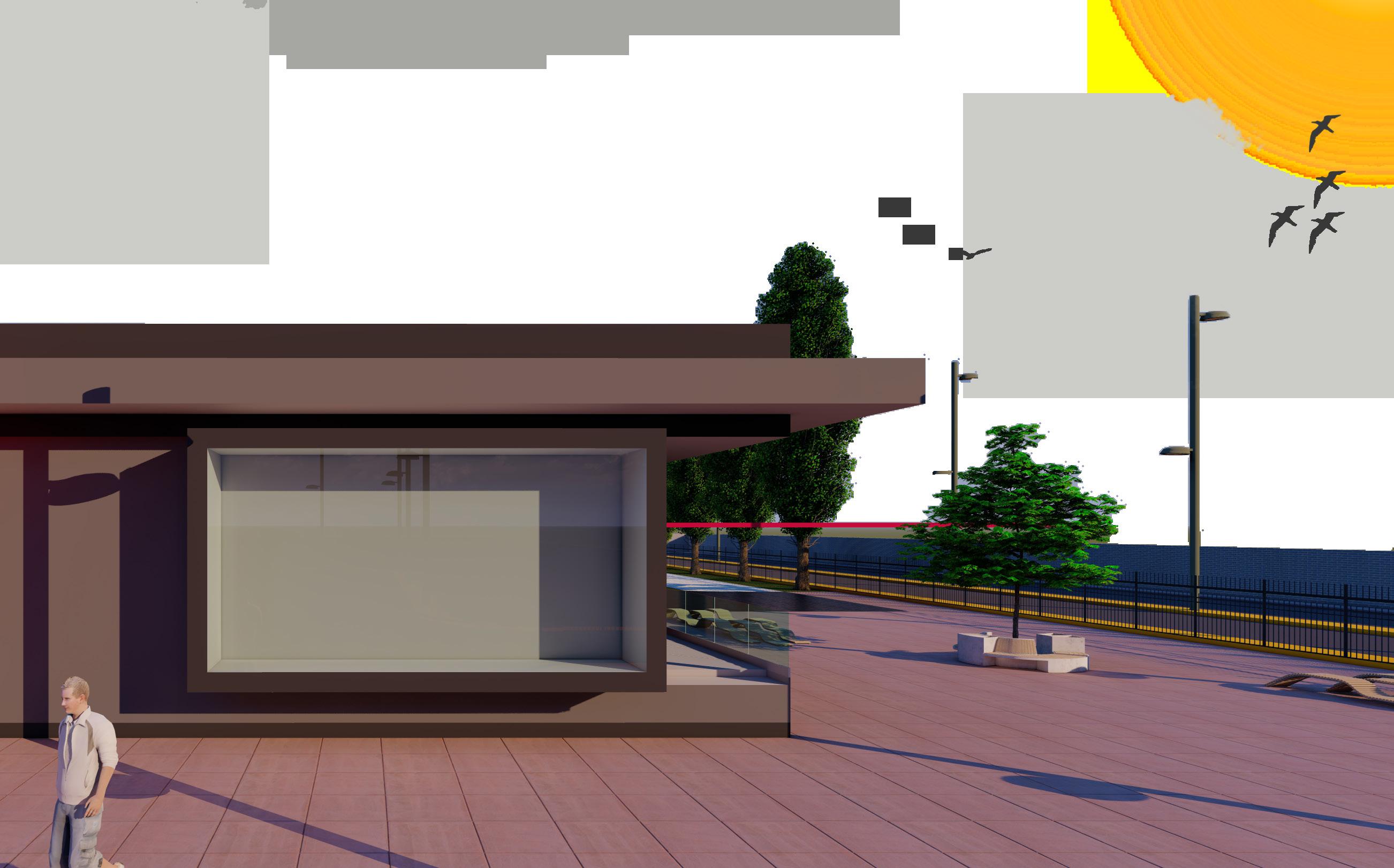

Surface stalls

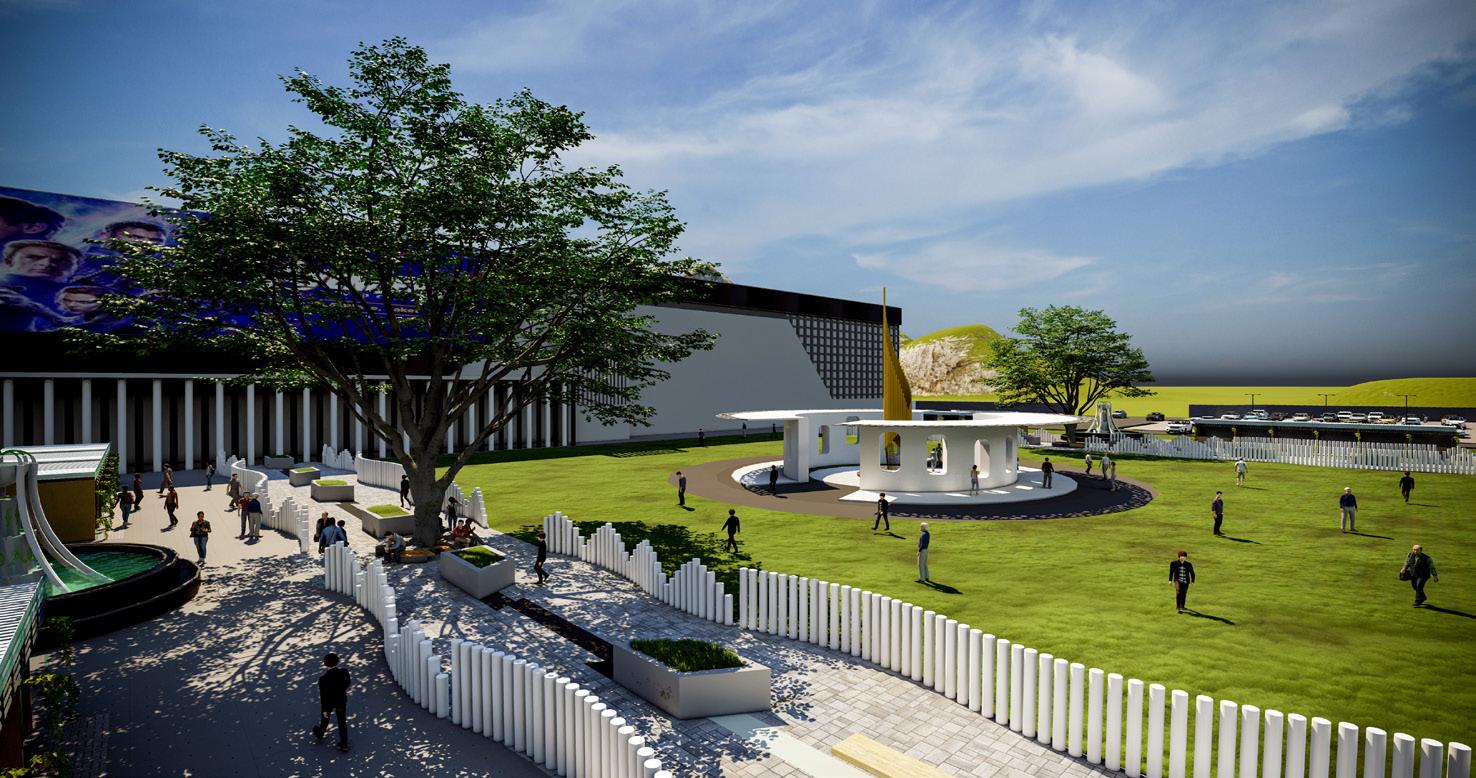

Signature Spot
Surface Parking

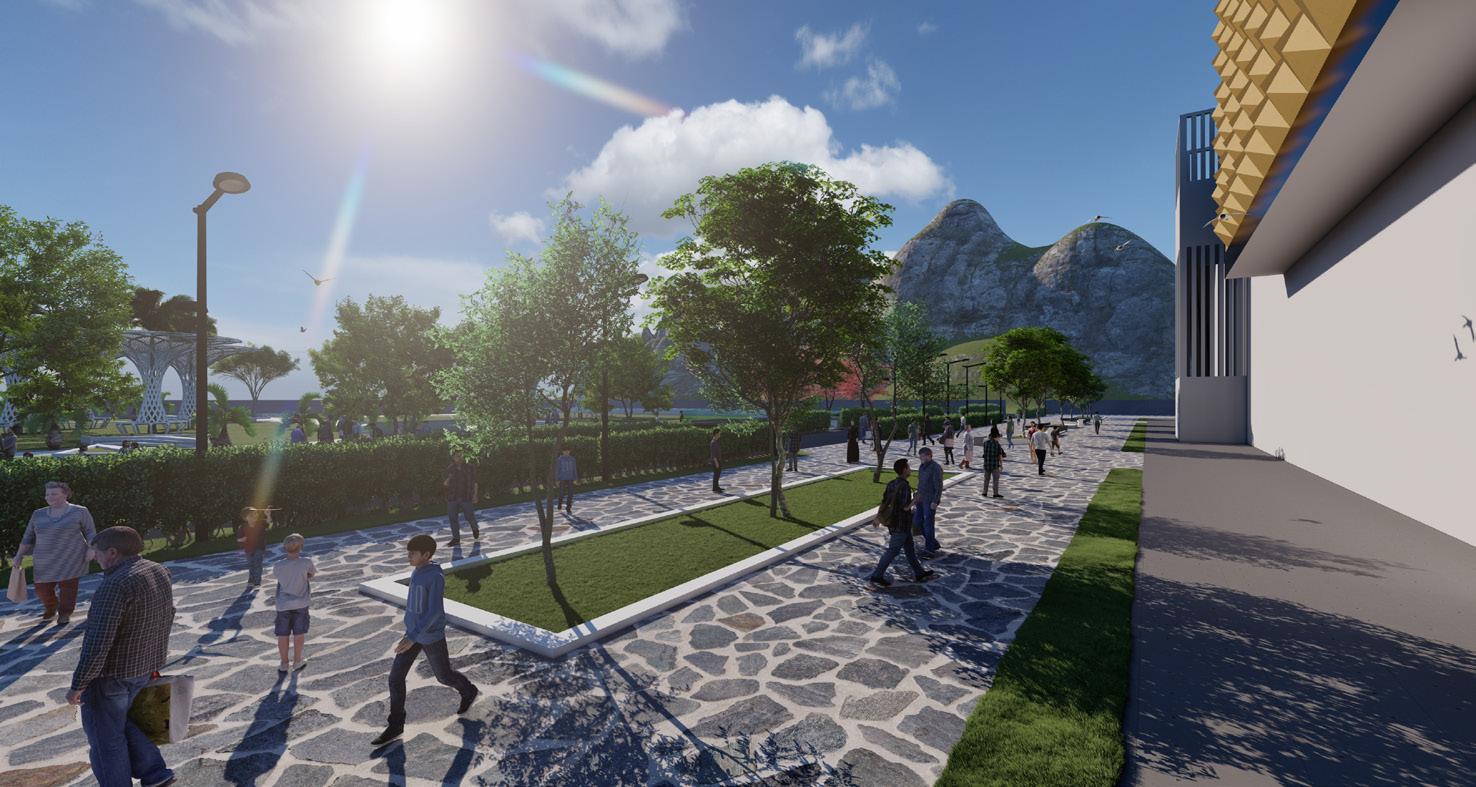

Padestrain Walk to Stalls
Landscape
Landscape

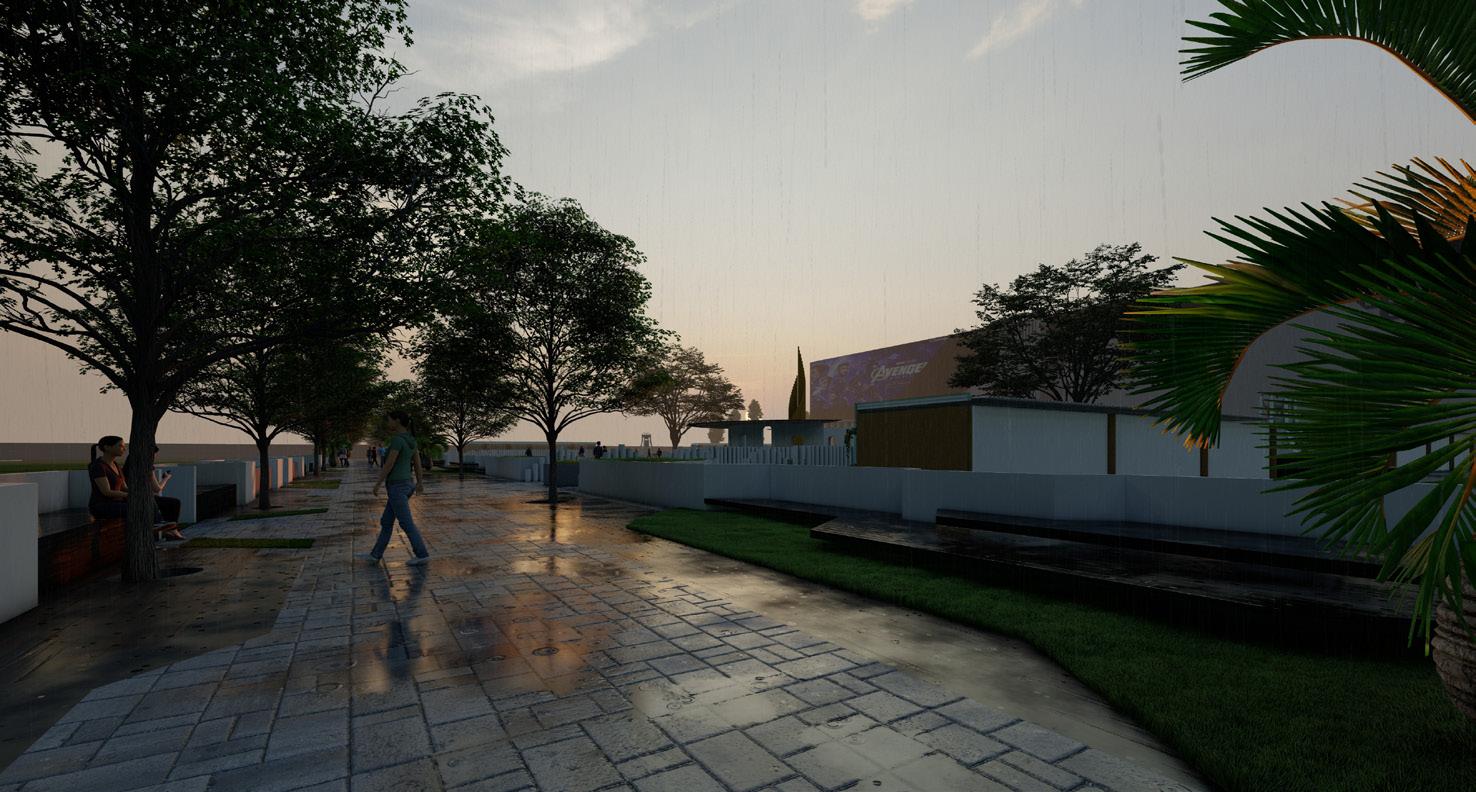

Padestrain Walk
HOSPITAL
About Site
The site situated at Kapurtala - Punjab
The site is 12.89 acre
Can easily accessible for town people
Total site area 12.89 acre - 52163.979sqm
Allowed FAR - 1.50
Height permissible - 30m Parking 40%
The main hospital block was designed by playing with geometrical shapes divide the blocks as per requiremnets, according to wind flow and sun path.
Each block has its own courtyard for natural ventilation and natural light. Having main central courtyard connecting all four blocks and with seating area.

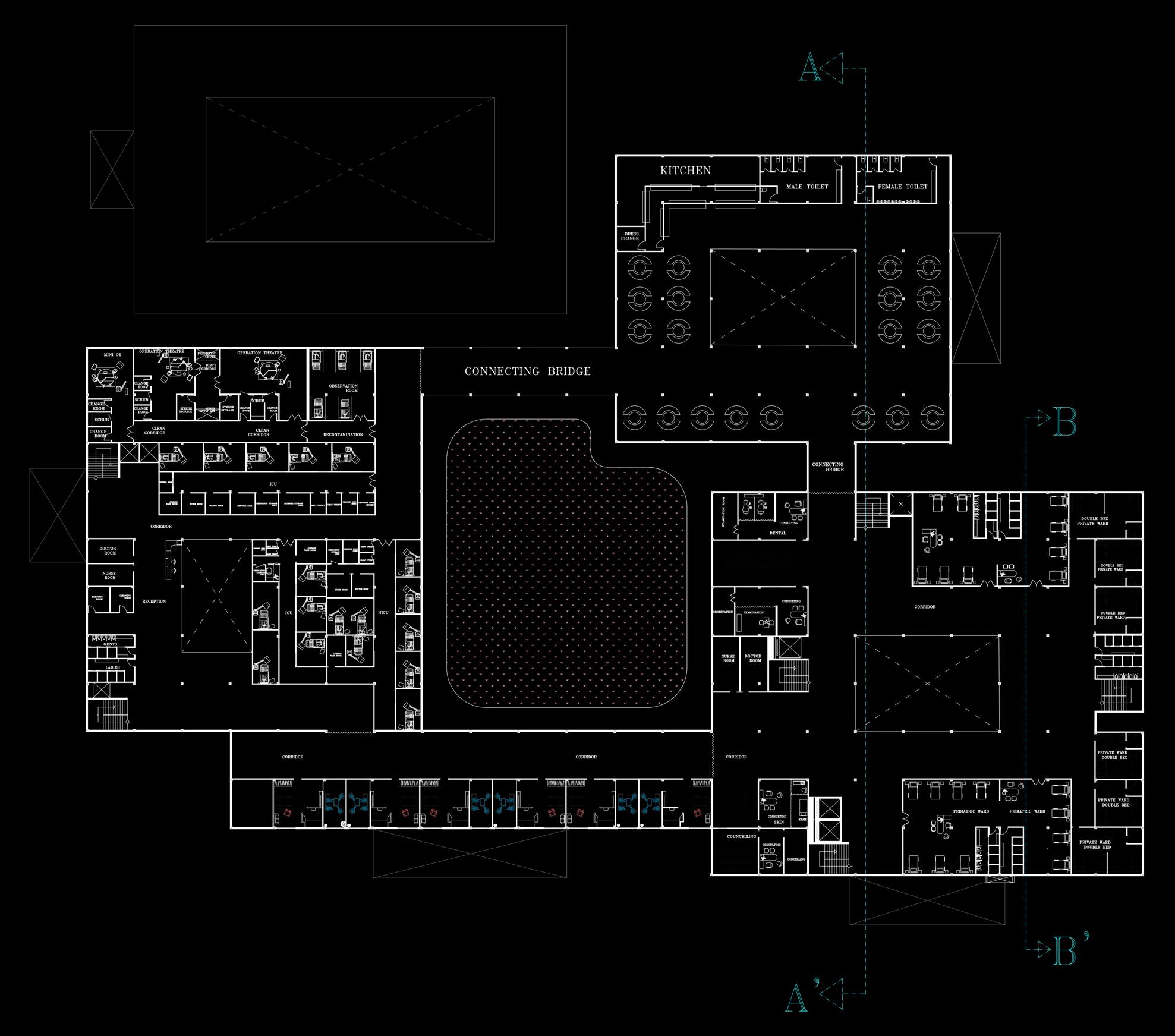

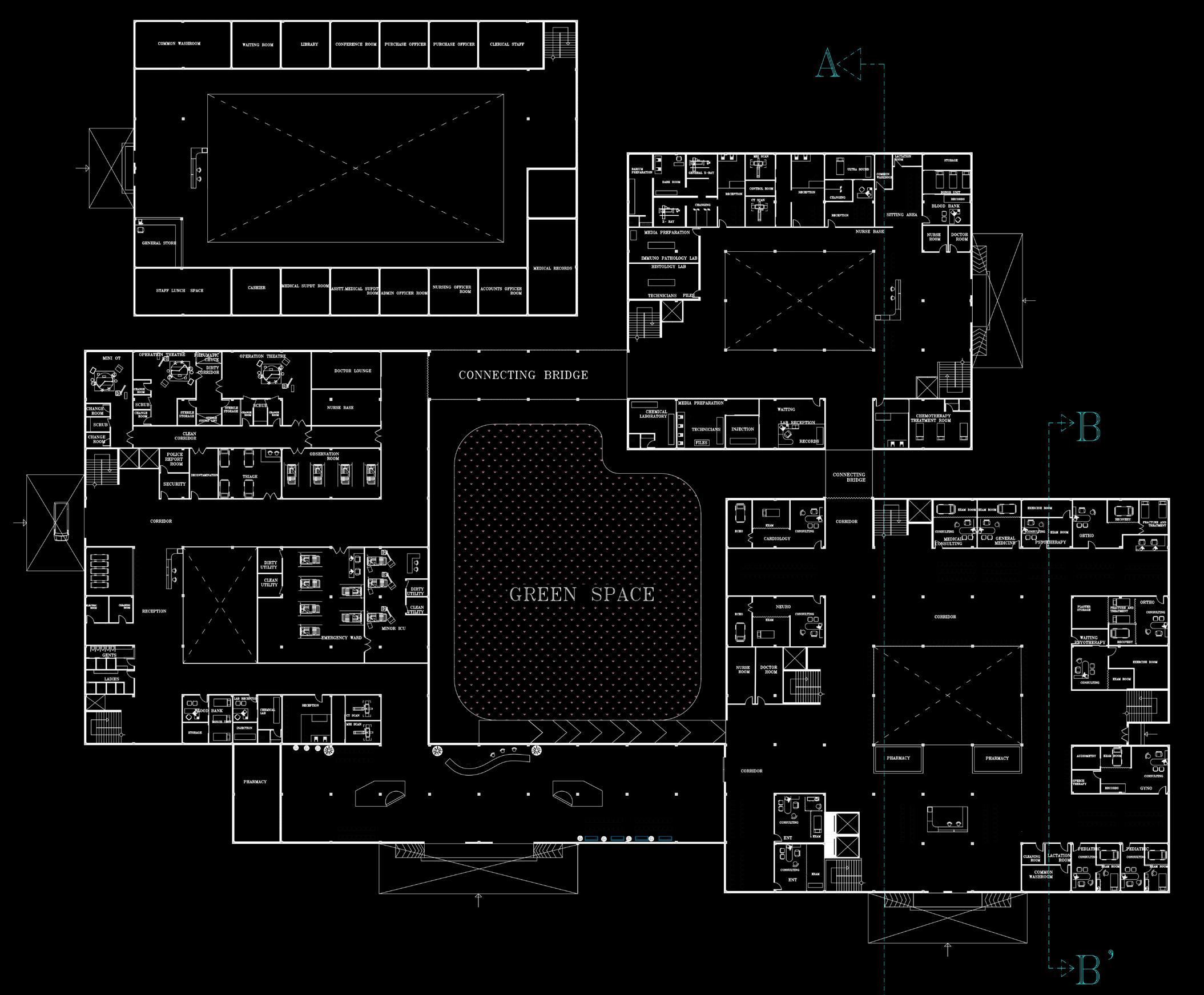

GROUND FLOOR
Total area 7,620sqm
Ground floor having 4 active blocks
Reception - 720 sqm
Emergency block - 1921 sqm
Admin block - 1296 sqm
Diagnostic Block - 1301 sqm
OPD block - 2382 sqm
The main central courtyard contains fresh environment because of block arrangment, here it does not allow direct sunlight for thoes who seating .

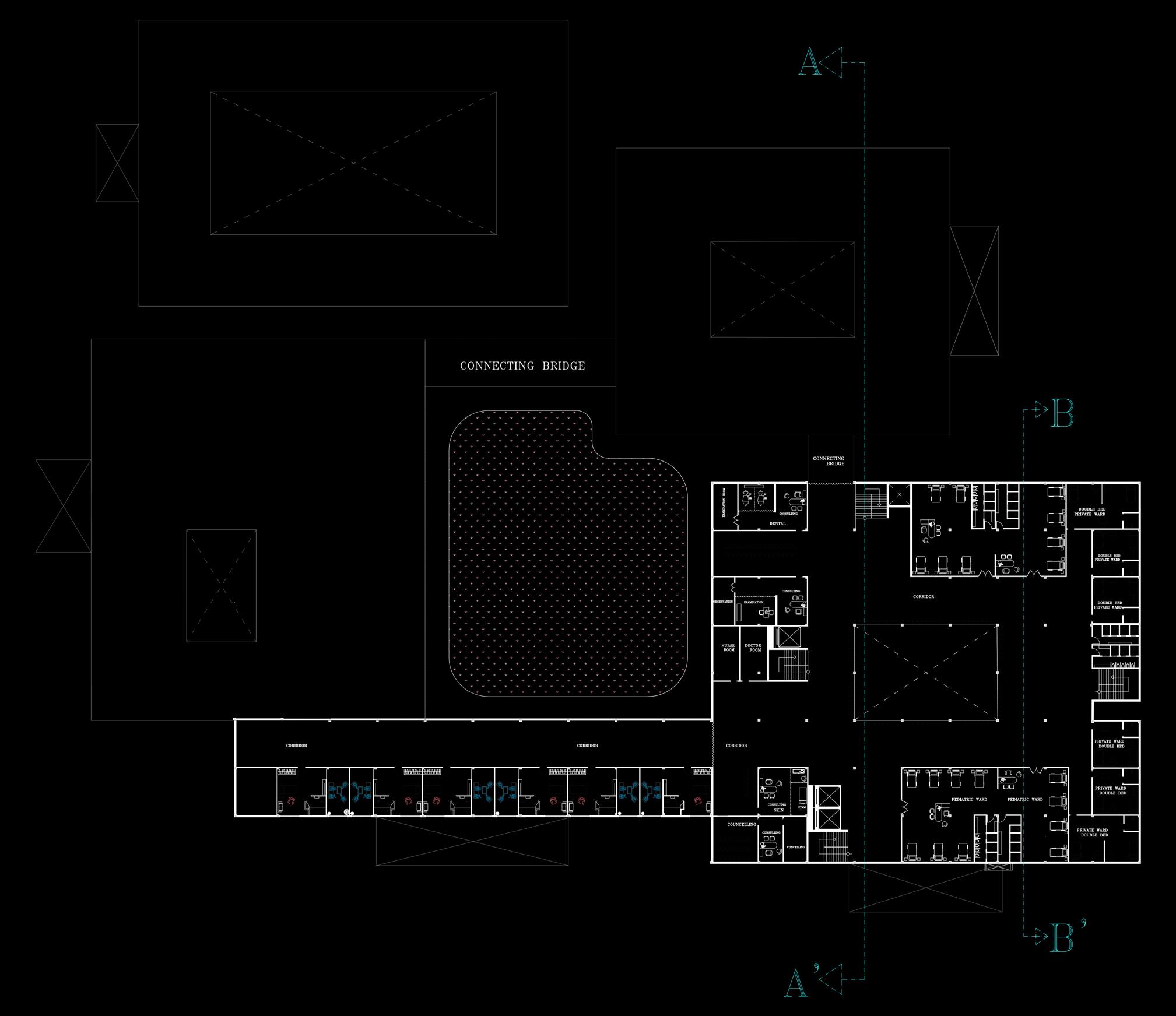

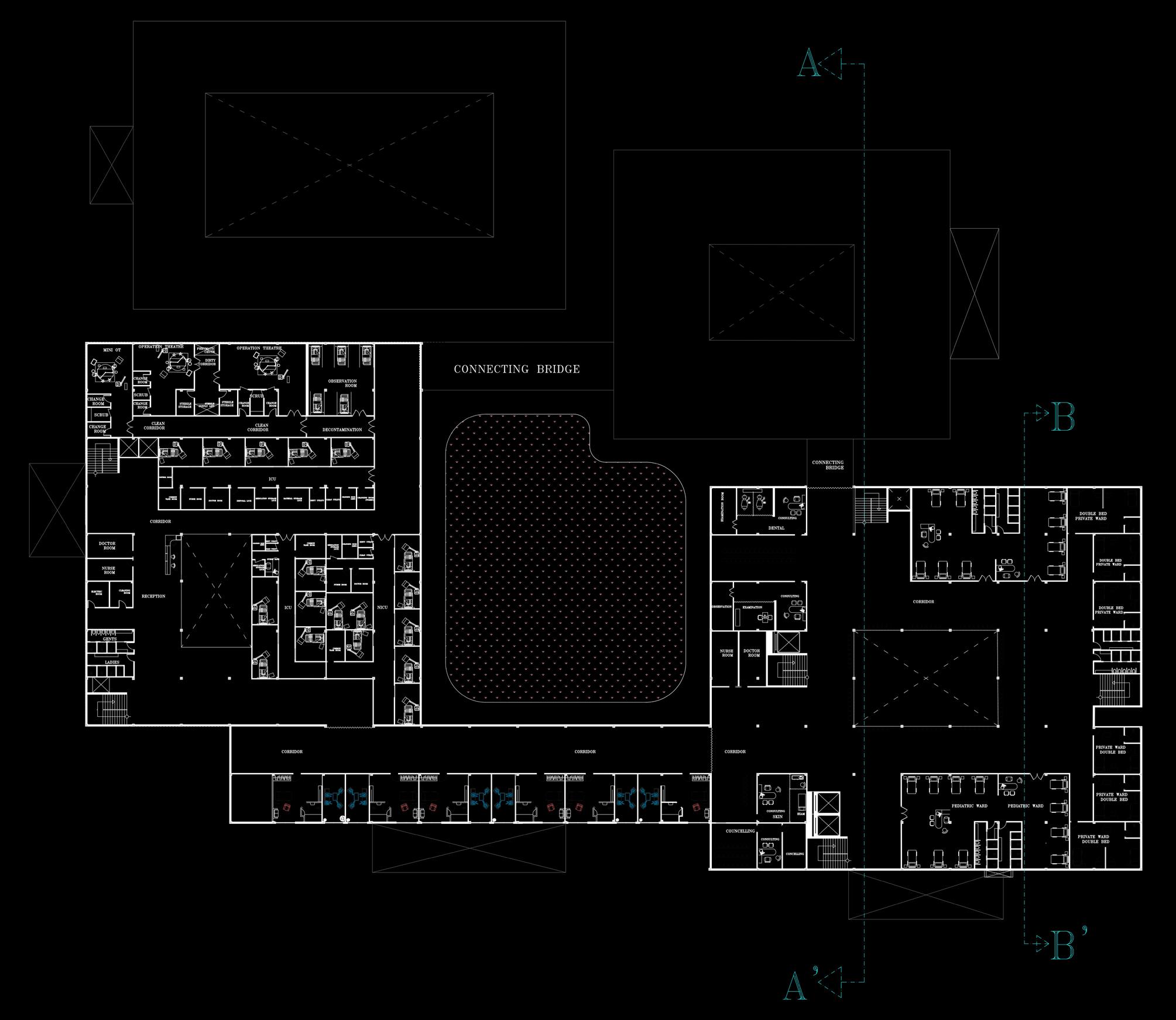

Total area 6,324 sqm
First floor having 3 active blocks
Emergency block - 2641 sqm
Diagnostic Block - 1301 sqm
OPD block - 2382 sqm
Emergency block and OPD block are connected to restaurent by bridges.
Emergency block having G+2
Diagnostic block having G+1
OPD block G+3
Total area 5,023 sqm
Second floor having 2 active blocks
Emergency block - 2641 sqm
OPD block - 2382 sqm
Emergency block and OPD block are connected by inter connection of blocks
Emergency block having G+2
OPD block G+3
200 car parking capacity and also consists of cctv control room, medicine storage room, staff rooms, laundry, body storage room(cold room), postmortem room,

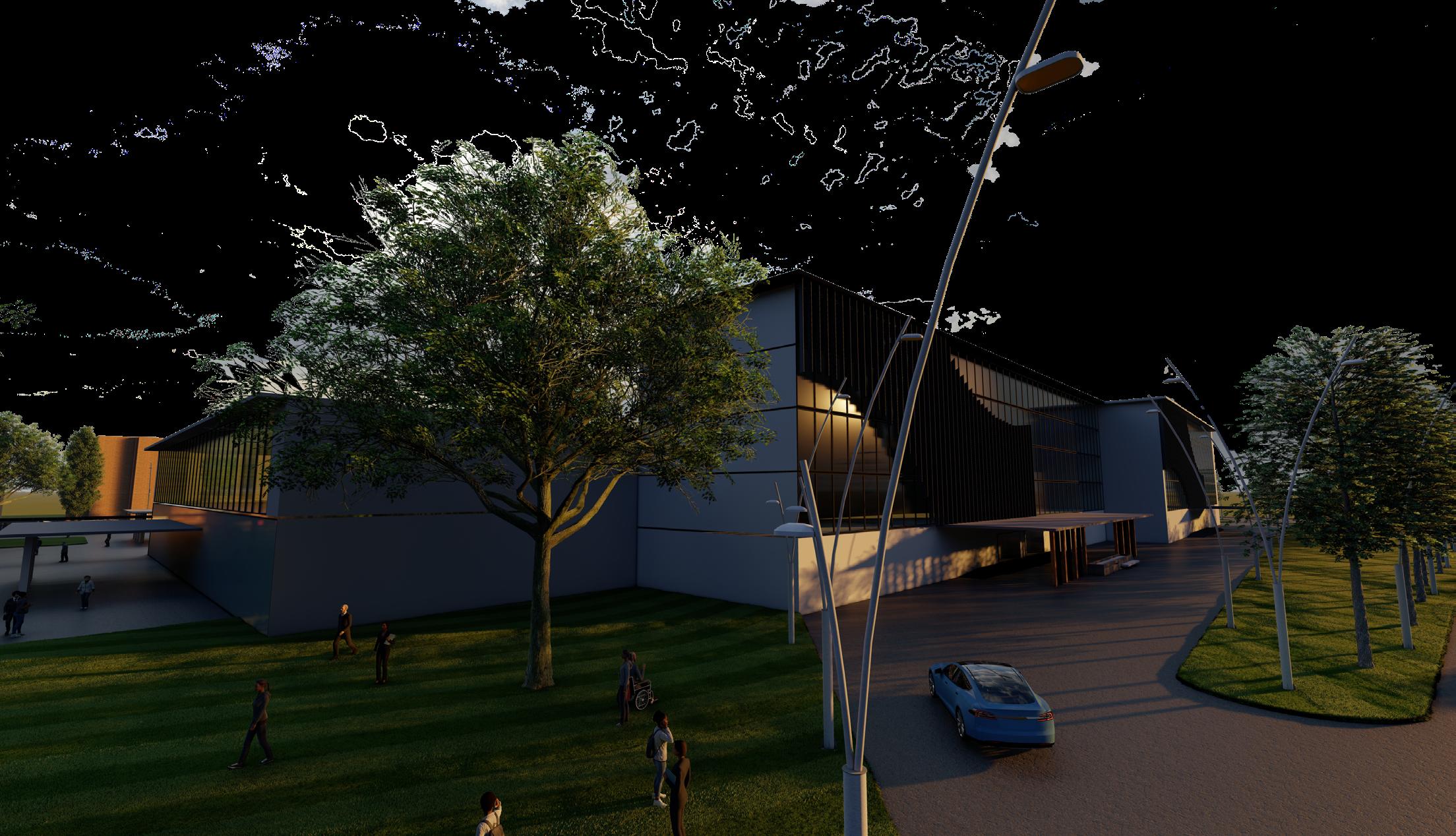

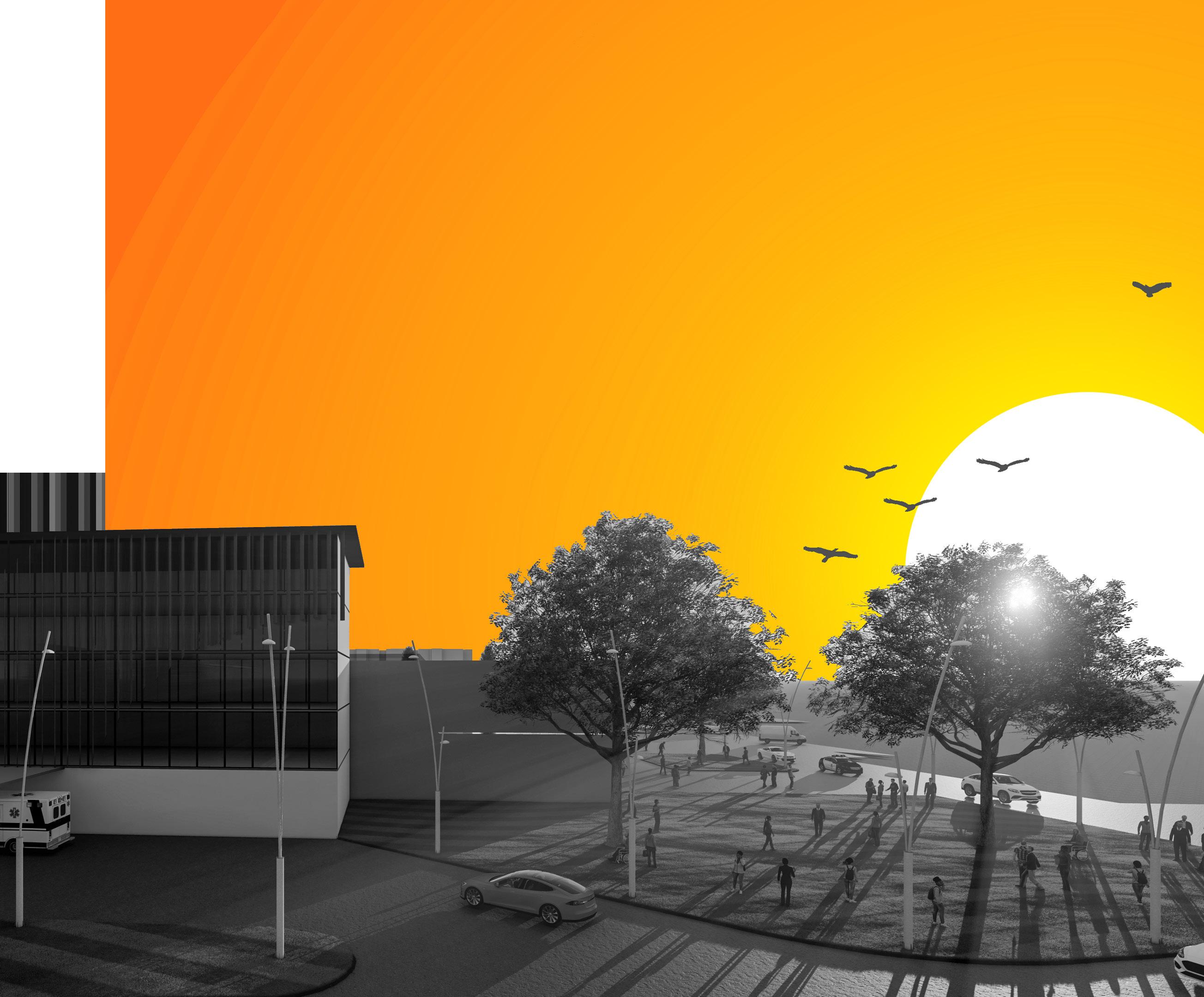

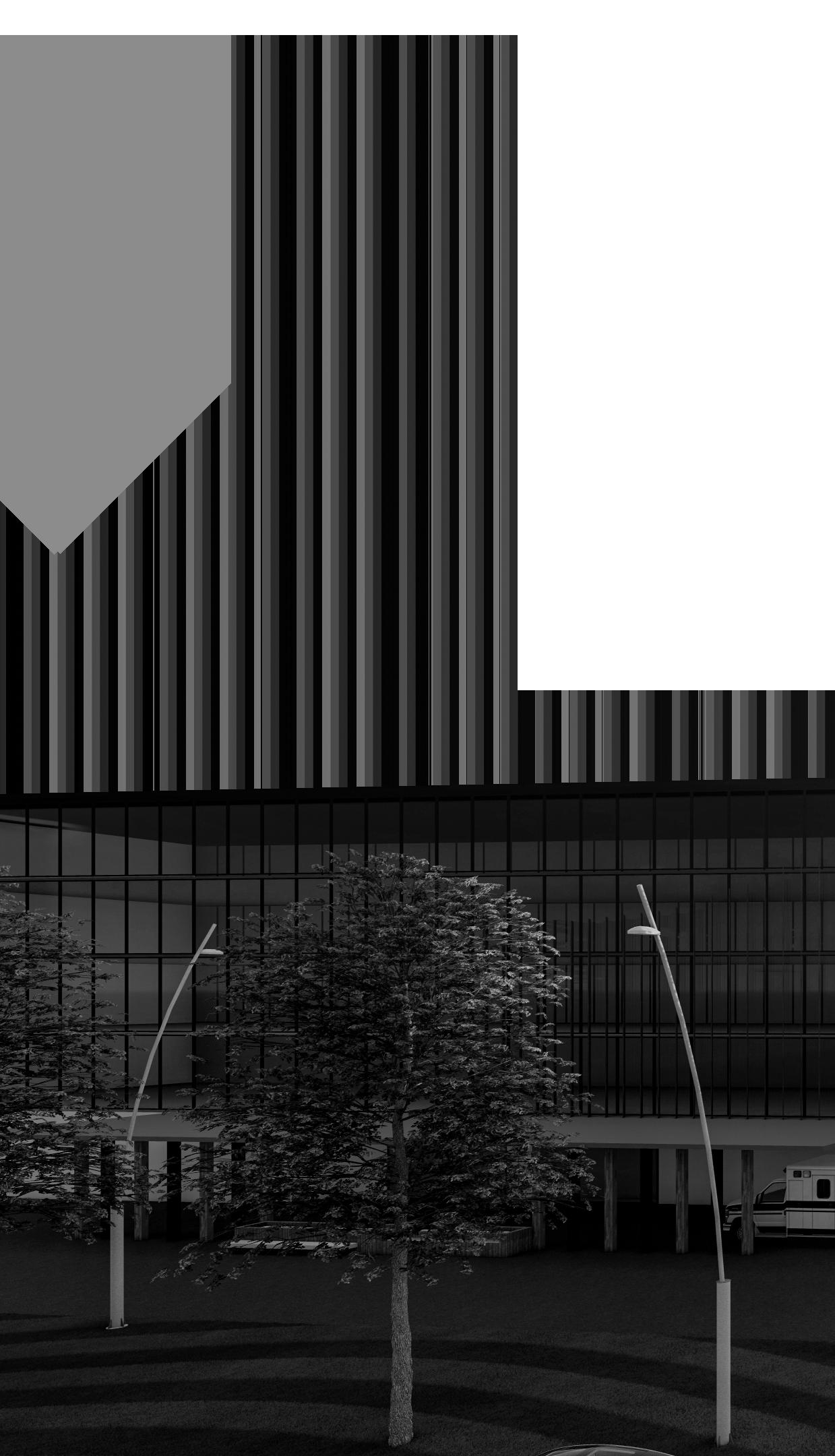

RENDERS

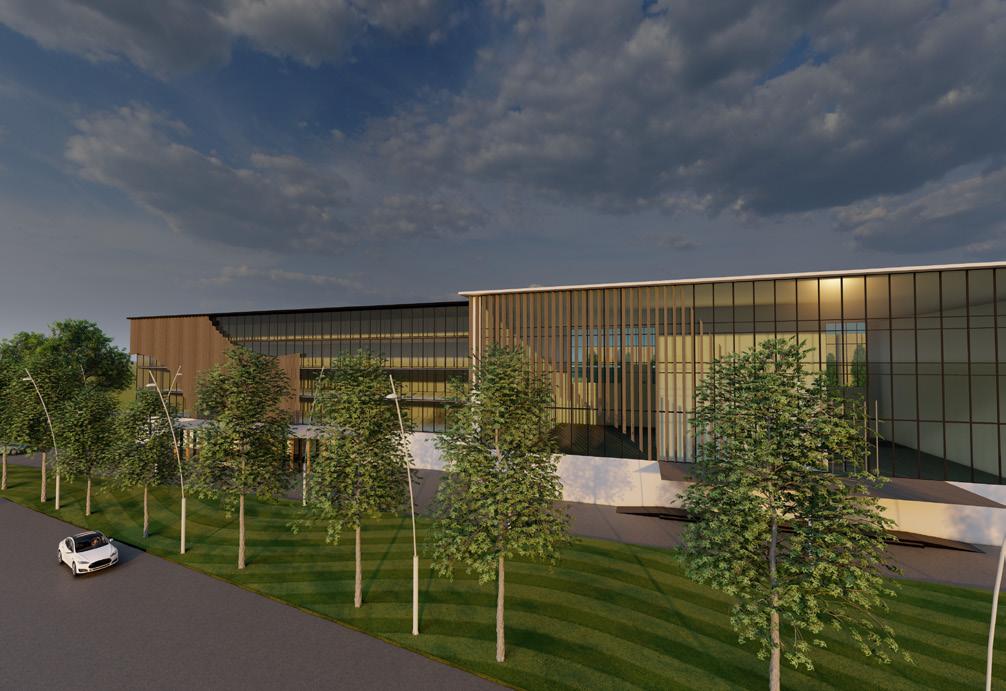

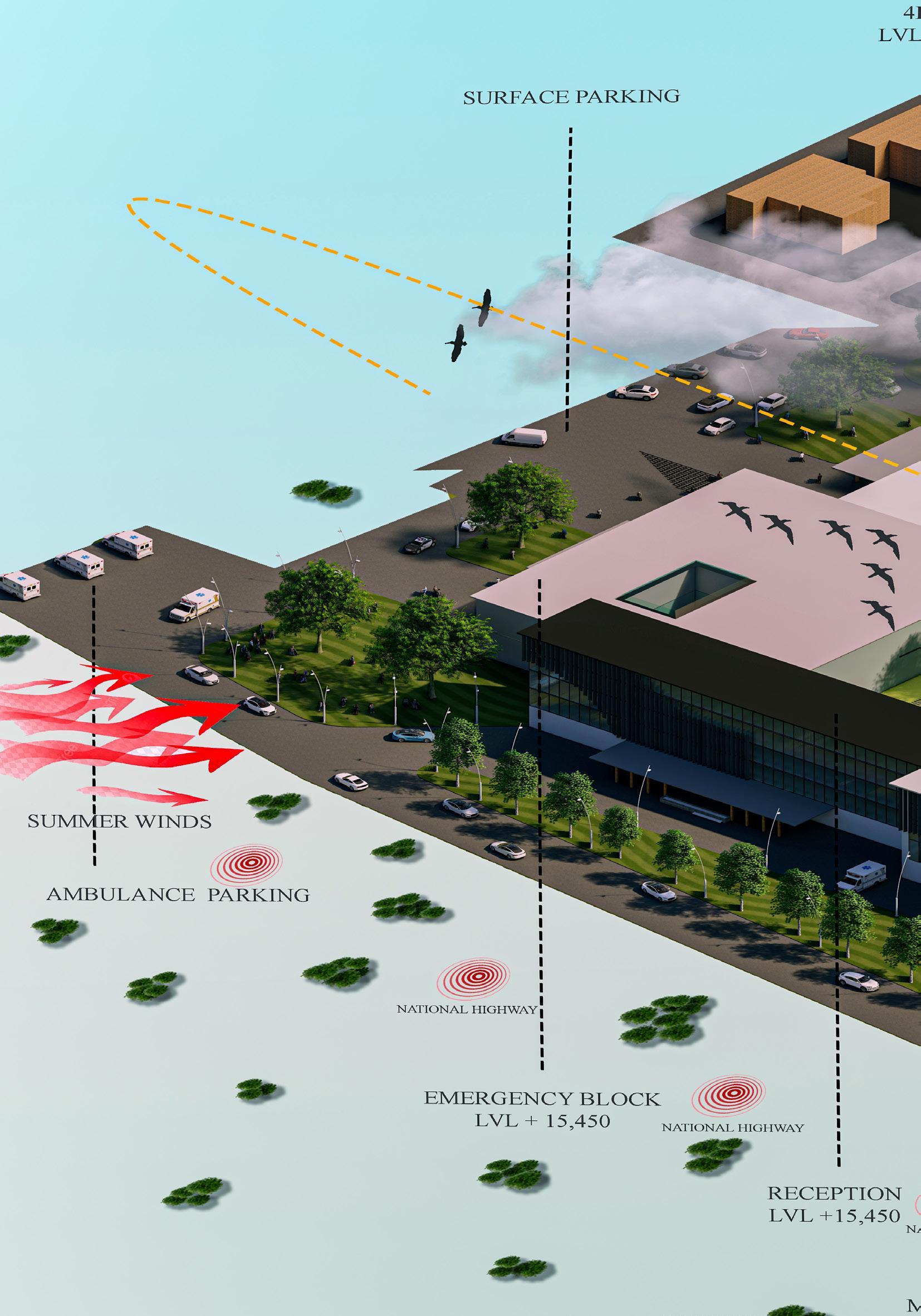

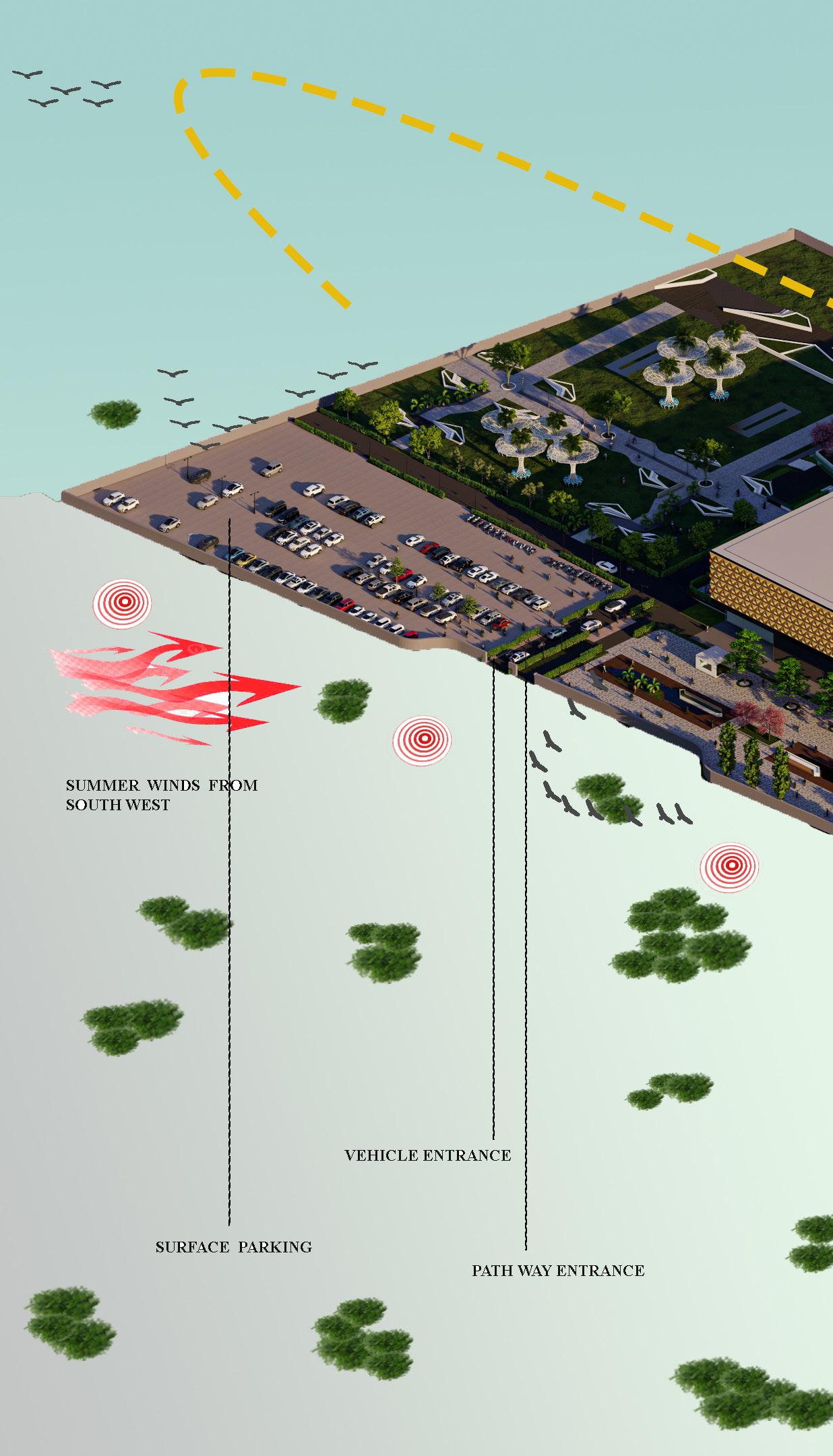

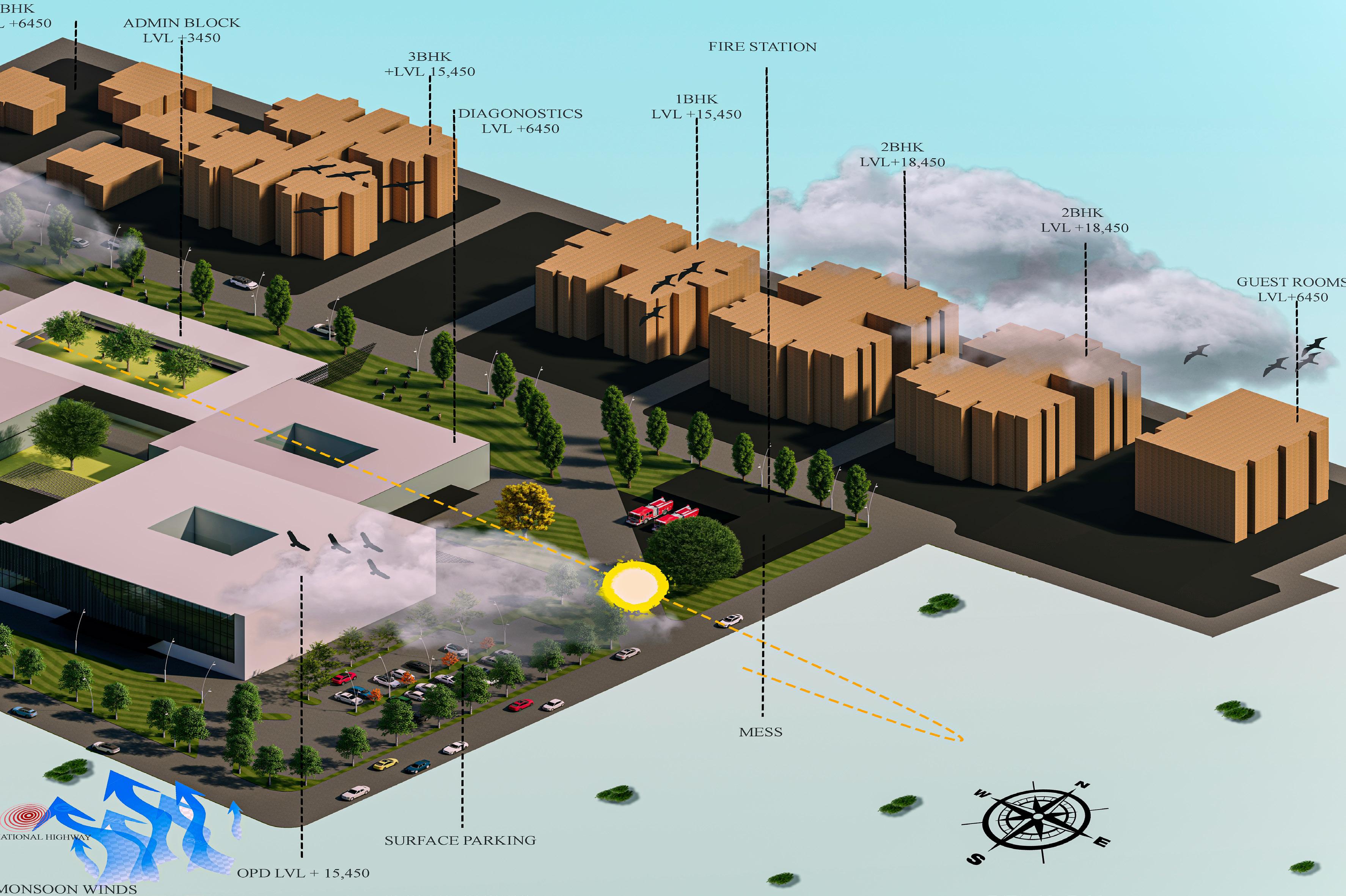

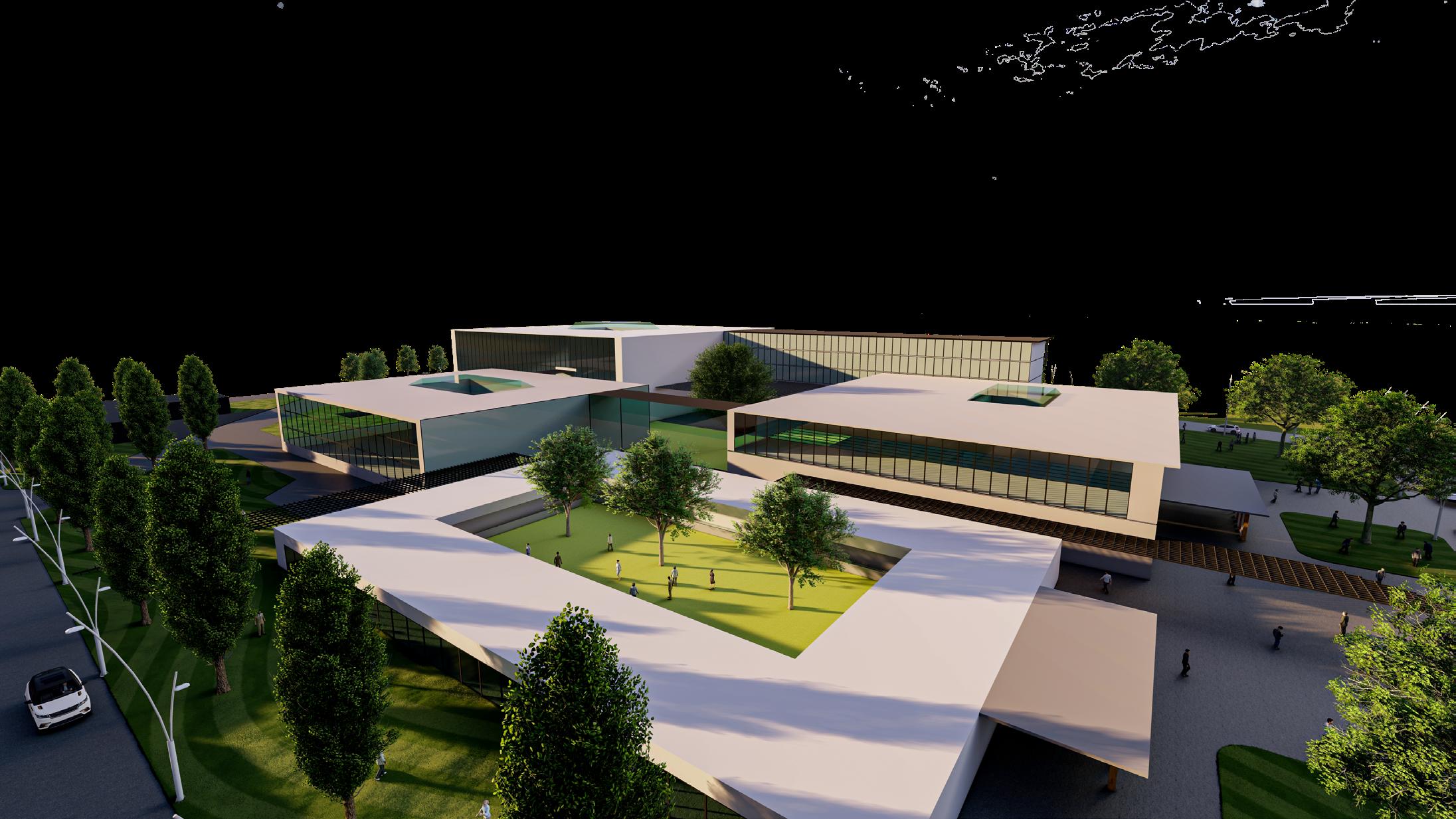

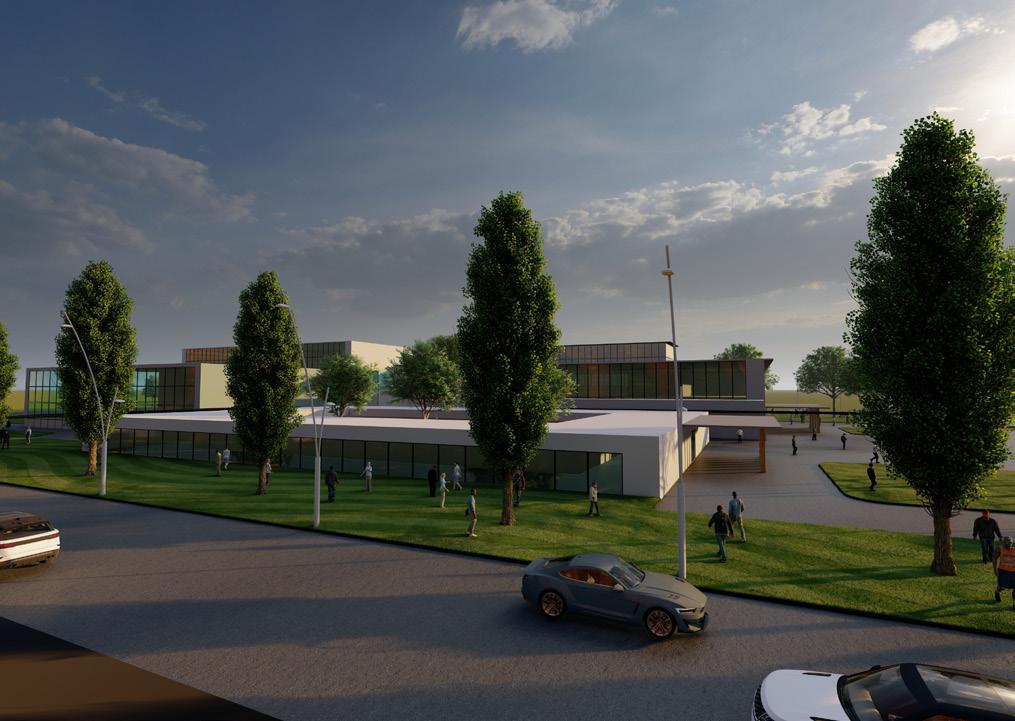

Site Isometric View
Emergency Block
OPD Block

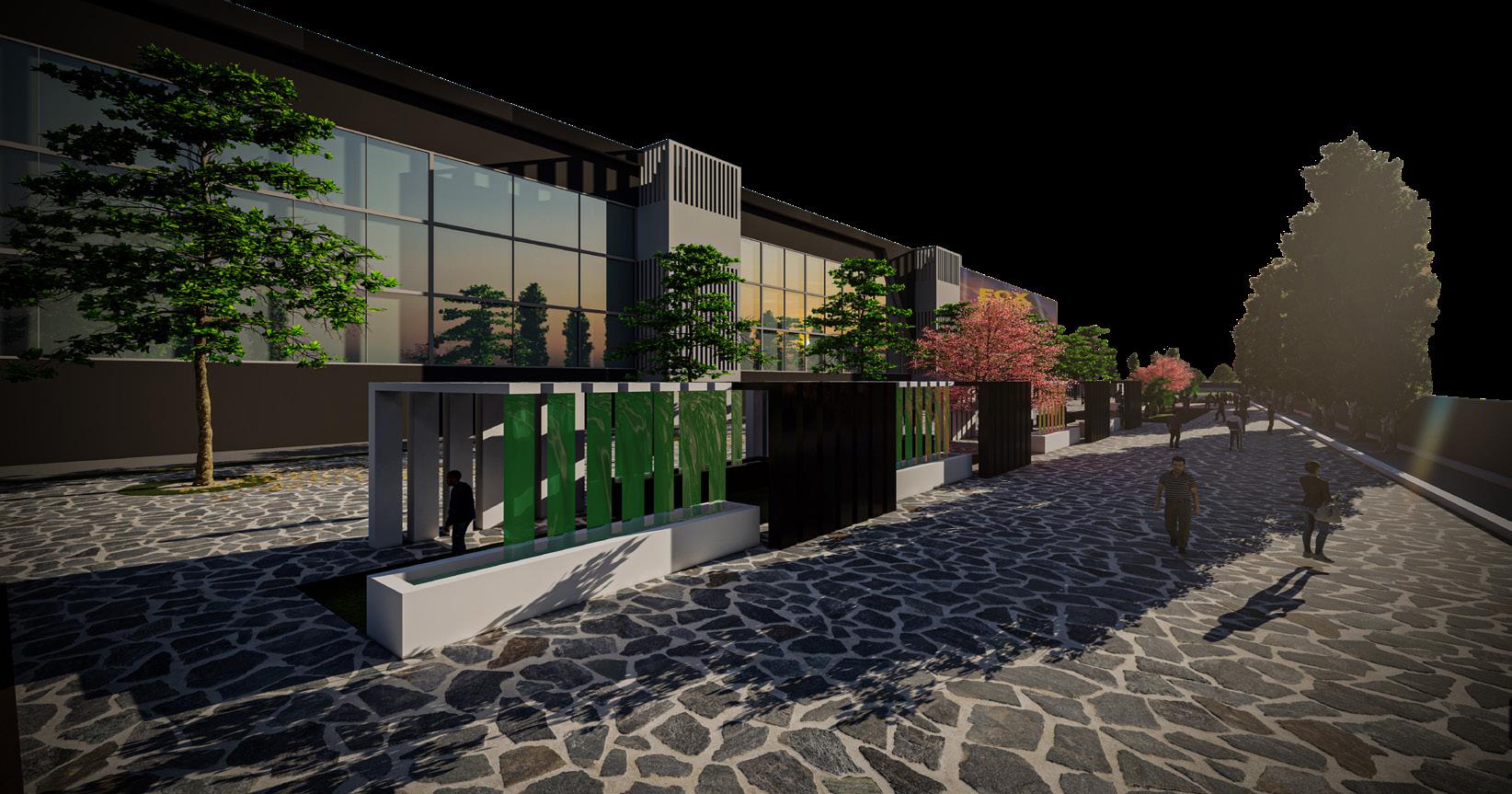

Entrance
Rare View

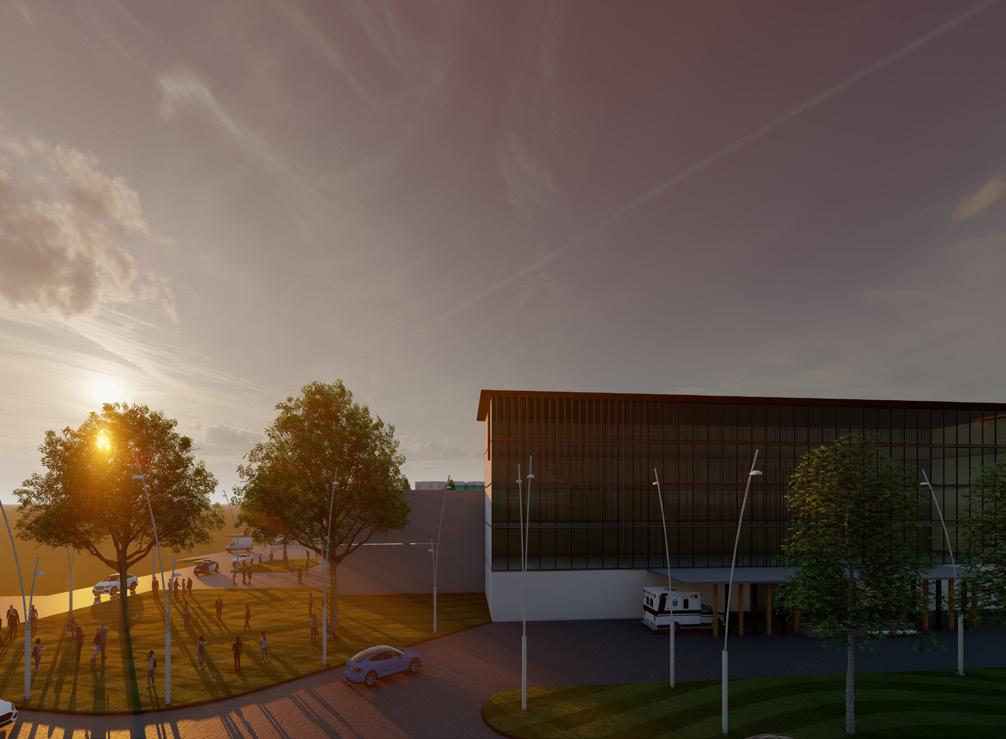

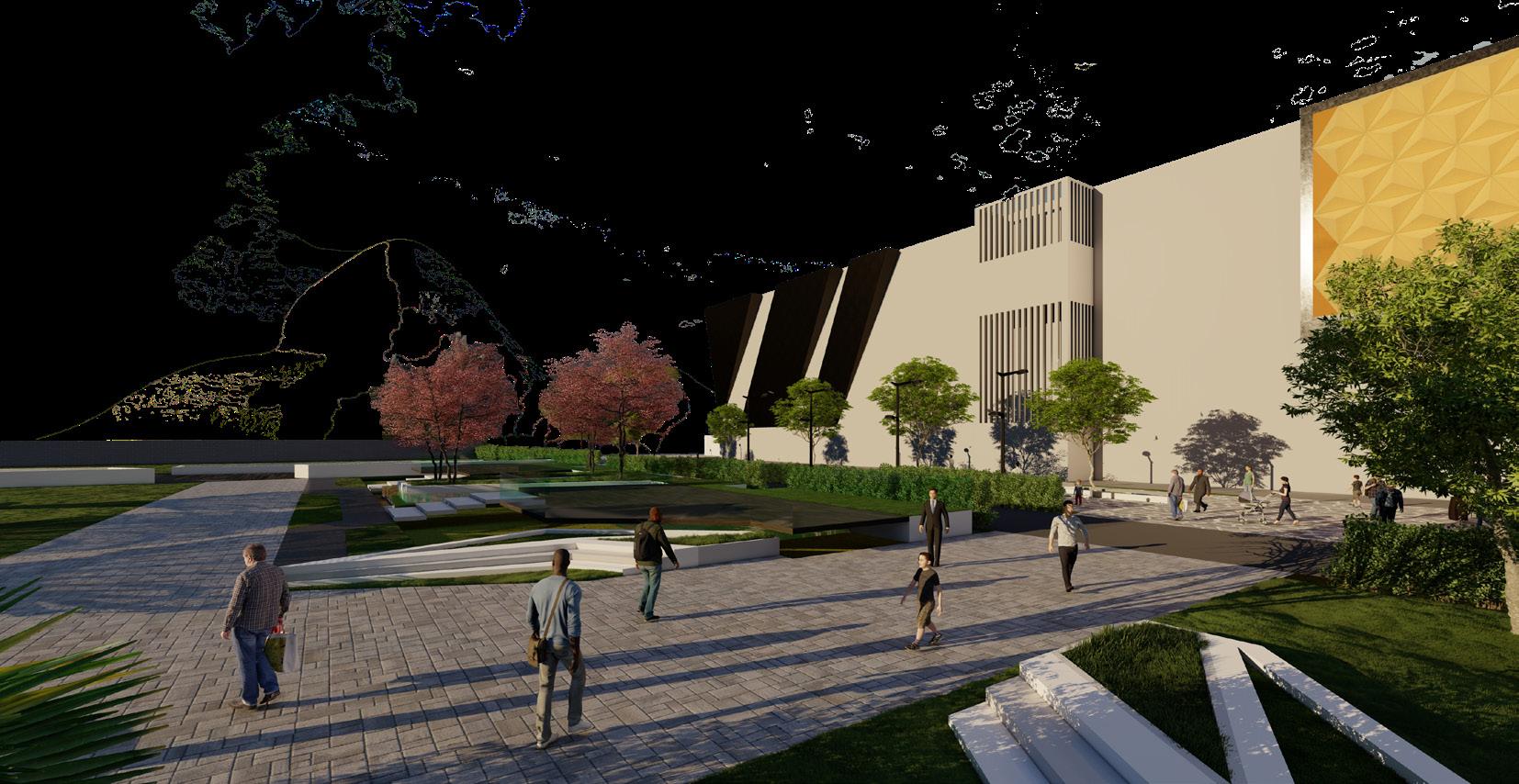

Front view
03
HIGH WAY MOTEL
ABOUT SITE
The site is situated at Phagwara,Punjab
Total site area is 36,075 SQM

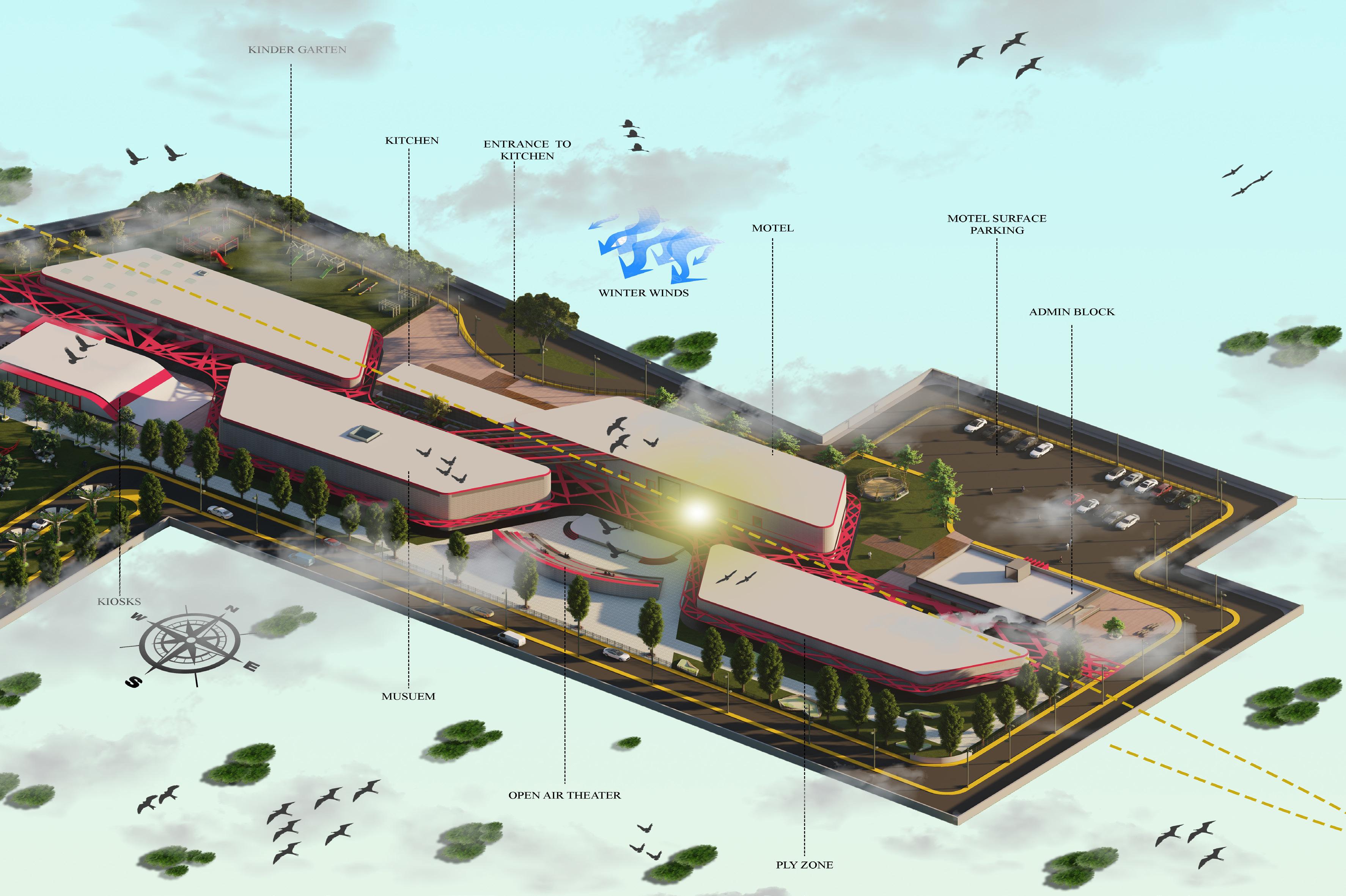

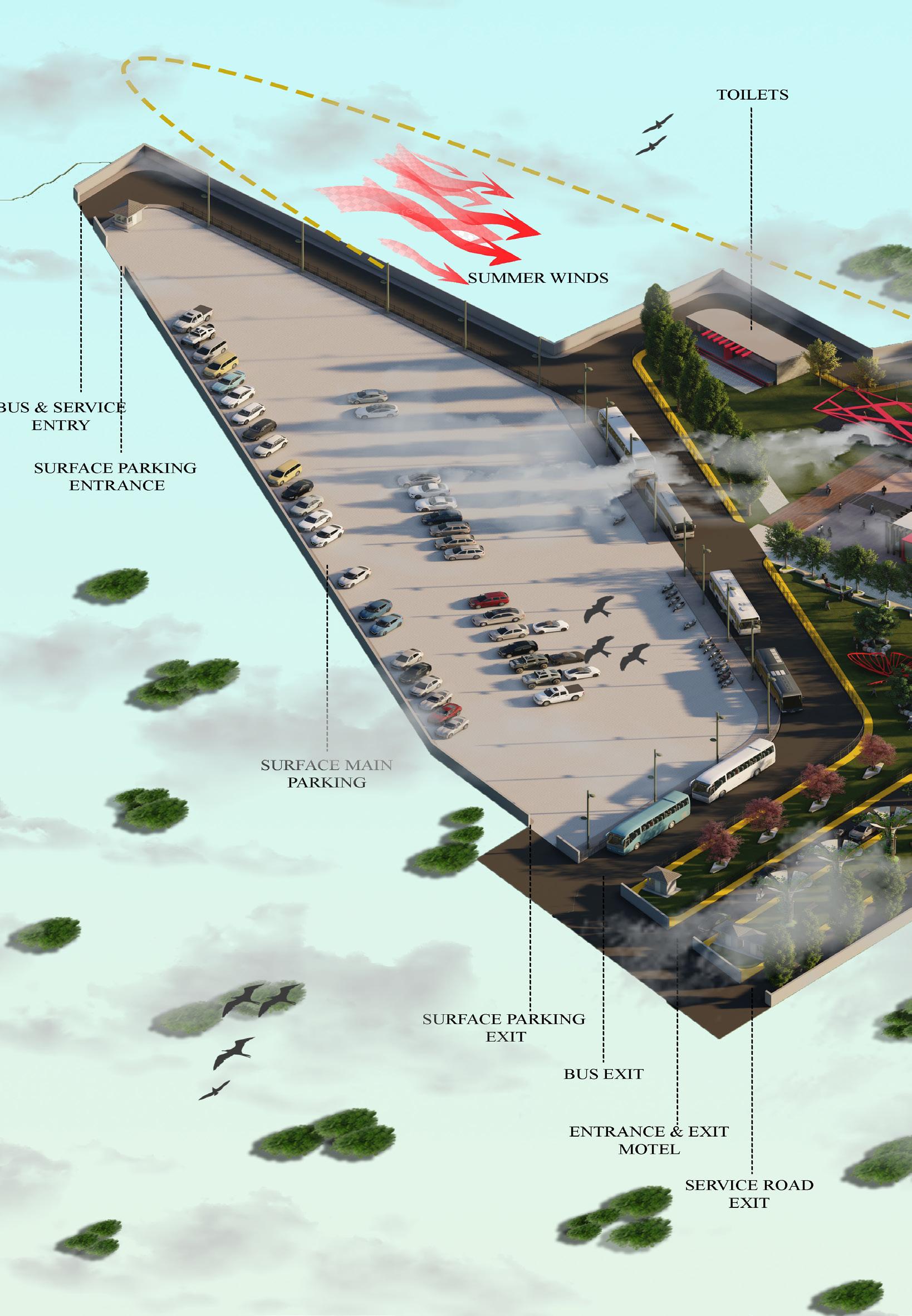

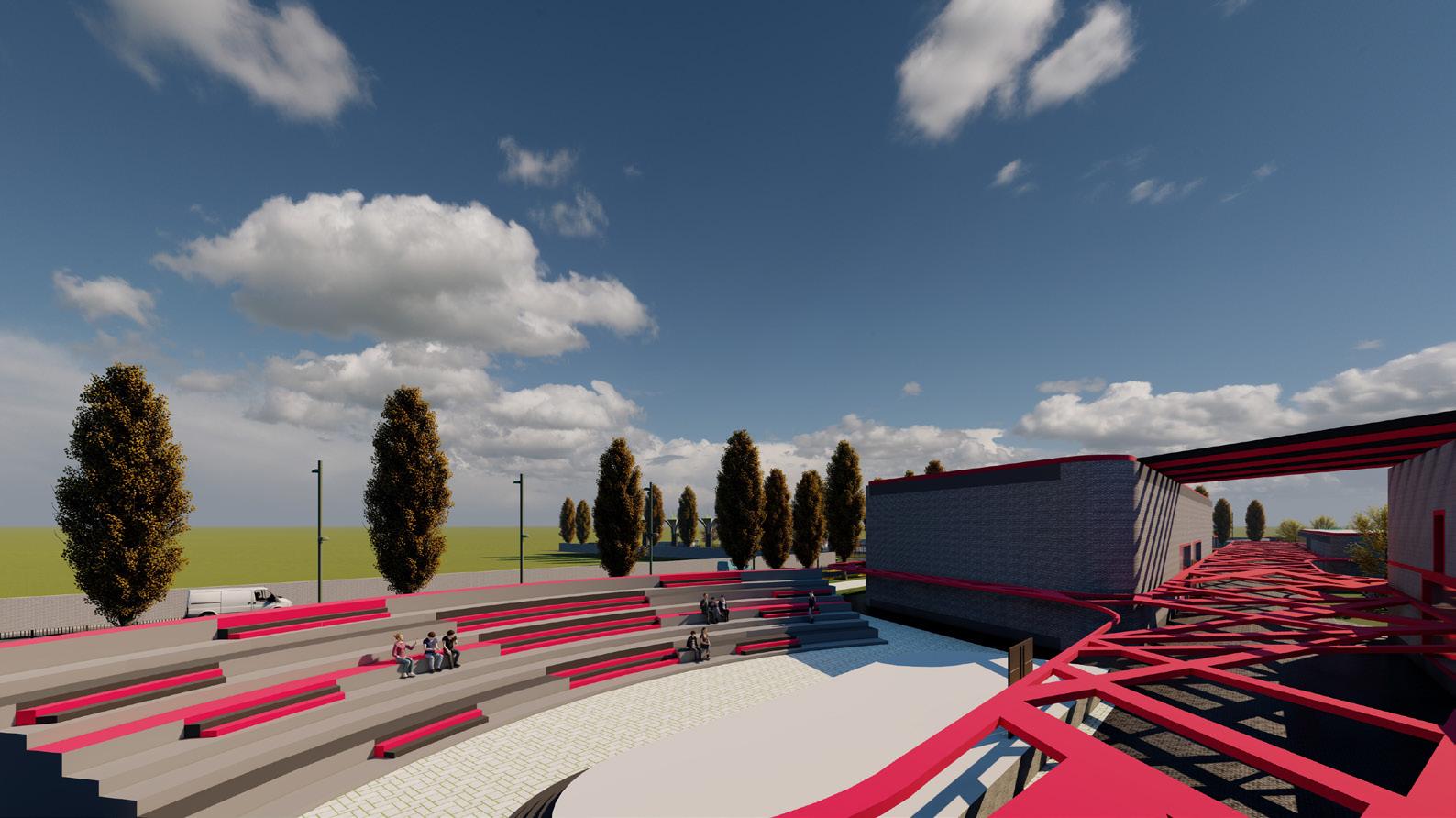

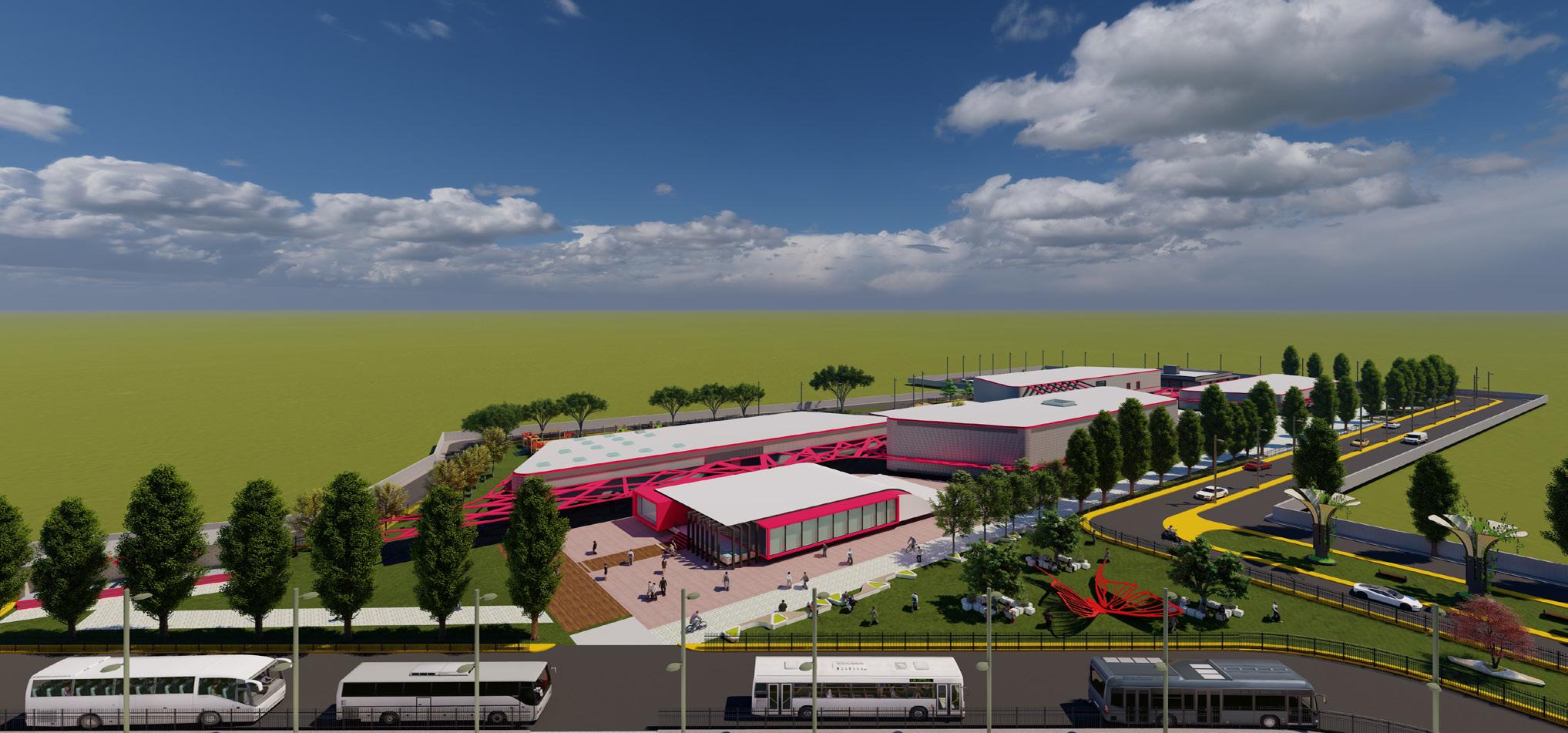

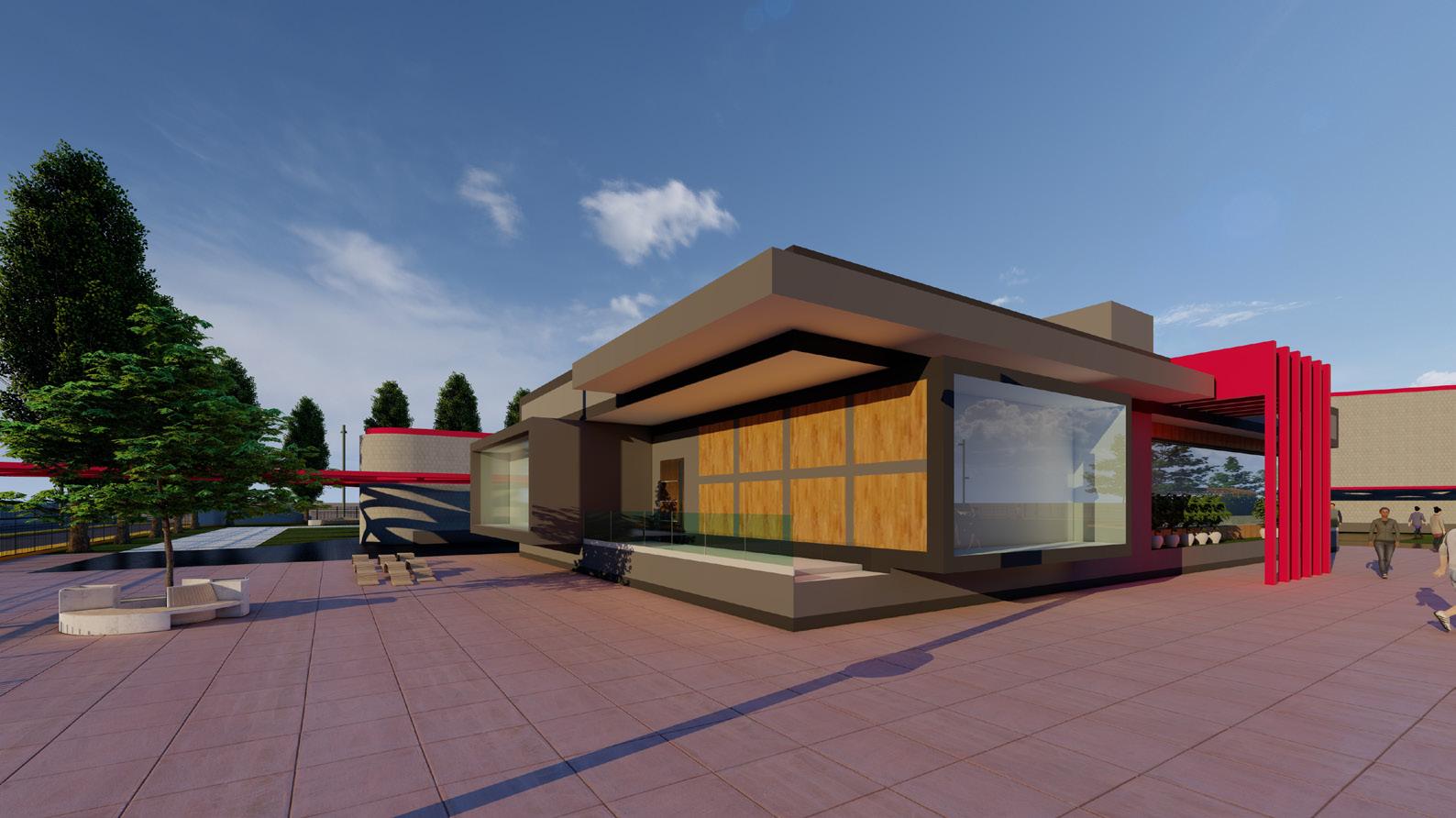

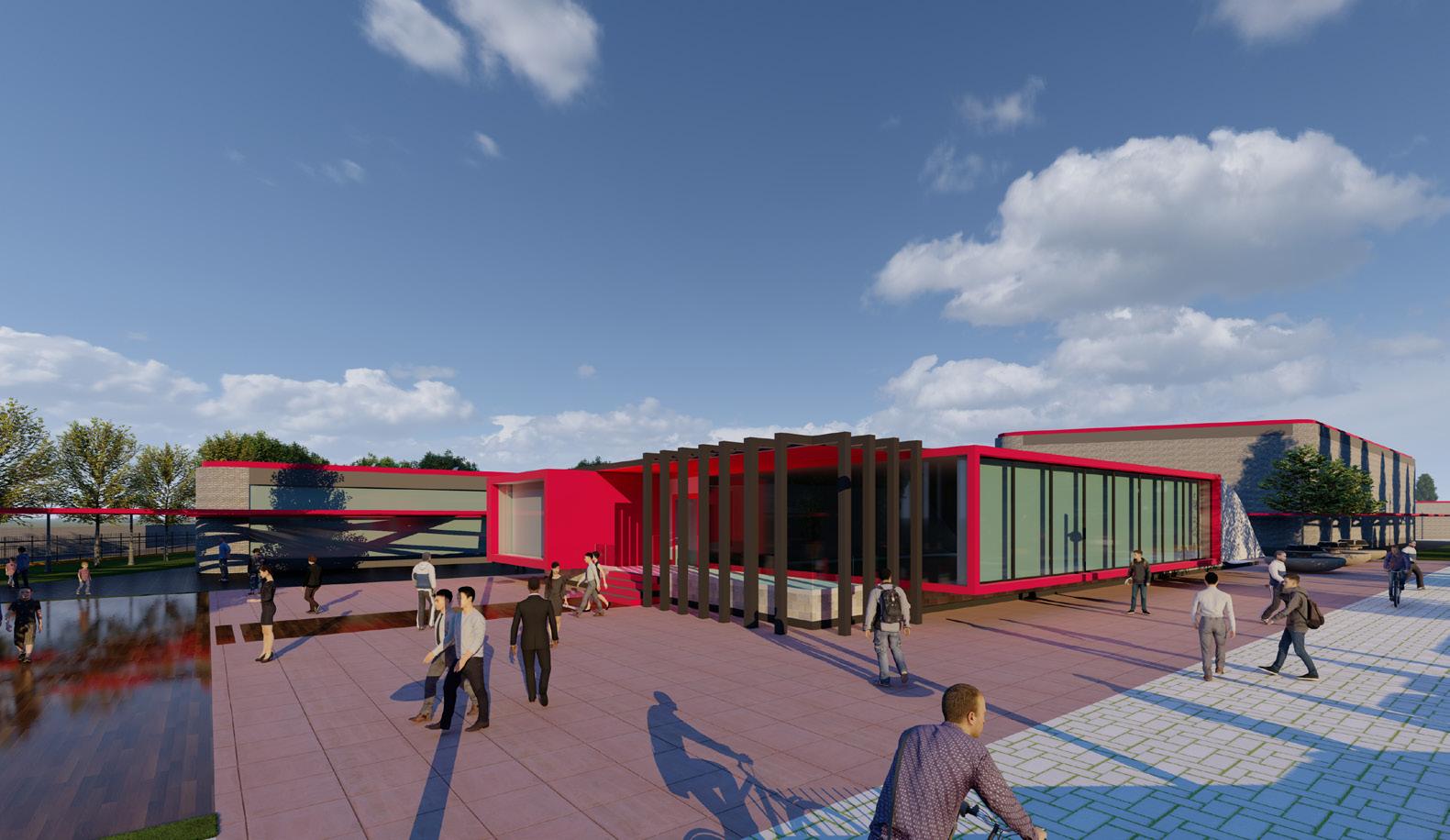

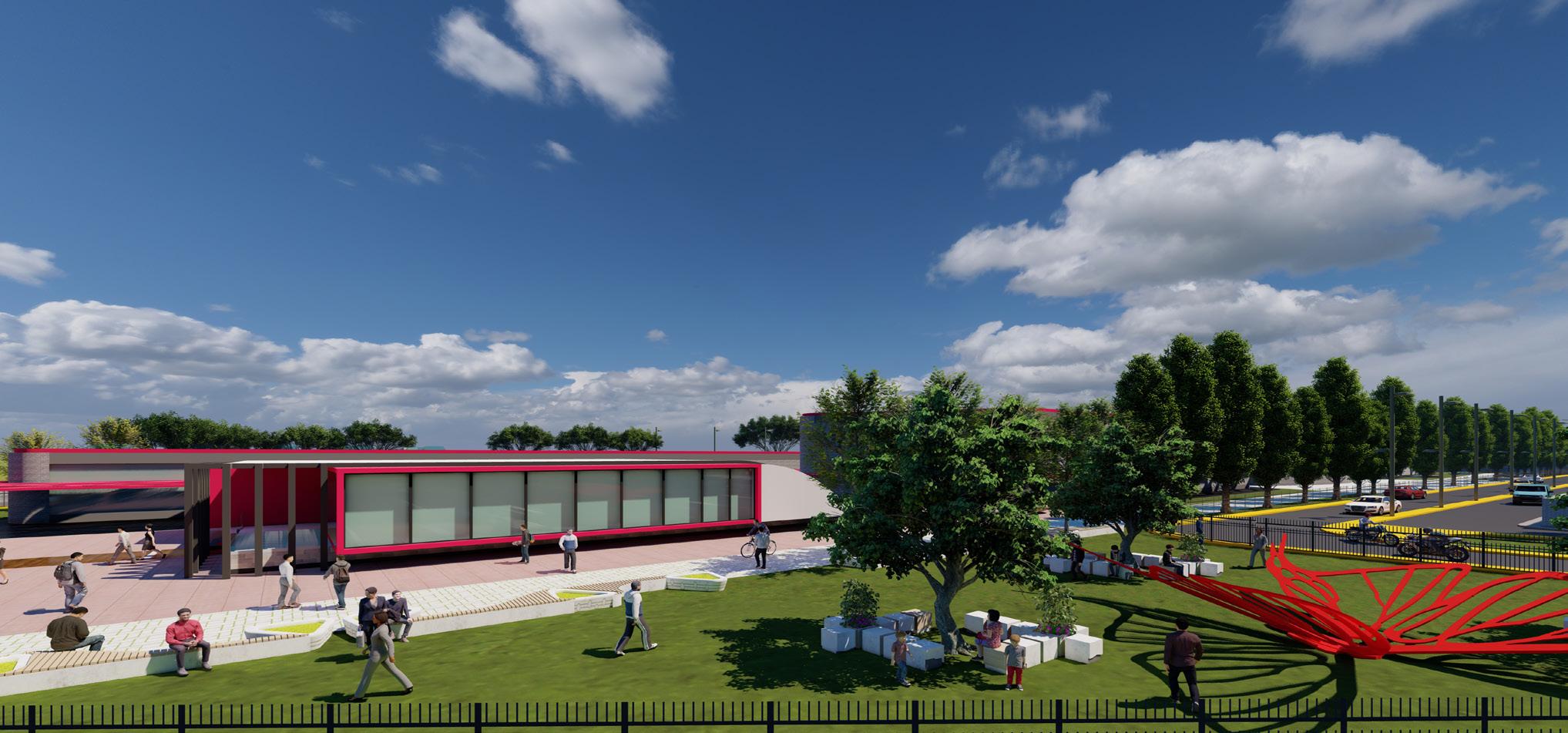

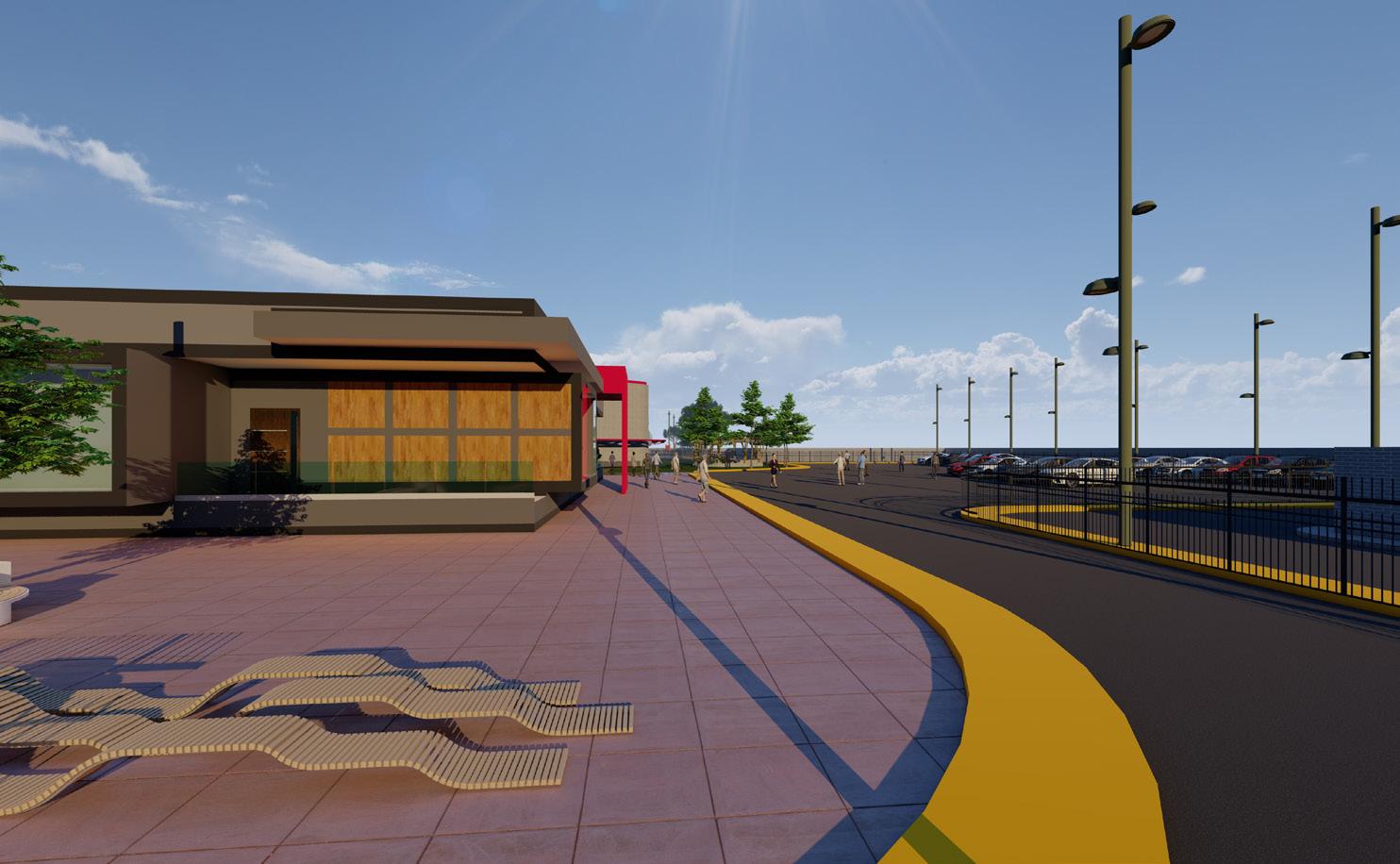

The motel is designed with well proper landscapes,toilets, surface parking,seperate bus parking,kinder garten,open air theater.
Blocks: Restaurant, museum, kitchen, kids digital play zone, adminstrative and kiosks.
The total site area 36,075 SQM
Total F.A.R 1.5
Parking 40% of total site area
Height permissible 20m

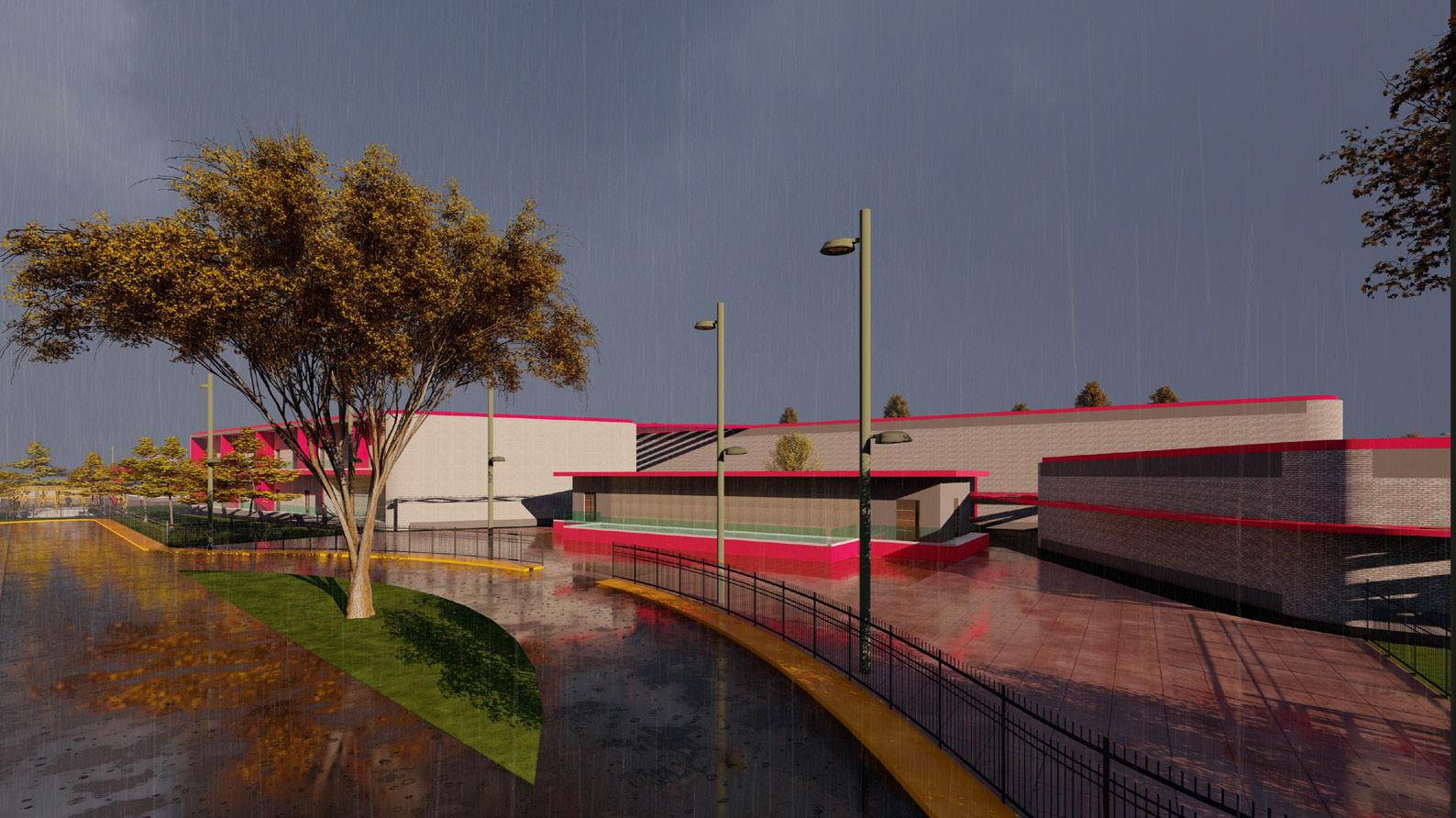

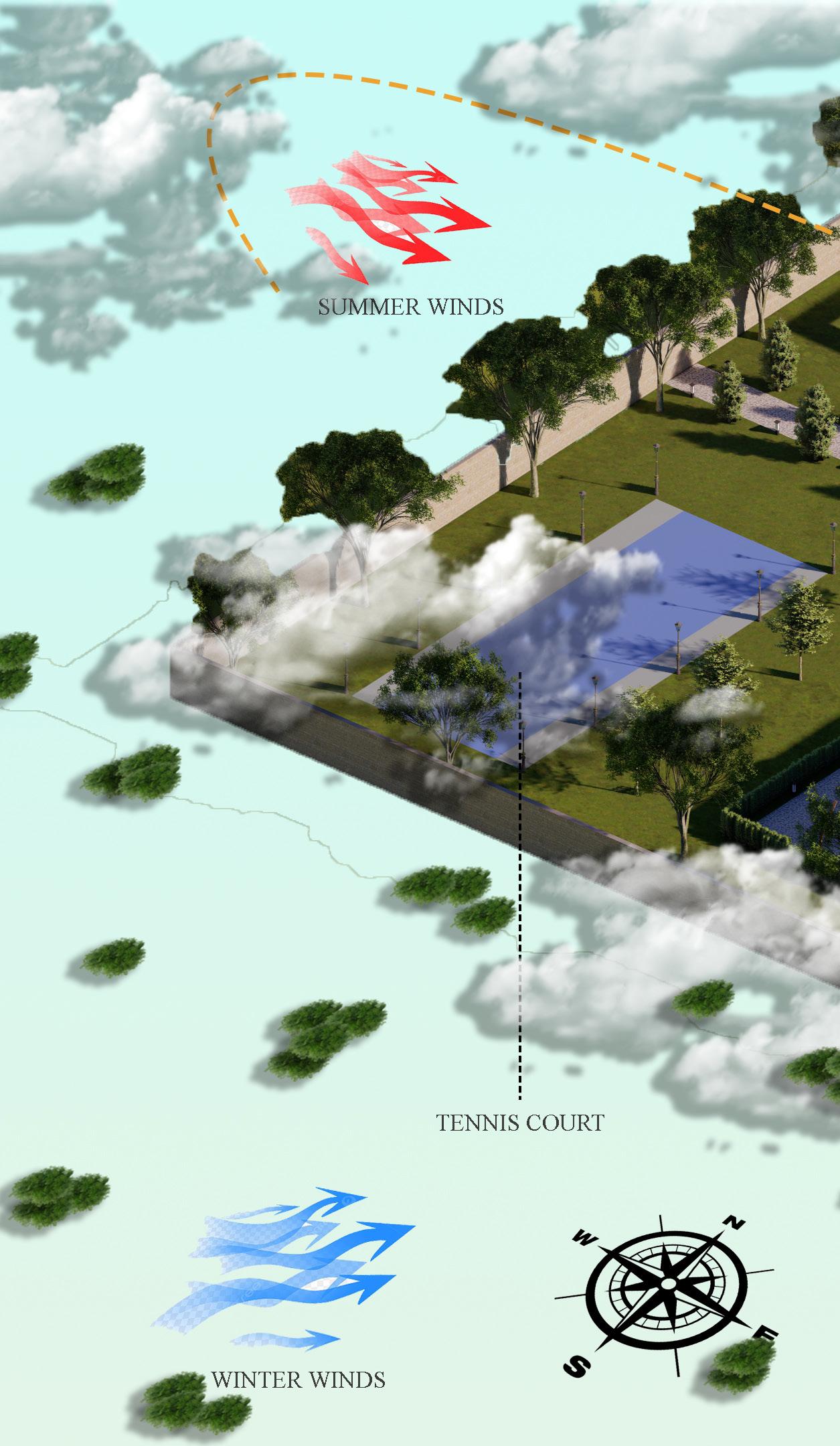

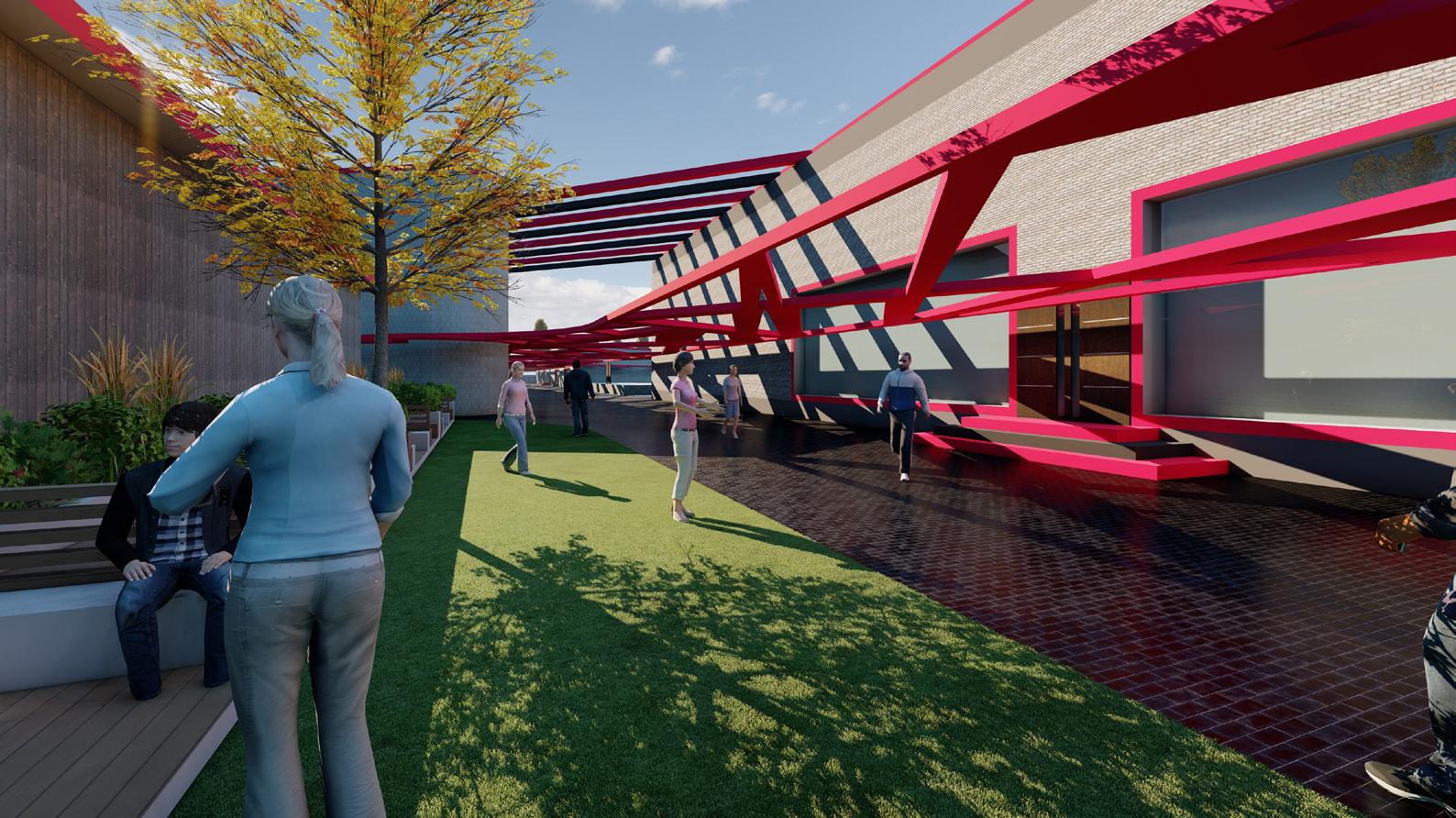

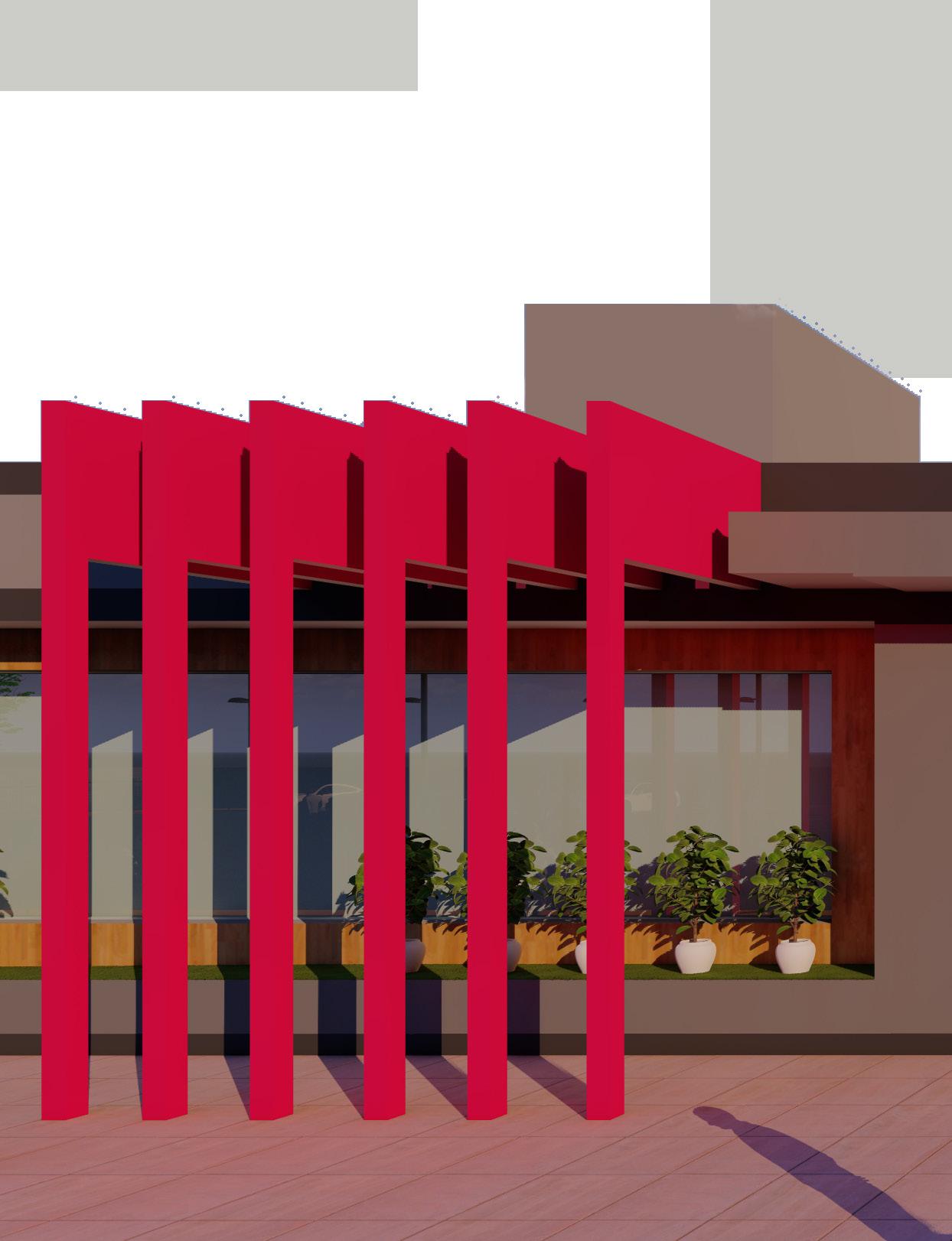

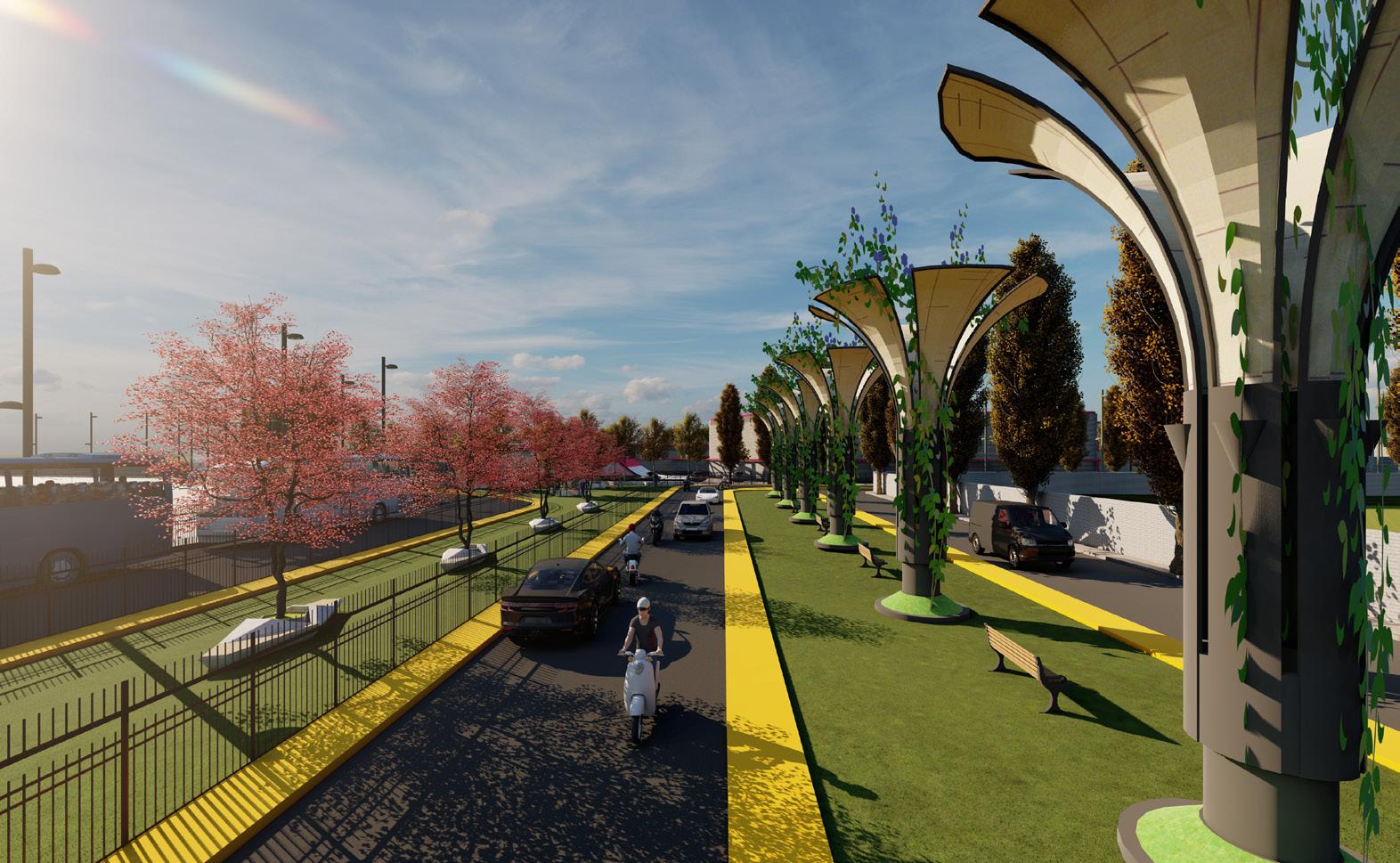

The concept of project is the walk way should be all time free from direct sunlight, providing shadow, free wind blow through the blocks and providing less rain stricks.

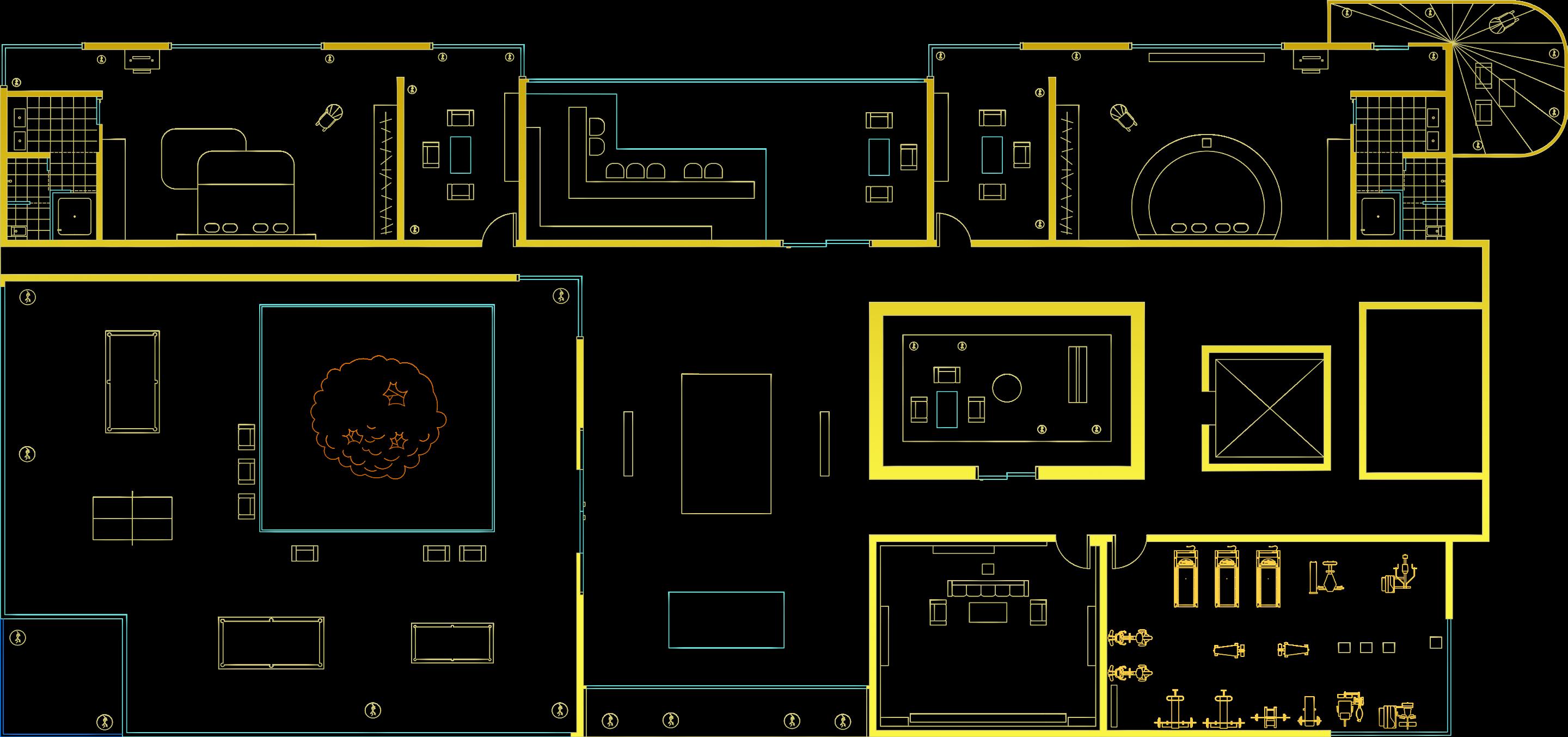

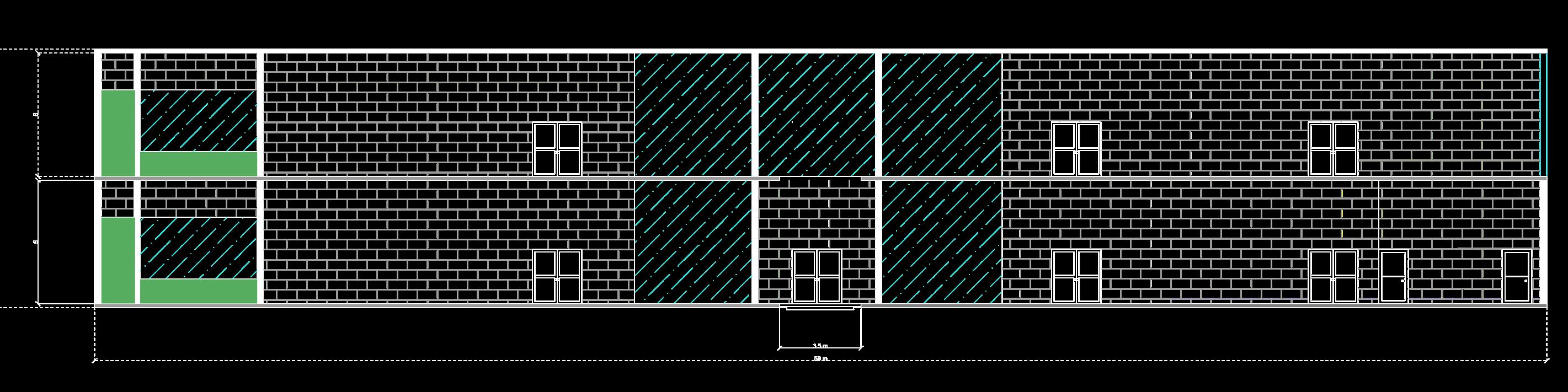

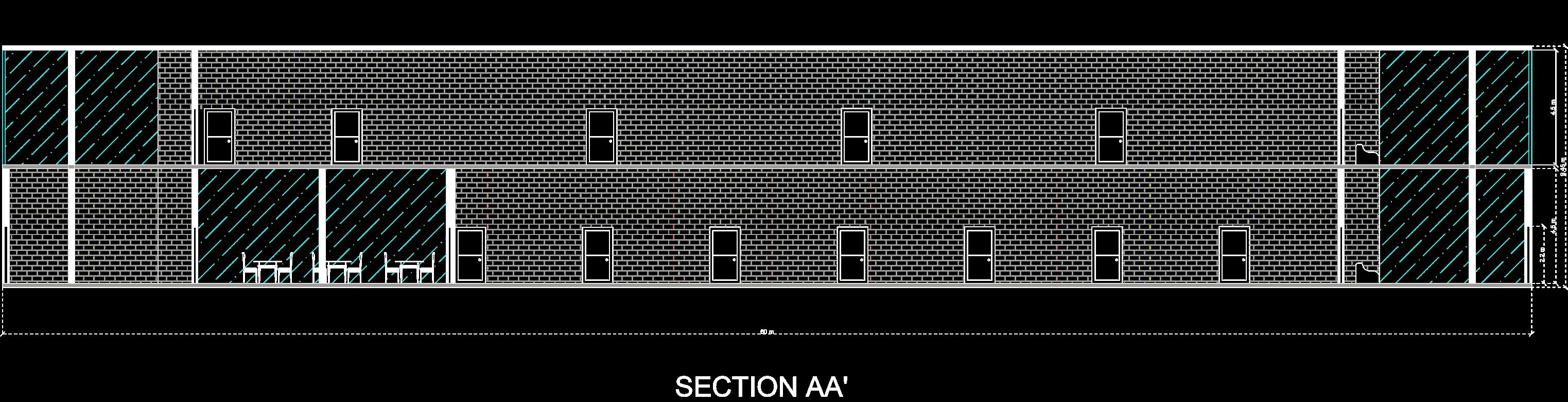

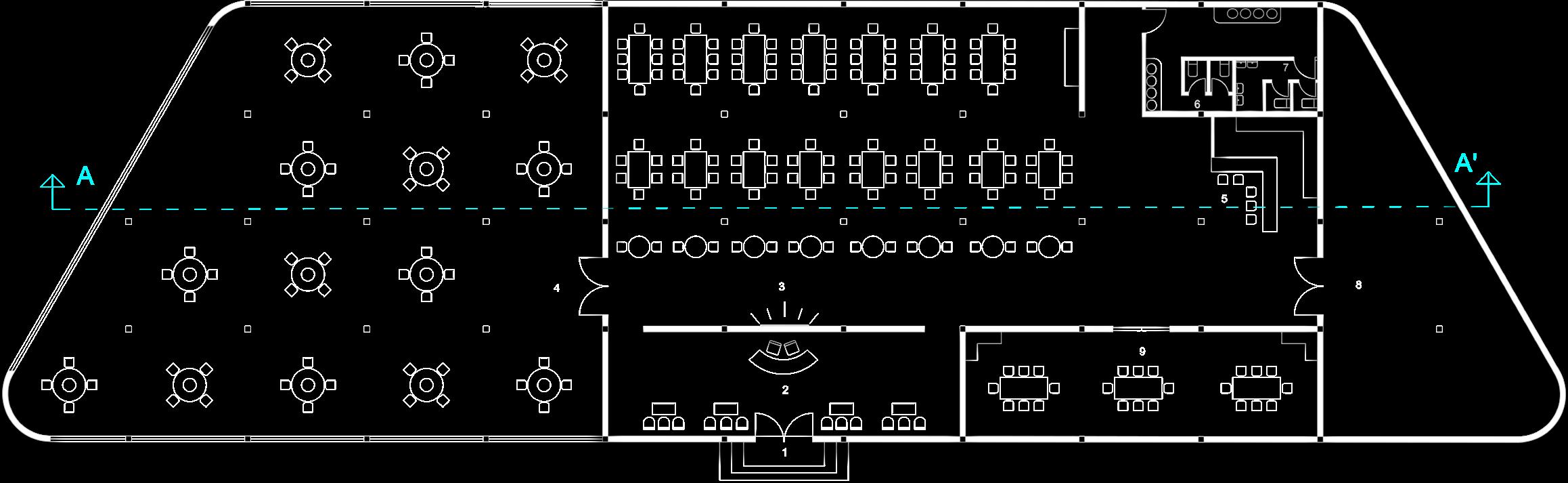

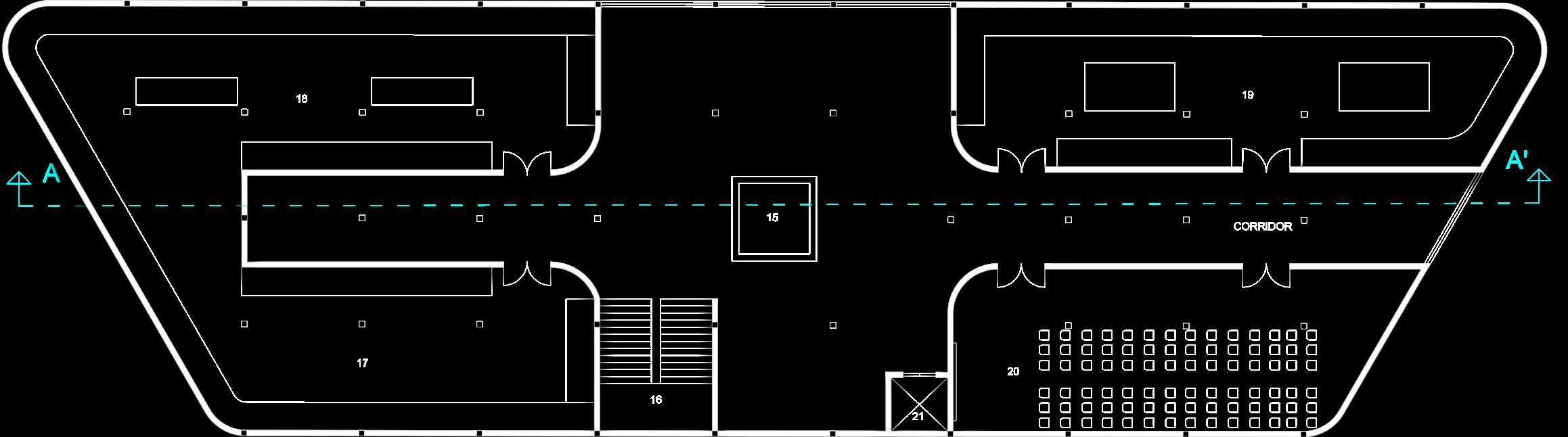

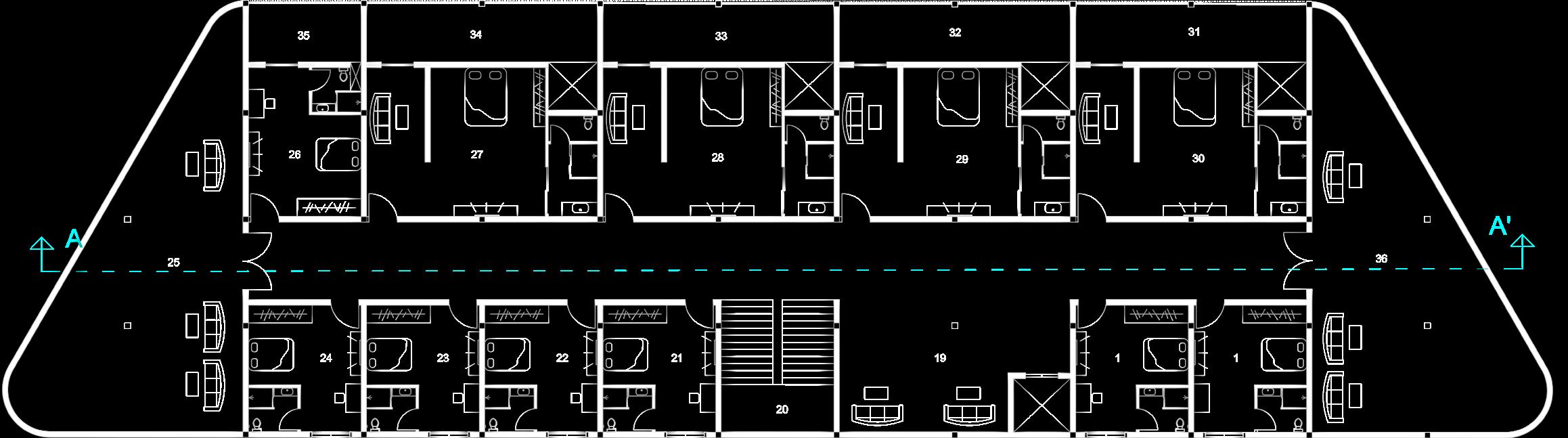

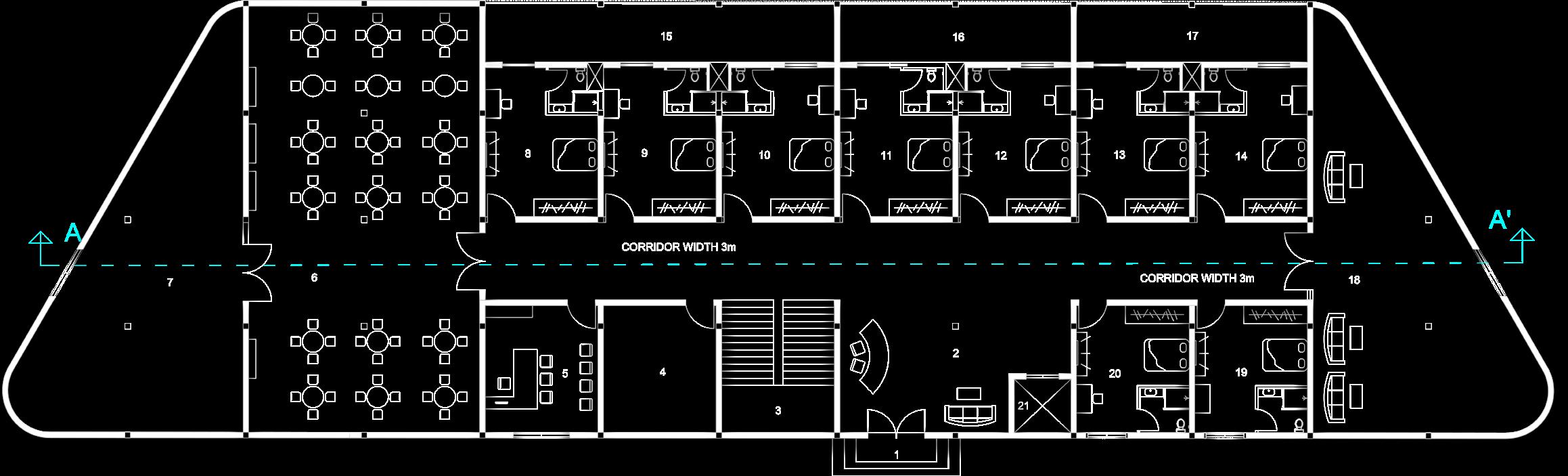

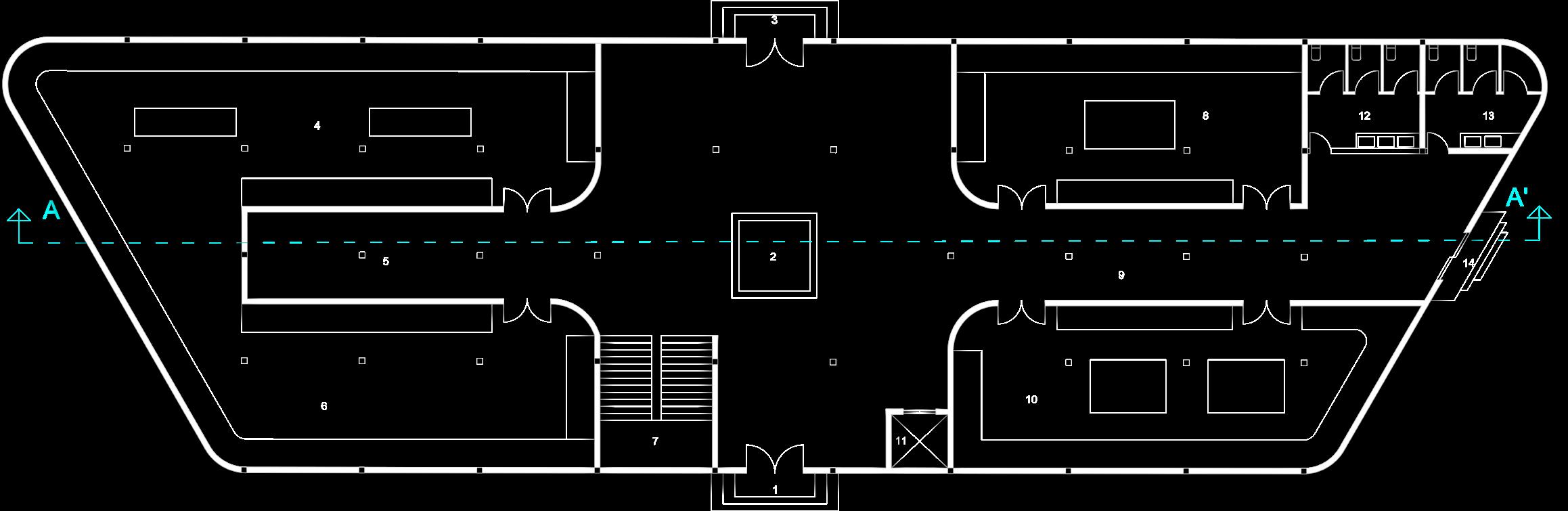

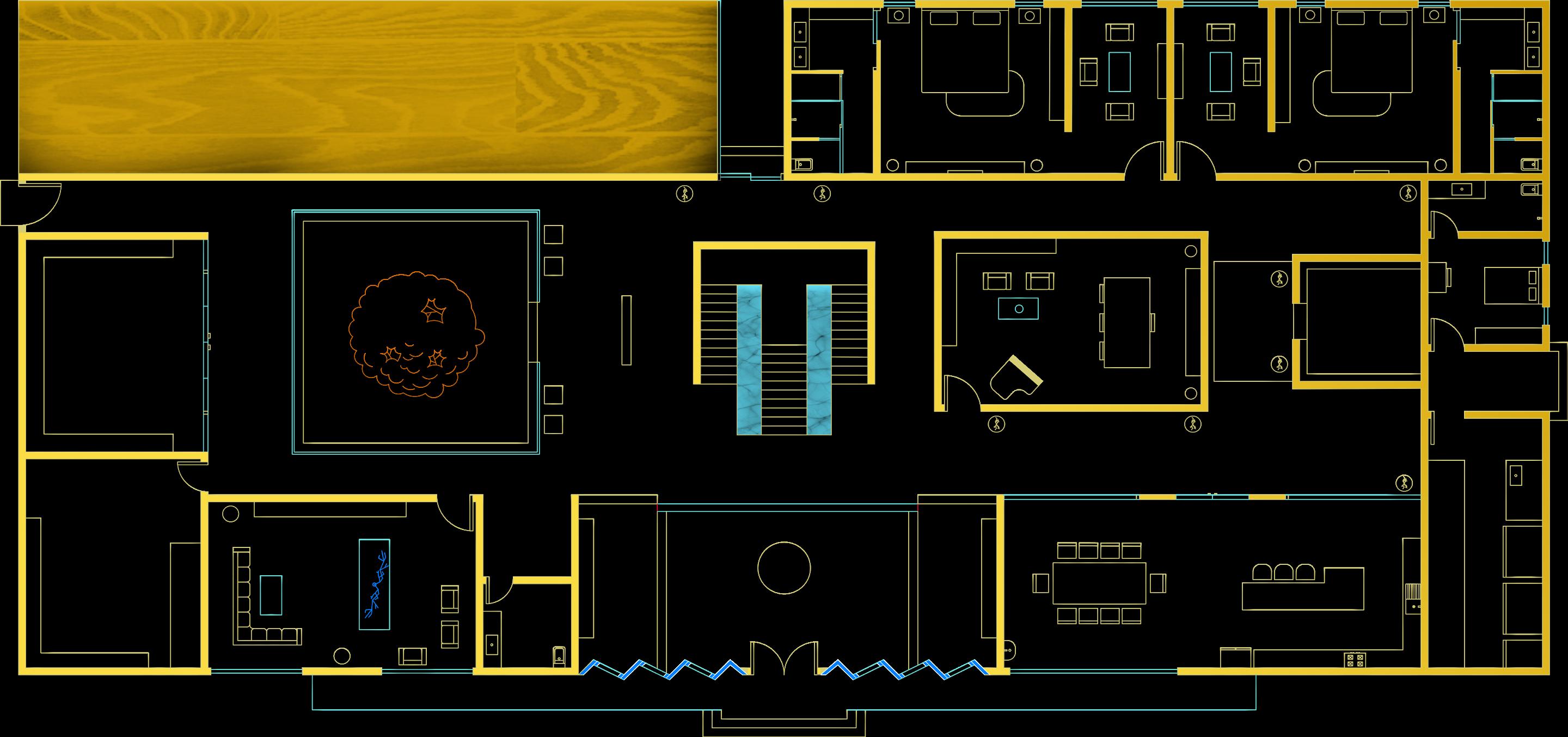

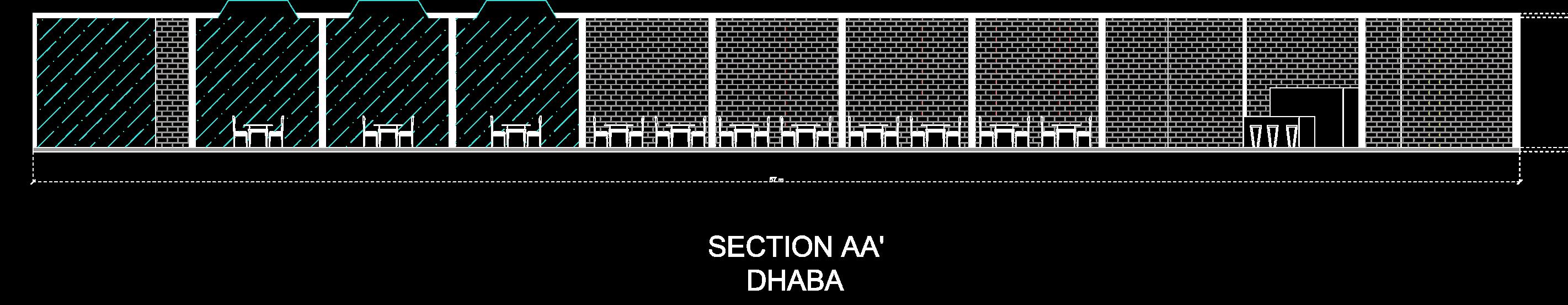

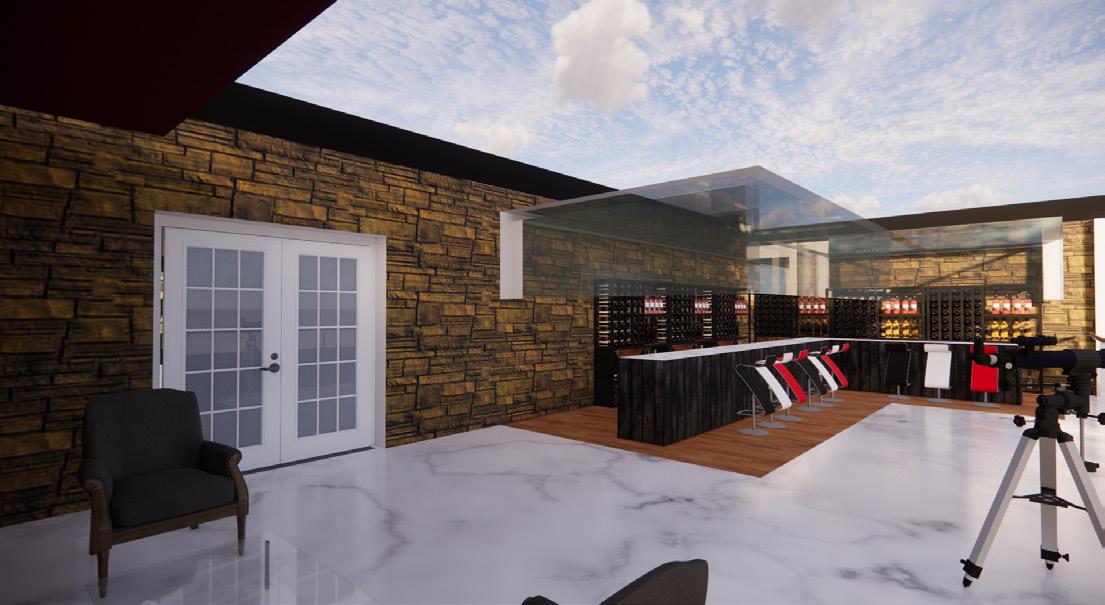

1. Entrance 4. Semi opened dining 7. Female toilet 2. Reception 5. Bar 8. Staff and Store 3. Dining area 6. Male toilet 9. Private dining

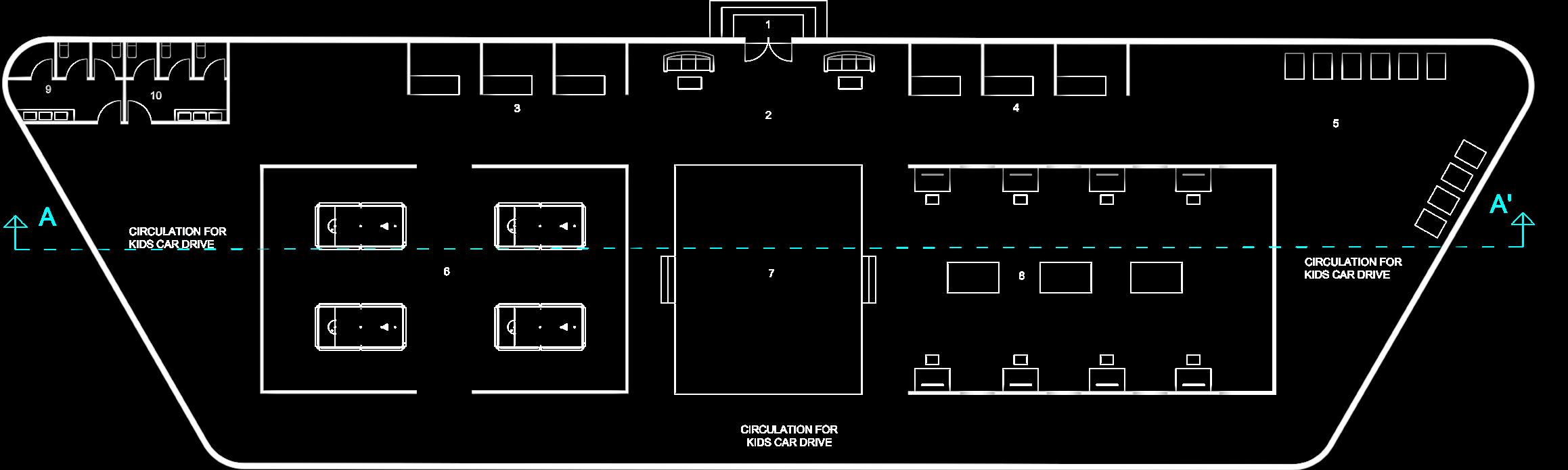

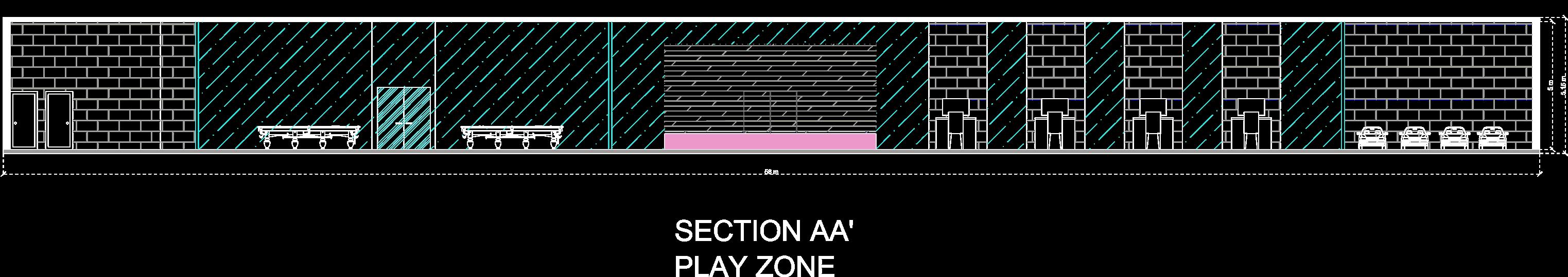

1. Entrance 4. Ticket counter 7. Jumping 10. Male toilet
Waiting area 5. Kids car 8. Xbox and Digital games
Ticket counter 6. Snooker 9. Female toilet
1. Entrance 4. Store room 7. Food making 18. Lounge
