HIGHRISE | MIXUSE

ROSEMONT HOTELS & RESIDENCES

Site Area : - sq.m.

B U A. : 250,000 sq.m.

Location :Dubai, U.A.E.

Project Description: 2 Towers of 55 & 58 floors on 5 Levels of Podium with Hotel/ Serviced Apartments, Entertainment Centre, Rainforest Garden.

Invited Design Competition | Concept Design to Construction Drawings.

• Role: Architect (All Stages)

• Involved in team discussions with various stakeholders such as Client / Contractors/ Operator , Sub & Specialist Consultants of various Trades.

• Supported the Design Manager in developing the overall form of the Building, based on various massing studies to final selected options for both the Towers,

• Designing and developing various elements & components of the projects such as the drop offs / Public Floors on both the Tower s and in Detailed Design Stage developed the Hotel Tower.

• Assisted the Project Director for the Hotel Tower in all aspects from managing the external sub and specialist consultants such as Interior Design/ MEP/ Structure/ BOH/ FLS/ Landscape etc to internal design team of various Architects ,Architectural Technologist and Architectural Assistants.

• Developing the necessary drawing packages for various authority sets such as Municipality (DDA) , Civil Defence etc.

• Using Grasshopper components such as Lunchbox & Panelling Tools for developing the various Geometries.

• Rendering/ Animations

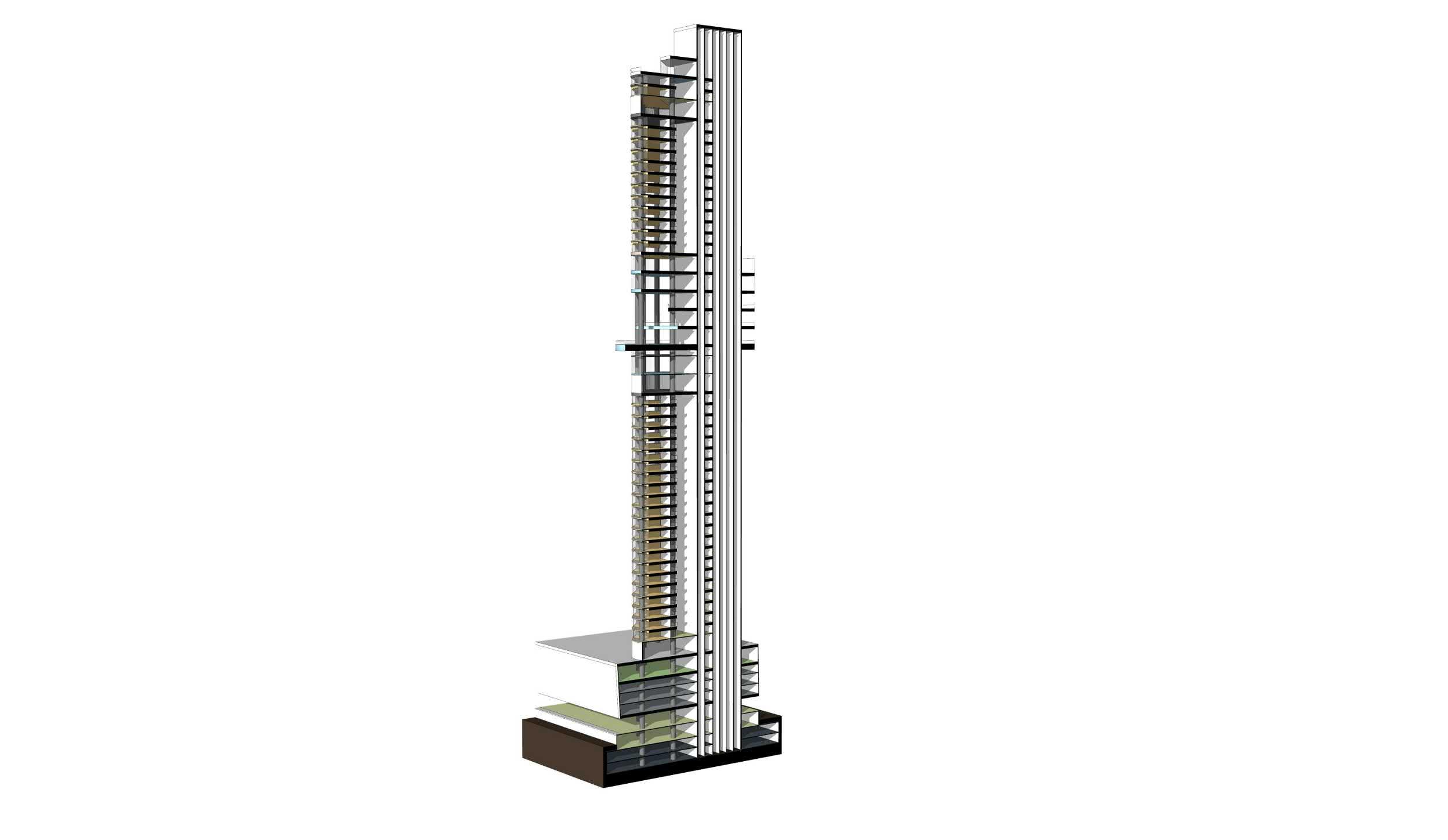

OPEN ROOF BAR LOUNGE

PRESIDENTIAL SUITES

EXECUTIVE LOUNGE

MECHANICAL FLOOR

HOTEL ROOMS

ALL DAY DINING

SPECIALTY RESTAURANTS / BAR

SKY LOBBY RECEPTION

SKY LOBBY LOUNGE / BAR

POOL

POOL SERVICES

HEALTH CLUB

MECHANICAL FLOOR

HOTEL ROOMS

MECHANICAL FLOOR

MULTIFUNCTION HALL AND MEETING AREA

3RD PODIUM PARKING

2ND PODIUM PARKING

1ST PODIUM PARKING

HOTEL LOBBY ENTRANCE

BOH / SERVICES

BASEMENT PARKING

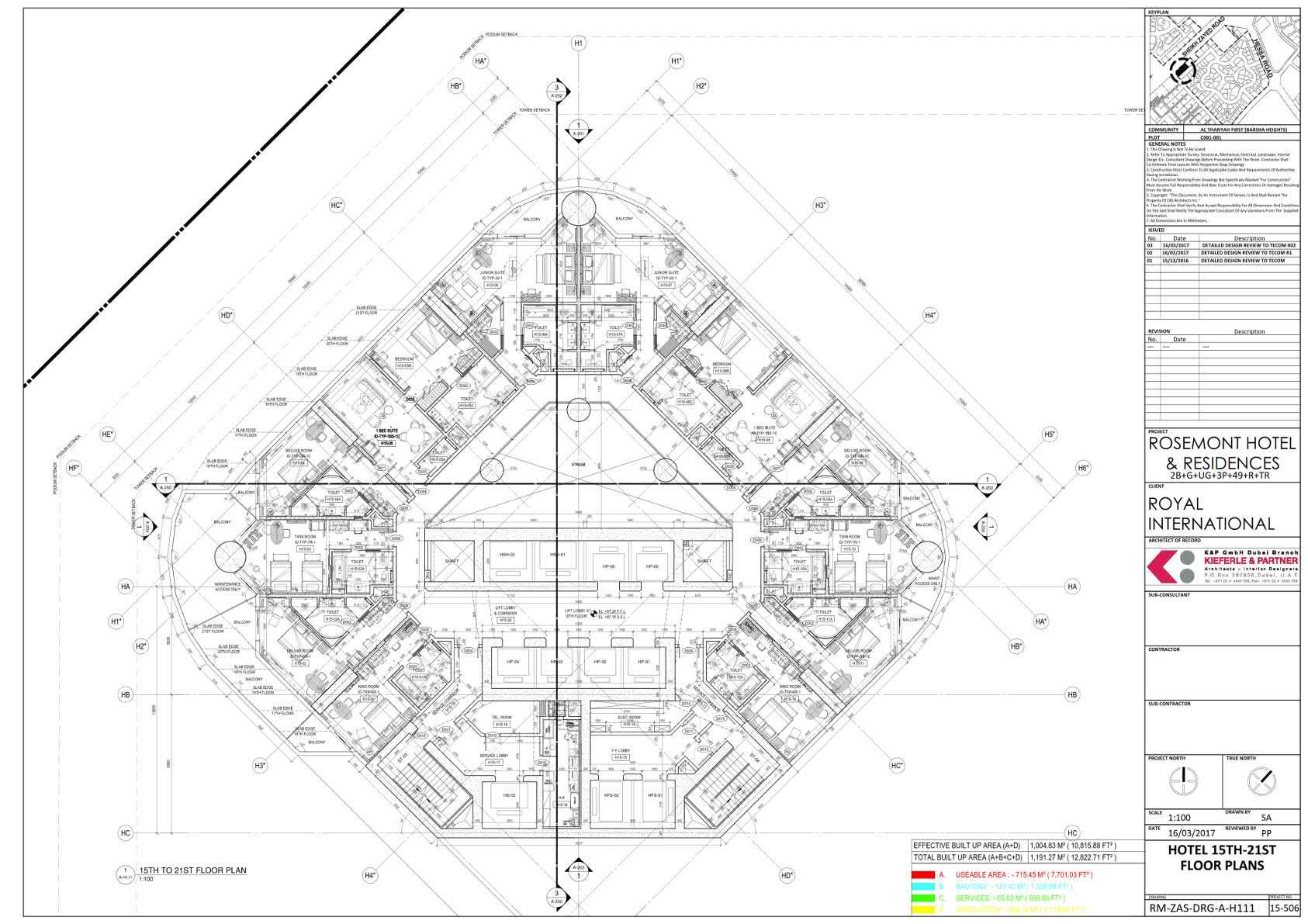

HOTEL TOWER FLOOR - TYPICAL LAYOUT 15th - 21st FLOOR

During the Schematic and Detailed Design I over took as the Project Architect for the Hotel Tower under the supervision of the Project Director, designing and coordinating with all involved Teams including the Client Design-Construction Team, Hotel Operator, multiple sub consultants/specialists such as Interior Design, Facade Specialists, MEP, Security-IT/AV(including acoustics).

Since the Design of the tower resulted in of Non Typical Floors, as a time Saving method for construction, we decided to issue Seprate Drawings for Slab Edges in coordination with Structural/Civil Consultants

Masterplanning Stage/Concept Design Stage

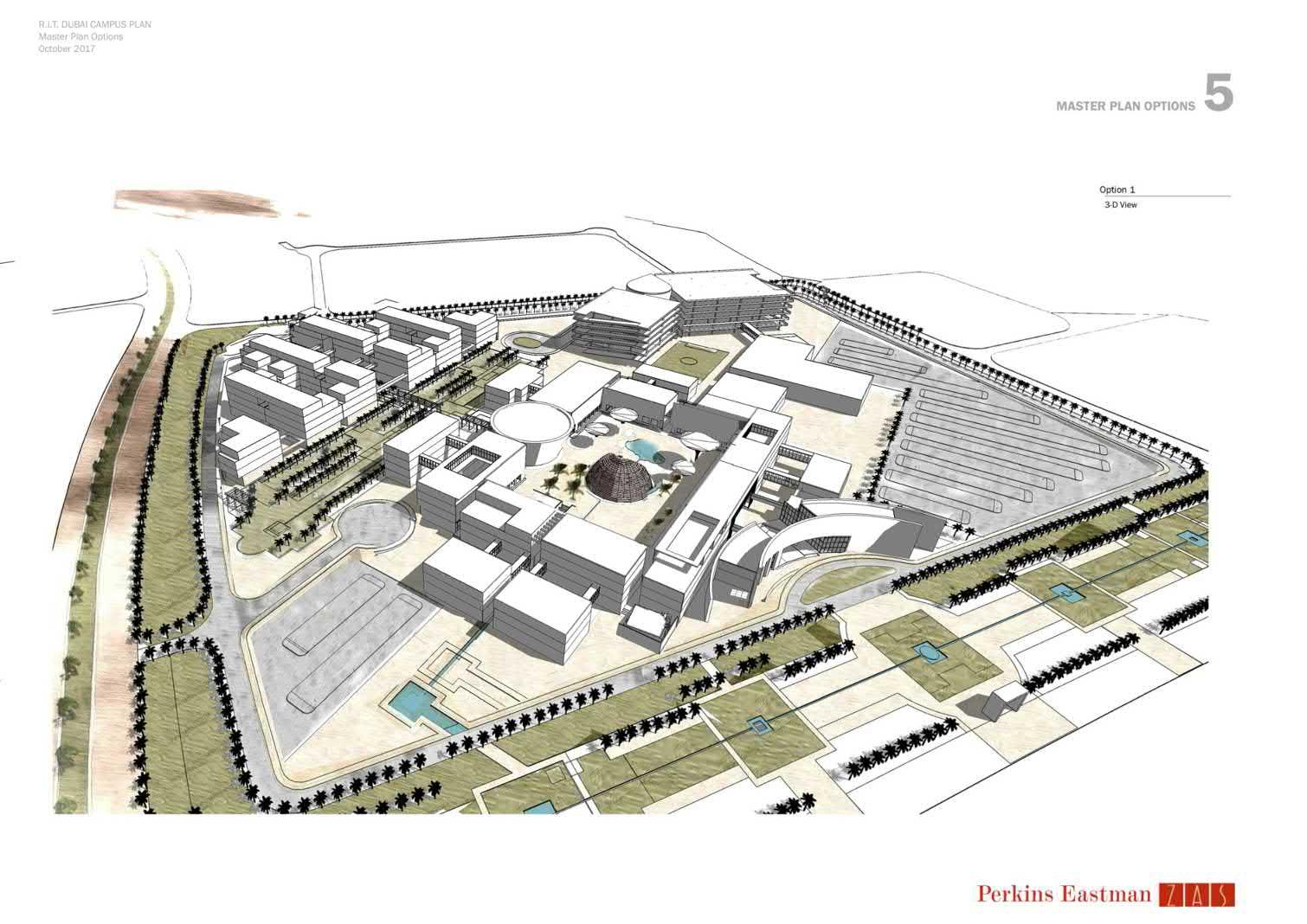

Presented below is Option 2, the selected option for Master plan, during the concept design(Stage 3) I worked under the Project Manager, coordinating with various Stakeholders involved in the project for Buildings C-D-E, Highlighted Below

BUILDING C: Food Court

BUILDING D: Library Student Affairs

Student Activity Commons

BUILDING E: Administration

Concept Design Stage

During the Stage 3 after the masterplanning stage, we workded on the Concept design, during this stage, 2 Facade options were designed to the same set of Base plans, I designed Option 2B presented below However the Option 2A was the chosen option.

PLACES DIAGRAM

A Places Diagram is one that illustrates and highlights the various places, not buildings that are created in a large scale design project The great campuses of the world have great places Each of these places serves an important function, being the centers of student interactions, major functions, and often become the image of the university itself
