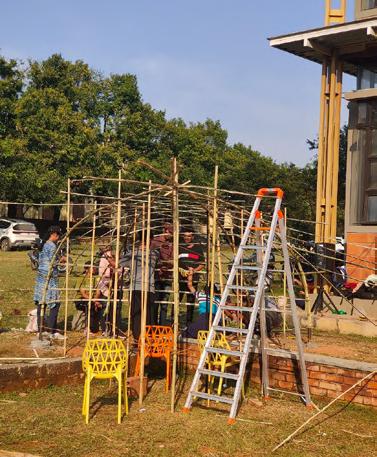

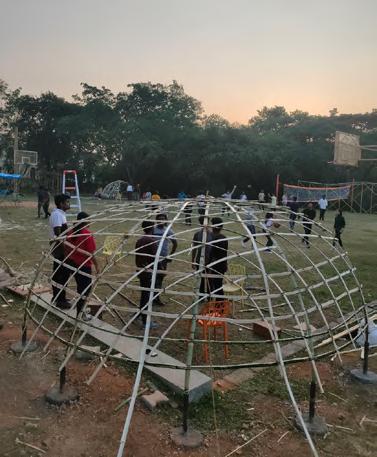

Bamboo Workshop
Semester 07
MISCELLANEOUS
Free hand sketching (Graphite, Charcoal,Digital)
Painting (Water color, Poster color, Acrylic)
Model making (Mill board, Sun board, Ivory sheets)
Photography and Editing
Measure Drawing and Documentation
Diagramming and Analysis
REFERENCES
Ar. Prashant G Pole
Professor, Wadiyar center for Architecture
Mysuru
Ar. Sanjay Mohe
Founding Partner , Mindspace Architects
Bengaluru
ii
2017-19 2014-17 2007-14 2024
iii
iv CONTENT 1 The Kishkinda Center 2. Public Library 3. Youth Housing 4. Working Drawings 5. Professional Training 6. Miscellanious 01 - 12 13 - 24 25 - 32 29- 36 37- 40 41- 45
01
who
handcrafted leaves. town
The Kishkinda Center
Semester 07 | Anegundi, Karnataka
Typology : Industrial Building
Site area : 10,000 sqm
Studio Guides: Prof. Anand Krishnamurty
Asst. Prof. Surendran Aalone
Prof. Prashant pole
Prof. Shrutie Shah
Asst. Prof. Asijit Khan
Design Brief :
The intent was to develop a center for women of Anegundi who produce bags, baskets other handcrafted items out of dried banana leaves. I noticed a disconnect between town and river so I tried to address it in my design as the climate of Anegundi is hot and dry.
This semester’s intent was to design Industrial type building for a rural handcraft group called Kishkinda trust through the lens of ‘sustainability’. the semester began with site visit to Anegundi where the site is located. After studying the place ,culture, habits, lifestyle, materials, climatic conditions etc arrived fundumental question what is sustainability? what is the necessity for sustainability? how to use passive technology to produce and save energy? and many more. throughout the semester we tried to find answer to the questions as new question new solutions arose
02

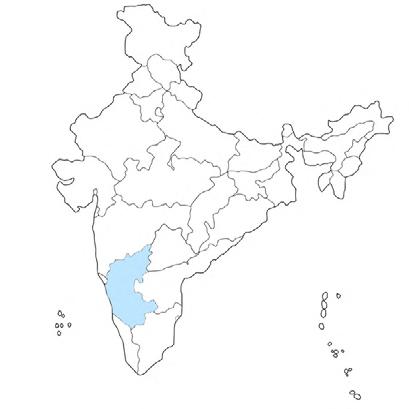

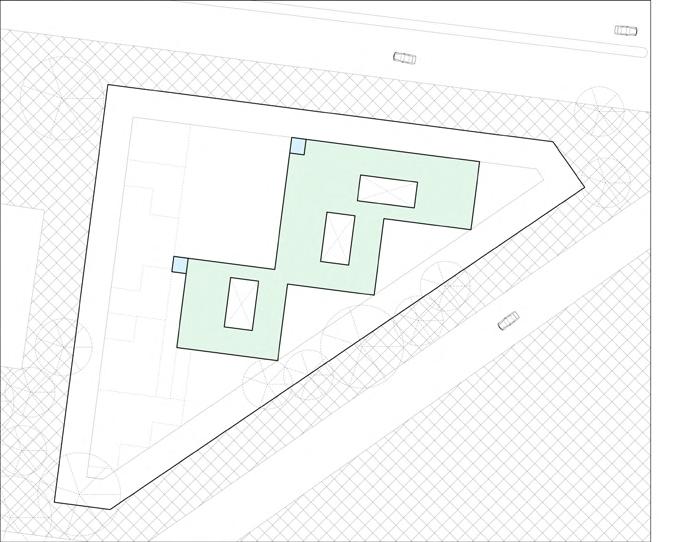

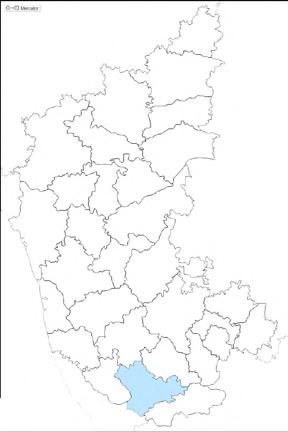

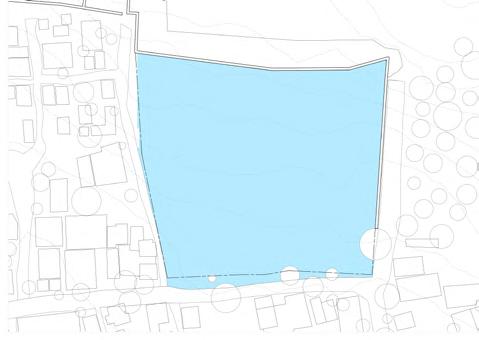

Site Location
Context
India
Karnataka
Anegundi
So I took advantage of contours and submerged the ground floor where work spaces are located into the earth. and gave linear access to the river which reconnects the town to the river

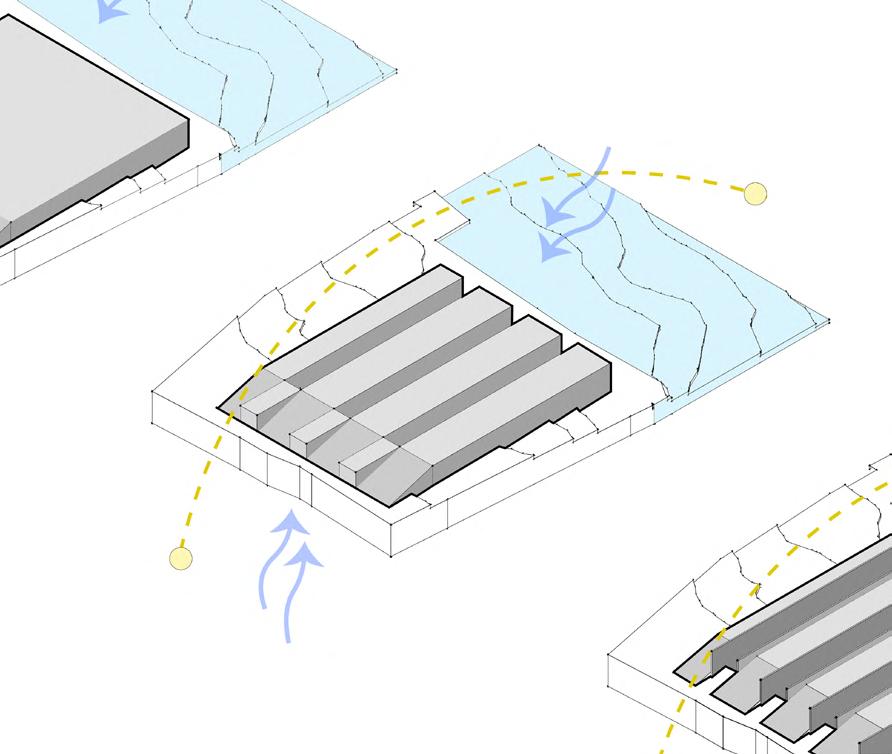

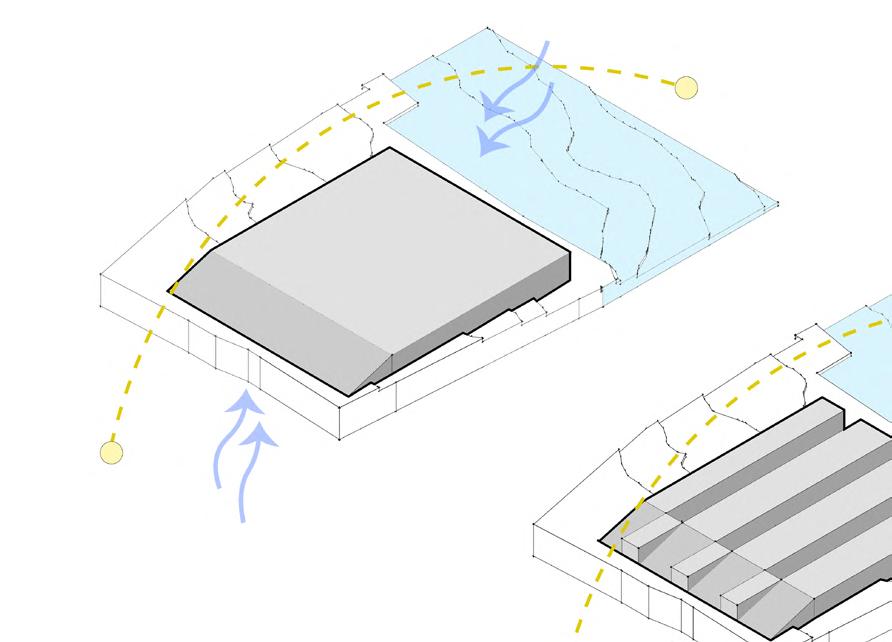

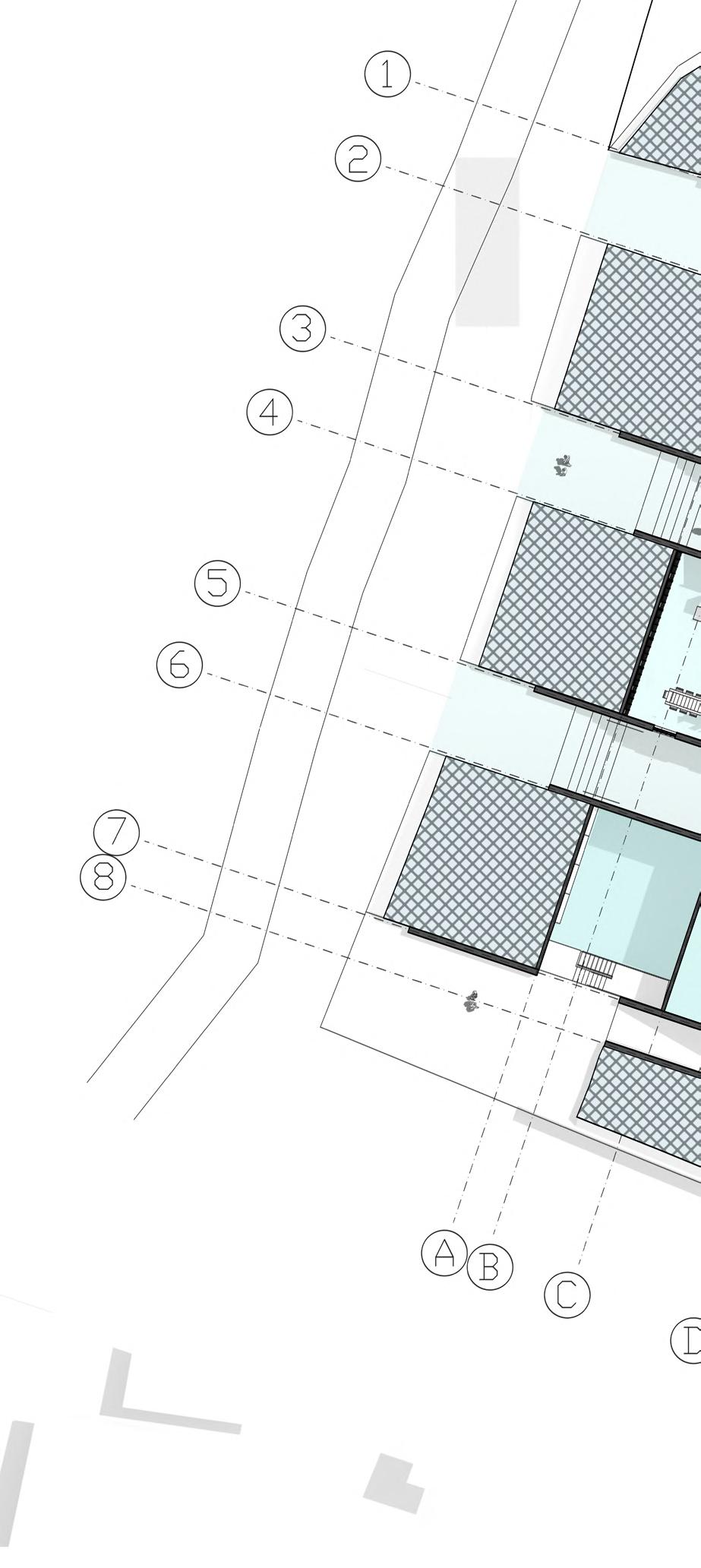

03 Process Diagrams 1st Floor Plan
B’ 9 -1.25m
A’

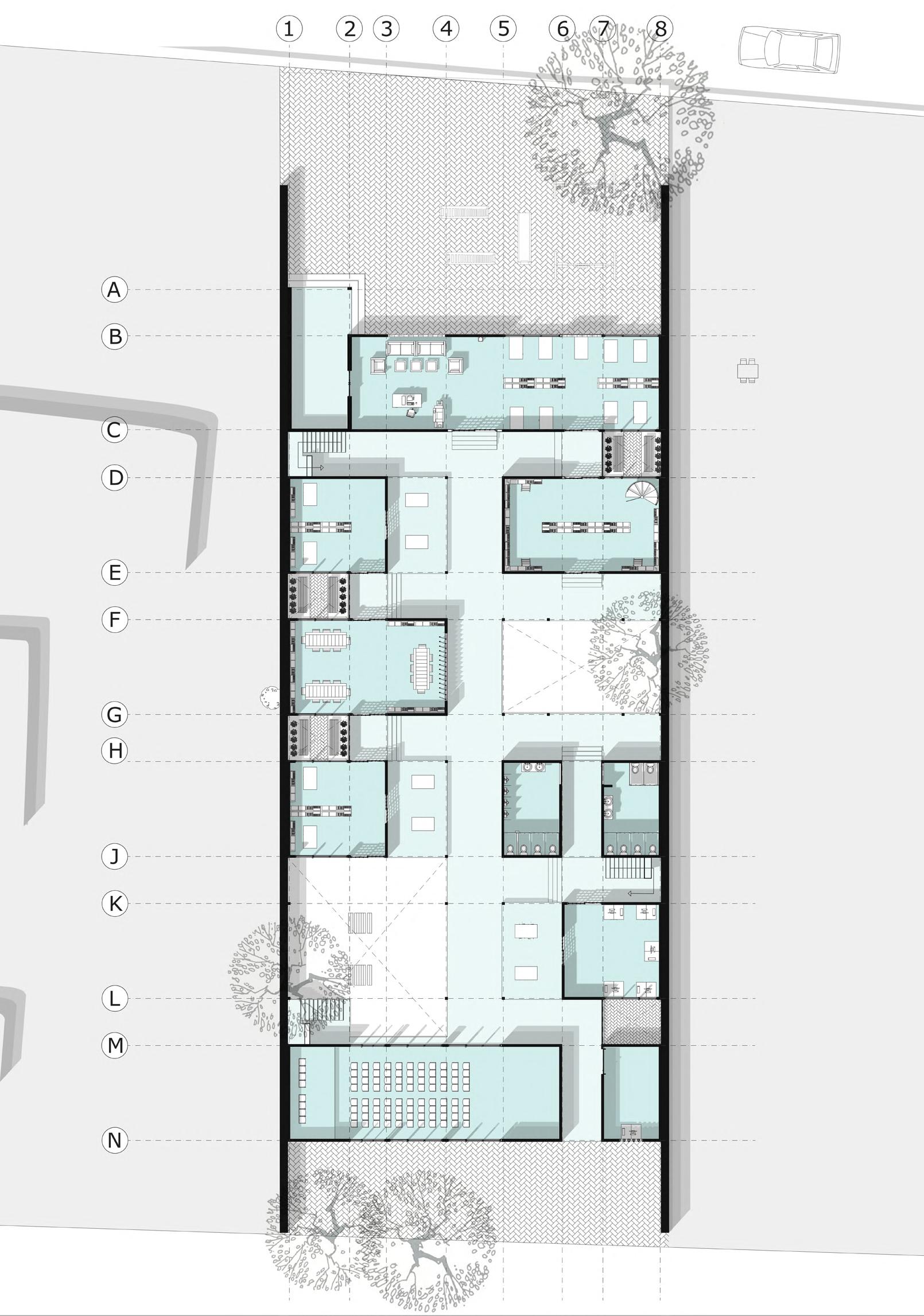

04 8.Common Court 11.Exhibition 5.Dining 2.Studio 02 1.Studio 01 3.Studio 03 4.Research 12.Accommodation 7.Storage 9.Loading dock 6.Store 10.Admin 8.Common 11.Exhibition 5.Dining 2.Studio 1.Studio 3.Studio 4.Research 12.Accommodation 7.Storage 9.Loading 6.Store 10.Admin 1 2 4 7 10 8 11 5 12 12 6 3 -1.25m -1.25m -1.25m -1m -1m C’ D’ D C B A

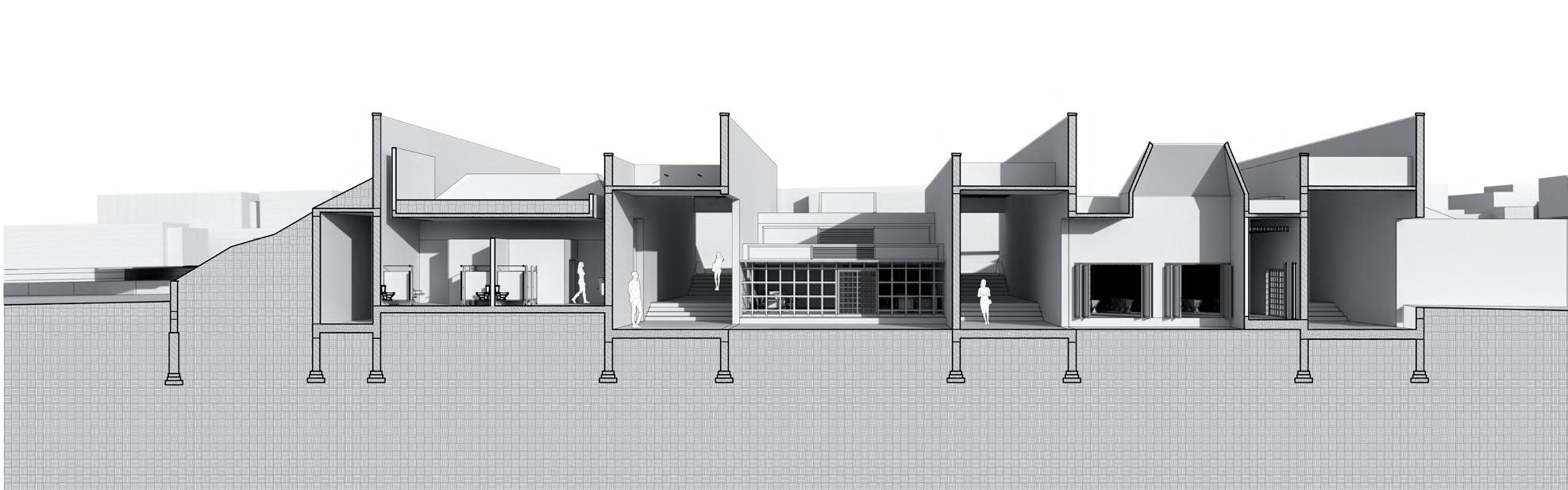

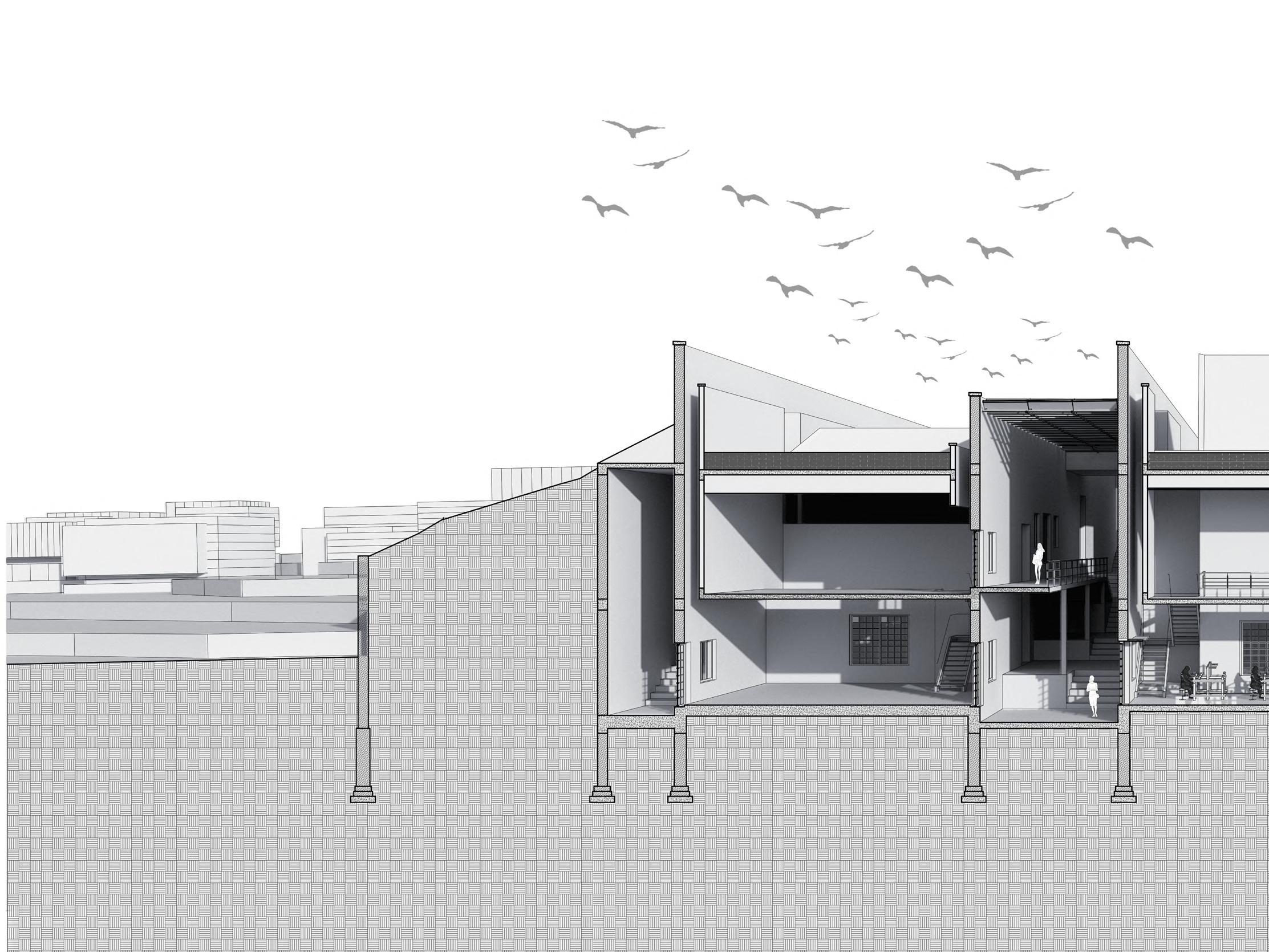

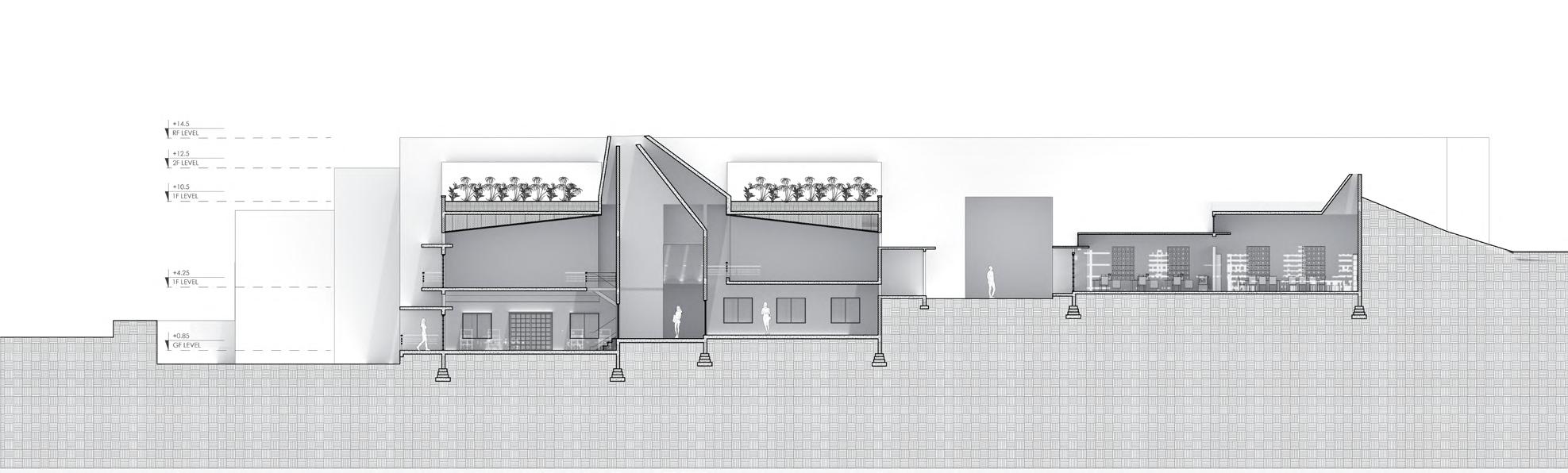

Section BB’
05
Section CC’
Section AA’ +14.5M +4.5M
+0.85M
Green roof where vegetables, plants are grown which are supplied to community kitchen and also reduces temp. of the
1st floor slab which is filled above by soil excavated from the site with waterproofing, drainage, protection layers etc.
1st floor which hosts 3 studios ,1 research lab. 4 accomodation rooms.
Secondary walls are built with locally made adobe bricks with provide excellent thermal mass.
Primary walls are built with granite stones which are abundantly available in Anegundi and surroundings
Primary circulation treated as streets which are accessible for local public to reach the river.
The site is uniformly sloped and further excavated total of 7.5 meters to protect the interior from harsh sunlight and purposes of green roof.

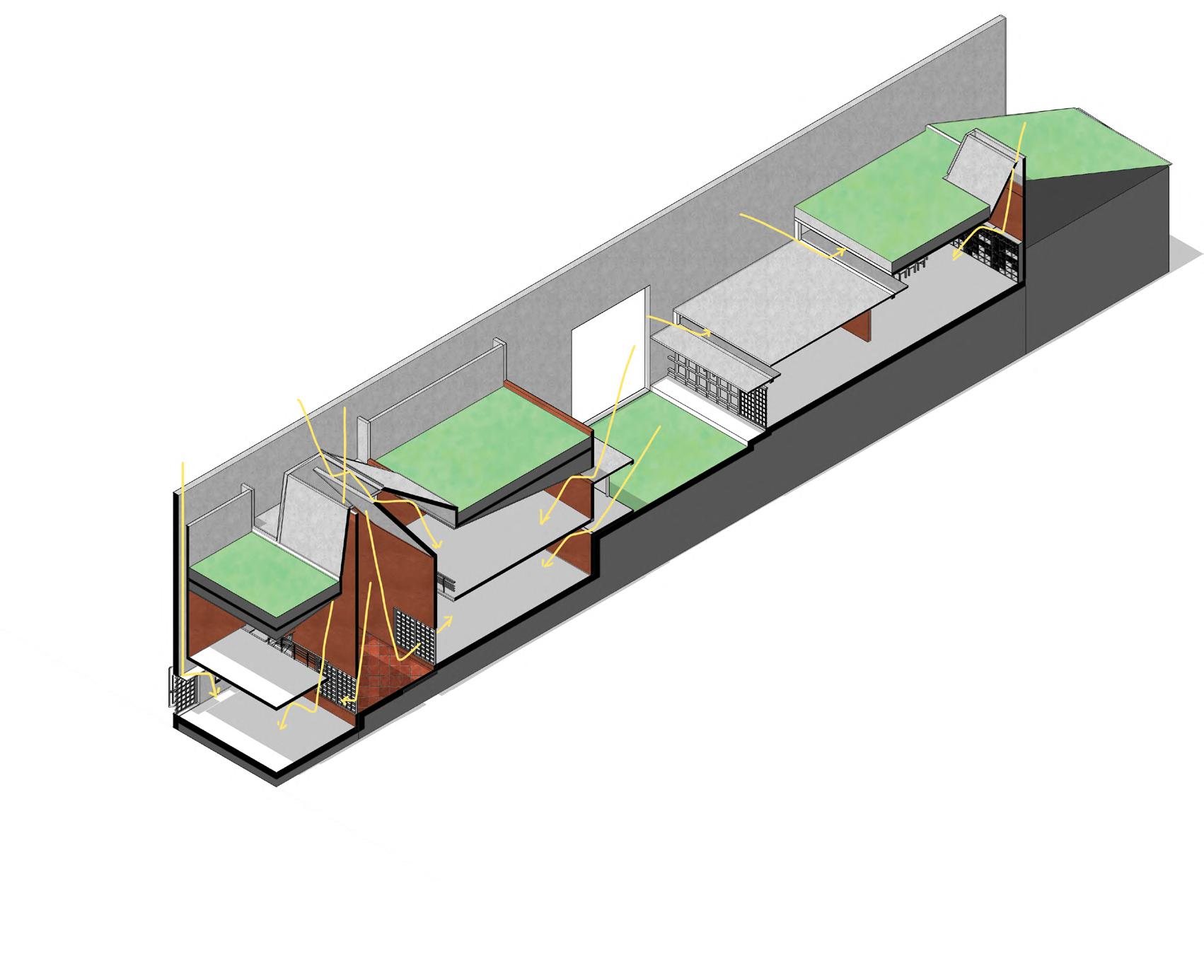

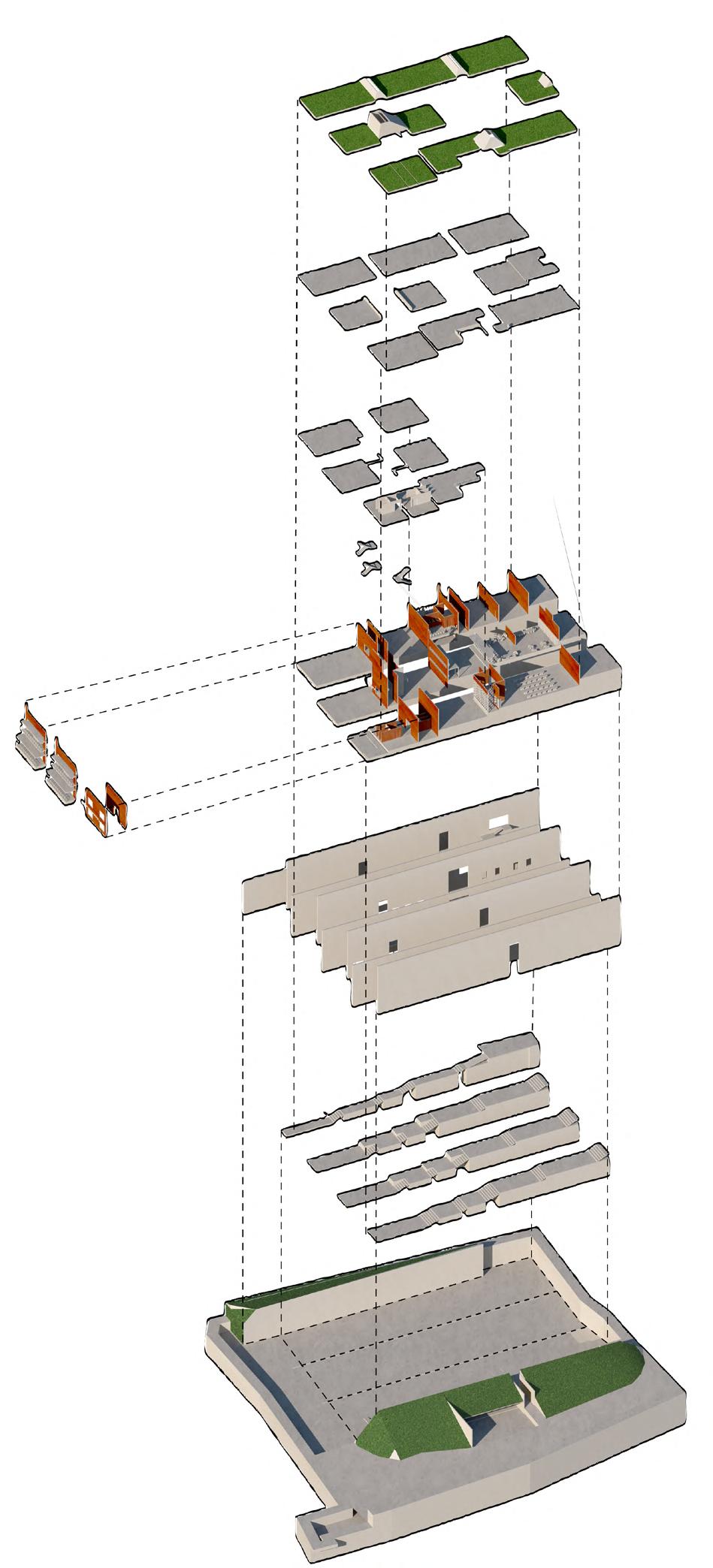

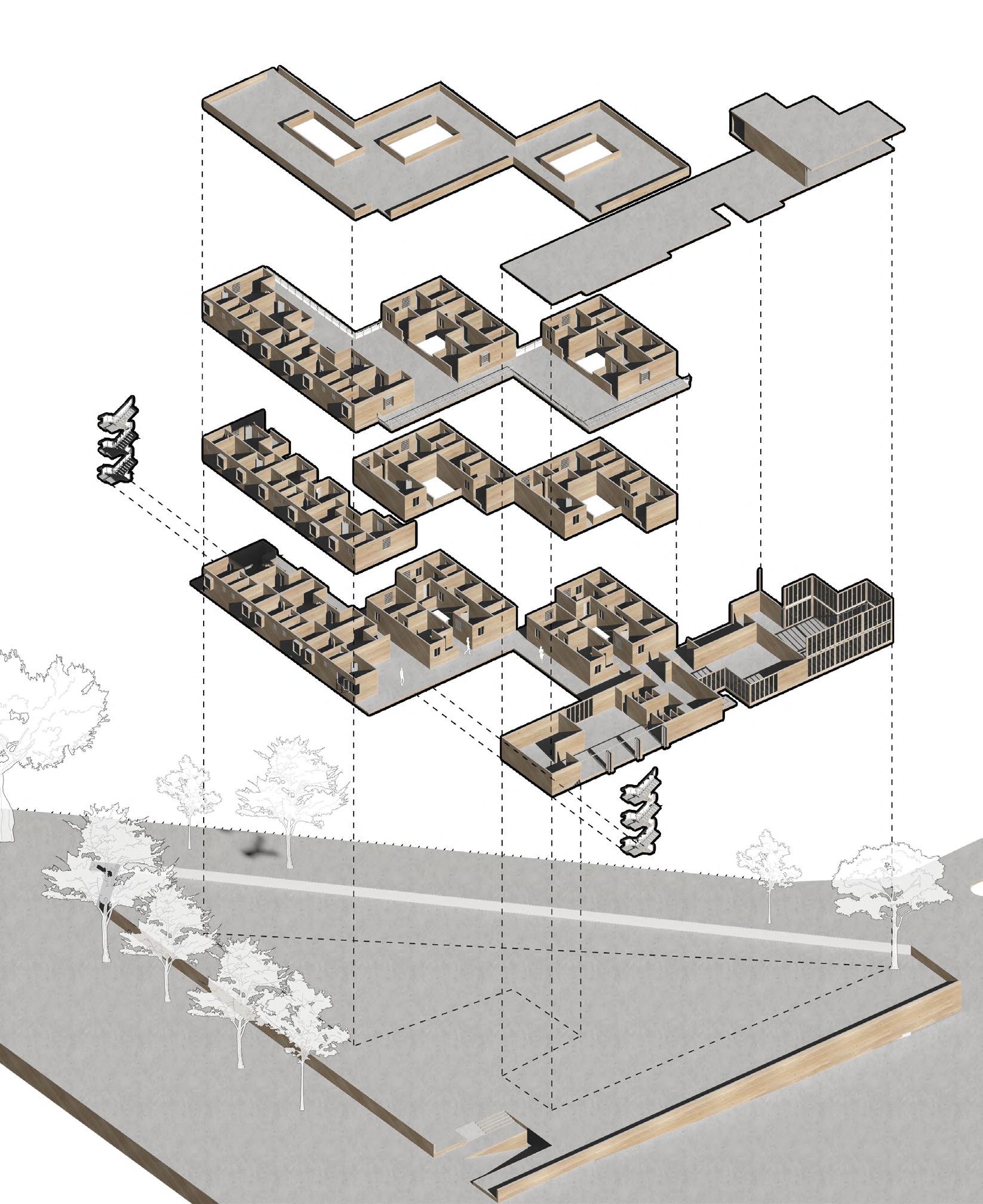

06 Exploded view

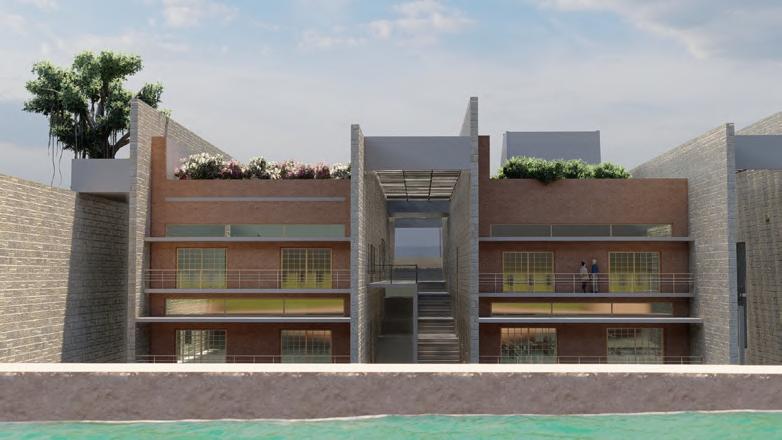

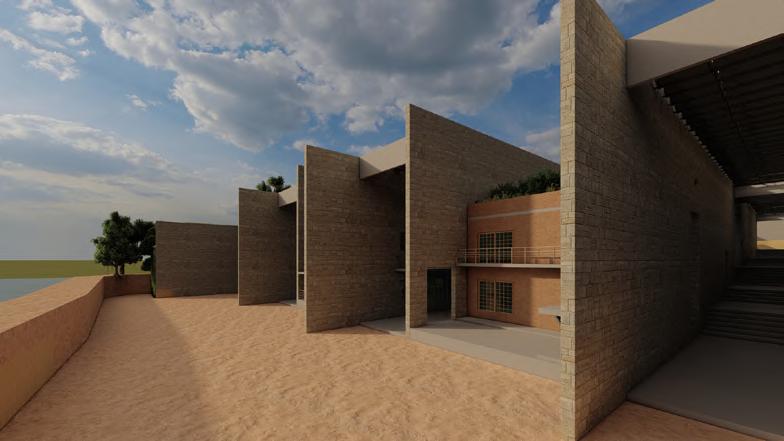

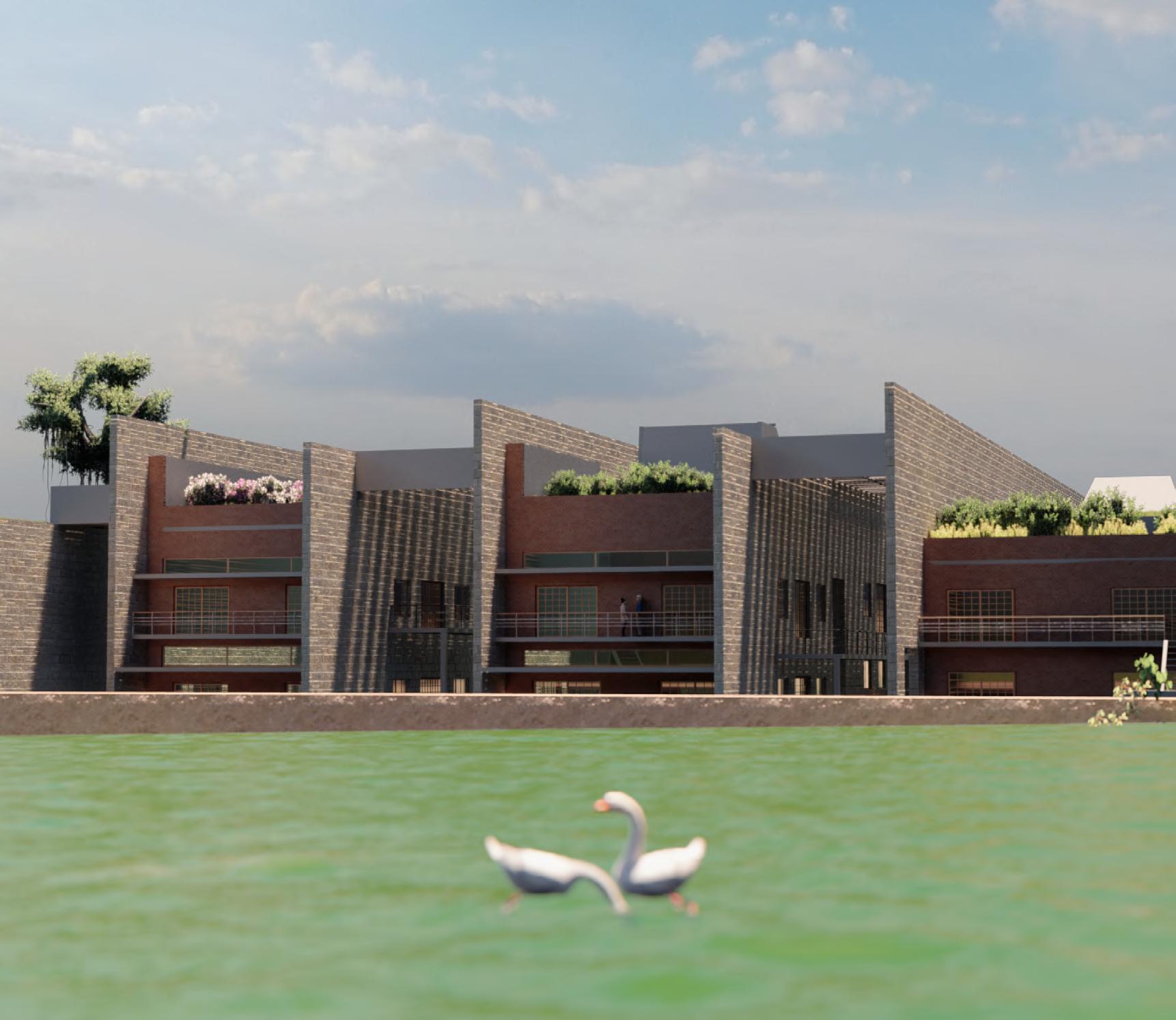

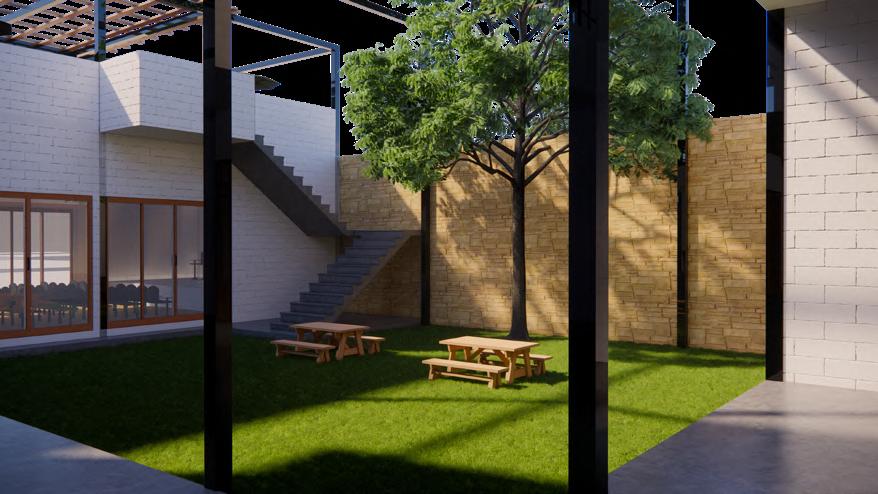

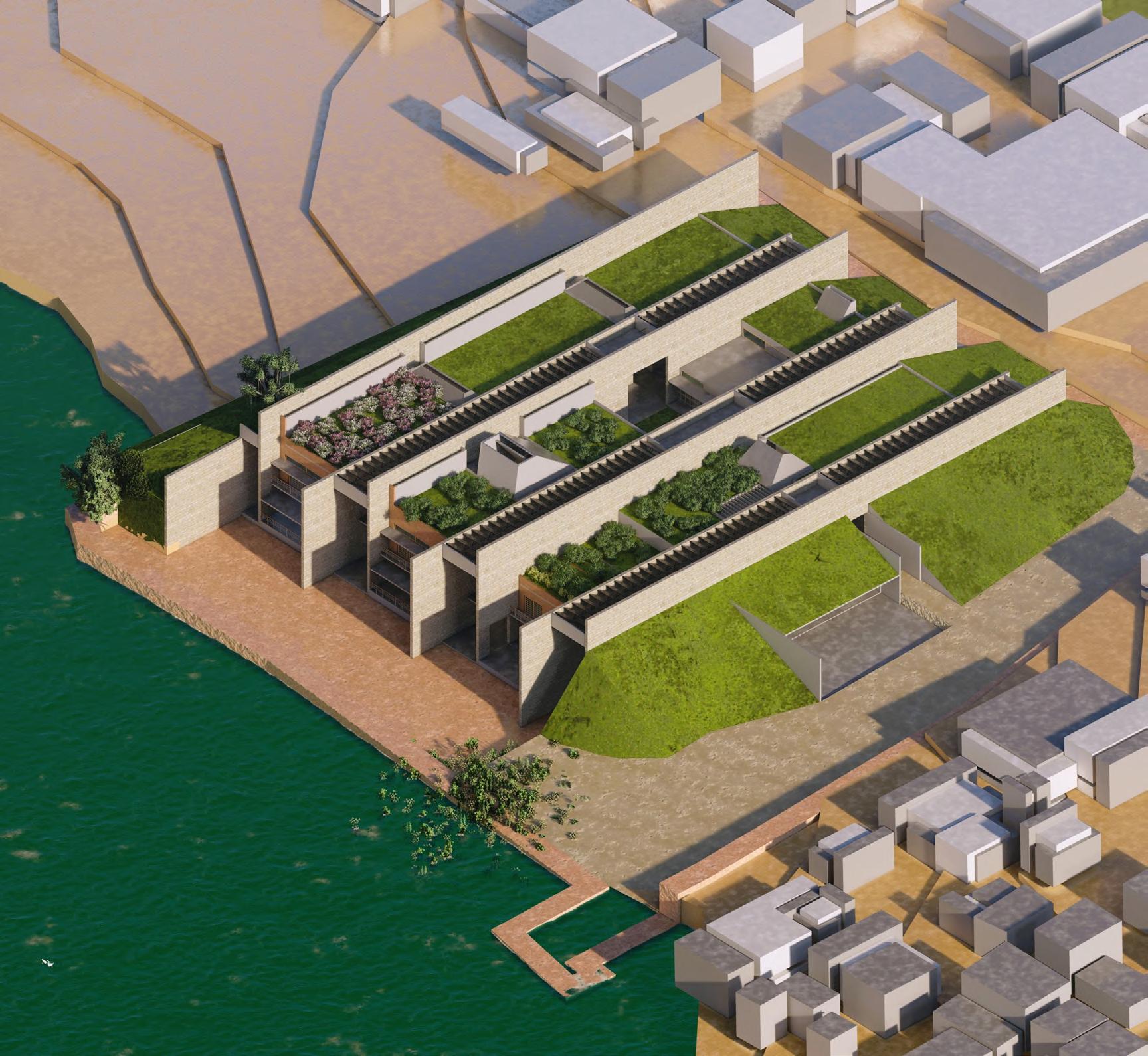

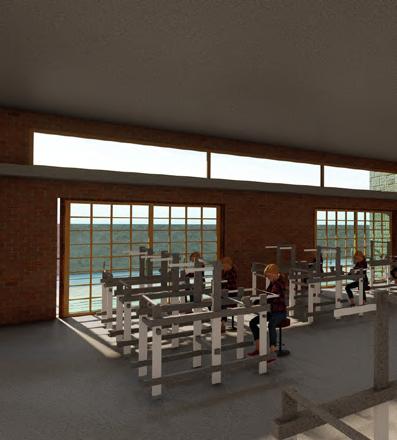

Renders done using Lumion 12. I try to capture the drama of everyday while rendering with lights, vegetation, people, perspectives with the renders.

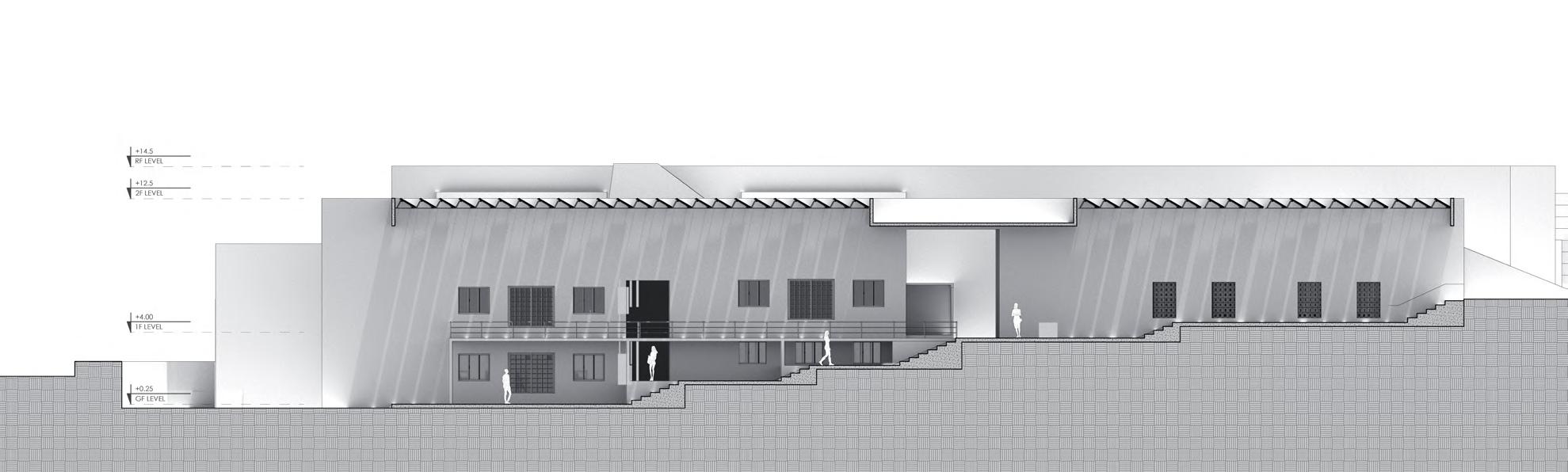

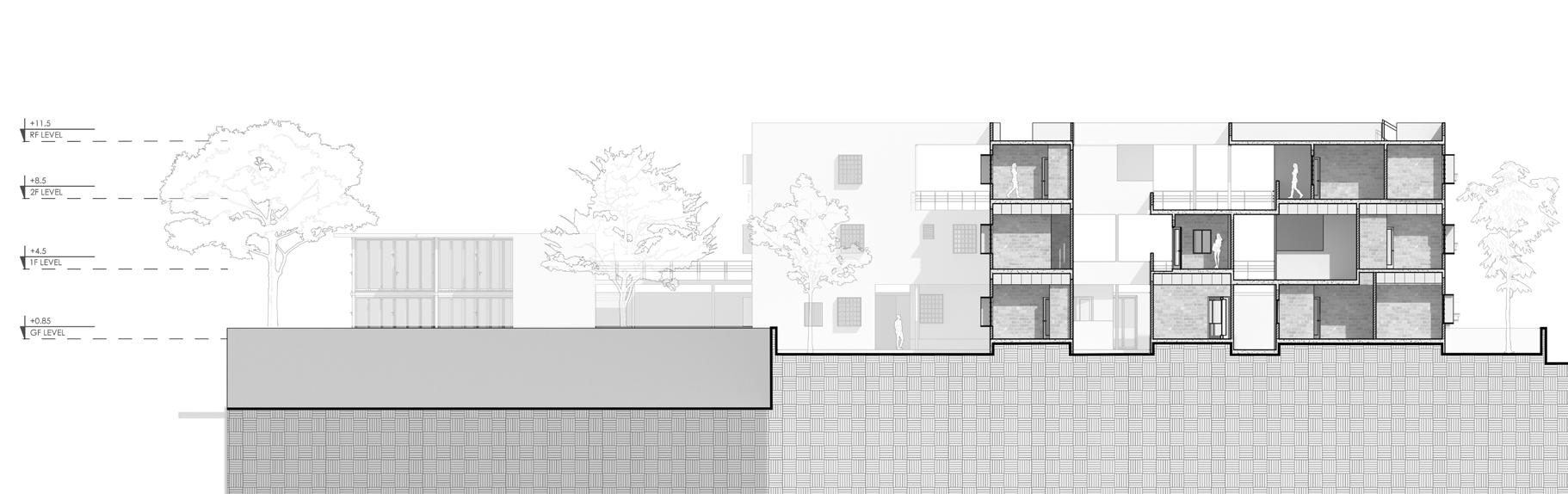

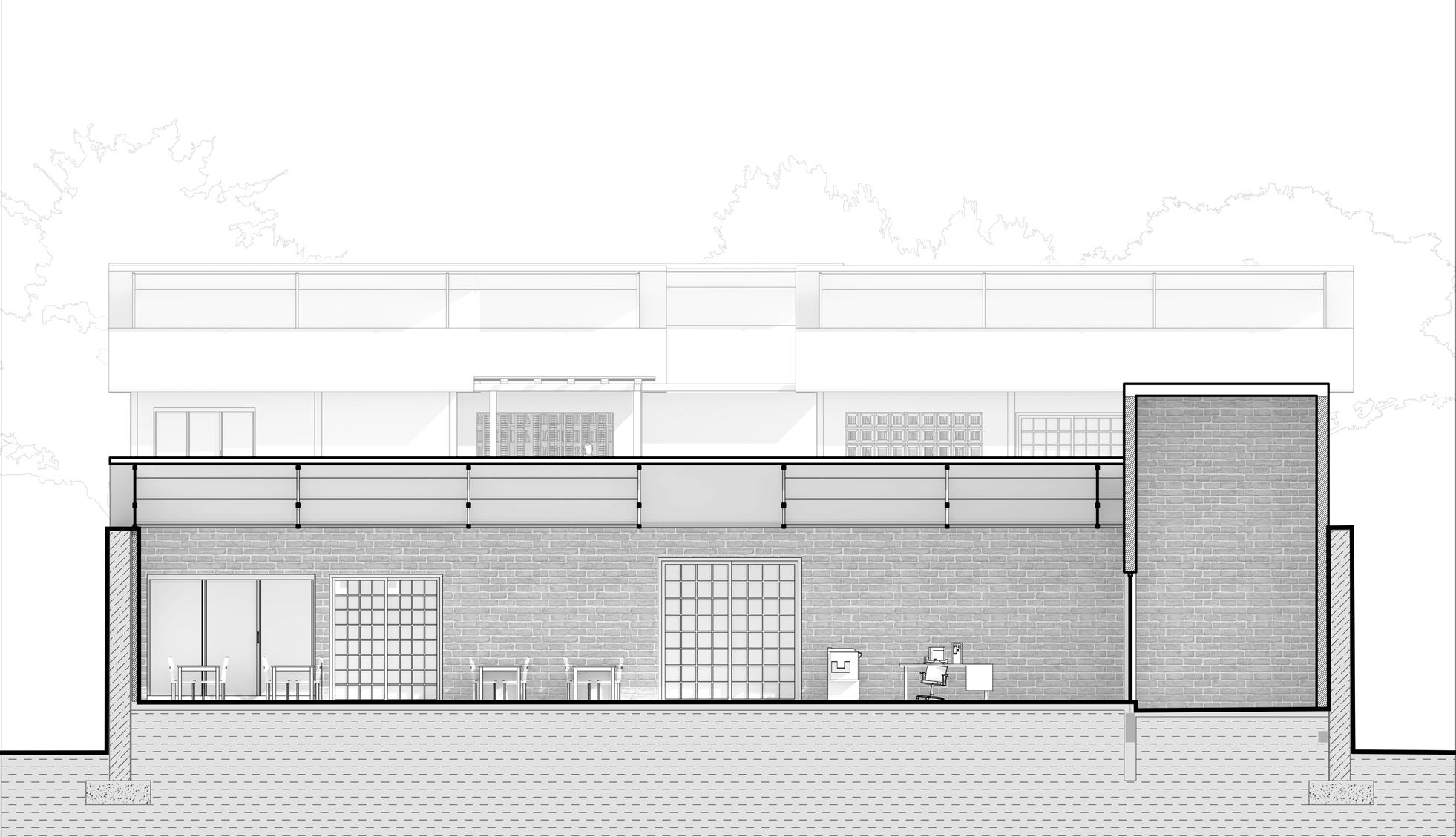

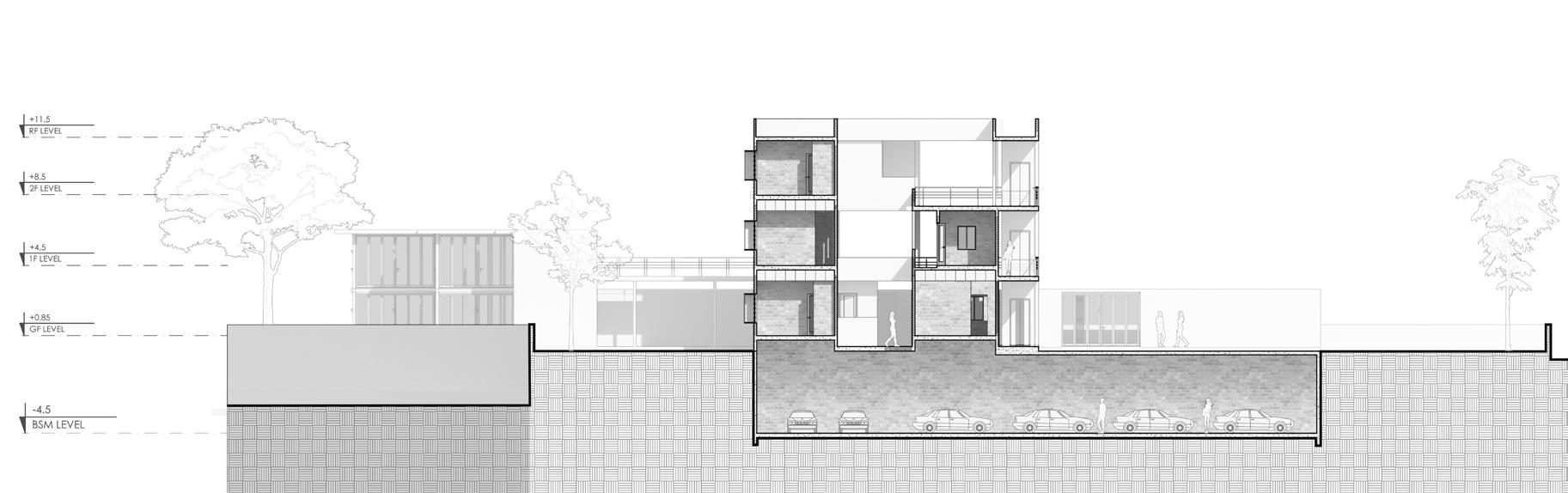

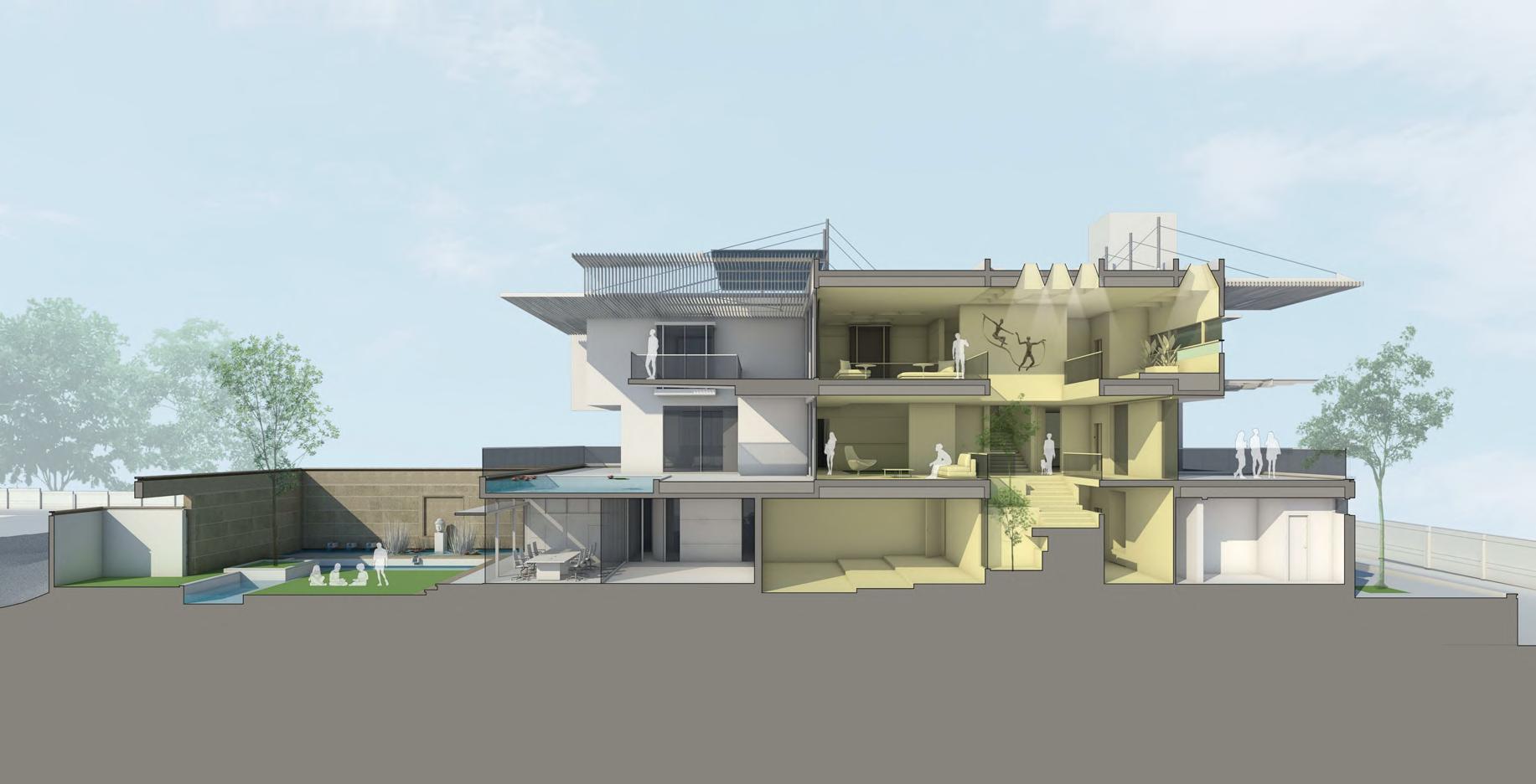

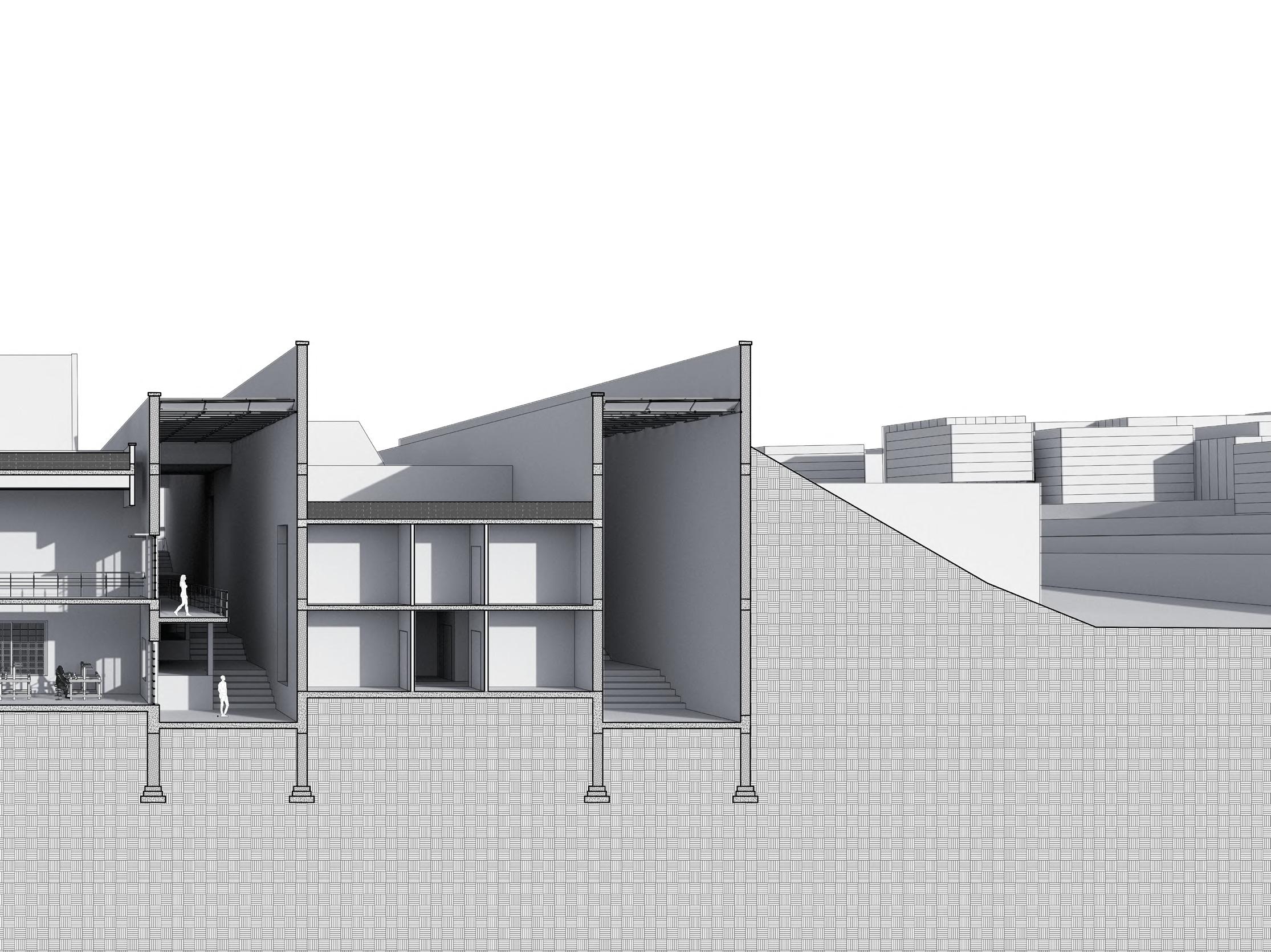

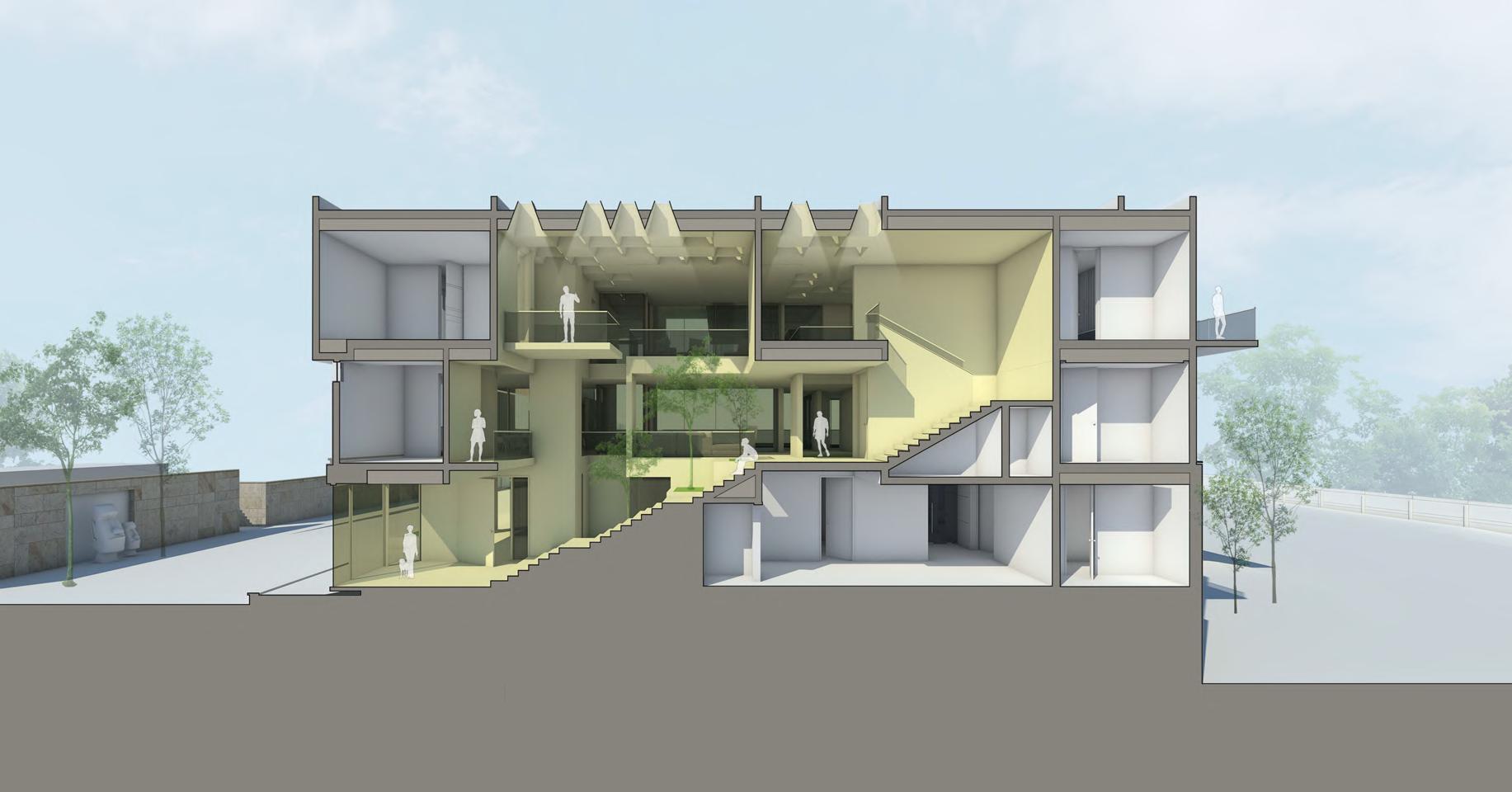

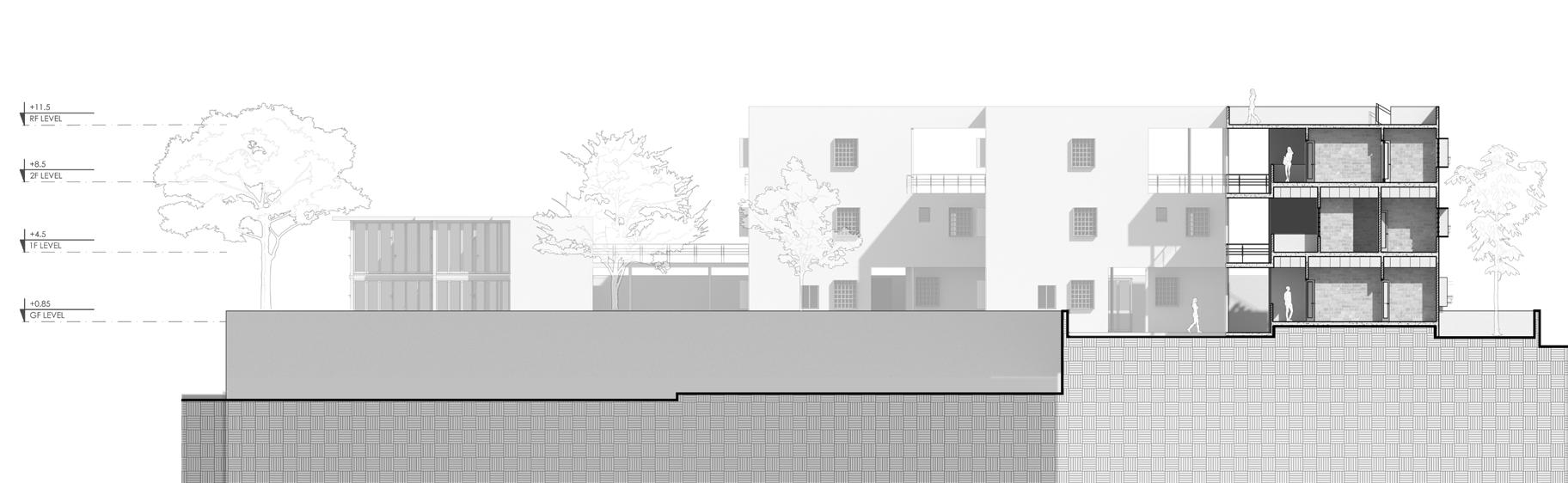

07 Section DD’
Facade Administration Work space
+14.5M
+10.5M
+4.5M
+0.85M
Community dining
08 Sketchup V-Ray AutoCAD Photoshop
Front yard

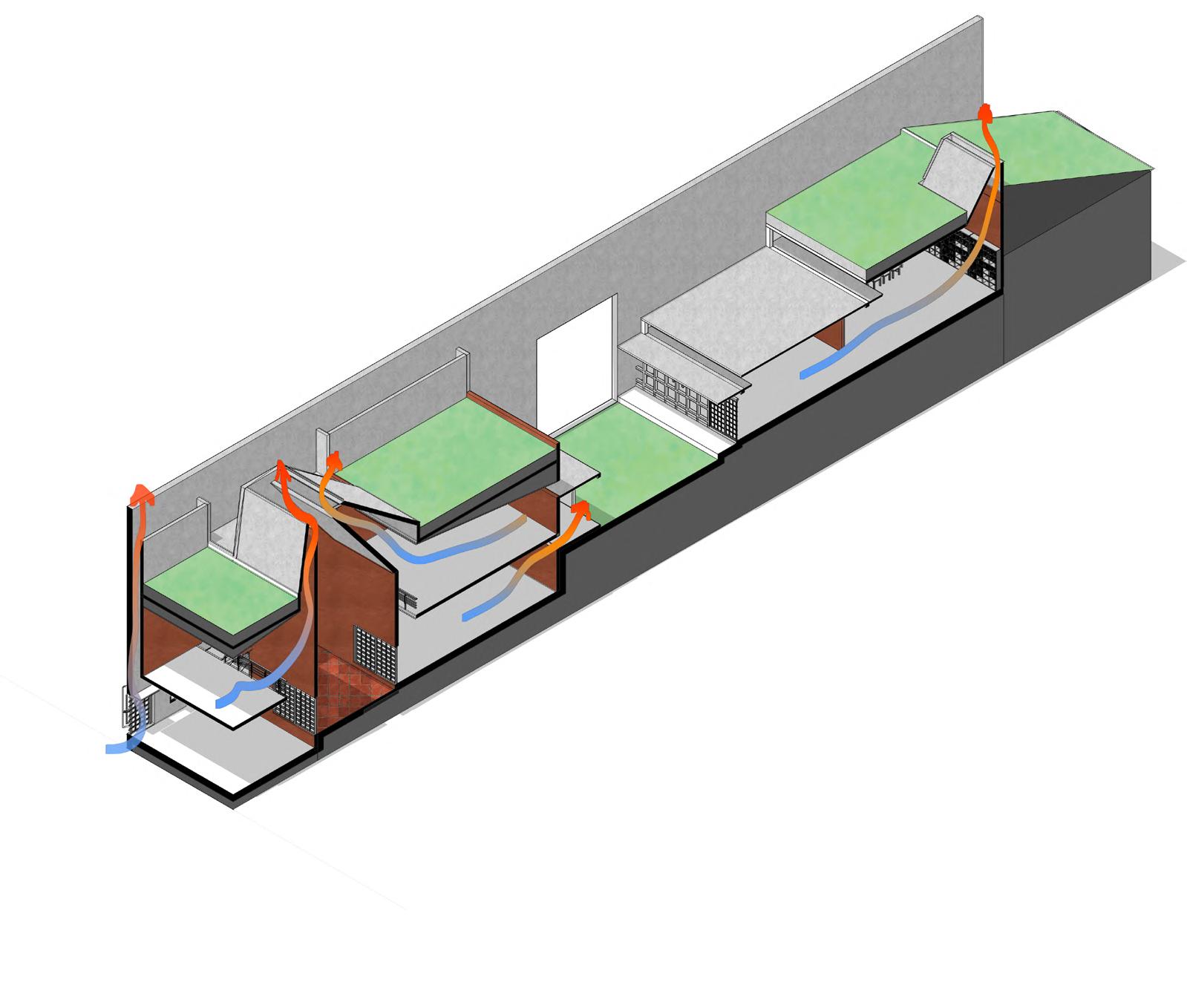

VentilationSystem

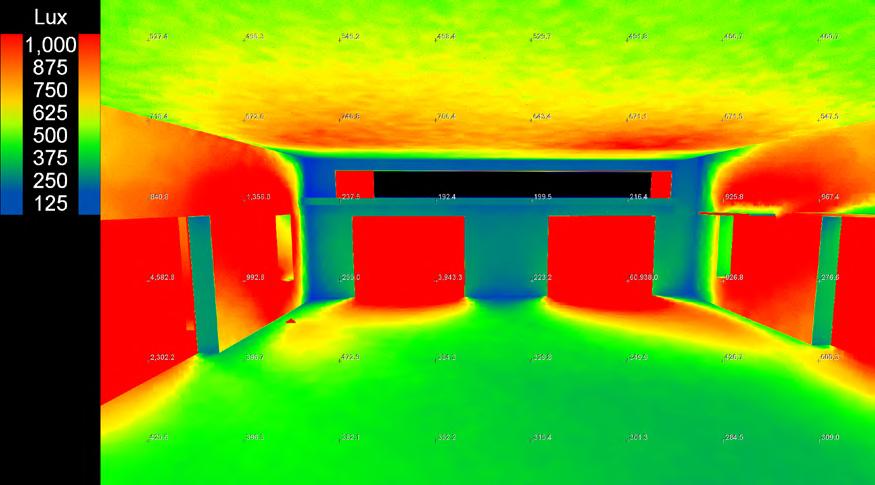

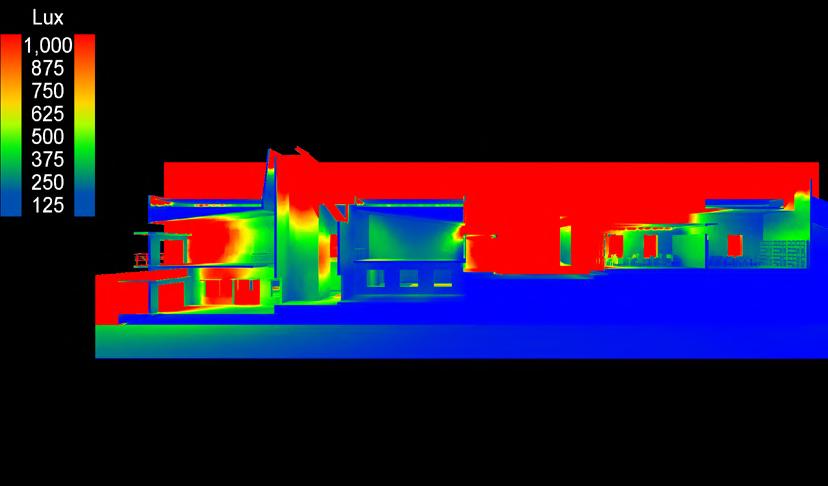

Results are from Velux daylight simulator. back and forth between designing and simulator helped to achieve minimum lux level required comfortably work on the craft.
09
Daylight simulation results
Useofdaylight

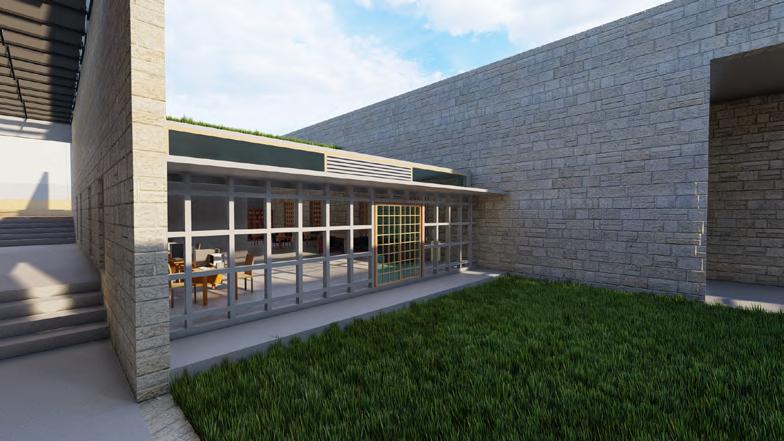

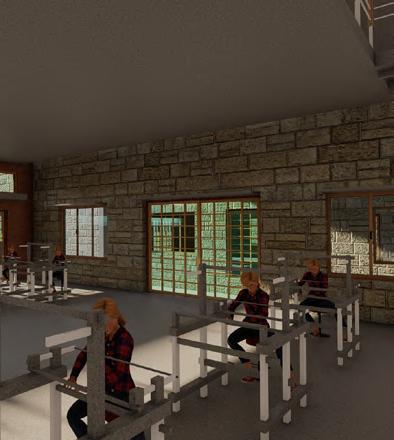

10 Rendered in Lumion 12
11
lock-down
after
we Libraries can also be very so I try capturing through
Public Library
Semester 05 | Shrirangapatna, Karnataka
Typology : Public Building
Site area : 1800 sq.m.
Total built : 1600 sq.m.
Studio Guides: Prof. Anand Krishnamurty
Assoc. Prof. Kiran Kumar
Asst. Prof. Akash Rai
Asst. Prof. Shreyas Baindur
Asst. Prof. Asijit Khan
Design Brief :
My favorite project ! lock-down semesters finally were back on campus. can be Overwhelming, they can very intimate, quiet and calm. capturing the intimate quality through scale, light, solid-void using multiple grids
This semesters process was called ‘Origins and Translation’. At the beginning of the semester we were given an Architect and a building to study it as a precendent for the rest of the semester. in my case it was the Dutch architect Herman Hertzberger and Centraal Beheer . the typology of the building this semester was public library. By using the grids, circulation pattern, massing, zoning, vegetation, construction techniques, natural light, ventilation technics that I studied in the Precedent study ( of Centraal Beheer). I started the process for my design.
12

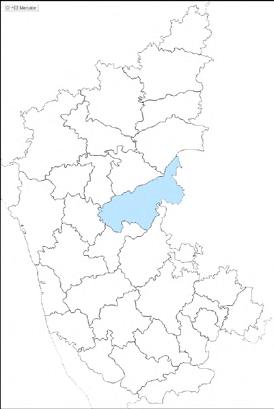

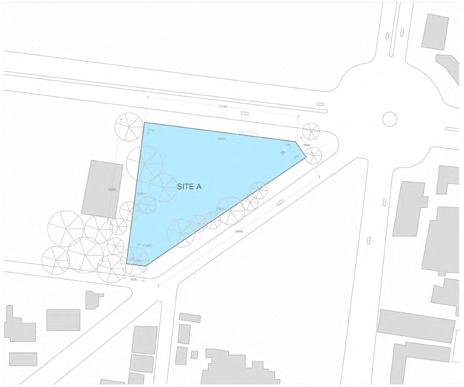

Site Location Context
India
Karnataka
Srirangapatna

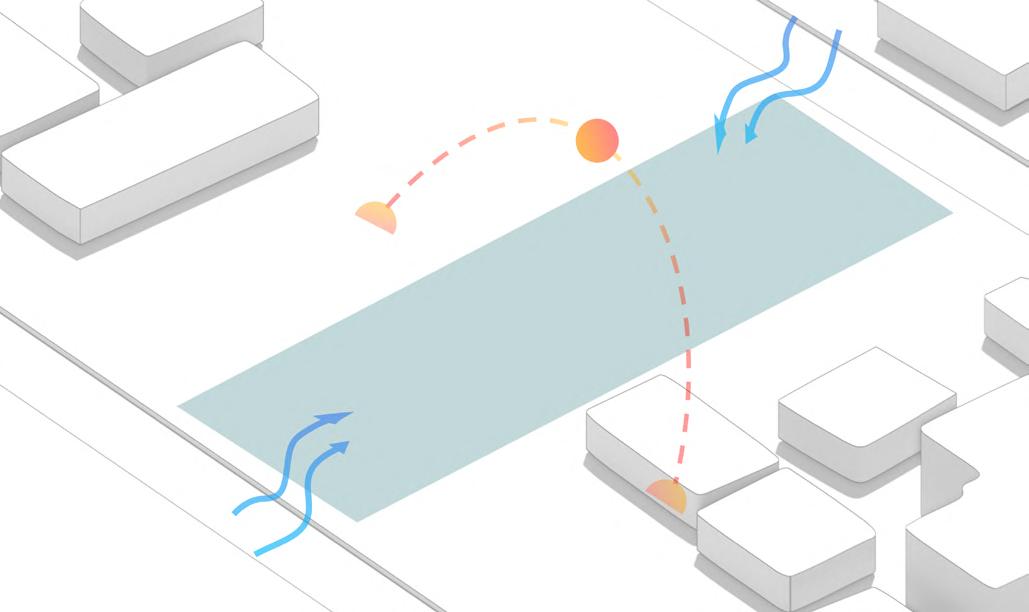

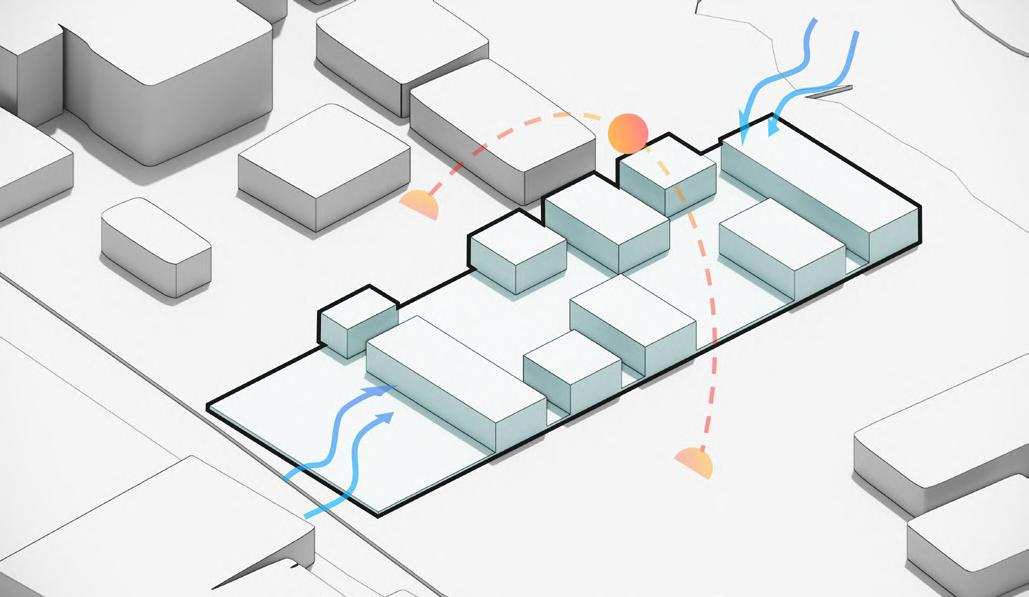

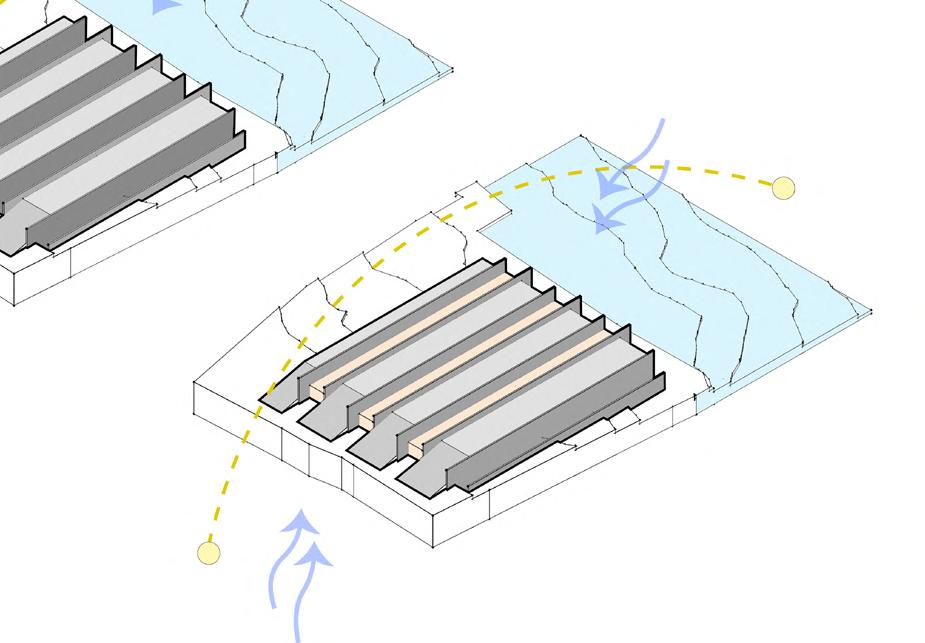

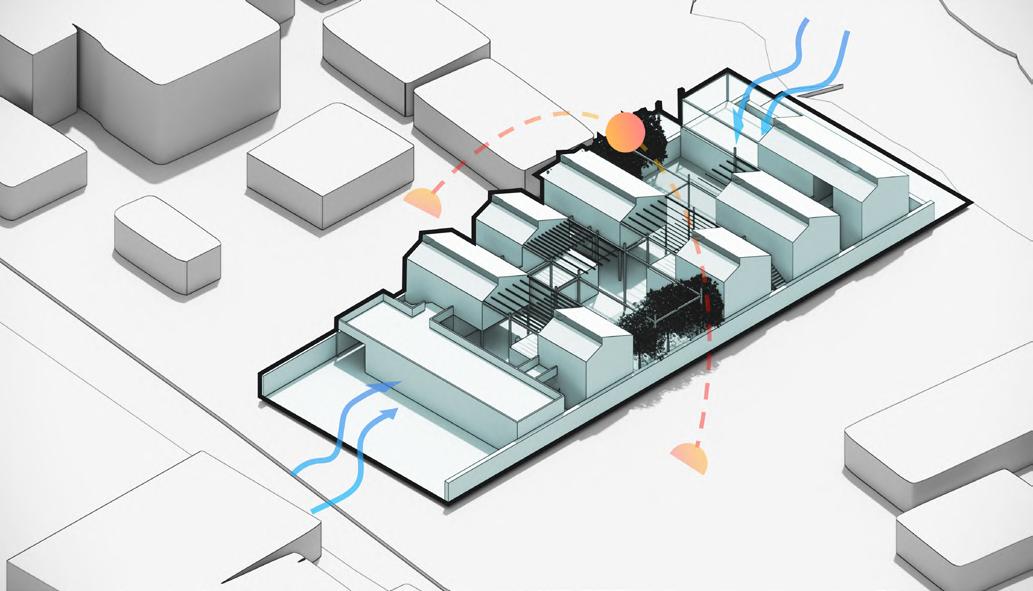

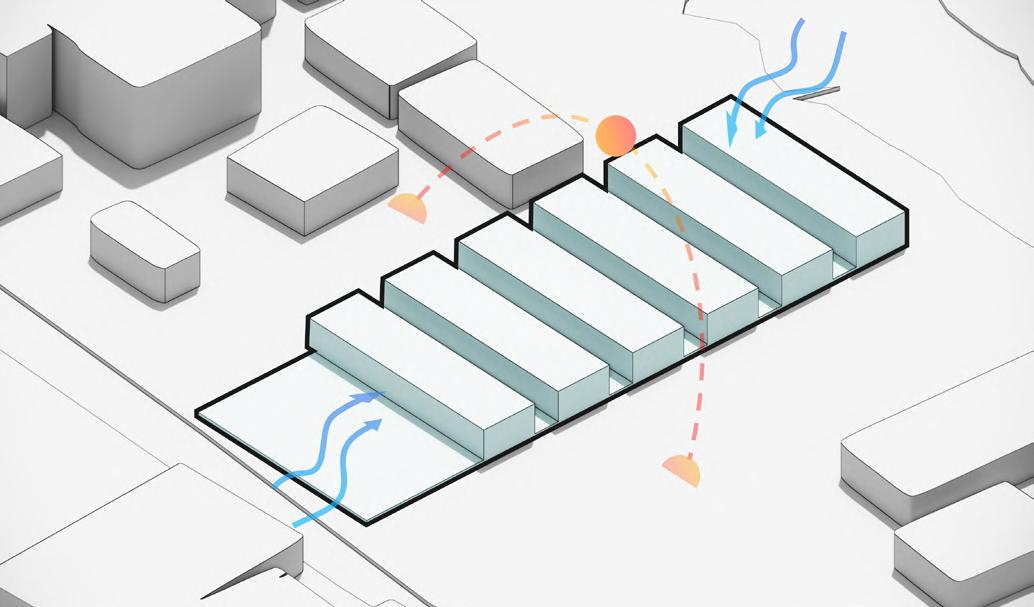

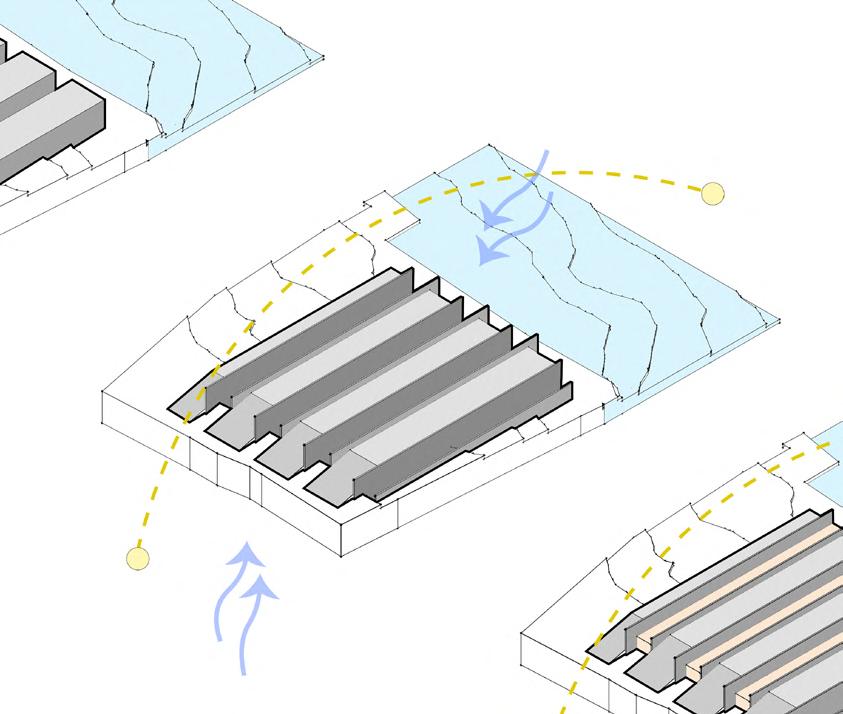

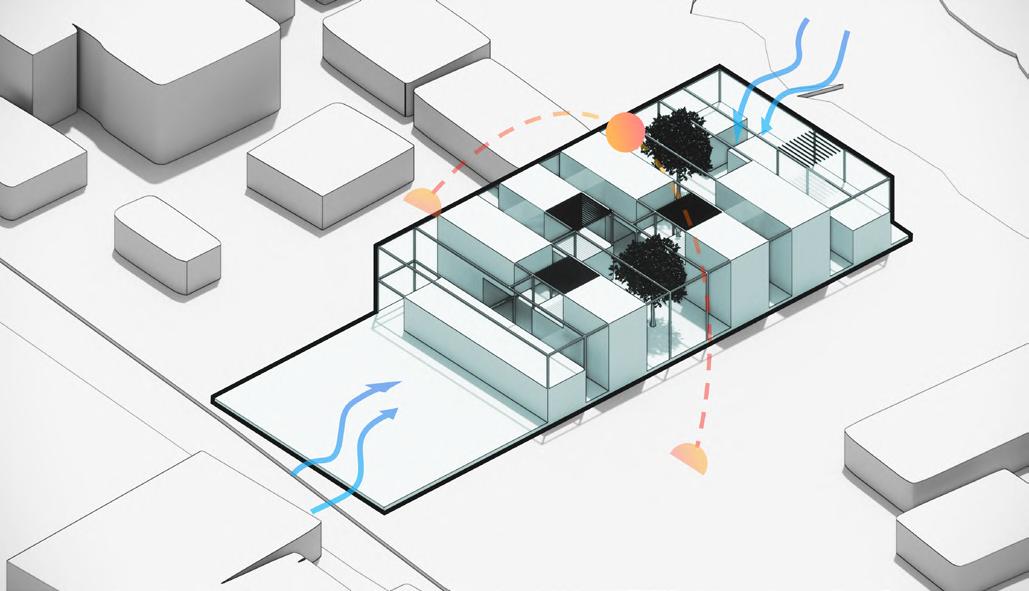

Site with sunpath and wind direction
Creation of courtyards
Addition of pergolas and frames

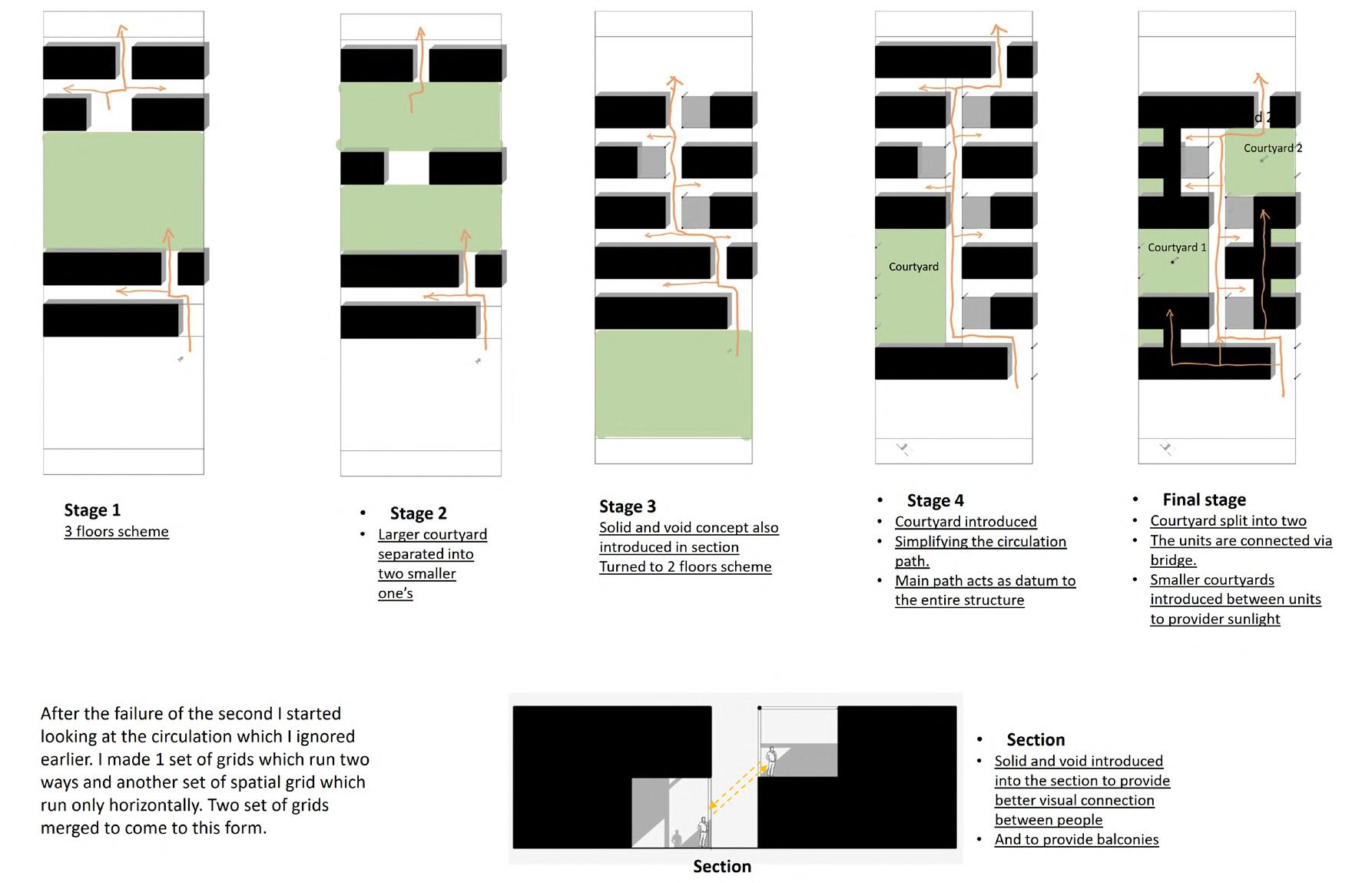

Process Diagrams
Addition of grids and dividing the mass
Addition of first floor
Addition of sloping roof
13
I created multiple smaller courts between the rooms to provide additional light and sit out spaces without compromising security.
Ground floor
1.Lobby n reception
2. Book storage
3. Young adult reading
Toilet 5.Kids reading
Computer and Xerox
Security room
Group reading
14
1 3 8 5 1 9 2 4 6 7 C B E D’ D C’ B’ E’ A’ A
4.
6.
7.
8.

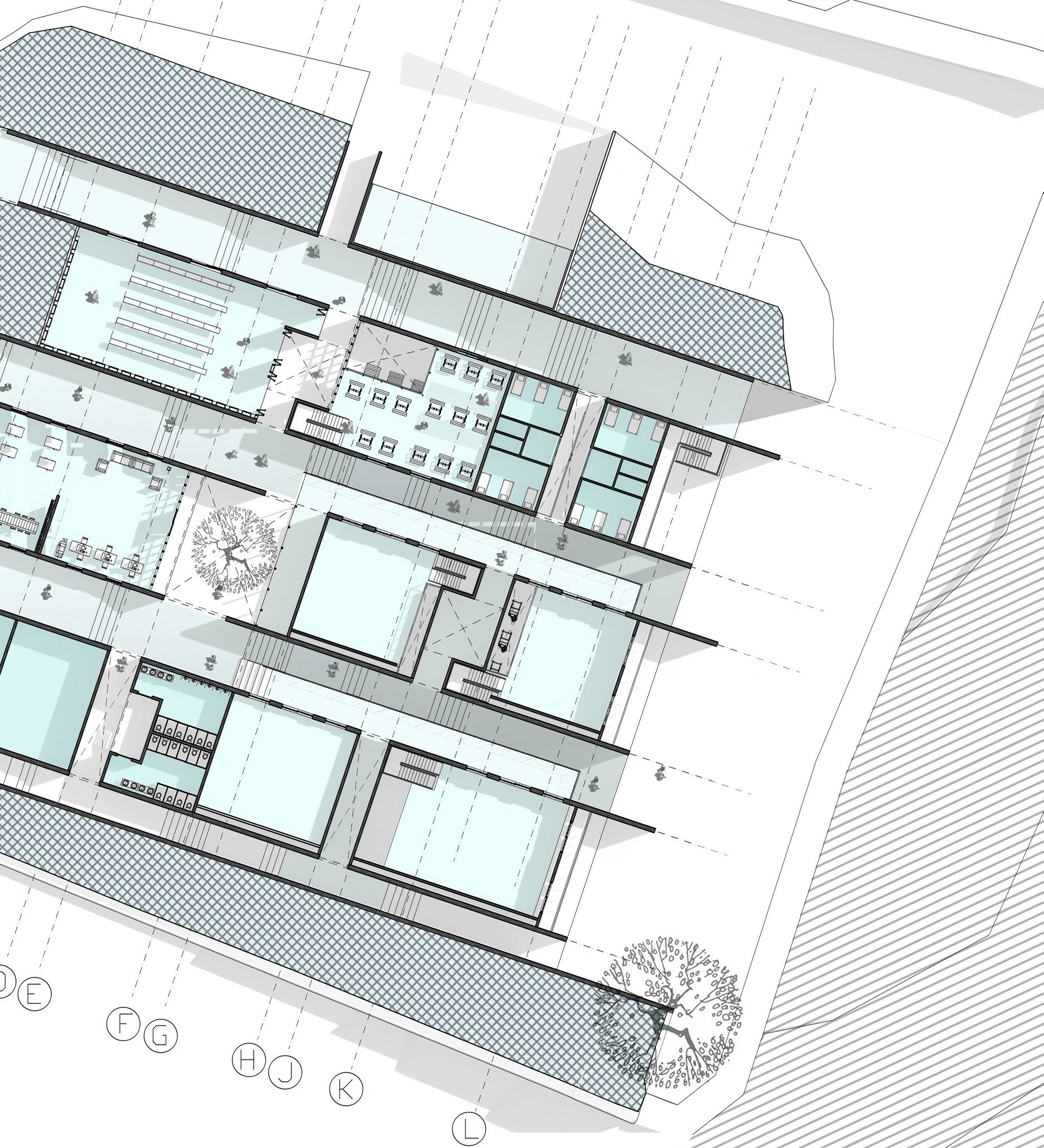

Ground Floor Plan
CC’ shows the solid-void in section. EE’ shows relationship between court and built. (It took two days with 3 hours sleep to finish the model in sketch-up.)
15 1st floor 10. Café 11.
12.
13.
14.
15.
16.
17.
First Floor Plan 10 11 14 15 16 17 12
Research library
Building services
Reading space
Private reading
Reference library
Casual reading
Book storage

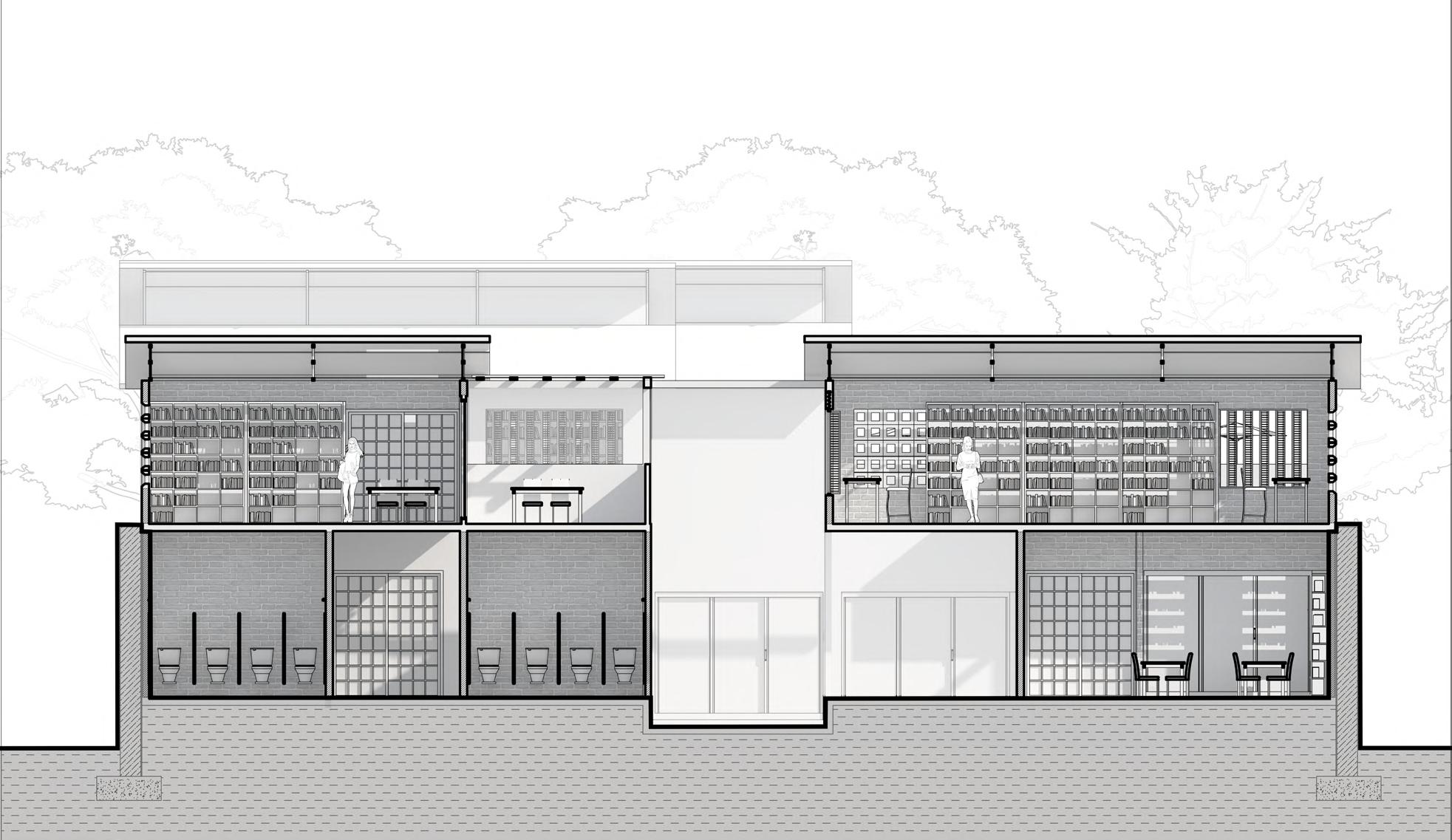

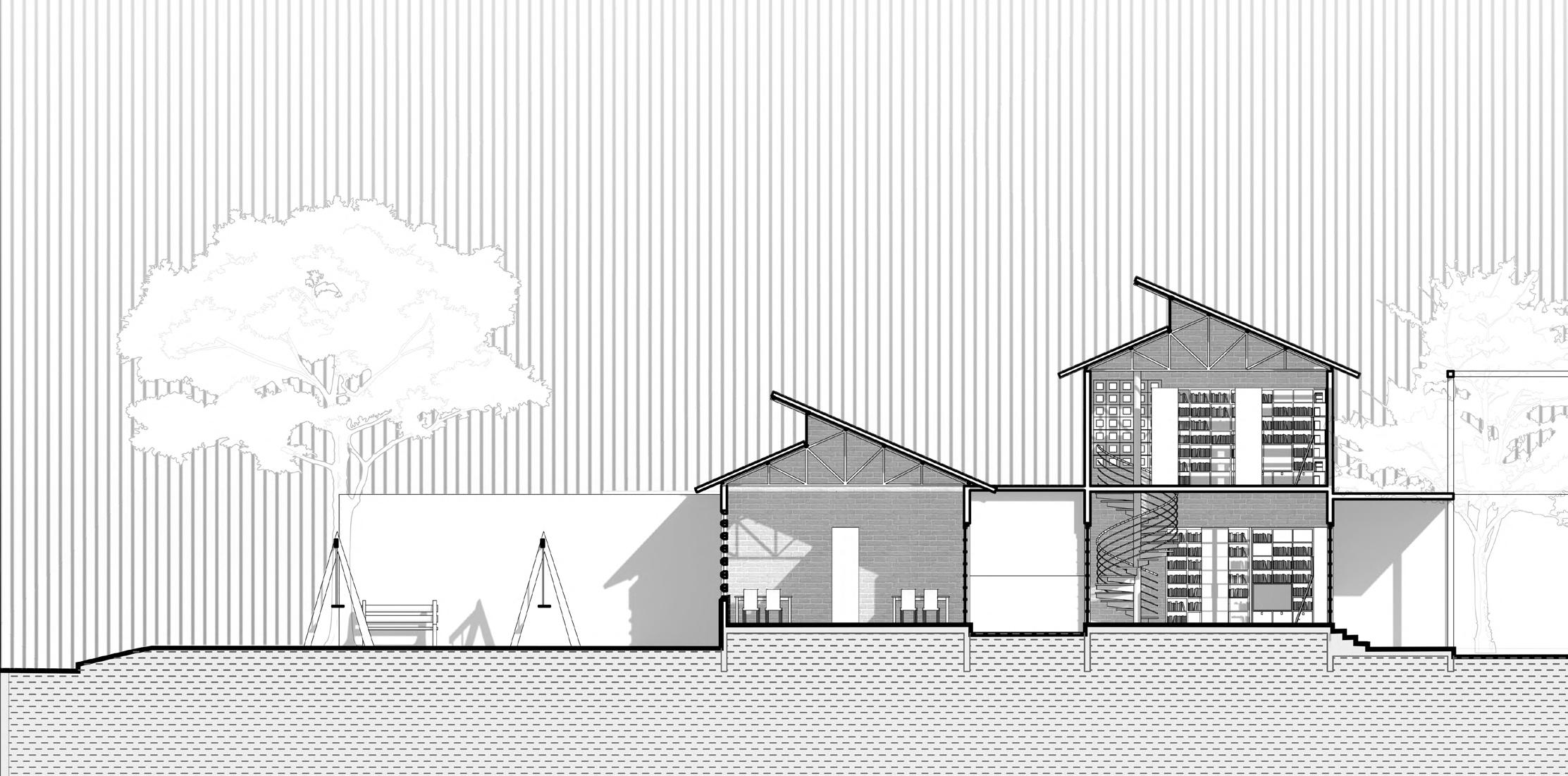

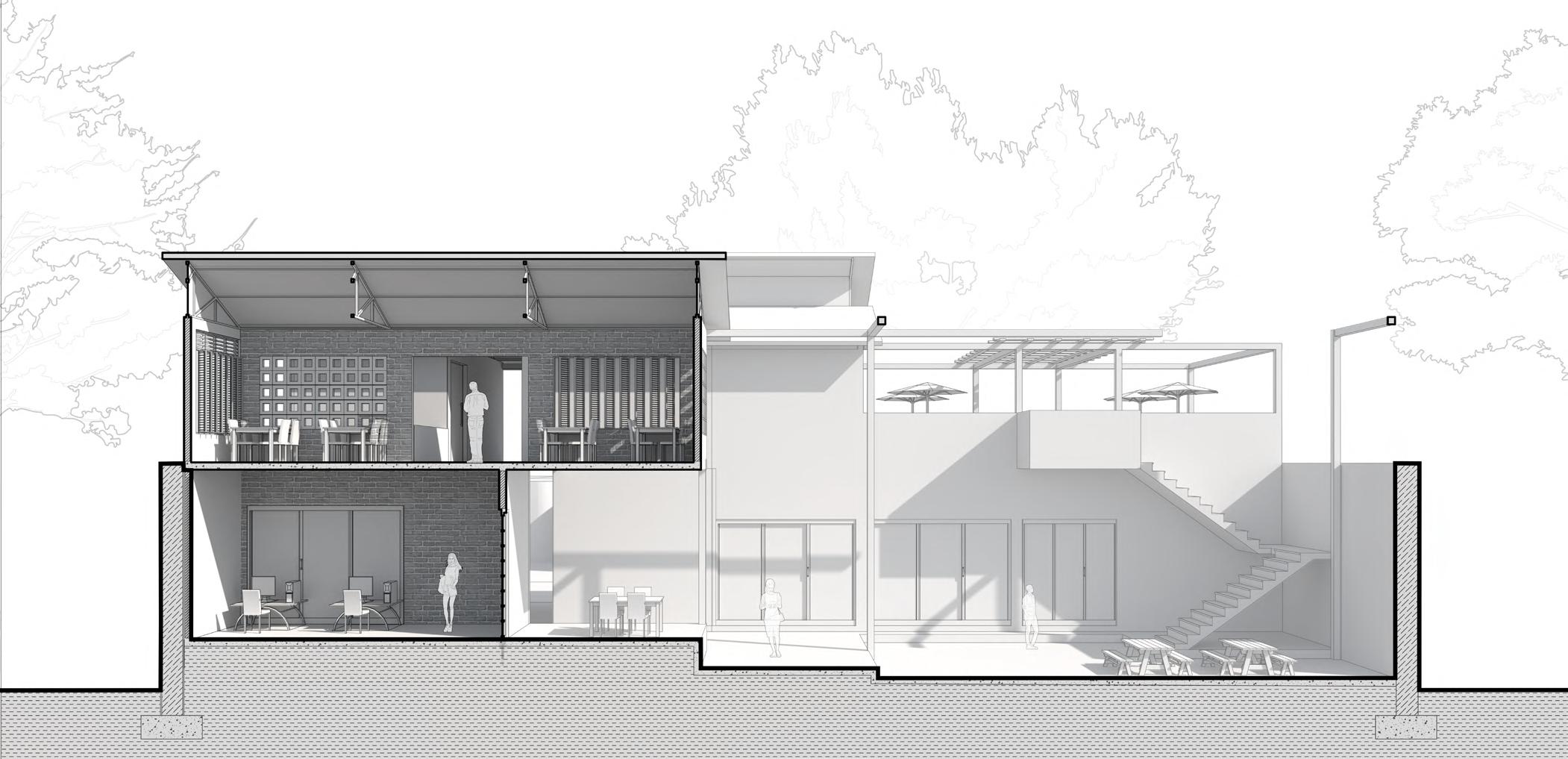

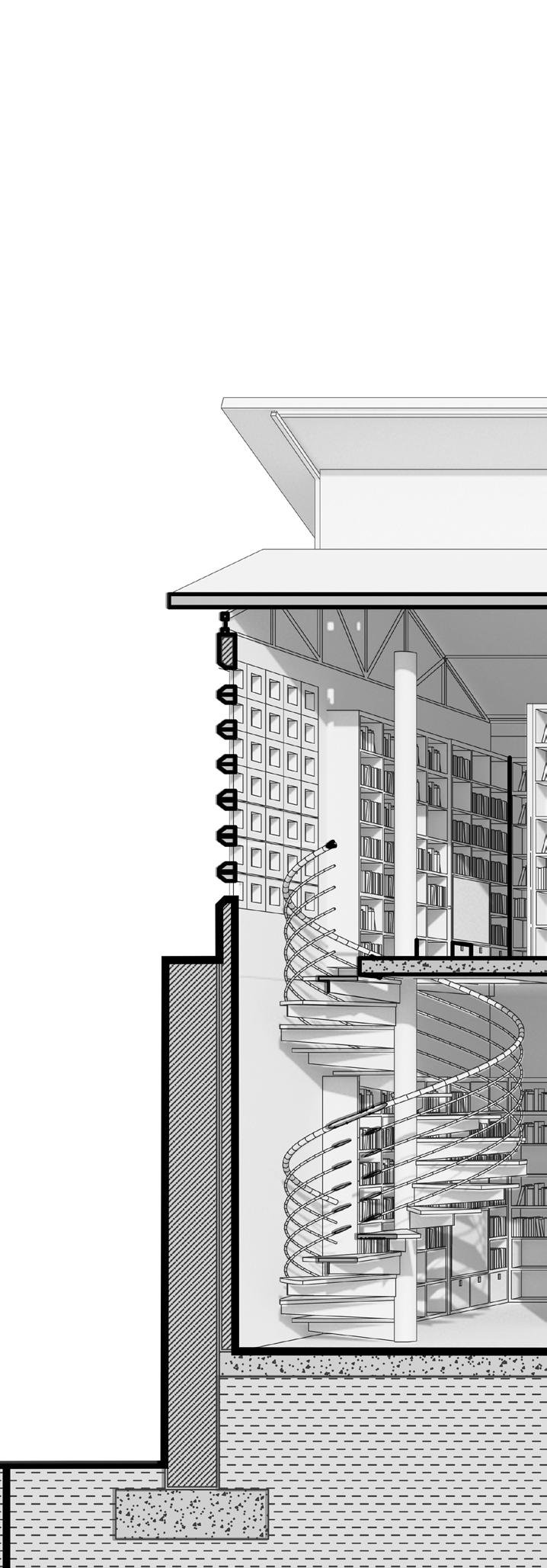

Section EE’ 16
CC’
+0.45M +4M +4M +7.15M +7.15M GL GL between hours in
Section
+0.45M
17 Section DD’ GL +0.45M
+7.15M +7.15M GL
Section AA’
+0.45M +4M +4M

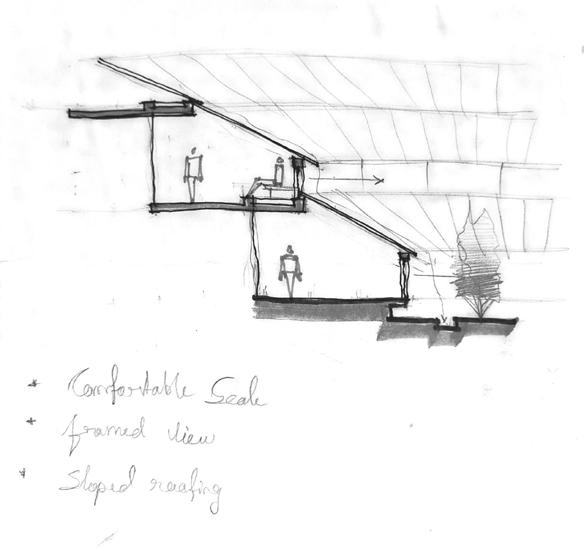

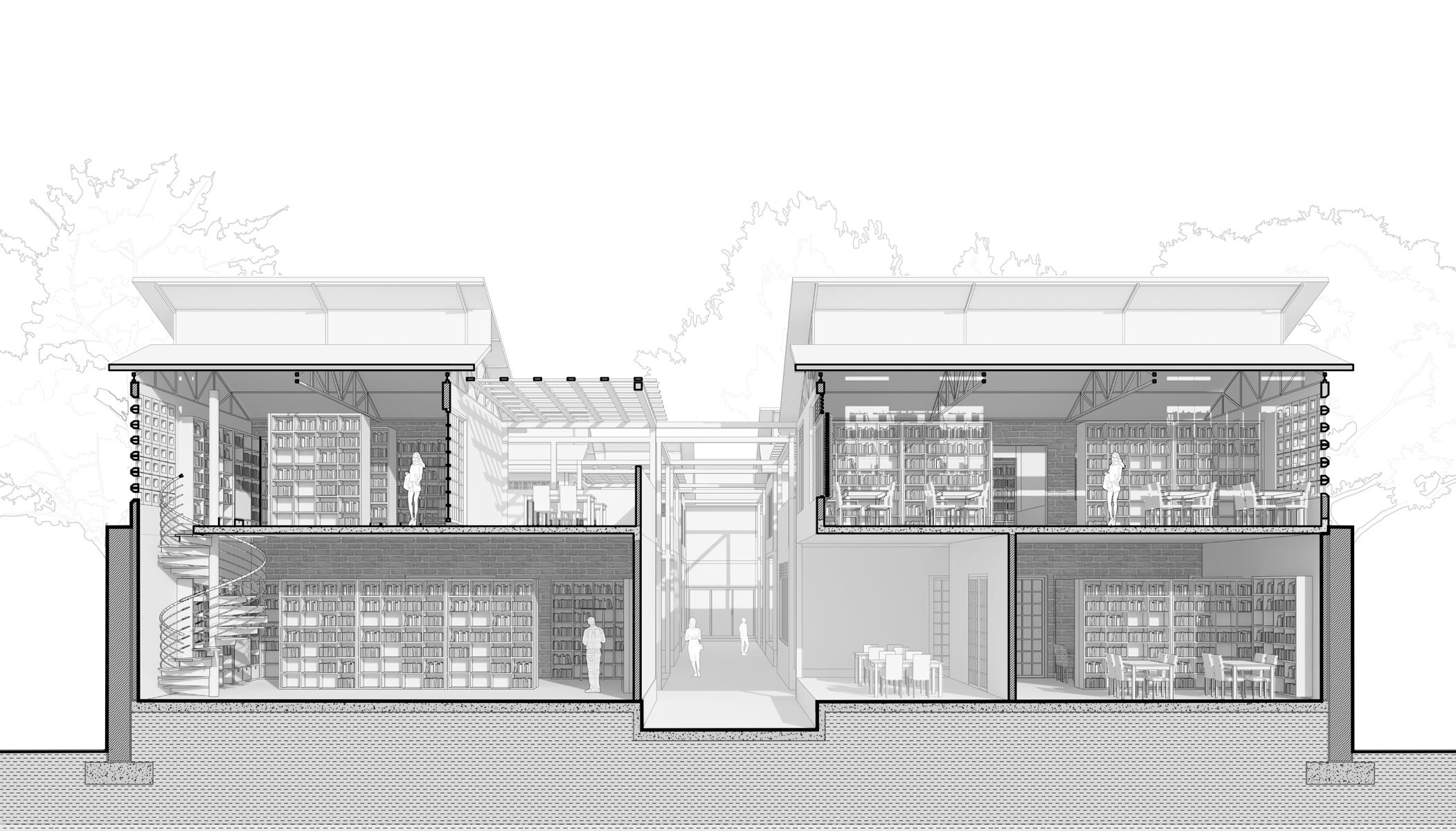

The strategy of the roof allows the diffused,cooler north light to enter the rooms
18 +0.45M +4M +7.15M GL
Section BB’

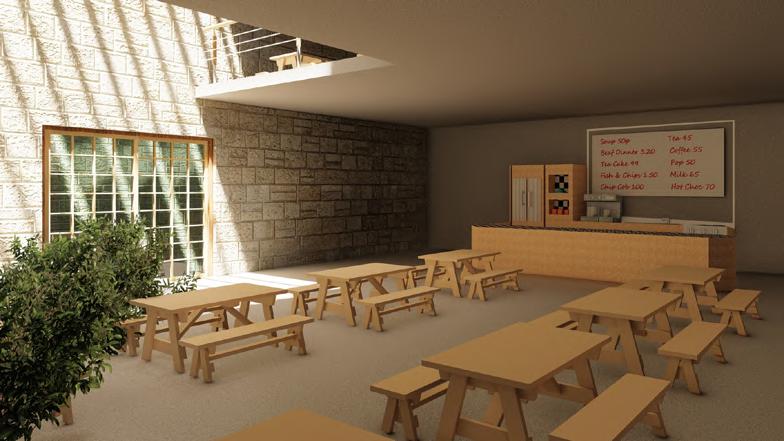

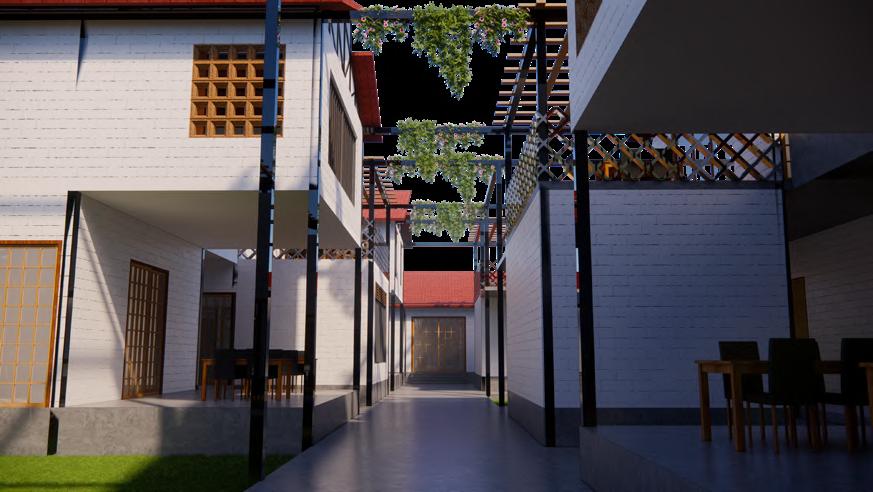

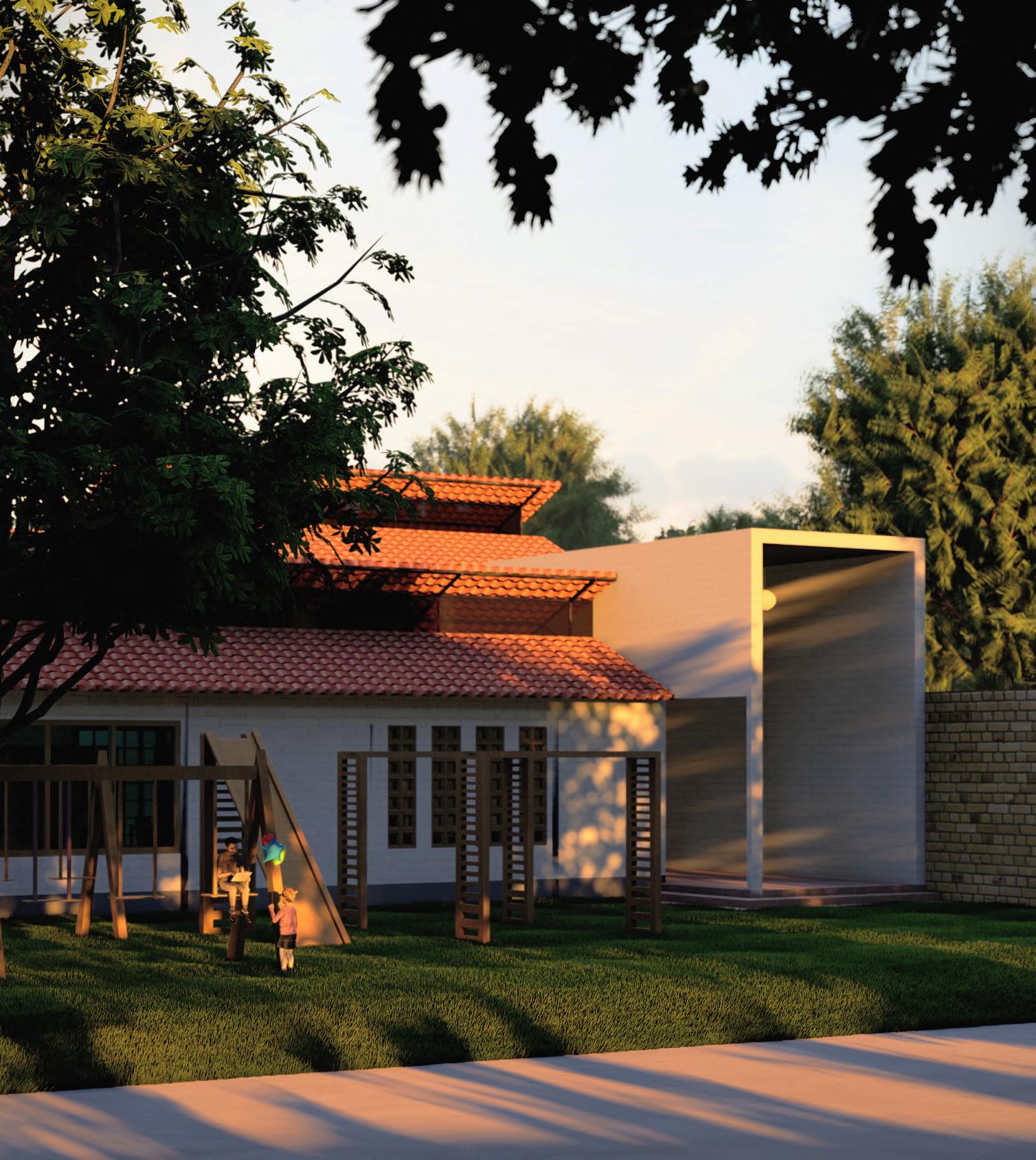

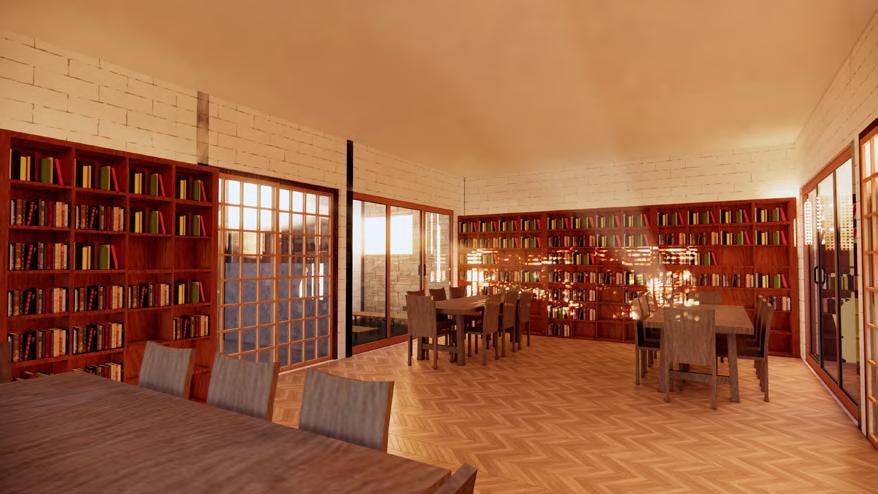

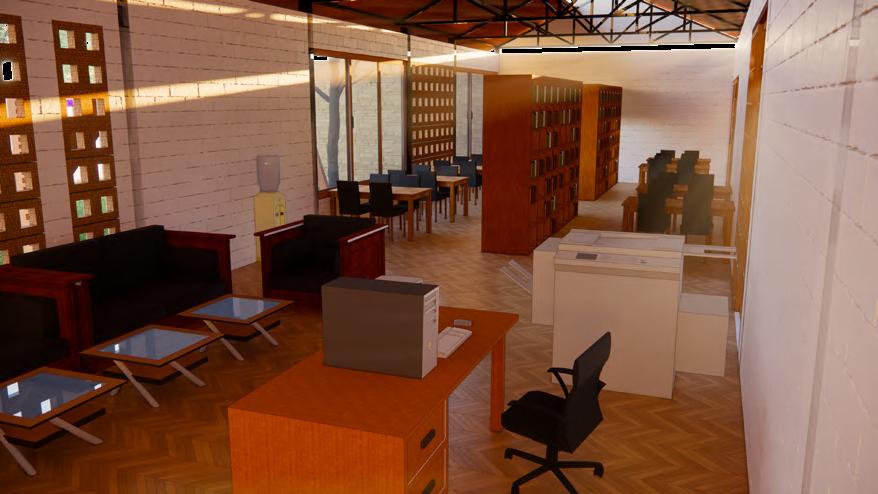

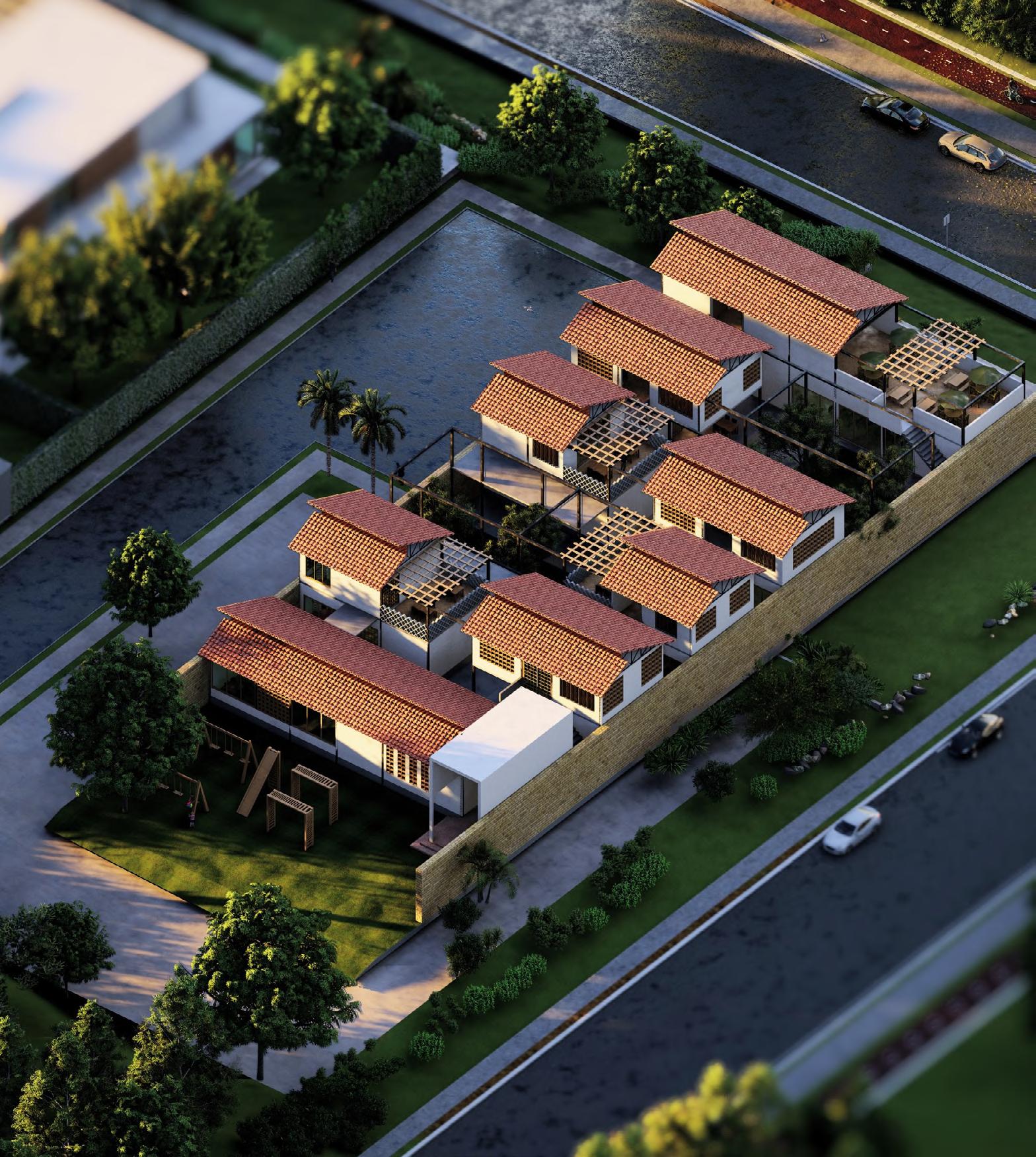

Renders
19
20 Rendered in lumion 12
21
This semester. on Co-living ware engineers Silicon valley. see how people growing

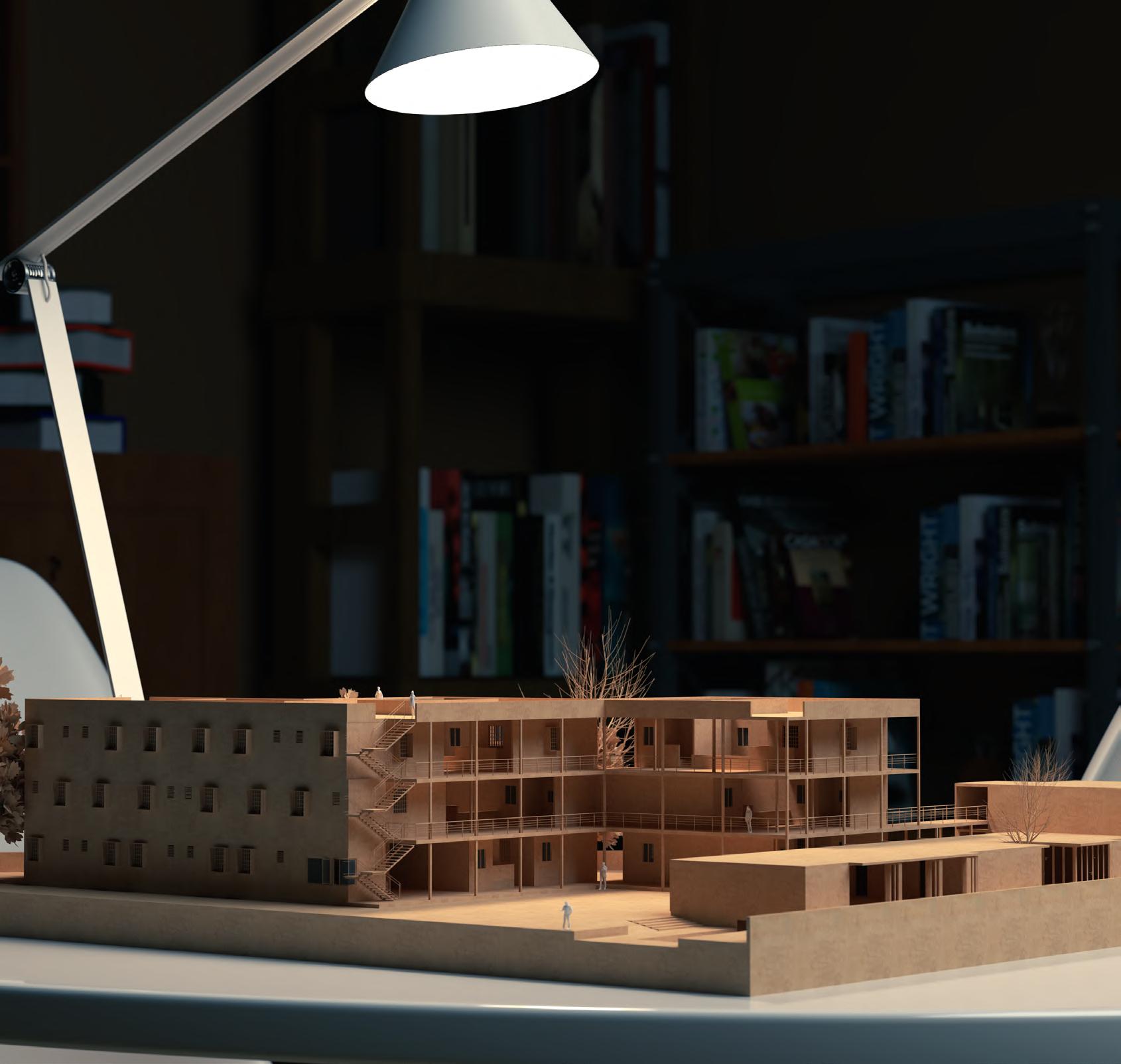

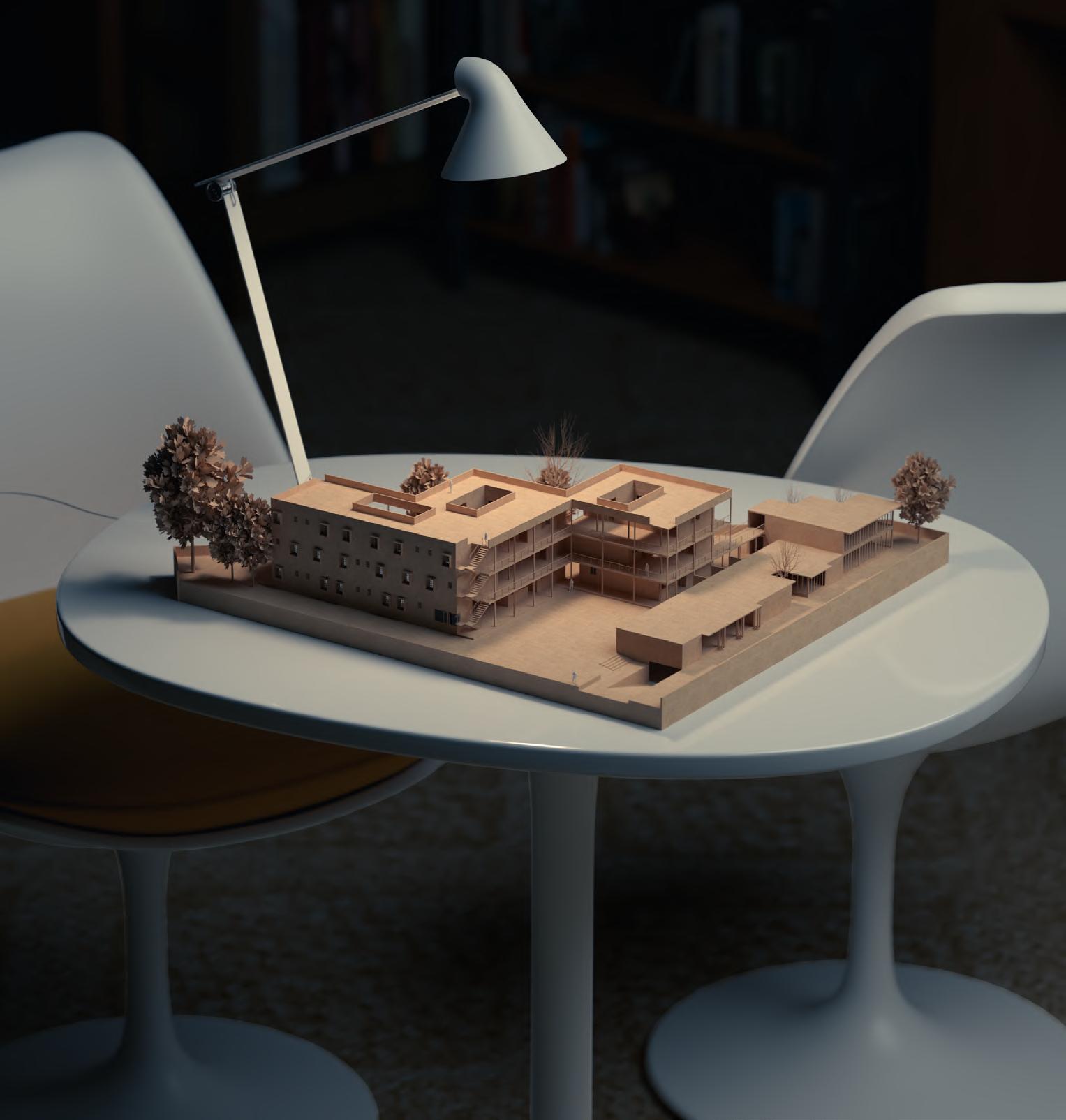

Youth Housing
Semester 04 | Mysuru , Karnataka
Typology : Housing Building
Studio Guides: Prof. Anand Chelavadi
Prof. Umesh Nuchin
Asst. Prof. Akash Rai
Asst. Prof. Shreyas Baindur
Asst. Prof. Asijit Khan
This was an online semester. I did my research Co-living spaces for softengineers originated in valley. it was interesting to people work for fastest growing industry work and collaborate.
Design Brief :
This semesters brief was to design co-living housing for engineers age between 22-30 years. the idea was to create opportunity for young creative minds to collaborate even after the working hours while effectively able to separate their working life and personal life. the concept of Boundary , Community, Co-dependent, Realms of privacy, semi-privacy and public were explored in the project
22

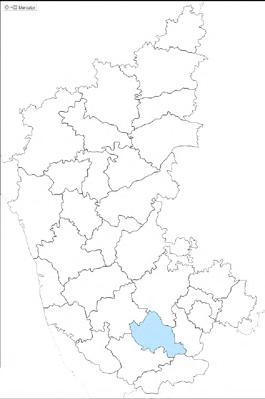

Site Location Context
India
Karnataka
Mysuru
1BHK Houses
2BHK Houses
Key features

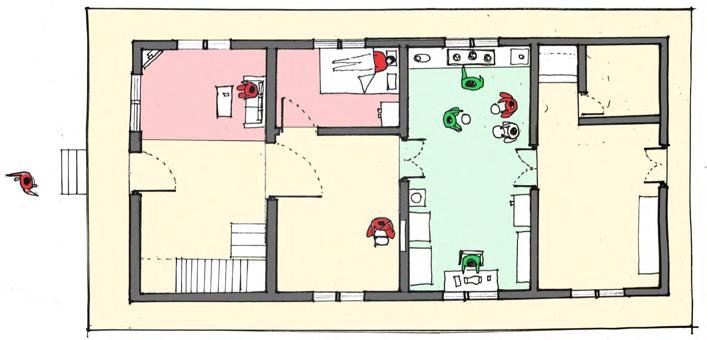

I divided the program into two parts service and served spaces. meetings, collabs happen in courtyards. the blocks are arranges taking advantage of the site’s triangle shape and creating small courts.
Roof garden Community dining and hangout places Symbiosis between building and nature Column structure Courtyards staircases Underground parking 23
Zoning

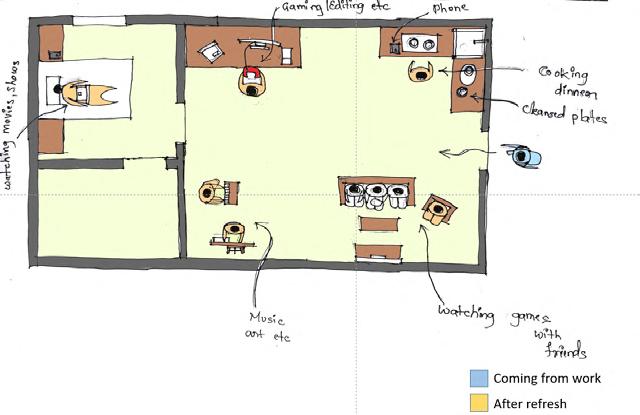

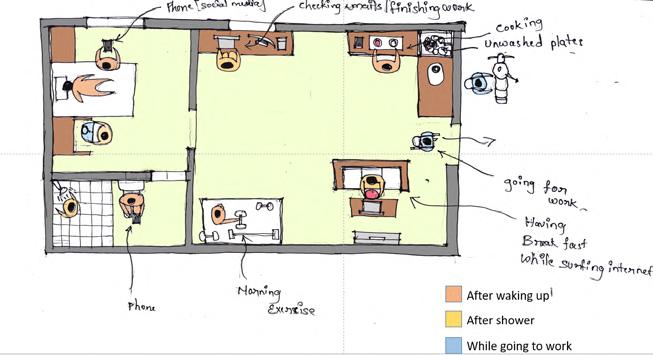

Studio size House Life style of the User group
24

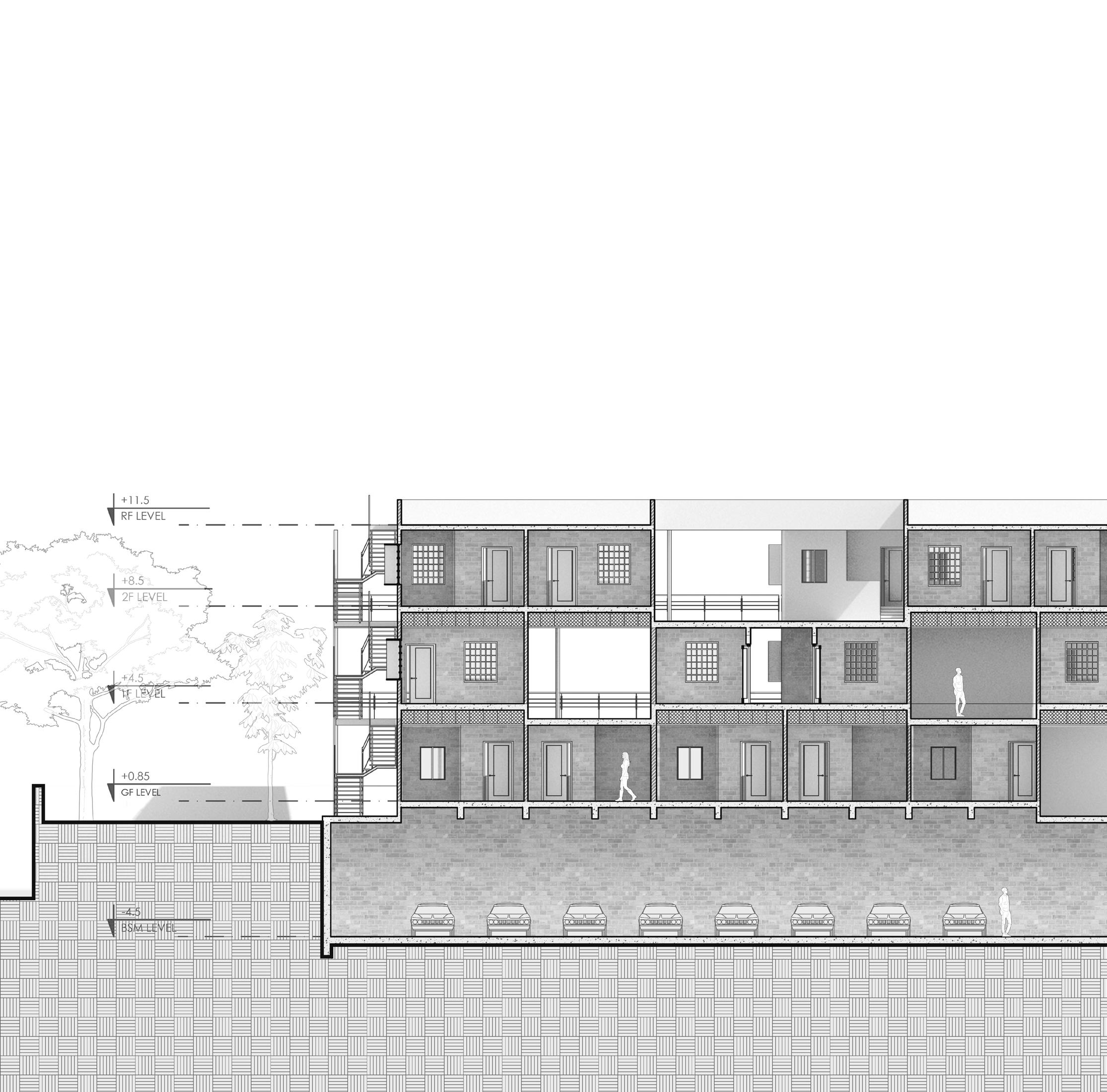

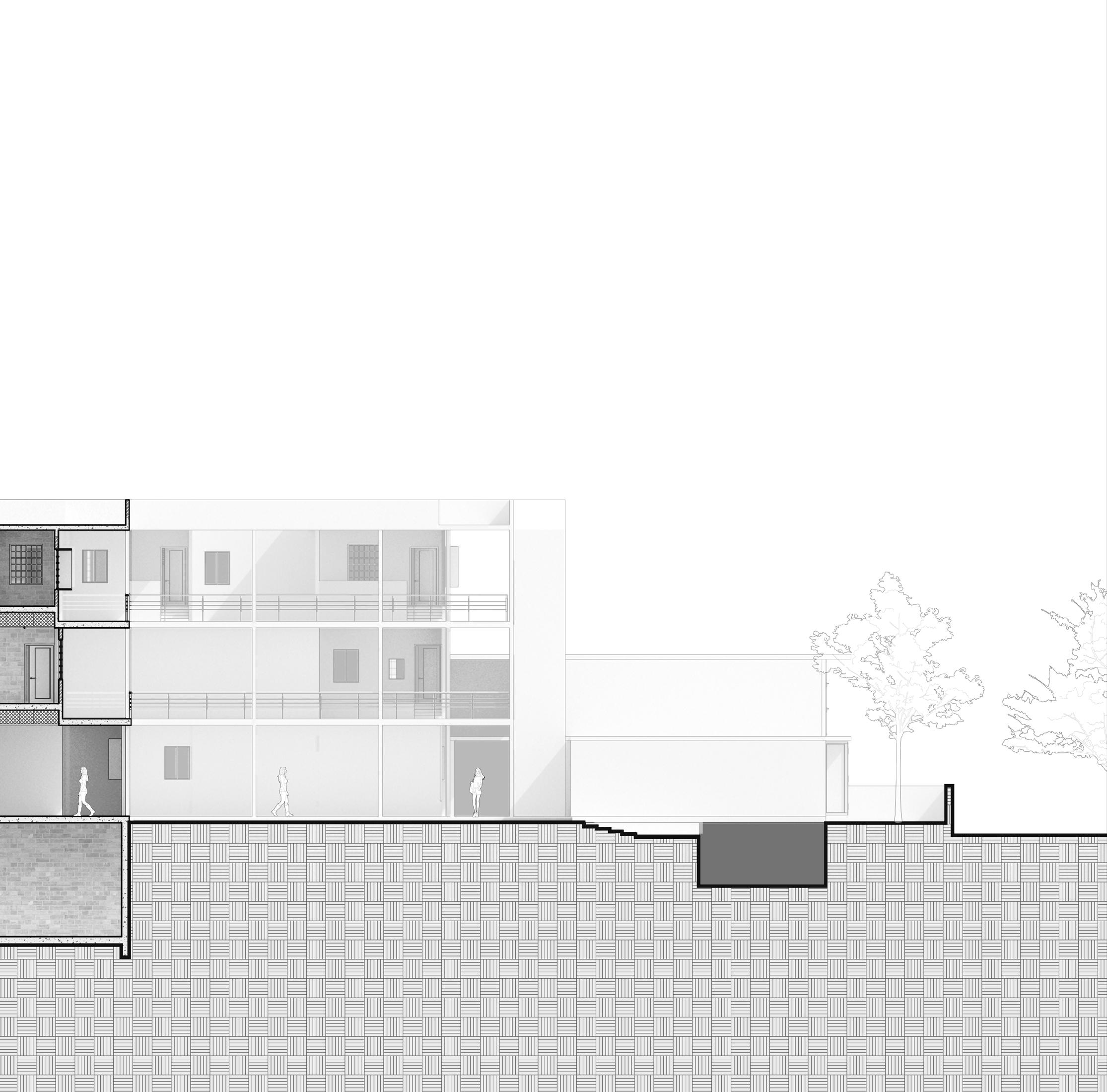

Section BB’
Section CC’
Section DD’
25 Section AA’

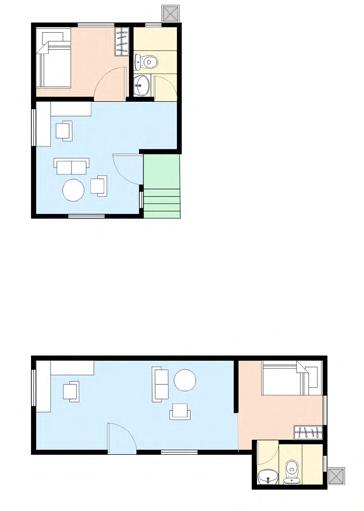

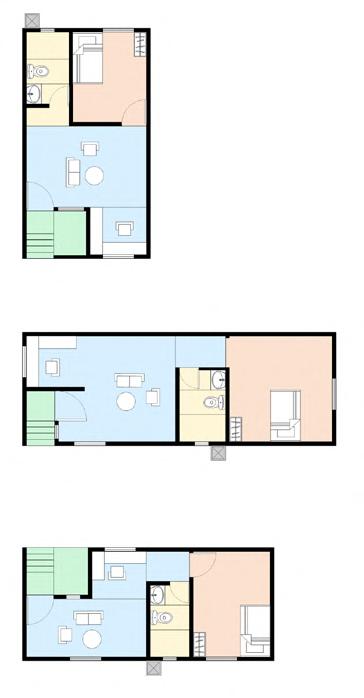

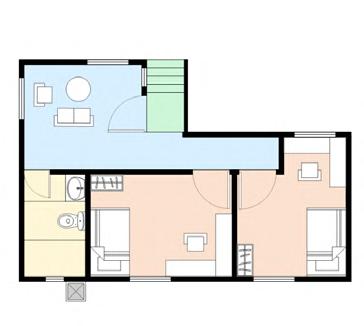

The apartments are divided into 3 types. Studio apartment, 1BHK,2BHK depending upon users budget, requirement, convenience.
26
27

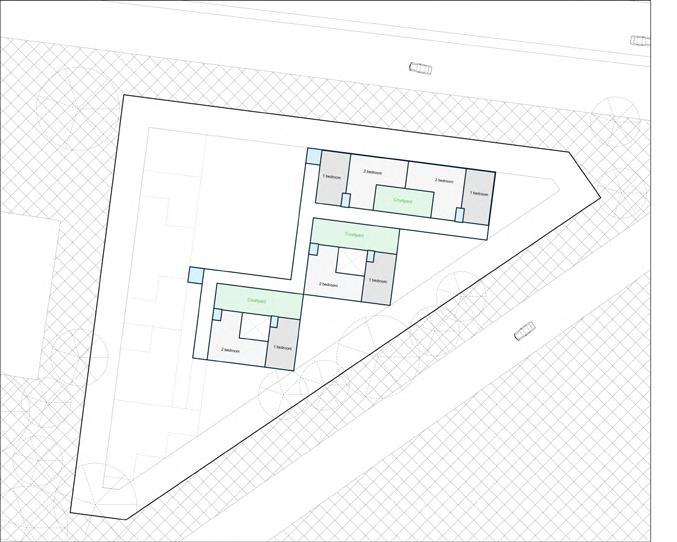

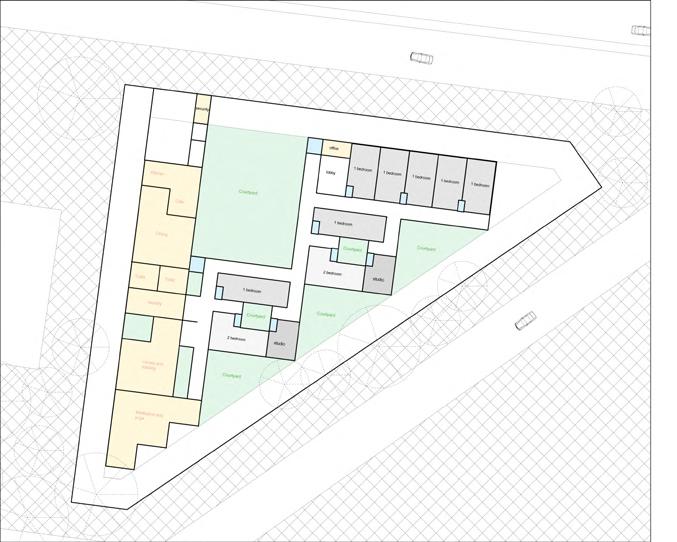

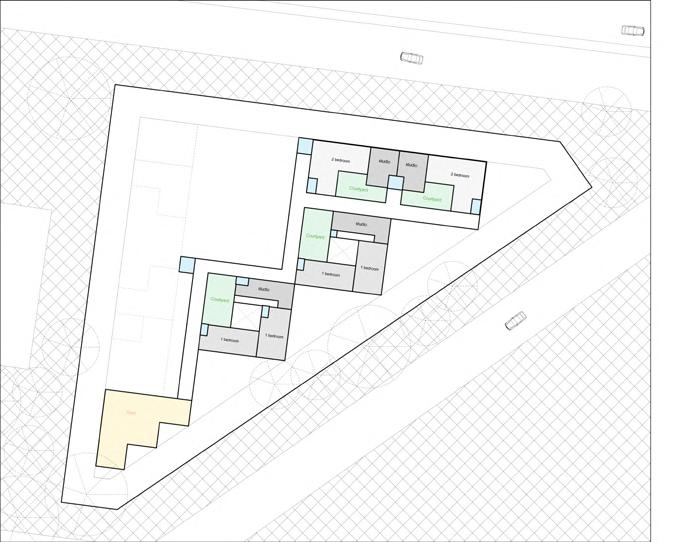

Site footprint
Ground floor residential blocks First floor residential blocks
Second floor residential blocks
Terrace which includes gardens and seating areas Service blocks including community dining, kitchen, laundry,gym,public toilet
28
3523 3300 1750 4100 1150 3150 150 3527 3723 4300 3700 3404 3686 3100 4300 2800 700 2600 1800 800 2000 1400 1400 4268 1890 2050 1789 711 3600 A B C D E F J K L M N O P R S T U V W X Y 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 31688 3000 90000 40000 66900 +0m +2M +4M +3.7M Lobby Living Living Living Living Living Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Living Living Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Courtyard Community dining Administration Entrance Entrance Car parking 29 Ground Floor Plan
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
LEGEND:
Working Drawings
Semester 07 | Mysuru , Karnataka
Typology : Housing Building
Studio Guides: Prof. Manoj Ladhad
Assoc. Prof. Surendran Aalone
Asst. Prof. Kousalya
TITLE OF PROJECT: IKYA EXTENDED FAMILY Mysuru
DATE : 1/07/2022
SCALE :- 1:200 All dimensions in 'mm' N
DRAWING TITLE SHEET NO.2
GROUND FLOOR A2_01
Drawn by :
VIKRAM (4CM19AT076)
BHUVAN (4CM19AT015)
SHREYAS (4CM19AT066)
DANUSH (4CM19AT019)
LEKHANA (4CM19AT048)
SEAL AND SIGNATURE
3500 3500 1220 3080 3500 548 2952 4300 3700 17 18 19 20 21 22 23 24 25 42460 +4m Living Living Living Toilet Toilet Toilet Toilet Toilet Toilet Toilet Kitchen Kitchen Kitchen Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Courtyard
30

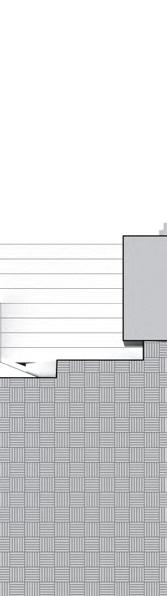

COPING PARAPET WALL RCC BEAM PLASTER 10MM RCC LINTEL WITH CHAZZA SILL LEDGE WALL TILES WATER PROOFING LAYER SCREED FOUNDATION 475 3025 450 2915 450 2915 1093 80 3485 A B C GENERAL NOTES
All dimensions are in 'mm'. 2. Drawings not be measured but written dimensions to be followed. 3. For structural details refer drawings issued by structural consultant. 4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications. Drawn by VIKRAM (4CM19AT076) SCALE :- 1:50 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Wall section 2 A3_01 SEAL AND SIGNATURE DATE 01/07/2022 LIVING BEDROOM TOILET 1 CORRIDOR BALCONY 1 BALCONY Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam, Mysuru COPING PARAPET WALL RCC BEAM PLASTER 10MM RCC LINTEL WITH CHAZZA SILL LEDGE WALL TILES WATER PROOFING LAYER SCREED FOUNDATION 475 3025 450 2915 450 2915 1093 80 3485 A B C 5 80 150 50 8 10 50 240 8 20 8 450 10 8 120 110 10 10 95 350 GENERAL NOTES 1. All dimensions are in 'mm'. 2. Drawings not be measured but written dimensions to be followed. 3. For structural details refer drawings issued by structural consultant. 4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications. Drawn by VIKRAM (4CM19AT076) SCALE :- 1:50 All dimensions in 'mm' N DRAWING TITLE SHEET NO.2 Wall section 1 A3_01 SEAL AND SIGNATURE DATE : 01/07/2022 LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET CORRIDOR BALCONY Key plan 1:500 DETAIL 'A' DETAIL 'B' DETAIL 'C' DETAIL 'D' TITLE OF PROJECT: HOUSING Gokulam, Mysuru 3523 3300 1750 4100 1150 3150 150 3527 3723 4300 3700 3404 3686 3100 4300 3500 3500 1220 3080 3500 548 2952 4300 3700 2800 700 2600 1800 800 2000 1400 1400 4268 1890 2050 1789 711 3600 A B C D E F J K L M N O P R S T U V W X Y 1 2 3 4 5 6 78 9 10 11 12 13 14 15 16 17 18 19 20 2122 23 24 25 31688 42460 3000 90000 40000 66900 +4m +0m +2M +4M +3.7M Lobby Living Living Living Living Living Living Living Living Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Toilet Living Living Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Bedroom Courtyard Courtyard Community dining Administration Entrance Entrance Car parking CP 1 & CP 4 ARE IN SERIES 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W 2W SB1 SB2 SB3 SB4 SB5 SB6 SB7 SB8 SB9 SB10 SB11 2W 2W CP1 CP2 CP3 CP6 CP5 CP4 CP7 CP8 CP9 CP10 CP11 CP12 CP13 CP14 CP15 CP16 CP17 WP1 CP18 CP19 CP20 CP21 CP22 CP23 CP24 CP25 CP26 CP27 WP2 CP30 CP31 CP32 WP3 WP4 CP33 CP34 CP35 CP36 CP37 CP38 CP39 CP40 CP29 CP41 CP42 CP46 CP47 CP48 CP49 CP50 CP43 CP44 CP45 CP51 CP52 CP53 CF1 CF2 CP 6 & CP 3 ARE IN SERIES CP 7 & CP 49 ARE IN SERIES CP48 & CP50 ARE IN SERIES CP45 & CP43 ARE IN SERIES CP40 &CP42 ARE IN SERIES CP38 & CP36 ARE IN SERIES CP37 & CP39 ARE IN SERIES CP33 & CP35 ARE IN SERIES CP 17 & CP18 ARE IN SERIES CP20 & CP22 ARE IN SERIES CP25 & CP23 ARE IN SERIES CP32 & CP34 ARE IN SERIES CP24& CP26 ARE IN SERIES CP52 &CP53 ARE IN SERIES CP 14 & CP15 ARE IN SERIES CP 13 & CP11 ARE IN SERIES CP 10 & CP12 ARE IN SERIES CC3 CC5 CC6 CC8 CC9 CC10 CC11 CC12 CC13 CC14 CC15 CC16 CC7 CC4 CC1 CC2 4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications. Drawn by VIKRAM (4CM19AT076) BHUVAN (4CM19AT015) SHREYAS (4CM19AT066) DANUSH (4CM19AT019) LEKHANA (4CM19AT048) LEGEND: SCALE :- 1:200 All dimensions in N DRAWING TITLE SHEET GROUND FLOOR [ELECTRICAL] A2_01 SEAL AND SIGNATURE DATE : 01/07/2022 Switch board Fan point Wall mounted Ceiling light CCTV TITLE OF PROJECT: HOUSING Gokulam, Mysuru A B C 1 S3 150mm S5 150mm B2 B1 B4 B5 B2 4300 3039 4311 450 450 450 150 150 450 450 150 A B C 31
200 Wall Section Scale 1:10 Unit Electrial Scale 1:20 Framing Layout Scale 1: 50
1.
Ground Floor Electrical Scale 1 :
1. All dimensions are in 'mm'.
2. Drawings not be measured but written dimensions
3. For structural details refer drawings issued by structural consultant.
GENERAL NOTES
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
1. All dimensions are in 'mm'.
LEGEND:
2. Drawings not be measured but written dimensions to be followed.
3. For structural details refer drawings issued by structural consultant.
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
DATE : 01/07/2022
GENERAL NOTES
1. All dimensions are in 'mm'.
2. Drawings not be measured but written dimensions to be followed.
3. For structural details refer drawings issued by structural consultant.
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
SEAL AND SIGNATURE
A3_02
LEGEND:
TITLE OF PROJECT: HOUSING Kalyani Nagar Road, Mysuru
DATE 13/05/2022
DATE : 01/07/2022
SCALE :- 1:50 All dimensions in 'mm'
DRAWING TITLE SHEET NO.1
Electrical layout A1_01
TITLE OF PROJECT:
Gokulam, Mysuru
SEAL AND SIGNATURE
SEAL AND SIGNATURE
2 3 4 5 6 7 8 9 S4 150mm S1 S2 120mm S7 150mm S11 120mm S12 150mm S14 120mm S15 150mm S9 150mm S6 120mm S8 120mm S10 150mm S13 120mm S16 120mm S17 150mm S18 150mm S19 120mm S20 S21 120mm 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk 300 mm sunk B3 B8 B7 B6 B11 B13 B14 B15 B10 B9 B12 B16 B18 B19 B21 B23 B24 B25 B26 B27 B22 B20 B3 B4 B4 B4 B13 B15 B7 B6 B11 B19 B21 450 150 3490 3500 4300 3500 3500 4300 3700 110 450 450 110 200 450 450 150 600 600 100 600 150 150 150 450 150 450 150 450 150 450 150 600 150 150 450 600 150 110 110 450 150 450 450 150 150 450 150 450 600 150 600 100 150 300 600 150 150 450 600 150 150 600 150 100 100 450 600 150 150 450 150 450 150 450 450 450 300 600 150 150 450 600 150 150 450 600 150 450 450 110 150 150 450 150 150 150 450 150 600 300 600 150 150 600 150 450
to be followed.
Drawn
VIKRAM (4CM19AT076)
by :
OF PROJECT: IKYA EXTENDED FAMILY
Mysuru SCALE :- 1:100 All dimensions in 'MM N DRAWING TITLE SHEET NO. BEAM LAYOUT
TITLE
Gokulam,
by : VIKRAM (4CM19AT076) SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 A3_01
Drawn
1
AC3 G1 AC2 AC1 TV2 TV3 TV1 2050 2050 1286 893 900 1350 2176 468 926 926 2075 677 677 900 1350 G2
HOUSING
2 3 4
Drawn by VIKRAM (4CM19AT076)
N
Switch board Fan point Wall mounted Ceiling light Television Air conditioner MCB Bell Buzzer TV AC Tubelight G Gyser point 32 Electrial Plan Layout
KITCHEN 4150X3000 W02 1 2 3 4 R 2 3 4 5 A D B Elica India Multi flame control stove PRO RF 4B 70 DX FFD LG India Refridgerator GR-J287PGHV Philips viva collection 750 watts jar mixer grinder Hafele India Kitchen sink BLANCO NAYA 8S-SILIGRANT PuraDur Aquagard India Water Purifier 600 900 4300 601 1200 600 3150 900 920 600 Kajaria Eternity Ceramic tiles 600mm x 900mm GENERAL NOTES 1. All dimensions are in 'mm'. 2. Drawings not be measured but written dimensions to be followed. 3. For structural details refer drawings issued by structural consultant. 4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications. Drawn by VIKRAM (4CM19AT076) SCALE All dimensions N DRAWING TITLE SHEET Kitchen Plan @ 1000mm A3_01 SEAL AND SIGNATURE DATE : 01/07/2022 LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam, Mysuru 1 2 3 4 R 2 3 R R 1 2 3 2 3 4 R Kraftmaid dovetailed Overhead cabinet Kraftmaid dovetailed Overhead cabinet Aquagard India Water Purifier LG India Refridgerator GR-J287PGHV Philips viva collection 750 watts jar mixer grinder Kraftmaid dovetailed wall cabinet 250 500 450 350 780 820 80 700 40 1600 1300 150 1000 2100 1080 Kajaria Eternity Ceramic tiles 450mm x 450mm GENERAL NOTES 1. All dimensions are in 'mm'. 2. Drawings not be measured dimensions to be followed. 3. For structural details refer issued by structural consultant. 4.This drawing to be read in with all relevant architect's, engineer's, drawings and specifications. Drawn by : VIKRAM (4CM19AT076) All N DRAWING TITLE Kitchen Elevation A SEAL AND SIGNATURE DATE : 26/06/2022 LIVING KITCHEN BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam, Mysuru Kitchen Plate No.4 33 Plan @ +1m Scale 1:20 Section AA’ Scale 1:20 Section Scale Section Scale
GENERAL NOTES
1. All dimensions are in 'mm'.
2. Drawings not be measured but written dimensions to be followed.
3. For structural details refer drawings issued by structural consultant.
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
GENERAL NOTES
1. All dimensions are in 'mm'.
2. Drawings not be measured but written dimensions to be followed.
3. For structural details refer drawings issued by structural consultant.
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
Drawn by : VIKRAM (4CM19AT076) SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 A3_01 SEAL AND SIGNATURE
: 01/07/2022 LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam, Mysuru 985 1200 500 350 600 600 350 175 175 80 820 600 550 560 450 300 300 300 300 602 300 300 225 450 Cutlery tray Pull out Plain drawer Pull out Storage Storage Serving Table Kraftmaid dovetailed Overhead cabinet Hafele India Kitchen sink BLANCO NAYA 8S-SILIGRANT PuraDur Kraftmaid dovetailed wall cabinet Elica India Multi flame control stove PRO RF 4B 70 DX FFD Jain electronics faber kitchen chimney classico series 600mm False ceiling Sheet 4/5 Name : Vikram Hegde USN:4CM19AT076 Elevation D Scale 1:15 All dimensions in mm 2 3 1 2 3 4 R 4 R LG India Refridgerator GR-J287PGHV Kraftmaid dovetailed Overhead cabinet 500 500 500 500 1000 2100
DATE
Drawn by VIKRAM (4CM19AT076) TITLE OF PROJECT: IKYA EXTENDED FAMILY Mysuru SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Kitchen Elevation 'B' A3_01 SEAL AND SIGNATURE
01/07/2022 34 Kitchen Plan,
Section BB Scale 1:20’ Section DD’ Scale 1:20
DATE
Sections
Jaquar - Glass shelf Continental ACN-CHR-1171N
Jaquar - Wall hung basin with full pedestal 610X465X275 mm With pedestal height 885 mm QPS-WHT-7803PM + QPS-WHT-7303PM
Jaquar - Faucet Fusion FON-40023B
Jaquar - Gyeser INSTANT 01 LTR - 4.5KW Instant Electric
Jaquar-Hanger Continental ACN-CHR-1111SM Stainless steel
Water drain
Jaquar-Wall mixer CON-217KN Stainless steel
Jaquar- Handshower ALD-CHR-573
Jaquar-Wall hung WC ITS-WHT-89101
Kajaria - ceramic tiles 300x300mm
Jaquar - Stop valve
Jaquar - Gyeser INSTANT 01 LTR - 4.5KW Instant Electric
Jaquar - Stop valve WC water control
Jaquar - WC water tank Slim Concealed Cistern JCS-WHT-2400S
1. All dimensions are in 'mm'.
2. Drawings not be measured but written dimensions to be followed.
3. For structural details refer drawings issued by structural consultant.
4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications.
1 2 3 4 2 3 R 1 2 3 R 5 6 7 8 9 10 11 94 158 300 300 3700 2411 200 772 12 780 1080 444 1200 544 1058 150 603 994 1148 903 A D C B
Drawn by VIKRAM (4CM19AT076) SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Bathroom Plan @ 1000mm A3_01 SEAL AND SIGNATURE DATE : 01/07/2022 LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam, Mysuru 1 2 3 4 5 R 2 3 4 R 2 3 4 5 R 1 2 2 R R R 820 966 150 23 2892 450 710 1068 1675 2357 450 450 164 312 450 1808 1074
GENERAL
NOTES
Drawn by VIKRAM (4CM19AT076) TITLE OF PROJECT: IKYA EXTENDED FAMILY Mysuru SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Bathroom Elevation C A3_01 SEAL AND SIGNATURE DATE : 01/07/2022 Cold Water Hot Water Water waste WC waste LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 1 2 3 4 R 2 2 R 3 4 864 1756 R 2 1 2 R 177 470 1689 2035
Section DD’ Scale 1:20 35 Plan
Section CC’ Scale 1:20
Section BB’ Scale 1:20
@ 1m Scale 1:20
1. All dimensions are in 'mm'.
3.
Mirror Kajaria - ceramic tiles 450x450mm
Jaquar-Wall mixer CON-217KN Stainless steel
Jaquar - Wall hung basin with full pedestal QPS-WHT-7803PM + QPS-WHT-7303PM
Jaquar -
GENERAL
NOTES
1.
Details
2 R 5 R 1001
measured
to be followed.
2. Drawings not be
but written dimensions
by structural consultant.
For structural details refer drawings issued
all relevant architect's, service
drawings
Drawn by : VIKRAM (4CM19AT076) SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Bathroom
SEAL
SIGNATURE
LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 TITLE OF PROJECT: HOUSING Gokulam,
4.This drawing to be read in conjunction with
engineer's,
and specifications.
Elevation B A3_01
AND
DATE : 01/07/2022
Mysuru
Electric
Jaquar - Gyeser INSTANT 01 LTR - 4.5KW Instant
Stop valve Gyeser water control
Jaquar - Stop valve Bathroom water control
'mm'. 2. Drawings not be measured but written dimensions to be followed.
For structural details refer drawings issued by structural consultant. 4.This drawing to be read in conjunction with all relevant architect's, service engineer's, drawings and specifications. Drawn by VIKRAM (4CM19AT076) SCALE :- 1:20 All dimensions in 'mm' N DRAWING TITLE SHEET NO.1 Bathroom Elevation D A3_01 SEAL AND SIGNATURE DATE : 01/07/2022 LIVING TOILET 2 KITCHEN BEDROOM 2 BEDROOM 1 TOILET 1 CORRIDOR BALCONY 1 BALCONY 2 Key plan 1:500 TITLE OF PROJECT: HOUSING
All dimensions are in
3.
Gokulam, Mysuru
LUGGAGE UNIT CLOTH HANGER UNIT SHOE RACK TOWELS AND HANDKERCHIEF UNIT SOCKS AND STOCKINGS UNIT ACCESSORIES UNIT LOCKER UNIT BAG TRAY FOLDED CLOTH UNIT 1200 400 400 400 2100 1200 380 370 370 570 570 1200 600 600 1200 400 400 400 2100 400 1600 SHOE RACK CLOTH HANGER UNIT FRONT ELEVATION SCALE = 1:15 TRANSVERSE SECTION SCALE = 1:15 PLAN AT -AA' LEVEL SCALE = 1:15 PLAN AT -BB' LEVEL SCALE = 1:15 X Y X' Y' A' A B B' A' A B B' DETAIL A CLOTH HANGER UNIT ACCESSORIES UNIT BAG TRAY FOLDED CLOTH UNIT FOLDED CLOTH UNIT SHOE RACK SHOE RACK LUGGAGE UNIT LUGGAGE UNIT 2100 100 180 180 260 280 813 147 2100 100 168 180 260 118 118 813 147 600 600 CROSS SECTION-XX' SCALE = 1:15 CROSS SECTION-YY' SCALE = 1:15 CLOTH HANGER UNIT DETAIL B METAL CHANNEL METAL CHANNEL SCREWED TO 20MM WARDROBE UNIT WARDROBE SIDE F E' F' 900 5100 F E' F' 900 5100 F E' F' 900 5100 F E' F' 900 5100 4000 2600 GROUND FLOOR +95.95 SSL +96.00 FFL TERRACE FLOOR +100.45 SSL +100.50 FFL ROOF-1LVL +103.05 SSL +103.10 FFL +96.00 SSL +96.50 FFL +0.50M 500 SEC 01 SEC 01 SEC 02 SEC 02 SEC 01 SEC 01 SEC 02 SEC 02 TERRACE FLOOR GROUND FLOOR SECTION 1 +99.70 SSL +99.75 FFL 23T280.00 MM 24R -166.66 MM UP 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 23T280.00 MM 24R -166.66 MM 3640 (14 EQ THREADS) 1960(7 EQ THREADS) 1440 1500 1700 1770 01 02 03 04 05 06 07 08 11 12 13 15 16 17 18 20 21 22 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 UP SLAB TO BE FOLDED FOR WINDER 1500 1700 1960 1440 2600 1770 3640(14 EQ THREADS)
01 36
Staircase
Scale 1:20 Wardrobe Details Scale 1:10
STAIRCASE

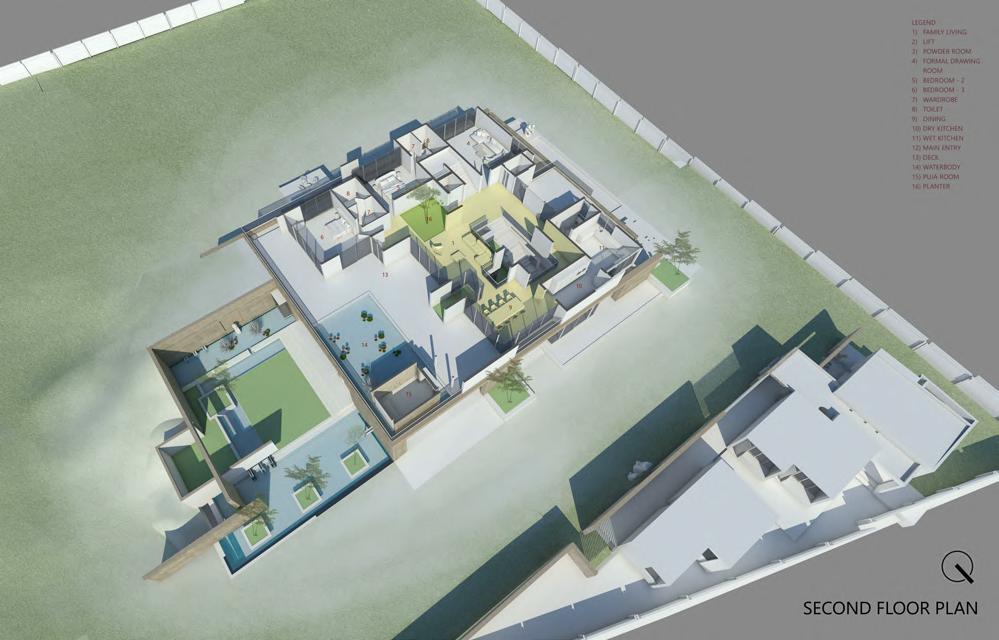

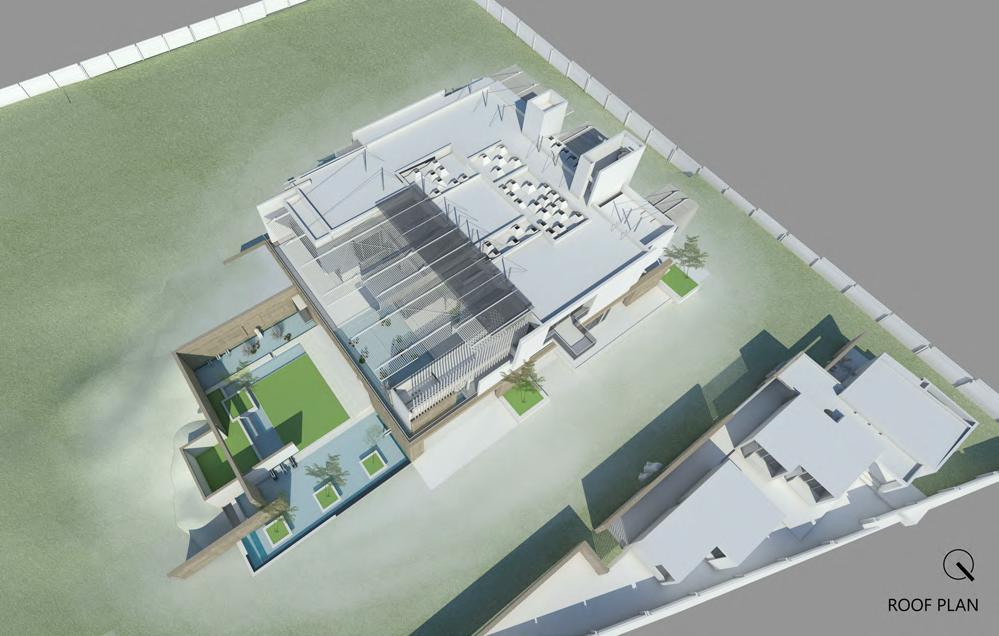

PROFESSIONAL TRAINING
Office : Mindspace Architects
Partners : Sanjay Mohe, Medappa, Amit Swain and Swetha
Team : Ar. Arun Kumar
Ar. Niyathi Khadilkar
Ar. Krishna Dinesh
Ar. Dhanush Ganesh
PLANTER BED PLANTER BED LADIES TOILET GENTS GARBAGE +94.73 NGL GREEN ROOM FGL+ 94.17M 1440 D1 D1 W1 D2 1150 D5 D6 SPOUT DN 01 02 01 03 MACHINE 01 03 TREE COURT DINING FACILITY OUTDOOR DINING 2T- 400.00 MM 08 MACHINE 3700 STORAGE +96.65 FFL +95.60 FPL FPL FGL 08 09 12A 01 +96.15 FFL +96.10 SSL +96.60 SSL +96.60 SSL 2800 4900 +96.60 SSL 2 6 A' A'' C' 8 6050 7750 7750 9 6000 3000 6400 3500 6100 7800 900 6000 900 3000 900 5500 3500 900 5100 1000 7750 6200 1700 800 A B C D F G A' A'' C' E' F' 7800 3000 6400 3500 6100 900 6000 900 3000 900 5500 3500 900 5100 1000 E 1700 800 5400 6000 1 3 6 8 9 6000 6050 7750 7750 7750 6200 5400 6000 6400 01 03 03 DROP OFF 05 03 06 SEC 03 SEC 05 SEC 04 SEC 02 SEC 01 SEC +96.15 FFL +94.90 FFL +94.90 FFL +96.10 SSL +94.90 FFL TENTATIVE ROOF TENTATIVE ROOF D/W +96.60 SSL 3R -166.66 MM +94.65 FFL +94.15 FFL +95.15 FFL STAIRCASE +96.65 FFL +96.65 FFL +96.55 FFL 1500 690 1800 4200 PLANTER BED LADIES TOILET GENTS GARBAGE +94.73 NGL GREEN ROOM FGL+ 94.17M 1440 D1 D2 1150 SPOUT 2 6 A' A'' C' 8 6050 7750 7750 9 6000 3000 6400 3500 6100 7800 900 6000 900 3000 900 5500 3500 900 5100 1000 7750 6200 1700 800 A B C D F G A' A'' C' E' F' 7800 3000 6400 3500 6100 900 6000 900 3000 900 5500 3500 900 5100 1000 E 1700 800 5400 6000 1 3 6 8 9 6000 6050 7750 7750 7750 6200 5400 6000 6400 06 SEC 03 SEC 05 SEC 04 SEC 02 SEC 01 SEC 21A 21B ADDTIONAL ROOM-2 5000 2700 STAIRCASE 02 9400 8000
3 6000 5400 6000 4500 2600 GROUND FLOOR +100.50 FFL +103.05 SSL +107.95 SSL 4900 6 8 7750 7750 7750 6200 4500 2600 GROUND FLOOR +100.50 FFL +103.05 SSL +107.95 SSL 4900 A' A'' C' 7800 3000 900 6000 900 3000 900 4500 2600 +95.95 SSL ROOF-1LVL TOWER 4900 SSL G E' F' 6100 900 5100 1000 1700 800 4500 2600 ROOF-1LVL TOWER 4900 37
5 7 6050 7750 7750 7750 6200 4 6050 6000 5400 6000 5 6 7 6050 7750 7750 6000 7750 6200 5400 6000 4500 2600 GROUND FLOOR +103.05 SSL 4900 +102.75 FFL 4000 3500 4500 2600 +100.50 FFL +103.05 SSL 4900 1100 2450 TOWER 3500 4100 3400 +102.70 SSL 2 3 6 7 6050 7750 7750 6000 7750 6200 5400 6000 CHECKED SCALE ADDITIONAL DINING R0 SSL STRUCTURAL SLAB LEVEL 100MM WALL HATCH TERRACE HATCH SREE GROUP ©mindspace, Bangalore. SECTION 1 AND SS/AD_1.4 1:100 SECTION 1 04 1:100 SECTION 2 05 B C D G A' A'' C' E' F' 7800 3000 6400 3500 6100 900 6000 900 3000 900 5500 3500 900 5100 1000 1700 800 2000 2000 4500 2600 +96.00 FFL ROOF-1LVL +108.00 FFL 4900 DINING FACILITY STAIRCASE 500 3500 900 +102.70 SSL 4500 2600 +95.95 SSL TERRACE FLOOR +103.10 FFL +107.95 SSL 4900 1500 +96.60 SSL A B C D G A' A'' C' E' F' 7800 3000 6400 3500 6100 900 6000 900 3000 900 5500 3500 900 5100 1000 E 1700 800 +96.00 FFL +96.60 SSL 750 +96.65 FFL SARAVANAN 29-03-2024 ADDITIONAL DINING NORTH SHEET SIZE 900X600 SREE GROUP ©mindspace, Bangalore. SECTION AND 1:100 SECTION 3 05 1:100 SECTION 4 05 D E' F' 6400 3500 6100 5500 3500 900 5100 1000 1700 800 A B C D A' A'' C' 7800 3000 6400 3500 900 6000 900 3000 900 5500 3500 38
Transverse section
39
Longitudinal section

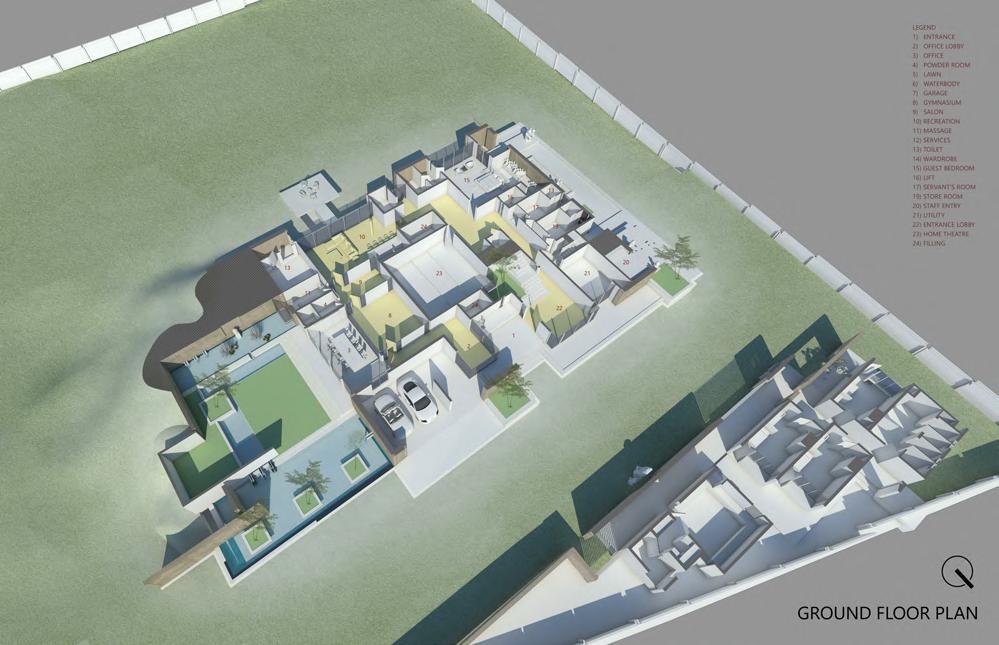

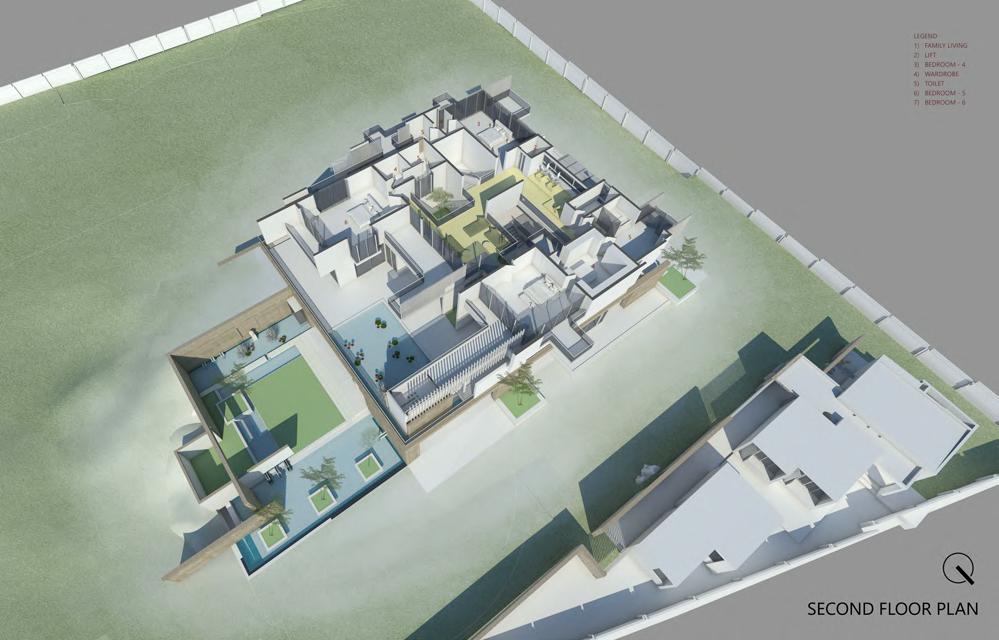

Isometric Plans

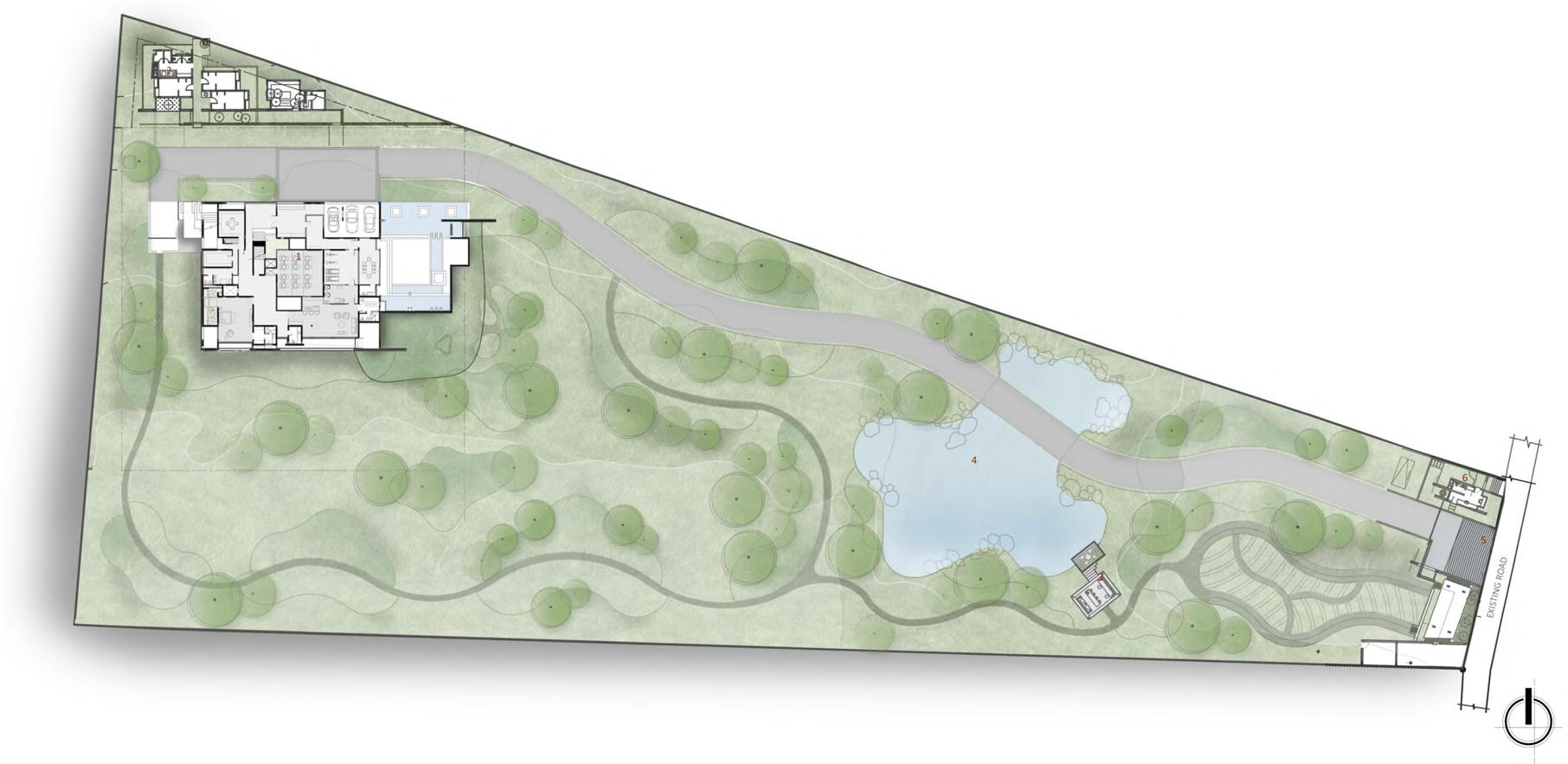

Site plan 40

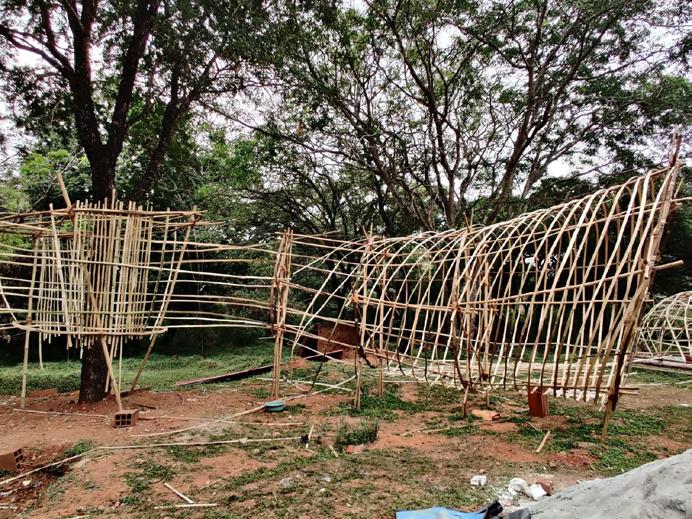

We had abundance of Bamboo back home. but we mostly use Areca trunk that we grow construction. it is hard and dense compression. but after one elective one workshop I understood the strength and versatility of the bamboo.

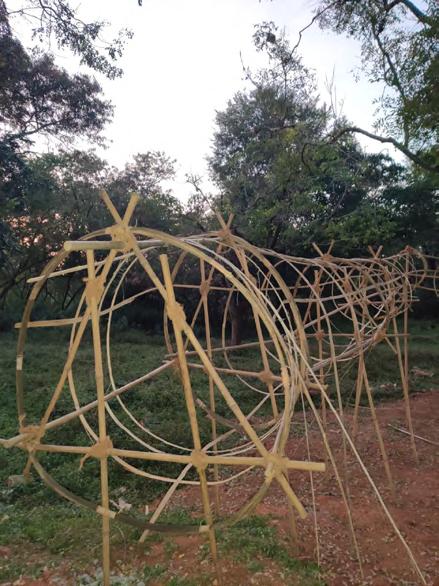

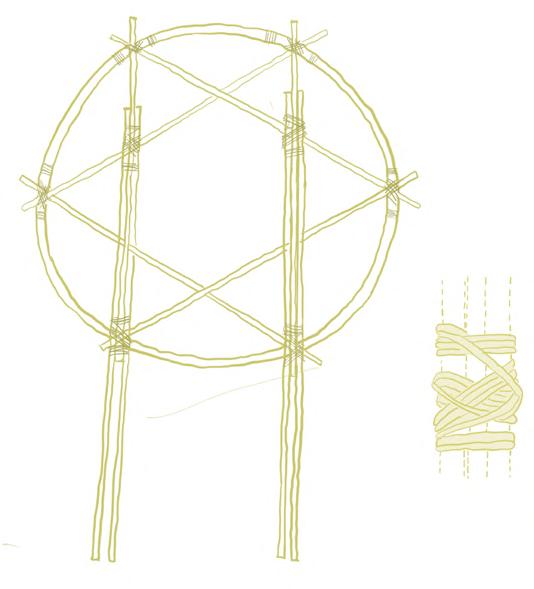

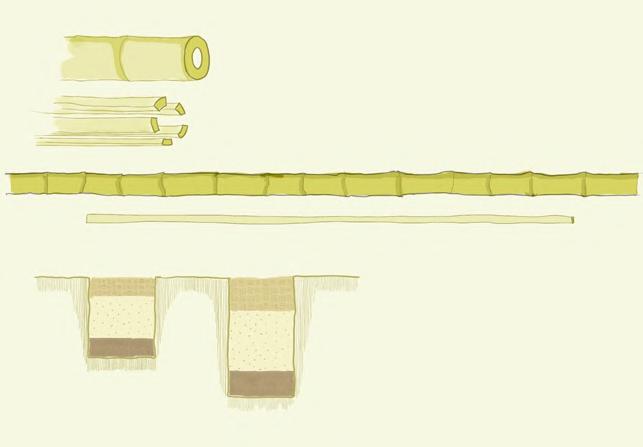

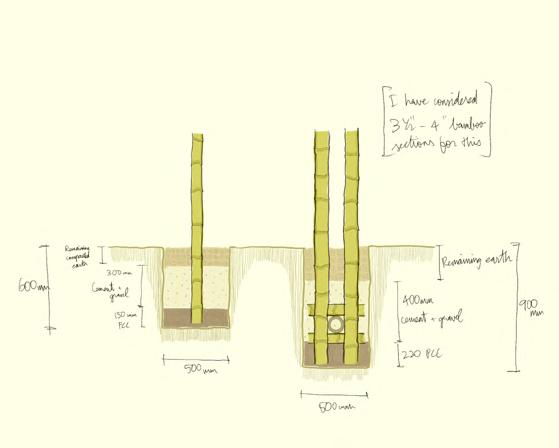

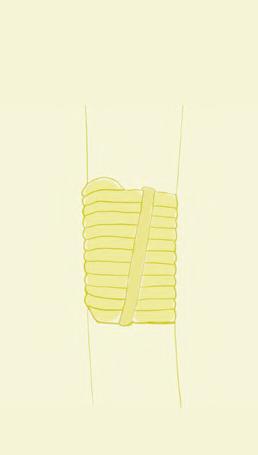

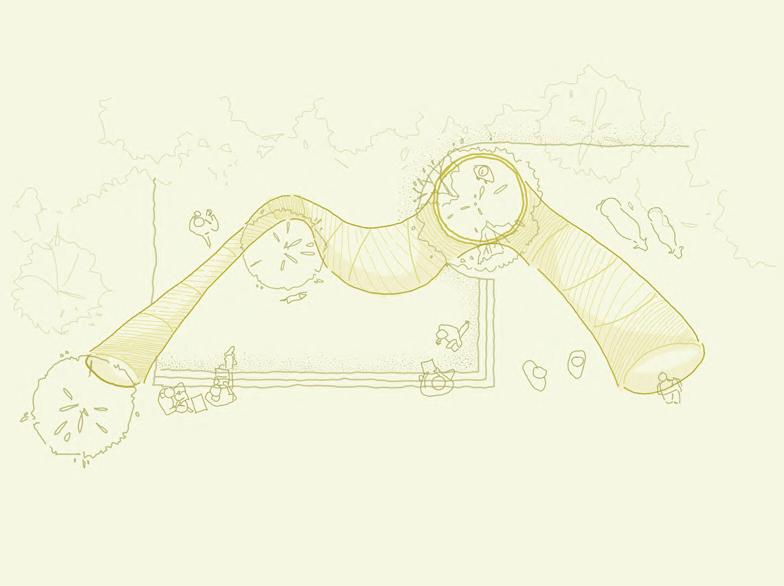

41 Craft in architecture bamboo instillation Site Plan Individual rings and support Bamboo slits and foundation Foundation details Joinary details MISCELLANEOUS

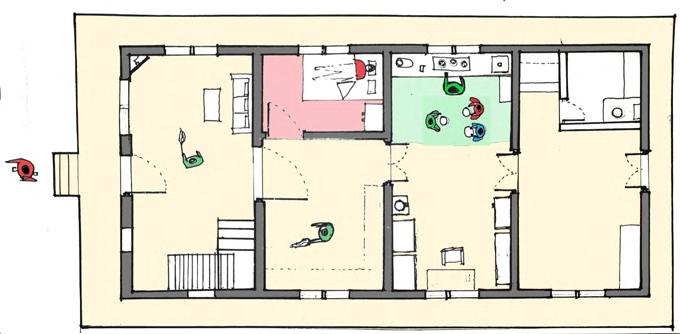

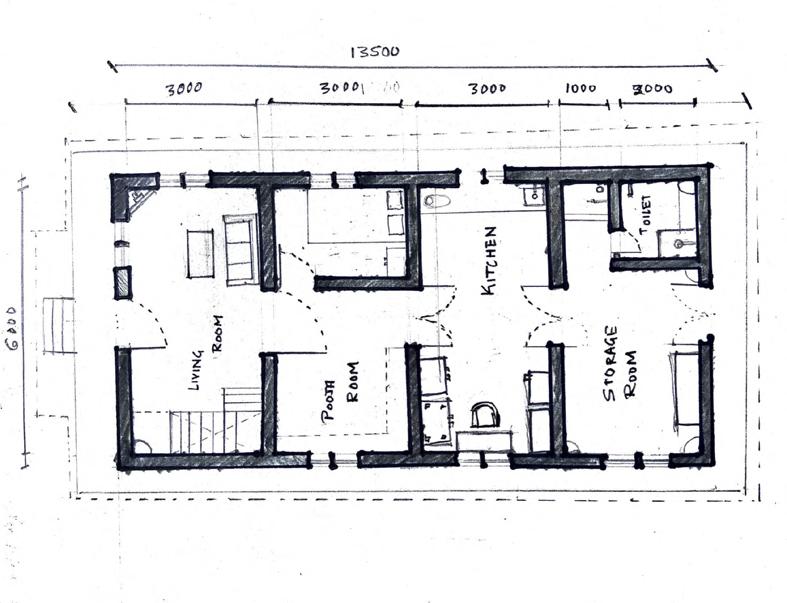

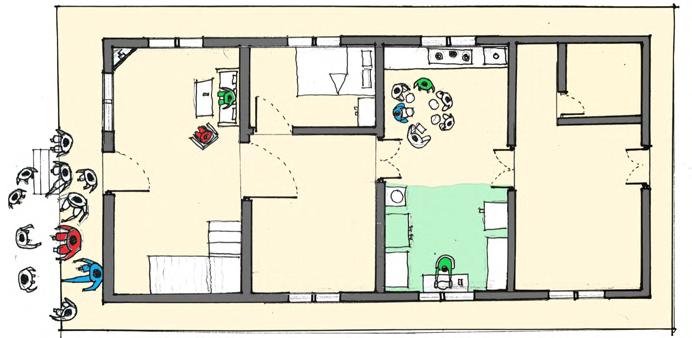

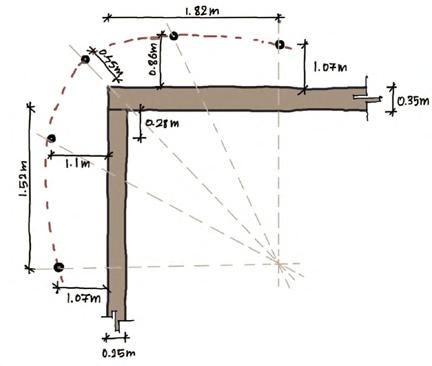

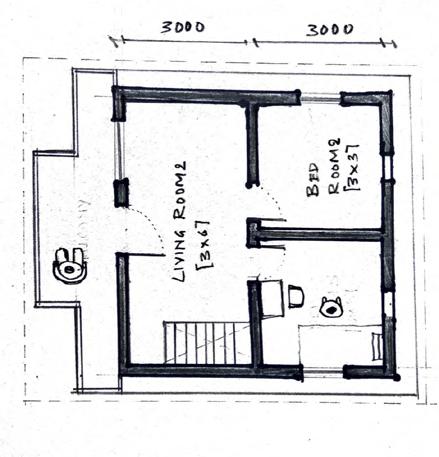

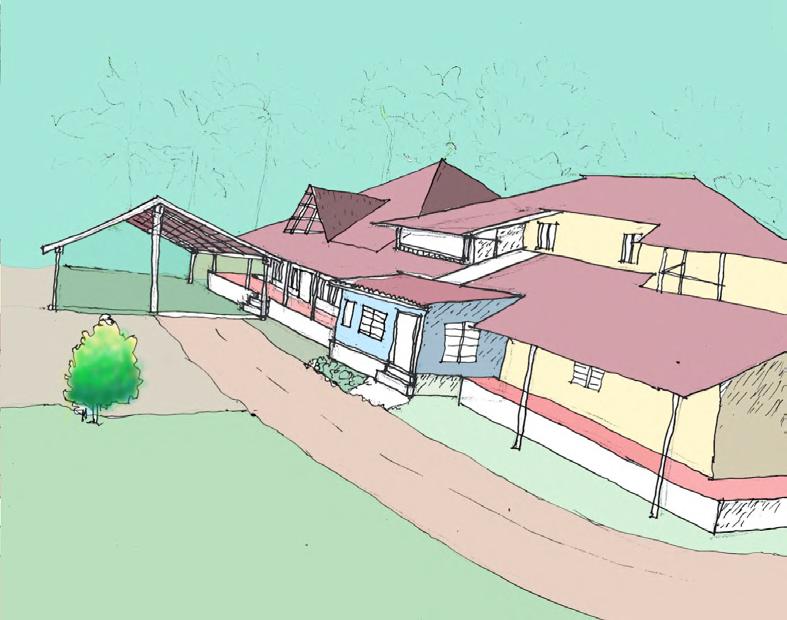

Documentation of ‘Home’ (in Sirsi, malenad part of Karnataka)
we grow for can take elective and tensile the

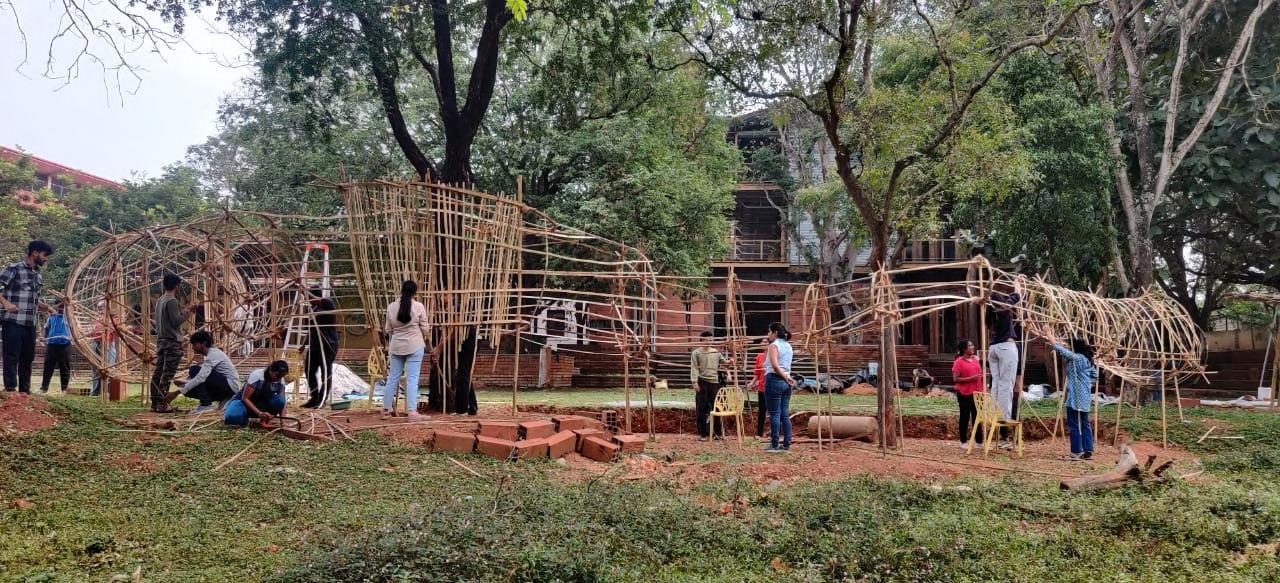

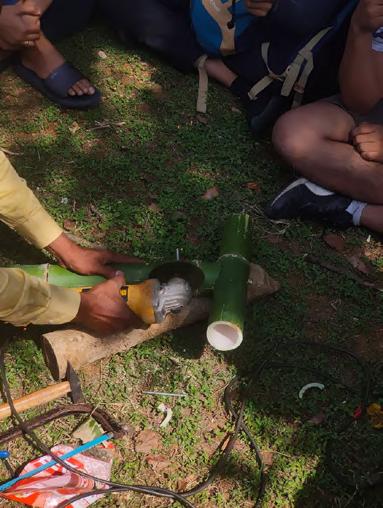

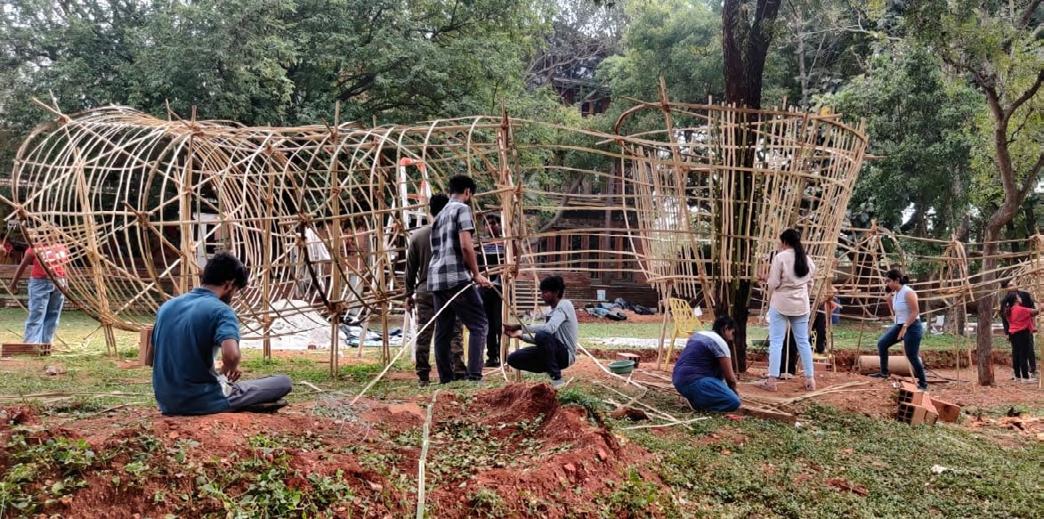

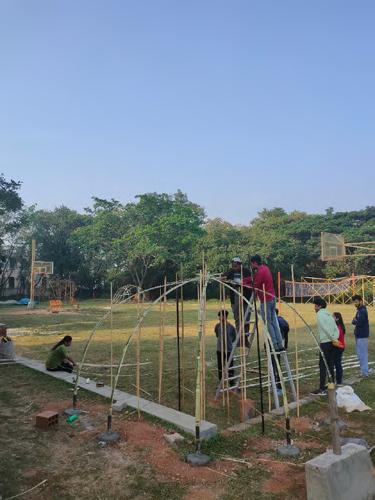

42 Bamboo Workshop
43 PHOTOGRAPHY

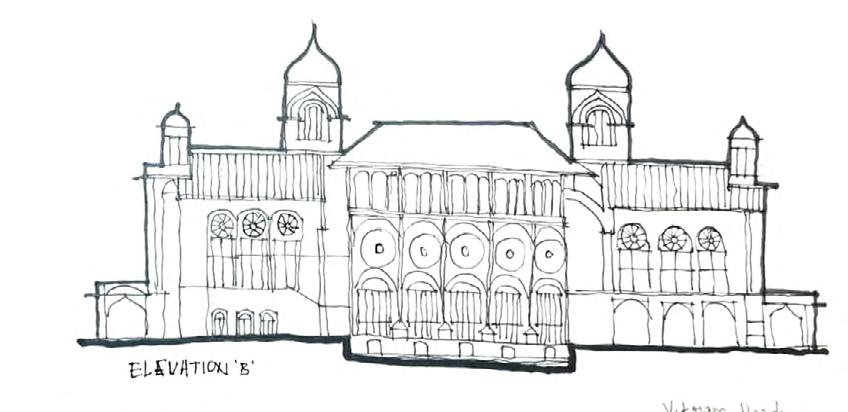

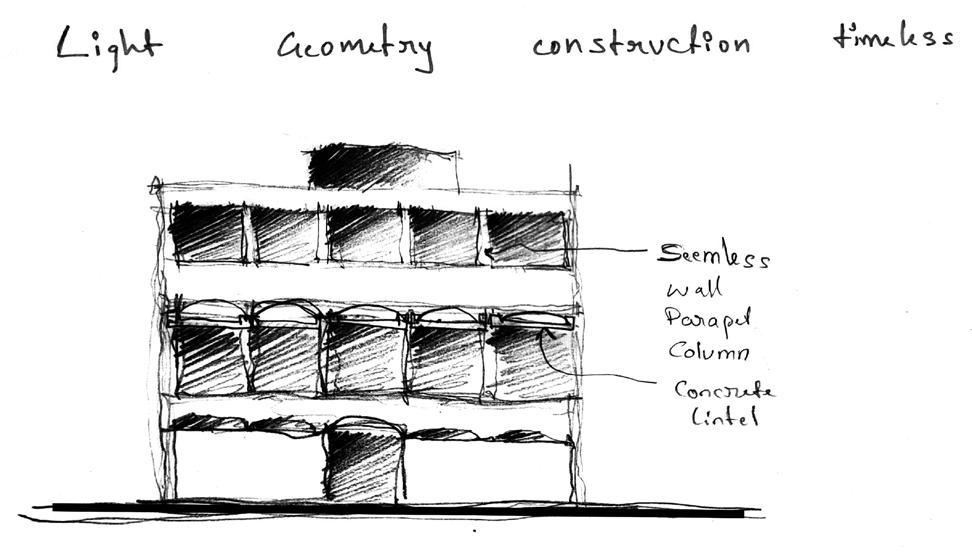

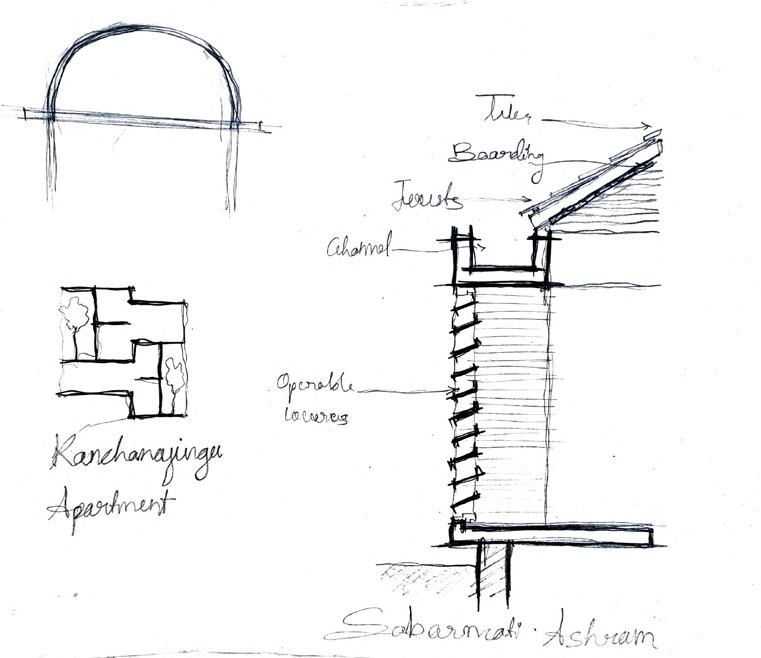

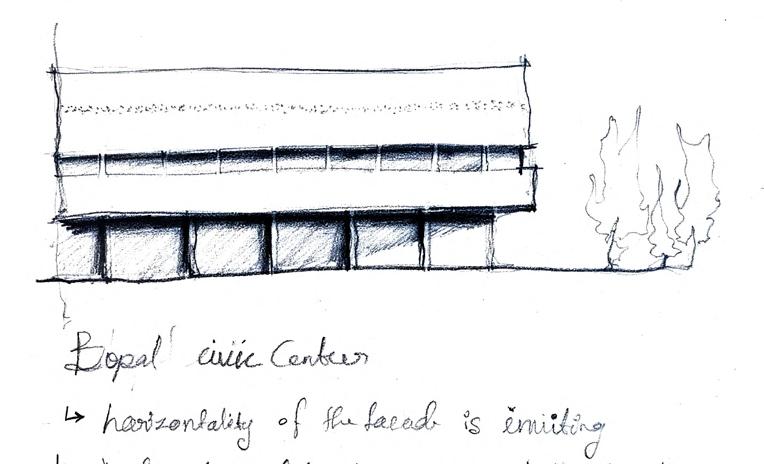

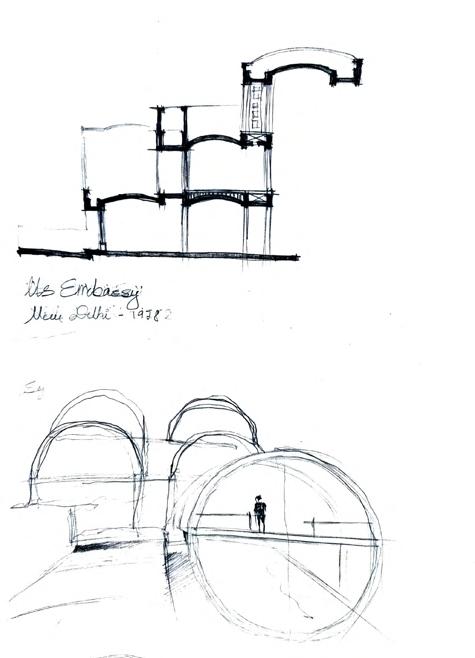

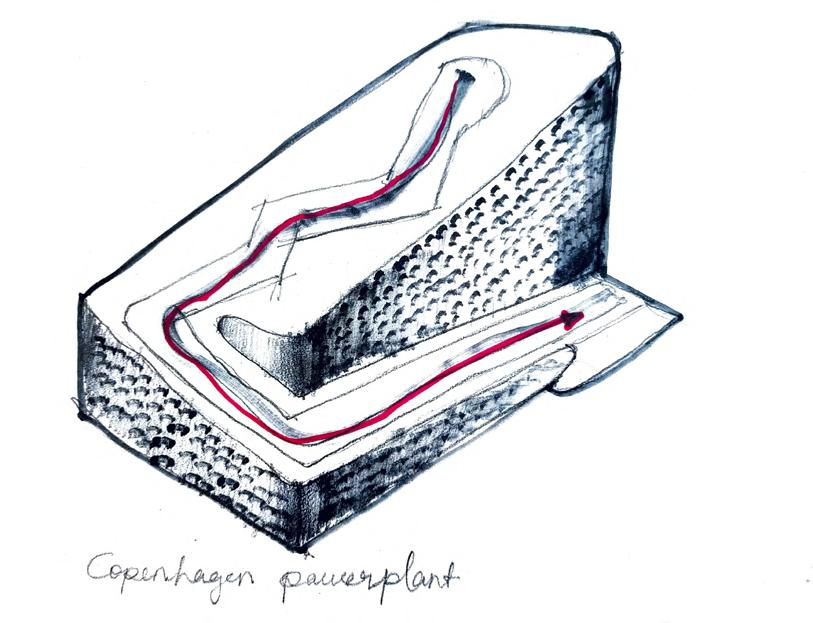

44 LIVE SKETCHING
I do a lot of portraits, landscapes, conceptual drawings check them out in the link by the profile.
I love storytelling through different mediums. Movies, books, songs, paintings. Thank you.
Thank you
45
Graphite pencil
Watercolour painting
Watercolour painting
Acrylic painting
Postercolor painting
Ink pen + Photoshop
Ink pen + Photoshop
Graphite+ watercolor
Graphite pencil
Graphite pencil
Charocal pencil
