Data Center
M.A.S.T Auditorium
Ironbound Brewery
Red-Bank Library
Communiy Center
Interchangeable Housing
Springwood Makerspace

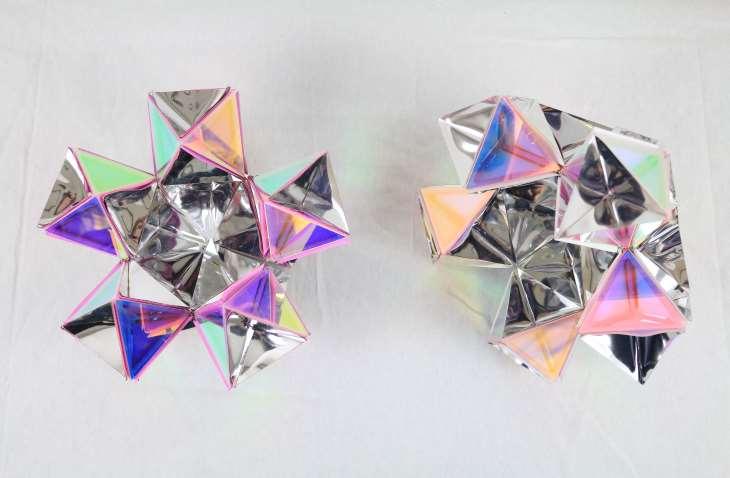

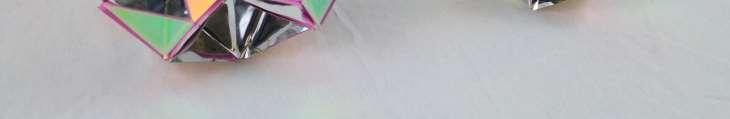

Forthisproject,Iusedthegeometricshapecalledthetetrahemihexahedronwhichhas4flatexterior facesand4interiorfaces.FromthereIstackedthesingulartriangularunitsintoasphere-likeshapethat isnotcompletelysolidfromtheinsideout.TofindascaleIwantedtoworkat,Istartedbyconnecting thespheresinalinearrelationshipanddecidedwhatwouldbepublicandmachineryprograms.While doingthisIalsoplayedwitheachprogramunit’sdepthabovethegroundfloortohelpcoolandshade themachineryandgivelightandvegetationtothepublicamenities.Forthesetupofmyprogramsand circulation,Isteppedawayfromthemodernistgridandtookamoreabstractapproach.Thisledtothe breakageofpreconceivednotionsofarchitecturebutprovidednewspecialexperiencesforhumansand architecturalpossibilitiesformachines.
Site: Berlin
Concept: Geometric Stacking
Back View
REAR VIEW
Front View
FRONT VIEW
Scale 1’=256”
6
5
a. Classroom
b. Offices
c. Outdoor Space
4
d. Exhibition Space
4A. Cafe
1’=256” 3 e. Lobby f. Breakroom 2 g. Bathrooms h. Machines 1 i. Lecture Hall j. Offices k. Seating Area l. Bathrooms
Scale
The design of a new lecture theater at the Monmouth County Academy of Science and Technology, located at Fort Hancock in Gateway National Park. The M.A.S.T. campus was created through renovations of existing military buildings along what is now M.A.S.T. way. About a mile away from the school, there is the longest standing lighthouse of Ameircan history. The lighthouse of Fort Handcock is the last fucntioning lighthouse of the orinigal 11 constructed in colonial times.
Site: Sandy Hook
Concept: The Last Beacon
Fixed Seating Janitor Closet Lobby Storage Open Seating Offices
Bathrooms Elevator
For this project, we were given certain plots along the old Ironbound railroad track. My plot was the only one with scattered vegetation and where the railroad is still visible. I came to my concept of Biophilia because I wanted to create a place for them to connect to nature, which is something they do not have. The only small dense patch of trees in the area was on my lot, and even then it is riddled with garbage and has nothing to do with the community. While doing research on the Ironbound I found out that the large manufacturing building next to my lot used to be a brewery. I decided to pay respects to the old brewery as well as the railroad and create the Ironbound brewery whose path follows the old railroad.
Site: Newerk
Concept: Biophilia
Scale 1”:45’ 04590180
1. 15’ x 15’ Grid2. Program Mapping
3. Morphologu & Connecting Paths4. Public Area & Vegetation
North
5 - Classroom 6 - Outdoor seating area 2nd Floor ab f g c c c i`k a dh 4b 4d 5 6 m 6 6 6 6 6 2b 3c 3d 3a3b 3g 3e 3g 3g 3f 3f Legend 1 - Factory programs a. Staging b. Dock c. Office d. Bulk Storage e. Inventory Control f. Toilets and Showers g. Package Assassembly/ Dissaasembly h. Material Storage i. Packaging j. Brewery k. Material Storage l. Lockers m. Private worker seating 2 - Hotel Programs 2a. Lobby 2b. Hotel room - Kitchen - Bathroom - Livingroom - Bedroom 3 - Resturant & Bar Programs 3a. Kitchen 3b. Back of House 3c. Host desk 3d. Bathrooms 3e. Storage 3f. Bartop 3g. Seating 4 - Entry Programs 4a. Bathrooms 4b. Seating area 4c. Front desk 4d. Store 2a 2b 2b2b 2b 2b 2b 4a 4c
Along the Navesink river, there are six points that were used for the tranportation of goods amoungst Red Bank. In present time, these points are no longer used as drop o locations, but as schools, parks, and shops. My concept was to take the history of the points, and their present day site and combine them together. For example, the oragne colored diagram is the second point and as of recenlty has a primary school built there.
Site: Red-Bank
Concept: The Navesink River
Bathrooms
Bookshelves
Breakroom
Coffee Shop
Computers
Elevator
Equipment Storage
Fixed Seating
General Storage
Janitor Closet
Mechanical Room
Reading Space
Reception Desk
Reading Room
The requirments for this project were to create a community center in a low income housing area. The site was not real but, it was said that the site is in climate simialr to New Jersey. We approached this project with our concept in mind, and made greenery our main decortaion. The large glass windows open to the park, and allow light to come into the structure for the live vegitation.
Site: Non-Existent
Partner: Perla B.
Concept: Nature
Bathrooms
Computers
Elevator
Entrance Lobby
Equipment Storage
General Storage
Infant Daycare
Open Seating
Personal Office
Resturant
Solar Panels
For this project, we looked at the issue of homelessness. We created 600 SQ FT interchangeable units made of low cost concrete. There can be additional rooms added and the interior walls in the kitchen and living room can be moved. The cose to make one unit which consists of a singel room, a kitchen, a bathroom, and a livingroom are about $60,000.
Site: Newerk
Partner: John S.
Concept: Adabtibility
Bathrooms
Elevator
Laundromats
Open Space
Apartment
As a group, we did intense research on the West wide of Asbury Park. The West side in the 60’s was a booming street of music and activity. Springwood Avenue was the hot spot of the West side Jazz movement but, it was destroyed by the Asbury Park riots about a decade later. The only structure left standing from this jazz era is the Turf Club, everything else was destoyed or renovated. The African American Music Project is an orginization we spoke to that is trying to bring back the history of the Turf Club, and help the surrounding area of West Asbury profit. Even though the Turf Club is still there and has an orginization behind it, the structure is empty with no running pipes. There is sometimes concerts preformed in the empty Turf Club but, we decided to take it further and revive the Turf Club as a makerspace for music.
Site: Asbury Park
Partners: Alec H. & John S.
Concept: Asbury Park Jazz History
Apartments
Bathrooms
Bar/Coffee/Turf Club
Ceramics
Custom Apparel
Custom Instruments
Painting
Record/CD Making
Recording Studio
