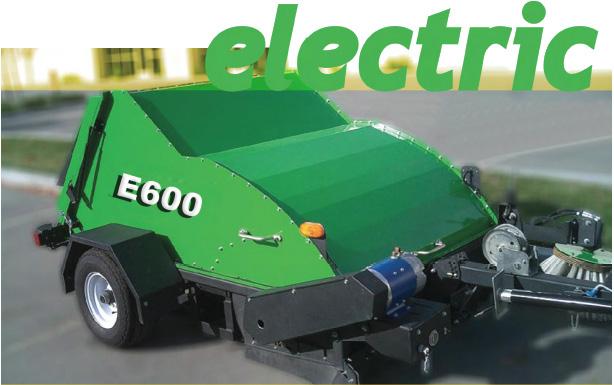

www.victorysweepers.com Victory Sweepers 105 Green Cove Road Huntsville, AL 35803 a division of ROOTS MULTICLEAN, Inc. 844-479-3373 - stainless steel debris hopper - 600 lb / 1.5 cu yd capacity - 4 rechargeable batteries - 9 hour run time per charge - tow w/ car, truck, gator, ATV - low profile for parking decks - unbelievable performance - super silent operation E600 stainless steel hopper TOW-BEHIND MECHANICAL SWEEPER
E600 SPECIFICATIONS

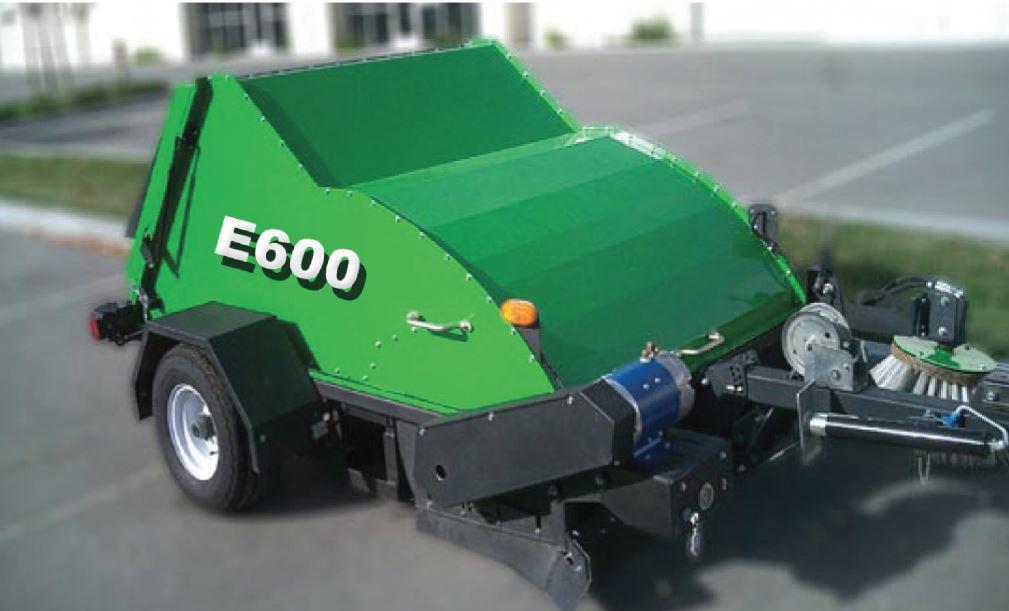

Victory Sweepers’ Model E600

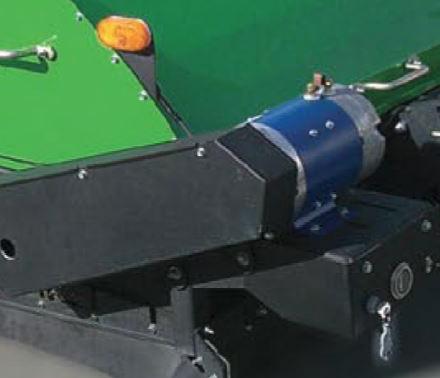

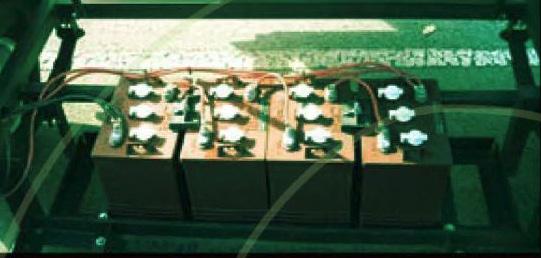

is a revolutionary sweeper capable of collecting a wide range of debris from almost any surface. From parking lots and construction sites to city streets, the E600 easily picks up litter, bottles, cans, rocks, asphalt, sand, sticks, leaves, grass — and even heavy construction debris. The E600’s lightweight design enables it to be towed by a wide variety of vehicles, from standard cars and trucks to ATV’s and tractors. Its narrow platform is ideal for sweeping bike paths and other areas inaccessible to conventional sweepers. The E600’s simple design keeps maintenance to a minimum resulting in a lower operating cost and maximum uptime. The E600’s debris hopper is constructed from high grade stainless steel to virtually eliminate rust and corrosion, providing years of service. Powered by 4 rechargeable batteries and high efficiency 24v DC motor, the E600 can operate an entire eight-hour shift on a single charge.
Users of the Victory E600 include: Parking Lot Sweeping Companies, Landscape Companies, Construction Companies, Street Departments, Parks and Recreation Departments, Amusement Parks, Resorts, Pavement Contractors, Striping Companies, Waste Facilities, Distribution Centers, Warehouses, Trucking Companies, Fairgrounds, Asphalt Companies, Landfills, Airports… and More!

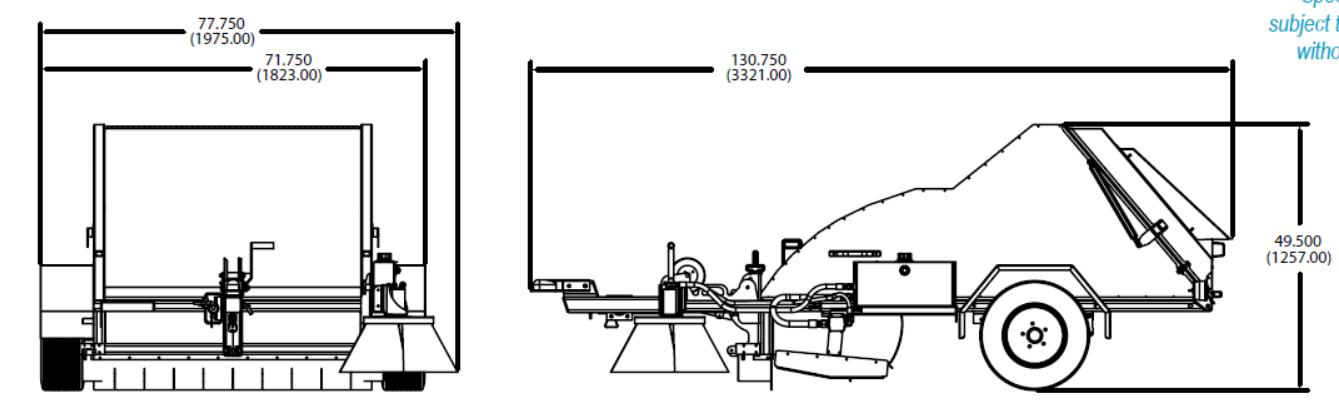

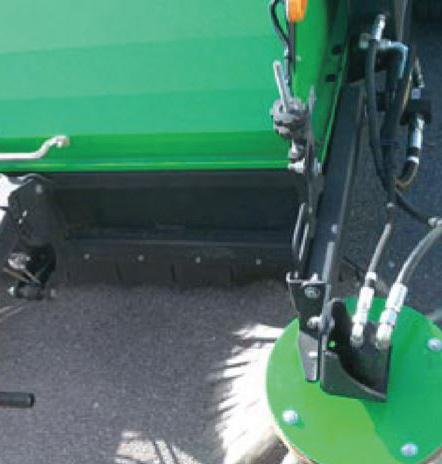

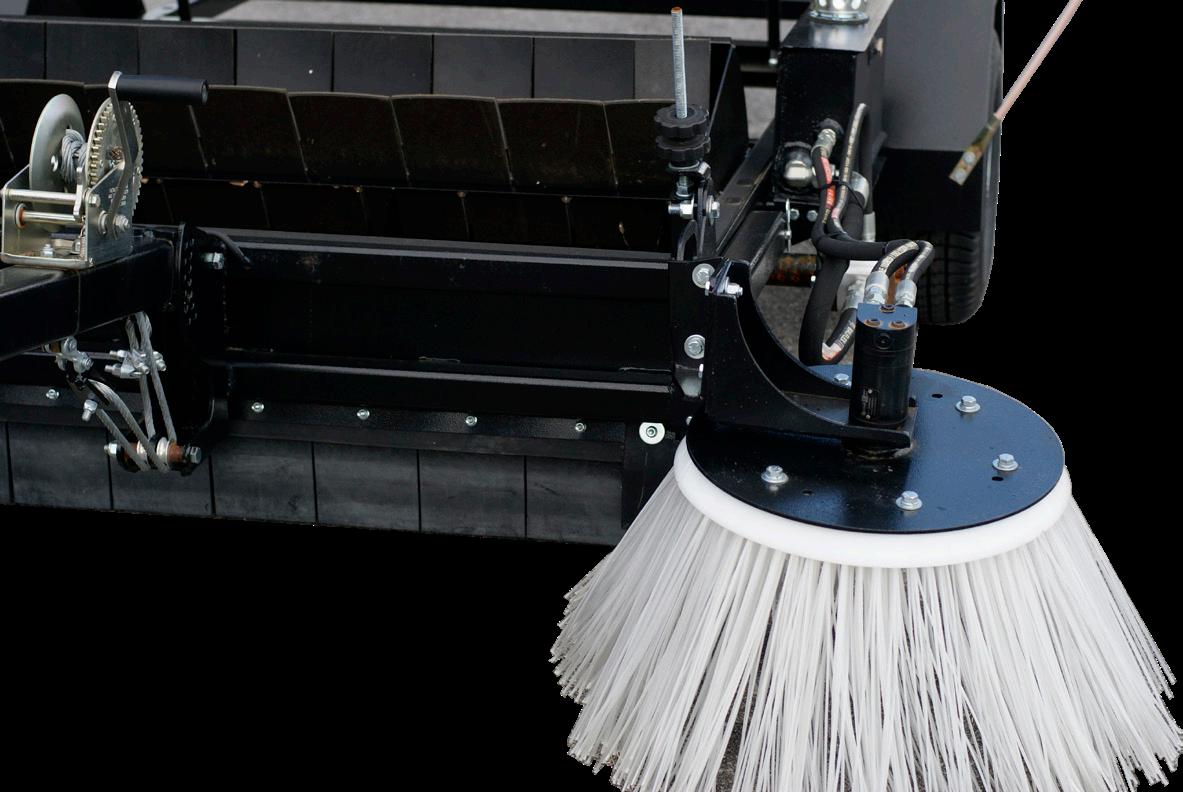

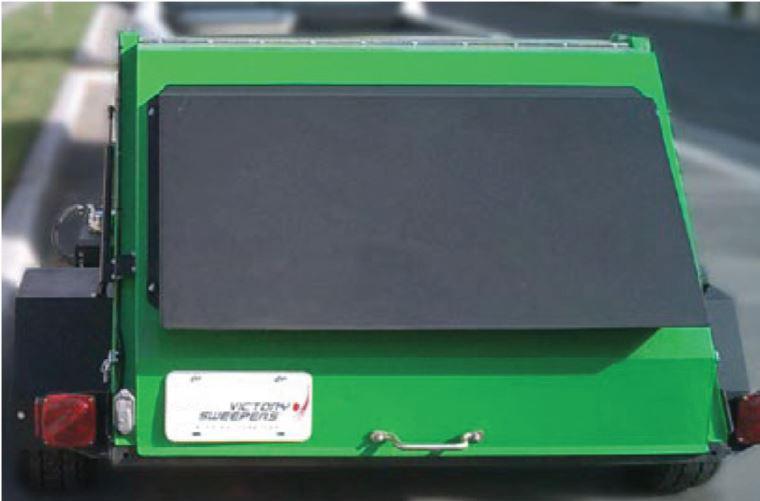

E600 Specifications Hopper Volume Capacity 1.5 cubic yards Payload Weight Capacity 600 lbs Total Empty Weight 1,400 lbs Hopper Construction Stainless steel Axle Capacity 2,000 lbs Frame 2” x 2” Square steel tubing Motor 24v DC Batteries 4 Golf Cart Style Sweeper Power Head Width 48 inches Sweeper Power Head Drive Heavy-duty V-belt Sweeper Power Head Adjustable for wear Hydraulic Curb Broom Width (optional) 22 inches Front Debris Intake Height 6.5 inches “Second-Chance” Rear Flap Standard Rear Dump Door Full width vented Hopper Dumping Method Rake out / tilting hopper Hopper Safety Props Included Receiver Hitch 2 inch w/ safety chains Jack Stand Adjustable, fold-away design Lighting Rear combination with side marker Lighting Connection 4 prong flat Overall Length 131 inches Overall Width 78 inches Overall Height 50 inches Dust Control System (optional) 25 gallon capacity, 12v DC Bag Rack (optional) Stainless steel Warranty One year limited OPTIONAL EQUIPMENT Curb Broom Dust Control System Bag Rack Spare Parts Package Mounted Spare Tire & Wheel STANDARD 12 MONTH LIMITED WARRANTY 12 Month, 1200 Hour Warranty (whichever occurs first)* * Please read actual warranty for details and limitations. * Specifications subject to change. *Model shown with optional equipment. www.victorysweepers.com 844-479-3373 Victory Sweepers, a division of ROOTS MULTICLEAN, Inc. 105 Green Cove Road, Huntsville, AL 35803
