D E S I G N E D F O R E L E G A N C E E N G I N E E R E D F O R P E R F O R M A N C E

Designed with you in mind

Our modern designs combine style and functionality, providing an unparalleled experience for all. Embrace innovation and elevate your lifestyle with our cutting-edge products.

TABLE OF CONTENTS

Our performance driven line of sliding glass doors, built to withstand the harshest weather conditions. Featuring an anchorless sill option and corrosion-resistant hardware.

Our designer line of sliding glass doors, offering sleek narrow frames, luxurious hardware and unlimited configurations.

IMPACT WALL

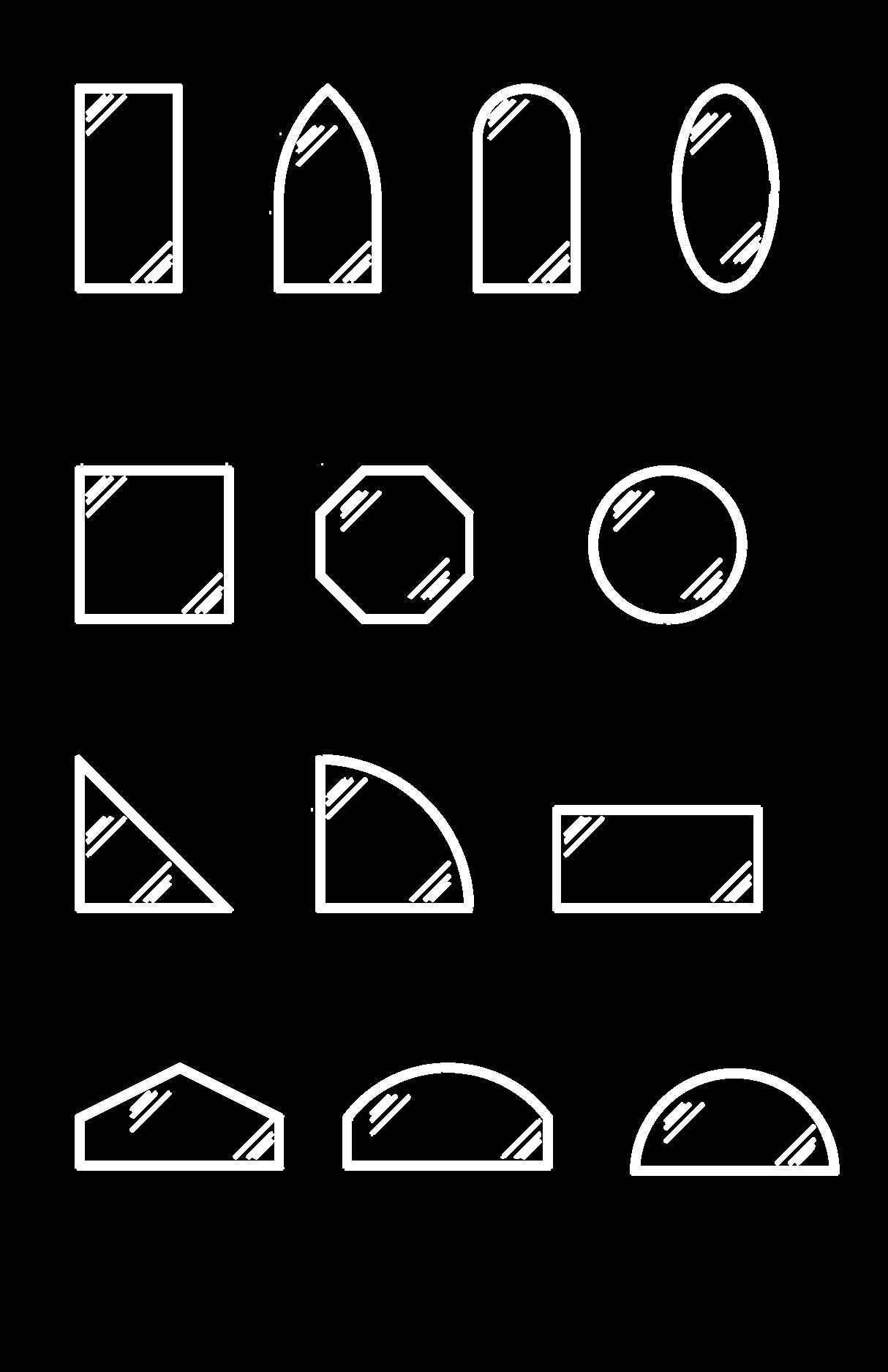

Our expertly crafted line of fixed glass windows with modern sightlines, incredible sizes and outstanding structural performance.

FINISH & GLASS OPTIONS HARDWARE OPTIONS

CATALINA LUXXE
P3 P5 P7 P9 P10

CATALINA

Offering unmatched reliability with our performance-driven line of sliding glass doors. The perfect combination of durability and style, our Catalina series is designed for coastal environments. Featuring custom finishes, corrosion-resistant handles, and anchorless sills for maximum leak protection.

DESIGN FEATURES

Insulated & Monolithic Laminated Glass

Clear & Tinted Options Available

10-year Warrantied Coastal Finishes

White, Bronze, Black & Two-Tone finishes in stock.

Custom configurations up to 10-panels

90° Corner & Pocket Doors

Optional Retractable Interior Screen

TECHNICAL DETAILS

Maximum Panel Sizing: 60" x 120"

Design Pressure: +120/-140

Large Missile Impact Rated Standard

Non-Impact Glass Option

Anchorless Sill Option

6" Track Depth for 2-Track w/ Screen

800lb Tandem Polymer Rollers

.060 Aluminum Box Screens w/

BetterVue™ Mesh

LUXXE

Experience unparalleled aesthetics with our designer line of sliding glass doors. Crafted with attention to detail, they offer a sleek design, durable designer handles, and the quietest operation. With a variety of finish options and superior glass quality, these doors are built to last a lifetime.

DESIGN FEATURES

Insulated & Monolithic Laminated Glass

Clear & Tinted Options Available

10-year Warrantied Coastal Finishes

White, Bronze, Black & Two-Tone finishes in stock.

Custom configurations up to 10-panels

90° Corner & Pocket Doors

Optional Retractable Interior Screen

TECHNICAL DETAILS

Max Panel Sizing: 60" x 120"

Design Pressure: +/- 80

Water Performance: up to 15.5PSF

Large Missile Impact Rated

Non-Impact Glass Option

3" Narrow Interlock

Anchorless Sill Option

800lb Tandem Polymer Rollers

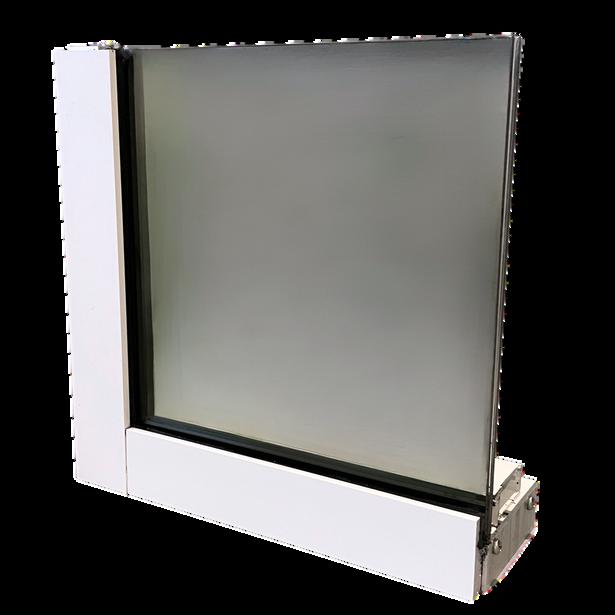

IMPACT WALL

Introducing the Velocity Impact Wall, a visually stunning and expertly crafted line of fixed glass solutions. Offering clean modern lines, incredible sizes, and unlimited configuration options. Designed to complement our Luxxe sliding glass doors, presenting you outstanding performance.

DESIGN FEATURES

Insulated & M

Clear, Tinte Options Av White finish

10-year Custom

TECHNICAL DETAILS

Max Frame Size: 60" x 120"

Design Pressure: +/- 100

Large Missile Impact Rated

Non-Impact Glass Option

5" Frame Depth

2-1/8" Perimeter Frame

3" Glass-to-Glass Sightline

Anchorless Jambs

FINISH & GLASS

Indulge in our extensive array of finish options, backed by an impressive 10-year coastal warranty for added peace of mind. Unleash your creativity with our custom color capabilities, two-tone selections, and captivating woodgrain finishes. Complement your chosen finish with a glass color of your preference, enhance energy efficiency with specialized coatings, and bring your unique vision to life with a personalized touch.

Solid color PPG duranar® finishes

AAMA 2605 Performance rated 10-year coastal warranty

Standard lead time finishes:

White, Bronze, Black & Bronze/White Two-Tone

Custom lead time finishes:

Custom color and woodgrains

Discover Duranar®: The ultimate solution for lasting beauty and protection It boasts remarkable resistance to corrosion, chemical attack, and UV rays, ensuring long-term durability. With its excellent resistance to chalk and color fade, Duranar preserves the aesthetics of your building while requiring minimal maintenance, easily cleaned with mild detergents and solvents

Glass options include:

laminated | double pane | impact

laminated insulated | triple pane | impact insulated | double pane | non-impact

Clear & Tinted Options shown above

Additional colors available

Low-E coatings offered

Solarban 60, Solarban 70

Low-e (low-emissivity) glass coatings were created to reduce the transmission of UV and infrared light through glass, while still maintaining the desired level of visible light. By applying this thin, transparent coating, low-e glass effectively reflects external heat in warm weather and retains heat in colder temperatures. This results in an environment that is light, bright and reduces energy consumption.

CLEAR GREY BRONZE AZURIA SOLEXIA OPTIBLUE® WHITE BRONZE BLACK BRONZE/WHITE HAZELNUT MAHOGANY

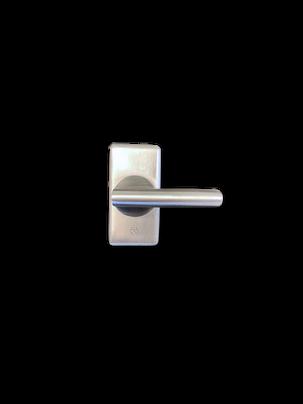

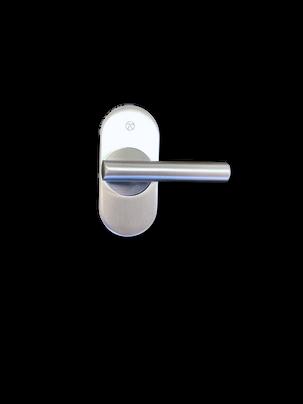

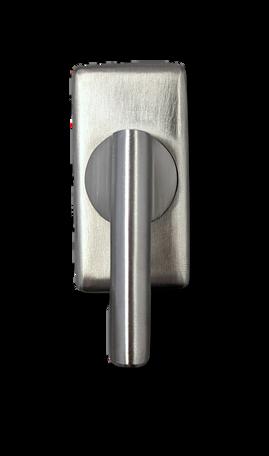

CREST

COASTALROUND

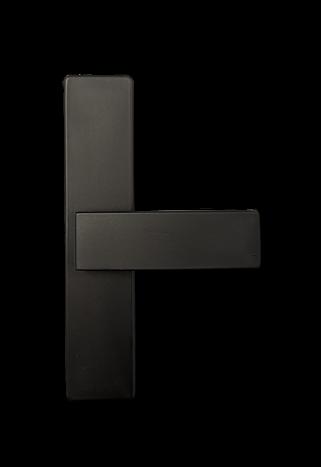

COASTAL SQUARE

CREST

11-7/8" H x 1-3/16" W 1-11/16" Projection
15-3/4" H x 1-1/4" W 3-1/8" Projection
15-3/4" H x 1-1/4" W 3-1/8" Projection
H
W
Projection
sizes available
with screen

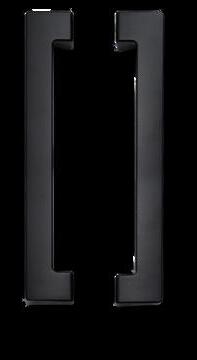

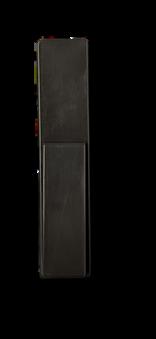

STRONGAR® SQUARE 18" or 24"
x 1-1/2"
3"
Additional
Not compatible
W
Projection
sizes available Not
with screen COASTAL (ROUND) 2-7/8" H x 1-3/16" Projection
STRONGAR® OFFSET 18" or 24" H x 1-1/4"
2-7/8"
Additional
compatible

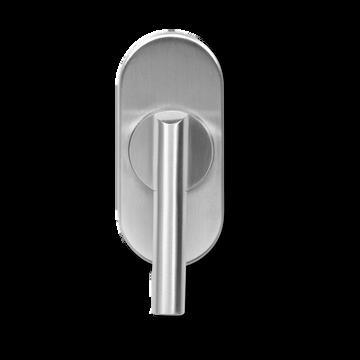

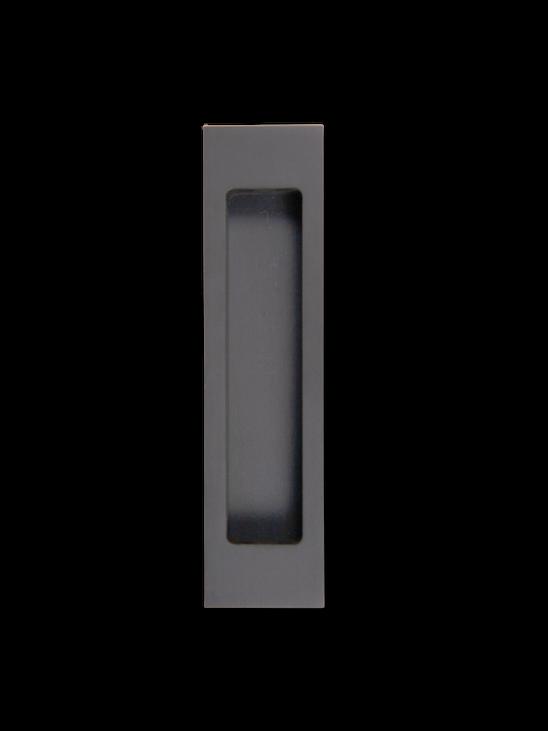

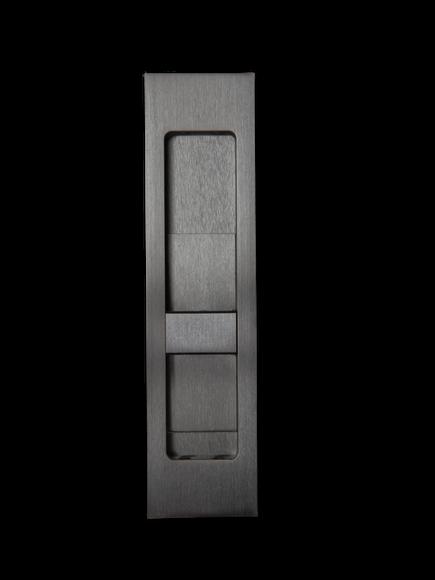

5-1/2" H x 1-1/8" W 1" Projection COASTAL (SQUARE) 2-7/8" H x 1-1/4" W 1-3/16" Projection RECESSED
H
1-3/4" W
11/32" Projection 5/8" Pull Depth HARDWARE WHITE
PAINTED SILVER BLACK BRUSHED STAINLESS POLISHED STAINLESS H A N D L E S L O C K S BRUSHED NICKEL
7"
x
each
BRONZE
SATIN BRASS
2200 Ave L, West Palm Beach, FL | 561-429-5740 | www.VelocityImpactProducts.com Scan here to learn more @velocityimpactproducts
