Architectural Portfolio

EXPERIENCE

2023-2024

Vincent De Asis

+63 955 046 3182

vdeasis36@gmail.com

Quezon City - Metro Manila

2021-2023

EDUCATION

2018-2023

Urban Fit-Out Urban Development Corporation

Site Architect - High-end Residential Project

On site supervision and preparing instructional materials based on construction plans and details.

Ensure that the works and procedures meet high-quality company standards.

Preparing on-site documents such as: On-site concerns, Subcon reports, RFA, RFI, Minutes-of-Meeting & Etc.

Produced Daily, Weekly and Monthly accomplishment reports

Warehouse monitoring of daily floor stocks and estimate of required materials.

Trilex Builders & Construction Supply, Inc.

CAD Operator and Project manager assistant.

Produced shop drawings, as-built plans, blow-up details & instructional materials based on plans and details.

National University - Manila

UAPSA Service Awardee

National University Academic Scholar (Blue Scholarship)

Dean’s First Honor List, 2nd Term (A.Y. 2022-2023)

Dean’s Second Honor List, 3rd Term (A.Y. 2021-2022)

HALIGI - Finalist in the AD6: A Community Enrichment Facility category of the Architectural Design Competition (A.Y. 2020-2021)

HALIGI - Class Representative in the AD2: A Retirement Home Catergory of the Architectural Design Competition (A.Y. 2018-2019)

SKILL

Cad

Rendering

Adobe CC

Microsoft Office

AutoCAD, Sketchup V-ray, Enscape, Photoshop, InDesign, Illustrator Word, PowerPoint, Excel

Table of Contents

Tranquiluxe Bahay Kapiling

Alon

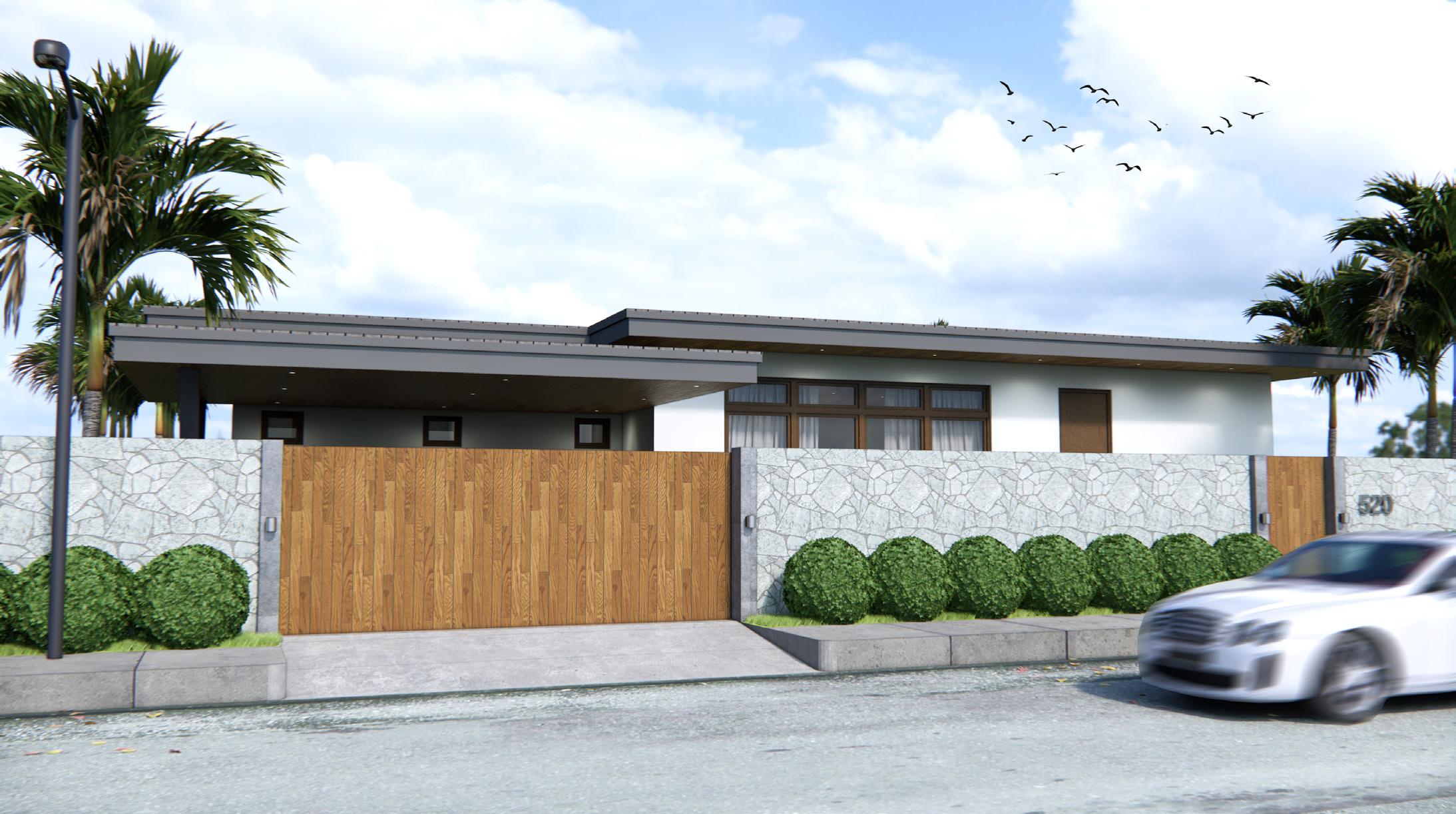

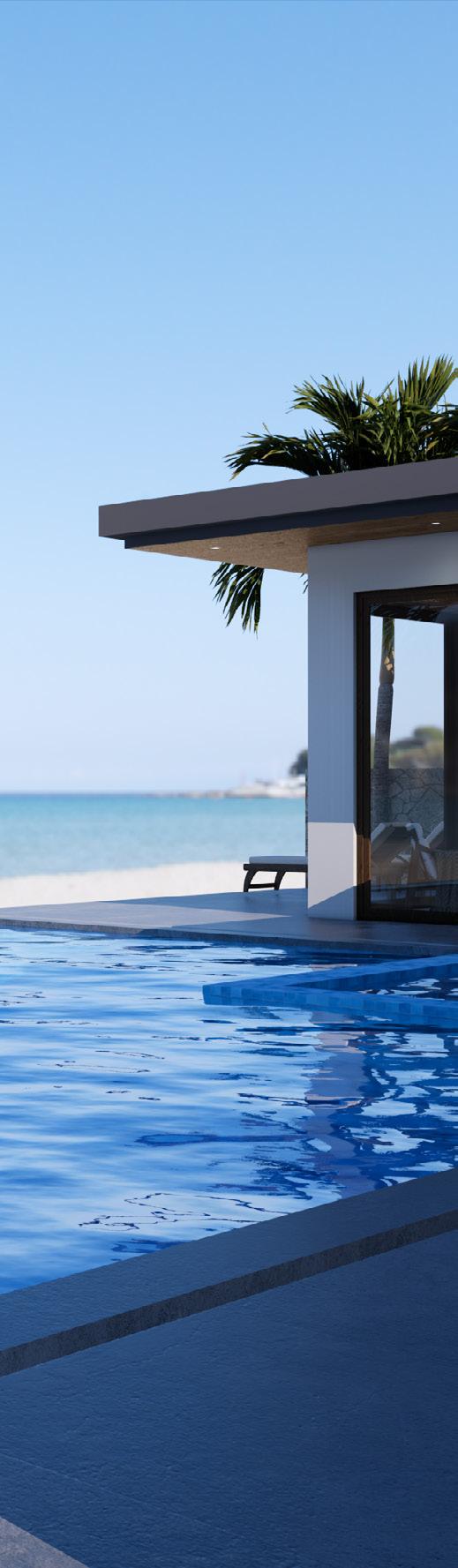

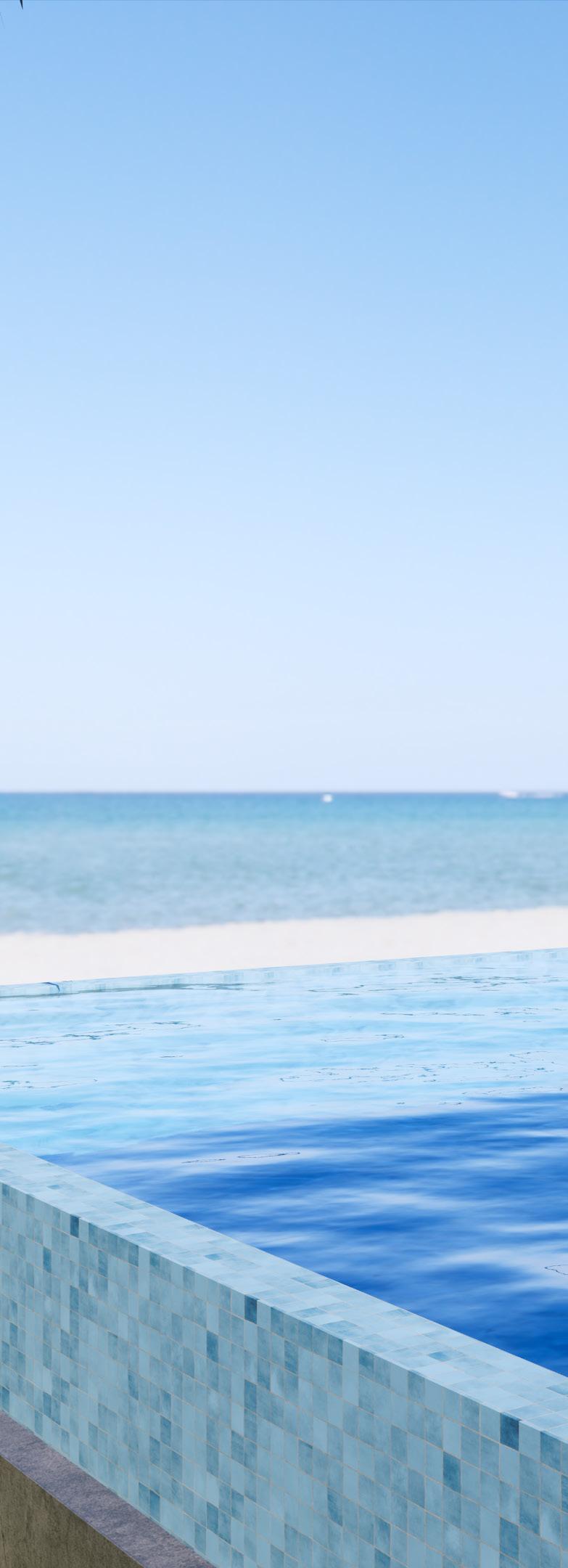

Tranquiluxe

A Proposed Beach Front Vacation House, Batangas

In Nasugbu, Batangas, a couple envisions a modern bungalow on their beachfront property, offering a retreat for family and friends in harmony with nature. The multifunctional house will provide privacy for guests, embodying their love for the environment, Nasugbu’s beauty, and family bonds.

The Tranquiluxe Bungalow design prioritizes open interactions with its open-plan layout, large glass walls, and a central courtyard, while sustainable materials and a neutral color palette create a tranquil atmosphere. Flexibly designed guest spaces ensure visitor comfort without compromising the inviting and harmonious blend with the natural environment.

“Tranquiluxe” elegantly fuses the “tranquil” ambiance and “luxury” living, creating a harmonious beachfront experience that offers the utmost in serenity and opulence for residents and guests.

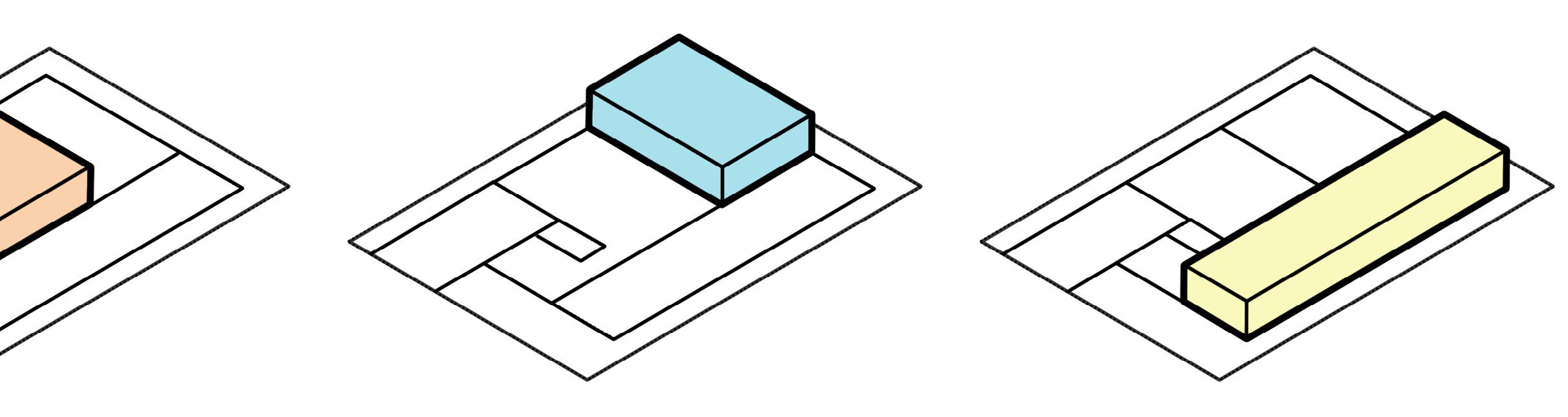

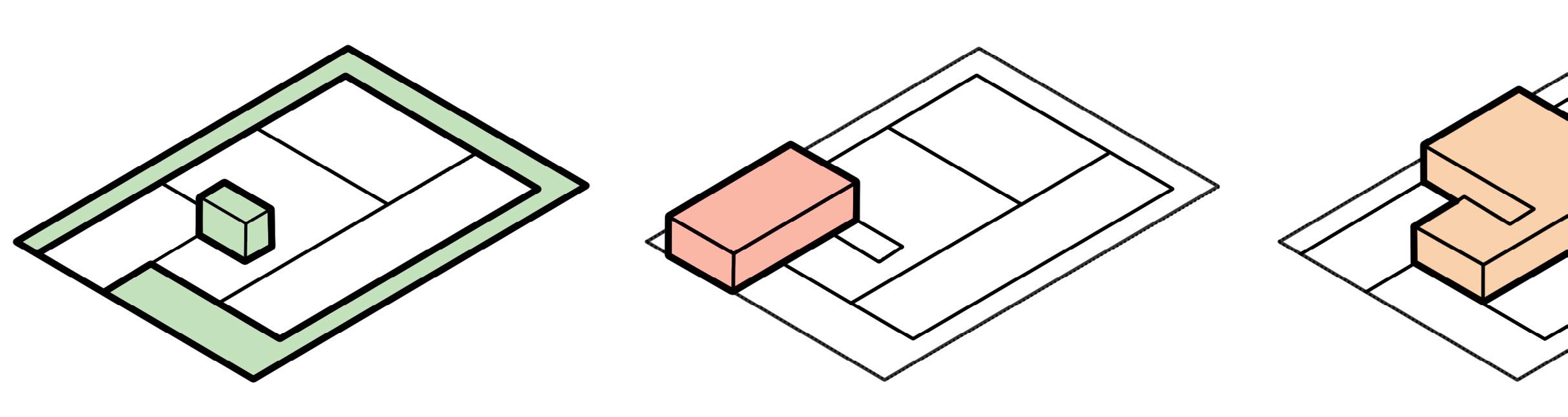

Massing Studies

Setback & Green Space Service Zone

The zoning analysis prioritizes a 4.5-meter front and 2.0-meter side setback, incorporating lush vegetation and a central courtyard to seamlessly integrate with the natural surroundings.

The Services Zone, conveniently placed near the entrance, includes the maid’s quarter, dirty kitchen, pantry, and carport, facilitating household operations while separating them from public areas.

Designed for social the public zone features kitchen, living room, area, and pool lounge, as the central hub and family activities residence.

Zone

social interaction, features the main room, dining lounge, serving for gatherings activities in the residence.

Outdoor Zone

With a direct view of the beachfront, the outdoor zone includes a swimming pool, jacuzzi, and view deck, providing a luxurious and captivating space to enjoy the serene a beachfront experience.

Private Zone

The private zone separated from the services and public areas, offers tranquility with bedrooms and bath facilities oriented towards the quieter side of the site, providing a peaceful retreat.

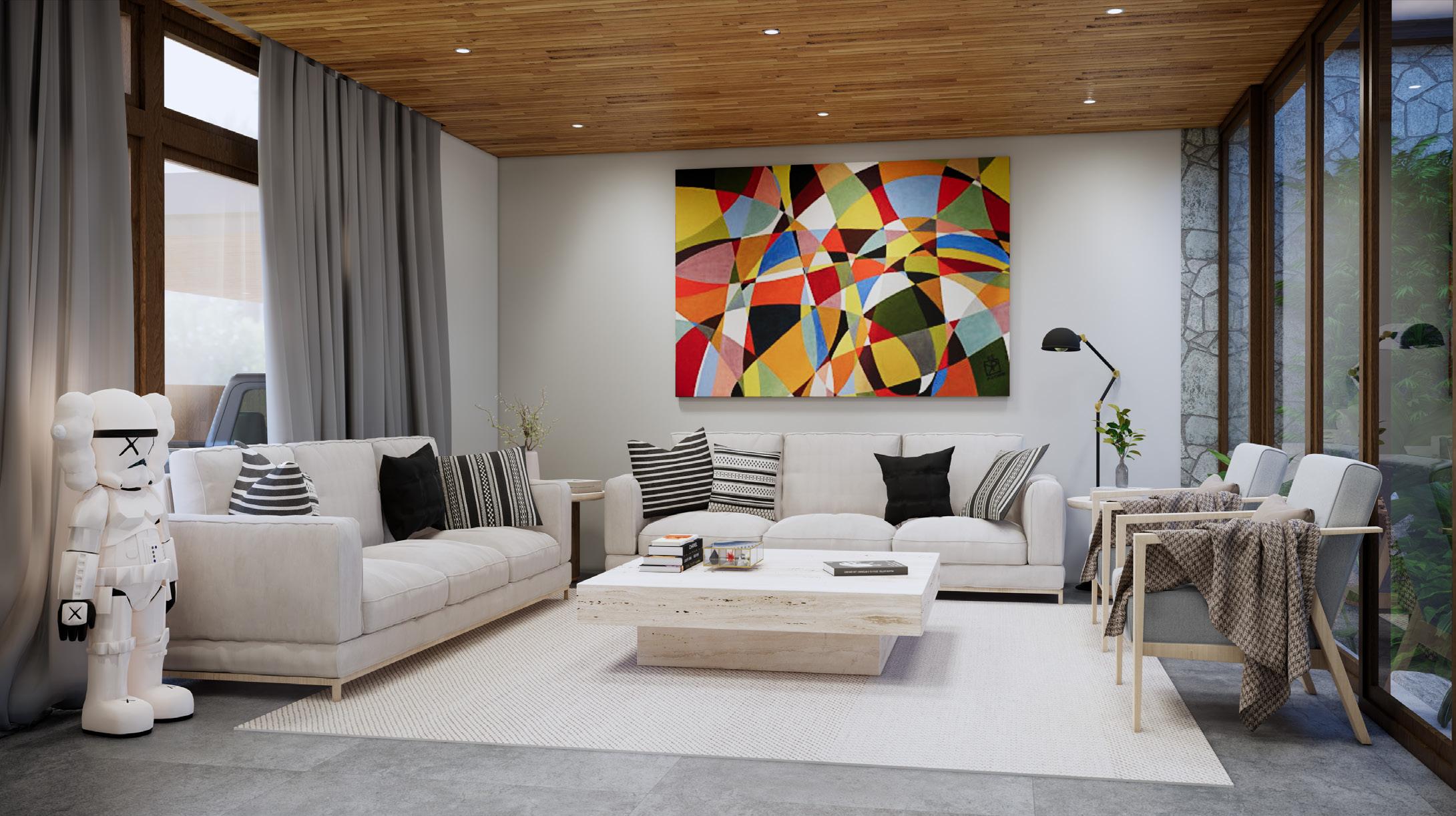

Living Room

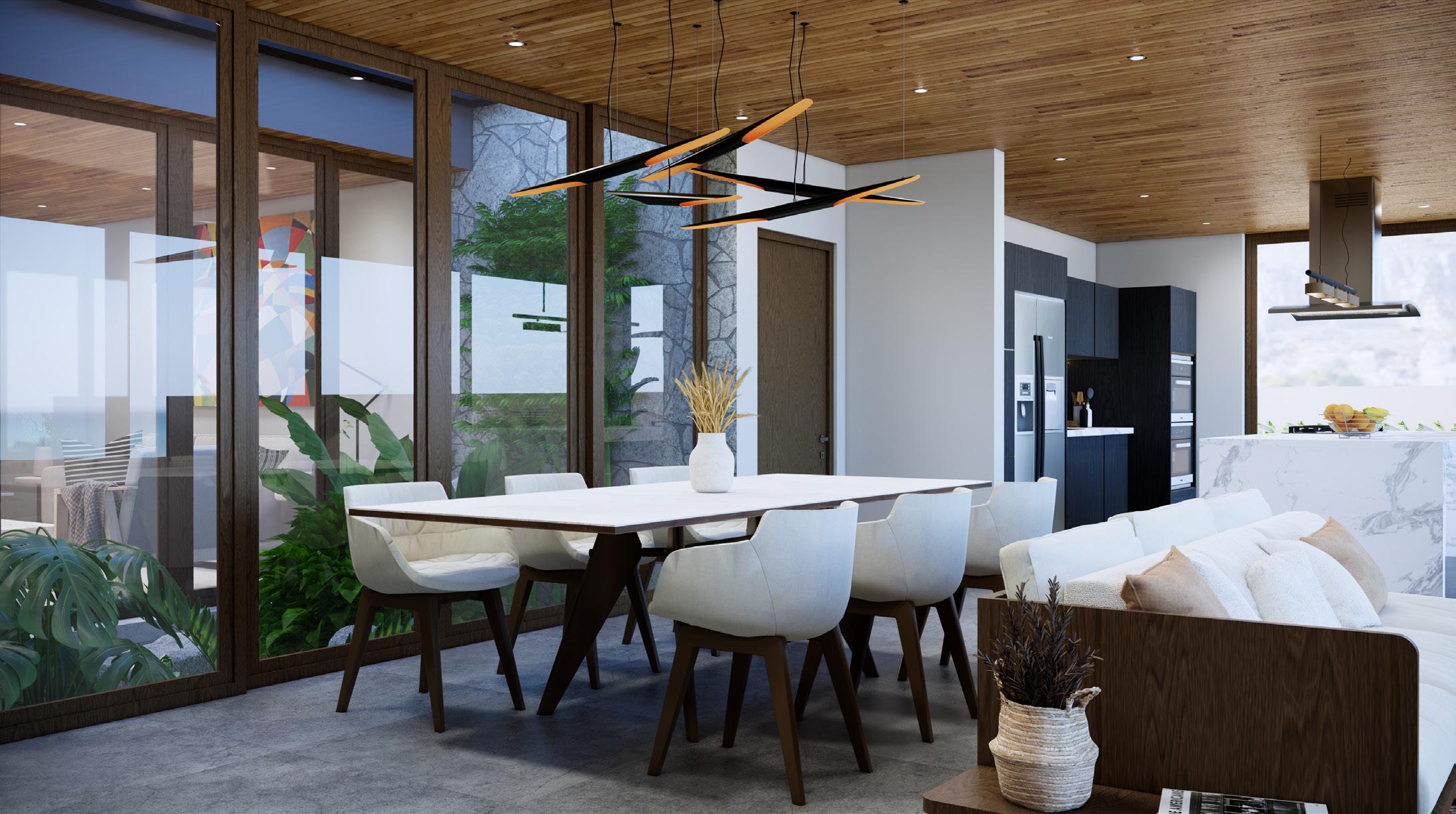

Dining Area

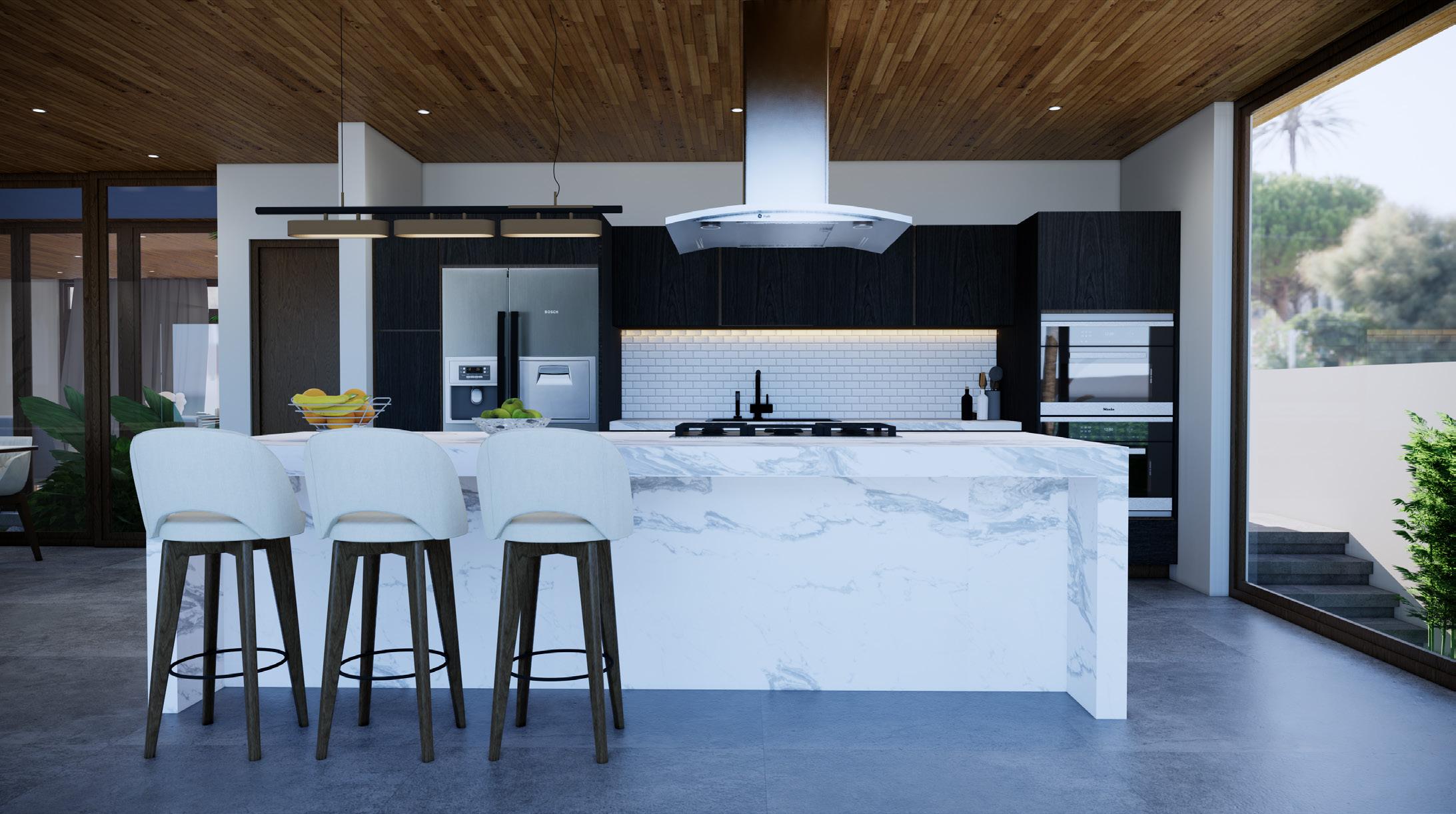

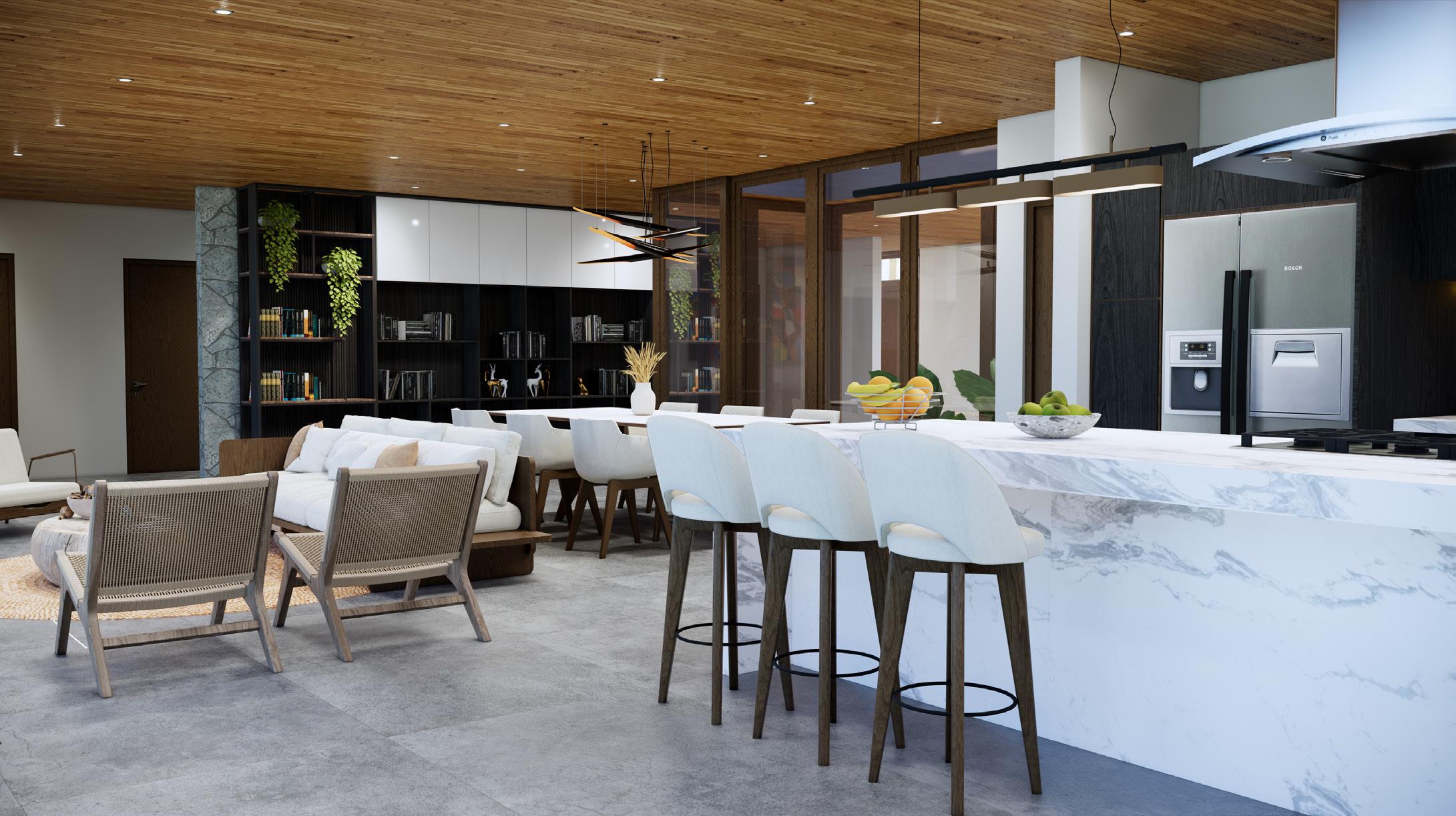

Kitchen Area

Kitchen Area

KITCHEN AREA

Bahay Kapiling

A Proposed Assisted Living and Dementia Care Facility

The project’s proponent, a businesswoman with a real estate background, is driven by her passion for elderly care and envisions a secure, comfortable home for herself and her sibling in their later years. Her goal is to establish a facility for 30-40 elderly individuals with dementia, leveraging her dedication to contribute significantly to elderly care in the Philippines while optimizing the site’s potential.

Preserving Quality of Life: Focus on meeting the physical, emotional, and social needs of elderly residents while maintaining their dignity, independence, and autonomy.

Creating a Home-like Environment: Design the built environment to resemble the outside world, reducing disorientation and fostering a sense of connection. Incorporate elements that mimic normal life.

Deinstitutionalization: Shift from an institutionalized care model to a person-centered approach, forming a community within the facility.

Socially Engaging Environment: Design spaces that encourage socialization and offer activities tailored to residents’ interests, abilities, and preferences.

Inclusive Design: Ensure all residents, including those with disabilities, can fully use and benefit from the environment.

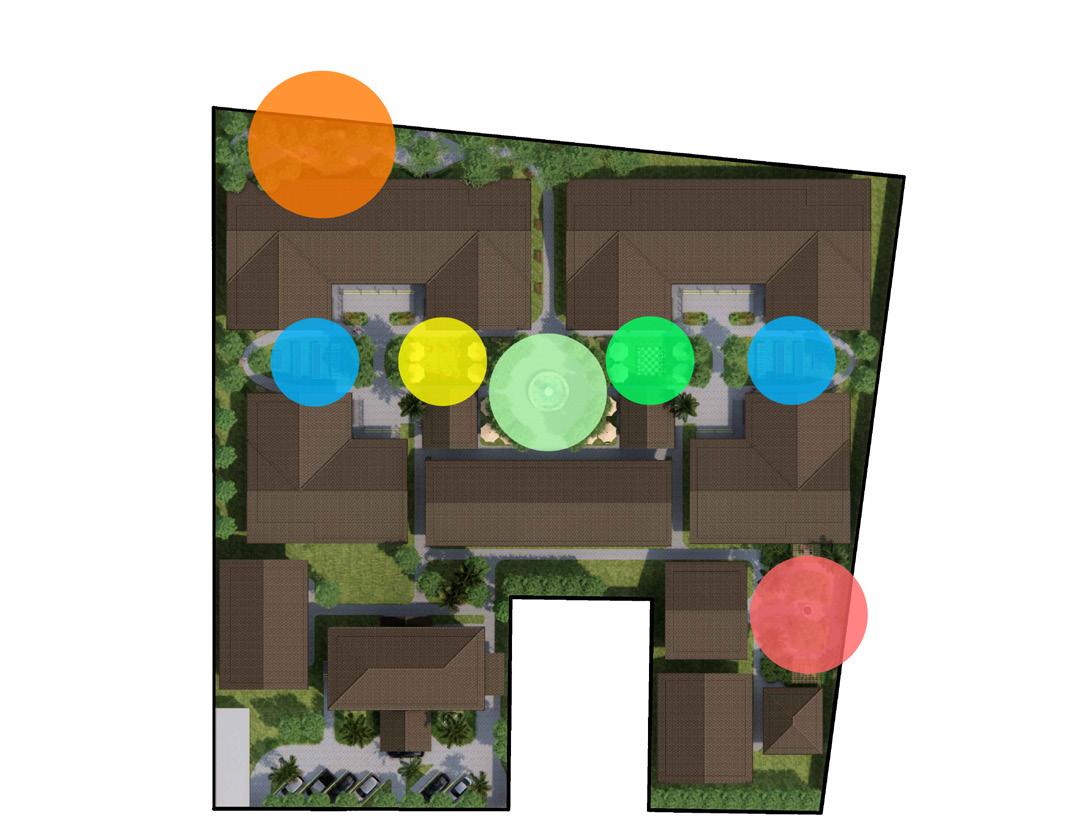

Zoning and Circulation Diagram

Residential Household

The main residential area is divided into smaller units, each resembling a single-family home, accommodating up to six residents. Each household unit is fully furnished according to the preferences of the residents, with private rooms provided for each

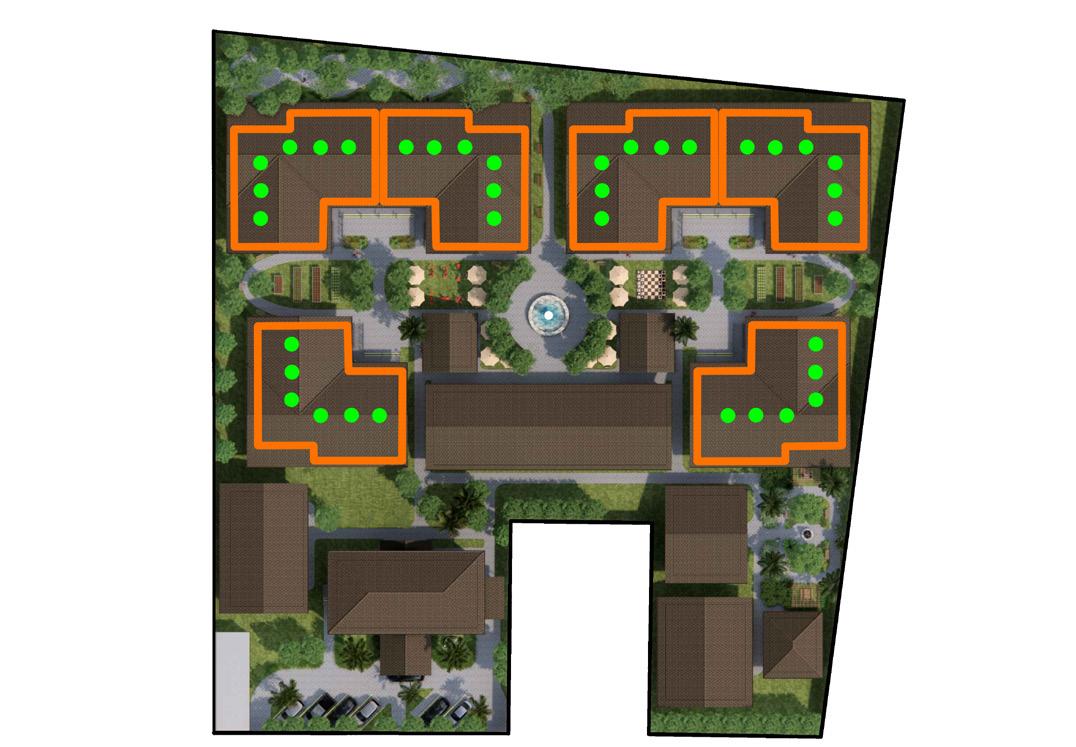

Landmarks

Landmarks and distinct features: each house hold unit was given distint features and landmarks so residence can easly find your their way around.

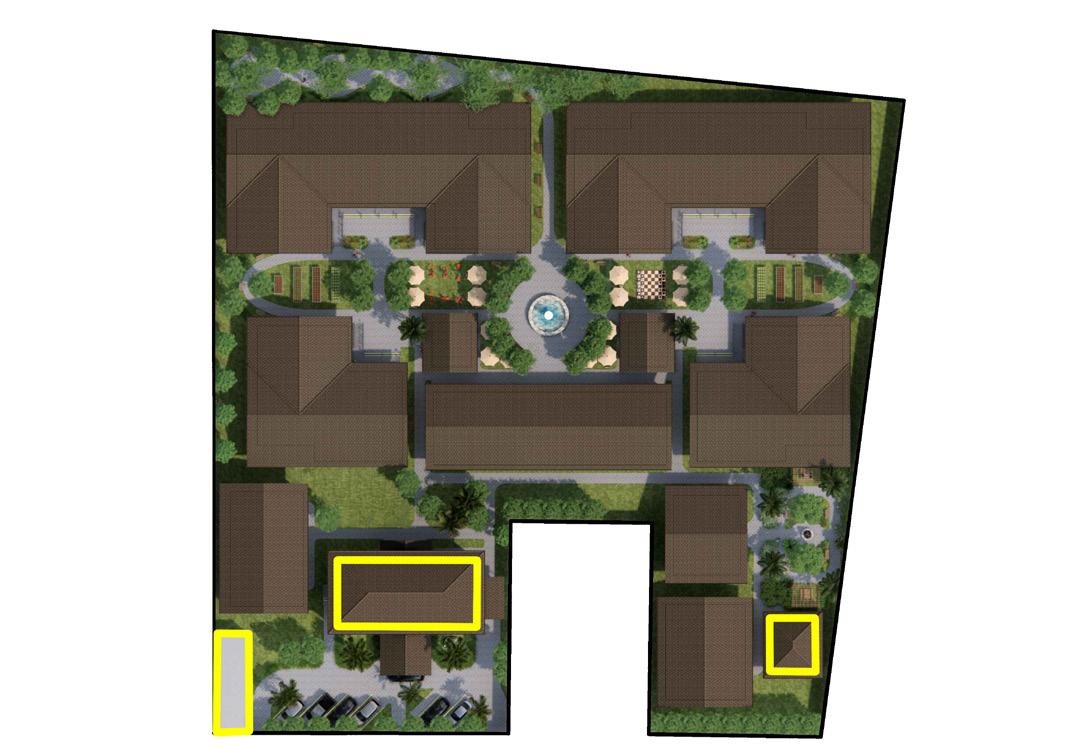

Administration & Back-of-House Administration and back of the house: These space are located near the neogan street to provide an easy access to the necessary services and away from main residential zone.

Destinations

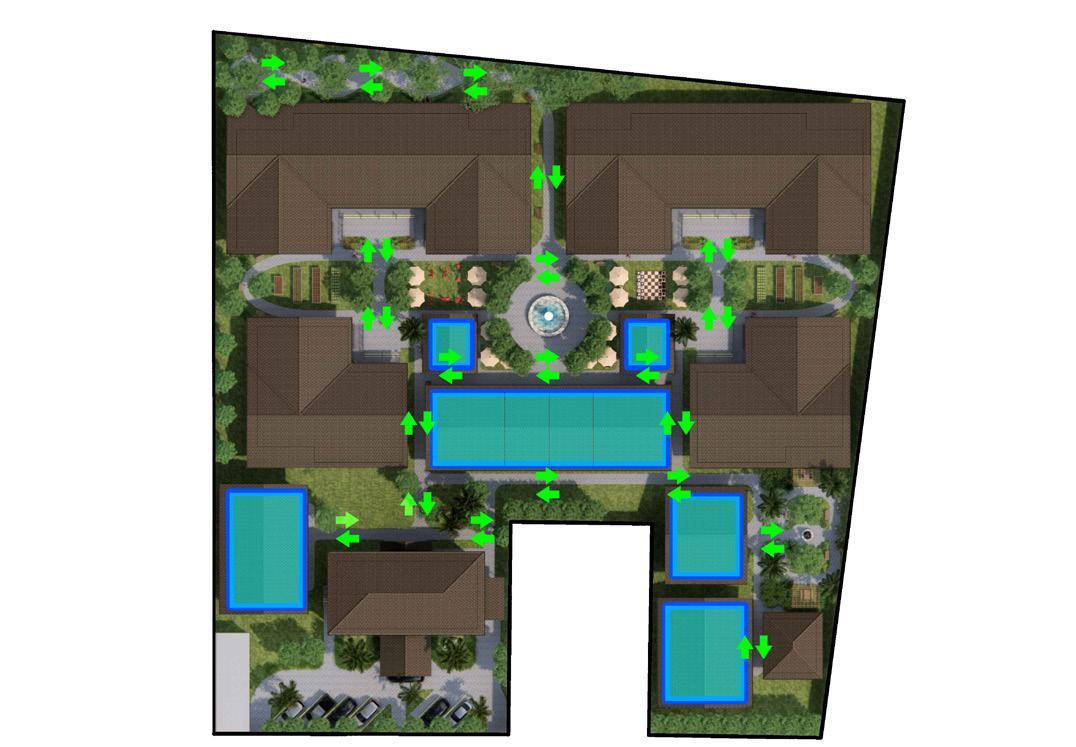

Unique destinations like convenience stores, libraries, and chapels are placed in separate buildings to promote intentional movement and social interaction, fostering a dynamic environment for exploration and engagement within the public space.

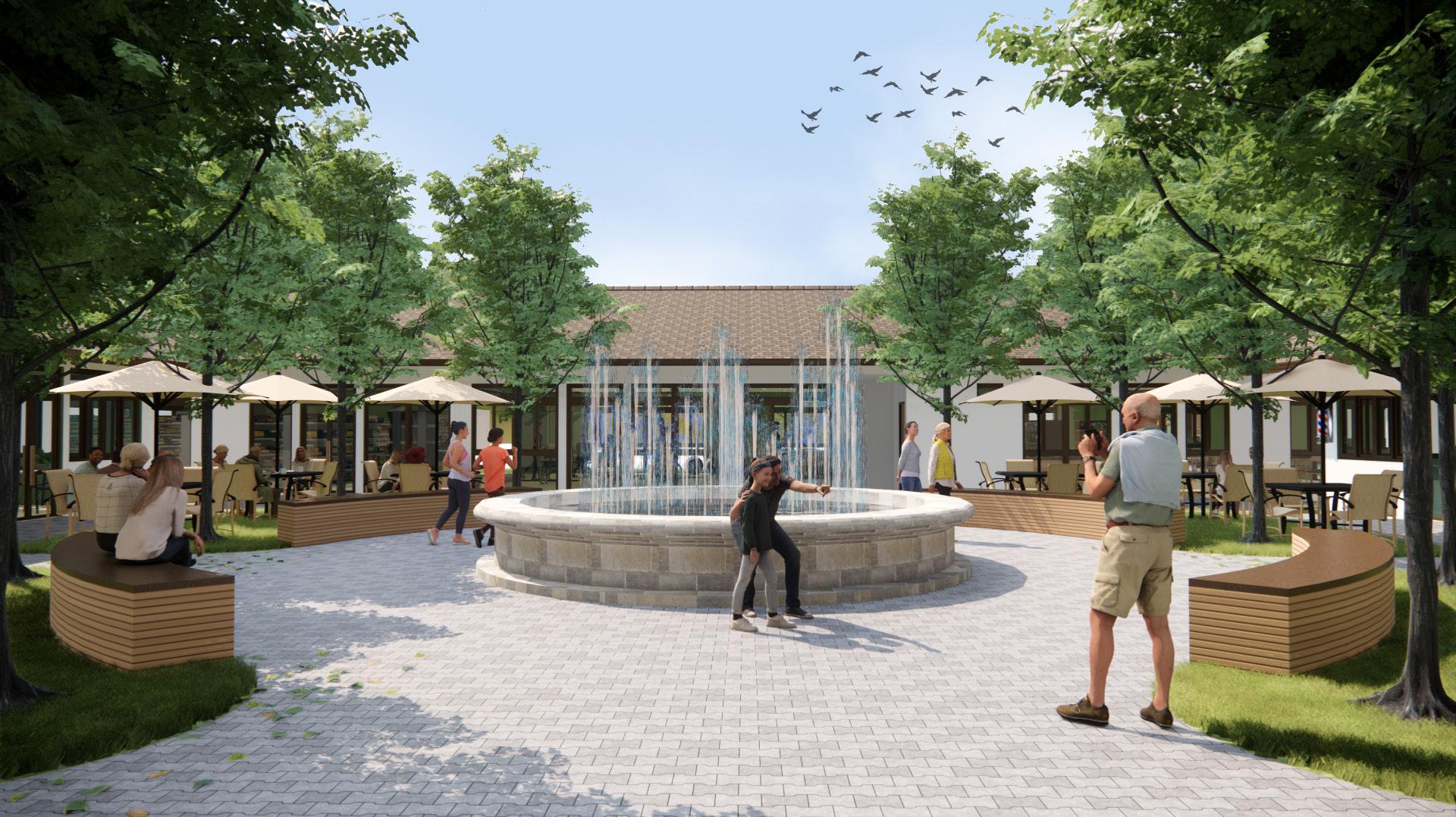

Community Plaza

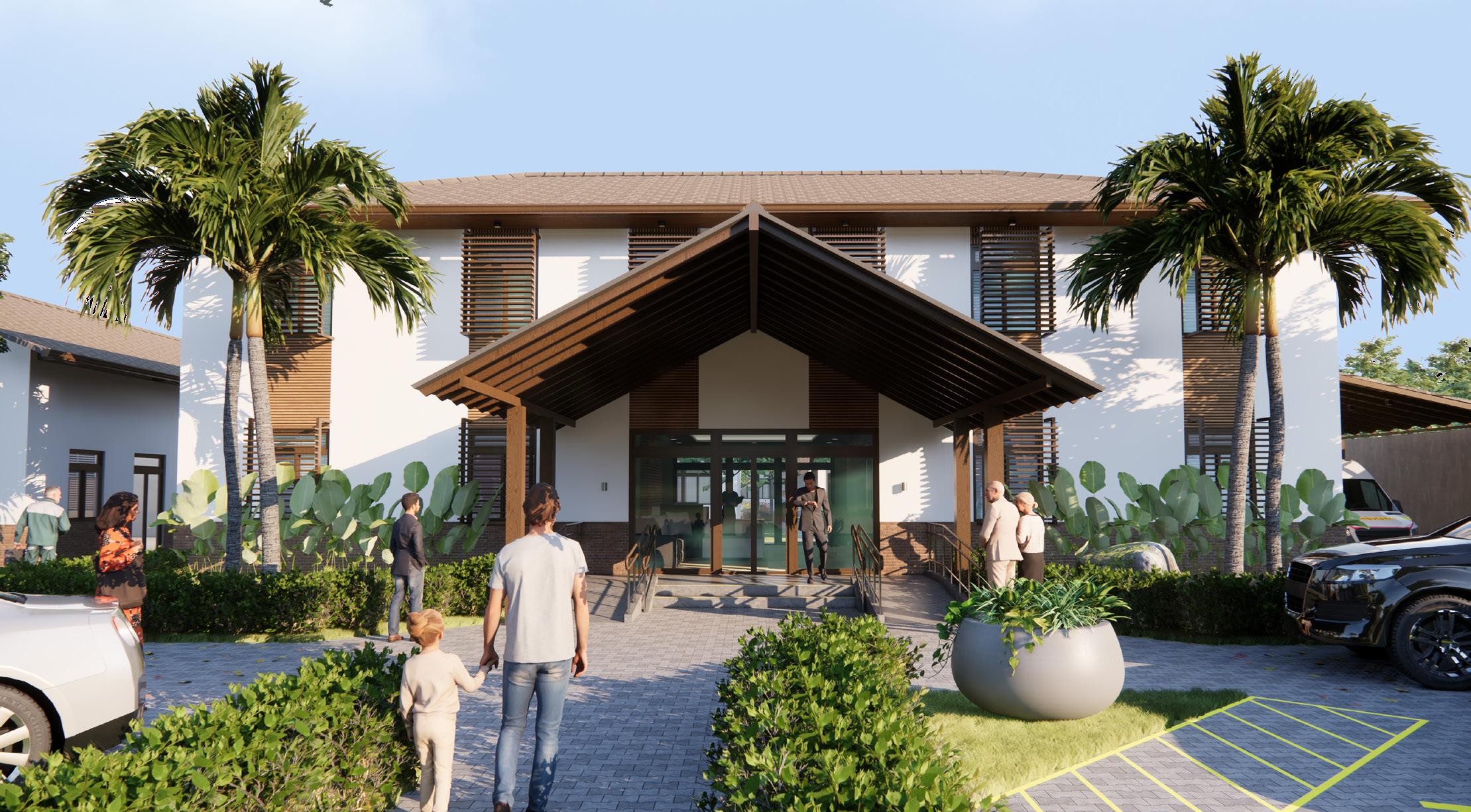

Administration Building

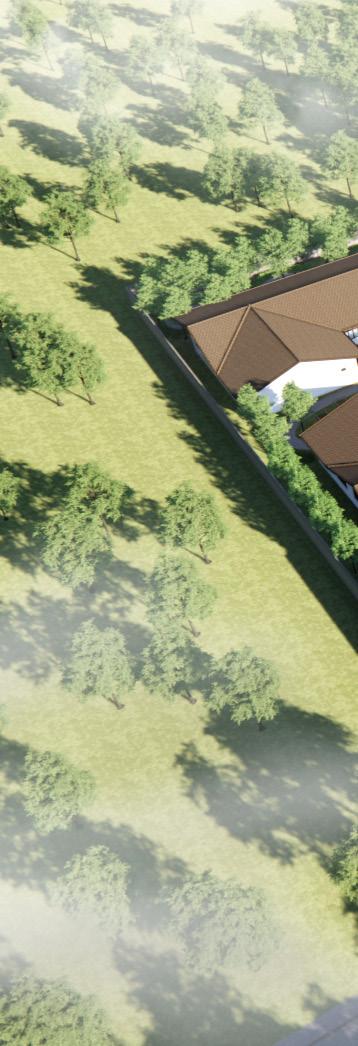

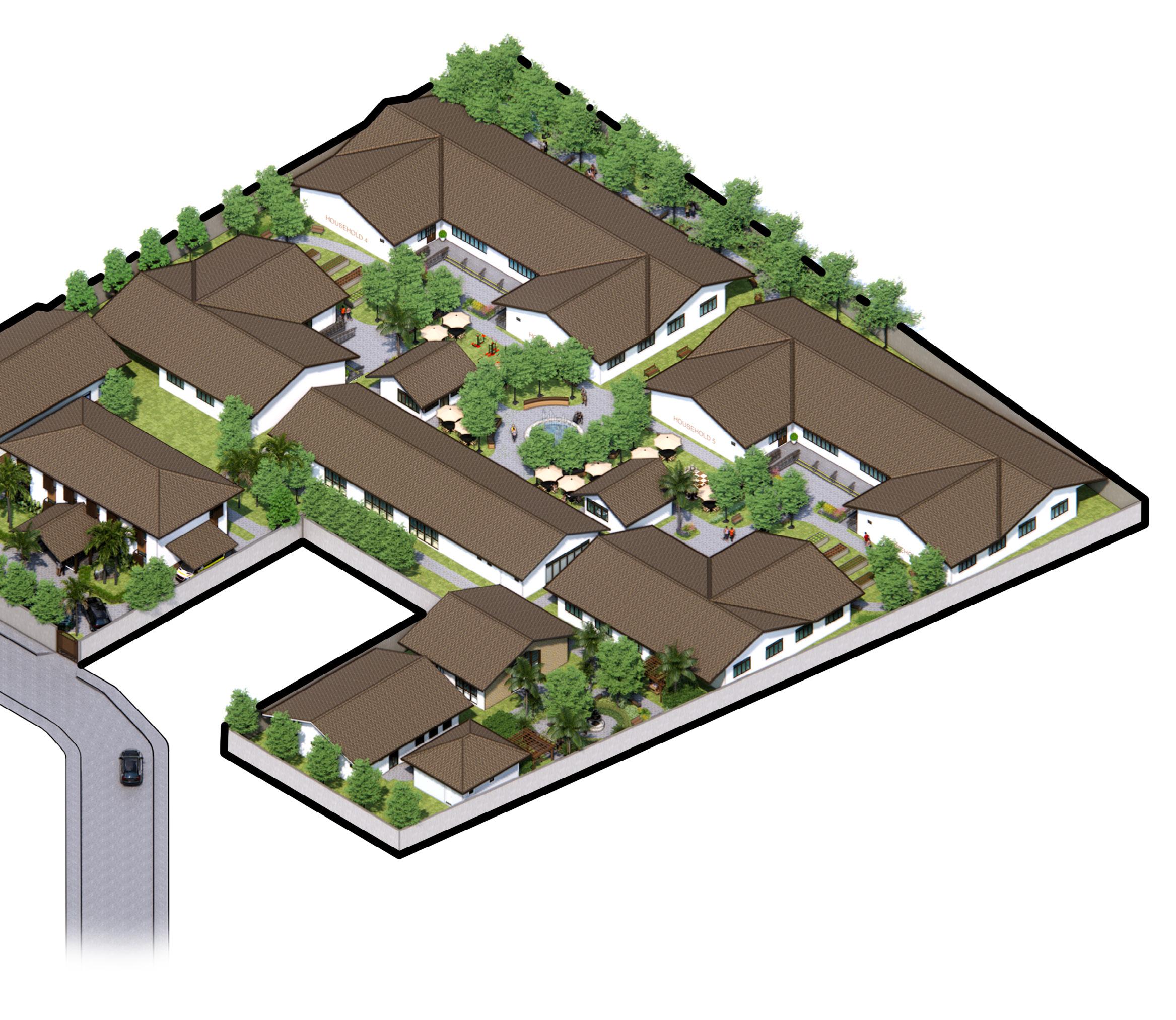

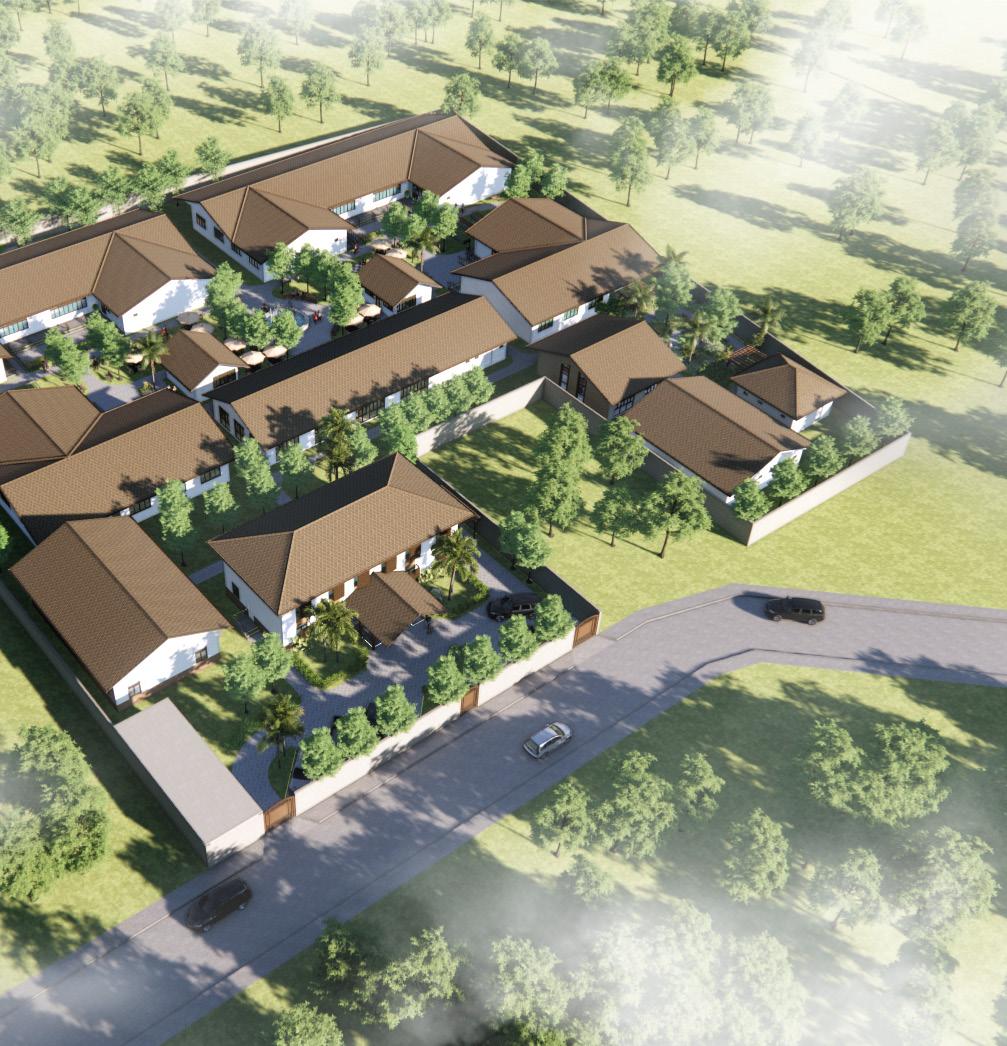

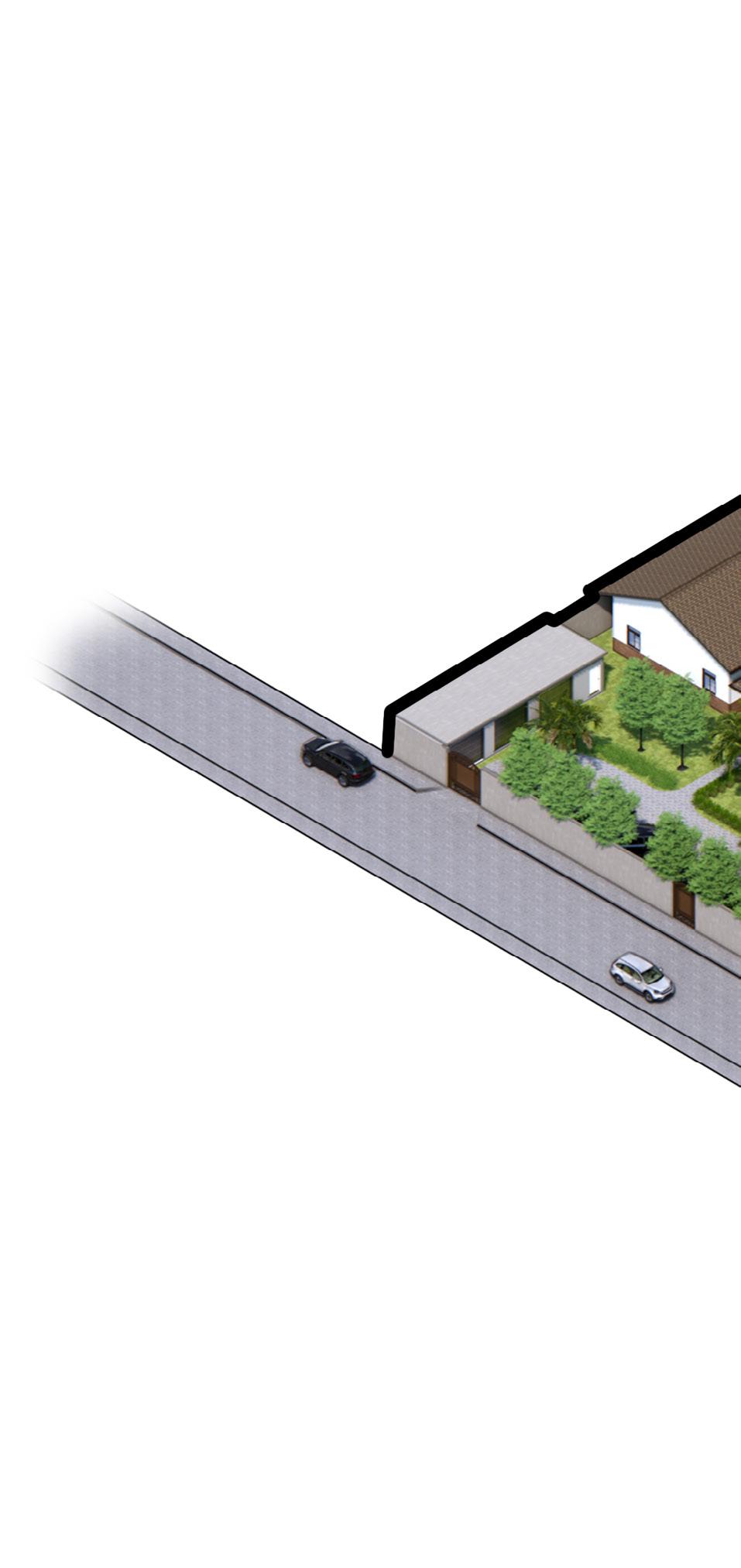

Site Axonometric Diagram

Coffee Shop

Household #3

Linear Park

Community Plaza

Beauty Salon

Community Building

Household #1

Multi-Purpose Building

Service Area

Administration Building

Chapel Laundry

Aqua Therapy Building

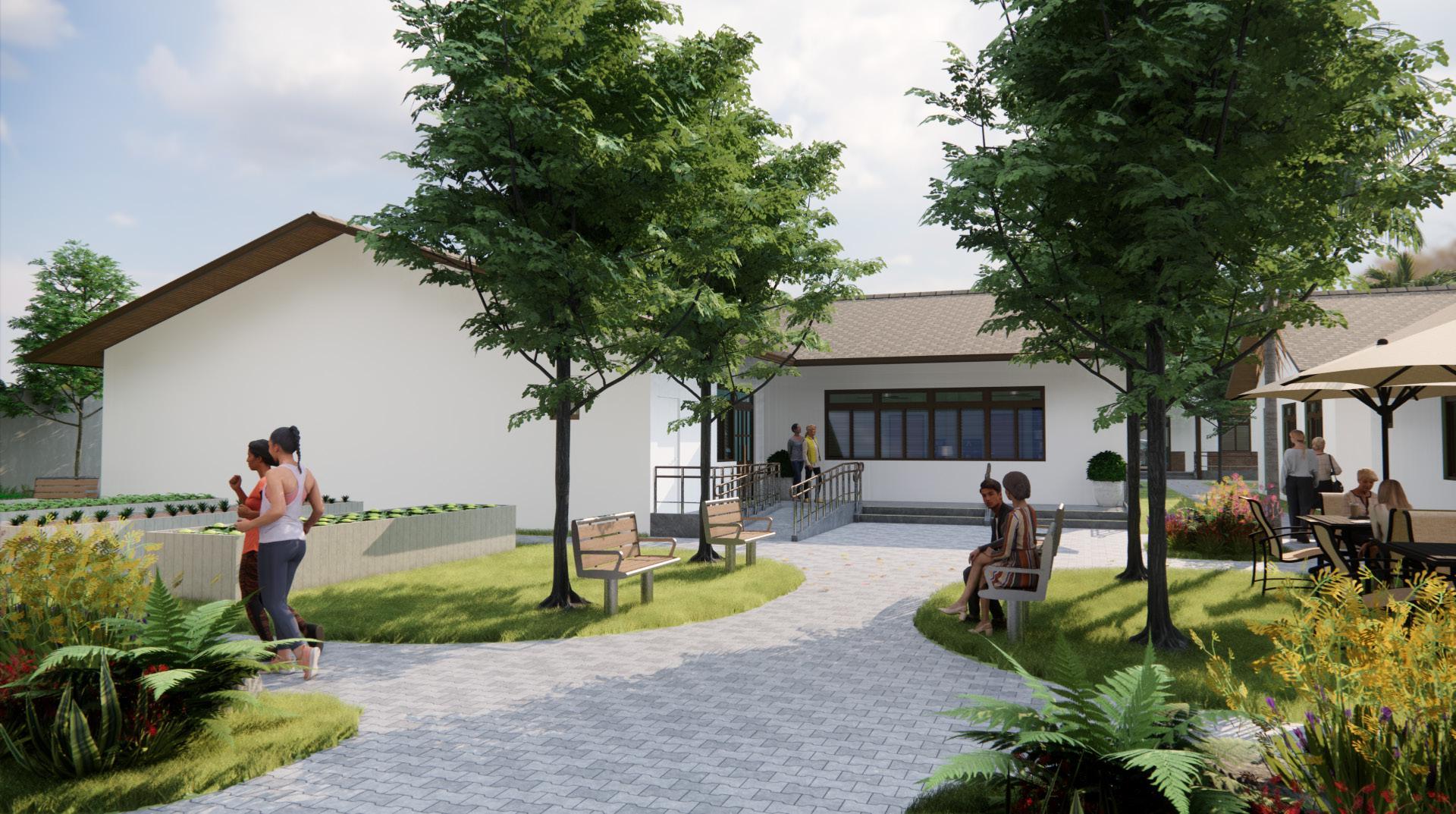

Healing Garden

Household #2

Household #4

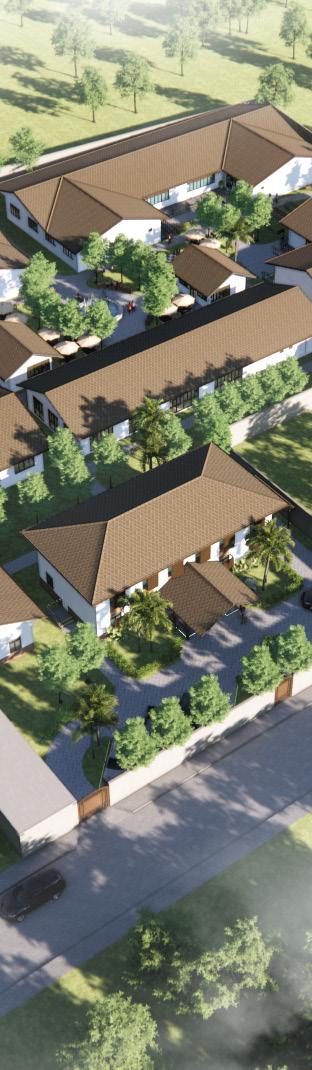

Exterior Perspective Household

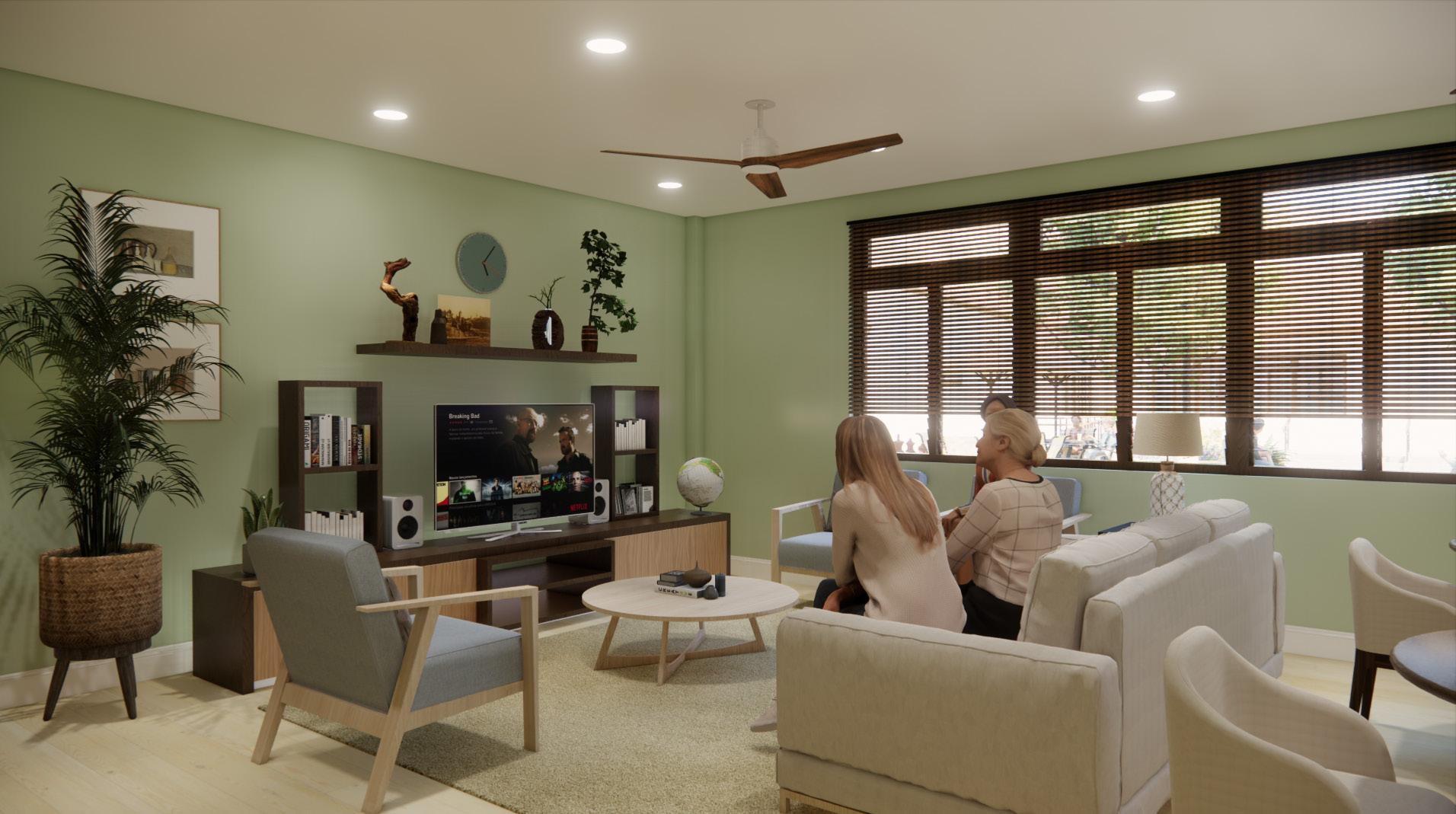

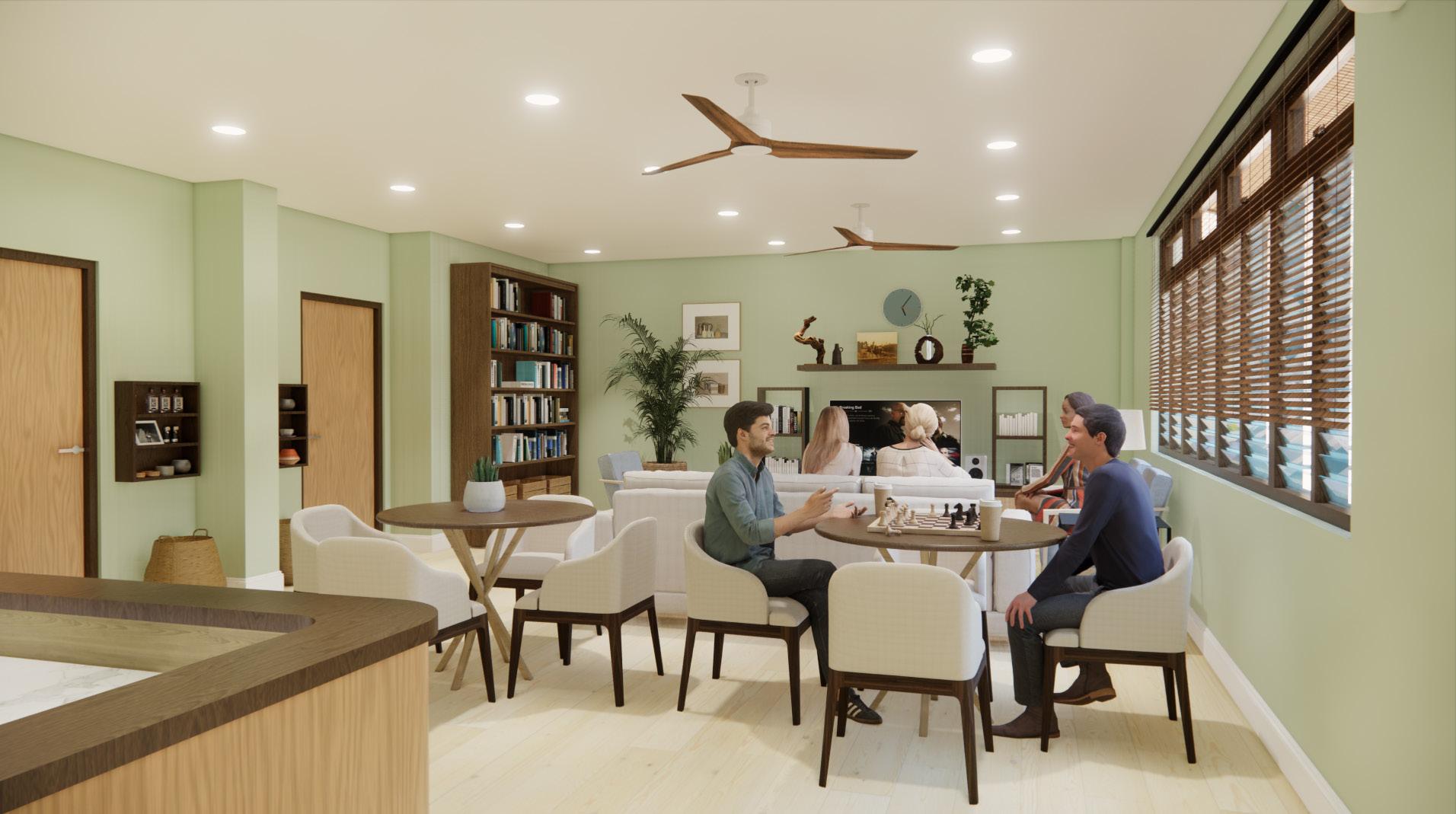

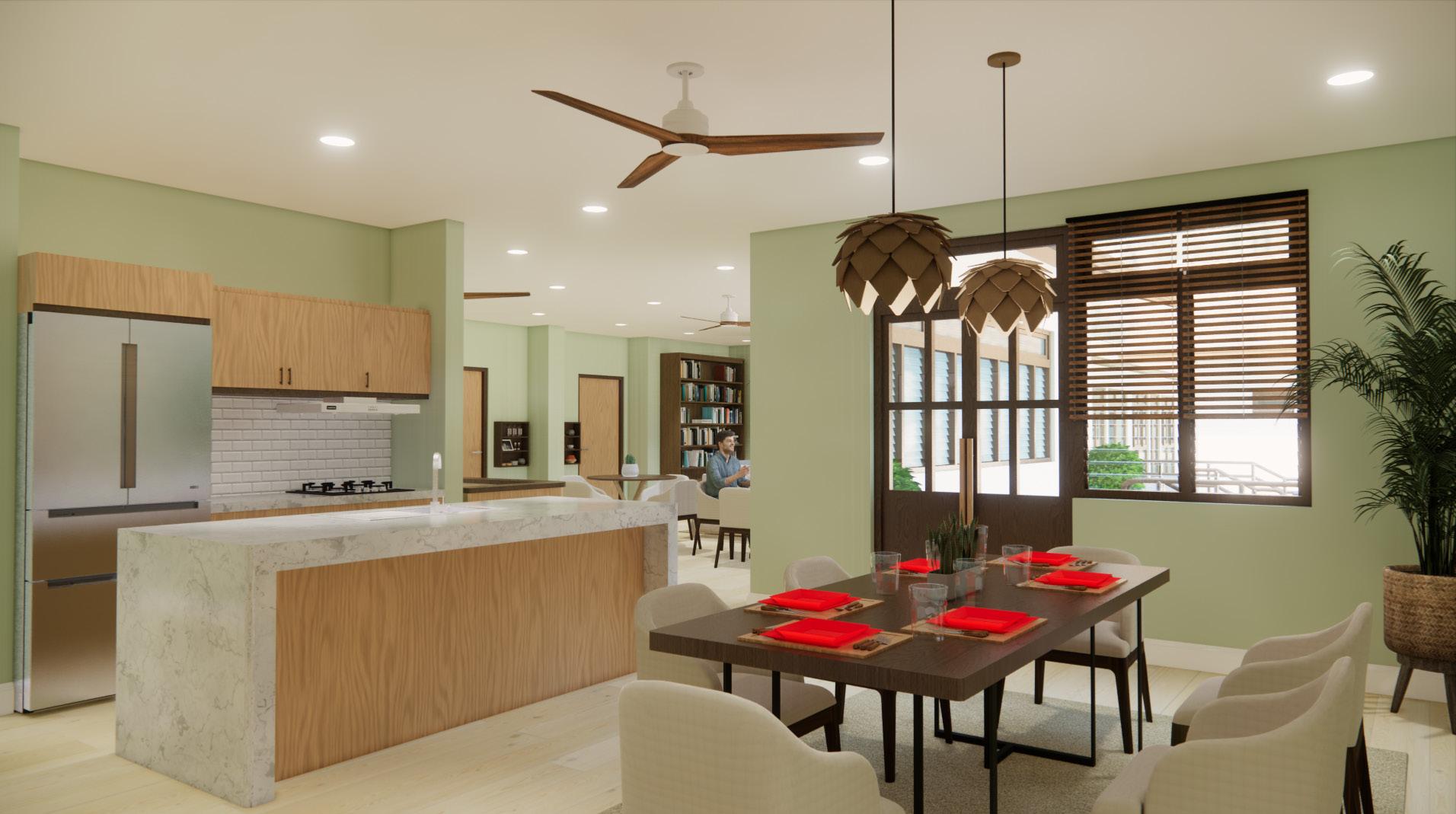

Household Module - Living Area

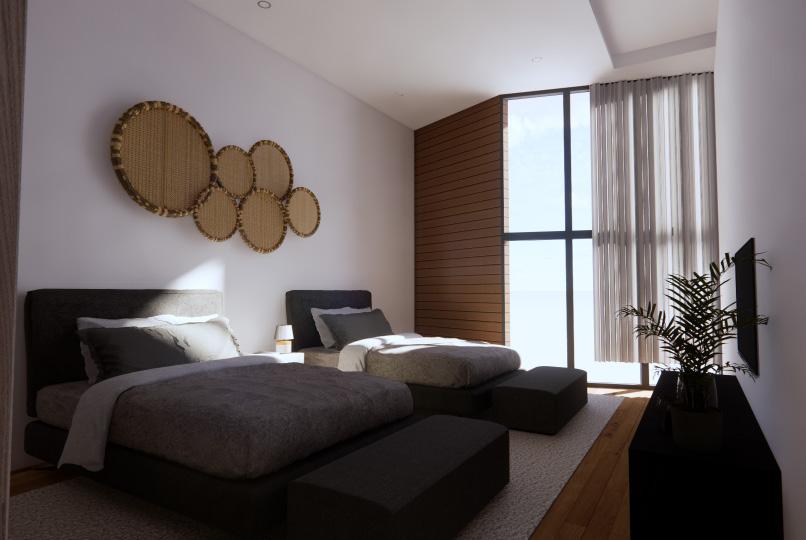

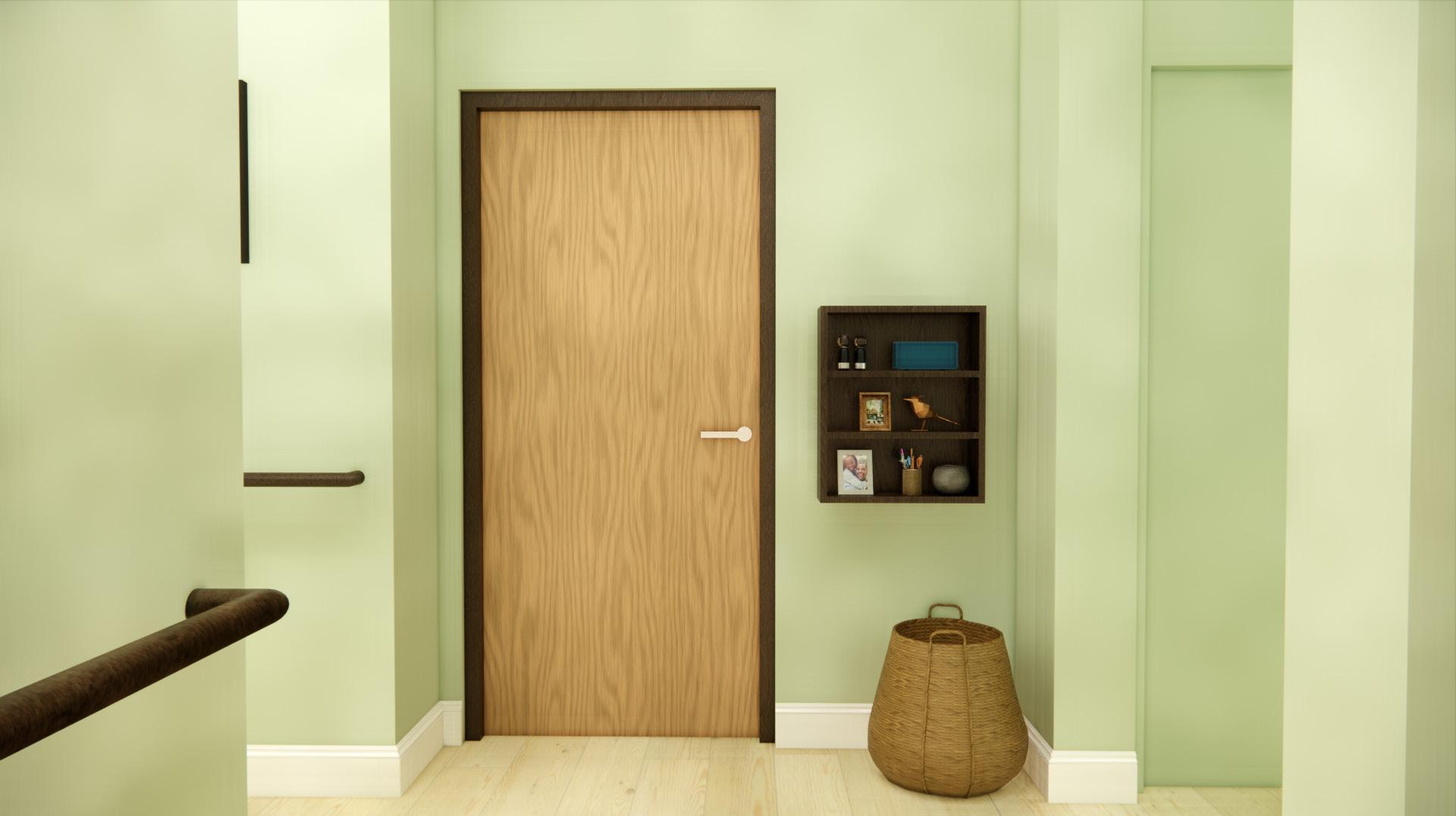

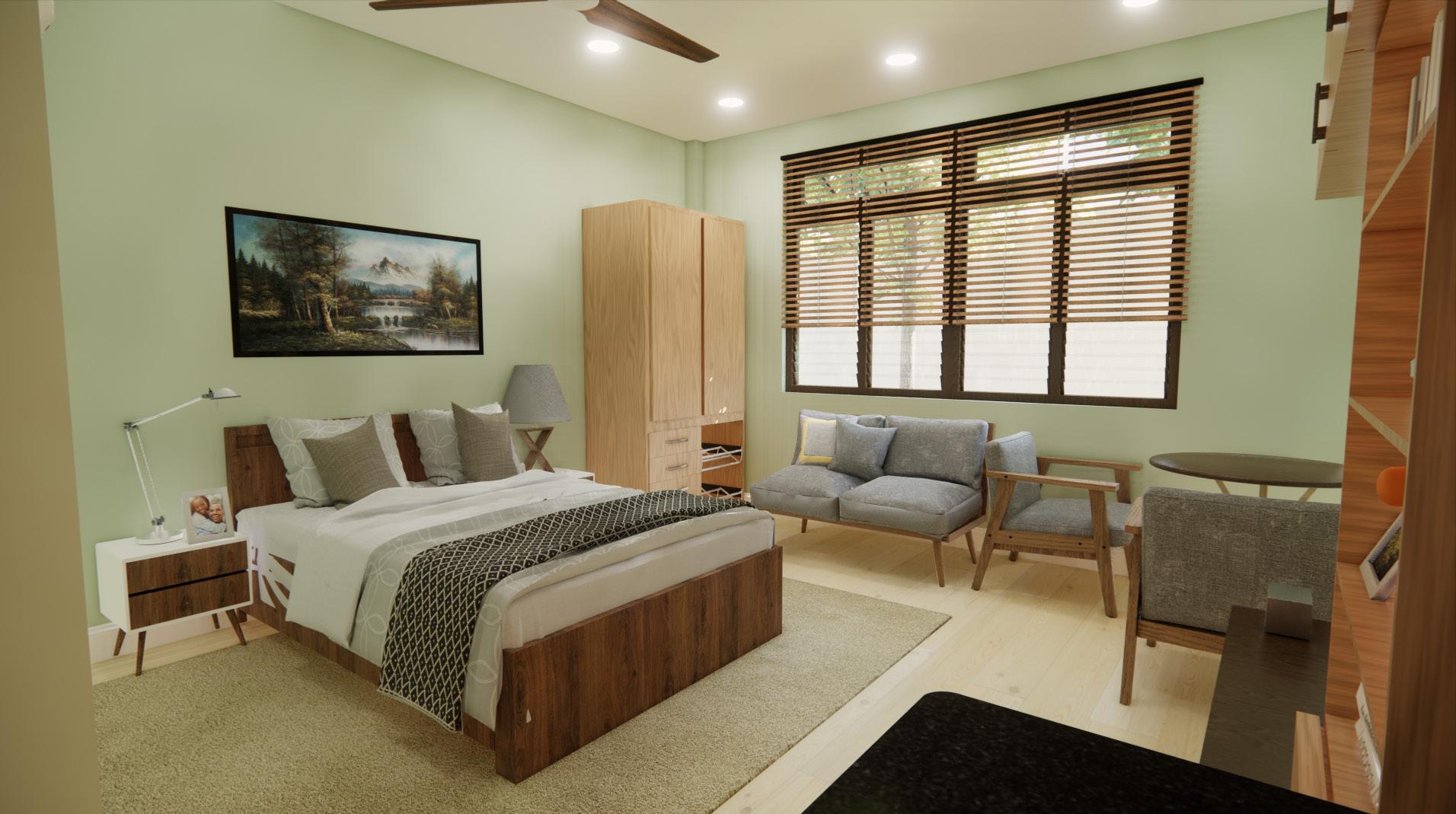

Household - Private Room

BACKING PLYWOOD FOR

BACKING PLYWOOD FOR INSULATION

ROOF BEAM

ROOF BEAM

PRE-CAST CONCRETE SILL

WALL

NGL

PRIVATE BEDROOM

TIE BEAM

TIE BEAM

Alon

A Proposed Eco-Tourism Beach Resort in Patungan Cove, Batangas

In Nasugbu, Batangas, a couple envisions a modern bungalow on their beachfront property, offering a retreat for family and friends in harmony with nature. The multi-functional house will provide privacy for guests, embodying their love for the environment, Nasugbu’s beauty, and family bonds.

Design Objectives: The project strives to establish a sustainable tourist destination with privacy and versatility as key features, catering to various visitor interests. It will also develop an efficient site plan that harmonizes with the surroundings for a seamless integration into the environment.

Design considerations: The design process entails in-depth site analysis, careful space zoning, environmental preservation, aesthetics, and development control measures, aiming to create a harmonious, safe, and aesthetically pleasing resort experience. These aspects work together to ensure the project’s success.

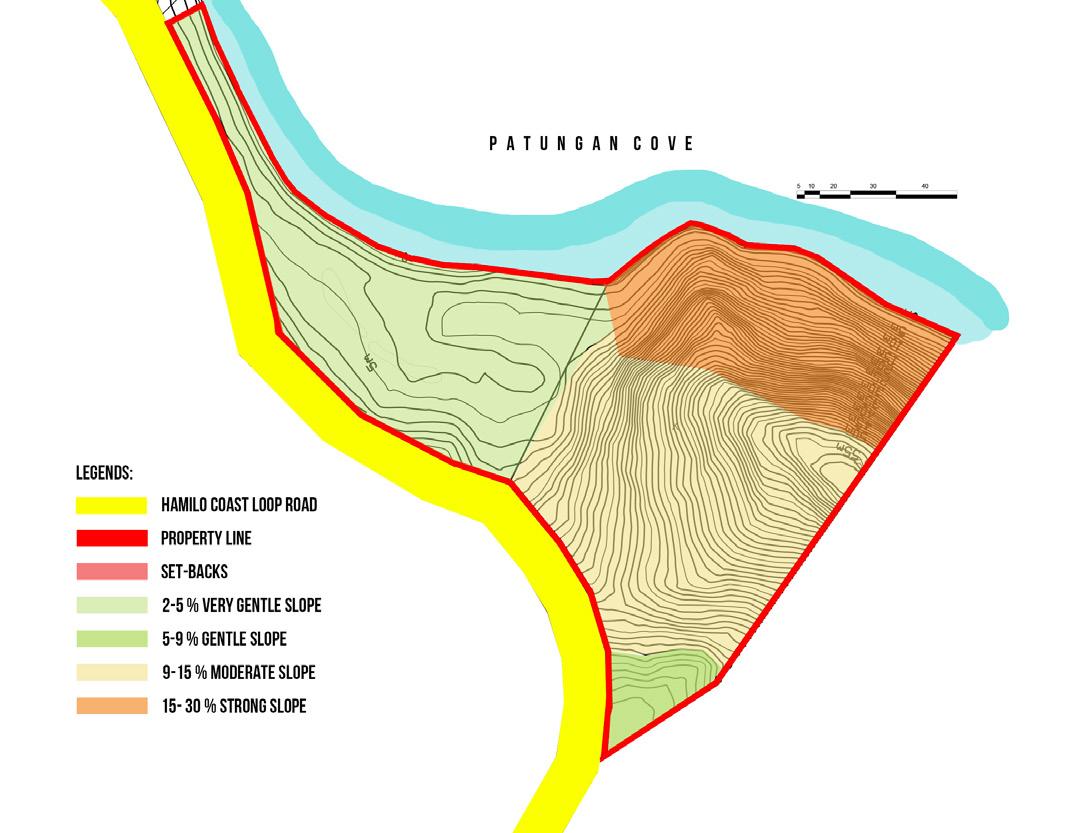

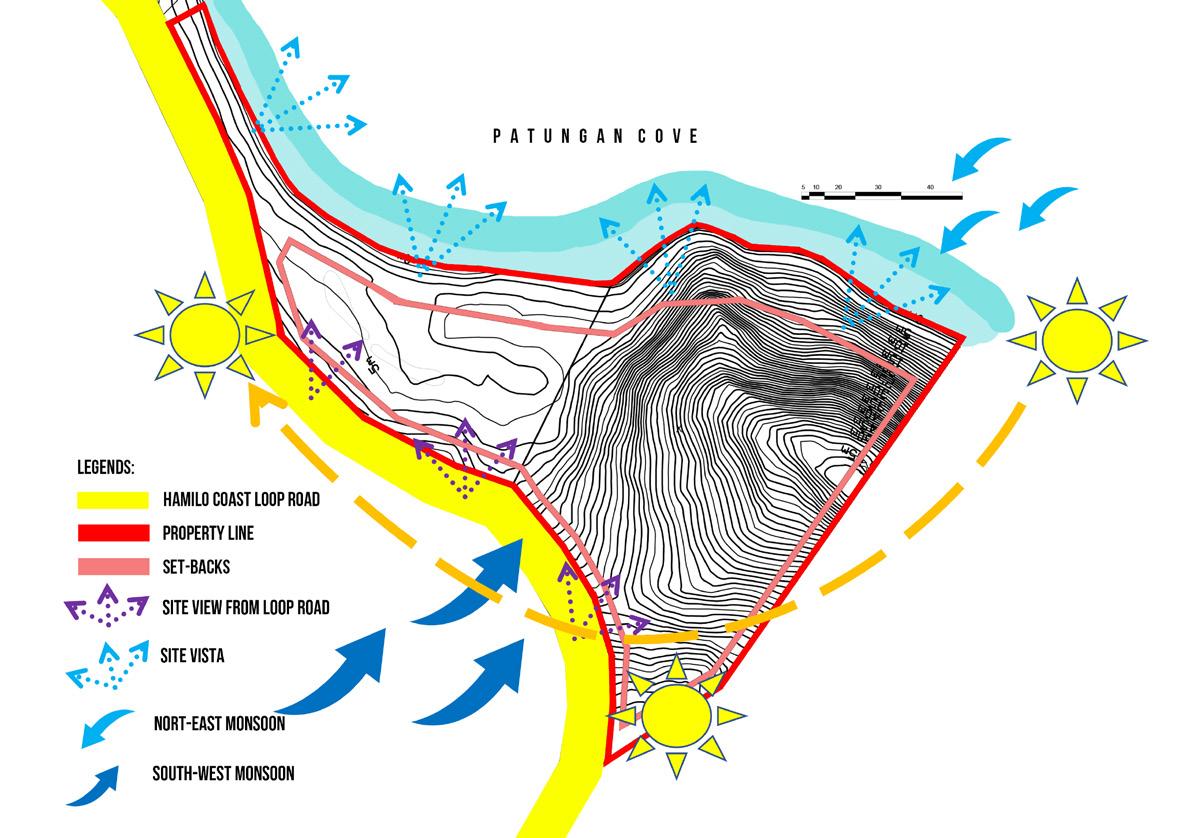

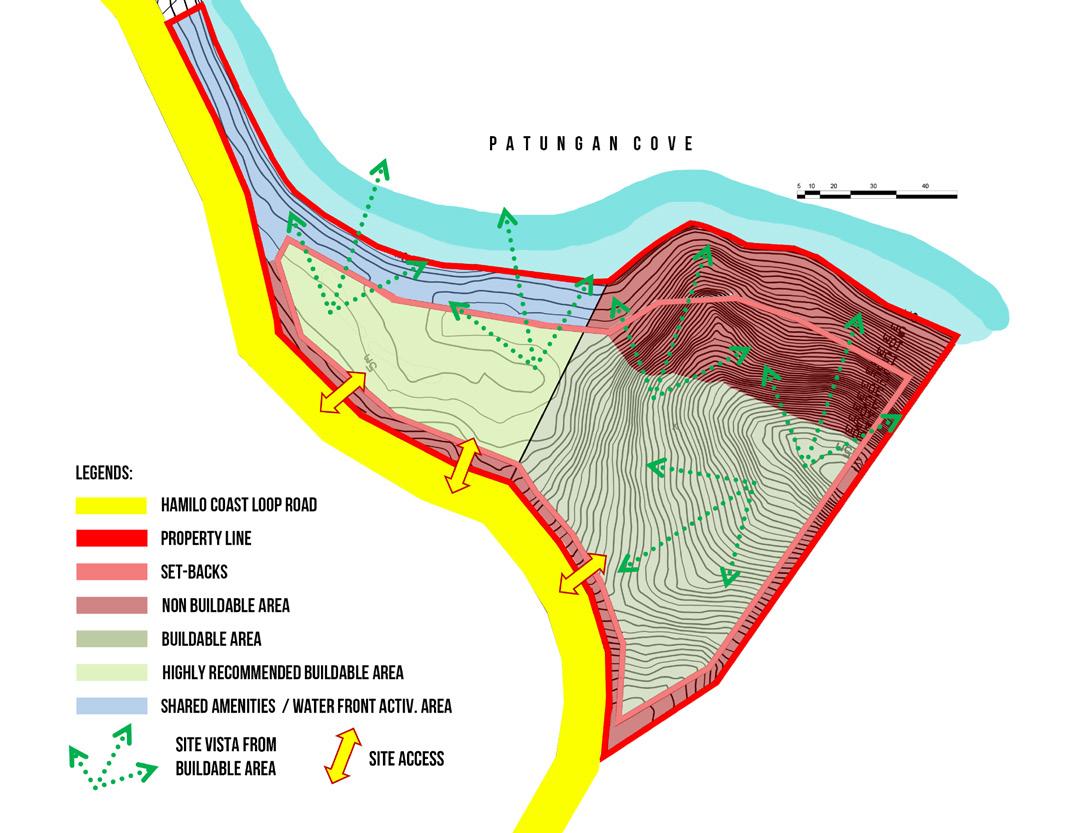

Hamilo Coast Loop Road

Property Line

Set-Backs

Non-Buidable Area

Neutral Zone

Active Zone

Quiet Zone

Site Access

Main Poshtel Building

Poshtel Builing Annex

Cabin Infinity Pool

Private-Cabin

Eco-Tourism Activity Area

Water Pond

Zip-line Area

Camping Area

View-deck / Giant Swing Area

Reserved Fauna / Eco-trail

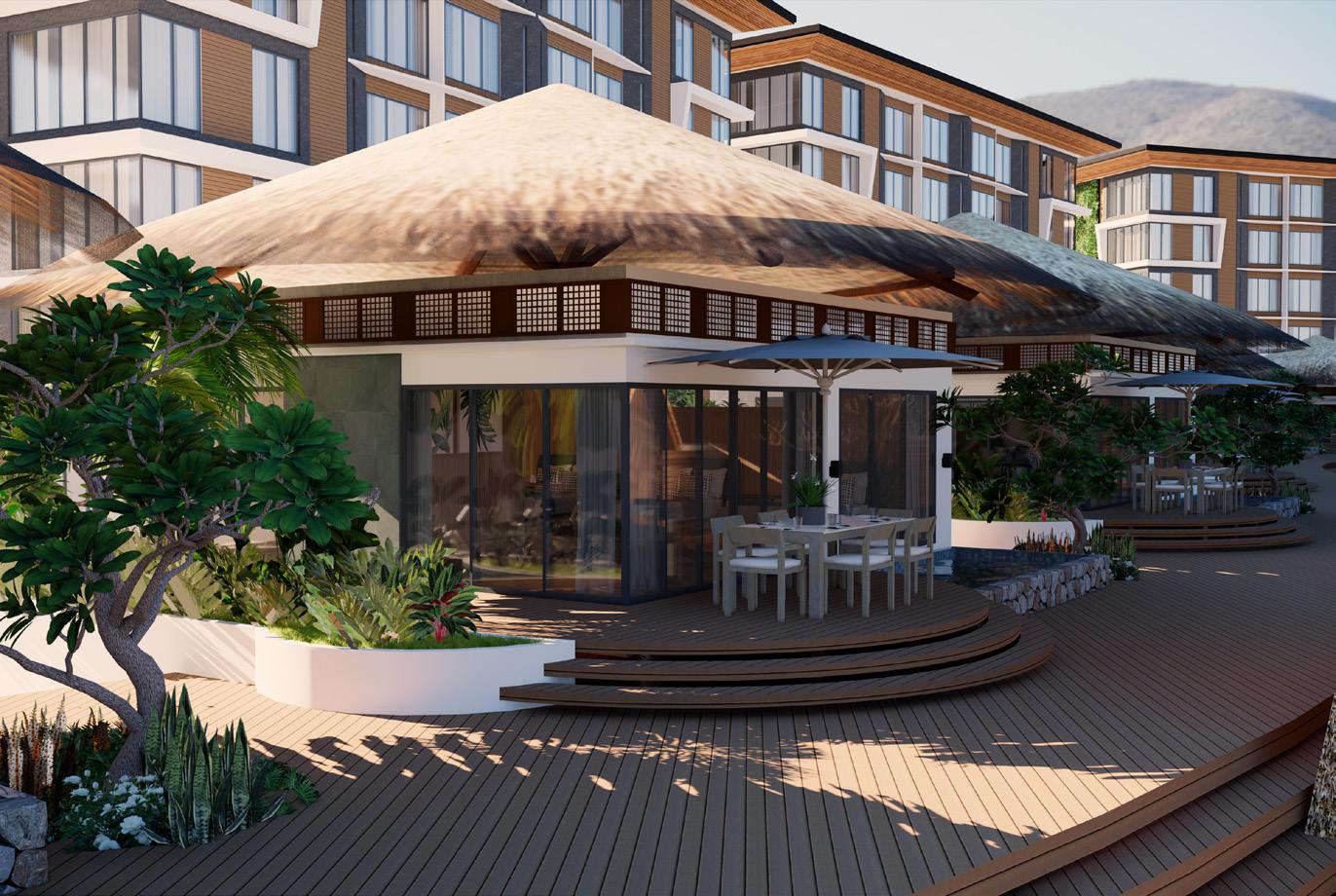

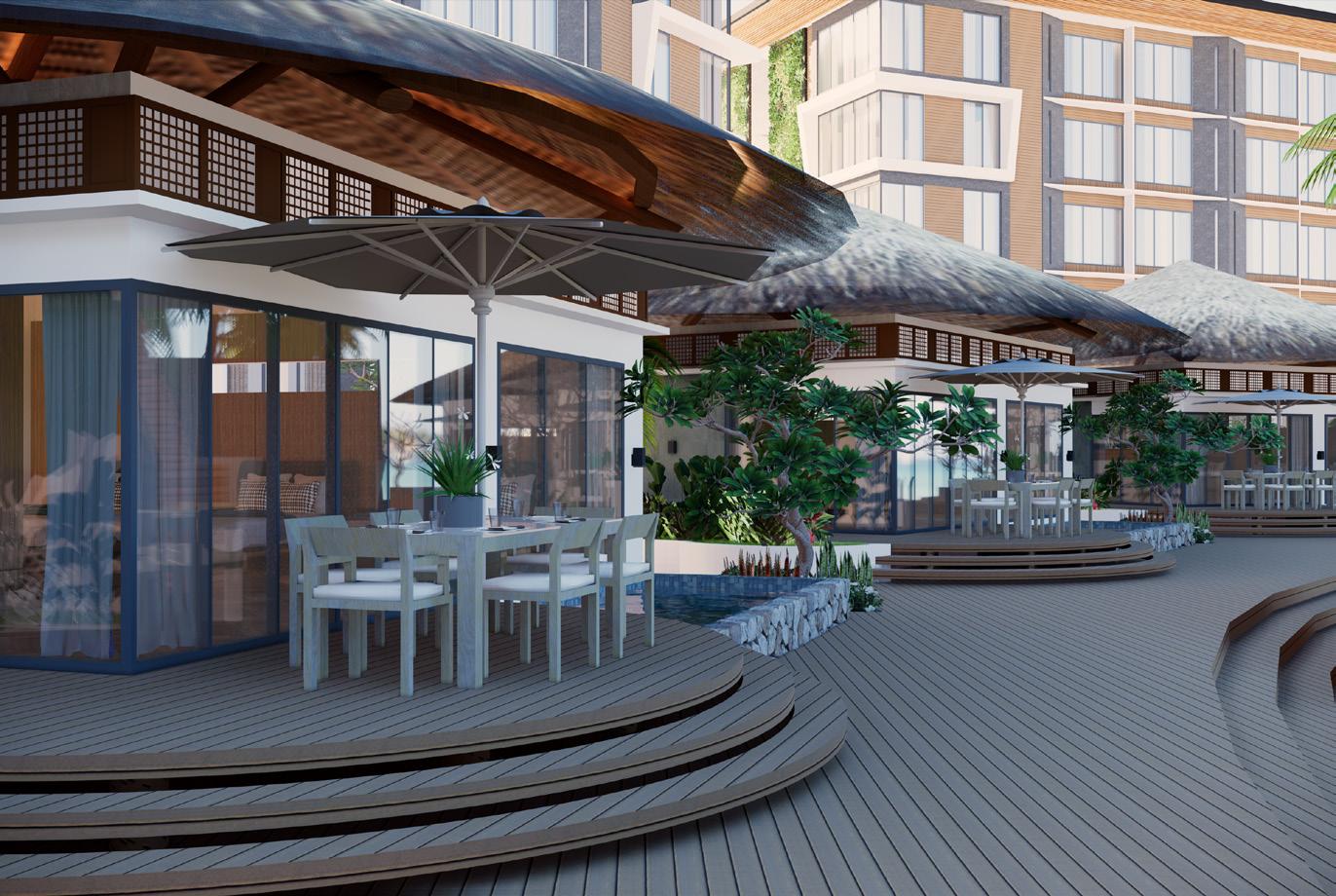

Stilt View Deck Dining

Beach Cottage & Water Activities Area

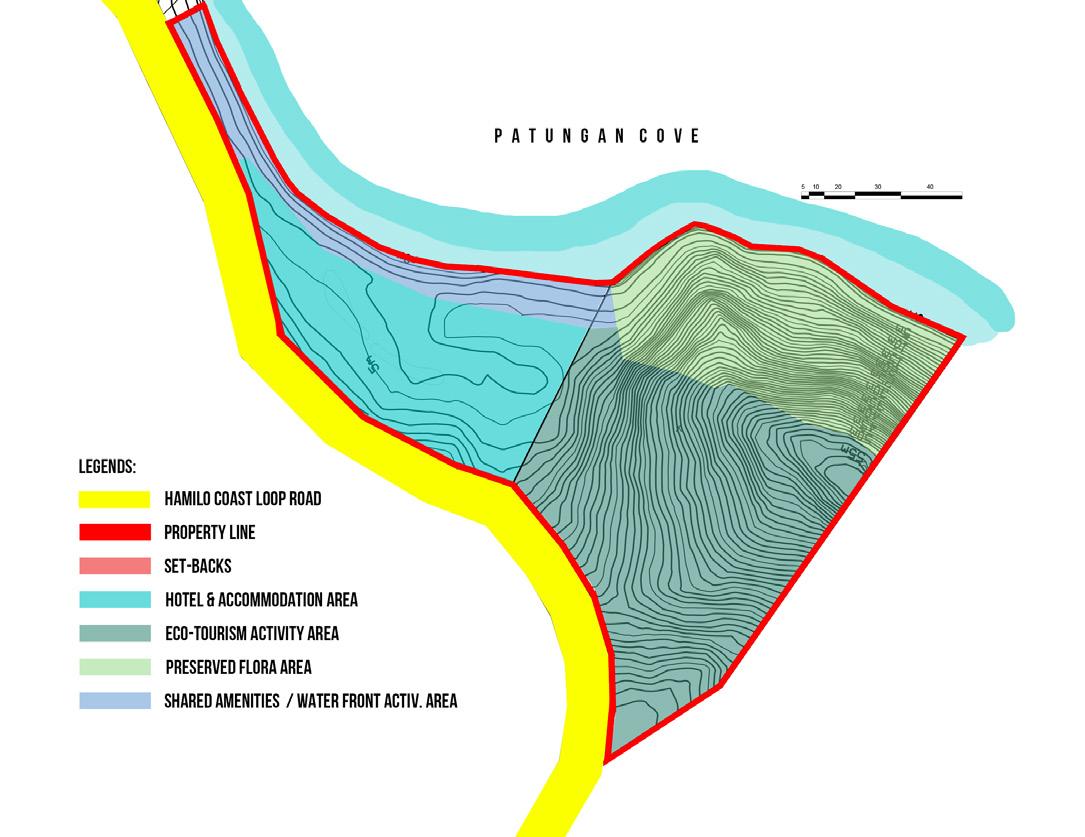

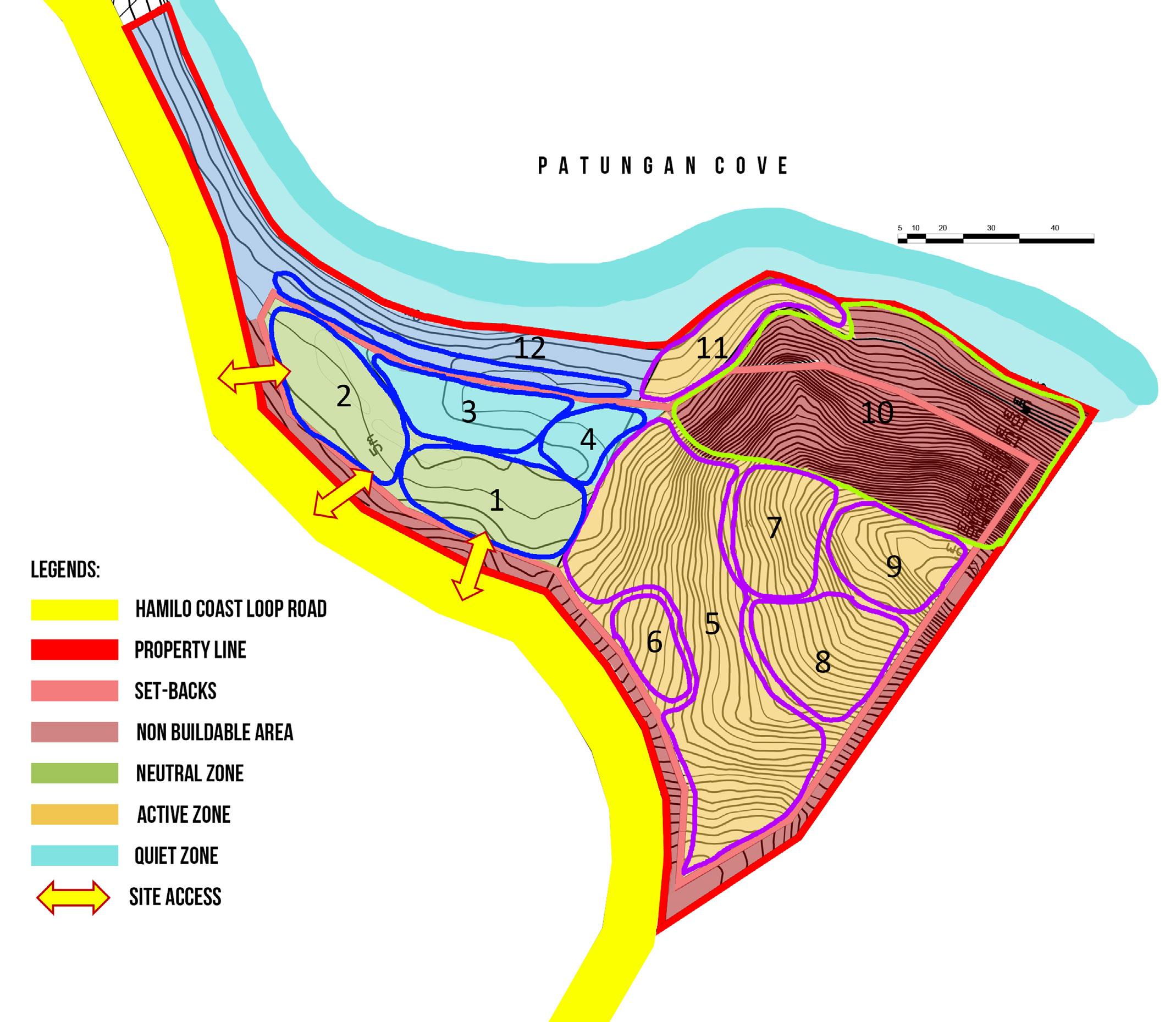

Zoning Bubble Development Diagram

1.

2.

3.

4.

5. 6. 7. 8. 9. 10. 11. 12.

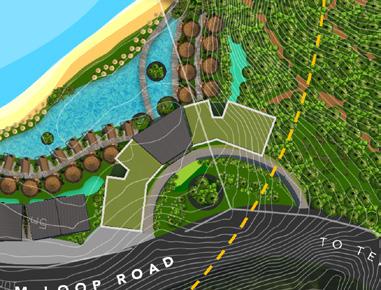

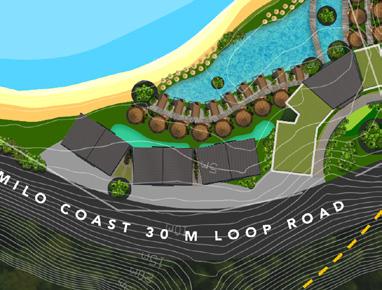

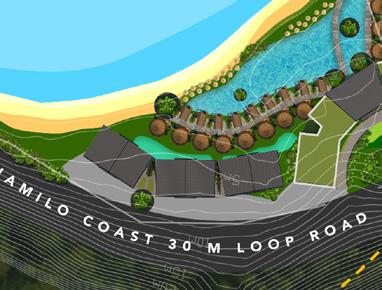

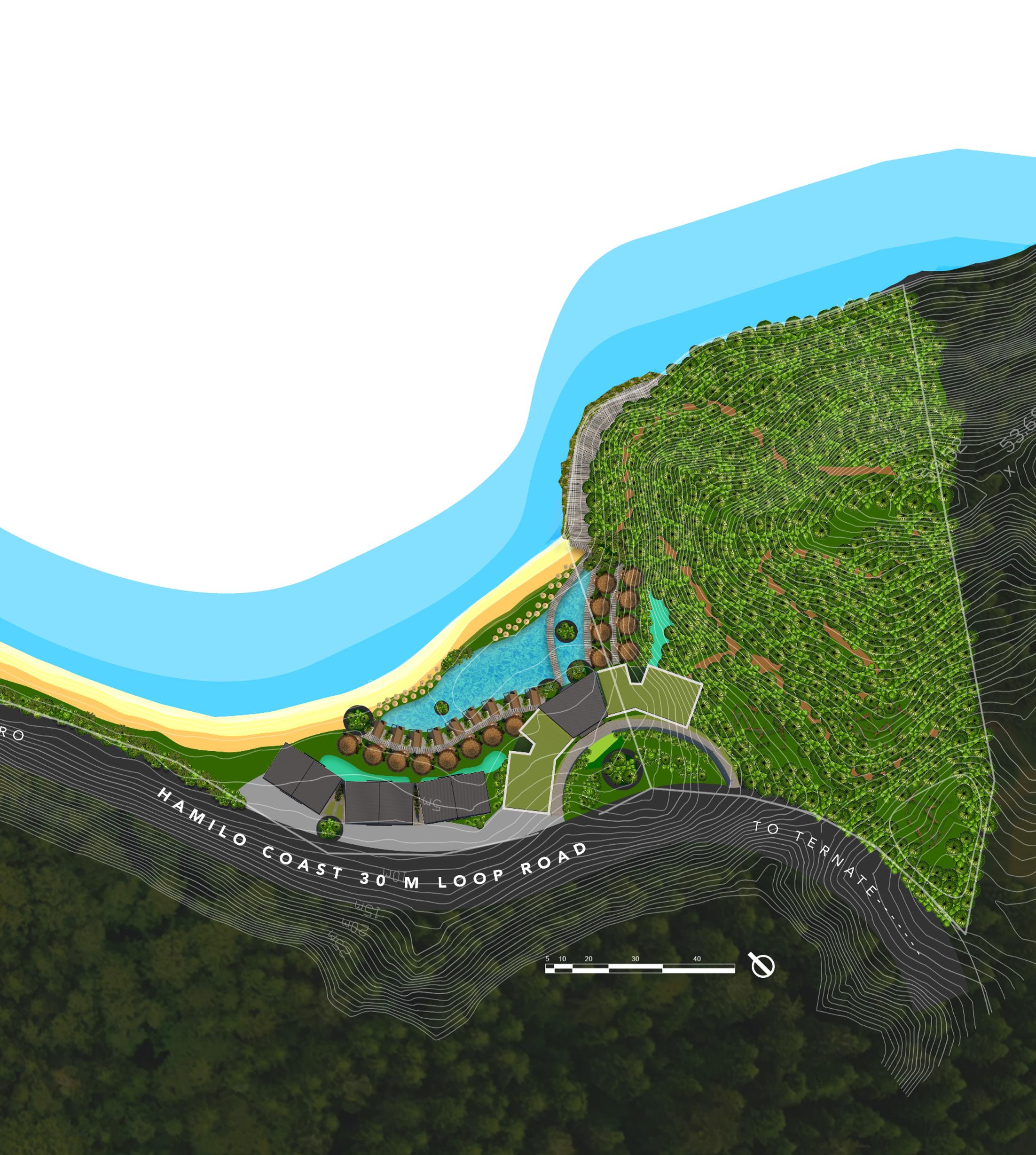

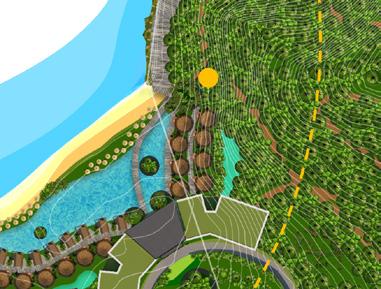

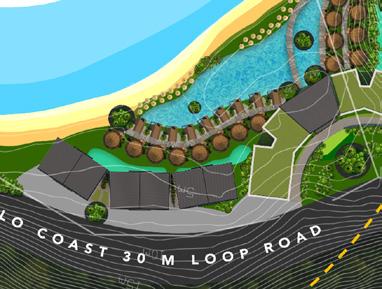

Master Site Development Plan

Couple

Family

Sea-side

Water

Aerial

Patungan Cove

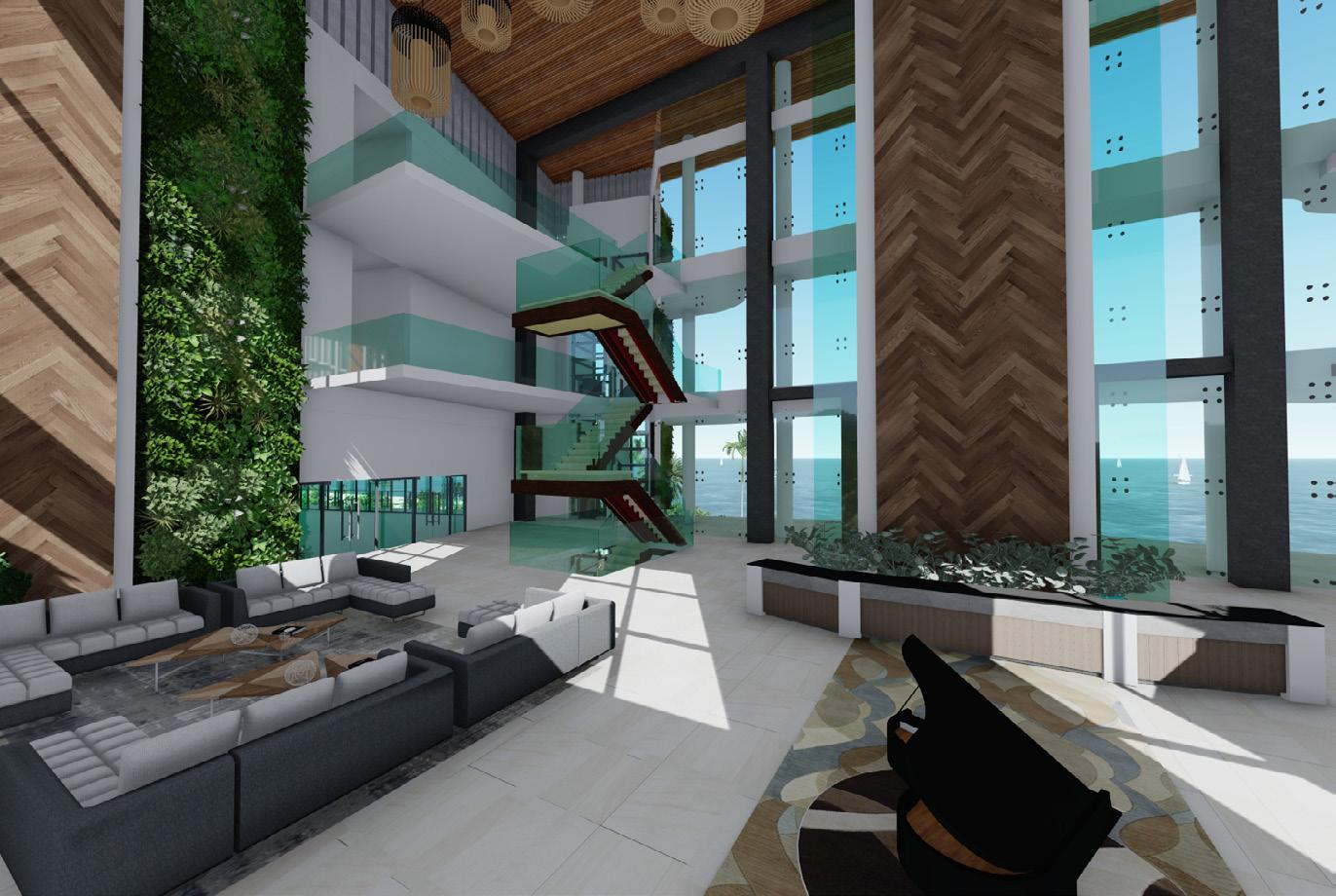

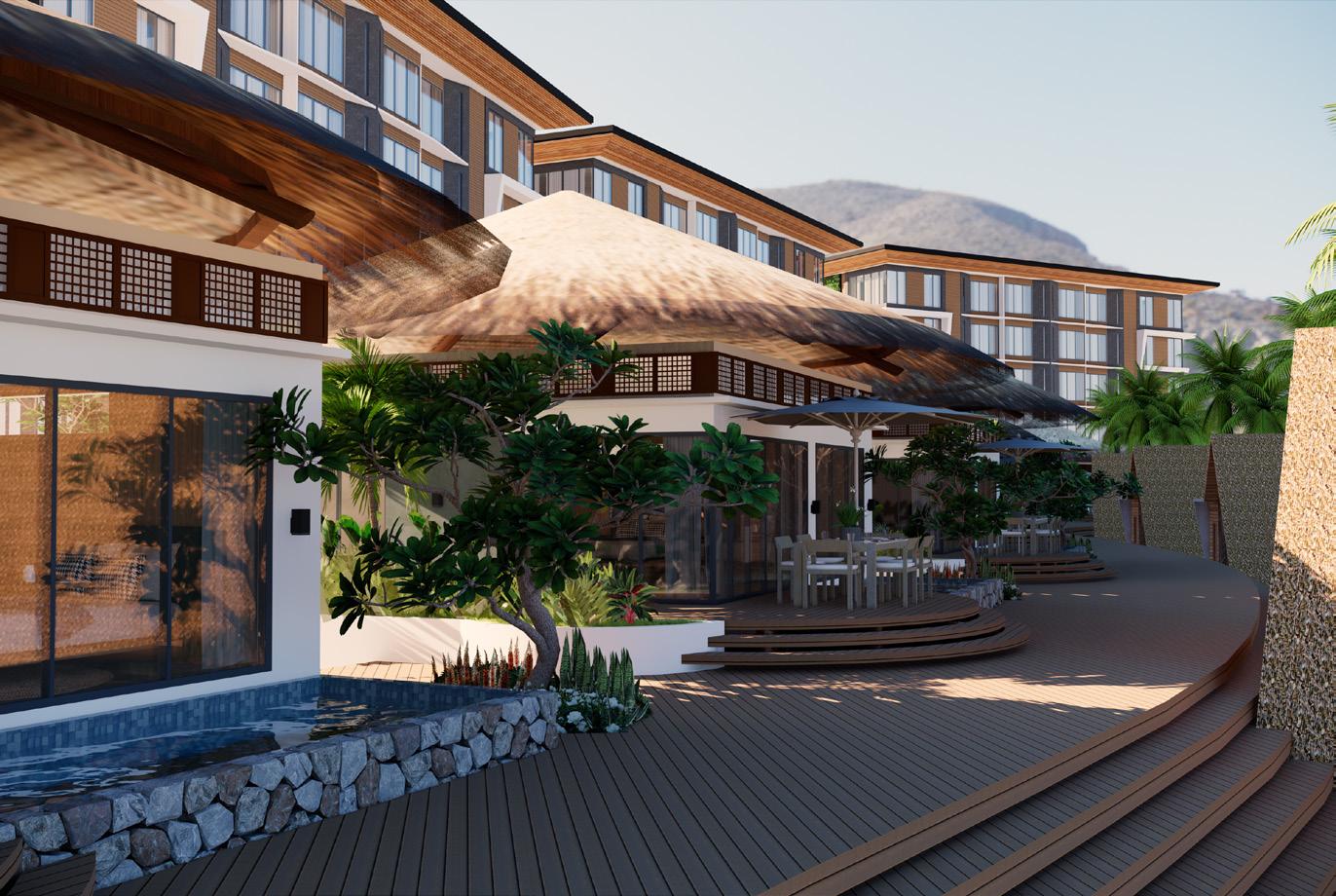

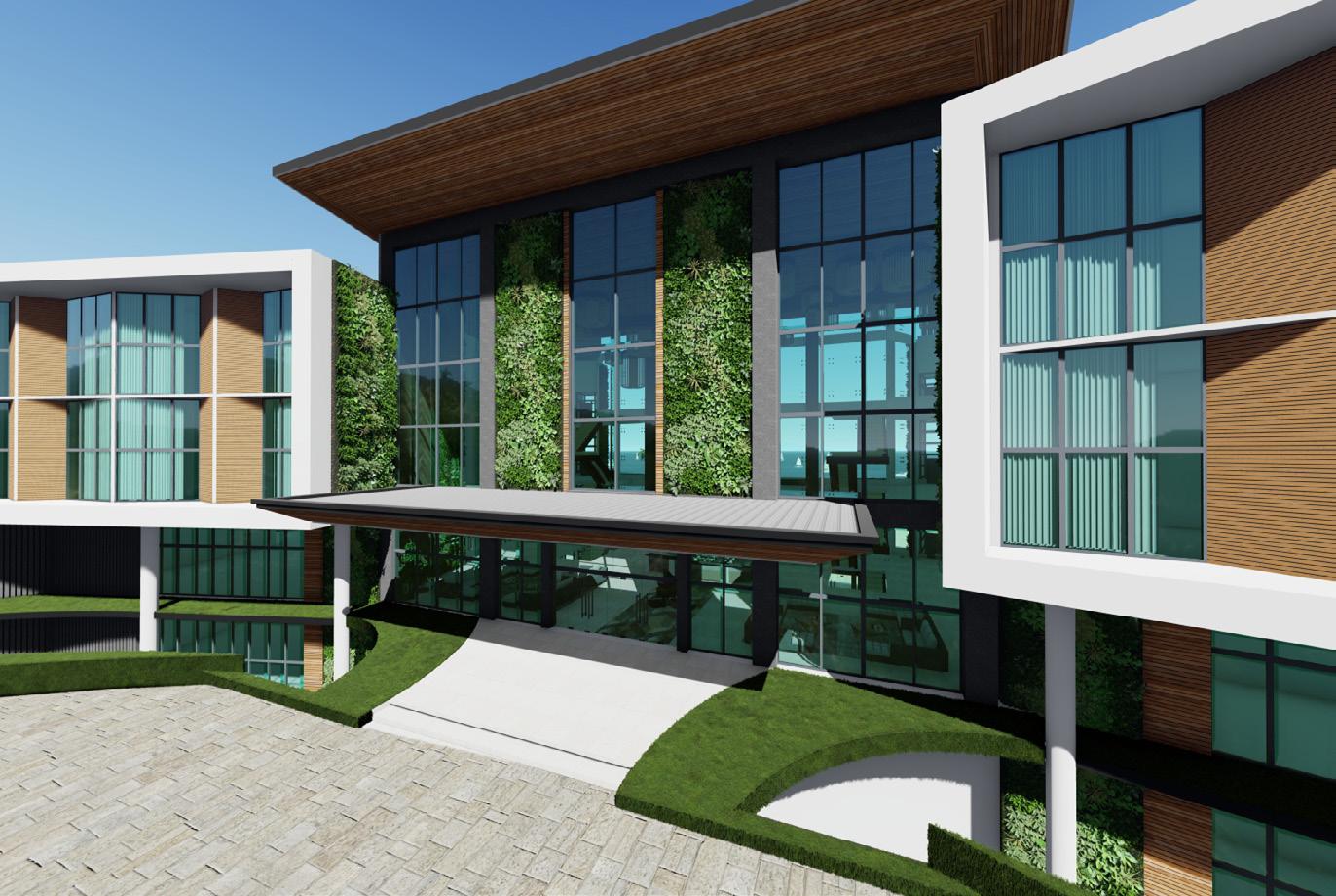

Main Poshtel Building

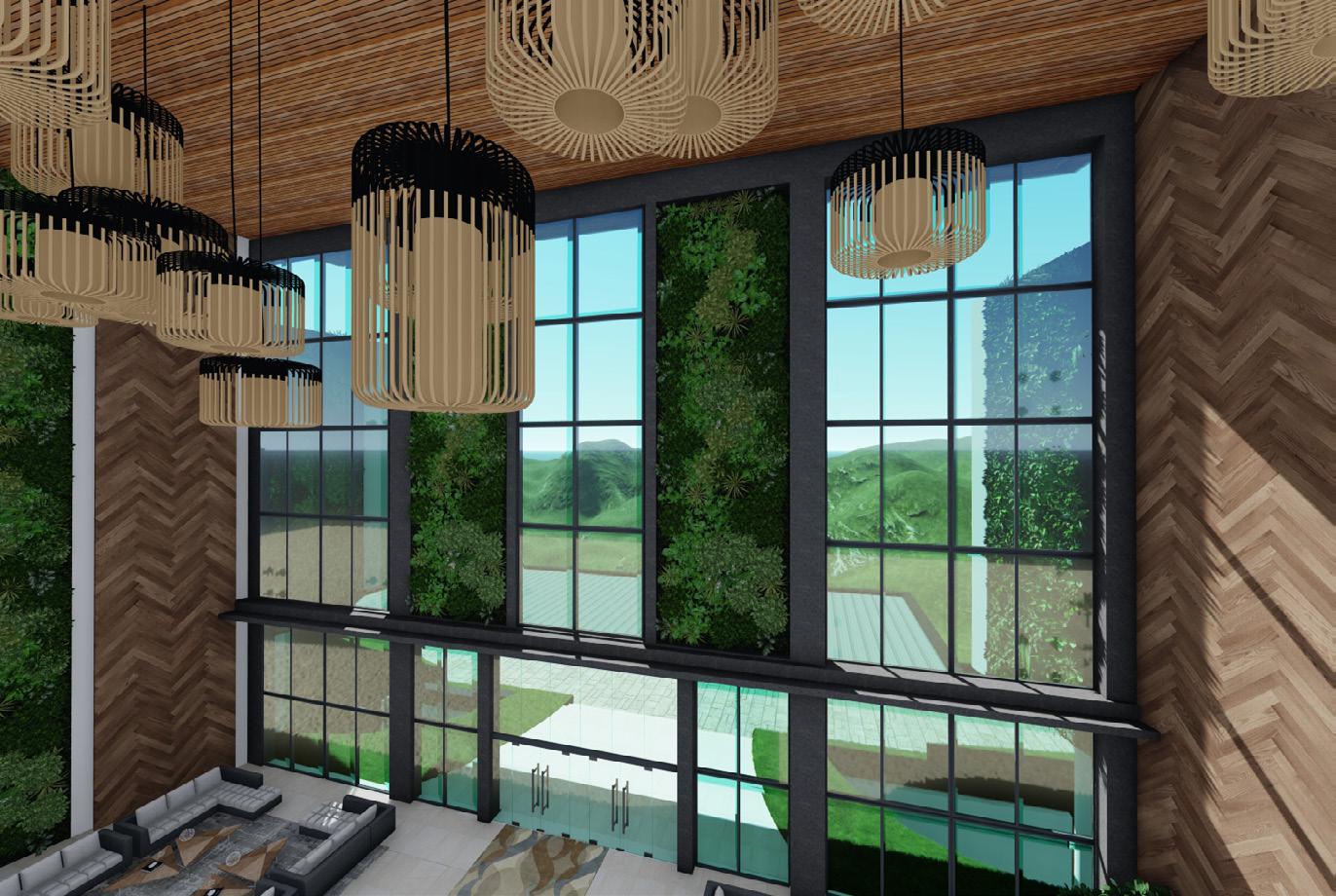

Main Poshtell: The Main Poshtell building offers a stunning arrival experience, featuring panoramic mountain and sea views from an elevated second-floor lobby adorned with green walls and quality flooring materials.

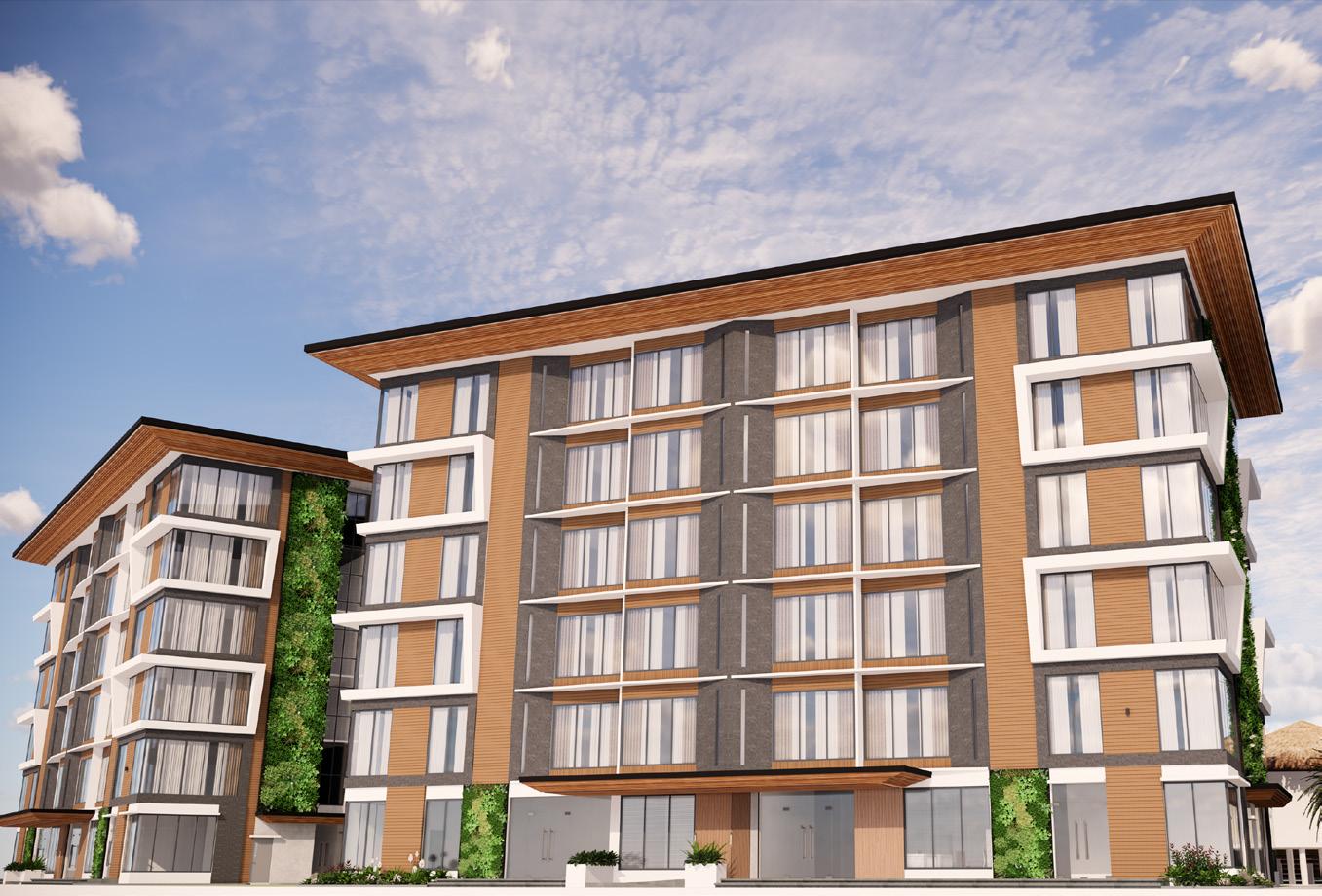

Annex Poshtel Building

Annex Poshtel: Promises an exceptional guest experience with its cozy double-bed units on the upper floors, where guests can bask in the breathtaking views from their windows, creating a serene and welcoming atmosphere.

The ground floor further enhances this experience with a vibrant restaurant, retail store, and a welcoming lobby, ensuring a well-rounded and memorable stay for all visitors.

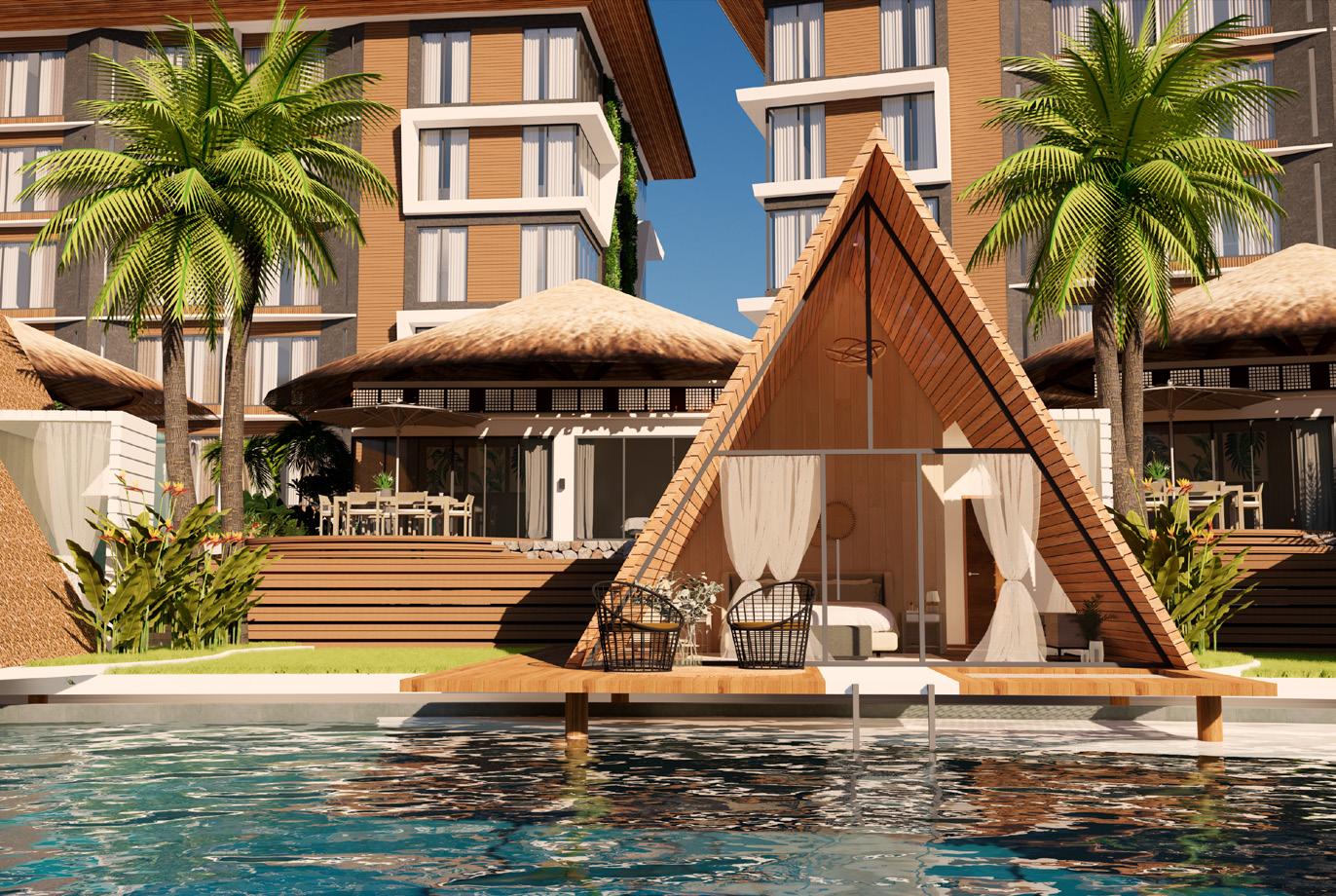

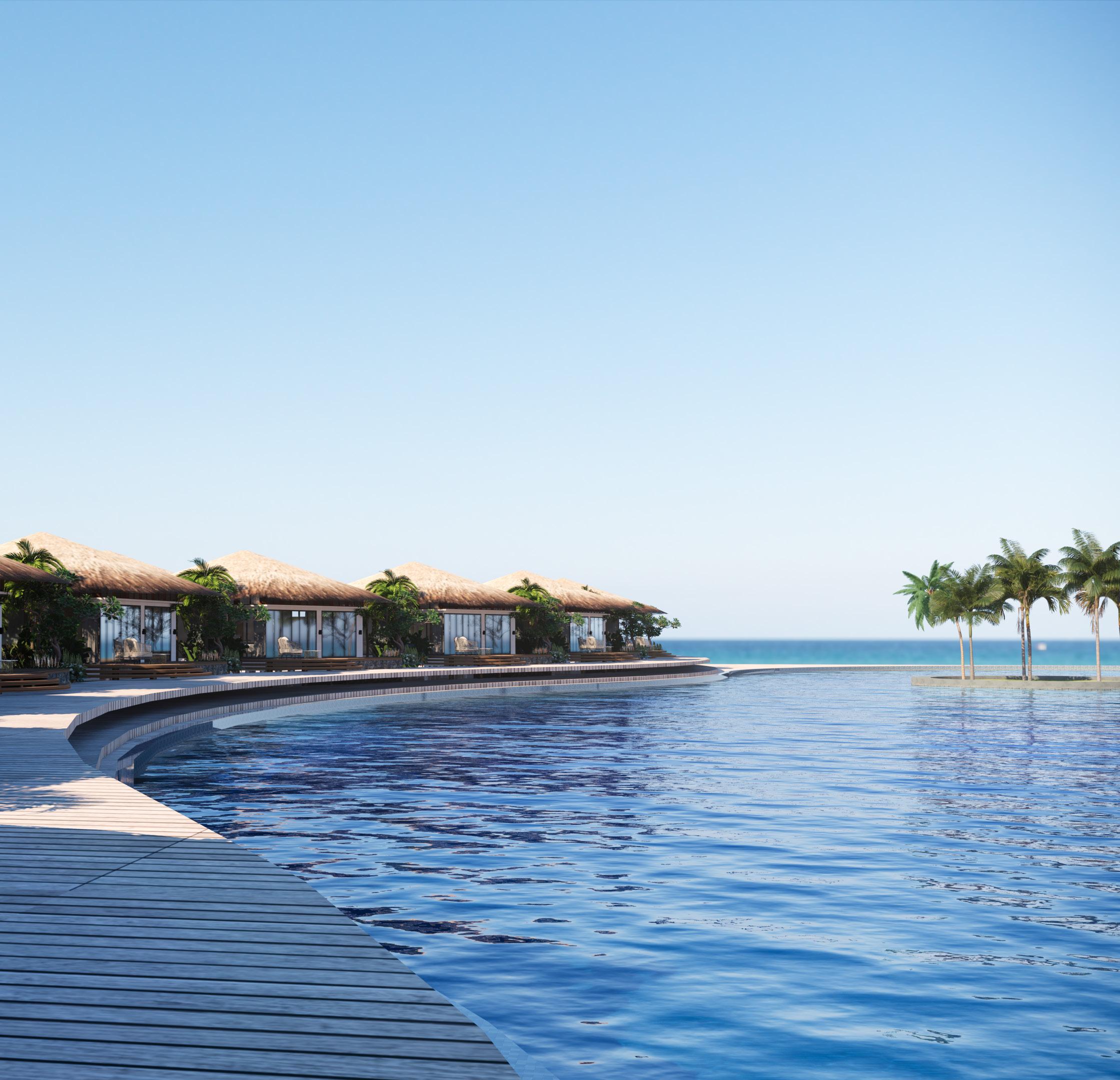

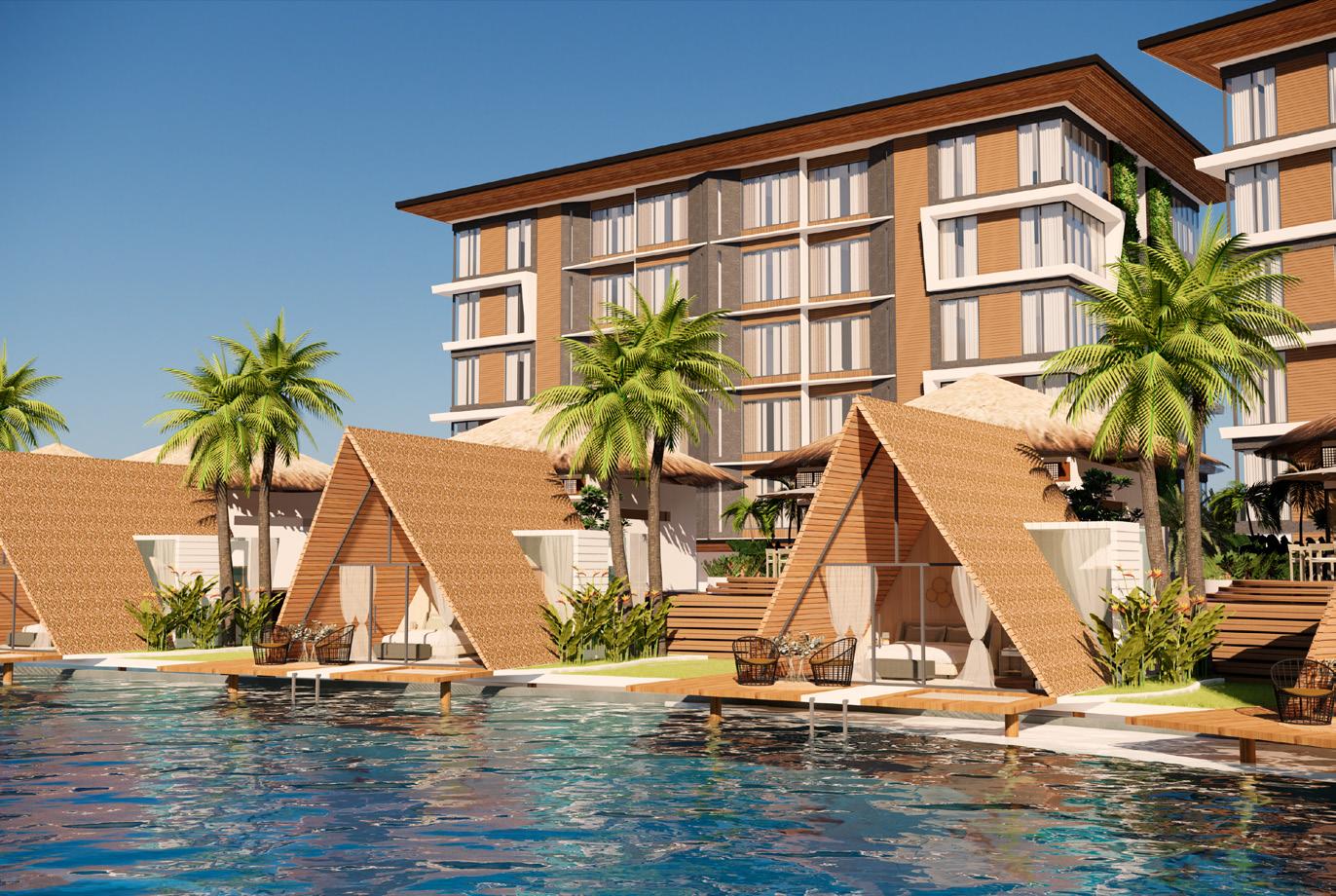

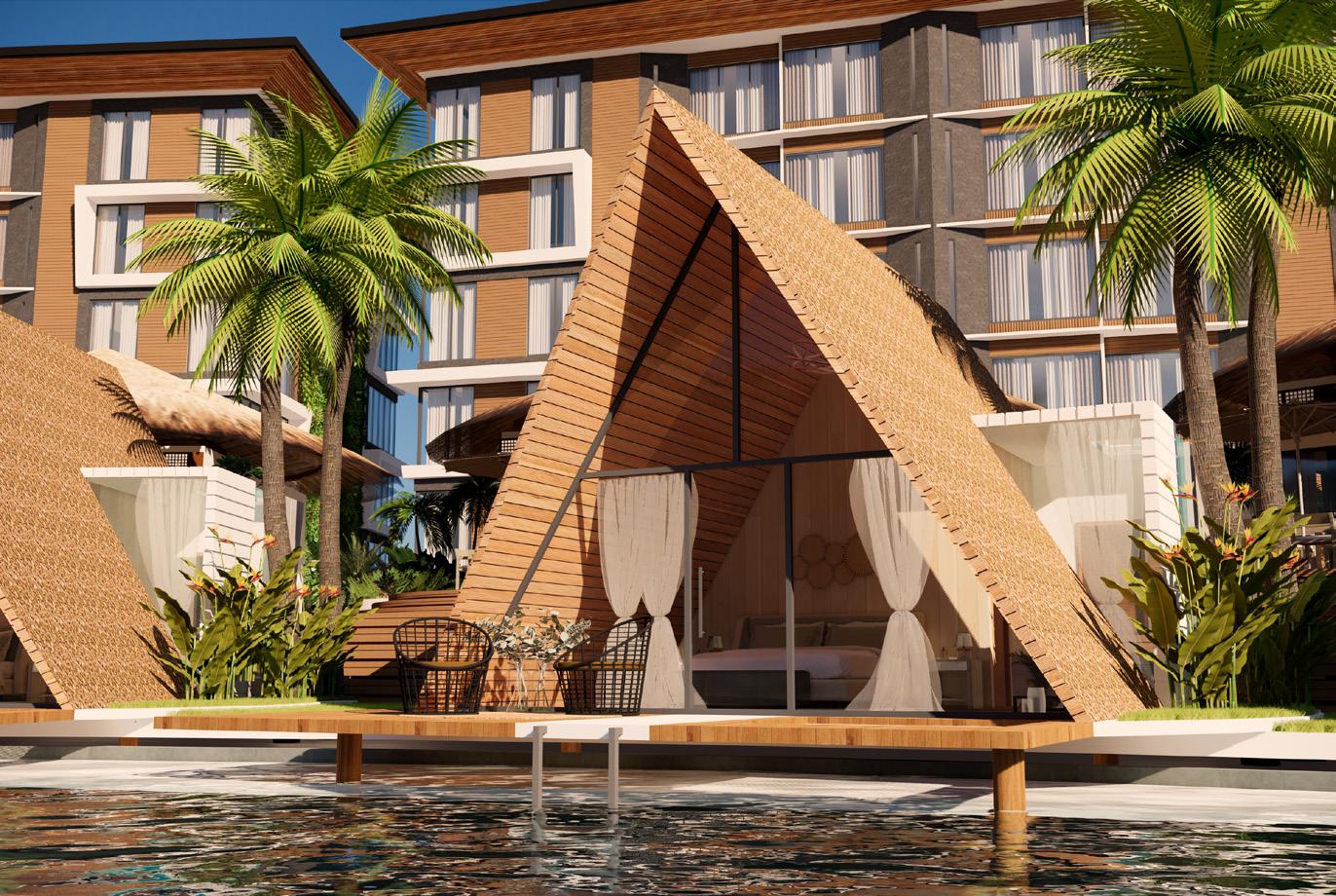

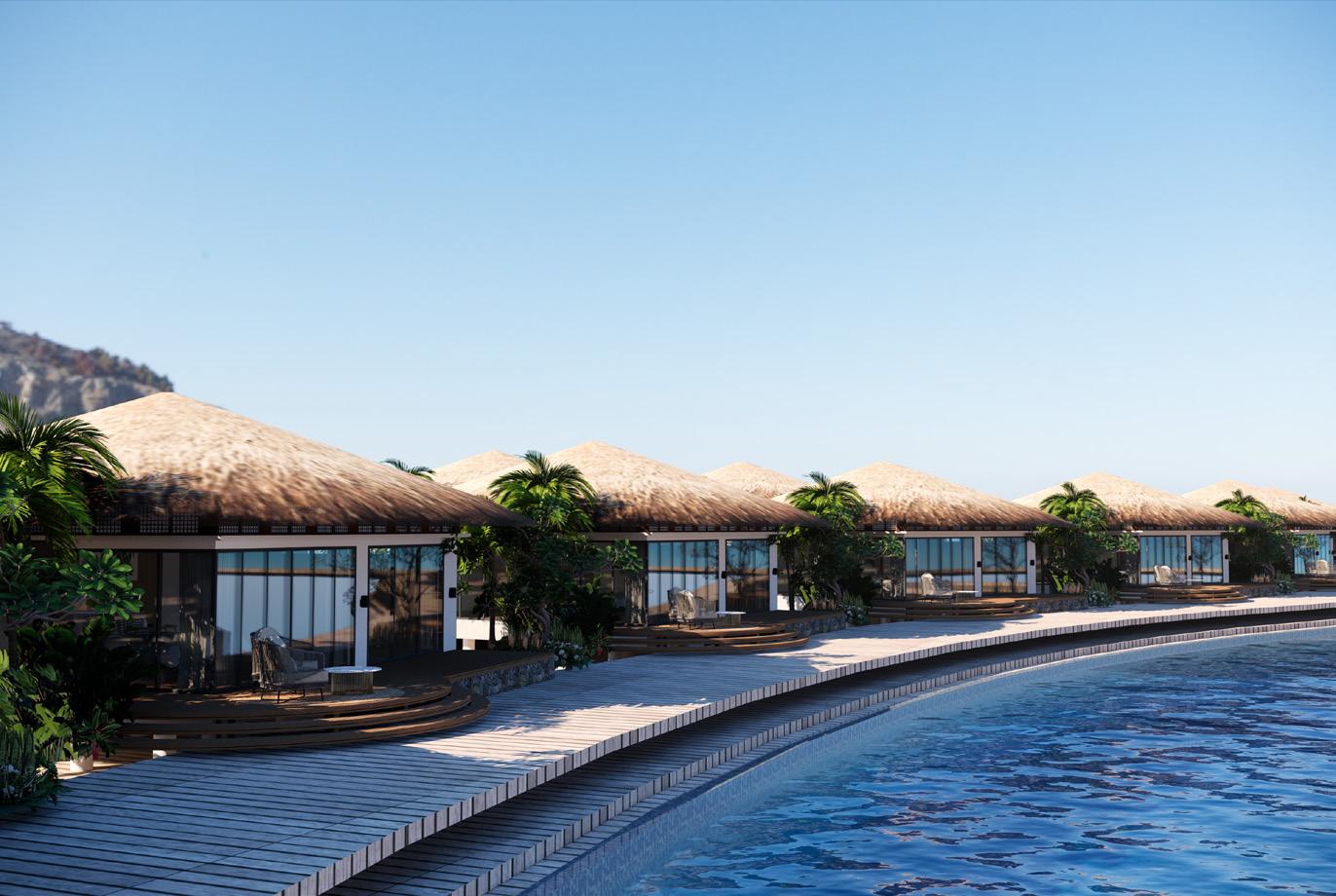

Couple’s Cabin

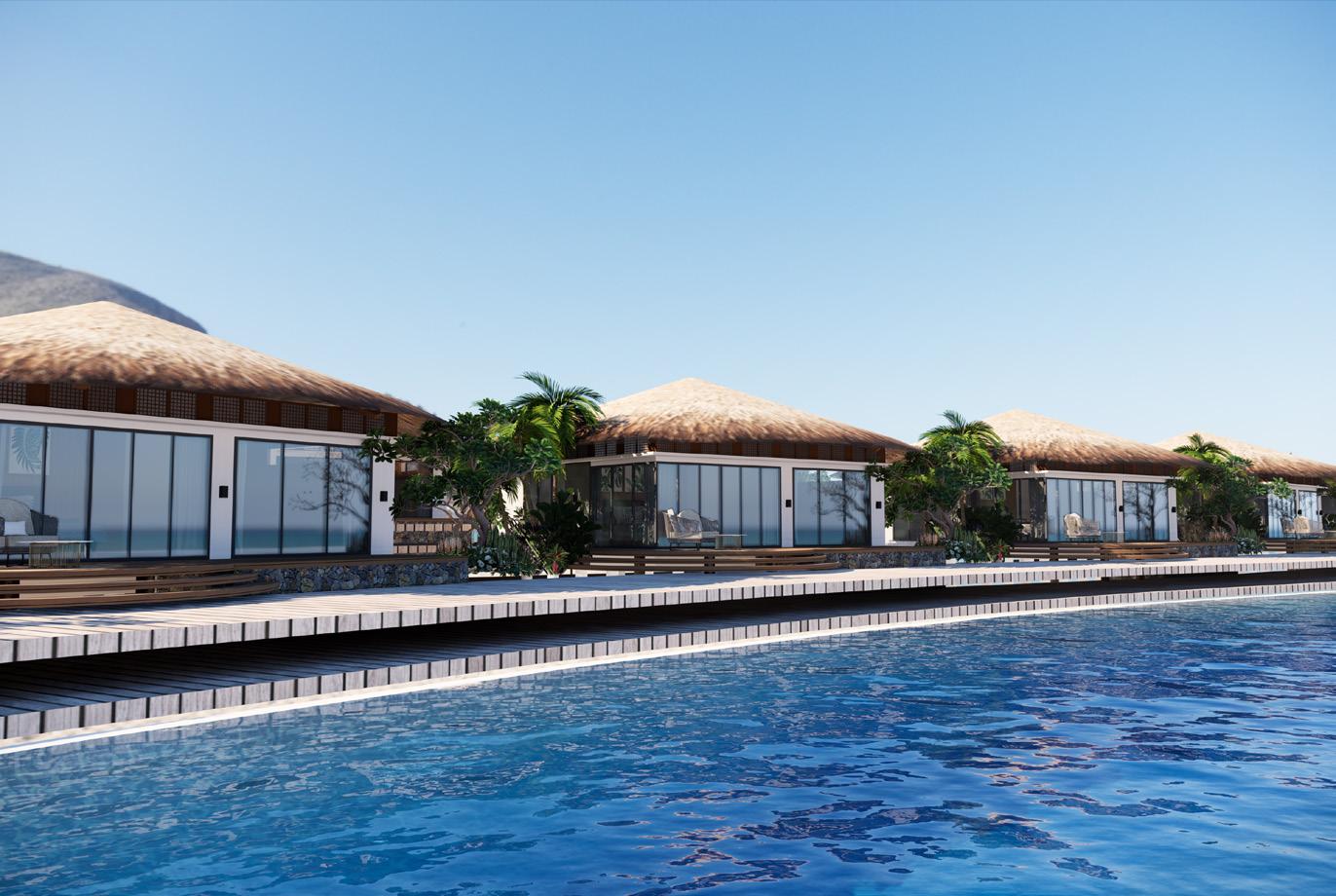

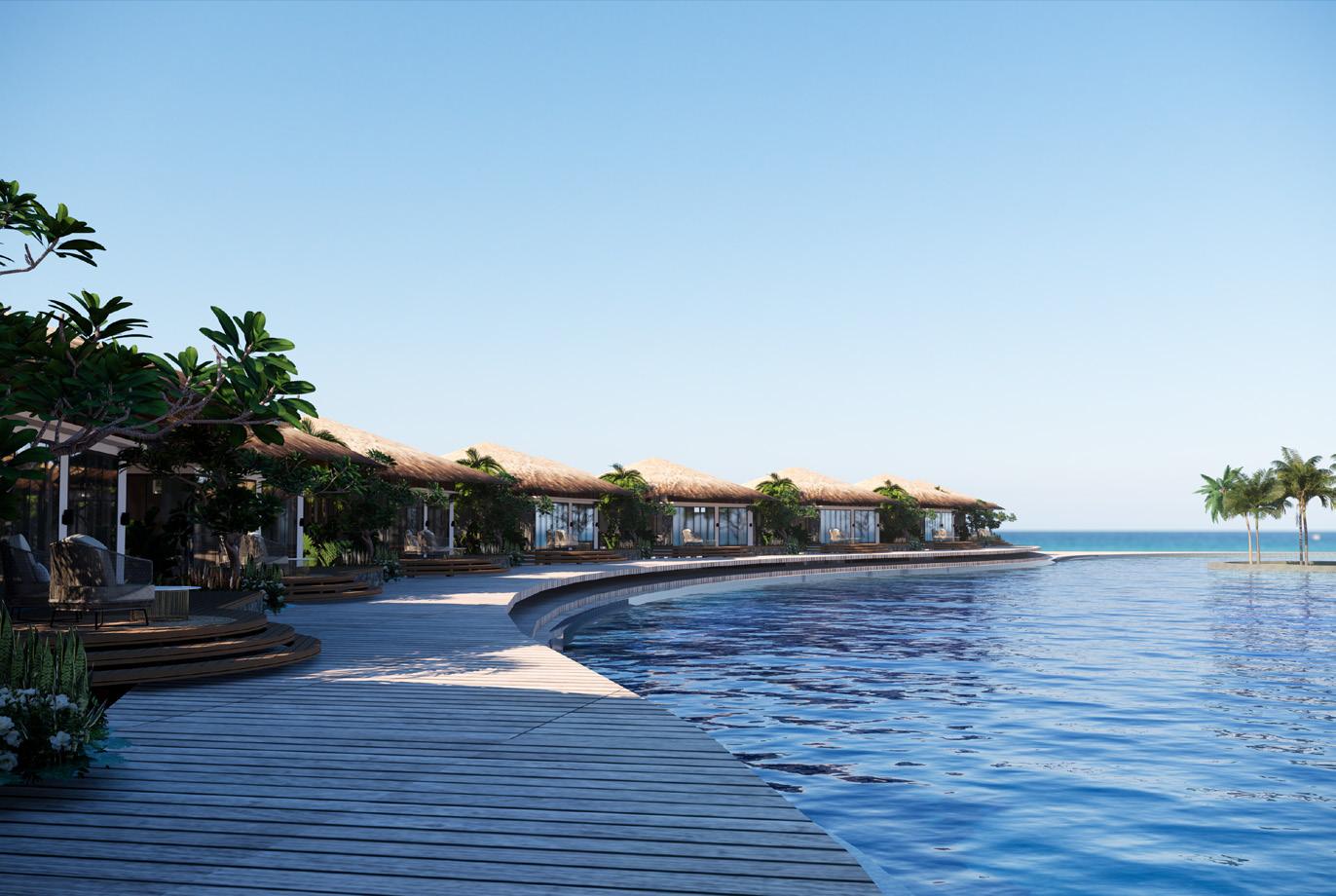

Couples Cabins: Rooms offer a tranquil setting for relaxation, featuring a modern design that harmonizes with nature, as well as a relaxing terrace overlooking the infinity pool merging with Patungan Cove.

Group Cabin

Group cabin: The Group Cabin for 6 pax provides luxury and comfort, with modern, clean rooms in neutral shades that blend with the natural surroundings, offering a serene atmosphere for guests. Additionally, the cabin features a beautiful infinity pool merging with Patungan Cove and a plunge pool.environment for guests.

Family Cabin

Family Cabin: is for 4 pax, it come with living rooms, bedrooms, and bathrooms with separate tubs and showers. include large TVs, balconies, sofas, and closet space. the family cabin are set amid gardens and have more luxurious bathrooms and hardwood floors that match the contemporary and natural surrounding. The cabin also feature plunge pool infront giving a panoramic view over infinity pool of Patungan cove.
