Architecture Portfolio - Vatsala Rani

Page 1


2. Bling Square, Bhopal, India

3. Commerce Pundit, Ahmedabad, India

4. Commercial Development, Marian Park, Mangalore, India

5. Dr. Ankur Shah’s residence, Ahmedabad, India

6. Hospital, Udupi, India

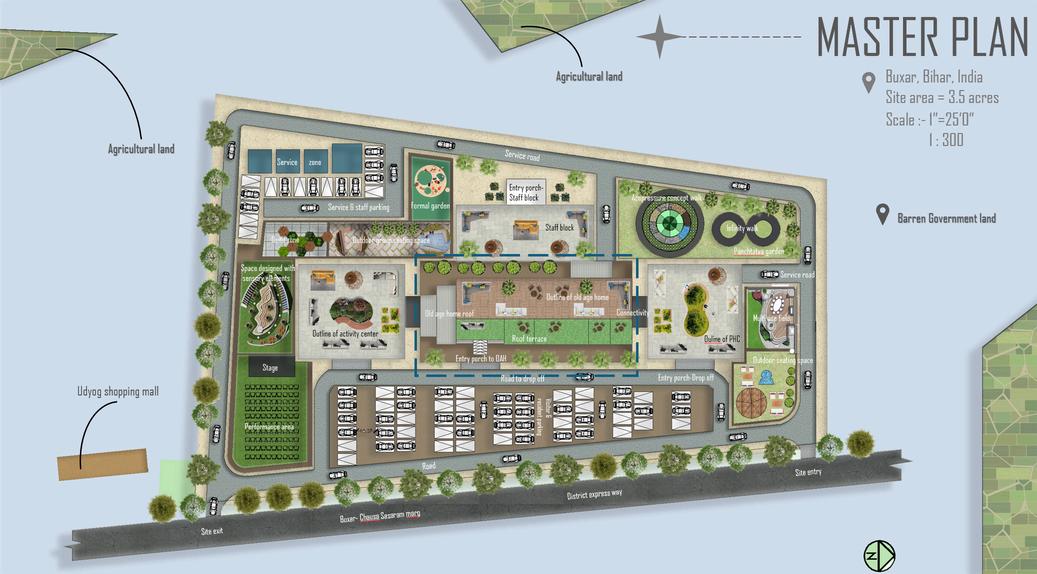

01. Harmony Haven

Project type: Multi-residence housing facility

Location: Buxar, Bihar, India

Thesis topic: Senior citizen living following healing architecture using Sustainable Design features

Aim: To create space for old, underprivileged natives of the country with spaces that can transform human performances and take care of their well-being.

Concept - Sustainable Design

The design focuses on an old age home with meticulous attention to detail The primary objective is to craft a building that is not only aesthetically pleasing but also functionally robust and sustainable The design incorporates several sustainable features to enhance the residents' quality of life and minimize environmental impact Key elements include a central courtyard with a skylight to bring in natural light, a strong connection to nature with abundant greenery, and passive design principles to optimize energy efficiency The building boasts openness and ample natural lighting through large windows and doors, promoting a sense of well-being Water features and bio walls contribute to indoor air quality and add to the serene ambiance. Furthermore, the design emphasizes open spaces, increased vegetation, and solar shading to enhance comfort The standout feature is the concept of recess and relief in the building's form, complemented by extensive green terraces and roofs to maximize green space and sustainability.

Program and Facilities:

Old age home

Primary health care center (PHC)

Staff quarters

Activity center

Outdoor facilities

Parks

Panchtatva garden

Parking

Recreational space

Performance stage and seating

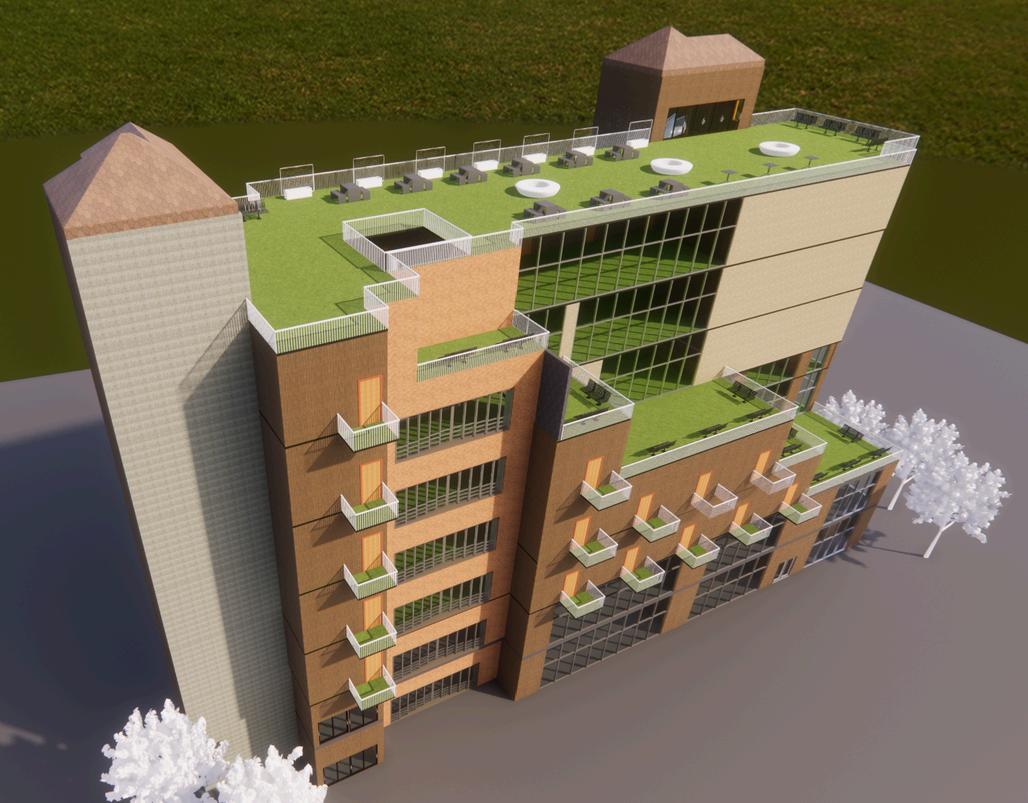

Rendered view

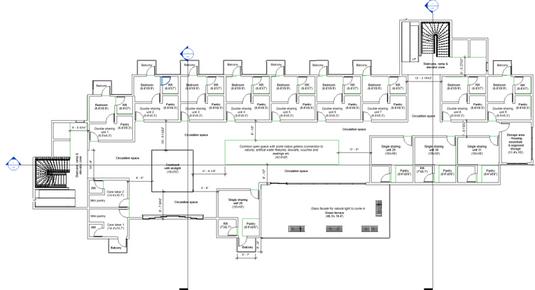

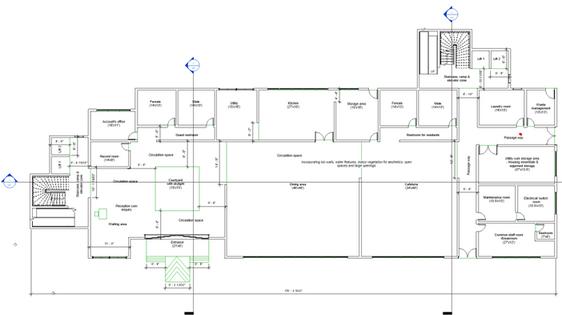

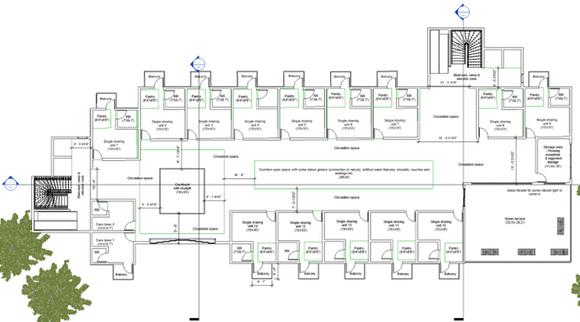

First floor
Scale: NTS All dimensions

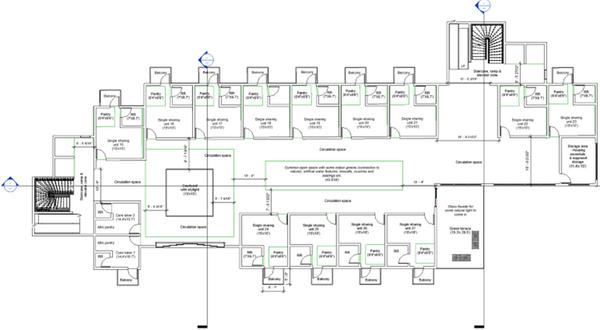

Second floor
Harmony Haven, Buxar, India

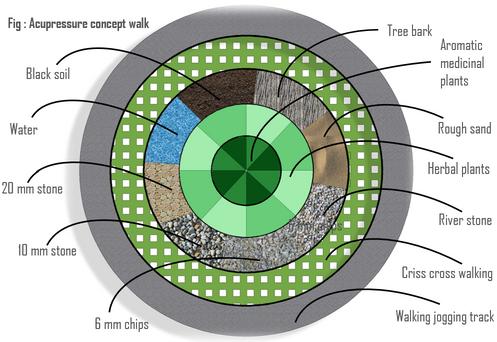

Panchtatva Garden Design
Third floor

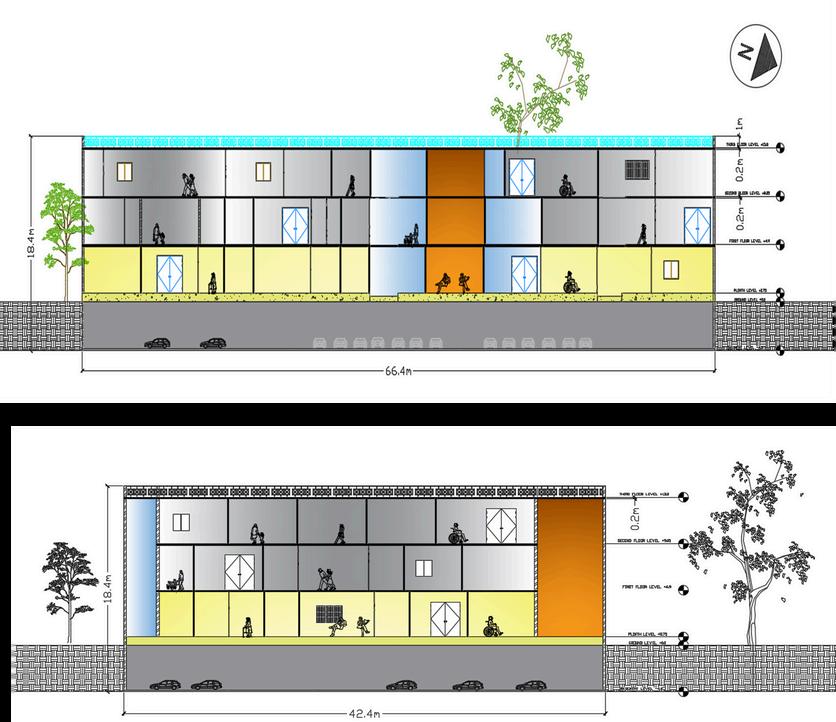

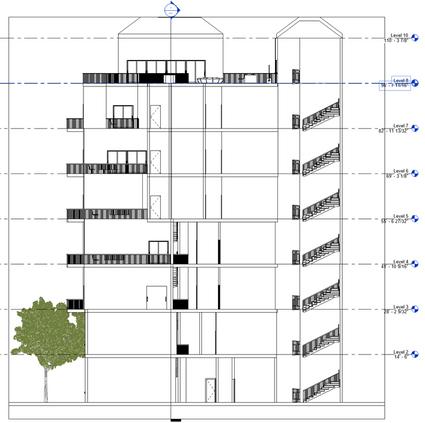

Section BB’
Section AA’
Fourth floor
Fifth floor

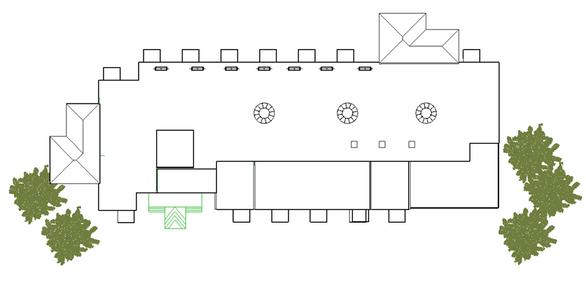

Roof Plan

Rendered view

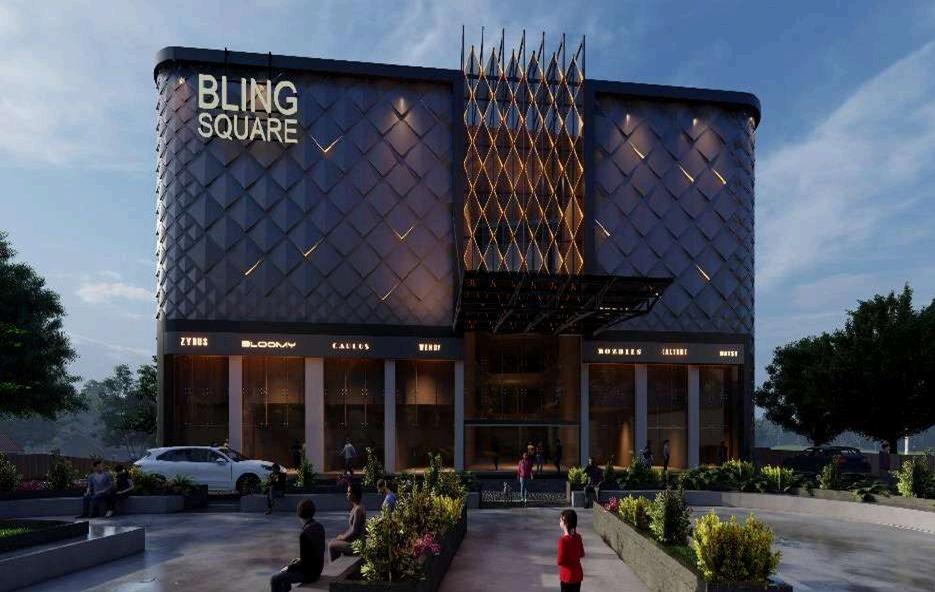

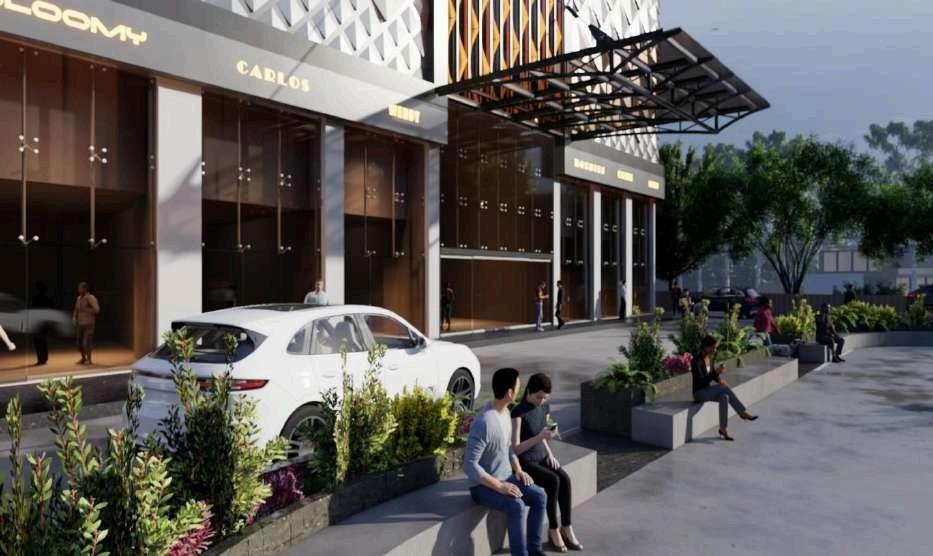

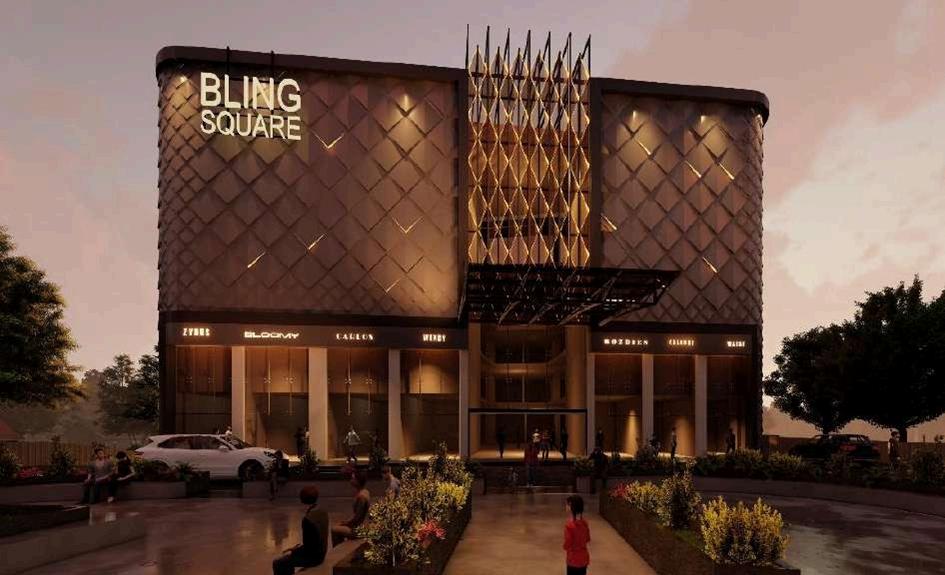

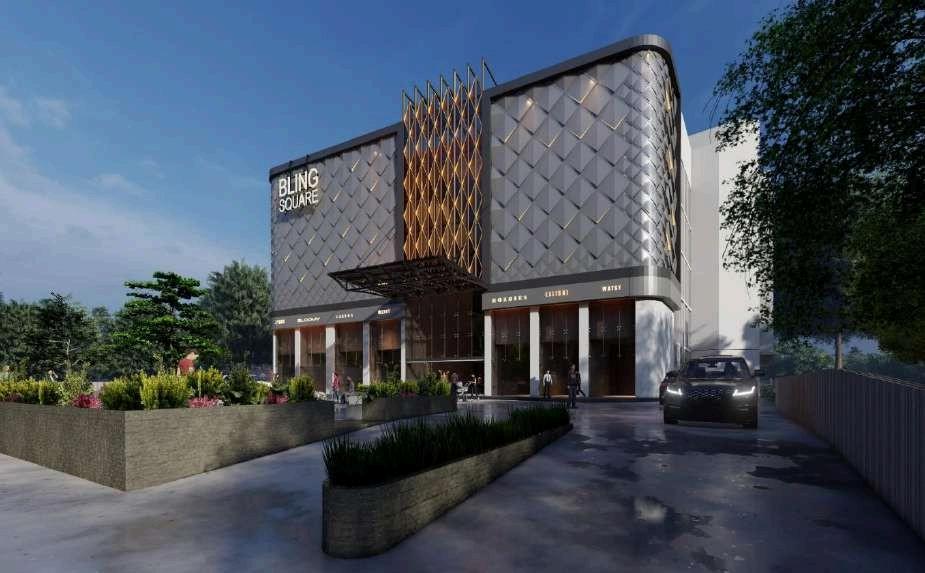

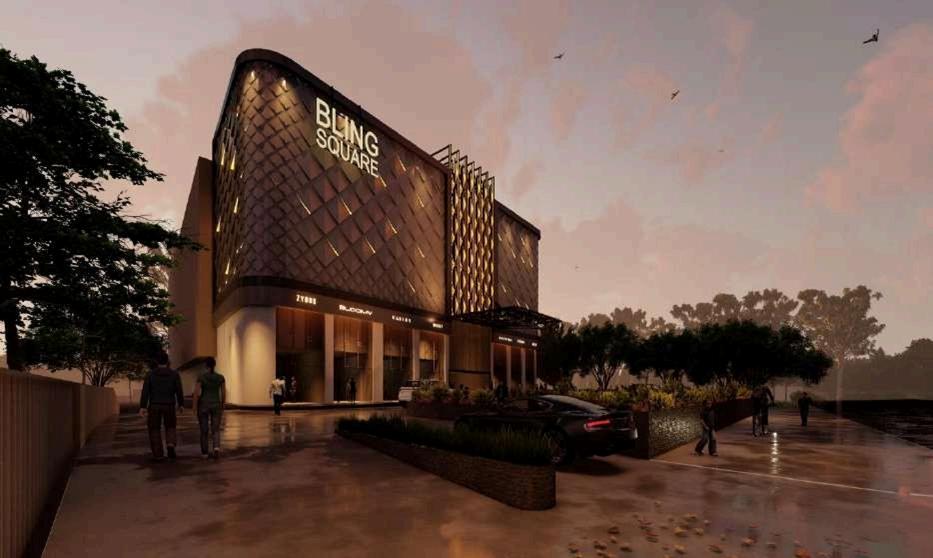

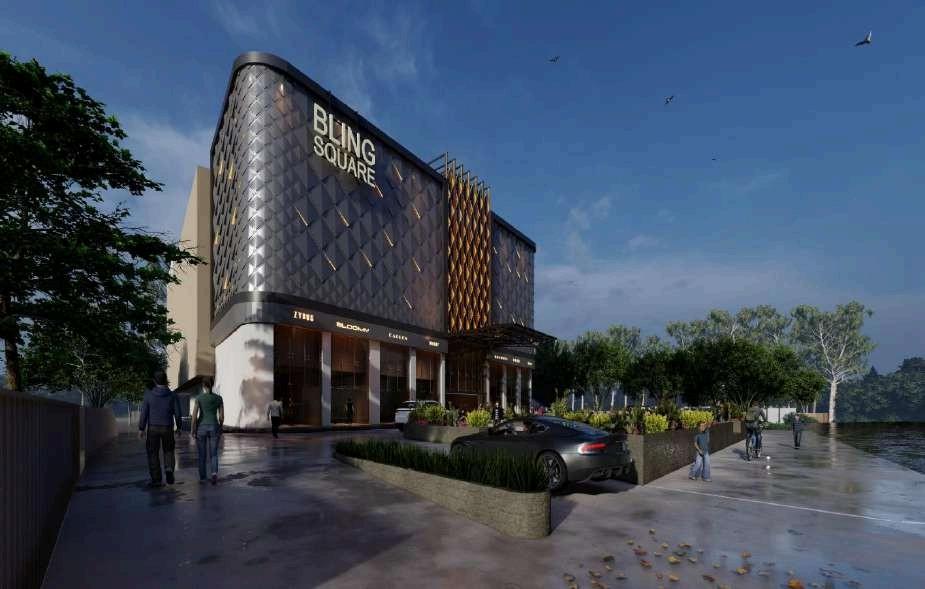

02. Bling Square

Project type: Commercial

Location: Bhopal, Madhya Pradesh, India

Brief: Bling Square is a five story shopping mall which has three basement floors with a total built-up area of around 22725 sq. meters.

Involvement:

Building elevations

Building sections

Building façade

Area statement

Shaft modification

Toilet detail

Footing detail

3D model

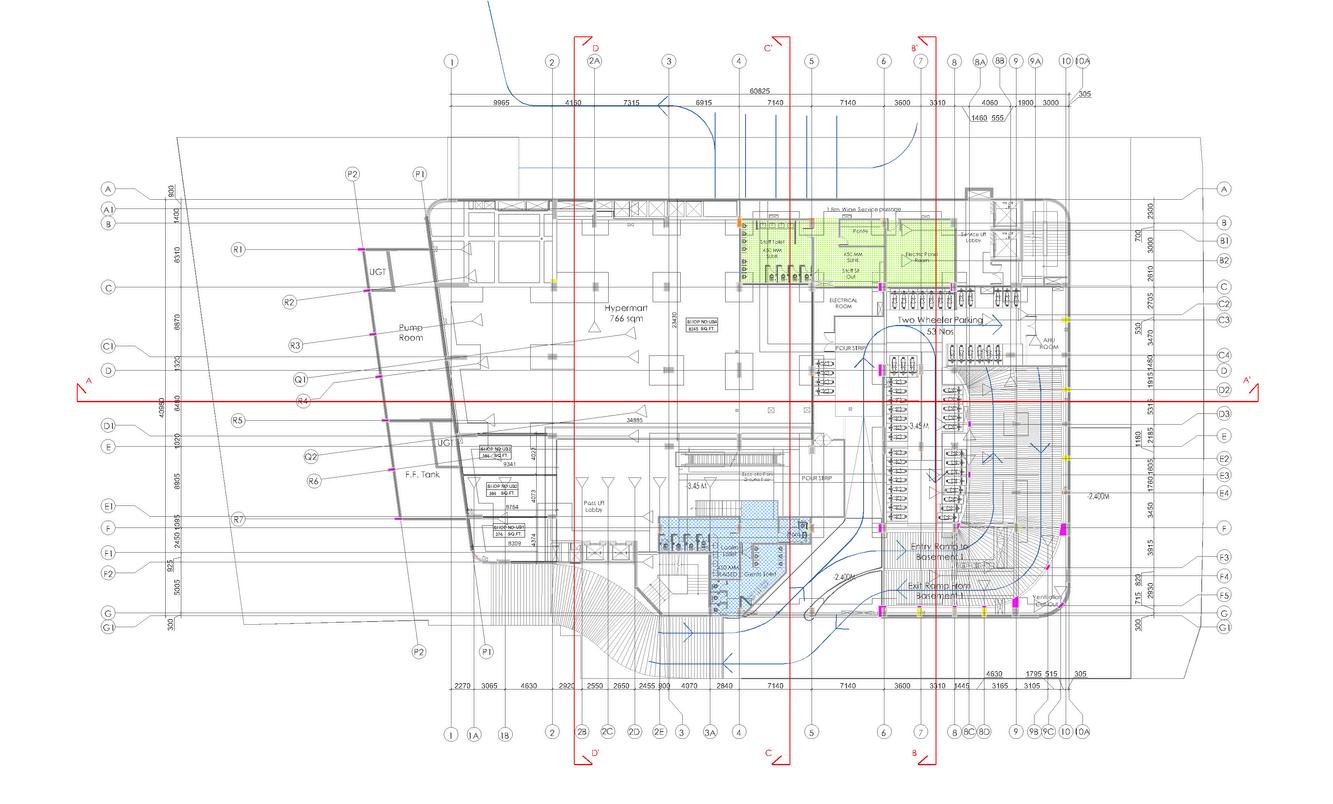

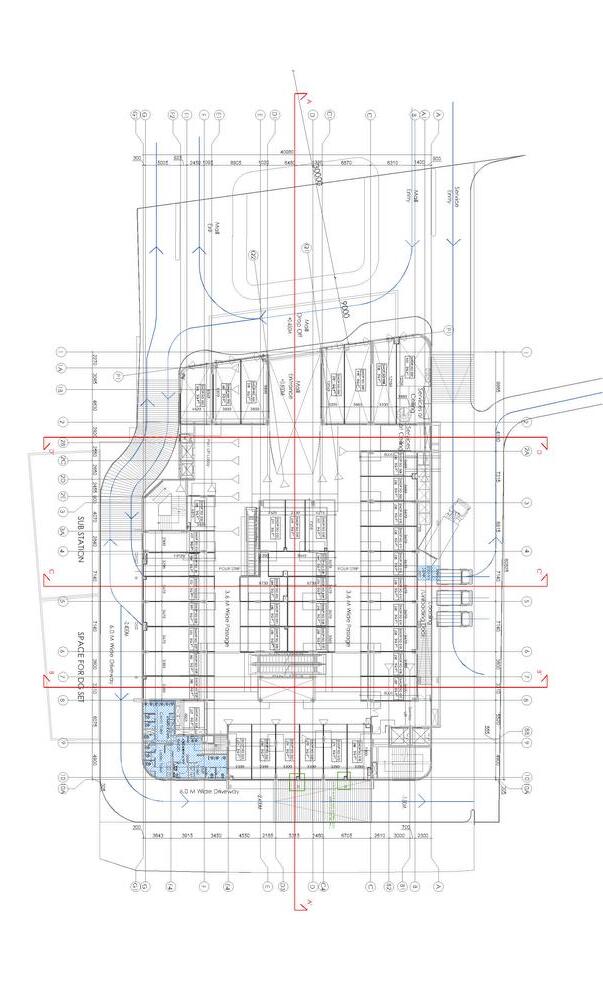

Upper basement floor plan
Scale: NTS All dimensions are in mm
Ground floor plan
Terrace floor plan

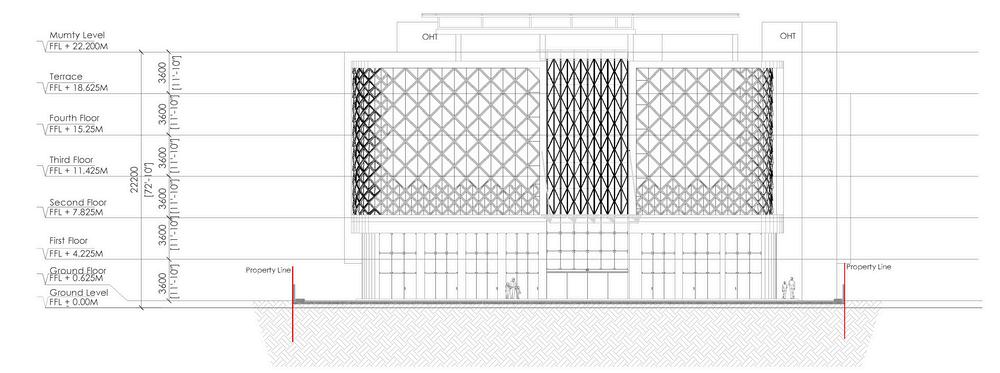

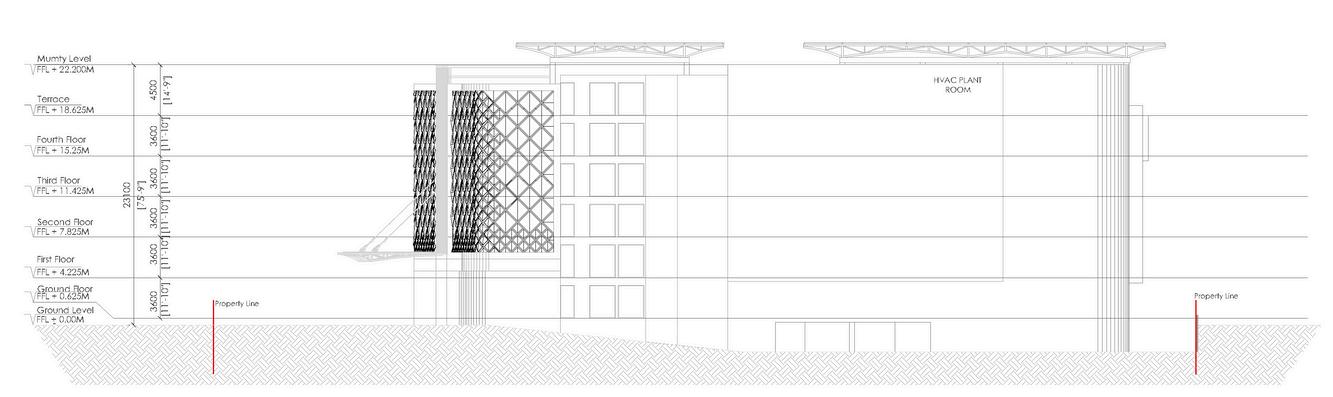

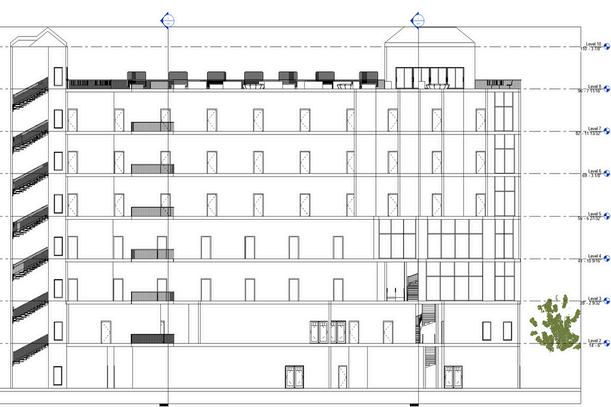

North side elevation
West side elevation Scale:

NTS All dimensions are in mm

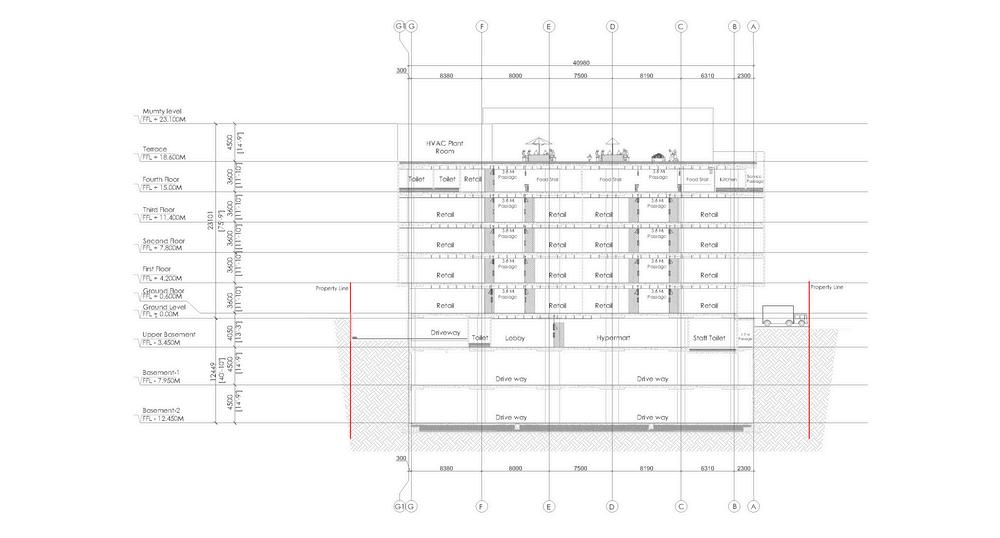

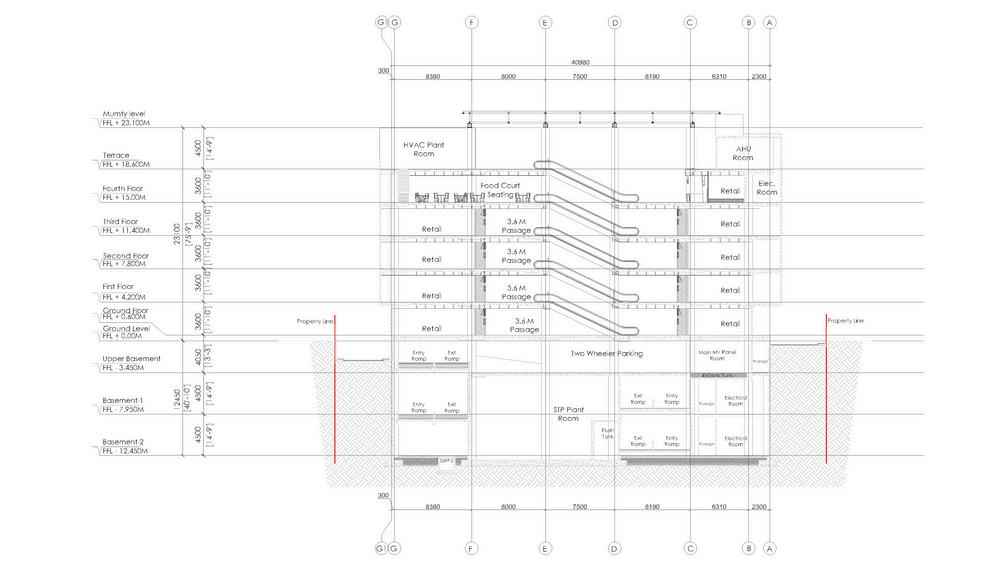

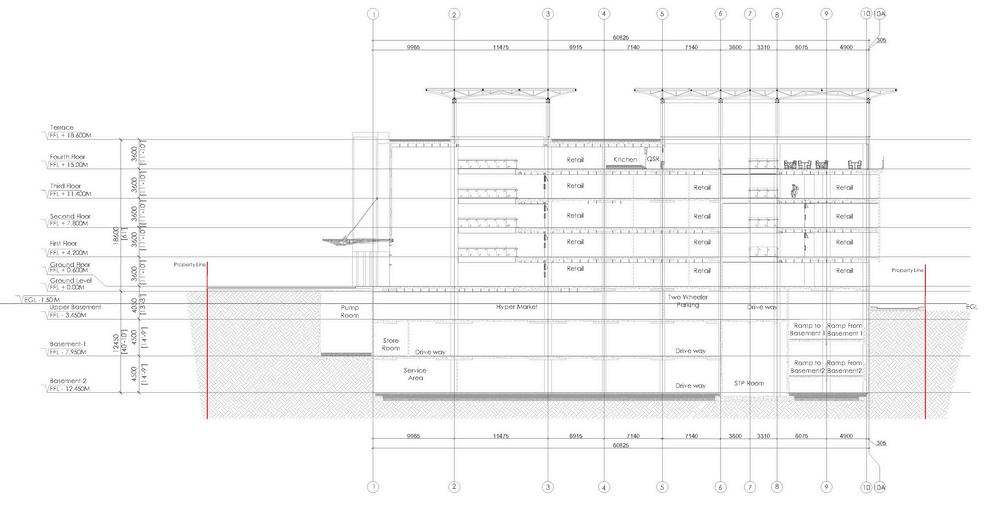

Section AA’
Section BB’
Section
Scale:

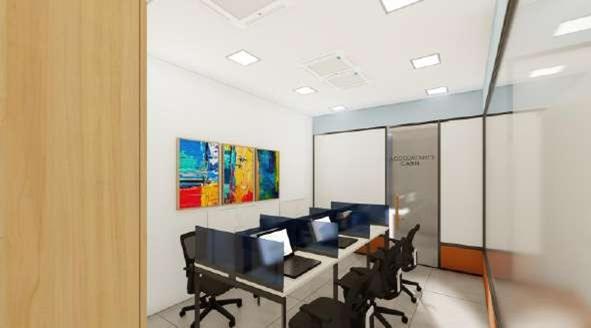

03. Commerce Pundit

Project type: Commercial

Location: Ahmedabad, Gujarat, India

Brief: Commerce Pundit is an IT (Information technology) service providing company which has their offices in different states across India and in the USA as well Their office at Adani Shanti gram is 15,000 sq. ft approx. spread over five floors, which has executive offices, workstation, game zone and a canteen that can accommodate 300 employees.

Involvement:

Pantry Detail

Toilet Detail

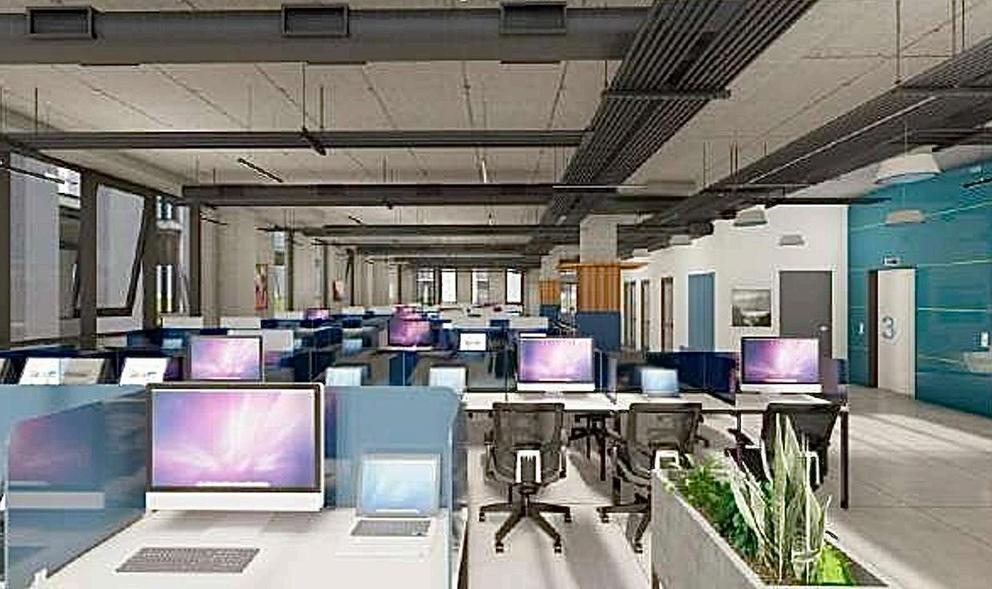

Furniture layout

Storage elevation

Cabin elevation

Site visit

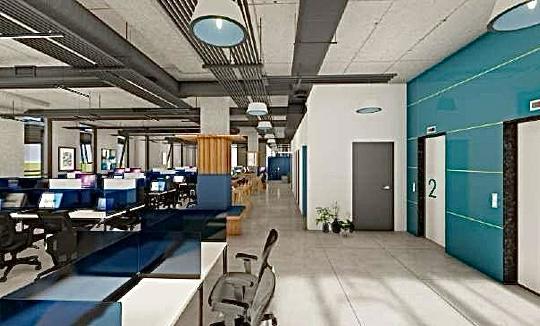

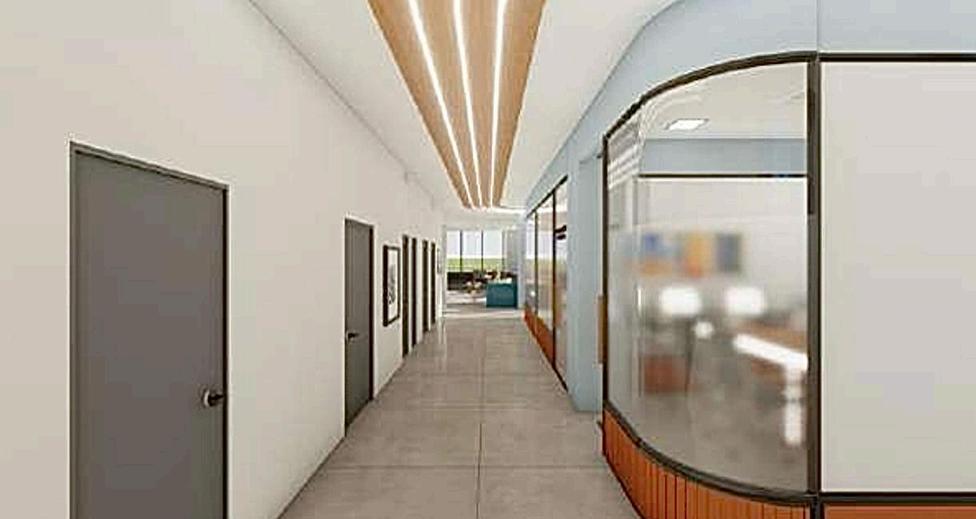

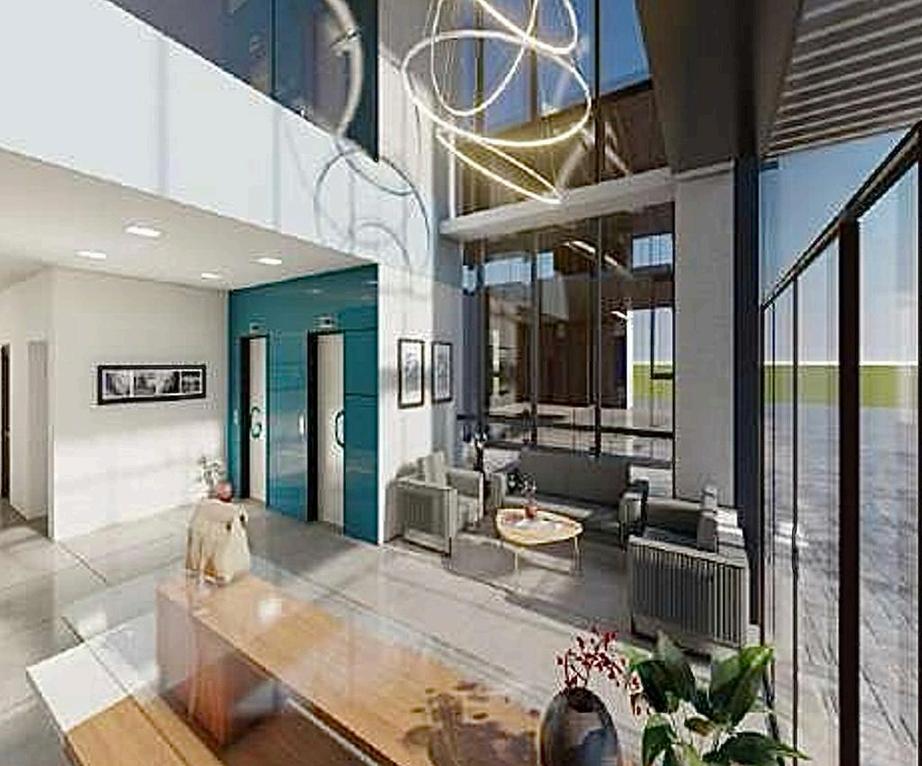

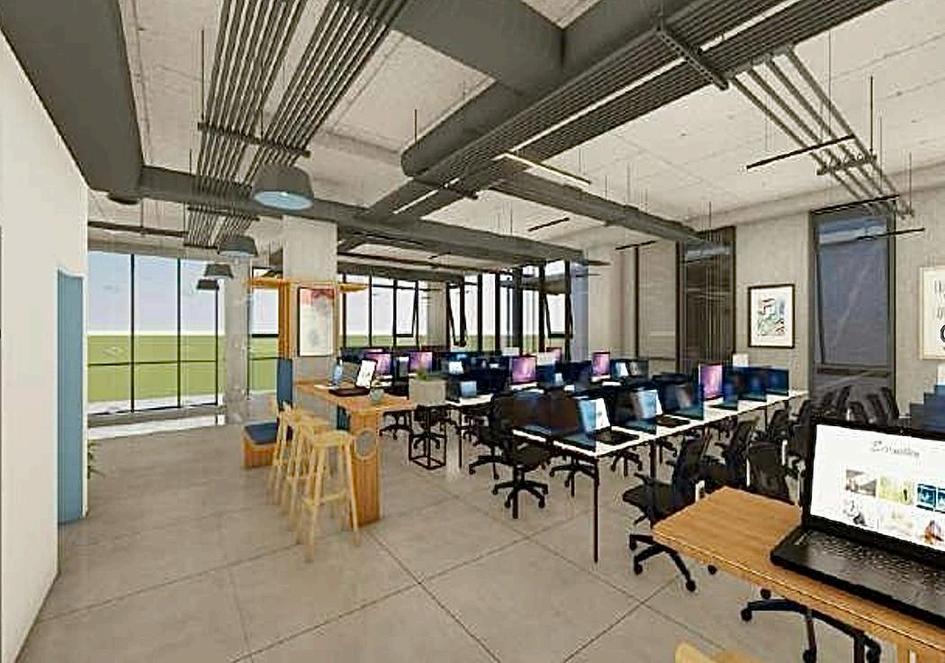

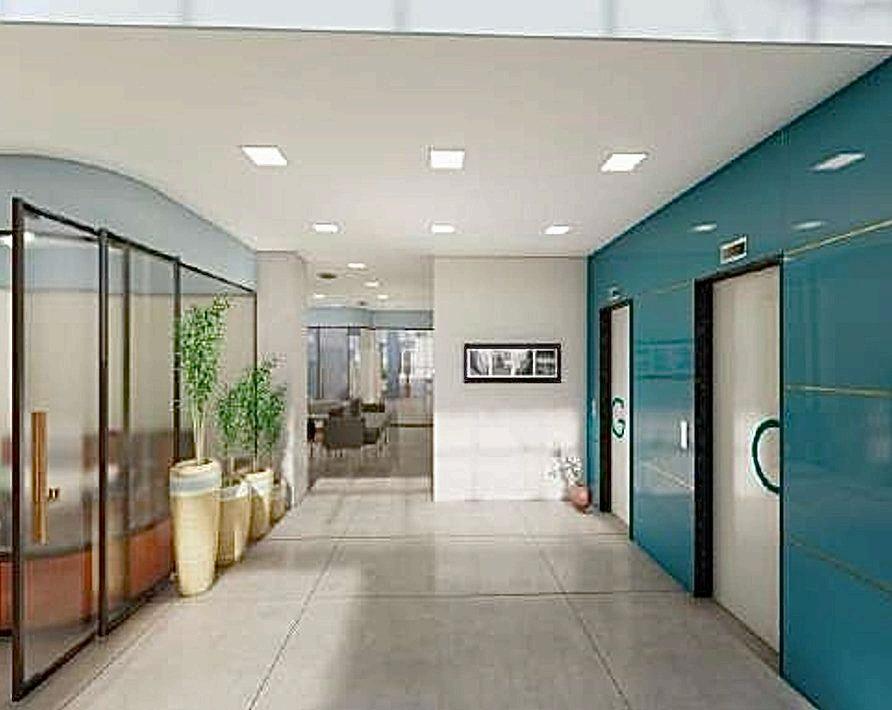

Rendered view - Foyer area
Section AA’
Section BB’
Section CC’
First, second and third floor toilet plan
Folded elevation of female town

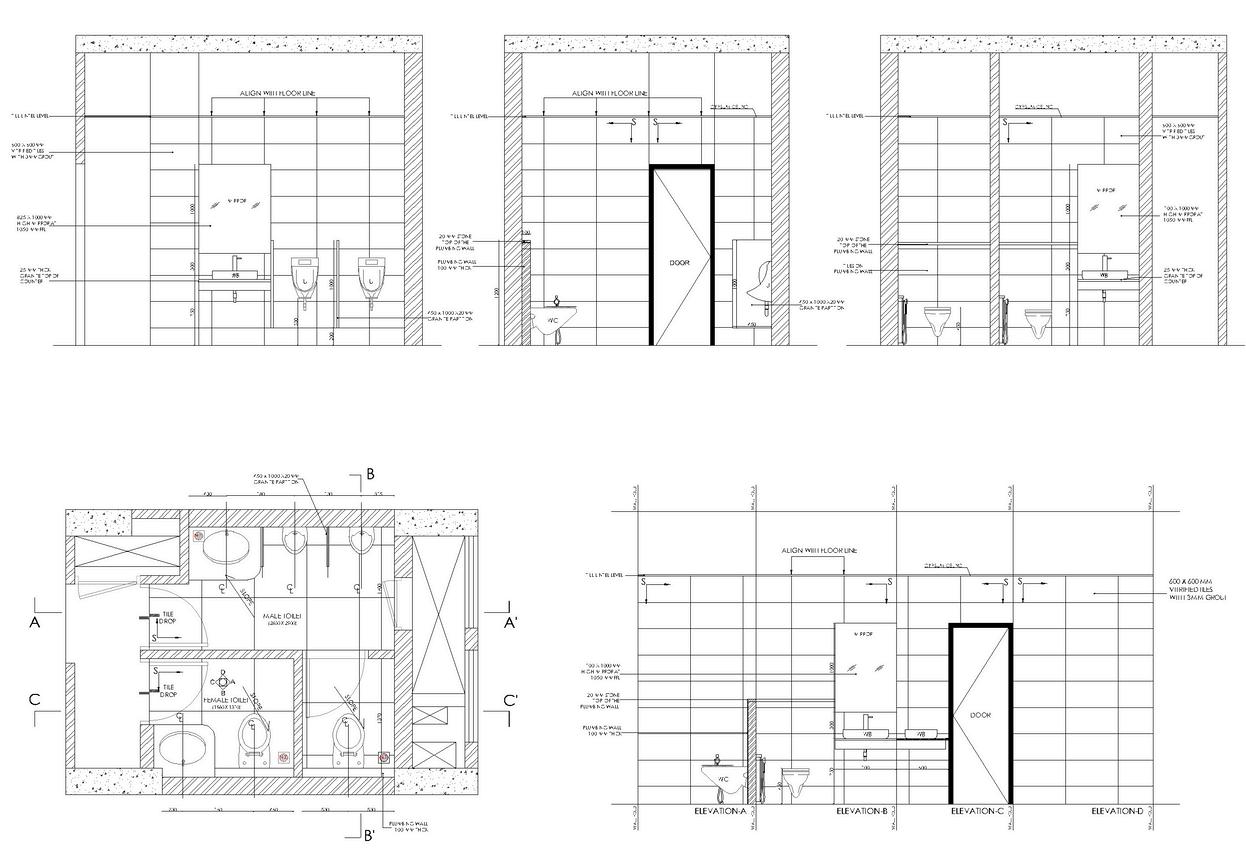

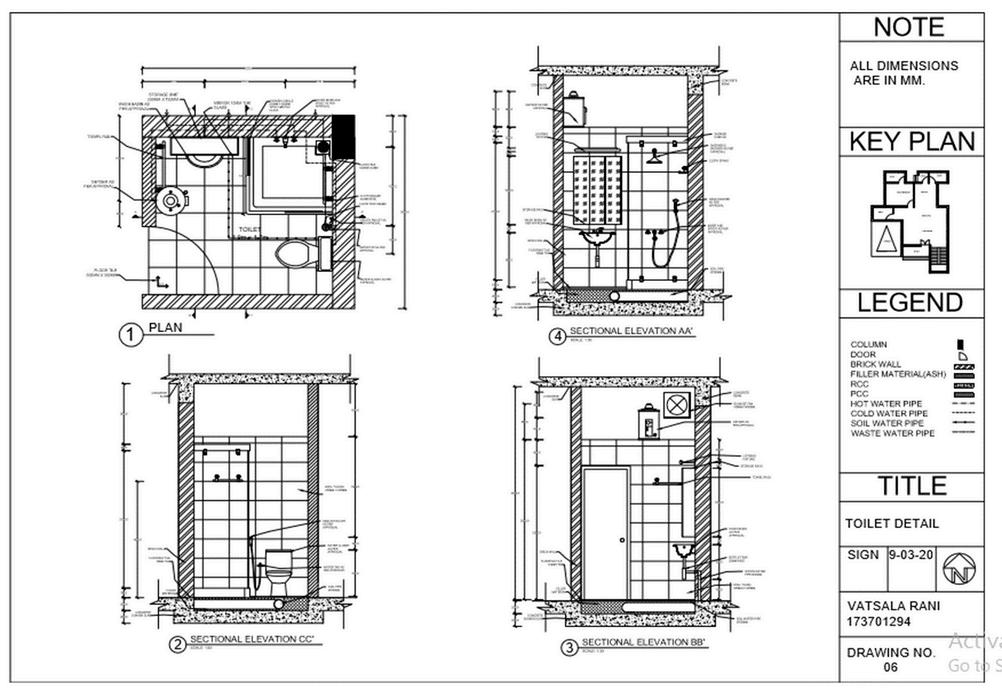

TOILET DETAIL
Scale:

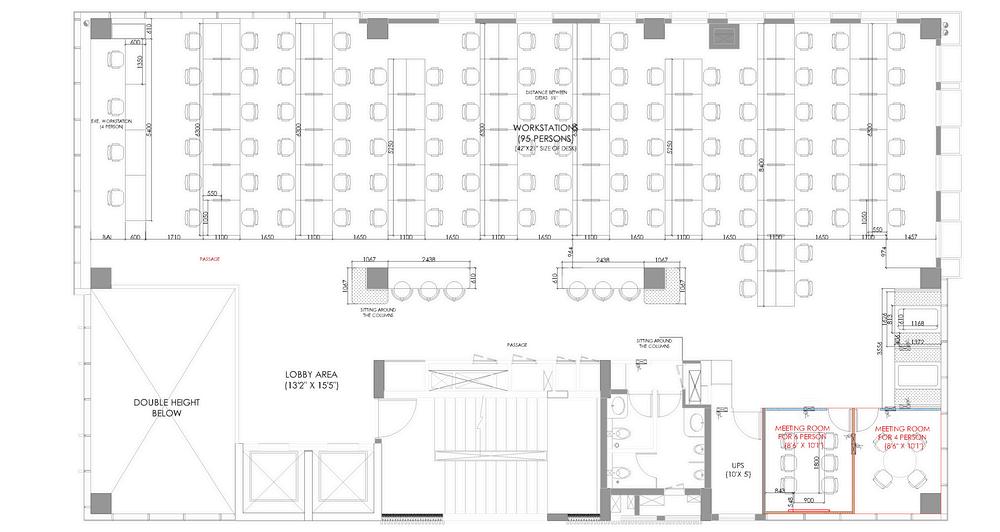

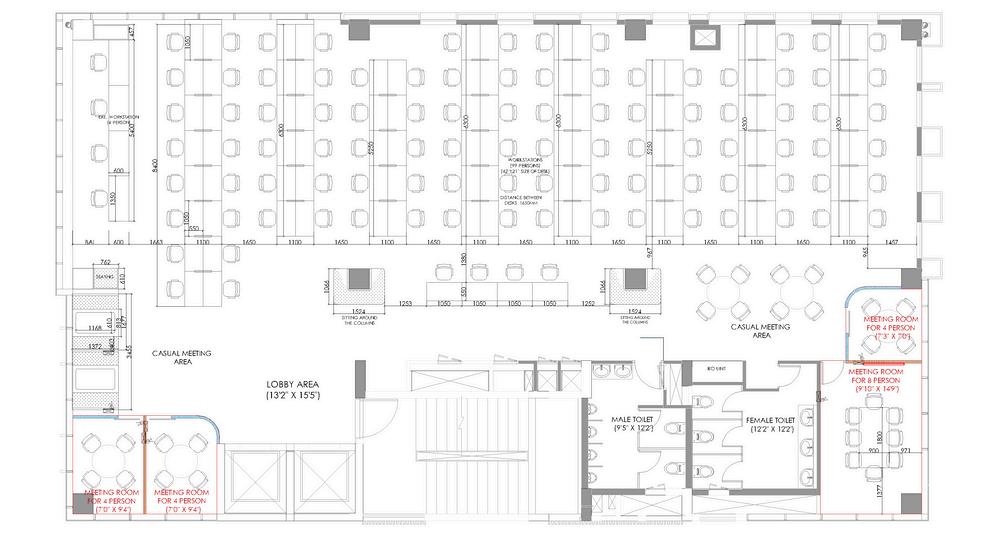

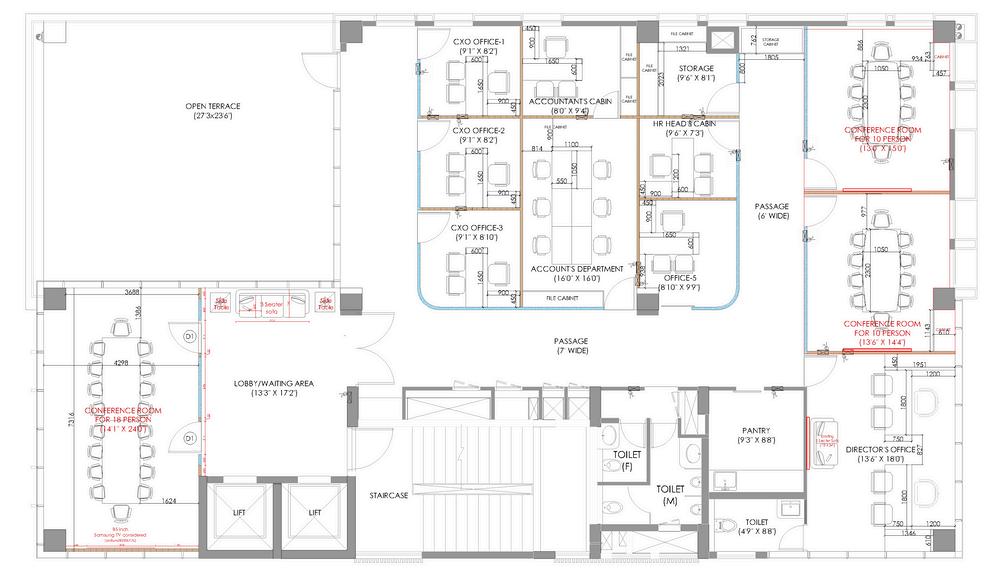

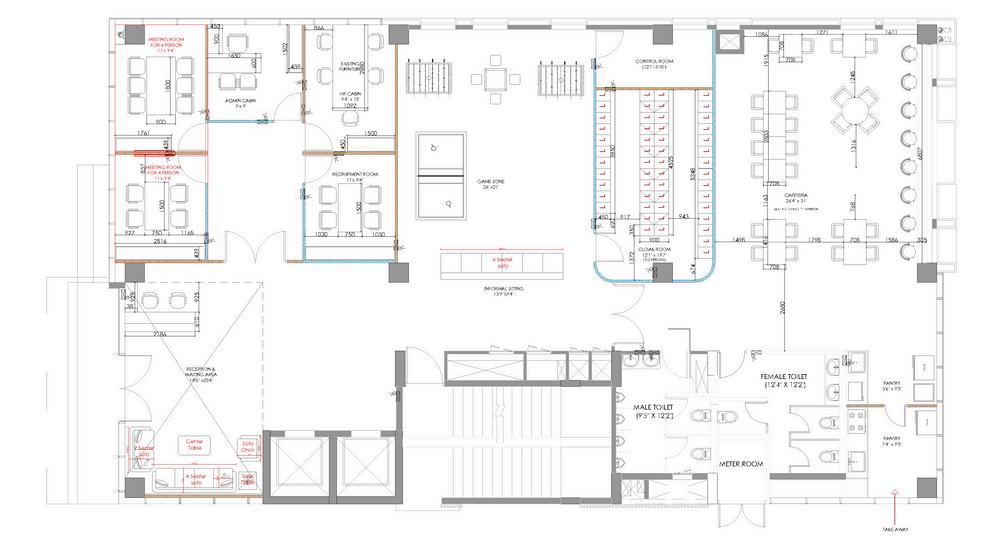

Ground floor - furniture layout
First floor - furniture layout
Third floor - furniture layout
Fourth floor - furniture layout Commerce Pundit, Ahmedabad, India
Ahmedabad, India
PANTRY DETAIL

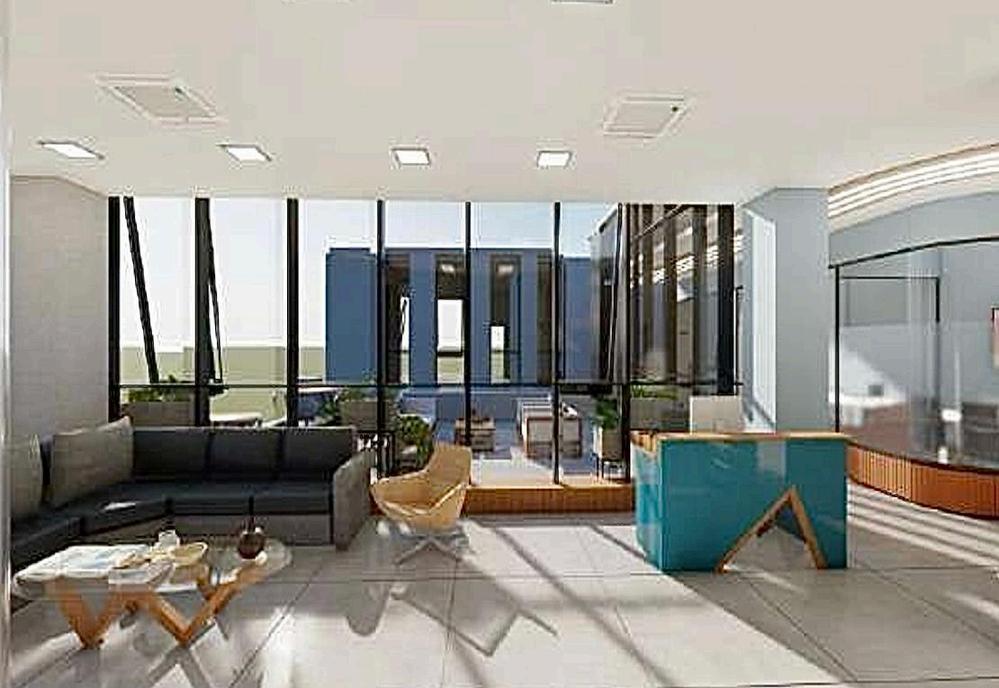

Foyer area

04. Marian Park

Project type: Commercial development

Location: Mangalore, Karnataka, India

Brief: Worked on the architectural and structural plans, sections & elevations of a proposed G+25 commercial development for Marian Projects Private Limited, Mangalore.

Involvement:

Floor plan modification

Column layout

Elevations

Sections

Toilet details

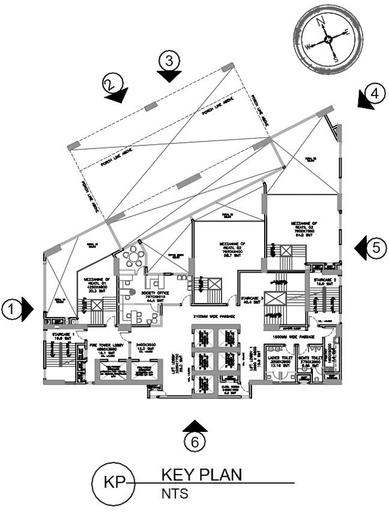

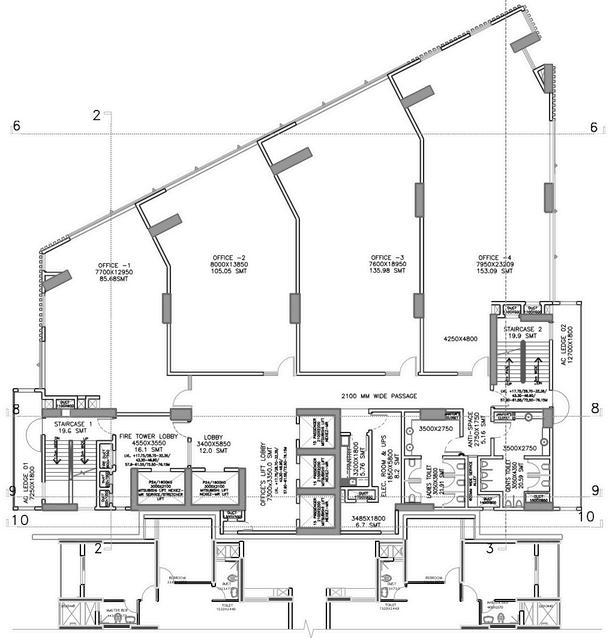

Marian Park, Mangalore,

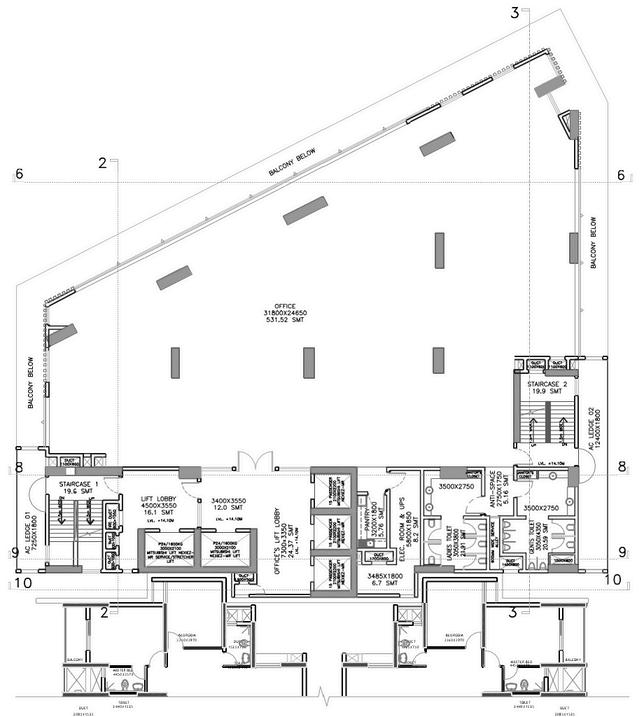

Second floor
Third floor

All dimensions are in mm

Scale: NTS

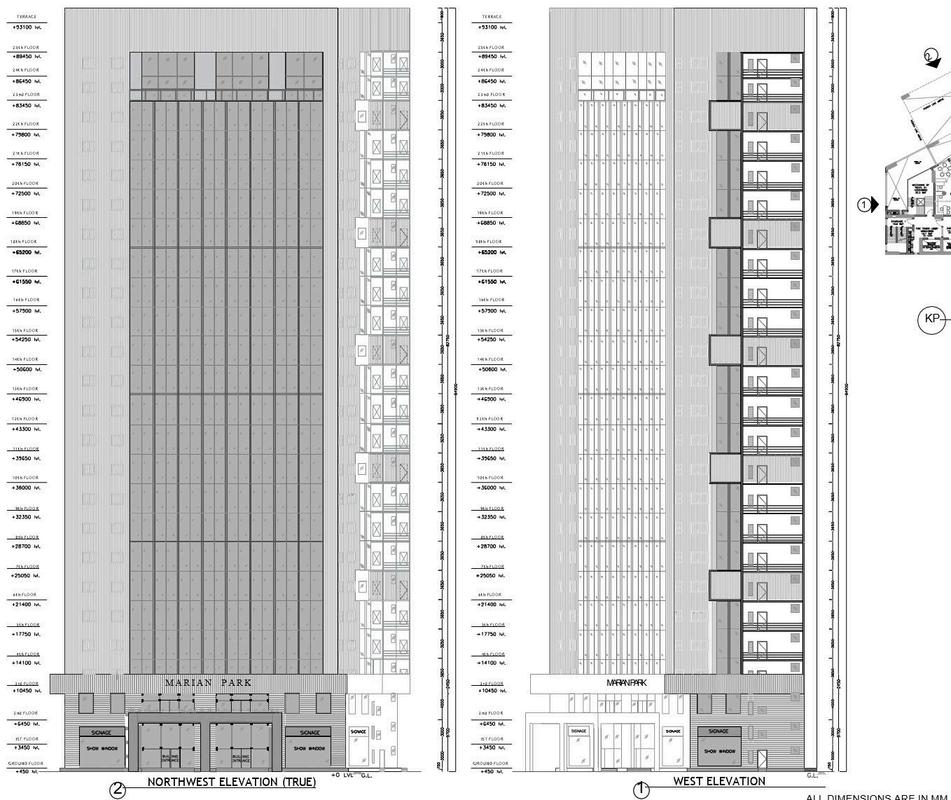

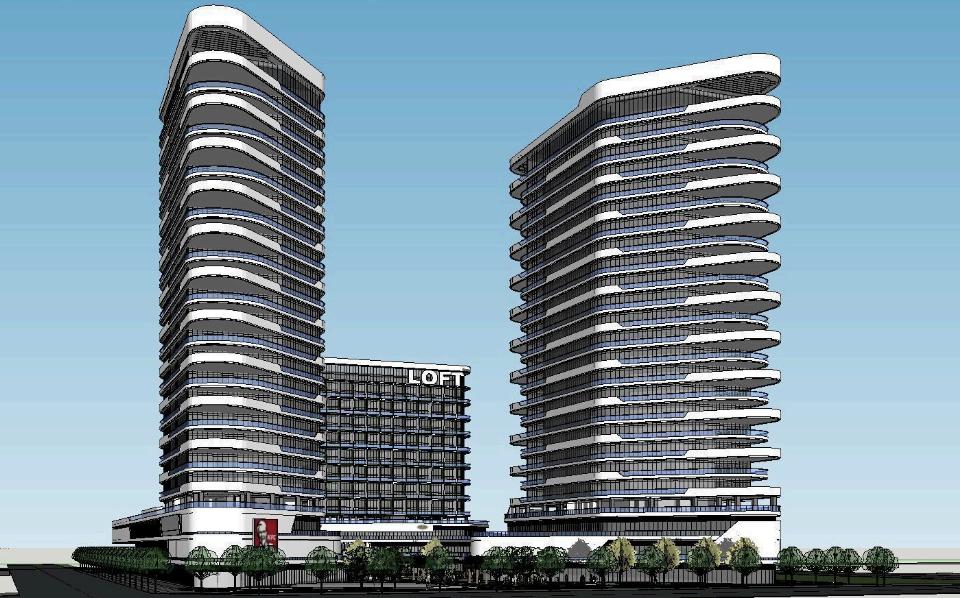

Elevations

5th, 8th-9th, 12th-13th, 16th-17th, 20th-21st floor

Marian Park, Mangalore, India
Fourth floor

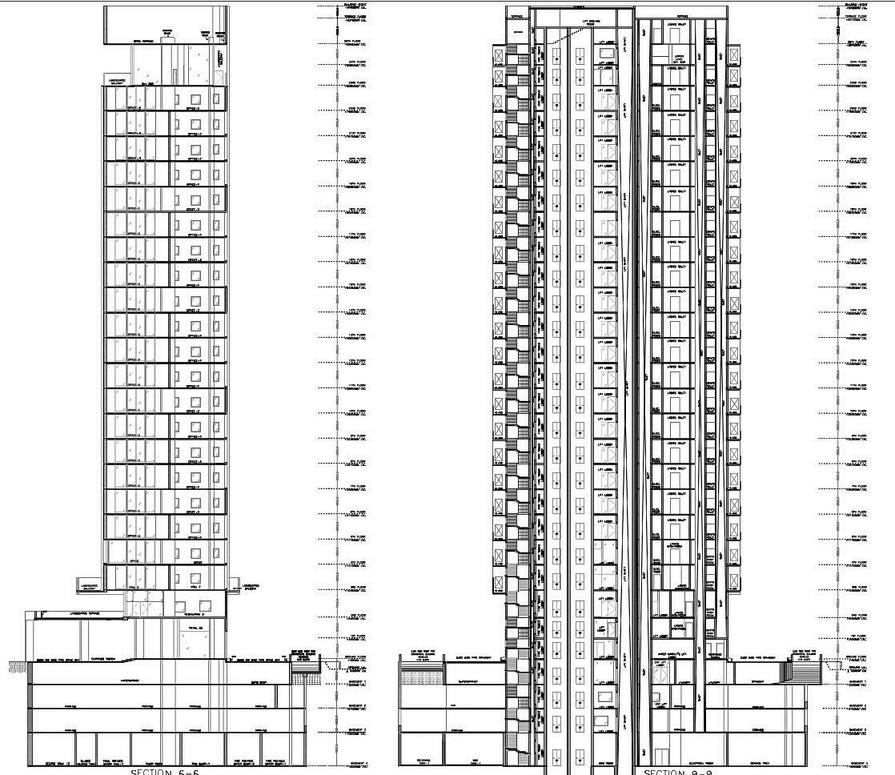

Section

05. Dr. Ankur Shah’s residence

Project type: Interior design

Location: Ahmedabad, Gujarat, India

Brief: Dr. Ankur Shah’s residence is a 2178 sqm 4 BHK flat in Shilp Shaligram which has a living area, dining hall, balcony, guest bedroom, daughter’s bedroom, master bedroom and a study room

Involvement:

Furniture design

Headboard design

Kitchen design

Furniture layout

False ceiling layout

Electrical layout

3D model

Site visit

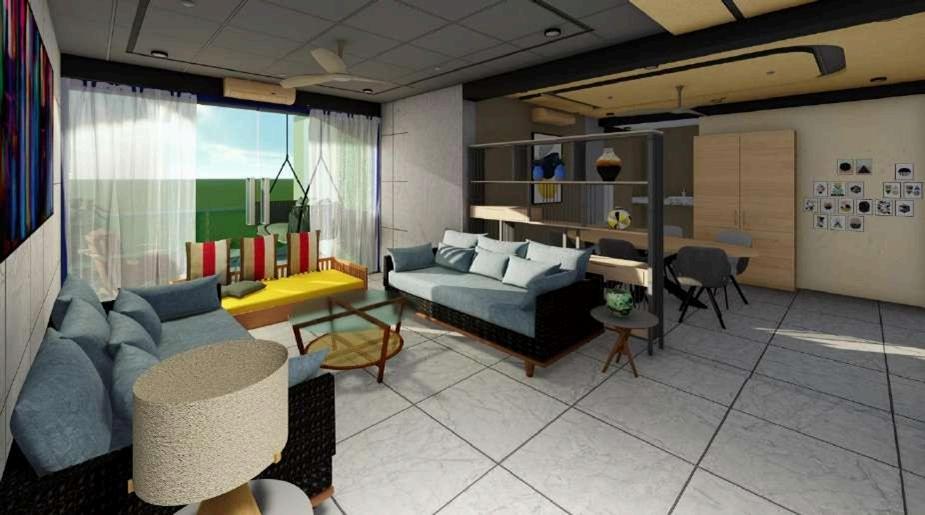

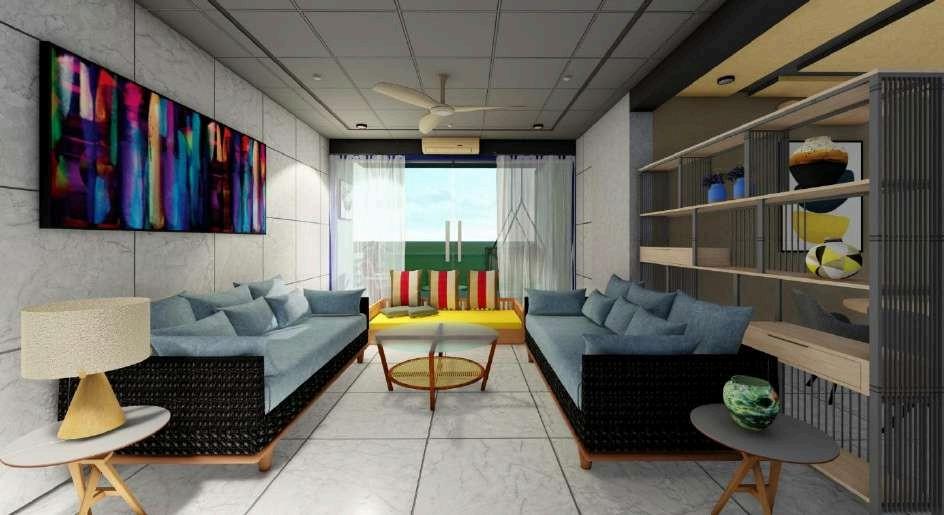

Living room

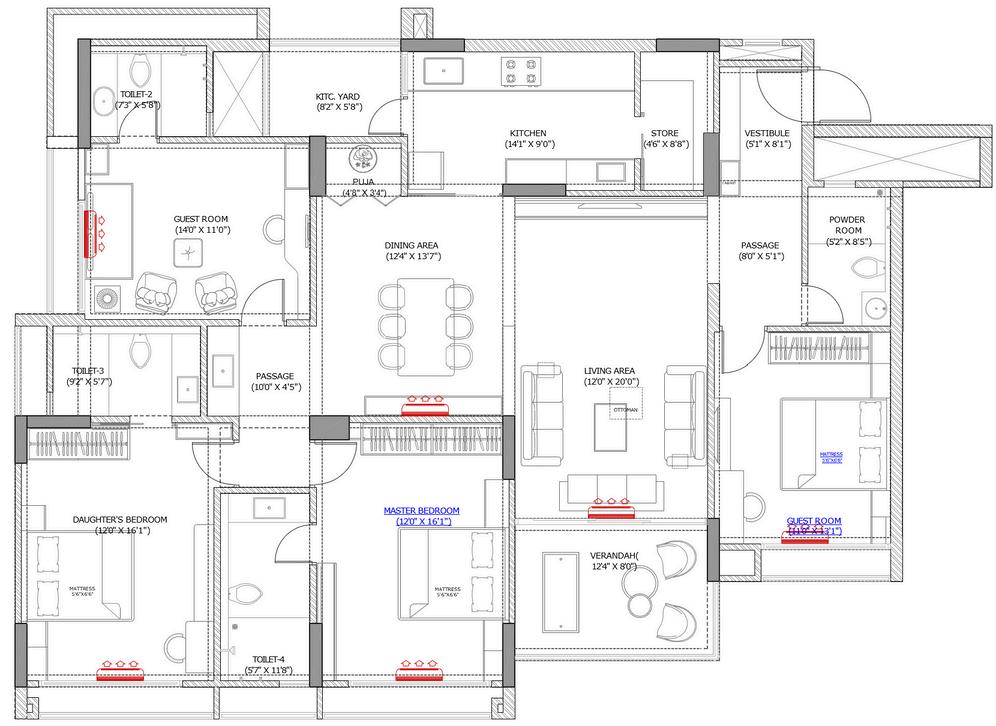

Furniture layout
Scale: NTS All dimensions are in feet and inches
,Dr Ankur Shah’s residence, Ahmedabad, India
Dr Ankur Shah’s residence, Ahmedabad, India

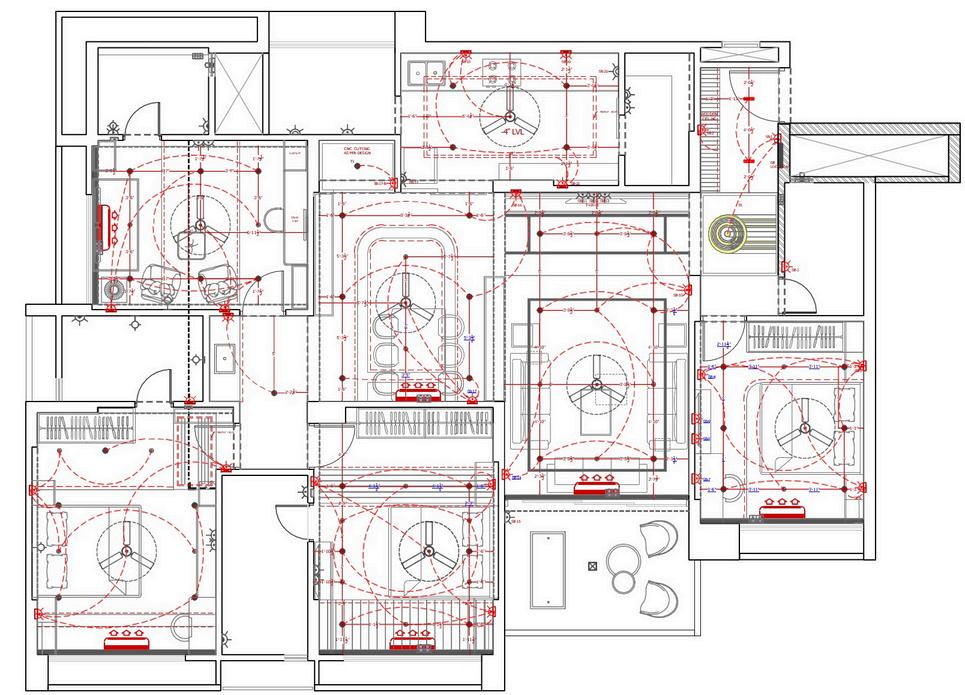

Electrical layout

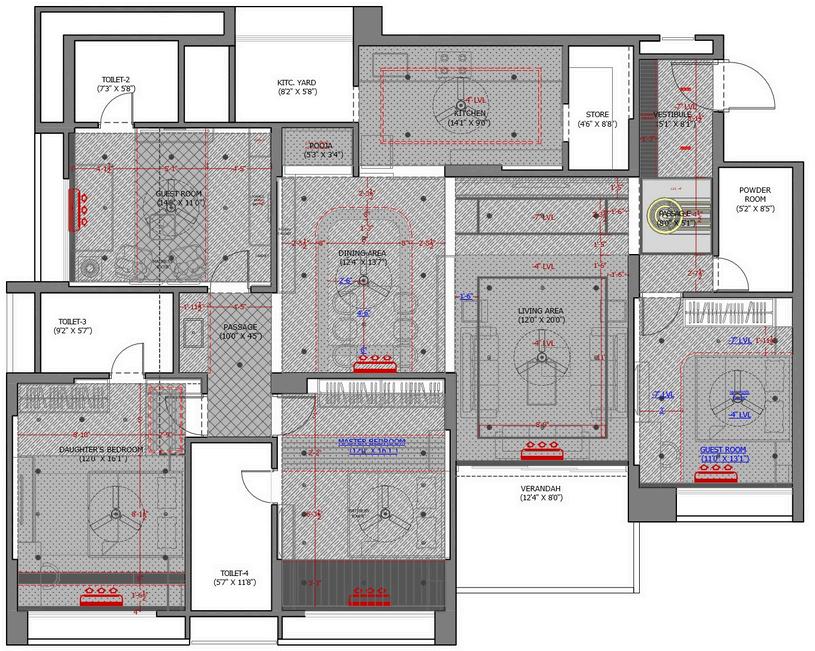

False ceiling layout
Scale: NTS All dimensions are in feet and inches

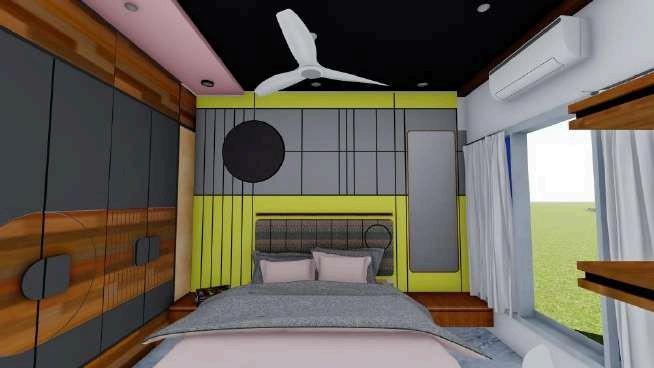

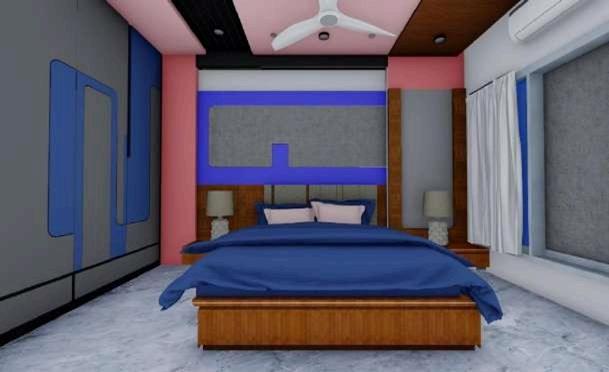

Master bedroom
Guest bedroom
Ankur Shah’s residence, Ahmedabad, India
Furniture design

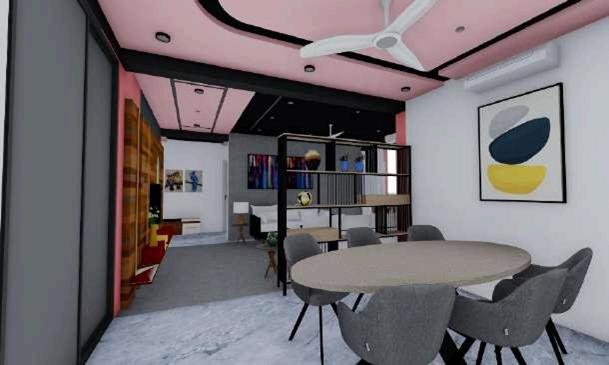

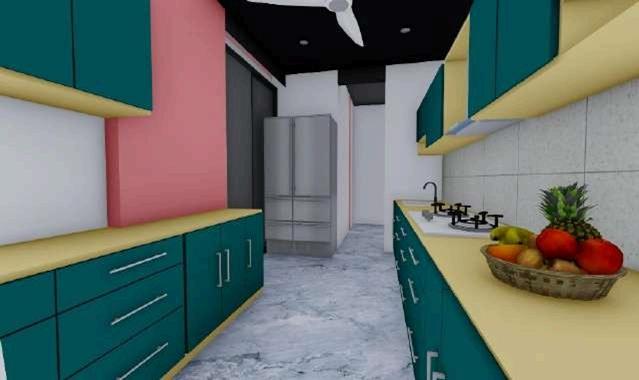

Dining area Kitchen

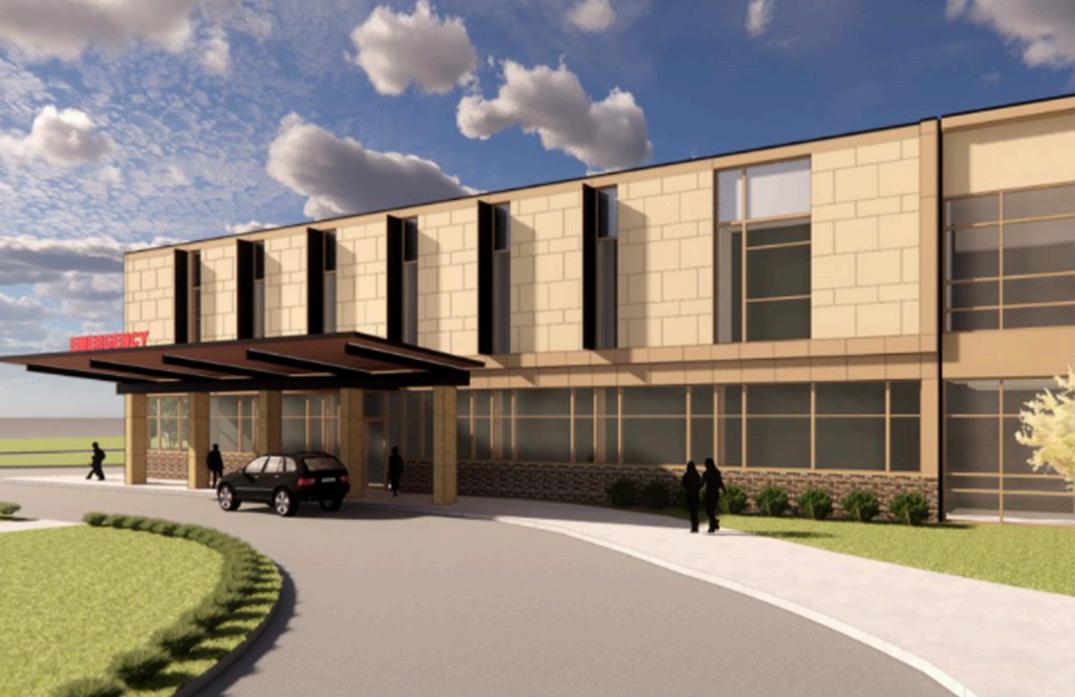

06. Hospital

Project type: Commercial building

Location: Ambagilu, Udupi, Karnataka, India

Site area: 11,000 sqm.

Brief: This project is a medium size 100-150 bedded general hospital with all the necessary medical facilities provided in it.

The hospital is a 3 story building with administration, emergency and food department on 1st floor, outpatient department on 2nd floor, Inpatient department on 3rd floor and a basement parking for the patients and visitors.

It also has a Doctor’s residence with parking facilities provided within the residential campus. It is a 4 story apartment with options of 1 Bhk and 2 Bhk flats

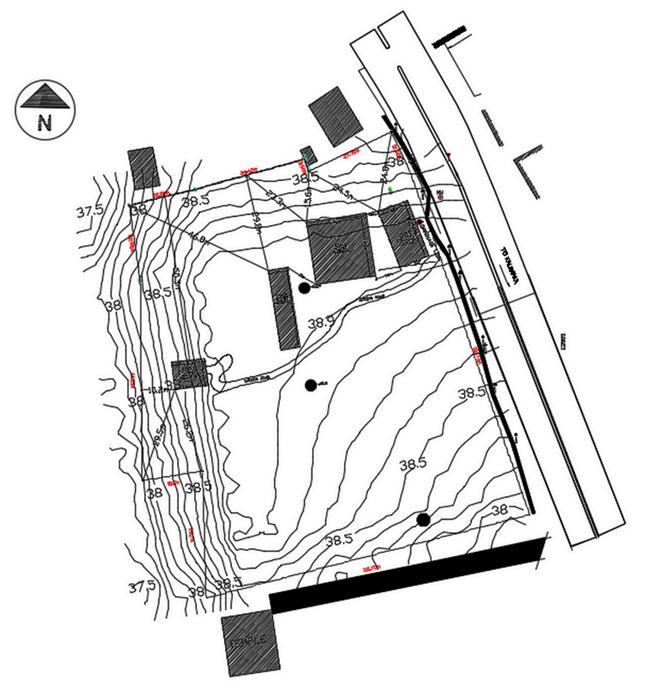

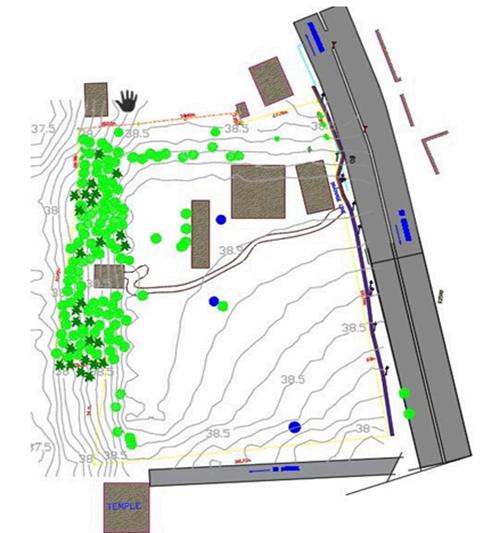

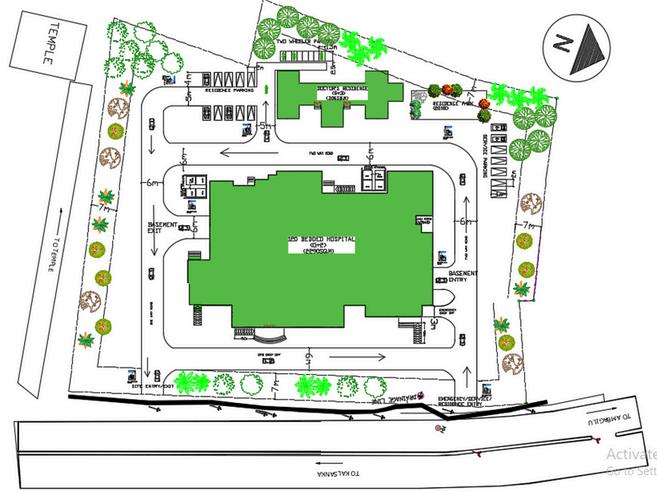

Site plan

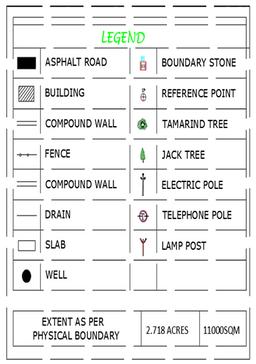

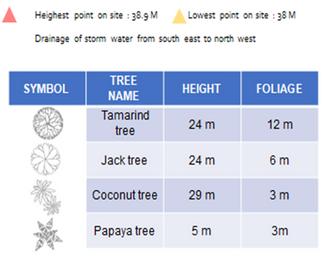

Legend

Scale: NTS All dimensions are in meters

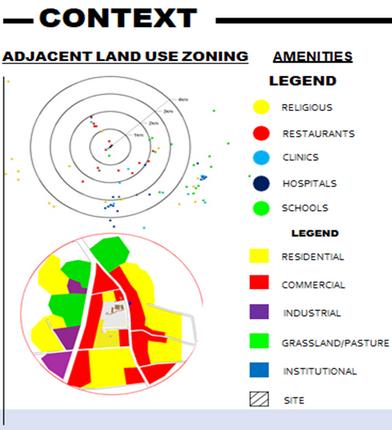

Context
Sun and Wind

Master plan

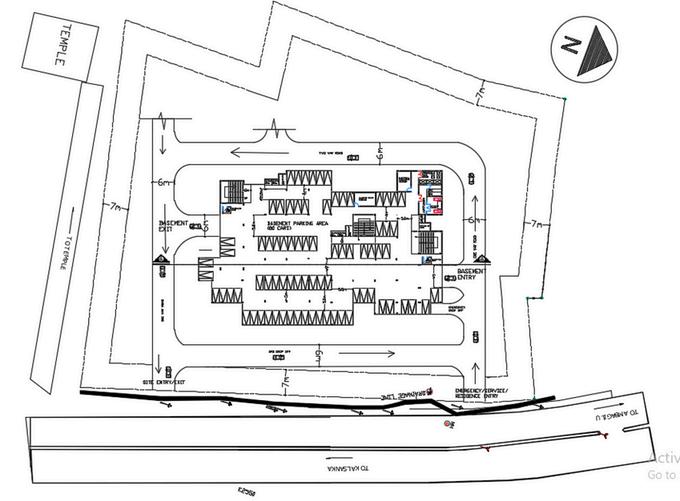

Basement plan

Scale: NTS

All dimensions are in meters

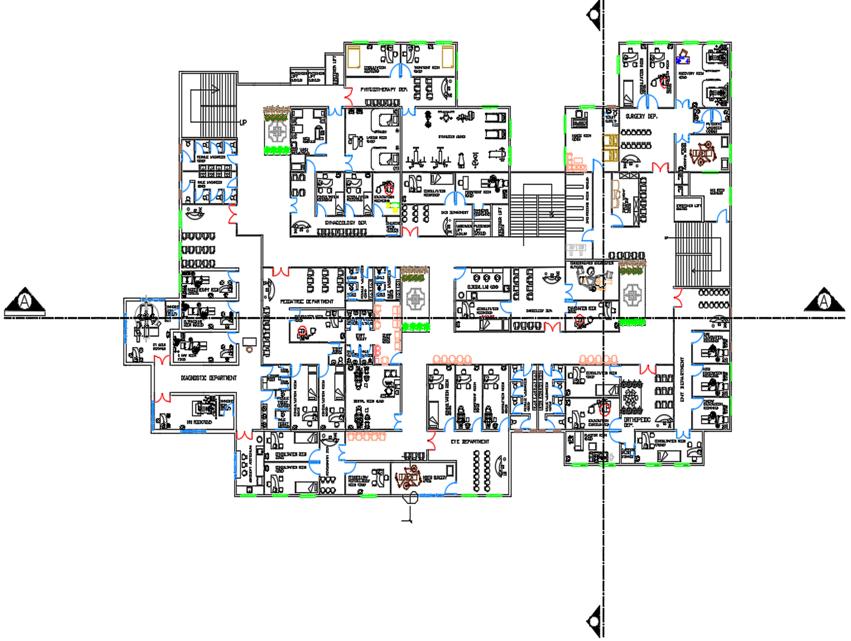

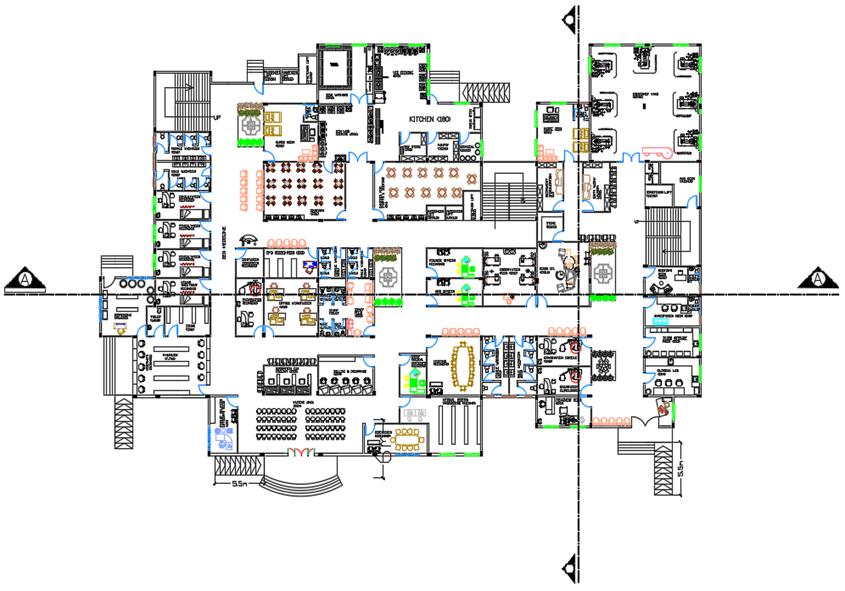

Ground floor plan

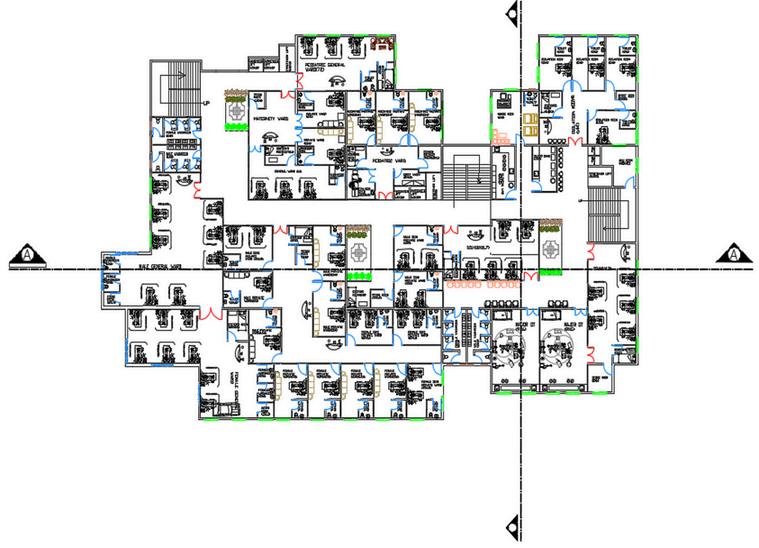

First floor plan
Scale: NTS All dimensions are in meters
Second floor plan
Front elevation
Right elevation
Scale: NTS All dimensions are in meters

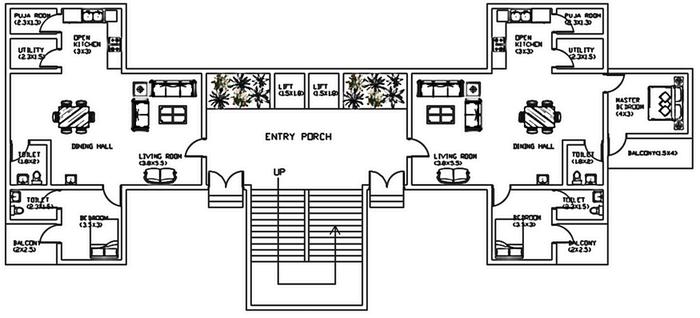

Doctor’s residence plan (G+3) 306 sq.m

Scale: NTS All dimensions are in meters

Front section AA’
Right section

07.

KR Market junction redevelopment

Project type: Urban design

Location: Bangalore, Karnataka, India

Theme: Experiential urbanism

Scope: Reconstructing the junction, traffic management strategies( rearrangement of circulation, street utilities, safety and surveillance, way finding) optimal utilization of space.

Vision: Envisioning KR market as a resilient economic hub through inclusive planning and sustainable infrastructure development to create a convivial visitor experience

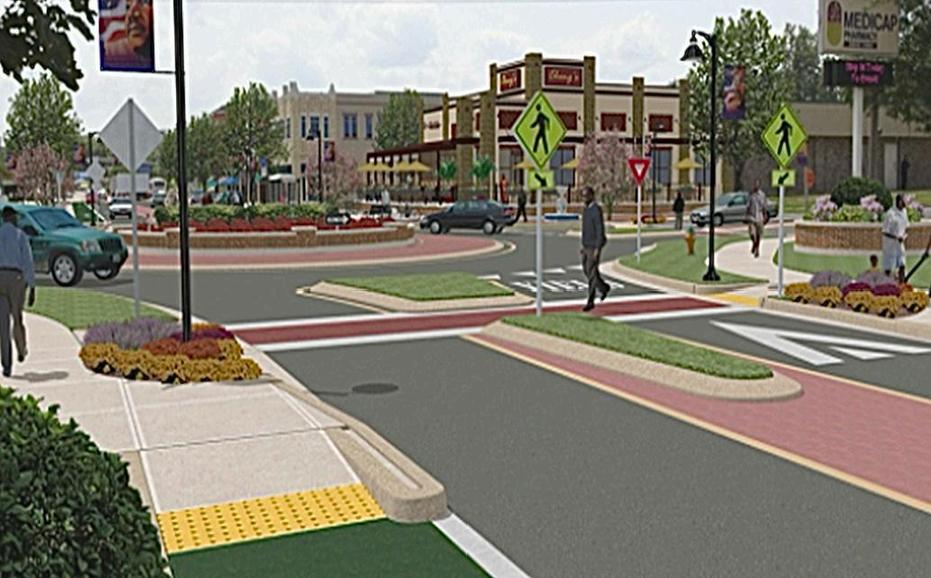

reconfiguration of KR Market:

The adjacent development projects of the junction and street design, as well as the provision of footbridge and heritage walk is expected to contribute to an increased footfall to the market

Since the existing market condition is one that is unhygienic and poorly maintained with congested movement paths, it provides visitors with unsatisfactory experiences, thereby also providing to be detrimental for the commercial activity

Hence, the reconfiguration of the space would ideally help tackle these issues and create a flourishing and booming bazaar backdrop against which the other proposals will be set

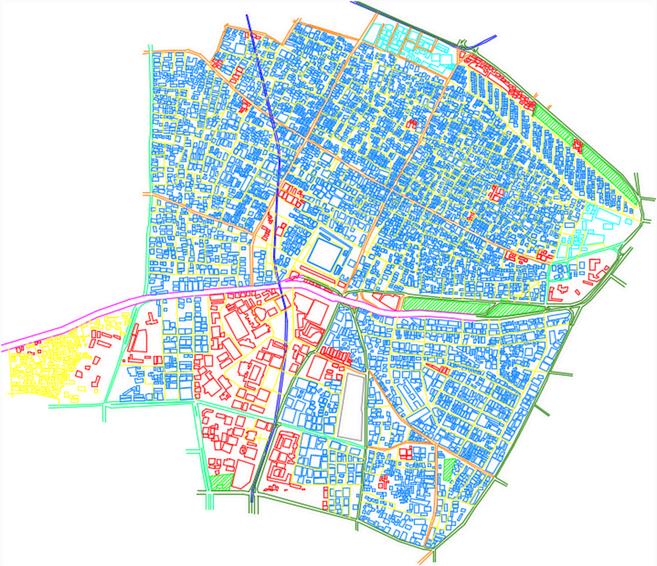

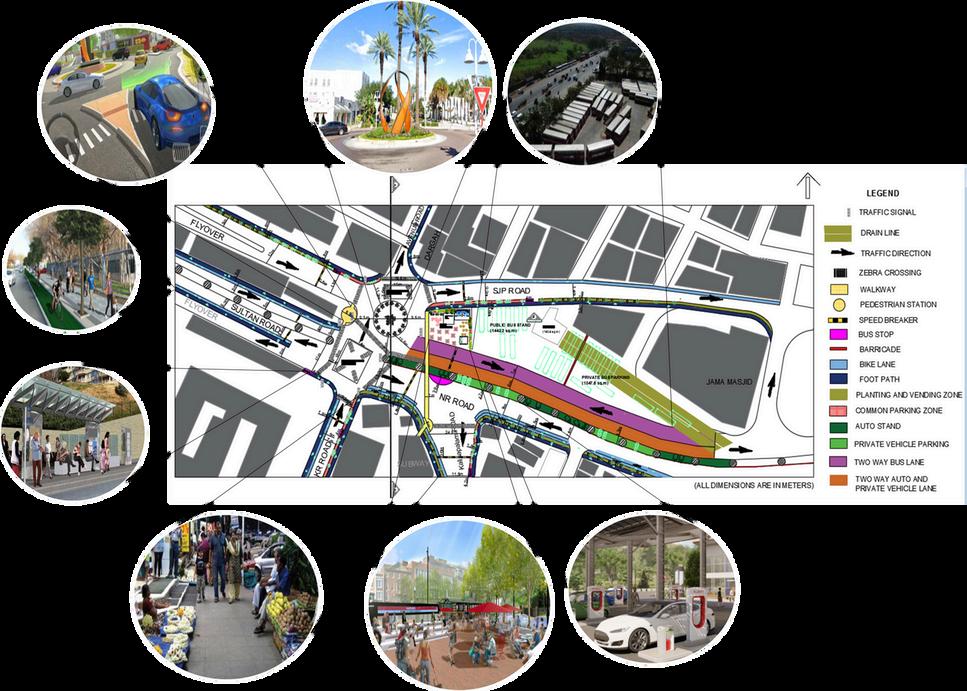

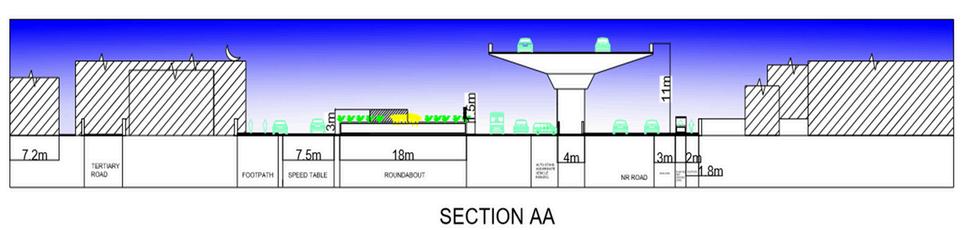

Master plan

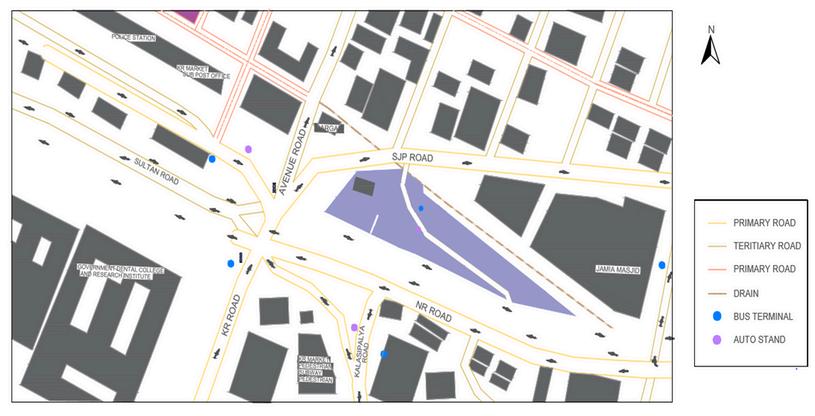

Site plan
Spatial

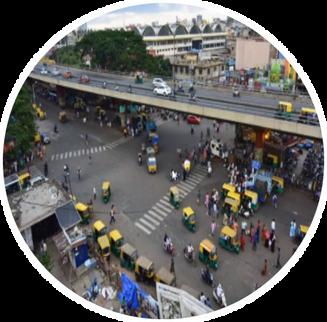

KR Market junction existing images

Aim:

Increase in pedestrian safety and efficient movement creating a sense of security

Optimal utilization of space to ease movement

Improved public transport connectivity and efficient circulation management.

Defined space for public and private vehicle parking.

Efficient vending and increased retail footprint through efficient space management.

Basic amenities like street lights, furniture CCTV surveillance, e-toilets, and ATMs.

Objective:

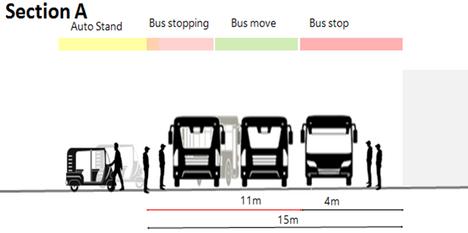

The main objective of junction design is to reduce the number and severity of potential conflicts between cars, buses, trucks, bicycles and the pedestrians I am mainly working on the visual and the functional dimension of the junction. The design will emphasize maintaining the existing travel lanes and does not negatively impact traffic capacity.

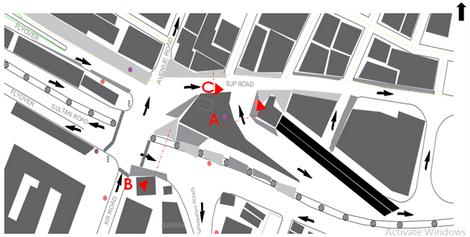

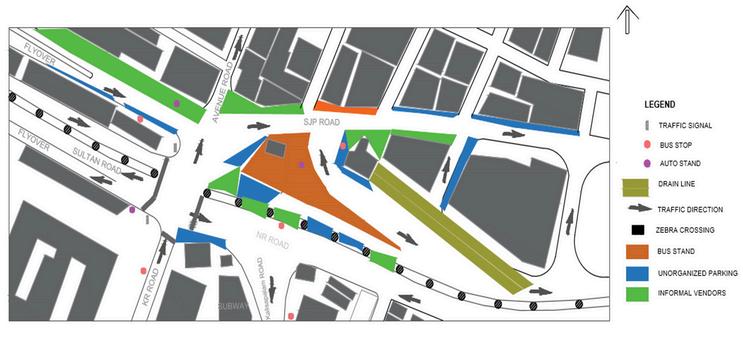

Activity mapping

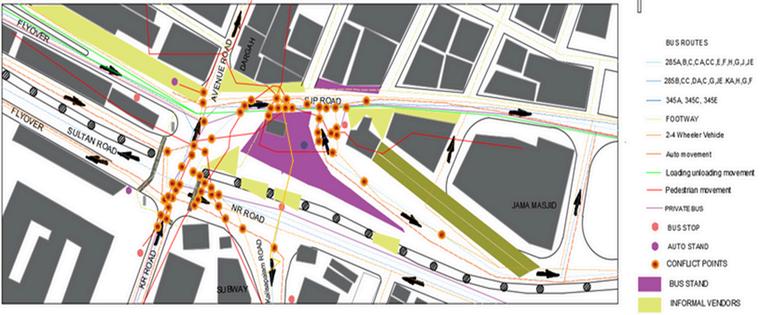

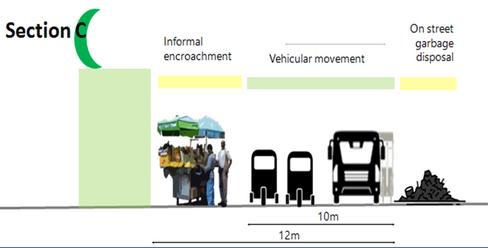

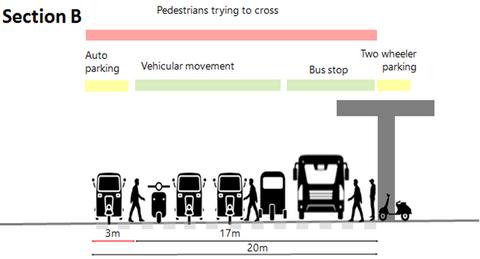

Conflict points through movement mapping

The conflict points are generated for the peak hour traffic 10:15 to 11:15 am The pedestrian footfall in the peak hour at the junction is 2278 and vehicular traffic is about 10397

08. Working drawings

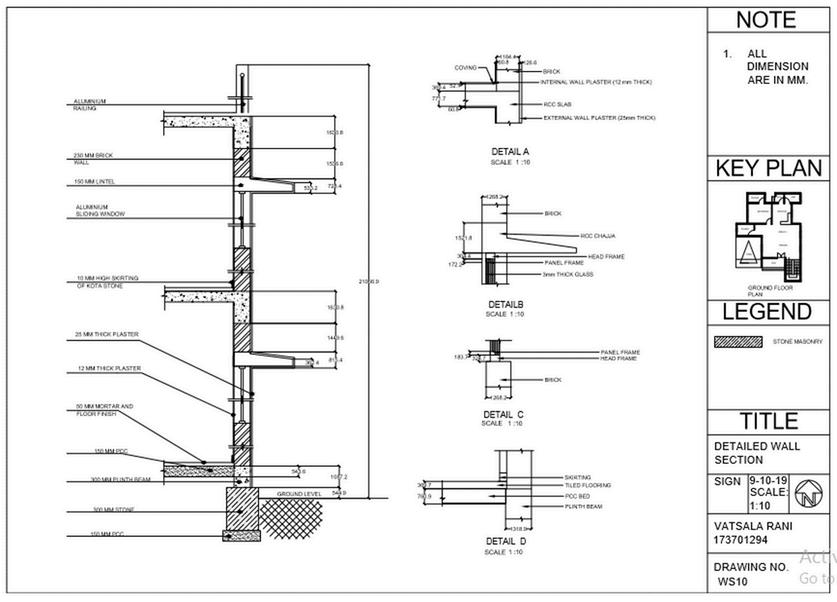

Detailed wall section

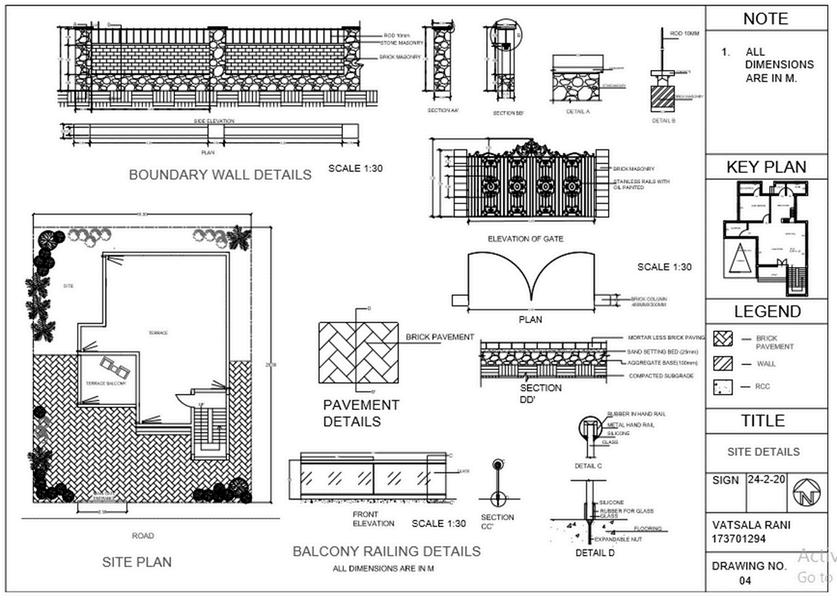

Site detailed drawing

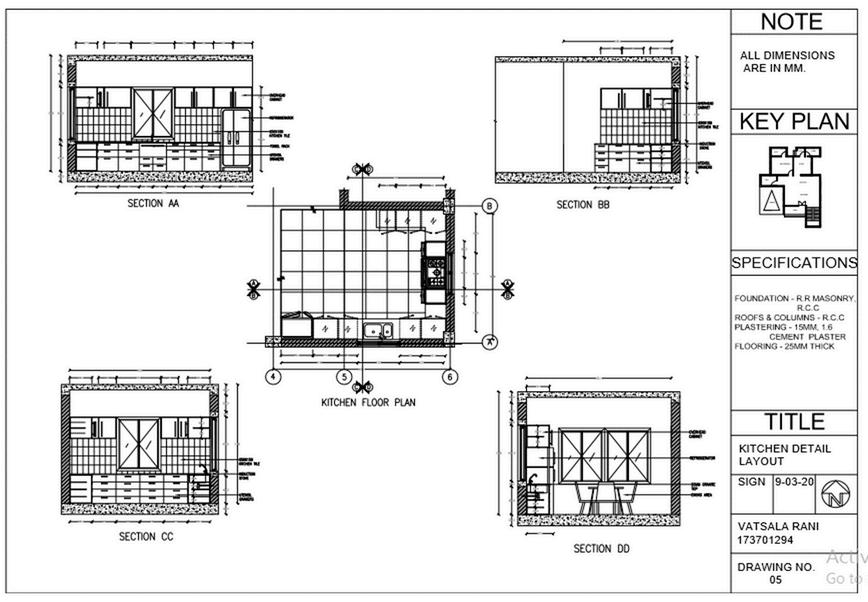

Kitchen detailed drawing

Toilet detailed drawing

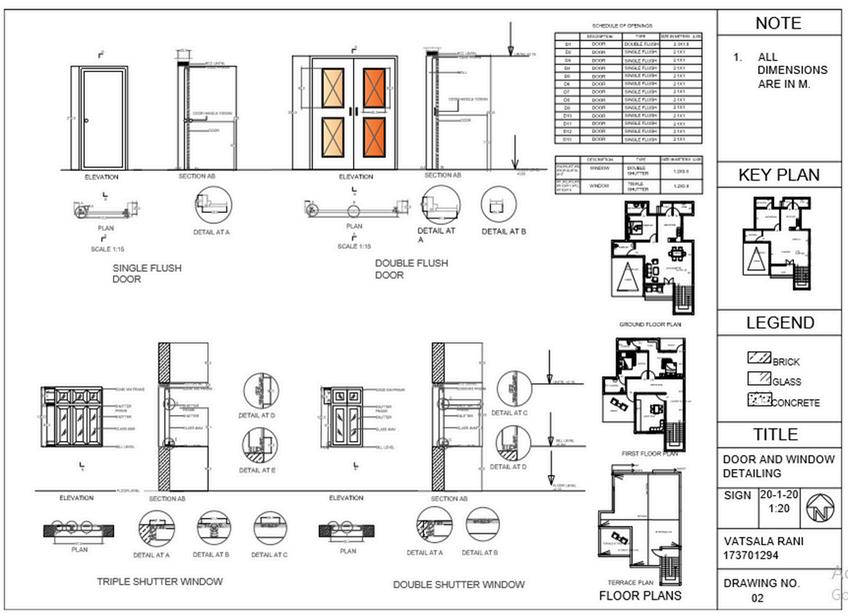

Door and window detail

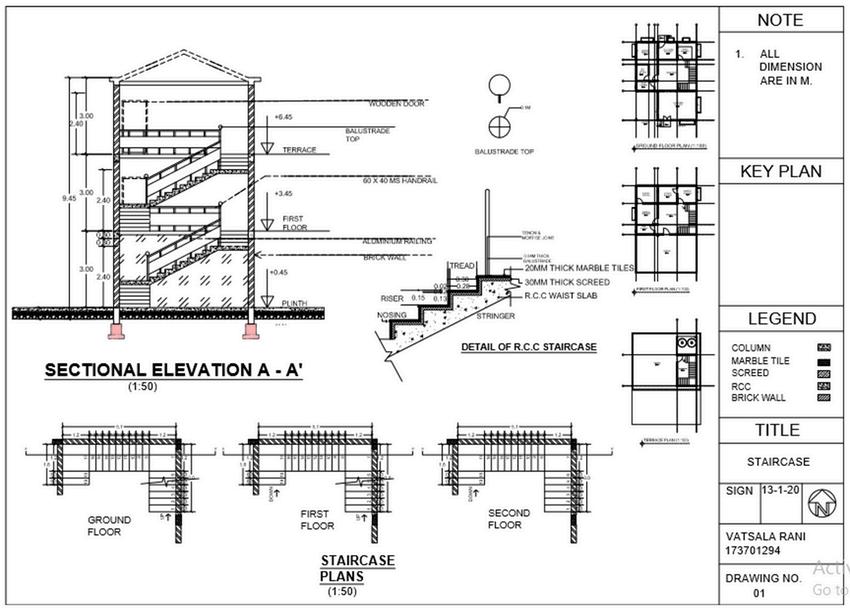

Staircase detail

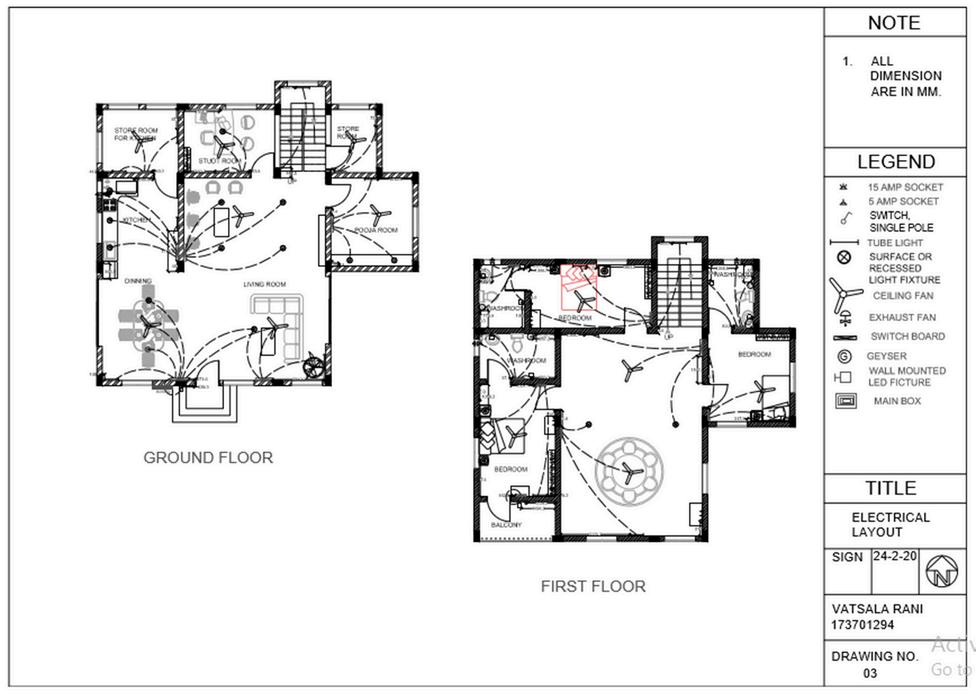

Electrical layout

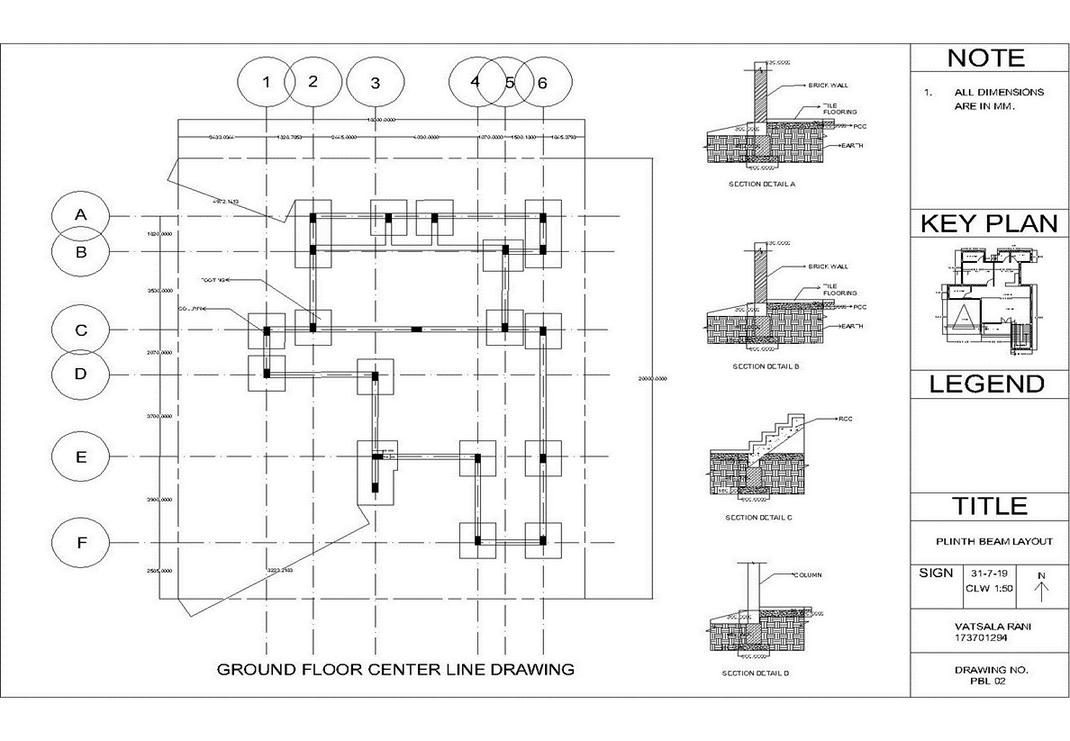

Plinth beam layout

09. Miscellaneous

My art works (visit my Instagram art account: art.junke)
