As an architecture student,I was keen on visual design and the exterior aesthetics. After being thrust into this cut throat professional filed,I’ve learn that there are deadlines,budgets,return on investments among many other aspects that encompass a project. I’ve also developed a keen interest on interior architecture and always think about the interiors when conceptualizing spaces.

With this in mind,I’ve learnt to incorporate all these aspects in design,learn flexibility,keenness on details during project inspection and effective communication with the client in every aspect of the design.

This portfolio contains professional works while in Orad Group,Nairobi,Kenya and my commissions. It highlightsmaster planning,construction process and details, interior designs,spatial planing and presentations skills.

1 3 4

K e r a r a p o n R e s i d e n c e s

2

G i g i r i L i o n V i l l a s

K w a l e C o t t a g e s

K a g i a ‘s R e s i d e n c e

T a b l e o f C o n t e n t s

K e r a r a p o n R e s i d e n c e s

Year Location Client Status

: 2023 : Kerarapon, Nairobi County : Orad Group : Proposal

Project description

Situated on 1.17 acres of land,the client’s brief was to design 6 detached 4 bedroom contemporary houses with hedges/wooden separating them.

The residences were to have a prominent gazebo and additional recreational facilities such as spa and/or clubhouse,a playing area and sufficient landscaped area for the residents to enjoy. The houses were to be planned such that they utilize maximum space and also have sufficient lighting,have inwards and outward views and stand out.

The axis

The master organization concept is based off of a main axis that terminates at the gazebo. The landscape design is such that the tress and the deliberate decision to not have trees at the middle draws visitors from the main road towards the residences. The main spaces in the houses are directed towards the court to have views and also receive maximum lighting.

The recreational areas and playground are directed towards the entry gate. This is to ensure that any guests or children coming in the premises park towards the gate and its easier to monitor them since the gate house is closer.

A view of the gazebo from the entrance

Playground

Concepts

Symmetry Hierarchy

The front and back facades of the buildings are defined by a triple volume space defined by two slanting columns that define the entrance. Once placed together the forms give an illusion of one form that Resembles a distorted table mountain.

The entrance is defined by two a slanting column and a double volume terrace defined by wooden slats screwed onto a 450mm deep beam. This ensures that the entrance is dominant and easily spotted by the residents.

1100mm high 10mm thick glass railing screwed onto 450mm deep RC beam.

50x50 wooden slats screwed onto 450mm deep RC beam with an oak varnish finish

Outdoor 25mm thick wood plastic composite panels screwed onto 200mm thick masonry wall

20mm thick facing stone tiles adhered to 200mm thick masonry wall

View of the houses from houses 1 and 2

1100mm high 10mm thick glass railing screwed onto 450mm deep RC beam.

50x50 wooden slats screwed onto 450mm deep RC beam with an oak varnish finish

House no. 4

Outdoor 25mm thick wood plastic composite panels screwed onto 200mm thick masonry wall

Elevation 02

Light gray finish on 13mm plaster on 200mm thick masonry wall.

Houses no. 2 & 1 4m driveway 4m driveway Gazebo

50x50 wooden slats screwed onto 450mm deep RC beam with an oak varnish finish

20mm thick stone tiles adhered to 200mm thick masonry wall to contrast the gray colors.

Outdoor 25mm thick wood plastic composite panels screwed onto 200mm thick masonry wall

20mm thick facing stone tiles adhered to 200mm thick masonry wall

Houses no. 3 & 4

20mm thick facing stone tiles adhered to 200mm thick masonry wall

1200mm high,200mm thick plastered and painted parapet

thick RC slab on well compacted soil to S.E’s details

G i g i r i L i o n V i l l a s

Year Location Client Status

: 2023

: Gigiri, Nairobi County

: Ali Fabrication

: Completed

Project description

The task was to provide accommodation facilities within the existing property(Gigiri Lion Villas 01) on an area

Measuring 195.2m2.The mode of construction to be implemented was dry construction in a span of nine weeks. The choice of material was mainly steel and glass and the finishes were to blend in with the existing property.

The facade facing the entry was to either maintain visual continuity and/or have a pop of color,hence we decided to have a glass facade with a grand chandelier that lights up the space. This is meant to attract the visitors or guests using the rest of the facilities. The interiors were to have a color palette of white and brown shades.

The Gigiri Lion Villas 1 is an extension to the existing establishment. It’s located along United Nations Cresent in Gigiri,Nairobi. Due to its proximity to embassies such as the US embassy and UN headquarters,the facilities are designed to host mostly delegates who are there for short and lengthy stays. The establishment is close to major shopping malls such as Village market and Rosslyn Riverra mall.

Elevation

Elevation 01

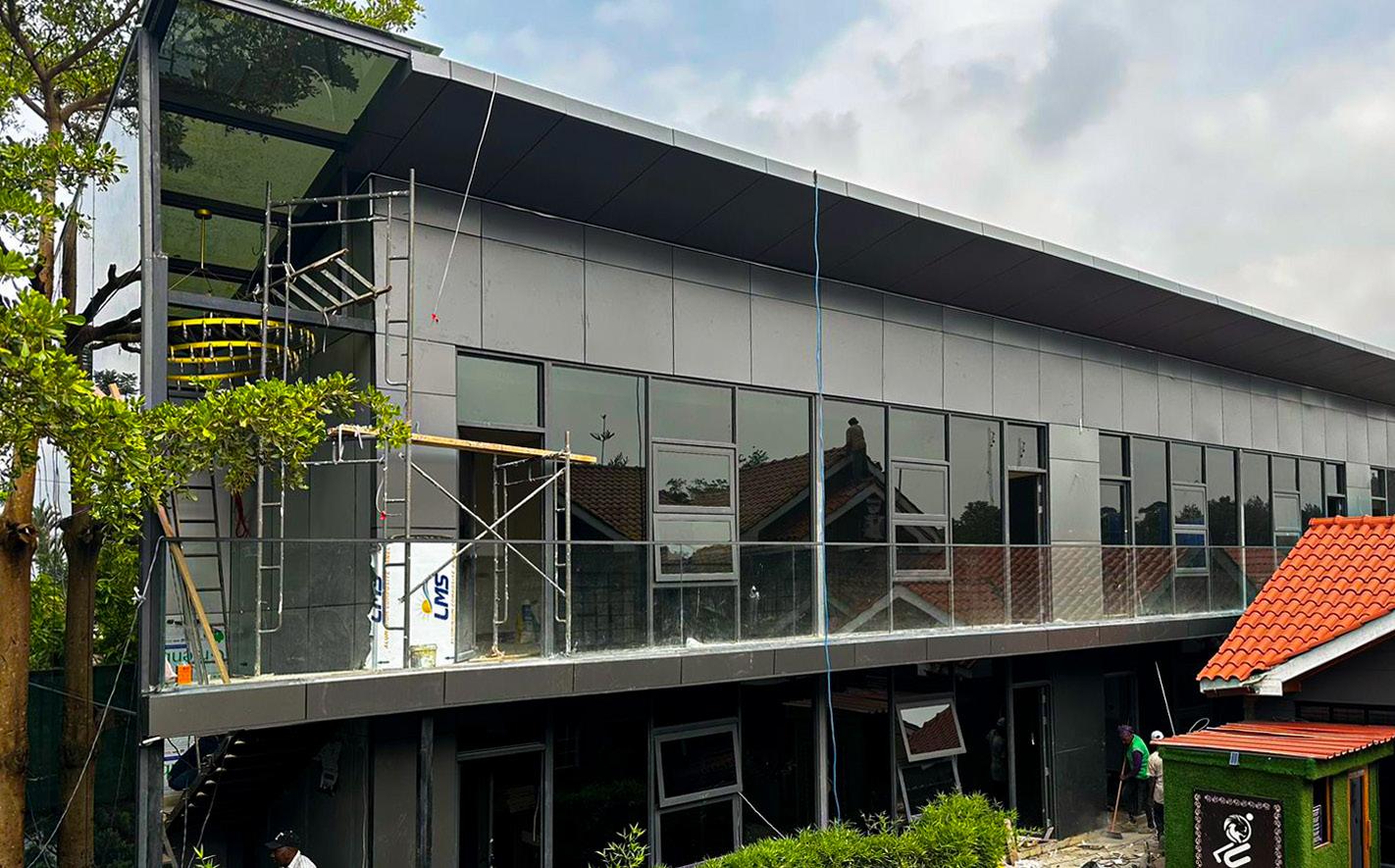

02 facade during construction Elevation 02

Dark grey ACP sheets screwed to 50x25 RHS

Dark grey ACP sheets screwed to 50x25 RHS

6mm tinted glass steel fixed to 50mm thick aluminum profile.

6mm tinted glass steel fixed to 50mm thick aluminum profile.

Granito tile finish on 50mm thick concrete laid on 50mm thick steel framework welded to 100x75 RHS

6mm tinted glass steel fixed to 50mm thick aluminum profile.

1100mm high,8mm thick clear glass fixed onto 50mm thick u aluminum channel

75mm concrete slab on 50x50

SHS blinding at 600 welded to 100x200 I beam to support 1000mm water tanks.

75mm concrete slab on 50x50 SHS blinding at 600 welded to 100x200 I beam

150mm concrete slab on 50x50

SHS blinding at 600 welded to 100x200 I beam

100X100 RHS bolted on 200x200 concrete footing.

26 gauge corrugated sheets nailed to 25mm plywood

25mmm plywood bolted on 25x25 steel shs.

Insulation Styrofoam braced on 25x25 steel lattice.

9mm thick gypsum boards screwed to C channels

75mm concrete slab on 50x50 SHS blinding at 600 welded to 100x200 I beam

26 gauge corrugated sheets nailed to 25mm plywood screwed to 25x25 shs steel lattice.

9mm gypsum boards screwed to C channels with Styrofoam insulation between it and 25mm plywood

1100mm high,8mm thick clear glass bolted onto 100x50 RHS beam

13mm granito tile adhered to 50mm concrete

50x25 rhs steel lattice treads welded onto 100x50

Section 01 Interior

Exterior

The soffit of the first floor framework

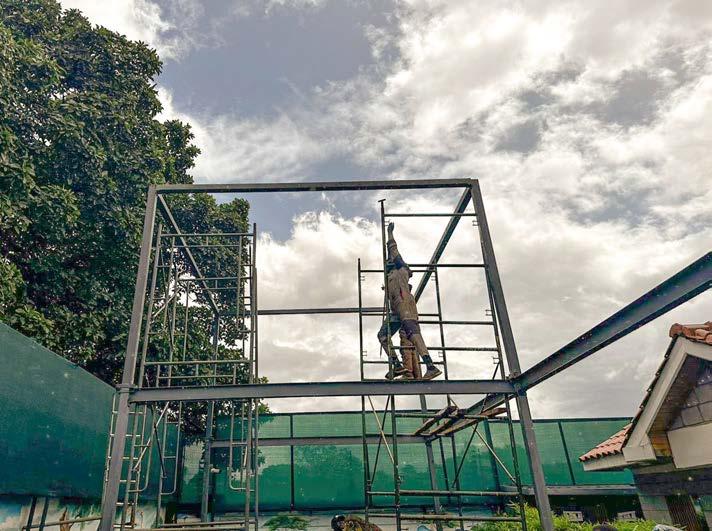

The laying of the I ground beams and columns

The walls framework

The pouring of the first floor concrete

Erection of the wall framework

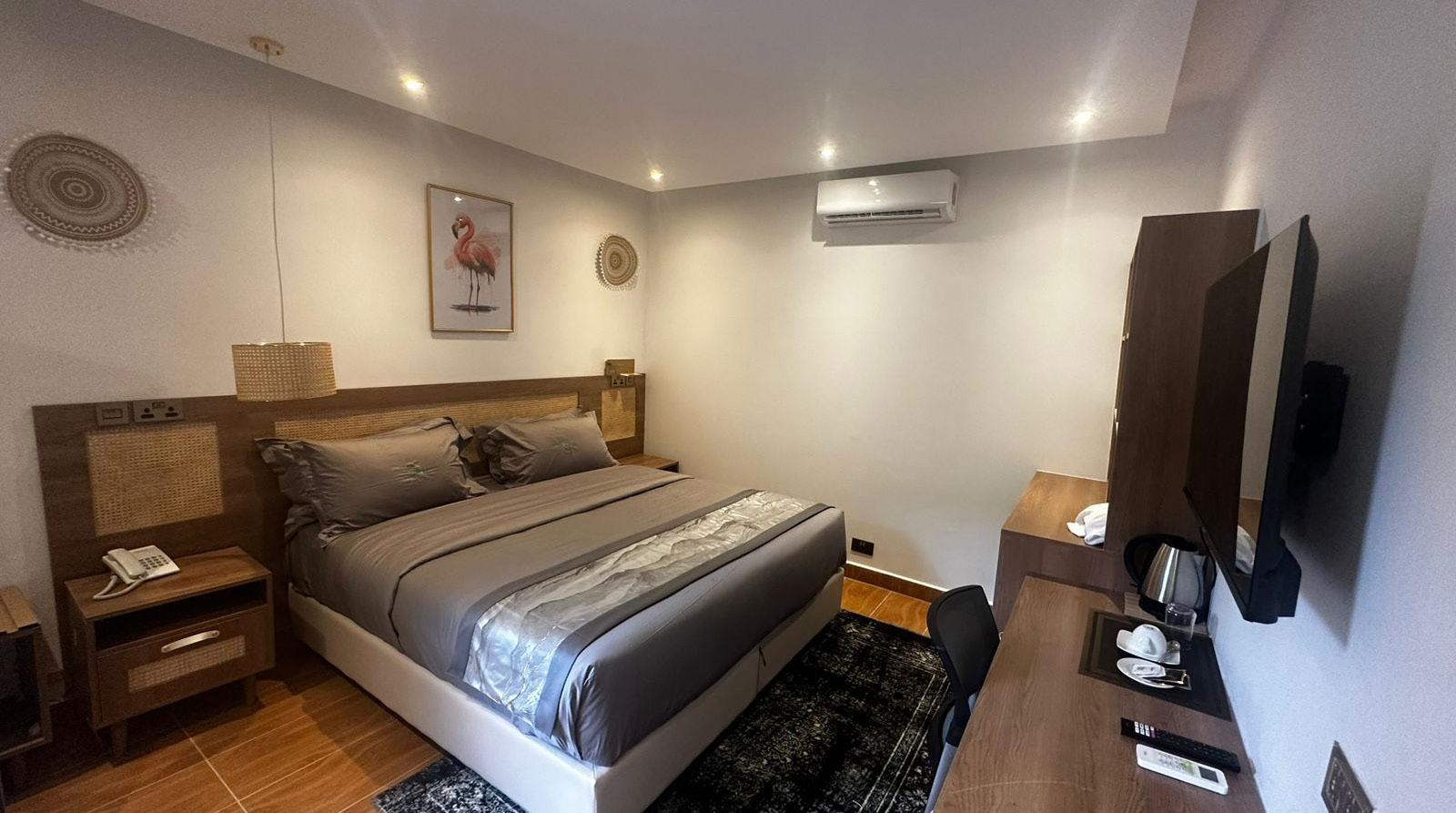

Room 03

Room 08

Off white granito tiles Light oak

Light brown tiles are used in the rooms to complement the oak stained furniture and white wall colors.

Materials Bathroom Furniture

stain

The furniture has a light oak finish which contrasts with the white walls to create harmony within the space

White Paint Mirror

White paint within the walls to brighten the space and reflect the light within the space to make the room airy and light the space.

Mirrors are used on the wardrobe doors and bathroom doors to reflect light within the space ad give an illusion of a bigger space.

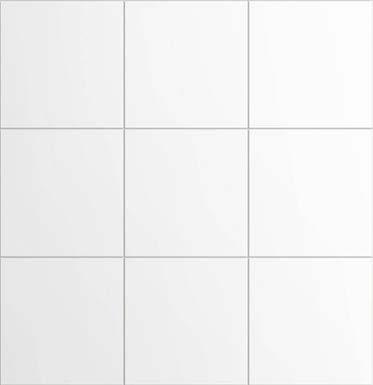

White tiles

White tiles on the bathroom walls to reflect light within the room that makes the room appear larger.

Geomtric brown tiles

Geometric patterned wall tiles on the shower area to contrast with the white tiles hence defining the area.

Rattan Grey Fabric

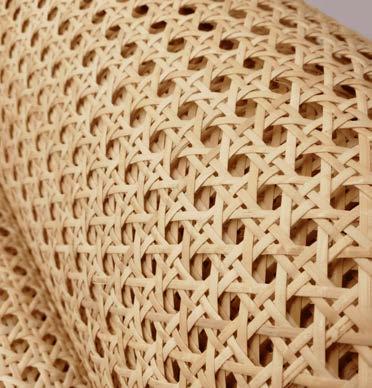

To induce the bohemian feel,the headboard and side tables have rattan patterns

Grey fabric is used on the bed and the carpet to contrast the brown and white hues in the rooms

6mm mirror on 25mm wardrobe sliding doors

100mm thick false ceiling from 9mm gypsum boards screwed onto aluminum c channels

18mm light oak stained MDF with strip light underneath the shelves to illuminate them

30mm thick light oak stain MDF board screwed onto 9mm thick gypsum with rattan fiber nailed onto the frame

13mm brown granito tiles adhered on 150mm thick reinforced concrete

9mm thick gypsum boards screwed to C channels

Room perspective

Room perspective render

Living area perspective

Room perspective render

K w a l e C o t t a g e s

Year Location Client Status

: 2023

: Golini, Kwale County

: Zayn Mossajee

: Proposal

Project description

Situated on 12 acres of land,the client’s brief was to design a prototype of a cottage that would be replicated within the rest of the land in phases.

The cottage would be built in an 1/8th of an acre having living spaces and two bedrooms with an outdoor shower within the master en suite. The rooms were to receive maximum natural light and have the main spaces enjoy the breathtaking views of the area and rising and setting sun.

The interior finishes were to be monochromatic with light finishes and the exterior facade was to have a Corrugated finish and a mono-pitch roof.

Ground floor plan

13mm thick gypsum ceiling suspended on 25x50 blinding with 600mm spacing

26 gauge corrugated sheets laid at 5o on 50mm thick 600 senders on 75mm thick timber trusses on 100x50 wall plate on 450mm deep concrete beam

13mmthick granito tiles adhered to 150mm thick concrete slab on damp proof membrane on 20mm thick blinding on hardcore compacted in layers of 300mm

Section 01

Side perspective

28 gauge box profile corrugated sheet bolted to 75X50 RHS profile

Lime white wash plaster on 150mm thick masonry wall

Coral stone mixed with lime mortar on 150mm thick masonry wall. Entry

Elevation 01

26 gauge corrugated sheets laid at 5o on 50mm thick 600 senders on 75mm thick timber trusses on 100x50 wall plate on 300mm deep concrete beam

400mm wide openings within the outdoor shower to allow for visual continuity to the phenomenon

Coral stone mixed with lime mortar on 150mm thick masonry wall.

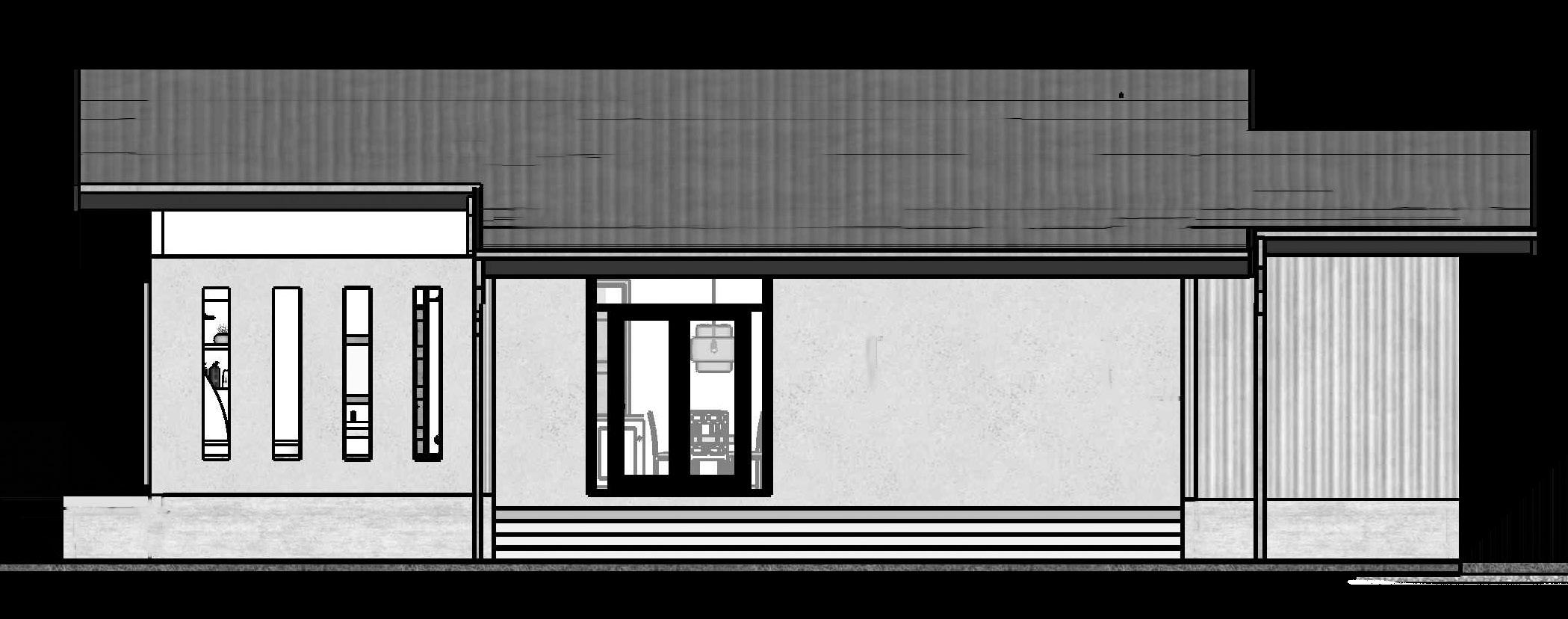

Elevation 02

26 gauge box profile corrugated sheet bolted to 75X50 RHS profile

114mm dia box steel gutter laid at 10 to allow for water harvesting within the property.

13mm Lime white wash plaster on 150mm thick masonry wall

Concepts

Visual Continuity

The main concept was to bring the indoors outdoors and vice versa hence the use of the fold-able doors that can fully open up the space

Materilaity

Use of coral stone and river bed stones due to their availability hence sustainable in terms of cost and longevity.

Materiality:Use of coral stone

Visual Continuity

114mm dia rainwater down pipe draining to 450mm high planter to achieve rain water harvesting within the bathroom

6mm transparent glass fixed on 100x100 aluminum channel fold-able door to allow for visual continuity

13mm lime whitewash plaster on 150mm thick curved wall to define the shower area within the bathroom

Rainwater used to water the garden in Artcaffe,Nairobi

Coral stone cladding on 150mm thick masonry wall to give the outdoor feel within the outdoor bathroom 400mm wide slits to allow for play of light and shadow within the bathroom.

Bathroom section 01

450mm high plater that also forms a seating space within the outdoor bathroom.

Use of slits to achieve the play of light and shadow

Bathroom section 02

Outdoor bathroom perspective

Indoor bathroom perspective

+3000

Beam level

Beam level

Ground floor

Ground floor

Materials

Off white granito tiles Light oak stain Mahogany stain White paint

Off white granito tiles within the entire living area to brighten the space and make the room fell larger due to the reflection of light from the white tiles and the uniformity of the tiles.

Light oak stain within the kitchen counter tops and open shelves. The open shelves makes the room feel bigger and airy

Mahogany stain within the false beams on the ceiling to mimic the boriti in Swahili architecture and to lower the ceiling height within the space.

Lighting Furniture

White paint within the walls to brighten the space and reflect the light within the space to make the room airy and light the space.

Bamboo shade Spotlights

Bamboo shade within the living area lamps to give a bohemian feel and also use the artisans within the county. The bamboo shade also provides a good play of light and shadow.

White wash Sand and coral stones

Spotlights within the kitchen to light the cooking area and the shelves within the kitchen area.

White wash on the living room and dining sofa to give a worn out feel to the furniture and also scatter the light within the room making the room brighter and airy

A layer of sand and coral stones on the living room center piece table to conform to the coastal beach within the county.

450mm wide niches painted white on lime plastered 150mm thick masonry wall.

13mm thick granito white tile adhered to 150mm thick RC slab.

150mm thick floating shelves with an oak varnish screwed to 150mm thick masonry wall.

50x25 timber with a mahogany varnish screwed to 10mm thick gypsum ceiling.

150mm thick floating shelves with an oak varnish screwed to 150mm thick masonry wall.

Makuti lamp shade to support the local artisans and also have a play of light and shadow within the space.

900mm high,18mm thick white MDF with black round handles kitchen cabinets. screwed to 150mm thick wall

R U A I R E S I D E N C E

Year Location Client Status

: 2022

: Ruai, Nairobi County

: John Kagia

: Under construction

Project description

The client’s brief was to design a four bedroom maisonette on 2694m2.The client wanted an open plan layout of the living space,dining and kitchen. The master bedroom was to be located away from the rest of the bedrooms to achieve maximum privacy and also open up to a balcony/terrace.

Generally the entire layout was to feel airy with minimal doors. The dining,living area and kitchen were to be designed in a way that they all had uninterrupted visual continuity.

The house was to be oriented in a way that enabled the main spaces to receive the maximum amount of light.

The site is located in Ruai,Nairobi county. The area is bounded by Kangundo road and Eastern By pass. The site is accessed via Eastern by pass. The site is in a residential zone close to the Eastern By pass Mall, the Jomo Kenyatta International Airport and the Nairobi Central Business District

1000mm high aluminum and glass railing screwed to 450mm high masonry wall

Stair case well

RC staircase to S.E’s details.

Riser=150mm

Tread=300mm

150mm thick RC slab to S.

Materiality Concepts Design Concepts

Stand stone cladding Hierarchy Patterned plastering

Sand stone cladding on the column concealing the plumbing and drainage down pipes. This contrasts the white paint finish and also enhances verticality on the front facade

Patterned plastering on the staircase wall highlights the wall and enhances verticality on the back facade of the building.

Elevation 02

The design of the front facade is such that the center bit is higher that the rest of the vertical planes. This is to draw the eye towards the center of the building and break the horizontal planes of the cantilevered slabs supported by down stand beams. The cladded column concealing the plumbing and drainage down pipes also enhances verticality and harmony within the front facade.
