TREE GRATINGS
Griglia Modello Modular in ghisa G200 colorazione grigio ghisa
®
GRIGLIE PER ALBERI

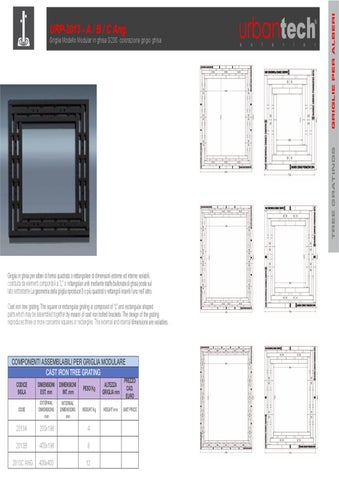

URP-2013 - A / B / C Ang.
Griglia in ghisa per alberi di forma quadrata o rettangolare di dimensioni esterne ed interne variabili, costituita da elementi componibili a "L" o rettangolari uniti mediante staffe bullonate di ghisa poste sul lato sottostante.La geometria della griglia riproduce 3 o più quadrati o rettangoli inseriti l’uno nell’ altro. Cast iron tree grating. The square or rectangular grating is composed of “L” and rectangular shaped parts which may be assembled together by means of cast iron bolted brackets. The design of the grating reproduces three or more concentric squares or rectangles. The external and internal dimensions are variables.
COMPONENTI ASSEMBLABILI PER GRIGLIA MODULARE CAST IRON TREE GRATING CODICE SIGLA
DIMENSIONI EST. mm
DIMENSIONI INT. mm
PESO Kg
ALTEZZA GRIGLIA mm
CODE
EXTERNAL DIMENSIONS mm
INTERNAL DIMENSIONS mm
PREZZO CAD. EURO
WEIGHT Kg
HEIGHT mm
UNIT PRICE
2013A
200x196
4
2013B
400x196
8
400x400
12
2013C ANG.
