6 minute read
OF MYSORE
Bangalore
Area: 18 acres
Advertisement
1200 sqm
Traditional markets are places which show the community lifestyle, culture and heritage that’s why it has a strong rootedness to its local people. This thesis articulates the process of transformation as the vehicle for redevelopment of heritage buildings in our contemporary condition. It includes the investigation of events, theories and methods of transformation in the context of Mysore contemporary practice.
This thesis articulates the process of transformation as the vehicle for redevelopment of heritage buildings in our contemporary condition. It includes the investigation of events, theories and methods of transformation in the context of Mysore contemporary practice.
TITLE- Revitalization Of Heritage Landmarks of Mysore
Aim of this thesis is to develop and restore Lansdowne building and Mysore Devaraja market area, by retaining the Heritage and character of an existing market and introducing modern system to withstand present requirements. Developing an heritage public spaces for trading, business and tourism with celebrates and promotes culture, tradition and historic value.
OBJECTIVE-
To understanding market culture and heritage of the Mysore.
To restore the heritage buildings and slow down the naturaldecaying of the structure.
To retain active frontage and creating a system to uplift the legibility.
To provide required commercial and recreational facilities in dense CBD area of Mysore.
To introducing modern methods to sustain traditional market. To redistribute density in CBD by creating organized spaces and designing to reach maximum FAR and efficiency.
SCOPE-
This project shows how urban redevelopment can increase the imageability and efficiency of heritage buildings. It also shows redistribution of density can be achieved by organized zoning and circulation. Considering the project to be in an urban setup and building restoration, it would help in acting as a demonstration model for other projects.
LIMITATION-
Working around heritage structures can come across unexpected complications, which can create a varying design decision during execution. Restoration of historic building projects attracts public which will be subjected to public criticism. The MUDA norms and regulations.
NEED FOR THE PROJECT-
METHODOLOGY-
INTRODUCTION
INTRODUCTION TO URBAN AREA
LITERATURE STUDY/ CASE STUDY
RESEARCH- METHODS OF RESTORATION
SITE AND SURROUNDING
DERIVING DESIGN PRINCIPALS
DEVELOPMENT STRATEGIES
PROPOSAL
Aim, objective, scope and limitations, need for project.
Location, Context and Climate data
Referring to similar project for guidelines and understanding different stages of design decisions.
Referring standards and types of restoration, and to derive appropriate suitable methods.
Context study, road networks, user type and detail documentation of existing site conditions and surrounding.
Establishing urban design principle through identifying issues needs of study area.
Exploring development strategies for movement, open space and landscape, built form and density.
Degenerating Heritage public buildings create a concern for safety of users and concern for historic value of a building it self. Continuous degradation leads either to demolition of building where the piece of history is lost, or abandoning the building which creates a dark path in a CBD area.
The State Government had released funds for the renovation of Lansdowne building but the works failed to take off following the dual stand of experts. Now, the matter was pending before High Court.
SANTA CATERINA MARKET
BALTIC STATION MARKET
PARKING
WASTE MANAGEMENT
DRINKING WATER, SEATING AND TOILET FACILITIES
STORAGE AND COLD STORAGE
ARRANGEMENT OF VENDORS IN MARKET COMPLEX
SJB SAP ARCHITECTURAL THESIS- 2022
PARKING
WASTE MANAGEMENT
DRINKING WATER, SEATING AND TOILET FACILITIES
STORAGE AND COLD STORAGE
ARRANGEMENT OF VENDORS IN MARKET COMPLEX
FOR
SURFACE PARKING FOR 2 WHEELERS, BASEMENT PARKING FOR 2 WHEELER AND 4 WHEELER. PLANNED AND DEDICATED SPACE
OFF SITE WASTE MANAGEMENT
Ending years of uncertainty over the fate of dilapidated Devaraja Market and Lansdowne buildings in Central Business District (CBD) of the city, Chief Minister Basavaraj Bommai on Wednesday announced that the two buildings will be rebuilt.
PLANNED AND DESIGNATED SPACES ARE PROVIDED
INDIVIDUAL VENDOR STORES HAVE DESIGNATED SPACE FOR STORAGE. BASEMENT HAS A PROVISION FOR EXTRA GOODS
GRID ARRANGEMENT IS BROKEN BY DIAGONAL ARRANGEMENTS, PLANNED ARRANGEMENT
PANAJI MUNICIPAL MARKET
SURFACE PARKING FOR 2 WHEELERS, BASEMENT PARKING FOR 2 WHEELER AND 4 WHEELER. PLANNED AND DEDICATED SPACE
OFF SITE WASTE MANAGEMENT
PLANNED AND DESIGNATED SPACES ARE PROVIDED
INDIVIDUAL VENDOR STORES HAVE DESIGNATED SPACE FOR STORAGE.
OPEN MARKET - PLANNED ARRANGEMENT INDOOR VENDORS FOLLOW THE PATTERN OF WALL PLANNED ARRANGEMENT
TUSHAR BN
1JA17AT049 9th SEM
KR MARKET
SURFACE PARKING AND BASEMENT PARKING FOR 2 WHEELER AND 4 WHEELER. PLANNED AND DEDICATED SPACE
ON SITE WASTE MANAGEMENT- PROVIDE IN REAR SIDE OF SITE.
MUNICIPALITY AND VENDORS ARE INSTRUCTED TO COLLECT AND DISPOSE WASTE.
TOILET- PROVIDED IN COMPLEX DRINKING WATER- POORLY MAINTAINED NO DESIGNATED SPACE FOR SEATING SPACES
INDIVIDUAL VENDOR STORES HAVE DESIGNATED SPACE FOR STORAGE. COLD STORAGE IS PROVIDED WITH EASY ACCESS TO ALL VENDORS.
OPEN MARKET- GRID PATTERN PLANNED SPACE MARKET COMPLEX HAS INDIVIDUAL STORES FOR EACH VENDORS
BASEMENT PARKING FOR 2 WHEELER AND 4 WHEELER. PLANNED AND DEDICATED SPACE IS PROVIDED. PARKING Entrance IS BLOCKED AND POORLY MAINTAINED CREATING ON ROAD PARKING
SJB SAP ARCHITECTURAL THESIS- 2022 TUSHAR BN 1JA17AT049 9th SEM
OFF SITE WASTE MANAGEMENT, IMPROPER COLLECTION OF WASTE CREATING DECAYING SPOTS ON IN COMPLEX AND AROUND COMPLEX. TOILET- NOT PROVIDED IN COMPLEX DRINKING WATER- NOT PROVIDED IN COMPLEX NO DESIGNATED SPACE FOR SEATING SPACES VENDORS WITH STORES HAVE DESIGNATED SPACE FOR STORAGE. OPEN MARKET HAS NO STORAGE SPACE, STAIRCASE AND PASSAGES ARE USED AS STORAGE SPACE. OPEN MARKET IS ORGANIC AND UNPLANNED MARKET COMPLEX HAS INDIVIDUAL STORES FOR EACH VENDORS
STRUCTURAL REHABILITATION OF HERITAGE BUILDINGS- W023 - WALL STRUCTURES by
Swot Analysis
Strength Weakness
• Planned road network.
• Planned zoning of city markets, transportation system in the city center which made easy access to common public.
• Market spaces is a spaces of tourist attraction with its dynamic activity and culture, along with business and commercial activity.
• Planned parking spaces along the road and dedicated parking spaces in city center.
• Integration of different social classes.
• Enhancement of local economy.
• Regulator (local) price commutation and open market.
Issues In Study Area
• Denigrating heritage structures in city center creating a negative spaces.
• Unplanned buildings with lower capacity is not meeting up the potential of plots.
• Un-designated spaces for street hawkers creating a congestion in foot path, parking spaces.
• Number of vesicles parkable is reduces due to street hawkers using parking spaces.
• Road congestion due to high human foot print at certain time in a day.
• Insufficient open spaces.
Opportunities
• Redevelopment of heritage.
• Designated spaces for street hawkers.
• Re planning of plots to meet maximum efficiency.
• Developing existing open spaces and opening up to public.
• Creating open space with supports the present commercial activity around the market.
• Redistributing density and traffic.
Threats
• Lack of attention for falling heritage buildings can lead to safety issues, abandoning a structure.
• Un used buildings creates a negative space in city center, which leads to density un-even distribution.
• Lack of open space can create over crowding and decreases social activity.
• Due to competition the number of street hawkers may increases over time, un designated spaces for hawkers will increase a traffic issue and pedestrian discomfort.
Potential of plots in city center is reduced due to lo built up area buildings.
Height density built up area with no open spaces.
Degradation of heritage
Street hawkers using foot paths, creating congestion for pedestrians
Street hawkers using parking spaces, creating congestion for pedestrians
Unused commercial heritage structures creating inactive zone in city center
High human foot print at concentrated spots of study area. Creating high traffic at once spot where as other spots are deserted at same time period.
Poorly maintained open spaces, close to public access
URBAN DEVELOPMENT STRATEGY AND PROPOSAL OPEN SPACE
RESTRICTED OPEN SPACE
LOW MAINTAINED OPEN SPACE
OPEN SPACE AS PARKING FUNCTIONING OPEN SPACE
EXISTING PLAN
ONE WAY ROAD
TWO WAY ROADS
EXISTING PLAN
ONE WAY ROAD
• Development of existing green space.
• Creating pedestrian friendly spaces to accommodate street hawkers and dense human foot print
• Open space adjacent to Place has no permission for development and access to public.
• Development of existing green space.
• Creating pedestrian friendly spaces to accommodate street hawkers and dense human foot print
• Open space adjacent to Place has no permission for development and access to public.
• Traffic and vehicular moment can be reduces by converting
• Vehicles are strategically redirected to parallel roads.
• Increasing vehicular moment in inactive roads can
• Traffic and vehicular moment can be reduces by converting road into one way.
• Vehicles are strategically redirected to parallel roads.
• Increasing vehicular moment in inactive roads can bring new activity.
SJB SAP ARCHITECTURAL THESIS- 2022 TUSHAR BN 1JA17AT049 9th SEM
TUSHAR BN 1JA17AT049 9th SEM
SJB SAP ARCHITECTURAL THESIS- 2022
SJB SAP ARCHITECTURAL THESIS- 2022
SJB SAP ARCHITECTURAL THESIS- 2022
STREET HAWKERS
PROPOSAL PLAN
ONE WAY ROAD
TWO WAY ROADS
PROPOSAL PLAN
PROPOSAL PLAN
ONE WAY ROAD
TWO WAY ROADS converting road into one way. roads. bring new activity.
TUSHAR BN 1JA17AT049 9th SEM

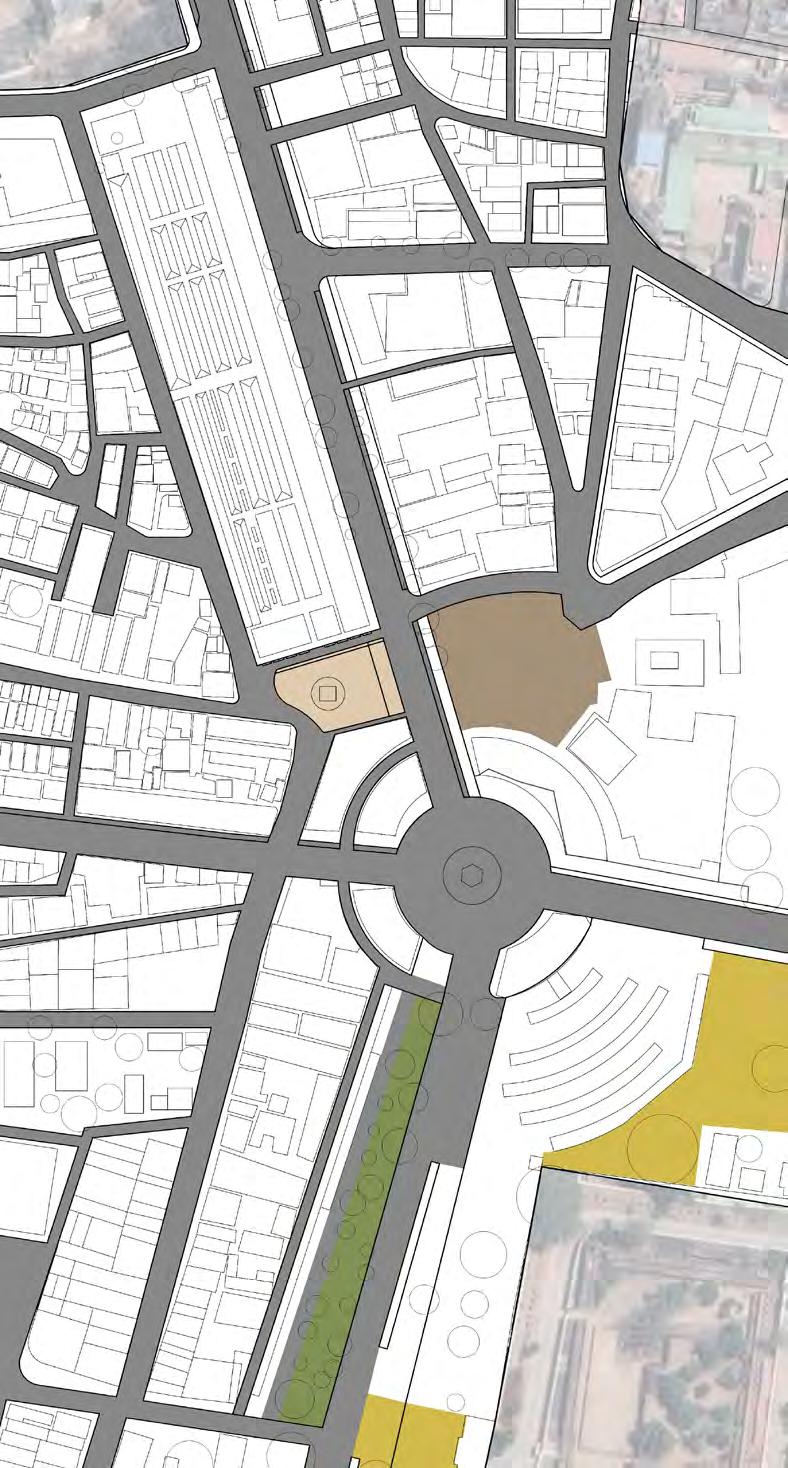

EXISTING PLAN
STREET HAWKERS
STREET HAWKERS
STREET HAWKERS
• Street hawkers all over study area is replace to dedicated spots.
• Each dedicated spaces provided facilities and protection from weather.
• Strategic replacing redistributed the density in city center.
• Aim is to reduce the disturbance to pedestrian and vehicular traffic due to street hawkers.
• Street hawkers all over study area is replace to dedicated spots.
• Each dedicated spaces provided facilities and protection from weather.
• Strategic replacing redistributed the density in city center.
• Aim is to reduce the disturbance to pedestrian and vehicular traffic due to street hawkers.
SJB SAP ARCHITECTURAL THESIS- 2022 TUSHAR
TUSHAR BN 1JA17AT049 9th SEM
SJB SAP ARCHITECTURAL THESIS- 2022
TUSHAR BN 1JA17AT049 9th SEM

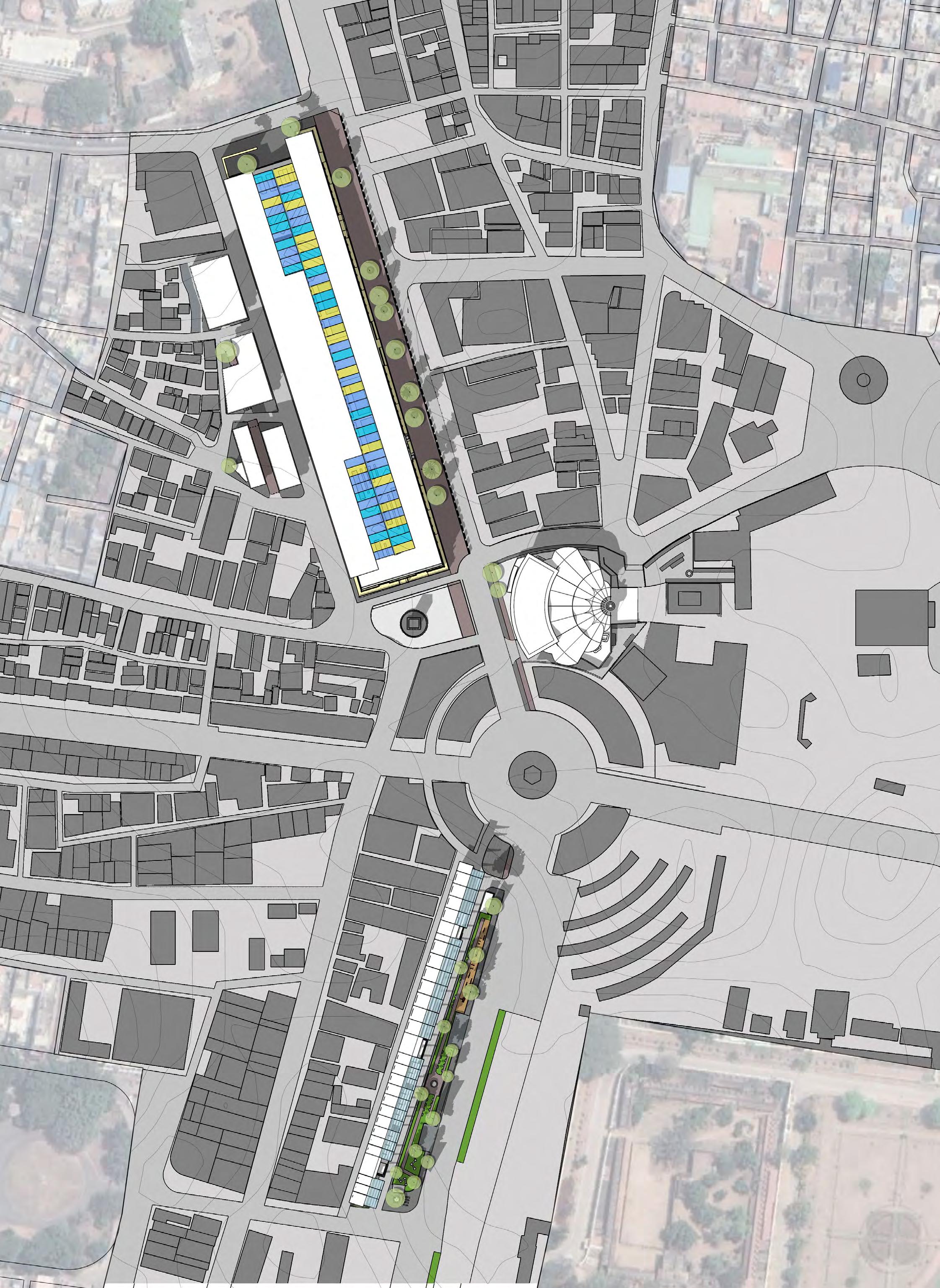

Master Plan
Master Plan
