CAD Portfolio

Tunde Pedro Experience

DIRECTOR- PROJECTS AVALON DESIGN KONSULT, ABUJA NIGERIA

September 2019 - Present

211 Albany Park Avenue, Enfield, EN3 5NZ, London

tunde.pedro@outlook.com

+447466542268

Experienced CAD Professional with a strong background in design coordination. I have an Excellent working knowledge of AutoCAD with excellent 2-D drafting skills and high proficiency in the use of Revit for Building information modelling. A strong communicator and team player. Having a possibilities mindset backed by years of experience delivering creative solutions on diverse project portfolios.

EDUCATION

UNIVERSITY OF LAGOS

Master of Environment Design

December 2007

UNIVERSITY OF LAGOS

Bachelor of Environmental Studies Architecture

June 2004

Skills Design Coordination Revit, Autocad, Sketchup, Navisworks

Microsoft Projects

• Providing schematics plans, general arrangement drawings, detailed 2-D Drawings and 3-D models

• Prepare drawings for project submittals including the drafting and management of drawing transmittals.

• Production of 2-D details of factory, warehouse and workshop façade.

• Coordinate and review 2-D and 3-D construction and fabrication drawings in Revit and AutoCAD ensuring efficient workflow.

• Interpreted contract documents, and technical specifications, and managed variations within project plans.

• Responsible for ensuring delivery of drawing work to agreed project programmes

CAD DESIGNER CONCEPTSTUDIOS LIMITED, ABUJA, NIGERIA

February 2009 – September 2019

• Working across stages 1-4 producing drawings for construction, architectural and civil works.

• 2-D drafting in AutoCAD and 3-D Modelling in Revit.

• Concept development, construction documentation, schedules, legends, shop drawings.

• Conducted design workshops with specialist consultants, aligning design solutions with industry standards.

• Utilized AutoCAD and Revit for 2D and 3D drawings, ensuring compliance with codes and regulations.

• Produce existing plans, sections and details using surveyors' notes and measurements.

Content

• Nigeria Extractive Industries Transparency Initiative HQ

Concept Development, 2-D Presentation, 3-D modelling, Design Visualization

• Nigeria-Sao Tome & Principe Joint Development Authority HQ

Concept Development, 2-D Presentation, 3-D modelling, Design Visualization

• Gusau Cargo Airport

Concept Development, 2-D Presentation, 3-D modelling, Design Visualization, Construction Documentation

• IBIS Hotel

Concept Development, 2-D Presentation, 3-D modelling, Design Visualization, Construction Documentation

• Interior WookWork Limited Factory

Concept Development, 3-D modelling, Design Visualization, Construction Documentation, Steel structure modelling and detailing

• Student Hostel , Vocational & Entrepreneurship Development Centre

Concept Development, 2-D Presentation, 3-D modelling, Design Visualization, Construction Documentation

• Ornel Production Warehouse

3-D modelling, Design Visualization, Construction Documentation, Steel structure modelling and 2-D construction detailing

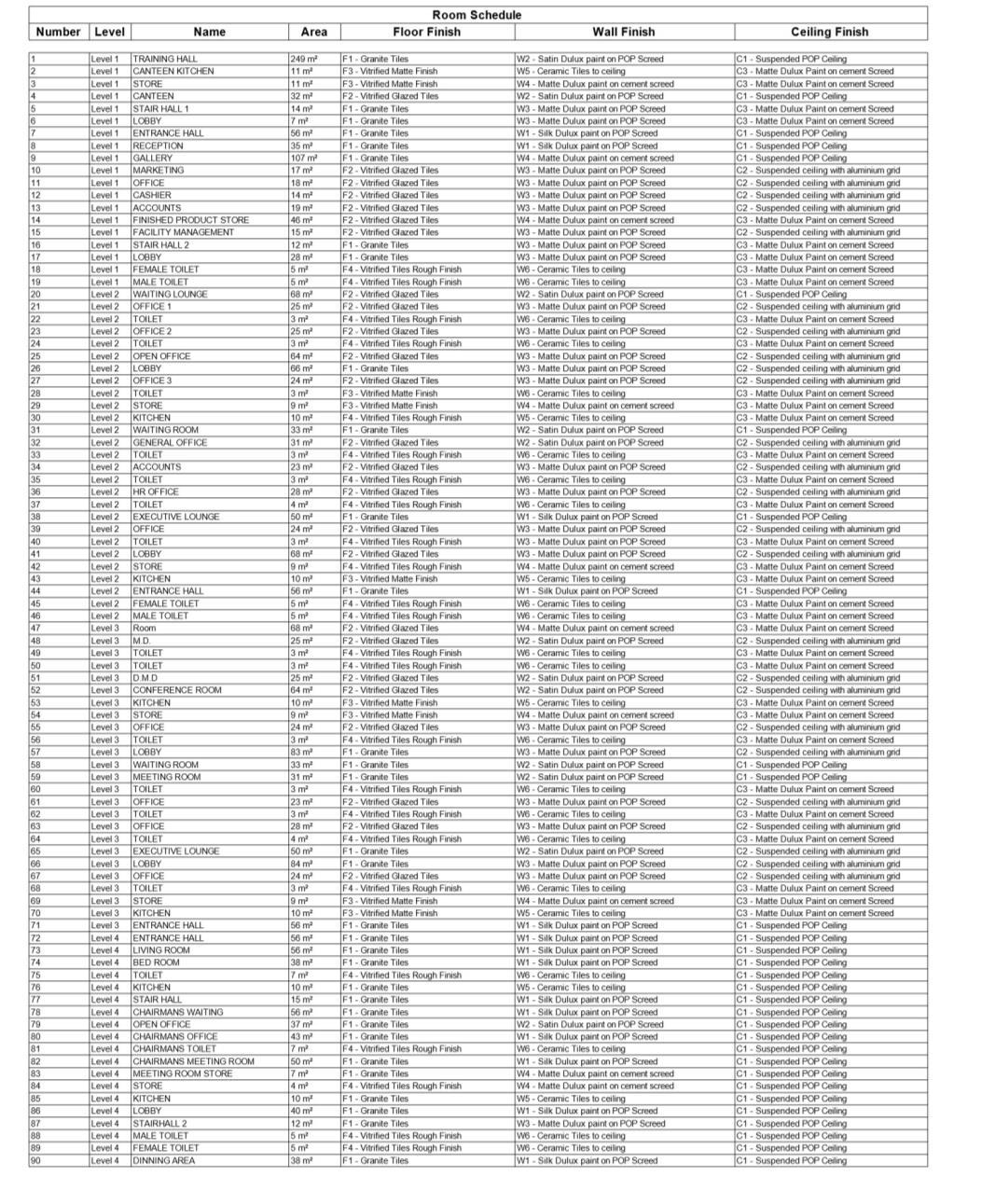

Schedules and Legends

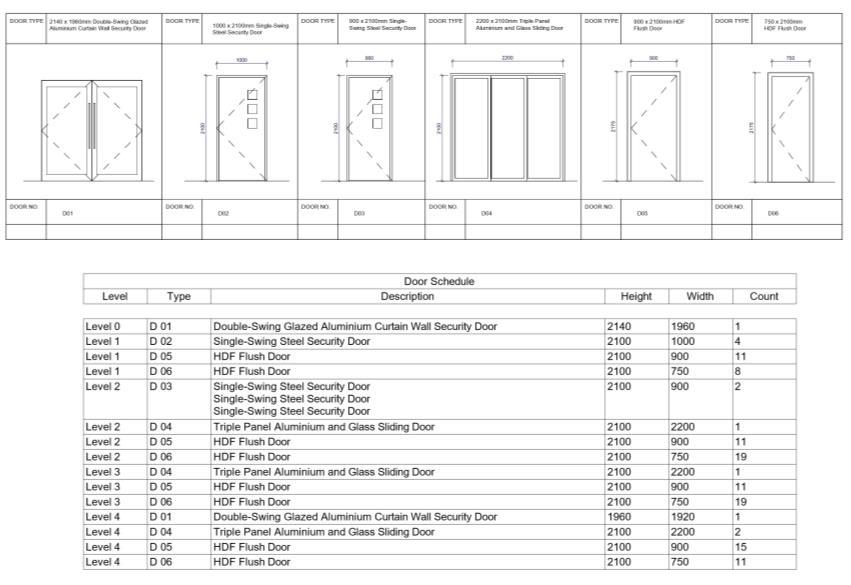

Door, Window, Finishes Schedule. Door and Window Legend

• Interior WoodWork Office Furniture Modelling

Revit Furniture Family Modelling,

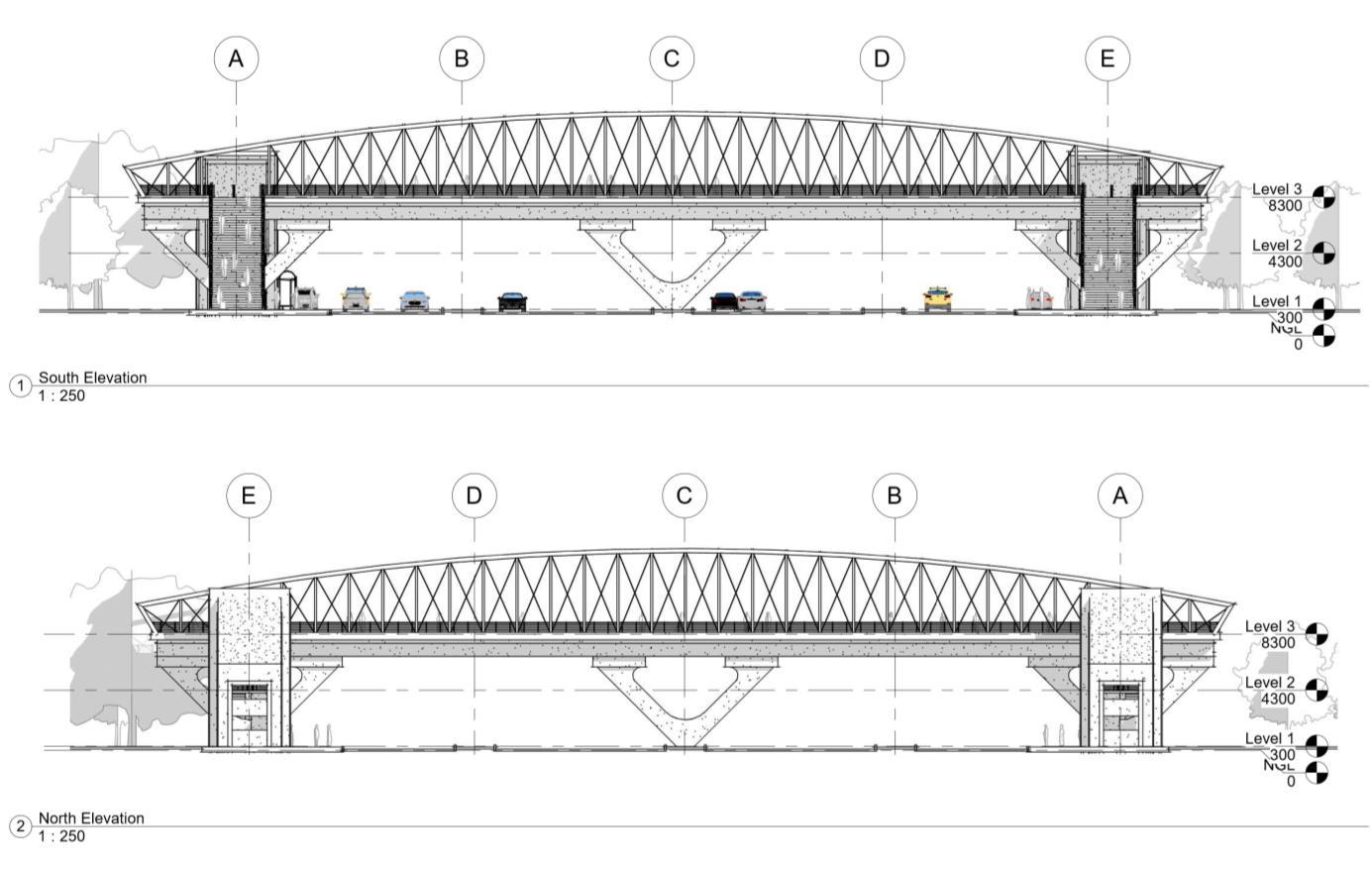

• Pedestrain Bridge Proposal

3-D modelling, Design Visualization

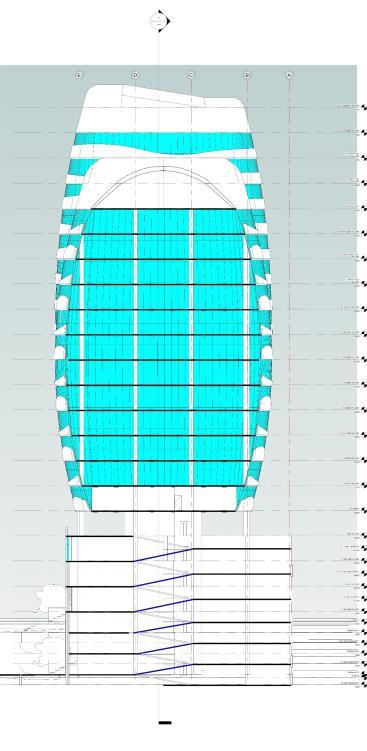

The building of about 2,712 sqm on 24 floors and 76 meters high aims to achieve exemplary environmental quality with a strong emphasis on urban integration, energy performance, and user comfort.

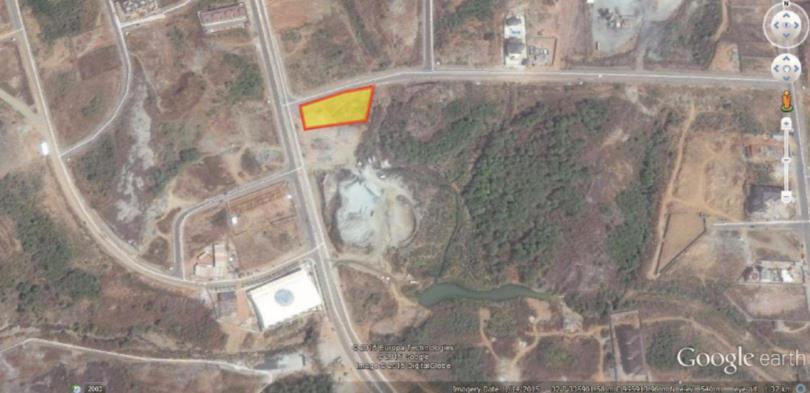

A volume sculpted by the constraints of the site. The project evolved out of a contextual study reconciling the morphology of the block, urban regulations, and the building mass's exposure to solar gain

FIRST FLOOR

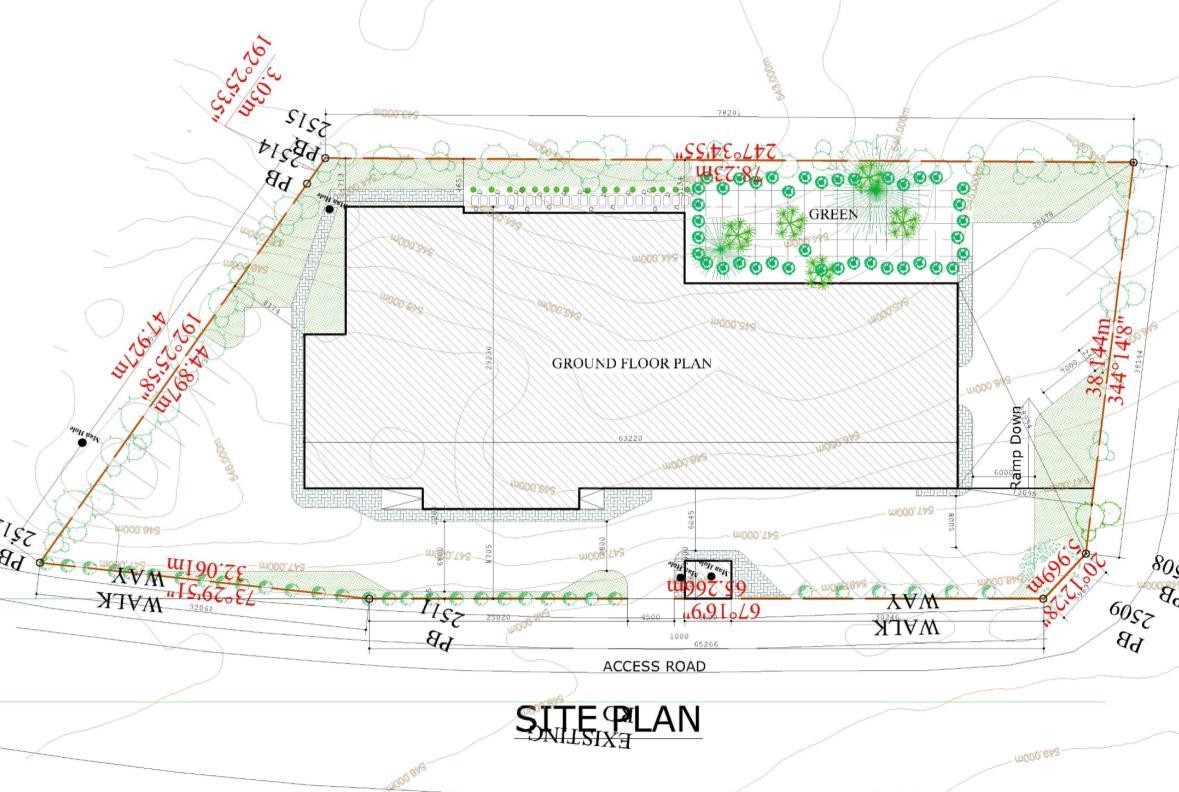

GROUND FLOOR

SECOND FLOOR

TYPICAL TOWERS FLOOR

Nigeria Extractive Industries

Transparency

Initiative HQ

Project

Title Nigeria Extractive Industries

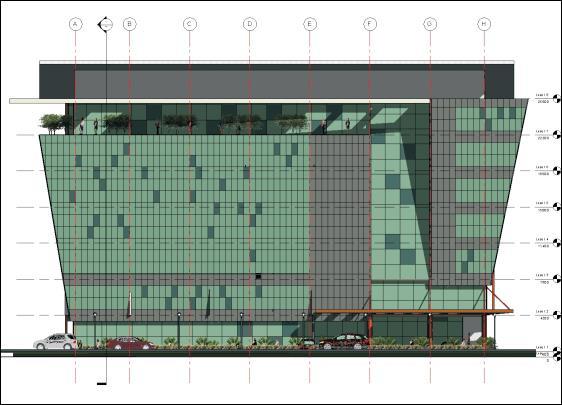

Transparency Initiative HQ Building (The Talking Drums)

Location CBD, Abuja, Nigeria

Building Are 2,560 sqm

Number of Floors 24 Floors

Team Conceptstudios Limited

My Role • Concept Development

• 2D Presentation drawings

• 3D Modelling

• Design Visualization

Software Used

• Revit

GROUND FLOOR

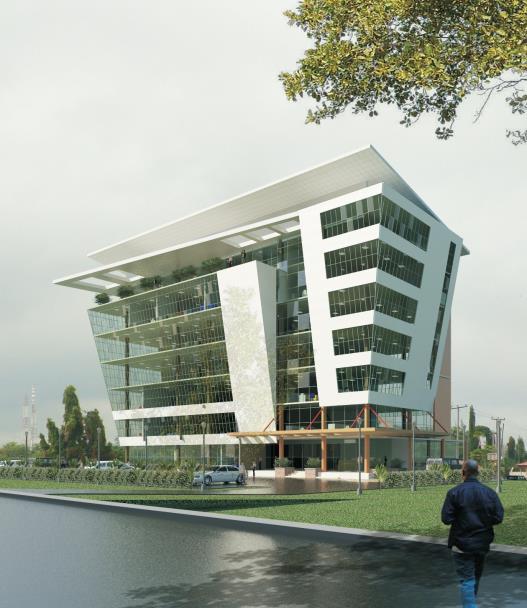

Nigeria-Sao Tome & Principe Joint Development Authority HQ

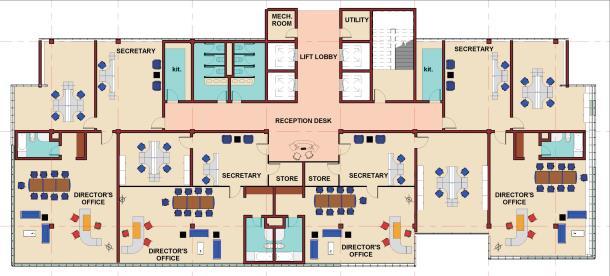

FIRST FLOOR (1ST-4TH Floor typical plan)

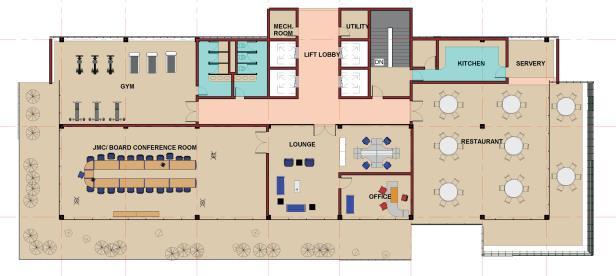

FIFTH FLOOR

Project Title Nigeria-Sao Tome & Principe Joint Development Authority HQ

Location CBD, Abuja, Nigeria

Size 755sqm

Number of Floors 7 Floors

Role • Concept Development

• 3D Modelling

• Design Visualization

Software Used • Revit • Photoshop

SIXTH FLOOR

GROUND FLOOR

FIFTH FLOOR

FIRST FLOOR

SIXTH FLOOR

SECOND FLOOR

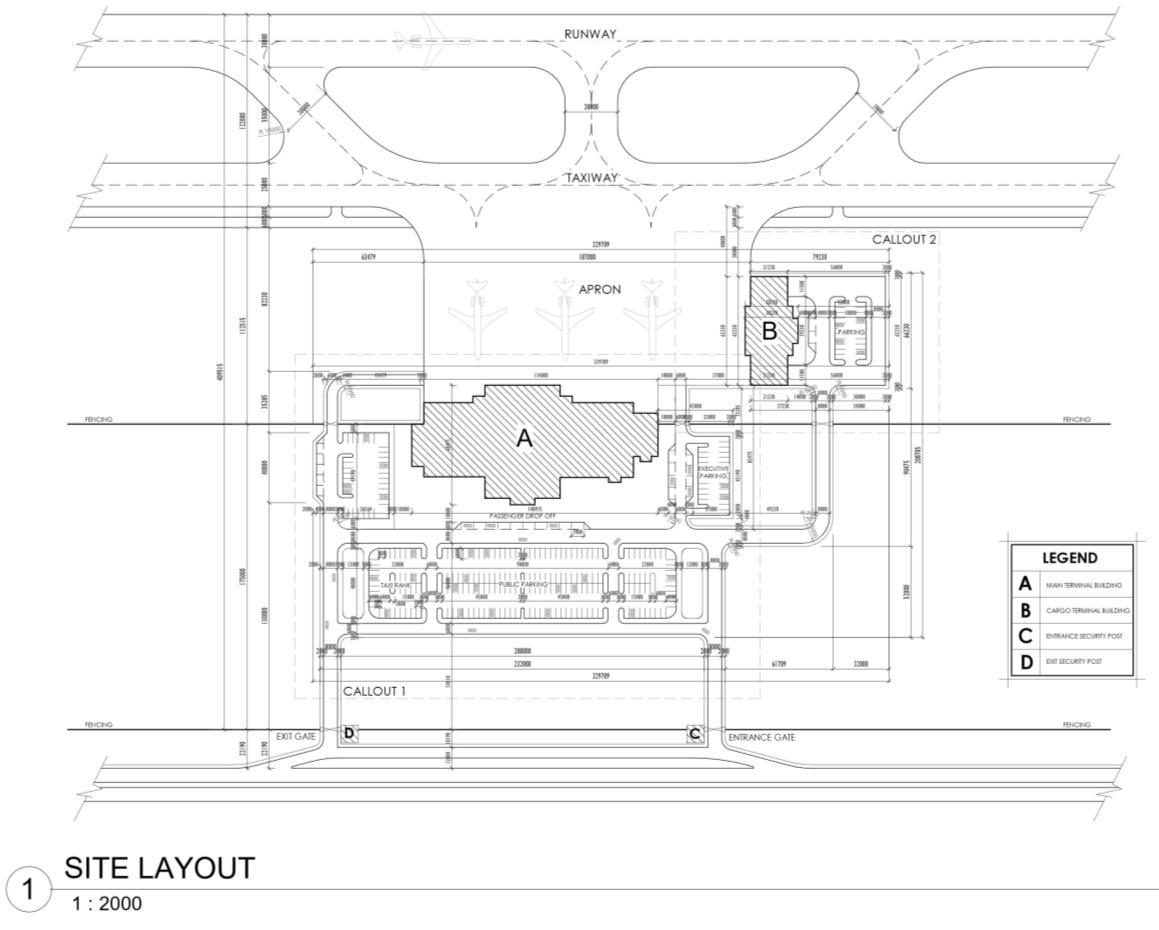

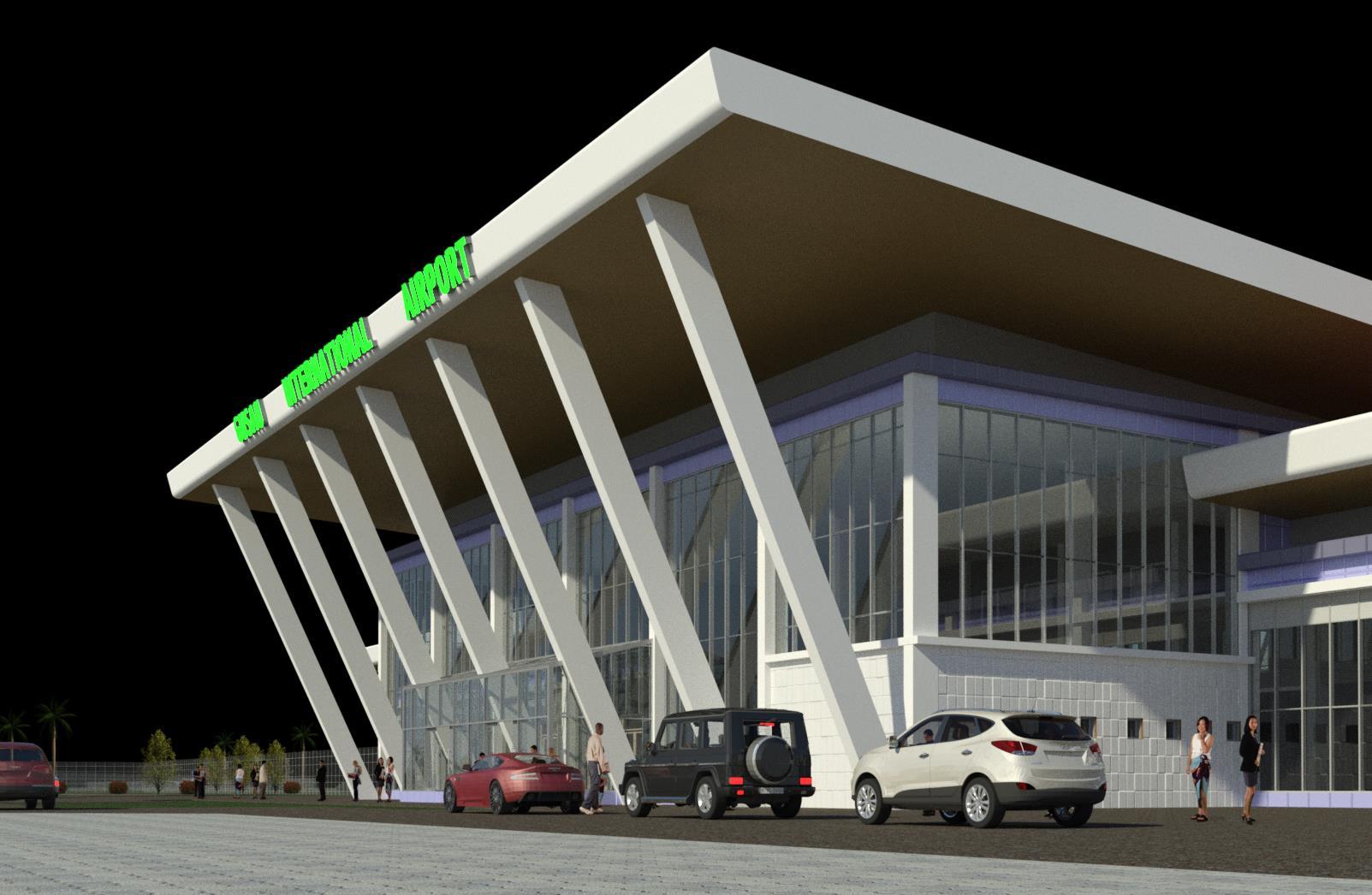

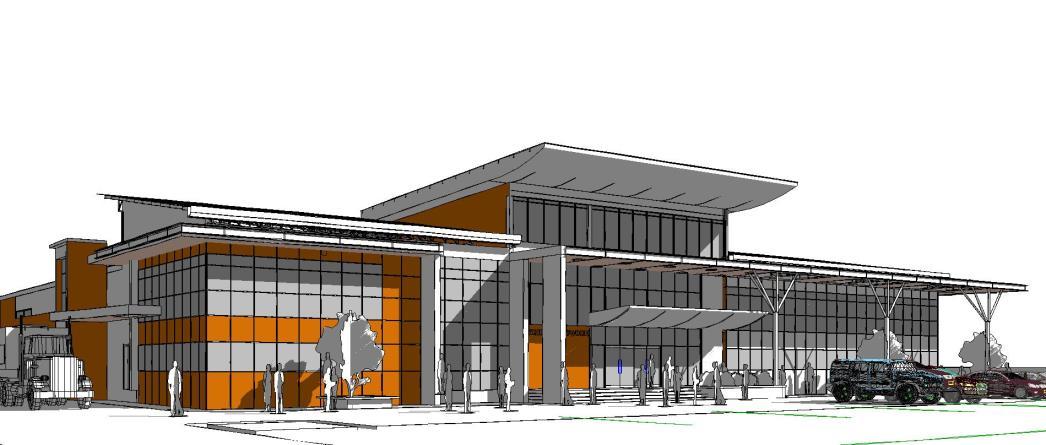

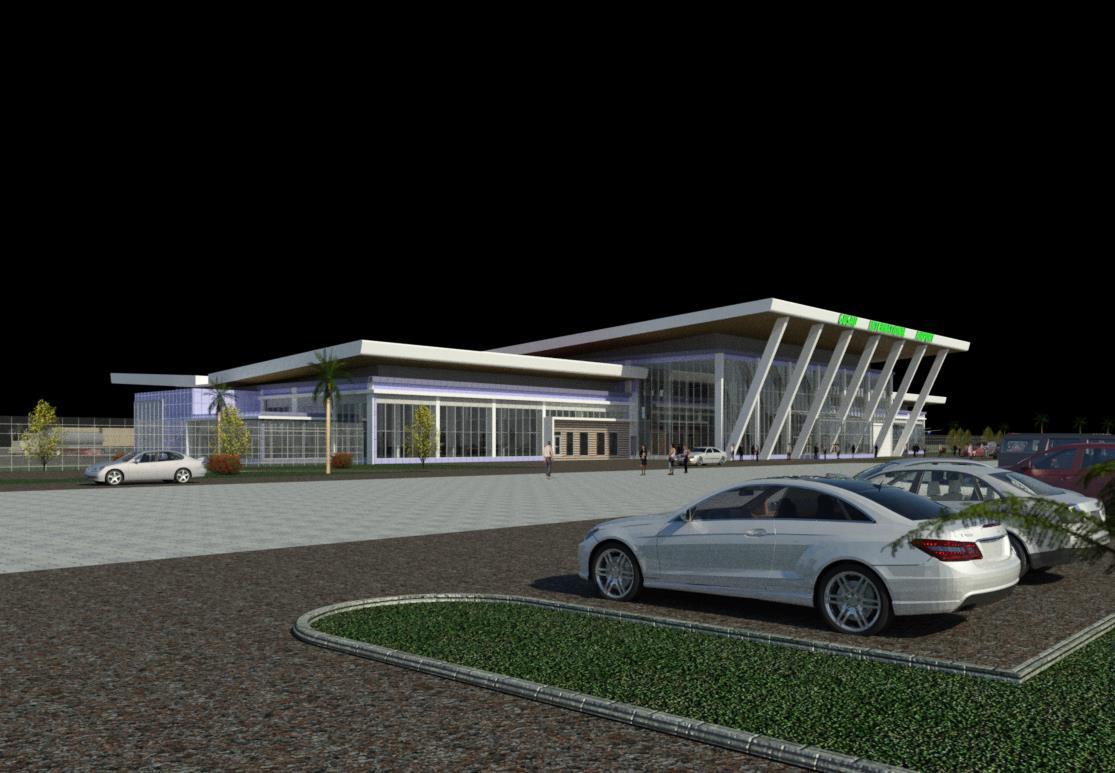

Gusau Cargo Airport

GROUND FLOOR

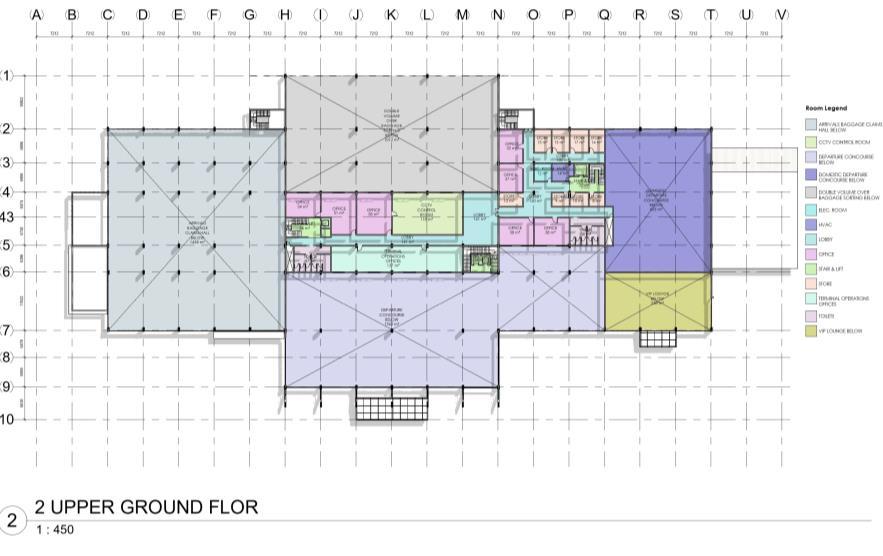

UPPER GROUND FLOOR

Gusau Cargo Airport

Project Title Gusau Cargo Airport

Location Gusau, Zamfara State

Building Area 9,520sqm

Number of Floors 3 Floors

Role

• Concept Development

• 3D Modelling

• Design Visualization

• Construction Documentation

Software Used • Revit

• Photoshop

LOWER GROUND FLOOR

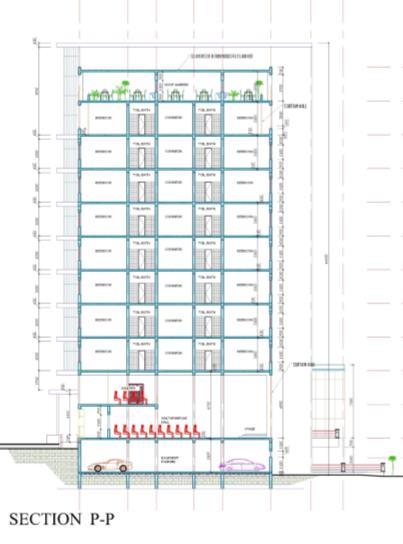

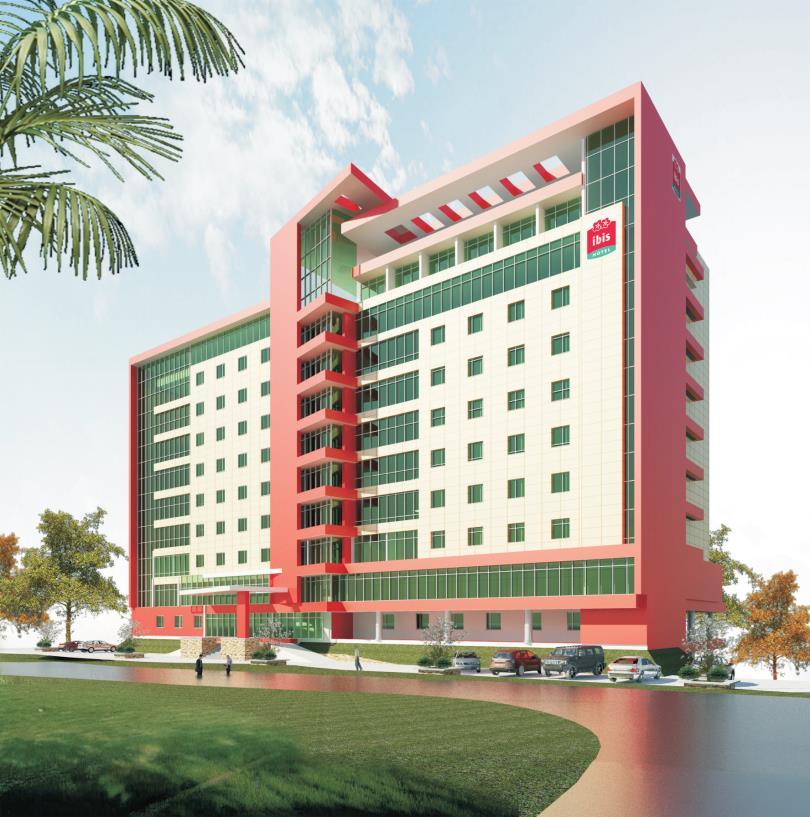

IBIS Hotel

Project Title Gusau Cargo Airport

Location Gusau, Zamfara State

Building Area 1,800 sqm

Number of Floors 11 Floors

Role • Concept Development

• 3D Modelling

• Design Visualization

• Construction

Documentation

Software Used • Revit

• Photoshop

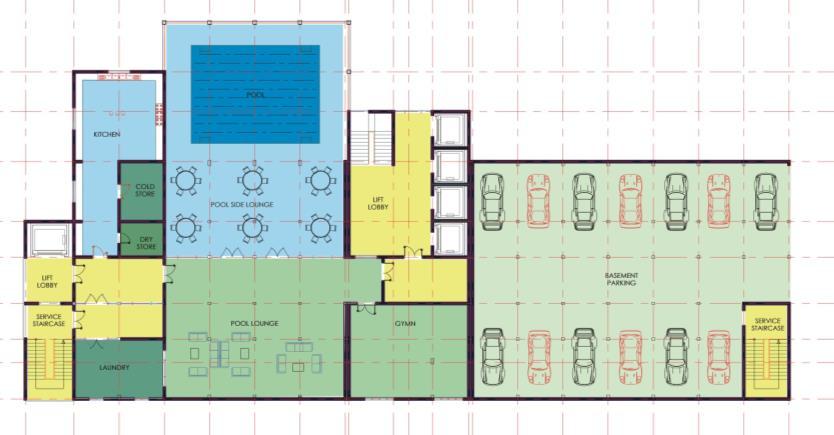

UPPER GROUND FLOOR

FIRST FLOOR

TYPICAL FLOOR (2ND -8TH Floor)

GROUND FLOOR

FIRST FLOOR

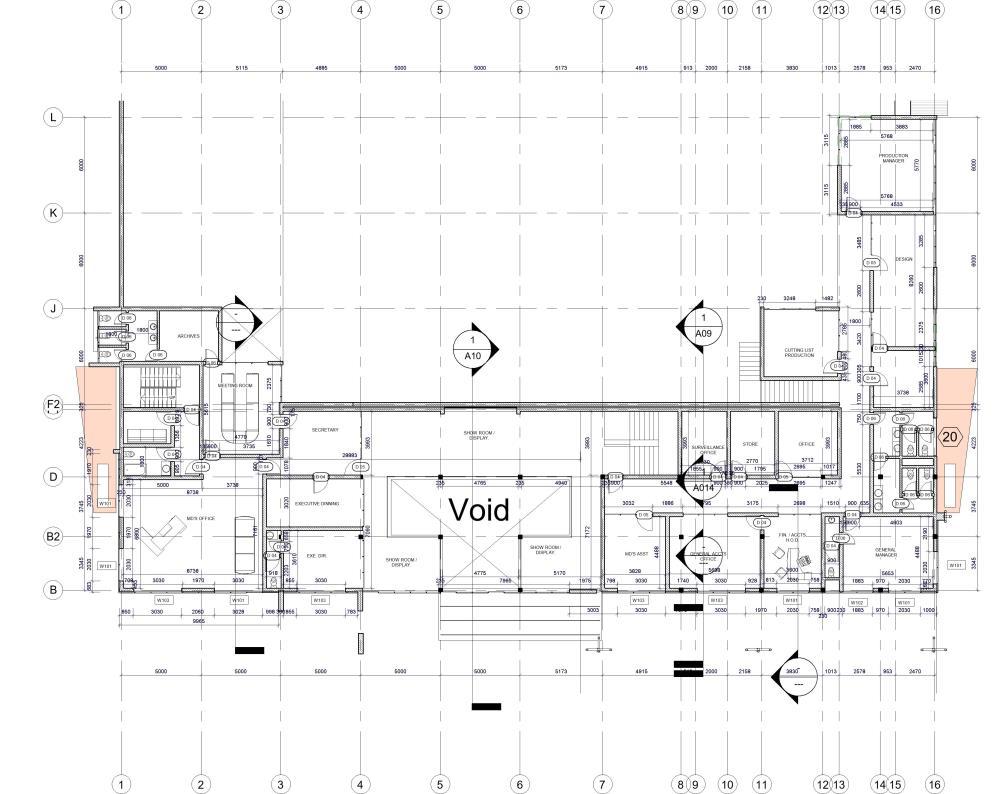

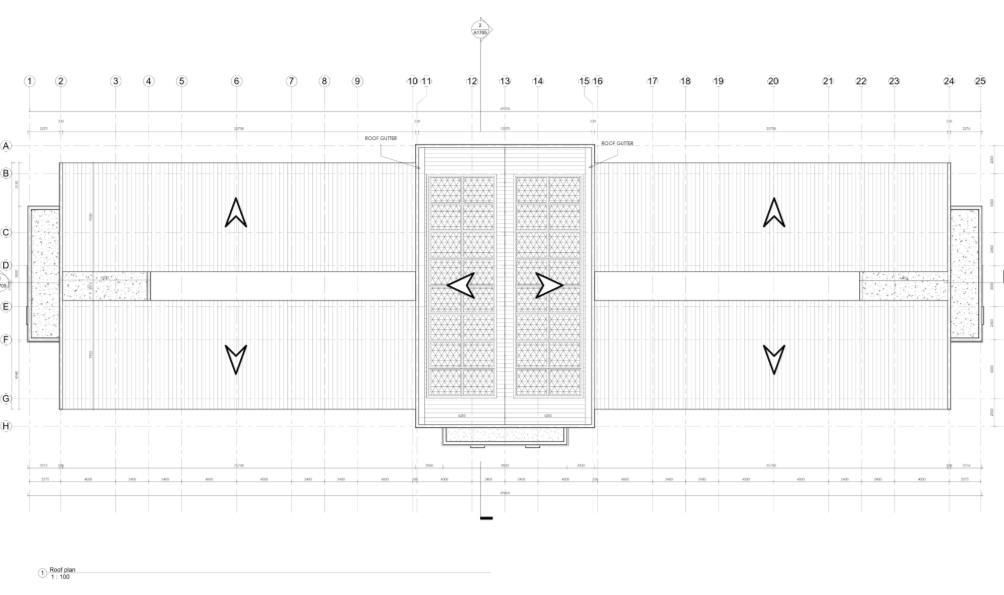

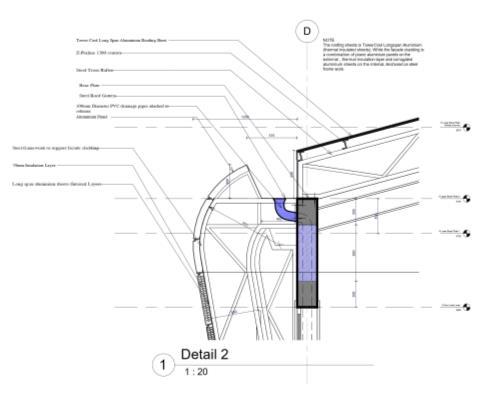

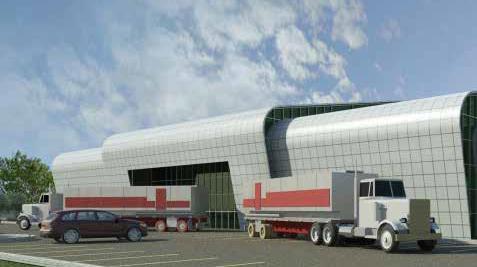

Interior WookWork

Limited Factory

Project Title Interior WoodWork Factory (Factory Expansion)

Location Idu Industrial Area, F.C.T., Nigeria

Building Area 4,520sqm

Number of Floors 1 Floors

Role • Concept Development

• 3D Modelling

• Construction

Documentation

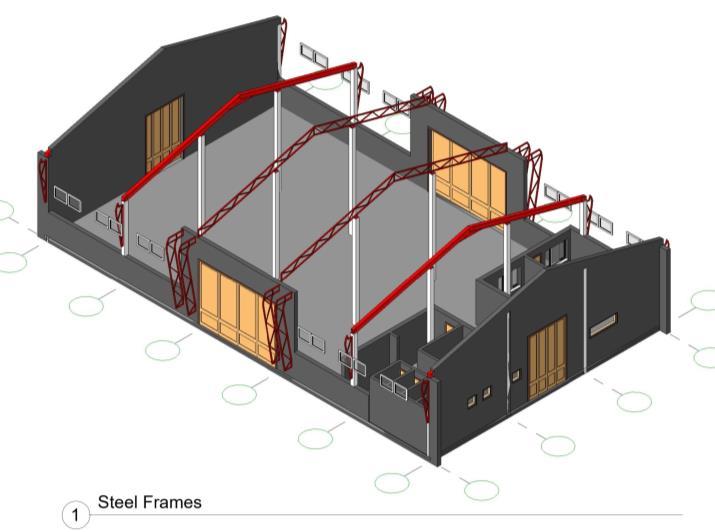

• 2-D and 3-D Structural Steel Detailing

SIDE ELEVATION

SIDE ELEVATION

Software Used

• Revit

• Photoshop

FRONT ELEVATION

SIDE ELEVATION

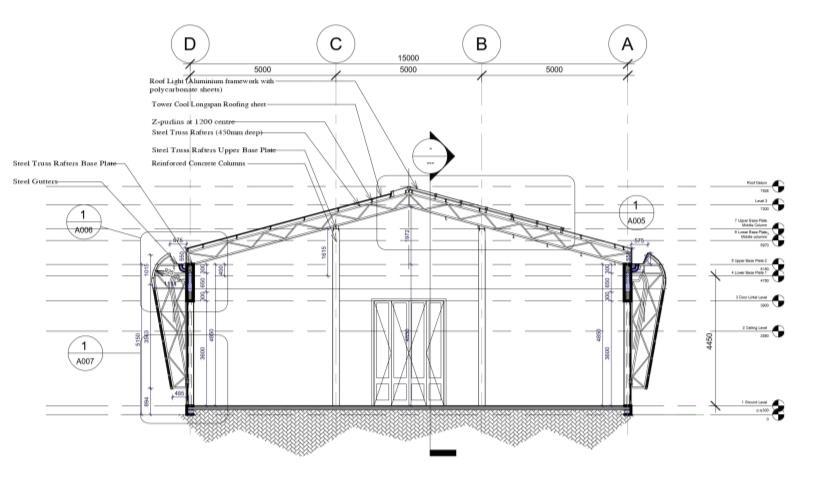

SECTION 2

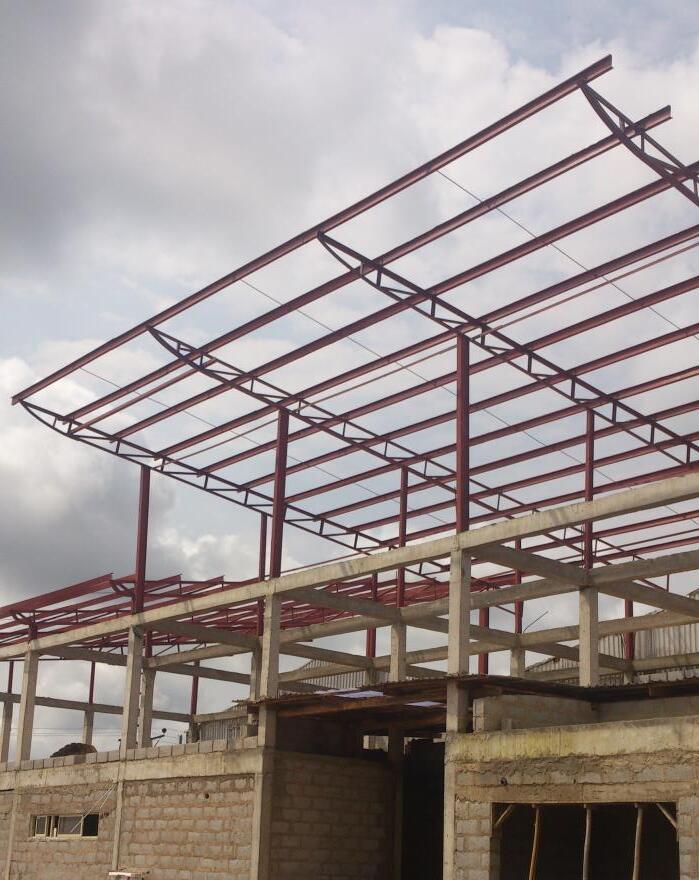

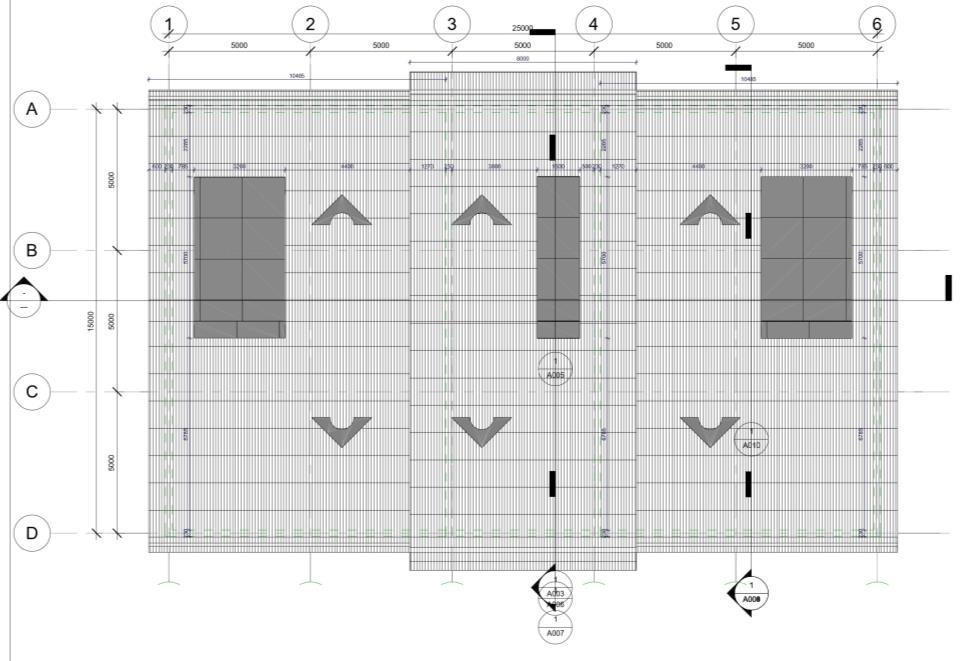

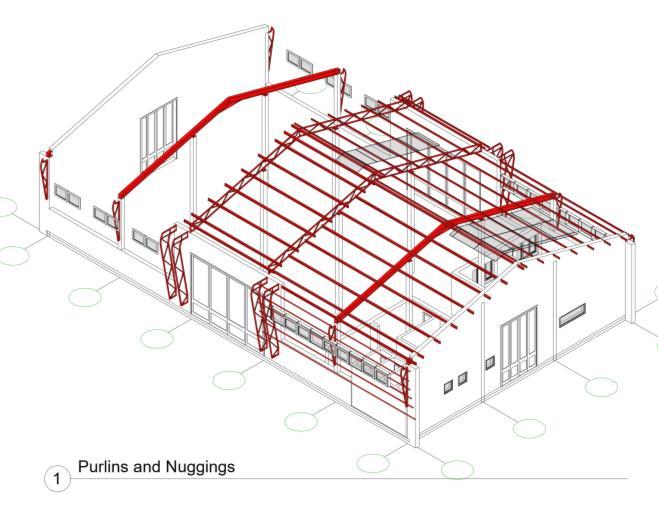

ROOF STEEL STRUCTURE LAYOUT

Interior WookWork Limited Factory

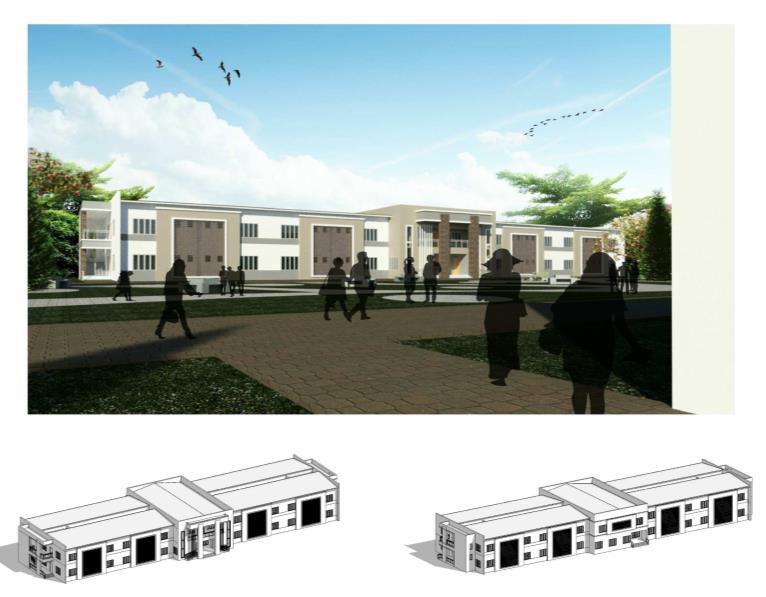

Student Hostel

Vocational & Entrepreneurship

Development Centre

Project Title Student Hotel Building

Location Agbor, Delta State, Nigeria

Building Area 1,380 sqm

Number of Floors 2 Floors

Role • 3D Modelling

• Construction Documentation

Software Used • Revit

Ornel Production

Ware House

Project Title Ornel Production

Ware House

Location Port Harcourt, Rivers State

Building Area 375sqm

Number of Floors 1 Floors

Role • 3D Modelling

• Construction

Documentation

• 2-D and 3-D Steel

Fabrication

Detailing

Software Used • Revit

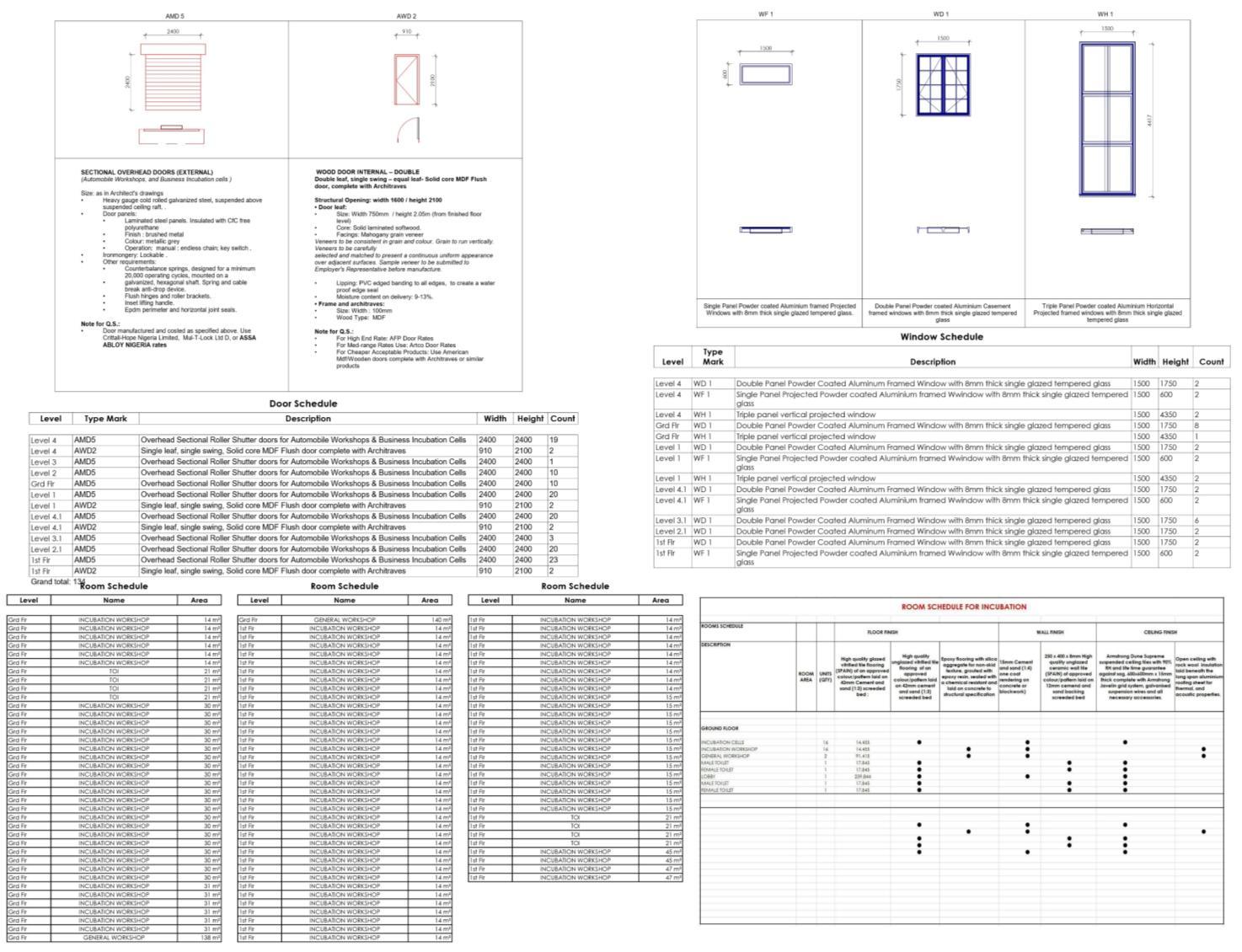

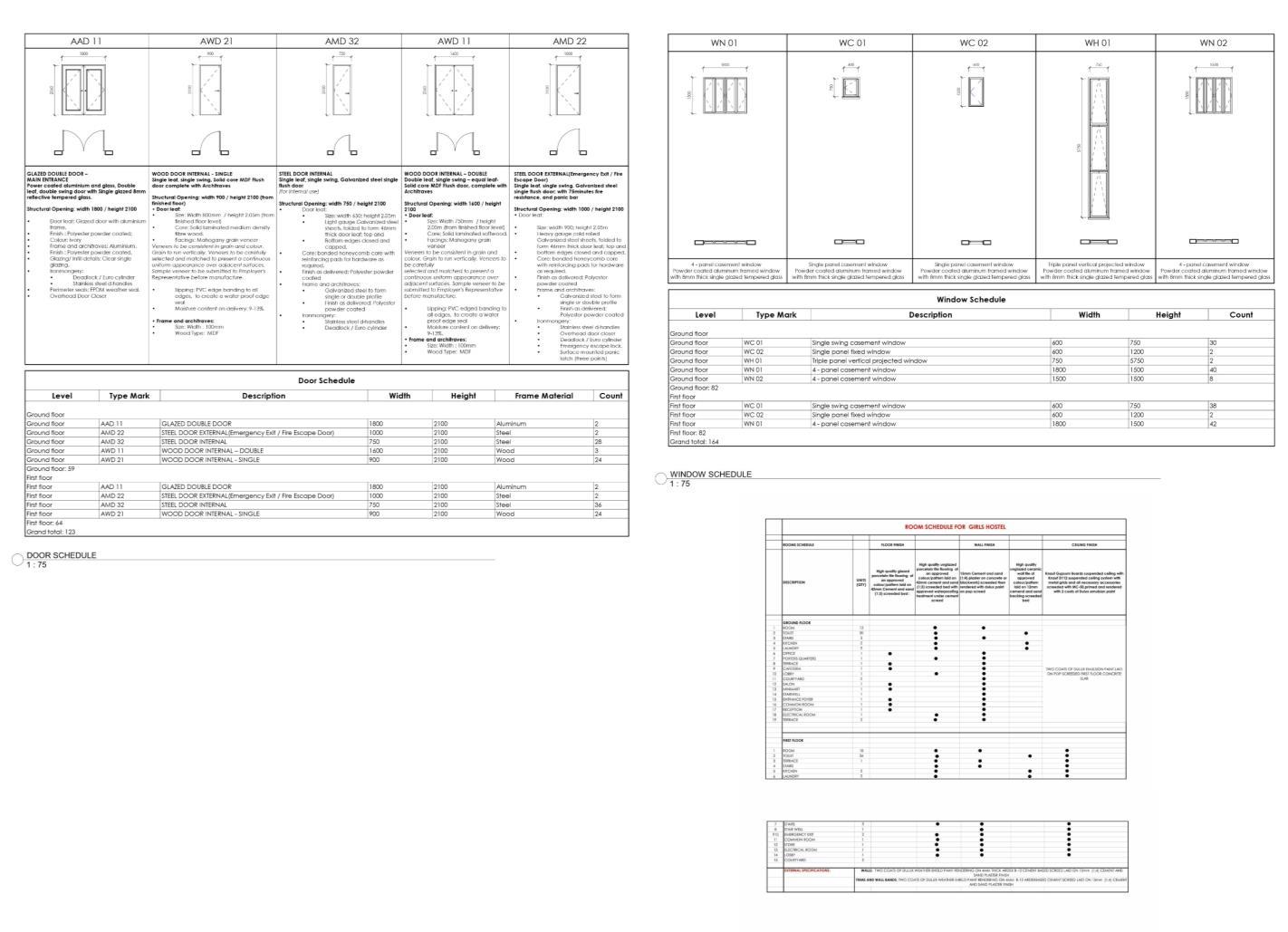

Schedules and Legends

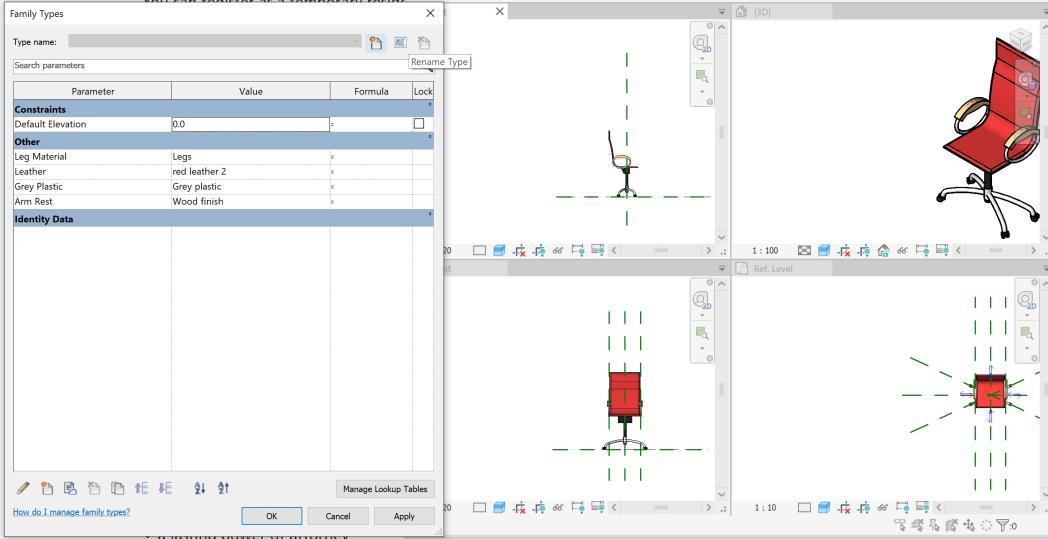

Project Title Interior WoodWork Office Furniture

Location Central Business District, F.C.T.

Role • 3D Modelling

• Revit Family modelling

Software Used

• Revit

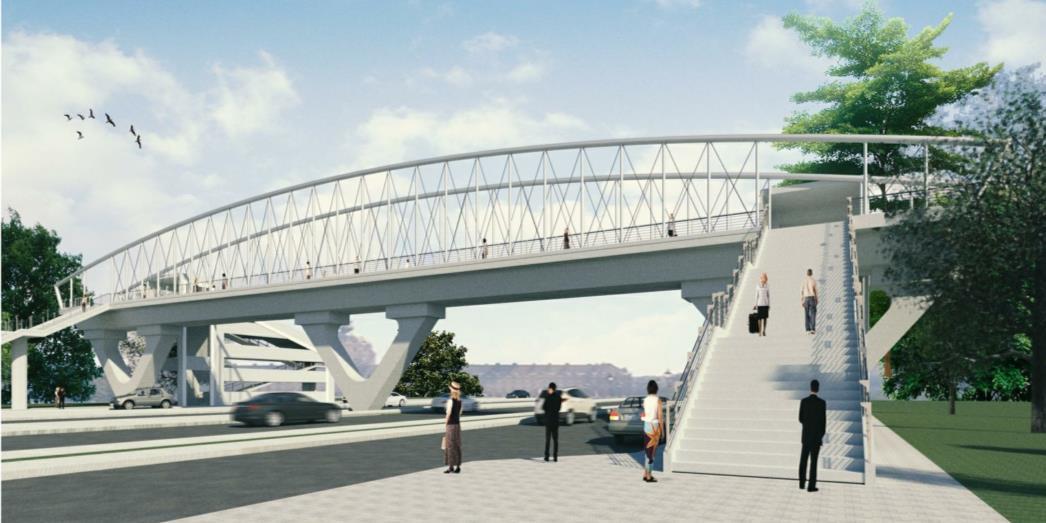

Pedestrian Bridge Proposal

Project Title

Pedestrian Bridge Proposal

Location Ibadan, Oyo State, Nigeria

Role

Pedestrian Bridge Proposal

Software Used

• 3D Modelling

• Design Visualization

• Revit

• Photoshop
