1/14 S355 Hollow Section tritonalloysinc.in/s355-pipe.html Hot Finish EN 10210 s355 SHS Seamless Pipes, Hot Finish s355 CS SHS Tube, s355 Hot Finish Rectangular Hollow Section Welded Tube, s355 Hot Finish SHS. Specification : Standard BS EN 10210 Size 20*20mm-400*400mm Wall Thickness 0.5mm - 25mm Length 6000-14000 mm Type Seamless/ Welded / ERW Dimensional Tolerances Thickness : (All sizes +/- 10%) Packing In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark Available Grades S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355J2+N, IS 4923 / ASTM A500 / As Per Requirement Surface Protection Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized
2/14 Equivalent Grade of S355 Hollow Section EU US S355 A572Gr50 Types of Hollow Section Available Hot Finish s355 Seamless Square Hollow Section EN 10210 s355 CS Cold Formed Rectangular Hollow Section Cold Formed s355 Circular Seamless Pipes

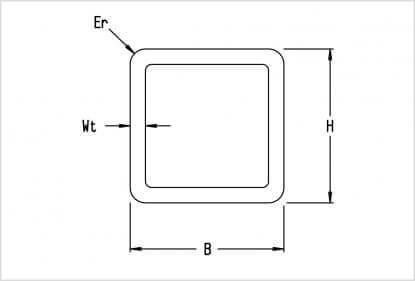

Dimensions of S355 Square Hollow Section

HxB – Height x Base

Wt – Wall thickness

Kg/m – Kilos per linear metre

Er – External radius

L – Standard bar length

3/14

Size mm kg/m Size mm kg/m

20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35

25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43

25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04

30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14

30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81

40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92

40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46

40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28

50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71

50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72

50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34

60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54

60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28

70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11

70 x 70 x 6.3 12.50 70 x 70 x 8 15.30

75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22

80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70

80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01

90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30

90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40

100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00

100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80

100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90

100 x 100 x 10 27.90 120 x 120 x 5 18.00

120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30

120 x 120 x 8.0 27.90 120 x 120 x 10 34.20

120 X 120 X 12 35.8 120 X 120 X 12.5 41.60

4/14

140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30

140 X 140 X 8 32.90 140 X 140 X 10 40.40

140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70

150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40

150 X 150 X 10 43.60 150 X 150 X 12.5 53.40

150 X 150 X 16 66.40 150 X 150 X 16 66.40

180 X 180 X 5 27.40 180 X 180 X 6.3 34.20

180 X 180 X 8 43.00 180 X 180 X 10 53.00

180 X 180 X 12.5 65.20 180 X 180 X 16 81.40

200 X 200 X 5 30.50 200 X 200 X 6 35.8

200 x 200 x 6.3 38.2 200 x 200 x 8 48.00

200 x 200 x 10 59.30 200 x 200 x 12.5 73.00

200 x 200 x 16 91.50 250 x 250 x 6.3 48.10

250 x 250 x 8 60.50 250 x 250 x 10 75.00

250 x 250 x 12.5 92.60 250 x 250 x 16 117.00

300 x 300 x 6.3 57.90 300 x 300 x 8 73.10

300 x 300 x 10 57.90 300 x 300 x 8 90.70

300 x 300 x 12.5 112.00 300 x 300 x 16 142.00

350 x 350 x 8 85.70 350 x 350 x 10 106.00

350 x 350 x 12.5 132.00 350 x 350 x 16 167.00

400 x 400 x 10 122.00 400 x 400 x 12 141.00

400 x 400 x 12.5mm 152.00 400 x 400 x 16 192

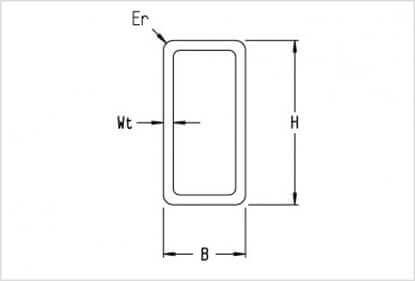

Dimensions of S355 Rectangular Hollow Section

5/14

HxB – Height x Base

Wt – Wall thickness

Kg/m – Kilos per linear metre

Er – External radius

L – Standard bar length

Size mm kg/m Size mm kg/m

40 x 20 x 2.0 1.68 40 x 20 x 2.5 2.03

40 x 20 x 3.0 2.36 40 x 25 x 1.5 1.44

40 x 25 x 2.0 1.89 40 x 25 x 2.5 2.23

50 x 25 x 2.0 2.21 50 x 25 x 2.5 2.72

50 x 25 x 3.0 3.22 50 x 30 x 2.5 2.92

50 x 30 x 3.0 3.45 50 x 30 x 4.0 4.46

50 x 40 x 3.0 3.77 60 x 40 x 2.0 2.93

60 x 40 x 2.5 3.71 60 x 40 x 3.0 4.39

6/14

60 x 40 x 4.0 5.72 70 x 50 x 2 3.56

70 x 50 x 2.5 4.39 70 x 50 x 3.0 5.19

70 x 50 x 4.0 6.71 80 x 40 x 2.5 4.26

80 x 40 x 3.0 5.34 80 x 40 x 4.0 6.97

80 x 40 x 5.0 8.54 80 x 50 x 3.0 5.66

80 x 50 x 4.0 7.34 90 x 50 x 3.0 6.28

90 x 50 x 3.6 7.46 90 x 50 x 5.0 10.11

100 x 50 x 2.5 5.63 100 x 50 x 3.0 6.75

100 x 50 x 4.0 8.86 100 x 50 x 5.0 10.90

100 x 60 x 3.0 7.22 100 x 60 x 3.6 8.59

100 x 60 x 5.0 11.70 120 x 80 x 2.5 7.65

120 x 80 x 3.0 9.03 120 x 80 x 4.0 12.00

120 x 80 x 5.0 14.80 120 x 80 x 6.0 17.60

120 x 80 x 8.0 22.9 150 x 100 x 5.0 18.70

150 x 100 x 6.0 22.30 150 x 100 x 8.0 29.10

150 x 100 x 10.0 35.70 160 x 80 x 5.0 18.00

160 x 80 x 6.0 21.30 160 x 80 x 8.0 27.90

200 x 100 x 5.0 22.70 200 x 100 x 6.0 27.00

200 x 100 x 8.0 35.4 200 x 100 x 10.0 43.60

250 x 150 x 5.0 30.5 250 x 150 x 6.0 38.2

250 x 150 x 8.0 48.0 250 x 150 x 10 59.3

300 x 200 x 6.0 48.10 300 x 200 x 8.0 60.50

300 x 200 x 10.0 75.00 400 x 200 x 8.0 73.10

400 x 200 x 10.0 90.70 400 x 200 x 16 142.00

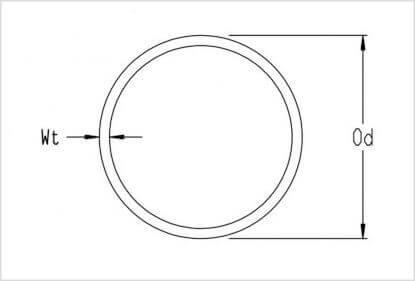

Dimensions of S355 Circular Hollow Section

7/14

Od – Outside diameter

Wt – Wall thickness

Kg/m – Kilos per linear metre

L – Standard bar length

Nominal Bore Outside diameter Thickness Weight mm mm mm kg/m 15 21.3 2.00 0.95 2.60 1.21 3.20 1.44 20 26.9 2.30 1.38 2.60 1.56 3.20 1.87 25 33.7 2.60 1.98 3.20 0.24

8/14

4.00 2.93 32 42.4 2.60 2.54 3.20 3.01 4.00 3.79 40 48.3 2.90 3.23 3.20 3.56 4.00 4.37 50 60.3 2.90 4.08 3.60 5.03 5.00 6.19 65 76.1 3.20 5.71 3.60 6.42 4.50 7.93 80 88.9 3.20 6.72 4.00 8.36 4.80 9.90 100 114.3 3.60 9.75 4.50 12.20 5.40 14.50 125 139.7 4.50 15.00 4.80 15.90 5.40 17.90 150 165.1 4.50 17.80 4.80 18.90 5.40 21.30 150 168.3 5.00 20.1 6.3 25.2 8.00 31.6

9/14

10.00 39 12.5 48 200 219.1 4.80 25.38 6.00 31.51 8.00 41.67 10.00 51.59 250 273 6.00 39.51 8.00 52.30 10.00 64.59 300 323.9 6.30 49.36 8.00 62.35 10.00 77.44

10/14

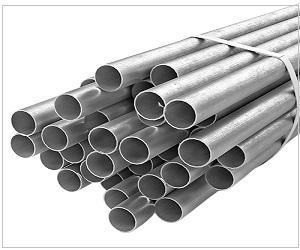

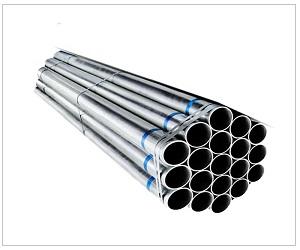

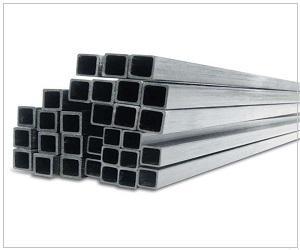

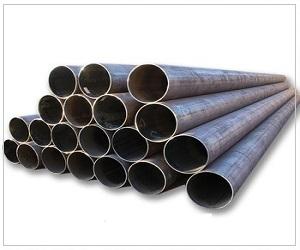

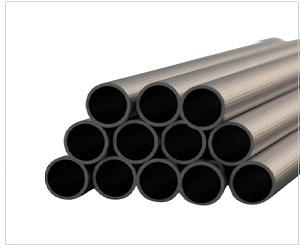

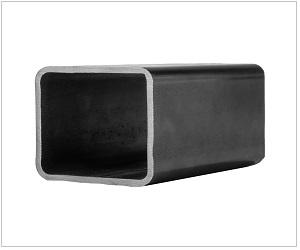

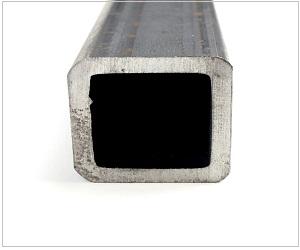

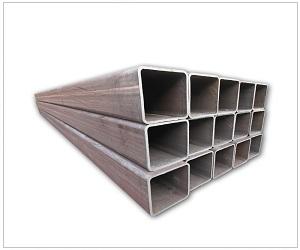

Available Hollow Section Hot Finish S355 Seamless Square Hollow Section S355 MS Hot Finish Square Section s355 ERW SHS Tubing S355 Hot Finish Rectangular Hollow Section S355 Cold Formed RHS Cold Formed S355 Seamless Rectangular Hollow Section EN 10210 S355J2H Circular Hollow Section EN 10210 S355J2H Circular Hollow Section
11/14 n
EN 10210 S355J2H Circular Hollow Section
12/14

Price List of S335 Piping

Carbon Steel S335 Pipe manufacturer US / Metric Ton (FOB Price) on request

EN 10210 S335 Carbon Steel Structural Pipe US / Metric Ton (FOB Price on request

S335 Cold Drawn Welded Pipes US / Ton (FOB Price) on request

S335 Carbon Steel Square Pipe US / Ton (FOB Price) on request

S335 Carbon Steel Round Pipes US / Ton (FOB Price) on request

BS EN 10210 S335 Carbon Steel Pipes US / Metric Ton (FOB Price) on request

S335 Seamless Pipe US / Metric Ton (FOB Price) on request

S335 Steel Electric Resistance Welded Pipe US / Ton (FOB Price) on request

S335 Carbon Steel Rectangular Pipes US / Ton (FOB Price) on request

S335 Hot Finished ERW Welded Pipes US / Ton (FOB Price) on request
