CentreforWeaving, 01 | Kanchipuram

Semester 07 | 16 weeks | Sustainability within the Industry Typology

A centre for weaving, secondary street or lane, adds to temple procession. a cooperative- for weavers directly sell to customers eliminating middlemen. The idea of “sustainabilty” was introduced and questioned throughout this project. Through business intents as well as architectural intents. the idea of a “temple” in kanchipuram, how it acts as social sphere as well as its strong function as a religious space.

Studio Guides:

Asst. Prof. Asijit Khan and Prof. Shrutie Shah

Prof. Prashant Pole

Prof. Anand Krishnamurthy

Asst. Prof. Suren Aalone

Asst. Prof.

Can Sustainability Be Defined?

It may have no definitions but many perspectives

My idea of sustainability is about resources, that is, energy, people, ground and knowledge. It is about optimum planning and prudent decisions based on the climate, that is light, air, temperature and air circulation.

The locale is the resource and it always works along with the site, never in isolation. It can create a socio-economic impact along with being adaptable.

Understanding the Site- Kanchipuram, Tamil Ndu

Coordinates: 12.8185˚N,79.6947˚E

Elevation: 82metresaboveMSL, highestpointof100metres

Area: 1440m2

Population: 4,00,000

Sunpath Diagrams and Days of Sunshine

Recieved

Temperature VariationMonthly Precipitation

Humidity and Human Comfort

tionalresidences,actasamicroclimatemodifier.Thecourtyardactsas

STUDY OF CLIMATE RESPONSE IN TRADITIONAL HOUSE Courtyards

Courtyards, which form an integral part of the traditional residences, act as a microclimate modifier. The courtyard acts as a natural channel to allow the smoke and heat of the house to escape.

Buffer spaces

STUDY OF WORKSPACES

The dyeing space, this typical narrow plan of a kanchipuram dwelling has been modified into a space used for dying of silk yarns.

w plan of a kanchipuram dwelling has been modified into a space used for dying of ommodates e the dying process is carried out. It has a floor above with two rooms and a terrace, elling has been modified to carry out the age old profession

Government has identified five zones of cultural and historical significance that and Ekambareswarar temples which gives it an historic and cultural significance.

Shaded spaces like the front veranda with the thinnai and reinforced concrete veranda facing the backyard act as buffer spaces, reducing glare and doubling as comfortable spaces for social interaction. kanchipuram dwelling has been modified into a space used for dying of process is carried out. It has a floor above with two rooms and a terrace, modified to carry out the age old profession

Manufacturing Process

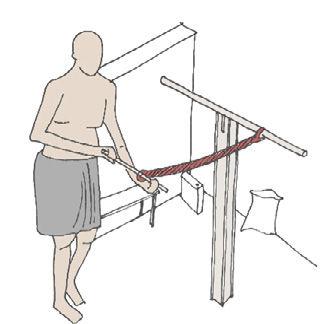

Dyeing Components

700 to 1000g weight of the saree

6.3 to 8.2 m - length , 1.2 to 1.5 m - width

8 to 10 hrs of work per day, average time taken to finish one saree is 10 to 15 days

Section AA’

Section CC’

Section BB’

Section CC’

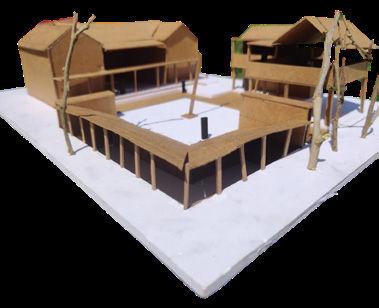

Model Views

KitchensofKarnataka, 02|Srirangapatna

Semester 05 | 16 weeks | Public Building - Museum Typology

This studio explored the nature of public buildings through the lens of a museum based in Srirangapatna, Karnataka. The site was chosen from any of the 4 nodes of the large maidan which was bustling with activity. While understanding the typology of a museum itself was one layer, the main intent was to understand how public buildings interact with their surroundings, what they can “give” to the public and how they must respond and respect its context.

Studio Guides:

Asst. Prof. Akash Rai

Prof. Anand Krishnamurthy

Prof. Kiran Kumar

Asst. Prof. Asijit Khan

Asst. Prof. Shashank

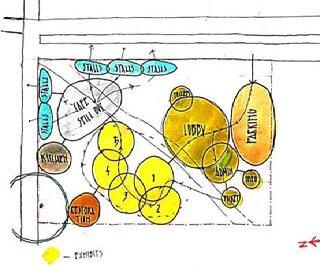

Activity Mapping around Site 4pm

Activity Mapping around Site 6pm

Understanding Context

Srirangapatna is an island-town in Karnataka, which has stood the test of time and the ravages wrought by human & natural forces. This historical landscape, situated in the middle of the upper Cauvery river, has witnessed multiple occupations and cycles of building & rebuilding by local rulers & colonial powers, and is encrusted with architectural monuments and ruins that tell tales of the past. Home to people from multiple faiths, the offerings of Srirangapatna are many and varied, attracting hundreds of tourists, pilgrims, research scholars, nature enthusiasts and historians on an everyday basis. Primarily accessed via the Mysore-Bangalore highway, the town could be viewed as a temporal cusp where the remnants of a bygone time act as a backdrop, active or passive, to the continuation of ritualistic traditions and the emergence & sustenance of local economies of place, primarily driven by religion & cultural tourism.

Activity Mapping Sketches

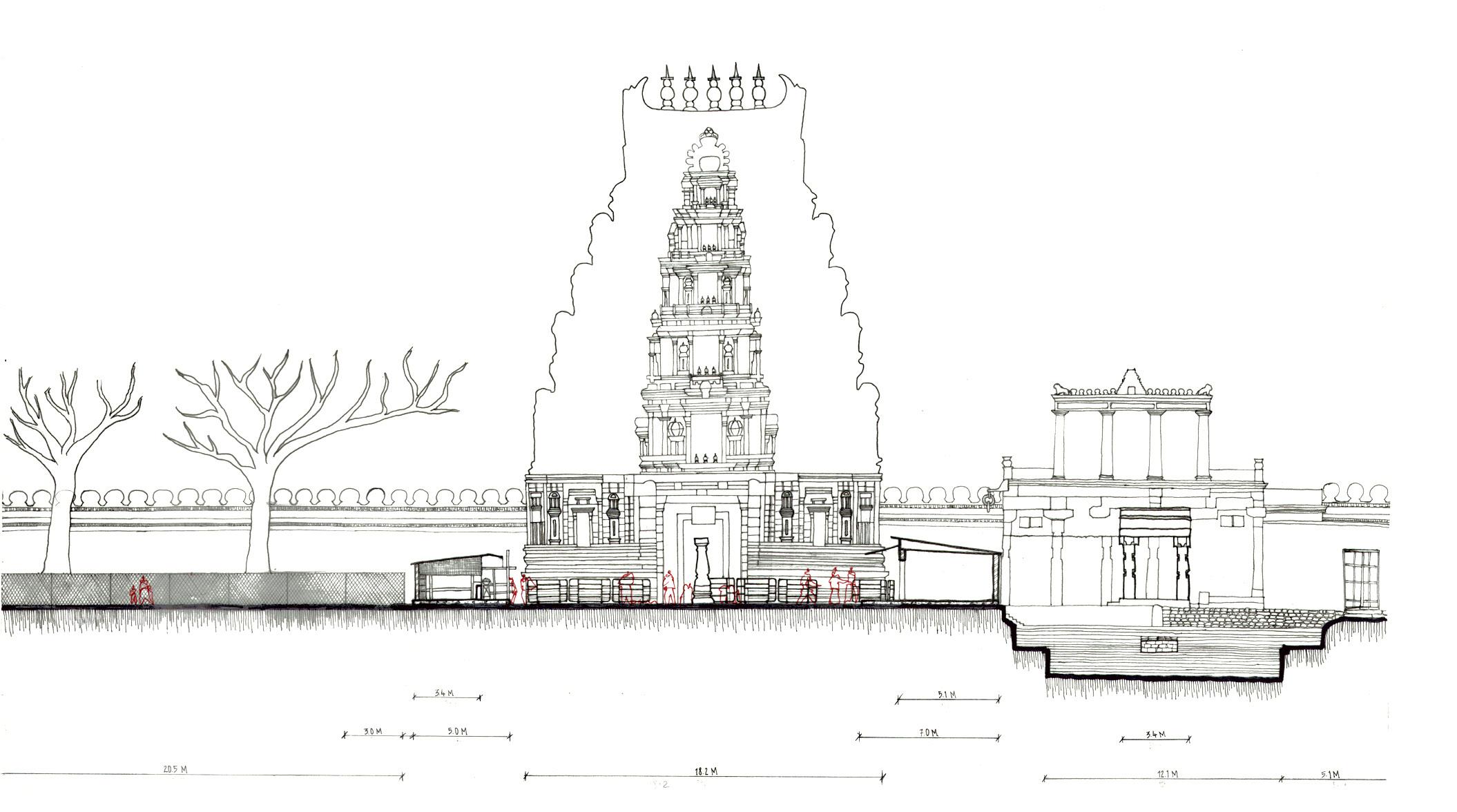

Sections

Around the maidan

Process Concept Drawings and Models

Massing Breakdown

LEGEND:

1. Public Entry

2. Lobby

3. Permanent Exhibits Space

4. Temporary Exhibit Space

5. Restoration Space

6. Admin Offices

8. Toilets

7. Workshops space

8. Eatery/Cafe

9. Courts

Built Diagram

Roof Layout

SECTION CC’ 1:200

1:200

SECTION BB’ 1:200

SECTION AA’

1:200

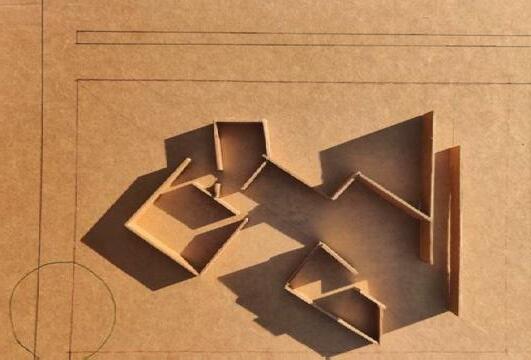

Sectional study models exploring different boundary and edge conditions around a site

Study models exploring different boundary and edge conditions around a site

Section AA’

Section DD’

Section BB’’ Section CC’

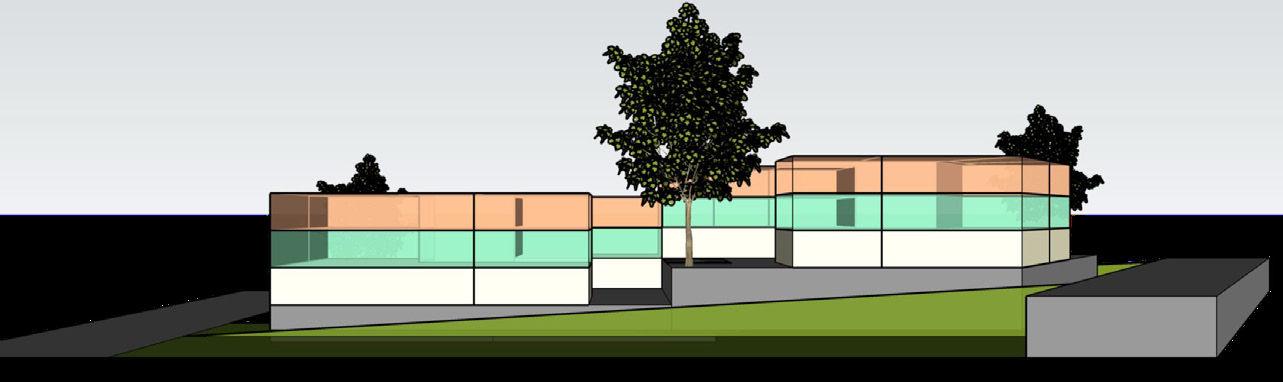

Model Renders

HousingfortheElderly, 03| Mysuru

Semester 04 | 16 weeks

The elderly, energetic friends who have shaken the wreckage of age and have taken their lives in their own stride, they by their conviction and determination have become masters of their destiny. It is this eternal stage in life where age takes a back seat and contemplation becomes the forerunner. Today’s elderly have set an inspirational example for all senior citizens for a way of life. Elderly does not mean grey hairs, stiff joints and slurred speech. Senior citizens play a very significant role in the social fabric of our society. The nation and society need their guidance for a strategic and stronger future. They have an immense ocean of experience. The other kind of seniors who are placid and spiritually bent can take up responsibility of making the youth understand the cultural values and help them to live up to our traditions.

Studio Guides:

Asst. Prof. Umesh Nuchin

Prof. Anand Prakash

Prof. Kukke Subramanya

Asst. Prof. Akash Rai

Asst. Prof. Anand Chalvadi

Asst. Prof. Julie Ann Tharakan

Actvitiy Mapping

the movie “katha”

Study from Chawls Through

WKholi(room) Corridor Courtyard

Chawls started off as a means of cheap housing for migrants who came to the city to look for work. Eventually, they began to function as dwelling units and community spaces for families upto many generations.

Put very simply, these are the three aspects that make up a chawl- the room, the corridor and the courtyard.

The rooms behave as a more private space and are composed of two small rooms.

Due to the compact size of these rooms, the corridor then becomes an extension of the living space. These courtyards further behave as community living rooms.

There is this transition of spaces from private to semi private to public, But all of this also brings into question the nature of what is public and what is private

MEET OUR CHARACTERS OUR RESIDENTS

Actvitiy Mapping

Bashu smoking and chatting Rajaram circulating milk before going to work

Chinnakka and other women washing vessels and clothes near the tap Husband and other men rushing to work

Newlywed couple bid farewell for the first time as husband goes to work Kids riding their bicycles or walking to school Daadiamma hanging clothes on the corridor railing

Other residents waiting in queue for the common toilets and chatting

6-8 AM

Chinnakkawashing vessels

People waiting in line for water and the toilets

As soon as the sun rises the doors open and life in the chawl begins. Men who need to get to work, children who need to go to school rush to the “first come, first

12-2 PM

Life slows down a little during this time as the only ones present are women and men

A nagging wife who is always yelling at her husband and telling him to bring back the right groceries which he never does.

Chinnakka (little sister), the bitter, grumpy woman who is always yelling at the children for playing in the courtyard.

Bapu (father), bell-ringing disabled man who is always cheerfully interrupting, be it to change a radio station or to have a bottle of churanhanded to him.

Purushottam, our protagonist, a kind, helpful nut a painfully shy man, pines over his love for Sandhya throughout. On the other hand, Vasudev or “Bashu” as he prefers, is a charming but manipulating cheat.

Sweet and beautiful Sandhya, on the lookout for a husband since she wants to study further, has to choose between the two leads.

A newlywed, shy couple who rarely leave their rooms but whose giggles can be heard through the closed doors.

The bucket guy who seems to be living in the toilet as he is always seen coming out of the toilet with his bucket at all odd hours of the day.

Daadiamma who cooks yummy snacks for everyone, acting like a grandmother to the entire chawl.

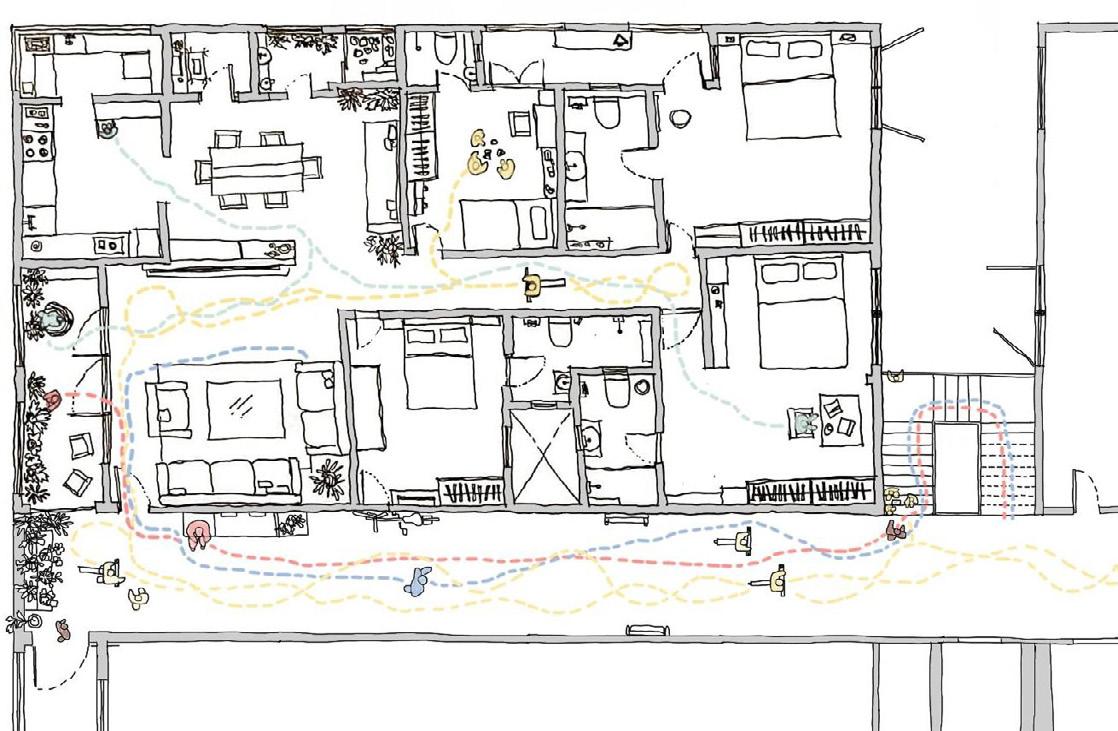

ASSUMED PLAN OF THE CHAWL Showing the layout of our residents’ rooms.

LThrough the movie Katha, the portrayal of life in a chawl is depicted so incredibly well, as the hustle bustle of the chawl forms the main backdrop.

Unlike other dense buildings, the open to sky courtyard type of building allows for some breathing space within the building block and tight rooms.

The chawl shows a clear transition of spacesFrom private to semi public to public.

The open to sky courtyard allows for some breathing space within this dense building block and tight rooms.

This central space is sheltered since the 3 story blocks are placed in close proximity. Sun mask, passive cooling and protection from strong winds is also provided in this sheltered space.

Chinnakka and women drying spices, cutting vegetables in the corridor. Bashu walking around jobless, meeting everyone and eating their food.

Sandhya helping everyone and cutting vegetables

Daadiamma cutting vegeatbles with Sandhya in the corridor.

Bapu making people carry him around to his favourite spot to play cards. Other residents lazing around, taking naps in the corridor. Some men coming back from work for lunch.

Dabbewala walks around the courtyard announcing his presence bringing lunch.

Women drying things in the courtyard.

Men playing cards in Bapu’s favorite corner.

men who don’t work. A dabbewala enters providing food to the joy of a few

Rajaram greeting everyone as he comes back from work. Bashu hanging around, cheering for the kids from the corridor. Kids come back from school, run around playing cricket in the courtyard. Chinnakka yelling at the kids for breaking her pot with their ball.

Sandhya greets Rajaram as he returns and shares a chai with him Daadiamma calls her grandson back home as it is getting dark Husband returns with groceries in hand but yet again, the wrong ones. The newlywed couple reunite after a terribly long day of separation!

Kids

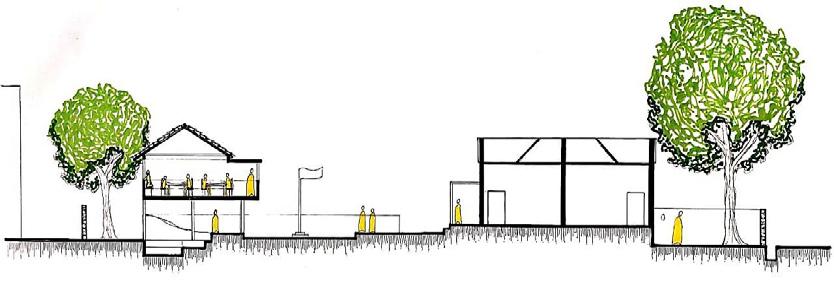

TRANSVERSE SECTION

Through a typical chawl, highlighting the activities that take place in the corridors and courtyard.

People interacting and talking about their day

playing cricket in the courtyard after school

Private Semi-public Public

Understanding the Site Gokulam,Mysuru.

Mysuru is the third most populous and the third largest city in the state of Karnataka, India. It is located in the foothills of Chamundi Hills.

Gokulam is a popular locality and one of the best neighbourhoods in Mysore.

It is primarily a residential area, away from the noise and bustle of the city life at the heart of Mysore.

There is a mix of a young crowd as well as retired elderly, a mix of local culture and some amount of foreign culture as well. This area is also a hub for yoga as there is a multitude of yoga studios and classes around which draws in foreigners all throughout the year. There is an ideal balance of residential and commercial spaces in this area. Malls, food joints, supermarkets, cineplexes etc are present all around, making this an ideal location for a housing community.

Inferences from Case Studies

Aranya Housing and Belapur Housing

Terraces and streets are all places of interaction. Every house has its own sense of identity.

The extended plinths and recessed entry into the private space gives a part of the house to the street.

This transitional zone, is provided in front of each house is located between private and public space. They also act as meeting places and are interactive.

Trees are planted in public spaces which gives a feeling of connection between human and nature.

Breaking up the linear blocks to create in between spaces which induce gathering

Process and Iterations

SIGHT

1. Focusing is less accurate.

2. Sensitivity to glare increases.

3. Adaptation to darkening is slower.

4. Color vision is less effected, (while shapes be indistinguishable, colors can sometimes help to separate objects.)

USAGE OF DIFFERENT MATERIALS, COLOURS

USING NATURE AND GREEN SPACES BIOPHILIC APPROACH?

HEARING

Less accurate, especially high frequencies but low frequencies are effected as well. Smell, taste and tactile senses are somewhat more stable – USAGE OF DIFFERENT MATERIALS increased sensitivity to exposure to the sun – SHELTERED SPACES

Linked to decreased stress, enhanced creativity, and accelerated recovery from illness.

Showing Central Interative Space

Section BB’

Section AA’

WorkingDrawings, HousinginMysuru

Semester 07 | 16 weeks | Group Work

The intent of this studio was to understand the way a project must be drawn and detailed so that it can be read and executed on site with ease and clarity. The Housing Project in Mysuru from the previous semester was chosen and we worked in groups of 4 in order to understand collaborative learning and groupwork.

Studio Guides:

Asst. Prof. Gregory M Anto

Prof. S.G. Srinivas

Prof. Manoj Ladhad

Asst. Prof. Surendran Aalone

Asst. Prof. Thyagarajan C

A3

Bathroom Drawings

2BHK Unit

Wardrobe Drawings 2BHK

InteriorDesign, WCFA,

Semester 06 | 16 weeks | Group Work

A collaborative studio, we worked in groups of 4 to redesign the lobby space and the exhibition space in our campus, Wadiyar Centre for Architecture. This studio taught us how to brainstrom ideas together as a group, to identify problems and areas of intervention and come up with a common intent that could translate into redesigning the interiors of these spaces.

Ideating through sketches

Lobby, Exhibition entry, Exhibition Space

Ideating through a Mood Board

Studio Guide: Asst. Prof. Anna Cherian

Diagrammatic Representation

01

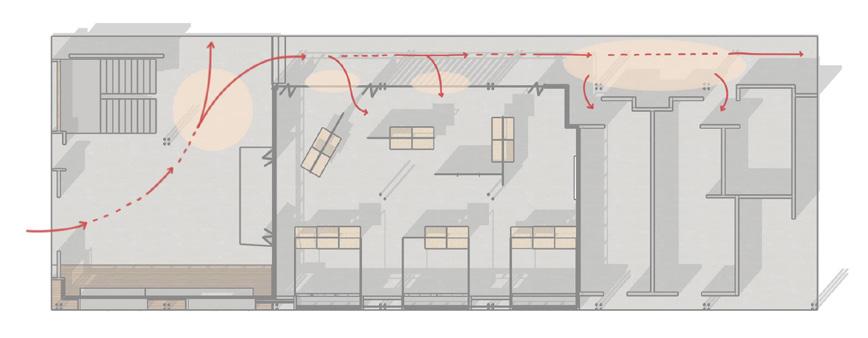

The anticipated circulation taken by any visitor or student and faculty from the Main Entrance to facilitate more openness to the exhibition/gallery space with increased pause points to liven the dead spaces.

The usual circulation taken by any visitor or student and faculty from the Main Entrance.

The anticipated circulation taken by any visitor or student and faculty from the Main Entrance to facilitate more openness to the exhibition/gallery space with increased pause points to liven the dead spaces.

The anticipated circulation taken by any visitor or student and faculty from the Main Entrance to facilitate more openness to the exhibition/gallery space with increased pause points to liven the dead spaces.

increased pause points to liven the dead spaces.

Axonometric View

Elevation

From Outside the Building

Elevation

From Inside the Building (The Courtyard)

The anticipated circulation taken by any visitor or student and faculty from the Main Entrance to facilitate more openness to the exhibition/gallery space with increased pause points to liven the dead spaces.

View of Exhibition Space

View of Lobby

View of Exhibition Space

WALL SECTIONS AND DETAILS

STREET ELEVATION-EAST

WALL SECTIONS 1:100

STREET ELEVATION- WEST

2 open gable roofs supported by wooden rafters, metal tie beam, steel columns and brick walls. Third gable roof over the central corridor connecting the other two.

KATTE

Openings are provided to the activity spaces for a visual connect to the courtyards

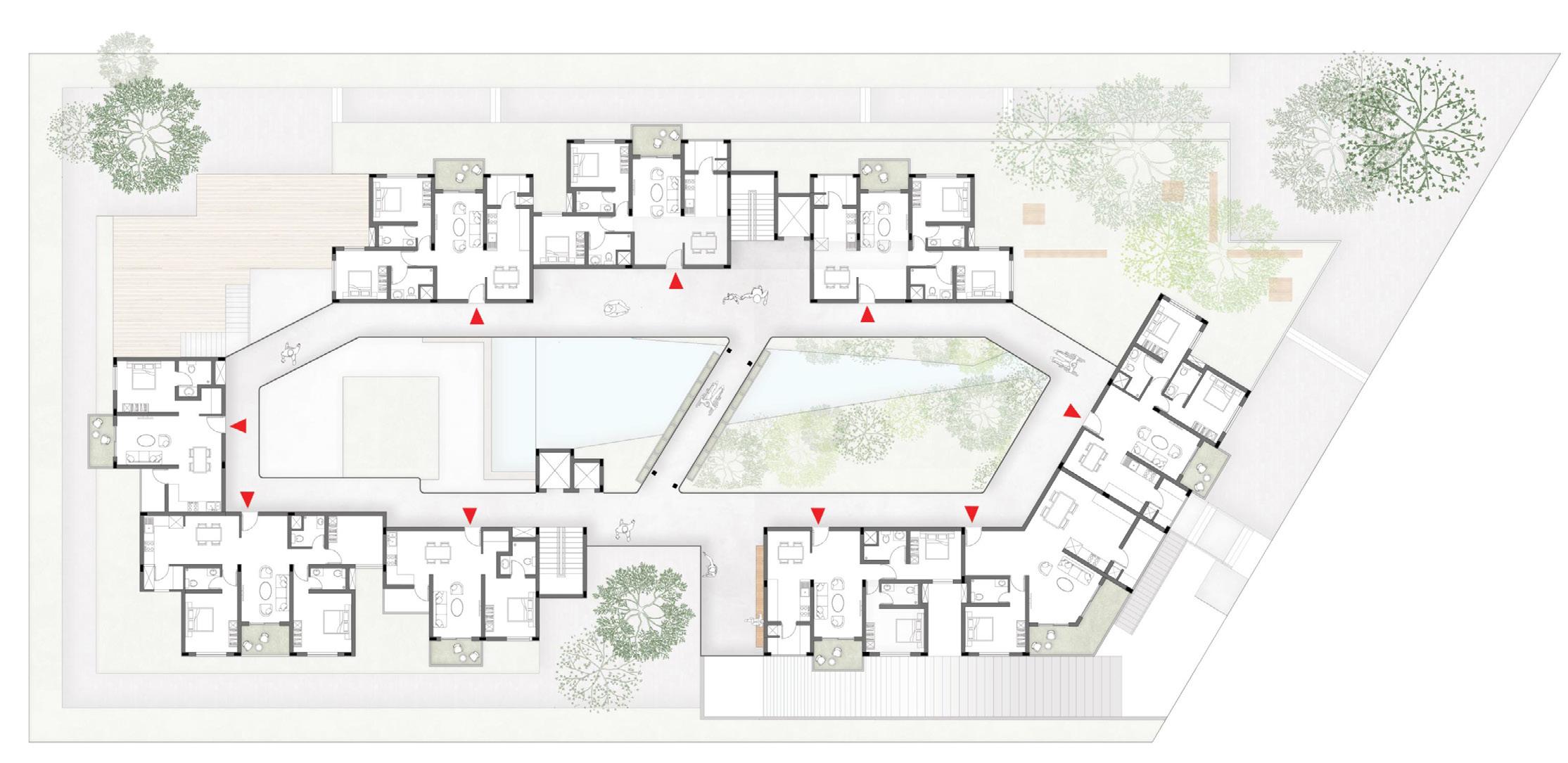

PLAN 1:100

SECTION BB’

SECTION AA’

Canteen also lifted to allow for continuity of ground plane

Washrooms placed on the ground floor for easy access

Feeling of surrender, of contemplation, more humble.

Form becomes important, provides shade.

Visual connect with the sky and the surrounding vegetation

Library to be an extension of the ground, part of the landscape.

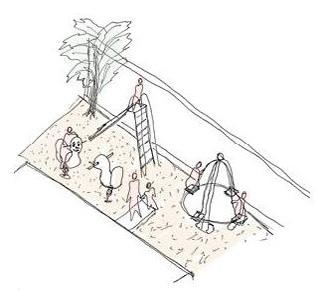

Under can be the library and above can be play. This way students engage with it more.

Allows you to be one with the roots, with the ground and nature

Play of light becomes important

can be used

can be used

Cuts off noise and confusion, calmer space allows one to focus

Elevated feeling, stature and ego comes in

Visual distractions as well as noise levels are relatively more.

Central courtyard holds focus with the placement of the flag there.

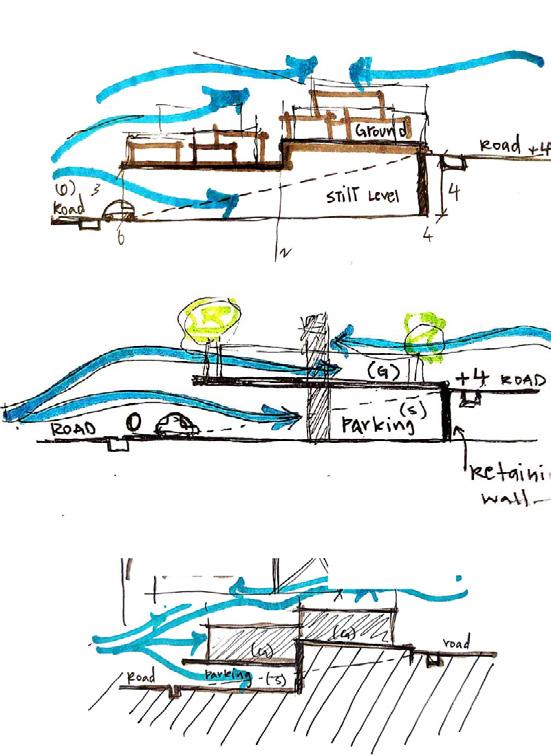

Thermal comfort, noise levels reduced, insulation, Can control the light entering, hence create an interesting space

Thermal comfort and noise levels needs to be managed. Light is abundant, need to control it.

Flat roofs placed at varying heights

Inside the structure, the roof is at a higher level (3.2m) to allow for ample light and ventilation

At the entrances and above the seating towards the streets, the roof is at a lower level (2.8m)

Scaffolding like framework structure made out of hollow steel box section (50mm x 50 mm)

Wooden panels of varying sizes which display information

Wooden seats fixed into a steel frame

Steel sections welded together- corner joint

MS box section footing joinery with a base and bolts
