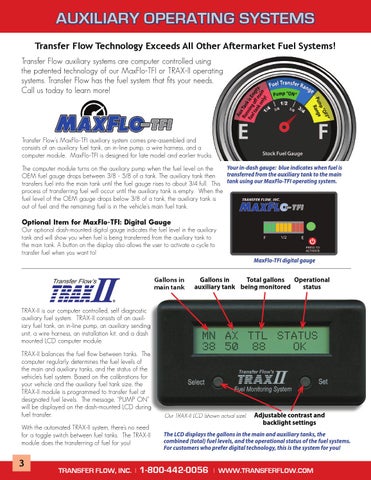

AUXIlIARY OPERATING SYSTEMS Transfer Flow Technology Exceeds All Other Aftermarket Fuel Systems! Transfer Flow auxiliary systems are computer controlled using the patented technology of our MaxFlo-TFI or TRAX-II operating systems. Transfer Flow has the fuel system that fits your needs. Call us today to learn more!
Transfer Flow's MaxFlo-TFI auxiliary system comes pre-assembled and consists of an auxiliary fuel tank, an in-line pump, a wire harness, and a computer module. MaxFlo-TFI is designed for late model and earlier trucks. Your in-dash gauge: blue indicates when fuel is The computer module turns on the auxiliary pump when the fuel level on the transferred from the auxiliary tank to the main OEM fuel gauge drops between 3/8 - 5/8 of a tank. The auxiliary tank then transfers fuel into the main tank until the fuel gauge rises to about 3/4 full. This tank using our MaxFlo-TFI operating system. process of transferring fuel will occur until the auxiliary tank is empty. When the fuel level of the OEM gauge drops below 3/8 of a tank, the auxiliary tank is out of fuel and the remaining fuel is in the vehicle's main fuel tank.
Optional Item for MaxFlo-TFI: Digital Gauge Our optional dash-mounted digital gauge indicates the fuel level in the auxiliary tank and will show you when fuel is being transferred from the auxiliary tank to the main tank. A button on the display also allows the user to activate a cycle to transfer fuel when you want to! MaxFlo-TFI digital gauge
Gallons in main tank
TRAX-II is our computer controlled, self diagnostic auxiliary fuel system. TRAX-II consists of an auxiliary fuel tank, an in-line pump, an auxiliary sending unit, a wire harness, an installation kit, and a dash mounted LCD computer module. TRAX-II balances the fuel flow between tanks. The computer regularly determines the fuel levels of the main and auxiliary tanks, and the status of the vehicle’s fuel system. Based on the calibrations for your vehicle and the auxiliary fuel tank size, the TRAX-II module is programmed to transfer fuel at designated fuel levels. The message, “PUMP ON” will be displayed on the dash-mounted LCD during fuel transfer. With the automated TRAX-II system, there’s no need for a toggle switch between fuel tanks. The TRAX-II module does the transferring of fuel for you!
3
TRANSFER FlOw, INC. I
Gallons in Total gallons Operational auxiliary tank being monitored status
MN 38
AX 50
Our TRAX-II LCD (shown actual size).
TTL 88
STATUS OK
Adjustable contrast and backlight settings
The LCD displays the gallons in the main and auxiliary tanks, the combined (total) fuel levels, and the operational status of the fuel systems. For customers who prefer digital technology, this is the system for you!
1-800-442-0056
I www.TRANSFERFlOw.COM
