2cm Outdoor Porcelain Tiles

2CM PORCELAIN PAVERS

ABOUT 2CM PORCELAIN PAVERS

CHARACTERISTICS

2CM Porcelain is specifically designed for outdoor use. Its high resistance to breaking load and stress, as well as its extraordinary slip-resistant features, make it ideal for outdoor areas, both public and private.

UNLIMITED DURABILITY

•High resistance to chemical and atmospheric agents

•Frost resistant and fireproof

ABOUT 2CM PORCELAIN PAVERS

WHERE

Its extraordinary technical characteristics, easy installation and sophisticated design mean that 2CM Porcelain can be applied in practically any exterior or interior space. The sky is the limit.

RESIDENTIAL

• Gardens

• Terraces

• Passageways

• Courtyards

• Walls

• Stairs

• Pools

PUBLIC SPACES

•Hotels (communal areas, pools, terraces, etc.)

• Spas

•Rooftop patios

•Industrial areas

•Urban paving

•Beaches (over sand)

• Driveways

APPLICATIONS: DIFFERENT METHODS

DRY INSTALLATION ON GRASS

•Easy to lay, adjust or move

•Ideal solution for public parks or private gardens

DRY INSTALLATION ON SAND/GRAVEL

•Easy to lay, adjust or move

•Aesthetic features ideal for enhancing contemporary buildings

DRY INSTALLATION ON SCREED WITH ADHESIVE

•Driveway paving

•Matching interior and exterior areas

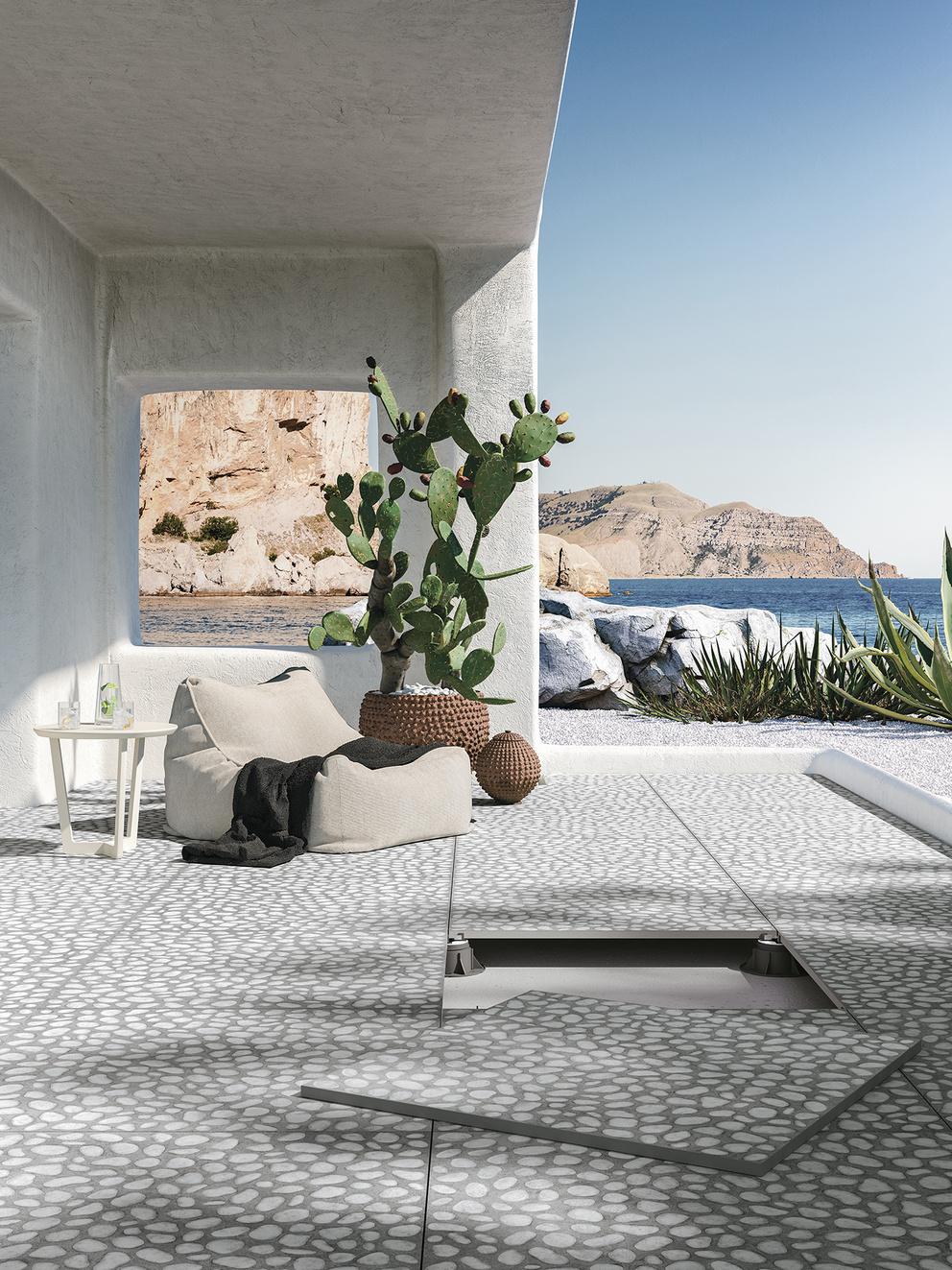

ELEVATED FLOOR INSTALLATION (ON AN ADJUSTABLE SUPPORT)

•Can be easily removed, inspected and reused

•Available for different kinds of support

•Ideal for hiding wires and pipes, while keeping them easily accessible

Uptec pedestals for raised floors

PROFILITEC

SUPAL LOW PEDESTAL 1-3/32" ÷ 1-11/16"

SUPAR MODULAR RING + 1-3/16"

SUPA2 PEDESTAL HEAD 3/32"

Uptec pedestals advantages and functions

PROFILITEC

3 IN 1 CONFIGURATION

3 SKUS for all configurations.

Removable and switchable tabs.

FIXED OR SELF-LEVELING HEAD

Simple switch mechanism between fixed and selfleveling heads.

Self-leveling head to reach up to 5% slope.

FLEXIBLE HEIGHT

Height adjustable pedestal.

TAB ADVANTAGES

Switch tabs for standard installation or for wood or aluminum jo

Simply add or remove SUPAR ring to increase or decrease pedestal height.

Tabs with sound dampening rubber

SPECIALITY TRIMS:

*Special Order*

GRIGLIA 8” x 36”

ANGOLO DX GRIGLIA 8” x 36”

ANGOLO SX GRIGLIA 8” x 36”

GRADINO TORO TONDO 18” x 36”

ANGOLARE TORO TONDO 36” x 36”

ECRU 36"x36"

CLOUD 36"x36"

IVORY 36"x36"

COAL 36"x36"

MAS DE PROVENCE 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A 137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm² --

min.UB

REQUIRED

>CLASS 3 -----

RESULTS

≤ 0.5% >0.42

9419 N

40 ÷ 55 N/mm²

PEI IV

RESISTANT

RESISTANT

RESISTANT V2

ITALY

Porcelain 20mm

SPECIALITY TRIMS:

*S i l O d *

COSTA TORO 12" x 36"

COSTA RETTA ANGOLARE DX 12" x 36" COSTA TORO ANGOLARE DX 12" x 36"

COSTA TORO ANGOLARE SX 12" x 36"

COSTA RETTA ANGOLARE SX 12" x 36"

COSTA TORO GRIP 12" x 36"

COSTA RETTA GRIP 12" x 36"

COSTA RETTA 12” x 36”

36"x36"

IVORY FLOW 36"x36"

DARK FLOW 36"x36"

GRAY FLOW 18"x36"

IVORY FLOW 18"x36"

SILVER FLOW 18"x36"

DARK FLOW 18"x36"

GRAY FLOW 24"x24"

IVORY FLOW 24"x24"

SILVER FLOW 24"x24"

DARK FLOW 24"x24"

TECHNICAL INFORMATION

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

ISO 10545-12

ISO 10545-14 -----

REQUIRED >CLASS 3 -----

RESISTANT RESISTANT V3

ITALY

Porcelain 20mm

SPECIALITY TRIMS:

*Special Order*

STEP SQUARED EDGE

STEP SQUARED EDGE 8" x 48"

STEP ROUNDED EDGE 8" x 48"

STEP SQUARED EDGE 8" x 48" x 6"

STEP ANGLE EXTERIOR SQUARED EDGE 8" x 48"

STEP ANGLE INTERIOR SQUARED EDGE 8" x 48" x 1 18"

STEP ANGLE EXTERIOR ROUNDED EDGE 8" x 48"

STEP ANGLE INTERIOR ROUNDED EDGE 8" x 48"

GREY 24"x24"

WHITE 24"x24"

CREAM 24"x24"

BLACK 24"x24"

x 1 18"

24" x 24" x 1.18" 24" x 48" x 1 18"

x 1 18"

axis 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A 137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm²

<175mm³ min.UB

REQUIRED >CLASS 3 -----

RESULTS

< 0.5% 0.61 11,430 N 42N/mm²

145mm³

RESISTANT RESISTANT RESISTANT V3

SPAIN

Unglazed Porcelain 20mm

SPECIALITY TRIMS:

*Special Order*

DOUBLE STRAIGHT EDGE STEP

12"X24" | 24"X24" 12"X47" | 16"X47"

STRAIGHT EDGE 8"X24" | 8"X47"

ROUNDED EDGE 8"X24" | 8"X47"

CEMENTO 24"x24"

SINGLE STRAIGHT EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47"

DOUBLE ROUND EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47

TRIPLE ROUND EDGE STEP 12"X24" 24"X24"

SINGLE ROUND EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47"

DOUBLE ROUND EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47"

LARGE RISER

SRAIGHT EDGE 8"X24" | 8"X47"

ANTRACITA 24"x24"

IN STOCK

EXTERIOR ANGLE STRAIGHT EDGE 8"X24" | 8"X47"

INTERIOR ANGLE ROUNDED EDGE 8"X24" | 8"X47"

ROUND EDGE PAINTED BULLNOSE 8"X24" | 8"X47"

INTERIOR ANGLE STRAIGHT EDGE 8"X24" | 8"X47"

EXTERIOR ANGLE ROUNDED EDGE 8"X24" | 8"X47"

DRAIN EDGE 8"X24" | 8"X47"

DRAIN ANGLE 8"X8"

amstel 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm²

<175mm³ min.UB REQUIRED >CLASS 3 -----

RESULTS

< 0.5% 0.63 >2500 N >40N/mm²

145mm³

RESISTANT RESISTANT RESISTANT V2

SPAIN

Unglazed Porcelain 20mm

lienz 2CM

SPECIALITY TRIMS:

*Special Order*

DOUBLE STRAIGHT EDGE STEP

12"X24" | 24"X24" 12"X47" | 16"X47"

STRAIGHT EDGE 8"X24" | 8"X47"

ROUNDED EDGE 8"X24" | 8"X47"

GRIS 24"x24"

SINGLE STRAIGHT EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47"

DOUBLE ROUND EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47

TRIPLE ROUND EDGE STEP 12"X24" 24"X24"

SINGLE ROUND EDGE STEP

12"X24" | 24"X24" 12"X47" | 16"X47"

DOUBLE ROUND EDGE STEP 12"X24" | 24"X24" 12"X47" | 16"X47"

LARGE RISER

SRAIGHT EDGE 8"X24" | 8"X47"

TAUPE 24"x24"

IN STOCK

EXTERIOR ANGLE STRAIGHT EDGE 8"X24" | 8"X47"

INTERIOR ANGLE ROUNDED EDGE 8"X24" | 8"X47"

ROUND EDGE PAINTED BULLNOSE 8"X24" | 8"X47"

INTERIOR ANGLE STRAIGHT EDGE 8"X24" | 8"X47"

EXTERIOR ANGLE ROUNDED EDGE 8"X24" | 8"X47"

DRAIN EDGE 8"X24" | 8"X47"

DRAIN ANGLE 8"X8"

lienz 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm²

<175mm³ min.UB REQUIRED >CLASS 3 -----

RESULTS

< 0.5% 0.63 >2500 N >40N/mm²

145mm³

RESISTANT RESISTANT RESISTANT V2

SPAIN

Unglazed Porcelain 20mm

assen 2CM

IN STOCK

SPECIALITY TRIMS:

*Special Order*

SINGLE ROUND EDGE STEP

STEP SQUARED EDGE

SINGLE STRAIGHT EDGE STEP

STRAIGHT EDGE STEP

STEP ANGLE EXTERIOR SQUARED EDGE 8"

STEP ANGLE INTERIOR SQUARED EDGE 8"

STEP ANGLE EXTERIOR ROUNDED EDGE 8"

STEP ANGLE INTERIOR ROUNDED EDGE 8" x

GREY 24"x24"

GRAPHITE 24"x24"

12" x 24" 24" x 24"

x 24"

x 24"

12" x 24" 24" x 24"

24"

x 24"

8" x 24"

DOUBLE

12" x 24" 24" x 24"

assen 2CM

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545

ISO 10545-12

ISO 10545-14

MIN. REQUIREMENTS < 0.5%

DCOF 0.42 >1300N >35N/mm²

PEI

GHA REQUIRED >CLASS 3 -----

RESULTS < 0.5% 0.42 >1300 N >35N/mm²

PEI III/VI

GHA RESISTANT Class 3

V2

SPAIN

Unglazed Porcelain 20mm

MILLS 2CM

IN STOCK

SPECIALITY TRIMS:

*Special Order*

SINGLE ROUND EDGE STEP

STEP SQUARED EDGE

SINGLE STRAIGHT EDGE STEP

STRAIGHT EDGE STEP

STEP ANGLE EXTERIOR SQUARED EDGE 8"

STEP ANGLE INTERIOR SQUARED EDGE 8"

STEP ANGLE EXTERIOR ROUNDED EDGE 8"

STEP ANGLE INTERIOR ROUNDED EDGE 8"

GREY 24"x24"

GRAPHITE 24"x24"

12" x 24" 24" x 24"

x 24"

x 24"

12" x 24" 24" x 24"

x 24"

x 24"

8" x 24"

DOUBLE

12" x 24" 24" x 24"

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545

ISO 10545-12

ISO 10545-14

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm²

PEI

GHA REQUIRED >CLASS 3 -----

RESULTS < 0.5% 0.42 >1300 N >35N/mm²

PEI III/VI

GHA

RESISTANT

Class 3

V2

SPAIN

Unglazed Porcelain 20mm

*Special Order*

SPECIALITY TRIMS:

*Special Order*

PRIME STONE 2CM

SAND 18"x36"

GREIGE 18"x36"

COSTA TORO 12"x36"

COSTA RETTA 12"x36"

COSTA RETTA ANGOLARE DX 12"x36"

COSTA TORO ANGOLARE DX 12"x36"

COSTA TORO ANGOLARE SX 12"x36"

COSTA RETTA ANGOLARE SX 12"x36"

COSTATORO GRIP 12"x36"

COSTA RETTA GRIP 12"x36"

SILVER 18"x36"

PRIME STONE 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-6

ISO 10545-13

ISO 10545-12

ISO 10545-14

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N > 35N/mm²

<175mm³ min.UB

REQUIRED >CLASS 3 -----

RESULTS

< 0.5%

> 0.62

13,600 N

> 50N/mm²

≤ 145mm³

UA, ULA, UHA

RESISTANT Class 5 V2

ITALY

Unglazed Porcelain 20mm

*Special Order*

GRAPHITE 40"x40"

WHITE 40"x40"

GREY 40"x40"

DARK 40"x40"

GRAPHITE 24"x48"

WHITE 24"x48"

GREY 24"x48"

DARK 24"x48"

GRAPHITE 24"x24"

WHITE 24"x24"

GREY 24"x24"

DARK 24"x24"

hardblue 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A 137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF 0.42 >1300N >35N/mm²

<175mm³ min. B

REQUIRED min. 3 -----

RESULTS

0.5%

>0.42

> 1500 N >35 N/mm²

145mm³ A

RESISTANT Class 5 V3

SPAIN

Porcelain 20mm

RISSEU 2CM

CHIARO 36"x36"

SCURO 36"x36"

*Special Order*

RissUE 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-6

ISO 10545-13

ISO 10545-12

ISO 10545-14 ----

MIN. REQUIREMENTS

< 0.5%

DCOF >0.42 >1300N

> 35N/mm²

<175mm³ min.UB REQUIRED >CLASS 3 -----

RESULTS

< 0.2% > 0.42 >1300N

> 35N/mm²

< 175mm³

CLASS A , LA , HA RESISTANT

Class 5

V2

SPAIN

Unglazed Porcelain 20mm

*Special Order*

Cocoon 2CM

EASE 24"x24"

EASE 12"X48"

JOY 24"x24"

JOY 12"X48"

CADENCE EASE 9MM WALL PANEL 8"x48"

CADENCE JOY 9MM WALL PANEL 8"x48"

CADENCE GLEE 9MM WALL PANEL 8"x48"

CADENCE BLISS 9MM WALL PANEL 8"x48"

CADENCE PEACE 9MM WALL PANEL 8"x48"

CADENCE WALL PANEL

Cocoon 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-6

ISO 10545-13

ISO 10545-12

ISO 10545-14

MIN. REQUIREMENTS

< 0.5%

DCOF >0.42 >1300N

> 35N/mm²

<175mm³ min.UB REQUIRED >CLASS 3 -----

RESULTS

< 0.2%

> 0.42 >1300N

> 35N/mm²

< 175mm³

CLASS A , LA , HA

RESISTANT

Class 5

V2

SPAIN

Unglazed Porcelain 20mm

GREY 36"x36"

WHITE 36"x36"

DARK 36"x36"

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

ISO 10545-4

ISO 10545-4

IS0 10545-6

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

>1300N > 35N/mm²

PEI -REQUIRED >CLASS 3 -----

>1300N 40-55N/mm²

PEI IV

RESISTANT RESISTANT Class 5 V3

ITALY

Unglazed Porcelain 20mm

CEPPO DE GRES 2CM

*Special Order*

SPECIALITY TRIMS:

*Special Order*

GRIGIO 24"x48"

SABBIA 24"x48"

AVORIO 24"x48"

STEP TORATO 12"X48"

STEP MOLATO 12"X48"

GRADONE COSTA RETTA 12"X24"X2"

ELEMENTO AD "L" ASSEMBLATO 12"X24"X2"

CEPPO DE GRES 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-6

ISO 10545-13

ISO 10545-12

ISO 10545-14 ----

MIN. REQUIREMENTS

< 0.5%

DCOF >0.42 >1300N > 35N/mm²

< 175mm³ min.UB REQUIRED >CLASS 3 -----

RESULTS

< 0.5% > 0.42 >1300N >35N/mm²

<175mm³

CLASS A , HA , LA RESISTANT

Class 5 V2

SPAIN

Unglazed Porcelain 20mm

*Special Order*

Bohemian 2CM

SPECIALITY TRIMS:

*Special Order*

BLUE 20"x40"

BLEND 20"x40"

SAND 20"x40"

GRID 10" x 40"

TIPO L 100 20" x 40"

GRID 10" x 10"

TIPO L ANG 20" x 40"

Bohemian 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF >0.42 >1300N > 35N/mm²

min.UB REQUIRED

>CLASS 3 -----

RESULTS

< 0.2% > 0.42 >1300N >44N/mm²

PEI IV

RESISTANT RESISTANT

RESISTANT V3

SPAIN

Porcelain 20mm

Carpet 2CM

*Special Order*

SPECIALITY TRIMS:

*Special Order*

vESTIGE 20"x40" SAND 20"x40"

GRID 10" x 40"

TIPO L 100 20" x 40"

GRID 10" x 10"

TIPO L ANG 20" x 40"

Carpet 2CM

TECHNICAL INFORMATION

TEST

Water absorption

Slip Resistance

Breaking Strength

Modulus of Rupture

Abrasion Resistance

Chemical Resistance

Frost Resistance

Stain Resistance

Shade Variation

Country of Origin

Material

Thickness

STANDARD USED

ISO 10545-3

ANSI A137.1:2012

ISO 10545-4

ISO 10545-4

IS0 10545-7

ISO 10545-13

ISO 10545-12

ISO 10545-14 -----

MIN. REQUIREMENTS

< 0.5%

DCOF >0.42 >1300N > 35N/mm²

min.UB

REQUIRED

>CLASS 3 -----

RESULTS

< 0.2% > 0.42 >9000N >47N/mm²

PEI IV

RESISTANT

RESISTANT

RESISTANT V4

SPAIN

Porcelain 20mm

*Special Order*

studio 2CM

SPECIALITY TRIMS:

*Special Order*

ANTRACITE 20"x40"

IVORY 20"x40"

GRID 10" x 40"

TIPO L 100 20" x 40"

GRID 10" x 10"

TIPO L ANG 20" x 40"

STAMP 20"x40"

GREY 20"x40"

Shade Variation

Country of Origin Material

Thickness
