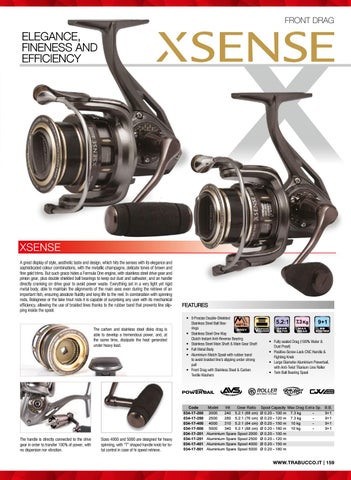

FRONT DRAG
ELEGANCE, FINENESS AND EFFICIENCY
XSENSE A great display of style, aesthetic taste and design, which hits the senses with its elegance and sophisticated colour combinations, with the metallic champagne, delicate tones of brown and fine gold trims. But such grace hides a Formula One engine, with stainless steel drive gear and pinion gear, plus double shielded ball bearings to keep out dust and saltwater, and an handle directly cranking on drive gear to avoid power waste. Everything set in a very light yet rigid metal body, able to maintain the alignments of the main axes even during the retrieve of an important fish, ensuring absolute fluidity and long life to the reel. In combination with spinning rods, Bolognese or the lake trout rods it is capable of surprising any user with its mechanical efficiency, allowing the use of braided lines thanks to the rubber band that prevents line slipping inside the spool.
The carbon and stainless steel disks drag is able to develop a tremendous power, and, at the same time, dissipate the heat generated under heavy load.
The handle is directly connected to the drive gear in order to transfer 100% of power, with no dispersion nor vibration.
Sizes 4000 and 5000 are designed for heavy spinning, with “T” shaped handle knob for total control in case of hi speed retrieve.
FEATURES • 9 Precise Double-Shielded Stainless Steel Ball Bearings • Stainless Steel One Way Clutch Instant Anti-Reverse Bearing • Stainless Steel Main Shaft & Main Gear Shaft • Full Metal Body • Aluminium Match Spool with rubber band to avoid braided line’s slipping under strong pull • Front Drag with Stainless Steel & Carbon Textile Washers
Code 034-17-200 034-17-250 034-17-400 034-17-500 034-17-201 034-17-251 034-17-401 034-17-501
Model Wt Gear Ratio 2000 240 5.2:1 (68 cm) 2500 280 5.2:1 (76 cm) 4000 310 5.2:1 (84 cm) 5000 340 5.2:1 (88 cm) Aluminium Spare Spool 2000 Aluminium Spare Spool 2500 Aluminium Spare Spool 4000 Aluminium Spare Spool 5000
Kg
• Fully sealed Drag (100% Water & Dust Proof) • Positive-Screw-Lock CNC Handle & Fighting Knob • Large Diameter Aluminium Powerbail, with Anti-Twist Titanium Line Roller● • Twin Ball Bearing Spool
Spool Capacity Max Drag Extra Sp. Ø 0.20 - 100 m 7.3 kg Ø 0.20 - 120 m 7.3 kg Ø 0.20 - 150 m 10 kg Ø 0.20 - 180 m 10 kg Ø 0.20 - 100 m Ø 0.20 - 120 m Ø 0.20 - 150 m Ø 0.20 - 180 m
B.B. 9+1 9+1 9+1 9+1
