This “unbook” is dedicated to you, the student, whose desire to learn has driven you to seek other methods and sources of knowledge for your success. Students just like you have made the Jeff Hanson YouTube channel one of the most popular engineering education channels on the internet. Through the overwhelming outpouring of success stories and comments from students around the world, the authors were compelled to do even more to further improve student success. We thank you for all of your support and wish you the highest level of encouragement to reach your dreams and make a difference in the world.

About the Authors

Jeff Hanson is a Lecturer in the Department of Mechanical Engineering at Texas Tech University, Lubbock, Texas. He received his PhD in Systems and Engineering Management from Texas Tech. His popular YouTube channel with instructional engineering course videos has hundreds of thousands of followers worldwide.

Ashley Bernal is an Associate Professor of Mechanical Engineering at Rose-Hulman Institute of Technology, Terre Haute, Indiana. She received her PhD in Mechanical Engineering from Georgia Tech and previously worked at Boeing as a Subsystems Engineer on Joint Unmanned Combat Air Systems.

James Pitarresi is a Distinguished Teaching Professor of Mechanical Engineering and Vice Provost and Executive Director, Center for Learning and Teaching Binghamton University, State University of New York. He received his PhD in Civil Engineering at the University of Buffalo.

Introduction

Years ago, Jeff Hanson began making instructional videos to help his students understand the complexities of statics in relatable and practical ways. These videos grew into an entire YouTube channel course used by hundreds of thousands of students around the world.

This “unbook” is the next step in supporting student learning. It’s the result of over 50 years of teaching statics and finding the best ways to explain the concepts and important aspects of this foundational course. We have extensive experience in seeing commonly made mistakes and the most difficult concepts for students to understand, so we not only cover the concepts but also help you avoid the common problems and give you tools to remember the difficult concepts.

We call this an “unbook” because we’ve created a book that looks like the most organized set of class notes ever written for Statics. Every page is user-friendly, and at the end of every chapter, you’ll find summaries to help you review. This is a workbook with space for you to draw diagrams and work out solutions in the book. Throughout the book you’ll find many examples of how the problems presented in the book relate to real-world systems.

The Structure of the Book

The book is broken into Levels, and as you gain experience and level up, you will be equipped with the skills you need for more and more complex problems. The levels of the book are ordered as you would typically see them in a Statics class, and for each level, you will find:

A Calculator Problem, which is a printed, worked out, stepby-step solution

A Video Example Problem with a completely worked out solution

A Test Yourself Problem (with the solution in the back of the book) that will make sure you can solve the problem on your own

You’ll also find:

Pro Tips from RefJeff, which are helpful tips to avoid mistakes and memory aids to help you remember concepts and application methods

Pitfalls from HardHatJeff, which are the most common mistakes made by students, so you can avoid them

Recipes from ChefJeffthat show the step-by-step approach to that type of problem

Sample Exams (two complete sets!): One set has complete video solutions, and the other set has fully worked out solutions in the back of the book

How to Use the Videos

All of the videos that accompany the book can be accessed on the Jeff Hanson Statics channel on YouTube using the following QR code:

as well as this link: https://tinyurl.com/5n8vvamu.

The proper way to use the video solutions is to not just watch the video through because that will make it look easy. Instead, start the video, press pause, and try to solve the problem on your own. Press play if you get stuck and need help in a tough spot. If you watch Tiger Woods play golf on Sunday, you’re not going to be playing in the PGA on Monday; you would have to practice—a lot! The same goes for these videos: watching Jeff solve these problems will not guarantee you will be able to solve them. You have to practice working them yourself.

Video solutions to the first practice exam can also be found on Jeff’s channel.

Ultimately, your success in this course depends on the amount of practice you put in. The more problems you work, the more comfortable you’ll become with this material and the faster you’ll be able to solve the problems. So practice these methods, and in no time, you’ll be a pro too!

Level 1

Introduction to Vector Mechanics

2D VECTORS

STATICS LESSON 1

Introduction and Newton’s Laws, Scalars, and Vectors

STATICS LESSON 2

Vector Language, Introduction to Vector Addition

STATICS LESSON 3

The Triangle Rule for Adding Vectors to Find a

Resultant

STATICS

LESSON 4

Vector Addition, Triangle Rule, and Cartesian and Vector Notation

STATICS

LESSON 5

2D Find Resultant Vectors, Triangle Rule, Cartesian Components

STATICS

LESSON 6

Most Missed Topic in Statics, Cartesian Coordinates

STATICS

LESSON 7

Finding Vector Components in NonOrthogonal Systems

3D VECTORS

STATICS

LESSON 8

Intro to 3D Vectors, Deriving Blue Triangle Eqns (Spherical Coordinates)

STATICS

LESSON 9

Drill Problems Practicing Blue Triangle (Spherical Coordinates)

STATICS

LESSON 10

Directional Cosines for 3D Vectors and Components

What Is Statics?

Study of mechanics concerned with the analysis of forces and moments acting on physical systems which do not experience acceleration .

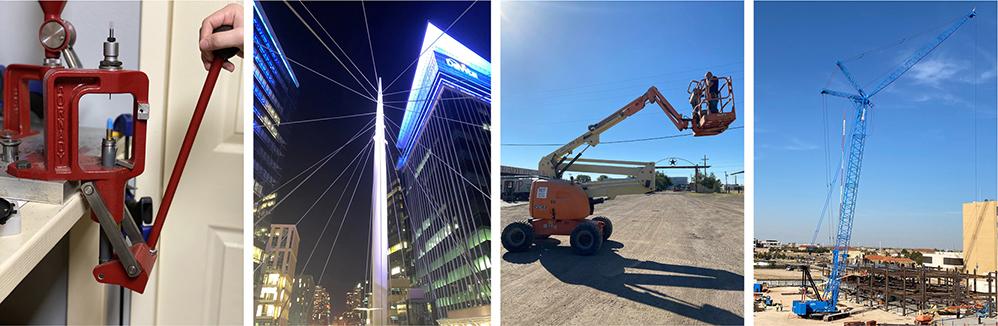

Statics will allow you to analyze structures such as those below:

LESSON 11

3D Vectors When Given Coordinates

LESSON 12

About a Particle, 3D Resultant of Vector Forces

LESSON 13

Product for Angles Between Vectors and Projections

LESSON 1

and Newton’s Laws, Scalars, and Vectors

STATICS

Finding

STATICS

Statics

STATICS

Dot

STATICS

Introduction

StaticsIsBasedonNewton’sFirstandThird Laws

First Law

An object at rest remains at rest or an object in motion remains in motion (constant velocity) unless acted upon by an outside force.

(sum all forces and set equal to zero)

Second Law

Force on an object is equal to its mass multiplied by its acceleration (dynamics)

Third Law

When bodies interact, for every action, there is an equal and opposite reaction

Allows construction of FBDs (free body diagrams)

Scalars and Vectors

Scalars

A quantity described by magnitude alone.

Examples:t(time), m(mass), v(volume), ρ (density), T (temperature)

Vectors

A quantity described by magnitude as well as direction.

Examples: (force), (acceleration), (displacement), (velocity)

Arrow (represents direction)

Line length (represents magnitude)

Can be written in polar form (magnitude and angle) or Cartesian form

LineofAction(LOA)

A line on which a vector lies continuing in both directions indefinitely.

Note:When given two points that lie on a vector, you can find its position vector. For instance, you can find by taking point Bin and subtracting point A . This is referred to as the positionvector. Hansonism for position vector: “How do you get to grandma’s house?”

PITFALL

Don’t forget for position vector you take B– Aand for position vector you take A– B.

EXAMPLE: POSITION VECTOR

Find the position vector .

Remember a “position vector” simply tells you how to get from one point to another.

STEP 1: Identify the coordinates of the two points:

A= (3, 4, −1)

B= (−2, −2, 3)

STEP 2: Identify the direction of the vector (which is the start point and which is the end point). should read as vector A− B, going from Bto point A.

STEP 3: Subtract the ending point from the starting point.

Note:Be careful with your signs!

So is your position vector which tells you how to get from one point to another, or in other words the Hansonism “how to get to grandma’s house.”

Note:Now see if you can find the answer for . Hint:The answer is the same except all the signs are flipped.

TEST YOURSELF 1.1

SOLUTION TO TEST YOURSELF:

Introduction to Vector Mechanics

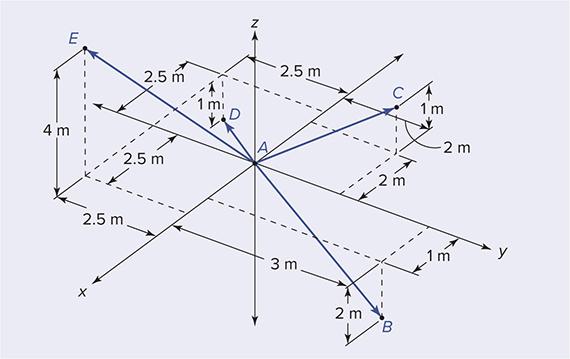

For the given vectors, find the position vector for , and .

As a challenge, can you find position vector ?

ANSWERS

Vector Language, Introduction to Vector Addition

CONCURRENT VECTOR FORCES

Two or more vector forces passing through the same point.

STATICS LESSON 2

Note:We will learn how to solve this in the next level.

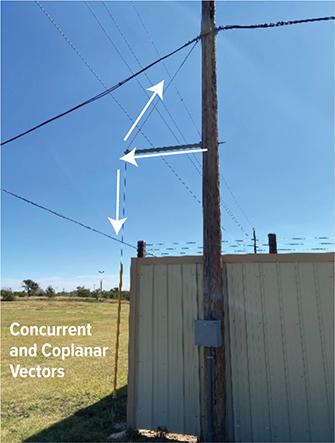

COPLANAR VECTOR FORCES

Two or more vectors contained in the same plane.

CHALLENGE QUESTION

If you have two concurrent vector forces, will they always be in the same plane? What about three concurrent vector forces?

ResultantofVector Forces

A single equivalent resultant vector replacing two or more vector forces.

where is the resultant of vector plus vector .

ANSWER

Any two vectors that are concurrent (that is, they meet at a point), will, by definition, form a plane. However, if there are three or more concurrent vectors, then generally, they do not form a plane except in special cases.

Let’s Learn to Add Vectors!

For all of the following four cases, calculate the resultant vector

ASSUME FOR EACH CASE:

(The magnitude of is 5 lbs.)

(The magnitude of is 7 lbs.)

CASE 1

.

Both vectors are along the same LOA

Sense (direction) is the same

Simply add together

PRO TIP

Remember if you have a vector on one side of the equal sign, you must have a vector on the other.

POLAR COORDINATE SYSTEM REVIEW

The resultant vector is in the positive xdirection so: (called the polar form of the vector).

CASE 2

Both vectors are on the same LOA Vector in this case is opposite direction to Simply subtract OR

The Triangle Rule for Adding Vectors to Find a Resultant TIME OUT

Recall how to add two vectors together:

Triangle Rule

Parallelogram Rule

Tip to Tail Rule

(These are all the same rule, just different names.)

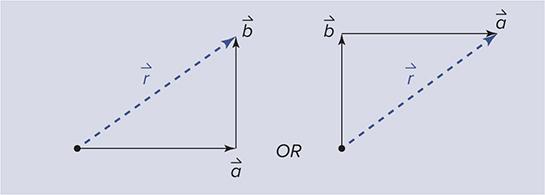

TiptoTailRuleRecipe(MostCommon Name)

STATICS LESSON 3

STEP 1: Create a triangle using the given two vectors as components of . Move one vector’s tail to the second vector’s tip. It doesn’t matter which vector you start with as they create the same triangle.

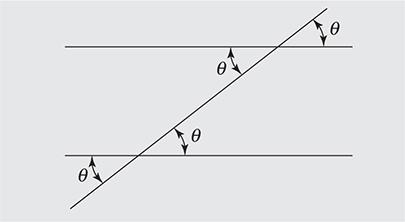

STEP 2: Identify as many angles in your triangle as possible. Note:Sketch horizontal lines to make the angles more evident.

STEP 3: Calculate the magnitude of using Pythagorean Theorem if triangle has a right angle or Law of Cosines if it does not.

STEP 4: Calculate the polar angle θusing the tangent function if the triangle has a right angle or Law of Sines if it does not.

STEP 5: Write your expression for in polar form. Remember to reference your angle for clearly.

TRIGONOMETRY REVIEW

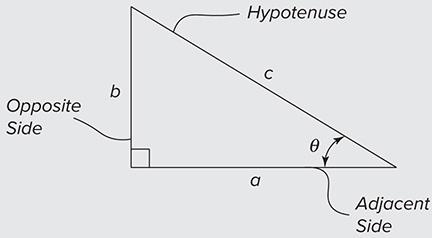

PythagoreanTheorem

SOHCAHTOA

A mnemonic device (SOHCAHTOA) is used to remember the following trigonometry functions:

a2 + b2 = c2

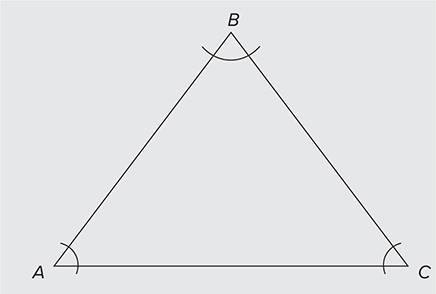

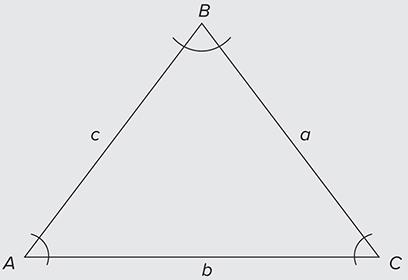

Note:For labeling triangles, the angle opposite a given side will always be the same name but capitalized.
