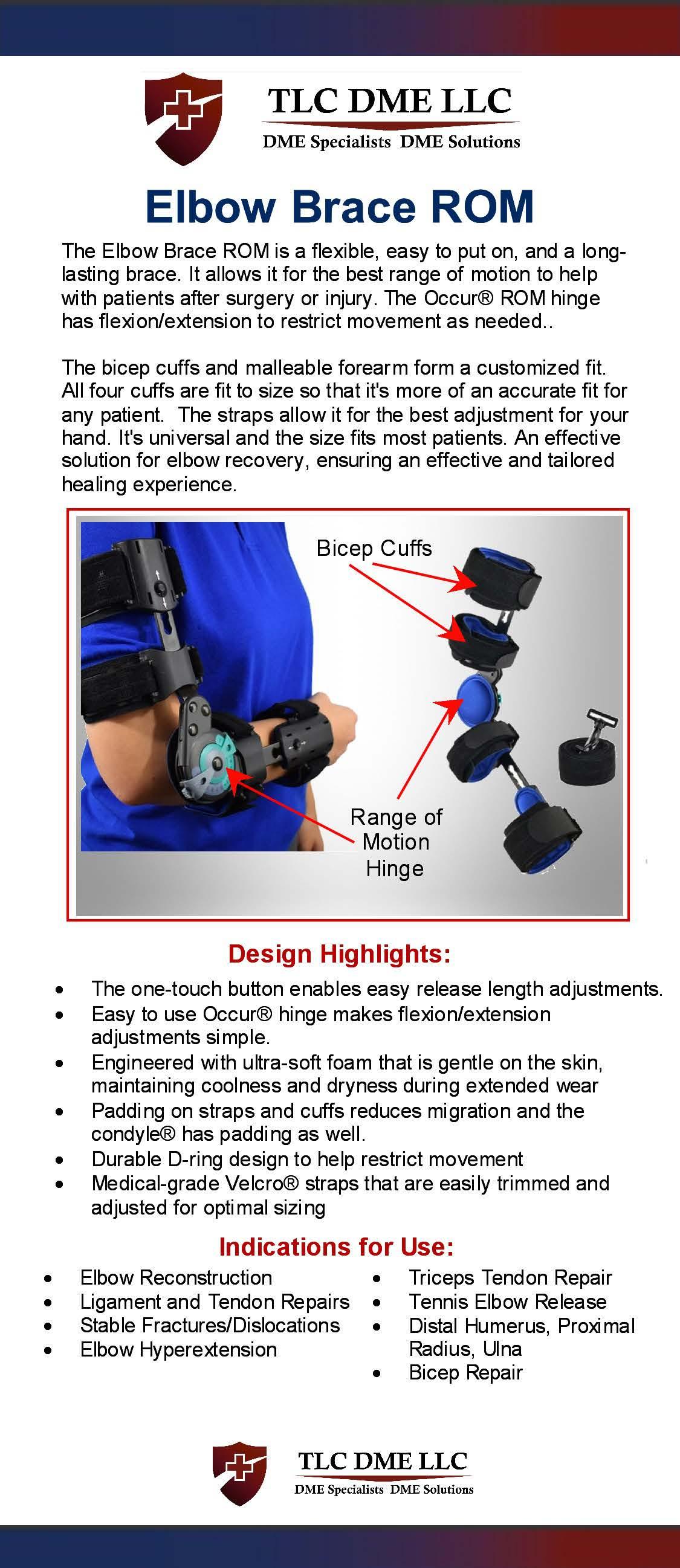

Elbow Brace ROM

The Elbow Brace ROM is a flexible, easy to put on, and a long-lasting brace. It allows for the best range of motion to help with patients after surgery or injury. The Occur® ROM hinge has flexion/extension to restrict movement as needed.

The bicep cuffs and malleable forearm form a customized fit. All four cuffs are fit to size so that it’s more of an accurate fit for any patient. The straps allow for the best adjustment for your hand. It’s universal and the size fits most patients. An effective solution for elbow recovery, ensuring an effective and tailored healing experience.

Design Highlights:

• The one-touch button enables easy release length adjustments.

• Easy to use Occur® hinge makes flexion/extension adjustments simple.

• Engineered with ultra-soft foam that is gentle on the skin, maintaining coolness and dryness during extended wear.

• Padding on straps and cuffs reduces migration and the condyle® has padding as well.

• Durable D-ring design to help restrict movement.

• Medical grade velcro® straps that are easily trimmed and adjusted for optimal sizing.

Indications for Use:

• Elbow Reconstruction • Ligament and Tendon Repairs • Stable Fractures/Dislocations • Elbow Hyperextension

• Triceps Tendon Repair • Tennis Elbow Release • Distal Humerus, Proximal Radius, Ulna • Bicep Repair

Elbow Brace ROM Fitting Instructions

1)

2)

3)

4)

5)

6)

7)

Application Step 1. Locate Pivot Center. Unfasten the straps of the brace and hold the brace up to the arm with the hinge pivot center over the elbow joint.

Step 2. Adjust Length: Press the button on the distal cuffs and slide telescoping bars until they match the length of the upper arm and forearm.

Step 3. Bending the Cuffs: Bend the cuffs to securely wrap around circumference of the arm.

Start with the cuffs proximal to the elbow.

Step 4. Secure Straps: Starting with the 2 straps closest to the elbow, fasten all straps. Trim straps as needed.

Step 5. Range of Motion Adjust: To adjust ROM settings, press the flexion button and rotate until the desired degree of flexion or extension is achieved through the corresponding windows.

“O” locks the brace in full extension.

Step 6. Side Bar Adjust: Side bar may be bent to contour to arm. Place brace on a flat surface with one strut protruding off edge and apply downward pressure to bend the strut. Side bars must be bent after final length adjustment is complete.

Step 7. Neck Strap: Place neck strap over the opposite shoulder of injured arm. Attach D-ring to strap closest to wrist. Use clip to attach free end of neck strap to the brace. Adjust to comfort position.

Care Instructions

• Hand wash with 50/50 alcohol/water mix • Rinse and air dry • Do NOT use bleach

All products are provided by TLC DME. For more information regarding product application, functionality, and/or warranties, please call TLC DME Patient Care at 1.855.4TLCDME or email patientcare@tlcdme.com.

All DMEPOS products are covered by CMS, work comp, and commercial insurances. If you have not yet met the deductible associated with your insurance plan, you may have a financial responsibility.
