Terrence Farley Working Portfolio

2020-2023 (So Far)

1/8” = 1’ - 0” SYRACUSE

TJ FARLEY PLAN 8'-1 7'-3 1 4'-1 1'-6" 2'-11" 1'-10" 7'-0" 6'-6" 42'-6" 4'-11" 6'-4 4'-1 15'-3" 1'-4" 5'-8 4'-9 39'-3

ARC 207 | FALL 2021

ARCHITECTURE

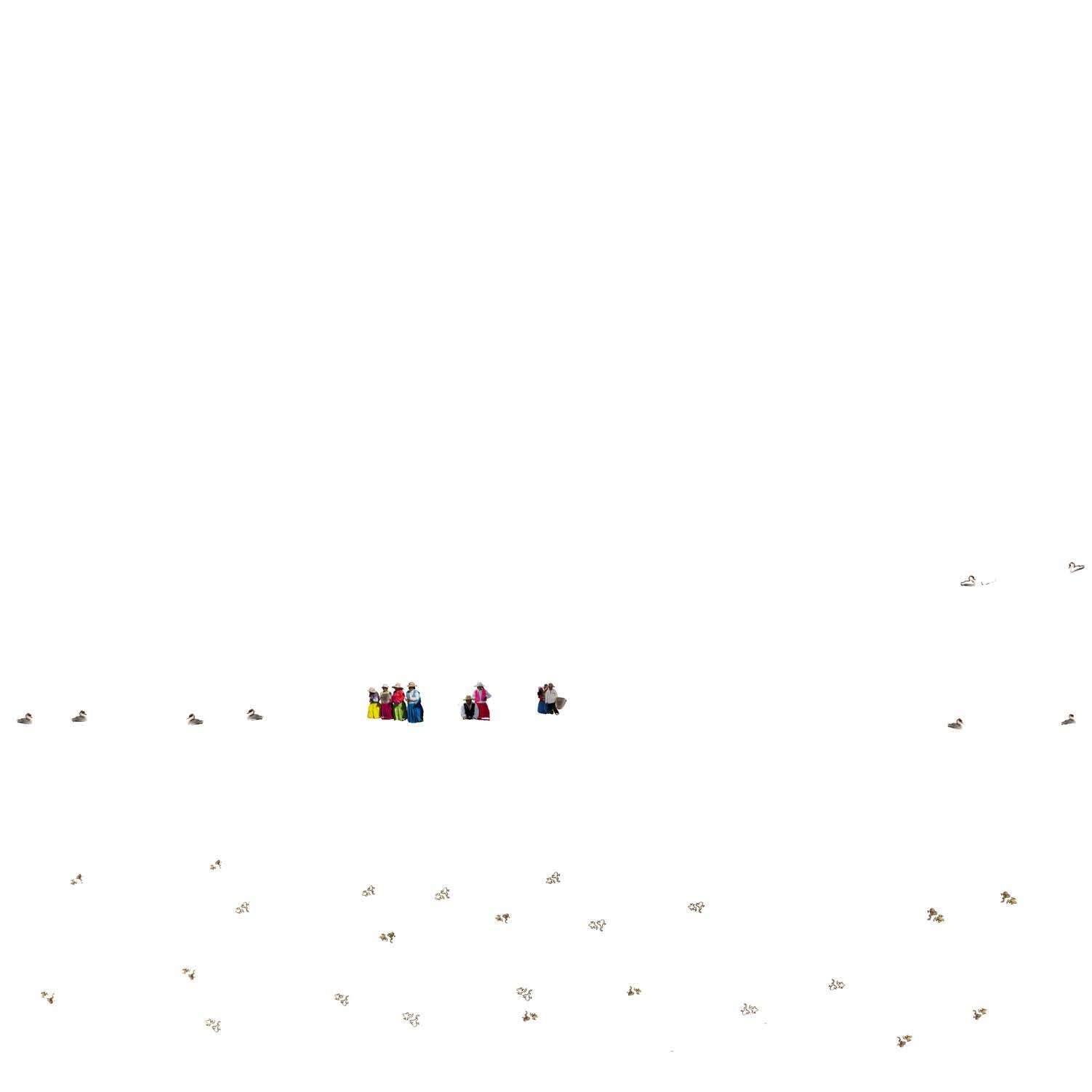

archipelagone site plan phase one 1/32”=1’=0”

archipelagone site plan phase two 1/32”=1’=0”

archipelagone site plan phase three 1/32”=1’=0”

archipelagone water current site plan 1/32”=1’=0”

Vizcacha Wild Guinea Pig & Andean Fox Titicaca Grebe Typical Water Level Titicaca Orestias Titicaca Water Frog Trichomycterus Dispar

2022: fresh foam 1/4”=1’-0”

2022: new layers 1/4”=1’-0”

2072: deterioration 1/4”=1’-0”

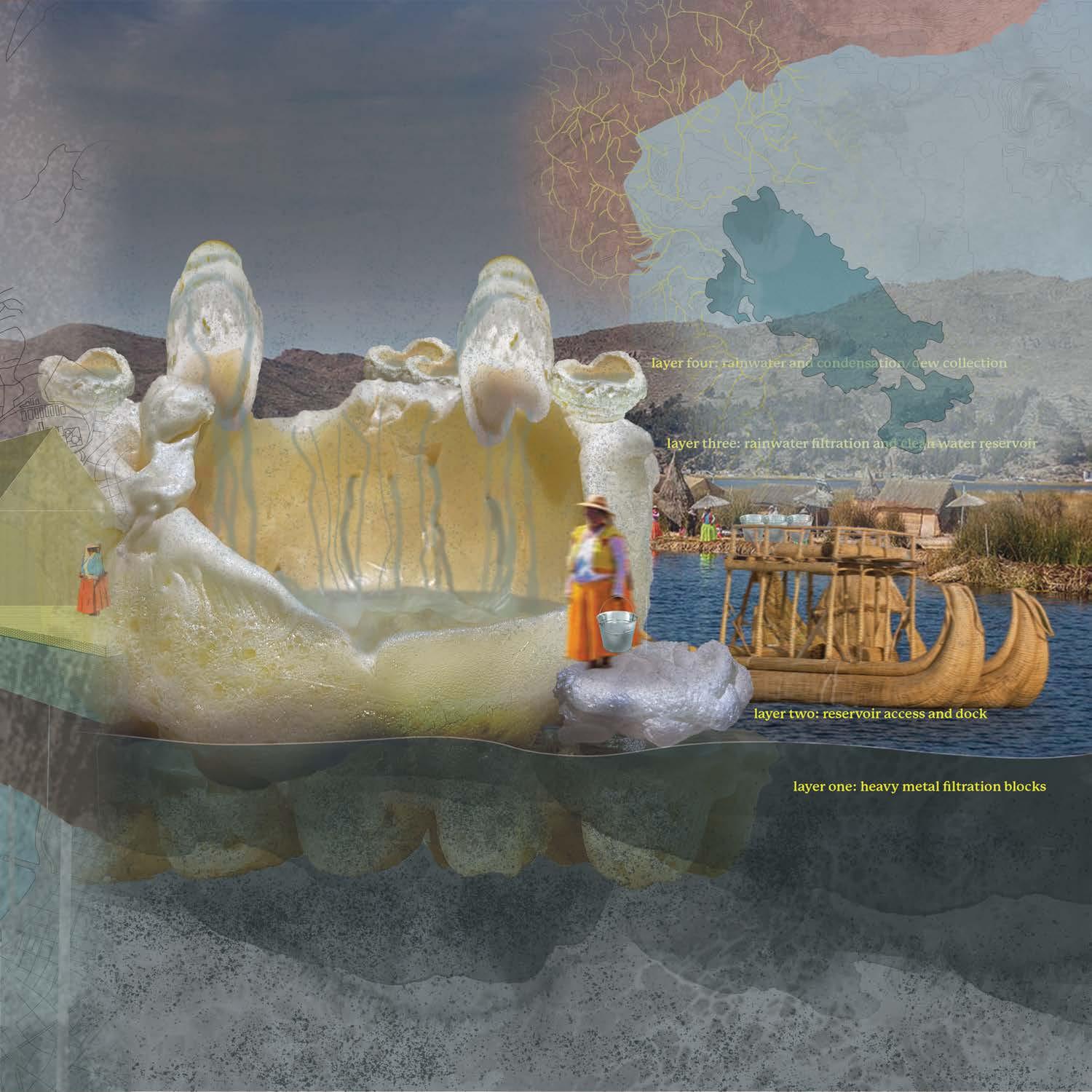

layer one: heavy metal ﬁltration blocks layer two: reservoir access and dock layer three: rainwater ﬁltration and clean water reservoir layer four: rainwater and condensation/dew collection

1X3 BATTEN

16X8X8 CMU BLOCK W/ 3/8” TYPE-S MORTAR JOINT SILL PLATE

ICE & WATER SHIELD

1/2” PLYWOOD

1X3 SQ. EDGE BOARDS W/ 3/16” SPACE BTWN. ATTACH W/ CONCEALED HEAD TRIM SCREWS

FROST LINE

3/8” CARRIAGE BOLT HOT DIP GALV. W/ NUT & WASHER COUNTERBORE 1 1/16” DIA. AT 9/16 DEPTH

19 1/2” 2X4 W/ 4.7º CUT

9 3/4” FROM LEFT

SIMPSON STRONG-TIE 2”X2” BRACKET

15 5/8” 2X4 VERTICAL KICKER

15 3/4” 1/2” PLYWOOD SIDING

14 3/4” 1X3 BATTEN

3 12 7 8 21 3 16 19 ” ” 48 ” ” 18” 1 2

CORRUGATED STEEL ROOFING

2 x 4 PURLIN @ 16” O.C.

2 x 12 RAFTER @ 16” O.C.

2 x 8 BLOCKING

3-PLY 2 x 12 BEAM

CLOSURE STRIP ATTACHED w/ 2” FASTENER WITH COMPRESSABLE WASHER

CORRUGATED PLASTIC PANEL

CORRUGATED METAL ROOFING

2-PLY 2 x 12 RAFTER

2

ALIGN 6” 32”

XI

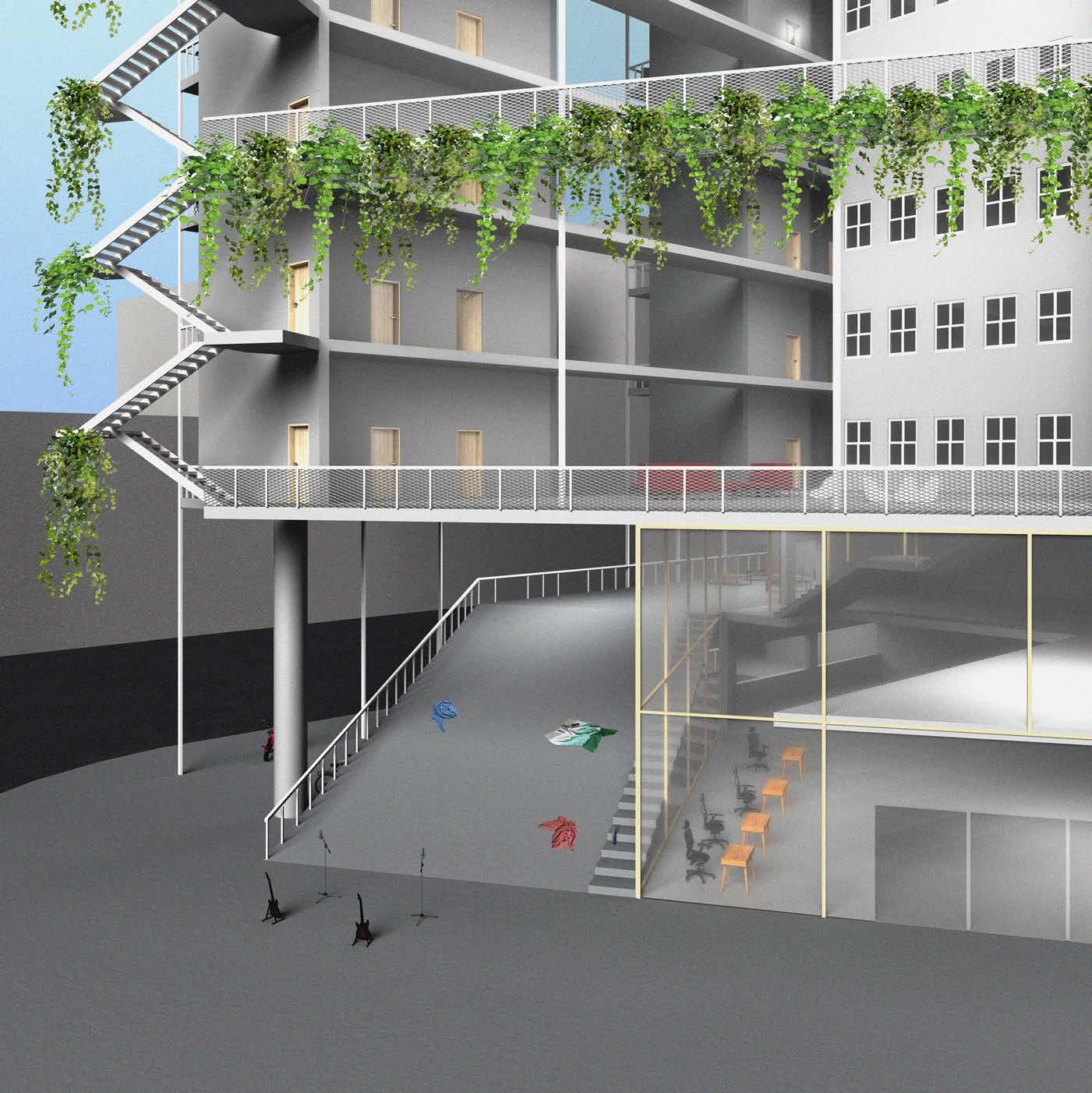

EXTERIOR VIEW

Akshara Raman TJ Farley

XII

INTERIOR VIEW

Akshara Raman TJ Farley

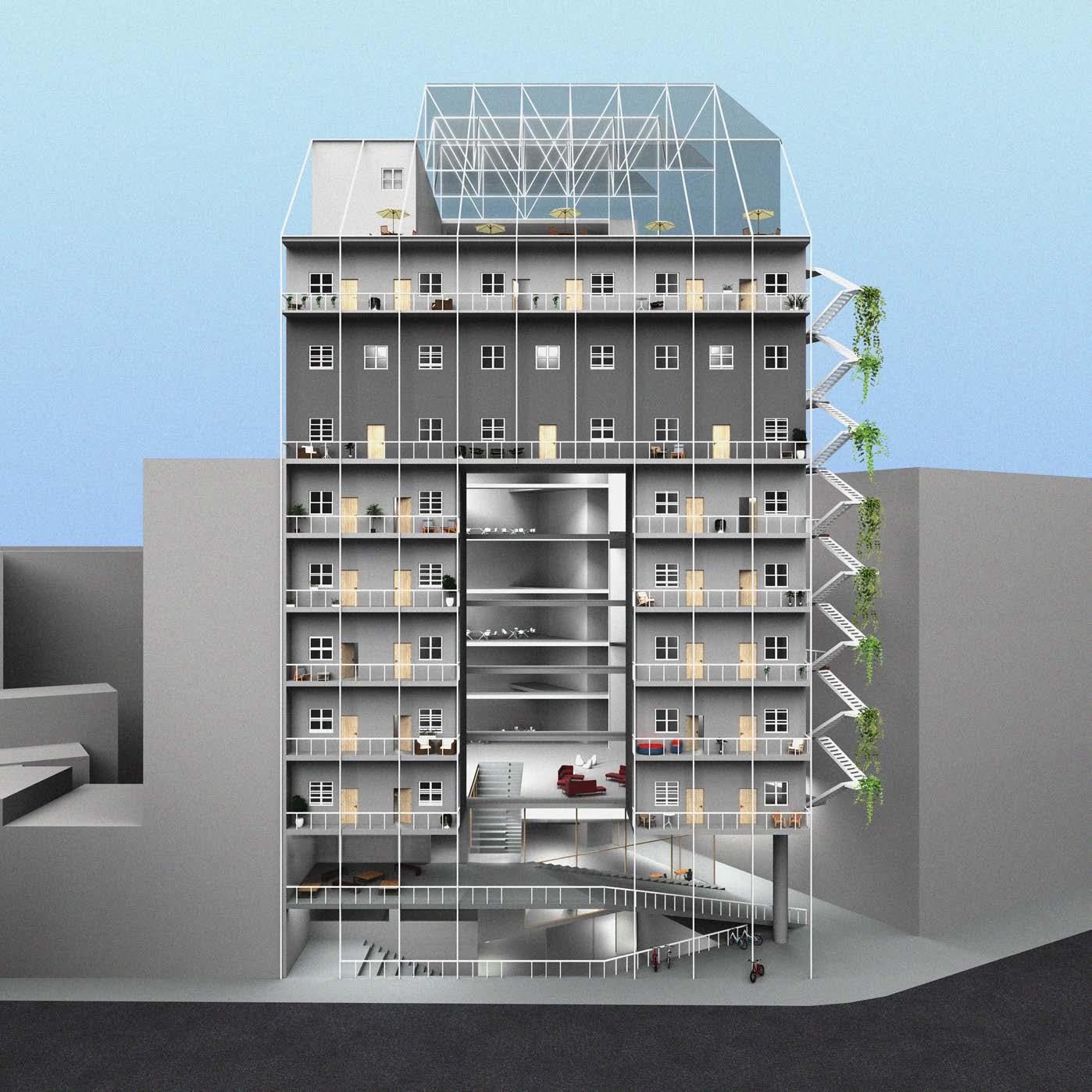

Akshara Raman / TJ Farley IX 8765432 1 -11’ 0’ 14’ 28’ 42’ 56’ 70’ 84’ 98’ 112’ 189’6” 168’ 154’ 140’ 126’ SECTION A 1/16”

X Akshara

ABCDEFGHIJK -11’ 0’ 14’ 28’ 42’ 56’ 70’ 84’ 98’ 112’ 189’6” 168’ 154’ 140’ 126’ SECTION B 1/16”

Raman / TJ Farley

Resume

Very hardworking and dedicated student of architecture, determined to get where they want to be. A strong believer in the influence research can have on the architectural profession. Great member of a team, with some leadership skills and a commitment to high quality and thought provoking design.

Work Experience

Syracuse Office of Undergraduate Research and Creative Engagement

Professor David Shanks

Syracuse, NY

Research Assistant and Intern May - August 2022

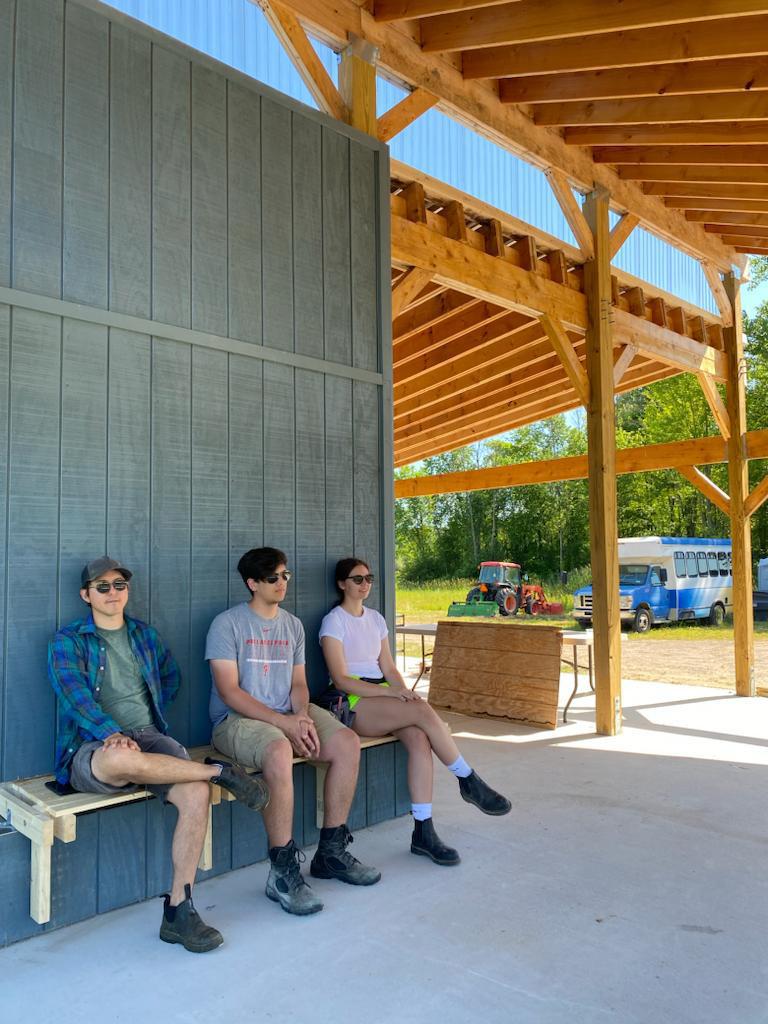

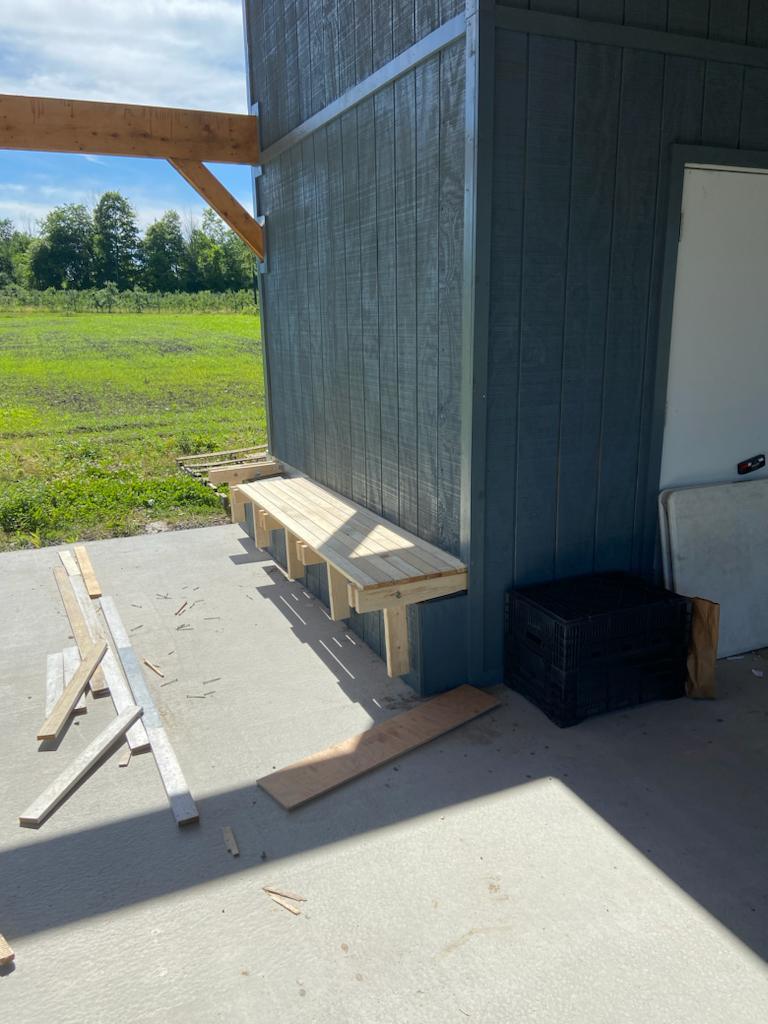

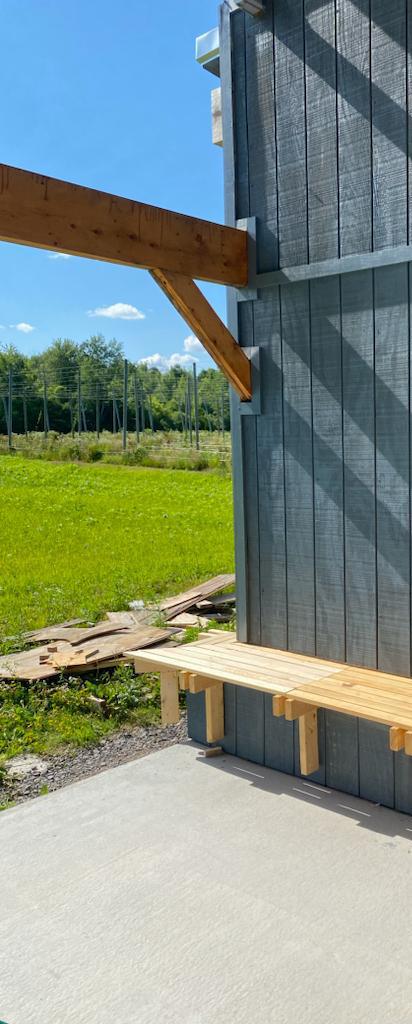

Design/Build for a bench for a local farm’s pavilion, continued development of this pavilion alongside its designer

Education

Syracuse University Bachelors of Architecture (Fall 2020-Spring 2025)

Dean’s List Fall 2021-Present

Skills

AutoCAD (2016-2020), Rhinoceros (2020-Present), InDesign (2020-Present), Illustrator (2020-Present), Photoshop (2020-Present), Physical Model Making (2020-Present), Physical Orthographic Drawing (2016-Present), GIS Tools (2021-Present), V-Ray (2020-Present), Active Listening, Teamwork, Hardworking, Problem Solving
