T-type Hinge
Reliable and consistent performance throughout cabinet’s lifetime
3way snap-on mounting
Highly tolerant
ConfidentClose
Consistent performance

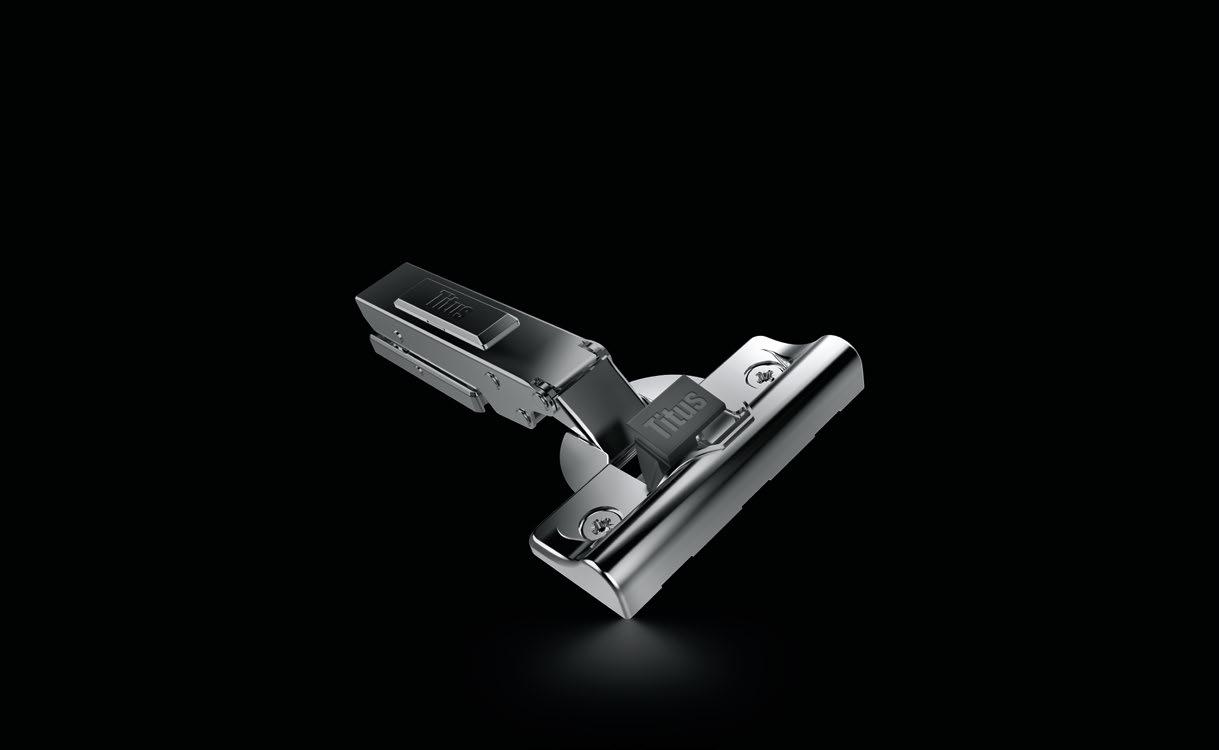

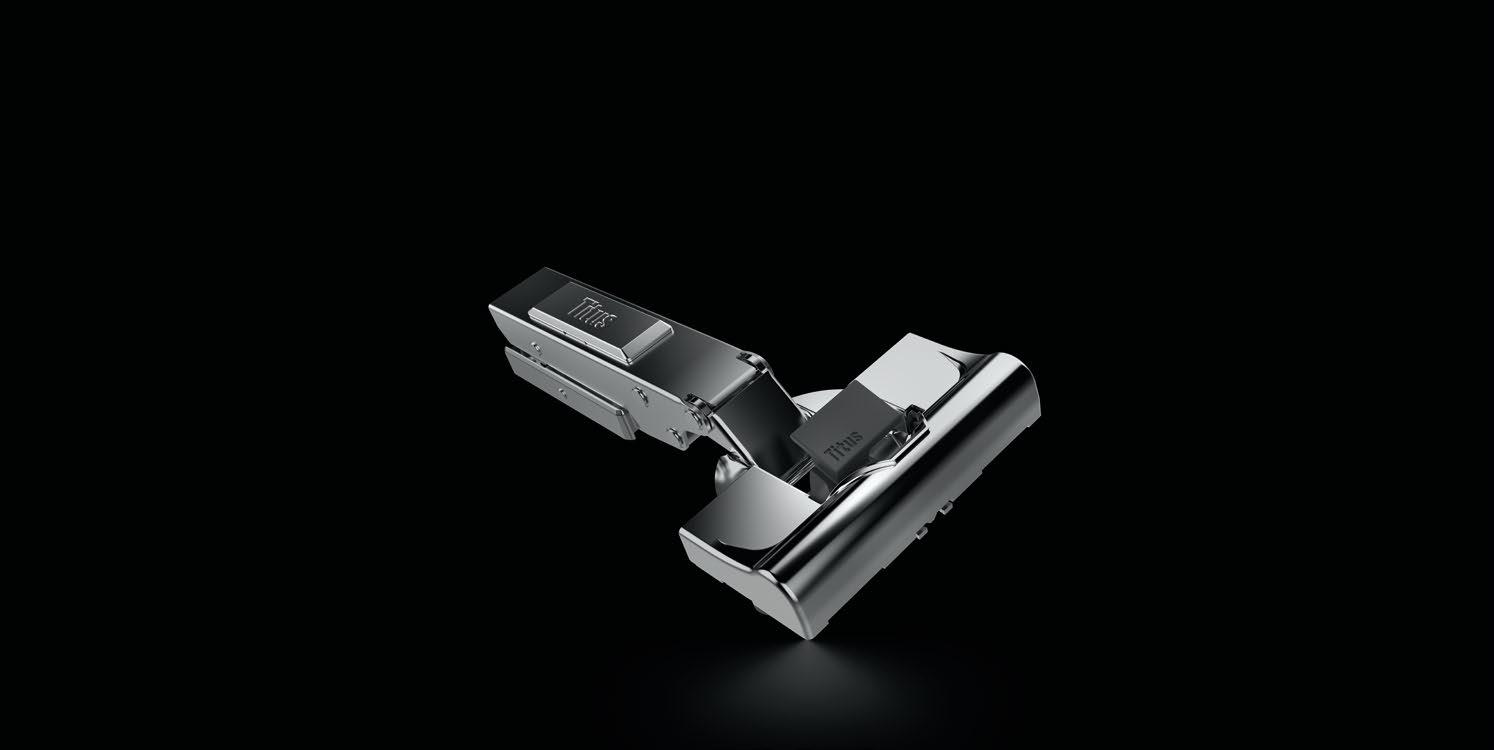

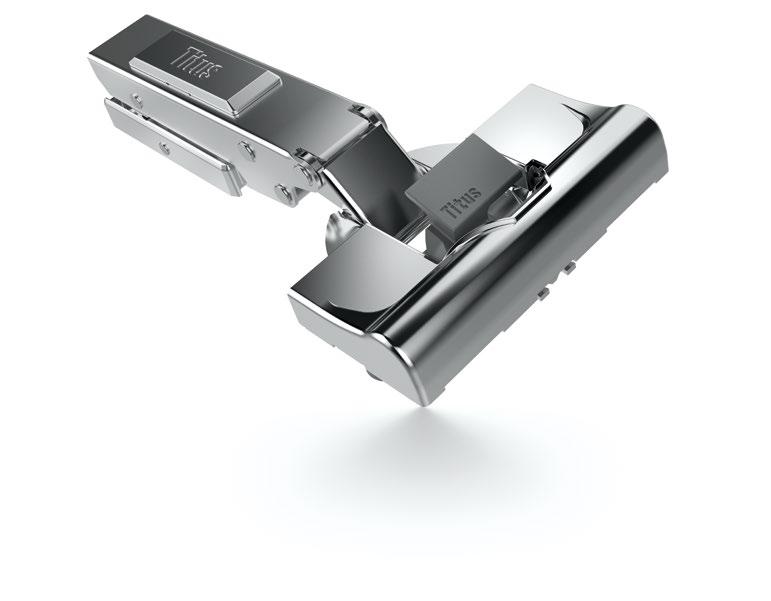

T-type hinge
T-type hinge is engineered for enhanced stability and consistent, reliable damping across a wide range of door sizes and weights.
Its robust and highly tolerant design ensures superior door performance, maintaining reliable closing even in cases of accidental misalignment.
Thanks to 3Way snap-on mounting in three directions, installation remains fast and straightforward, regardless of whether two, three, or more hinges are usedsignificantly reducing assembly time.
T-type is available in a classic, nickel-plated finish and in Noir, a contemporary dark finish.

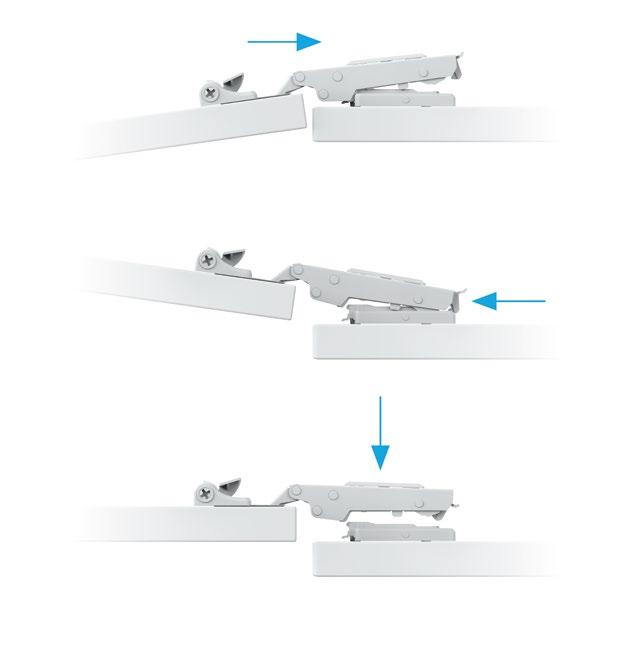

3Way snap-on mounting
• Intuitive hinge-to-plate mounting in three directions
• Easy door installation with multiple hinges per door
• Enhanced mounting experience

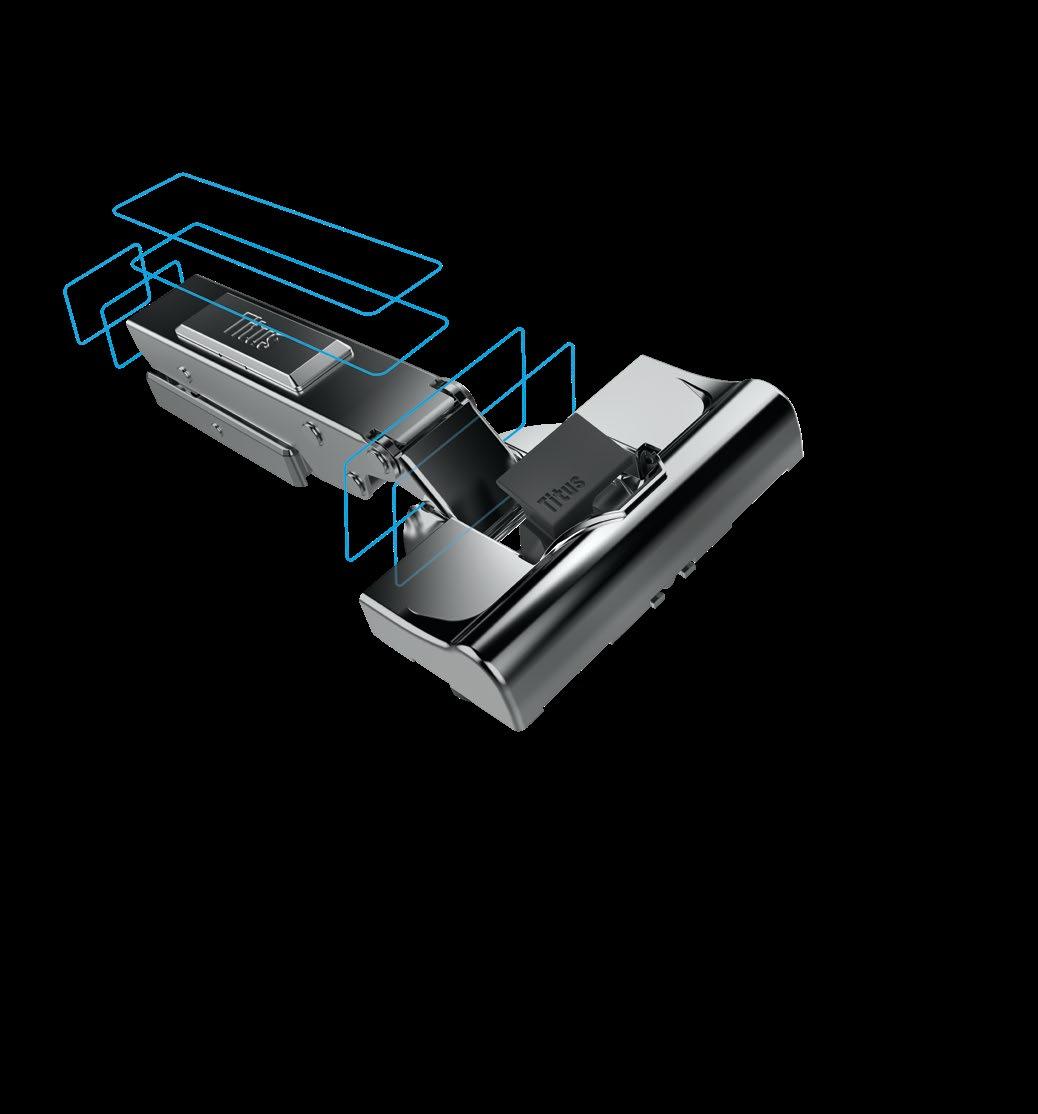

Highly tolerant
• Efficient performance in marginal drilling tolerances
• Reliable door closing in case of accidental misalignment
• ConfidentClose assured
ConfidentClose
The hinge is designed to provide consumerpreferred way of soft closing action.*
Fast closing
Reliable and consistent performance
• T-type delivers consistent performance across 200.000 cycles over its lifetime
• Supports reliable operation on doors of all sizes and weights
• Hinge-to-plate attachment assures rigidity and stability
Late start of deceleration action
Quiet landing with SoftTouch
*based on results of Titus research made in UK, Germany and Slovenia
PressTo toolless mounting
T-type PressTo
Toolless mounting made simple
• Reliable attachment to chipboard, MDF, and solid wood door
• Effortless snap-on locking mechanism on the hinge cup
• Paired with 3Way hinge-to-plate mounting for fastest cabinet assembly
For thick door applications
T-type
95
Thick door hinge with 95° opening
• Optimised for doors up to 34mm thick
• Narrow door clearance and side panel reveal
• Consistent performance across various door sizes and weights
16-34mm

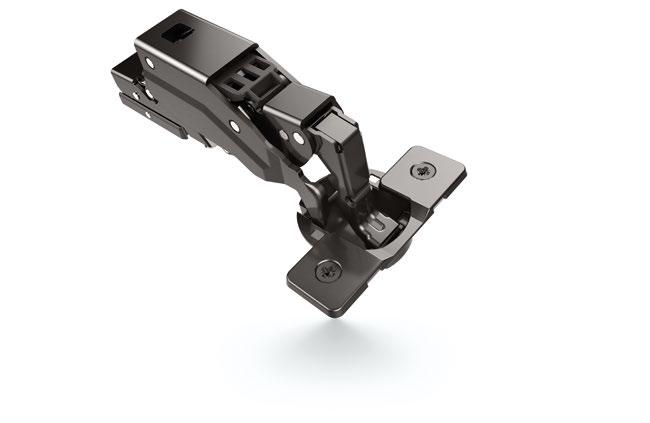

Wide opening angle

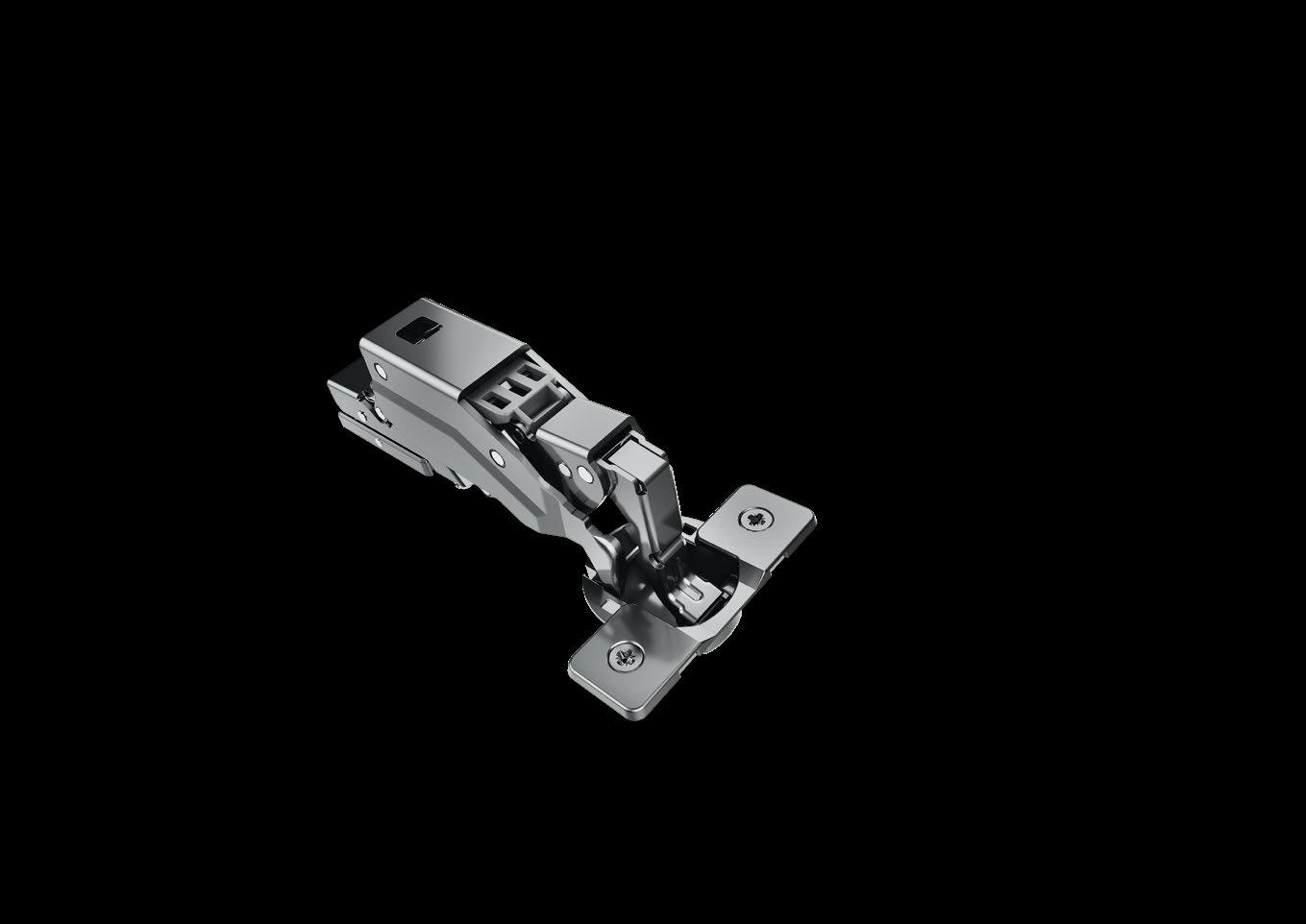

T-type-i 170
Wide opening angle hinge with integrated damper
• Exceptional door stability and full accessibility to the cabinet
• Zero door protrusion at 90° door opening
• Optimal solution for kitchen pantry units with inner drawers or pull-out systems

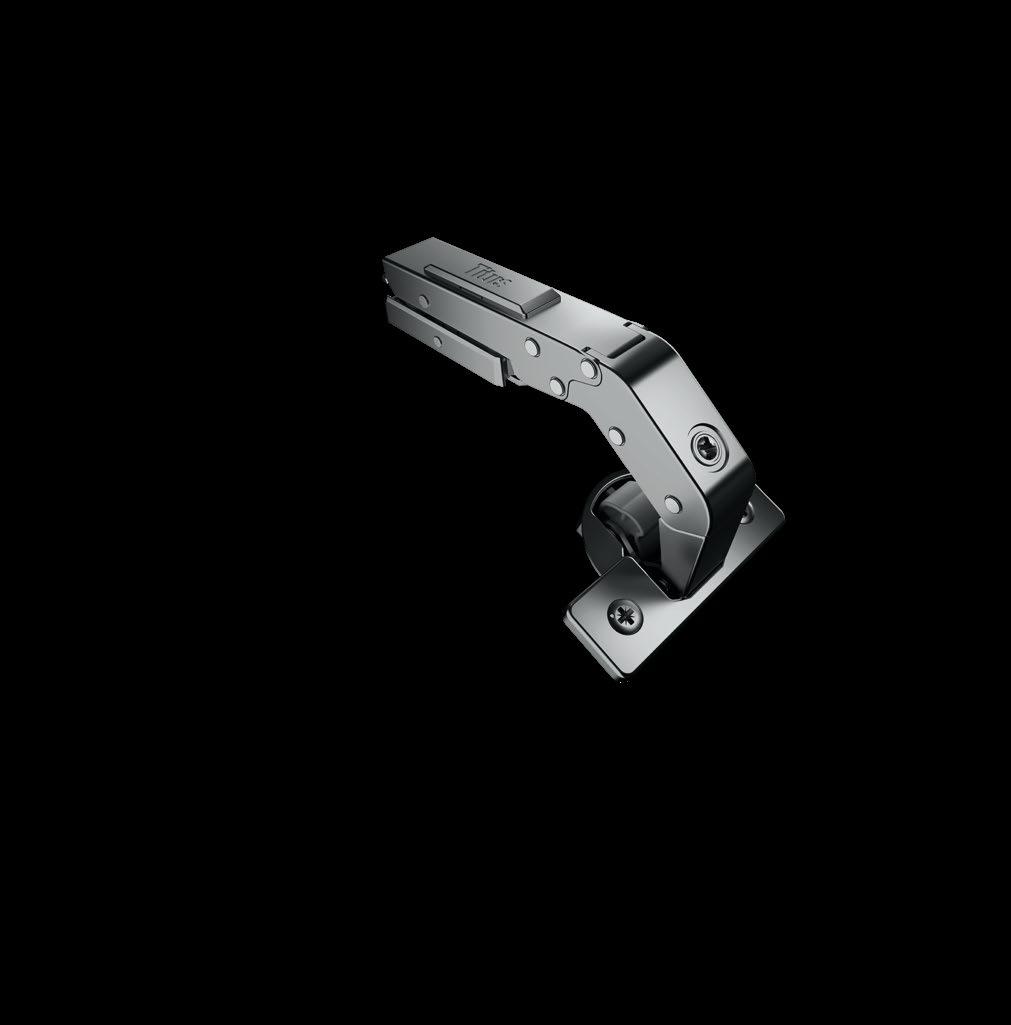

For pie-cut corner applications

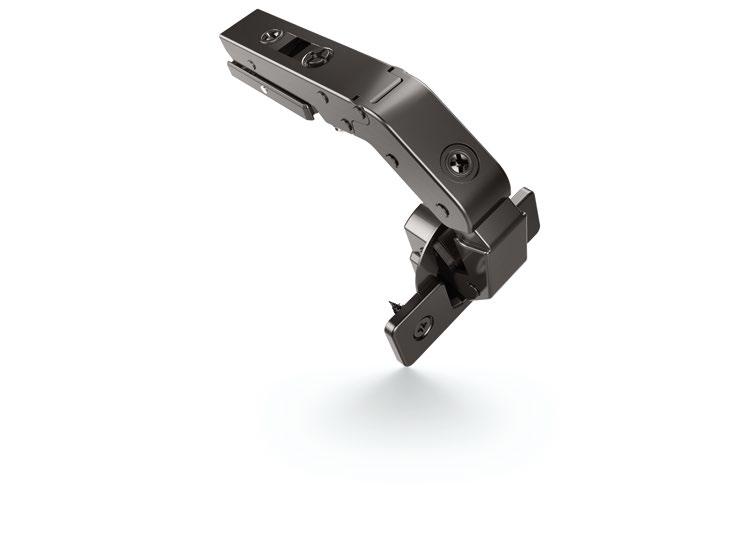

T-type Pie-Cut
Double lock hinge opening
• Full access into the cabinet interior at 70° opening
• When both doors are opened and locked at 25°, they work as one and move away without touching nearby cabinets
Easy door alignment
• Cam adjustment of door position
• One-step alignment of doors from 15 to 25mm

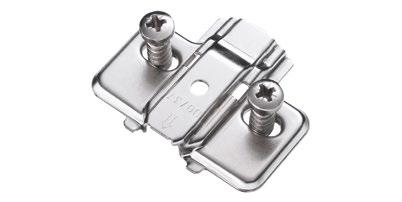

Mounting plates
Cam adjustable cruciform mounting plate
Cruciform mounting plate
Cam adjustable linear mounting plate
Cam adjustable face frame adapter mounting plate
‘3Way’ mounting plate
Type cruciform, linear
Height
Mounting plate fixing
0-1-2-3-4-9mm
screw-on ready, euro screws, wood screws, knock-in dowels for machine insertion, expando dowels ø5mm
Precise door alignment
Height adjustment
+2/-2mm
Side adjustment
+3/-1mm
Depth adjustment +4/-1mm
Technical details
Hinge type with and without damping
Opening angle 95°, 110°, 120°, 170°
Hinge cup drilling depth 12mm, PressTo 13mm
Hinge cup drilling pattern 48/6mm, 45/9.5mm, PressTo: 45/9.5mm
Maximum overlay 19mm
Hinge arms
Cup fixing
0mm, 5mm, 9mm, 17mm, corner application
screw-on ready, knock-in dowels for machine insertion, PressTo toolless, EasyFix, FastFix

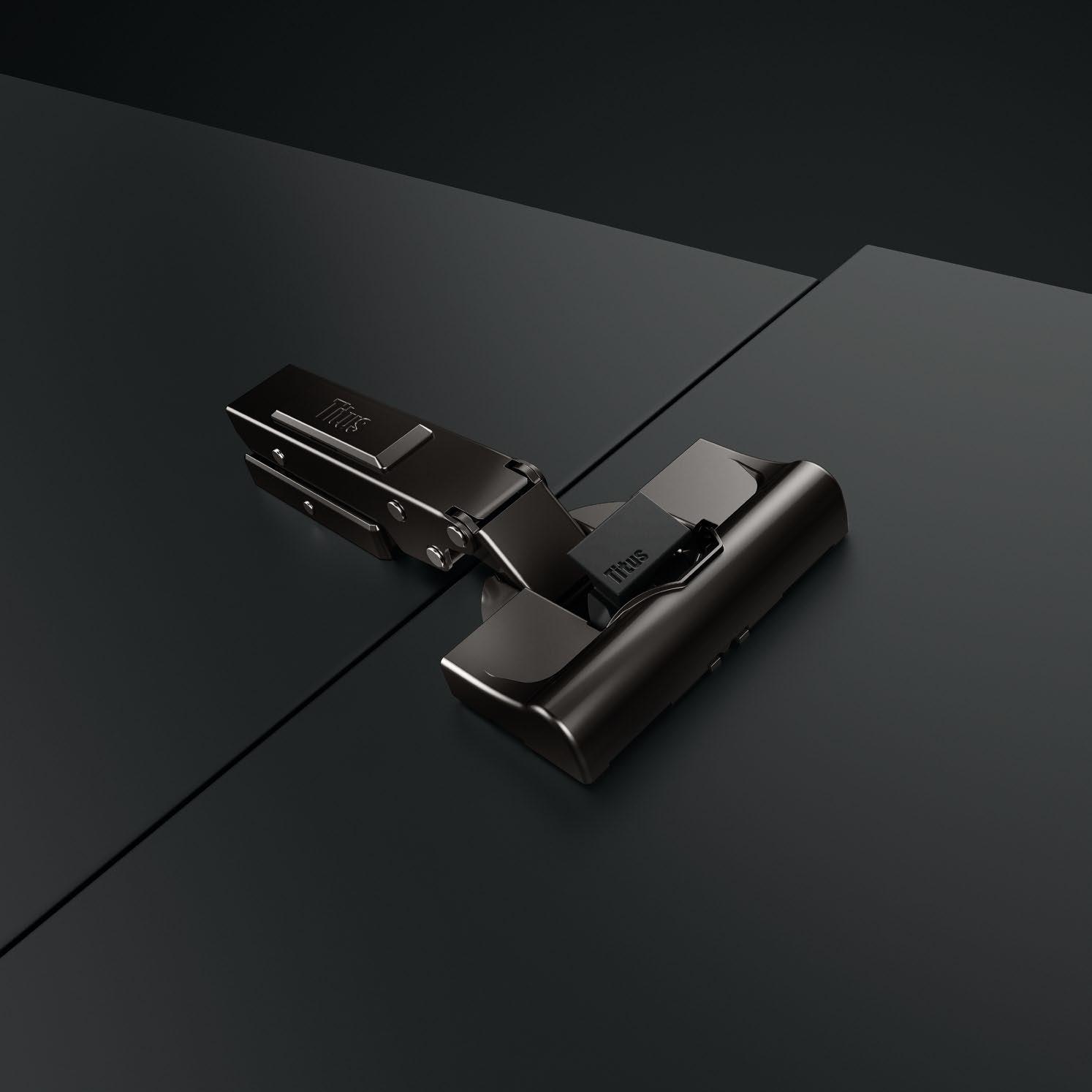

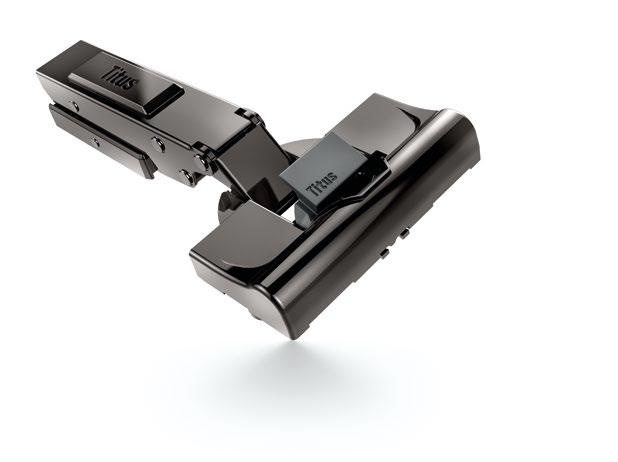

T-type Noir
An elegant dark finish engineered to complement any cabinet design
Noir is an elegant dark finish designed to meet the demand for black and dark cabinet hardware.
More than just a colour option, Noir offers a visually appealing solution that integrates seamlessly with a wide range of cabinet colours and surface textures.

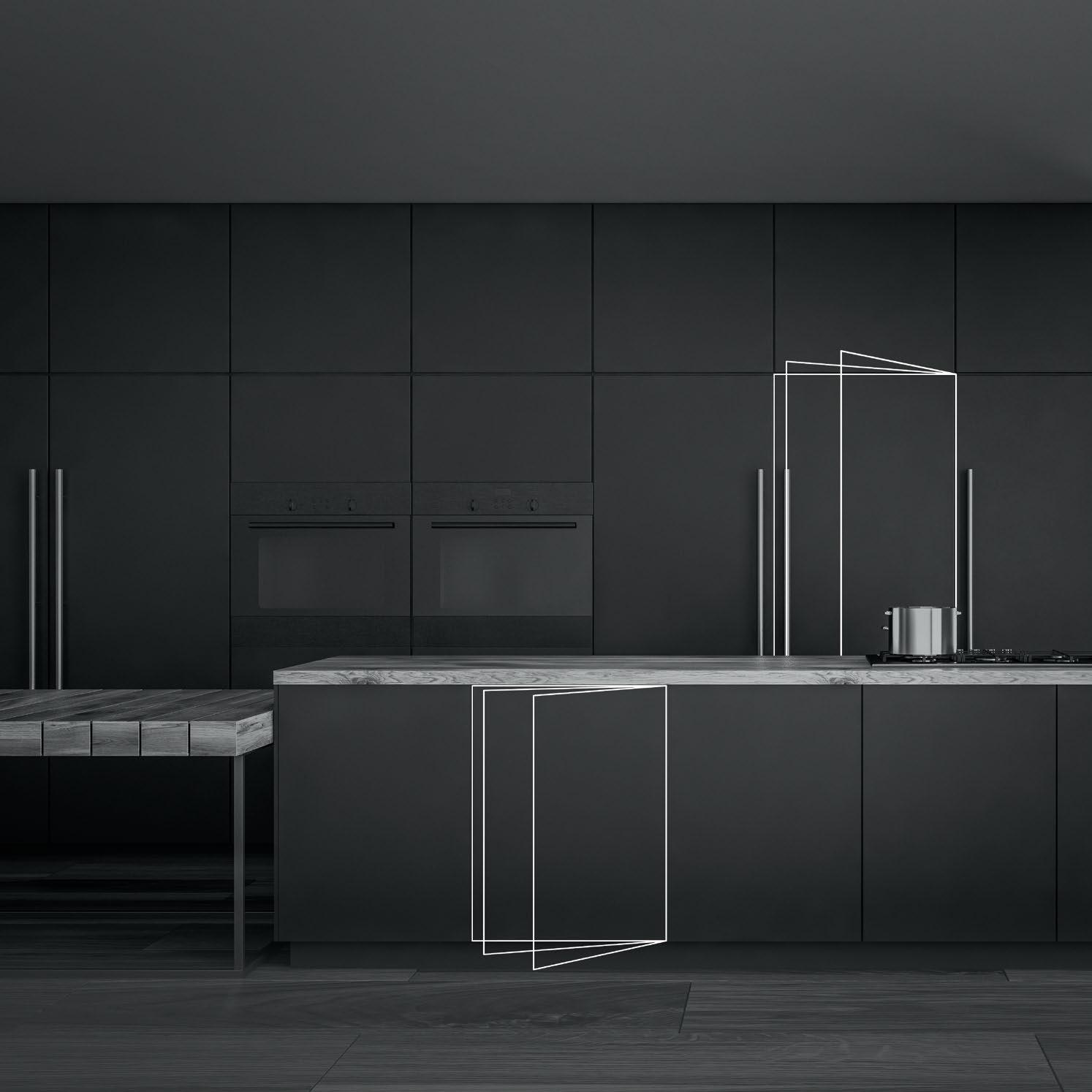

Why choose Noir?
Noir discreetly enhances furniture’s design, blending seamlessly into both contemporary and traditional settings while allowing cabinets to take centre stage. This versatile dark finish complements various environments - whether kitchens, bedrooms, offices, or bathrooms - creating a cohesive look that balances style and functionality without drawing attention away from your cabinetry.
170
T-type Pie-Cut corner
T-type PressTo
T-type-i

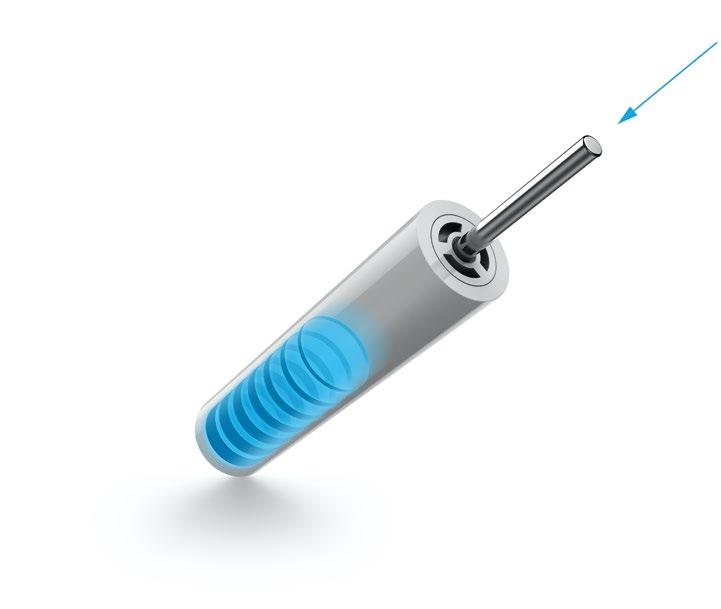

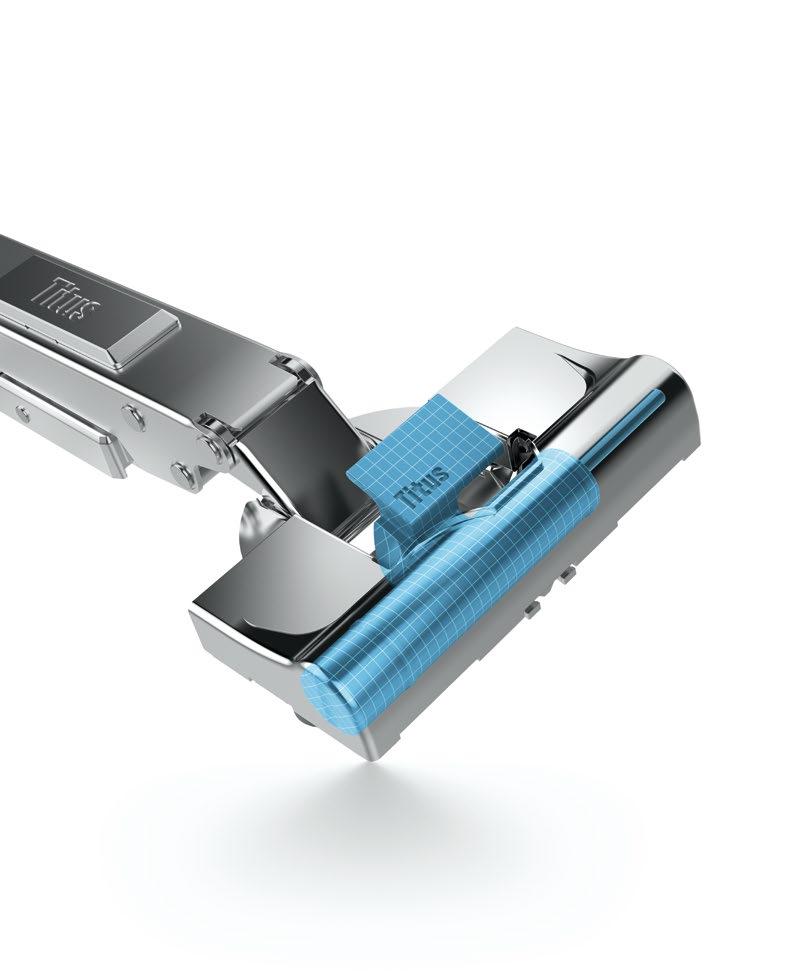

Titus damper inside
The core element of Titus soft close systems is our proprietary multi-purpose hydraulic damper. It assures soft and silent closing of doors and drawers. Its modular design guarantees a reliable and consistent damping performance in a wide range of applications. Titus damper is designed to assure efficient damping at any closing speed, providing consistent performance and reliability in reaching the end position regardless of speed.
Proven concept of soft closing mechanism integrated into the hinge cup
• Damper is positioned transversely on the hinge cup
• Intuitive damping adjustment
