Wende Creative Community Center
2020-2023 (in construction)
AUX Architecture
The project is a multi-phase addition to the Wende Museum campus in Culver City’s cultural corridor. Phase I consists of a new Creative Community Center. Phase II will be affordable housing. The Creative Community Center is a 7,000 sq. ft. multi-purpose building designed for a variety of activities including performances, exhibits, and civic activities, and will become a gathering place for the community. Designed as an extension of the existing Wende gardens, the building is a series of concrete terraces with green roofs that terrace up from the existing park. Each of the levels is interconnected with an existing 2,000 sq. ft. A-frame building through the use of an architectural screen that seamlessly joins old and new. The center will maintain and establish operational, meeting, and educational space for community partners including the United States Veterans’ Artist Alliance, Culver City Unified School District, the Mayme A. Clayton Library and Museum, and Upward Bound House.
Professional Works
First Second
6 1ST FLOORPLAN | SCALE 3/32” = 1’ 0” CORRIDOR RESTROOM ELEVATOR LOBBY BREAK AREA STAIR 2 STAIR 1 THEATER MECHANICAL SPACE RESTROOM RESTROOM A/V BIKE STORAGE CORRIDOR STORAGE ELEVATOR CLASSROOM OFFICE BREEZEWAY STAIR 2 STAIR 1 CORRIDOR RESTROOM ELEVATOR CLASSROOM OFFICE BREEZEWAY STAIR 2 STAIR 1 3RD FLOORPLAN | SCALE 3/32” = 1’ 0” ELEVATOR ROOF DECK ELEV. MECH. ROOM STAIR 2 STAIR 1
Third
Roof
2ND FLOOR 11'-0" 3RD FLOOR 22'-10" ROOF 34'-6" 3 1 4 21 RISERS @ 7" MAX. 11' 10" 21 RISERS @ 7" MAX. 11' 8" 3 RISERS @ 7" MAX. 1' 6" MIN. CLR. 7'-0" 92.51 SITE LOWEST POINT 92.51 2 1ST FLOOR 95.81 MIN. 42" ROOF GARDEN LEVEL 36'-0" 1.9 3.1 A9.60 7 A9.60 8 A9.62 A9.62 4 301.1 201.1 MIN. CLR. 7'-0" 3'-6" 3'-6" MIN. CLR. 7'-0" MIN. CLR. 7'-0" 08 08.1 04 08.1 08.1 08 08 2'-10" 2'-10" MIN. 42" MIN. 42" 1 2'-10" 2'-10" 8 A9.20 8 A9.20 3 A7.03 MIN. CLR. 7'-0" 21 RISERS @ 7" MAX. 12'-0" AVGE. GRADE PLANE 94.48 1. SEE SHEET A0.20-A0.21 FOR GENERAL NOTES. 2. SEE SHEET A0.40 FOR GREEN BUILDING REQUIREMENTS. 3. SEE SHEET A0.45-A0.46 FOR ENERGY CALCULATIONS 4. SEE SHEET A0.70-A0.71 FOR SPECIFICATIONS. 5. SEE SHEET A11.20 FOR FINISHES, FIXTURES 6. SEE SHEET A11.01 FOR DOORS SCHEDULE. 7. SEE SHEET A11.13 FOR STOREFRONT SCHEDULE. 8. BUILDING ENVELOPE SHALL BE PROTECTED RODENTS. SEE A005 FORM GRN 14 NOTE # 9. FURNITURE NOT PART OF SCOPE NOTE: KEYNOTES ARE TYPICAL -ALL MAY NOT W01 1 HR FIRE PARTITION BLDG PLAN KEYNOTES GENERAL NOTES WALL TYPE LEGEND W02 1 HR FIRE BARRIER / OCCUPANCY W04 2 HR SHAFT - CMU W05 2 HR SHAFT - CONCRETE W03 1 HR FIRE BARRIER W06 2 HR SHAFT NOTE: SEE STRUCTURAL FOR 1HR FIRE RATED BEARING WALL LOCATION W07 1 HR EXTERIOR WALL DUE TO 1 HR FIRE RATED 2 HR FIRE RATED ROOF 34'-6" ROOF GARDEN LEVEL 36'-0" 2 A9.45 5 2'-10" 1/4" = 1'-0" STAIR 2 -SECTION A 1 STAIR 2 -3D SECTION 2 01LINE OF STRUCTURE ABOVE 02LINE OF BUILDING BELOW 03C.I.P. CONCRETE, REF. STRUCTURE 04PRE-CAST CONCRETE STAIR, REF. STRUCTURAL 04.1 CONCRETE FILLED METAL PAN STAIRS W/ STRUCTURAL DWGS. 05METAL STUD WALL, REF. STRUCTURAL 06STOREFRONT GLAZING SYSTEM, FINISH 07GREEN ROOF PLANTER; GREEN ROOF TRAYS 08PAINTED METAL BALUSTRADE 42" A.F.F. 08.1PAINTED METAL HANDRAIL 09FIN SCREEN SEE SHEET A9.75-A9.77 FOR 10 SCHINDLER 3300 XL ELEVATOR, FRONT SUBMITTAL 12VERTICAL BOARD FORM CONCRETE LOW 13METAL STUD LOW WALL, PAINT TO MATCH 14 EXISTING SIREN SCULPTURE, RELOCATE DWGS. 16ANNUNCIATION PANEL (FIRE DEPT) 17HOLLOW STEEL TUBE COLUMN, REF STRUCTURAL 19CONCRETE COLUMN, REF. STRUCT. DWGS. 20TELESCOPIC SEATING, FIXED; DEFERRED 21PORTABLE MODULAR SPRUNG DANCE FLOOR 22PLANTER DRAINAGE, REFER TO PLUMBING 23LONG-TERM BIKE PARKING 4 SPACES REQUIRED 24FIRE RISER 25GUARDRAIL 26ACCESS HATCH 27RECESSED CONCRETE ABOVE SEE SLAB 28 2" WIDE CONTRASTING STRIPE, AT THE UPPER APPROACH AND ALL TREADS MARKED CLEAR VISUAL CONTRAST, PER 11B-504.4.1 29EXISTING SCULPTURE, RELOCATE PER DM1.00 30ASPHALT SHINGLE ROOF PER SPEC 31FIRE RATED ACCESS PANEL 32MECHANICAL SCREEN SEE SHEET A9.70 33ROOF DRAIN AND OVERFLOW 34GUTTER; COLOR TO MATCH ADJACENT ROOF 35TRANSPORTATION KIOSK, PER CCMC SEC. 36EXPOSED GUTTER AND DOWNSPOUT STAIR NOTE(S): 1. EXTERIOR EXIT STAIRWAY SHALL BE EQUIPPED THROUGHOUT WITH AN AUTOMATIC SPRINKLER SYSTEM; REFER TO FIRE PROTECTION DWGS. 2. STAIR 2 - DEFERRED SUBMITTAL BY OTHERS 1/4" = 1'-0" STAIR 2 -SECTION B 3 FABRIC WRAPPED ACOUSTIC ABSORPTIVE PANEL (E) GYP BD 1/2" EDGING PROFILE VHB MOUNTING, TO GYP. SURFACE ACOUSTIC ABSORPTIVE PANEL (E) GYP BD EDGING PROFILE, AROUND EXPOSED EDGE VHB MOUNTING, TO GYP. SURFACE MITER REVEAL 1/2" 1 1/2" CL CLEAR OPENING 6'- 11 3/8" 3" 2" GRID 1/2" HORIZONTAL SLATS PROVIDE 2X STUDS ON STRUCTURAL ELEMENT, AS REQ'D FOR FIRE RATING 5/8" "TYPE X" GYPSUM PLYWOOD, PER STRUCTURAL DWGS. STAGGER STUDS, TYP. (E) PARTITION A R G A P 1" 1 1/2" CL (E) POST HORIZONTAL SLATS CLEAR OPENING 6'-11 3/8" TYP. (E) PARTITION 3" 2" GRID 1/2" 3 PROVIDE 2X STUDS ON STRUCTURAL ELEMENT, AS REQ'D FOR FIRE RATING 5/8" "TYPE X" GYPSUM DRYWALL CORNER BEAD 5/8" "TYPE X" GYPSUM BOARD TYP. GRID (E) PARTITION 2" 3" 5 1/2" 1/2" 4" (E) PLATE LINE 9'-0" VIF TOP OF POCKET RECESS 7'-6" BOTTOM OF SOFFIT 8'-0" BOH CEILING 8'-6" T.O. FIN. FLR SEE PLAN LIGHT FIXTURE PER LIGHTING SPEC. ALUMINUM CABLE TRAY PAINTED TO MATCH WALL FINISH PAINTED ⅝" TYPE "X" GYP BD (E) POST PAINTED TRIM PAINT PER FINISH SCHEDULE (E) CHANNEL AND BOLTS SIDEWALL SUPPLY, WHERE OCURRS COLOR & FINISH TO MATCH WALL FINISH (E) STRUCTURAL TRUSS ACOUSTIC ABSORPTIVE PANEL PER MANUFACTURER WALL BASE, PER FINISH SCHEDULE BOTTOM TRACK BOLTED TO (E) CONCRETE FLOOR SLIDING TRACK HARDWARE JOINT REINFORCEMENT AS SCHEDULED PARTITION 3" PAINTED ⅝ TYPE "X" GYP BD SOFFIT FRAMING DRYWALL CORNER BEAD AIR GAP 1" STAGGER STUDS, TYP. PLYWOOD, PER STRUCTURAL DWGS. INSULATION 3" = 1'-0" SURFACE MOUNTED ACOUSTIC SECTION 7 3" = 1'-0" SURFACE MOUNTED ACOUSTIC SECTION OPT 2 8 BYPASS POCKET ACOUSTIC BYPASS POCKET ACOUSTIC 3" = 1'-0" BYPASS POCKET ACOUSTIC PANELS -WALL SECTION 3 Professional Works
8
Jia Yue Hanson Museum
2019-2021
AUX Architecture
A private art gallery for a 100 unit housing community in Shanghai, China. It was one of four amenity spaces we designed throughout the community. The program included a gallery space, lounge, bar, wine room, and courtyard sculpture garden.
B A G H B1 10747 1 3 4 5 7 8 9 10 11 15 16 F.1 2 6 12 D.1 J A1 1 5472 5408 8000 5991 5991 14 10287 81° 81° 6350 81° E 10471 54° C 36° 13 KEY NOTES 01 02 03 LINE OF CANOPY/ ROOF ABOVE 顶棚/屋顶上方的线 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 LINE OF BUILDING ABOVE 上方建筑线 LINE OF BUILDING BELOW 下方建筑线 PARKING STALL STRIPING 停车线 PEDESTRIAN PATH 人行通道 行人路 ROADWAY 车行道 AUTOMATED ENTRY GATES 入口自动门 ELEVATOR 电梯 HYDRAULIC PASSENGER/FREIGHT 液压客运 SKYLIGHT 天窗 LIGHT WELL/ OPEN TO SKY 采光井/向天空敞开 SOLID, OFF-SET PIVOT DOOR 实心偏置枢轴入口门 PARTIAL-HEIGHT WALL 半高墙 WALL 墙 GLAZING 玻璃 LANDSCAPE FENCING 景观围墙 RETAINING WALL 挡土墙 ARCHITECTURAL WALL 建筑墙 ARCHITECTURAL SCREEN 建筑格栅 GLASS GUARDRAIL 玻璃护栏 METAL GUARDRAIL 金属护栏 RECEPTION DESK 接待处 LINE OF RIVER (AT +2.50M ELEVATION) 河流线 EDGE OF DECK 露台边缘 26 27 28 29 MECHANICAL DUCT&FAN COIL CAVITY EDGE OF FLUSHED LANDSCAPE 景观齐平边缘 STONE-CLAD EXTERIOR WALL 覆石延伸段 SINGLE-PLY ROOF 单层屋顶 机械管道和风机盘管空腔 30 31 32 33 34 35 PROPERTY LINE 建筑红线 GATE 大门 COLUMN GRID LINE 柱网轴线 36 37 38 OPEN TO BELOW 挑空 KITCHEN ISLAND 厨房工作台 POOL EXTENTS 延伸泳池 BUILDING EXTENTS 建筑范围 SETBACK LINE 建筑退线 39 U CHANNEL GLASS U形槽玻璃 40 DOOR 门 41 ESTATE ENTRY SIGN 物业进入标志 LINE OF RIVER (AT +3.00M ELEVATION) 河流线 42 REFLECTING POOL 反射池 43 ART WALL 艺术墙 44 MECHANICAL UNIT 机械装置 45 COURTYARD 庭院 46 OPEN TO ABOVE 吹拔 47 FUNDATION 建筑根基 FLOOR ELEVATION 楼层标高 FENCE 围墙 LEGEND W PROPERTY LINE 建筑红线 TOP OF WALL墙顶 HVAC DUCT ROUTING 暖通空调管道布线 DOOR 门 WINDOW 窗 +0.00 D UNOBSTRUCTED PATH OF TRAVEL FROM FURTHEST DISTANCE 无障碍最远距离路线 LANDSCAPE 景观 EARTH/ FILL 土地 ELEVATION 标高 T.O. X +0.000 SECTION TAG 剖面标识 EXTERIOR ELEVATION 0 A0.00 A C A0.00 0 A0.00 INTERIOR ELEVATION DRAWING NUMBER SHEET NUMBER 页码 48 HYDRAULIC PLATFORM 液压升降梯 49 TRANSFORMER 变压器 50 RADIUS GRID CENTER 圆弧网格中心 51 LINE OF PARAPET 屋顶矮护墙线 52 DARK STONE 黑色石材 53 LIGHT STONE 浅色石材 GLASS DECK 玻璃露台 57 54 ADJACENT BUILDING 邻近建筑物 55 TENNIS COURT FENCE 网球场围栏 56 ROUGH STONE 糙石 DISPLAY CASE 陈列橱窗 WATER LINE 水线 58 DOCK 船坞 59 60 MECHANICAL PAD 机械垫 61 DRYWALL CEILING 干墙天花板 62 WOOD PANEL CEILING 木板天花板 LIGHTING + MECHANICAL DISTRIBUTION TROUGH 照明+机械配电槽 63 64 RIVER EDGE EXTENT 河岸边界 RESIDENTIAL DRIVEWAY 住宅车道 65 绿化屋顶 GREEN ROOF 乘客下车点 VISITOR DROP-OFF 装卸区 LOADING AREA 27 33 48 27 34 19 25 04 49 DN 下 T.O. DECK -0.200 T.O. POND -0.550 50 T.O. ROOF GARDEN +5.100 T.O. COURTYARD -0.550 T.O. ROAD +4.800 51 +5.100 6000 6000 2000 3000 景观护堤 LANDSCAPE BERM T.O. ROOF GARDEN +5.100 57 2 A3.00 1 3 A4.00 1 A4.00 2 4 A4.00 绿化屋顶 GREEN ROOF T.O. ROAD 33 T.O. ROAD 12 DN 下 景观护堤 LANDSCAPE BERM 05 12 12 12 12 12 12 12 T.O. GREEN ROOF +8.600 T.O. GREEN ROOF EDGE +10.100 +6.100 4 4 65 65 AUX ARCHITECTURE SHANGHAI 2020.03.29 GALLERY 126 ROOF PLAN 屋顶平面图 GALLERY 美术馆 Professional Works
10
YR.MO.DAY SHANGHAI 07.31.19 GALLERY A1.00 B A G H B1 10747 1 3 4 5 7 8 9 10 11 15 16 F.1 2 6 12 D.1 J A1 1 5472 5408 8000 5991 5991 14 10287 81° 81° 6350 81° E 10471 54° C 36° 13 KEY NOTES 01 02 03 LINE OF CANOPY/ ROOF ABOVE 顶棚/屋顶上方的线 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 LINE OF BUILDING ABOVE 上方建筑线 LINE OF BUILDING BELOW 下方建筑线 PARKING STALL STRIPING 停车线 PEDESTRIAN PATH 人行通道 行人路 ROADWAY 车行道 AUTOMATED ENTRY GATES 入口自动门 ELEVATOR 电梯 HYDRAULIC PASSENGER/FREIGHT 液压客运 SKYLIGHT 天窗 LIGHT WELL/ OPEN TO SKY 采光井/向天空敞开 SOLID, OFF-SET PIVOT DOOR 实心偏置枢轴入口门 PARTIAL-HEIGHT WALL 半高墙 WALL 墙 GLAZING 玻璃 LANDSCAPE FENCING 景观围墙 RETAINING WALL 挡土墙 ARCHITECTURAL WALL 建筑墙 ARCHITECTURAL SCREEN 建筑格栅 GLASS GUARDRAIL 玻璃护栏 METAL GUARDRAIL 金属护栏 RECEPTION DESK 接待处 LINE OF RIVER (AT +2.50M ELEVATION) 河流线 EDGE OF DECK 露台边缘 26 27 28 29 MECHANICAL DUCT&FAN COIL CAVITY EDGE OF FLUSHED LANDSCAPE 景观齐平边缘 STONE-CLAD EXTERIOR WALL 覆石延伸段 SINGLE-PLY ROOF 单层屋顶 机械管道和风机盘管空腔 30 31 32 33 34 35 PROPERTY LINE 建筑红线 GATE 大门 COLUMN GRID LINE 柱网轴线 36 37 38 OPEN TO BELOW 挑空 KITCHEN ISLAND 厨房工作台 POOL EXTENTS 延伸泳池 BUILDING EXTENTS 建筑范围 SETBACK LINE 建筑退线 39 U CHANNEL GLASS U形槽玻璃 40 DOOR 门 41 ESTATE ENTRY SIGN 物业进入标志 LINE OF RIVER (AT +3.00M ELEVATION) 河流线 42 REFLECTING POOL 反射池 43 ART WALL 艺术墙 44 MECHANICAL UNIT 机械装置 45 COURTYARD 庭院 46 OPEN TO ABOVE 吹拔 47 FUNDATION 建筑根基 FLOOR ELEVATION 楼层标高 FENCE 围墙 LEGEND W PROPERTY LINE 建筑红线 TOP OF WALL墙顶 HVAC DUCT ROUTING 暖通空调管道布线 DOOR 门 WINDOW 窗 +0.00 D UNOBSTRUCTED PATH OF TRAVEL FROM FURTHEST DISTANCE 无障碍最远距离路线 LANDSCAPE 景观 EARTH/ FILL 土地 ELEVATION 标高 T.O. X +0.000 SECTION TAG 剖面标识 EXTERIOR ELEVATION 0 A0.00 A B C D 0 A0.00 0 A0.00 INTERIOR ELEVATION DRAWING NUMBER SHEET NUMBER 页码 48 HYDRAULIC PLATFORM 液压升降梯 49 TRANSFORMER 变压器 50 RADIUS GRID CENTER 圆弧网格中心 51 LINE OF PARAPET 屋顶矮护墙线 52 DARK STONE 黑色石材 53 LIGHT STONE 浅色石材 GLASS DECK 玻璃露台 57 54 ADJACENT BUILDING 邻近建筑物 55 TENNIS COURT FENCE 网球场围栏 56 ROUGH STONE 糙石 DISPLAY CASE 陈列橱窗 WATER LINE 水线 58 DOCK 船坞 59 60 MECHANICAL PAD 机械垫 61 DRYWALL CEILING 干墙天花板 62 WOOD PANEL CEILING 木板天花板 LIGHTING + MECHANICAL DISTRIBUTION TROUGH 照明+机械配电槽 63 64 RIVER EDGE EXTENT 河岸边界 RESIDENTIAL DRIVEWAY 住宅车道 65 酒吧 BAR 办公室 OFFICE 酒窖 WINE DISPLAY 后厨 KITCHEN 中心庭院 COURTYARD 画廊 GALLERY 公共活动区 COMMON AREA 35 07 13 43 02 01 BASEMENT LEVEL 1 PLAN SCALE: 1:150 N S W E PLAN NORTH 0' 10m 2m 5m 洗手间 RESTROOM 走入式衣橱 PANTRY 走入式冷藏室 W.I. COOLER D D D D D D D D D D D 08 50 T.O. LEVEL B1 -0.200 T.O. LEVEL B1 -0.200 储藏室 STORAGE D T.O. LEVEL B1 -0.200 T.O. LEVEL B1 -0.200 T.O. DECK -0.200 T.O. POND -0.550 上 UP 上 UP T.O. COURTYARD -0.550 上 UP D D D 49 上 UP 上 UP D D D 12 DN 下 12 2 A3.00 A3.00 3 1 2 A4.00 4 A4.00 储藏室 STORAGE 洗手间 RESTROOM 洗手间 RESTROOM 57 B A G H B1 10747 1 3 4 5 7 8 9 10 11 15 16 F.1 2 6 12 D.1 J A1 1 5472 5408 8000 5991 5991 14 10287 81° 81° 6350 I 81° E 10471 54° C 36° 13 KEY NOTES 01 02 03 LINE OF CANOPY/ ROOF ABOVE 顶棚/屋顶上方的线 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 LINE OF BUILDING ABOVE 上方建筑线 LINE OF BUILDING BELOW 下方建筑线 PARKING STALL STRIPING 停车线 PEDESTRIAN PATH 人行通道 行人路 ROADWAY 车行道 AUTOMATED ENTRY GATES 入口自动门 ELEVATOR 电梯 HYDRAULIC PASSENGER/FREIGHT 液压客运 SKYLIGHT 天窗 LIGHT WELL/ OPEN TO SKY 采光井/向天空敞开 SOLID, OFF-SET PIVOT DOOR 实心偏置枢轴入口门 PARTIAL-HEIGHT WALL 半高墙 WALL 墙 GLAZING 玻璃 LANDSCAPE FENCING 景观围墙 RETAINING WALL 挡土墙 ARCHITECTURAL WALL 建筑墙 ARCHITECTURAL SCREEN 建筑格栅 GLASS GUARDRAIL 玻璃护栏 METAL GUARDRAIL 金属护栏 RECEPTION DESK 接待处 LINE OF RIVER (AT +2.50M ELEVATION) 河流线 EDGE OF DECK 露台边缘 26 27 28 29 MECHANICAL DUCT&FAN COIL CAVITY EDGE OF FLUSHED LANDSCAPE 景观齐平边缘 STONE-CLAD EXTERIOR WALL 覆石延伸段 SINGLE-PLY ROOF 单层屋顶 机械管道和风机盘管空腔 30 31 32 33 34 35 PROPERTY LINE 建筑红线 GATE 大门 COLUMN GRID LINE 柱网轴线 36 37 38 OPEN TO BELOW 挑空 KITCHEN ISLAND 厨房工作台 POOL EXTENTS 延伸泳池 BUILDING EXTENTS 建筑范围 SETBACK LINE 建筑退线 39 U CHANNEL GLASS U形槽玻璃 40 DOOR 门 41 ESTATE ENTRY SIGN 物业进入标志 LINE OF RIVER (AT +3.00M ELEVATION) 河流线 42 REFLECTING POOL 反射池 43 ART WALL 艺术墙 44 MECHANICAL UNIT 机械装置 45 COURTYARD 庭院 46 OPEN TO ABOVE 吹拔 47 FUNDATION 建筑根基 FLOOR ELEVATION 楼层标高 FENCE 围墙 LEGEND W PROPERTY LINE 建筑红线 TOP OF WALL墙顶 HVAC DUCT ROUTING 暖通空调管道布线 DOOR 门 WINDOW 窗 +0.00 D UNOBSTRUCTED PATH OF TRAVEL FROM FURTHEST DISTANCE 无障碍最远距离路线 LANDSCAPE 景观 EARTH/ FILL 土地 ELEVATION 标高 T.O. X +0.000 SECTION TAG 剖面标识 EXTERIOR ELEVATION 0 A0.00 A B C D 0 A0.00 0 A0.00 INTERIOR ELEVATION DRAWING NUMBER SHEET NUMBER 页码 48 HYDRAULIC PLATFORM 液压升降梯 49 TRANSFORMER 变压器 50 RADIUS GRID CENTER 圆弧网格中心 51 LINE OF PARAPET 屋顶矮护墙线 52 DARK STONE 黑色石材 53 LIGHT STONE 浅色石材 GLASS DECK 玻璃露台 57 54 ADJACENT BUILDING 邻近建筑物 55 TENNIS COURT FENCE 网球场围栏 56 ROUGH STONE 糙石 DISPLAY CASE 陈列橱窗 WATER LINE 水线 58 DOCK 船坞 59 60 MECHANICAL PAD 机械垫 61 DRYWALL CEILING 干墙天花板 62 WOOD PANEL CEILING 木板天花板 LIGHTING + MECHANICAL DISTRIBUTION TROUGH 照明+机械配电槽 63 64 RIVER EDGE EXTENT 河岸边界 RESIDENTIAL DRIVEWAY 住宅车道 65 01 LEVEL 1 PLAN SCALE: 1:150 0' 10m 2m 5m DN 下 主入口 MAIN ENTRY 景观护堤 LANDSCAPE BERM 景观护堤 LANDSCAPE BERM 装卸区 LOADING AREA DN 下 下 DN 27 13 03 27 34 34 05 25 65 04 N S W E PLAN NORTH DN 下 挑空 OPEN TO BELOW D D D DN 下 -0.200 T.O. POND -0.550 50 T.O. ROOF GARDEN +5.100 T.O. COURTYARD 08 +5.100 T.O.F.F. +5.000 51 05 03 6000 6000 2000 3000 乘客下车点 VISITOR DROP-OFF +4.800 19 33 49 57 D 挑空 OPEN TO BELOW 绿化屋顶 GREEN ROOF D 48 T.O. ROAD +4.800 12 12 12 12 12 12 02 02 +5.100 DN 下 12 2 A3.00 1 A3.00 3 A4.00 1 A4.00 2 4 A4.00 65 入口夹层 ENTRY MEZZANINE AUX ARCHITECTURE SHANGHAI 2020.03.29 GALLERY 128 LEVEL 1 PLAN 一楼平面图 GALLERY 美术馆
Works
Professional
12
961 La Cienega
2021-2023 (in progress)
AUX Architecture
This is a mixed-use TOC project designed for the pedestrian experience. It includes low income housing, retail and commercial space. Concrete masses that support the building are pushed back at street level to make room for landscaping. Five levels of housing include 40 market-rate units and 6 one and 6 two-bedroom affordable housing units. There are over 4,000 sq. ft. for commercial space and amenities, including a fitness center, parking and a roof terrace.
Professional Works
14
https://thebrownstudio.com/projects/project-five-zbkk6?itemId=1y0g4ezcqyaw9wnin59mvz060bl655
16 5/10/23, 7:09 PM HYGIA LOT 3 — The Brown Studio
1/3 W k St di
Hygeia Lot 3
The Brown Studio
Hygeia Lot 3 was a spec. home located in Encinitas, California. My role in this project was to develope the kitchen, bathrooms, stair, and miscellaneous steel. The kitchen features a double island, one that host the stove, oven and bar seating. While the other has operable windows and flanking doors that allow it to seamlessly be used by the exterior patio. The stair features a banker wire balustrade that carries up to the second floor.
Professional Works 2018
PM
3/8/23, 2:12
HYGIA LOT 3 — The Brown Studio
Work Studio
18 01. STAIR PLAN | SCALE 1”=1’0” 02. STAIR ELEVATION | SCALE 1”=1’0” 05. BANKER WIRE STAIR WALL
DETAIL | SCALE 3”=1’0” 04. BANKER WIRE STAIR WALL TREAD SECTION DETAIL | SCALE 3”=1’0” 03. BANKER WIRE STAIR WALL ASSEMBLY SECTION | SCALE 3”=1’0” 06. CONNECTION 07. AXONOMETRIC 3 4 1 1 2 3 4 1 1 2 3 4 BANKER WIRE 16g BRAKE METAL 1/8 FLAT BAR 3/4x1-1/2 TUBE 1/8 FLAT BAR 3/4 STEEL BAR 1-1/2x3/4 TUBE 1/8 3 4 36 13 16 49 1 16 56 3 8 36 20 1 4 59 42 STEEL TAB & BANKER WIRE MOULDING PREDRILLED ANCHOR HOLES 1 5 8 4 STAIR BREAK 1-1/2 ASSEMBLY STRUCTURE WITH 1/8 FLAT BAR CAP 1 1 4 1 1 8 37 71 1 2 41 3 8 37 9 16 42 5 47 3/4x1/8 FLAT BAR STAIR FINNISH 1/4 STEEL TRIM 1-1/2x1/8 FLAT BAR STAIR WOOD SUBSTRUCTURE 1 1 2 3 4 1 1 2 1/8 STEEL TAB HOLE SIZED TO DOMINO 01. STAIR PLAN | SCALE 1”=1’0” 02. STAIR ELEVATION | SCALE 1”=1’0” 05. BANKER WIRE STAIR WALL PLAN DETAIL | SCALE 3”=1’0” 04. BANKER WIRE STAIR WALL TREAD SECTION DETAIL | SCALE 3”=1’0” 03. BANKER WIRE STAIR WALL ASSEMBLY SECTION | SCALE 3”=1’0” 06. BANKER WIRE WALL CONNECTION DETAIL | SCALE 07. BANKER WIRE STAIR AXONOMETRIC | 3 4 1 1 2 3 4 1 1 2 3 4 BANKER WIRE 16g BRAKE METAL 1/8 FLAT BAR 3/4x1-1/2 TUBE 1/8 FLAT BAR 3/4 STEEL BAR 1-1/2x3/4 TUBE 1/8 3 4 36 16 49 16 56 36 20 59 42 STEEL TAB & BANKER WIRE MOULDING PREDRILLED ANCHOR HOLES 1 5 8 4 STAIR BREAK 1-1/2 ASSEMBLY STRUCTURE WITH 1/8 FLAT BAR CAP 1 1 4 1 1 8 37 71 1 37 9 16 47 3/4x1/8 FLAT BAR STAIR FINNISH 1/4 STEEL TRIM 1-1/2x1/8 FLAT BAR STAIR WOOD SUBSTRUCTURE 1 1 2 3 4 1 1 2 1/8 STEEL TAB HOLE SIZED TO DOMINO STAIR FINNISH 1/4 STEEL TRIM STAIR WOOD SUBSTRUCTURE BANKER WIRE PLAN | SCALE 1”=1’0” 03. BANKER WIRE STAIR WALL ASSEMBLY SECTION | SCALE 3”=1’0” 06. BANKER WIRE WALL TAB CONNECTION DETAIL | SCALE 3”=1’0” 3 4 1 1 2 3 4 1 1 2 3 4 BANKER WIRE 16g BRAKE METAL 1/8 FLAT BAR 3/4x1-1/2 TUBE 1/8 FLAT BAR 3/4 STEEL BAR 1-1/2x3/4 TUBE 1/8 3 4 56 STAIR FINNISH 1/4 STEEL TRIM STAIR WOOD SUBSTRUCTURE BANKER WIRE
PLAN
Professional Works
3 5/10/23, 7:10 PM
https://thebrownstudio.com/projects/project-five-zbkk6?itemId=kbxywl3cq96l1mw88h6gfzi2inxj0h
HYGIA LOT 3 — The Brown Studio
Work Studio
Story Dimson Design Works
2017
Homestead House
The Homestead House was a renovation project for a 1920’s single family residence located in Plymouth county California. The goal was to develop a cost effective modern esthetic to entice a short term rental clientel. This was achieved by exposing the existing wood round beams and vaulting ceiling to open the living room along with dinning and kitchen area. As the project was being developed there was some programmatic decisions that changed the layout of the building. Since the house would be used by a short-term occupant instead of a long term ranch worker, the mudroom transitioned to a larger dining area and a second bathroom.
Professional Works
22
24
Professional Works
26
The Kid Gets Out of The Picture
2016
the LADG, Materials & Applications
The Kid Gets Out of the Picture is a contemporary update on the aesthetic principles of early 19th century English landscape architecture. By the earlynineteenth century, practitioners of the English picturesque had invented a catalog of objects (follies, ha-has, viewpoints) that worked to produce the pictorial effects of landscape painting within real space. Lumps, clumps, and masses made it possible, in a sense, to occupy the picture.
The Kid Gets Out of the Picture was a three-month long exhibition that returns to the catalog of nouns developed by the picturesque to ask how these tactics can be deployed in reverse, extracting the qualities of images and literalizing them in the real world.
My role in this project was to see the completion of the fabrication and construction. This involved on site management of piecing the installation together along with developing techniques for the application of the plaster surface.
Professional Works
The Ark
Special Topics, BLD Lab
The Ark is a office tenant improvement, designed to define spaces by separating the work areas and lobby from the meeting rooms, restrooms, and material library. The ark consists of 21 plywood ribs that vary in distance to allow for multiple operations. The voids are either in filled with glass, used as entries, or used as shelving.
28
2013
Professional Works
30 a.

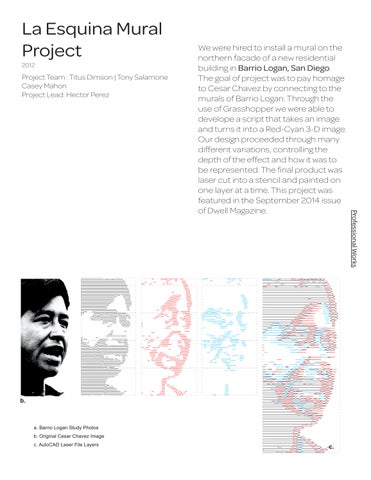

La Esquina Mural Project
Project Team : Titus Dimson | Tony Salamone
Casey Mahon
Project Lead: Hector Perez
a. Barrio Logan Study Photos
b. Original Cesar Chavez Image
c. AutoCAD Laser File Layers
We were hired to install a mural on the northern facade of a new residential building in Barrio Logan, San Diego
The goal of project was to pay homage to Cesar Chavez by connecting to the murals of Barrio Logan. Through the use of Grasshopper we were able to develope a script that takes an image and turns it into a Red-Cyan 3-D image. Our design proceeded through many different variations, controlling the depth of the effect and how it was to be represented. The final product was laser cut into a stencil and painted on one layer at a time. This project was featured in the September 2014 issue of Dwell Magazine.
2012 Professional Works
