Selected Work of CV & Portfolio Titania NF

Page 1


Universitas Gadjah Mada (B.Eng.) | Politecnico di Milano (M.Sc.)

TITANIA NUR FADILLAH

Lecco, Italy 23900 | +39 329 604 7366 Titanianur.fadillah@mail.polimi.it LinkedIn | Architectural Design Portfolio

With a comprehensive understanding gained through my educational background coupled with several years of professional experience, I am passionately debugging research-oriented architectural design principles that promote sustainable development by prioritizing environmental and social empowerment, with a keen sensitivity towards energy efficiency, and circular economy. Through my exposure to diverse environments, I continuously evolve as an individual with greater awareness of my surroundings. Having strong determination, a commitment to lifelong learning, adaptability, and resilience, my heart is full from the prospect that I may prove beneficial to others.

Master of Science, Politecnico di Milano, Italy

Architectural Engineering Program, graduated with a GPA of 101/110

Thesis (project): The Turf: Community Learning Center with Circular Economy and Energy Efficiency Approach. (Supervised by: Prof. Graziano Salvalai).

Bachelor of Engineering in Architecture, Universitas Gadjah Mada, Indonesia

Architectural Engineering Program, graduated with a GPA of 3.38/4.00

Final Project: Environmental Learning Center in Gunung Kidul Yogyakarta with Biomimicry Approach. (Supervised by: Ir. Adi Utomo Hatmoko, M.Arch., IAI)

BG&K Associati – Maurice Kanah & Paola Bucciarelli – Milan, Italy

Internship Architect

Project: Masterplan of Mix used building design competition for Stephenson Area. Key Responsibilities: Working on CAD Design, 3D Modelling with Rhino, Sketchup, then rendering with Lumion, and post production competition panels with illustrative drawing on Adobe Illustrator, Adobe InDesign, and Photoshop.

Laboratory of Building Technology and Materials – Department of Architecture and Planning, Universitas Gadjah Mada – Yogyakarta, Indonesia Laboratory Research Assistant

Key Responsibilities: Assist in research under the supervision of Prof. Dr. Ing. Ir. Eugenius Pradipto, focusing on the sustainable and economically viable use of bamboo as a building material for community construction.

LABO. – Deddy Wahjudi & Nelly Lolita Daniel – Bandung, Indonesia

Architectural Designer

Key Responsibilities: Working on CAD Design, 3D Modelling with Sketchup, then rendering with Lumion, and post production with illustrative drawing on Photoshop. Project worked on:

• Nature School in Bandar Lampung, Indonesia for elementary & junior high school student.

• Alun-alun Majalengka, Indonesia. Urban Park & Meeting Place with grand gates, Mosque Altar, Circular Fountain, and Food Stall.

• Revitalisation design of Monument National (MONAS), Jakarta, Indonesia. Landmark of the capital city of Indonesia.

Videshiiya Studio – Yogyakarta, Indonesia

Internship Architect

Project: Residential Building named ”Teras Nandan” Yogyakarta, and “1 Are House”, Bali as Competition Entry. Key Responsibilities: Field Survey, Designing technical Detailed Engineering Design with AutoCAD, 3D Modelling with Sketchup, post production with illustrative drawing on Photoshop, and proje ct presentation with client.

1st Prize | Most innovative Laurea Magistrale theses “Environment, Innovation & Sustainability: Youth Actively Building Their Future”-IV edition

Design entitled: The Turf: Community Learning Center with Circular Economy and Energy Efficiency Approach.

The “TURF” is designed as a result of a merger of two local municipalities in Iceland located near lake Myvatn. As the area develops, there will be increased demand for a sustainable tourism with community oriented, the “Turf” represents a community centre that becomes an example of sustainability, creating a circular economy and a CO2-neutral area by giving special consideration to the material selection and optimization of the passive-active strategies.

1st Prize | Revitalizing the Masterplan of MONAS

Design entitled: Labuan Nusantara

Designing the master plan for our National Monument at the Capital City of Jakarta, we propose a new concept of creating more social-hub, economy by community driven yet preserving the natural conditions of the surrounding nature. Supervised by: Deddy Wahjudi & Nelly Lolita Daniel.

Courses and Certifications

NUS: Data Science for Construction, Architecture and Engineering

By edX Verified Certificate

Programming for Everybody (Getting Started with Python) By edX Verified Certificate

How to Conduct Building Sustainability Assessments

By One Click LCA

Construction Life Cycle Assessment Specialist

By One Click LCA

Intermediate skill Certificate in Autodesk Revit 2017 Package By Autodesk Authorized Training Center (PT. Tiga Dinamika Solusi Indonesia)

Interest and Responsibilities

Umran.id, Yogyakarta, Indonesia

Co-Founder, Facilitator. Instagram: @Umran.id

Umran Studio is a continuous social initiative manifested as a community center in the style of a tea house. Our core values revolve around design, emphasizing the creation of architectural, landscape, or product insights from a sustainability perspective. We incorporate permaculture as an integral aspect of our design principles, considering it a foundational element of our approach. Facilitated activities by Umran.id:

• 2020 | “Permablitz” is a sequence of communal permaculture initiatives event aimed at designing and facilitating hands-on experience of permaculture gardens throughout the village of Ngebo, Yogyakarta.

• 2021 – current | “Pasar Setupon” is a curated community market formed like a farmers market where every local artisan, or even the villager itself, could sell local product in a fair price, carried out every Saturday Pon (Javanese calendar for good harvesting day)

Digital Skills

Language

Advanced: Microsoft Office, Adobe Suite in Design, Photoshop, Illustrator, Autodesk AutoCAD, SketchUp.

Basic: Revit, Rhino, Grasshopper, Lumion, D5 Render, OneClickLCA, Python, Notion.

Indonesian (native), English (professional), Italian (basic daily conversation)

01 | THE TURF

(With Circular Economy & Energy Efficiency Approach)

Type : Community Learning Center

Supervisor : Prof. Graziano Salvalai

Year : Master Thesis, 2022

Location : Lake Myvatn, Iceland

Role Description : Conceptual Design, Site Analysis, Design Development, Detail Join Structure, Detail Engineering Design, Model Maquete.

“The Turf” serves as a community learning center, providing a hub for both locals and tourists to gather and learn about the principles of Reuse, Reduce, & Recycle. Located near Lake Myvatn in northern Iceland, an area renowned for its natural wonders and recognized as the Northern Lights Capital of Iceland, this center emerged from the unification of two Icelandic municipalities. It functions as a warehouse, depot, & tool shed.

As a pioneer of sustainability, “The Turf” aims to foster circular economy practices and create a CO2-neutral environment. The project draws on a comprehensive analysis of Icelandic vernacular architecture, geography, culture, and history to incorporate these principles. Challenges related to local climate & weather conditions were systematically addressed to optimize the project’s potential.

Through the integration of design solutions & technological innovations, “The Turf” is envisioned as a landmark, providing a space for locals & travelers to celebrate, interact, & share. The project emphasizes material selection & optimization of passive & active strategies to reinforce its core concept.

agricultural resources

basalt resources

site location

water bodies agriculture fields settlements

birch forests

volcanoes

tourism spots

main streets

diamond ring road

diamond ring road continuation

building material points

resource flow

material flow

2 km
birch resources
Laugar
Reykjahlíð
Lake Myvatn

“The Turf” is rooted on three core principles: Vernacular Icelandic Architecture, Sitespecific Climate Considerations, and ensuring a Circular & Sustainable Economy These principles, each with distinct influence, have guided the project’s design. Rising from Iceland’s volcanic landscape, “The Turf” harmonizes with its environment, minimizing its carbon footprint. The space is thoughtfully divided by function—Tourist Center, Community Hubs, Greenhouse, Recycling Center, & Depot—and serves a diverse range of users, including locals, tourists, & administrative staff, while remaining true to its guiding principles.

Drawing inspiration from the Icelandic landscape & traditional “Turf Houses,” the design emphasize the use of natural materials & a deep respect for nature. Climate Analysis considerations is being used for the building’s orientation & placement to maximize site advantages & ensure user comfort. Lastly, the project prioritizes a Circular Economy by utilizing renewable energy & using materials selections with minimal environmental impact.

December 21st

September 21st

June 21st March 21st

1. Concrete wall
2. Expansion Anchor Bolt HRD-UGS 10 X 100/30
3. Simpson Strong Tie Heavy-Duty Face-Mount Hangers HU214
4. Glulam beam 20 x 42 cm
5. Concrete Column 40 x 40 cm
1. Glulam beam 32 x 52 cm
2. 2nd glulam column 22 x 48 cm
3. BESISTA Rod anchor w/o sleeves
1. Glulam beam 14 x 26 cm 2. Rectangular steel plates 4 mm
Steel truss
Bolt M16
Costumized steel plates 2.5”
1. Glulam column 40 x 40 cm
2. Knife plate column connector 4 mm
3. Glulam beam 32 x 56 cm
4. Glulam column 40 x40 cm
5. BESISTA Tension rod systems hotdip galvanized w/o hot-dip glavanized threads, w/o cover sleeves
6. Steel I beam 30 x 32 mm
7. Knife plate column connector 4 mm
8. Bolt M16
9. Glulam column 40 x 40 cm
4. Bolt M16
5. Embeded steel nails
6. Footplate concrete

6. Glulam beam 16 x 28 cm

7. Glulam column 40 x 40 cm

8. Glulam beam 14 x 26 cm

9. Steel truss

10.

1.

2.

3.

6.

7.

8.

1. Glulam beam 20 x 92 cm
2. Gulam beam 40 x 58 cm
3. Costumized steel plates 4 mm
4. Bolt M16
5. Glulam beam 20 x 42 cm
Glulam beam 14 x 26 cm
Rectangular steel plates 4 mm
Steel truss
4. Bolt M16
5. Costumized steel plates 2.5”
Steel I beam 30 x 31 cm
Knife plate column connector 4mm
Glulam beam 40 x 40 cm
Rectangular steel plates 4 mm

type “Lecamix facile”, thk. 5 cm.

4. Waterproofing layer in PVC breathable membrane on polyester fabric, thk. 0.4 cm.

5. Thermal insulation layer in XPS panels type “STYRODUR-3035 CS”, thk. 30 cm.

11.

12.

13.

layer in PVC breathable membrane on polyester fabric, thickness 0.4 cm.

14. Sheep wool insulation ISOLENA Premium 300 mm.

15. Air cavity, thk. 60mm.

16. Thermal insulation layer in Sheep Wool, thk. 15cm.

18. Fireproof plaster board thk. 25 mm.

19.

20. Corrugated Steel Sheet Type A 55/P 600 H 55mm, T 7 mm.

21.

1. Porcelain outdoor floor tiles Marca Corona 80 x 80 x 2 cm.
2. “MAPEI MAPELASTIC” type adhesive, thk. 0.2 cm.
3. Slope layer, screed for substrates and roofing slope 1.5°
6. Proclima INTESANA type permeable polyurethane lining 0.45mm.
7. CLT panel 5 layers 150mm.
8. Load bearing structure CLT secondary beam.
9. Fireproof plaster board thk. 12.5mm.
10. Solid Wood Board thk. 19 mm.
Basalt stone cladding 400 x 300x 30 mm.
Wooden planks as a structure for roof tails 30x50 mm.
Waterproofing
Steel Square Tube 50 x 50 x 30 mm.
Sabrefix Heavy Duty Angle Brackets Galvanised 50 mm.

OXIDIZED COPPER

-high corrosion resistance -low maintaice

ALUMINUM

-ultra-lightweight -solar control -acoustic benefits -low maintaice -fire safety -transparency

GLASS FIBER REINFORCED CONCRETE

-highly durable. -design freedom -low maintenance. -weather & fire resistant. -energy efficient.

PERFORATED OXIDIZED COPPER SHEETS

-solar control -transparency -low maintaice

02 | GREEN WAVE OFFICE

Type : Office Building Year : 2021, Studio Group Project

Supervisor : Prof. Arch. Filippo Pagliani, Prof. Arch. Roberto Francieri, Prof. Gabriele Masera, Prof. Matteo Brasca.

Location : Via Federico Confalonieri, 29, 20124 Milano MI.

Role Description : Facade, shadding and envelope technology research, schematic concept, plans drawing, transparant building envelope Blow-ups, rendering.

The path to achieving a Nearly Zero Energy Buildings (nZEBs) project requires a combination of technological solutions. The choice of these solutions should be made in consideration of the site, its configuration and how it integrates with its surroundings.

by implementing several important points of a sustainable project, namely: Building energy efficiency and supply of clean energy, smart solutions for renewable energy production, sustainable material management and circular economy, sustainable water management, biodiversity, urban re-vegetation, and innovative layout of the interior spaces, architecture and urban design the Green Waves Office brings five considerations as the concept of Flexibility of Spaces, that are; Energy Efficiency, Sustainability, Greenery, Different Layout, and Productivity.

ViaFederico Confalonieri

ViaFilippoSassetti

Vehicle congestion at the junction leads to the blocking of entrance, noise and pollution

High buildings on the west side creating shade in winter

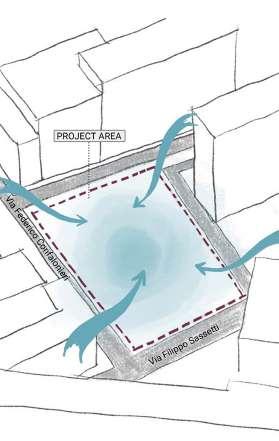

Creating corner plaza as the main feature of inviting people

Using 1 main atrium as the source “tunnel” of light and the core of 2 building masses

ViaFederico Confalonieri Project

location of

ViaFilippoSassetti

Low-rise buildings on the south of the construction site do not create shadows during the summer and winter periods, allowing the use of solar energy.

Dividing 2 main volume as a respose to the sunlight exposure

ViaFederico Confalonieri

Existing Green Area

ViaFilippoSassetti

Connecting green areas will create a green environment around the projected site

Connecting green spaces on the ground floor

101. Meeting Room = 9m2

102. Meeting Room = 10m2

103. Female Toilet = 7m2

104. Toilet for disable people = 3m2

105. Male Toilet = 8m2

106. Vestibule = 6m2

107. Service Manager Room = 22m2

108. Female Dressing Room = 5m2

109. Female Toilet = 1m2

110. Male Dressing Room = 8m2

111. Café = 285m2

112. Male Toilet =1m2

113. Hall = 6m2

114. Toilet for Disable People = 3m2 115. Hall = 3m2

116. Female Toilet = 2m2

117. Male Toilet = 2m2

118. Storage = 14m2

119. Garbage Storage = 5m2

120. Vestibule = 3m2

121. Vestibule = 19m2
122. Hall = 356m2
Total 778m2

T. 1

LEGENDA:

1. Rock wool rigid insulation panel “ROCKWOOLVENTIROCK DUO” thk.5 cm.

2. Protective copper flashing.

3. Mullion Aluprof MB-SE75 K518283X.

4. Internal gasket Aluprof MB-SE75 120743.

5. Exterior cap Aluprof MB-SE75 K431313X.

6. Waterproofing layer consisting of a double waterproofing layer:“Index - HELASTA POLYESTER” (first layer), thk. 0.4 cm and “Index - PROTEADUO TRIARMATO” (second layer), thk.0.4 cm with triple reinforcing sheath for each corner.

7. External slab type “KNAUF - AQUAPANEL OUTDOOR”, size 120x240 cm, thk. 1,25 cm. Fixing by screws type “AQUAPANEL MAXI SCREWS”.

8. Rock wool rigid insulation panel type “ROCKWOOLVENTIROCK DUO” thk.7 cm.

9. Waterproofing layer in PVC breathable membrane on polyester fabric: Stamisol EXTREME PACK 500, thk. 0.4 cm.

10. Thermal insulation layer in XPS panels type “STYRODUR-3035 CS”.

11. Rock wool rigid insulation panel “ROCKWOOLVENTIROCK DUO” thk. 18 cm.

12. Starting metal profile external coat with drip breaker.

13. Galvanizegd steel thickness 3 mm.

14. External cladding panels in fiber cement “EQUITONEMATERIA”, thk.1.2 cm.

15. Slope layer, screed for substrates and roofing slope 1.5% type “Lecamix facile”.

16. Transom Aluprof MB-SE75 K518287X.

17. External gasket Aluprof MB-SE75 120750.

18. Thermal insulation spaser Aluprof MB-SE75.

19. Photovoltaic Solar Panel 60 x 100 x 4 cm.

20. Internal gasket Aluprof MB-SE75 120743.

21. Solar Panel Mounting Clamps 40 x 40 x 3 mm.

22. Metal U channel 60x40x3 mm.

23. Copper sheet metal TECU® BRONZE 3mm thick.

24. Metal angular U channel 30x40x3 mm welded to main frame stracture.

T.2

25. Aluminum square tubes 2” BY AGS, INC.

26. Thermal break system Schöck Isokorb® type KS.

27. Rock wool rigid insulation panel “ROCKWOOLVENTIROCK DUO” thk. 20 cm.

28. Galvanizegd steel thickness 3 mm.

29. 5356 typ. all welds T.B.D.

30. Aluminum knife plate - size T.B.D. by AGS, INC.

31. Aluminum sheet 2 mm.

32. Customized aluminum knife plate for additional structure 10x200x125.

33. BEAM IPE 160.

34. Beam to beam connection 80x80x0.8 L=100mm.

35. Curtain wall metal mullion bracket 190x100x10mm.

36. HB-Hollo-Bolt - Countersunk Head M12.

37. 1/8” THK. oxidize cooper perforated panel (pattern T.B.D. by architect).

38. Transom Aluprof MB-SE75 K518287X.

39. Straight hook Plus series.

40. U clamp hanger.

41. Blindspase S100x100l Metal Head box.

42. Exterior cap Aluprof MB-SE75 K431313X.

43. Roller tube dia. 30mm.

44. Anti-walk block Aluprof.

45. Triple glass system 6x16x6x16x6.

46. Silicone seal.

47. Internal blind.

48. Interior gasket Aluprof MB-SE75 120743.

49. Insulated glazing pocked Aluprof.

50. Hembar.

51. REYNAERS ® Aluminum fixed Louvre BS 100 400mm.

Climate data from the Kepanjen area shows that thermal comfort can still be achieved with natural ventilation as the basis for designing buildings with modules that are not too wide so that air movement can be maximized and energy use for both ventilation and artificial lighting during the day can be reduced. The module is also inspired by houses in the Majapahit era which generally have small dimensions with many openings on the facade.

The building modules are then arranged alternately like a pile of bricks with an open area in the middle inspired by the principle of Pakuwon arrangement during the Majapahit era where several building functions are placed separately with lots of open space like the Catuspatha principle which makes the building accessible from various sides. The layout not only provides a dynamic indoor and outdoor space experience for its users, but also forms a porous building composition that allows fresh air to enter through the corridors between buildings so that the use of AC can be further reduced.

The building mass arrangement of the Majapahit area cannot be separated from the appreciation of its surrounding landscape, especially the mountains and seas. This is tried to be represented by creating a building mass that resembles a hill so that it blends with the silhouette of the surrounding mountains. With the landscape design on each floor, the building design not only blends with the environment visually but also restores the existing site conditions from what was previously a monoculture garden to a multi-layer ecosystem full of biodiversity.

The needs of auditorium space are placed above the classroom and office building modules are designed to strengthen the silhouette of the stepped building while showing the division of the head-body-foot which inspired by Majapahit temples. Meanwhile, the use of terracotta material on the facade and wooden frames on the door and window modules is an adaptation of the house buildings in Majapahit era where bricks are the main element on the floor and light and flexible wood materials fill the space above.

Catuspatha
Pakuwon

03 | VOCATIONAL CAMPUS OF UNIVERSITY OF BRAWIJAYA

Type : Campus Building Masterplan

Year : 2024, Professional Architecture Design Competition

Team : Titania Nur Fadillah, Raka Affa Arasya Maharika, Alfian Reza Almajid, Prof. Dr.-Ing. Ilya Fadjar Maharika

Location : Malang, East Java, Indonesia.

Role Description : Building Section, Floor Plan, Architectural & Building Technology concept, 3D Rendering.

The concept of “Umpak Brawijaya” is inspired by the word “Umpak,” which in the Majapahit tradition is a solid foundation stone, functioning as the main support for a building. Umpak not only supports the physical structure, but also symbolizes the strength and stability of inherited cultural values. By adopting this philosophy, “Building A vocation” which is the first building in the UB Kepanjen campus masterplan is designed as an initial foundation with a sustainable perspective and becomes a guideline for the construction of subsequent buildings. For this reason, the principle of regenerative architecture is a guideline that is tried to be applied to ensure that every development carried out can have a positive impact on users and their environment. This is also in line with the Philosophy of “Bringing Life to Live” which is the character of Brawijaya.

Forward thinking through the principle of regenerative architecture is then integrated with local wisdom values taken from the masterplan of Majapahit era so that a building design principle is created that is not only environmentally friendly and sustainable but also has a strong local cultural identity. This regenerative can also be interpreted as a metaphor and imagination of the return of the Majapahit spirit in the present and the future.

East Elevation
South Elevation

UB Kepanjen Campus Masterplan area will be integrated with the surrounding settlements as a new “village”, creating a north-south axis for human mobility.

Being in between 2 exsisting green areas, UB Kepanjen campus area becomes the connector of the two areas, creating a continous green corridor with a west-east axis.

UB Kepanjen Campus will be a meeting point between humans and nature, creating two main axes: and a catalyst for the green and sustainable local economy.

E.

F.

G.

H.

I.

To emphasize and strengthen the westeast horizontal axis, permeable grids are arranged lengthwise with dimensions that follow the building grid. Green areas are evenly distributed throughout the area, with priority in the south as the biodiversity axis.

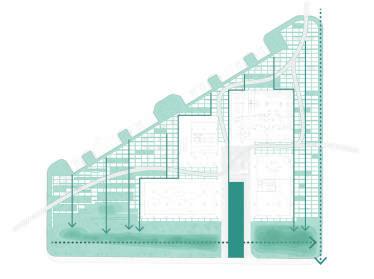

The north-south grids become water absorption paths, while also following the contour lines that drain water to the south. The water then enters the rainwater collecting system which is integrated with local drainage channels. “Segaran” which reminds of the Majapahit layout becomes the main accent.

Grids created from green and blue infrastructure are divided by brick path accents that are recycled from the local brick waste. The ground floor space is organized with various active functions for the public that are inclusive, accessible and universal.

Green Infrastructure
Blue Infrastructure
Active Ground Floor
Raingarden Detail Student Green Park Brick Path Segaran Entrance

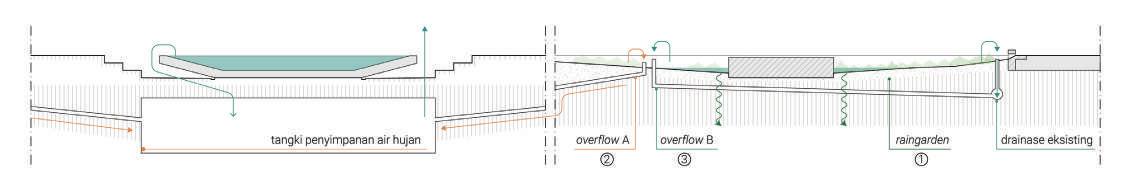

Flood prevention using Nature-based solutions:

1. Rainwater will be absorbed directly by the rain garden and will be absorbed into the soil.

2. When the soil is saturated with water, puddles will appear. When the water level reaches the overflow level A, the water will enter the rainwater storage tank.

3. When the tank is full, the water level in the rain garden will reach the overflow B which will be channeled to the existing drainage.

Flood prevention system
2nd Floor

Classroom Arrangement Scenarios

The flexibility of space and removable building elements is key to sustainable architecture, as they allow buildings to adapt to changing needs without total demolition, reducing construction waste. The principle of open building and modular elements are then applied so that the building can accommofdate various configurations of space and function in the future. This also makes it easier to create a material database that can be useful in the construction or renovation of buildings in the UB Kepanjen campus area in the future. Local Wood from surrounding plantations

Circularity Building

In Joglo Ngebo/Umran, we are developing a prototype to make Ngebo Village self-sufficient in food production. By applying sustainable permaculture principles, we implement a system where kitchen, agricultural, and market waste are composted communally and used in community gardens. Produce from these gardens can be sold locally or used for daily meals, with a cycle of reuse. Additionally, a simple plant nursery at the back of the Joglo facilitates seed and seedling exchange among villagers.

Though initially planned before the pandemic, this initiative has proven effective during the pandemic, energizing the local community. With committed volunteers, we have established a zero-waste, sustainable permaculture system. This model has potential for expansion to other villages in Yogyakarta and beyond.

Cattle House
Vegetable Stall
Public Composter
UMRAN’S Garden
Community Shop Hari’s House Tini’s House
Hari’s Garden
Public Headman’s House Public Headman’s Garden
UMRAN’S Kitchen Plant Nursery
Carbon Bank
Community Rice Field
Ready Made Compost
Dry Leaves Waste
photo credit: Bayu Atha

03 | JOGLO NGEBO

Type : Traditional House

Year : 2019

Location : Yogyakarta, Indonesia

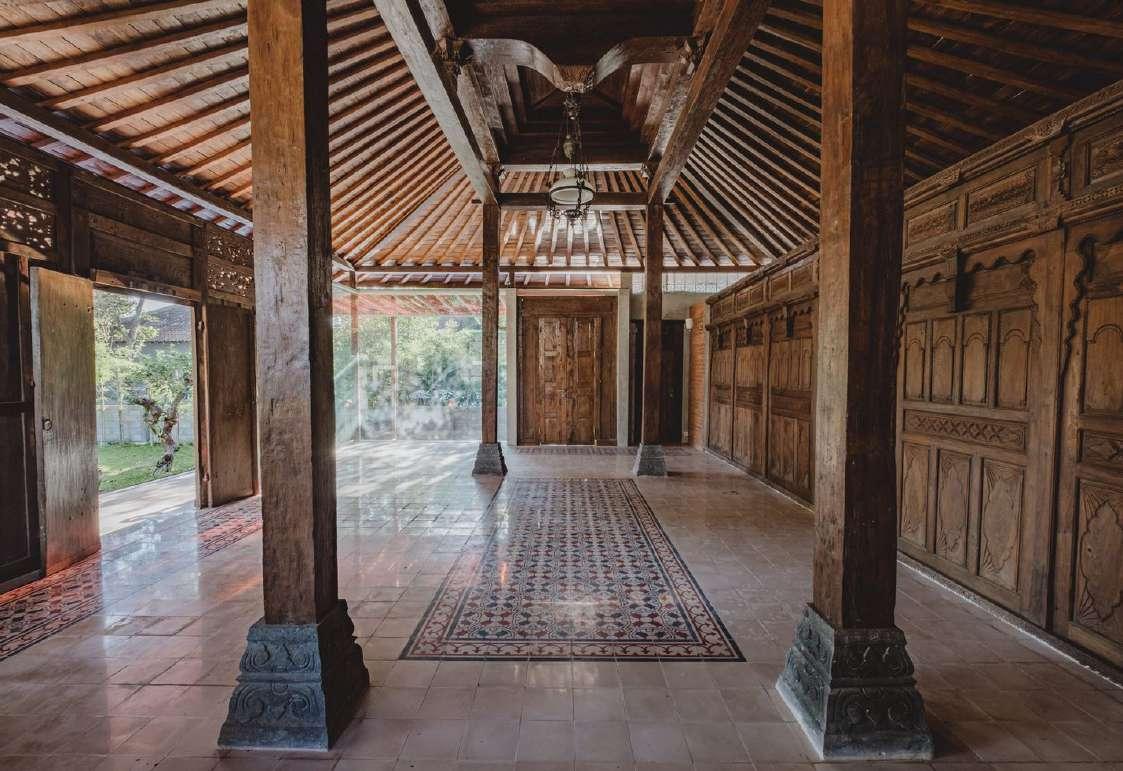

Joglo Ngebo merges vernacular and modern architecture, featuring Javanese “Soko” wooden columns with sleek glazing and a white metal pergola for a distinctive blend of styles. The use of exposed brick, unfinished concrete, and wood creates a warm, inviting atmosphere.

Traditionally, a Joglo house includes a “Pendhapa” for guests and a separate residential area. However, to enhance water infiltration and compact the design, the Pendhapa and residential spaces are combined, with a white metal pergola added. Large frameless windows connect the interior with the exterior, though some light penetration is reduced by this integration.

The design emphasizes sustainability by minimizing the carbon footprint and aiming for zero waste. Rosewood trees from the site were repurposed for columns, ceiling sheets, furniture, and lighting features, while some were preserved for shade and better micro-climate control. Online publication of the project can be found at:

Archdaily:

https://www.archdaily.com/934172/joglo-ngebohouse-umran-studio

photo credit: Bayu Atha
photo credit: Bayu Atha

asphalt shingle roof main bedroom bedroom gebyok ceiling from existing rosewood usuk (roof structure)

molo ander

kecer & dudur uleng

penangkur

penanggap

gebyok (traditional door)

tumpang sari

soko pengarak glass wall

rose colored acrylic sheet
galvanized iron structure rosewood column concrete base
photo credit: Bayu Atha
photo credit: Bayu Atha
photo credit: Bayu Atha

Traditional Structure (tumpang sari)

uleng

ander

geganja

santen

dada peksi

tutup kepuh

blandar pengeret

umpak
soko guru
sunduk kili
cut rosewood tree
cutting of necessary trees
rosewood tree field
Central

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
