SOUTH HEAD PERFORMANCE HOUSE Burrawarra, Sydney project completed 2024

Located on the point of Sydney’s entrance, the South Head Performance House serves as a communal space for performing arts to be shared and seen. In response to a design studio brief wherein a floating drama house is to be erected in Sydney Harbour, the South Head Performance House aims to address the historical and cultural tensions of the site while rejuvenating and regifting the land to the public.

Considered in conjunction with the repurposing of military land in North Head, the South Head Performance House takes inspiration from its site’s past and current use as a vantage point for inbound ships. With precedence from Palladio and Vitruvius, the design prioritises vision by establishing three different vistas in the auditorium. With lookouts to Chowder Head, Middle Head and North Head, the performance house calls upon other notable Sydney shores in order to remind the audience of where they are situated.

To assimilate with the landscape, the form of the theatre takes inspiration from the monolithic ships that pass the cliff, as well as the Hornby Lighthouse which sits near the site. Supported by posts, the structure aims to work with the calamity of the water, rather than combat it.

TIANA YEE

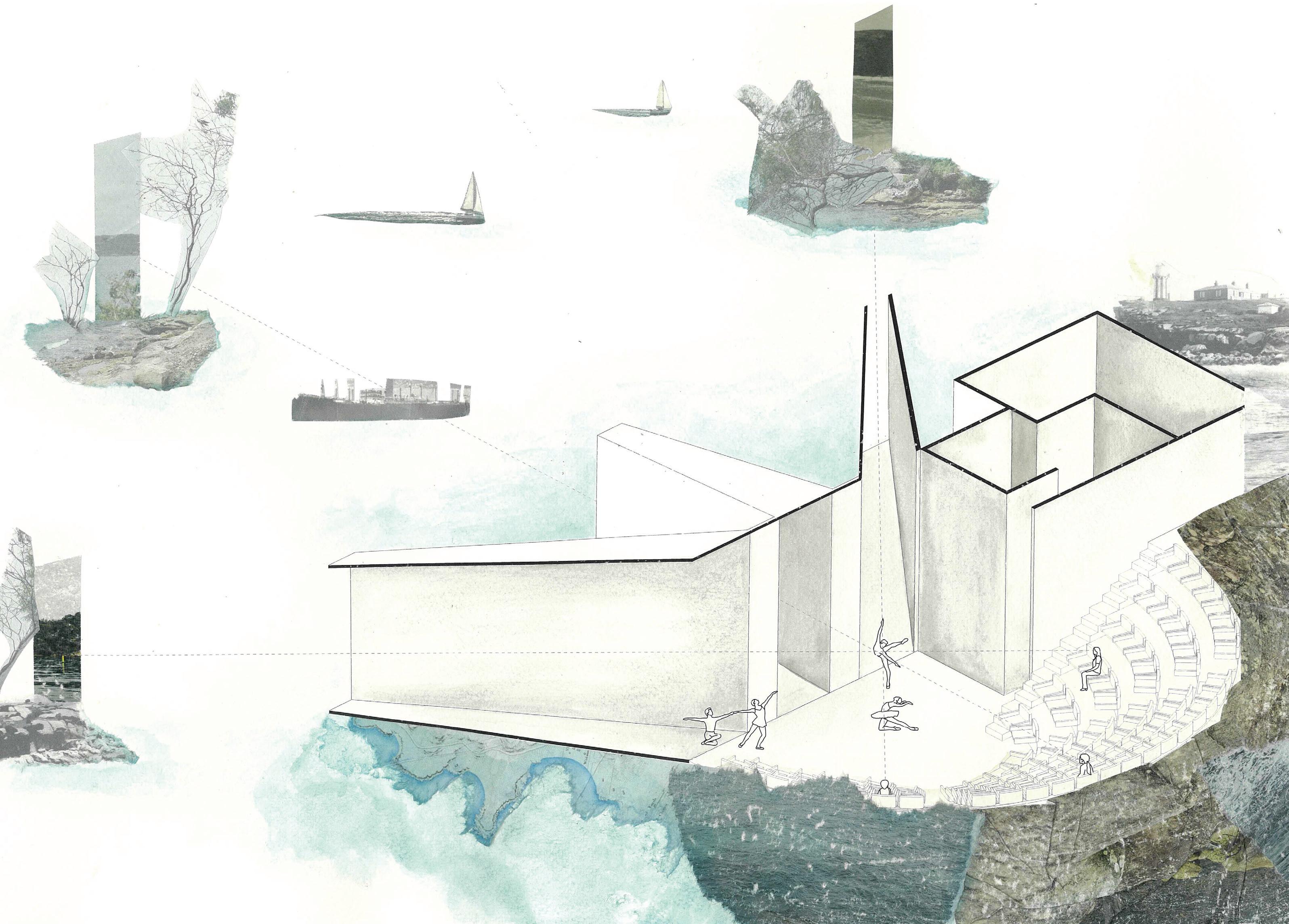

AXONOMETRIC DETAIL COLLAGE

DESIGN PORTFOLIO 2024

PG. 6

PG. 7

2

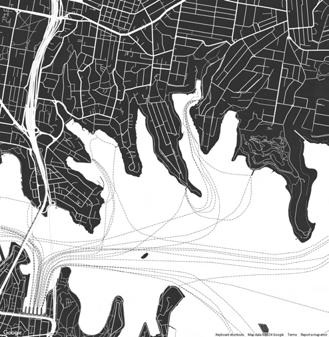

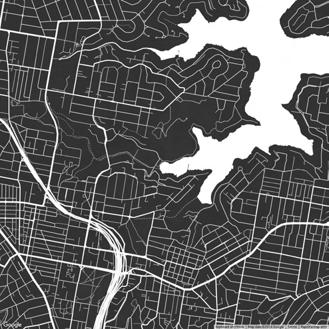

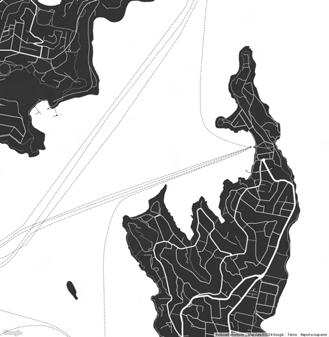

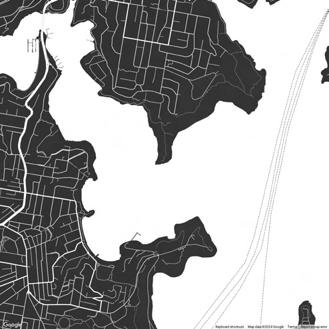

location plan connecting South Head, Gooragal, Middle Head, North Head

-2

SITE PLAN

TIANA YEE

LOCATION PLAN

DESIGN PORTFOLIO 2024

PG. 8

PG. 9

­

­

OUTER POLYCARBONATE SKIN

BASEMENT FLOOR 2 PLAN

INTERNAL TIMBER STRUCTURE

BASEMENT FLOOR PLAN

WALLS BETWEEN SERVICES

CONTINENTAL AUDITORIUM SEATING

CONCRETE PLATFORM

GROUND FLOOR PLAN

BACK OF HOUSE SERVICES

THEATRE VISTAS

TIANA YEE

AXONOMETRIC DIAGRAM

1:400

DESIGN PORTFOLIO 2024

PG. 10

PG. 11

TIANA YEE

SECTIONAL PERSPECTIVE

1:100

DESIGN PORTFOLIO 2024

PG. 12

PG. 13

Beyond being a space to experience performing arts, the South Head Performance House strives to be a seamless element in the landscape.

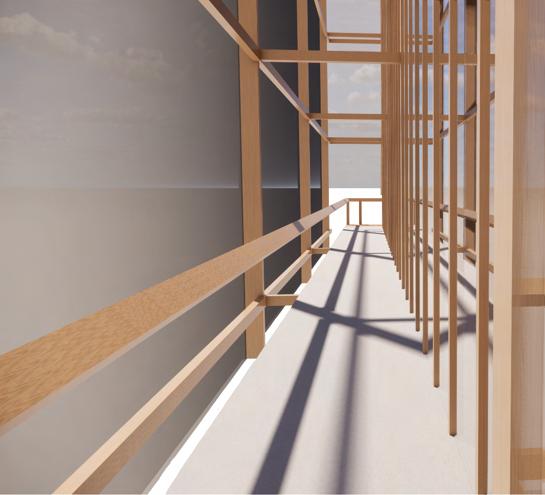

Akin to a lamp floating on the water, the exterior of the performance house is as vital as its interior function. dining area ambience

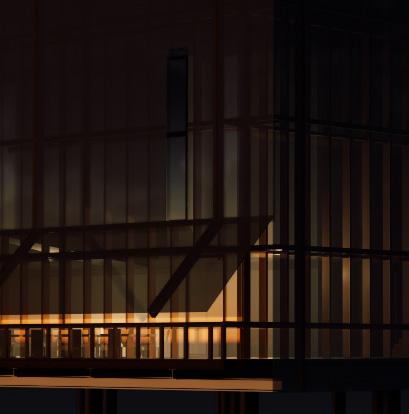

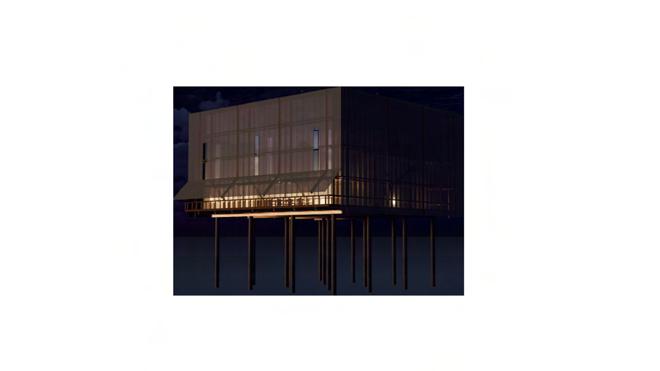

exterior of South Head Performance House at night

TIANA YEE

VISUALISATIONS

DESIGN PORTFOLIO 2024

PG. 14

PG. 15

A showcase of how the spaces transform with light.

The contrast between bright open spaces, and enclosed and controlled auditorium.

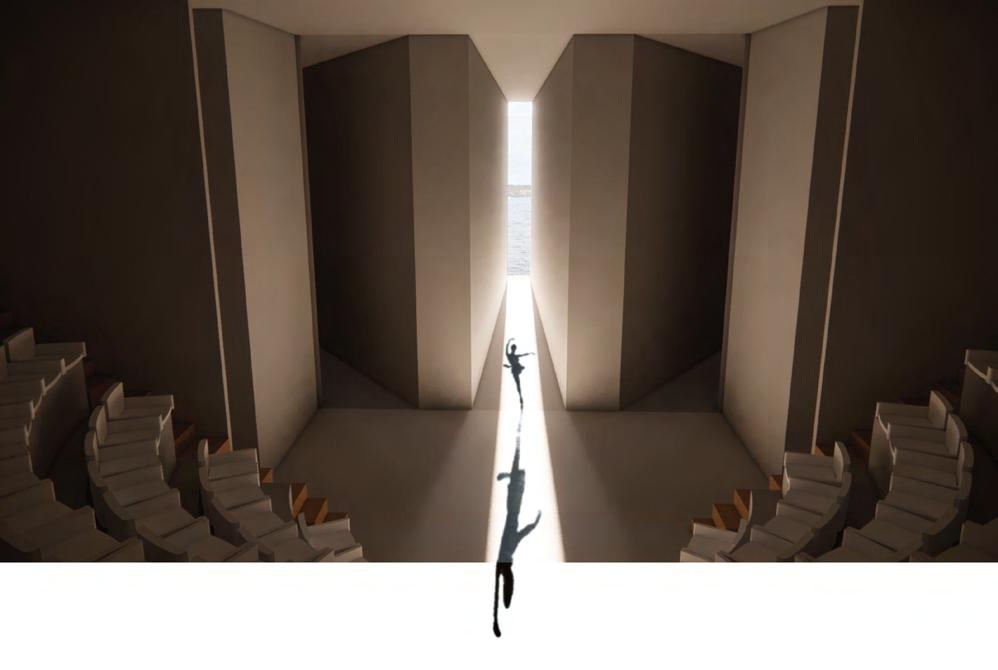

13:00 opera performance

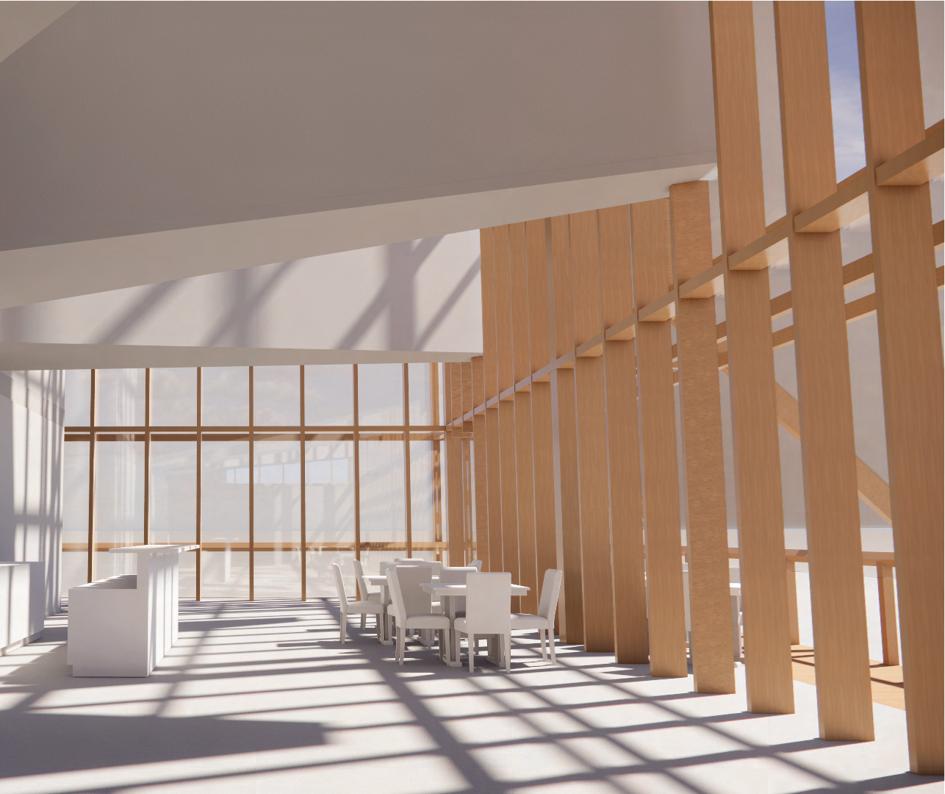

cafe & bar area

between the layers

15:00 ballet rehearsal

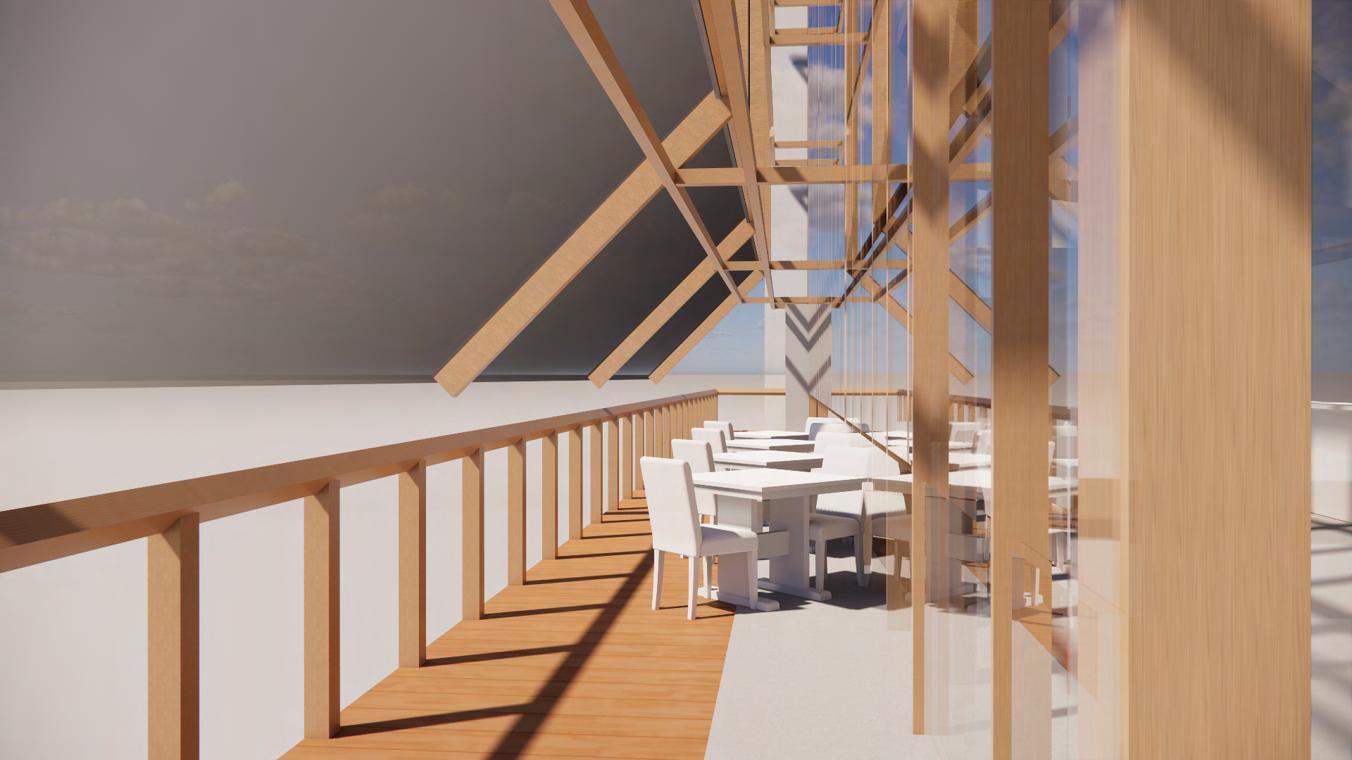

outdoor dining

19:00 yarning circle

TIANA YEE

VISUALISATIONS

DESIGN PORTFOLIO 2024

PG. 16

PG. 17

NORTH EVELEIGH SPORTS CENTRE

Redfern, Sydney project completed 2024 The North Eveleigh Sports Centre is a community space designed for Sydney’s Inner-south. With the intention of disassembling the building in approximately fifteen years, the architecture was required to provide a light, inviting space while being mindful of materials and passive climatic design. Additionally, the siting of the structure near historic and cultural landmarks such as Carriageworks invoked a conceptual yet functional form into the sturcutre. notably in its variable roofs.

Featuring two indoor sports courts and outdoor half courts, a cafe, public amenities and conference rooms, the North Eveleigh Sports Centre goes beyond providing a sports space, but rather a communal gathering hub.

The project underwent multiple iterations and experiments with form and material selection in order to land on its completed design. With consideration of passive solar design, cultural sensitivity and community needs, the structure embodies a light and inviting appearance to invigorate movement in a harsh site.

TIANA YEE

DESIGN PORTFOLIO 2024

PG. 18

PG. 19

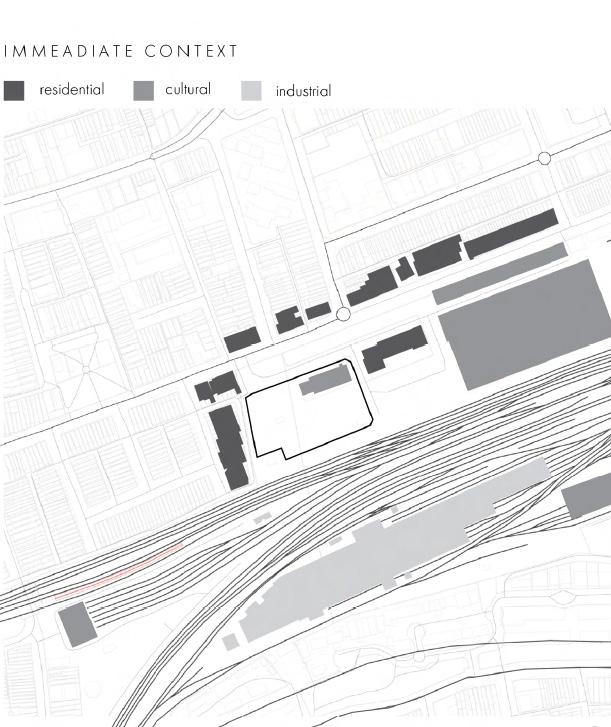

Understanding the immeadiate context, and whch demographics of the community would be in contact with the design.

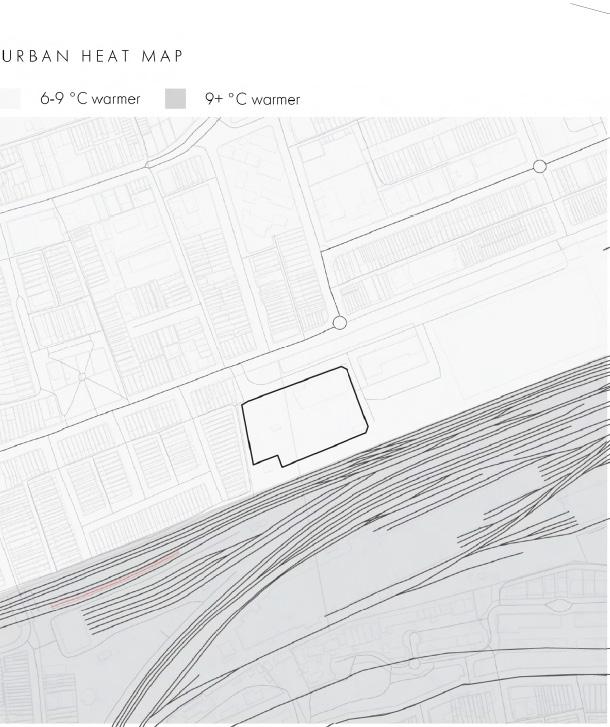

High volumes of concrete in and around the site pushed for a more considered climatic response.

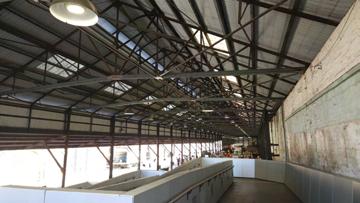

PAINTSHOP

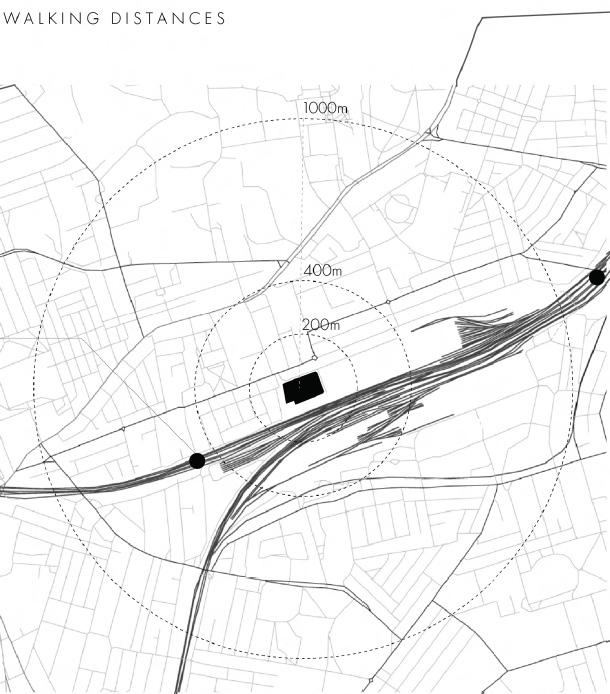

Predicting and understanding movement to and from the site also determines how the design invites users.

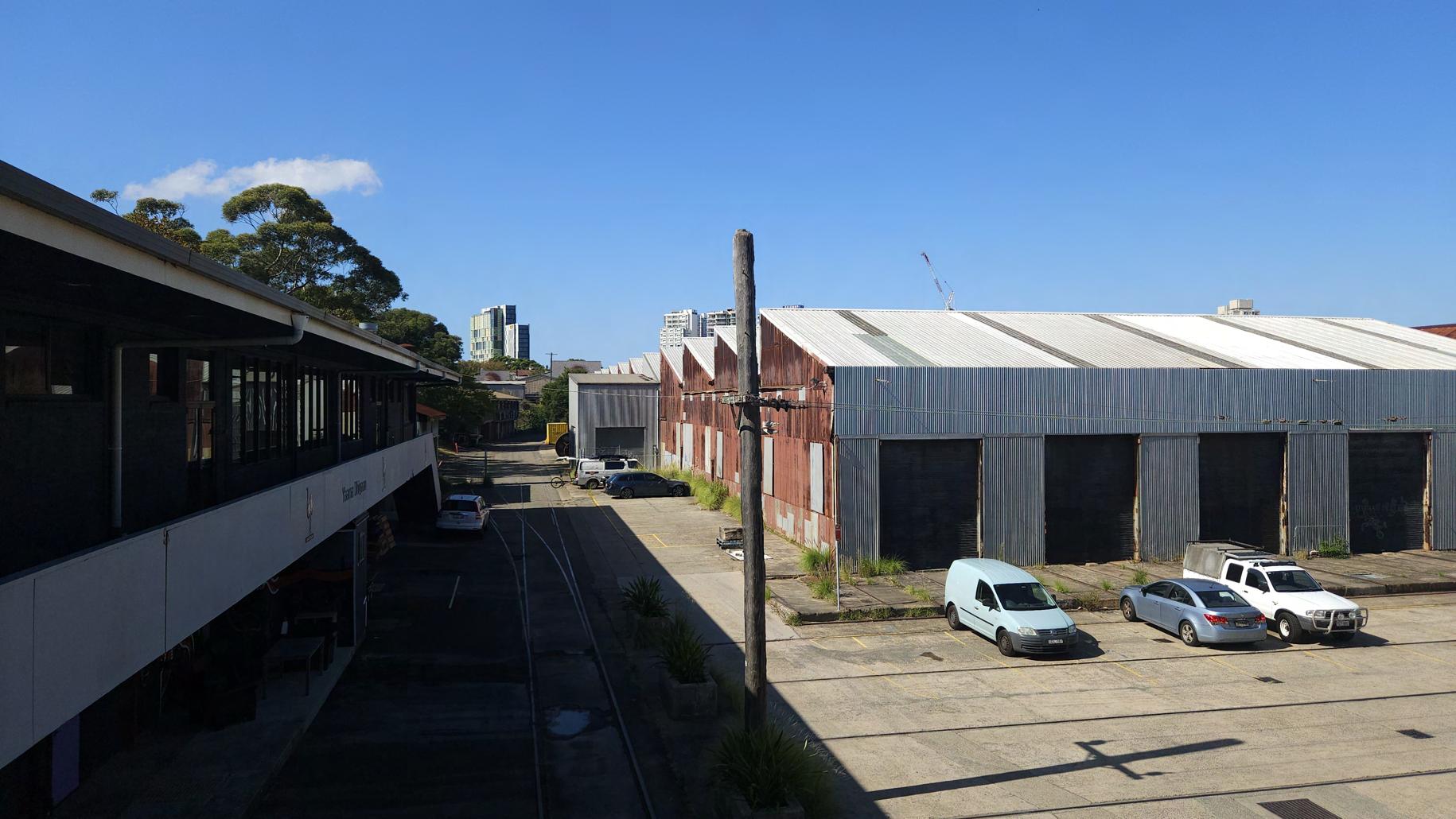

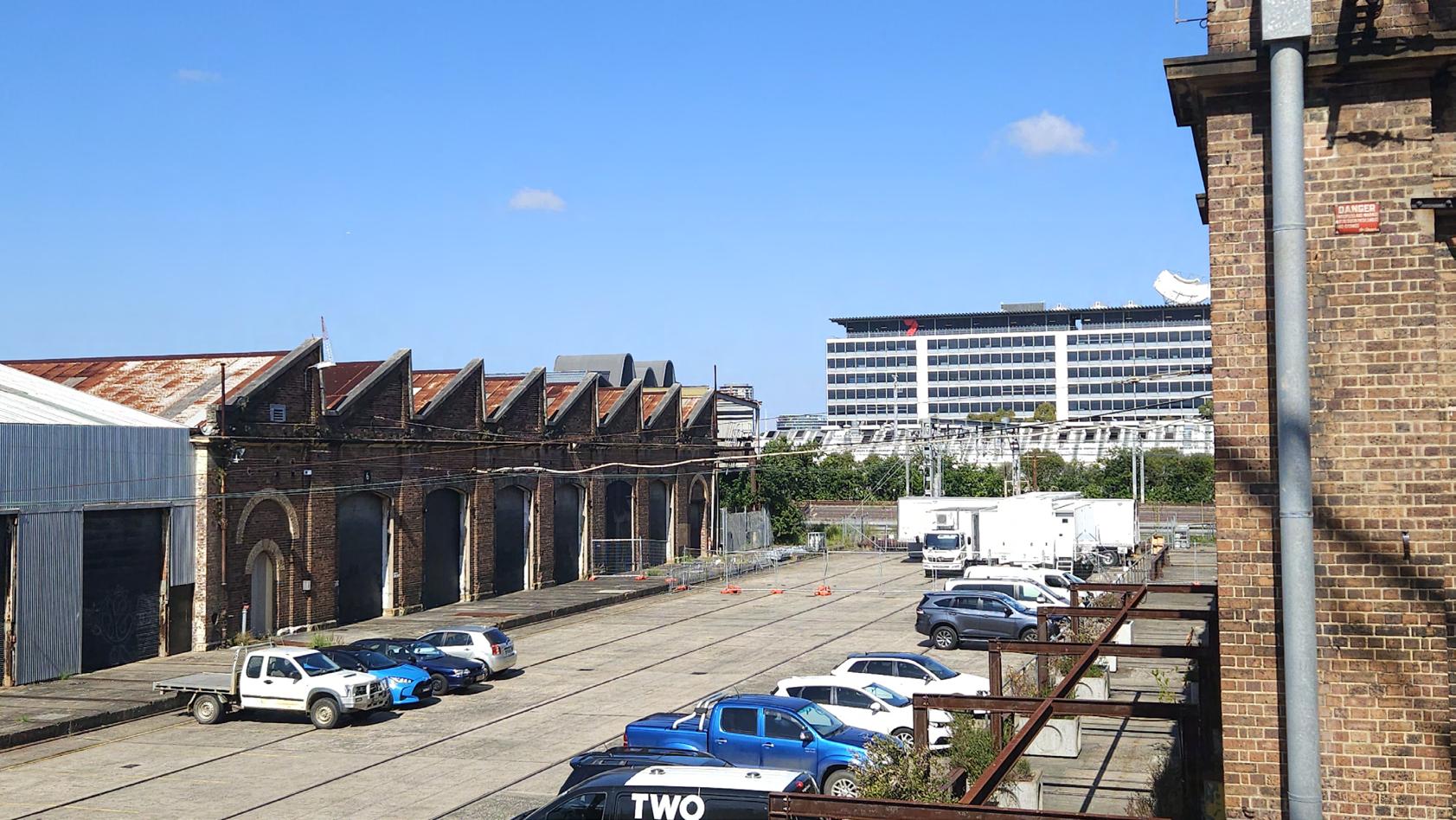

EVELEIGH WORKSHOP

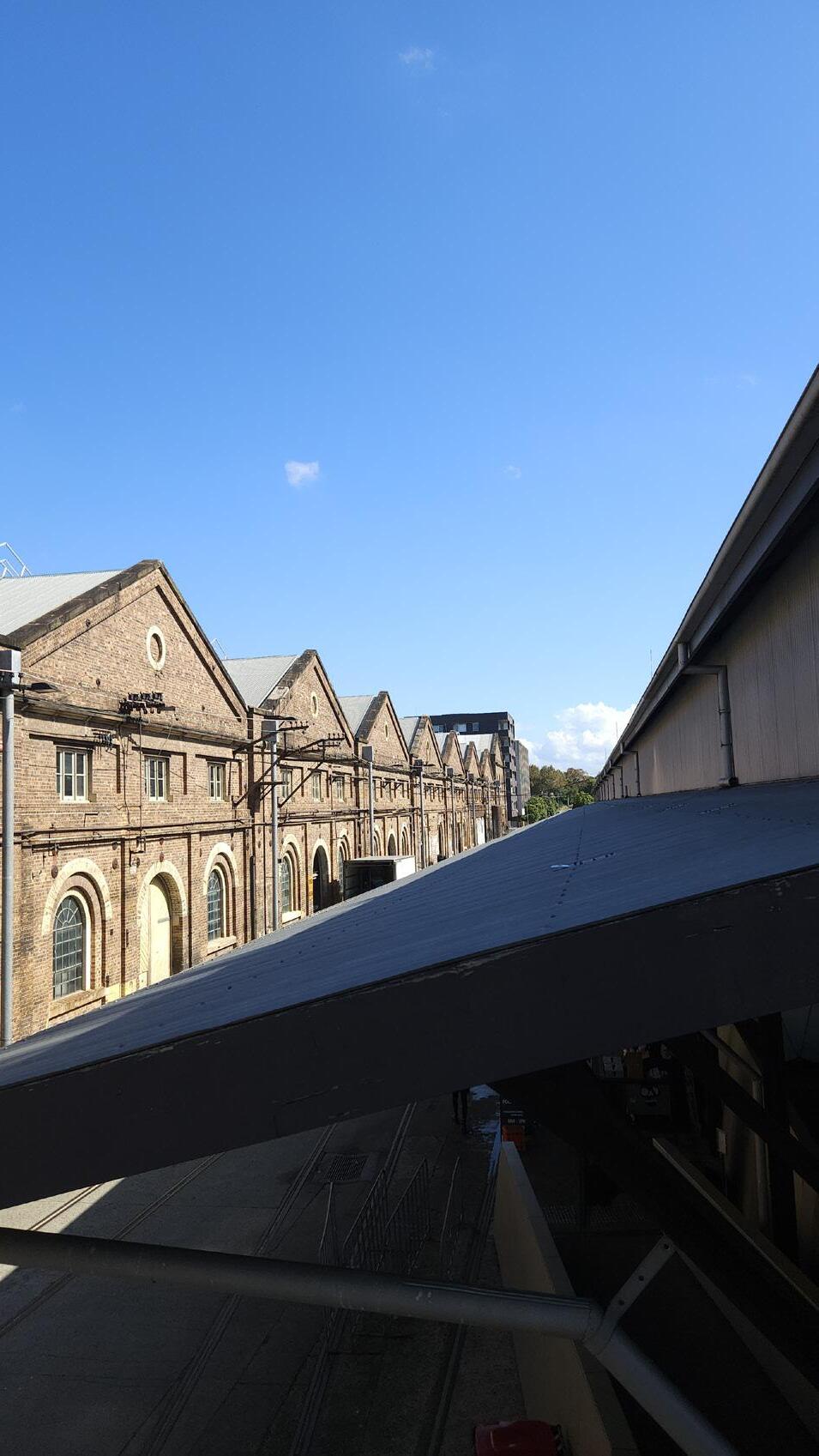

CARRIAGEWORKS

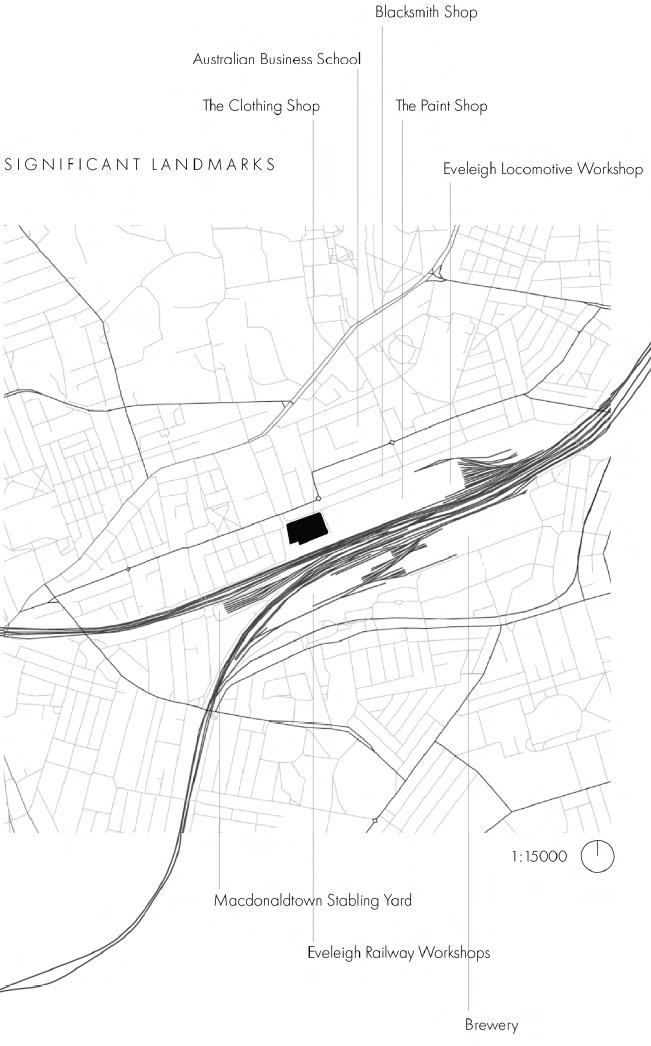

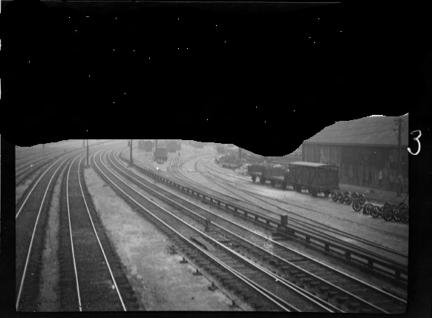

Analysis of site, community, history and culture was conducted in order to inform the design of the sports hall.

Combined with the brief’s request for dissassembly, the form must be expressive of the landscape as well as efficiently constructed.

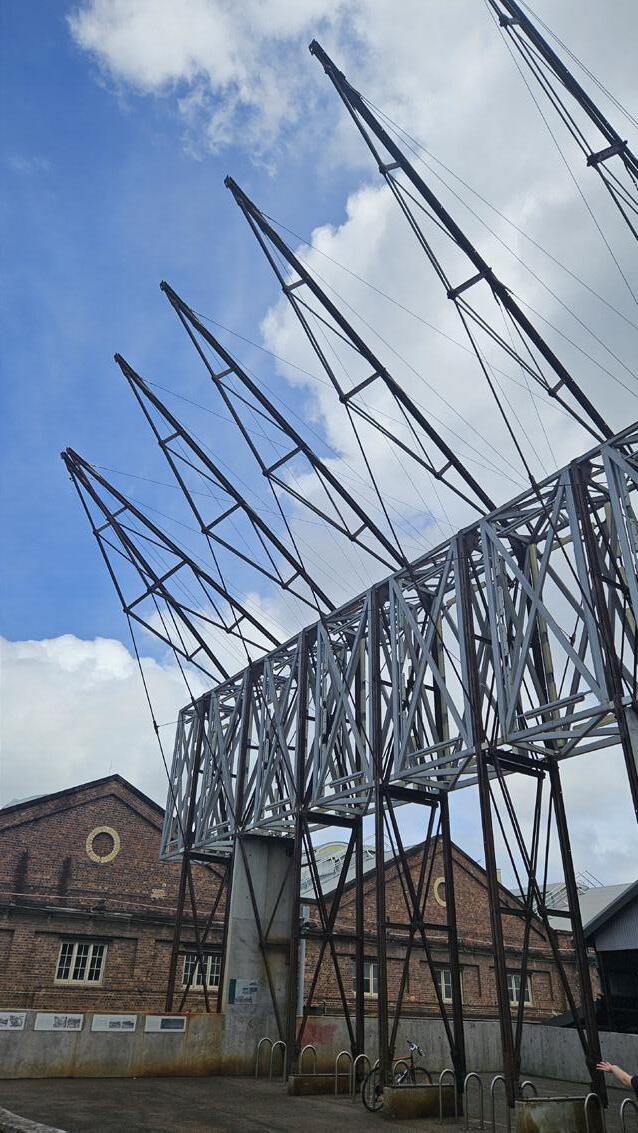

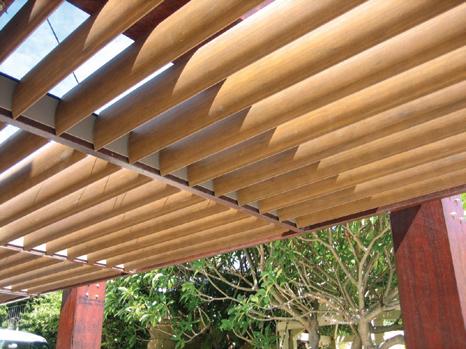

The sawtooth form was a recurring motif, adopted and modified in the final design. Paying homage to the industrial history of the Eveleigh precinct, while offering optimal climatic performance, the analysis conducted greatly contributed to the design.

TIANA YEE

SITE ANALYSIS

CONCEPTUAL DEVELOPMENT

DESIGN PORTFOLIO 2024

PG. 20

PG. 21

6

1

11

2

8 3

9

4 7 10

5

20

13 12

20

15

14

18

17

19

16

TIANA YEE

GROUND FLOOR PLAN

1:400

DESIGN PORTFOLIO 2024

SHORT SECTION

PG. 22

0m 2m

4m

20m

1:400

50m

1:200

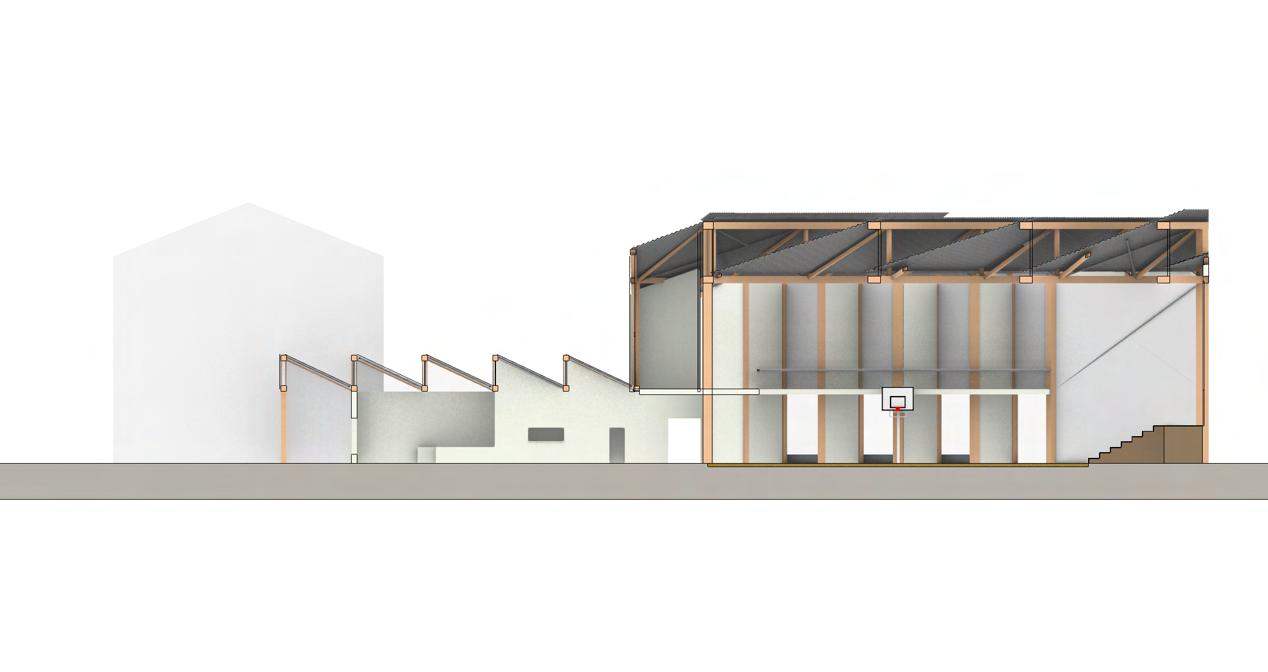

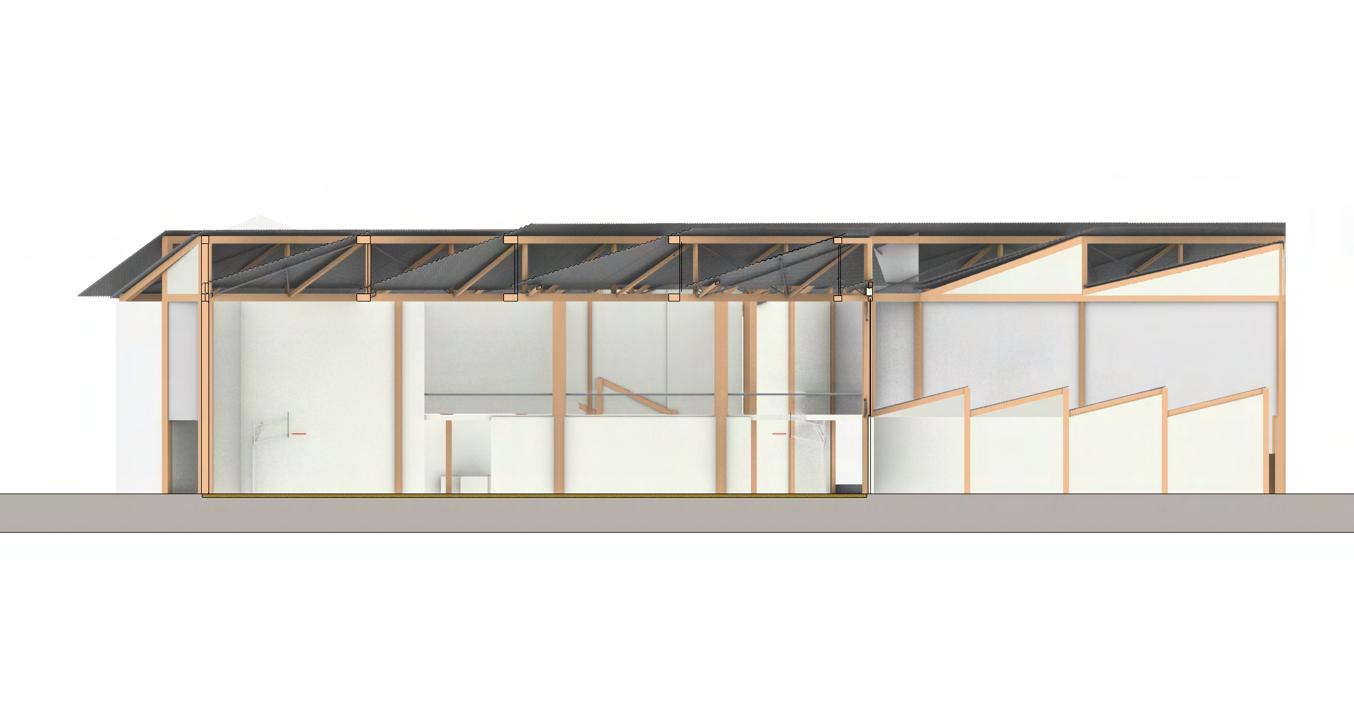

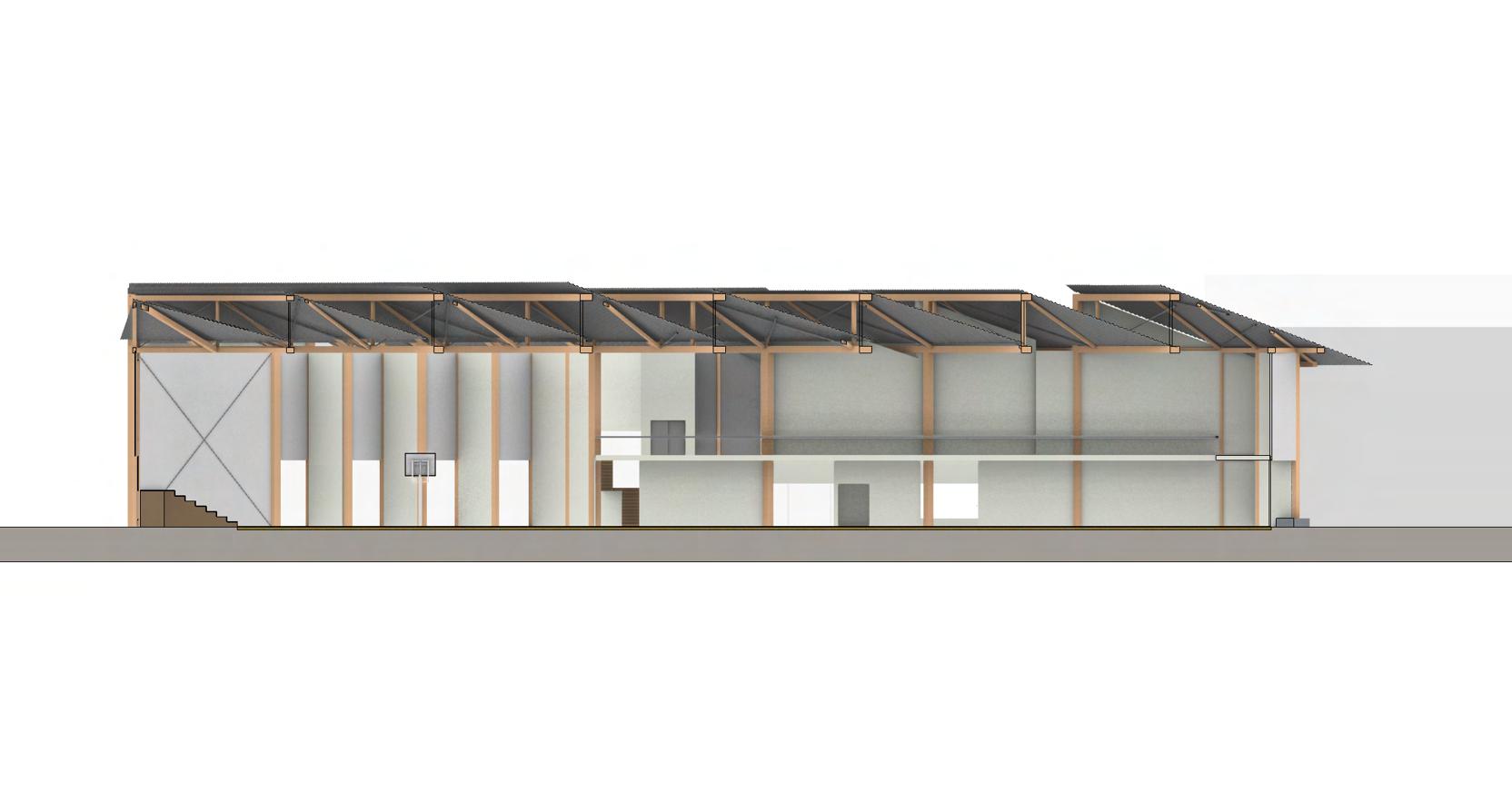

North Eveleigh Sports Centre short section B-B

0m 2m

4m

20m

50m

1:200

North Eveleigh Sports Centre long section A-A

0m 2m

4m

20m

50m

1:200

North Eveleigh Sports Centre short section C-C

TIANA YEE 0m 2m

4m

20m

North Eveleigh Sports Centre street elevation, view from Wilson Street

PG. 23

50m

STREET ELEVATION

1:400

DESIGN PORTFOLIO 2024

1:200

PG. 24

PG. 25

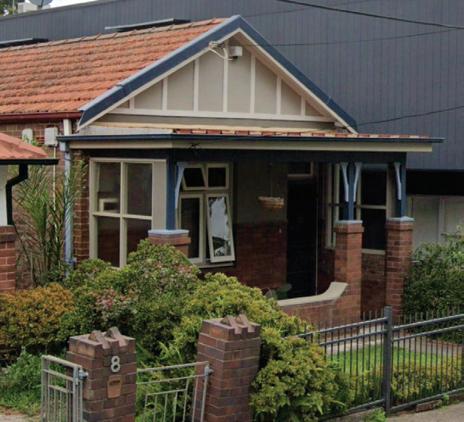

PETERSHAM HOUSE Petersham, Sydney project completed 2024 The Petersham House is an alterations and additions project completed with the intention on optimising the conditions of the existing structure. Designed collaboratively, the design aims to reintroduce light, ventilation and character to the dwelling.

Working closely with building codes and council provisions, the design aims to serve the client’s wants and needs, while also achieving environmental goals of the Inner West Council.

Strategies implemented included introducing atria, an additional level and all-season outdoor living spaces.

TIANA YEE

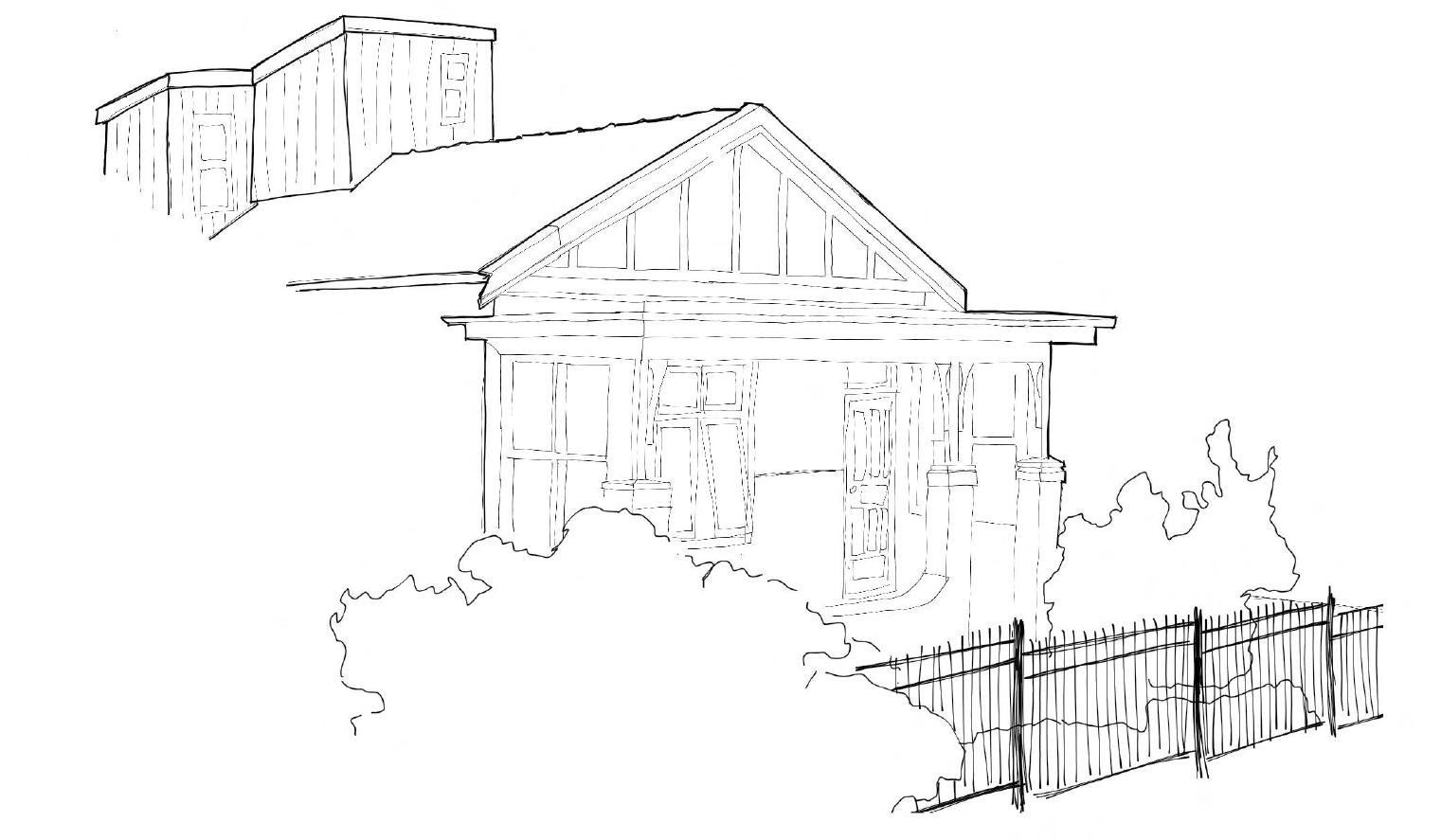

HAND-DRAWN IMPRESSION

DESIGN PORTFOLIO 2024

CONTEXT PLAN

PG. 26

­ ­

­

­

­

­

­ ® ®

­

­ ­

­

­

®

E

­ ­

E

­

®

­

­

­

­ ® ­

®

­

­

­

­

®

PG. 27

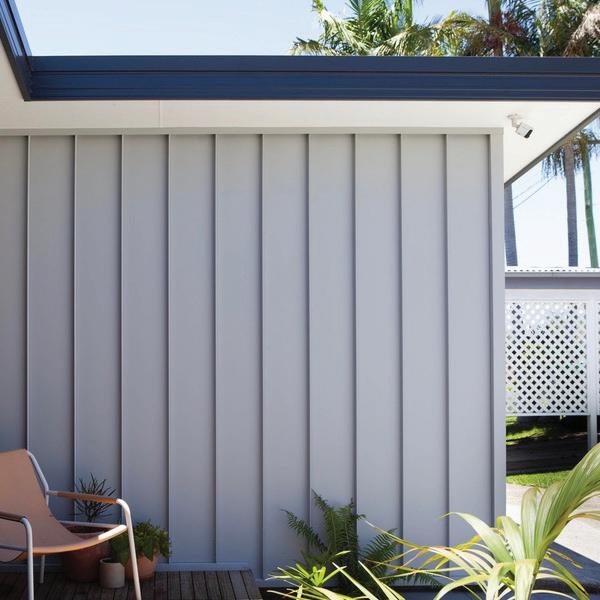

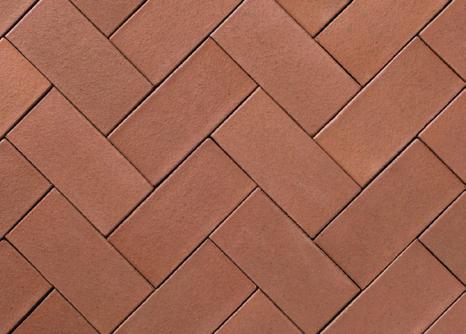

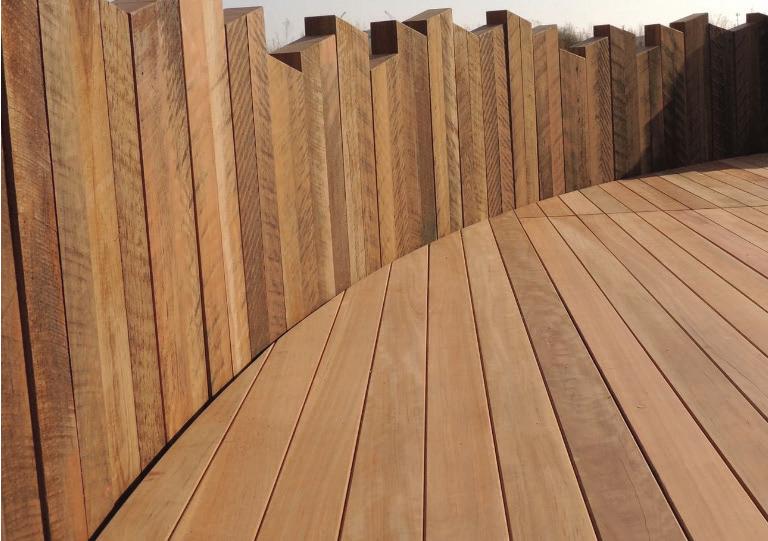

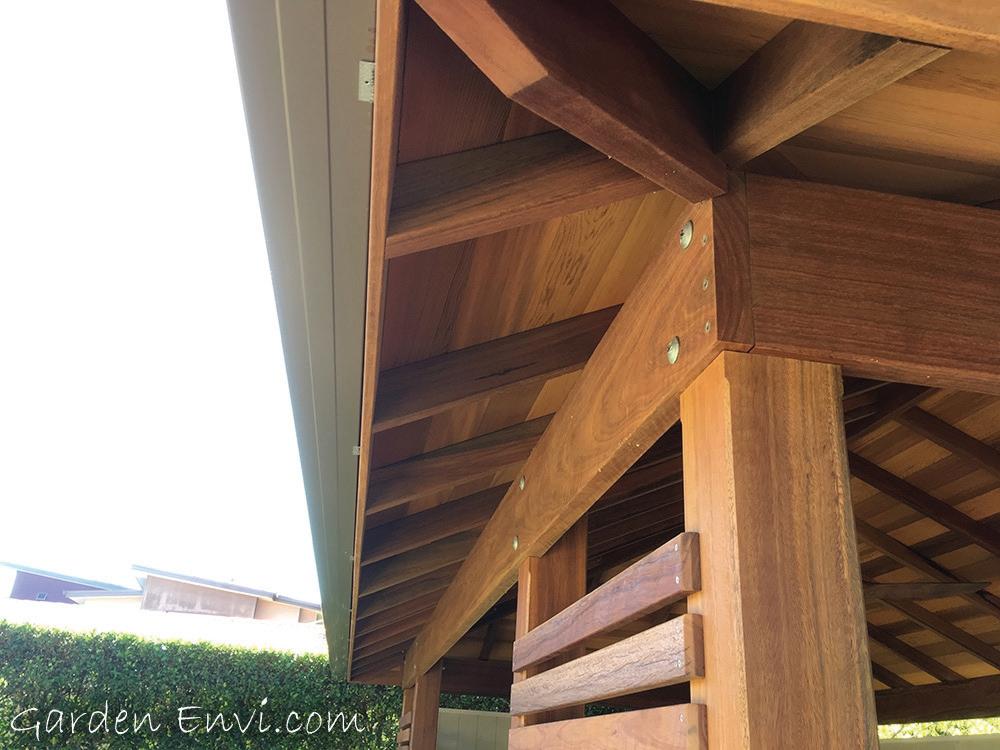

MATERIAL SCHEDULE

®

­

­

­ ­

­ ­

­

­ ®

­

® ®

­

­ ­

­ ­

­

­

­

®

­

­

®

­

­ ­

­

­ ®

®

®

­

­ ­

­ ­

­ ­

­ ­

TIANA YEE

­ ­

­

­

­

­

­

­

DEMOLITION PLANS

­

­

®

­ ­

­

­

­

­

­

­

­

­

DAYLIGHT ANALYSIS

­

®

­

­

­

®

­ ­

­

®

®

­

­

­

®

®

­

­

­

­

®

­

­

DESIGN PORTFOLIO 2024

PG. 28

AXONOMETRIC DIAGRAM

PLANS

PG. 29

31631

1616

3262

3461

3810

4640

1270

1686

2954

2000

2311

3000

2880

5420

­

2000

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

­

TIANA YEE

SECTIONS & ELEVATIONS

1:400

­­

­

­

­

­

­

DESIGN PORTFOLIO 2024

PG. 30

PG. 31

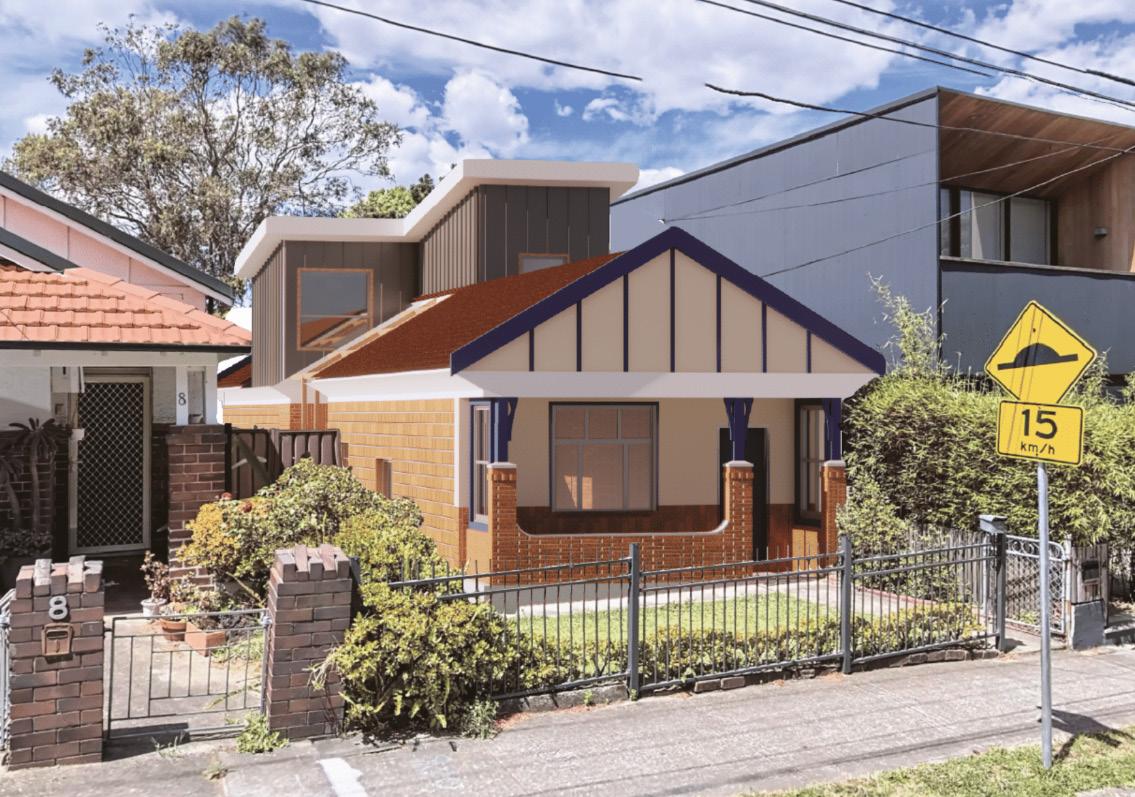

exterior render of streetscape

TIANA YEE

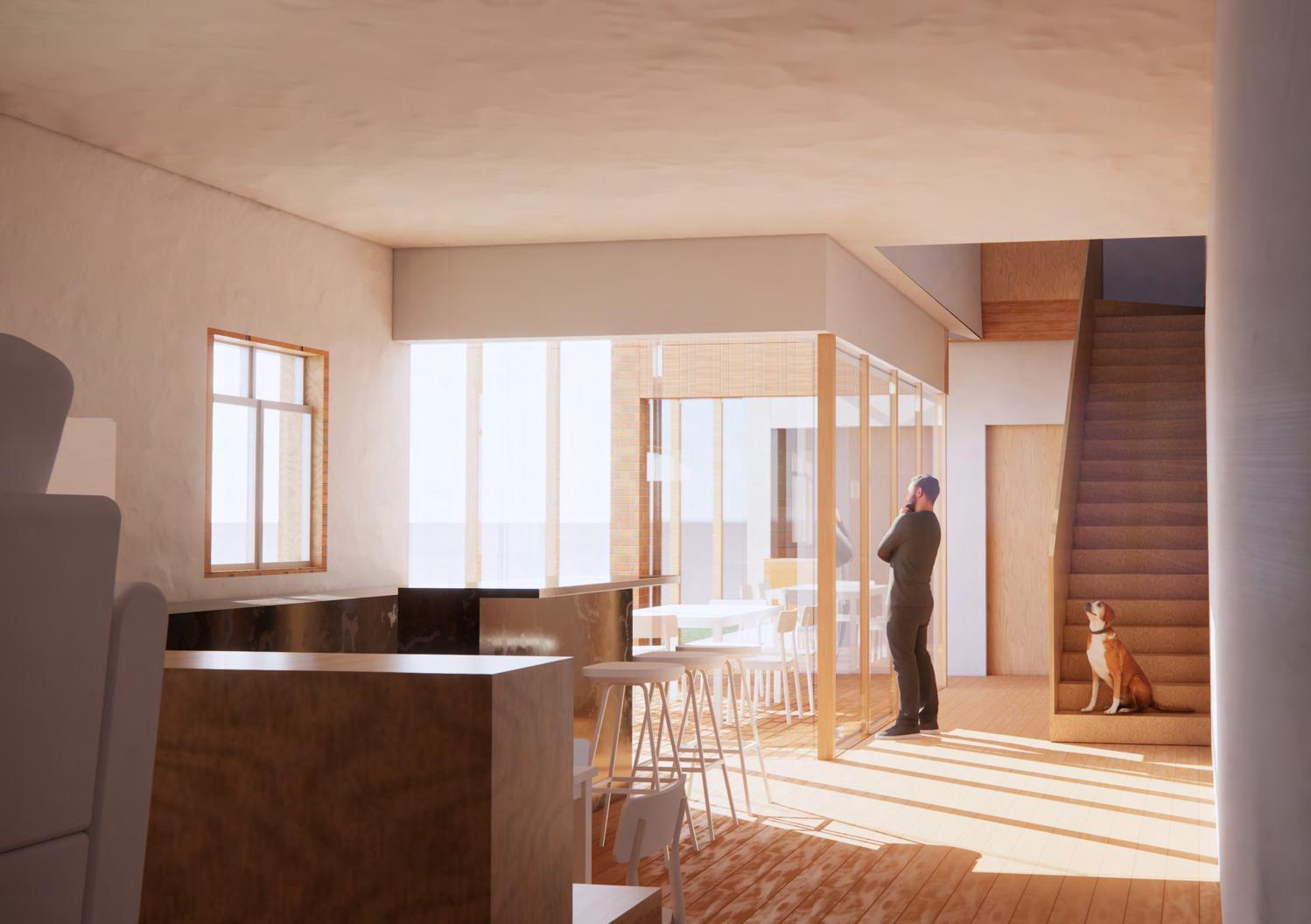

interior render of kitchen and dining space

VISUALISATIONS

DESIGN PORTFOLIO 2024

PG. 32

PG. 33

TECHNICAL PROCESS SKETCHES & MISCELLANEOUS A mixture of mediums and techniques has helped me form my process towards design over the completion of my degree.

Chowder Head (Gooragal)

North Head (Car-rang-gel)

Middle Head

TIANA YEE

Hand-sketching, analog collage and modelling are methods in which I explore a range of ideas and concepts. These range from conceptual and narrative development, to structure and material testing.

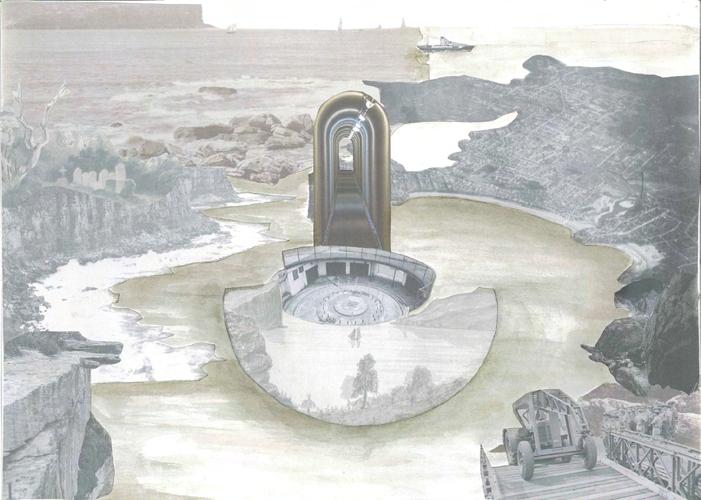

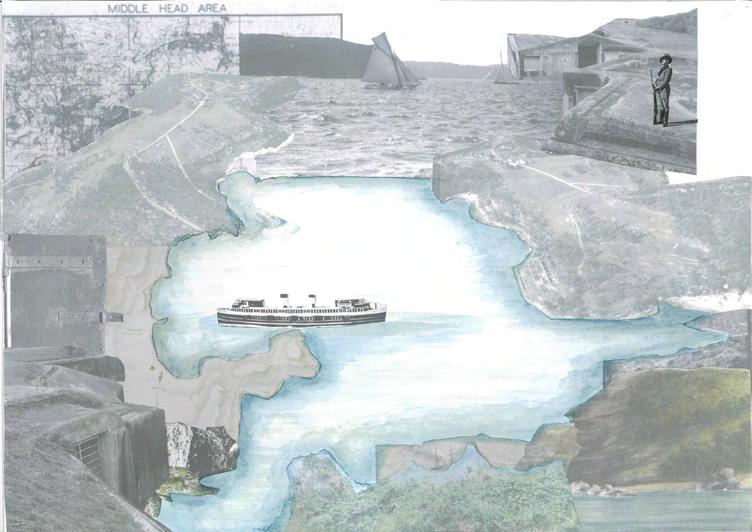

CONCEPTUAL COLLAGES

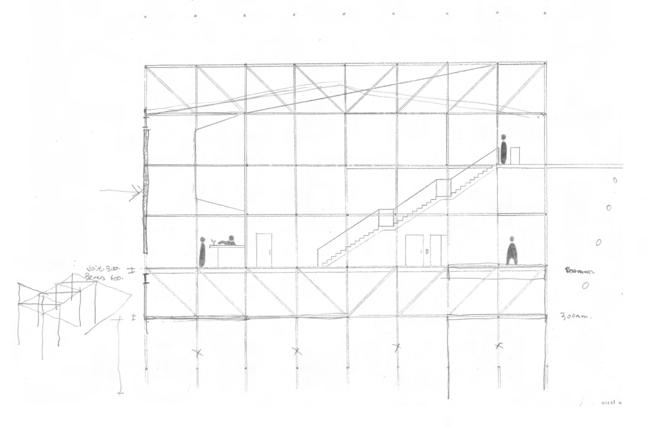

HAND SKETCHES

DESIGN PORTFOLIO 2024

PG. 34

PG. 35

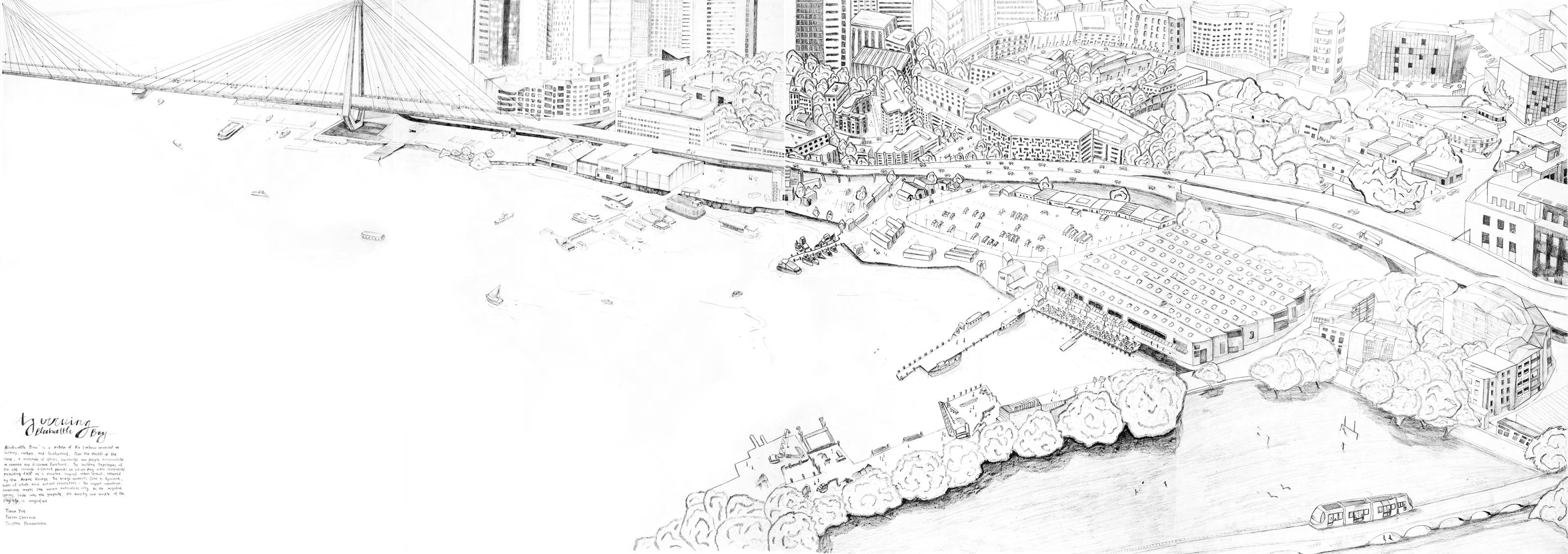

In conjunction with Atelier Bow-Wow’s Architectural Ethnography, the public drawing exercise was motivated by the desire to unearth and reveal hidden layers in Sydney’s urban areas.

TIANA YEE

IN COLLABORATION WITH TARINI SHARMA & TRISTAN PONOMBAN

Composing and collaboratively sketching Blackwattle Bay, unveiled a new projection of life in the urban city, reshaping our perspectives on the site before proceeding with the studio brief.

ATELIER BOW-WOW PUBLIC DRAWING WORKSHOP

DESIGN PORTFOLIO 2024

PG. 36

PG. 37

Hand-drawn plans, sections and elevations are beautifully expressive. They are able to communicate certain emotions and intentions that may be harder to communicate through digital drawings.

I believe that proficiency in digitally-produced and hand-drawn architectural diagrams ensures that communication of all aspects of a design is clear.

TIANA YEE

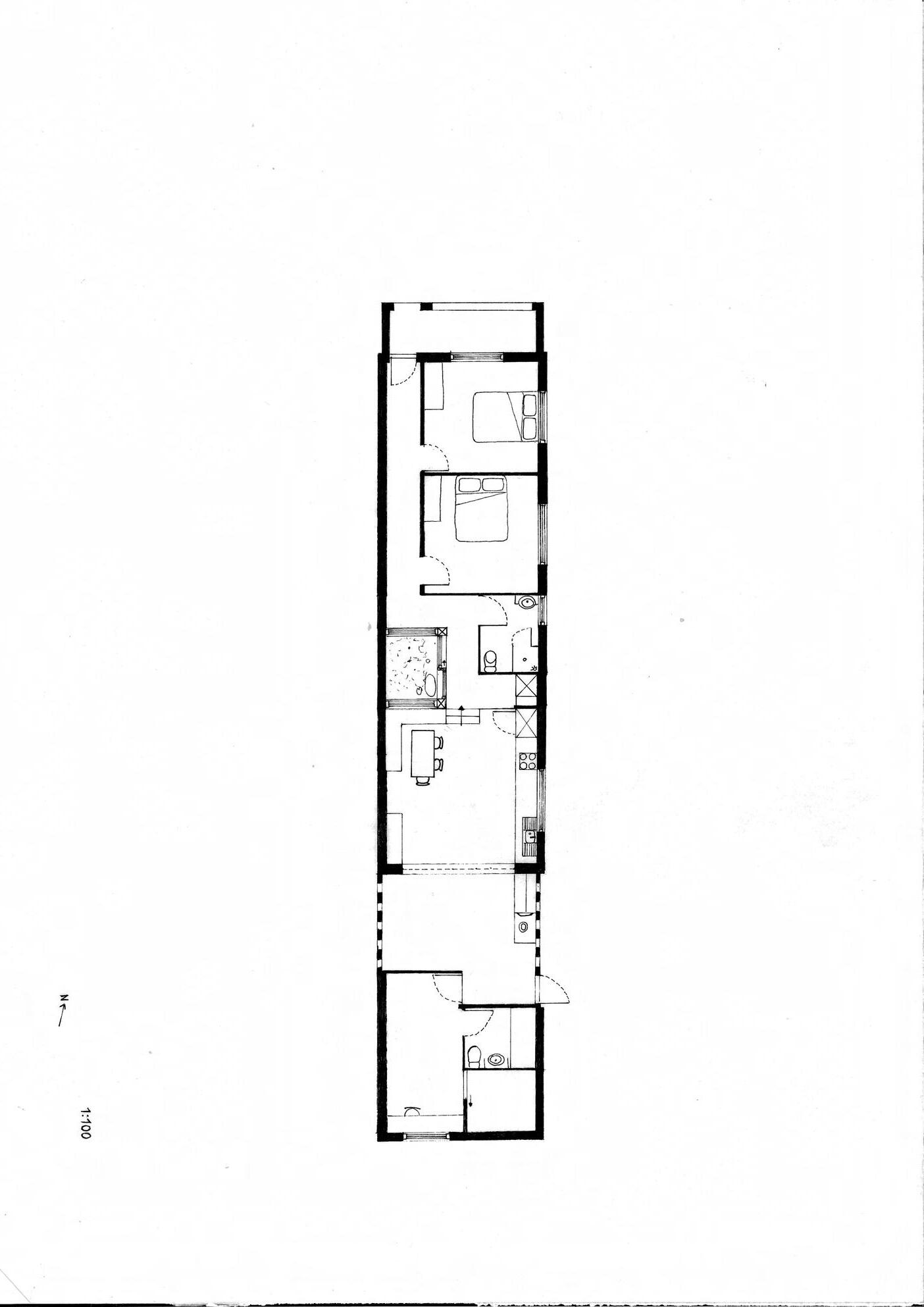

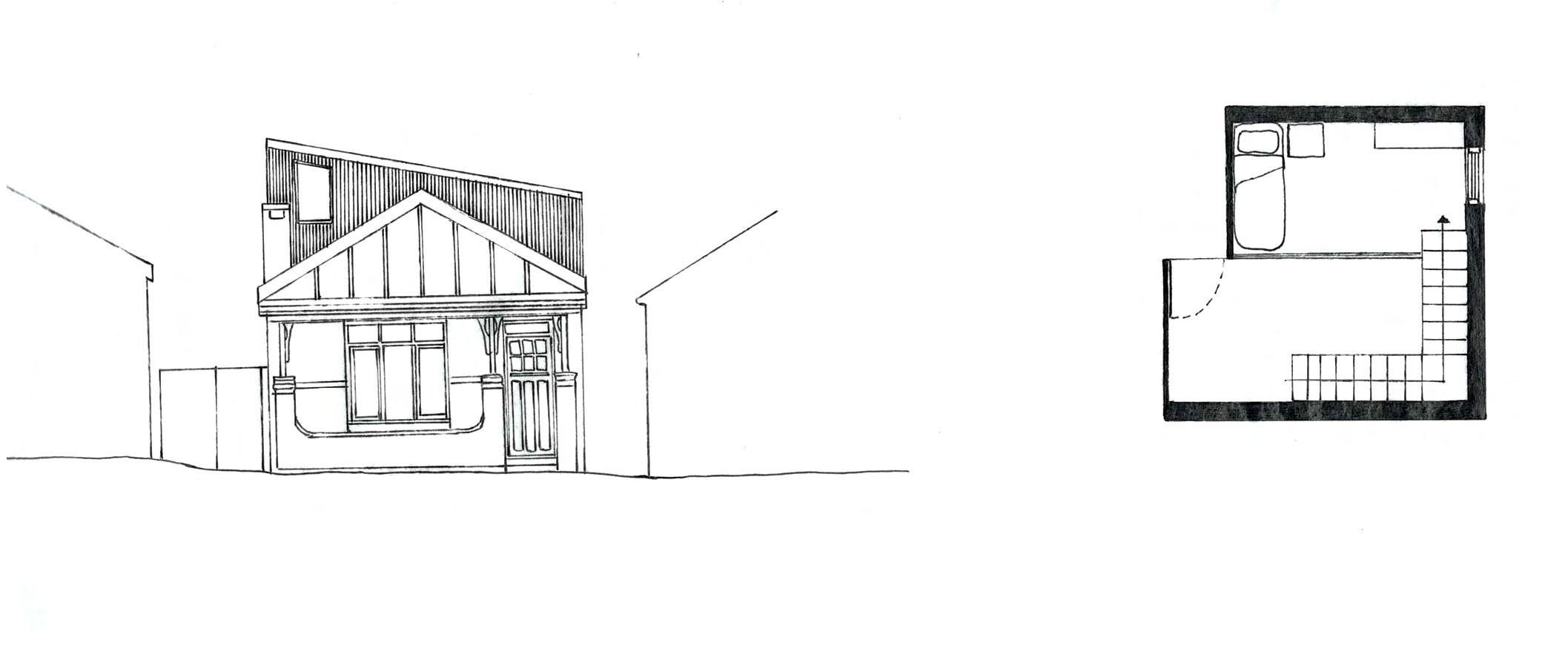

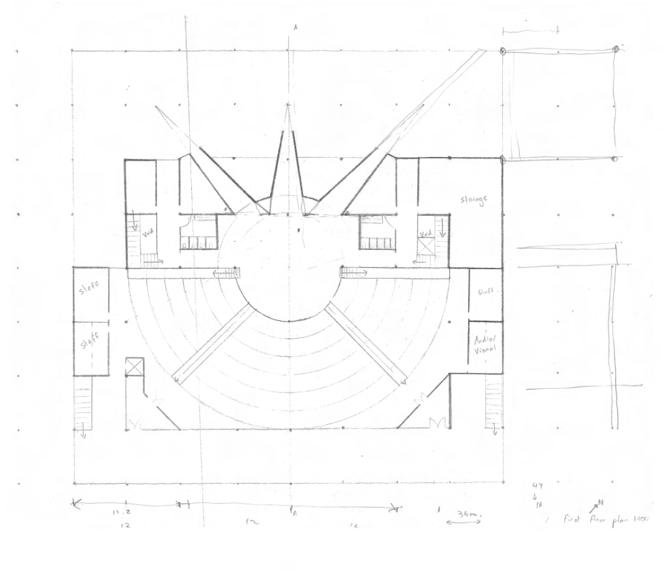

HAND DRAWN PLANS

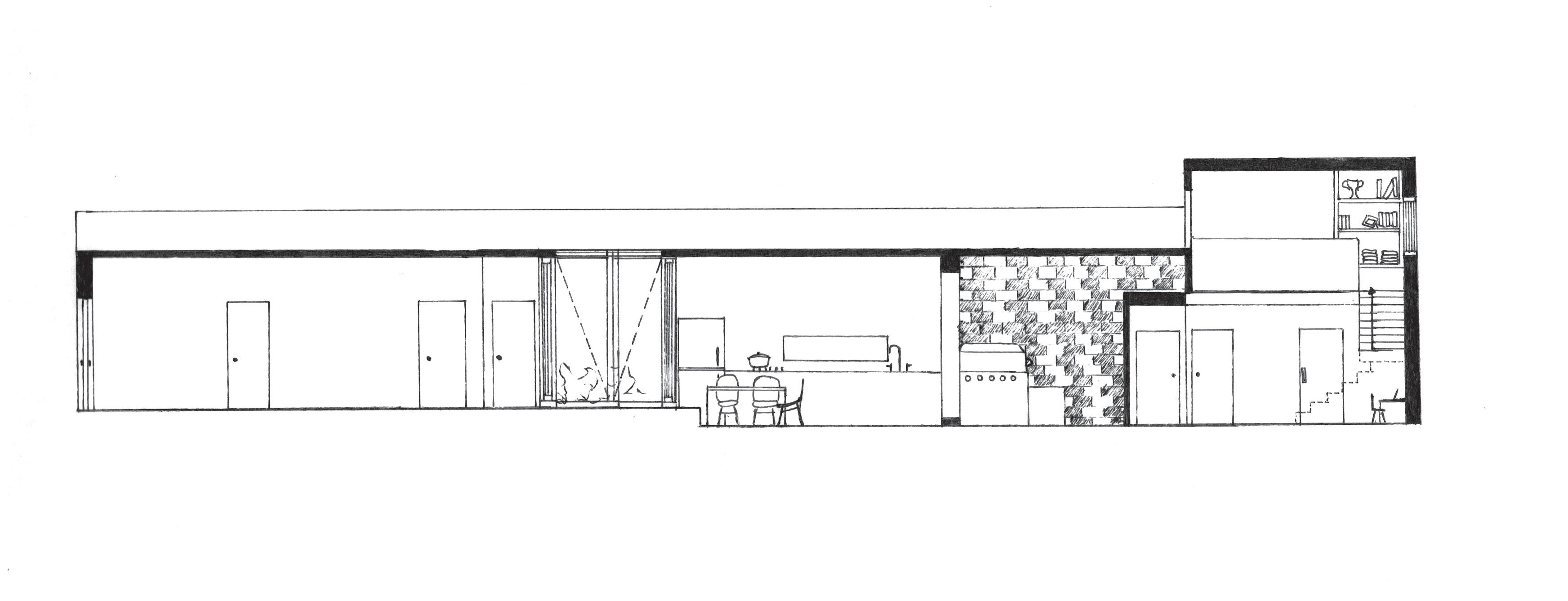

HAND DRAWN SECTIONS & ELEVATIONS

DESIGN PORTFOLIO 2024

PG. 38

NORTH EVELEIGH SPORTS CENTRE

TIANA YEE

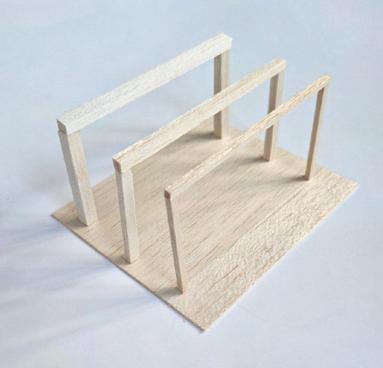

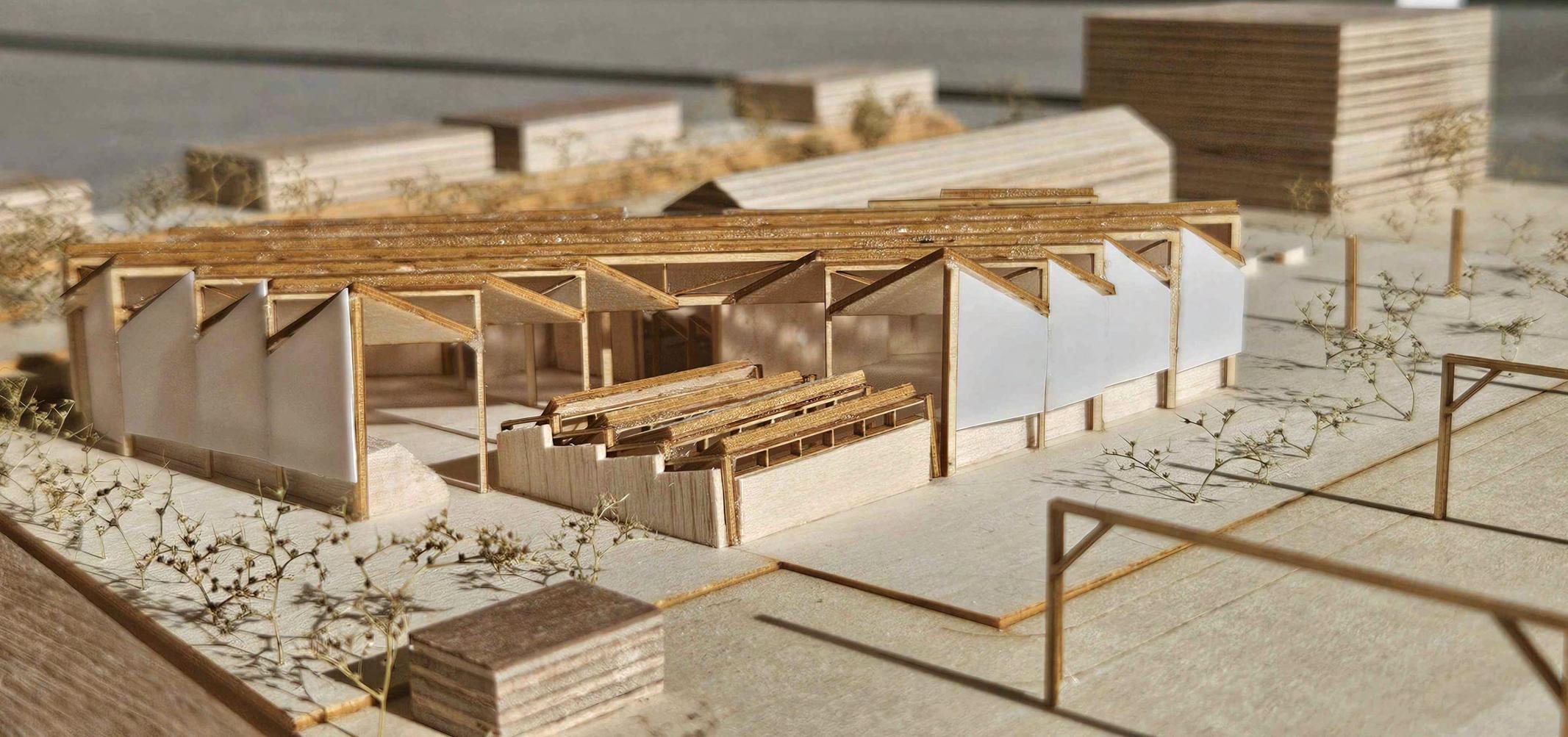

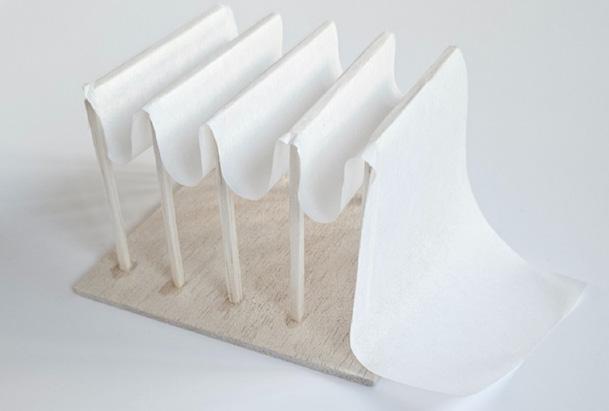

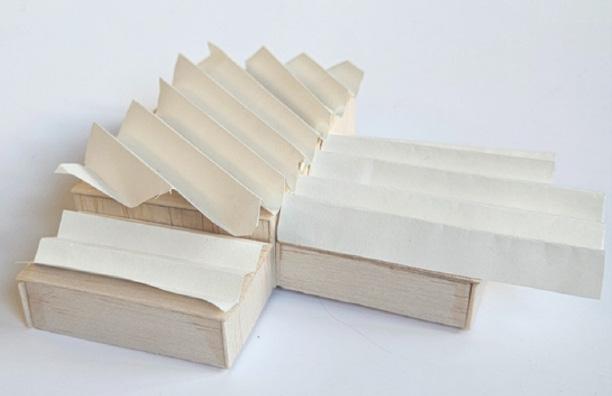

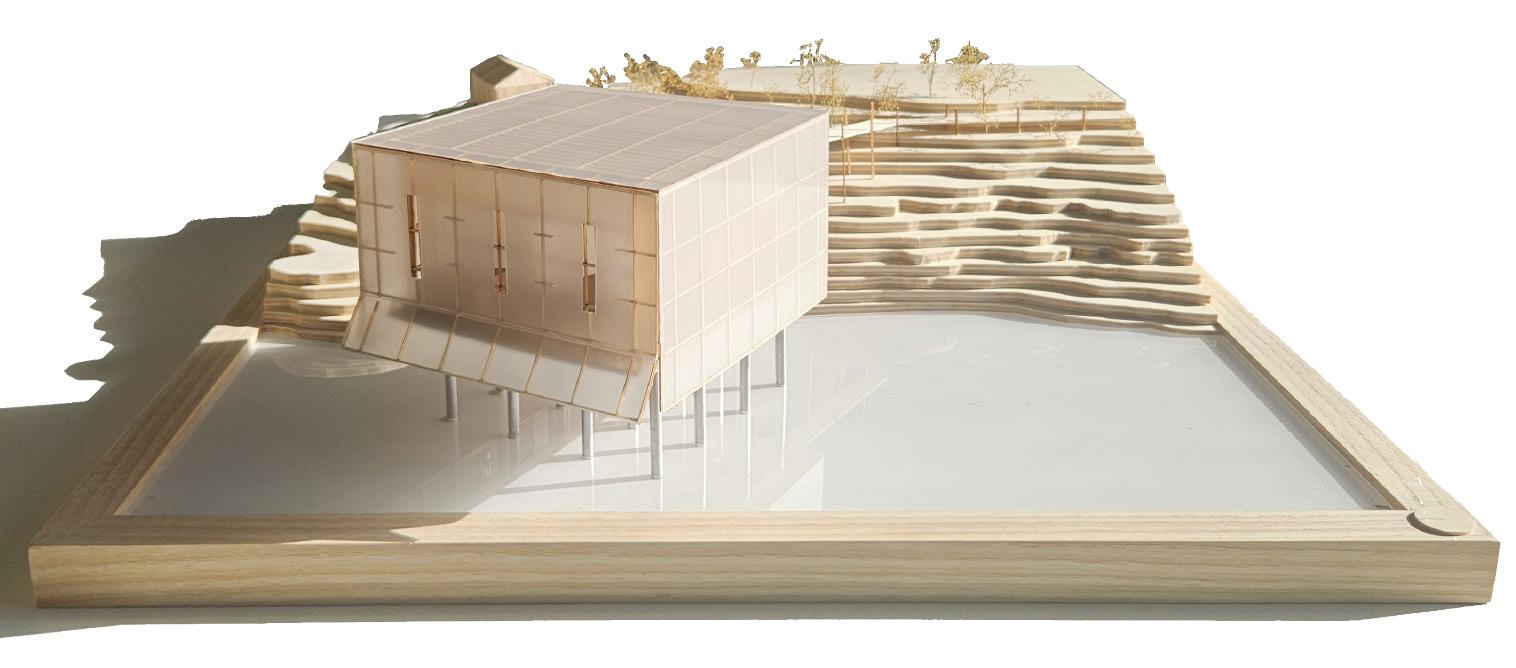

SKETCH MODELS & EXPERIMENTS

PG. 39

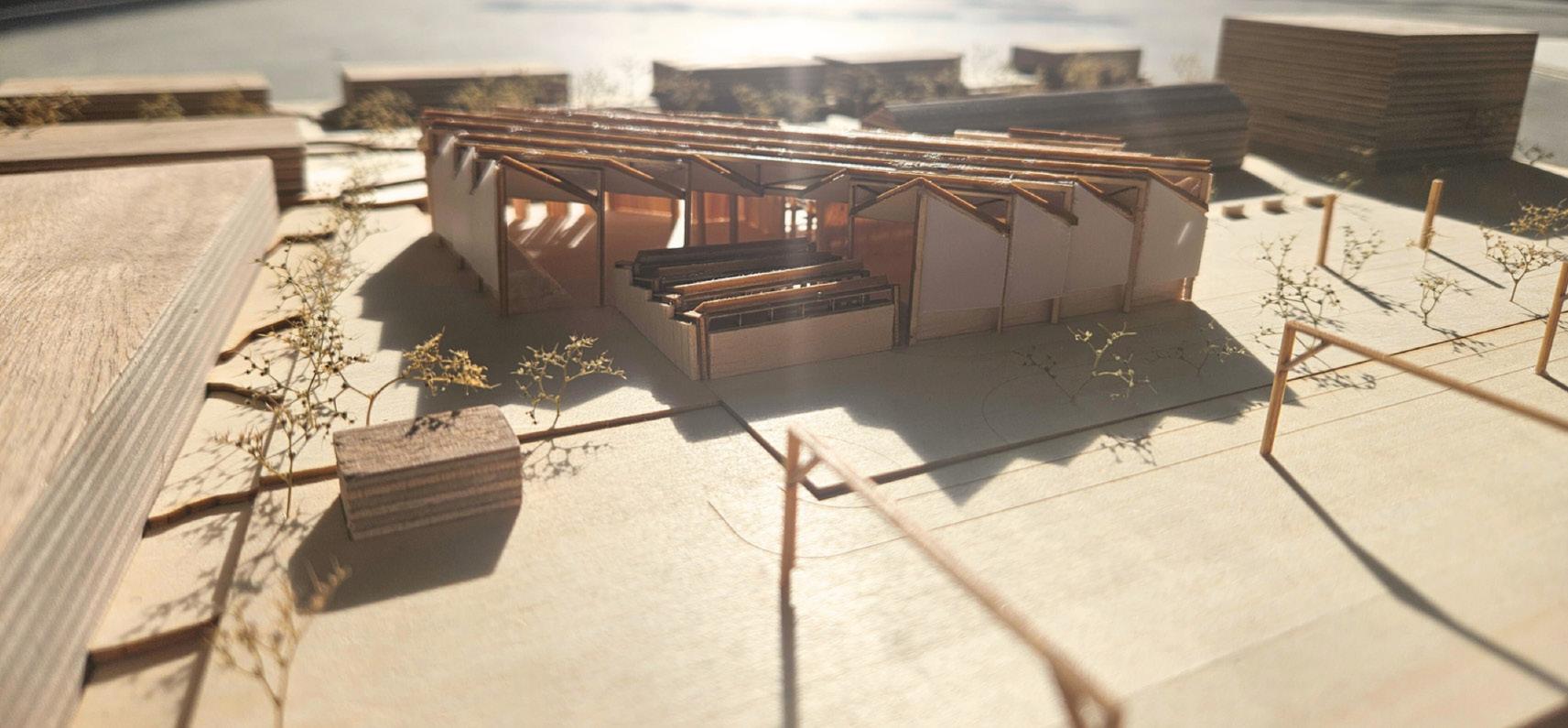

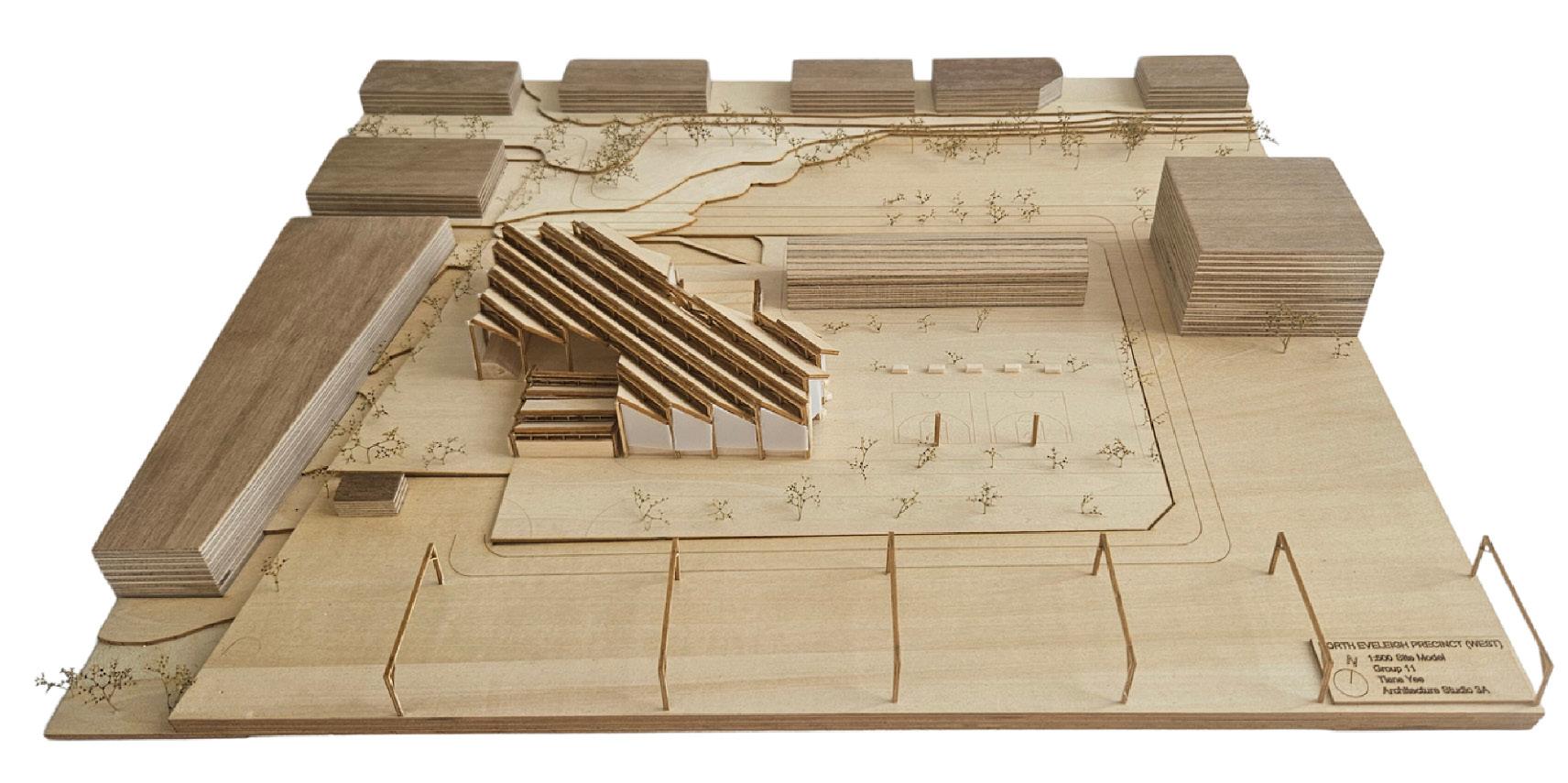

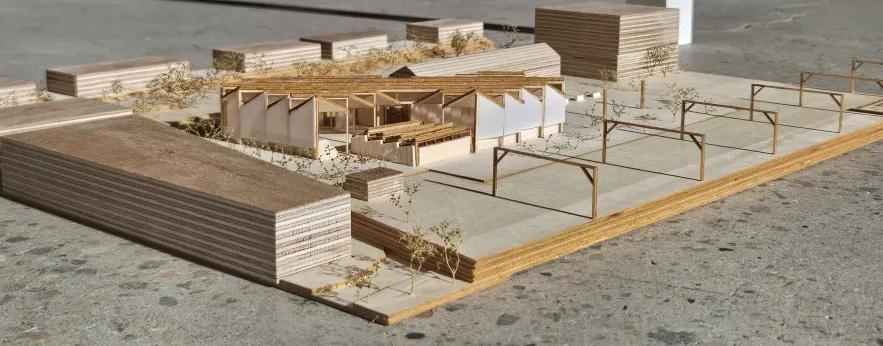

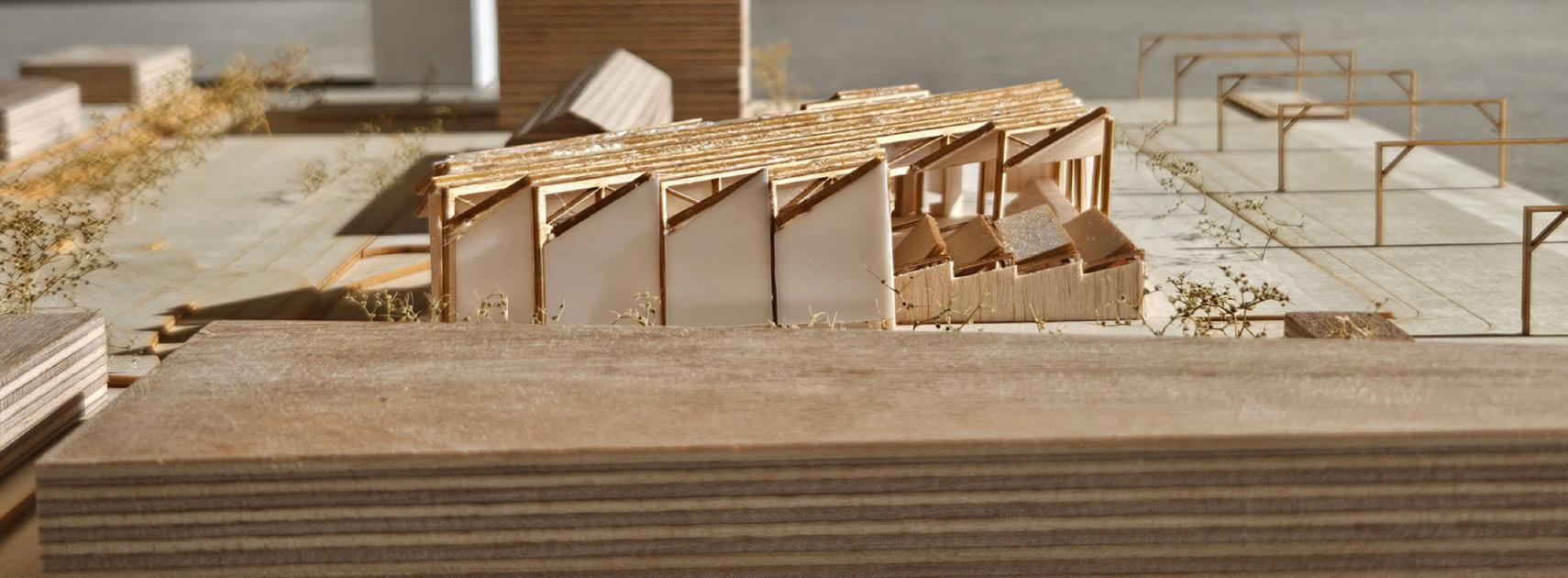

1:200 MODEL

DESIGN PORTFOLIO 2024

PG. 40

TIANA YEE

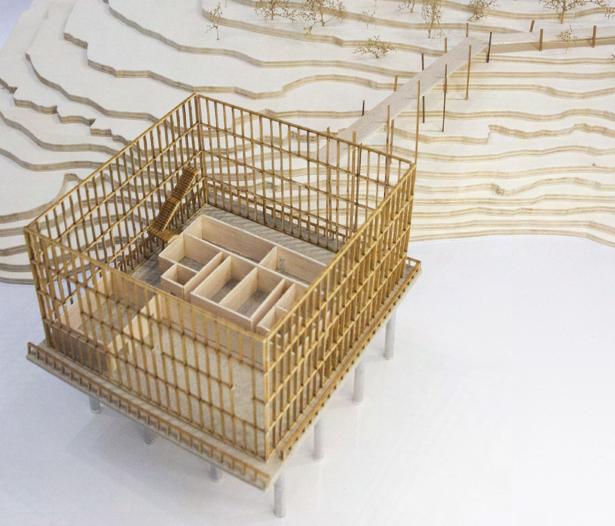

SOUTH HEAD PERFORMANCE HOUSE

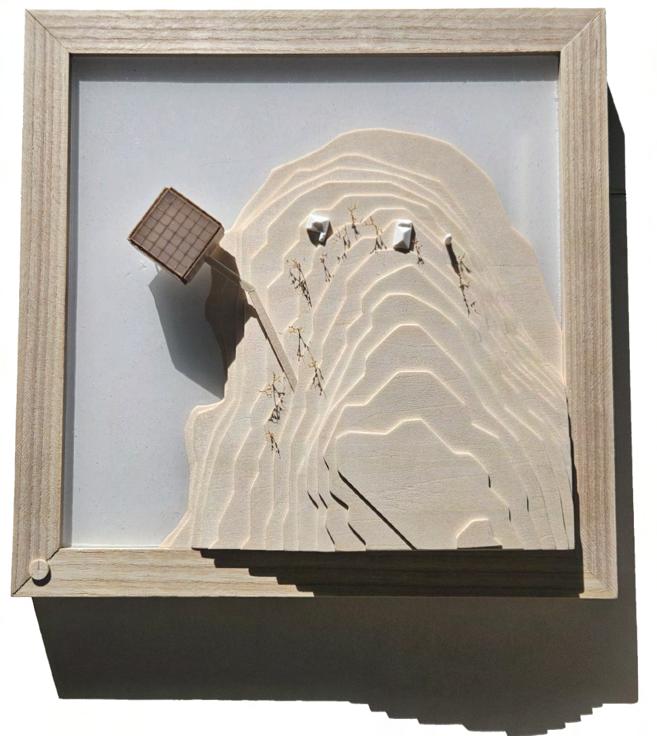

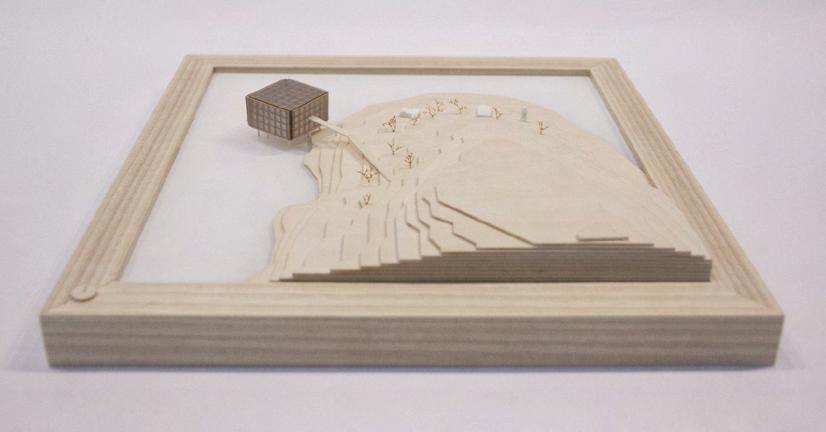

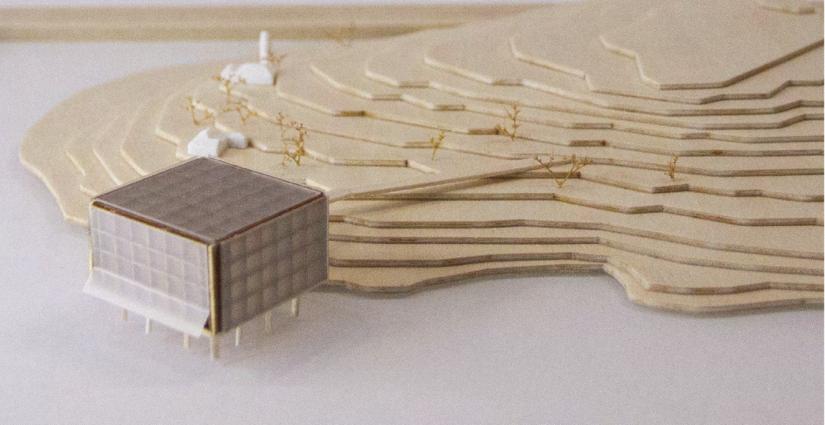

1:1000 LOCATION PLAN

PG. 41

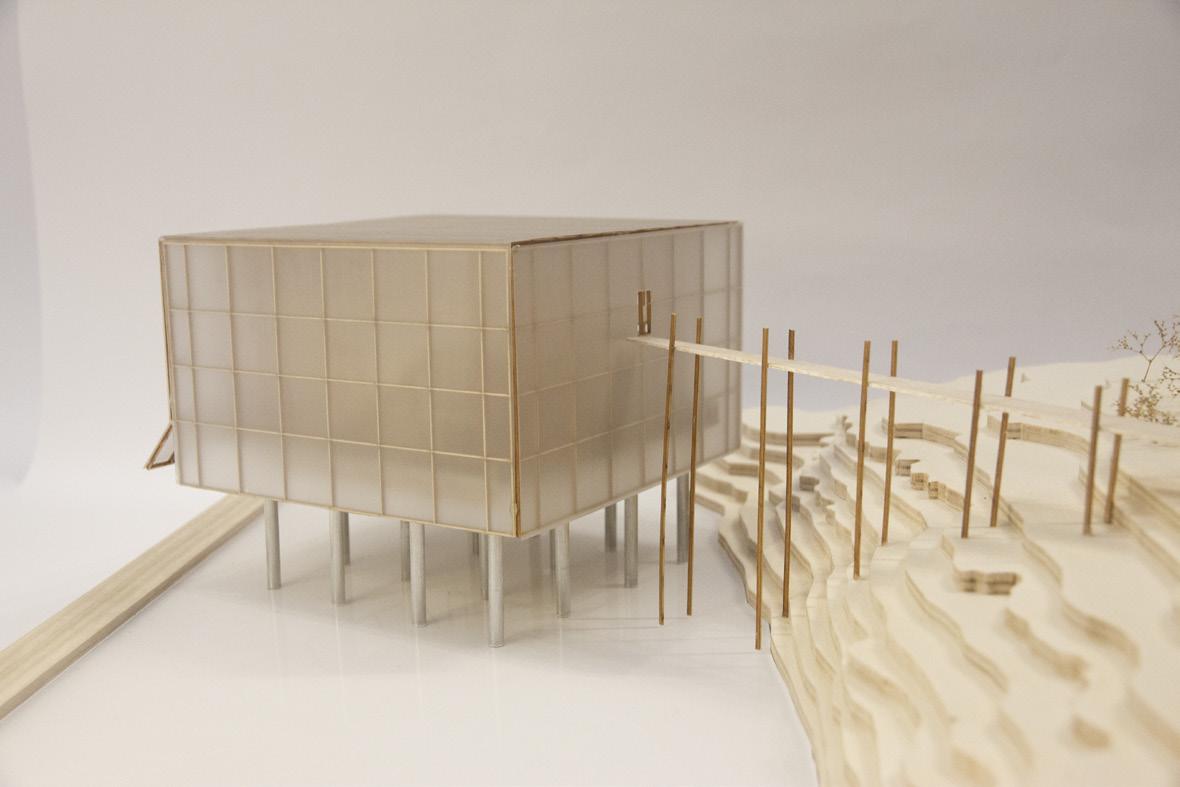

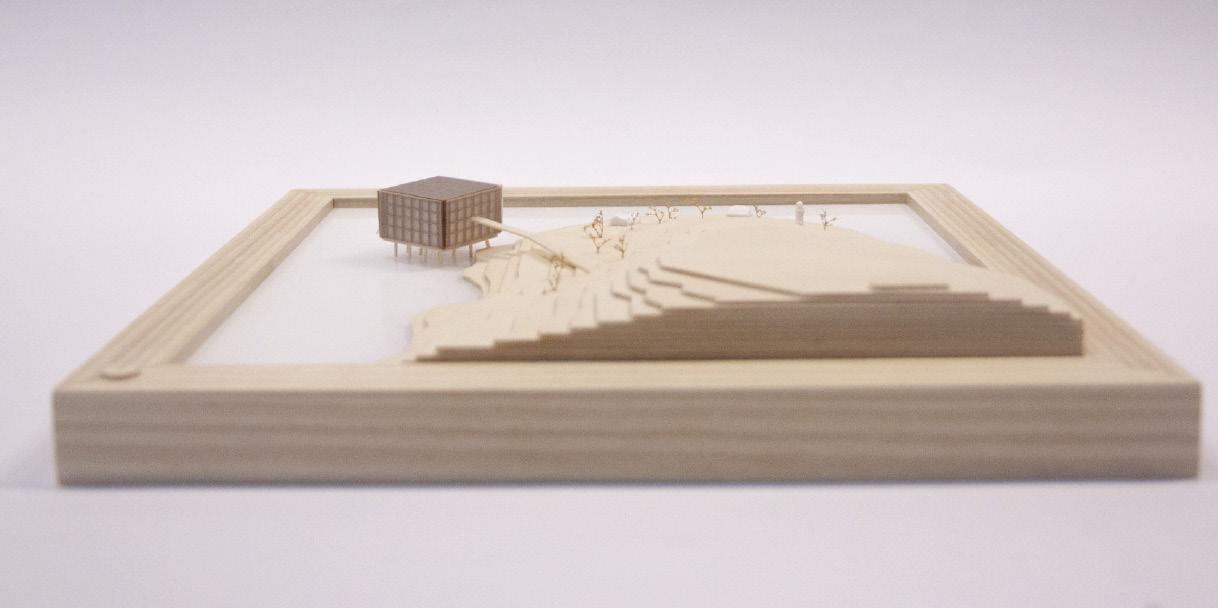

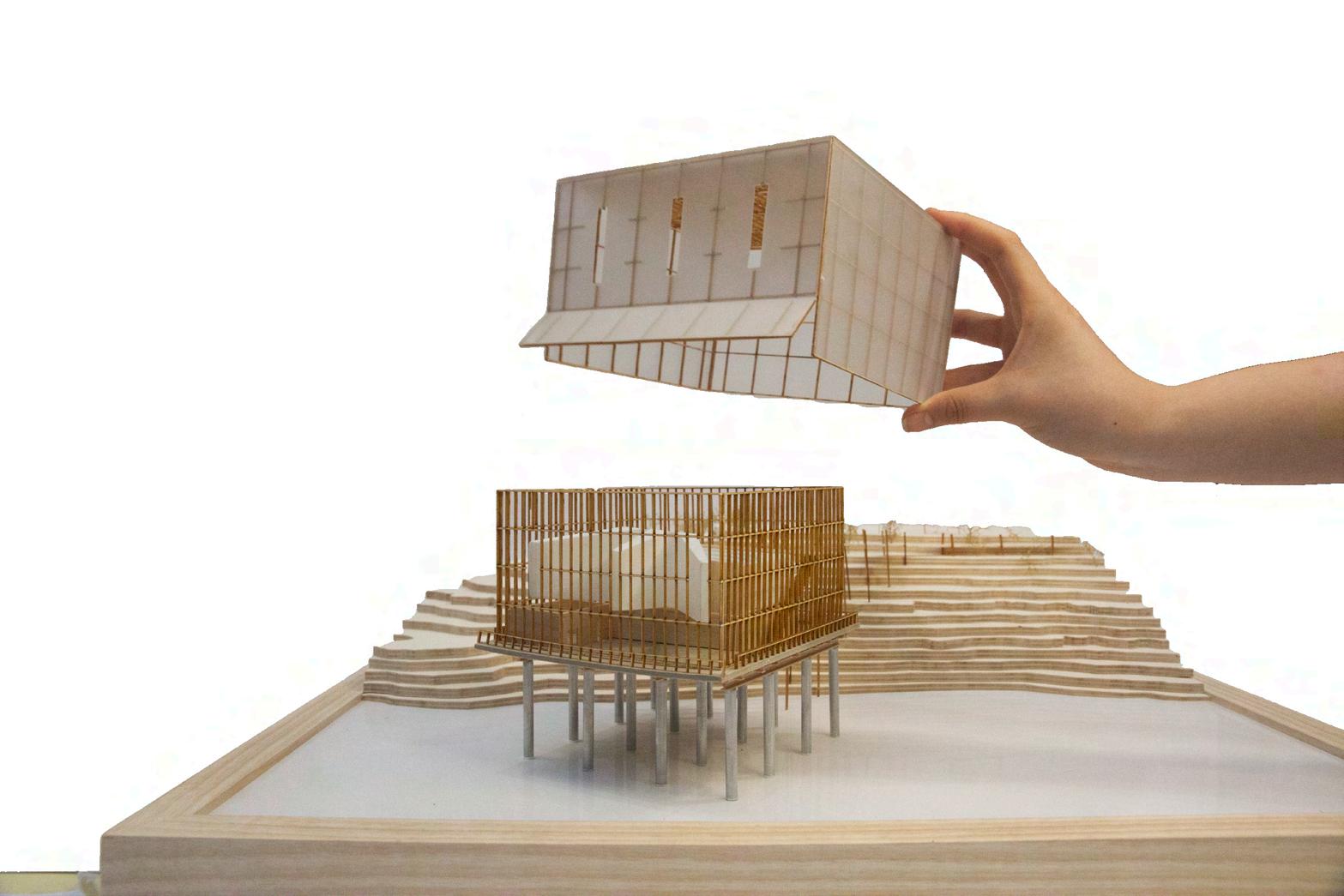

1:200 MODEL

DESIGN PORTFOLIO 2024

PORTFOLIO

TIANA YEE

get in touch tianayee.architecture@gmail.com

thank you
