VENSEN
...LIGHTING YOUR BRAND
ROPE LIGHTS | STRIP LIGHTS | POWER SUPPLY
PRODUCT CATALOGUE
MODERN LED STRIP LIGHTING FOR YOUR
OEM AND BRANDING
GIVE ANY ROOM THE EDGE LED
We are Vensen, your one-stop shop for all your led rope lights, strips, and driver requirements.
Known for our high quality, we manufacture a wide variety of led strips, rope lights, and drivers suited for all your projects We work with one simple but effective formula: Great Quality Products and Speedy Service. From relaxing warm white to vibrant RGB, our range includes 5mm, 8mm, and 10mm PCB available in both 12v and 24v We also produce rope lights in 9 various colors including Warm White, Neutral White, White, Red, Green, Blue, Pink, Ice Blue, and Amber.
With these, we also manufacture drivers which come in three different series (Sleek, Smart, and Ultra) ranging from 2amp to 33amp many of our luminaries now have the Color Rendering Index (CRI) 90 Creating a warm natural light that stimulates a harmonious atmosphere to enhance your inspired designs
We have a team of experts dedicated to helping our clients with their queries and giving them the best suggestions for their requirements. You will find a huge range of topnotch Led strips and Drivers, all of which are guaranteed to save you money on your electricity bills

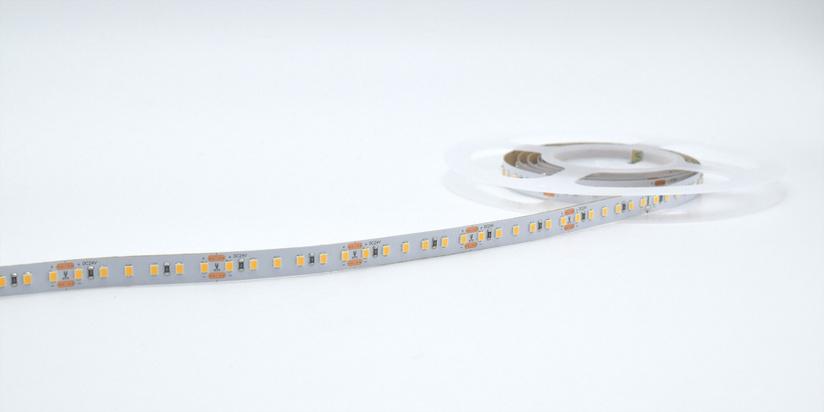

STRIP LIGHT AND ROPE LIGHTS
2835 | 60 LED | 12V DC SUPER BRIGHT
60 LED/METER STRIP LIGHT
Colors LED CHIP 2835 SMD LED per meter 60 LED Max Wattage 4.8W/m Voltage 12V DC PCB Width 8MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3k, 4k, 6k, Red, Green,Blue,Pink, Amber,IceBlue CRI 80
4.8W/M
TECHNICAL SPECIFICATION
2835 | 120 LED | 12V/24V DC SUPER BRIGHT 9W/M 120 LED/METER STRIP LIGHT CRI 80
Colors LED CHIP 2835 SMD LED per meter 120 LED Max Wattage 9 W/m Voltage 12V/24V DC PCB Width 8MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3k, 4k, 6k, Red, Green,Blue,Pink, Amber,IceBlue
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
2835 | 180 LED | 12V DC SUPER BRIGHT 14W/M 180 LED/METER STRIP LIGHT CRI 80
Colors LED CHIP 2835 SMD LED per meter 180 LED Max Wattage 14 W/m Voltage 12V DC PCB Width 10 MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3k, 4k, 6k, Red, Green,Blue,Pink, Amber,IceBlue
TECHNICAL SPECIFICATION
2835 | 240 LED | 12V/24V DC SUPER BRIGHT 18W/M 240 LED/METER STRIP LIGHT CRI 80
Colors LED CHIP 2835 SMD LED per meter 240 LED Max Wattage 18 W/m Voltage 12V/24V DC PCB Width 10 MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3k, 4k, 6k, Red, Green,Blue,Pink, Amber,IceBlue
5050 | 60 LED | RGB | 12V DC SUPER BRIGHT 13W/M 60 LED/METER STRIP LIGHT CRI 80
SPECIFICATION Colors LED CHIP 5050 SMD LED per meter 60 LED Max Wattage 13 W/m Voltage 12V DC PCB Width 10 MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° Multicolorsfrom RGBspectrum
TECHNICAL
2835 | 120/180 LED | CCT | 12V DC SUPER BRIGHT 14W/M 180 LED/METER 3IN 1 STRIP LIGHT CRI 80 TECHNICAL SPECIFICATION Colors LED CHIP 5050 SMD LED per meter 120/180 LED Max Wattage 14 W/m Voltage 12V/24V DC PCB Width 10 MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3K,4K,6K
480| COB | 24V DC
SUPER BRIGHT 12W/M
90
Colors Max Wattage 12 W/m Voltage 24V DC PCB Width 10 MM IP Rating IP 20 Max Length (M) 5 M Beam Angle 120° 3K,4K,6K
COB DOTLESS STRIP LIGHT CRI
TECHNICAL SPECIFICATION
2835 | 120/180 LED | CCT | 12V DC SUPER BRIGHT 9/14W/M 120/180 LED/METER 5MM STRIP LIGHT CRI 80 TECHNICAL SPECIFICATION Colors LED CHIP 2835 SMD LED per meter 120/180 LED Max Wattage 9W/14 W/m Voltage 12V/24V DC PCB Width 5 MM IP Rating IP 20 Max Length (M) 5 M Color Rendering Index 80/90 CRI Beam Angle 120° 3K,4K,6K
ROPE LIGH V DC
SUPER BRIGHT 9W/M 120/LED
BASE WHITE TRANSPAR
FROSTED TECHNICAL SPECIFICATION LED CHIP 2835 SMD LED per meter 60/120 LED Colors Voltage 220V DC PCB Width 11 MM IP Rating IP 65 Max Length (M) 50 M Color Rendering Index 80/90 CRI Beam Angle 120° 3k, 4k, 6k, Red, Green,Blue,Pink, Amber,IceBlue
METER ROPE LIGHT
THREESID
LED POWER SUPPLY
SMART SLIM SERIES
SMART SLIM SERIES
TECHNICAL SPECIFICATION
ITEMNO SIZE(MM) INPUTVOLTAGE(V) OUTPUTVOLTAGE(V) OUTPUTCURRENT(A) OUTPUTPOWER(W)
LED POWER SUPPLY
ULTRA SLIM SERIES
PRODUCT FEATURES
Built-in short circuit /over voltage /overheat protection
100% full load high temperature burning or aging
Air natural contention cooling.
Working temperature: -30°C ~ 50°C.
Storage temperature: -40°C ~ 80°C
Time between failure: >50000h
ULTRA SLIM
TECHNICAL SPECIFICATION
ITEMNO SIZE(MM) INPUTVOLTAGE(V) OUTPUTVOLTAGE(V) OUTPUTCURRENT(A) OUTPUTPOWER(W)
SERIES
LED POWER SUPPLY
SLEEK SLIM SERIES
PRODUCT FEATURES
Built-in short circuit /over voltage /overheat protection
100% full load high temperature burning or aging
Air natural contention cooling.
Working temperature: -30°C ~ 50°C.
Storage temperature: -40°C ~ 80°C
Time between failure: >50000h
SLEEK SLIM
TECHNICAL SPECIFICATION
ITEMNO SIZE(MM) INPUTVOLTAGE(V) OUTPUTVOLTAGE(V) OUTPUTCURRENT(A) OUTPUTPOWER(W)
SERIES
OUR SERVICES
OEM SERVICES (BRANDING & PRINTING)
We provide on demand OEM customised services. We design printed PCB, special CCT, brnaded packaging and high CRI according to your brand.
SHIPMENT
We provide fast and reliable shipment for your manufactured good.*
TECHNICAL INFORMATION
We can help you guide and answer all the questions you may have related to our products
SMALL MOQ/FLEXIBILITY
Great business coems from small orders hence, we also accept smal orders. (T&C Apply)
LIGHTING YOUR BRAND LIGHTING YOUR LIFE.
VENSEN
...LIGHTING YOUR BRAND
+91 7849825832/33/34
VENSENLIGHTING1@GMAIL.COM
WWW,VENSENLIGHTING.COM
VENSEN G979B, G979C, PHASE 3, SITAPURA INDUSTRIAL AREA, JAIPUR, RAJASTHAN 302022
