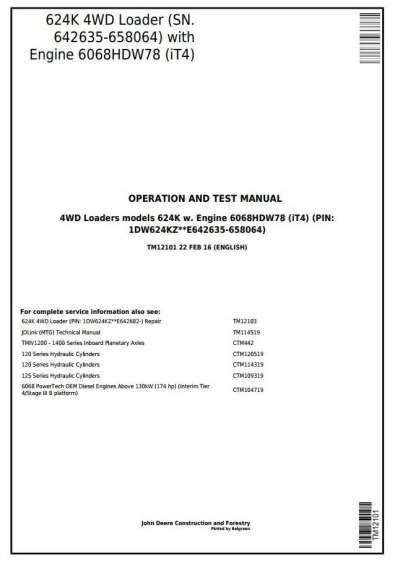

John Deere 624K 4WD Loader Test
Service Manual - TM12101
It is Original Factory Diagnostic, Operation and Test Service Manual for John Deere 4WD Loaders Models 624K with Engine 6068HDW78 (iT4)
Thismanualcontainshighqualityimages,diagrams,instructionstohelpyoutooperate, maintenance,diagnostic,andrepairyourLoader.Thisdocumentisprintable,without restrictions,containssearchabletext,bookmarks,crosslinksforeasynavigation.
Language: English
Format: PDF, 1518 pages
Covered models:
624K (PIN: 1DW624KZ**E642635-658064)
Contents:
Foreword
Manual Identification-READ THIS FIRST!
General Information
Safety Diagnostics
Engine Control Unit (ECU) Diagnostic Trouble Codes
Transmission Control Unit (TCU) Diagnostic Trouble Codes
Vehicle Control Unit (VCU) Diagnostic Trouble Codes
Sealed Switch Module (SSM) Diagnostic Trouble Codes
Advanced Display Unit (ADU) Diagnostic Trouble Codes
Radar Object Detection (ROD) Diagnostic Trouble Codes
Ground Speed Radar (RDR) Diagnostic Trouble Codes
Joystick Steering Valve (JSV) Diagnostic Trouble Codes
Joystick Steering Controller (JSC) Diagnostic Trouble Codes
Operational Checkout Procedure
Operational Checkout Procedure
Engine
Theory of Operation
Diagnostic Information Adjustments
Tests
Electrical System
System Information System Diagrams
Sub-System Diagnostics
Monitor Operation References
Power Train
Theory of Operation
Diagnostic Information Adjustments
Tests
Hydraulic System Theory of Operation
Diagnostic Information Adjustments
Tests
Heating and Air Conditioning
Theory of Operation
Diagnostic Information Tests
